CSCE-411 Design and Analysis of Algorithms Spring 2025 Instructor: Jianer Chen Office: PETR 428 Phone: 845-4259 Email: chen@cse.tamu.edu Notes 25: Minimum spanning tree: Prim s Algorithm

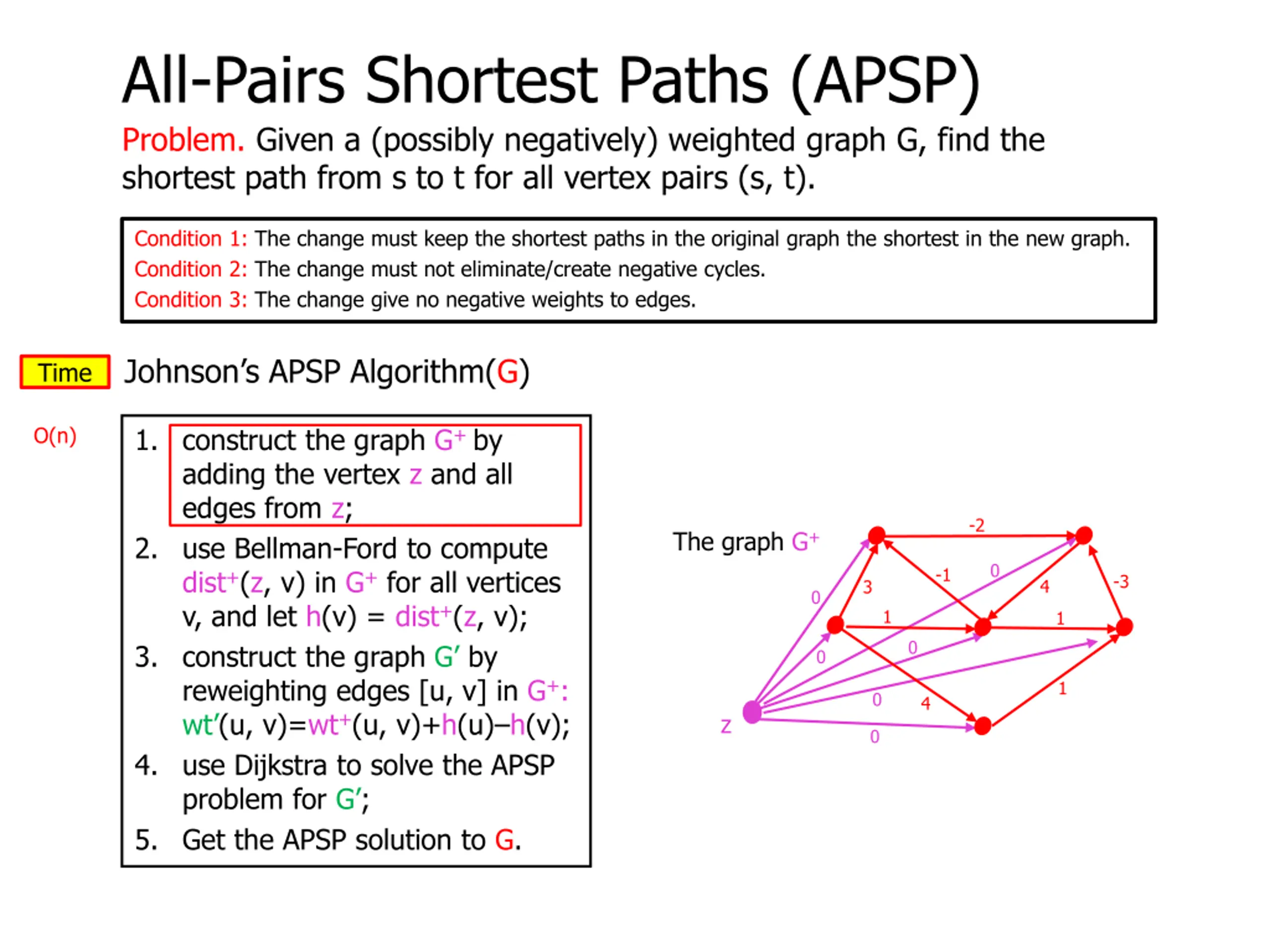

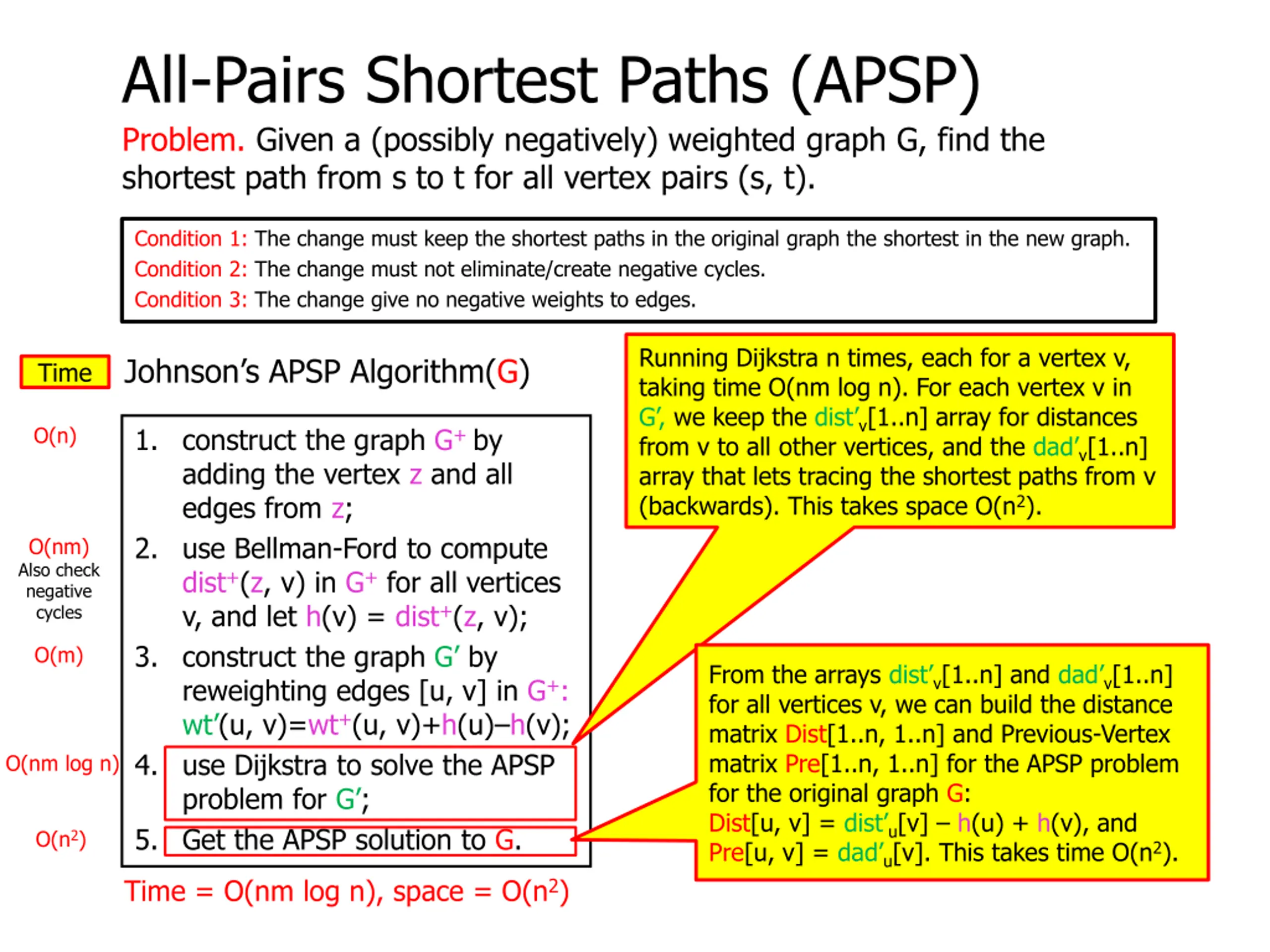

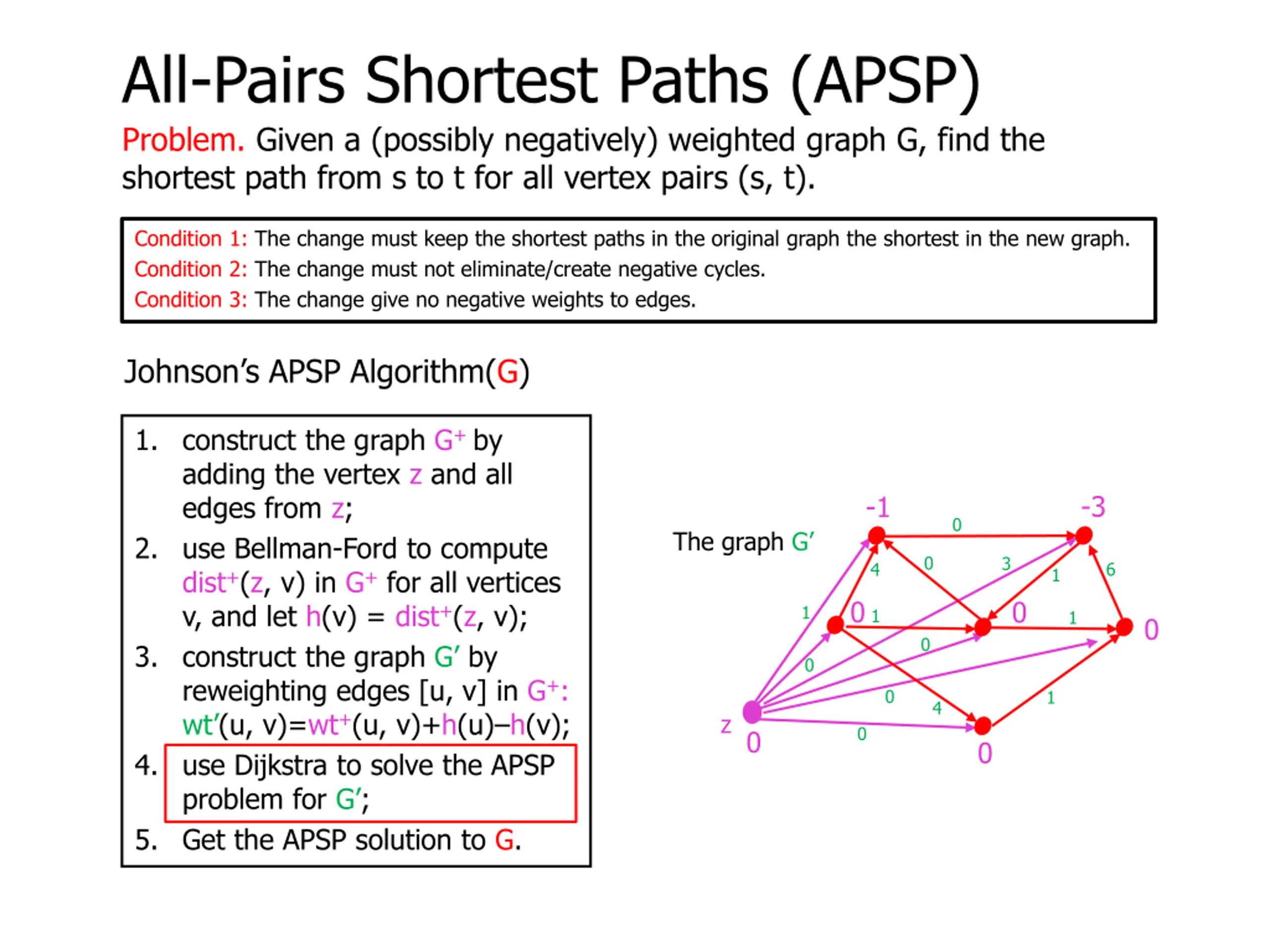

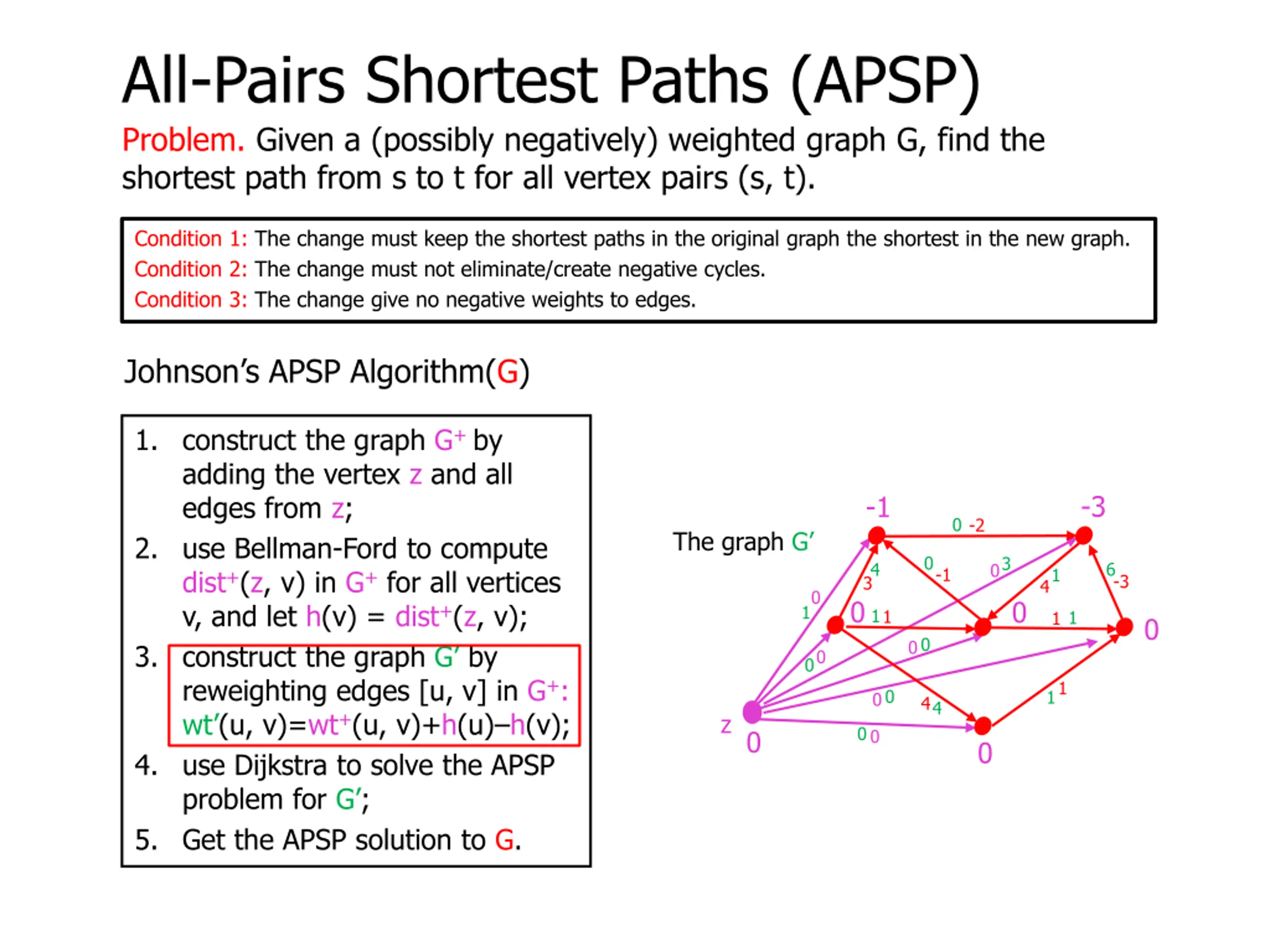

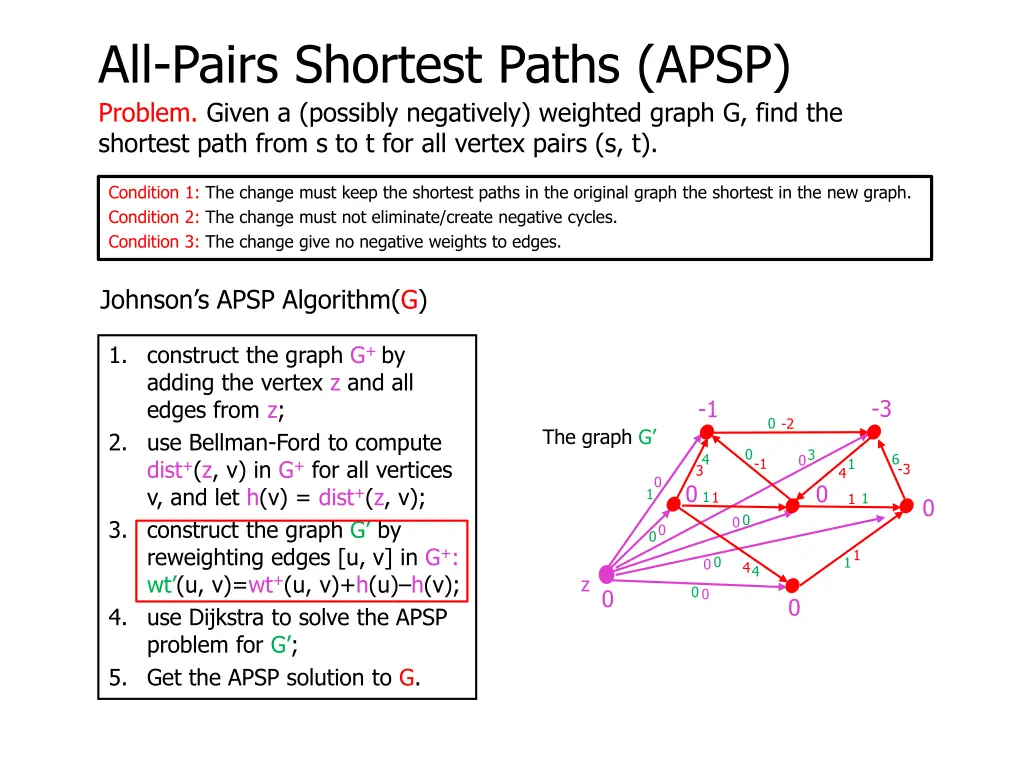

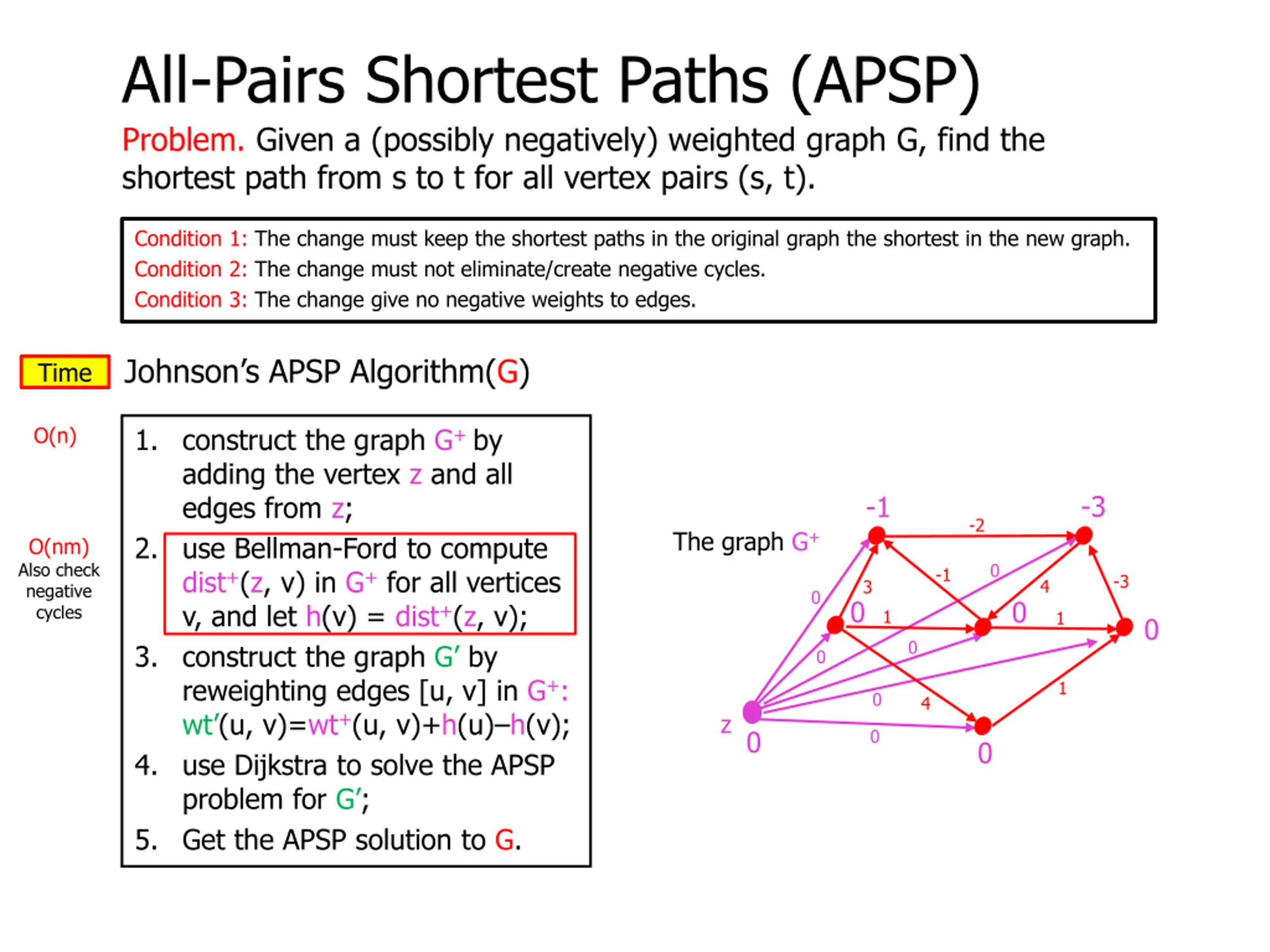

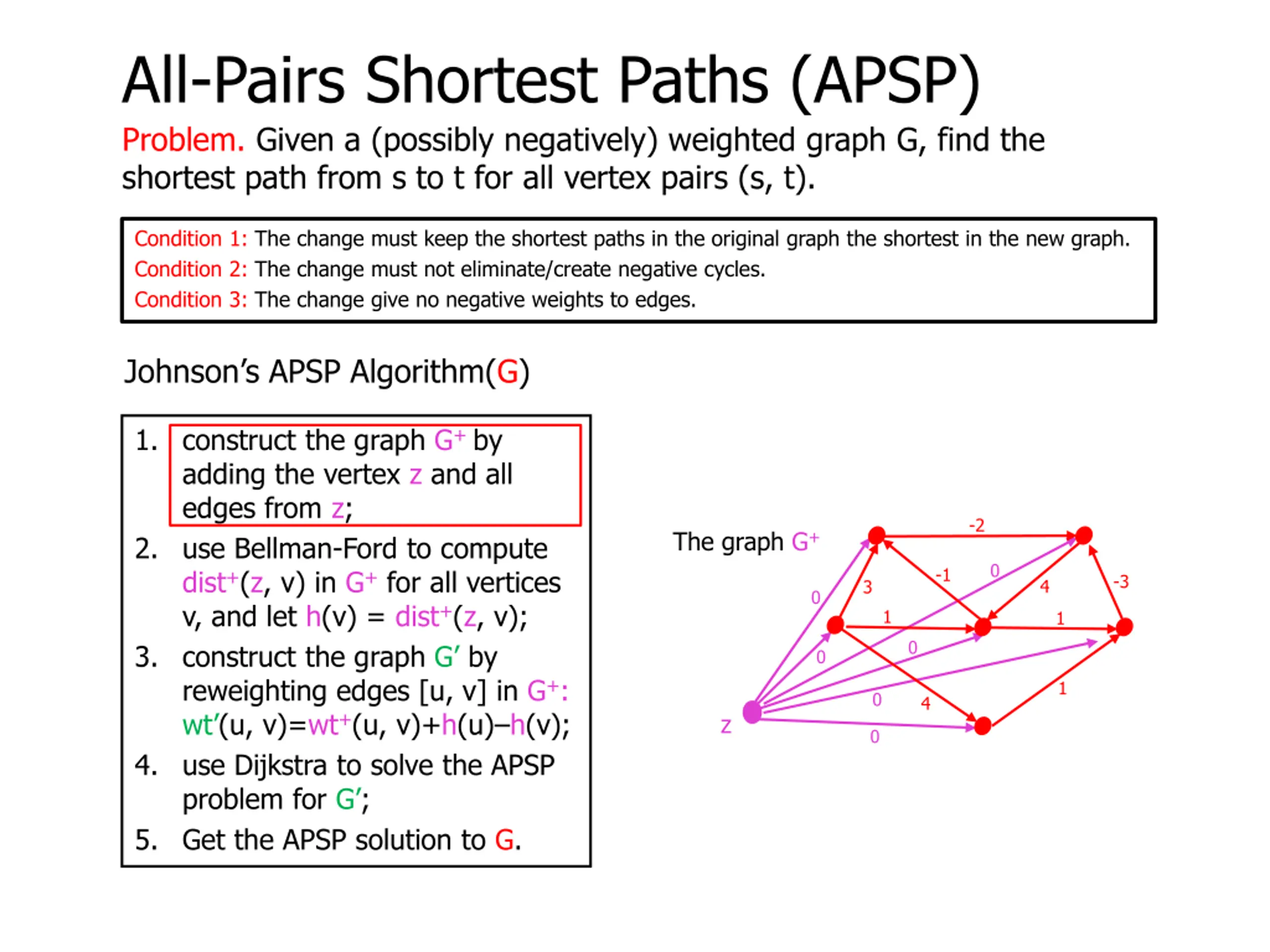

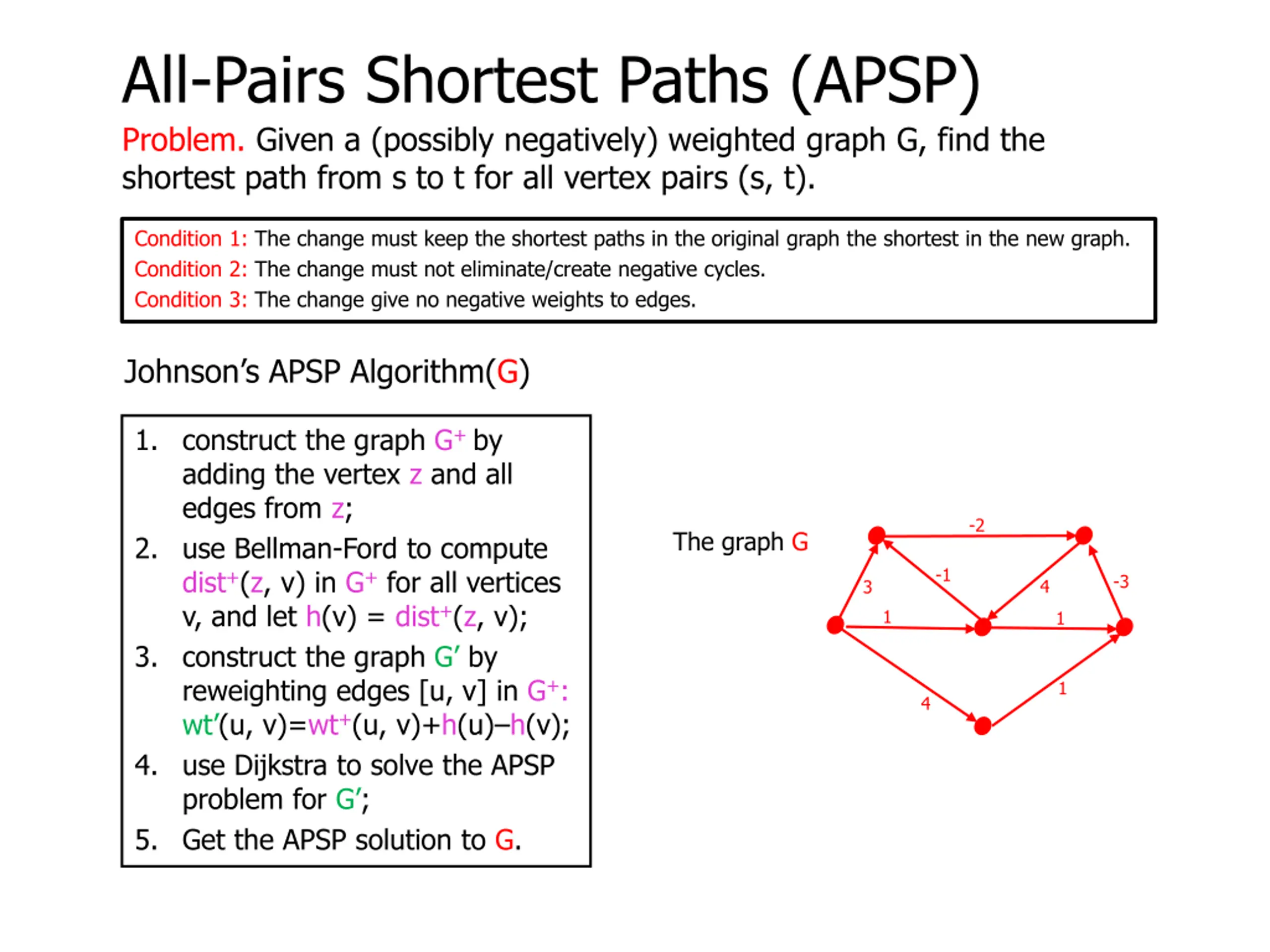

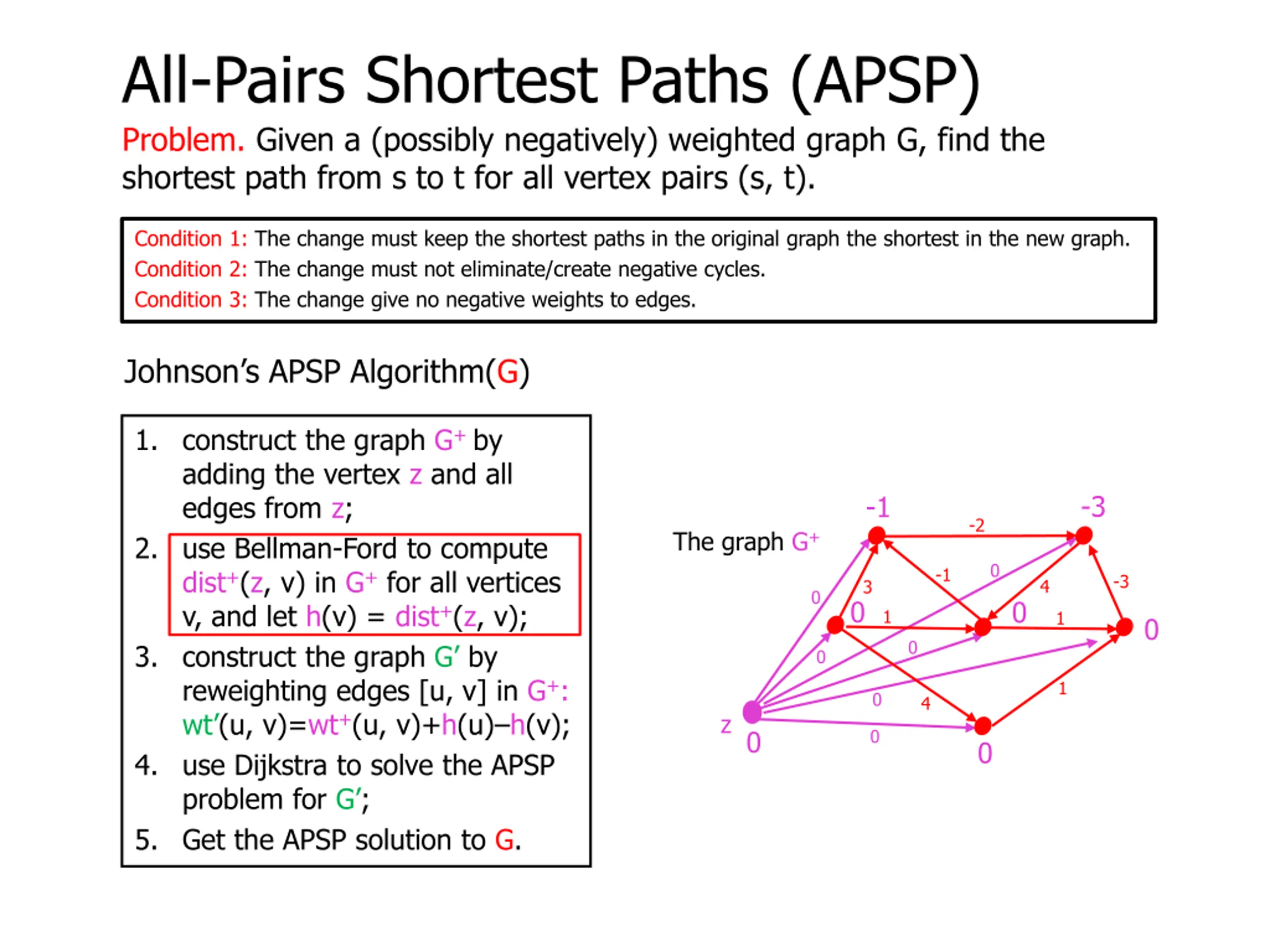

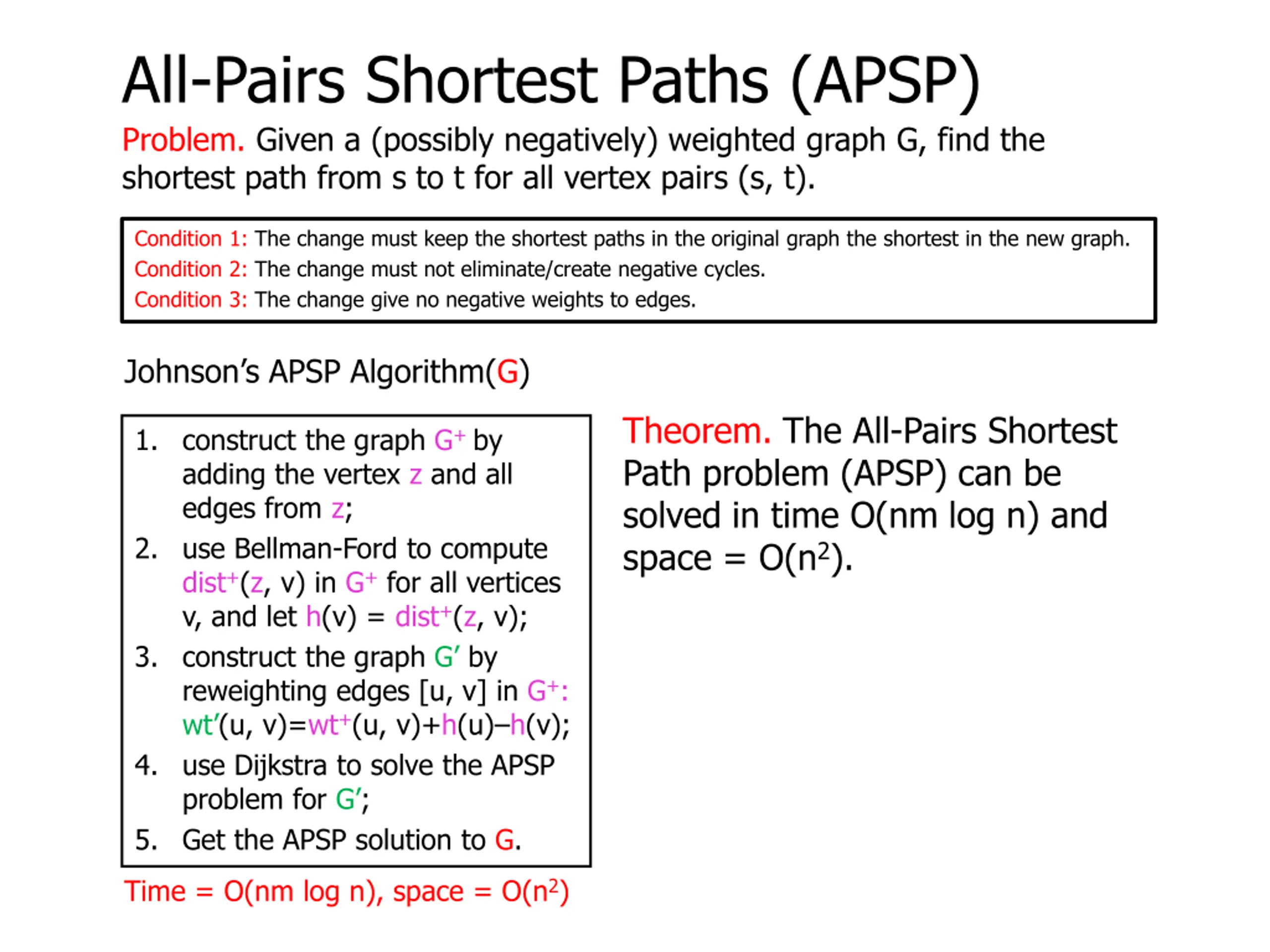

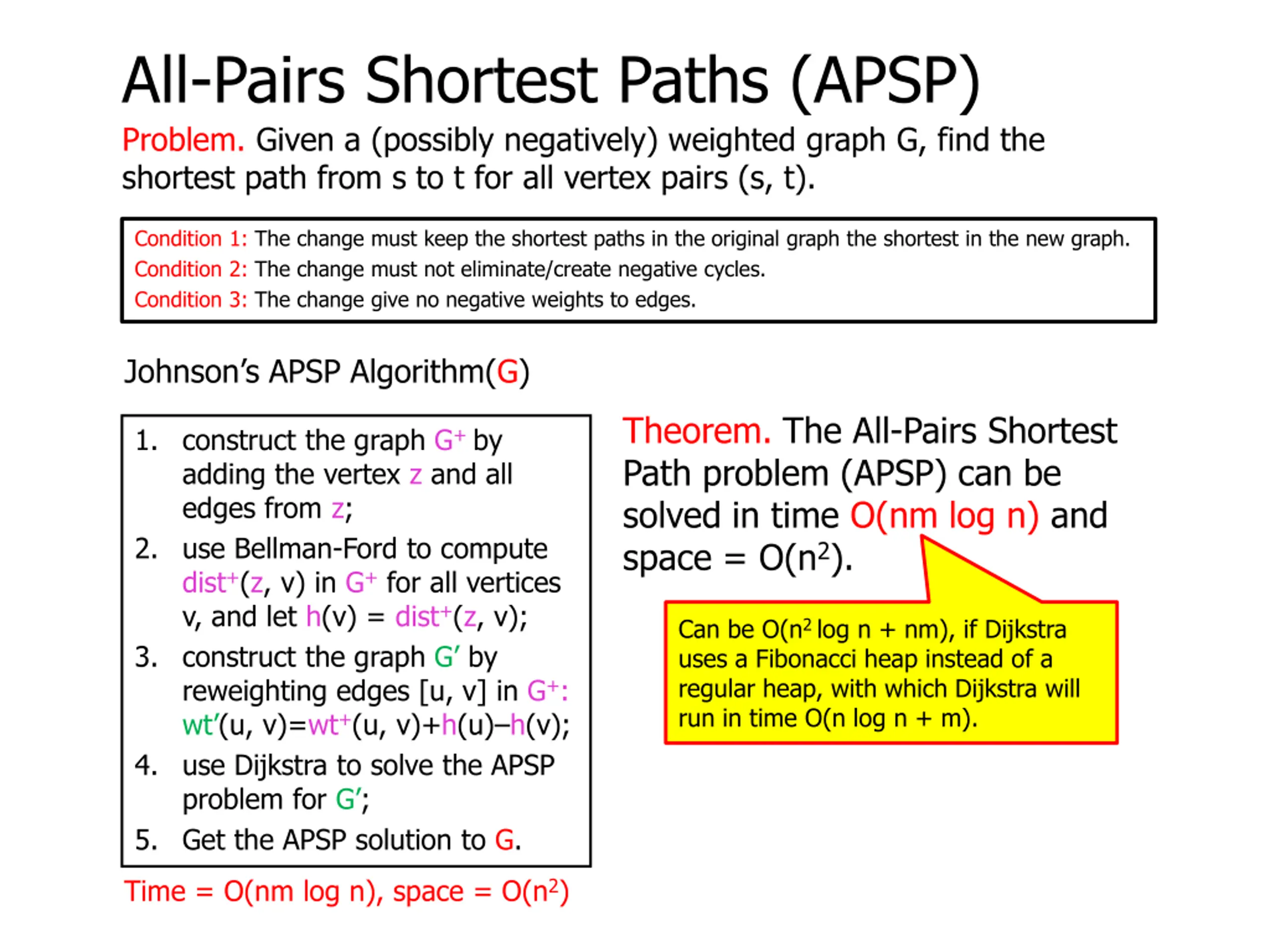

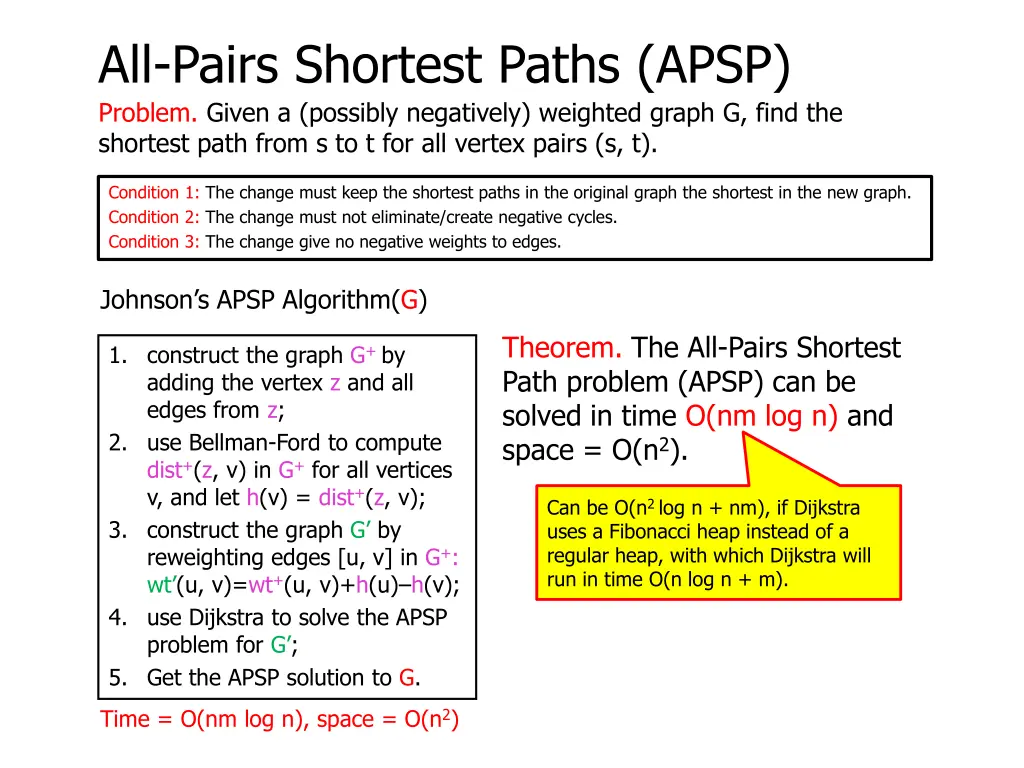

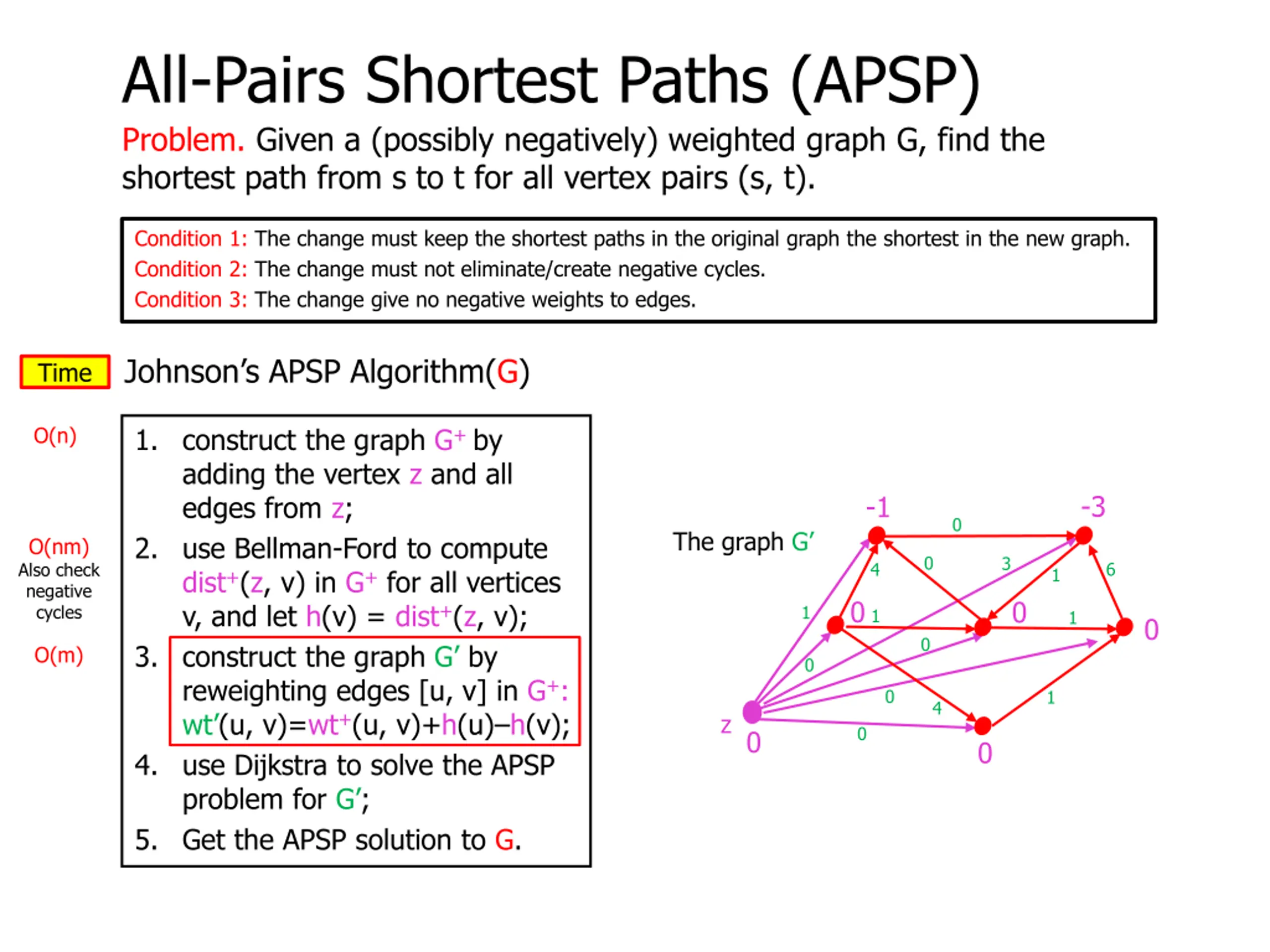

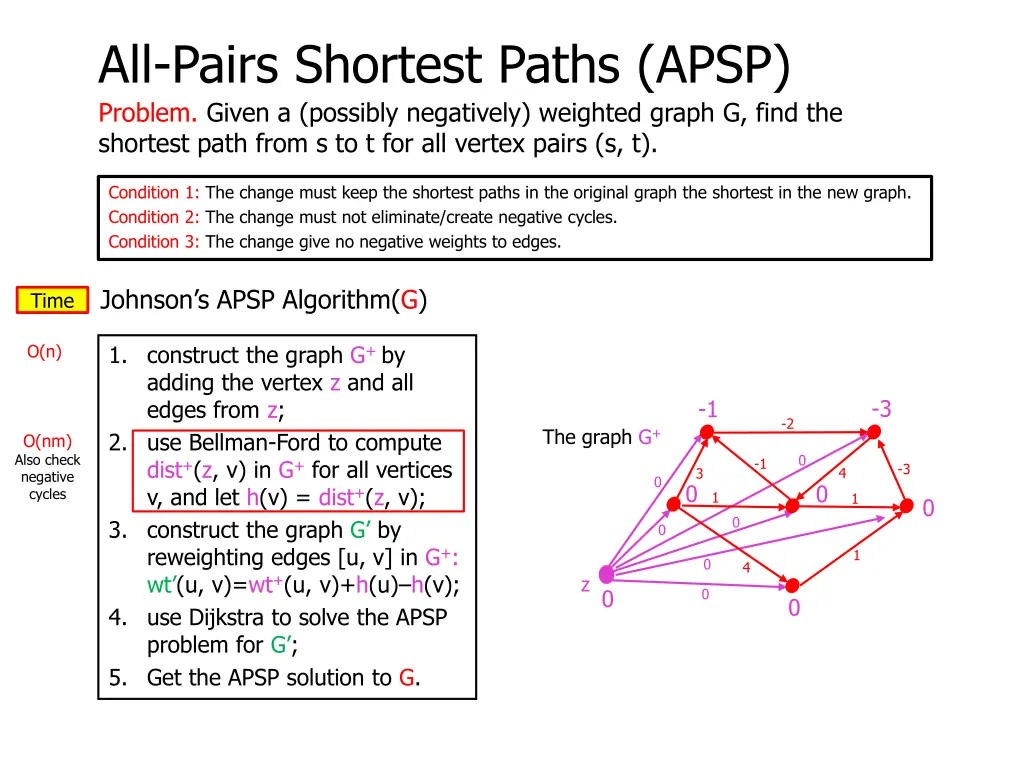

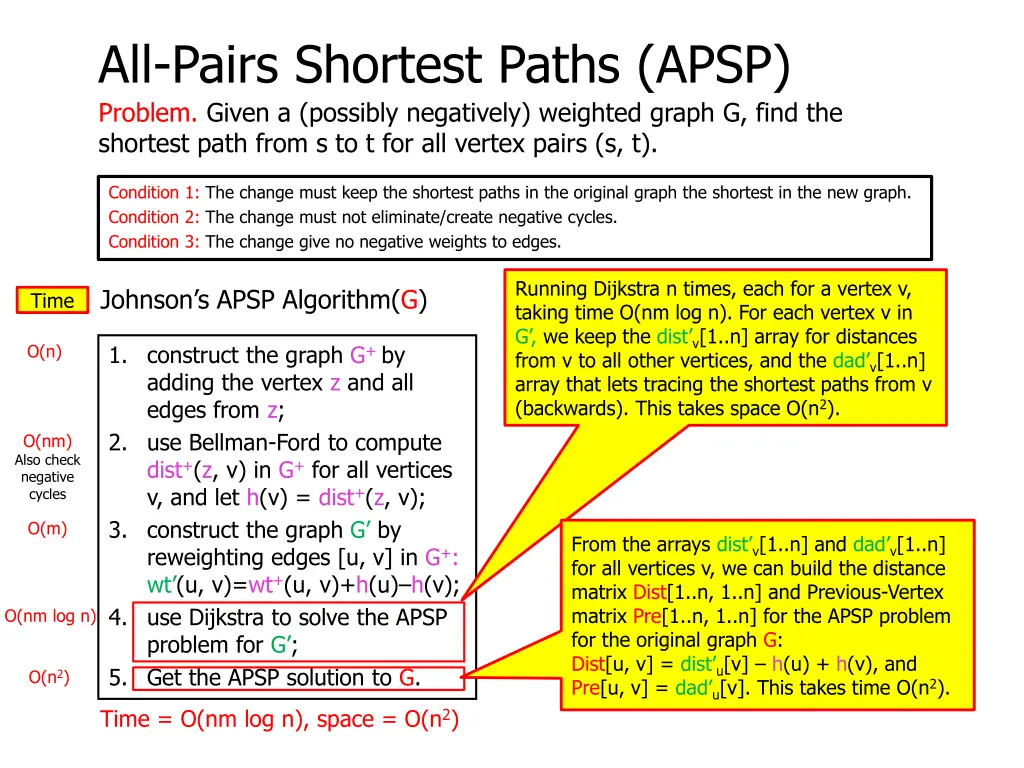

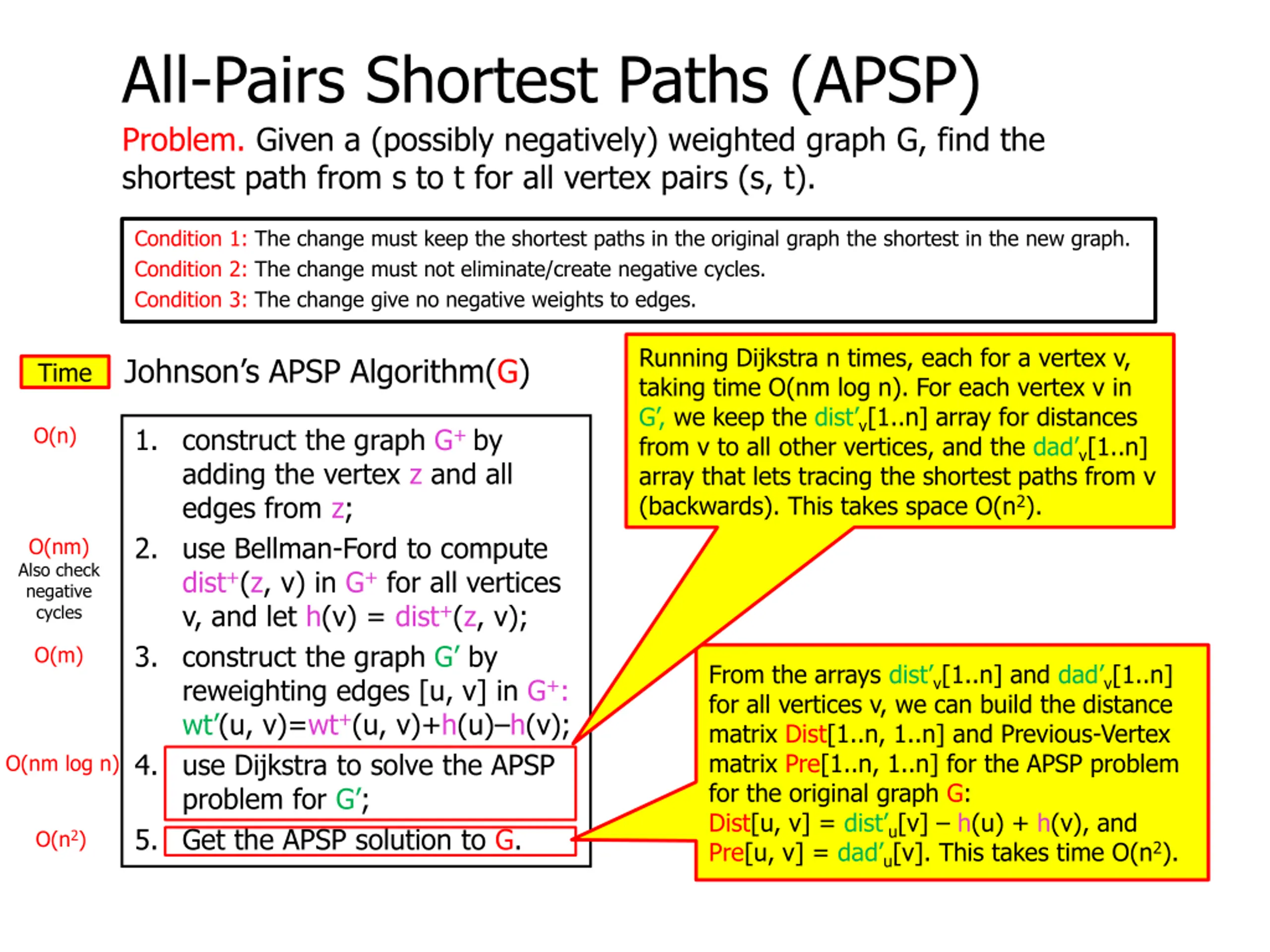

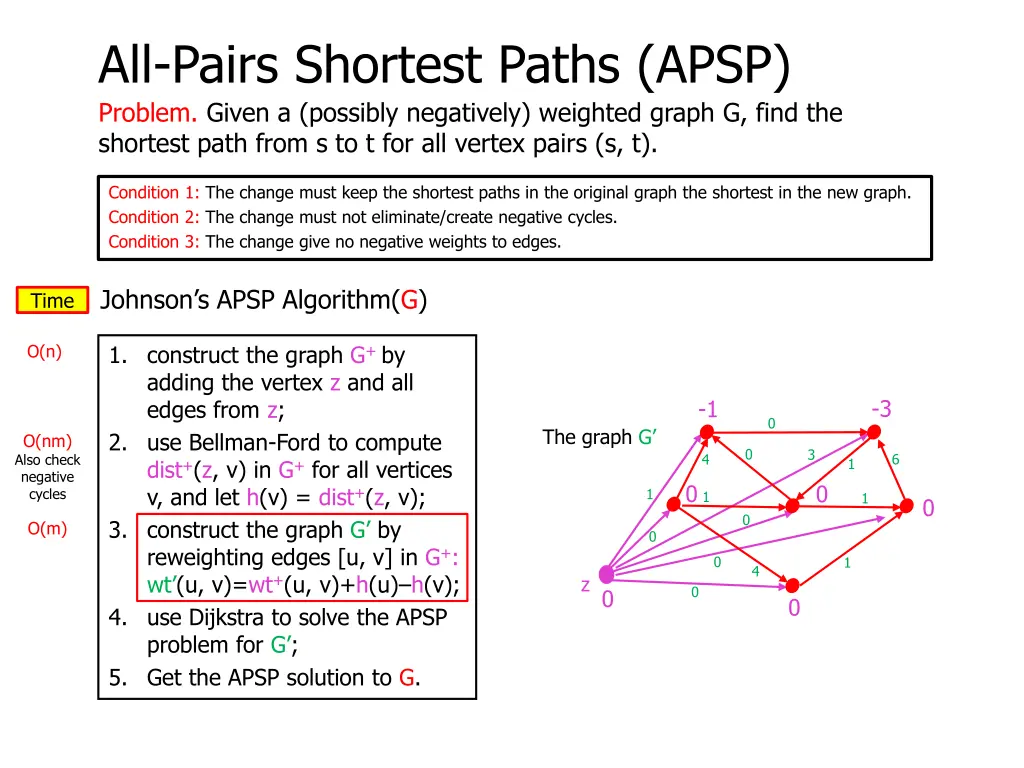

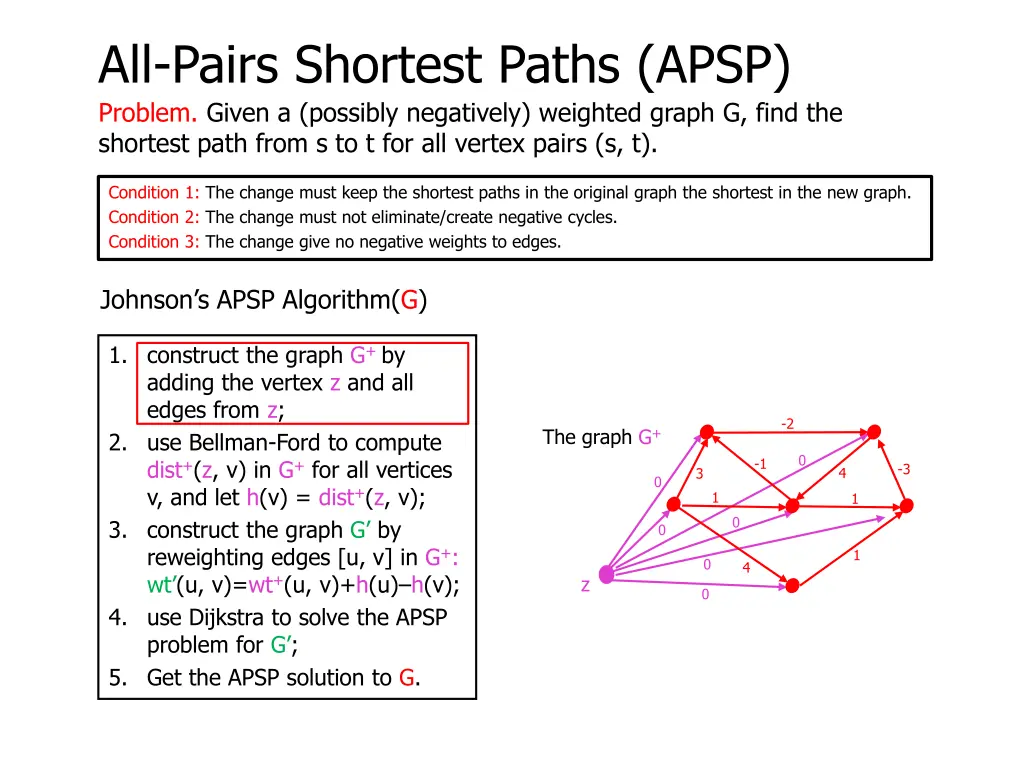

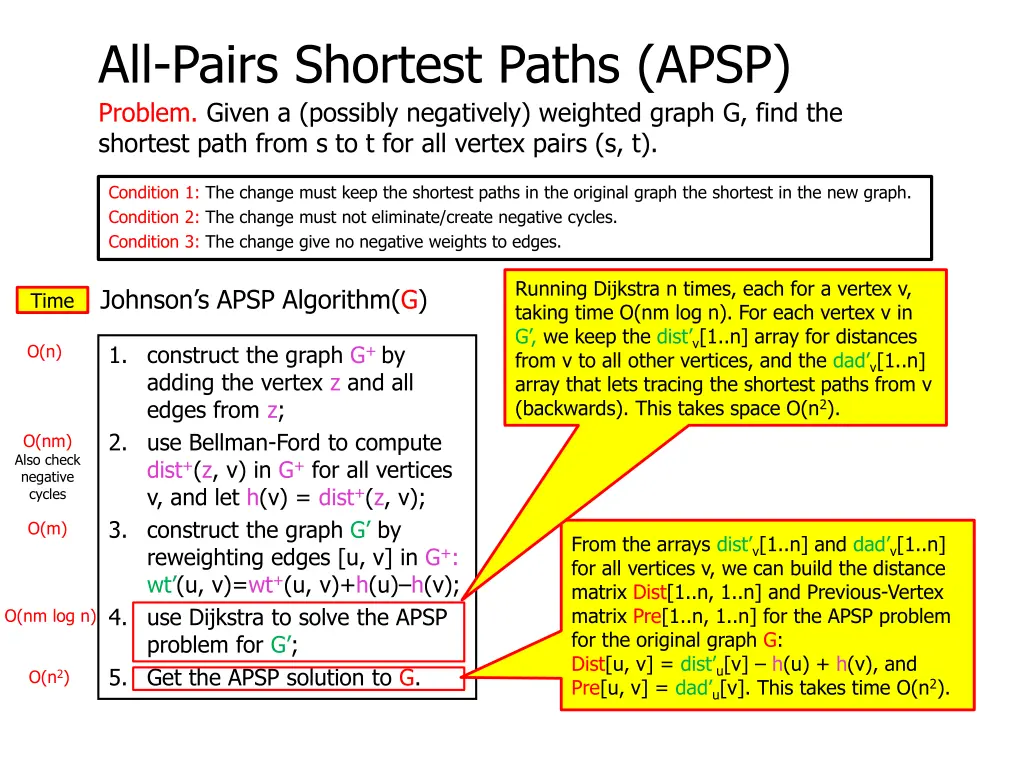

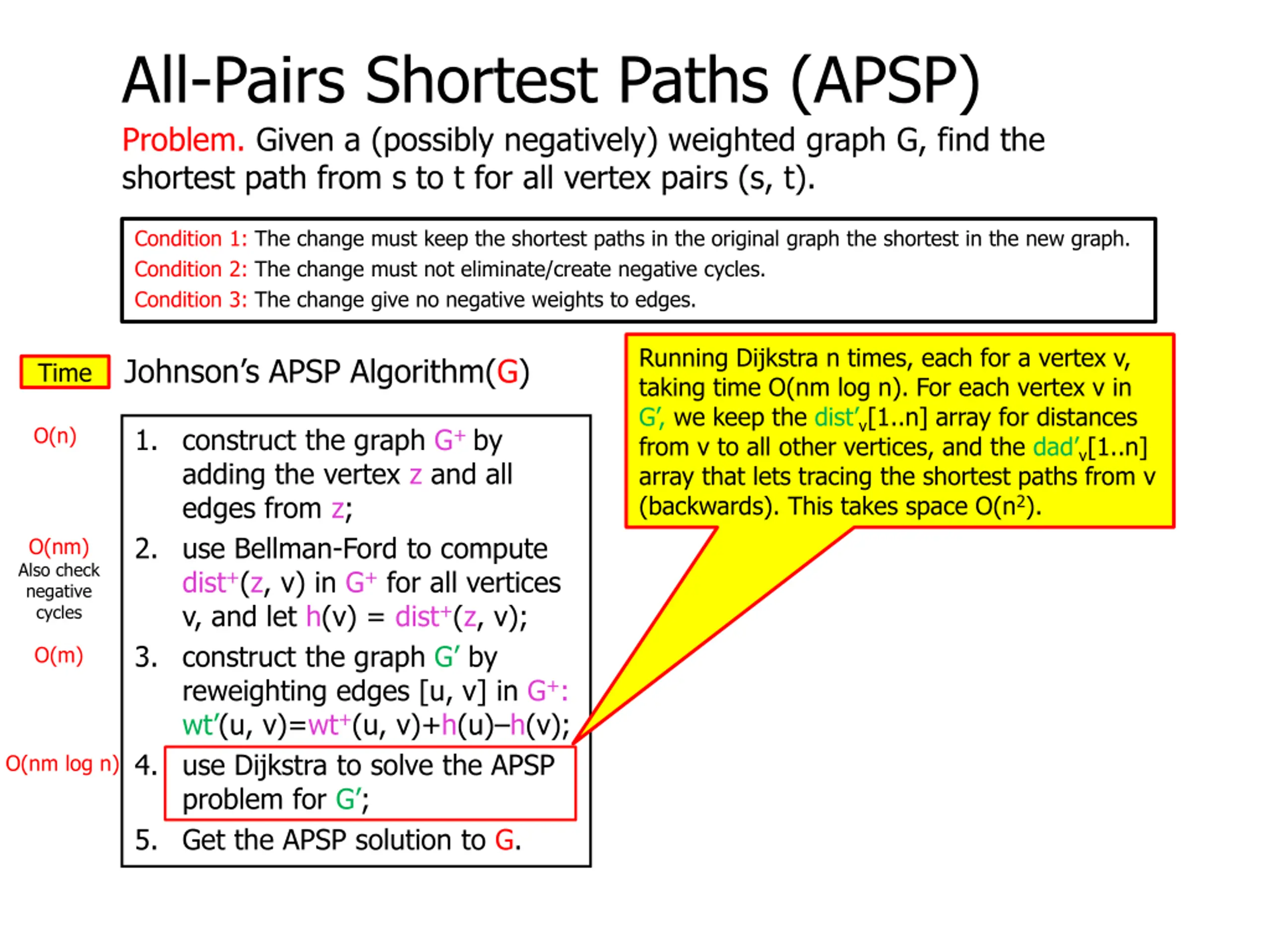

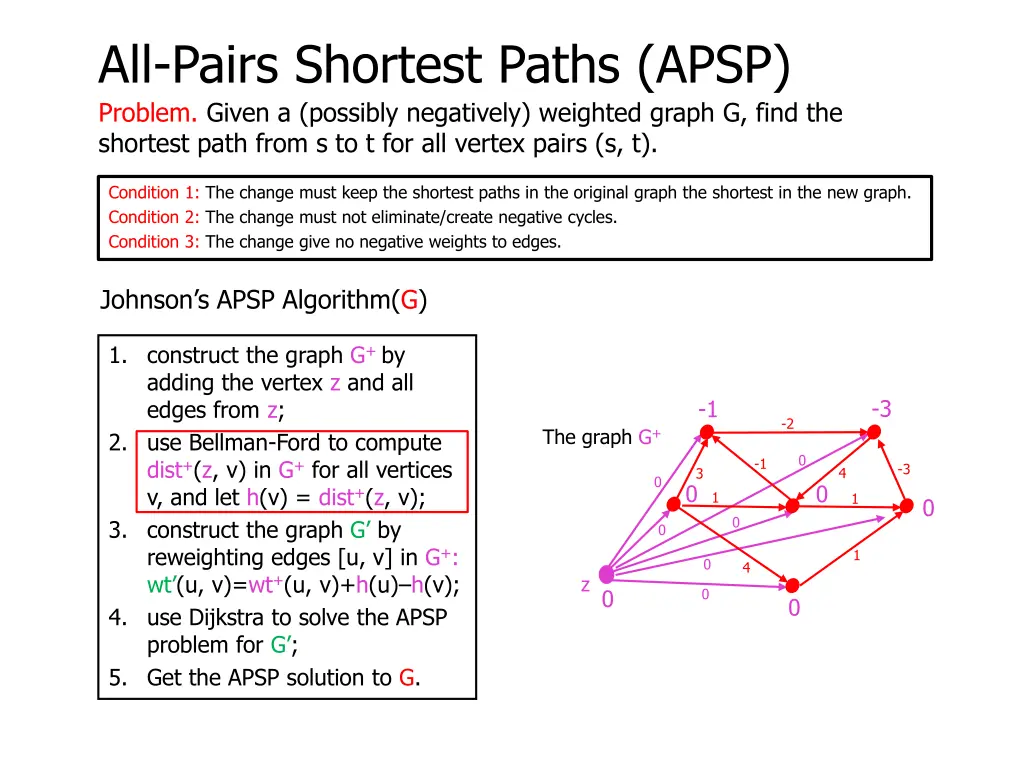

All-Pairs Shortest Paths (APSP) Problem. Given a (possibly negatively) weighted graph G, find the shortest path from s to t for all vertex pairs (s, t). Condition 1: The change must keep the shortest paths in the original graph the shortest in the new graph. Condition 2: The change must not eliminate/create negative cycles. Condition 3: The change give no negative weights to edges. Johnson s APSP Algorithm(G) 1. construct the graph G+ by adding the vertex z and all edges from z; 2. use Bellman-Ford to compute dist+(z, v) in G+ for all vertices v, and let h(v) = dist+(z, v); 3. construct the graph G by reweighting edges [u, v] in G+: wt (u, v)=wt+(u, v)+h(u) h(v); 4. use Dijkstra to solve the APSP problem for G ; 5. Get the APSP solution to G. -2 The graph G -1 -3 4 3 1 1 1 4
All-Pairs Shortest Paths (APSP) Problem. Given a (possibly negatively) weighted graph G, find the shortest path from s to t for all vertex pairs (s, t). Condition 1: The change must keep the shortest paths in the original graph the shortest in the new graph. Condition 2: The change must not eliminate/create negative cycles. Condition 3: The change give no negative weights to edges. Johnson s APSP Algorithm(G) 1. construct the graph G+ by adding the vertex z and all edges from z; 2. use Bellman-Ford to compute dist+(z, v) in G+ for all vertices v, and let h(v) = dist+(z, v); 3. construct the graph G by reweighting edges [u, v] in G+: wt (u, v)=wt+(u, v)+h(u) h(v); 4. use Dijkstra to solve the APSP problem for G ; 5. Get the APSP solution to G. -2 The graph G+ 0 -1 -3 4 3 0 1 1 0 0 1 0 4 z 0
All-Pairs Shortest Paths (APSP) Problem. Given a (possibly negatively) weighted graph G, find the shortest path from s to t for all vertex pairs (s, t). Condition 1: The change must keep the shortest paths in the original graph the shortest in the new graph. Condition 2: The change must not eliminate/create negative cycles. Condition 3: The change give no negative weights to edges. Johnson s APSP Algorithm(G) 1. construct the graph G+ by adding the vertex z and all edges from z; 2. use Bellman-Ford to compute dist+(z, v) in G+ for all vertices v, and let h(v) = dist+(z, v); 3. construct the graph G by reweighting edges [u, v] in G+: wt (u, v)=wt+(u, v)+h(u) h(v); 4. use Dijkstra to solve the APSP problem for G ; 5. Get the APSP solution to G. -3 -1 -2 The graph G+ 0 -1 -3 4 3 0 0 0 1 1 0 0 0 1 0 4 z 0 0 0
All-Pairs Shortest Paths (APSP) Problem. Given a (possibly negatively) weighted graph G, find the shortest path from s to t for all vertex pairs (s, t). Condition 1: The change must keep the shortest paths in the original graph the shortest in the new graph. Condition 2: The change must not eliminate/create negative cycles. Condition 3: The change give no negative weights to edges. Johnson s APSP Algorithm(G) 1. construct the graph G+ by adding the vertex z and all edges from z; 2. use Bellman-Ford to compute dist+(z, v) in G+ for all vertices v, and let h(v) = dist+(z, v); 3. construct the graph G by reweighting edges [u, v] in G+: wt (u, v)=wt+(u, v)+h(u) h(v); 4. use Dijkstra to solve the APSP problem for G ; 5. Get the APSP solution to G. -3 -1 0 -2 The graph G 0 3 6 4 0 -1 1 -3 3 4 0 0 0 1 1 1 1 1 0 0 0 0 0 1 0 1 0 4 4 z 0 0 0 0
All-Pairs Shortest Paths (APSP) Problem. Given a (possibly negatively) weighted graph G, find the shortest path from s to t for all vertex pairs (s, t). Condition 1: The change must keep the shortest paths in the original graph the shortest in the new graph. Condition 2: The change must not eliminate/create negative cycles. Condition 3: The change give no negative weights to edges. Johnson s APSP Algorithm(G) 1. construct the graph G+ by adding the vertex z and all edges from z; 2. use Bellman-Ford to compute dist+(z, v) in G+ for all vertices v, and let h(v) = dist+(z, v); 3. construct the graph G by reweighting edges [u, v] in G+: wt (u, v)=wt+(u, v)+h(u) h(v); 4. use Dijkstra to solve the APSP problem for G ; 5. Get the APSP solution to G. -3 -1 0 The graph G 0 3 6 4 1 0 0 1 1 1 0 0 0 0 1 4 z 0 0 0
All-Pairs Shortest Paths (APSP) Problem. Given a (possibly negatively) weighted graph G, find the shortest path from s to t for all vertex pairs (s, t). Condition 1: The change must keep the shortest paths in the original graph the shortest in the new graph. Condition 2: The change must not eliminate/create negative cycles. Condition 3: The change give no negative weights to edges. Johnson s APSP Algorithm(G) 1. construct the graph G+ by adding the vertex z and all edges from z; 2. use Bellman-Ford to compute dist+(z, v) in G+ for all vertices v, and let h(v) = dist+(z, v); 3. construct the graph G by reweighting edges [u, v] in G+: wt (u, v)=wt+(u, v)+h(u) h(v); 4. use Dijkstra to solve the APSP problem for G ; 5. Get the APSP solution to G. -3 -1 0 The graph G 0 3 6 4 1 0 0 1 1 1 0 0 0 0 1 4 z 0 0 0
All-Pairs Shortest Paths (APSP) Problem. Given a (possibly negatively) weighted graph G, find the shortest path from s to t for all vertex pairs (s, t). Condition 1: The change must keep the shortest paths in the original graph the shortest in the new graph. Condition 2: The change must not eliminate/create negative cycles. Condition 3: The change give no negative weights to edges. Johnson s APSP Algorithm(G) Time O(n) 1. construct the graph G+ by adding the vertex z and all edges from z; 2. use Bellman-Ford to compute dist+(z, v) in G+ for all vertices v, and let h(v) = dist+(z, v); 3. construct the graph G by reweighting edges [u, v] in G+: wt (u, v)=wt+(u, v)+h(u) h(v); 4. use Dijkstra to solve the APSP problem for G ; 5. Get the APSP solution to G. -2 The graph G+ 0 -1 -3 4 3 0 1 1 0 0 1 0 4 z 0
All-Pairs Shortest Paths (APSP) Problem. Given a (possibly negatively) weighted graph G, find the shortest path from s to t for all vertex pairs (s, t). Condition 1: The change must keep the shortest paths in the original graph the shortest in the new graph. Condition 2: The change must not eliminate/create negative cycles. Condition 3: The change give no negative weights to edges. Johnson s APSP Algorithm(G) Time O(n) 1. construct the graph G+ by adding the vertex z and all edges from z; 2. use Bellman-Ford to compute dist+(z, v) in G+ for all vertices v, and let h(v) = dist+(z, v); 3. construct the graph G by reweighting edges [u, v] in G+: wt (u, v)=wt+(u, v)+h(u) h(v); 4. use Dijkstra to solve the APSP problem for G ; 5. Get the APSP solution to G. -3 -1 -2 The graph G+ O(nm) Also check negative cycles 0 -1 -3 4 3 0 0 0 1 1 0 0 0 1 0 4 z 0 0 0
All-Pairs Shortest Paths (APSP) Problem. Given a (possibly negatively) weighted graph G, find the shortest path from s to t for all vertex pairs (s, t). Condition 1: The change must keep the shortest paths in the original graph the shortest in the new graph. Condition 2: The change must not eliminate/create negative cycles. Condition 3: The change give no negative weights to edges. Johnson s APSP Algorithm(G) Time O(n) 1. construct the graph G+ by adding the vertex z and all edges from z; 2. use Bellman-Ford to compute dist+(z, v) in G+ for all vertices v, and let h(v) = dist+(z, v); 3. construct the graph G by reweighting edges [u, v] in G+: wt (u, v)=wt+(u, v)+h(u) h(v); 4. use Dijkstra to solve the APSP problem for G ; 5. Get the APSP solution to G. -3 -1 0 The graph G O(nm) Also check negative cycles 0 3 6 4 1 0 0 1 1 1 0 0 O(m) 0 0 1 4 z 0 0 0
All-Pairs Shortest Paths (APSP) Problem. Given a (possibly negatively) weighted graph G, find the shortest path from s to t for all vertex pairs (s, t). Condition 1: The change must keep the shortest paths in the original graph the shortest in the new graph. Condition 2: The change must not eliminate/create negative cycles. Condition 3: The change give no negative weights to edges. Running Dijkstra n times, each for a vertex v, taking time O(nm log n). For each vertex v in G , we keep the dist v[1..n] array for distances from v to all other vertices, and the dad v[1..n] array that lets tracing the shortest paths from v (backwards). This takes space O(n2). Johnson s APSP Algorithm(G) Time O(n) 1. construct the graph G+ by adding the vertex z and all edges from z; 2. use Bellman-Ford to compute dist+(z, v) in G+ for all vertices v, and let h(v) = dist+(z, v); 3. construct the graph G by reweighting edges [u, v] in G+: wt (u, v)=wt+(u, v)+h(u) h(v); 4. use Dijkstra to solve the APSP problem for G ; 5. Get the APSP solution to G. O(nm) Also check negative cycles O(m) O(nm log n)
All-Pairs Shortest Paths (APSP) Problem. Given a (possibly negatively) weighted graph G, find the shortest path from s to t for all vertex pairs (s, t). Condition 1: The change must keep the shortest paths in the original graph the shortest in the new graph. Condition 2: The change must not eliminate/create negative cycles. Condition 3: The change give no negative weights to edges. Running Dijkstra n times, each for a vertex v, taking time O(nm log n). For each vertex v in G , we keep the dist v[1..n] array for distances from v to all other vertices, and the dad v[1..n] array that lets tracing the shortest paths from v (backwards). This takes space O(n2). Johnson s APSP Algorithm(G) Time O(n) 1. construct the graph G+ by adding the vertex z and all edges from z; 2. use Bellman-Ford to compute dist+(z, v) in G+ for all vertices v, and let h(v) = dist+(z, v); 3. construct the graph G by reweighting edges [u, v] in G+: wt (u, v)=wt+(u, v)+h(u) h(v); 4. use Dijkstra to solve the APSP problem for G ; 5. Get the APSP solution to G. O(nm) Also check negative cycles O(m) From the arrays dist v[1..n] and dad v[1..n] for all vertices v, we can build the distance matrix Dist[1..n, 1..n] and Previous-Vertex matrix Pre[1..n, 1..n] for the APSP problem for the original graph G: Dist[u, v] = dist u[v] h(u) + h(v), and Pre[u, v] = dad u[v]. This takes time O(n2). O(nm log n) O(n2)
All-Pairs Shortest Paths (APSP) Problem. Given a (possibly negatively) weighted graph G, find the shortest path from s to t for all vertex pairs (s, t). Condition 1: The change must keep the shortest paths in the original graph the shortest in the new graph. Condition 2: The change must not eliminate/create negative cycles. Condition 3: The change give no negative weights to edges. Running Dijkstra n times, each for a vertex v, taking time O(nm log n). For each vertex v in G , we keep the dist v[1..n] array for distances from v to all other vertices, and the dad v[1..n] array that lets tracing the shortest paths from v (backwards). This takes space O(n2). Johnson s APSP Algorithm(G) Time O(n) 1. construct the graph G+ by adding the vertex z and all edges from z; 2. use Bellman-Ford to compute dist+(z, v) in G+ for all vertices v, and let h(v) = dist+(z, v); 3. construct the graph G by reweighting edges [u, v] in G+: wt (u, v)=wt+(u, v)+h(u) h(v); 4. use Dijkstra to solve the APSP problem for G ; 5. Get the APSP solution to G. O(nm) Also check negative cycles O(m) From the arrays dist v[1..n] and dad v[1..n] for all vertices v, we can build the distance matrix Dist[1..n, 1..n] and Previous-Vertex matrix Pre[1..n, 1..n] for the APSP problem for the original graph G: Dist[u, v] = dist u[v] h(u) + h(v), and Pre[u, v] = dad u[v]. This takes time O(n2). O(nm log n) O(n2) Time = O(nm log n), space = O(n2)
All-Pairs Shortest Paths (APSP) Problem. Given a (possibly negatively) weighted graph G, find the shortest path from s to t for all vertex pairs (s, t). Condition 1: The change must keep the shortest paths in the original graph the shortest in the new graph. Condition 2: The change must not eliminate/create negative cycles. Condition 3: The change give no negative weights to edges. Johnson s APSP Algorithm(G) Theorem. The All-Pairs Shortest Path problem (APSP) can be solved in time O(nm log n) and space = O(n2). 1. construct the graph G+ by adding the vertex z and all edges from z; 2. use Bellman-Ford to compute dist+(z, v) in G+ for all vertices v, and let h(v) = dist+(z, v); 3. construct the graph G by reweighting edges [u, v] in G+: wt (u, v)=wt+(u, v)+h(u) h(v); 4. use Dijkstra to solve the APSP problem for G ; 5. Get the APSP solution to G. Time = O(nm log n), space = O(n2)
All-Pairs Shortest Paths (APSP) Problem. Given a (possibly negatively) weighted graph G, find the shortest path from s to t for all vertex pairs (s, t). Condition 1: The change must keep the shortest paths in the original graph the shortest in the new graph. Condition 2: The change must not eliminate/create negative cycles. Condition 3: The change give no negative weights to edges. Johnson s APSP Algorithm(G) Theorem. The All-Pairs Shortest Path problem (APSP) can be solved in time O(nm log n) and space = O(n2). 1. construct the graph G+ by adding the vertex z and all edges from z; 2. use Bellman-Ford to compute dist+(z, v) in G+ for all vertices v, and let h(v) = dist+(z, v); 3. construct the graph G by reweighting edges [u, v] in G+: wt (u, v)=wt+(u, v)+h(u) h(v); 4. use Dijkstra to solve the APSP problem for G ; 5. Get the APSP solution to G. Can be O(n2 log n + nm), if Dijkstra uses a Fibonacci heap instead of a regular heap, with which Dijkstra will run in time O(n log n + m). Time = O(nm log n), space = O(n2)

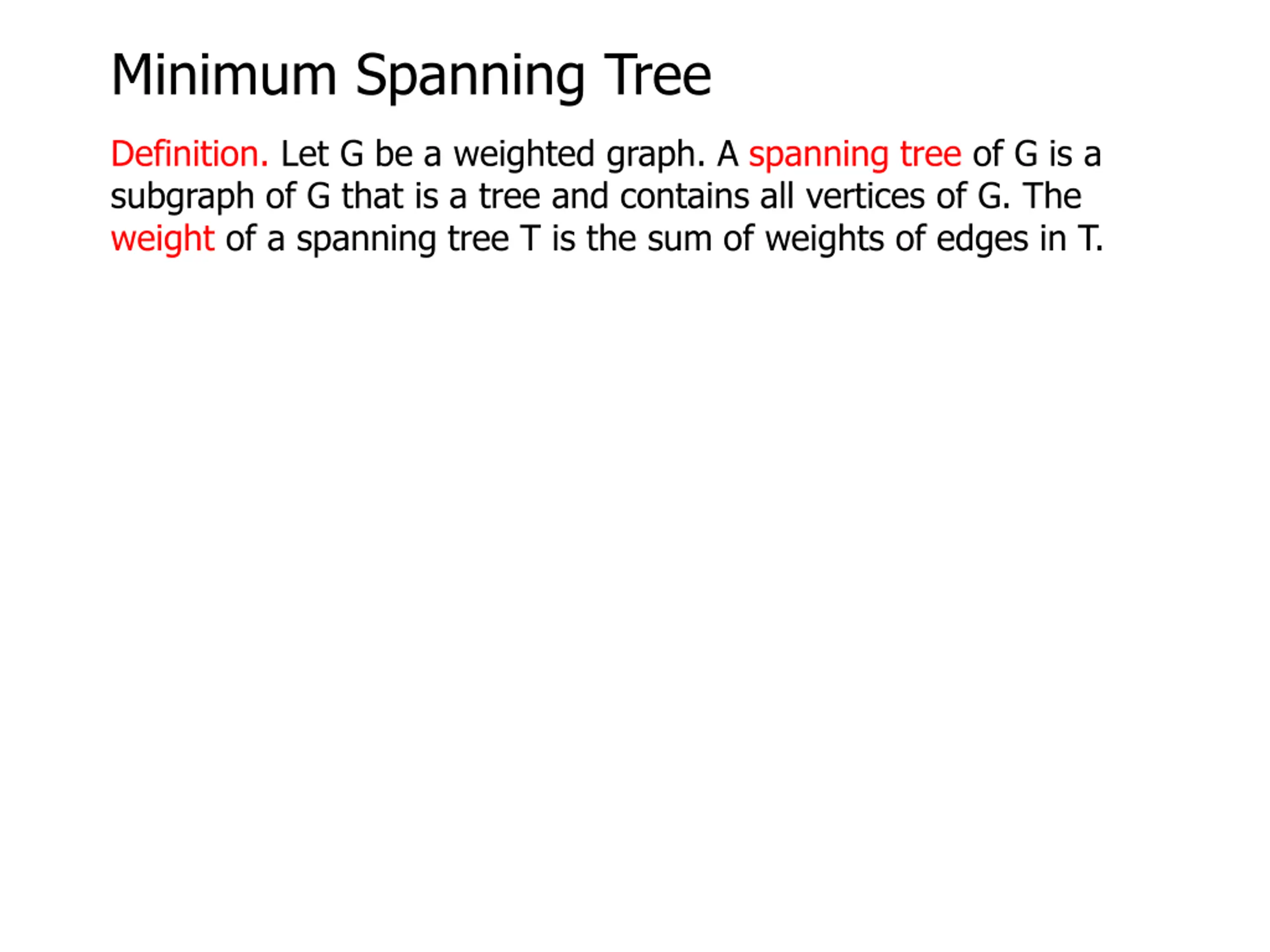

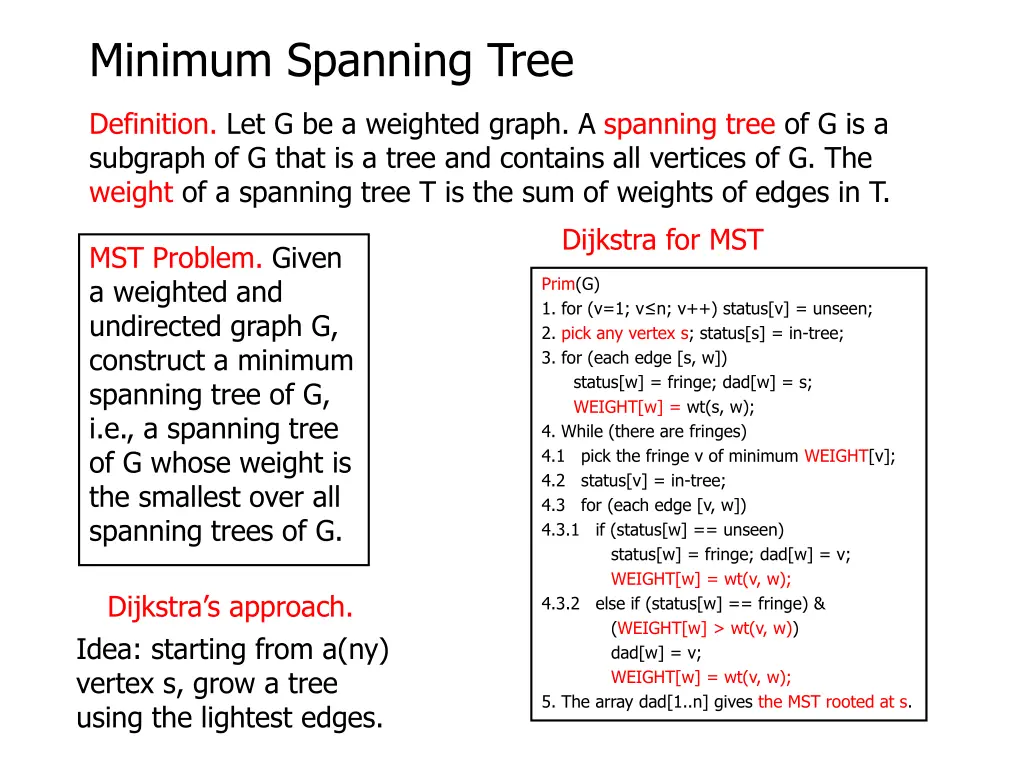

Minimum Spanning Tree Definition. Let G be a weighted graph. A spanning tree of G is a subgraph of G that is a tree and contains all vertices of G. The weight of a spanning tree T is the sum of weights of edges in T.

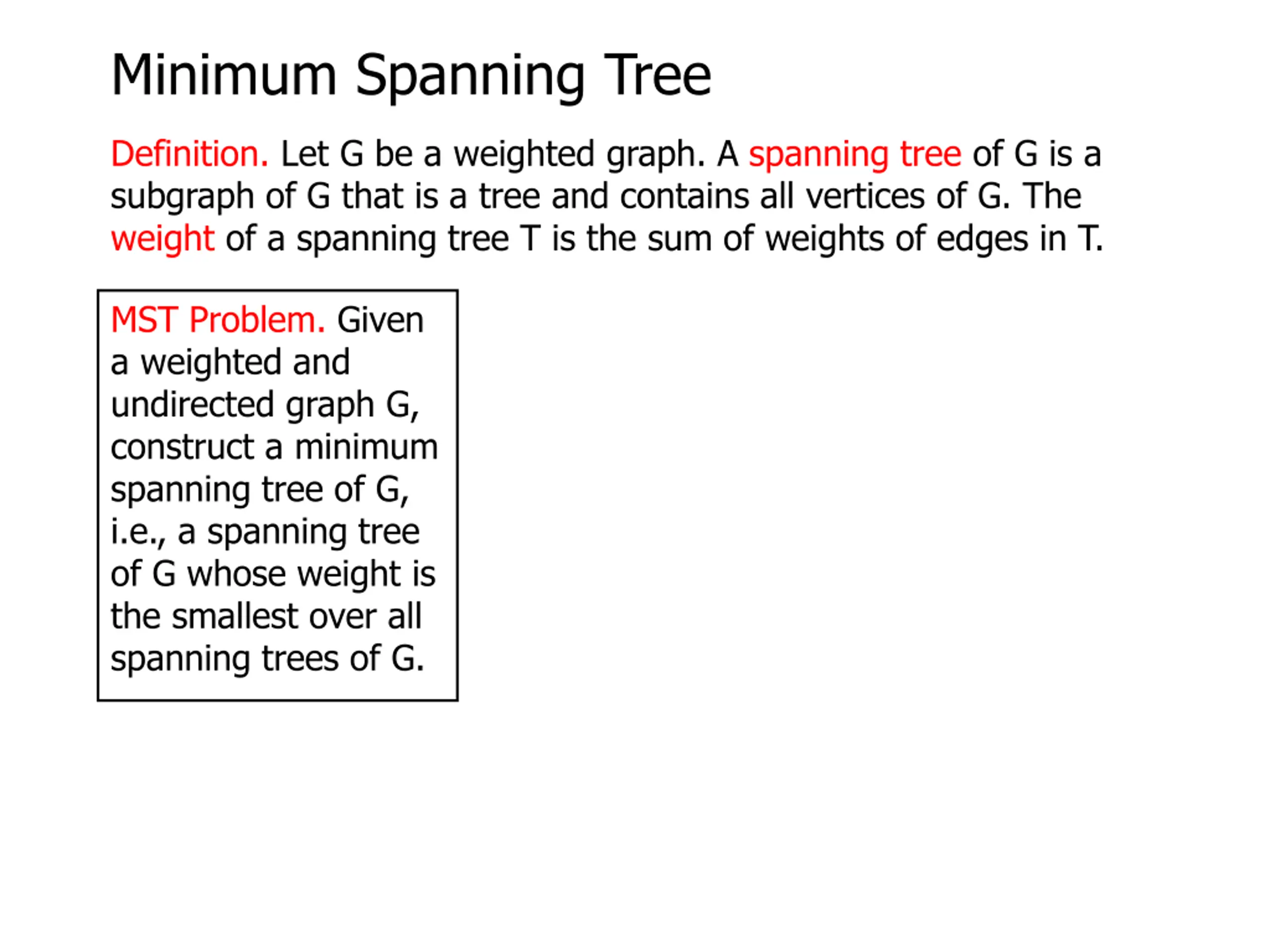

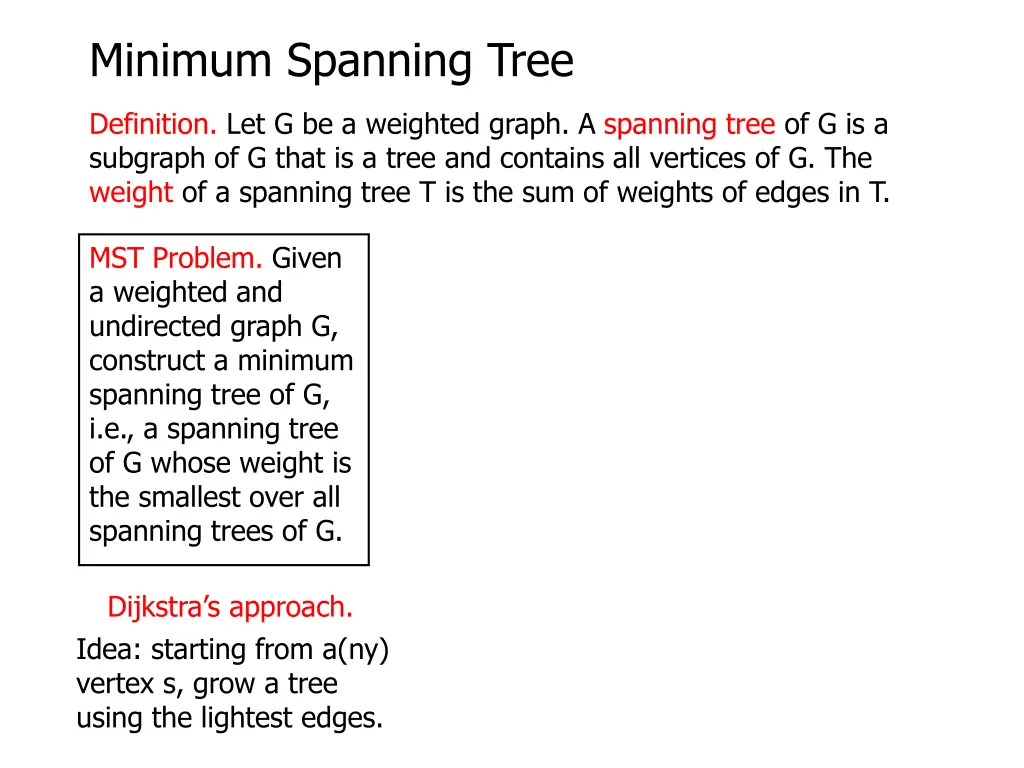

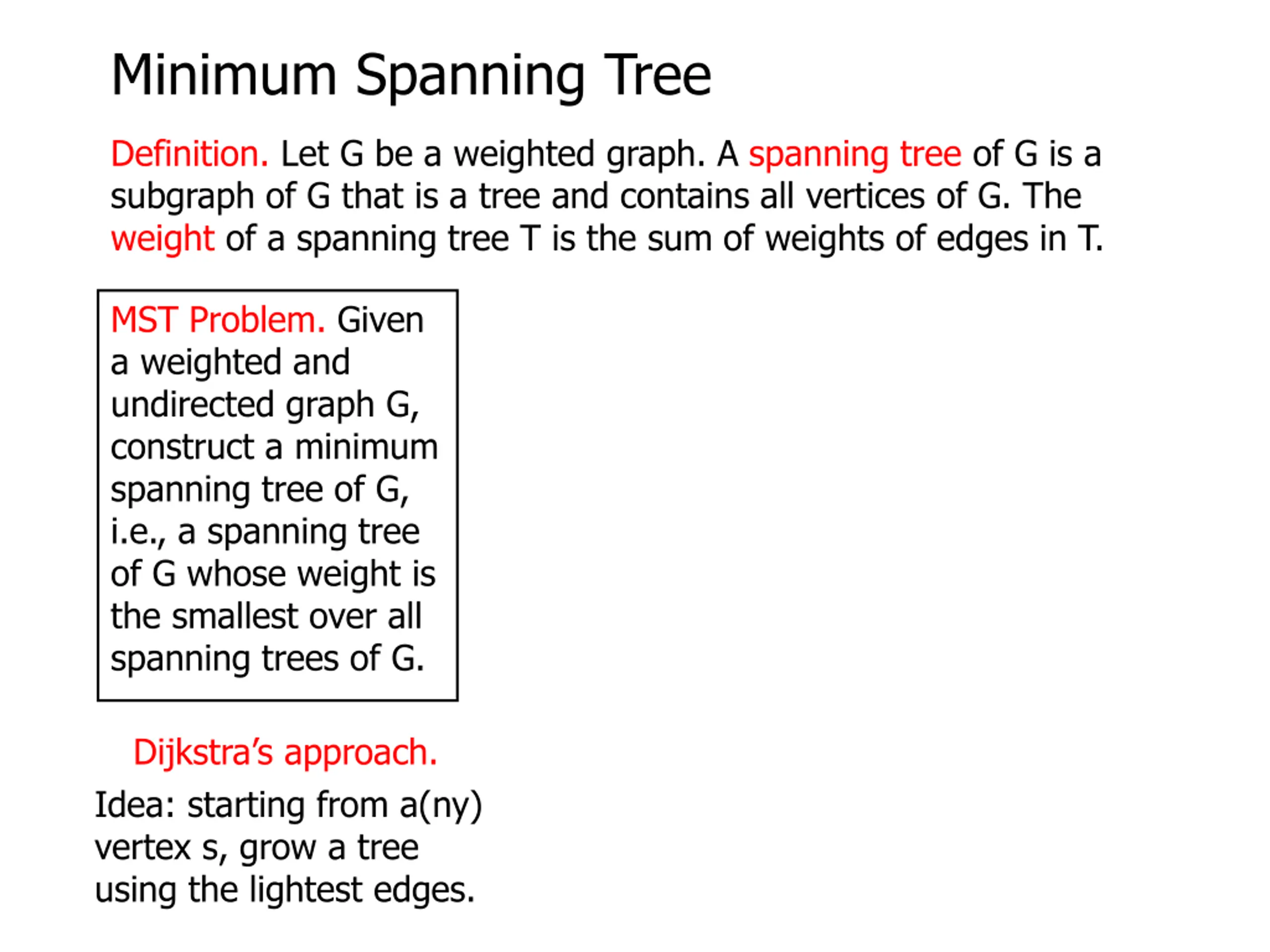

Minimum Spanning Tree Definition. Let G be a weighted graph. A spanning tree of G is a subgraph of G that is a tree and contains all vertices of G. The weight of a spanning tree T is the sum of weights of edges in T. MST Problem. Given a weighted and undirected graph G, construct a minimum spanning tree of G, i.e., a spanning tree of G whose weight is the smallest over all spanning trees of G.
Minimum Spanning Tree Definition. Let G be a weighted graph. A spanning tree of G is a subgraph of G that is a tree and contains all vertices of G. The weight of a spanning tree T is the sum of weights of edges in T. MST Problem. Given a weighted and undirected graph G, construct a minimum spanning tree of G, i.e., a spanning tree of G whose weight is the smallest over all spanning trees of G. Dijkstra s approach. Idea: starting from a(ny) vertex s, grow a tree using the lightest edges.

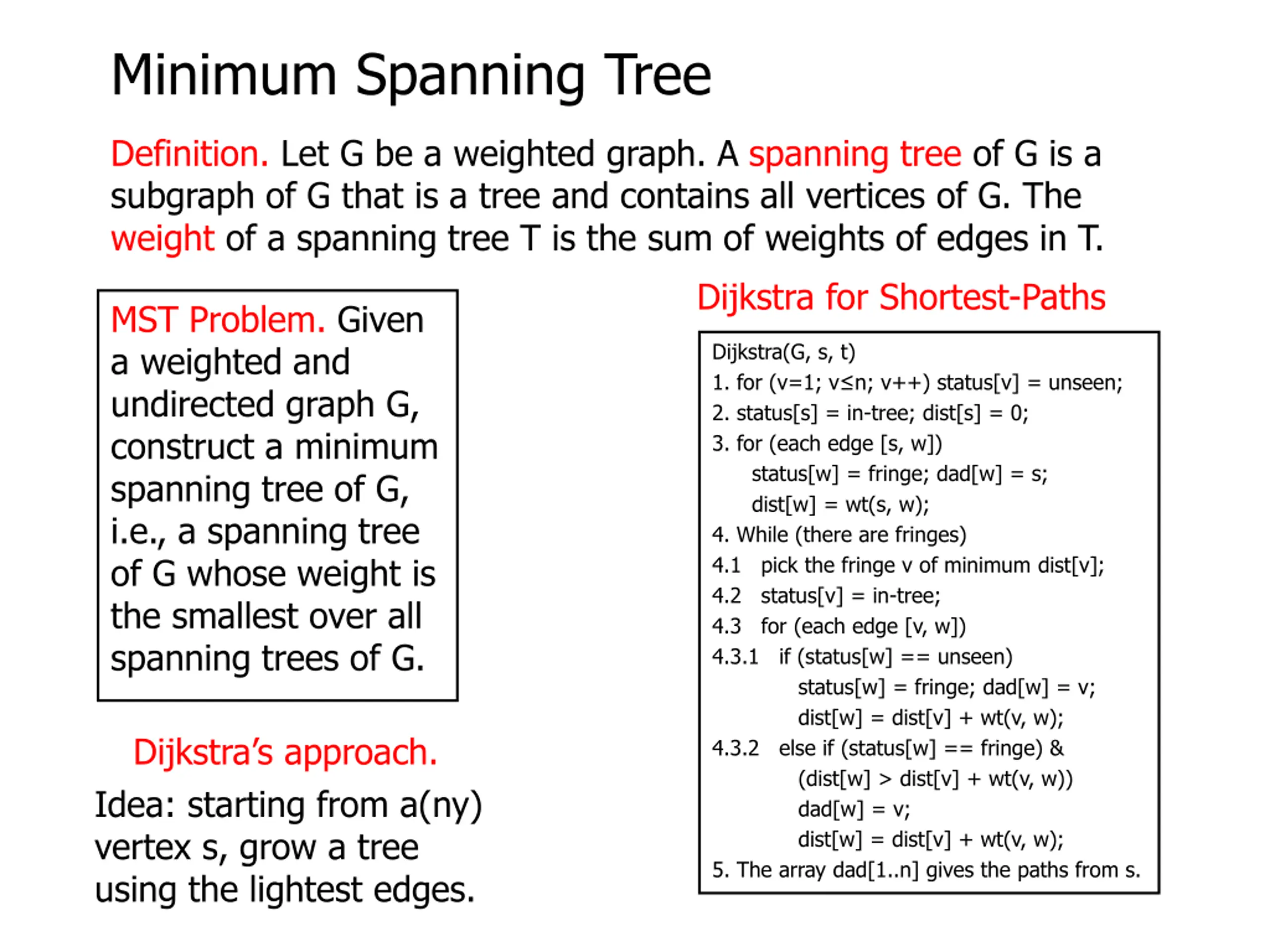

Minimum Spanning Tree Definition. Let G be a weighted graph. A spanning tree of G is a subgraph of G that is a tree and contains all vertices of G. The weight of a spanning tree T is the sum of weights of edges in T. Dijkstra for Shortest-Paths MST Problem. Given a weighted and undirected graph G, construct a minimum spanning tree of G, i.e., a spanning tree of G whose weight is the smallest over all spanning trees of G. Dijkstra(G, s, t) 1. for (v=1; v n; v++) status[v] = unseen; 2. status[s] = in-tree; dist[s] = 0; 3. for (each edge [s, w]) status[w] = fringe; dad[w] = s; dist[w] = wt(s, w); 4. While (there are fringes) 4.1 pick the fringe v of minimum dist[v]; 4.2 status[v] = in-tree; 4.3 for (each edge [v, w]) 4.3.1 if (status[w] == unseen) status[w] = fringe; dad[w] = v; dist[w] = dist[v] + wt(v, w); 4.3.2 else if (status[w] == fringe) & (dist[w] > dist[v] + wt(v, w)) dad[w] = v; dist[w] = dist[v] + wt(v, w); 5. The array dad[1..n] gives the paths from s. Dijkstra s approach. Idea: starting from a(ny) vertex s, grow a tree using the lightest edges.

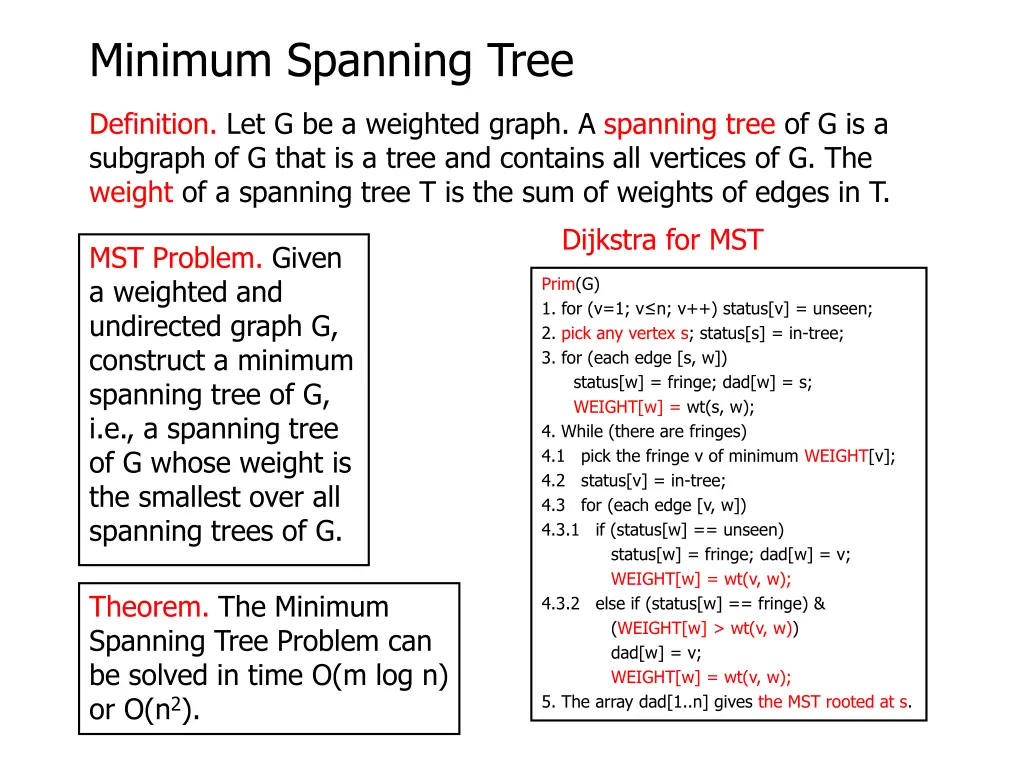

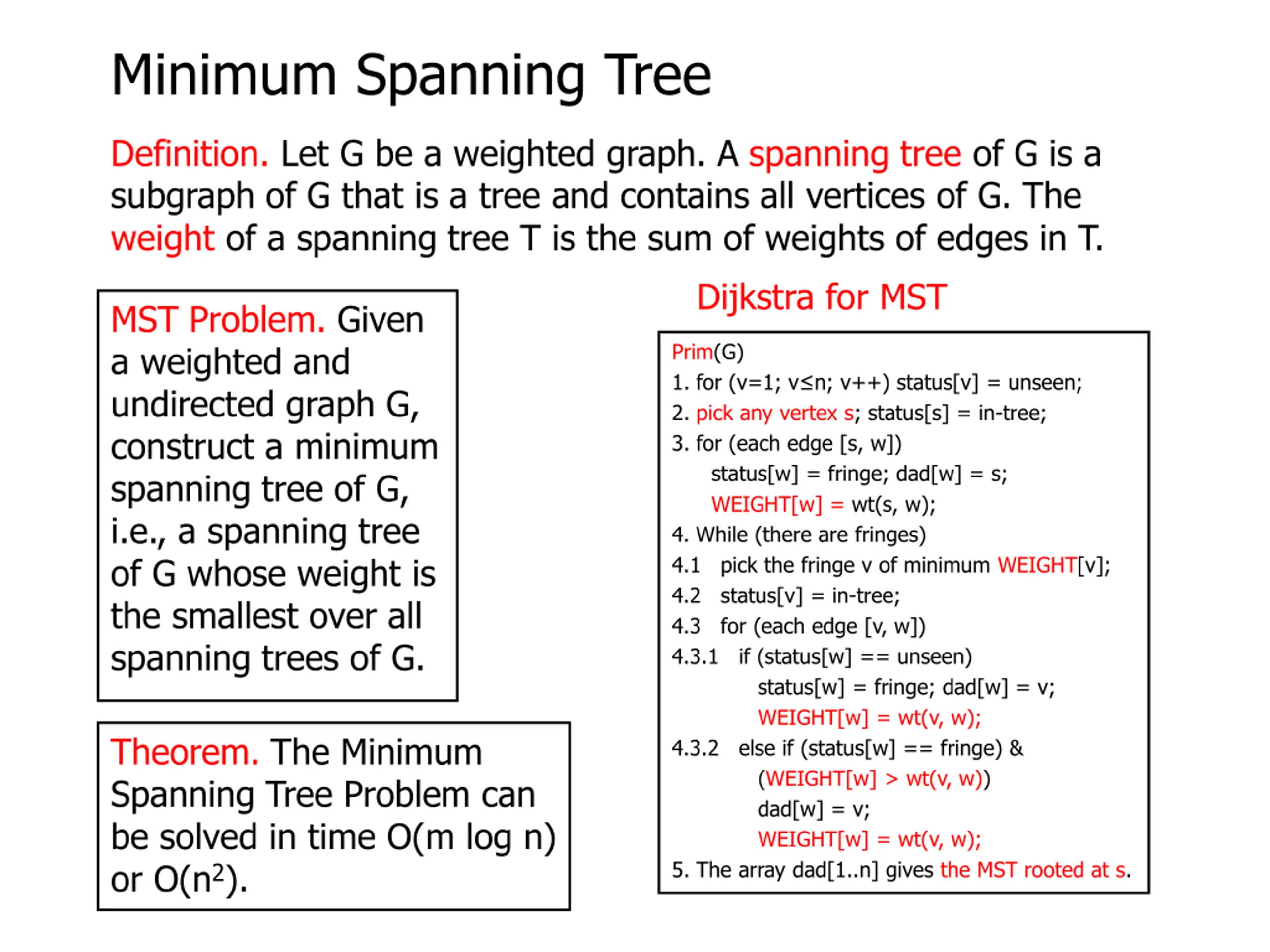

Minimum Spanning Tree Definition. Let G be a weighted graph. A spanning tree of G is a subgraph of G that is a tree and contains all vertices of G. The weight of a spanning tree T is the sum of weights of edges in T. Dijkstra for MST MST Problem. Given a weighted and undirected graph G, construct a minimum spanning tree of G, i.e., a spanning tree of G whose weight is the smallest over all spanning trees of G. Prim(G) 1. for (v=1; v n; v++) status[v] = unseen; 2. pick any vertex s; status[s] = in-tree; 3. for (each edge [s, w]) status[w] = fringe; dad[w] = s; WEIGHT[w] = wt(s, w); 4. While (there are fringes) 4.1 pick the fringe v of minimum WEIGHT[v]; 4.2 status[v] = in-tree; 4.3 for (each edge [v, w]) 4.3.1 if (status[w] == unseen) status[w] = fringe; dad[w] = v; WEIGHT[w] = wt(v, w); 4.3.2 else if (status[w] == fringe) & (WEIGHT[w] > wt(v, w)) dad[w] = v; WEIGHT[w] = wt(v, w); 5. The array dad[1..n] gives the MST rooted at s. Dijkstra s approach. Idea: starting from a(ny) vertex s, grow a tree using the lightest edges.

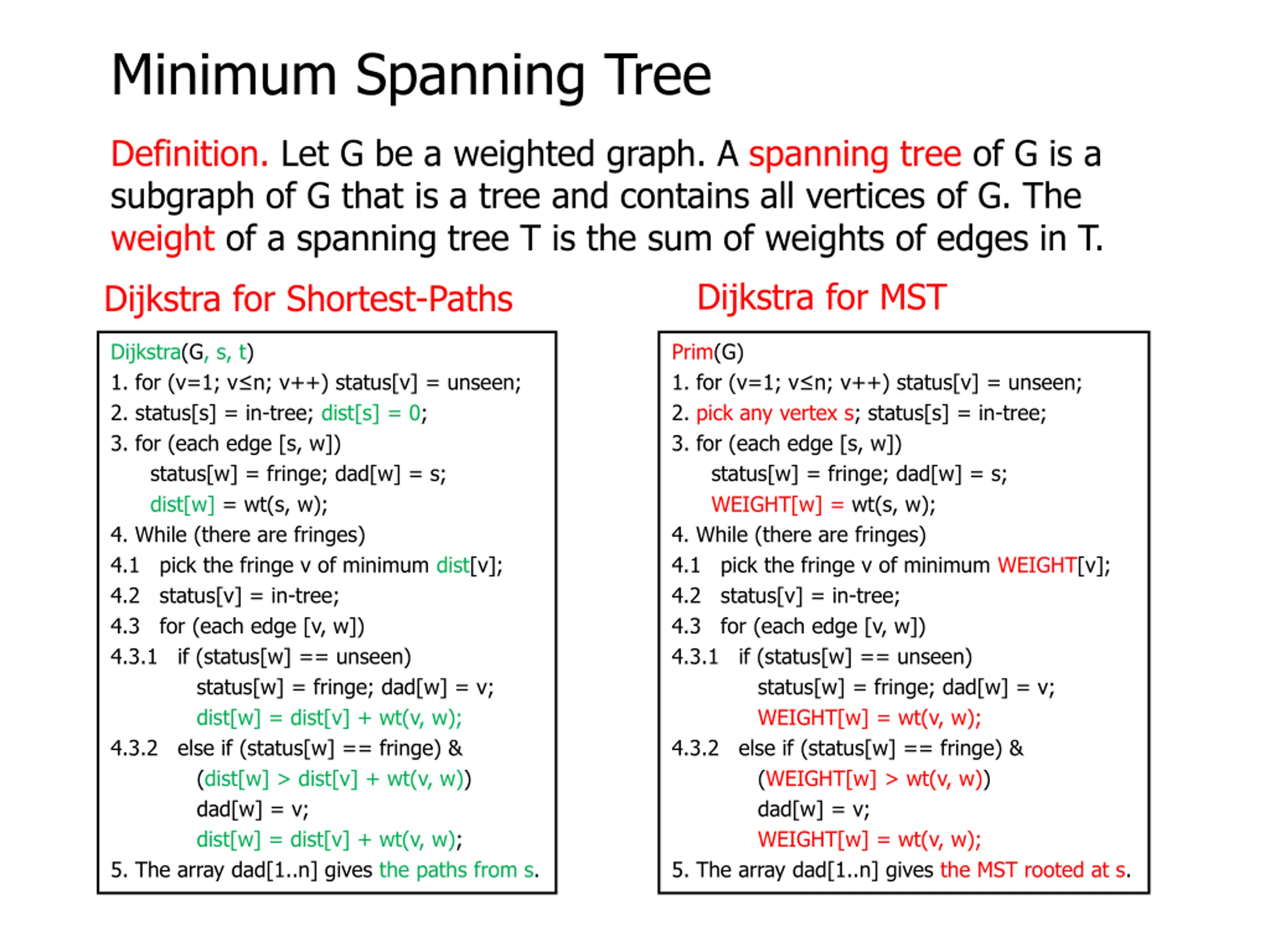

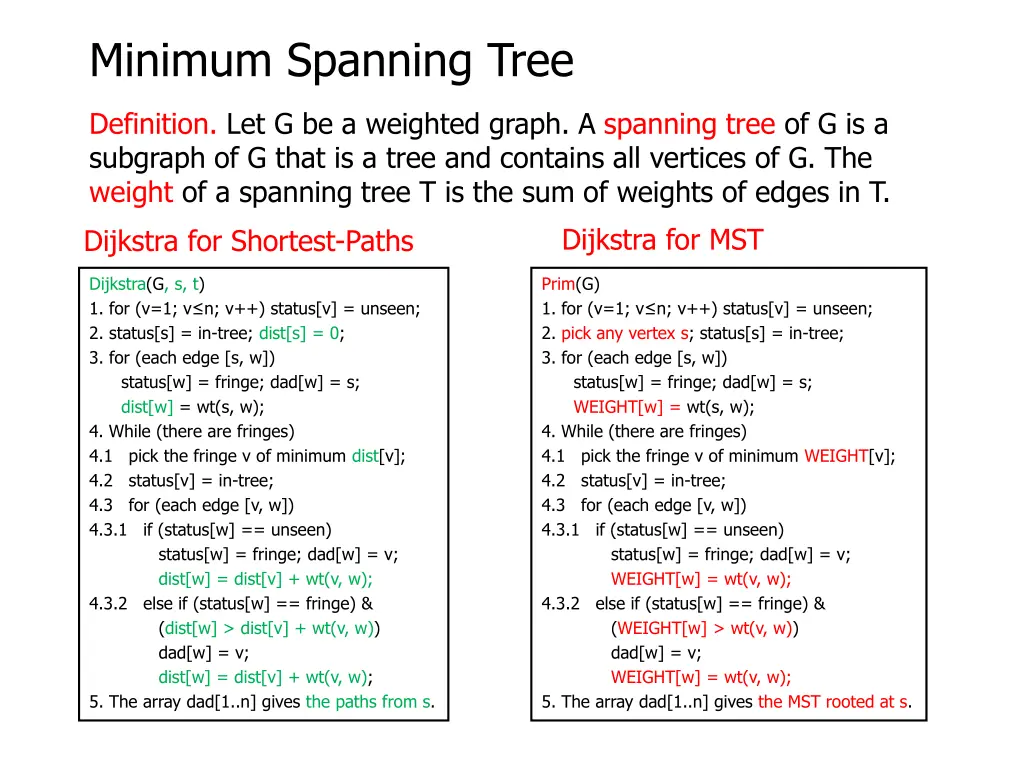

Minimum Spanning Tree Definition. Let G be a weighted graph. A spanning tree of G is a subgraph of G that is a tree and contains all vertices of G. The weight of a spanning tree T is the sum of weights of edges in T. Dijkstra for MST Dijkstra for Shortest-Paths Dijkstra(G, s, t) 1. for (v=1; v n; v++) status[v] = unseen; 2. status[s] = in-tree; dist[s] = 0; 3. for (each edge [s, w]) status[w] = fringe; dad[w] = s; dist[w] = wt(s, w); 4. While (there are fringes) 4.1 pick the fringe v of minimum dist[v]; 4.2 status[v] = in-tree; 4.3 for (each edge [v, w]) 4.3.1 if (status[w] == unseen) status[w] = fringe; dad[w] = v; dist[w] = dist[v] + wt(v, w); 4.3.2 else if (status[w] == fringe) & Prim(G) 1. for (v=1; v n; v++) status[v] = unseen; 2. pick any vertex s; status[s] = in-tree; 3. for (each edge [s, w]) status[w] = fringe; dad[w] = s; WEIGHT[w] = wt(s, w); 4. While (there are fringes) 4.1 pick the fringe v of minimum WEIGHT[v]; 4.2 status[v] = in-tree; 4.3 for (each edge [v, w]) 4.3.1 if (status[w] == unseen) status[w] = fringe; dad[w] = v; WEIGHT[w] = wt(v, w); 4.3.2 else if (status[w] == fringe) & (WEIGHT[w] > wt(v, w)) dad[w] = v; WEIGHT[w] = wt(v, w); 5. The array dad[1..n] gives the MST rooted at s. Dijkstra s approach. (dist[w] > dist[v] + wt(v, w)) dad[w] = v; dist[w] = dist[v] + wt(v, w); 5. The array dad[1..n] gives the paths from s.
Minimum Spanning Tree Definition. Let G be a weighted graph. A spanning tree of G is a subgraph of G that is a tree and contains all vertices of G. The weight of a spanning tree T is the sum of weights of edges in T. Dijkstra for MST MST Problem. Given a weighted and undirected graph G, construct a minimum spanning tree of G, i.e., a spanning tree of G whose weight is the smallest over all spanning trees of G. Prim(G) 1. for (v=1; v n; v++) status[v] = unseen; 2. pick any vertex s; status[s] = in-tree; 3. for (each edge [s, w]) status[w] = fringe; dad[w] = s; WEIGHT[w] = wt(s, w); 4. While (there are fringes) 4.1 pick the fringe v of minimum WEIGHT[v]; 4.2 status[v] = in-tree; 4.3 for (each edge [v, w]) 4.3.1 if (status[w] == unseen) status[w] = fringe; dad[w] = v; WEIGHT[w] = wt(v, w); 4.3.2 else if (status[w] == fringe) & (WEIGHT[w] > wt(v, w)) dad[w] = v; WEIGHT[w] = wt(v, w); 5. The array dad[1..n] gives the MST rooted at s. Theorem. The Minimum Spanning Tree Problem can be solved in time O(m log n) or O(n2).
