  1. CSCE-411 Design and Analysis of Algorithms Spring 2025 Instructor: Jianer Chen Office: PETR 428 Phone: 845-4259 Email: chen@cse.tamu.edu Notes 17: Topological sorting

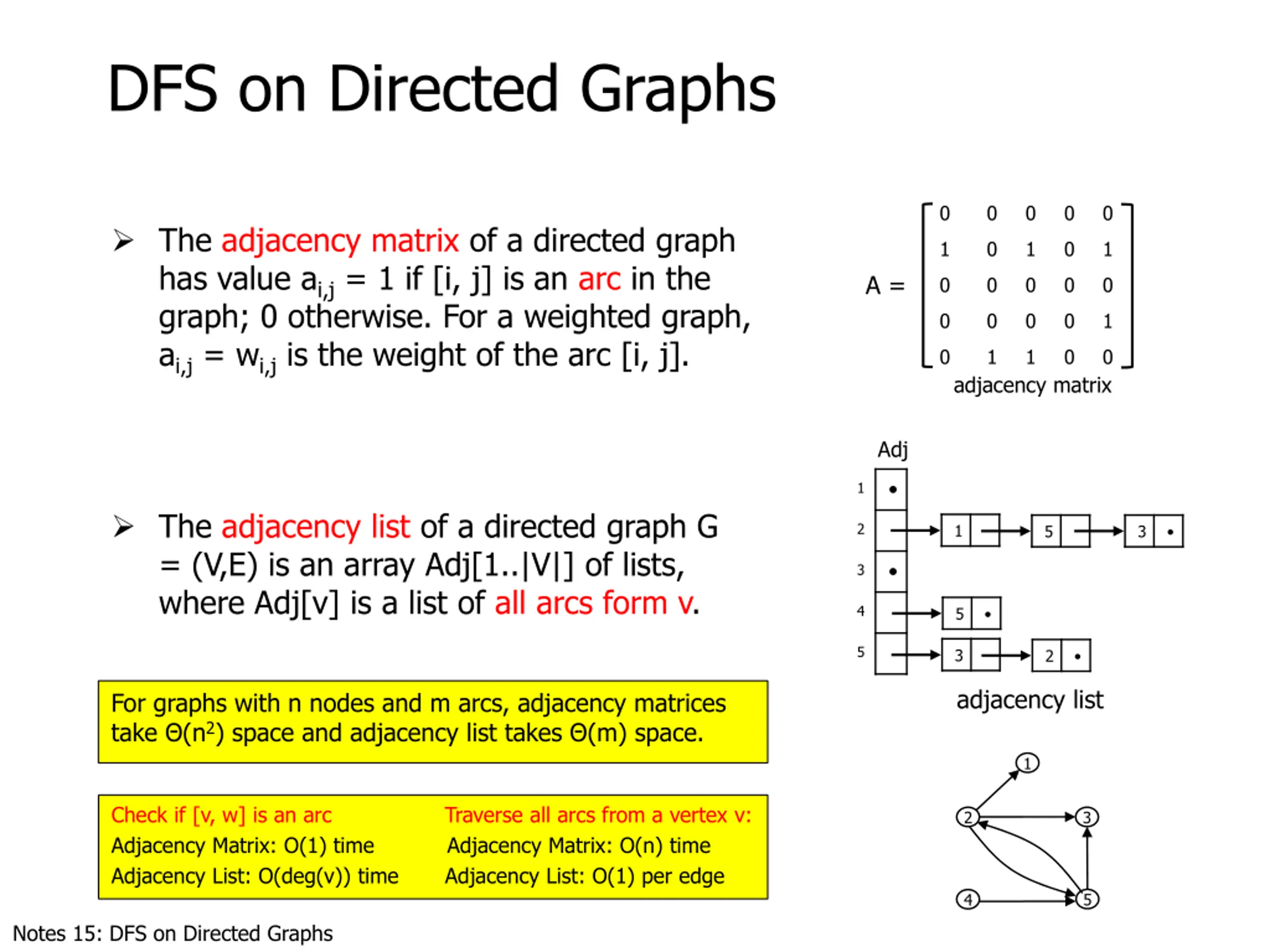

  2. DFS on Directed Graphs 0 0 0 0 0 The adjacency matrix of a directed graph has value ai,j = 1 if [i, j] is an arc in the graph; 0 otherwise. For a weighted graph, ai,j = wi,j is the weight of the arc [i, j]. 1 0 1 0 1 A = 0 0 0 0 0 0 0 0 0 1 0 1 1 0 0 adjacency matrix Adj 1 The adjacency list of a directed graph G = (V,E) is an array Adj[1..|V|] of lists, where Adj[v] is a list of all arcs form v. 2 1 5 3 3 4 5 5 3 2 adjacency list For graphs with n nodes and m arcs, adjacency matrices take (n2) space and adjacency list takes (m) space. 1 Check if [v, w] is an arc Adjacency Matrix: O(1) time Adjacency Matrix: O(n) time Adjacency List: O(deg(v)) time Adjacency List: O(1) per edge Traverse all arcs from a vertex v: 3 2 5 4 Notes 15: DFS on Directed Graphs

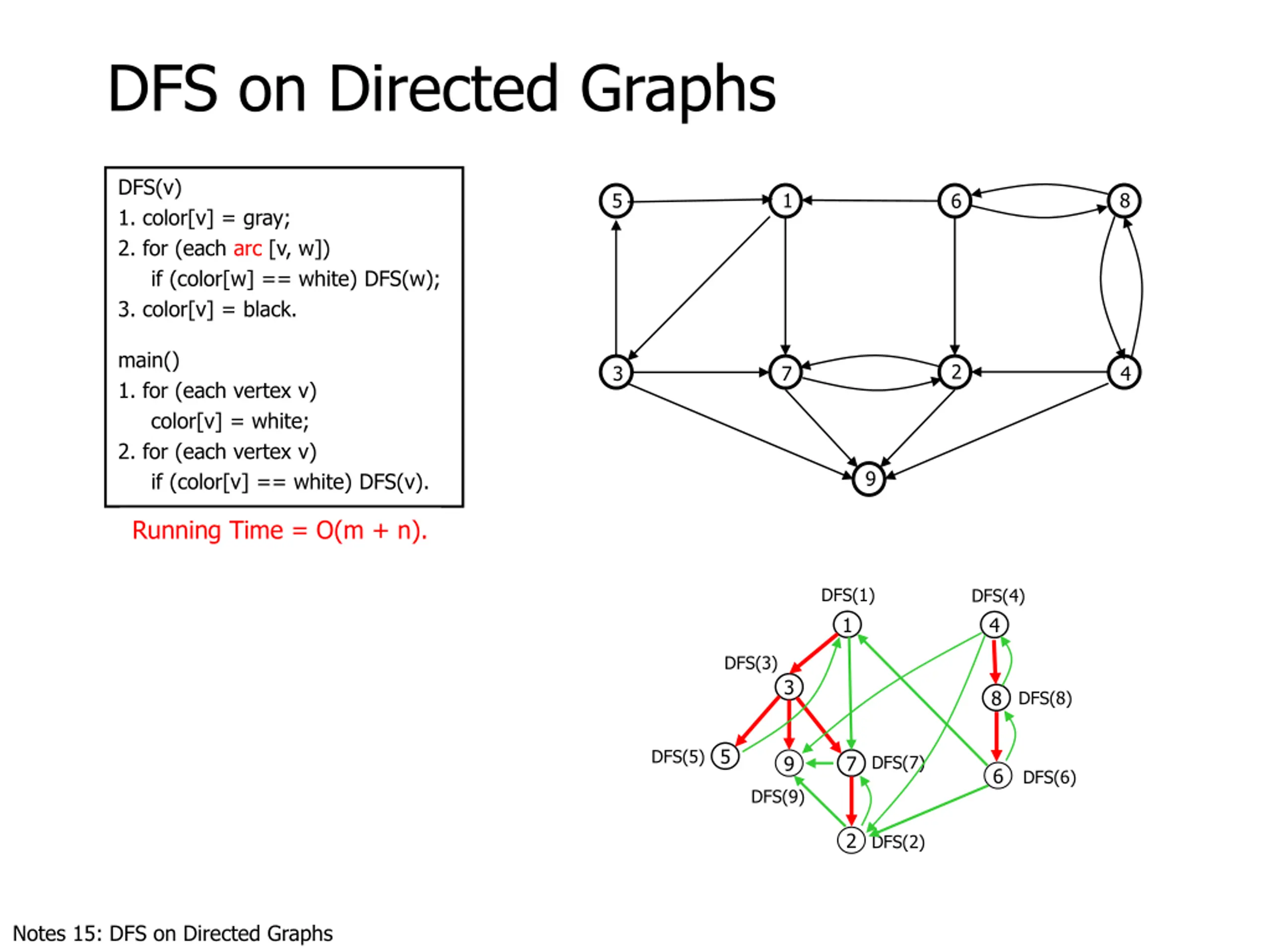

  3. DFS on Directed Graphs DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w); 3. color[v] = black. 1 8 5 6 main() 1. for (each vertex v) color[v] = white; 2. for (each vertex v) if (color[v] == white) DFS(v). 2 3 7 4 9 Running Time = O(m + n). DFS(1) DFS(4) 4 1 DFS(3) 3 8 DFS(8) 5 DFS(5) DFS(7) 9 7 6 DFS(6) DFS(9) 2 DFS(2) Notes 15: DFS on Directed Graphs

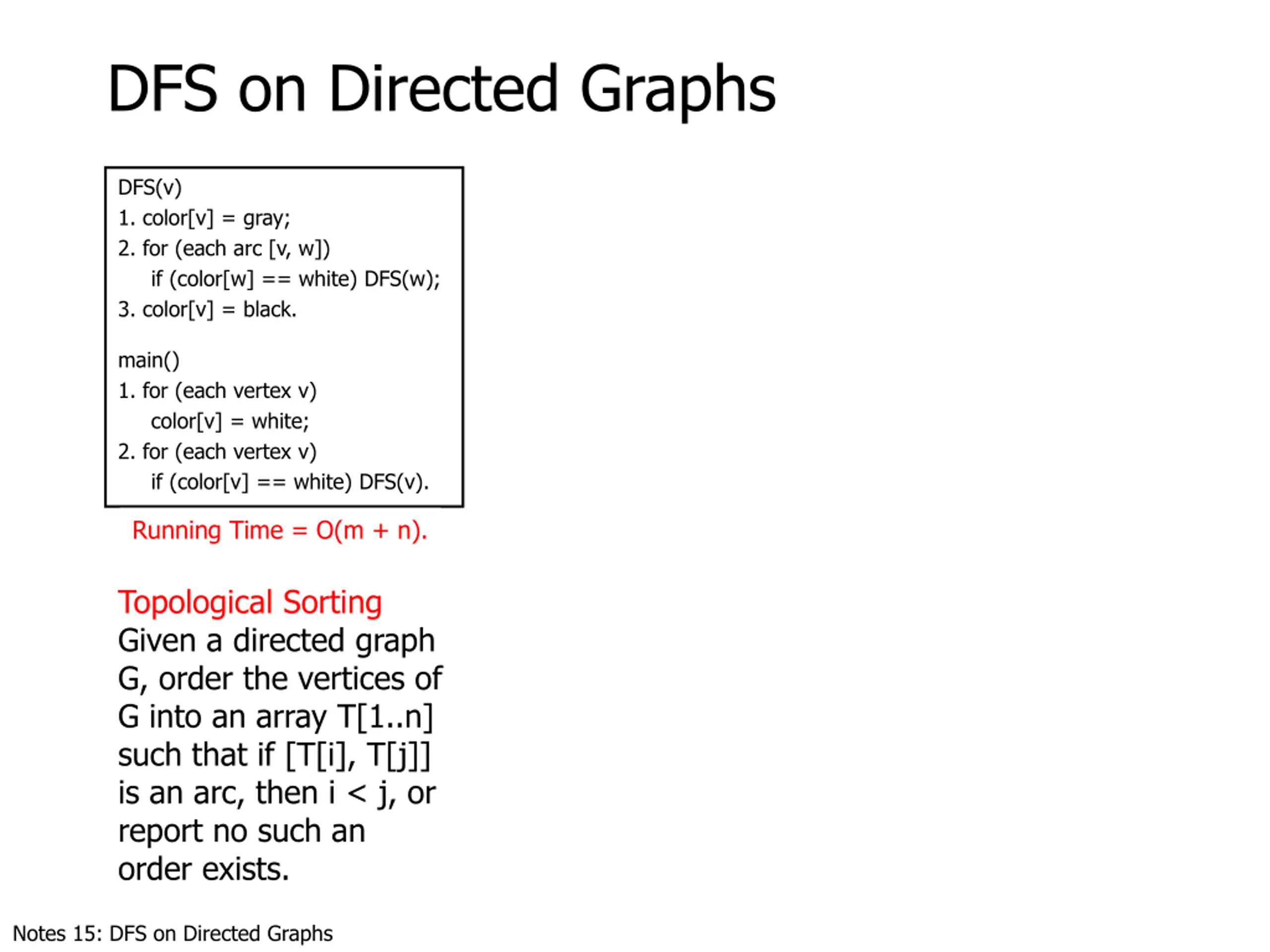

  4. DFS on Directed Graphs DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w); 3. color[v] = black. main() 1. for (each vertex v) color[v] = white; 2. for (each vertex v) if (color[v] == white) DFS(v). Running Time = O(m + n). Topological Sorting Given a directed graph G, order the vertices of G into an array T[1..n] such that if [T[i], T[j]] is an arc, then i < j, or report no such an order exists. Notes 15: DFS on Directed Graphs

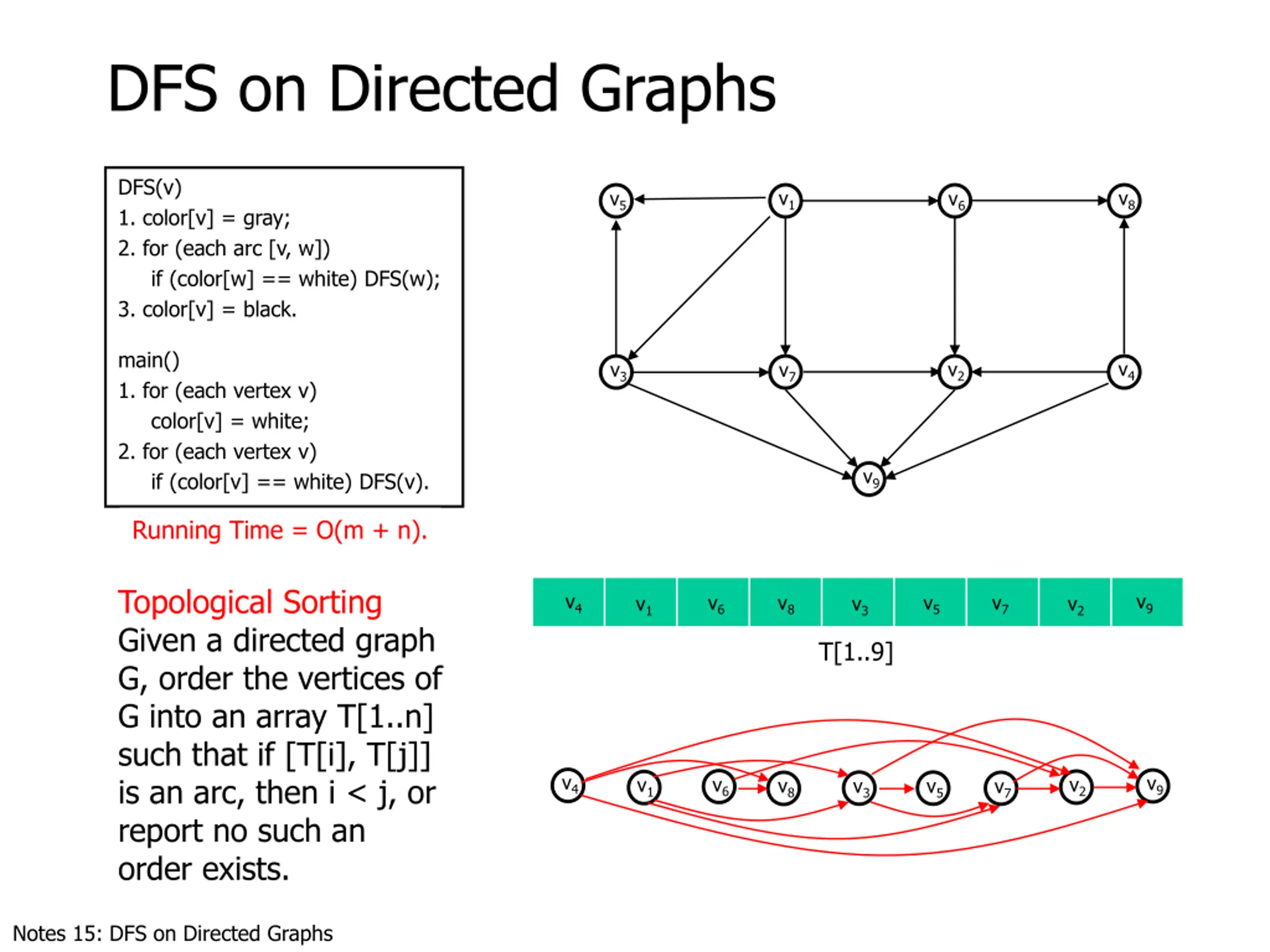

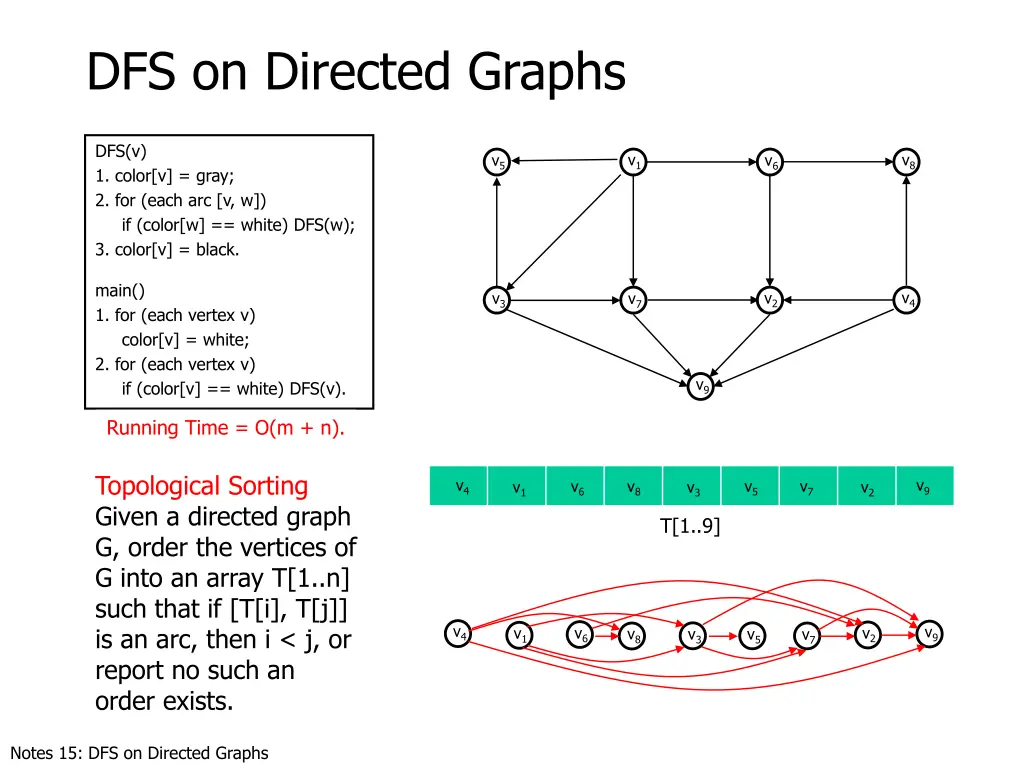

  5. DFS on Directed Graphs DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w); 3. color[v] = black. v1 v8 v5 v6 main() 1. for (each vertex v) color[v] = white; 2. for (each vertex v) if (color[v] == white) DFS(v). v4 v2 v3 v7 v9 Running Time = O(m + n). Topological Sorting Given a directed graph G, order the vertices of G into an array T[1..n] such that if [T[i], T[j]] is an arc, then i < j, or report no such an order exists. v4 v9 v6 v8 v5 v7 v1 v3 v2 T[1..9] v4 v9 v6 v2 v1 v8 v5 v3 v7 Notes 15: DFS on Directed Graphs

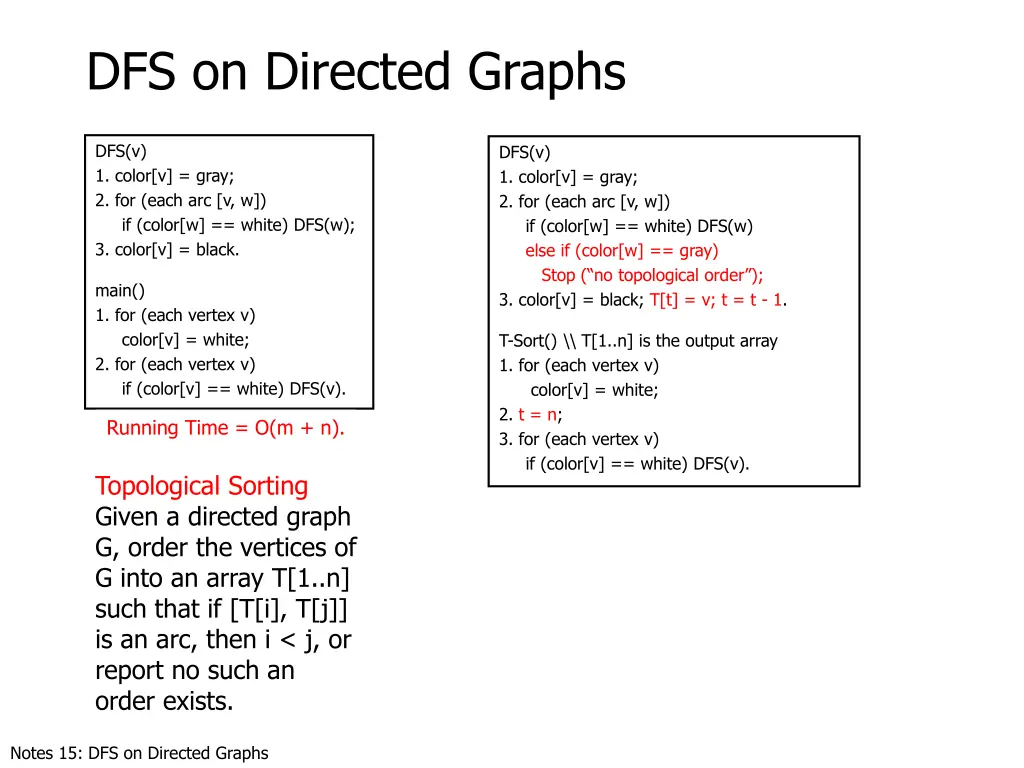

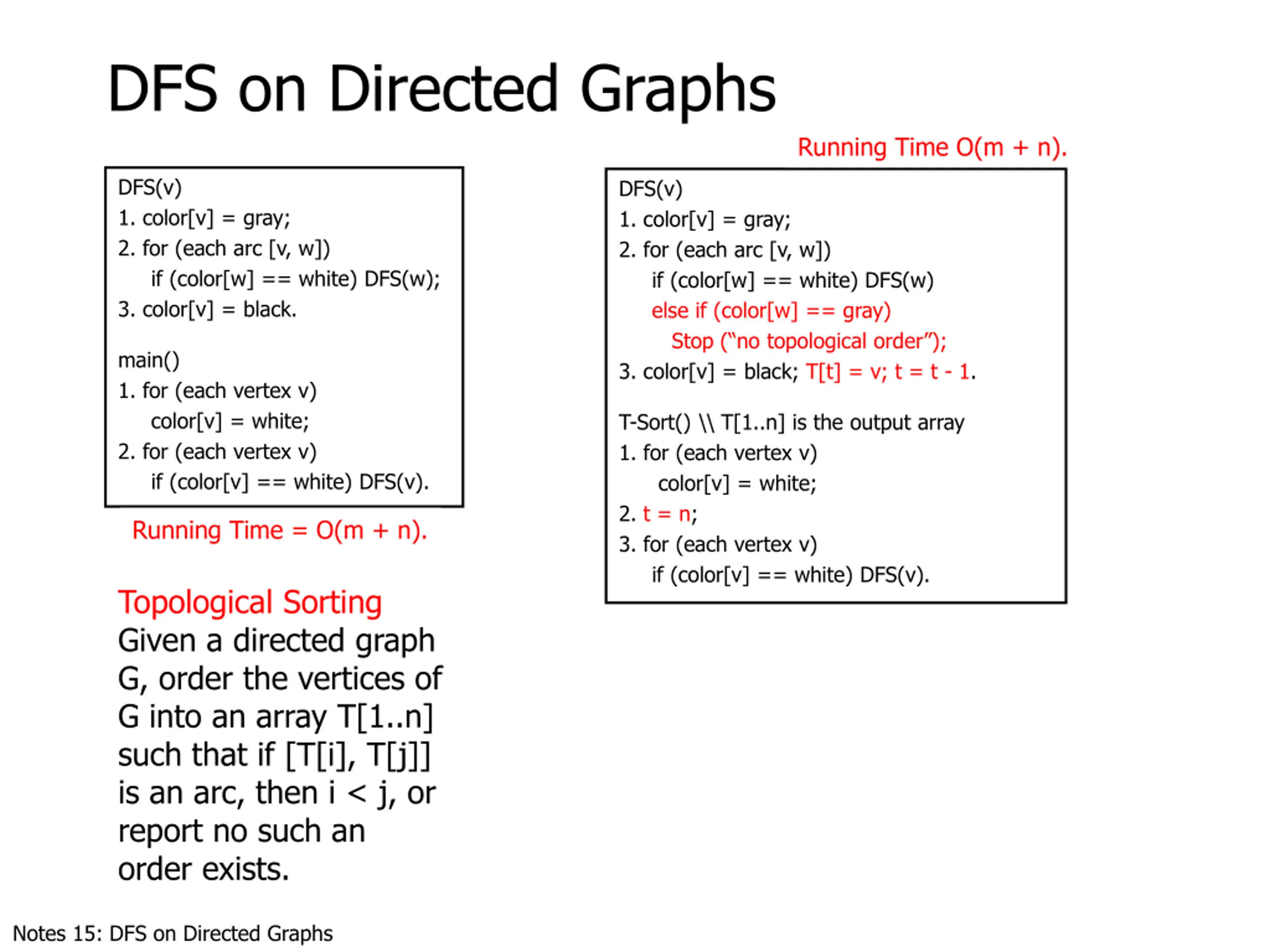

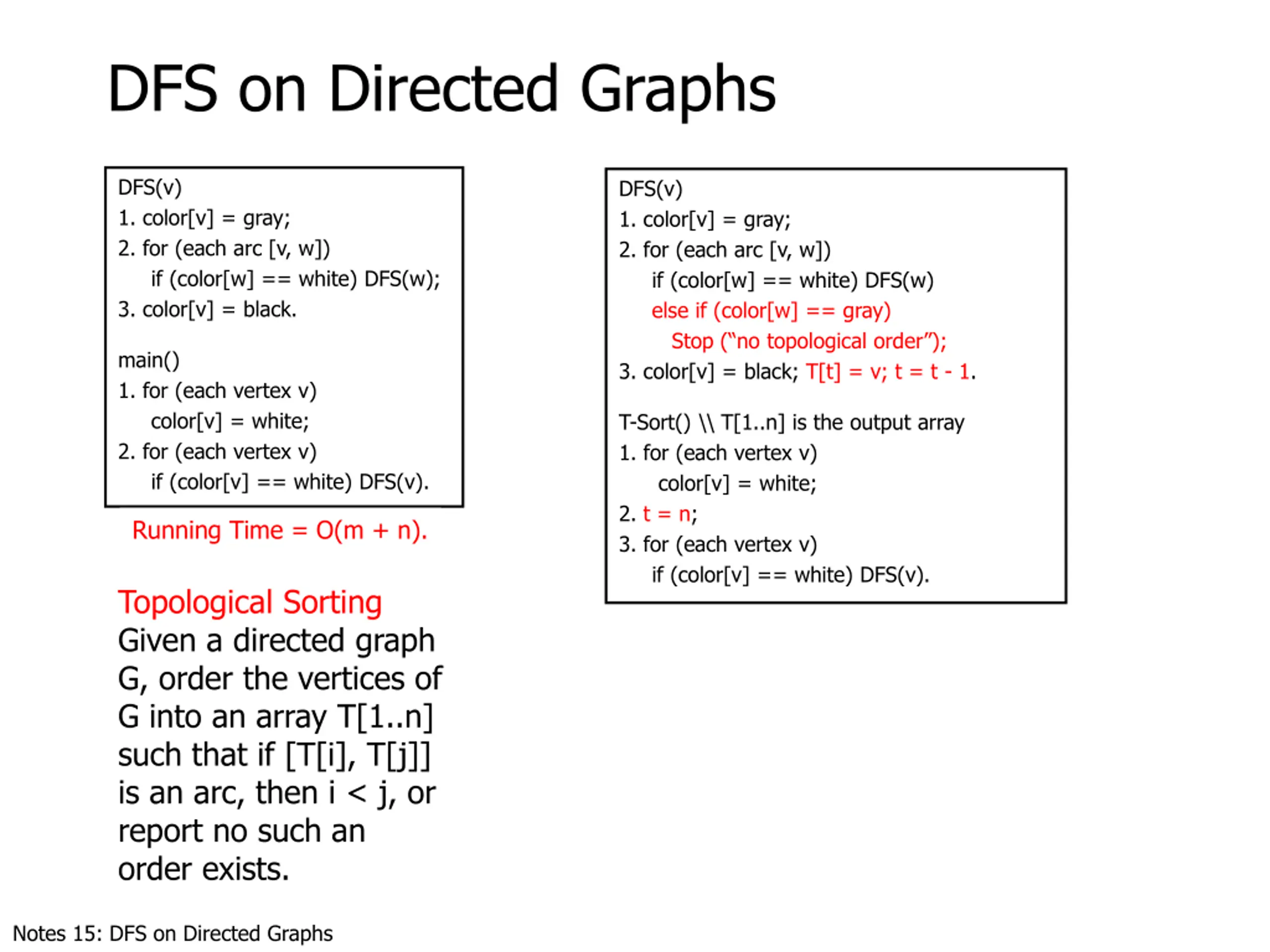

  6. DFS on Directed Graphs DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w); 3. color[v] = black. DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w) else if (color[w] == gray) Stop ( no topological order ); 3. color[v] = black; T[t] = v; t = t - 1. main() 1. for (each vertex v) color[v] = white; 2. for (each vertex v) if (color[v] == white) DFS(v). T-Sort() \\ T[1..n] is the output array 1. for (each vertex v) color[v] = white; 2. t = n; 3. for (each vertex v) if (color[v] == white) DFS(v). Running Time = O(m + n). Topological Sorting Given a directed graph G, order the vertices of G into an array T[1..n] such that if [T[i], T[j]] is an arc, then i < j, or report no such an order exists. Notes 15: DFS on Directed Graphs

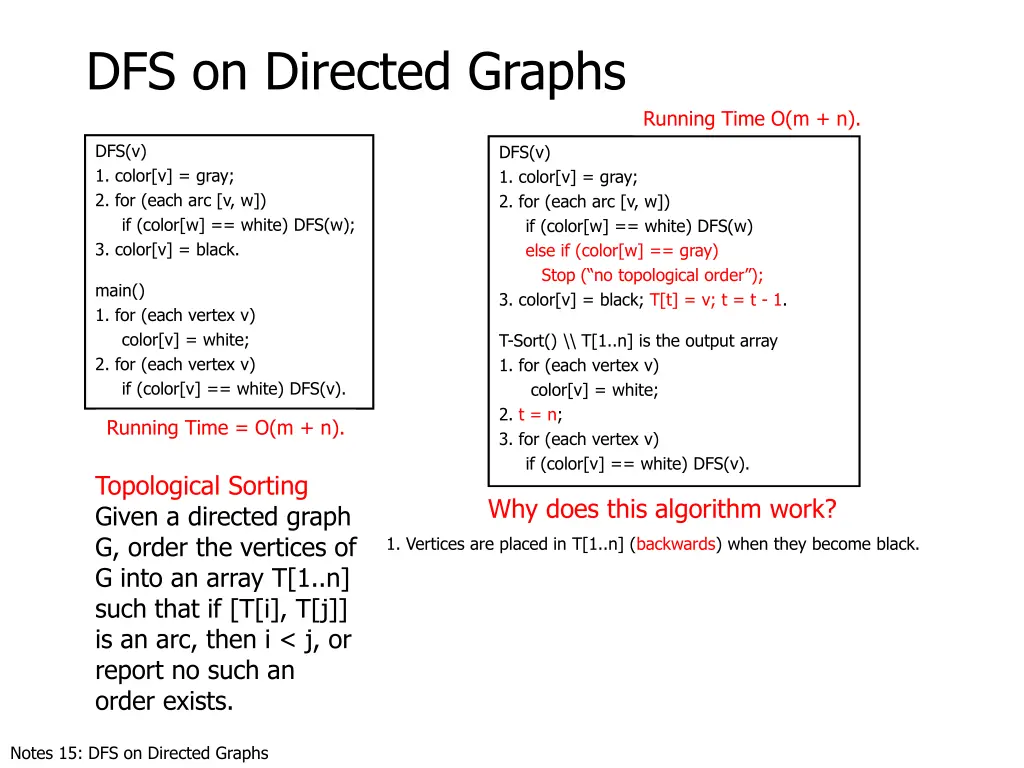

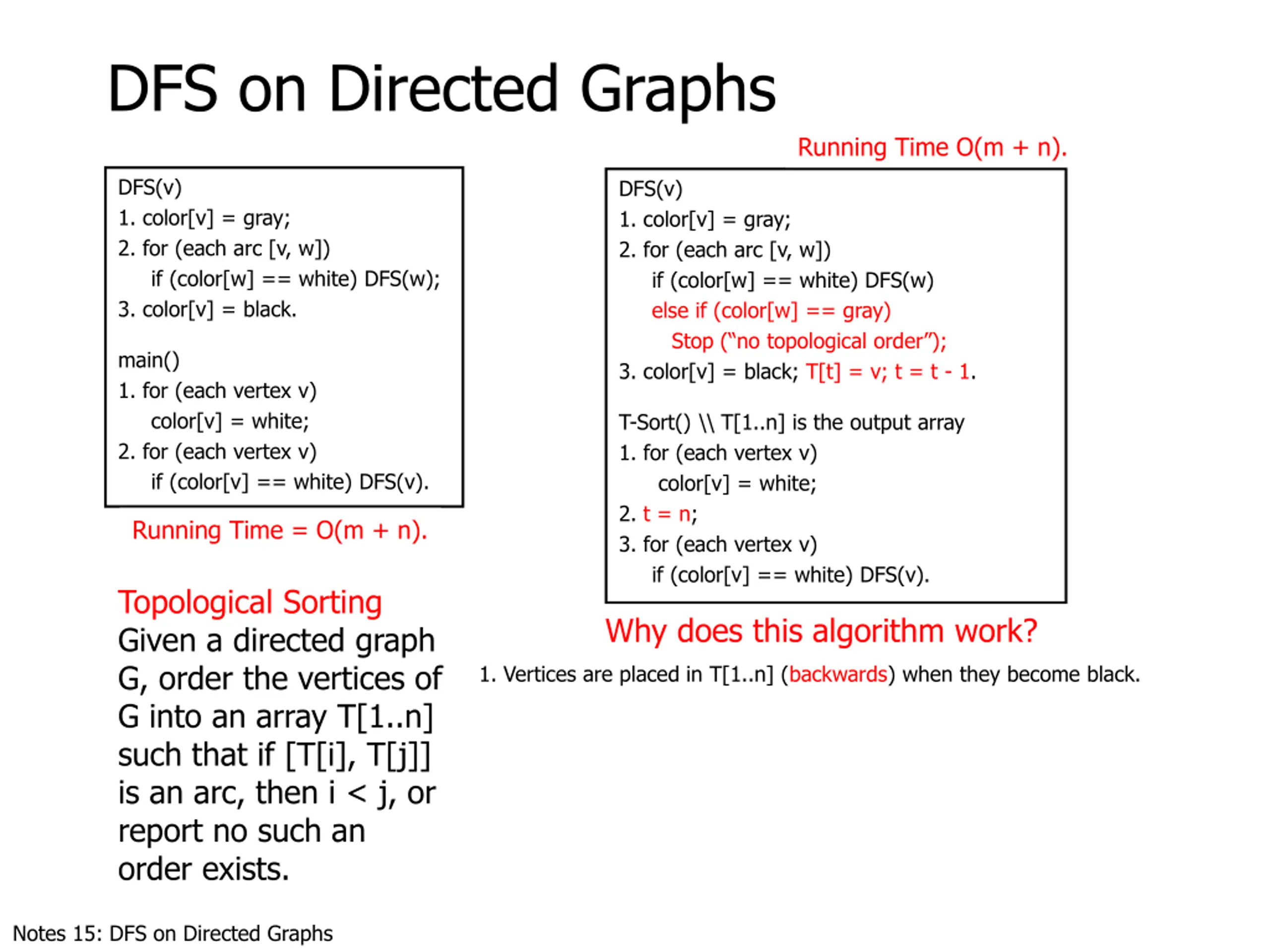

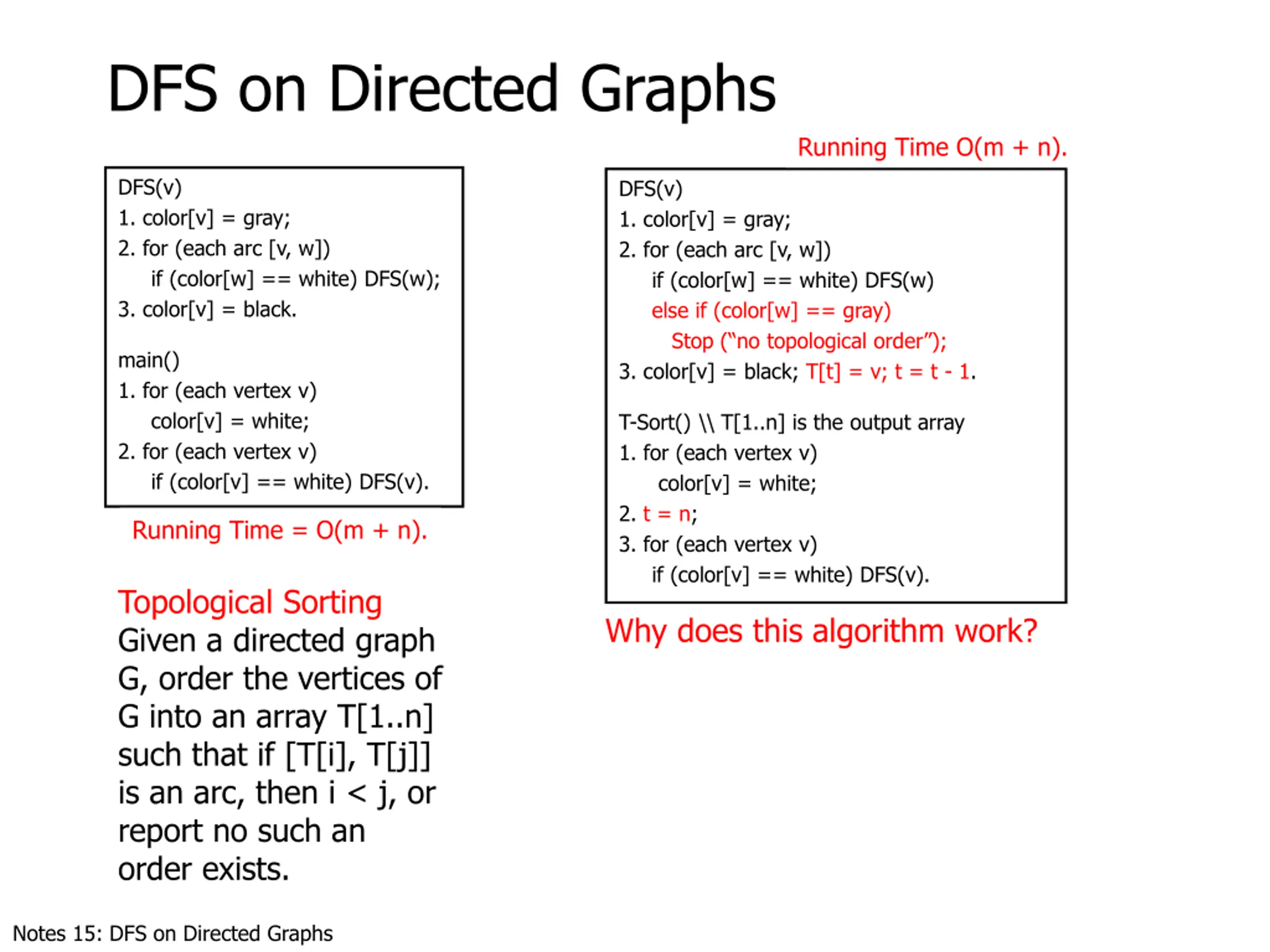

  7. DFS on Directed Graphs Running Time O(m + n). DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w); 3. color[v] = black. DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w) else if (color[w] == gray) Stop ( no topological order ); 3. color[v] = black; T[t] = v; t = t - 1. main() 1. for (each vertex v) color[v] = white; 2. for (each vertex v) if (color[v] == white) DFS(v). T-Sort() \\ T[1..n] is the output array 1. for (each vertex v) color[v] = white; 2. t = n; 3. for (each vertex v) if (color[v] == white) DFS(v). Running Time = O(m + n). Topological Sorting Given a directed graph G, order the vertices of G into an array T[1..n] such that if [T[i], T[j]] is an arc, then i < j, or report no such an order exists. Notes 15: DFS on Directed Graphs

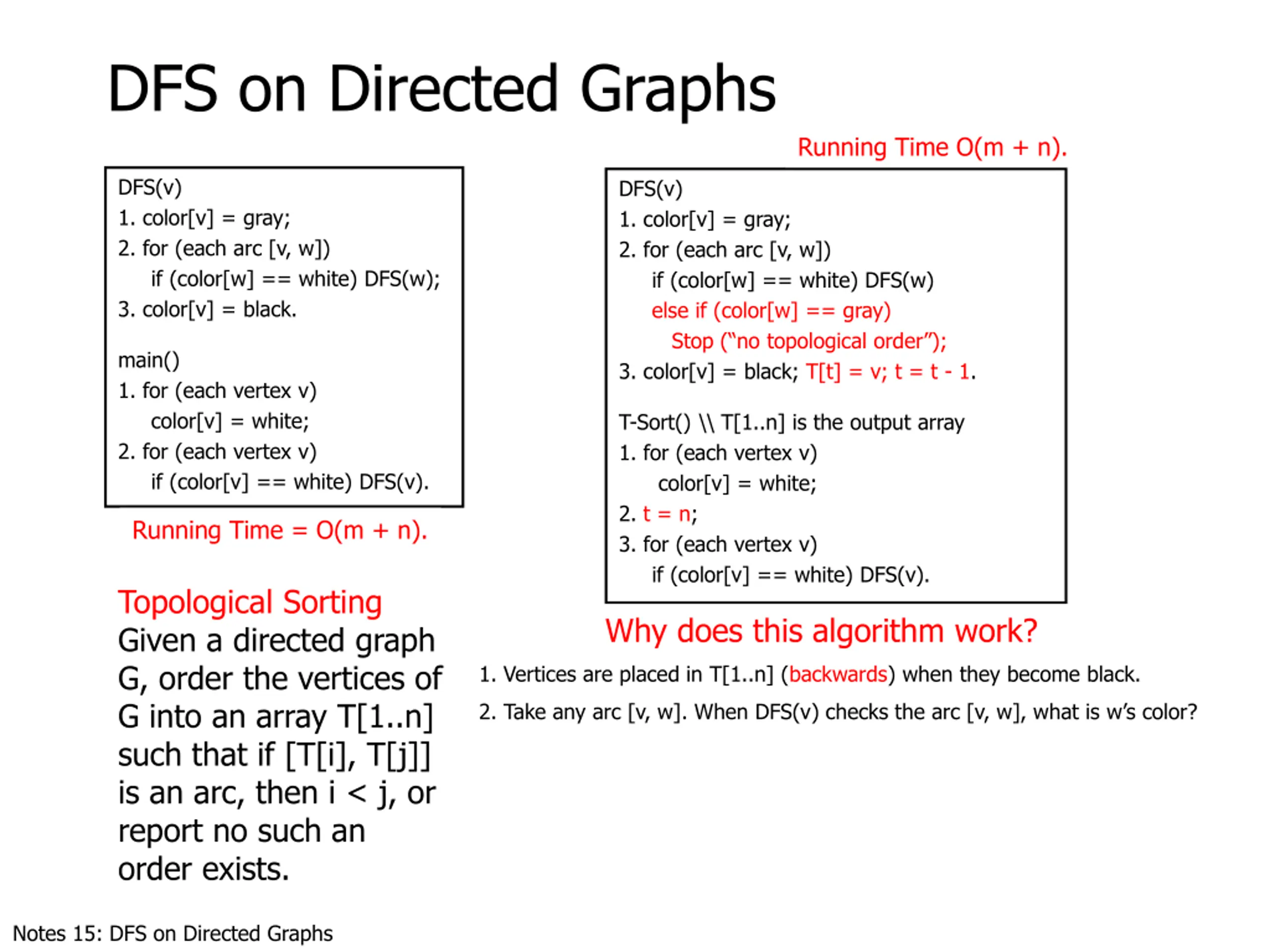

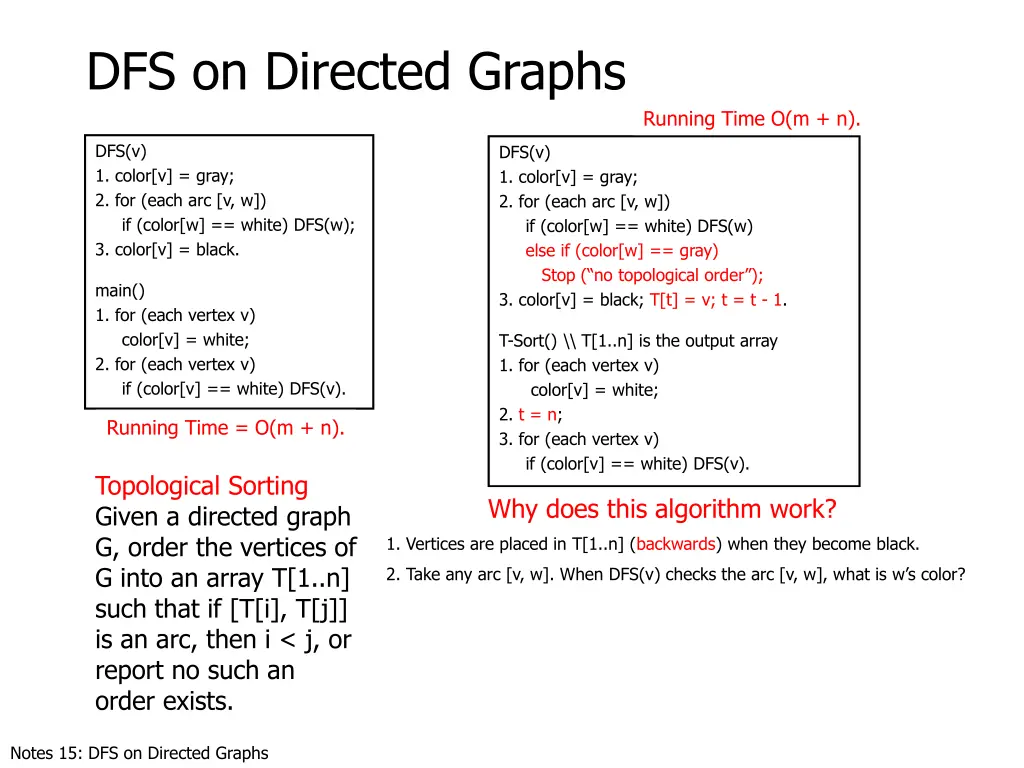

  8. DFS on Directed Graphs Running Time O(m + n). DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w); 3. color[v] = black. DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w) else if (color[w] == gray) Stop ( no topological order ); 3. color[v] = black; T[t] = v; t = t - 1. main() 1. for (each vertex v) color[v] = white; 2. for (each vertex v) if (color[v] == white) DFS(v). T-Sort() \\ T[1..n] is the output array 1. for (each vertex v) color[v] = white; 2. t = n; 3. for (each vertex v) if (color[v] == white) DFS(v). Running Time = O(m + n). Topological Sorting Given a directed graph G, order the vertices of G into an array T[1..n] such that if [T[i], T[j]] is an arc, then i < j, or report no such an order exists. Why does this algorithm work? Notes 15: DFS on Directed Graphs

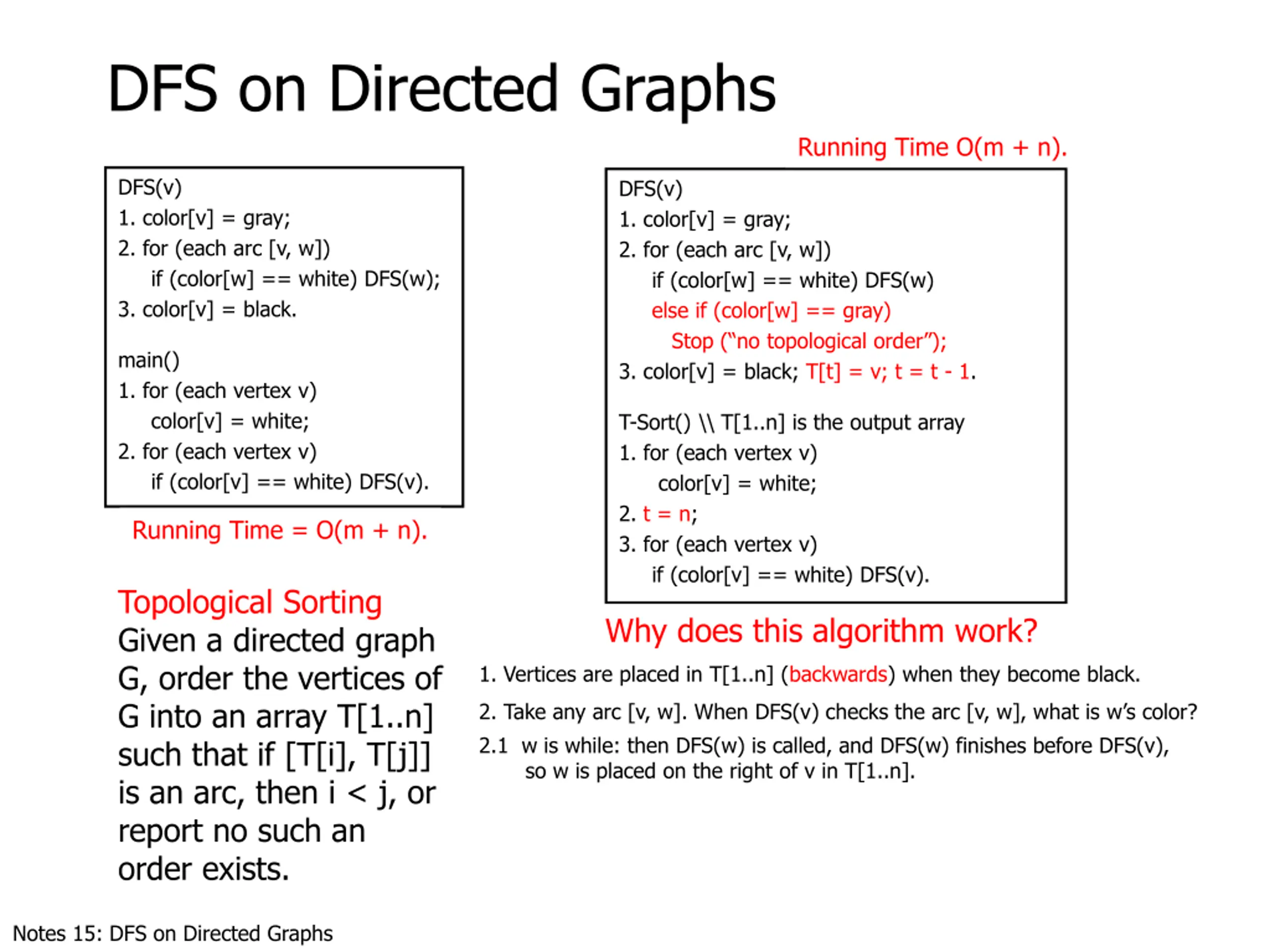

  9. DFS on Directed Graphs Running Time O(m + n). DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w); 3. color[v] = black. DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w) else if (color[w] == gray) Stop ( no topological order ); 3. color[v] = black; T[t] = v; t = t - 1. main() 1. for (each vertex v) color[v] = white; 2. for (each vertex v) if (color[v] == white) DFS(v). T-Sort() \\ T[1..n] is the output array 1. for (each vertex v) color[v] = white; 2. t = n; 3. for (each vertex v) if (color[v] == white) DFS(v). Running Time = O(m + n). Topological Sorting Given a directed graph G, order the vertices of G into an array T[1..n] such that if [T[i], T[j]] is an arc, then i < j, or report no such an order exists. Why does this algorithm work? 1. Vertices are placed in T[1..n] (backwards) when they become black. Notes 15: DFS on Directed Graphs

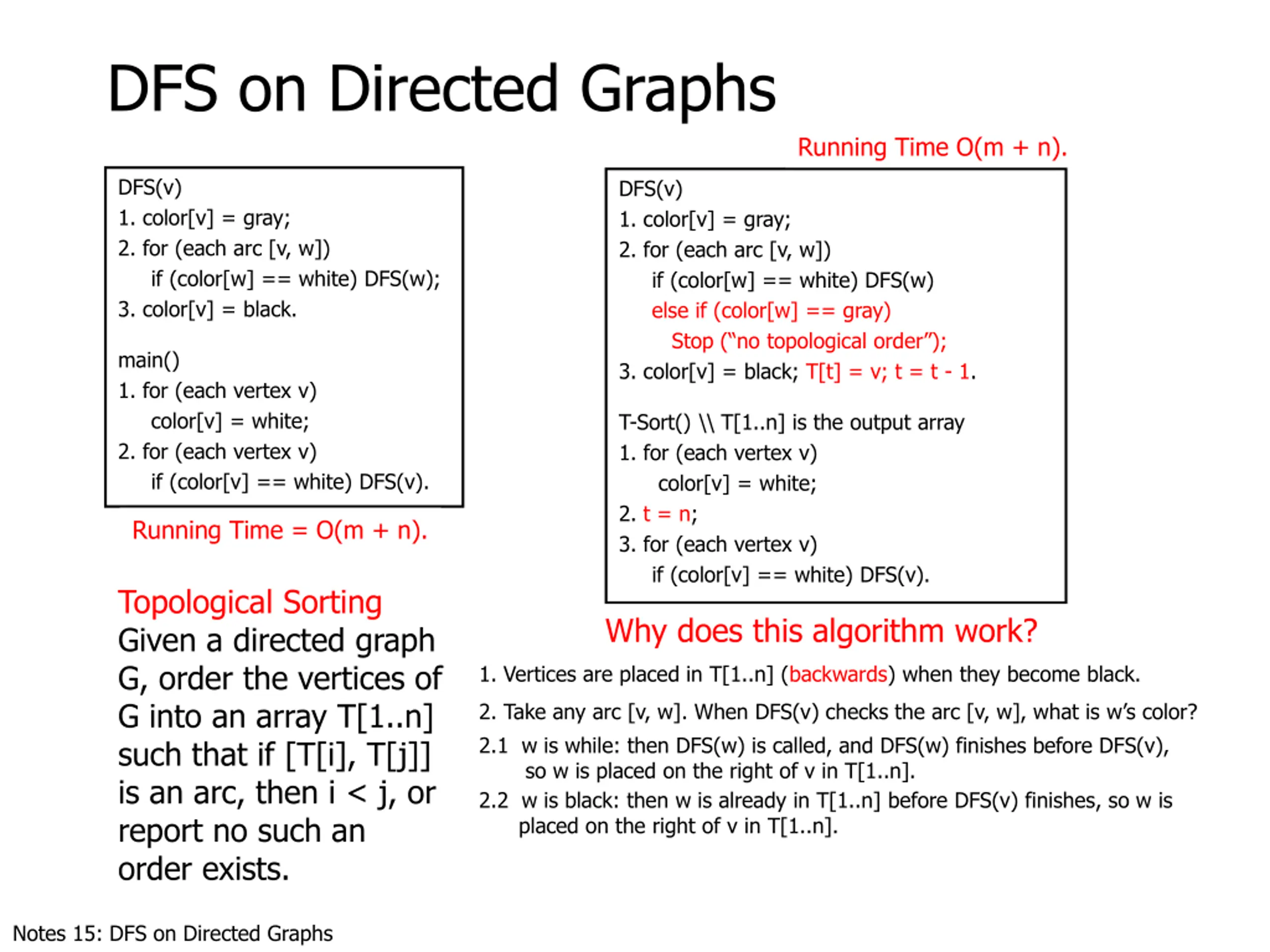

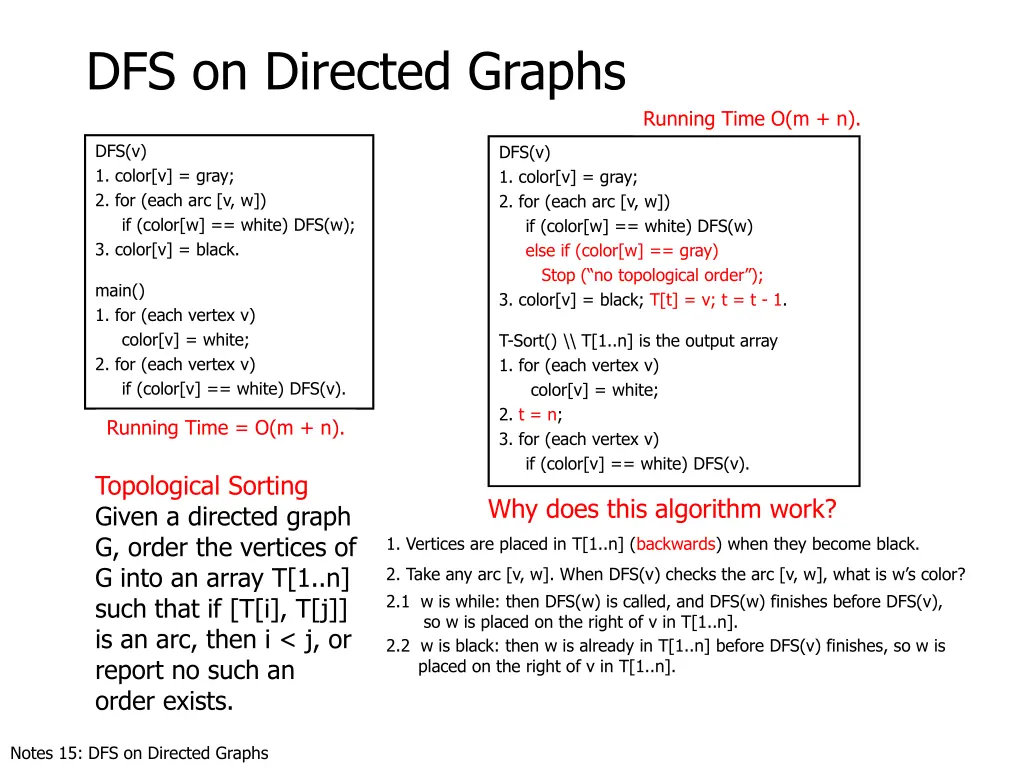

  10. DFS on Directed Graphs Running Time O(m + n). DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w); 3. color[v] = black. DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w) else if (color[w] == gray) Stop ( no topological order ); 3. color[v] = black; T[t] = v; t = t - 1. main() 1. for (each vertex v) color[v] = white; 2. for (each vertex v) if (color[v] == white) DFS(v). T-Sort() \\ T[1..n] is the output array 1. for (each vertex v) color[v] = white; 2. t = n; 3. for (each vertex v) if (color[v] == white) DFS(v). Running Time = O(m + n). Topological Sorting Given a directed graph G, order the vertices of G into an array T[1..n] such that if [T[i], T[j]] is an arc, then i < j, or report no such an order exists. Why does this algorithm work? 1. Vertices are placed in T[1..n] (backwards) when they become black. 2. Take any arc [v, w]. When DFS(v) checks the arc [v, w], what is w s color? Notes 15: DFS on Directed Graphs

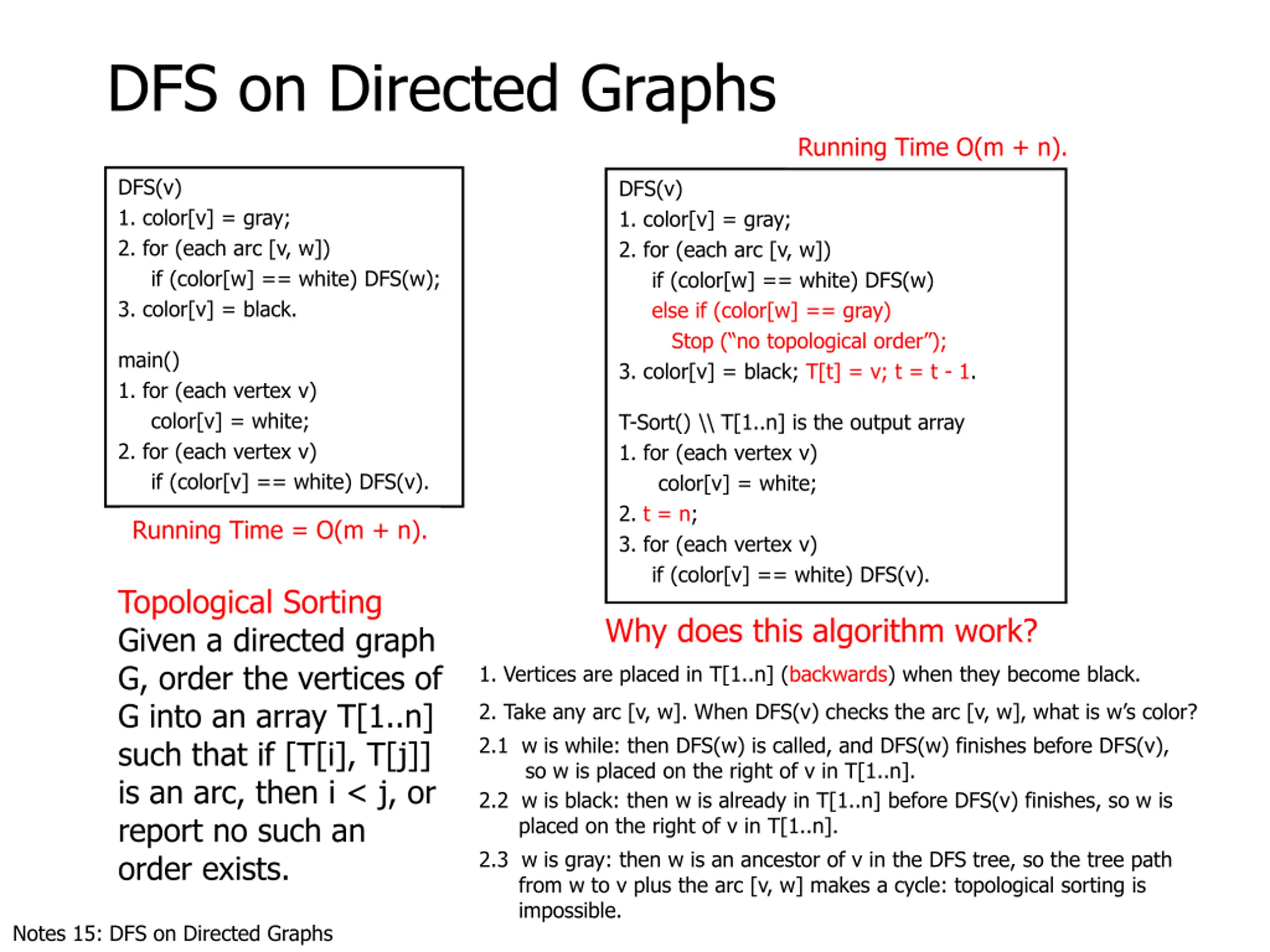

  11. DFS on Directed Graphs Running Time O(m + n). DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w); 3. color[v] = black. DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w) else if (color[w] == gray) Stop ( no topological order ); 3. color[v] = black; T[t] = v; t = t - 1. main() 1. for (each vertex v) color[v] = white; 2. for (each vertex v) if (color[v] == white) DFS(v). T-Sort() \\ T[1..n] is the output array 1. for (each vertex v) color[v] = white; 2. t = n; 3. for (each vertex v) if (color[v] == white) DFS(v). Running Time = O(m + n). Topological Sorting Given a directed graph G, order the vertices of G into an array T[1..n] such that if [T[i], T[j]] is an arc, then i < j, or report no such an order exists. Why does this algorithm work? 1. Vertices are placed in T[1..n] (backwards) when they become black. 2. Take any arc [v, w]. When DFS(v) checks the arc [v, w], what is w s color? 2.1 w is while: then DFS(w) is called, and DFS(w) finishes before DFS(v), so w is placed on the right of v in T[1..n]. Notes 15: DFS on Directed Graphs

  12. DFS on Directed Graphs Running Time O(m + n). DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w); 3. color[v] = black. DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w) else if (color[w] == gray) Stop ( no topological order ); 3. color[v] = black; T[t] = v; t = t - 1. main() 1. for (each vertex v) color[v] = white; 2. for (each vertex v) if (color[v] == white) DFS(v). T-Sort() \\ T[1..n] is the output array 1. for (each vertex v) color[v] = white; 2. t = n; 3. for (each vertex v) if (color[v] == white) DFS(v). Running Time = O(m + n). Topological Sorting Given a directed graph G, order the vertices of G into an array T[1..n] such that if [T[i], T[j]] is an arc, then i < j, or report no such an order exists. Why does this algorithm work? 1. Vertices are placed in T[1..n] (backwards) when they become black. 2. Take any arc [v, w]. When DFS(v) checks the arc [v, w], what is w s color? 2.1 w is while: then DFS(w) is called, and DFS(w) finishes before DFS(v), so w is placed on the right of v in T[1..n]. 2.2 w is black: then w is already in T[1..n] before DFS(v) finishes, so w is placed on the right of v in T[1..n]. Notes 15: DFS on Directed Graphs

  13. DFS on Directed Graphs Running Time O(m + n). DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w); 3. color[v] = black. DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w) else if (color[w] == gray) Stop ( no topological order ); 3. color[v] = black; T[t] = v; t = t - 1. main() 1. for (each vertex v) color[v] = white; 2. for (each vertex v) if (color[v] == white) DFS(v). T-Sort() \\ T[1..n] is the output array 1. for (each vertex v) color[v] = white; 2. t = n; 3. for (each vertex v) if (color[v] == white) DFS(v). Running Time = O(m + n). Topological Sorting Given a directed graph G, order the vertices of G into an array T[1..n] such that if [T[i], T[j]] is an arc, then i < j, or report no such an order exists. Why does this algorithm work? 1. Vertices are placed in T[1..n] (backwards) when they become black. 2. Take any arc [v, w]. When DFS(v) checks the arc [v, w], what is w s color? 2.1 w is while: then DFS(w) is called, and DFS(w) finishes before DFS(v), so w is placed on the right of v in T[1..n]. 2.2 w is black: then w is already in T[1..n] before DFS(v) finishes, so w is placed on the right of v in T[1..n]. 2.3 w is gray: then w is an ancestor of v in the DFS tree, so the tree path from w to v plus the arc [v, w] makes a cycle: topological sorting is impossible. Notes 15: DFS on Directed Graphs

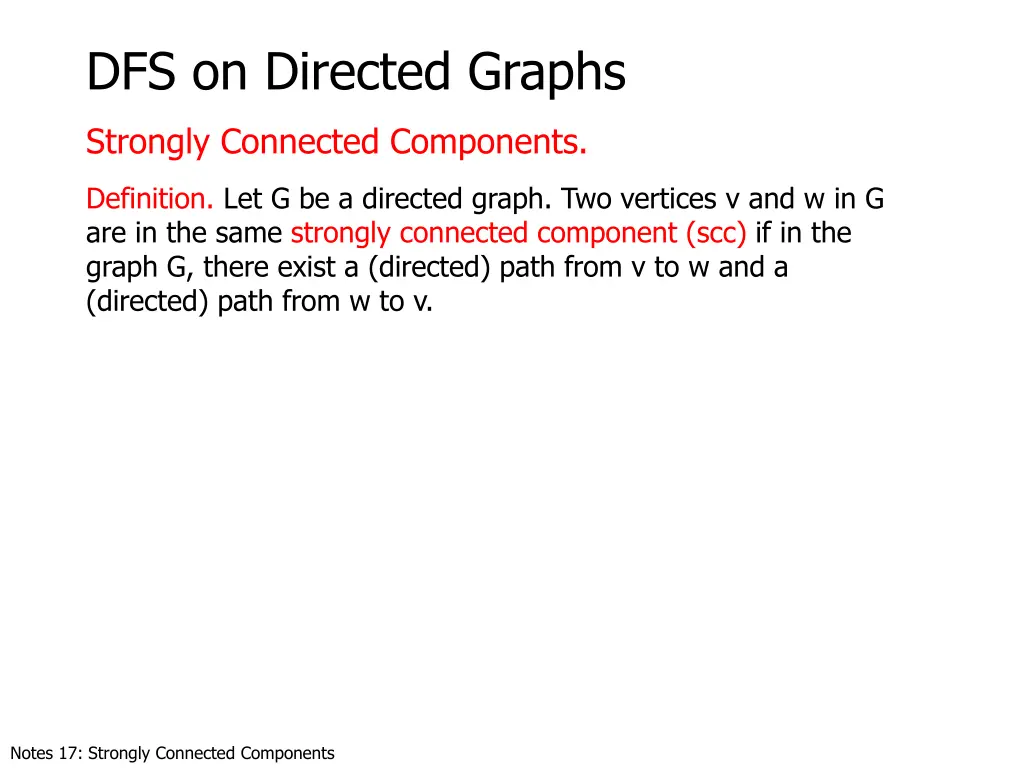

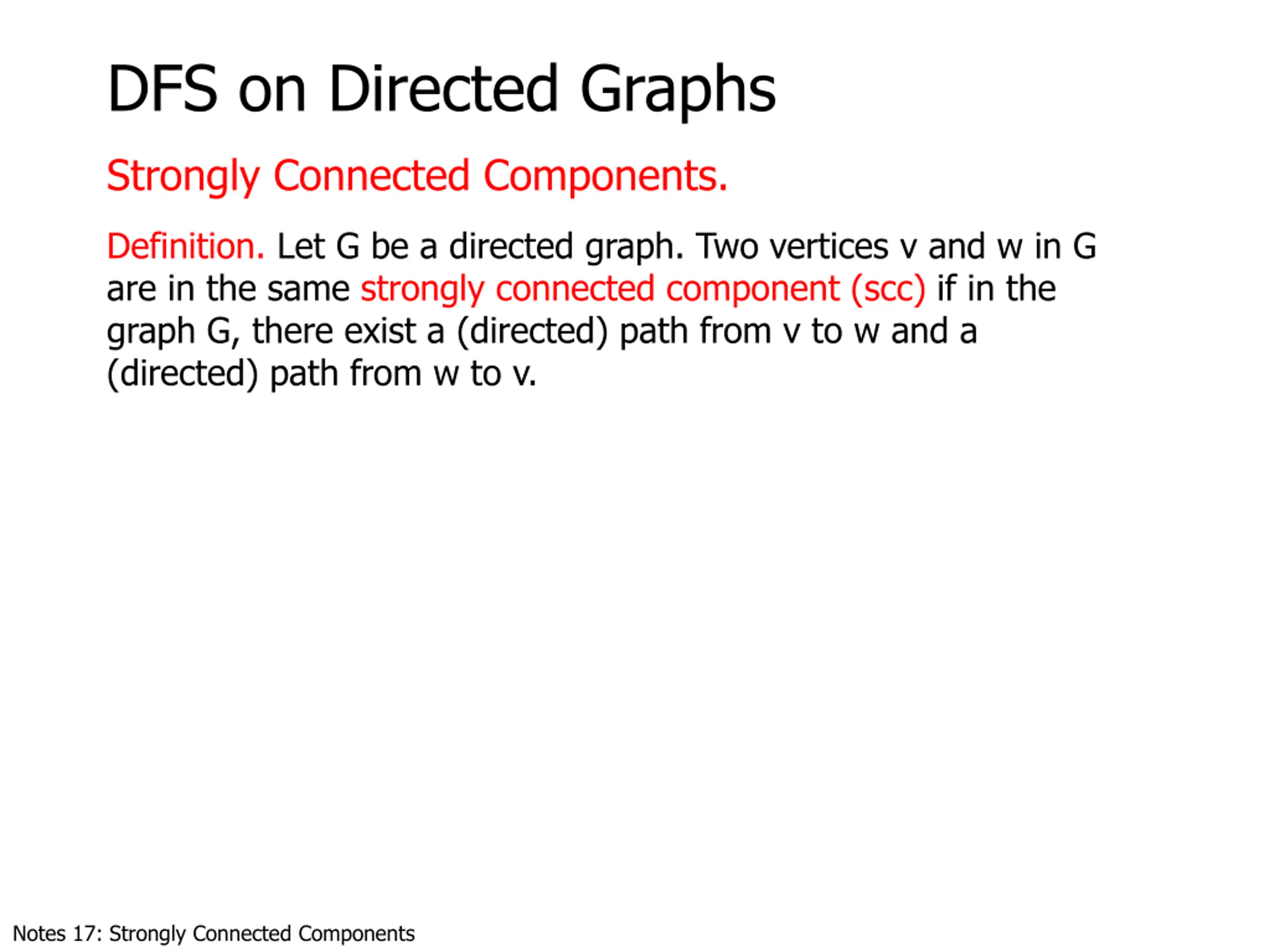

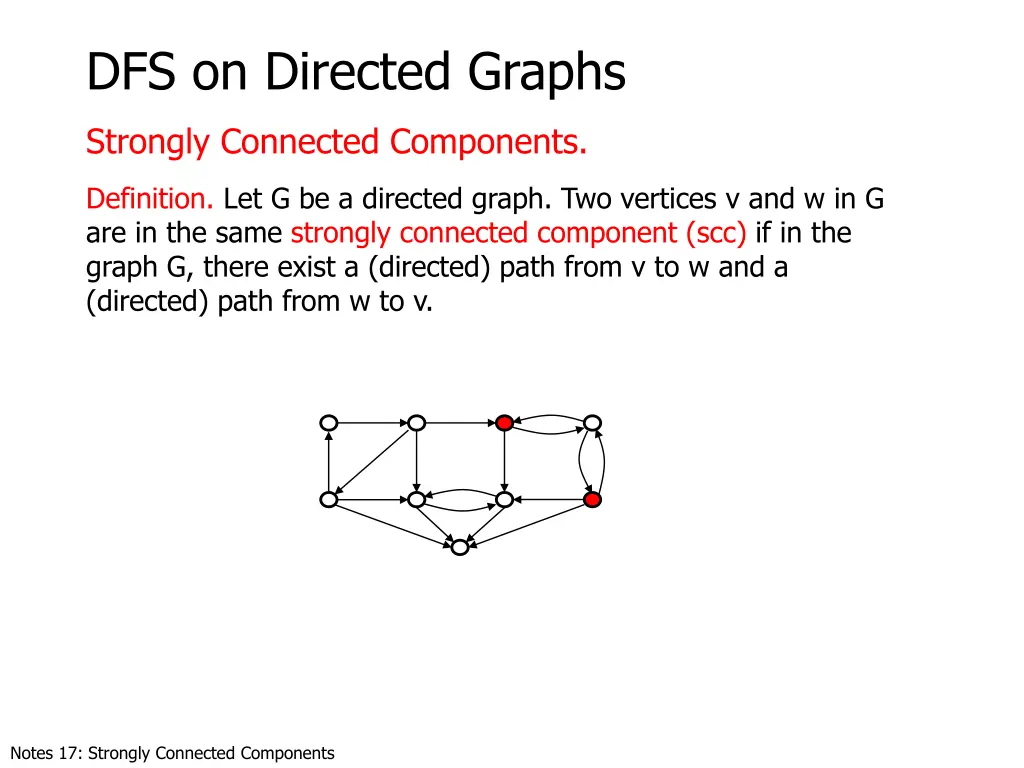

  14. DFS on Directed Graphs Strongly Connected Components. Definition. Let G be a directed graph. Two vertices v and w in G are in the same strongly connected component (scc) if in the graph G, there exist a (directed) path from v to w and a (directed) path from w to v. Notes 17: Strongly Connected Components

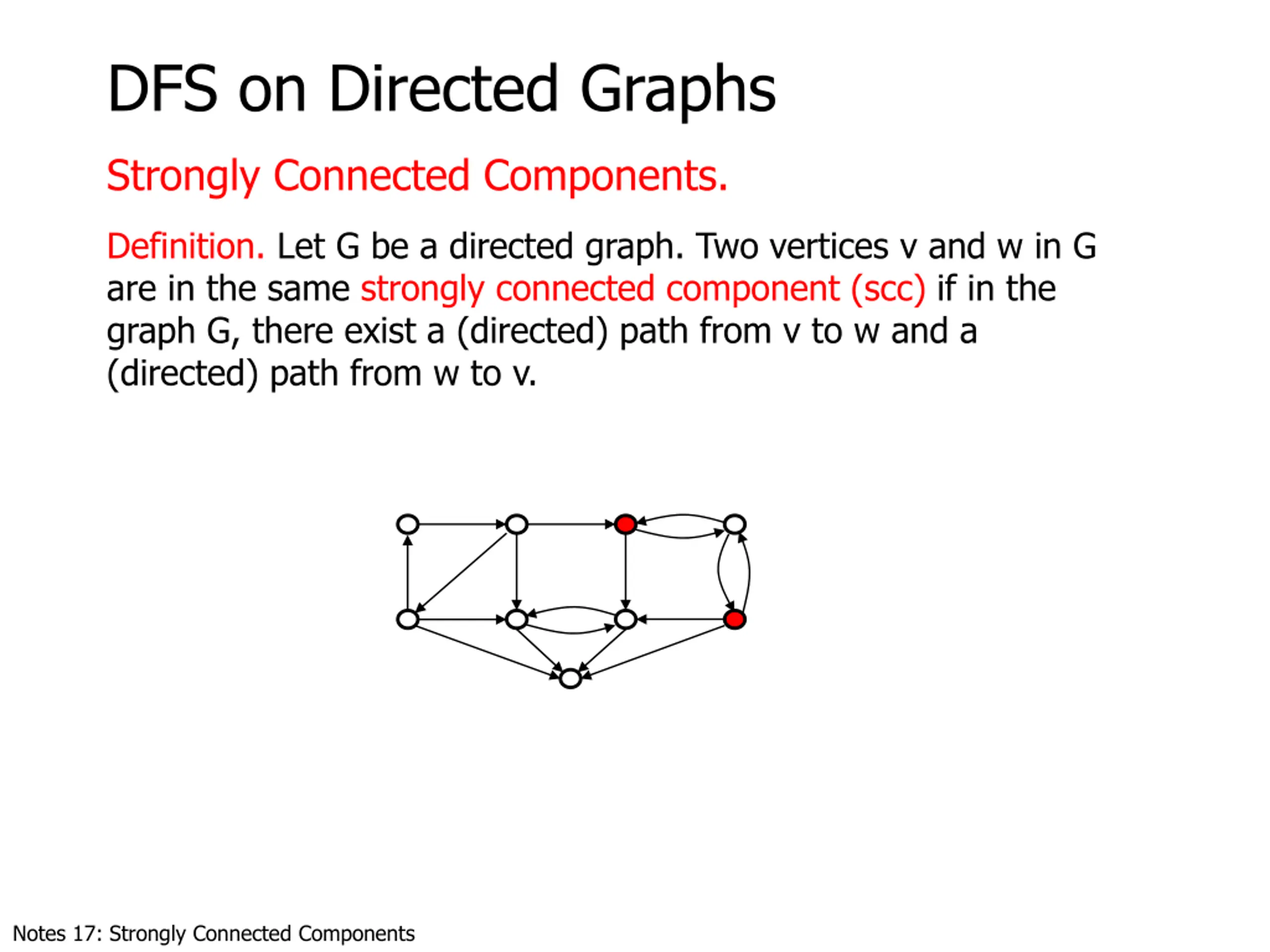

  15. DFS on Directed Graphs Strongly Connected Components. Definition. Let G be a directed graph. Two vertices v and w in G are in the same strongly connected component (scc) if in the graph G, there exist a (directed) path from v to w and a (directed) path from w to v. Notes 17: Strongly Connected Components

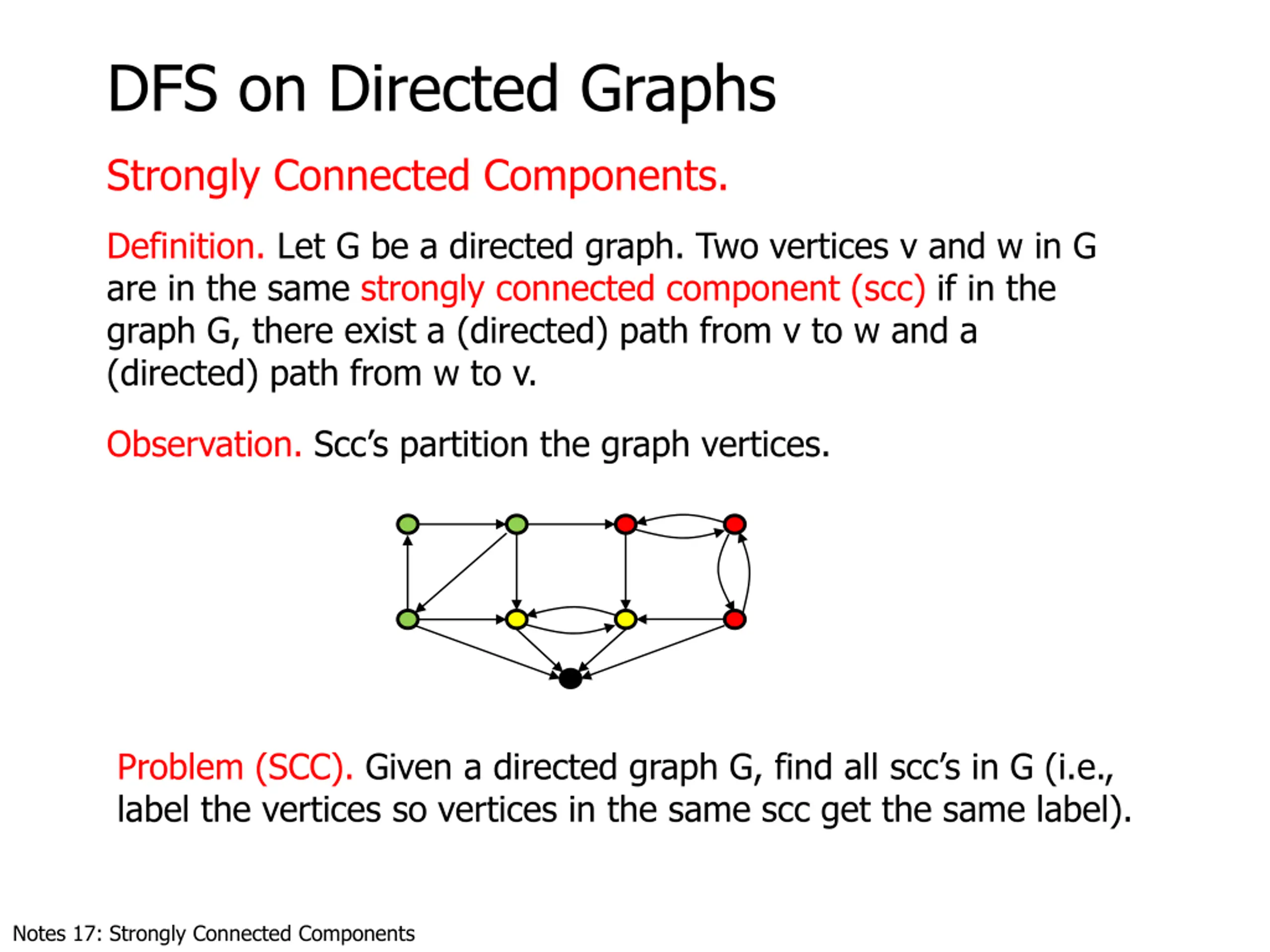

  16. DFS on Directed Graphs Strongly Connected Components. Definition. Let G be a directed graph. Two vertices v and w in G are in the same strongly connected component (scc) if in the graph G, there exist a (directed) path from v to w and a (directed) path from w to v. Observation. Scc s partition the graph vertices. Problem (SCC). Given a directed graph G, find all scc s in G (i.e., label the vertices so vertices in the same scc get the same label). Notes 17: Strongly Connected Components

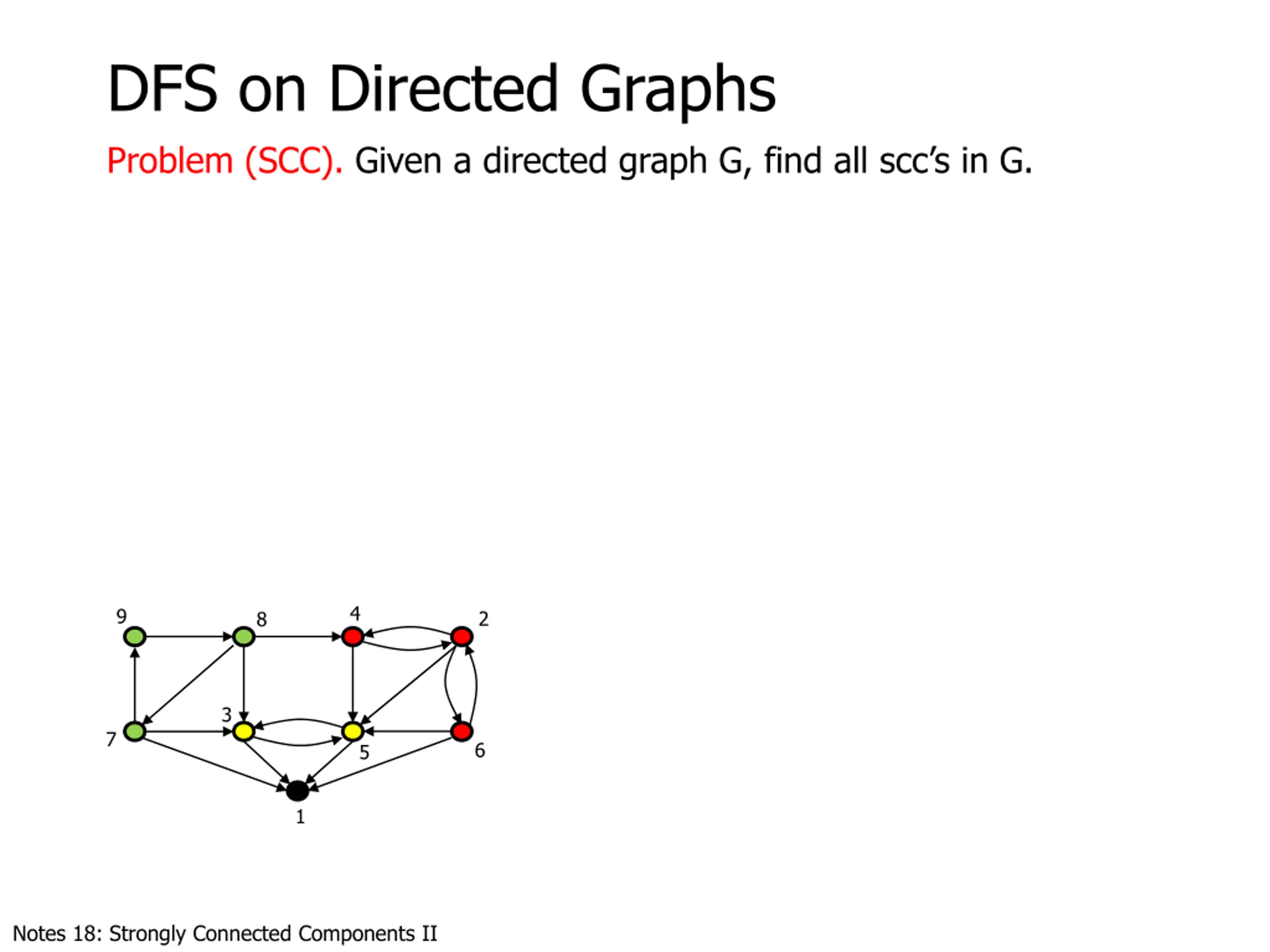

  17. DFS on Directed Graphs Problem (SCC). Given a directed graph G, find all scc s in G. 4 9 2 8 3 7 6 5 1 Notes 18: Strongly Connected Components II

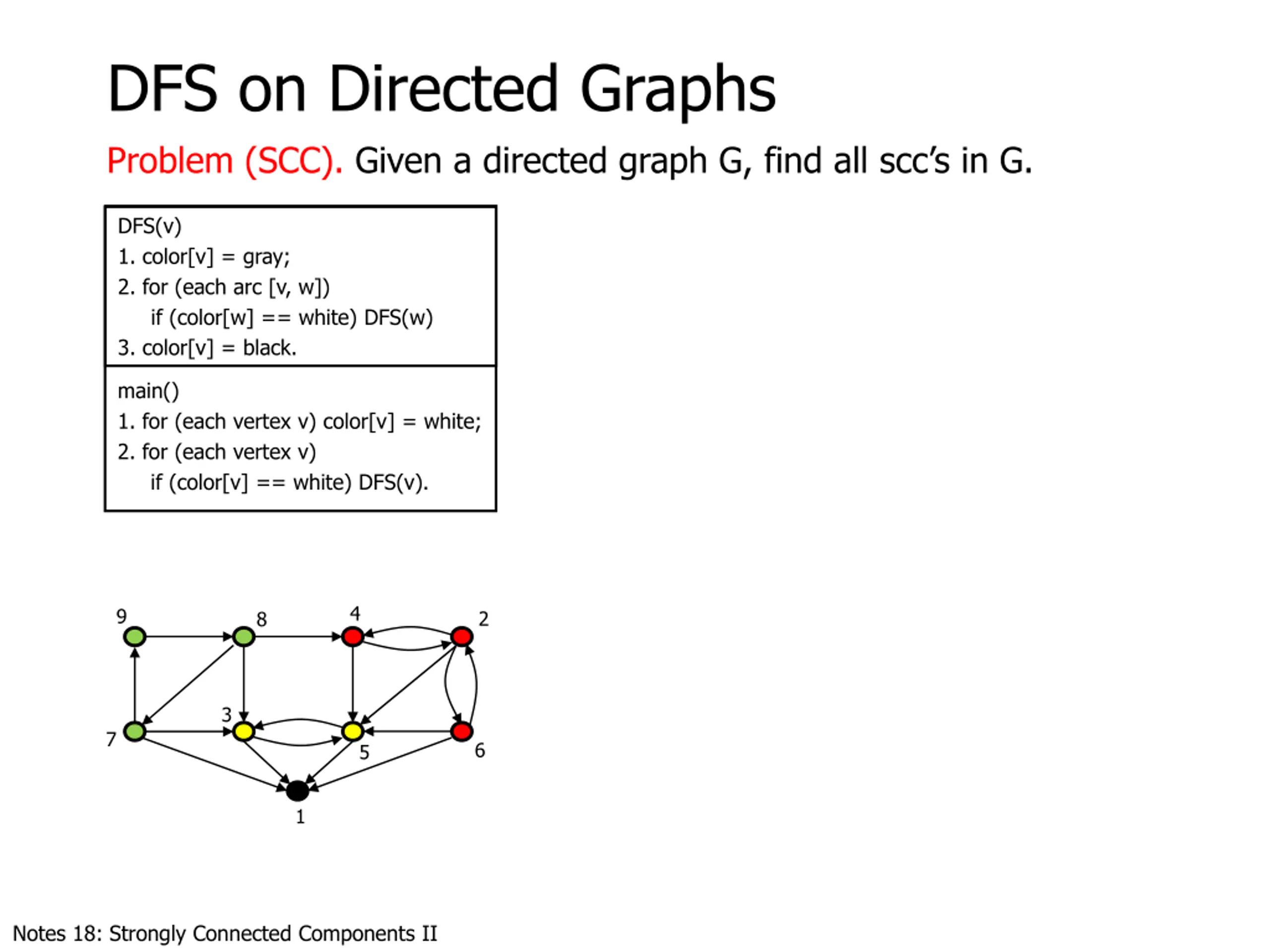

  18. DFS on Directed Graphs Problem (SCC). Given a directed graph G, find all scc s in G. DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w) 3. color[v] = black. main() 1. for (each vertex v) color[v] = white; 2. for (each vertex v) if (color[v] == white) DFS(v). 4 9 2 8 3 7 6 5 1 Notes 18: Strongly Connected Components II

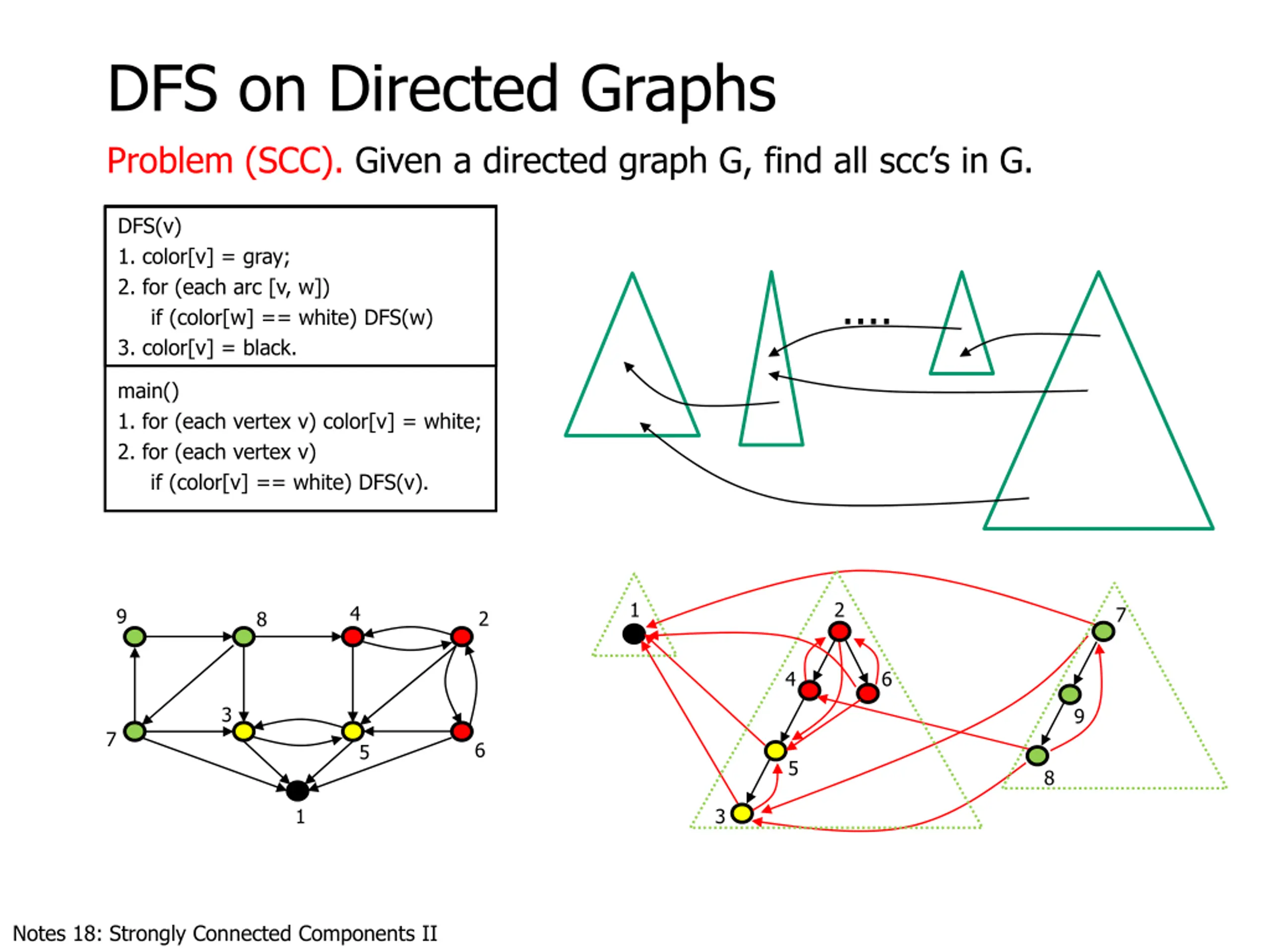

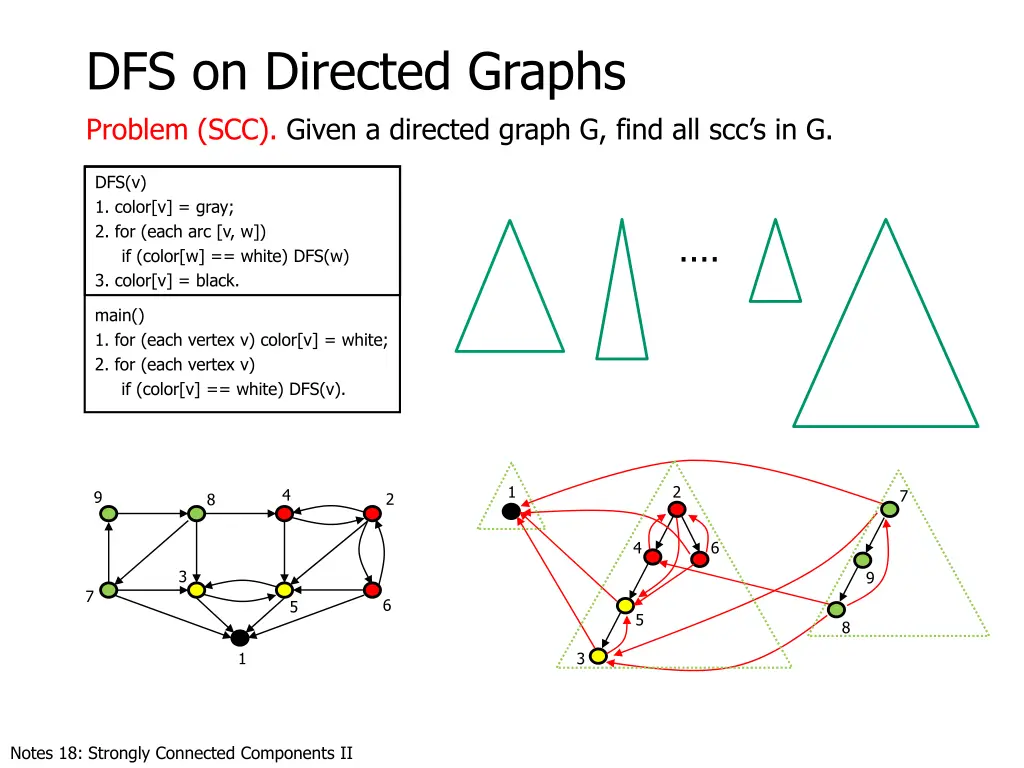

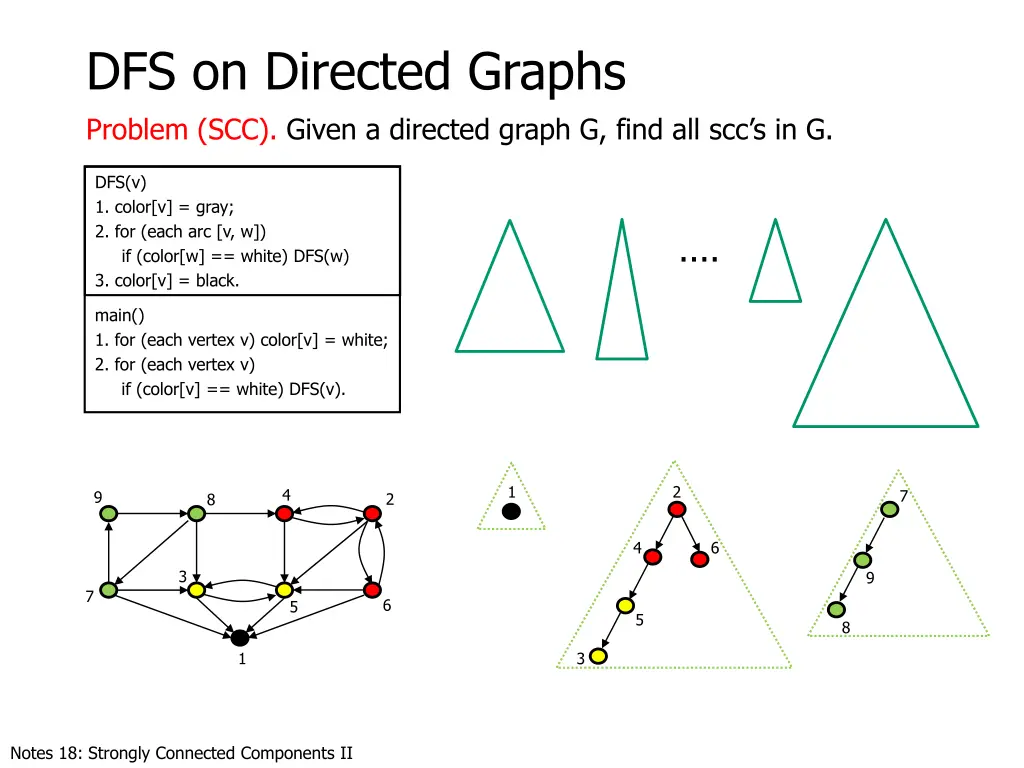

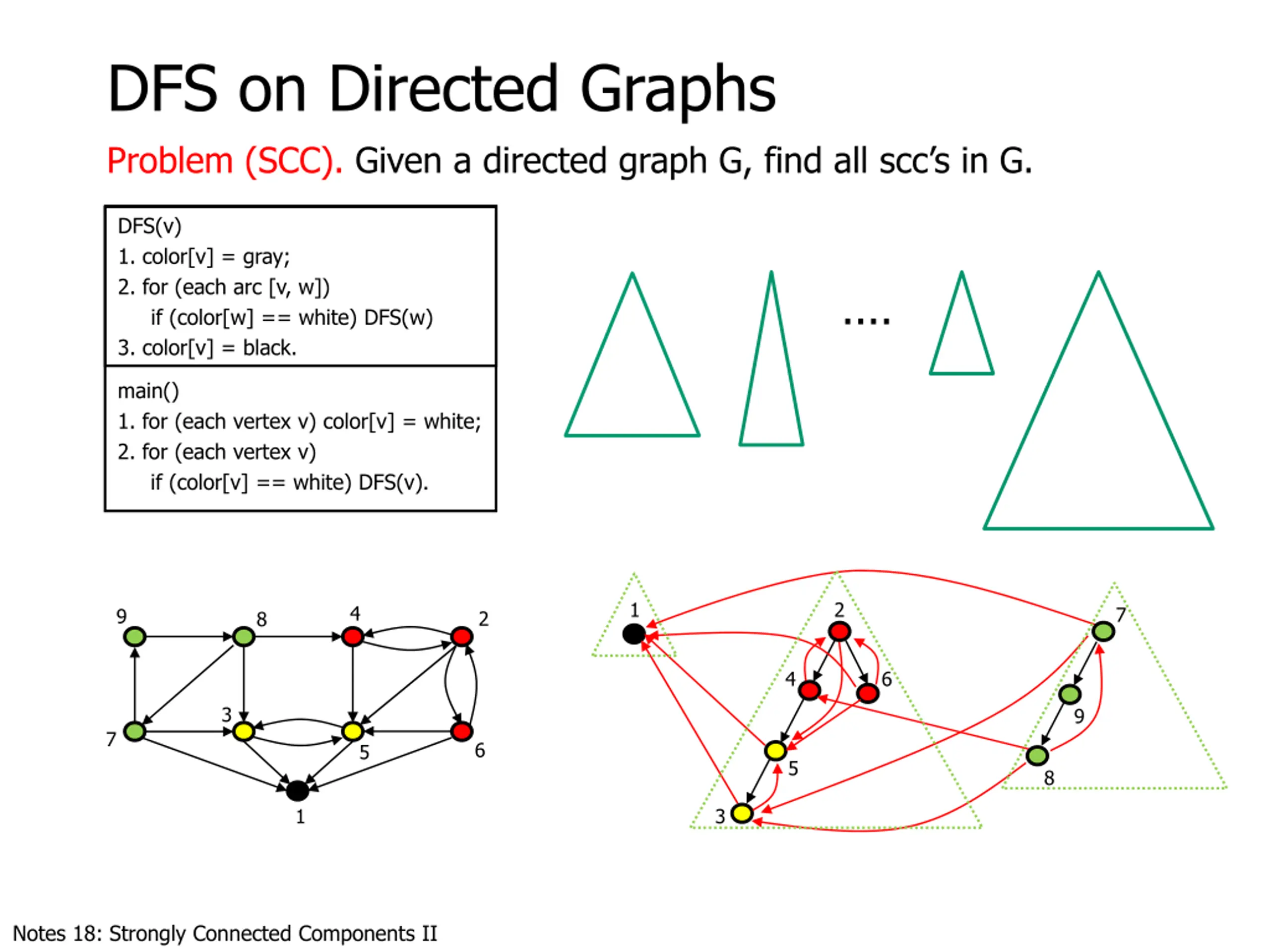

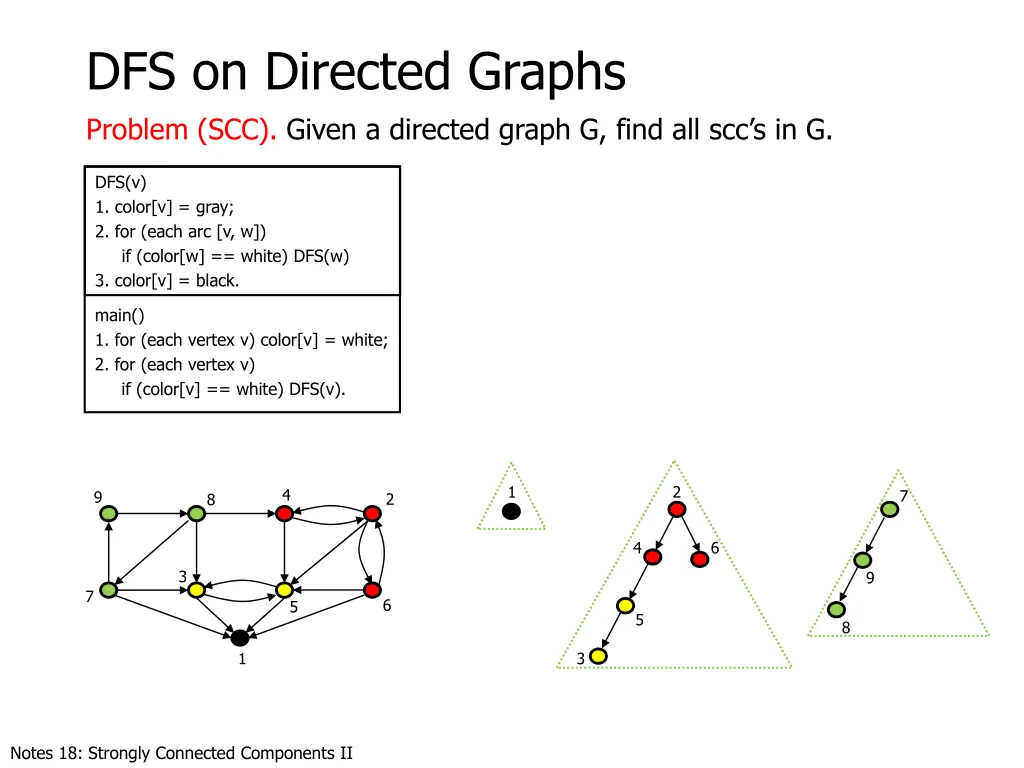

  19. DFS on Directed Graphs Problem (SCC). Given a directed graph G, find all scc s in G. DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w) 3. color[v] = black. main() 1. for (each vertex v) color[v] = white; 2. for (each vertex v) if (color[v] == white) DFS(v). 1 2 4 7 9 2 8 4 6 3 9 7 6 5 5 8 1 3 Notes 18: Strongly Connected Components II

  20. DFS on Directed Graphs Problem (SCC). Given a directed graph G, find all scc s in G. DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w) 3. color[v] = black. main() 1. for (each vertex v) color[v] = white; 2. for (each vertex v) if (color[v] == white) DFS(v). 1 2 4 7 9 2 8 4 6 3 9 7 6 5 5 8 1 3 Notes 18: Strongly Connected Components II

  21. DFS on Directed Graphs Problem (SCC). Given a directed graph G, find all scc s in G. DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w) 3. color[v] = black. main() 1. for (each vertex v) color[v] = white; 2. for (each vertex v) if (color[v] == white) DFS(v). 1 2 4 7 9 2 8 4 6 3 9 7 6 5 5 8 1 3 Notes 18: Strongly Connected Components II

  22. DFS on Directed Graphs Problem (SCC). Given a directed graph G, find all scc s in G. DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w) 3. color[v] = black. main() 1. for (each vertex v) color[v] = white; 2. for (each vertex v) if (color[v] == white) DFS(v). 1 2 4 7 9 2 8 4 6 3 9 7 6 5 5 8 1 3 Notes 18: Strongly Connected Components II

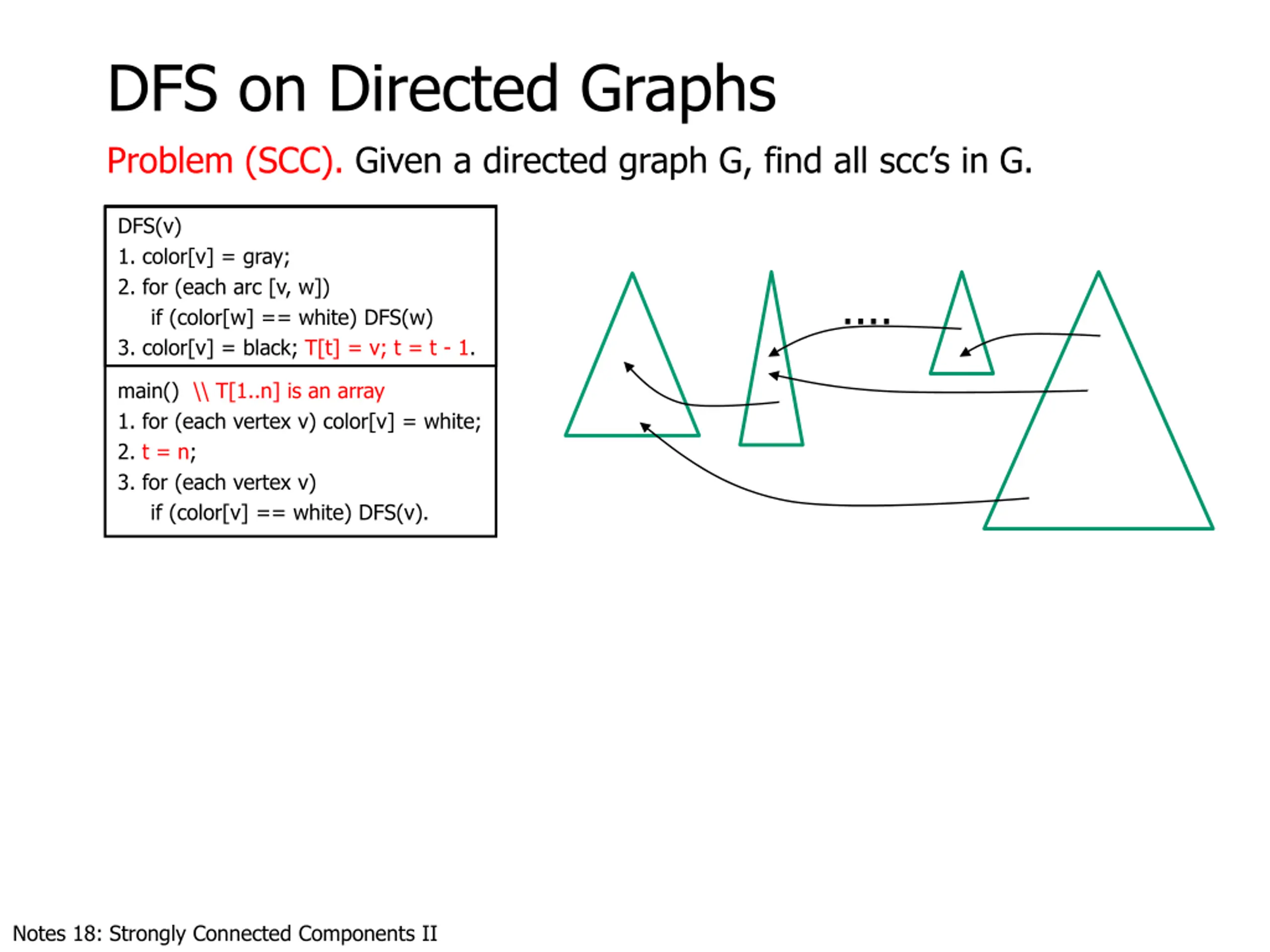

  23. DFS on Directed Graphs Problem (SCC). Given a directed graph G, find all scc s in G. DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w) 3. color[v] = black; T[t] = v; t = t - 1. main() \\ T[1..n] is an array 1. for (each vertex v) color[v] = white; 2. t = n; 3. for (each vertex v) if (color[v] == white) DFS(v). Notes 18: Strongly Connected Components II

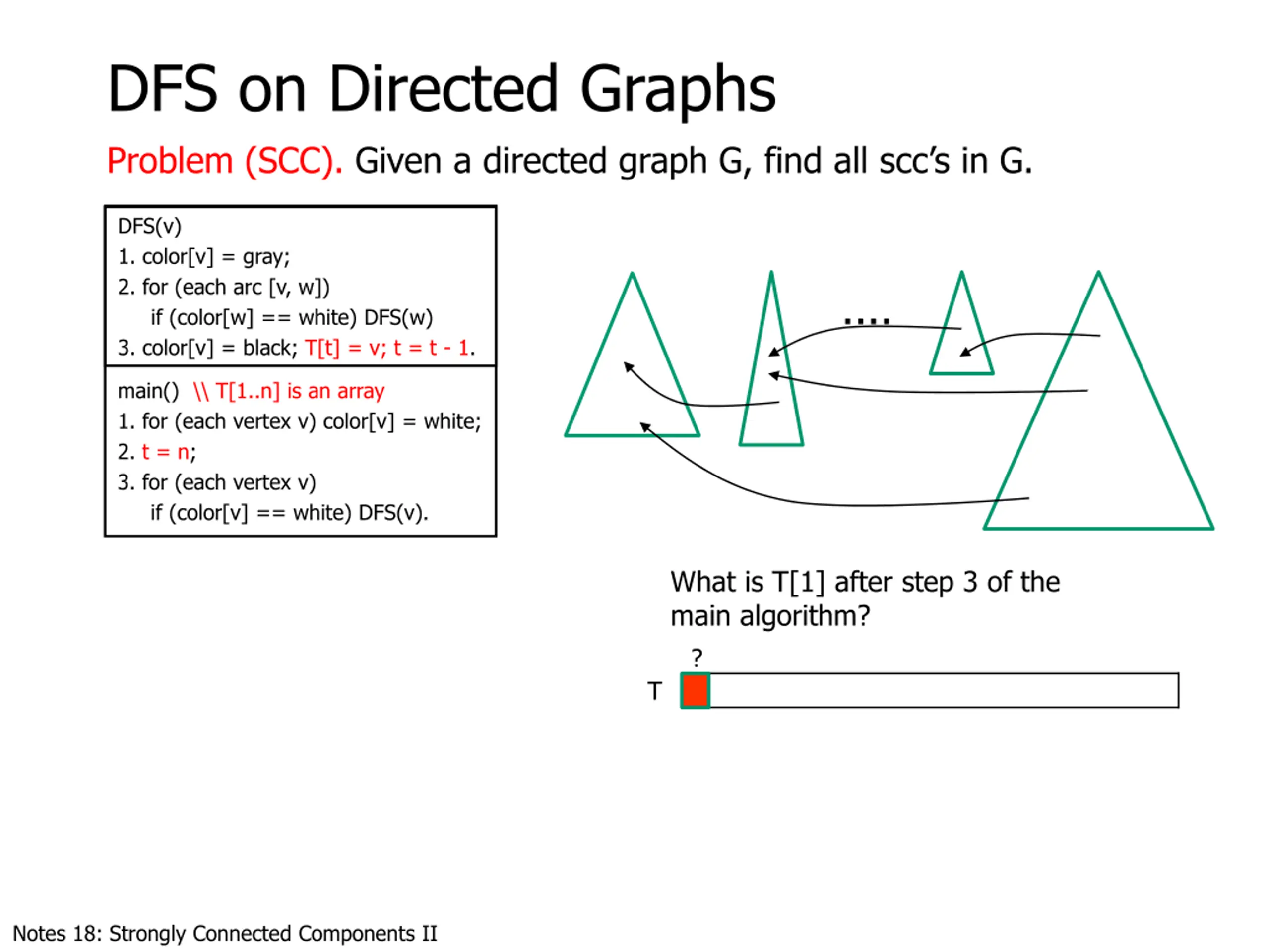

  24. DFS on Directed Graphs Problem (SCC). Given a directed graph G, find all scc s in G. DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w) 3. color[v] = black; T[t] = v; t = t - 1. main() \\ T[1..n] is an array 1. for (each vertex v) color[v] = white; 2. t = n; 3. for (each vertex v) if (color[v] == white) DFS(v). What is T[1] after step 3 of the main algorithm? ? T Notes 18: Strongly Connected Components II

  25. DFS on Directed Graphs Problem (SCC). Given a directed graph G, find all scc s in G. DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w) 3. color[v] = black; T[t] = v; t = t - 1. a d r main() \\ T[1..n] is an array 1. for (each vertex v) color[v] = white; 2. t = n; 3. for (each vertex v) if (color[v] == white) DFS(v). c b s t What is T[1] after step 3 of the main algorithm? ? T Notes 18: Strongly Connected Components II

  26. DFS on Directed Graphs Problem (SCC). Given a directed graph G, find all scc s in G. DFS(v) 1. color[v] = gray; 2. for (each arc [v, w]) if (color[w] == white) DFS(w) 3. color[v] = black; T[t] = v; t = t - 1. r main() \\ T[1..n] is an array 1. for (each vertex v) color[v] = white; 2. t = n; 3. for (each vertex v) if (color[v] == white) DFS(v). What is T[1] after step 3 of the main algorithm? r T Notes 18: Strongly Connected Components II
