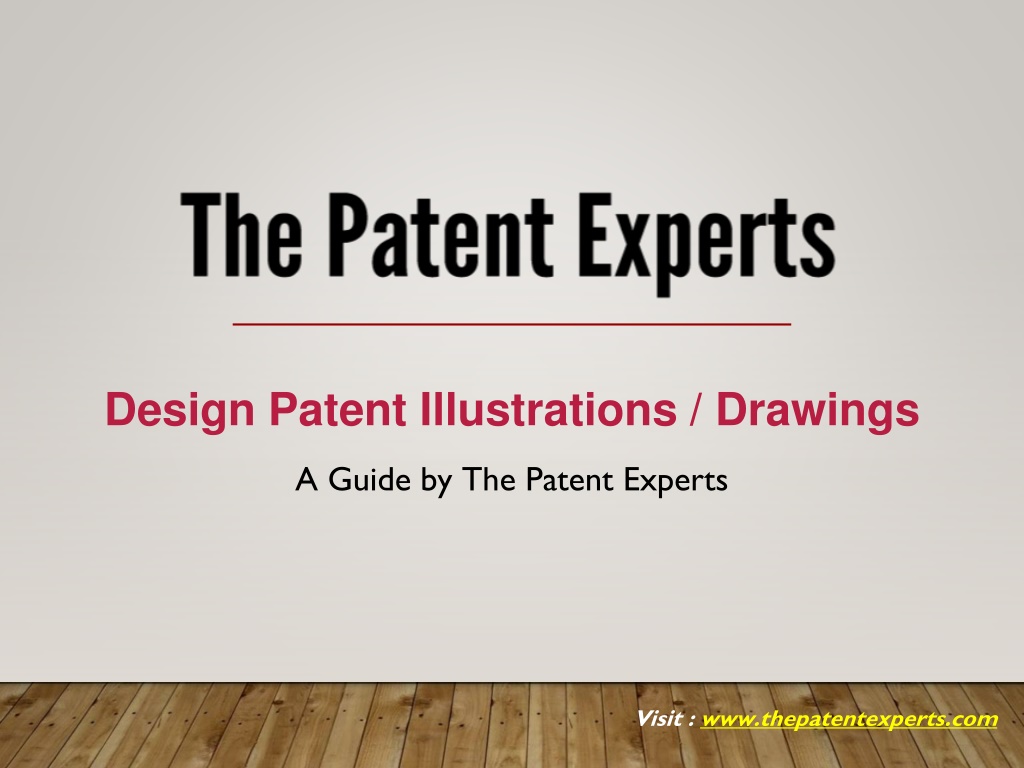

Design Patent Illustrations / Drawings A Guide by The Patent Experts Visit : www.thepatentexperts.com

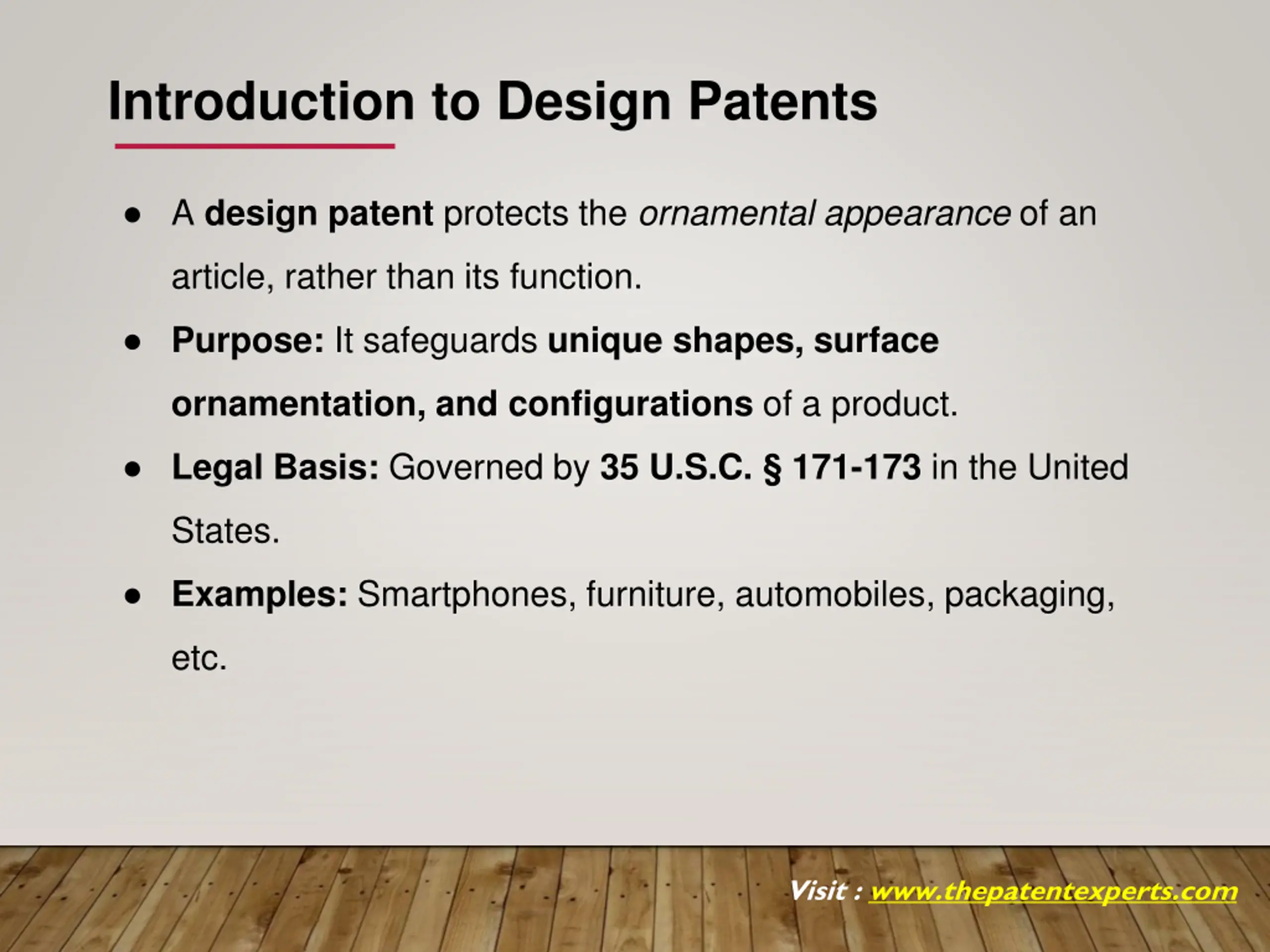

Introduction to Design Patents A design patent protects the ornamental appearance of an article, rather than its function. Purpose: It safeguards unique shapes, surface ornamentation, and configurations of a product. Legal Basis: Governed by 35 U.S.C. 171-173 in the United States. Examples: Smartphones, furniture, automobiles, packaging, etc. Visit : www.thepatentexperts.com
Importance of Design Patent Drawings Why Illustrations Matter? Defines the scope of protection. Determines how examiners interpret the design. Plays a critical role in patent approval or rejection. Key Role in Litigation: Precise drawings help in enforcing rights and defending against infringements. Visit : www.thepatentexperts.com
Design Patent Drawing Requirements USPTO (United States Patent & Trademark Office) Requirements: Must fully disclose the design. No shading errors or inconsistencies. Only one claim per design patent. Formats Accepted: Black-and-white line drawings (preferred). Color drawings (only if necessary with a petition). Photographs (only under exceptional circumstances). Visit : www.thepatentexperts.com
Views Required in a Design Patent Illustration Mandatory Views (Typically Six): Perspective View 3D representation. Front View Straight-on depiction. Rear View Opposite side of the front. Top View Looking down. Bottom View Looking up. Left & Right Side Views Side profiles. Additional Views: If required for clarity (e.g., sectional views). Visit : www.thepatentexperts.com
Common Mistakes in Patent Drawings Poor-quality illustrations can lead to patent rejections or unnecessary office actions. Here are common errors to avoid: Top Mistakes: 1. Insufficient Views: Missing essential angles or perspectives. 2. Incorrect Labeling: Reference numbers don t match the written description. 3. Poor Line Quality: Inconsistent line thickness leads to misinterpretation. 4. Use of Unapproved Colors/Shading: Only black-and-white drawings are accepted (except in rare cases). 5. Failure to Follow Office-Specific Rules: Different patent offices (USPTO, EPO, WIPO) may have unique requirements. Visit : www.thepatentexperts.com

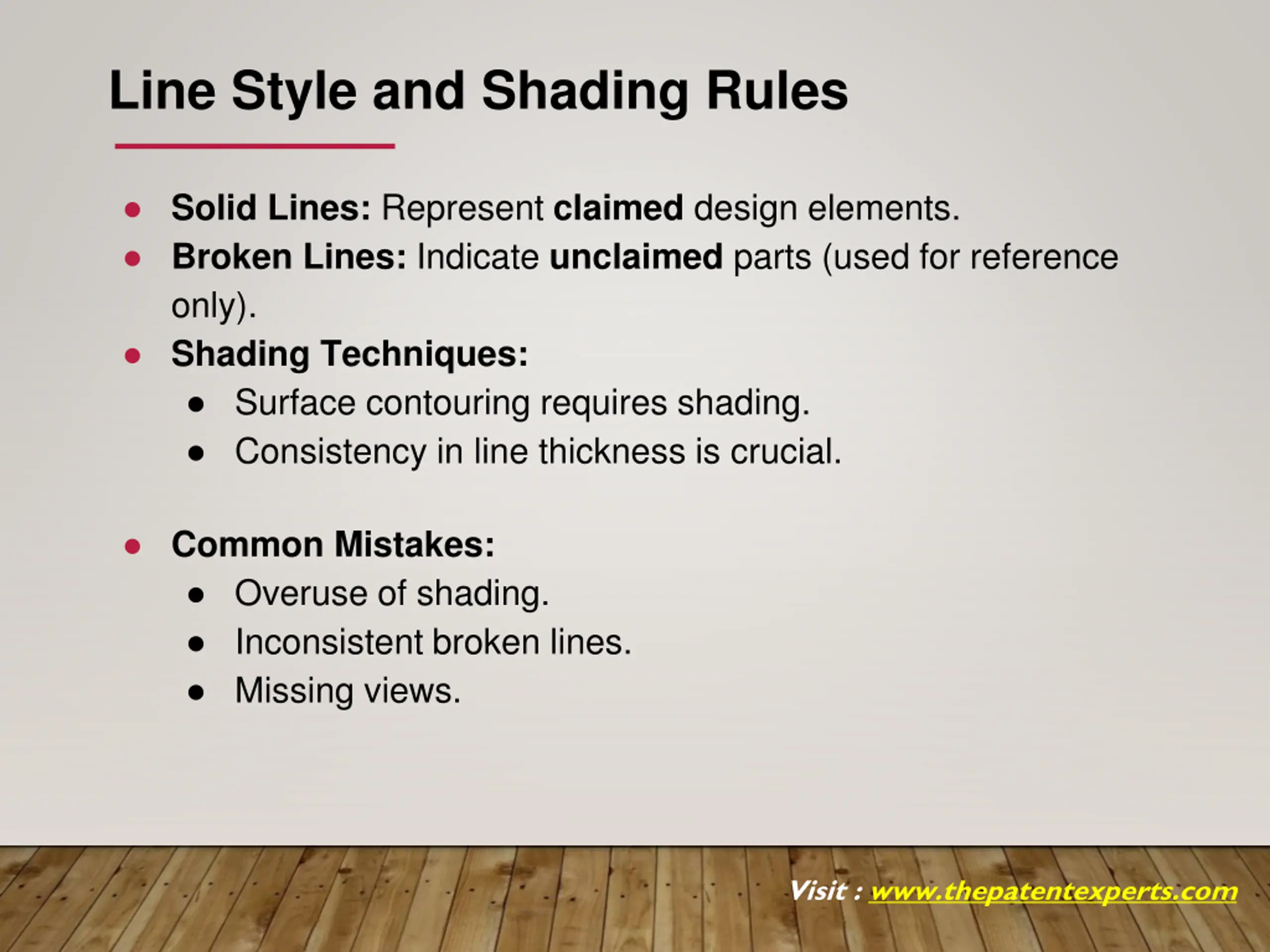

Line Style and Shading Rules Solid Lines: Represent claimed design elements. Broken Lines: Indicate unclaimed parts (used for reference only). Shading Techniques: Surface contouring requires shading. Consistency in line thickness is crucial. Common Mistakes: Overuse of shading. Inconsistent broken lines. Missing views. Visit : www.thepatentexperts.com

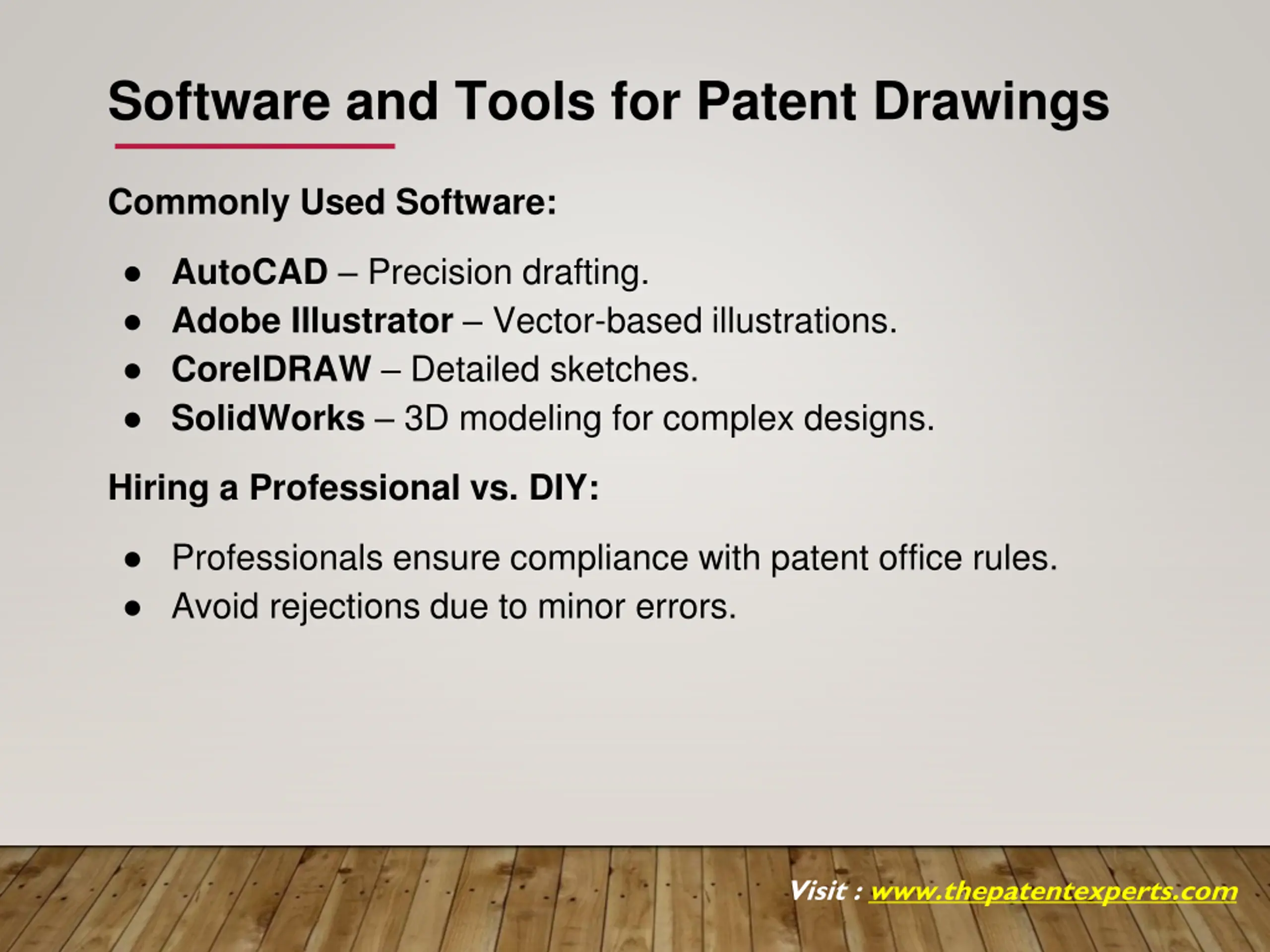

Software and Tools for Patent Drawings Commonly Used Software: AutoCAD Precision drafting. Adobe Illustrator Vector-based illustrations. CorelDRAW Detailed sketches. SolidWorks 3D modeling for complex designs. Hiring a Professional vs. DIY: Professionals ensure compliance with patent office rules. Avoid rejections due to minor errors. Visit : www.thepatentexperts.com

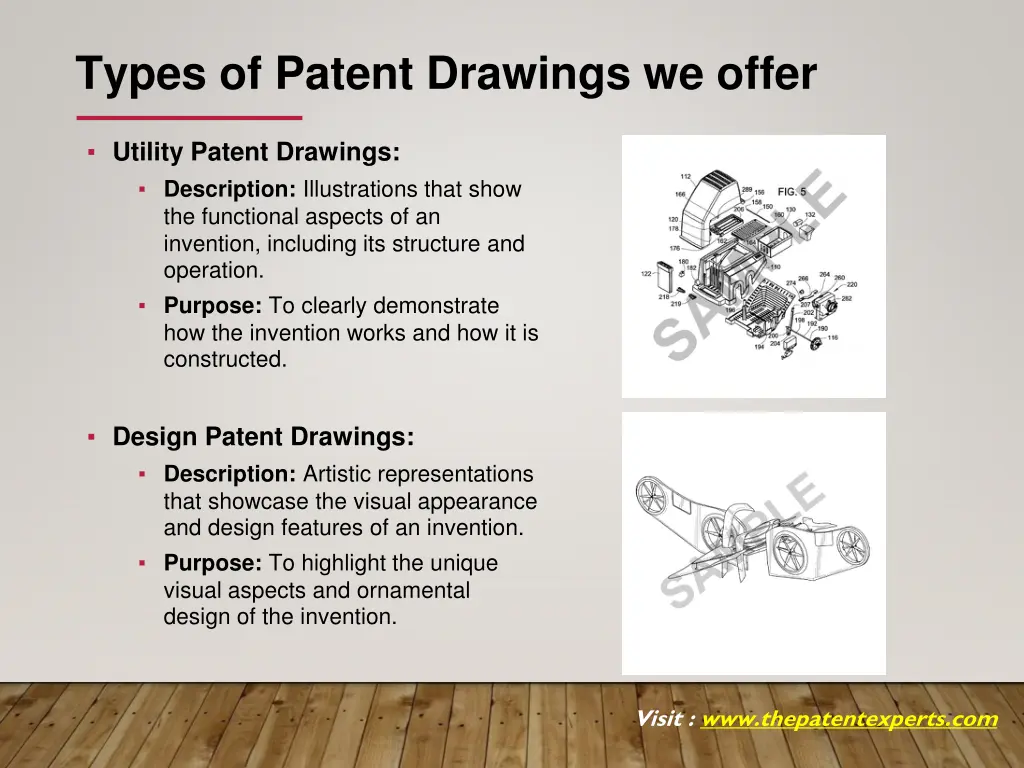

Types of Patent Drawings we offer Utility Patent Drawings: Description: Illustrations that show the functional aspects of an invention, including its structure and operation. Purpose: To clearly demonstrate how the invention works and how it is constructed. Design Patent Drawings: Description: Artistic representations that showcase the visual appearance and design features of an invention. Purpose: To highlight the unique visual aspects and ornamental design of the invention. Visit : www.thepatentexperts.com

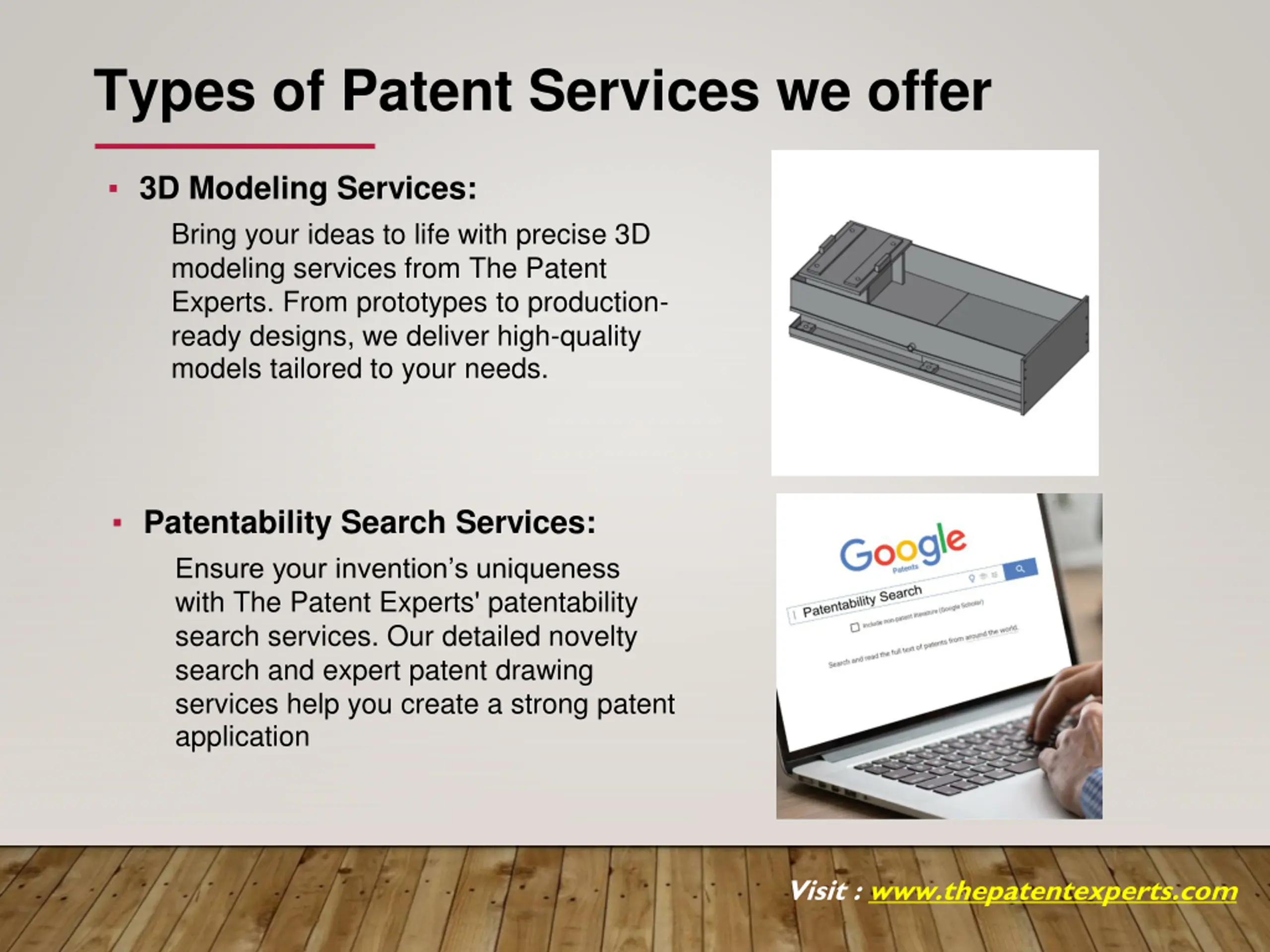

Types of Patent Services we offer 3D Modeling Services: Bring your ideas to life with precise 3D modeling services from The Patent Experts. From prototypes to production- ready designs, we deliver high-quality models tailored to your needs. Patentability Search Services: Ensure your invention s uniqueness with The Patent Experts' patentability search services. Our detailed novelty search and expert patent drawing services help you create a strong patent application Visit : www.thepatentexperts.com

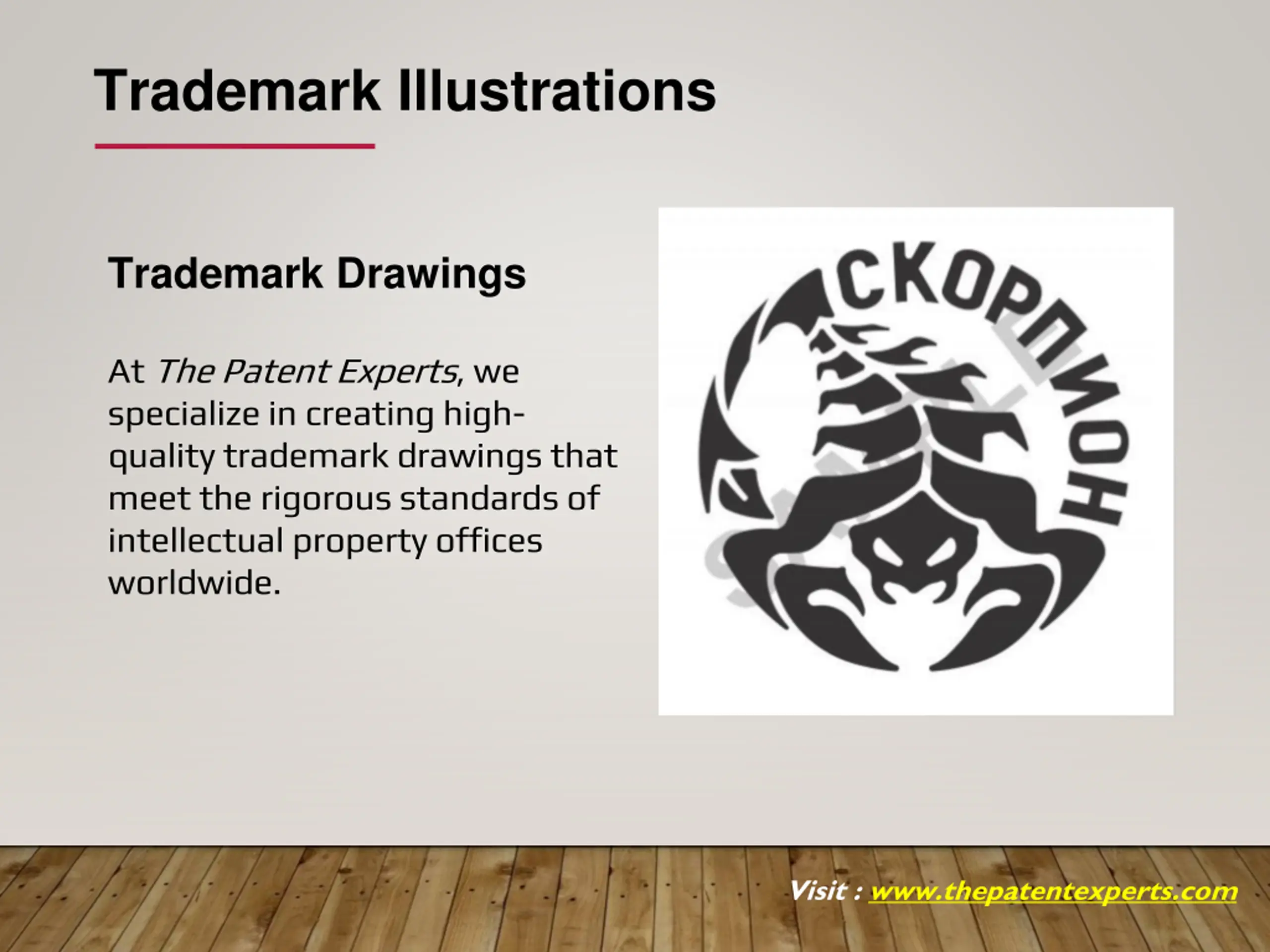

Trademark Illustrations Trademark Drawings At The Patent Experts, we specialize in creating high- quality trademark drawings that meet the rigorous standards of intellectual property offices worldwide. Visit : www.thepatentexperts.com

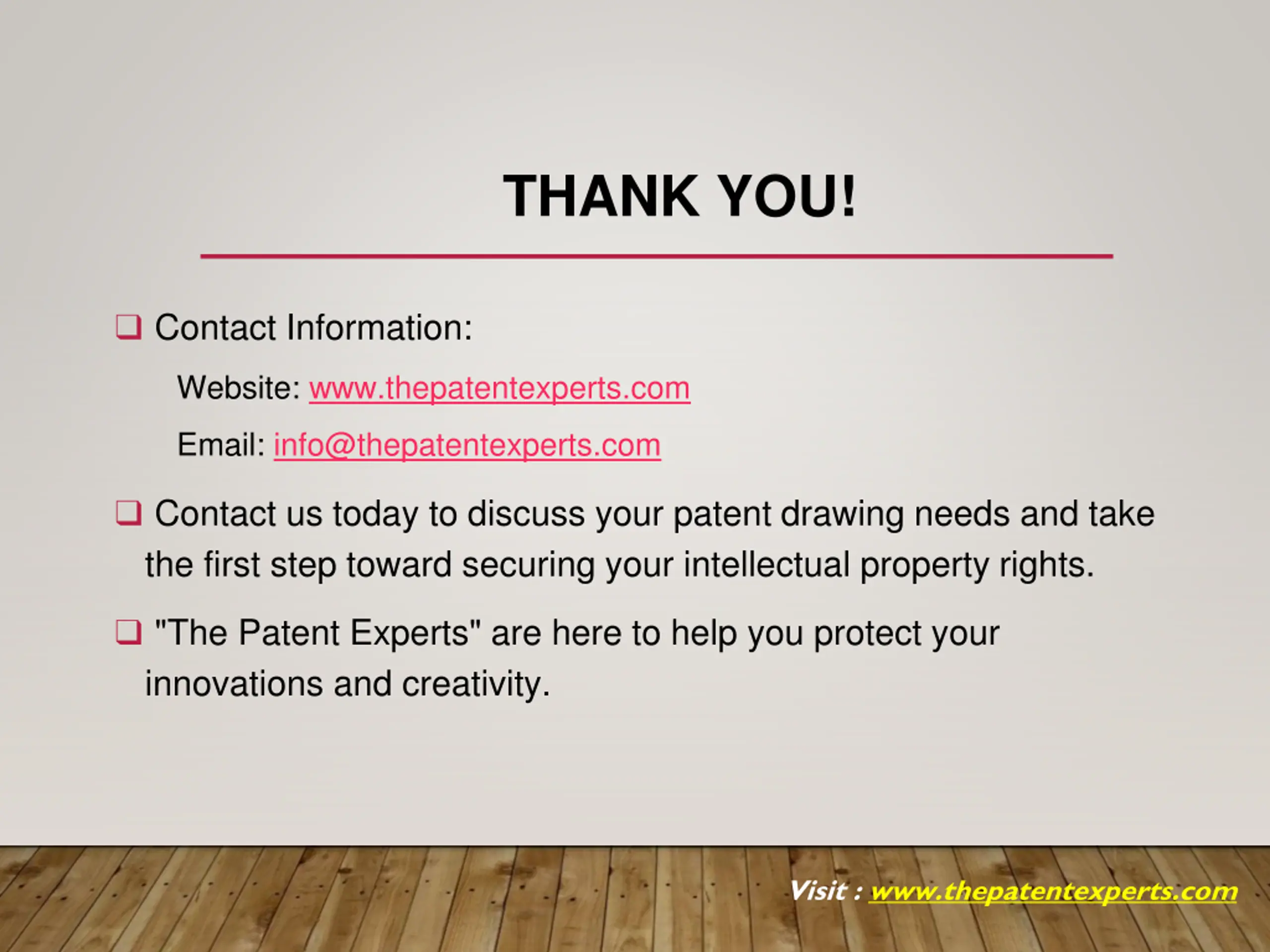

THANK YOU! Contact Information: Website: www.thepatentexperts.com Email: info@thepatentexperts.com Contact us today to discuss your patent drawing needs and take the first step toward securing your intellectual property rights. "The Patent Experts" are here to help you protect your innovations and creativity. Visit : www.thepatentexperts.com
