Reserver Class(es) for Background Tasks in Ceph Ankit Jain, Prerak Mall, Sukanya Venkataraman

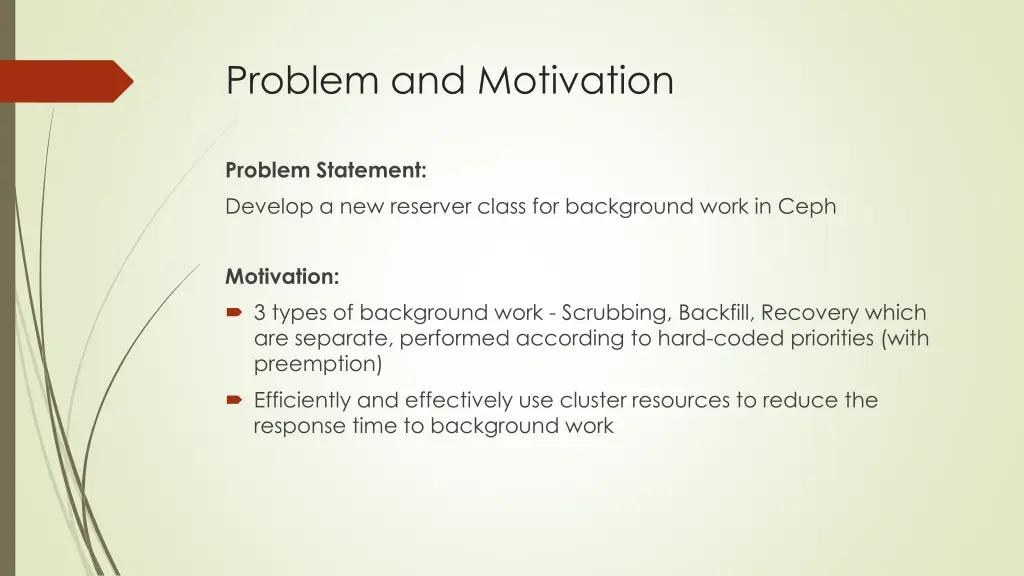

Problem and Motivation Problem Statement: Develop a new reserver class for background work in Ceph Motivation: 3 types of background work - Scrubbing, Backfill, Recovery which are separate, performed according to hard-coded priorities (with preemption) Efficiently and effectively use cluster resources to reduce the response time to background work

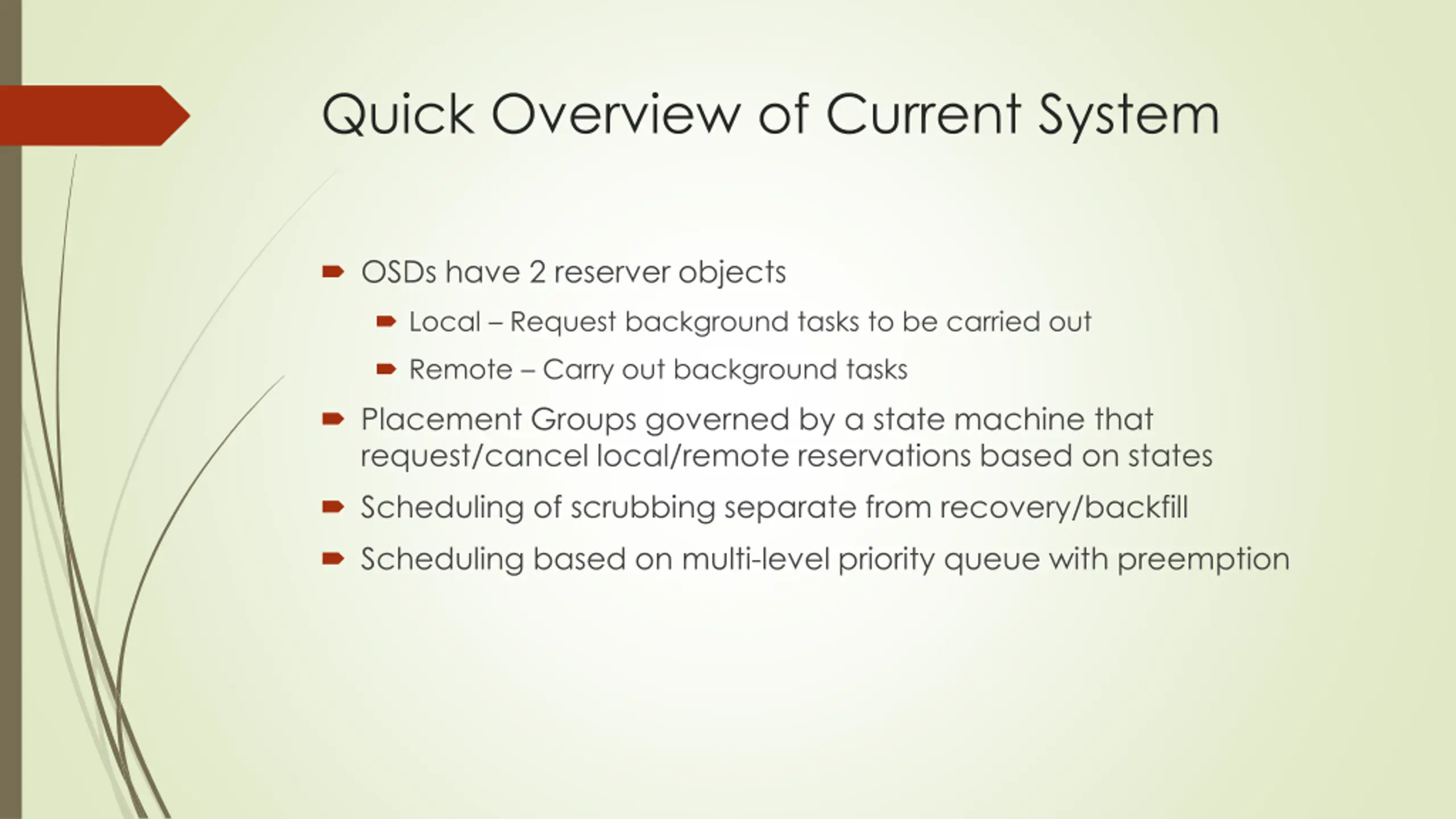

Quick Overview of Current System OSDs have 2 reserver objects Local Request background tasks to be carried out Remote Carry out background tasks Placement Groups governed by a state machine that request/cancel local/remote reservations based on states Scheduling of scrubbing separate from recovery/backfill Scheduling based on multi-level priority queue with preemption

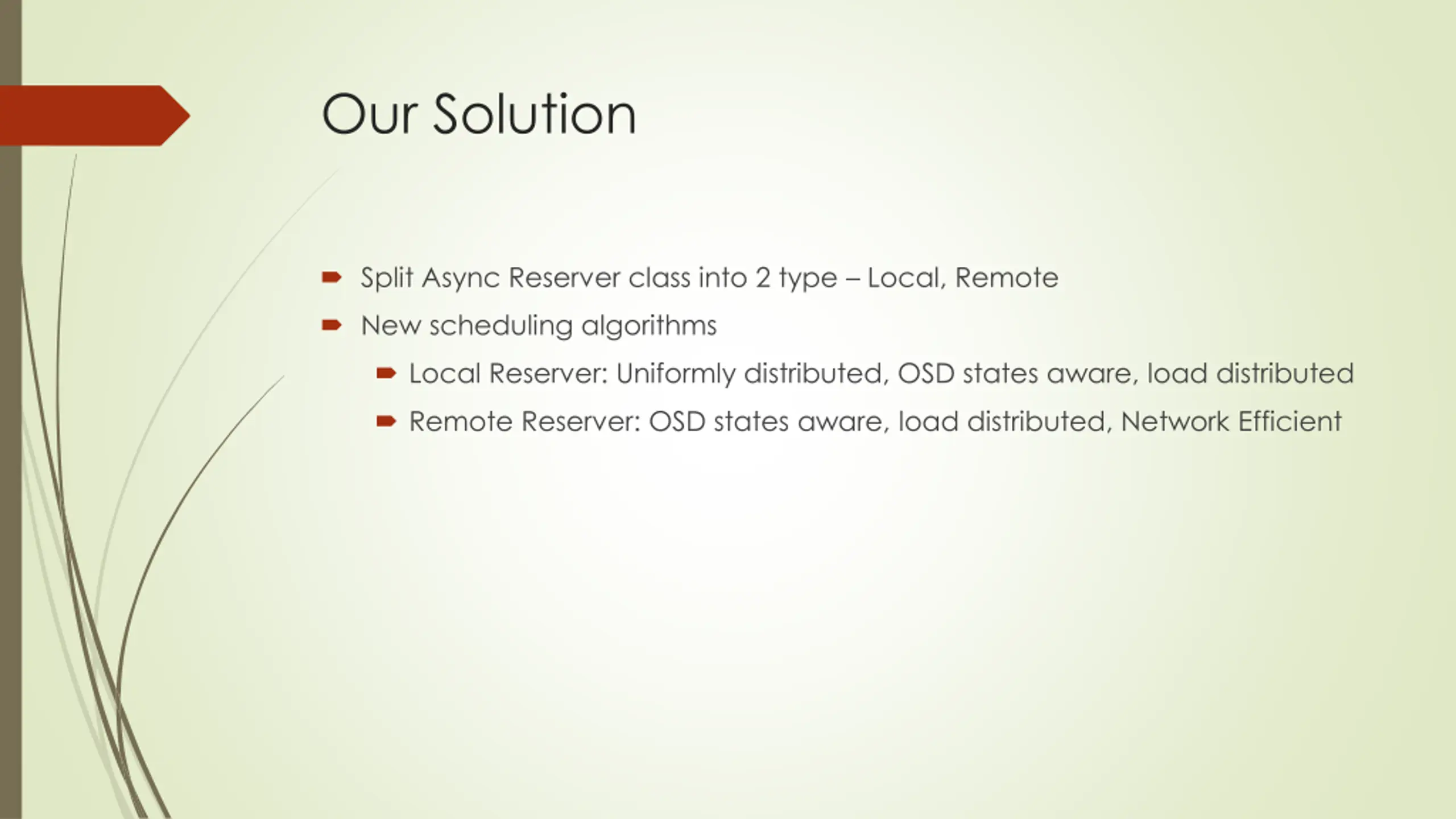

Our Solution Split Async Reserver class into 2 type Local, Remote New scheduling algorithms Local Reserver: Uniformly distributed, OSD states aware, load distributed Remote Reserver: OSD states aware, load distributed, Network Efficient

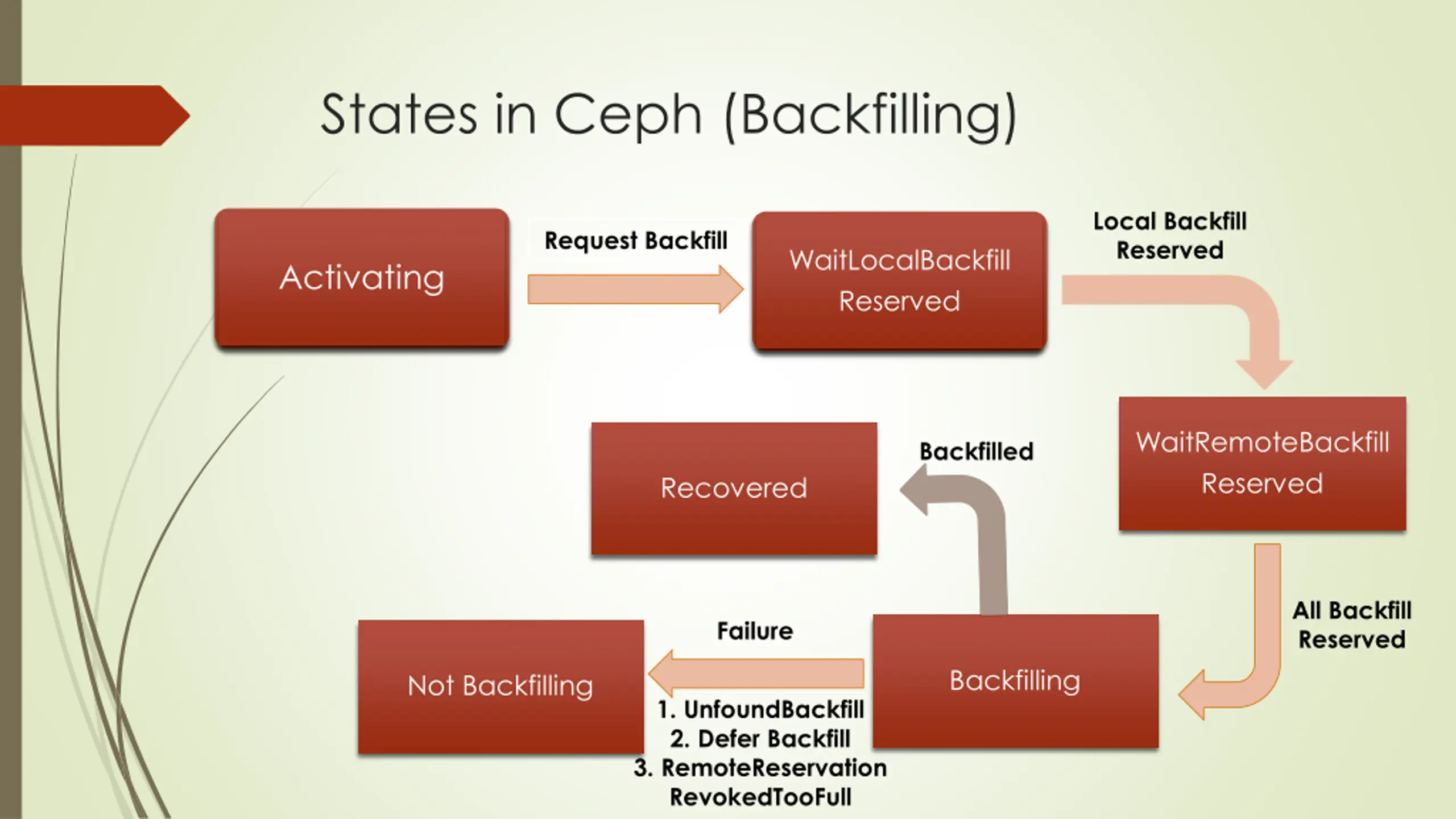

States in Ceph (Backfilling) Local Backfill Reserved Request Backfill WaitLocalBackfill Reserved Activating WaitRemoteBackfill Reserved Backfilled Recovered All Backfill Reserved Failure Backfilling Not Backfilling 1. UnfoundBackfill 2. Defer Backfill 3. RemoteReservation RevokedTooFull

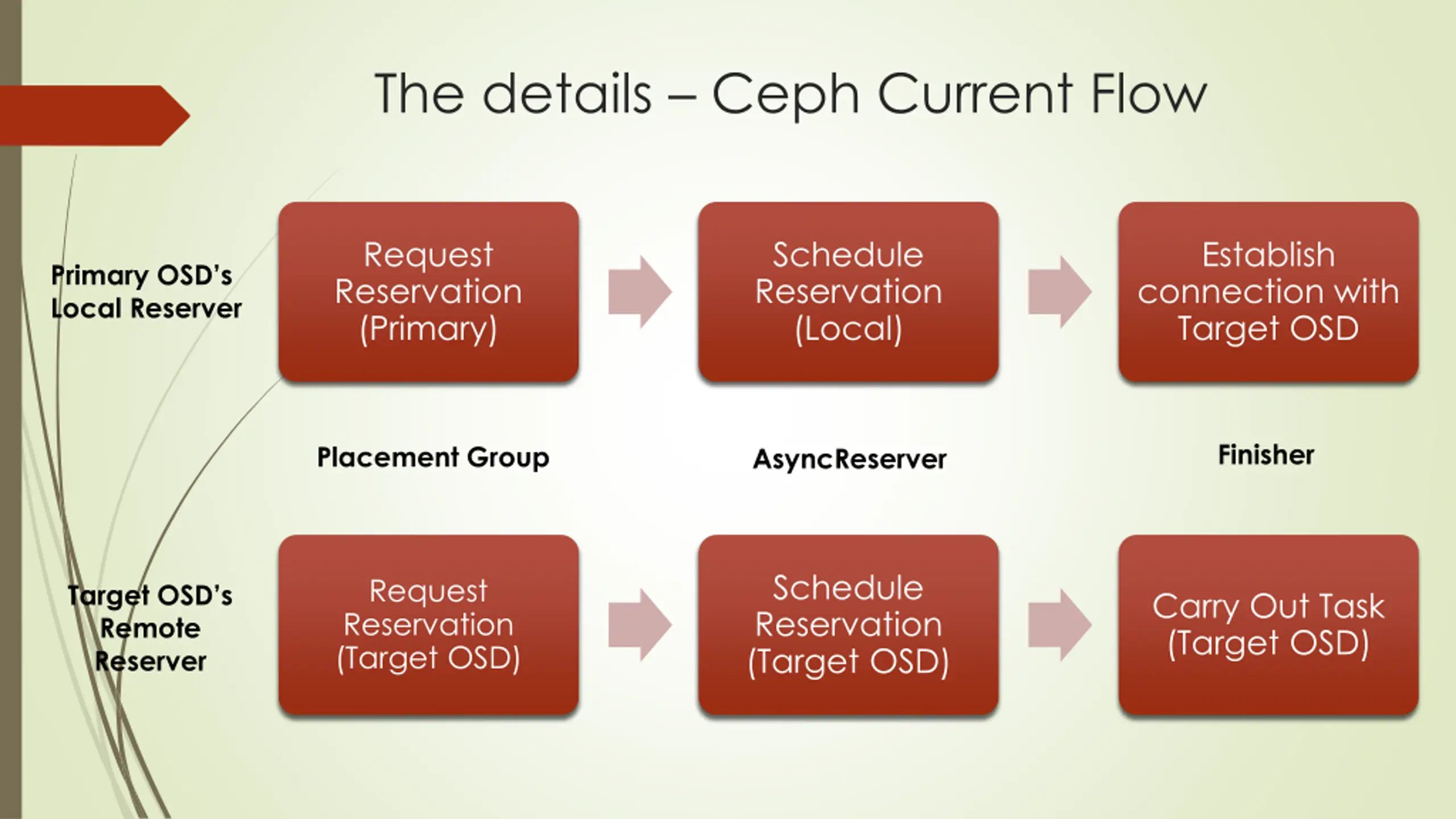

The details Ceph Current Flow Request Reservation (Primary) Schedule Reservation (Local) Establish connection with Target OSD Primary OSD s Local Reserver Finisher Placement Group AsyncReserver Schedule Reservation (Target OSD) Request Reservation (Target OSD) Target OSD s Remote Reserver Carry Out Task (Target OSD)

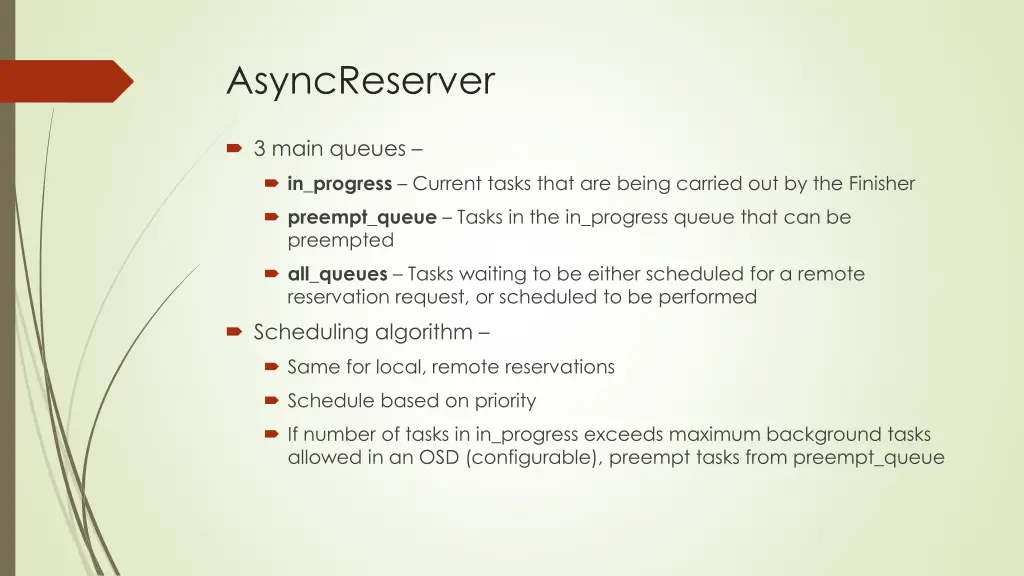

AsyncReserver 3 main queues in_progress Current tasks that are being carried out by the Finisher preempt_queue Tasks in the in_progress queue that can be preempted all_queues Tasks waiting to be either scheduled for a remote reservation request, or scheduled to be performed Scheduling algorithm Same for local, remote reservations Schedule based on priority If number of tasks in in_progress exceeds maximum background tasks allowed in an OSD (configurable), preempt tasks from preempt_queue

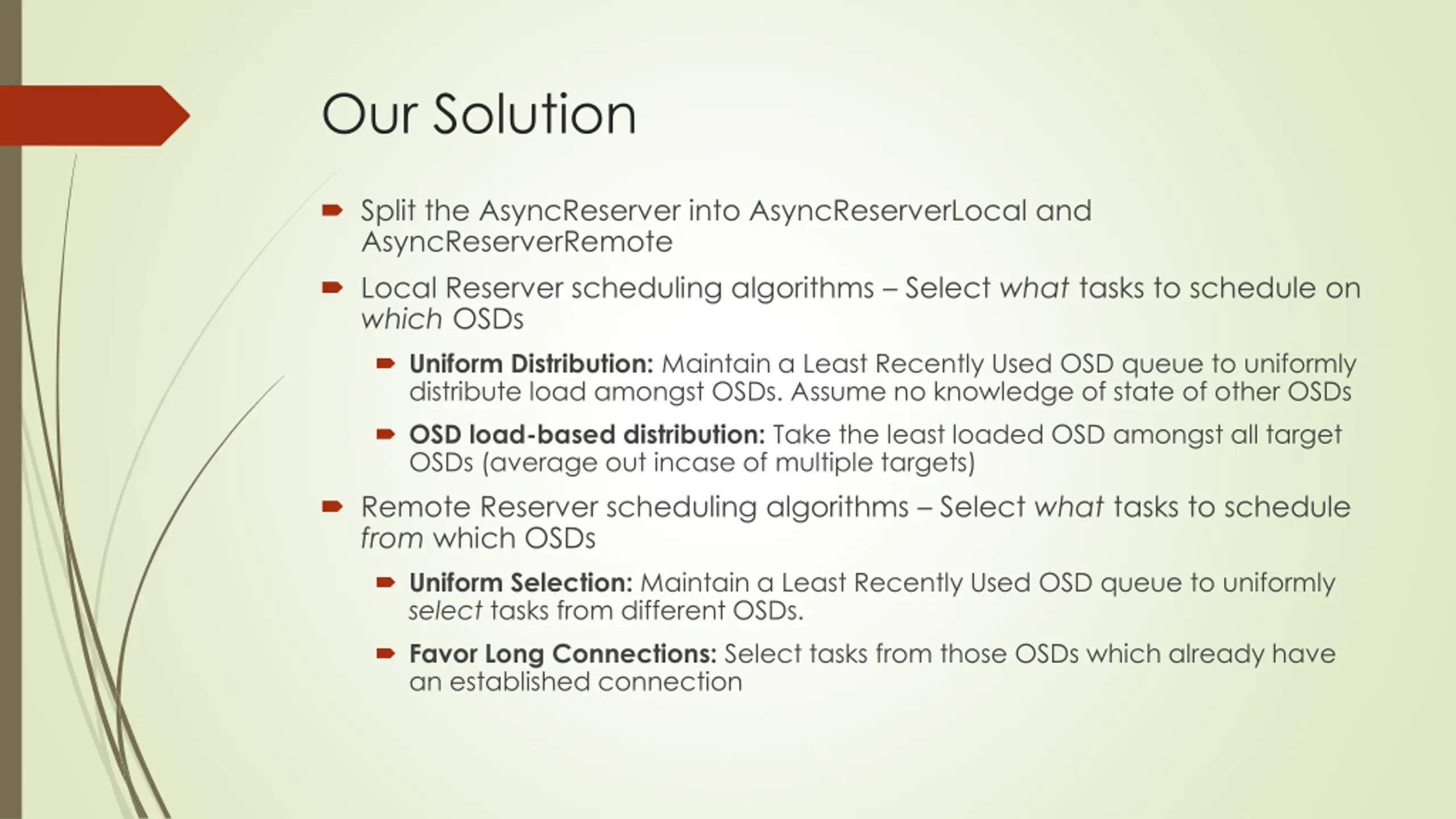

Our Solution Split the AsyncReserver into AsyncReserverLocal and AsyncReserverRemote Local Reserver scheduling algorithms Select what tasks to schedule on which OSDs Uniform Distribution: Maintain a Least Recently Used OSD queue to uniformly distribute load amongst OSDs. Assume no knowledge of state of other OSDs OSD load-based distribution: Take the least loaded OSD amongst all target OSDs (average out incase of multiple targets) Remote Reserver scheduling algorithms Select what tasks to schedule from which OSDs Uniform Selection: Maintain a Least Recently Used OSD queue to uniformly select tasks from different OSDs. Favor Long Connections: Select tasks from those OSDs which already have an established connection

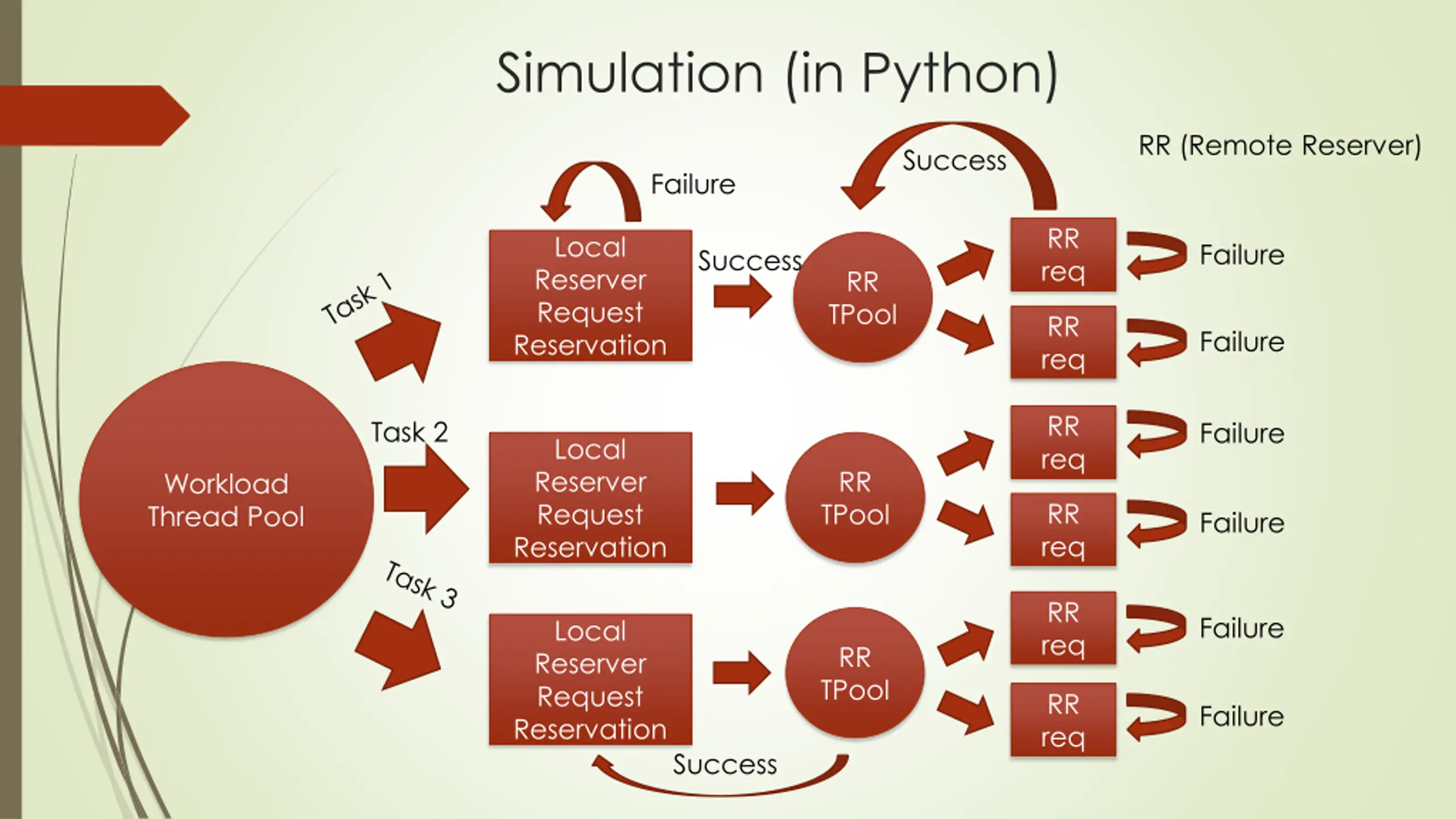

Simulation (in Python) RR (Remote Reserver) Success Failure RR req Local Reserver Request Reservation Failure Success RR TPool RR req Failure RR req Task 2 Failure Local Reserver Request Reservation RR TPool Workload Thread Pool RR req Failure RR req Failure Local Reserver Request Reservation RR TPool RR req Failure Success

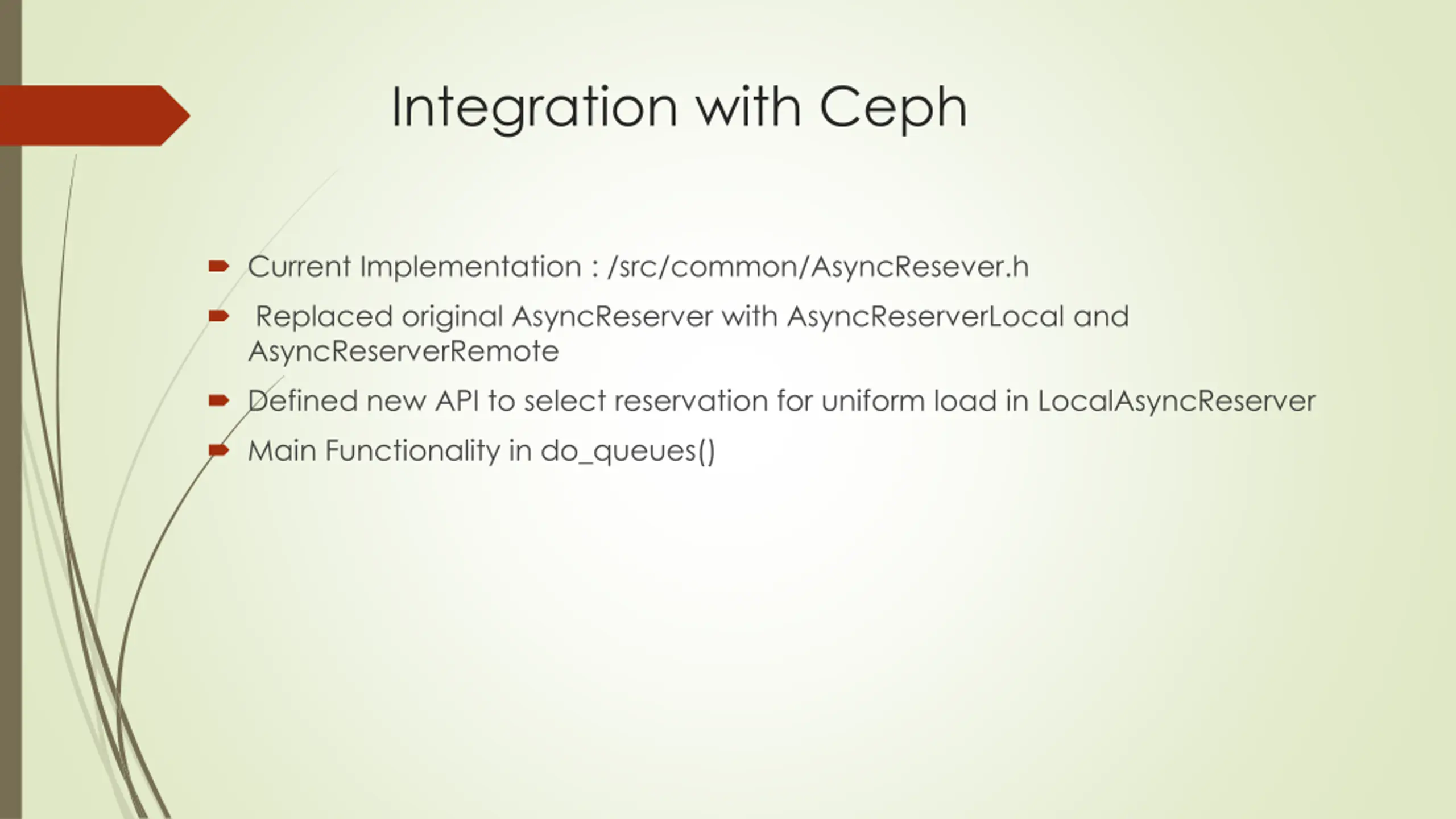

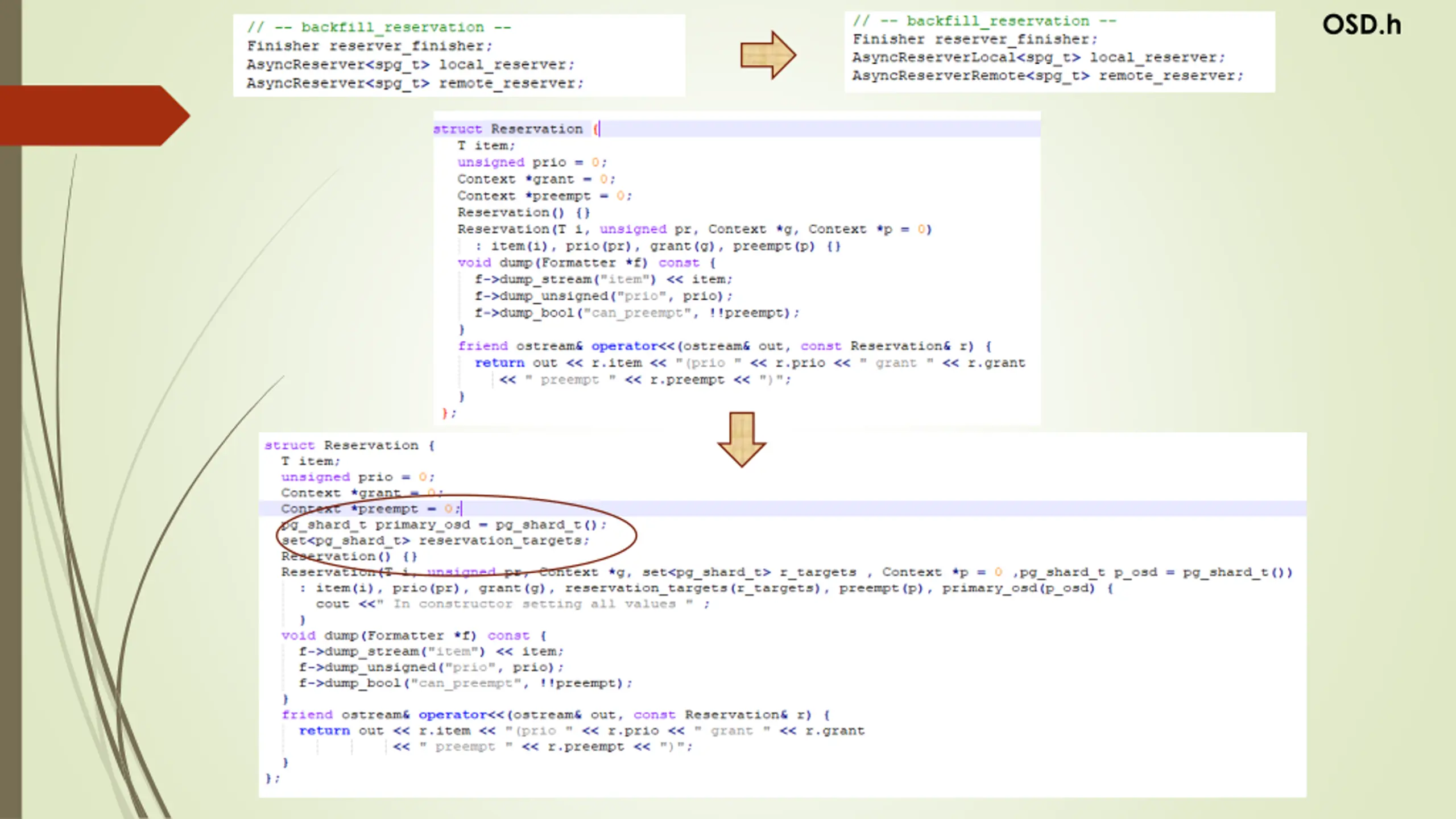

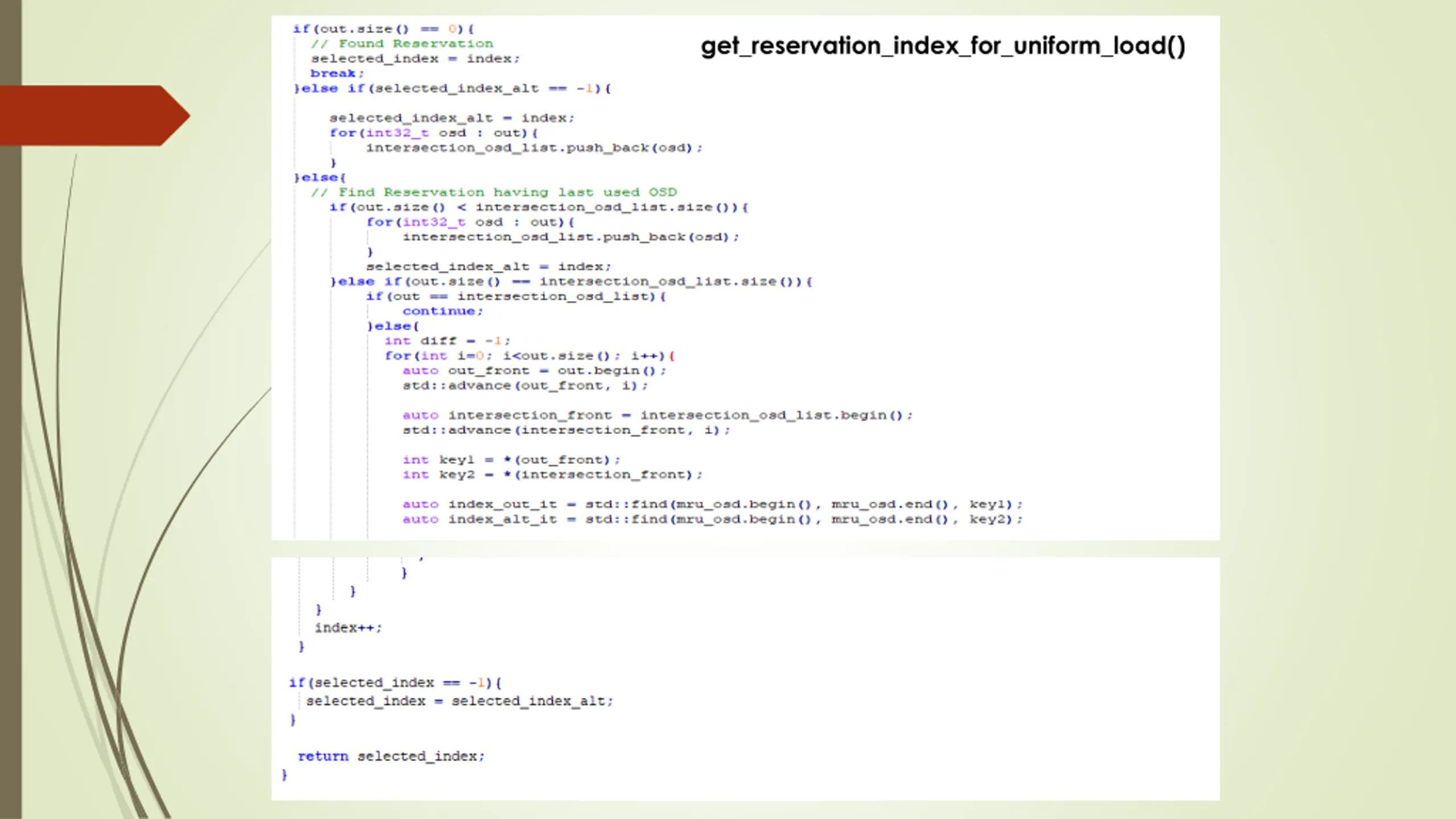

Integration with Ceph Current Implementation : /src/common/AsyncResever.h Replaced original AsyncReserver with AsyncReserverLocal and AsyncReserverRemote Defined new API to select reservation for uniform load in LocalAsyncReserver Main Functionality in do_queues()

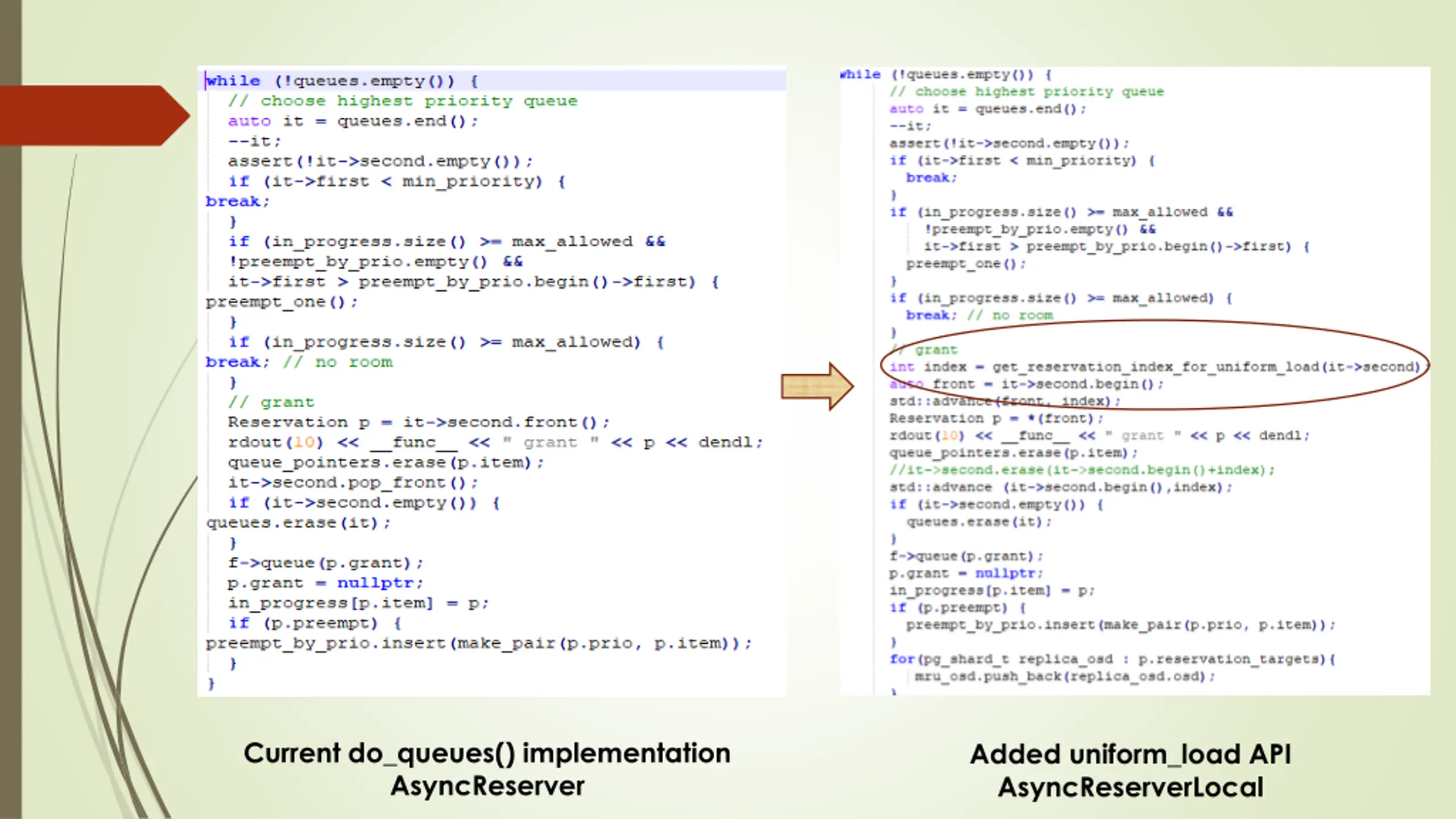

Current do_queues() implementation AsyncReserver Added uniform_load API AsyncReserverLocal

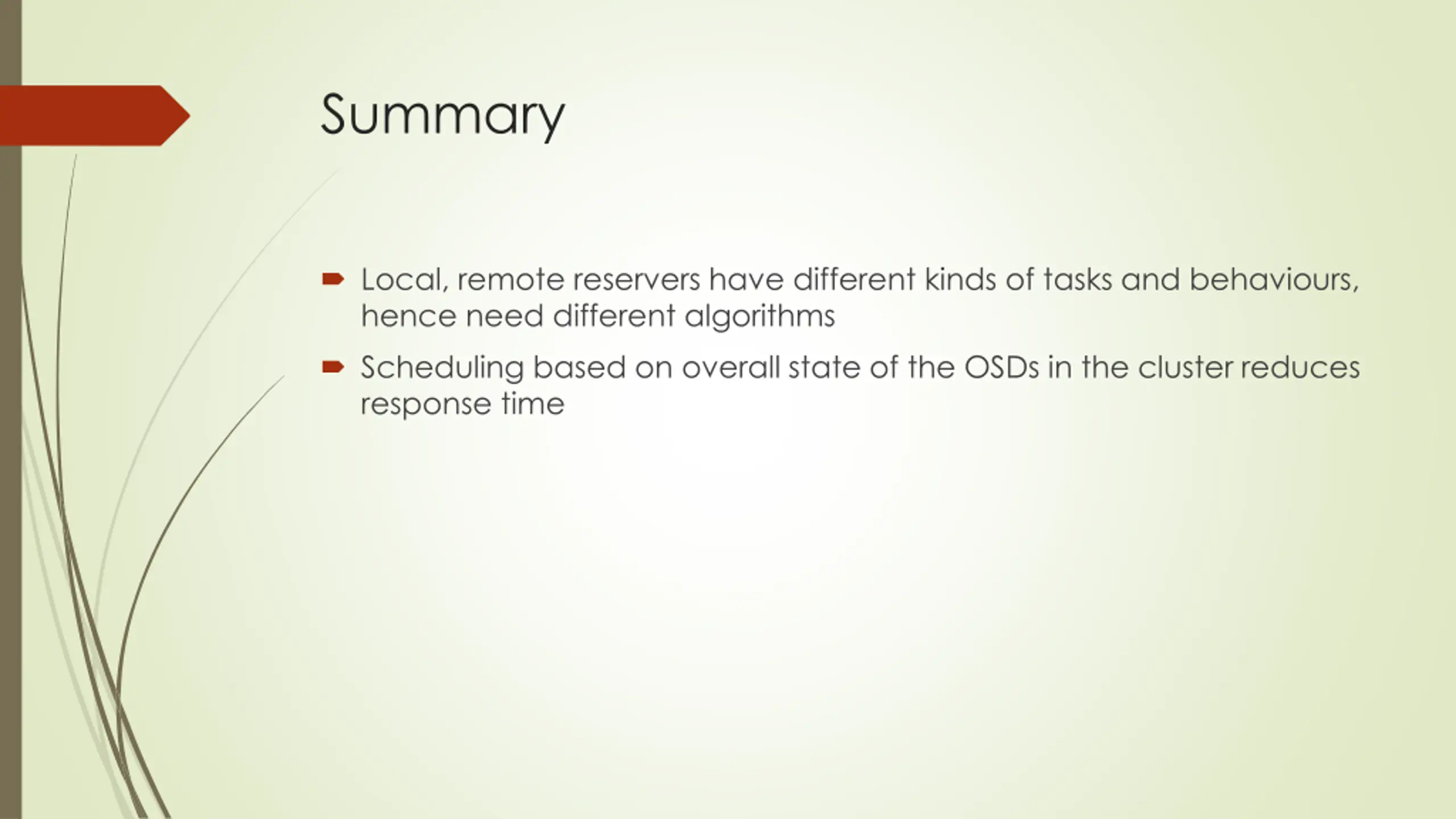

Summary Local, remote reservers have different kinds of tasks and behaviours, hence need different algorithms Scheduling based on overall state of the OSDs in the cluster reduces response time

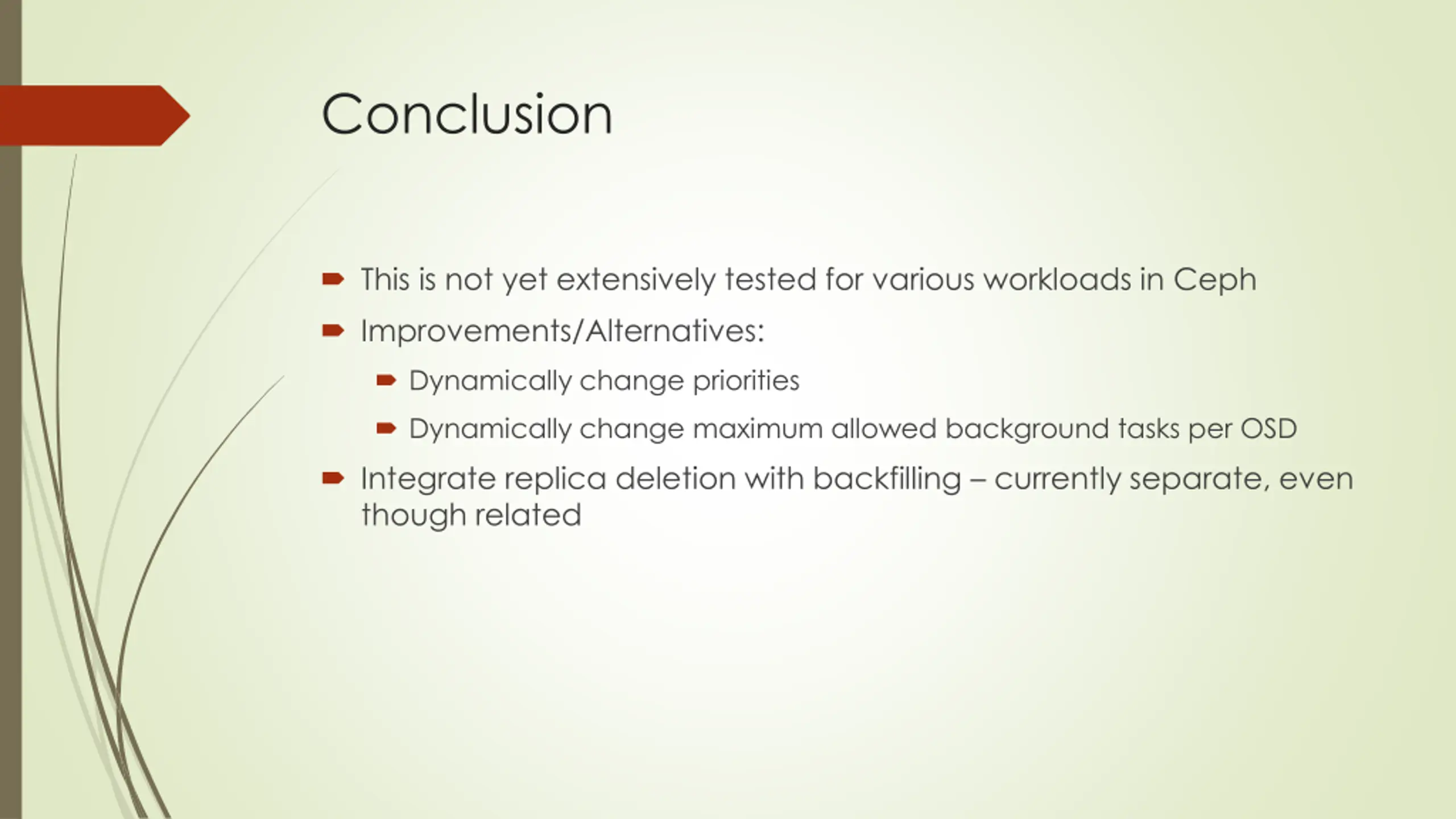

Conclusion This is not yet extensively tested for various workloads in Ceph Improvements/Alternatives: Dynamically change priorities Dynamically change maximum allowed background tasks per OSD Integrate replica deletion with backfilling currently separate, even though related
