University of Mustansiriyah College of Engineering Department of Computer Engineering Second Class/ Second Semester Digital Communication Frequency Shift Keying (FSK) Dr. Haider Tarish Haider Email: haiderth@uomustansiriyah.edu.iq 2019-218 1 Lecture 11-2

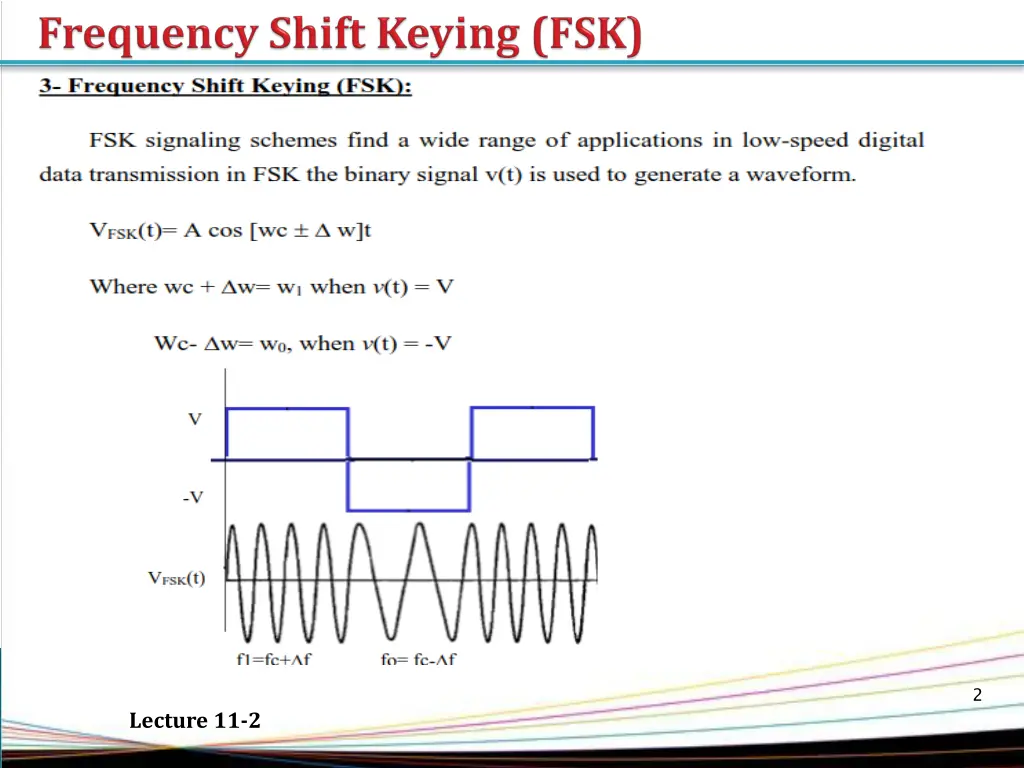

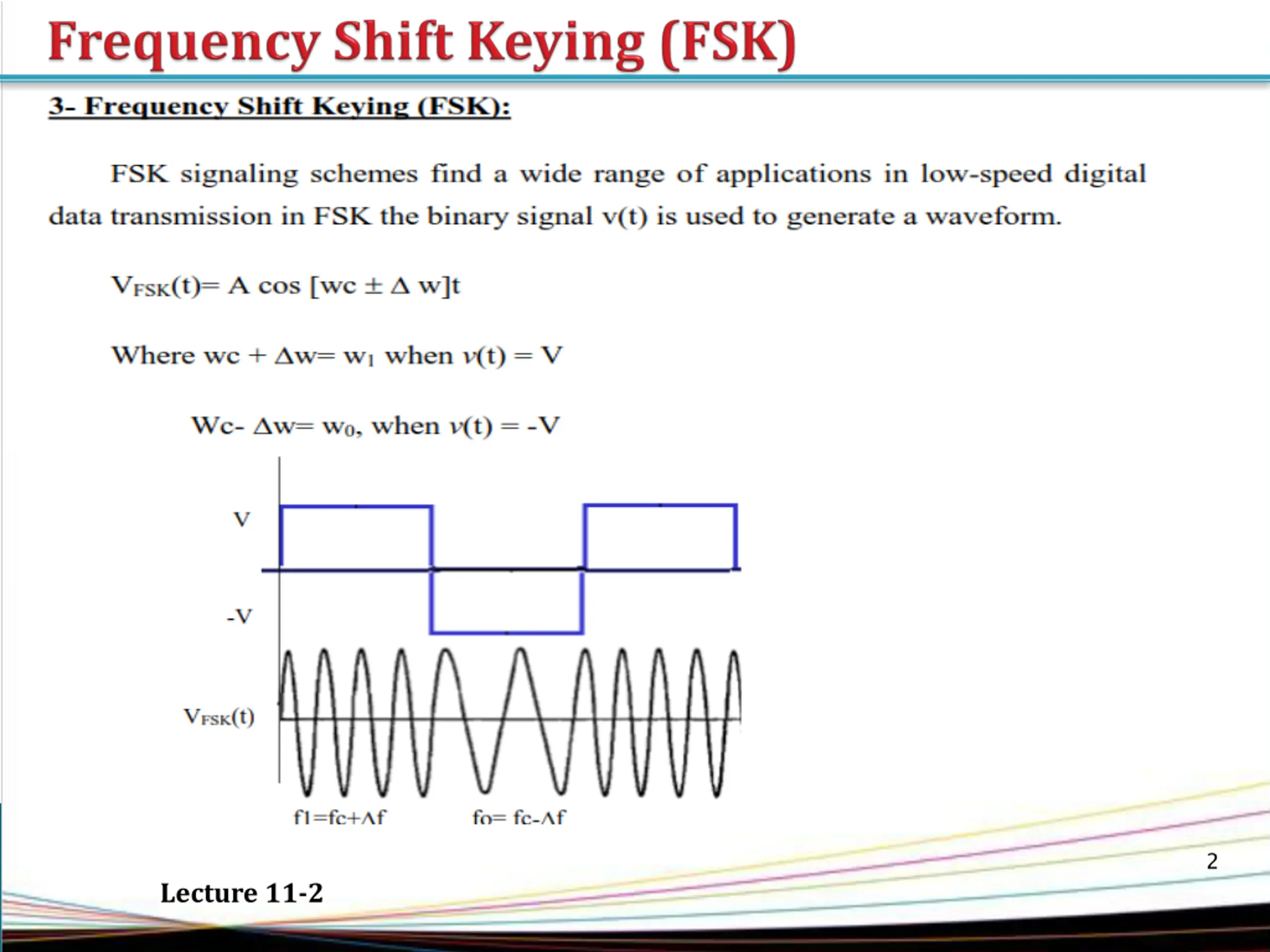

2 Lecture 11-2

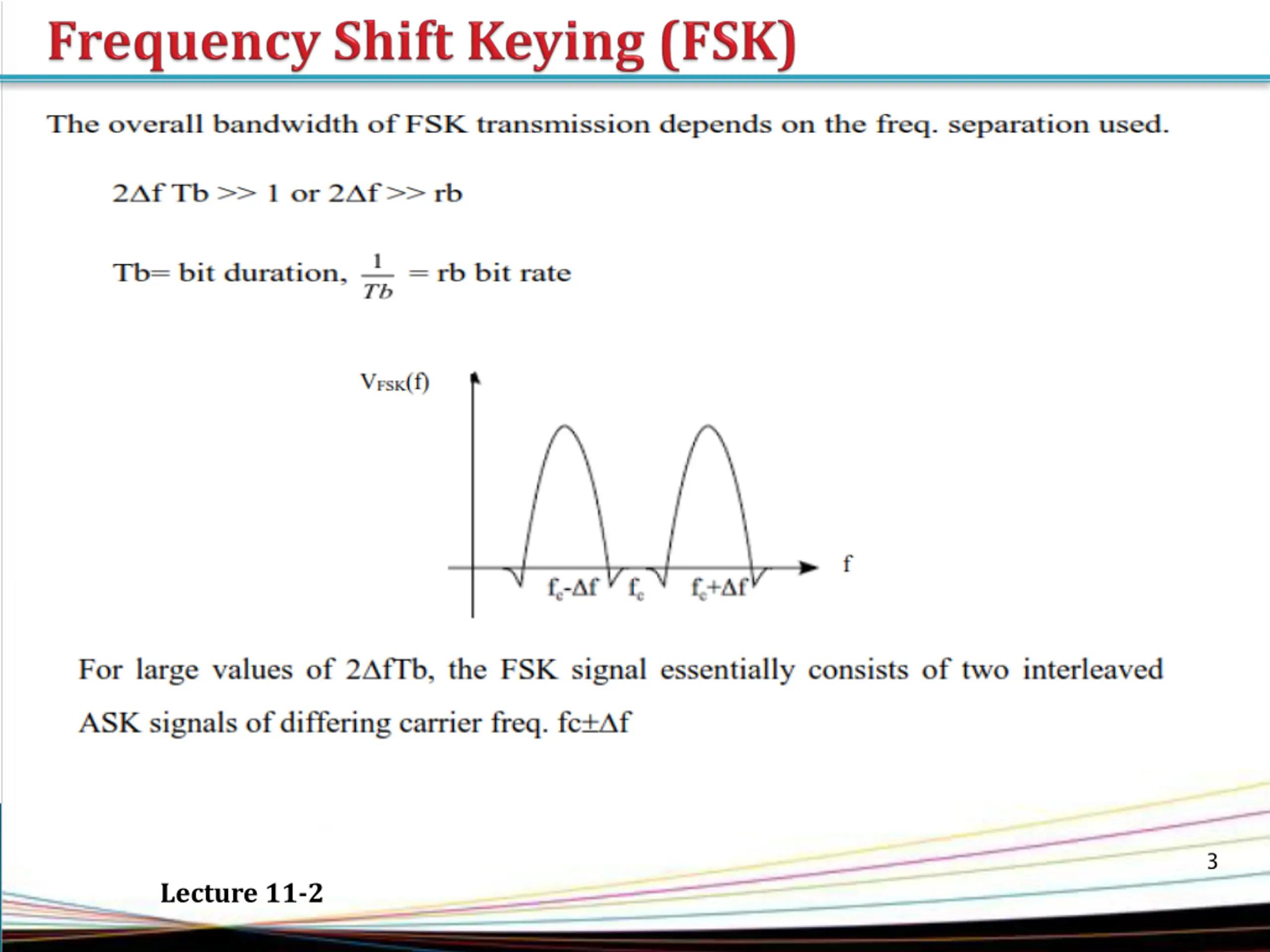

3 Lecture 11-2

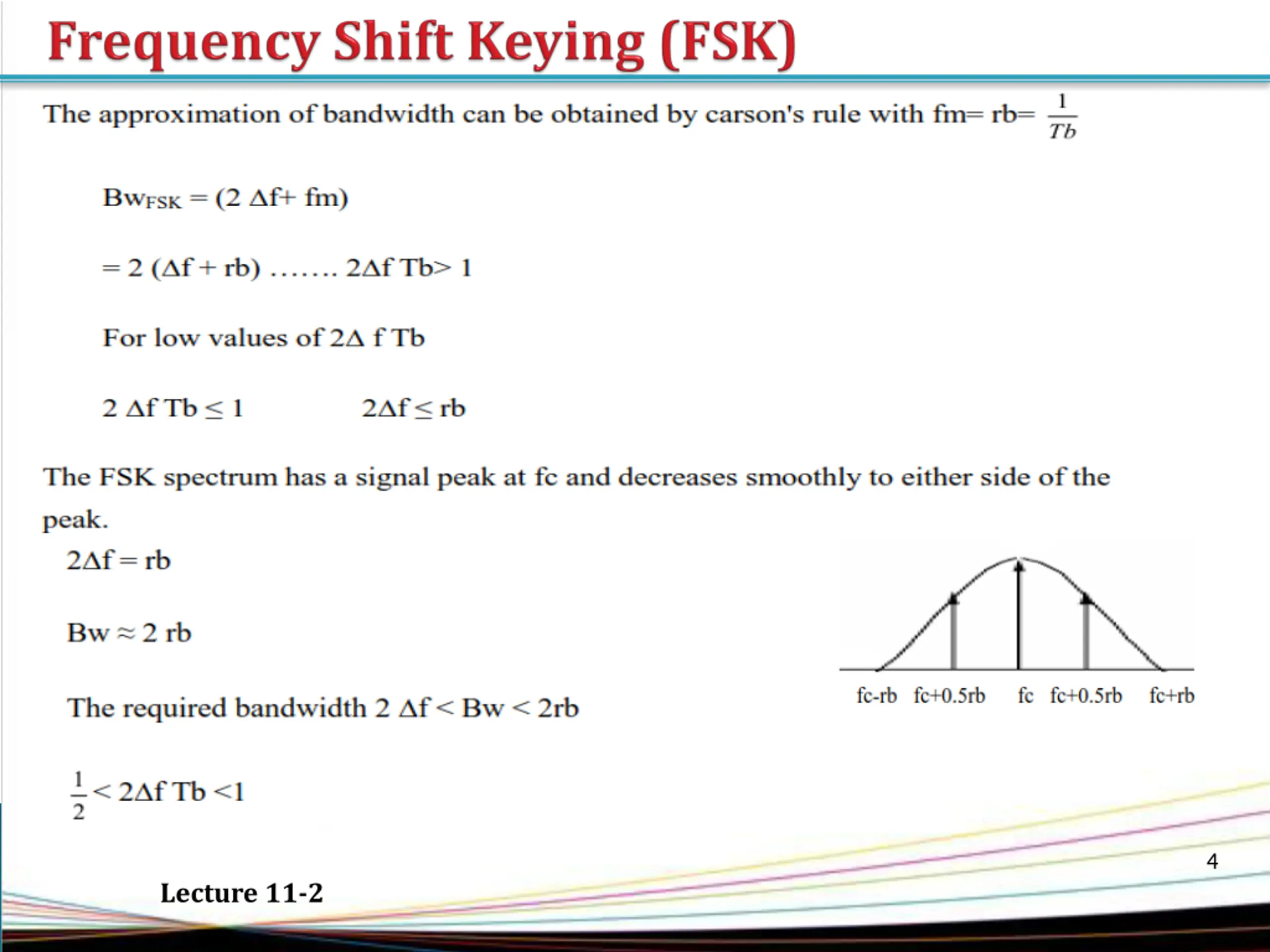

4 Lecture 11-2

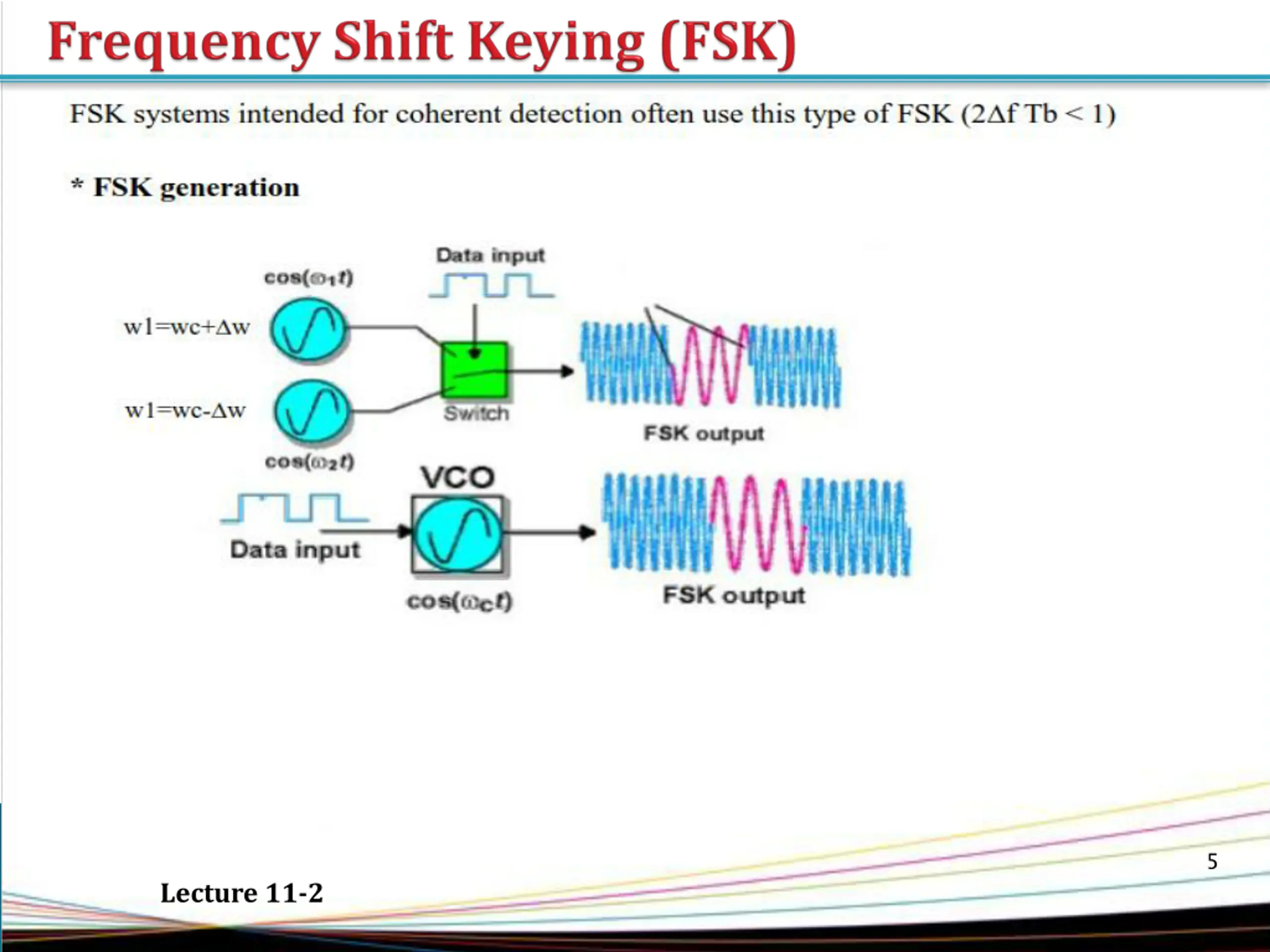

5 Lecture 11-2

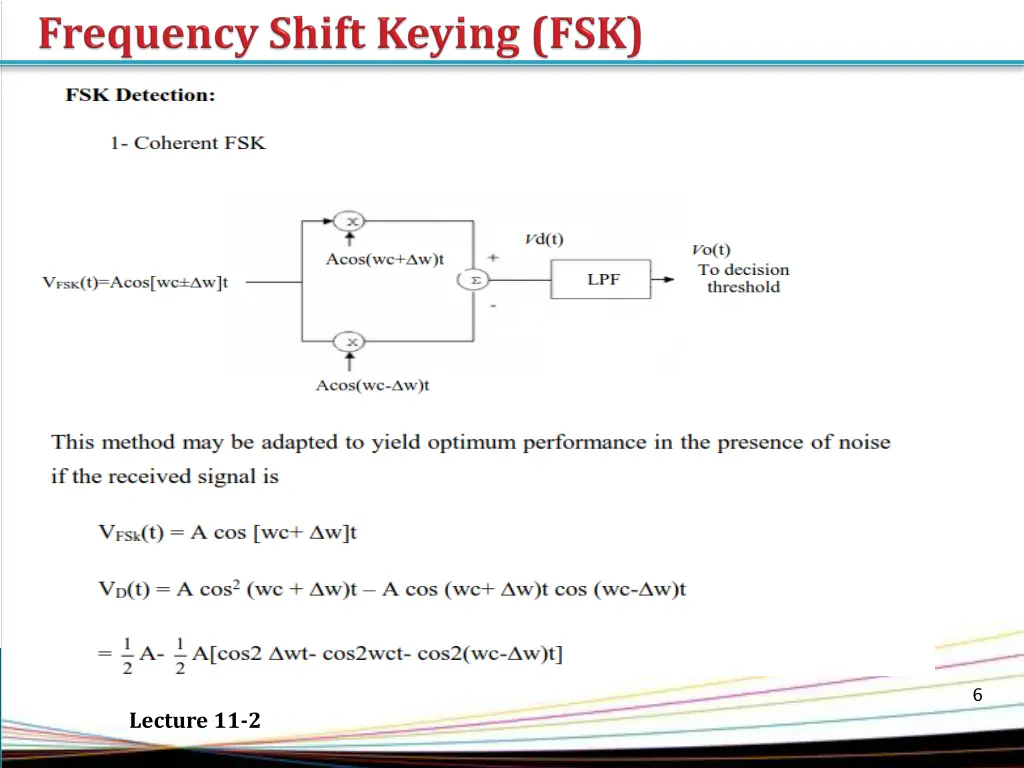

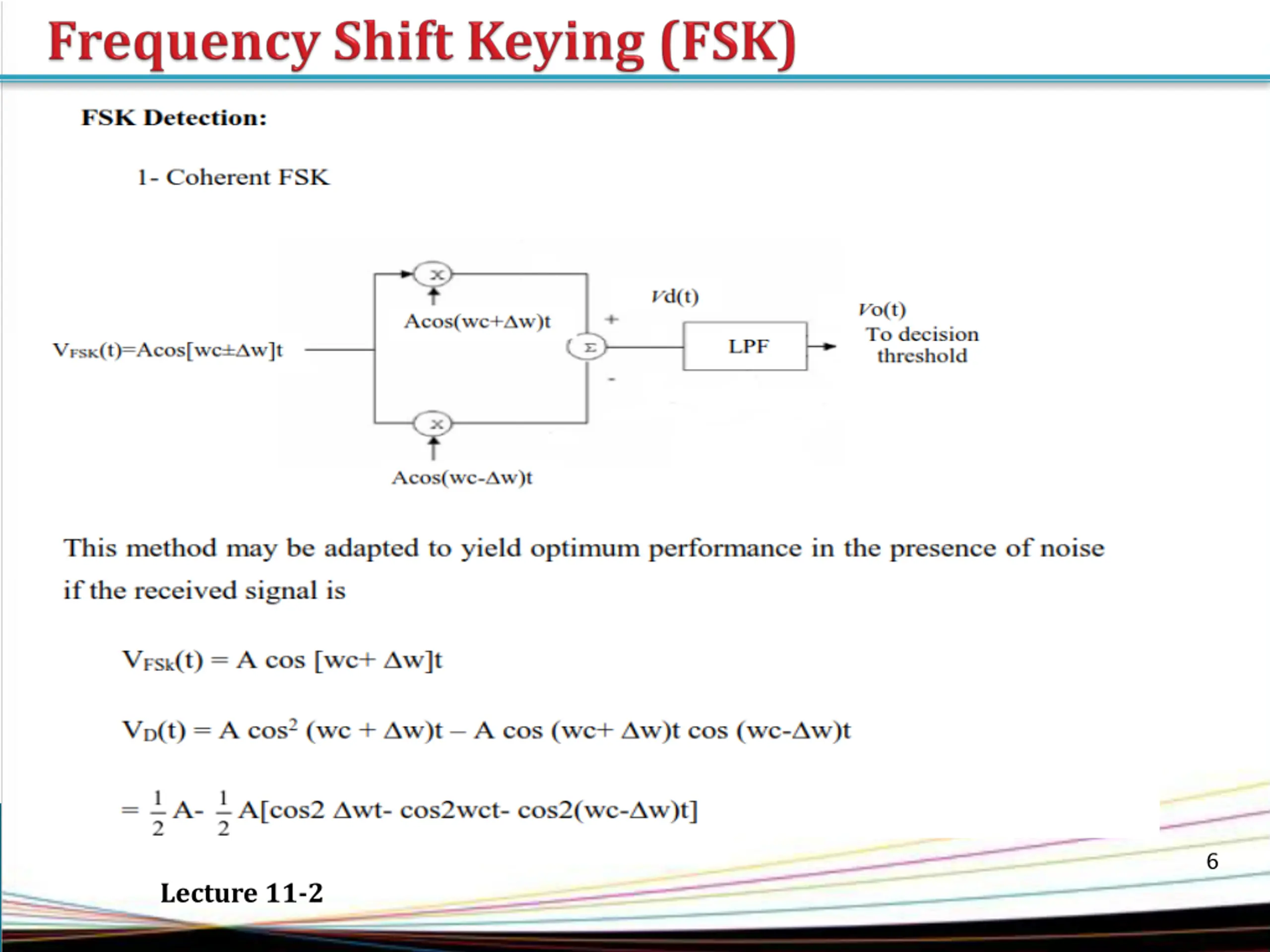

6 Lecture 11-2

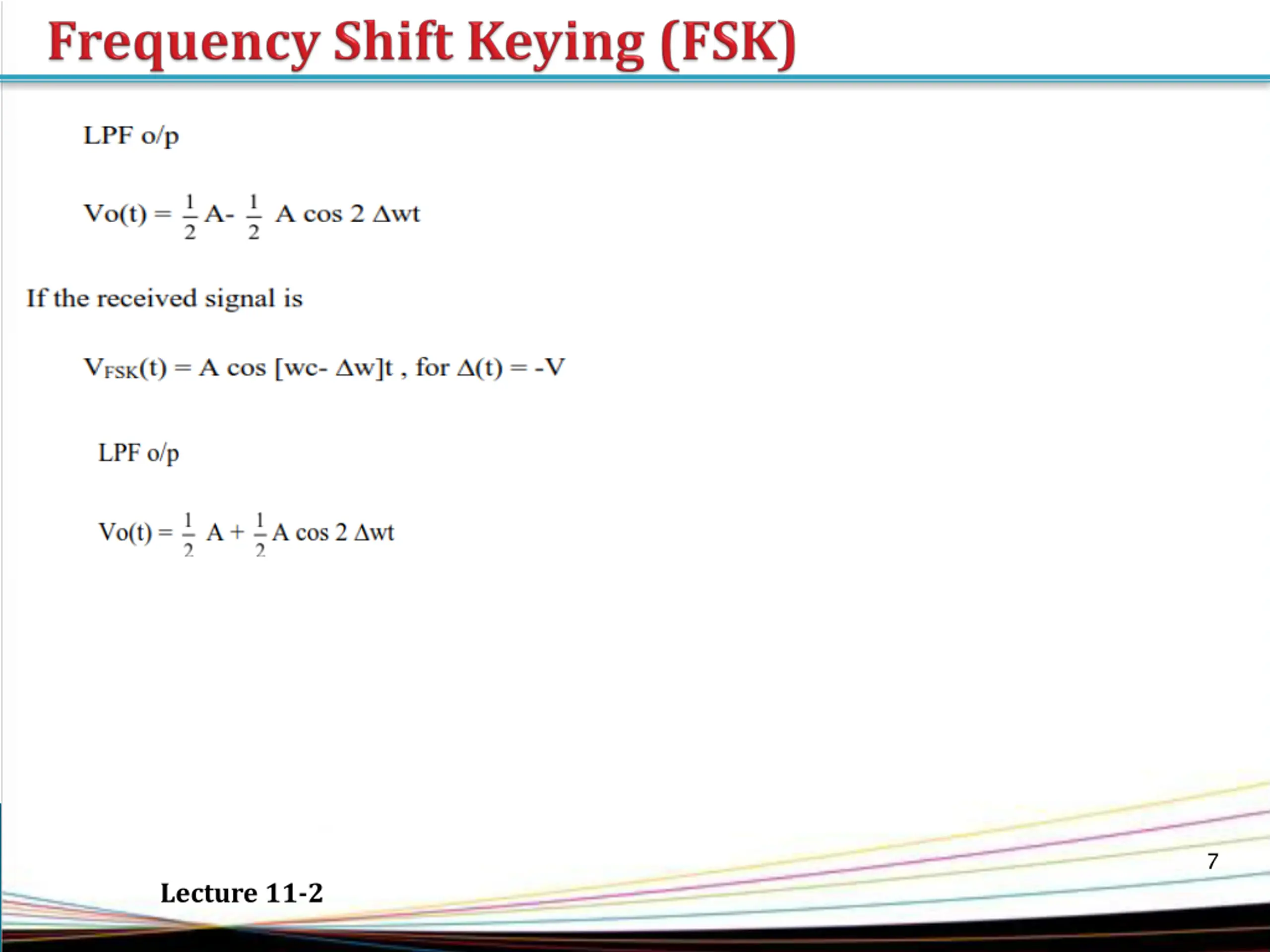

7 Lecture 11-2

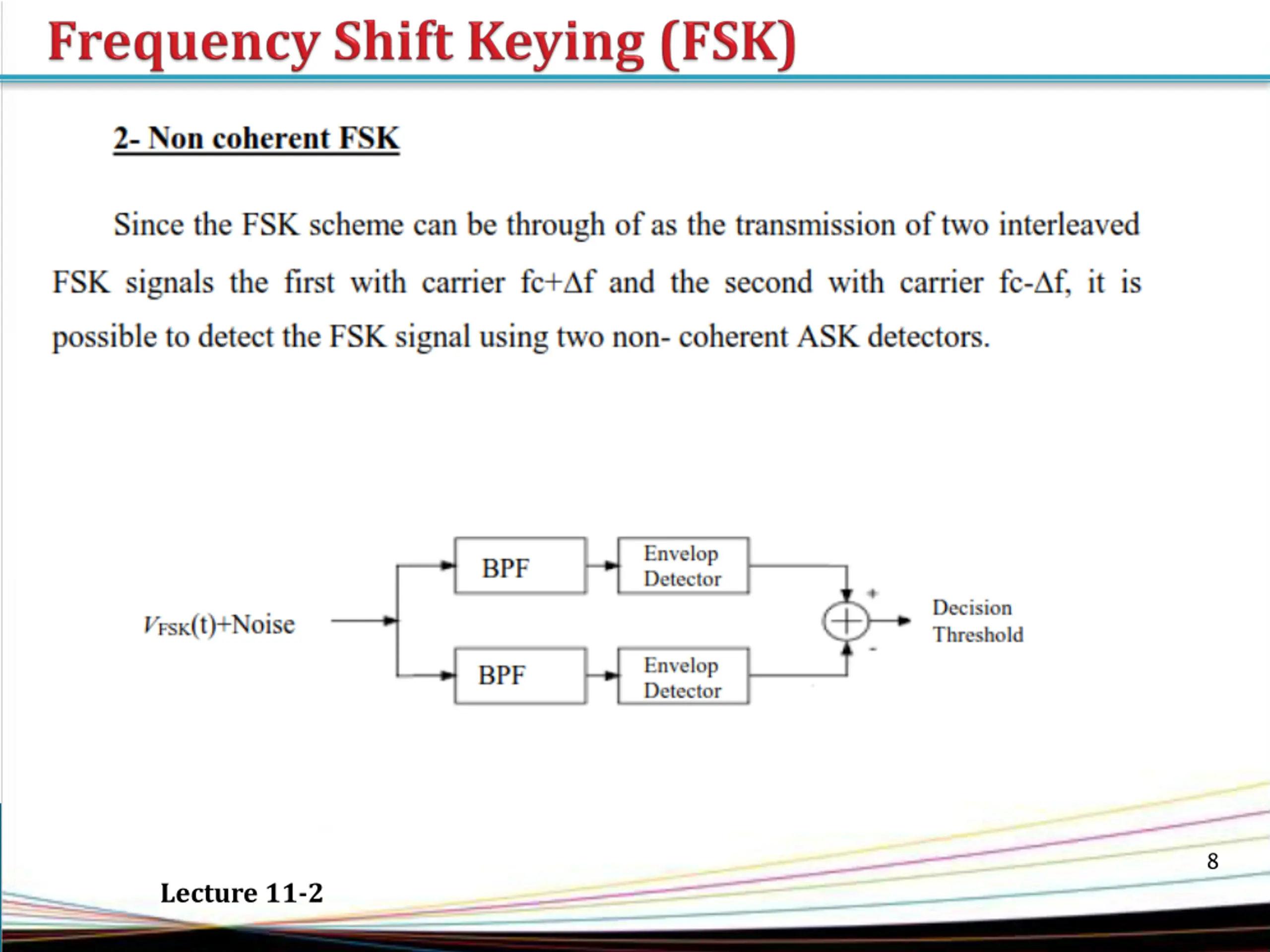

8 Lecture 11-2
Q & A Q & A Thank You Thank You 9
