Digital Electronics: Understanding the 555 Timer and Circuit Operation

Al- Mustansiriyah University College of Engineering Electrical Engineering Department Digital Electronics Fourth Class By Asst. Lect. Radhi S. Issa 2018-2019

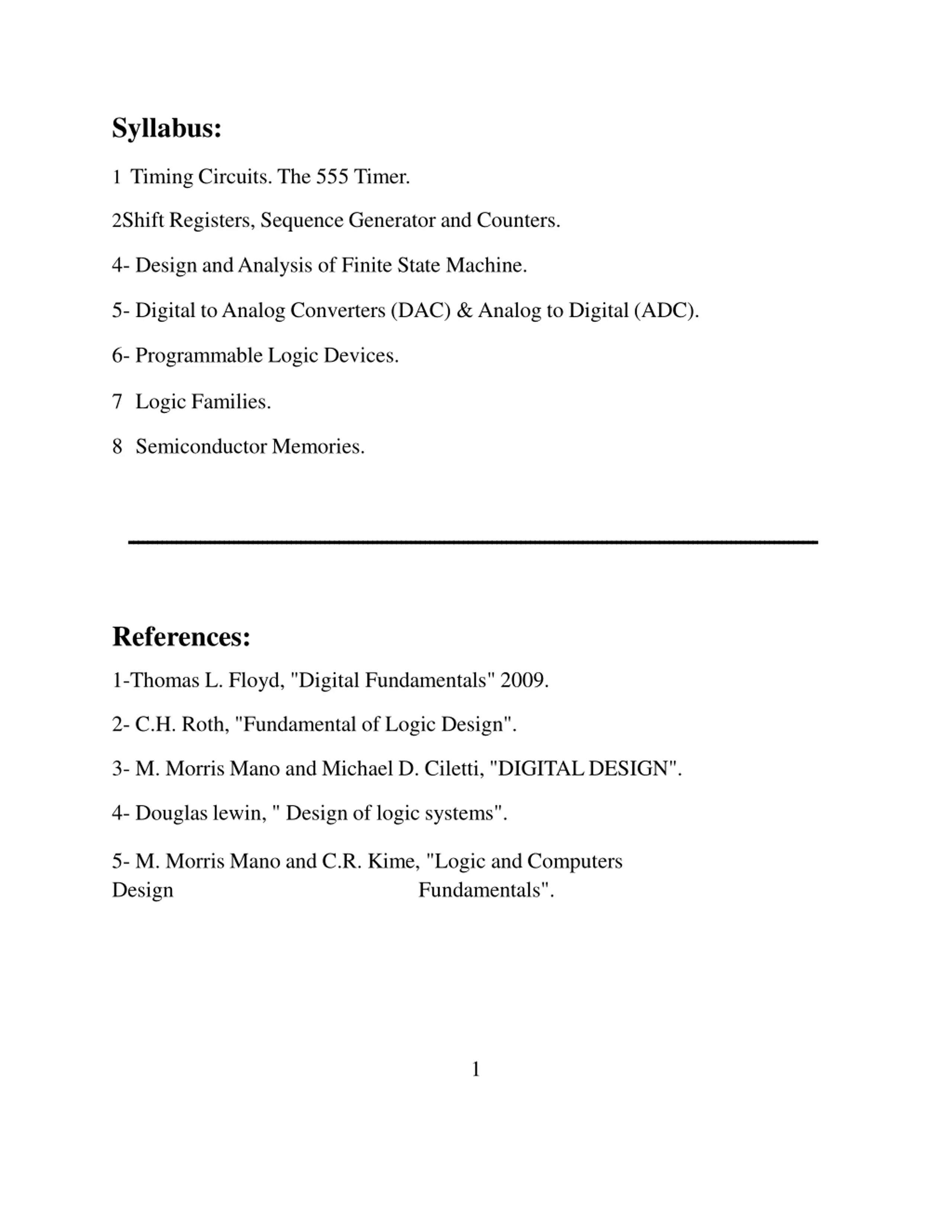

Syllabus: 1 Timing Circuits. The 555 Timer. 2Shift Registers, Sequence Generator and Counters. 4- Design and Analysis of Finite State Machine. 5- Digital to Analog Converters (DAC) & Analog to Digital (ADC). 6- Programmable Logic Devices. 7 Logic Families. 8 Semiconductor Memories. References: 1-Thomas L. Floyd, "Digital Fundamentals" 2009. 2- C.H. Roth, "Fundamental of Logic Design". 3- M. Morris Mano and Michael D. Ciletti, "DIGITAL DESIGN". 4- Douglas lewin, " Design of logic systems". 5- M. Morris Mano and C.R. Kime, "Logic and Computers Design Fundamentals". 1

TIMER CIRCUITS 2

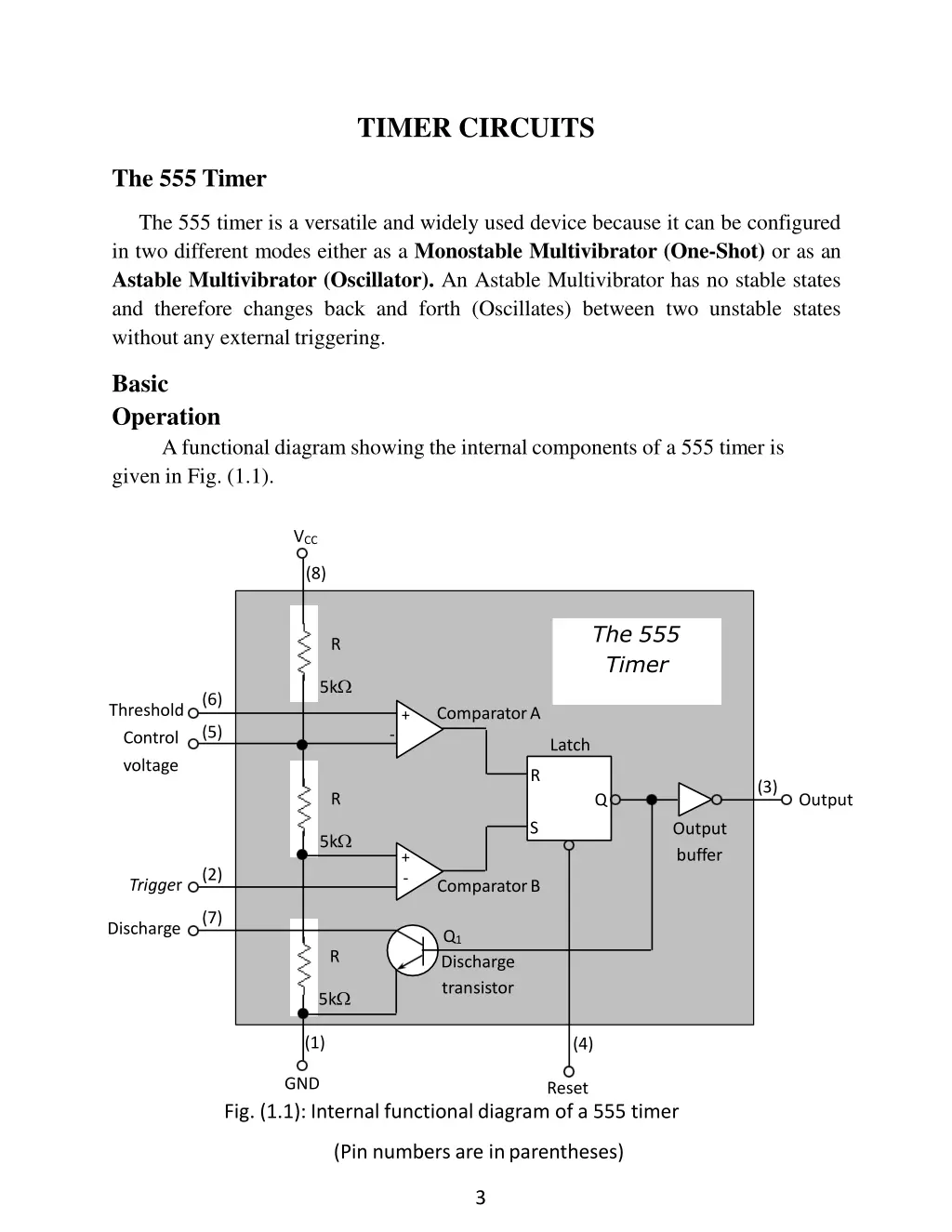

TIMER CIRCUITS The 555 Timer The 555 timer is a versatile and widely used device because it can be configured in two different modes either as a Monostable Multivibrator (One-Shot) or as an Astable Multivibrator (Oscillator). An Astable Multivibrator has no stable states and therefore changes back and forth (Oscillates) between two unstable states without any externaltriggering. Basic Operation A functional diagram showing the internal components of a 555 timer is given in Fig. (1.1). VCC (8) The 555 Timer R 5k (6) Threshold Control voltage ComparatorA + (5) - Latch R (3) R Q Output S Output buffer 5k + - (2) Trigger ComparatorB (7) Discharge Q1 R Discharge transistor 5k (1) (4) GND Reset Fig. (1.1): Internal functional diagram of a 555 timer (Pin numbers are inparentheses) 3

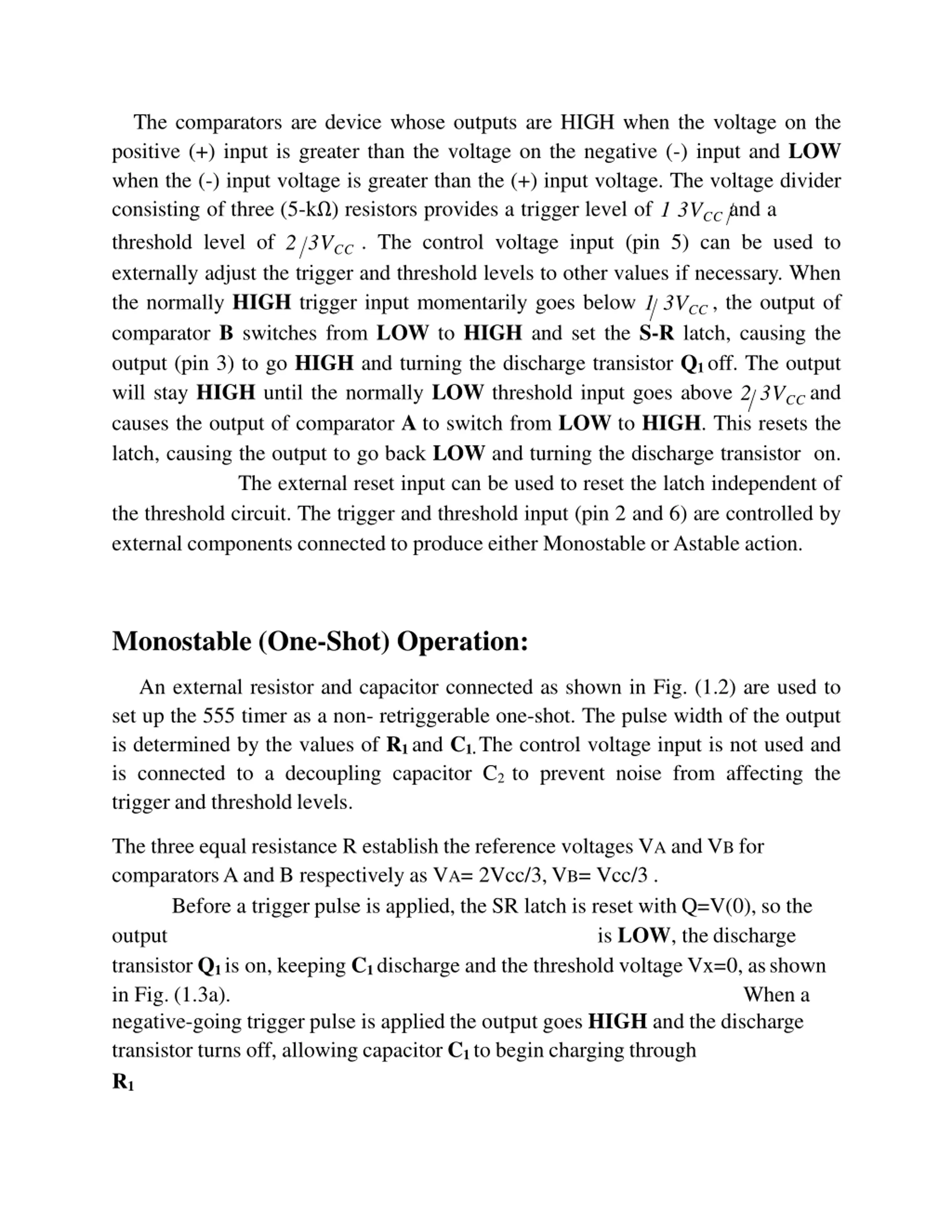

The comparators are device whose outputs are HIGH when the voltage on the positive (+) input is greater than the voltage on the negative (-) input and LOW when the (-) input voltage is greater than the (+) input voltage. The voltage divider consisting of three (5-k ) resistors provides a trigger level of 1 3VCCand a threshold level of 2 3VCC. The control voltage input (pin 5) can be used to externally adjust the trigger and threshold levels to other values if necessary. When the normally HIGH trigger input momentarily goes below 1 3VCC, the output of comparator B switches from LOW to HIGH and set the S-R latch, causing the output (pin 3) to go HIGH and turning the discharge transistor Q1off. The output will stay HIGH until the normally LOW threshold input goes above 2 3VCCand causes the output of comparator A to switch from LOW to HIGH. This resets the latch, causing the output to go back LOW and turning the discharge transistor on. The external reset input can be used to reset the latch independent of the threshold circuit. The trigger and threshold input (pin 2 and 6) are controlled by external components connected to produce either Monostable orAstable action. Monostable (One-Shot) Operation: An external resistor and capacitor connected as shown in Fig. (1.2) are used to set up the 555 timer as a non- retriggerable one-shot. The pulse width of the output is determined by the values of R1and C1.The control voltage input is not used and is connected to a decoupling capacitor C2 to prevent noise from affecting the trigger and threshold levels. The three equal resistance R establish the reference voltages VA and VB for comparators A and B respectively as VA= 2Vcc/3, VB= Vcc/3 . Before a trigger pulse is applied, the SR latch is reset with Q=V(0), so the output transistor Q1 is on, keeping C1 discharge and the threshold voltage Vx=0, asshown in Fig. (1.3a). negative-going trigger pulse is applied the output goes HIGH and the discharge transistor turns off, allowing capacitor C1 to begin charging through R1 is LOW, thedischarge When a

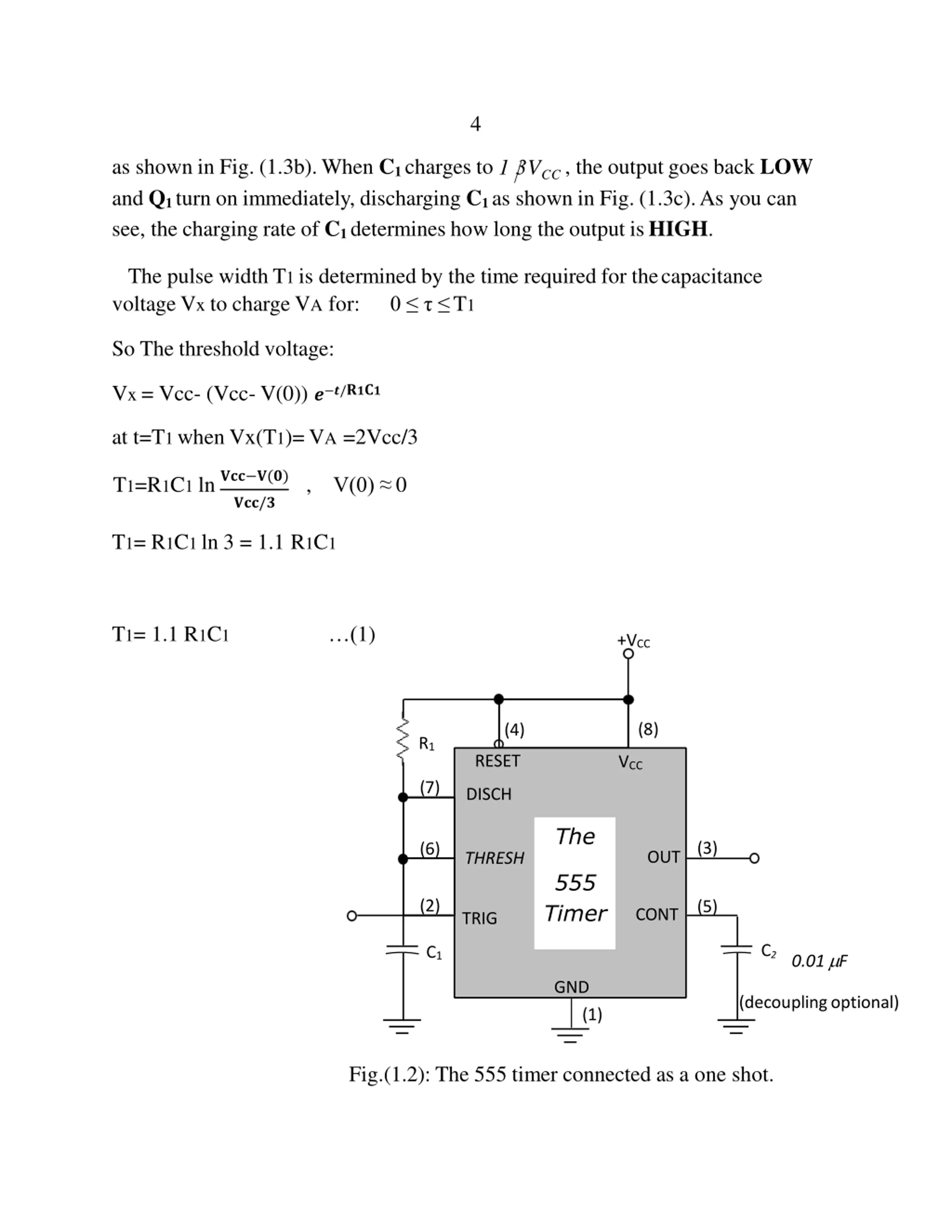

4 as shown in Fig. (1.3b). When C1 charges to 1 3VCC , the output goes back LOW and Q1 turn on immediately, discharging C1 as shown in Fig. (1.3c). As you can see, the charging rate of C1 determines how long the output isHIGH. The pulse width T1 is determined by the time required for thecapacitance 0 T1 voltage Vx to charge VA for: So The threshold voltage: Vx = Vcc- (Vcc- V(0)) ? ?/???? at t=T1 when Vx(T1)= VA =2Vcc/3 T1=R1C1 ln??? ?(?) , V(0) 0 ???/? T1= R1C1 ln 3 = 1.1 R1C1 T1= 1.1 R1C1 (1) +VCC (8) (4) R1 RESET VCC (7) DISCH The (3) (6) OUT THRESH 555 Timer (2) (5) CONT TRIG C2 C1 0.01 F GND (decouplingoptional) (1) Fig.(1.2): The 555 timer connected as a one shot.

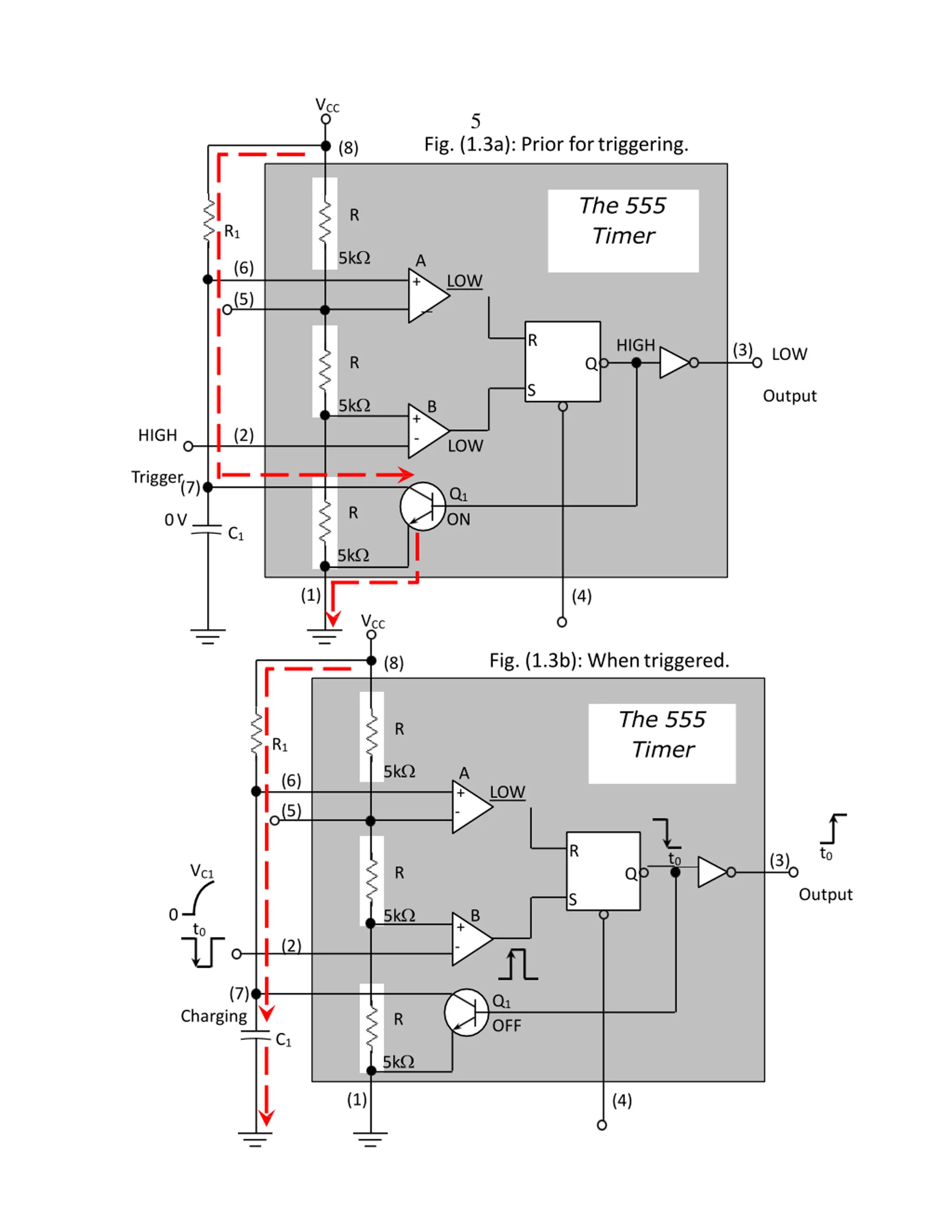

VCC 5 Fig. (1.3a): Prior fortriggering. (8) The 555 Timer R R1 5k A + (6) LOW (5) _ R HIGH (3) LOW R Q S Output 5k B + - HIGH (2) LOW Trigger (7) Q1 R ON 0V C1 5k (1) (4) VCC Fig. (1.3b): Whentriggered. (8) The 555 Timer R R1 5k A + - (6) LOW (5) R t0 t0 (3) VC1 R Q Output S 5k 0 B + - t0 (2) (7) Q1 Charging R OFF C1 5k (1) (4)

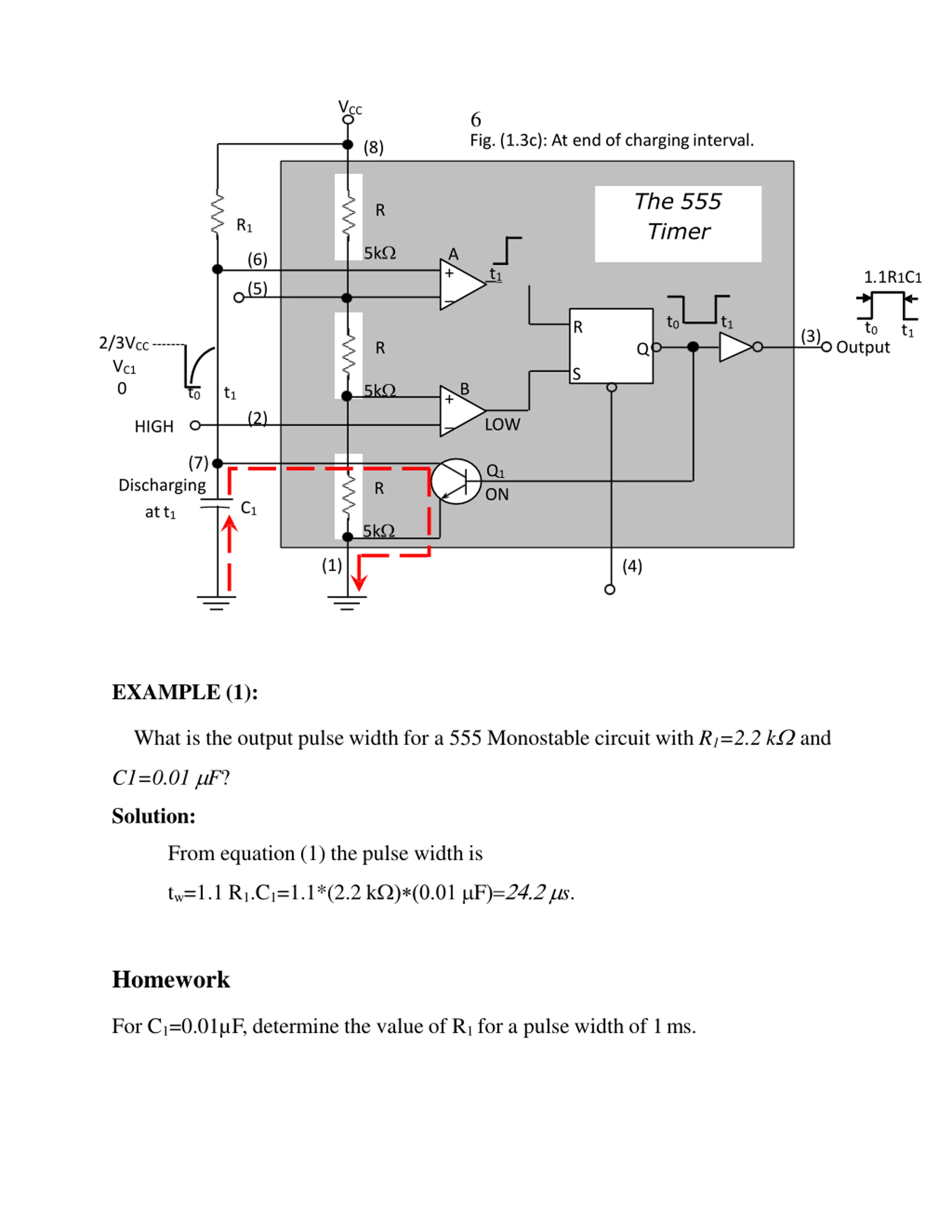

VCC 6 Fig. (1.3c): At end of charginginterval. (8) The 555 Timer R R1 5k A + _ (6) t1 1.1R1C1 (5) t0 t1 t0 R t1 (3) 2/3VCC VC1 0 Output R Q S 5k +B t0 t1 (2) _ LOW HIGH (7) Q1 Discharging att1 R ON C1 5k (1) (4) EXAMPLE (1): What is the output pulse width for a 555 Monostable circuit with R1=2.2 k and C1=0.01 F? Solution: From equation (1) the pulse width is tw=1.1 R1.C1=1.1*(2.2 k ) ( F)= s. Homework For C1=0.01 F, determine the value of R1 for a pulse width of 1ms.

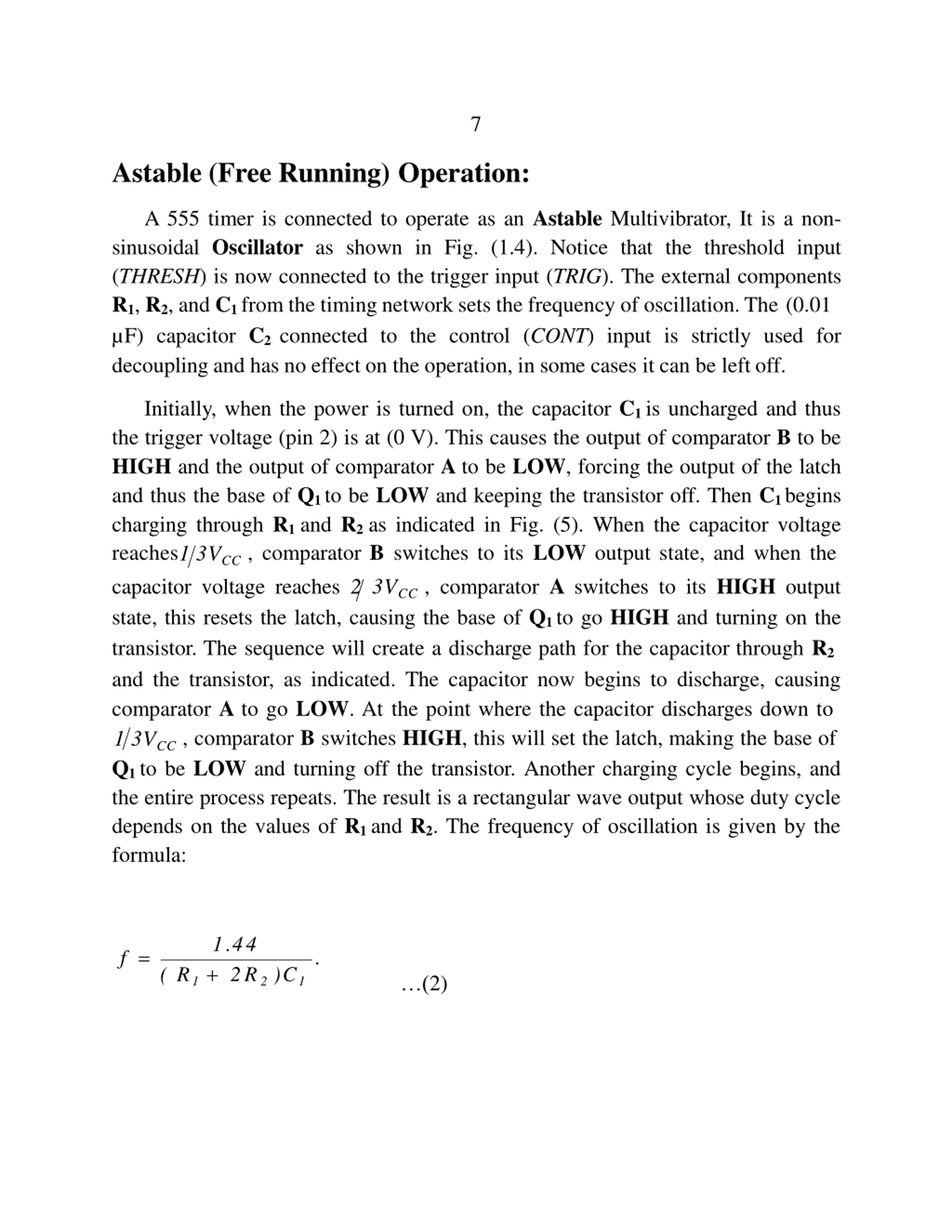

7 Astable (Free Running) Operation: A 555 timer is connected to operate as an Astable Multivibrator, It is a non- sinusoidal Oscillator as shown in Fig. (1.4). Notice that the threshold input (THRESH) is now connected to the trigger input (TRIG). The external components R1, R2, and C1from the timing network sets the frequency of oscillation. The (0.01 F) capacitor C2 connected to the control (CONT) input is strictly used for decoupling and has no effect on the operation, in some cases it can be left off. Initially, when the power is turned on, the capacitor C1is uncharged and thus the trigger voltage (pin 2) is at (0 V). This causes the output of comparator B to be HIGH and the output of comparator A to be LOW, forcing the output of the latch and thus the base of Q1to be LOW and keeping the transistor off. Then C1begins charging through R1and R2as indicated in Fig. (5). When the capacitor voltage reaches1 3VCC, comparator B switches to its LOW output state, and when the capacitor voltage reaches 2 3VCC, comparator A switches to its HIGH output state, this resets the latch, causing the base of Q1to go HIGH and turning on the transistor. The sequence will create a discharge path for the capacitor through R2 and the transistor, as indicated. The capacitor now begins to discharge, causing comparator A to go LOW. At the point where the capacitor discharges down to 1 3VCC, comparator B switches HIGH, this will set the latch, making the base of Q1to be LOW and turning off the transistor. Another charging cycle begins, and the entire process repeats. The result is a rectangular wave output whose duty cycle depends on the values of R1and R2. The frequency of oscillation is given by the formula: 1.44 f = . ( R1 + 2R2)C1 (2)

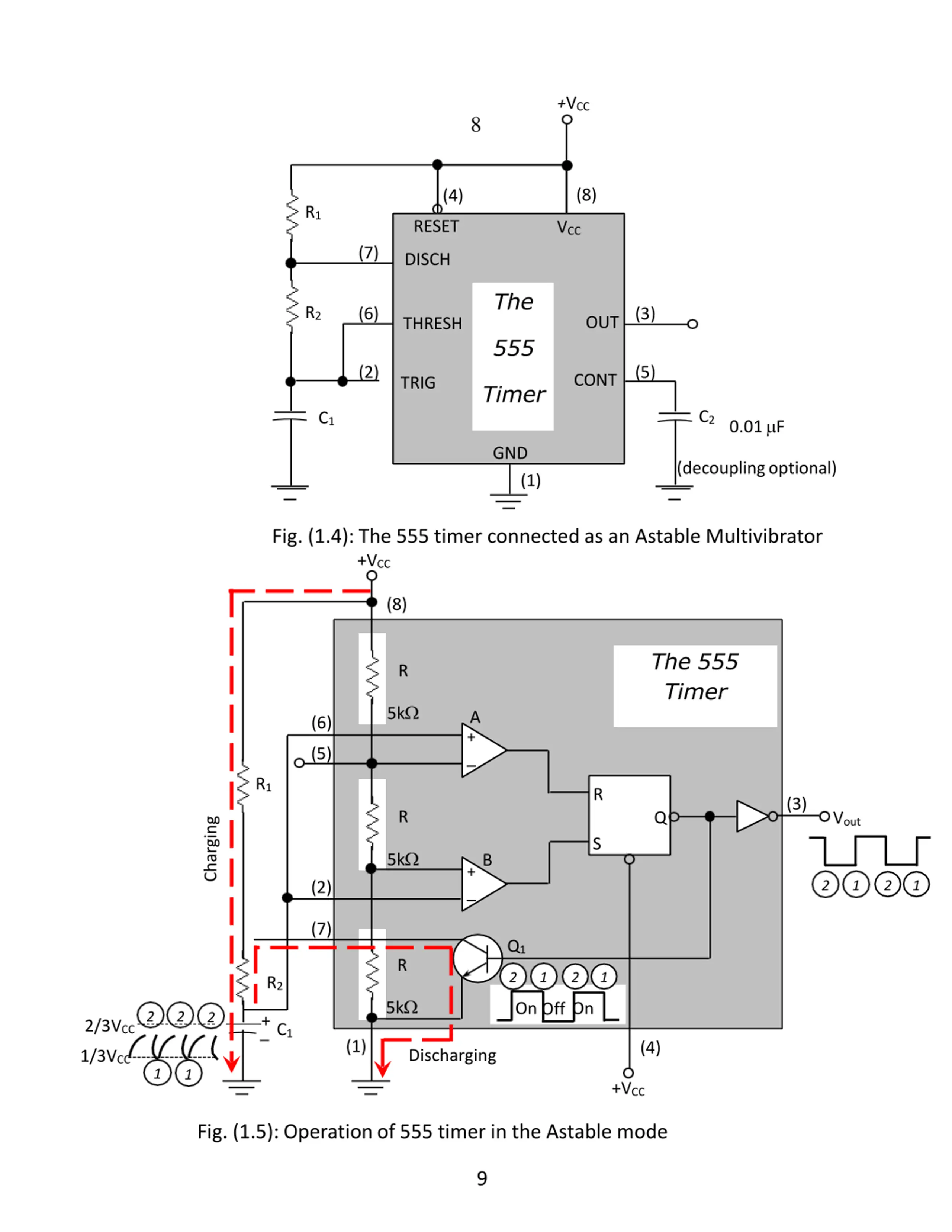

+VCC 8 (8) (4) R1 RESET VCC (7) DISCH The R2 (6) (3) OUT THRESH 555 (2) (5) CONT TRIG Timer C2 C1 0.01 F GND (decouplingoptional) (1) Fig. (1.4): The 555 timer connected as an Astable Multivibrator +VCC (8) The 555 Timer R 5k A + _ (6) (5) R1 R (3) R Q Vout Charging S 5k B + _ 2 1 2 1 (2) (7) Q1 R 2 1 2 1 R2 5k On Off On 2 2 2 +_C1 2/3VCC (1) (4) Discharging 1/3VCC 1 1 +VCC Fig. (1.5): Operation of 555 timer in the Astable mode 9

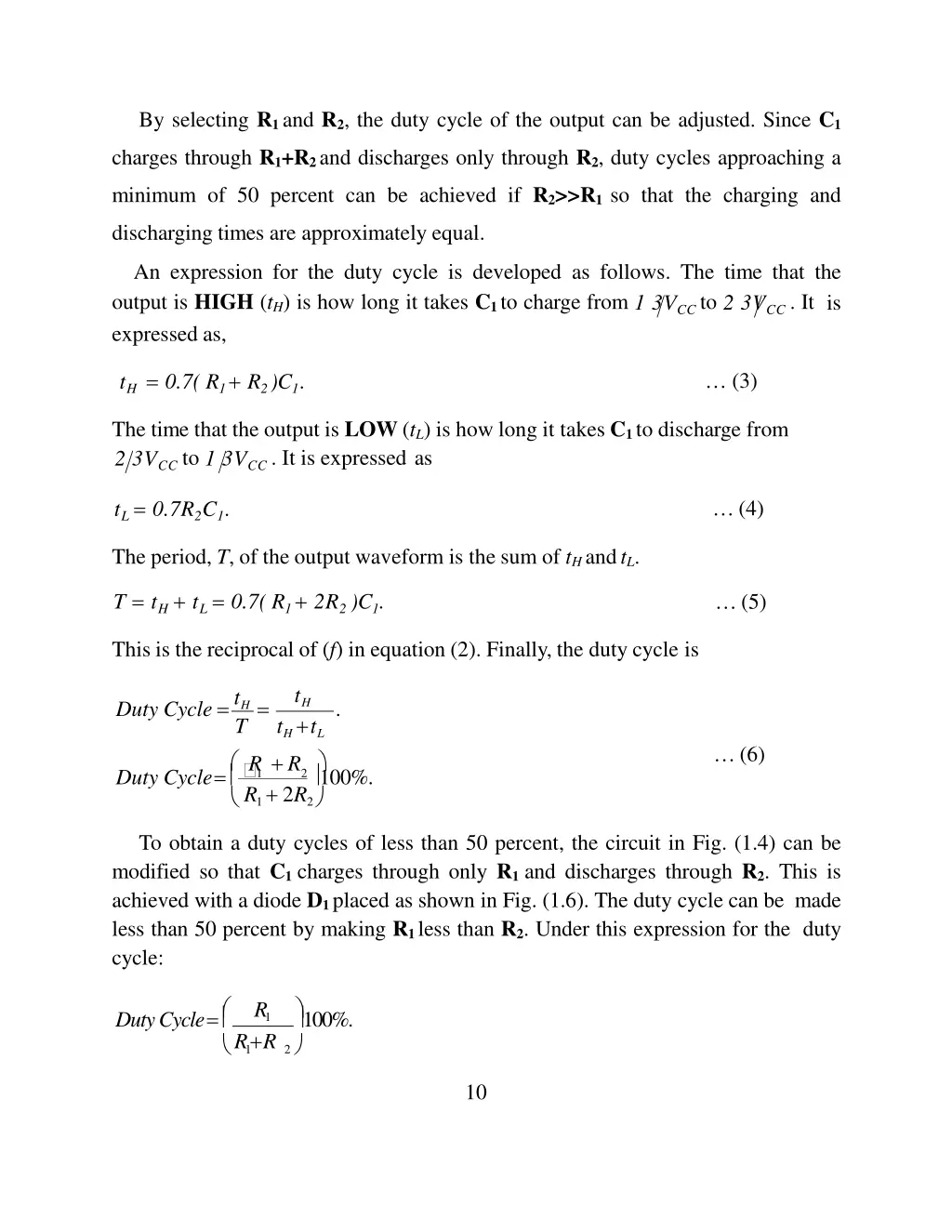

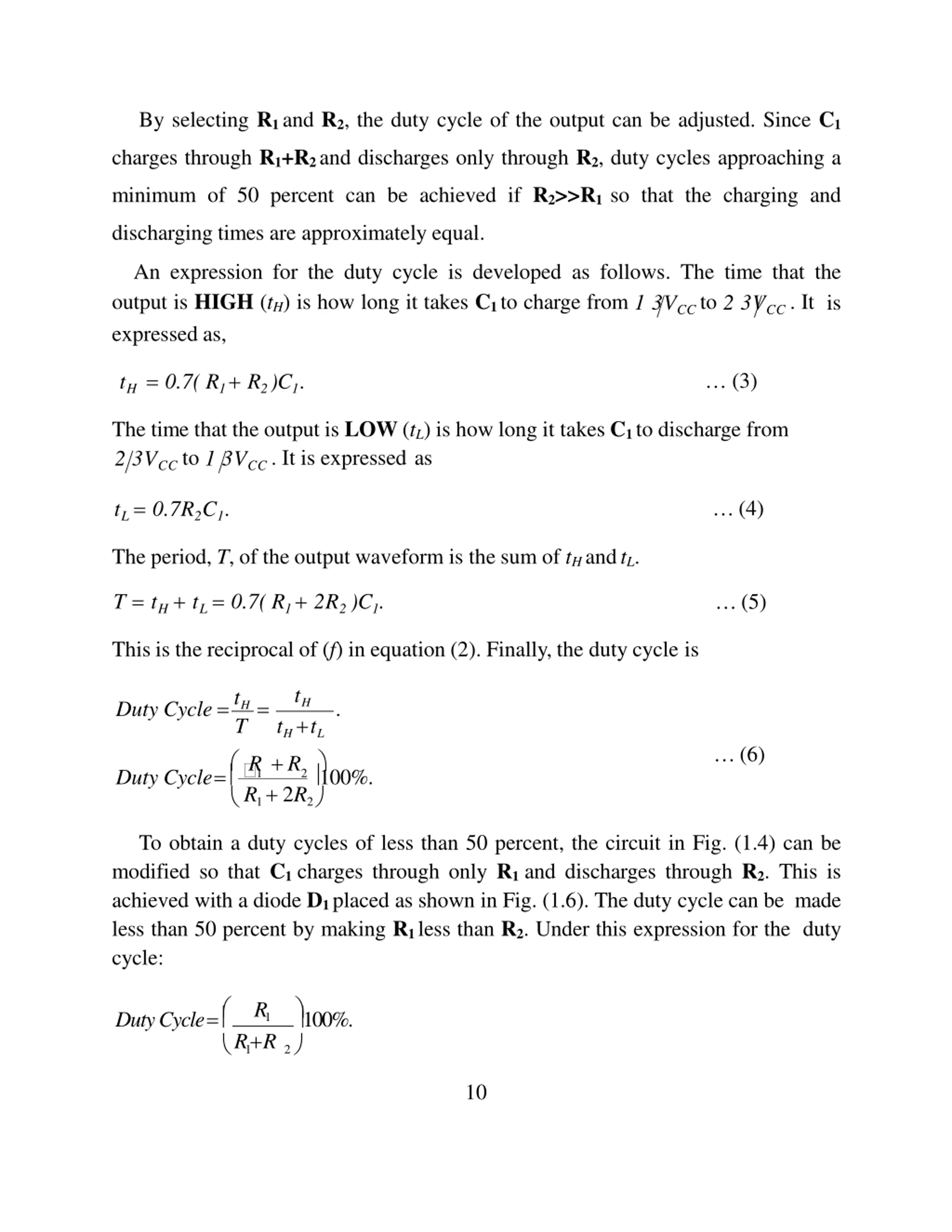

By selecting R1and R2, the duty cycle of the output can be adjusted. Since C1 charges through R1+R2and discharges only through R2, duty cycles approaching a minimum of 50 percent can be achieved if R2>>R1 so that the charging and discharging times are approximately equal. An expression for the duty cycle is developed as follows. The time that the output is HIGH (tH) is how long it takes C1to charge from 1 3VCCto 2 3VCC. It is expressed as, tH = 0.7( R1 + R2)C1. (3) The time that the output is LOW (tL) is how long it takes C1 to discharge from 2 3VCC to 1 3VCC . It is expressed as tL = 0.7R2C1. (4) The period, T, of the output waveform is the sum of tH andtL. T = tH + tL = 0.7( R1 + 2R2 )C1. (5) This is the reciprocal of (f) in equation (2). Finally, the duty cycle is tH Duty Cycle =tH= . tH +tL T (6) R +R R1+ 2R2 Duty Cycle= 1 2 100%. To obtain a duty cycles of less than 50 percent, the circuit in Fig. (1.4) can be modified so that C1charges through only R1and discharges through R2. This is achieved with a diode D1placed as shown in Fig. (1.6). The duty cycle can be made less than 50 percent by making R1less than R2. Under this expression for the duty cycle: 100%. R1 Duty Cycle= R +R 2 1 10

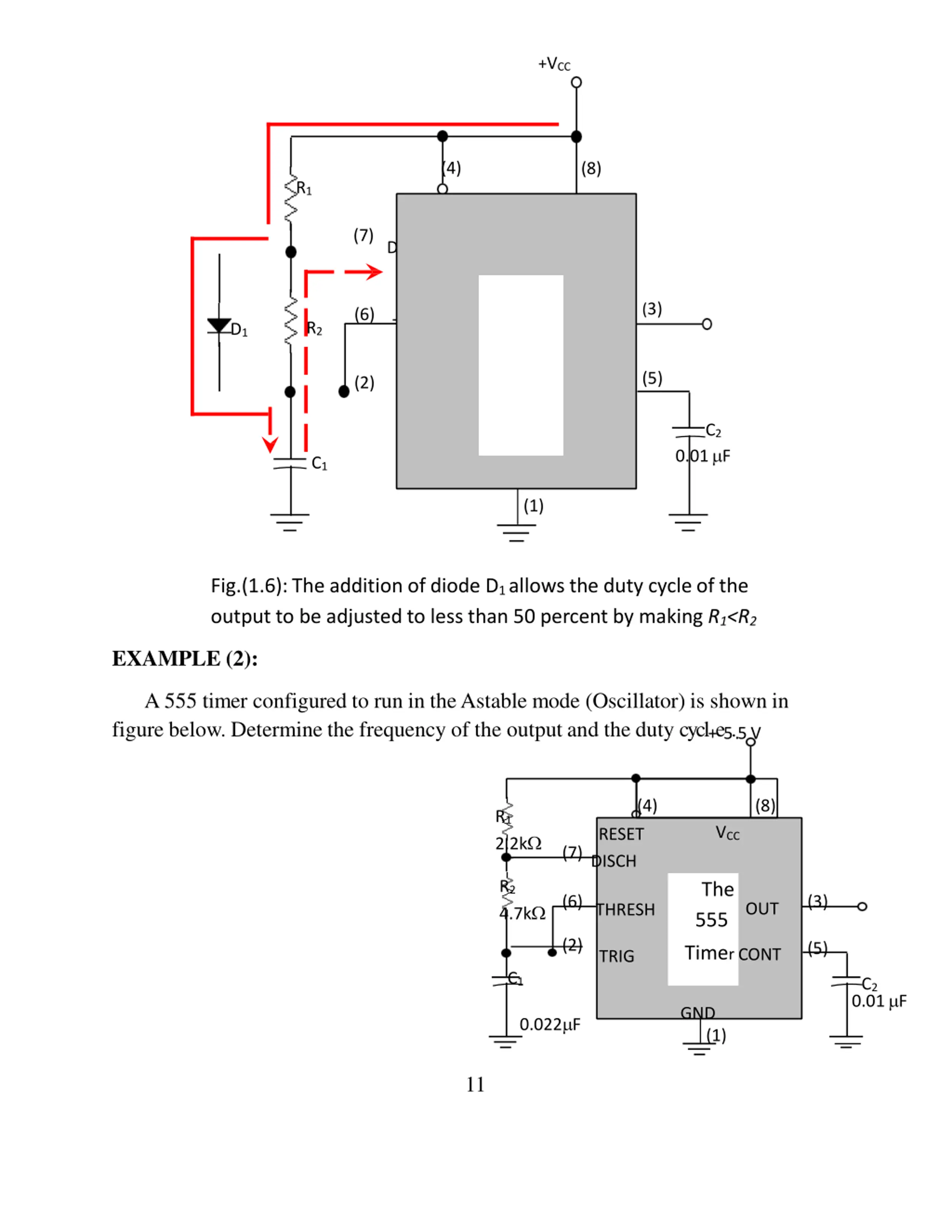

+VCC (4) (8) R1 VCC RESET (7) DISCH The (3) (6) OUT THRESH R2 D1 555 Timer (5) (2) CONT TRIG C2 0.01 F C1 GND (1) Fig.(1.6): The addition of diode D1 allows the duty cycle of the output to be adjusted to less than 50 percent by making R1<R2 EXAMPLE (2): A 555 timer configured to run in the Astable mode (Oscillator) is shown in figure below. Determine the frequency of the output and the duty cycl+e5..5V (4) (8) R1 2.2k VCC RESET DISCH (7) R2 4.7k The 555 (6) (3) OUT THRESH (2) (5) Timer CONT TRIG C1 C2 0.01 F GND 0.022 F (1) 11

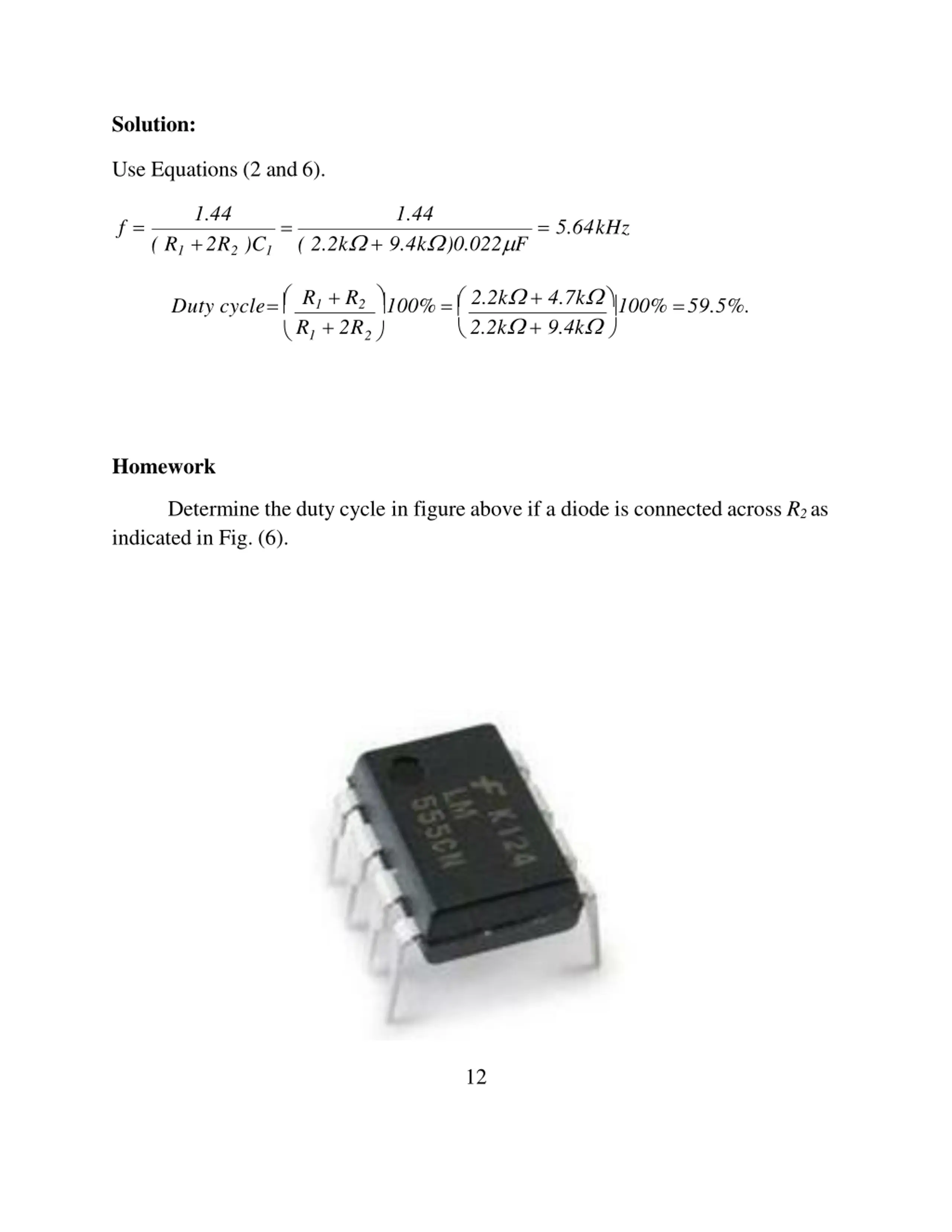

Solution: Use Equations (2 and 6). 1.44 1.44 f =( R1 +2R2)C1 = 5.64kHz = ( 2.2k + 9.4k )0.022 F 2.2k + 4.7k R1 + R2 Duty cycle= 100% = 100% =59.5%. 2.2k + 9.4k R + 2R 2 1 Homework Determine the duty cycle in figure above if a diode is connected across R2 as indicated in Fig. (6). 12

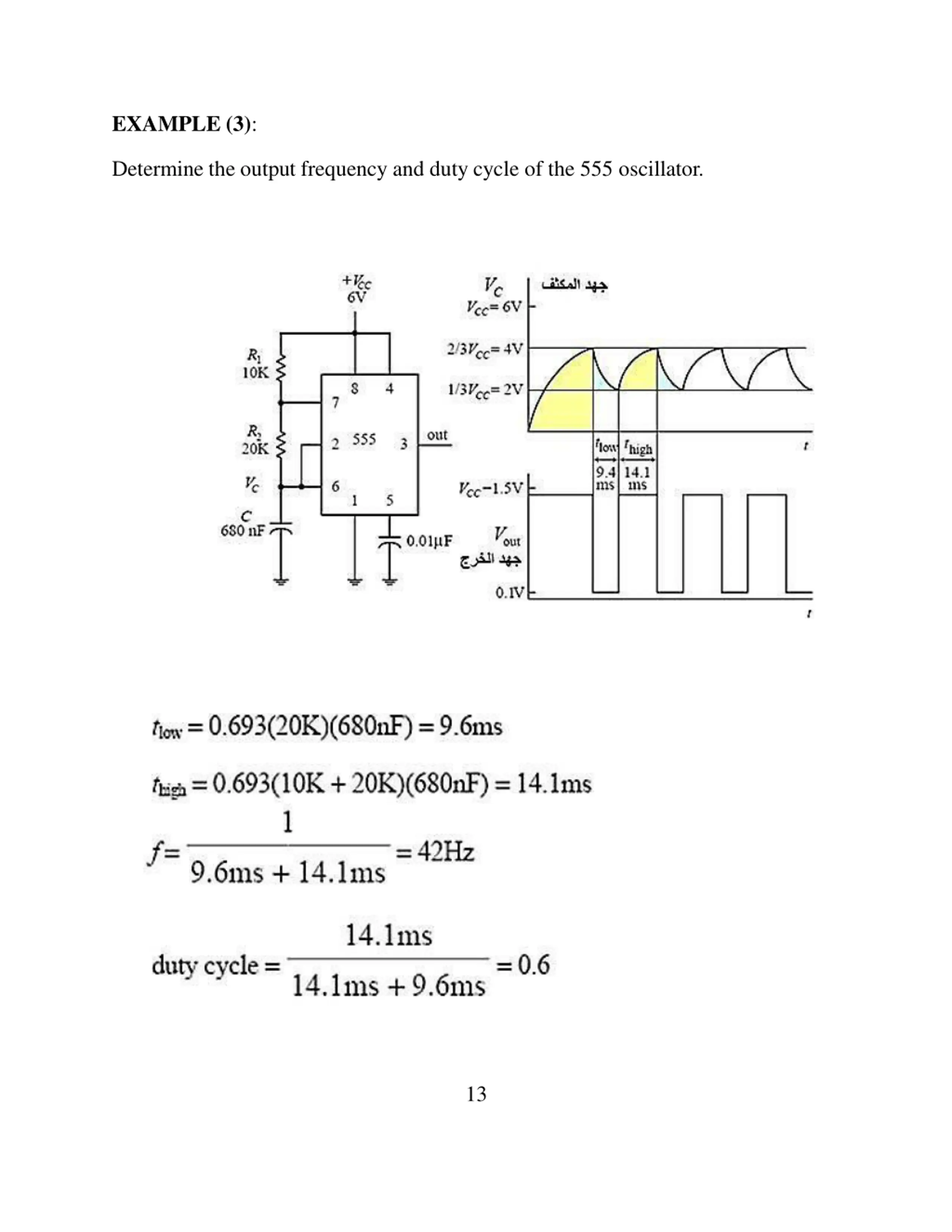

EXAMPLE (3): Determine the output frequency and duty cycle of the 555 oscillator. 13

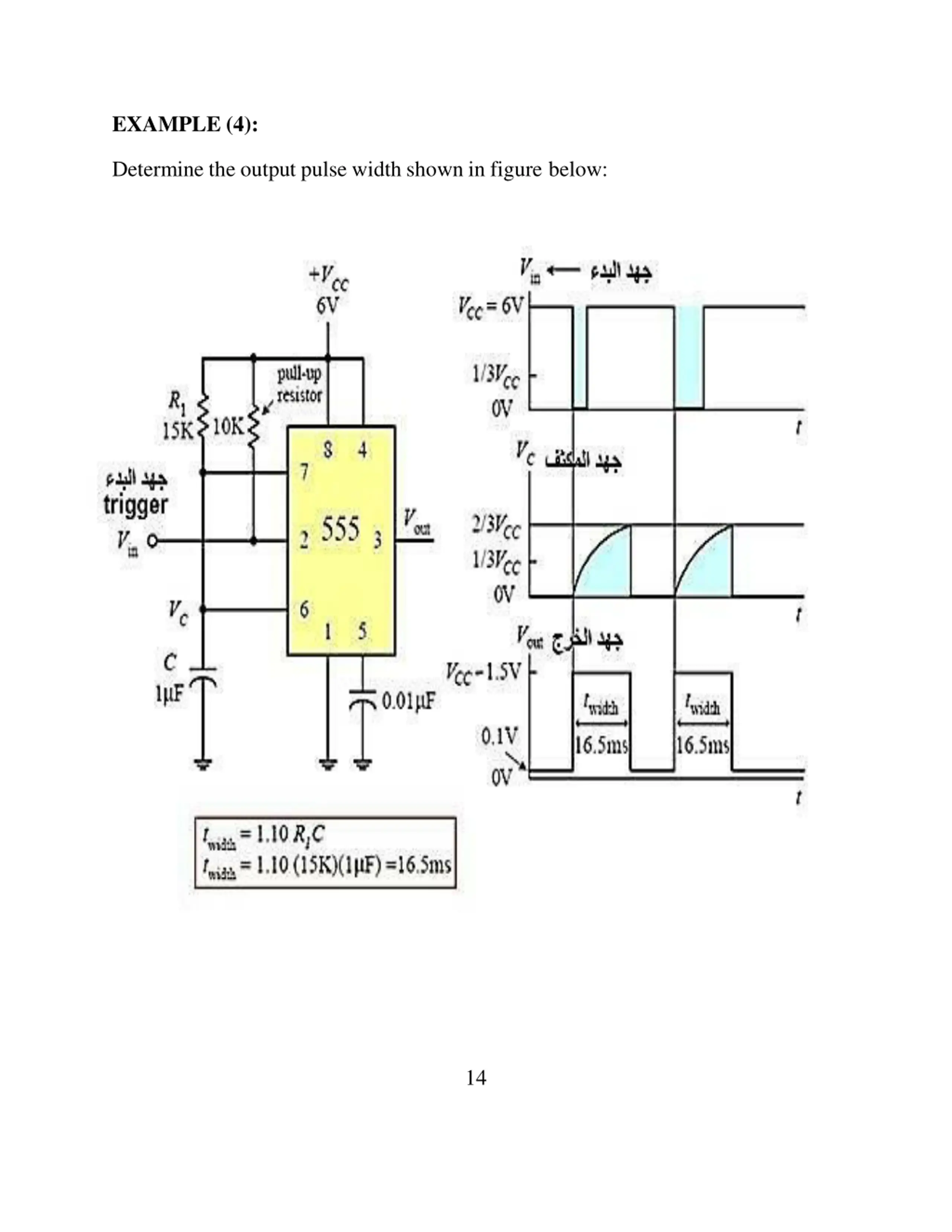

EXAMPLE (4): Determine the output pulse width shown in figure below: 14
