Dijkstra's Algorithm for Shortest Path with Non-negative Edge Weights
This content illustrates Dijkstra's Algorithm for solving the Single-Source Shortest Path problem with non-negative edge weights. The algorithm calculates final distances from a source node to all other nodes in a graph by iteratively selecting the node with the minimum distance and relaxing its outgoing edges. The process continues until all nodes are finalized. Visual representations aid in understanding the step-by-step procedure of finding the shortest path efficiently.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

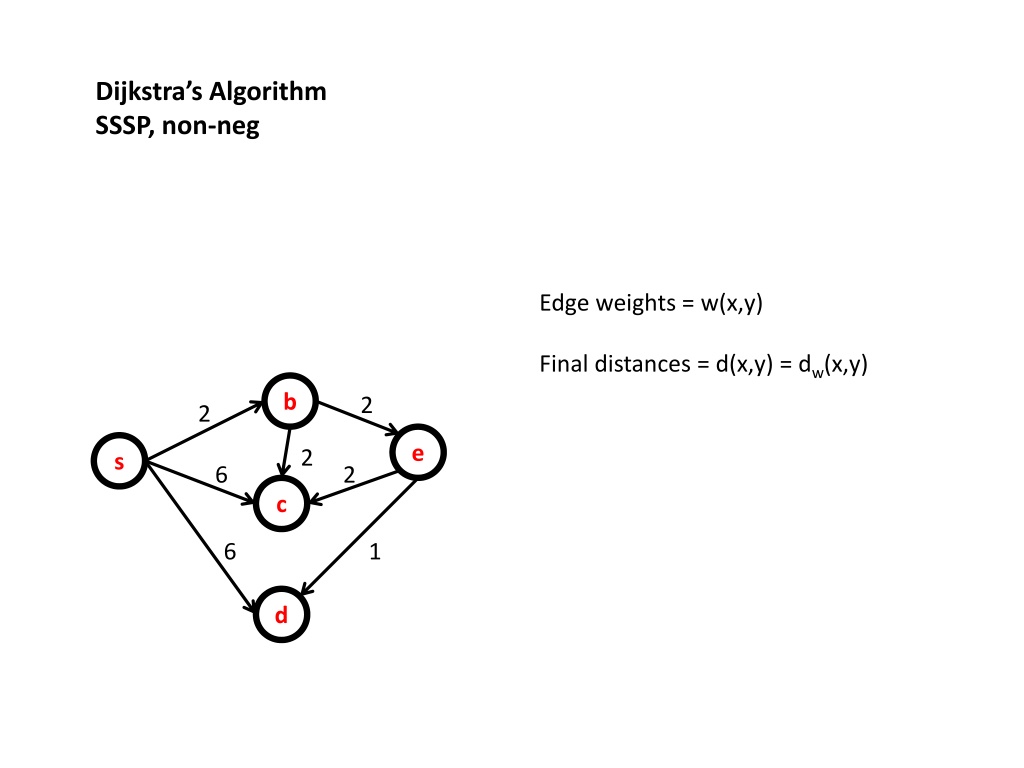

Dijkstras Algorithm SSSP, non-neg Edge weights = w(x,y) Final distances = d(x,y) = dw(x,y) b 2 2 e 2 s 6 2 c 6 1 d

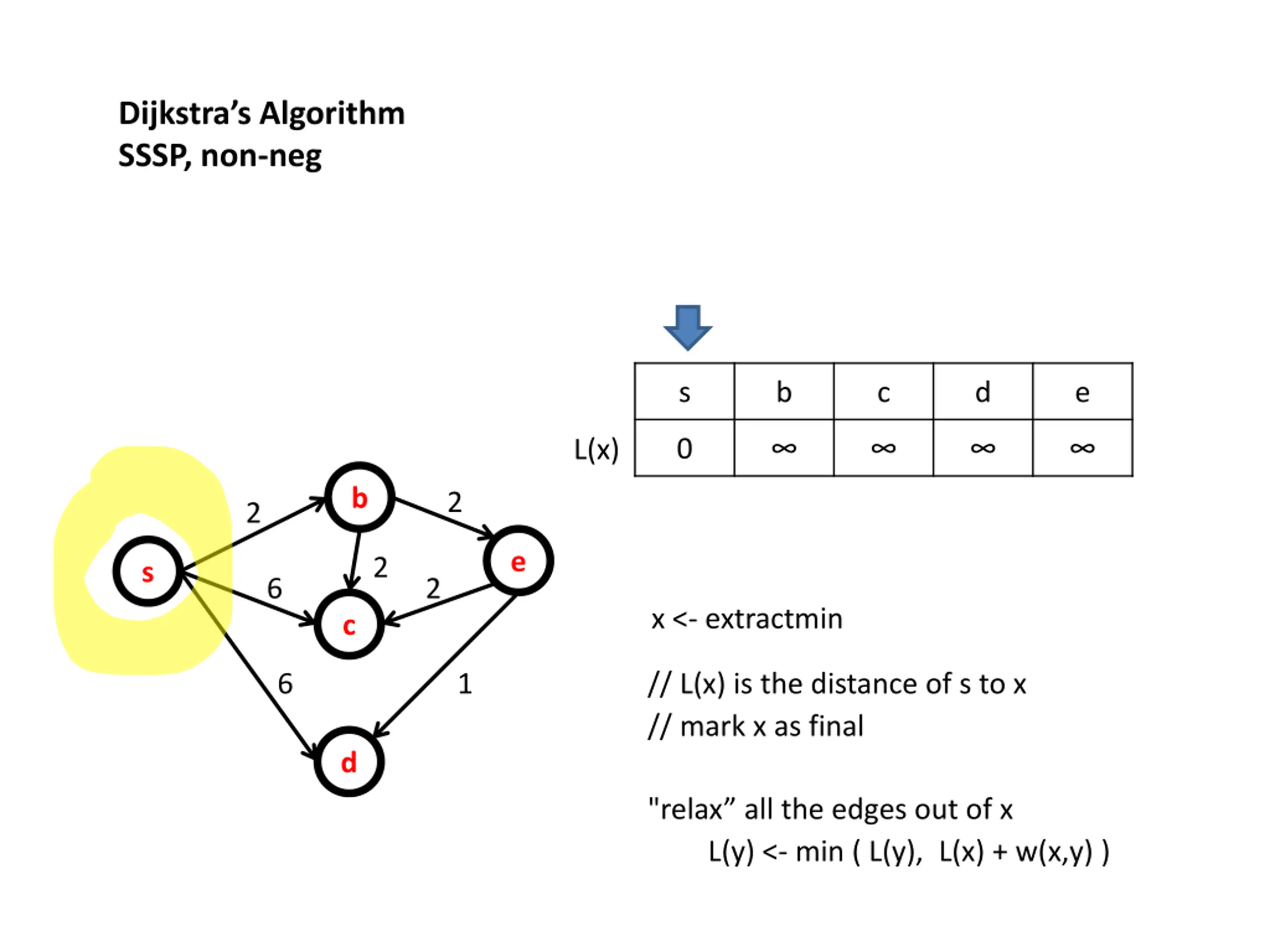

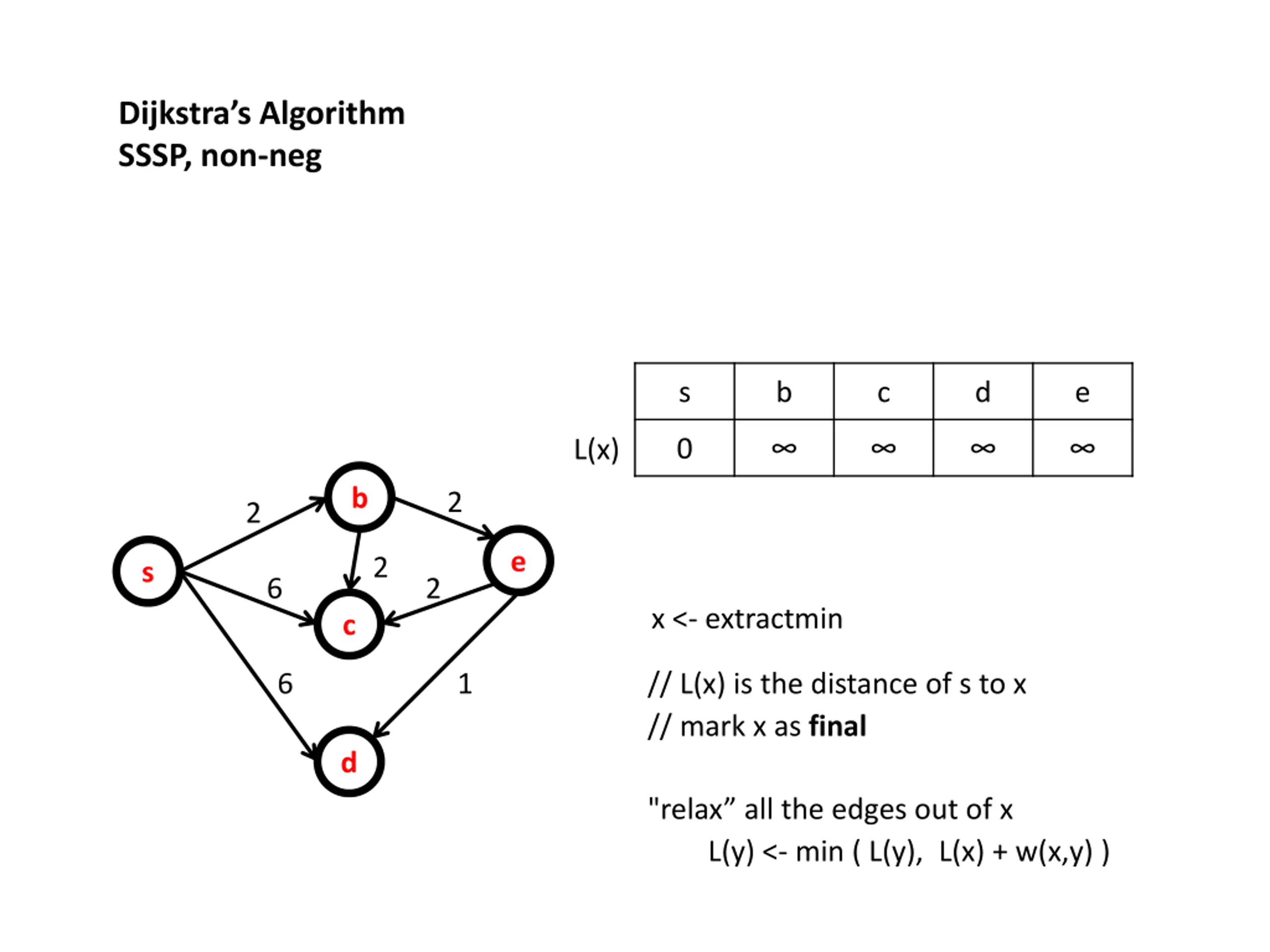

Dijkstras Algorithm SSSP, non-neg s b c d e 0 L(x) b 2 2 e 2 s 6 2 x <- extractmin c 6 1 // L(x) is the distance of s to x // mark x as final d "relax all the edges out of x L(y) <- min ( L(y), L(x) + w(x,y) )
Dijkstras Algorithm SSSP, non-neg s b c d e 0 L(x) b 2 2 e 2 s 6 2 x <- extractmin c 6 1 // L(x) is the distance of s to x // mark x as final d "relax all the edges out of x L(y) <- min ( L(y), L(x) + w(x,y) )

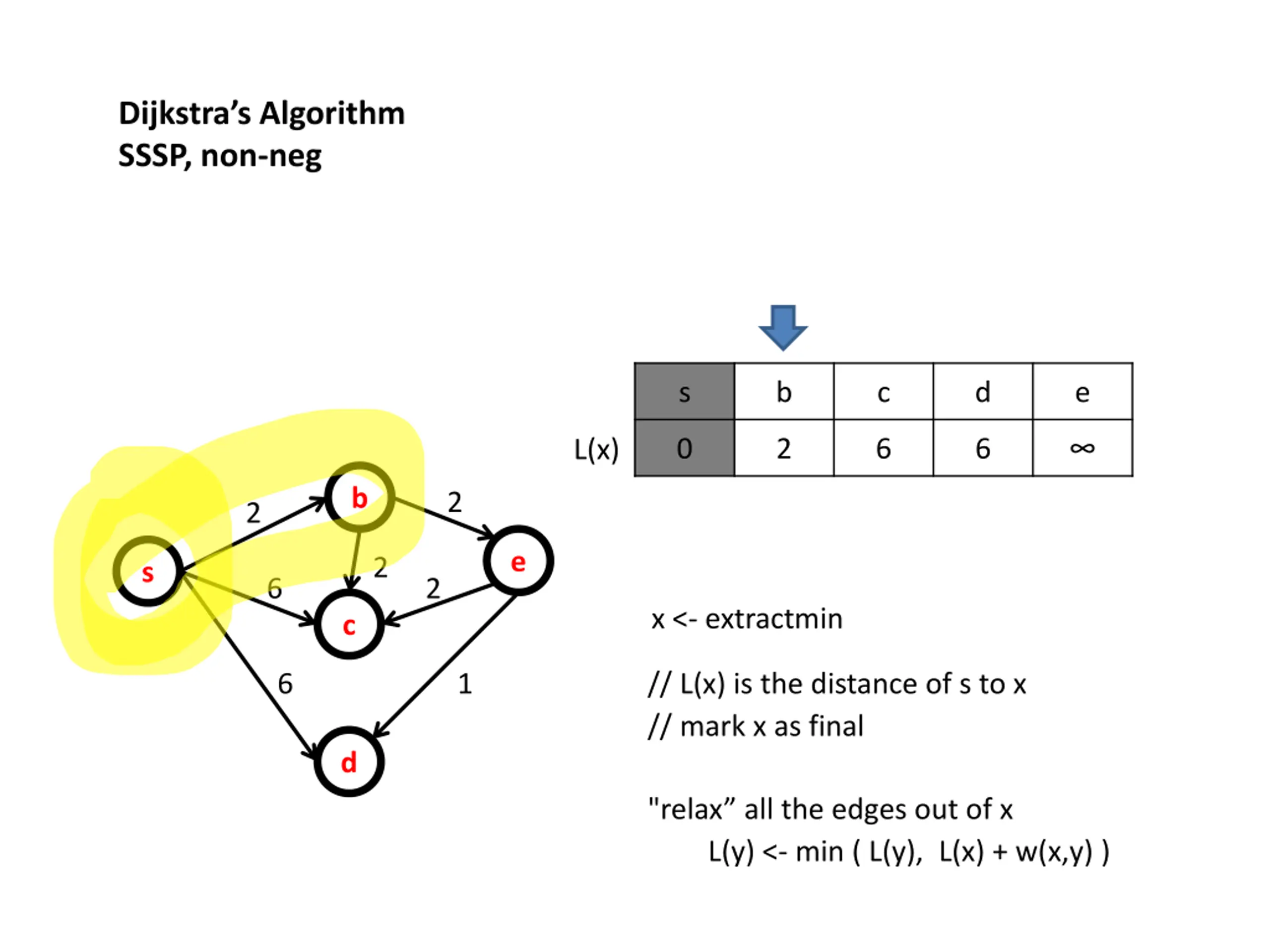

Dijkstras Algorithm SSSP, non-neg s b c d e 0 2 6 6 L(x) b 2 2 e 2 s 6 2 x <- extractmin c 6 1 // L(x) is the distance of s to x // mark x as final d "relax all the edges out of x L(y) <- min ( L(y), L(x) + w(x,y) )

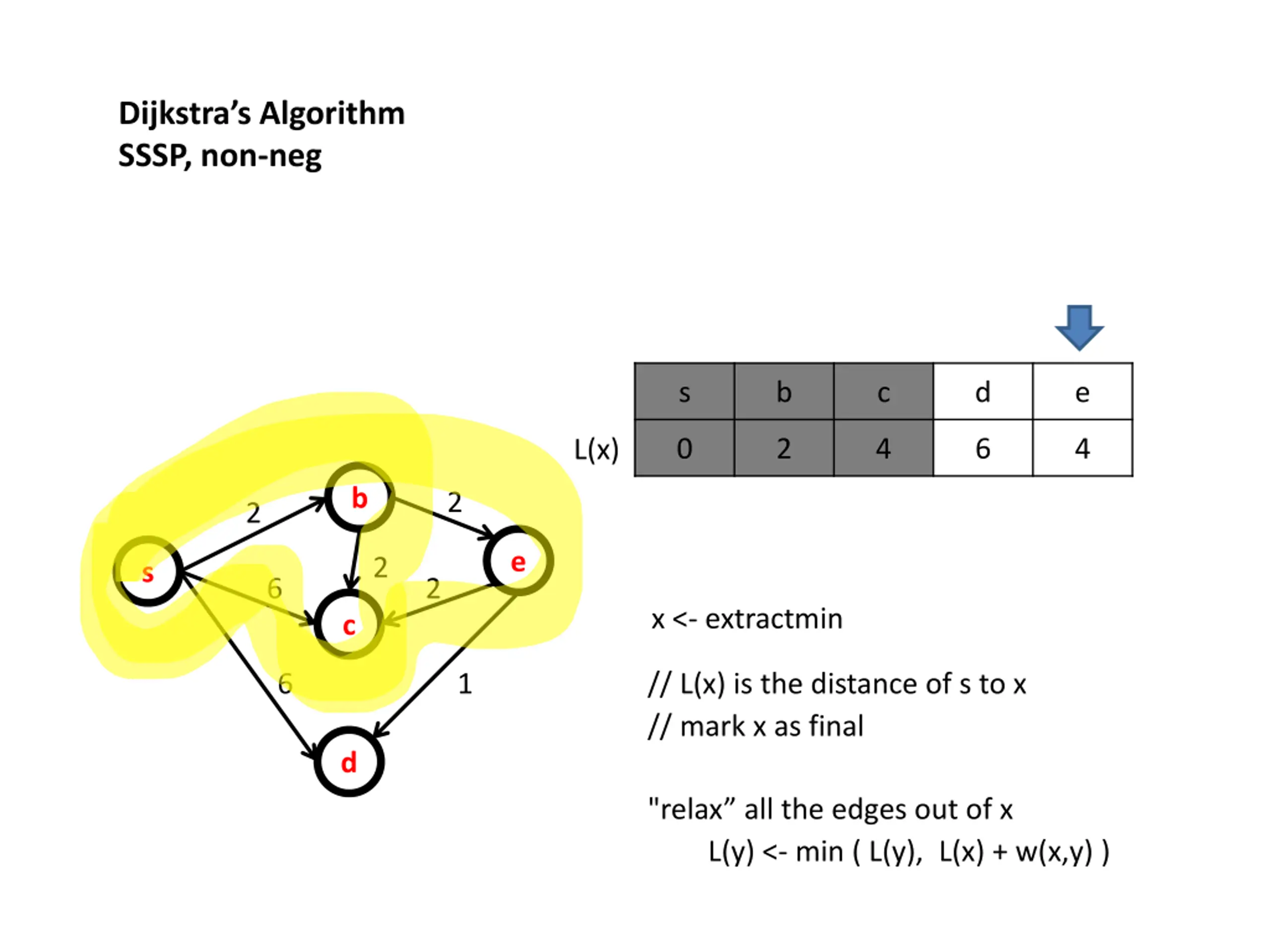

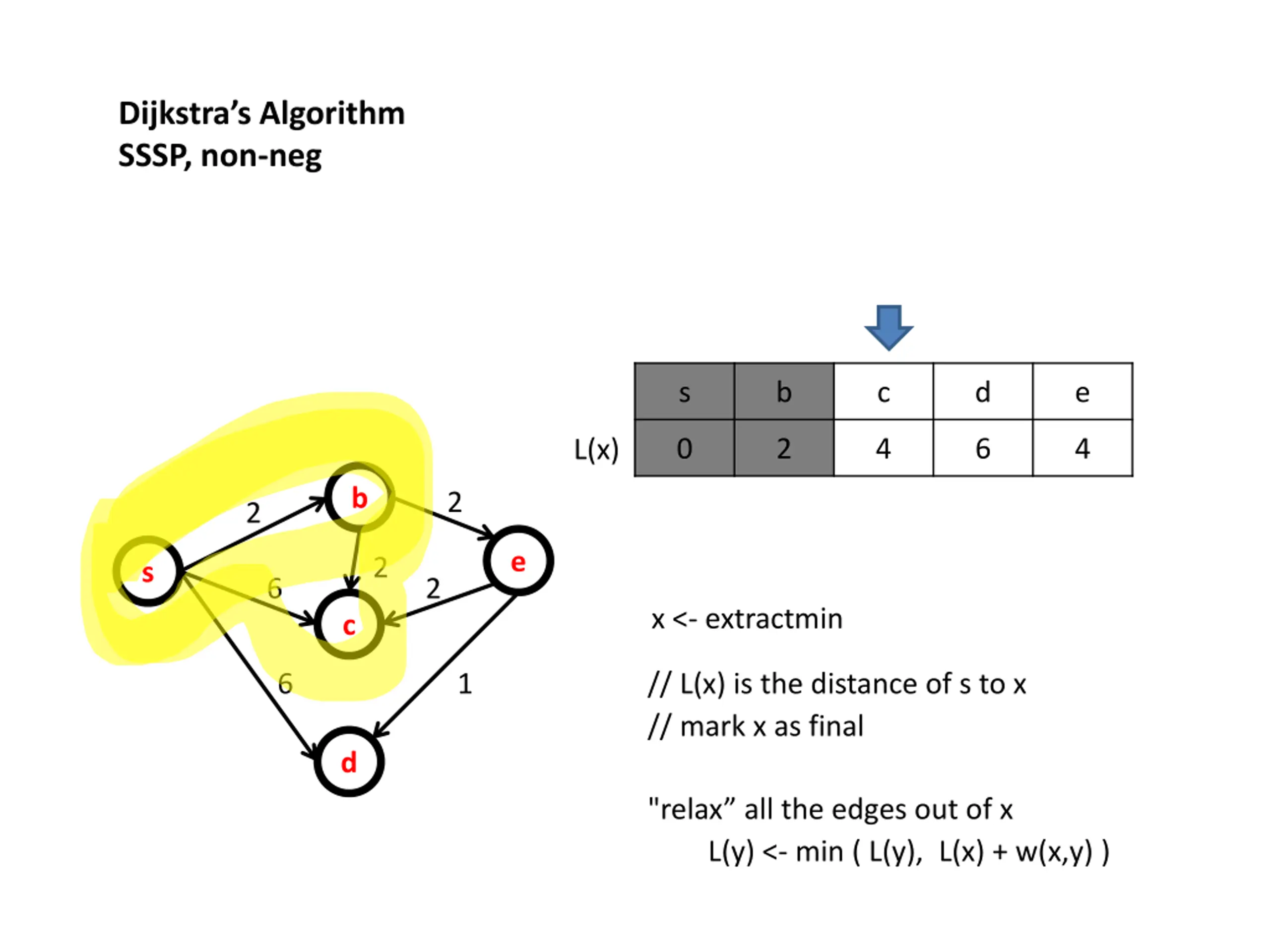

Dijkstras Algorithm SSSP, non-neg s b c d e 0 2 4 6 4 L(x) b 2 2 e 2 s 6 2 x <- extractmin c 6 1 // L(x) is the distance of s to x // mark x as final d "relax all the edges out of x L(y) <- min ( L(y), L(x) + w(x,y) )
Dijkstras Algorithm SSSP, non-neg s b c d e 0 2 4 6 4 L(x) b 2 2 e 2 s 6 2 x <- extractmin c 6 1 // L(x) is the distance of s to x // mark x as final d "relax all the edges out of x L(y) <- min ( L(y), L(x) + w(x,y) )

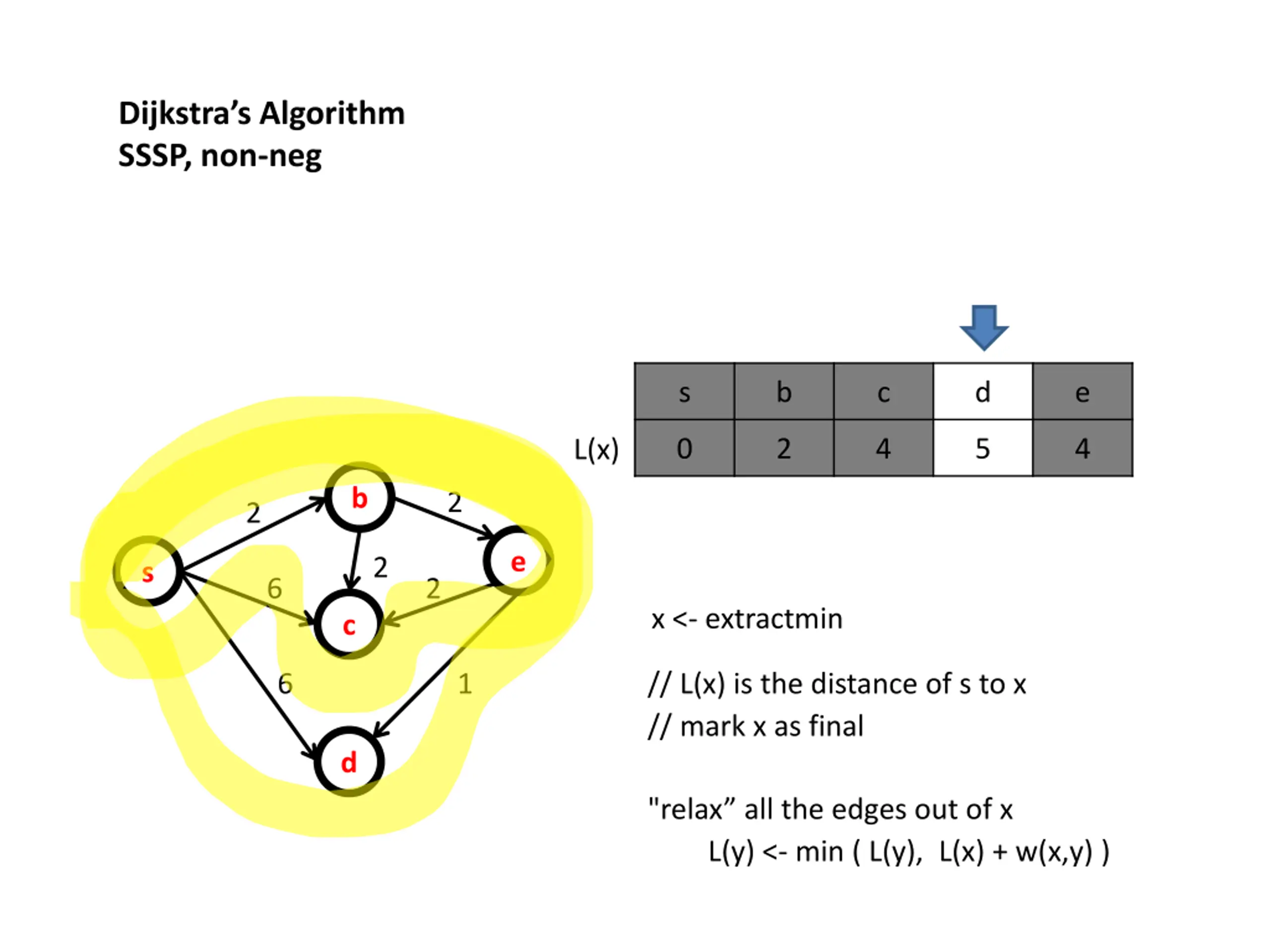

Dijkstras Algorithm SSSP, non-neg s b c d e 0 2 4 5 4 L(x) b 2 2 e 2 s 6 2 x <- extractmin c 6 1 // L(x) is the distance of s to x // mark x as final d "relax all the edges out of x L(y) <- min ( L(y), L(x) + w(x,y) )

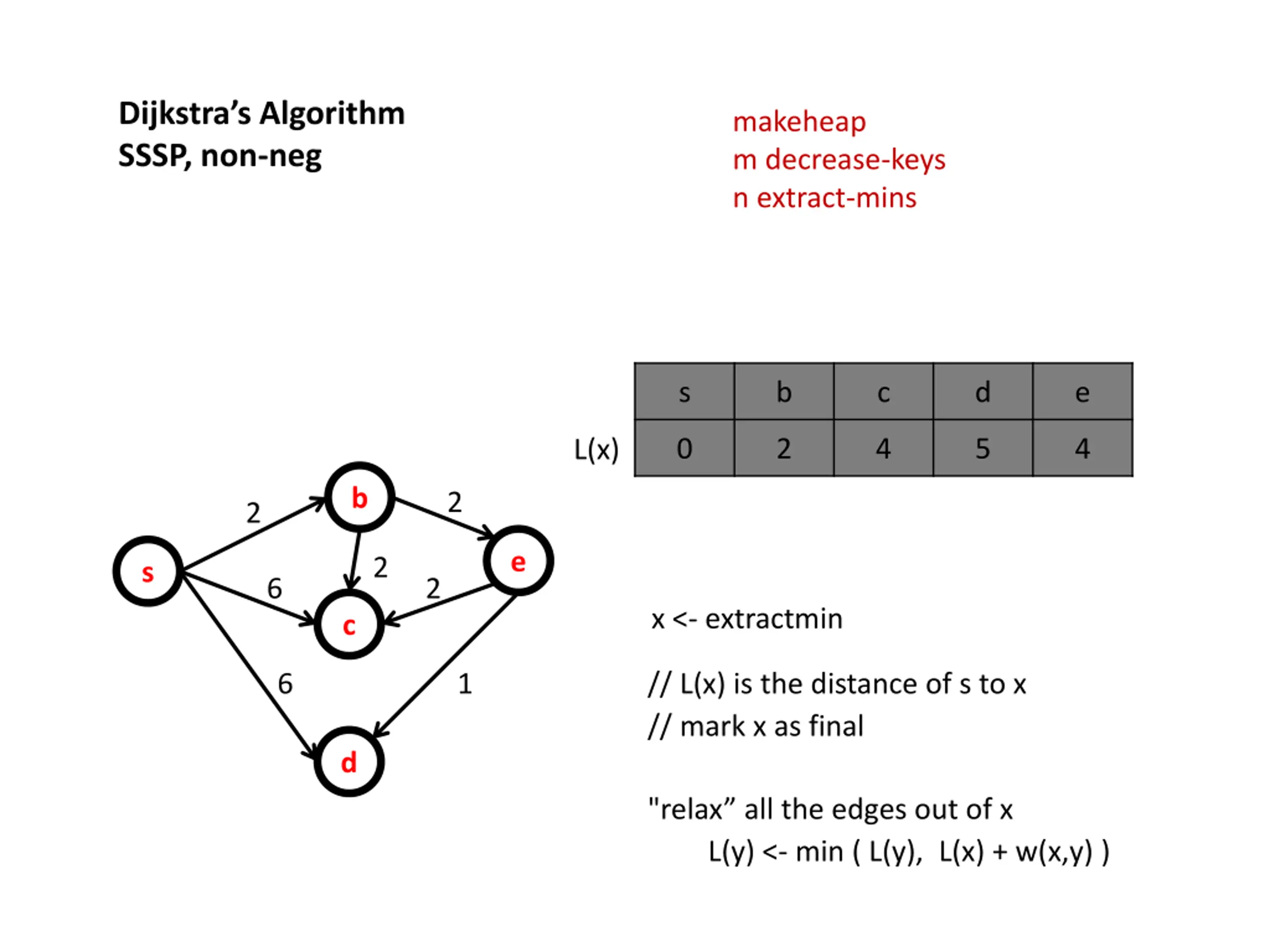

Dijkstras Algorithm SSSP, non-neg makeheap m decrease-keys n extract-mins s b c d e 0 2 4 5 4 L(x) b 2 2 e 2 s 6 2 x <- extractmin c 6 1 // L(x) is the distance of s to x // mark x as final d "relax all the edges out of x L(y) <- min ( L(y), L(x) + w(x,y) )

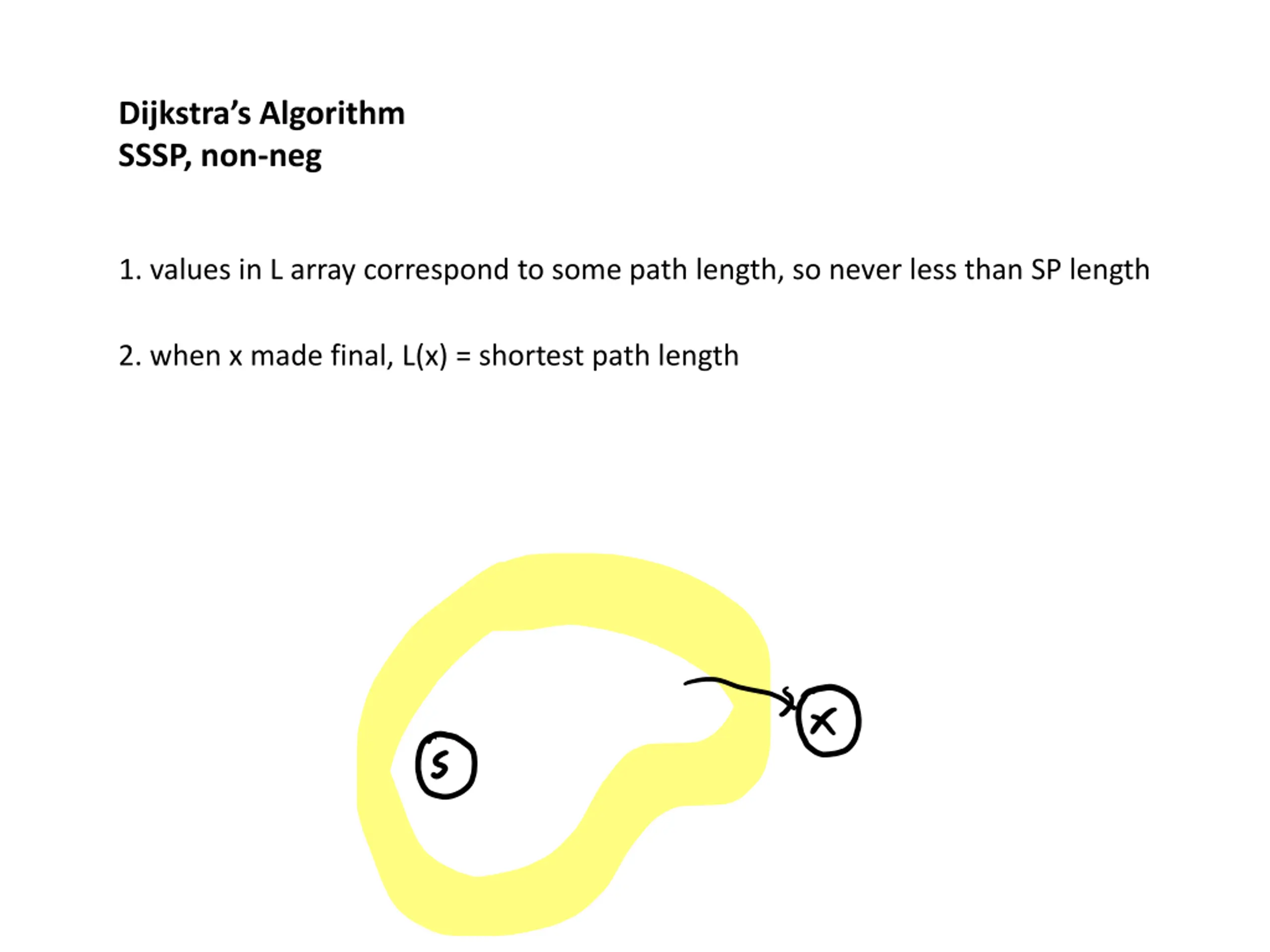

Dijkstras Algorithm SSSP, non-neg 1. values in L array correspond to some path length, so never less than SP length 2. when x made final, L(x) = shortest path length

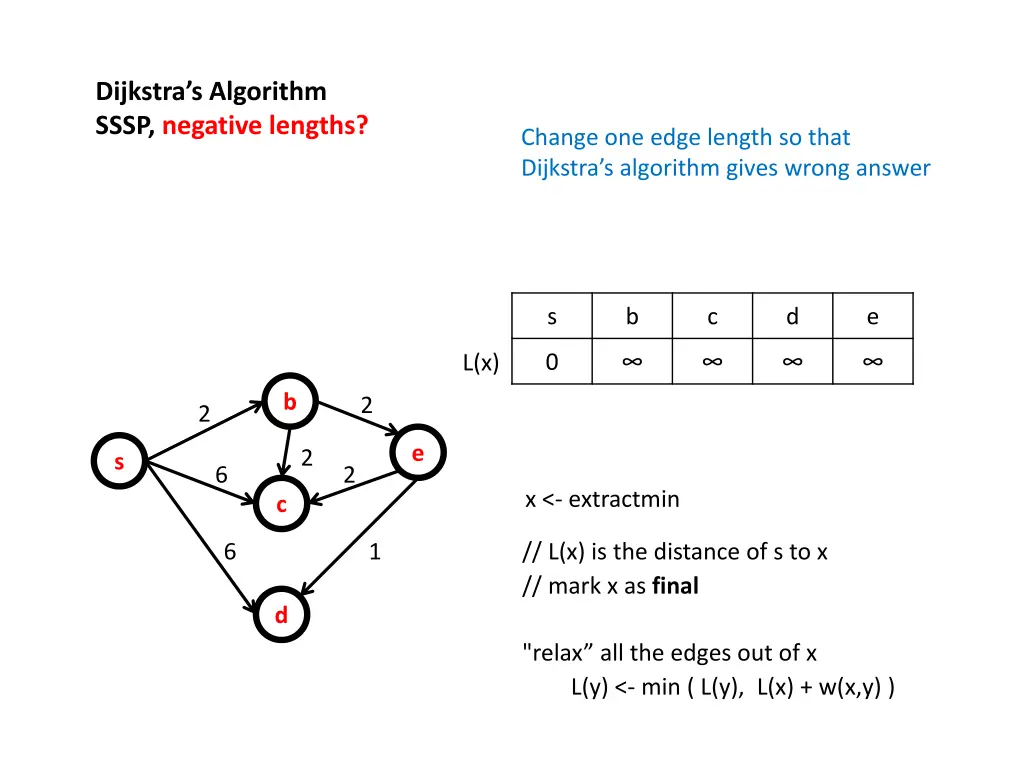

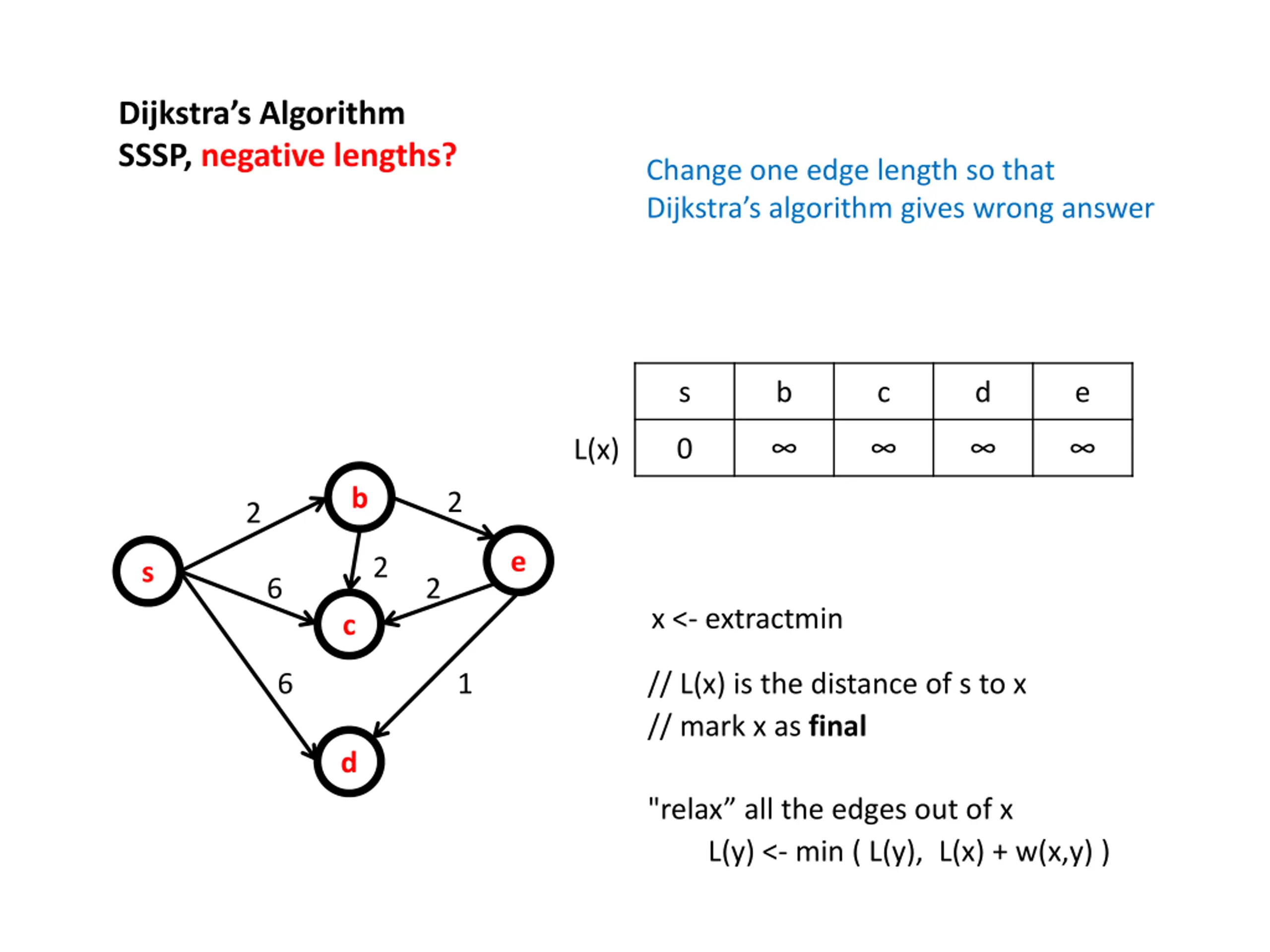

Dijkstras Algorithm SSSP, negative lengths? Change one edge length so that Dijkstra s algorithm gives wrong answer s b c d e 0 L(x) b 2 2 e 2 s 6 2 x <- extractmin c 6 1 // L(x) is the distance of s to x // mark x as final d "relax all the edges out of x L(y) <- min ( L(y), L(x) + w(x,y) )

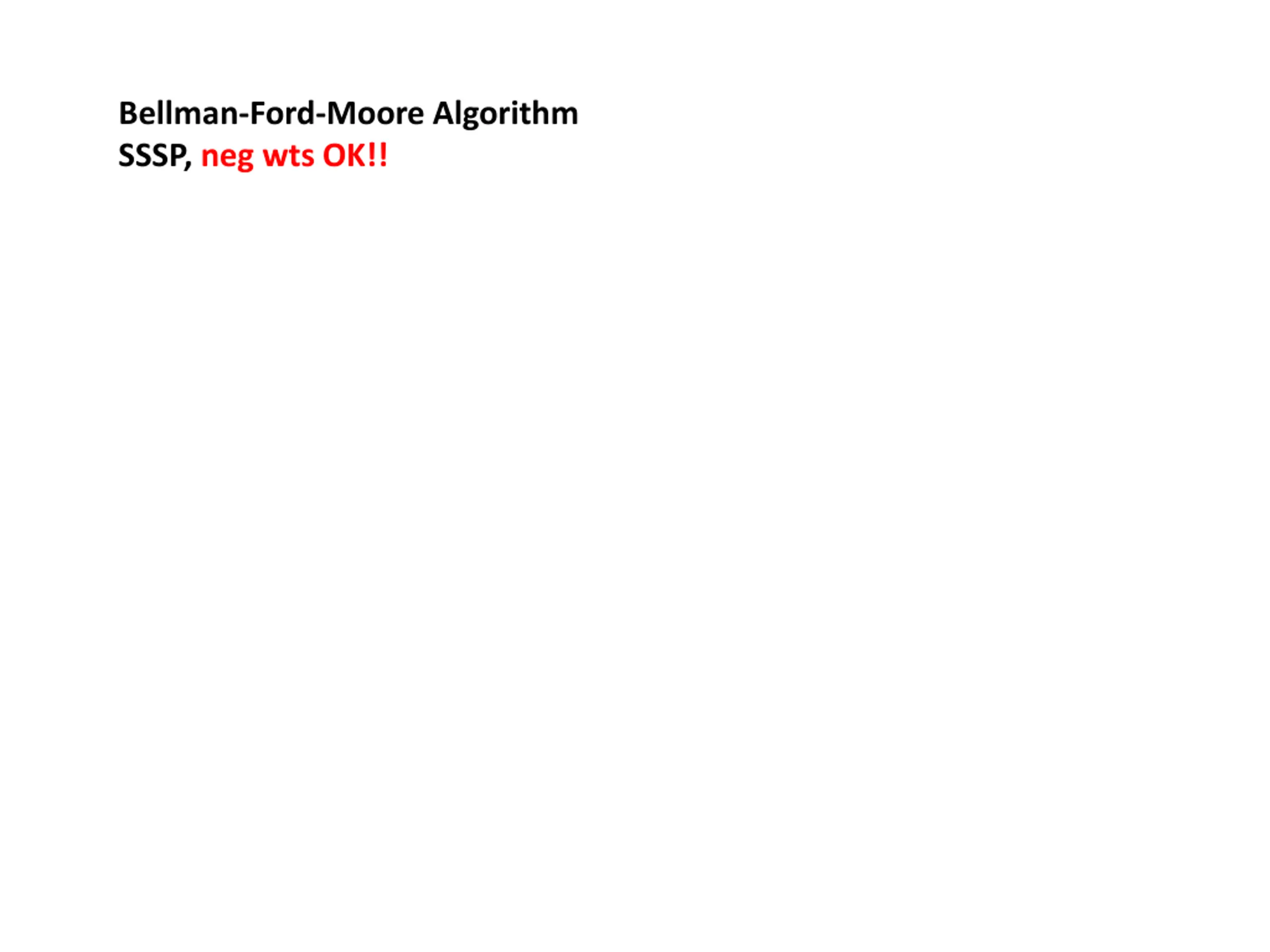

Bellman-Ford-Moore Algorithm SSSP, neg wts OK!!

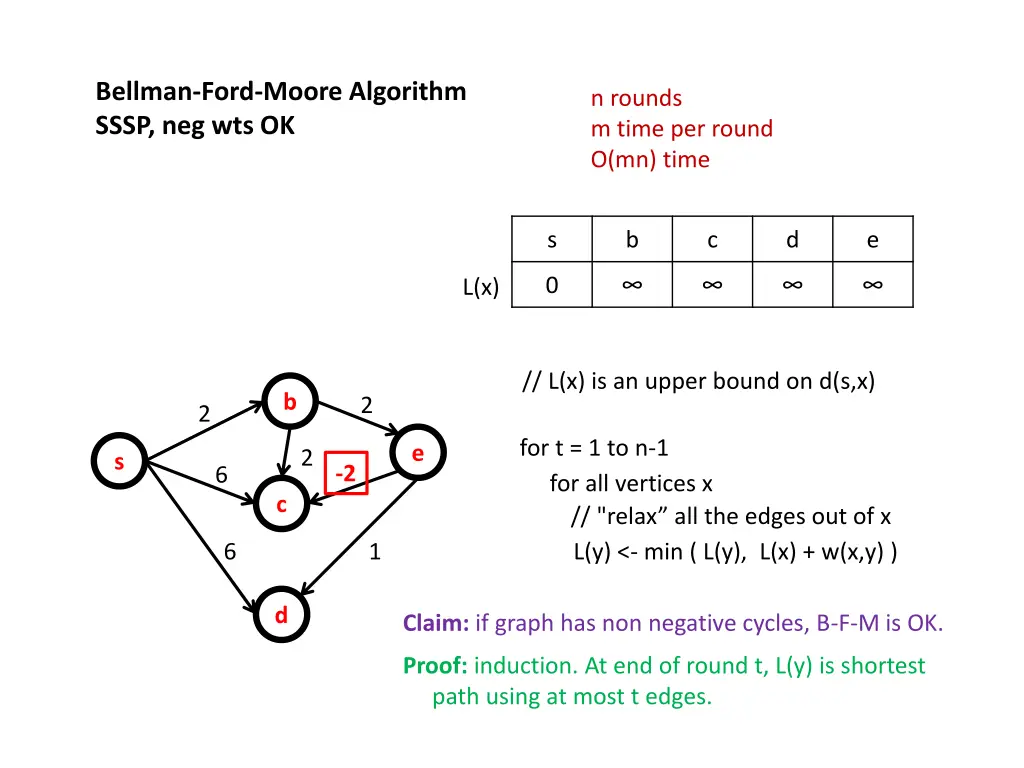

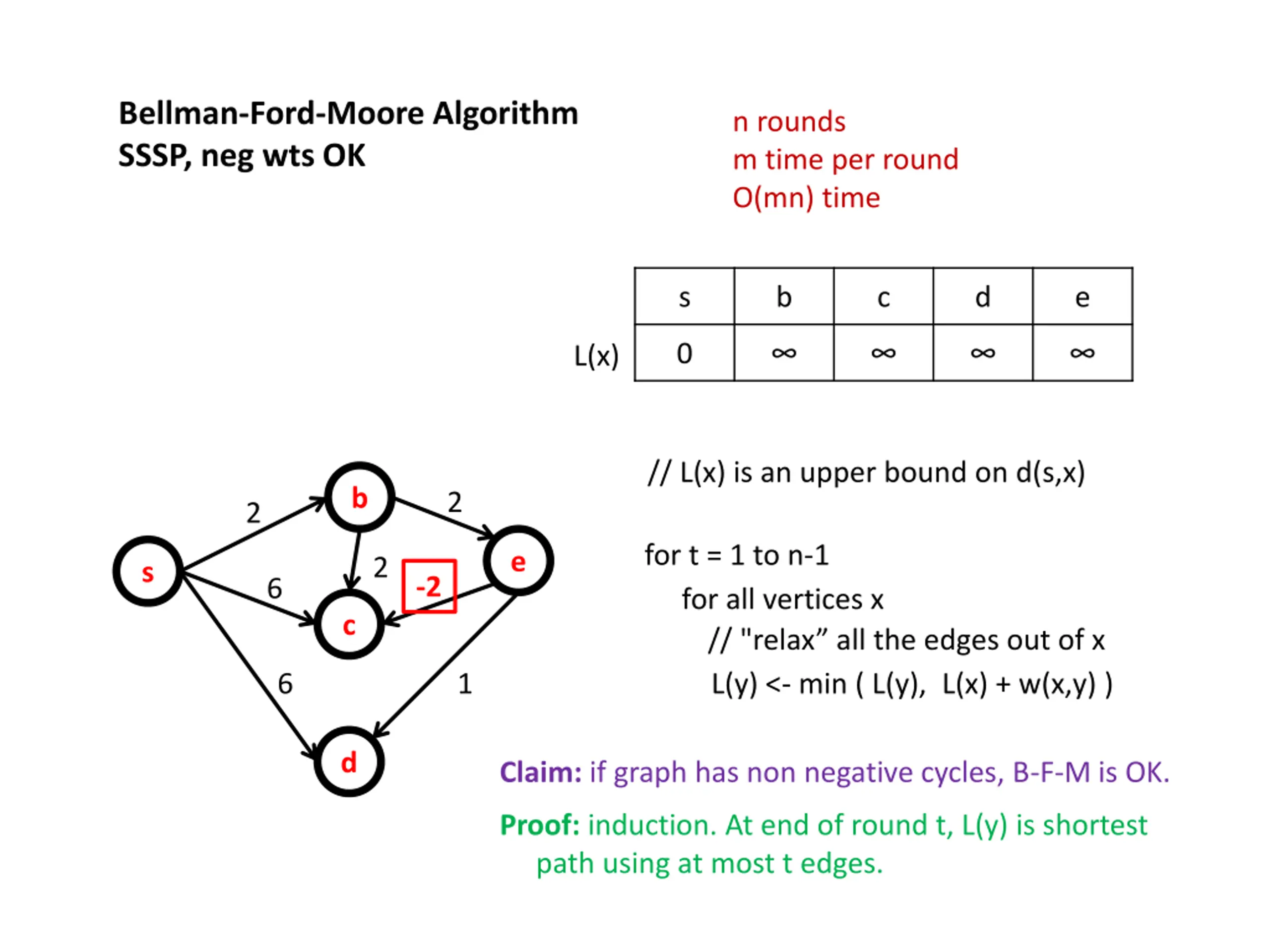

Bellman-Ford-Moore Algorithm SSSP, neg wts OK n rounds m time per round O(mn) time s b c d e 0 L(x) // L(x) is an upper bound on d(s,x) b 2 2 for t = 1 to n-1 for all vertices x e 2 s -2 6 c // "relax all the edges out of x L(y) <- min ( L(y), L(x) + w(x,y) ) 6 1 d Claim: if graph has non negative cycles, B-F-M is OK. Proof: induction. At end of round t, L(y) is shortest path using at most t edges.
Bellman-Ford-Moore Algorithm SSSP, neg wts OK n rounds m time per round O(mn) time s b c d e 0 2 2 5 4 L(x) // L(x) is an upper bound on d(s,x) b 2 2 for t = 1 to n-1 for all vertices x e 2 s -2 6 c // "relax all the edges out of x L(y) <- min ( L(y), L(x) + w(x,y) ) 6 1 d Claim: if graph has non negative cycles, B-F-M is OK. Proof: induction. At end of round t, L(y) is shortest path using at most t edges.

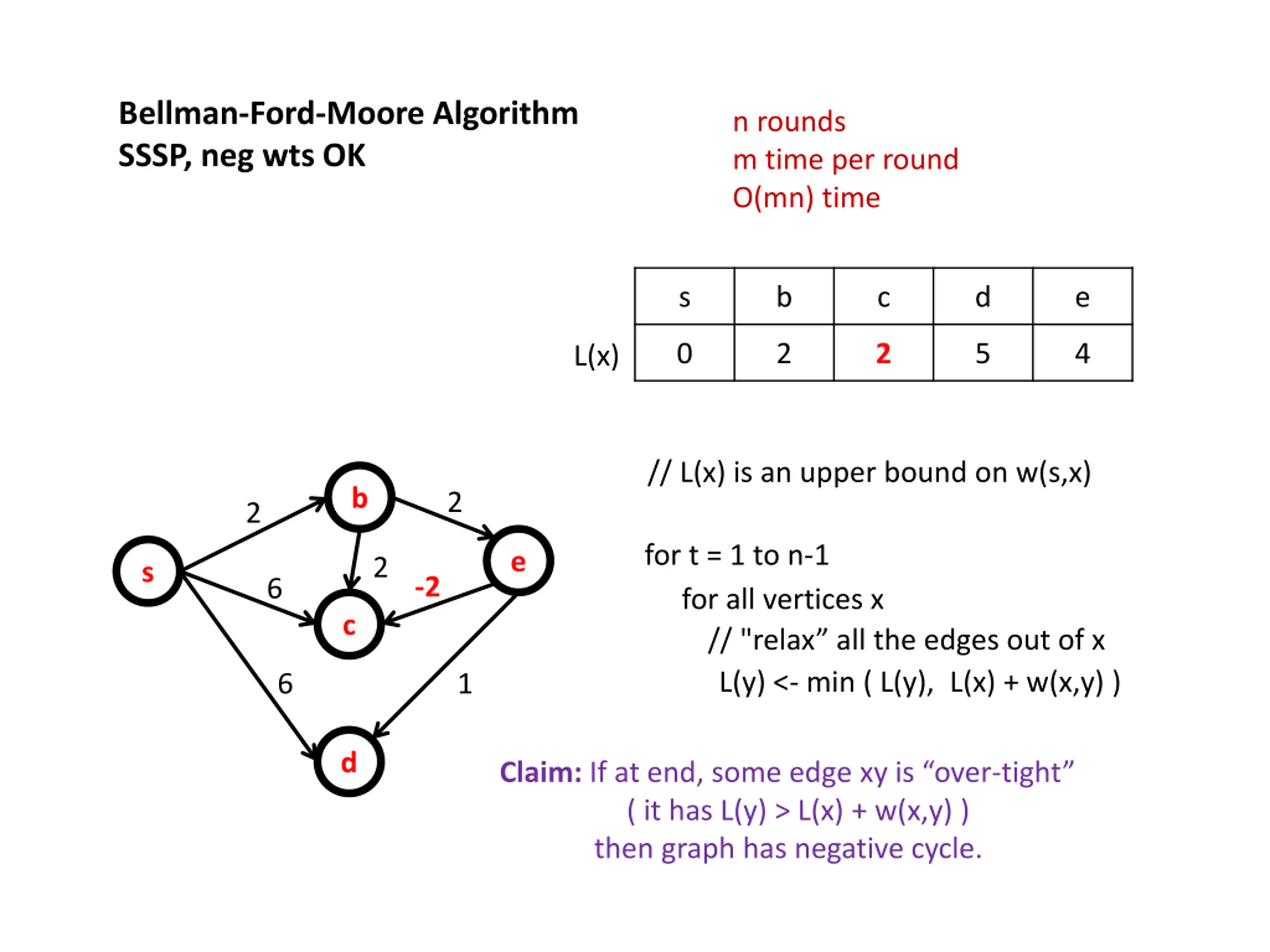

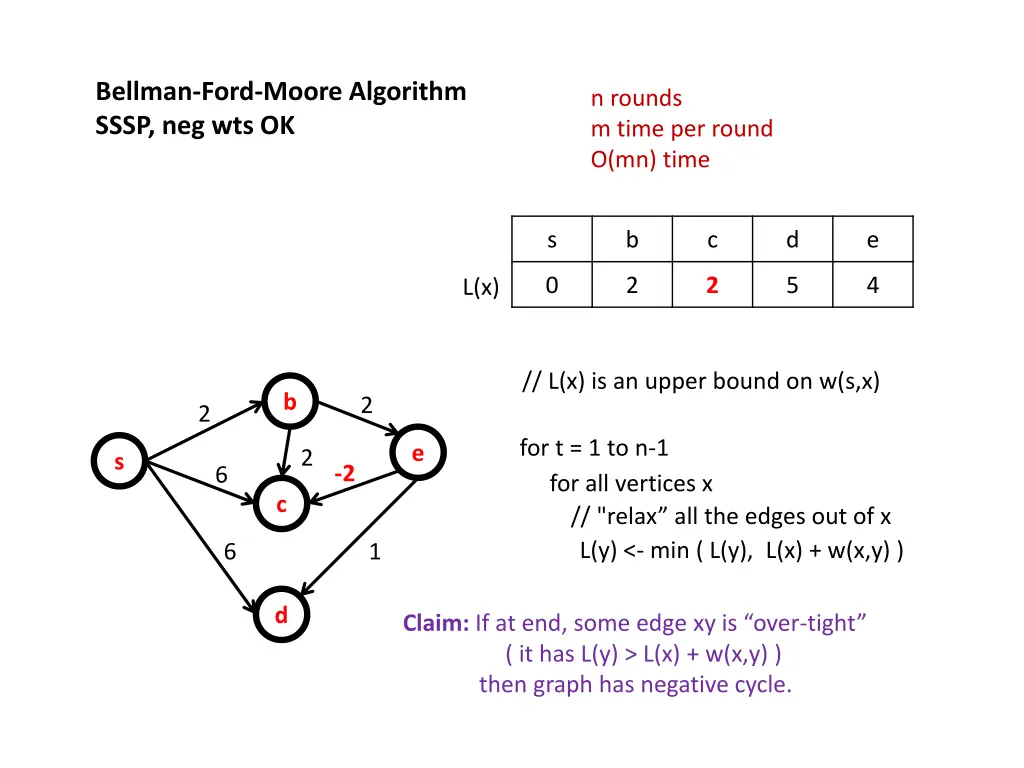

Bellman-Ford-Moore Algorithm SSSP, neg wts OK n rounds m time per round O(mn) time s b c d e 0 2 2 5 4 L(x) // L(x) is an upper bound on w(s,x) b 2 2 for t = 1 to n-1 for all vertices x e 2 s -2 6 c // "relax all the edges out of x L(y) <- min ( L(y), L(x) + w(x,y) ) 6 1 d Claim: If at end, some edge xy is over-tight ( it has L(y) > L(x) + w(x,y) ) then graph has negative cycle.
