Presentation Transcript
Clicker frequency: CA CSE 20 DISCRETE MATH Prof. Shachar Lovett http://cseweb.ucsd.edu/classes/wi15/cse20-a/

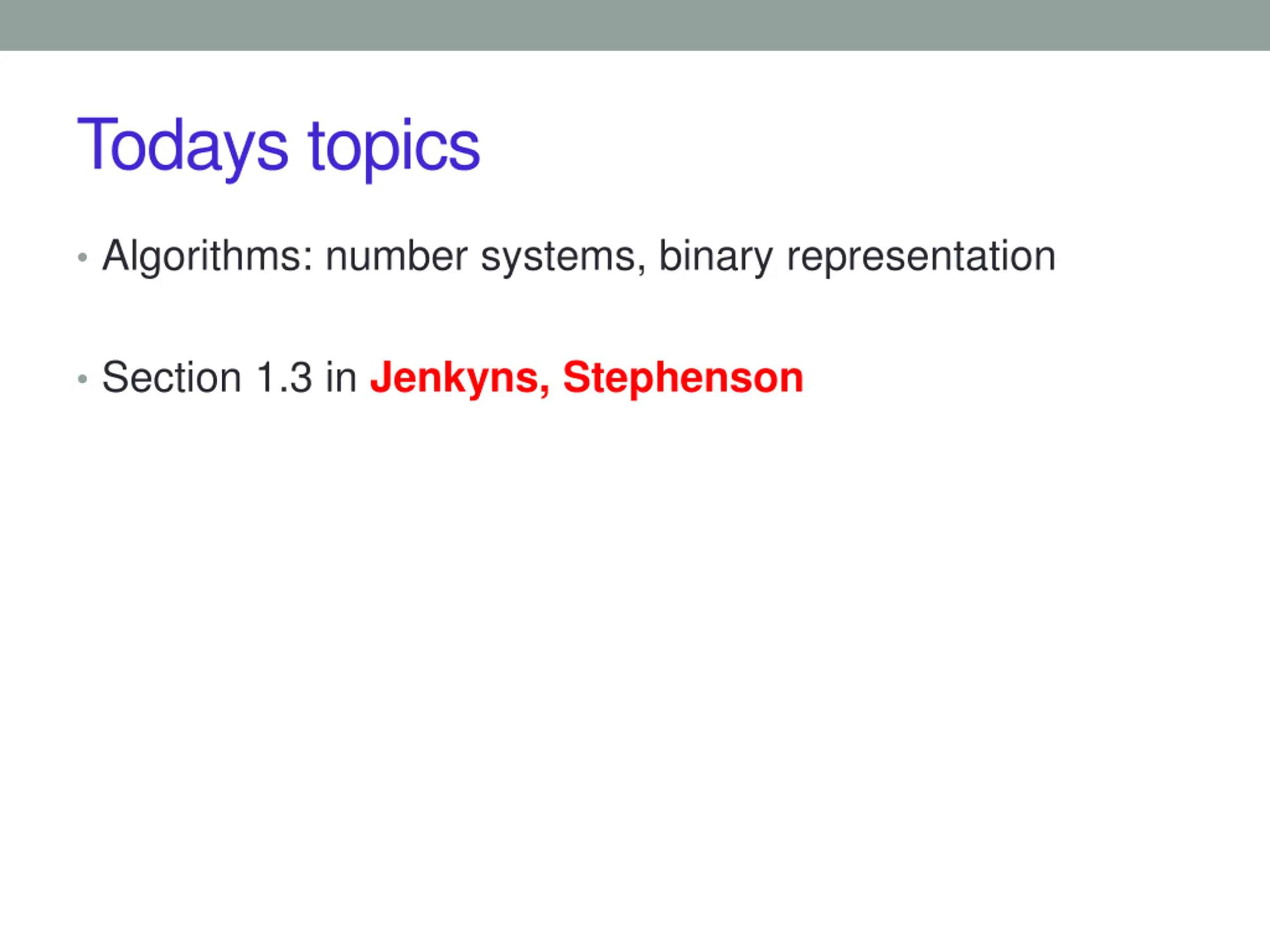

Todays topics Algorithms: number systems, binary representation Section 1.3 in Jenkyns, Stephenson

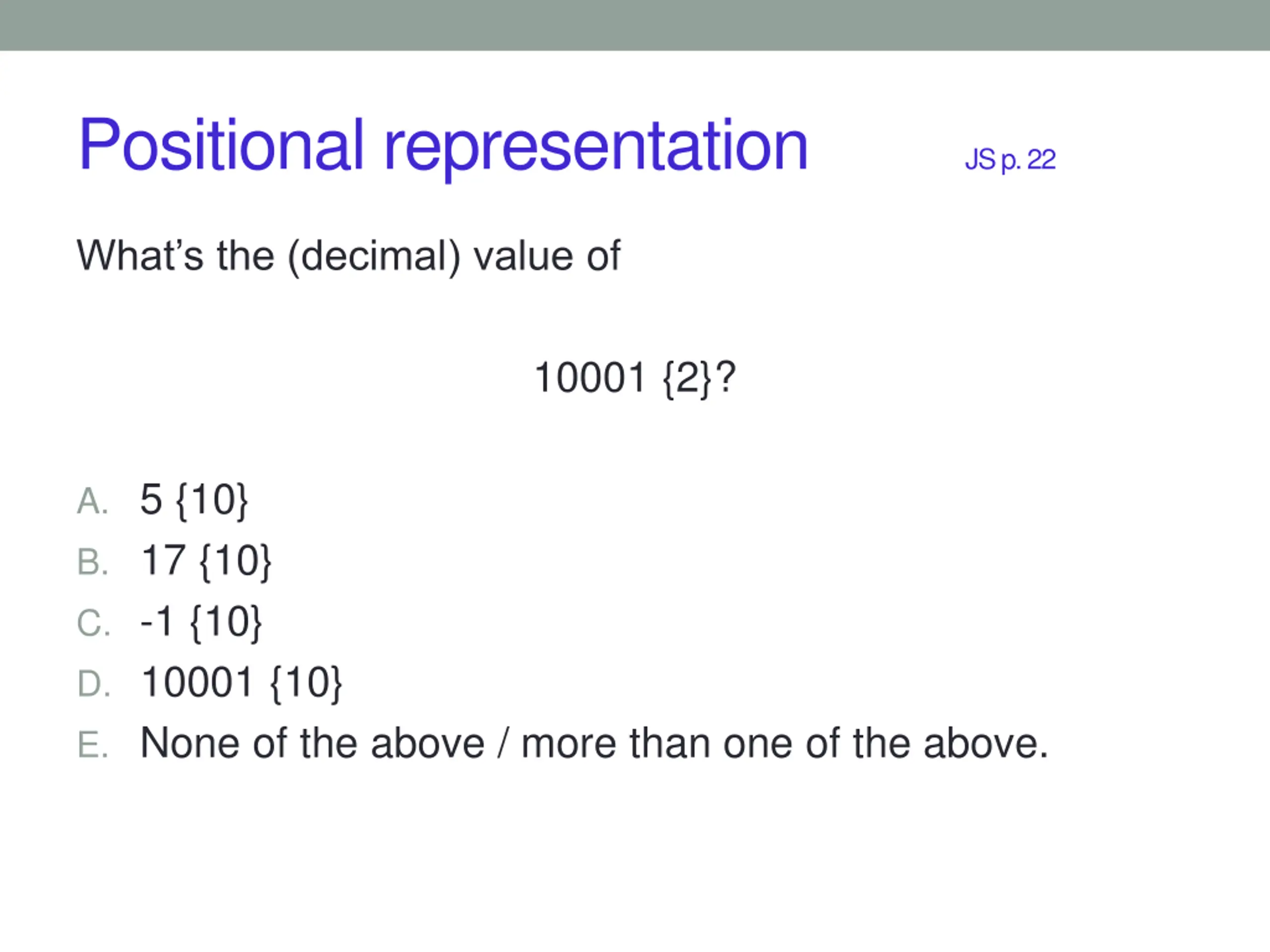

Positional representation JS p. 22 What s the (decimal) value of 10001 {2}? A. 5 {10} B. 17 {10} C. -1 {10} D. 10001 {10} E. None of the above / more than one of the above.

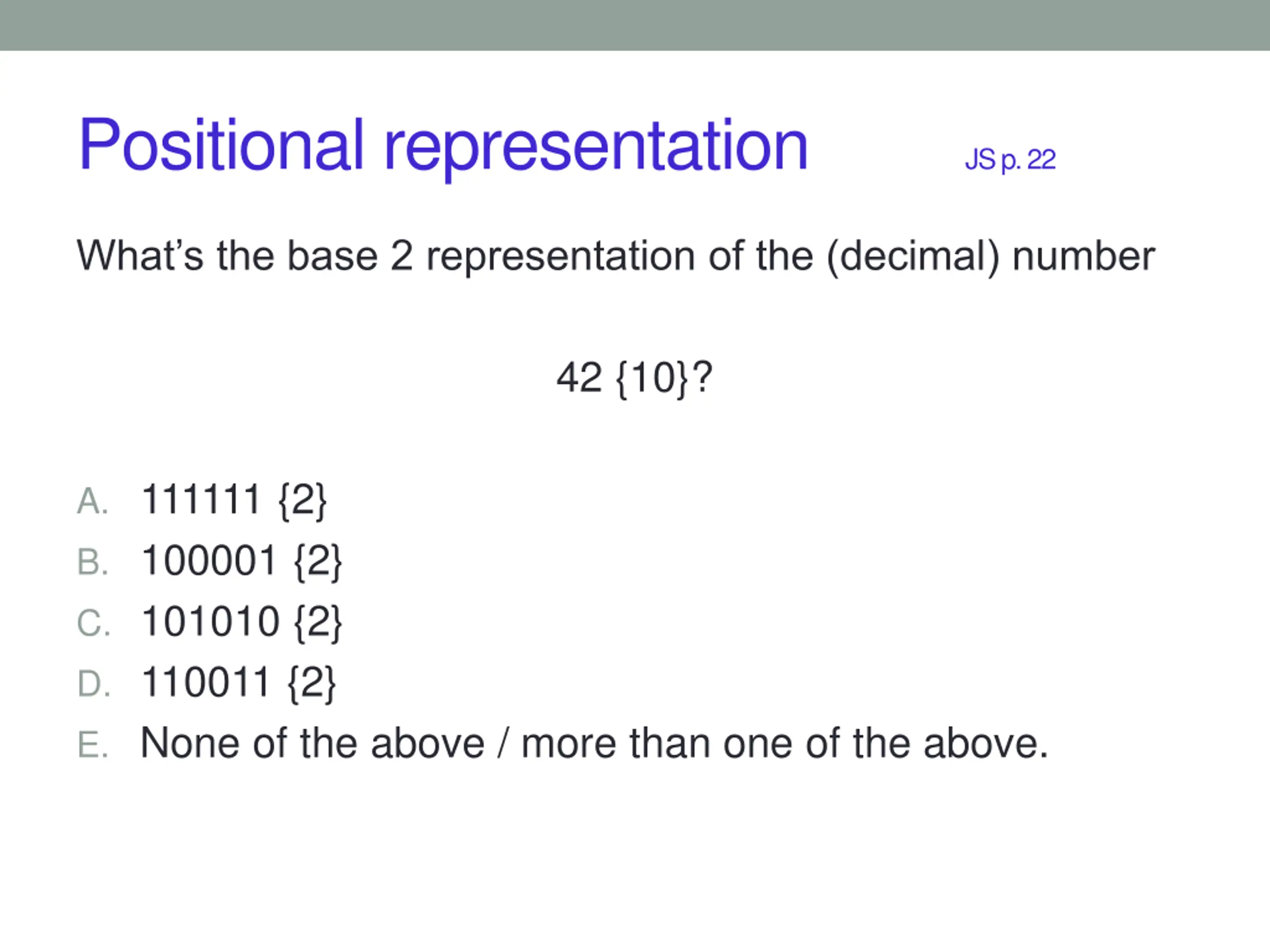

Positional representation JS p. 22 What s the base 2 representation of the (decimal) number 42 {10}? A. 111111 {2} B. 100001 {2} C. 101010 {2} D. 110011 {2} E. None of the above / more than one of the above.

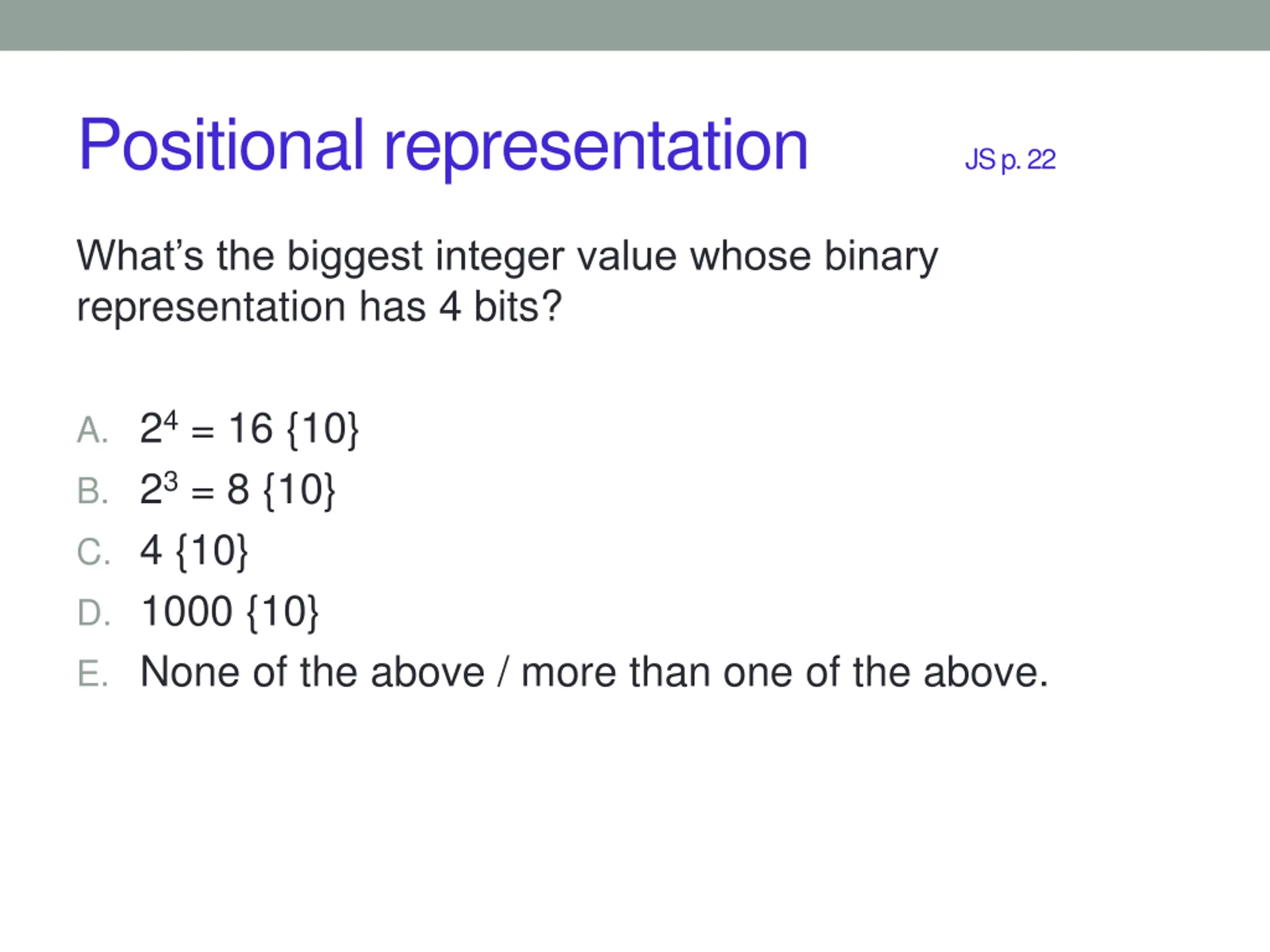

Positional representation JS p. 22 What s the biggest integer value whose binary representation has 4 bits? A. 24 = 16 {10} B. 23 = 8 {10} C. 4 {10} D. 1000 {10} E. None of the above / more than one of the above.

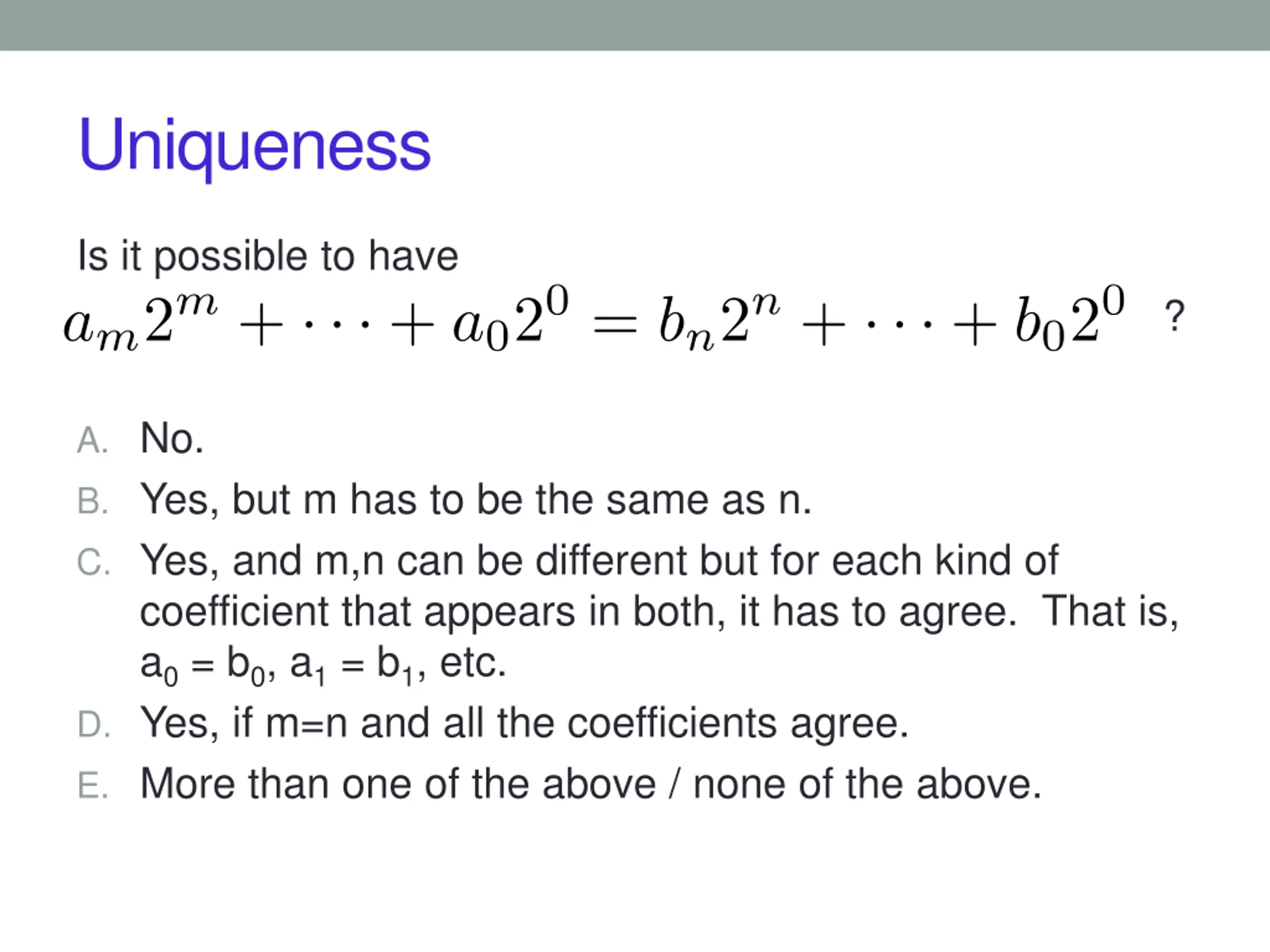

Uniqueness Is it possible to have ? A. No. B. Yes, but m has to be the same as n. C. Yes, and m,n can be different but for each kind of coefficient that appears in both, it has to agree. That is, a0 = b0, a1 = b1, etc. D. Yes, if m=n and all the coefficients agree. E. More than one of the above / none of the above.

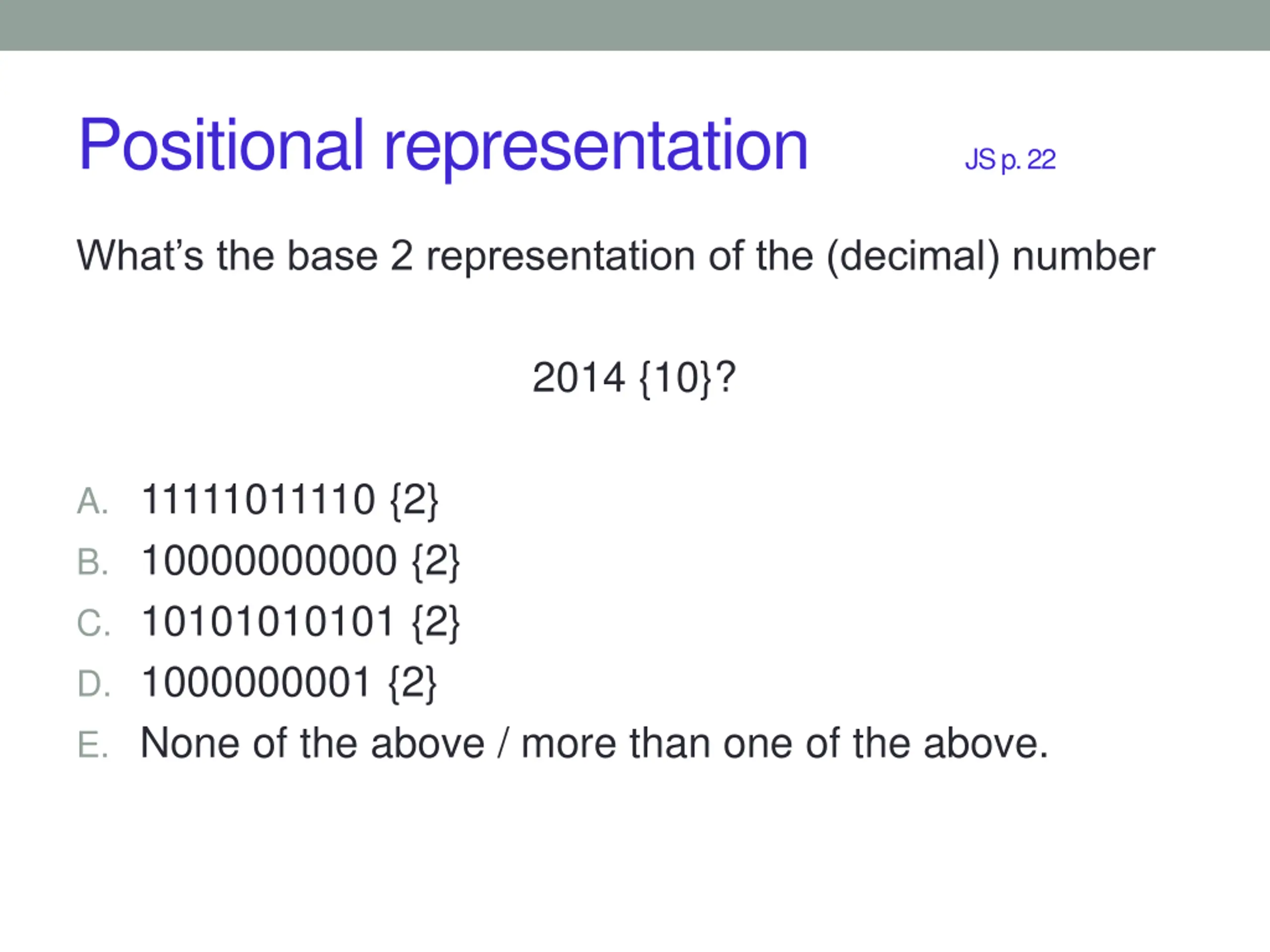

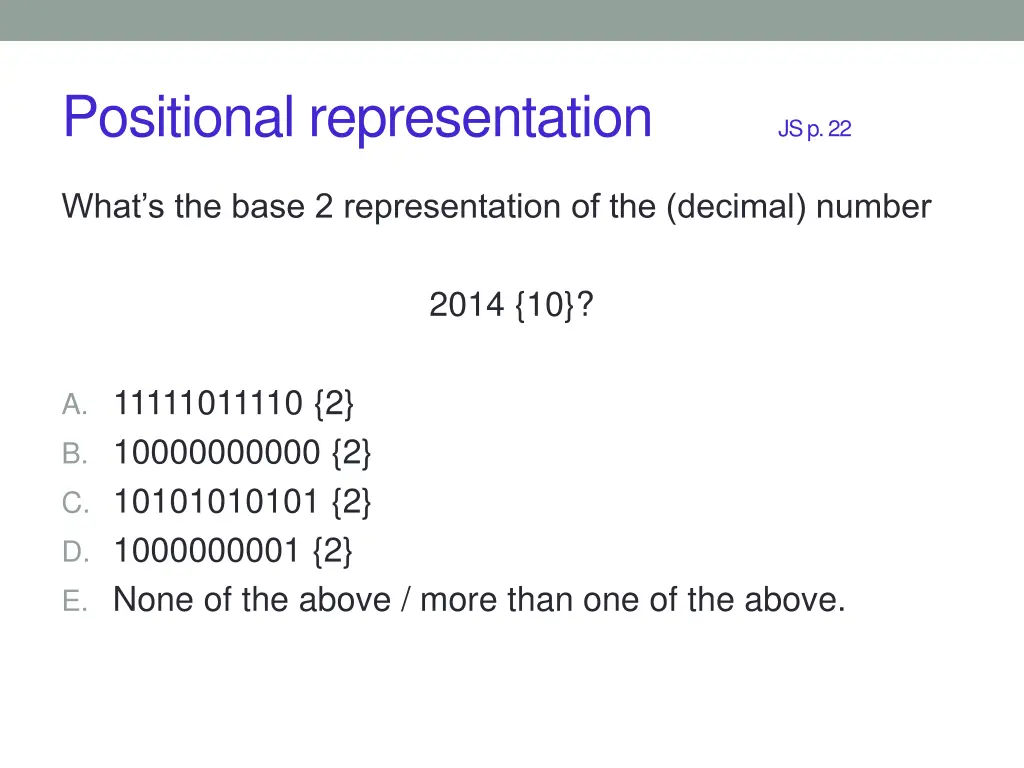

Positional representation JS p. 22 What s the base 2 representation of the (decimal) number 2014 {10}? A. 11111011110 {2} B. 10000000000 {2} C. 10101010101 {2} D. 1000000001 {2} E. None of the above / more than one of the above.

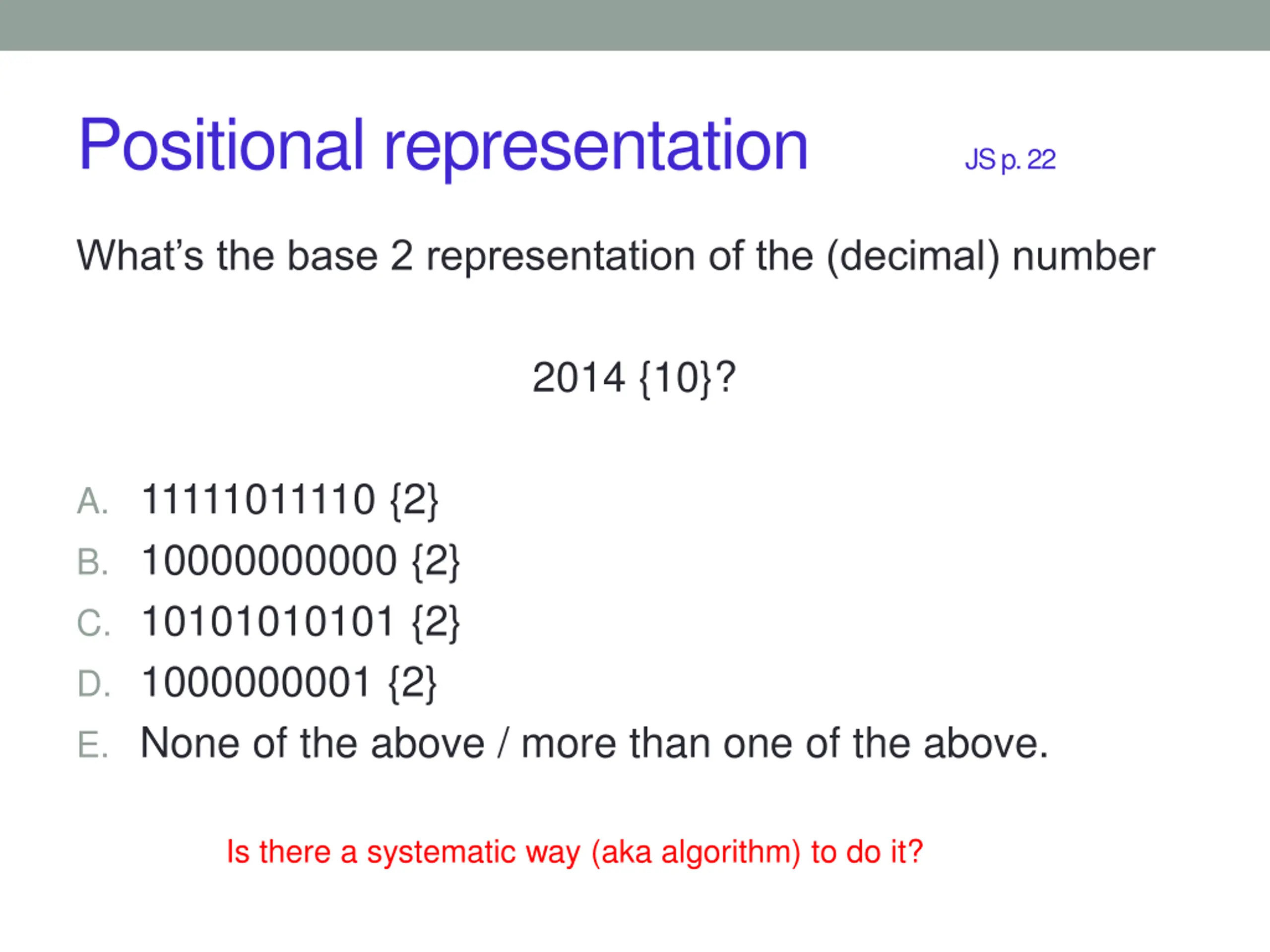

Positional representation JS p. 22 What s the base 2 representation of the (decimal) number 2014 {10}? A. 11111011110 {2} B. 10000000000 {2} C. 10101010101 {2} D. 1000000001 {2} E. None of the above / more than one of the above. Is there a systematic way (aka algorithm) to do it?

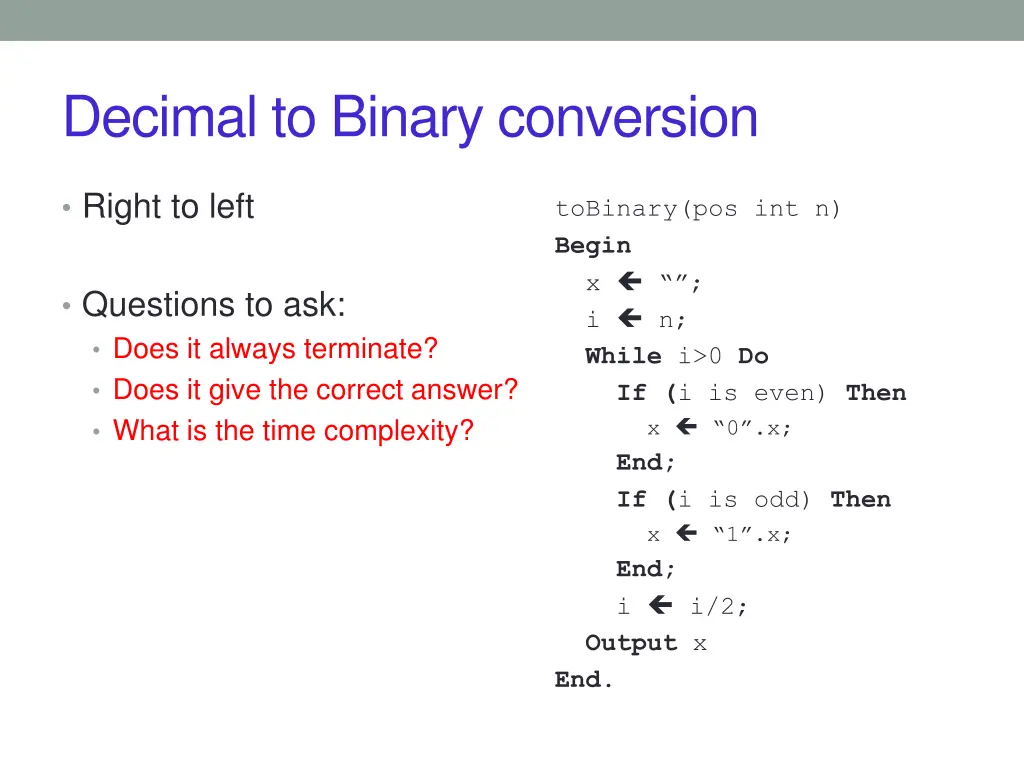

Decimal to Binary conversion Right to left toBinary(pos int n) Begin x ; i n; While i>0 Do If (i is even) Then x 0 .x; End; If (i is odd) Then x 1 .x; End; i i/2; Output x End. Questions to ask: Does it always terminate? Does it give the correct answer? What is the time complexity?

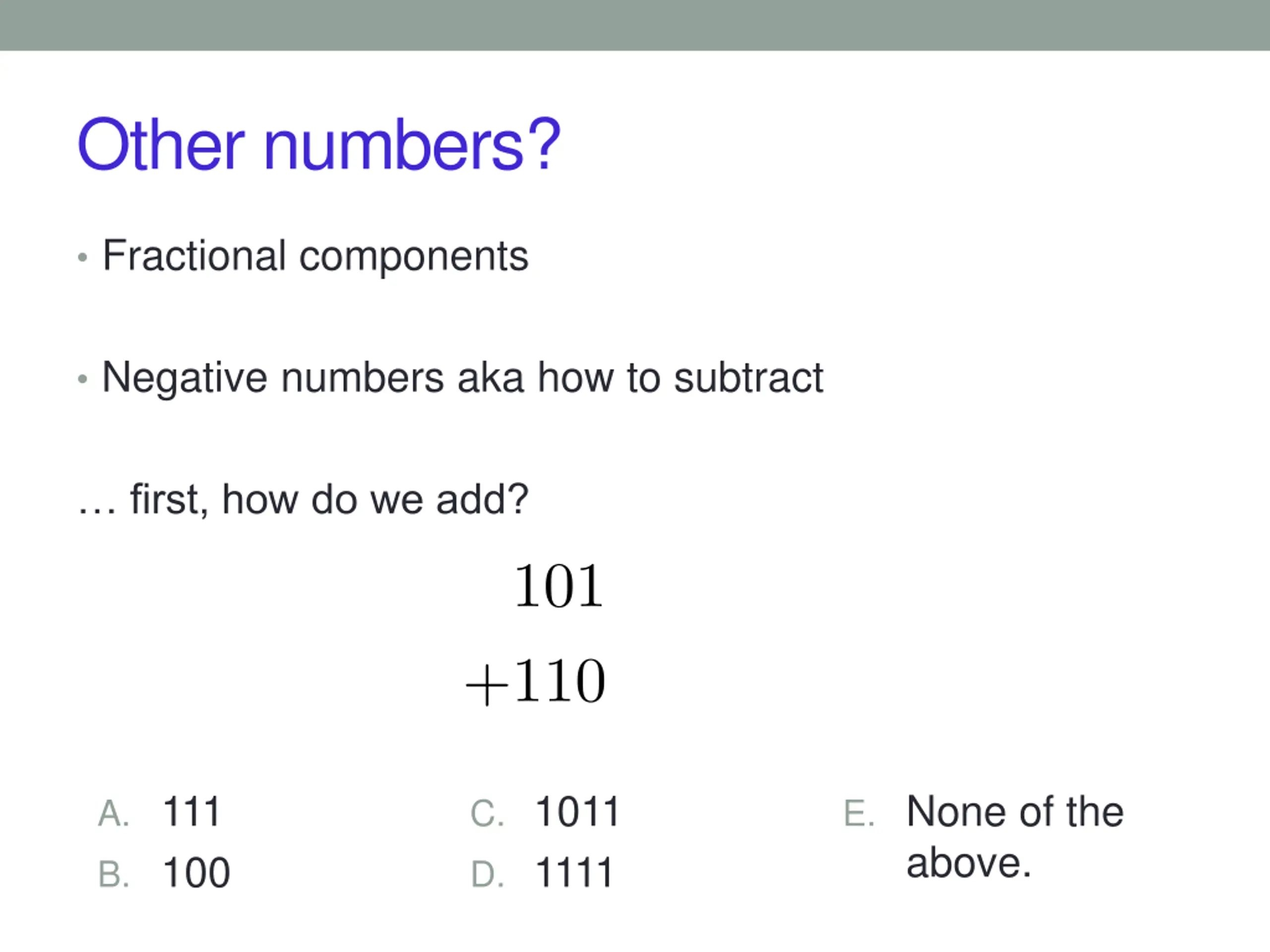

Other numbers? Fractional components Negative numbers aka how to subtract first, how do we add? A. 111 B. 100 C. 1011 D. 1111 E. None of the above.

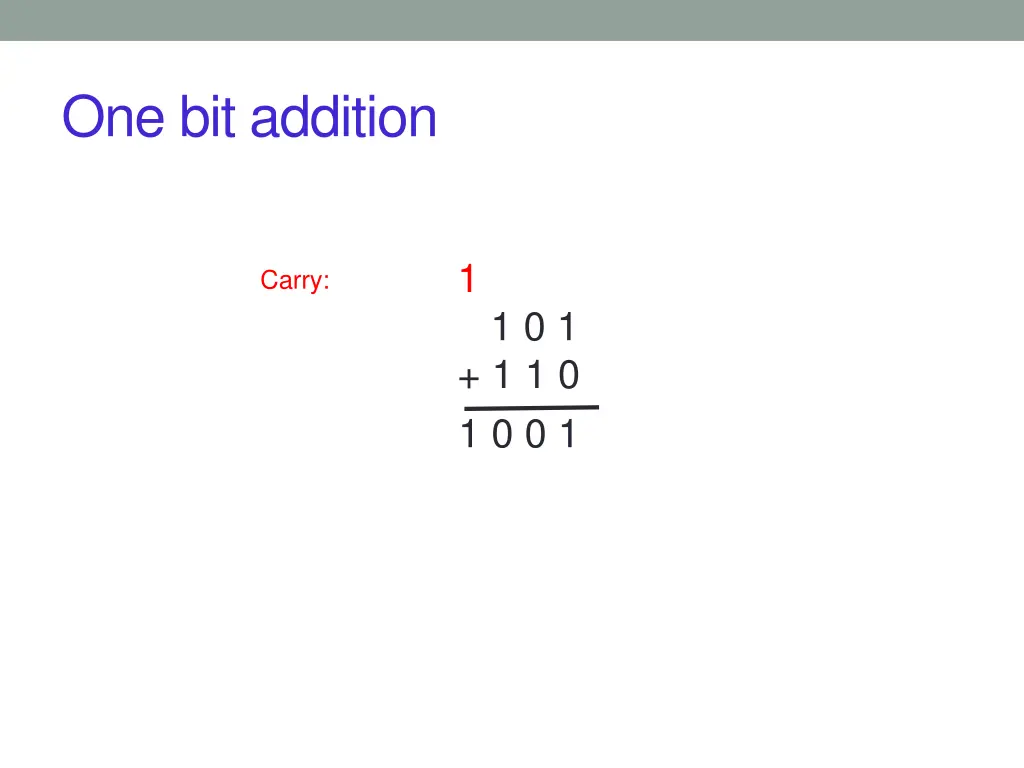

One bit addition 1 Carry: 1 0 1 + 1 1 0 1 0 0 1

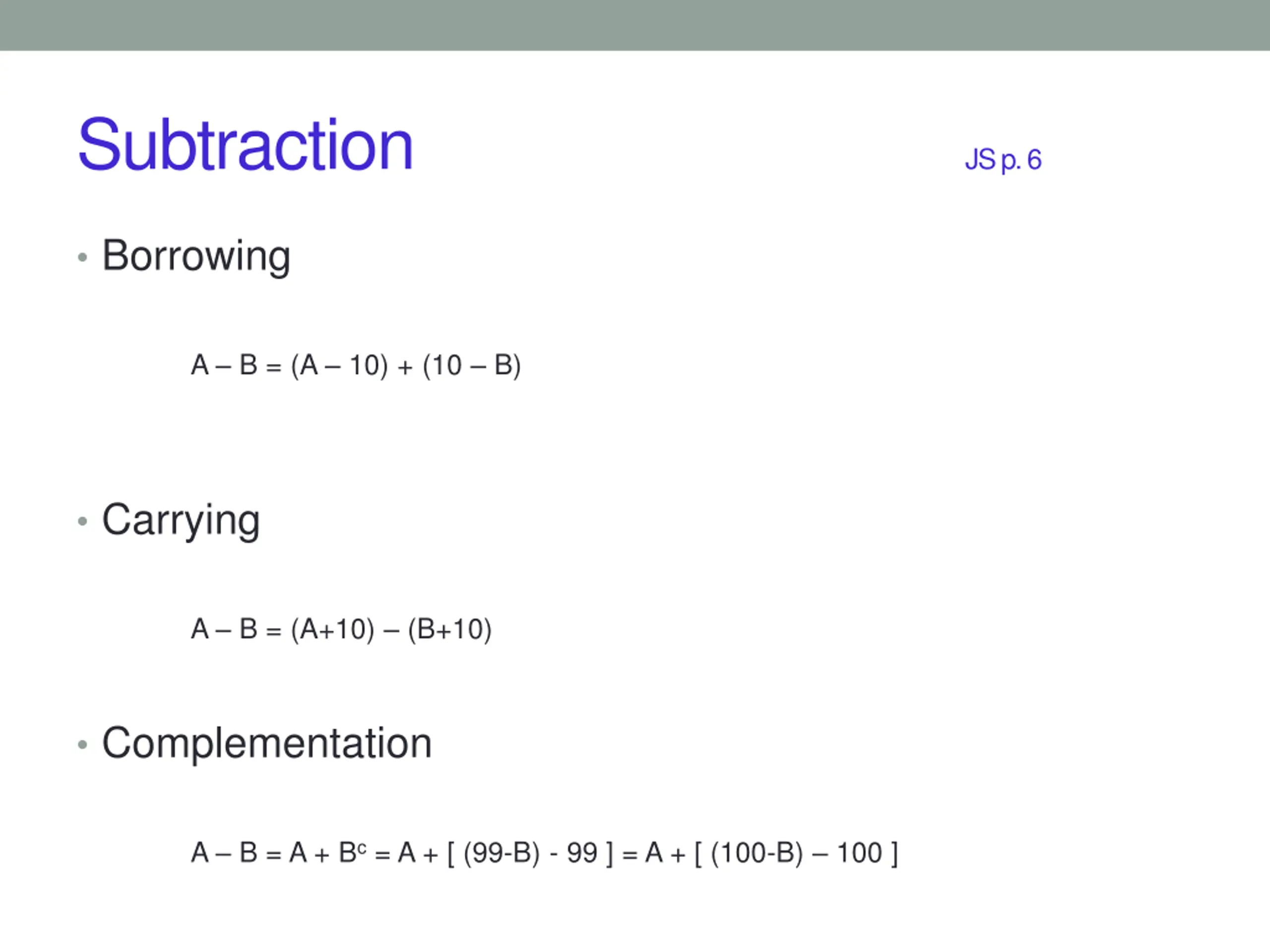

Subtraction JS p. 6 Borrowing A B = (A 10) + (10 B) Carrying A B = (A+10) (B+10) Complementation A B = A + Bc = A + [ (99-B) - 99 ] = A + [ (100-B) 100 ]

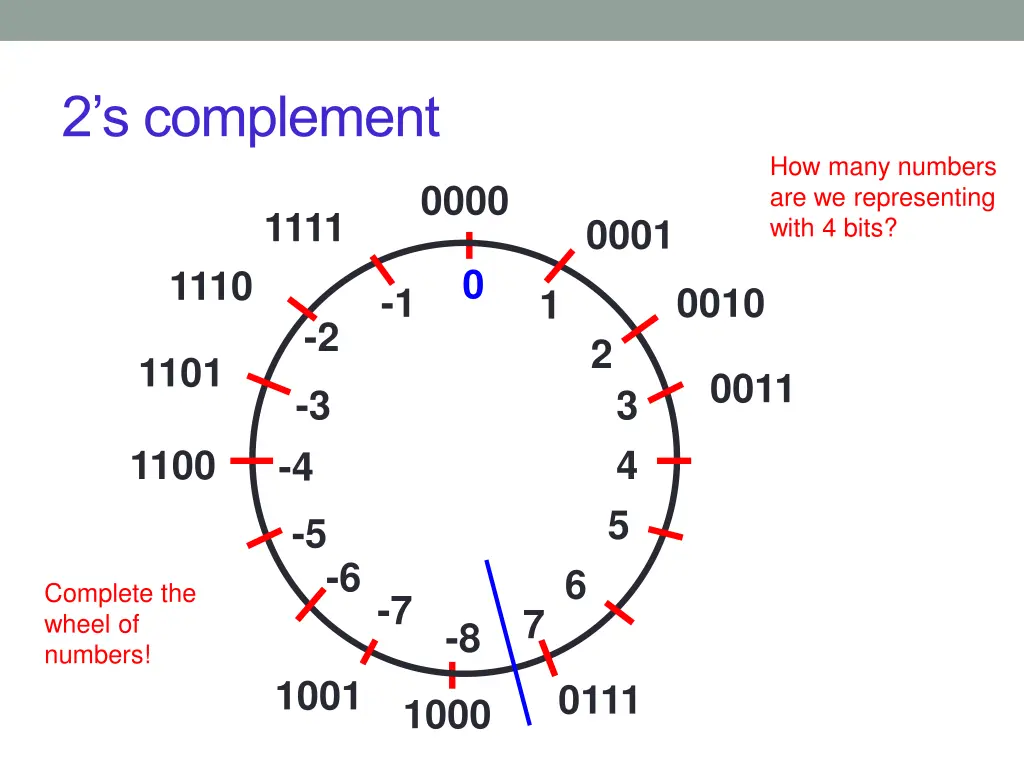

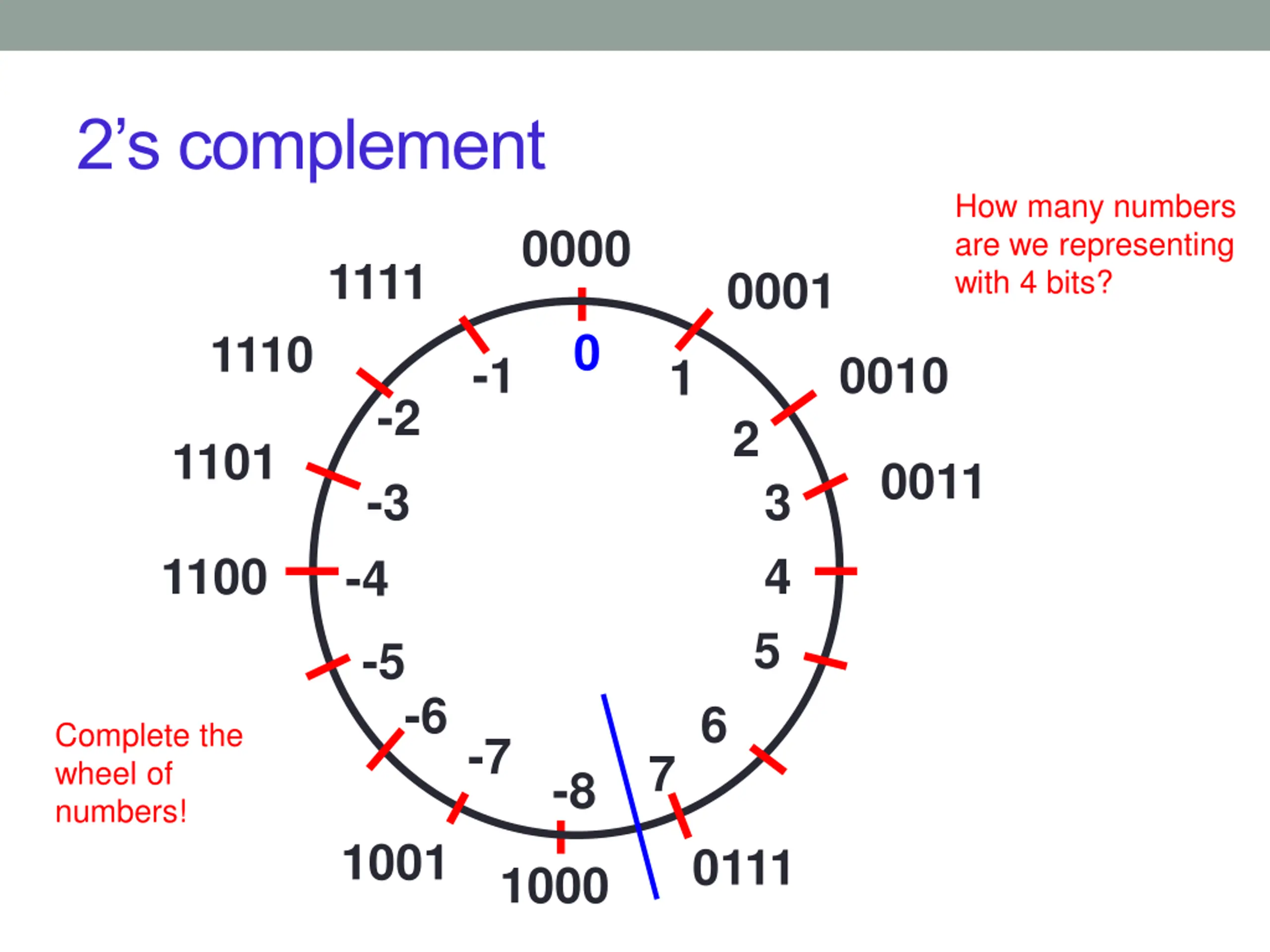

2s complement How many numbers are we representing with 4 bits? 0000 1111 0001 0 1110 -1 0010 1 -2 2 1101 0011 -3 -4 -5 3 4 5 1100 -6 6 Complete the wheel of numbers! -7 7 -8 1001 0111 1000

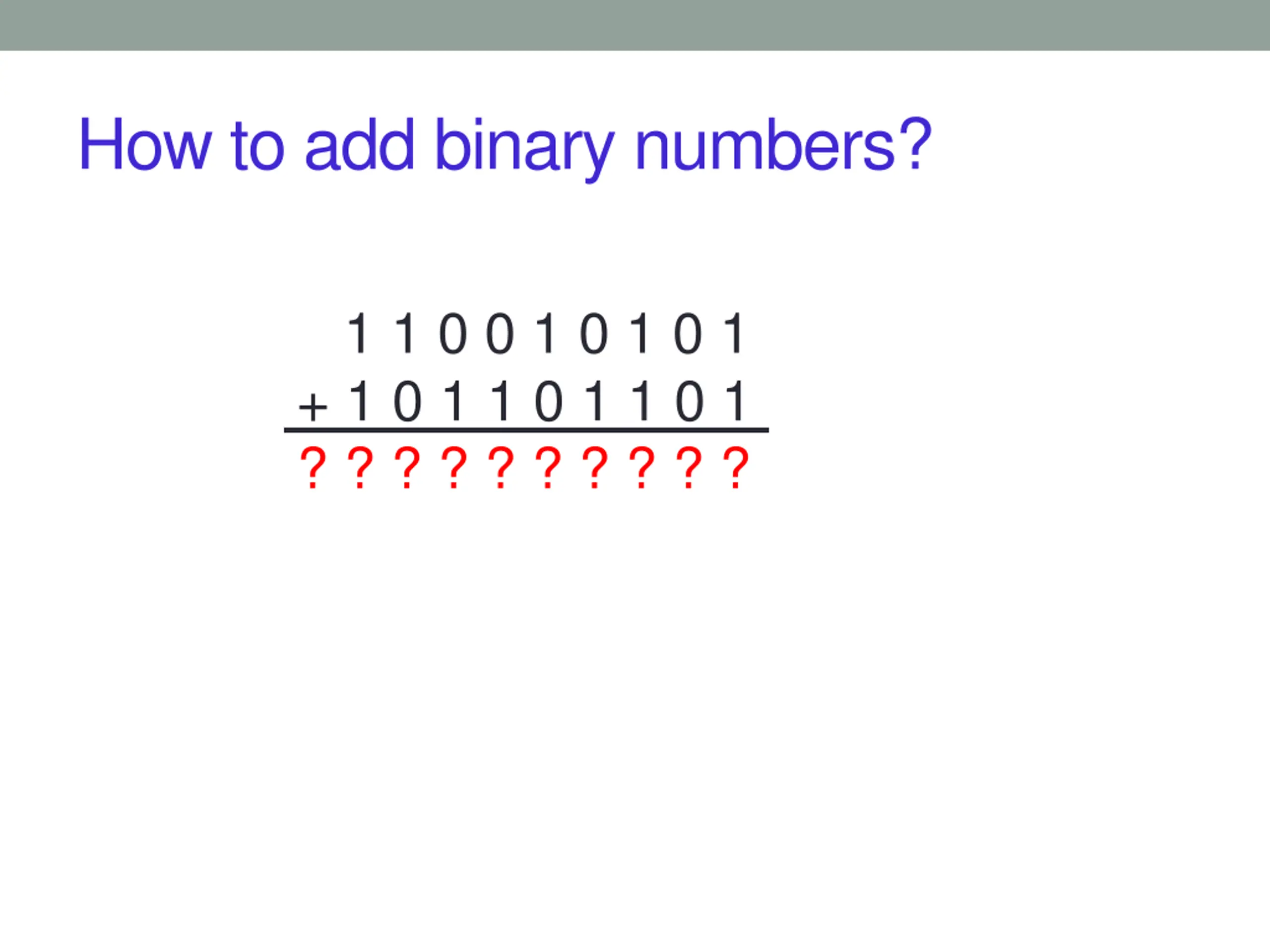

How to add binary numbers? 1 1 0 0 1 0 1 0 1 + 1 0 1 1 0 1 1 0 1 ? ? ? ? ? ? ? ? ? ?

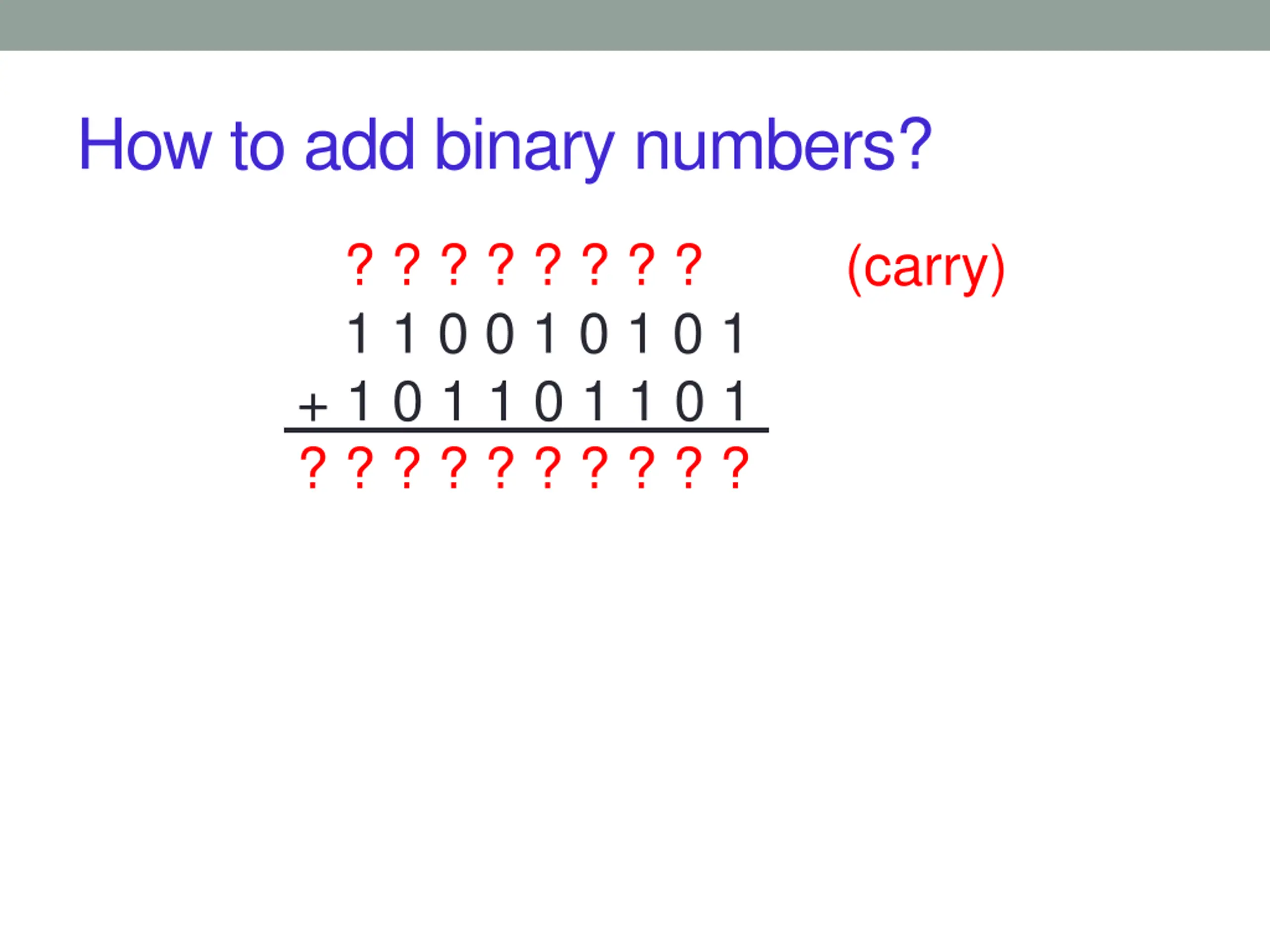

How to add binary numbers? ? ? ? ? ? ? ? ? (carry) 1 1 0 0 1 0 1 0 1 + 1 0 1 1 0 1 1 0 1 ? ? ? ? ? ? ? ? ? ?

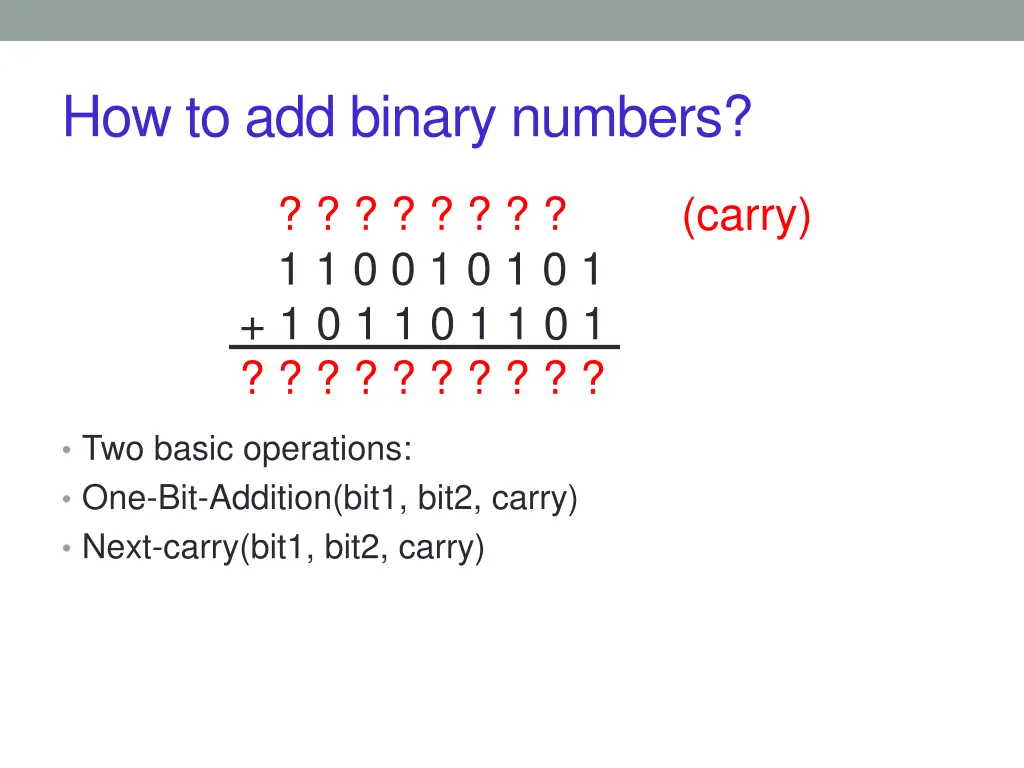

How to add binary numbers? ? ? ? ? ? ? ? ? (carry) 1 1 0 0 1 0 1 0 1 + 1 0 1 1 0 1 1 0 1 ? ? ? ? ? ? ? ? ? ? Two basic operations: One-Bit-Addition(bit1, bit2, carry) Next-carry(bit1, bit2, carry)

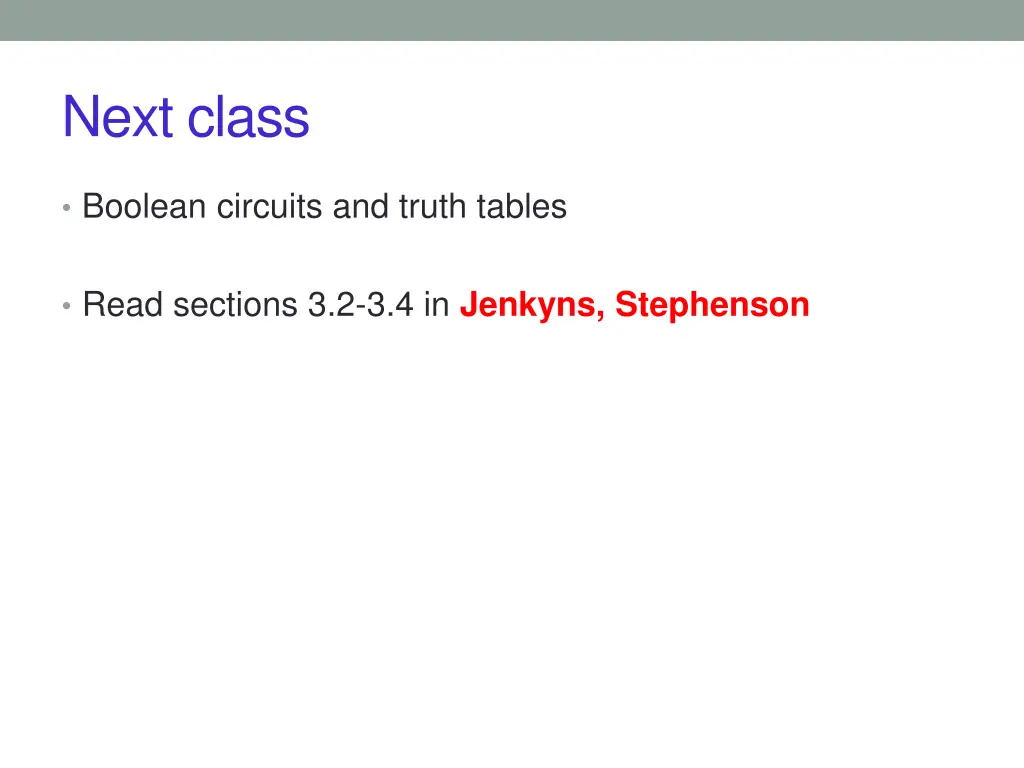

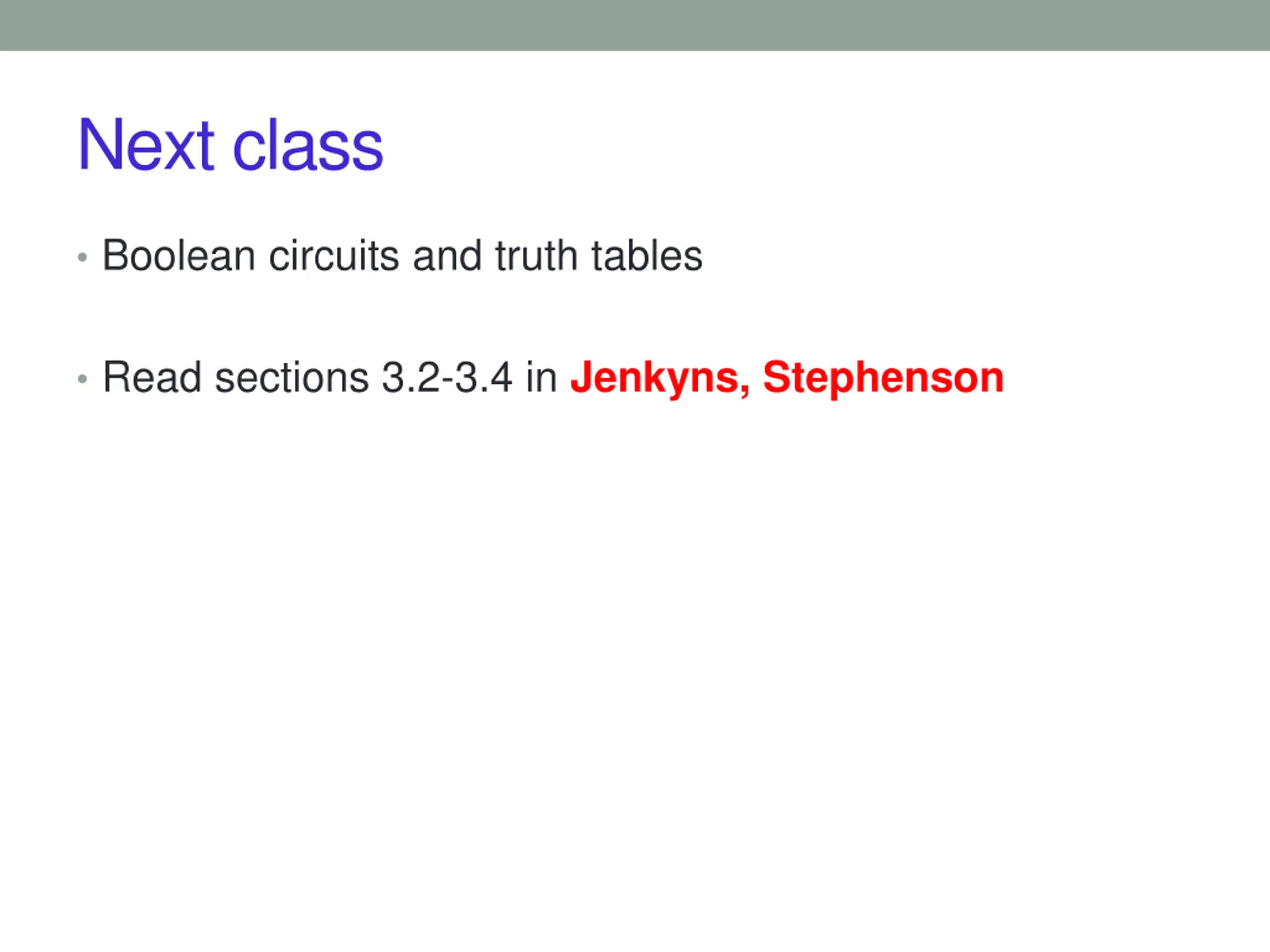

Next class Boolean circuits and truth tables Read sections 3.2-3.4 in Jenkyns, Stephenson
