CSE 20: Discrete Mathematics for Computer Science Prof. Shachar Lovett

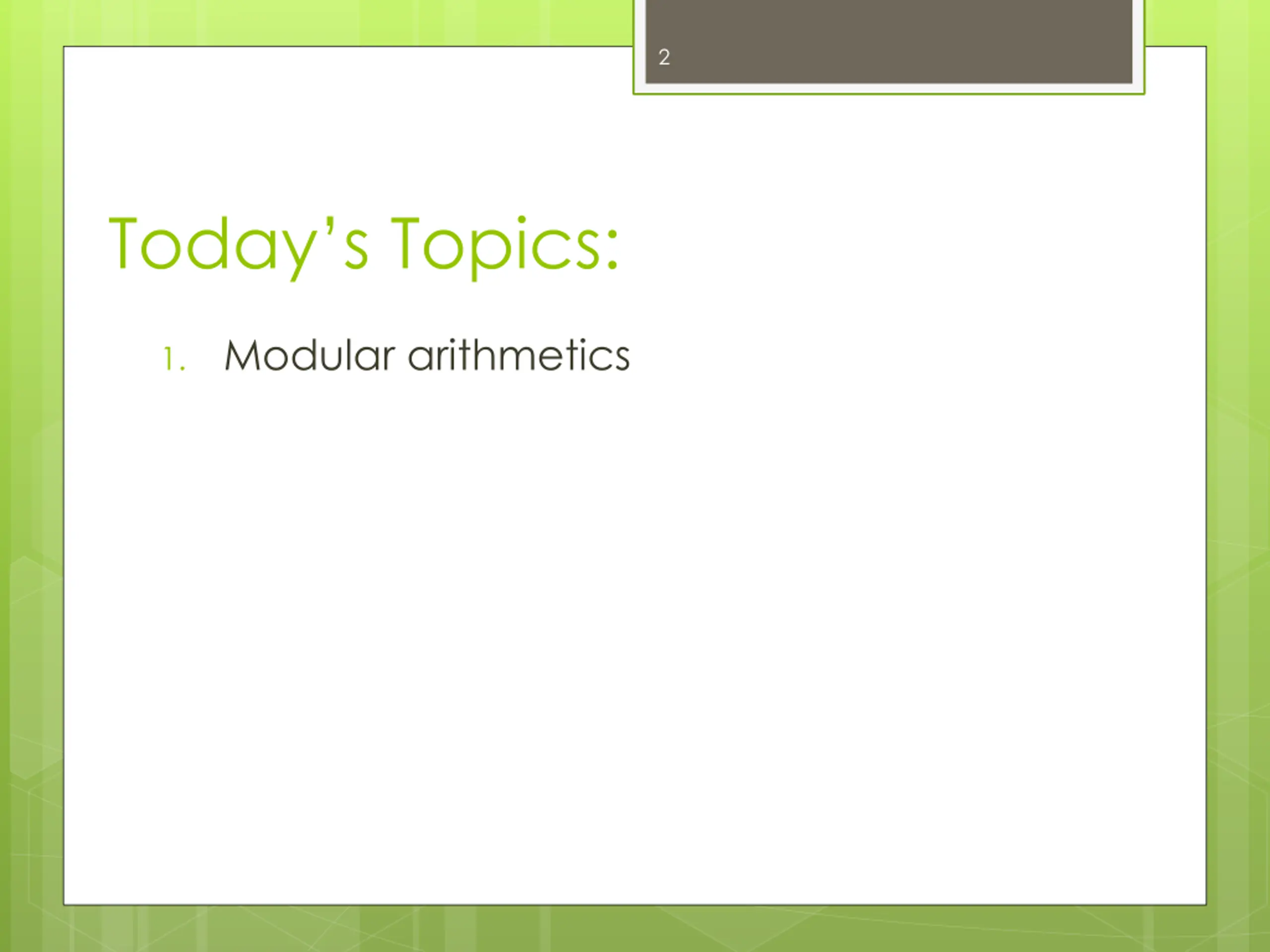

2 Today s Topics: 1. Modular arithmetics

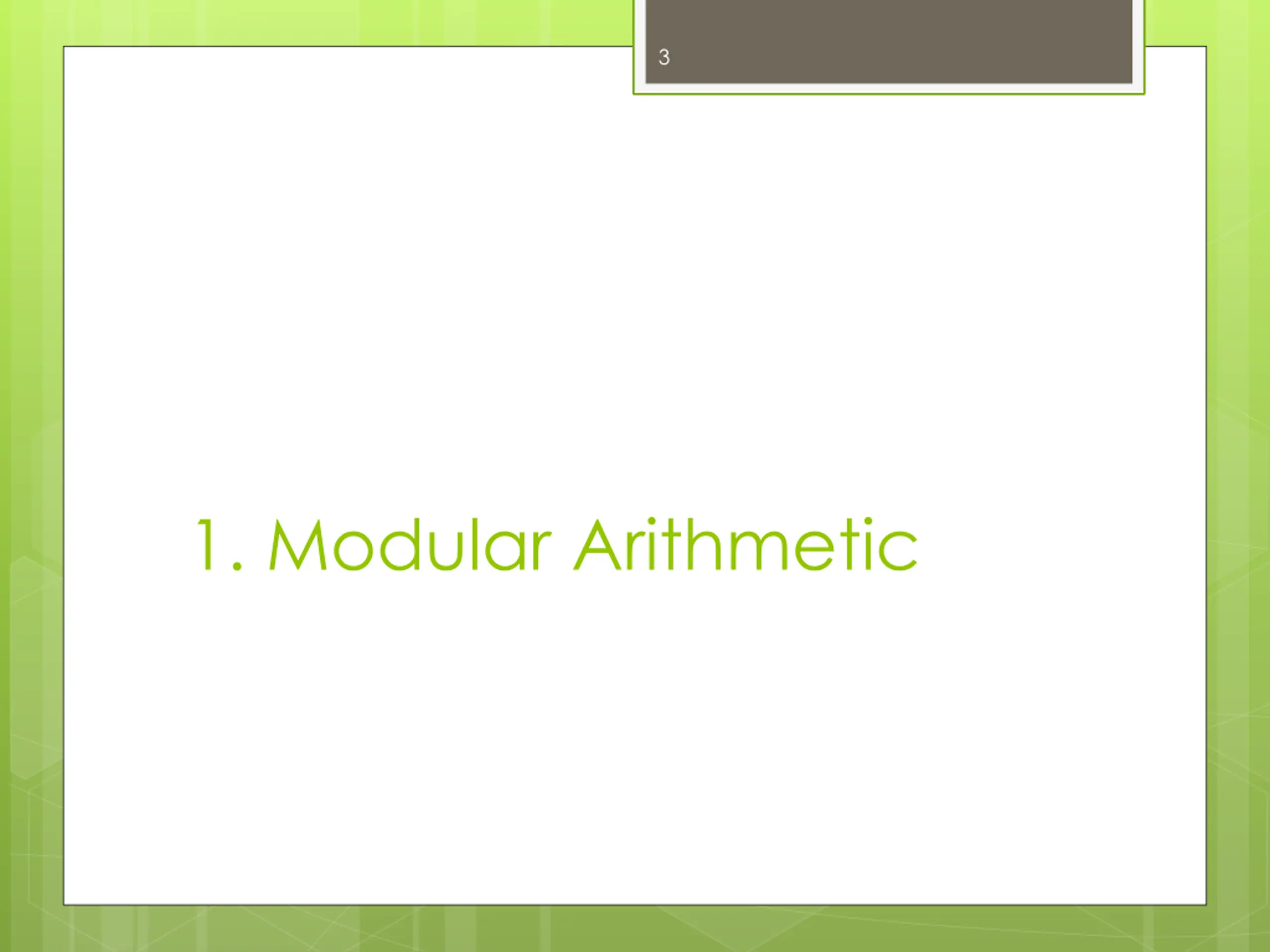

3 1. Modular Arithmetic

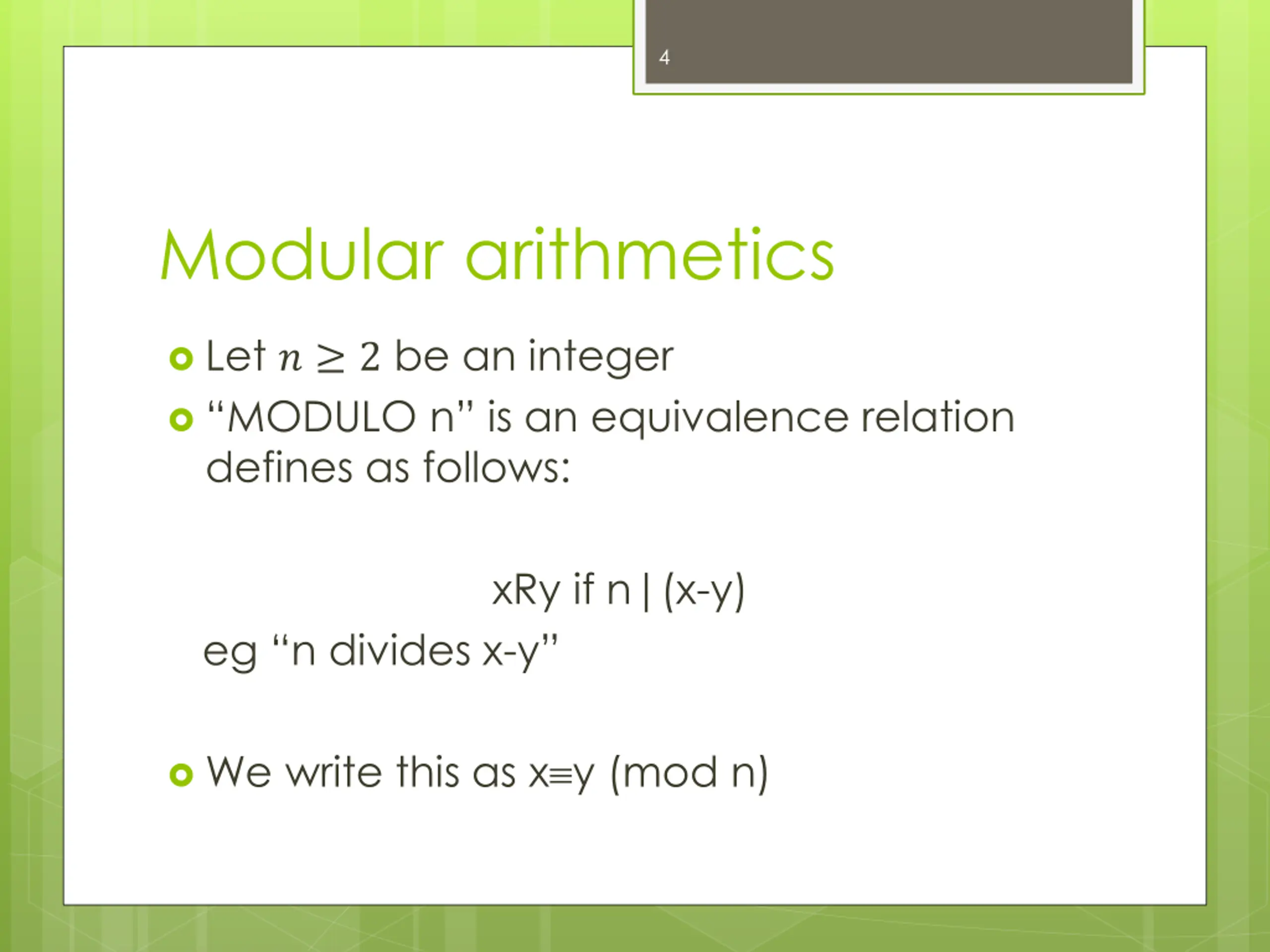

4 Modular arithmetics Let ? 2 be an integer MODULO n is an equivalence relation defines as follows: xRy if n|(x-y) eg n divides x-y We write this as x y (mod n)

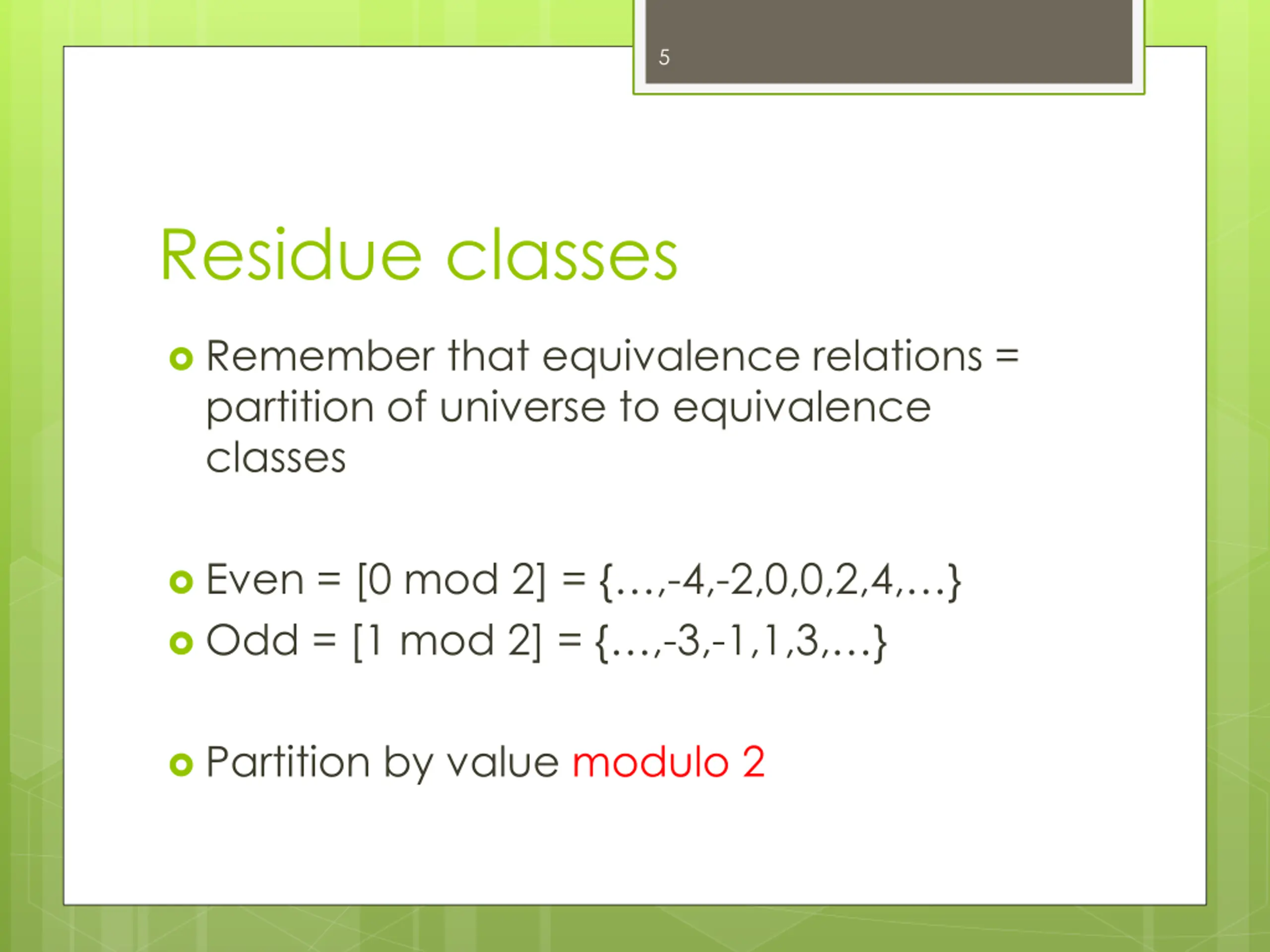

5 Residue classes Remember that equivalence relations = partition of universe to equivalence classes Even = [0 mod 2] = { ,-4,-2,0,0,2,4, } Odd = [1 mod 2] = { ,-3,-1,1,3, } Partition by value modulo 2

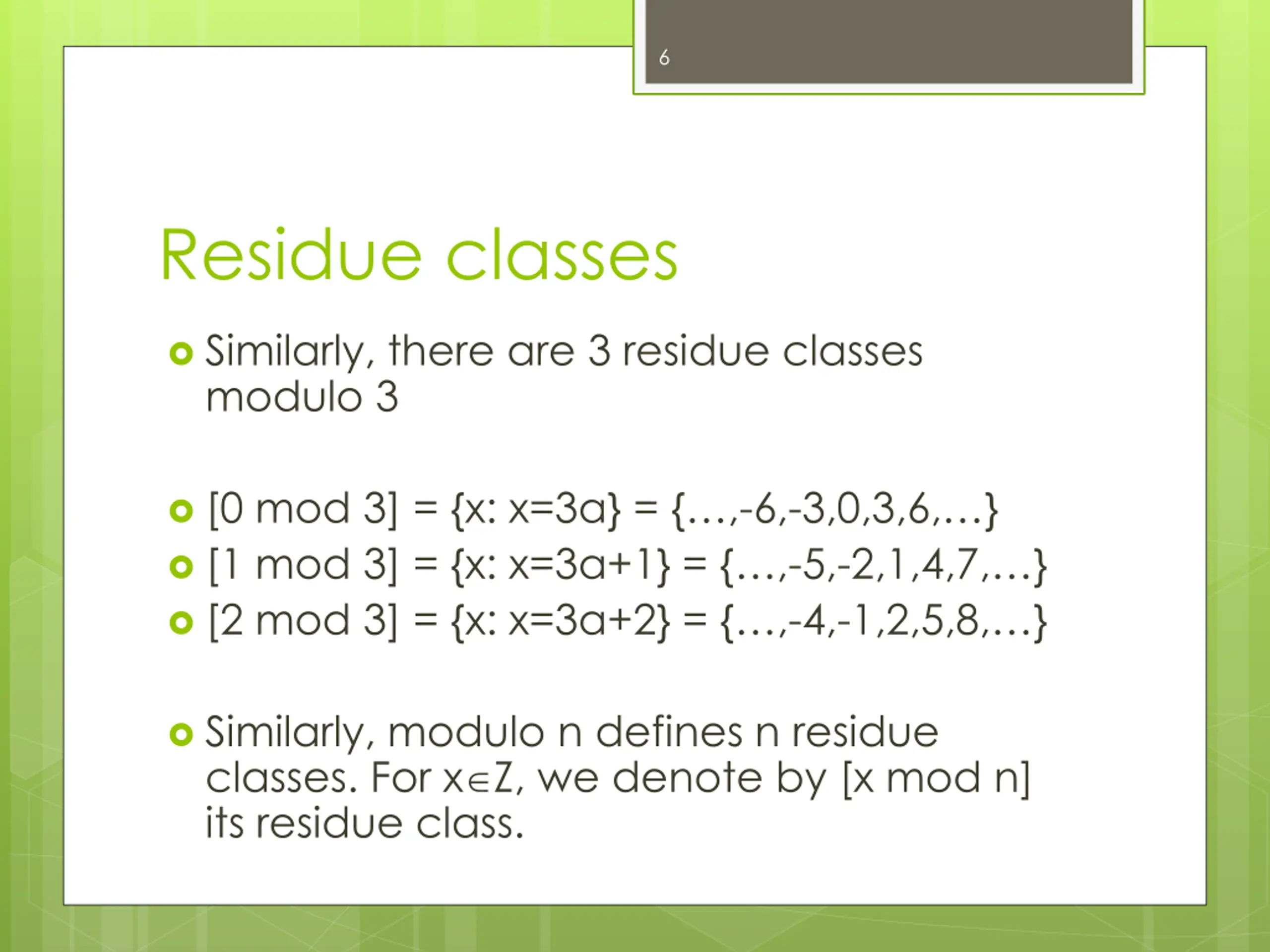

6 Residue classes Similarly, there are 3 residue classes modulo 3 [0 mod 3] = {x: x=3a} = { ,-6,-3,0,3,6, } [1 mod 3] = {x: x=3a+1} = { ,-5,-2,1,4,7, } [2 mod 3] = {x: x=3a+2} = { ,-4,-1,2,5,8, } Similarly, modulo n defines n residue classes. For x Z, we denote by [x mod n] its residue class.

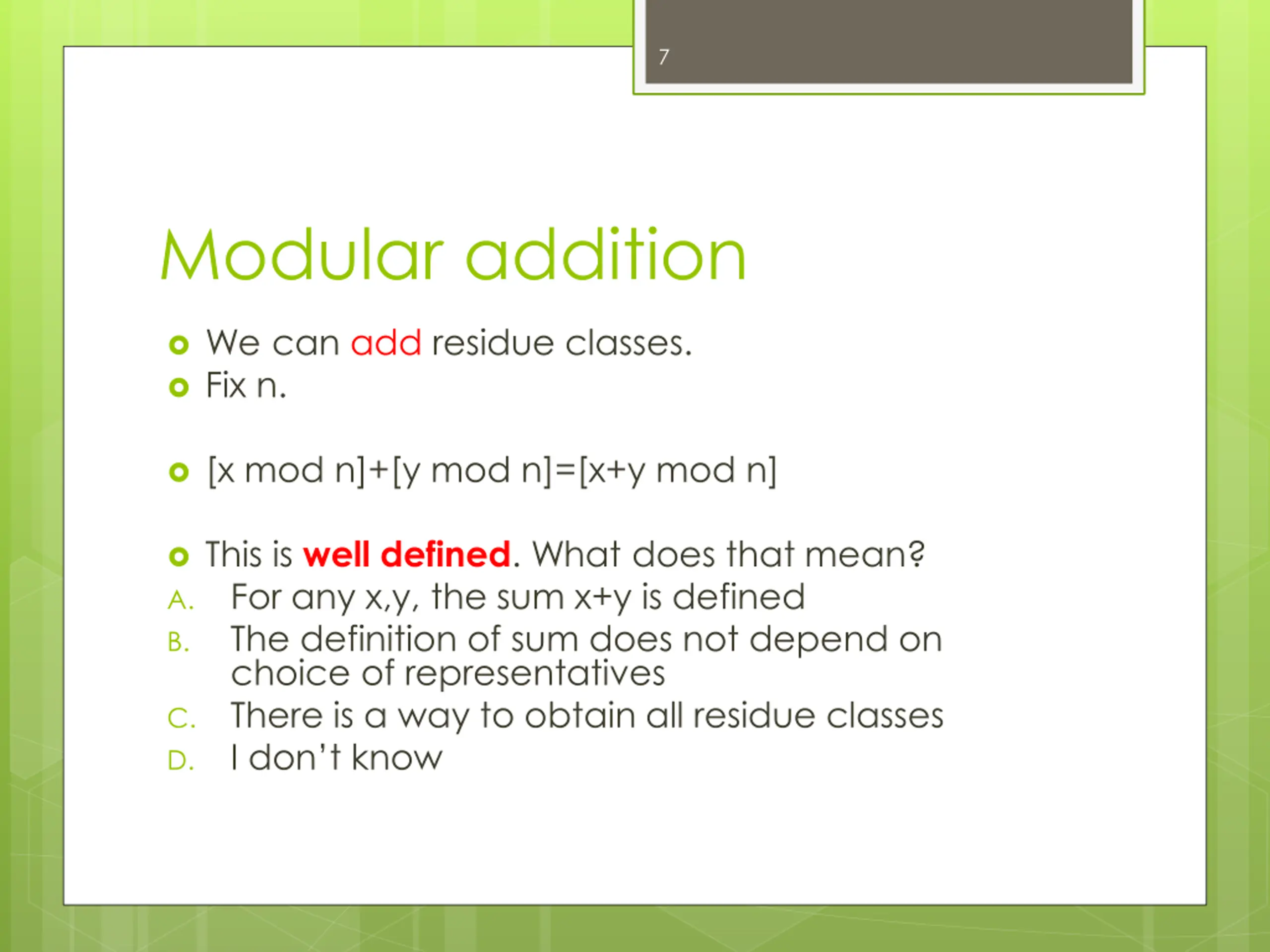

7 Modular addition We can add residue classes. Fix n. [x mod n]+[y mod n]=[x+y mod n] This is well defined. What does that mean? A. For any x,y, the sum x+y is defined B. The definition of sum does not depend on choice of representatives C. There is a way to obtain all residue classes D. I don t know
8 Modular addition Residue classes mod 5 0 mod 5 4 mod 5 1 mod 5 3 mod 5 2 mod 5

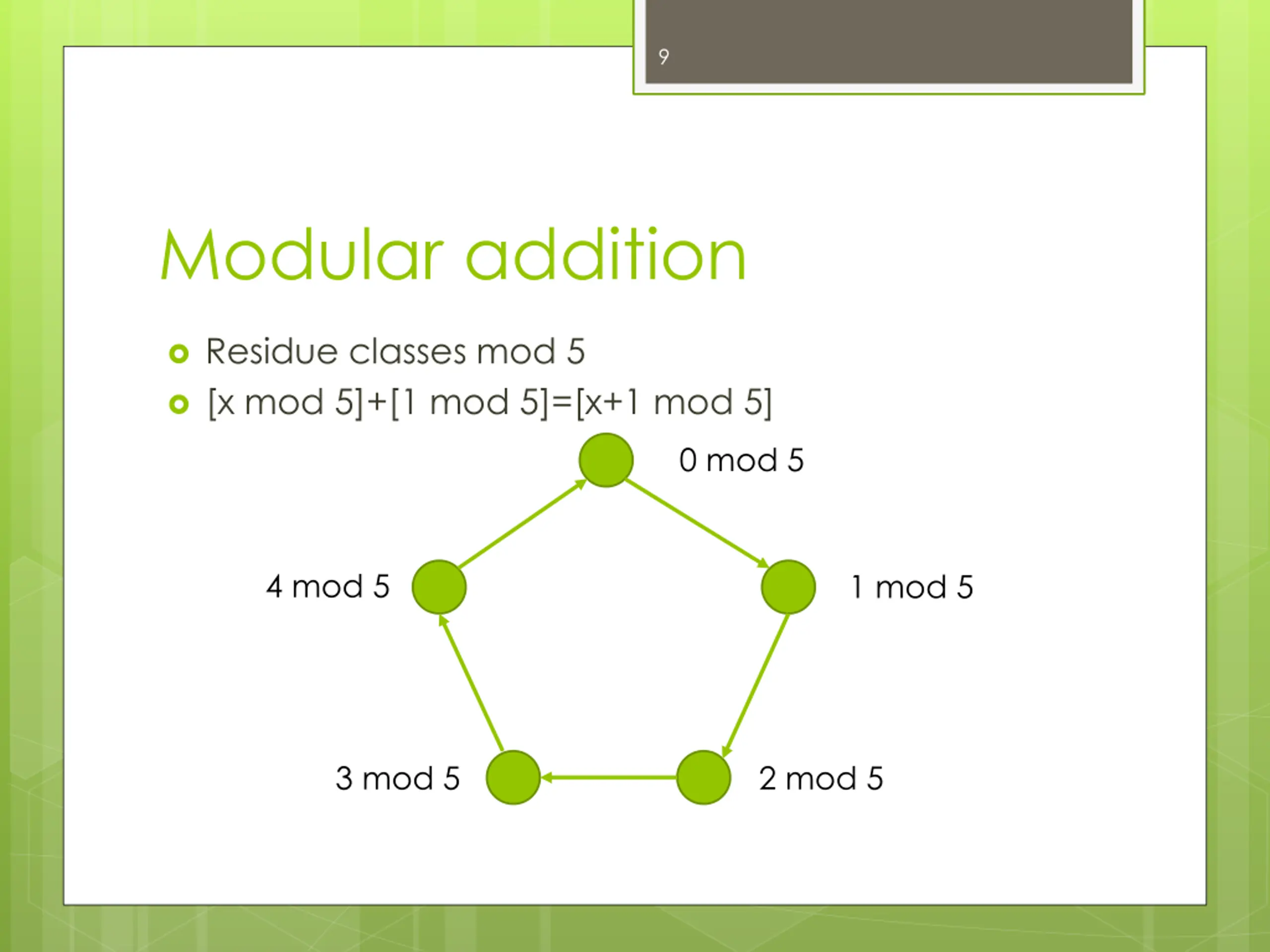

9 Modular addition Residue classes mod 5 [x mod 5]+[1 mod 5]=[x+1 mod 5] 0 mod 5 4 mod 5 1 mod 5 3 mod 5 2 mod 5

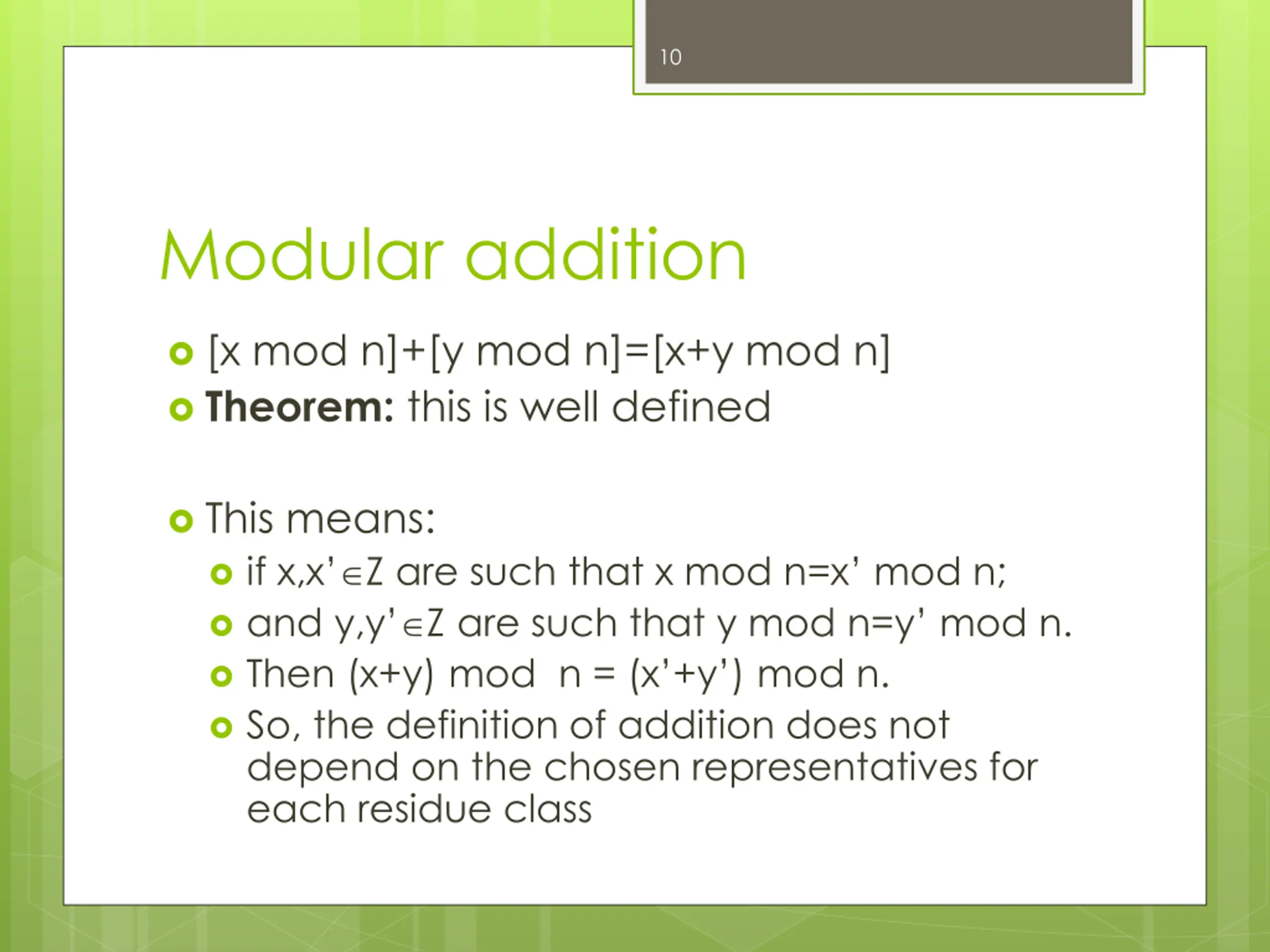

10 Modular addition [x mod n]+[y mod n]=[x+y mod n] Theorem: this is well defined This means: if x,x Z are such that x mod n=x mod n; and y,y Z are such that y mod n=y mod n. Then (x+y) mod n = (x +y ) mod n. So, the definition of addition does not depend on the chosen representatives for each residue class
11 Modular addition [x mod n]+[y mod n]=[x+y mod n] Theorem: this is well defined Proof (direct proof): If x mod n=x mod n then x =x+na for a Z If y mod n=y mod n then y =y+nb for b Z Then (x +y )=(x+y)+n(a+b) So [x +y mod n]=[x+y mod n] QED

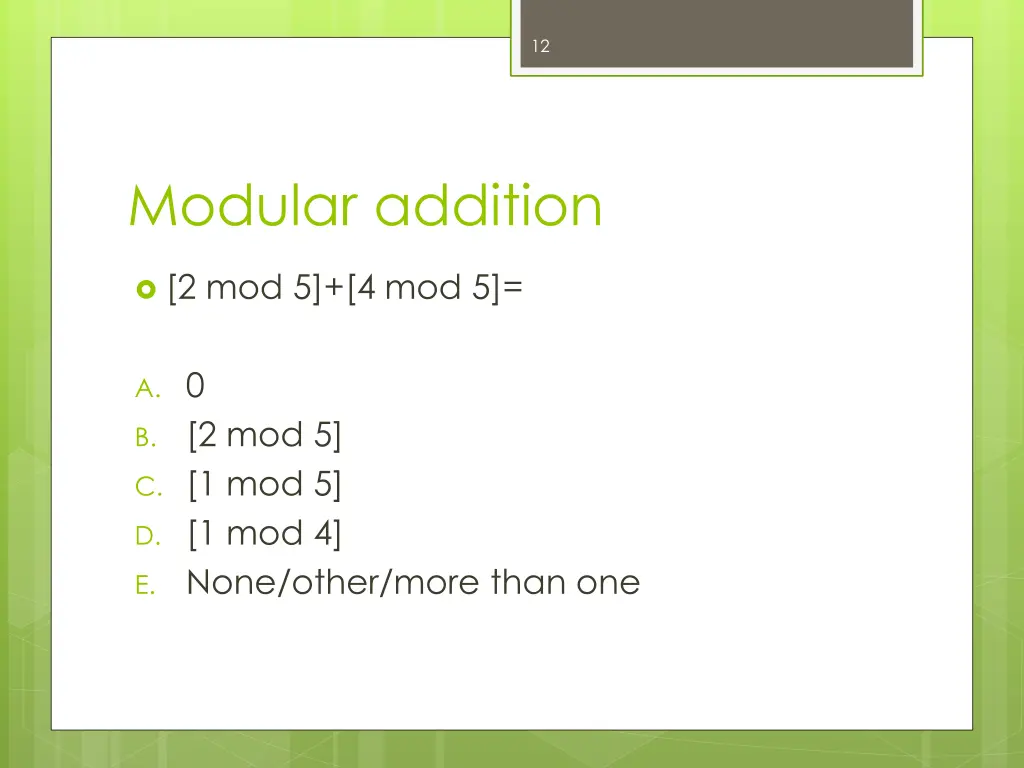

12 Modular addition [2 mod 5]+[4 mod 5]= A. 0 B. [2 mod 5] C. [1 mod 5] D. [1 mod 4] E. None/other/more than one

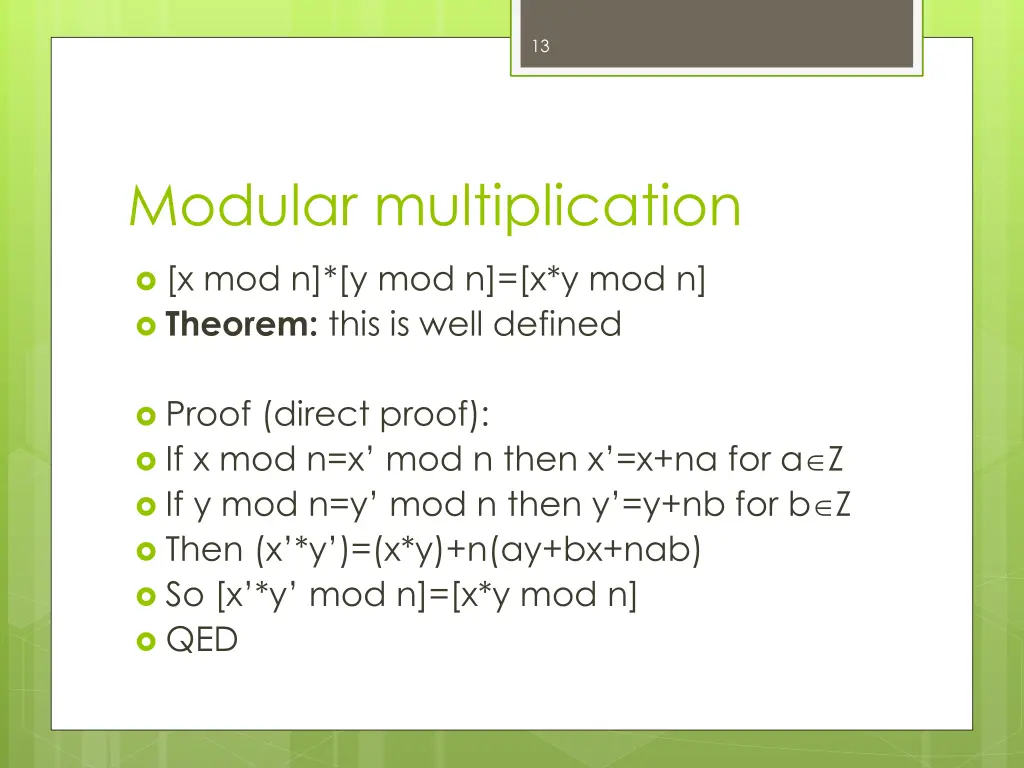

13 Modular multiplication [x mod n]*[y mod n]=[x*y mod n] Theorem: this is well defined Proof (direct proof): If x mod n=x mod n then x =x+na for a Z If y mod n=y mod n then y =y+nb for b Z Then (x *y )=(x*y)+n(ay+bx+nab) So [x *y mod n]=[x*y mod n] QED

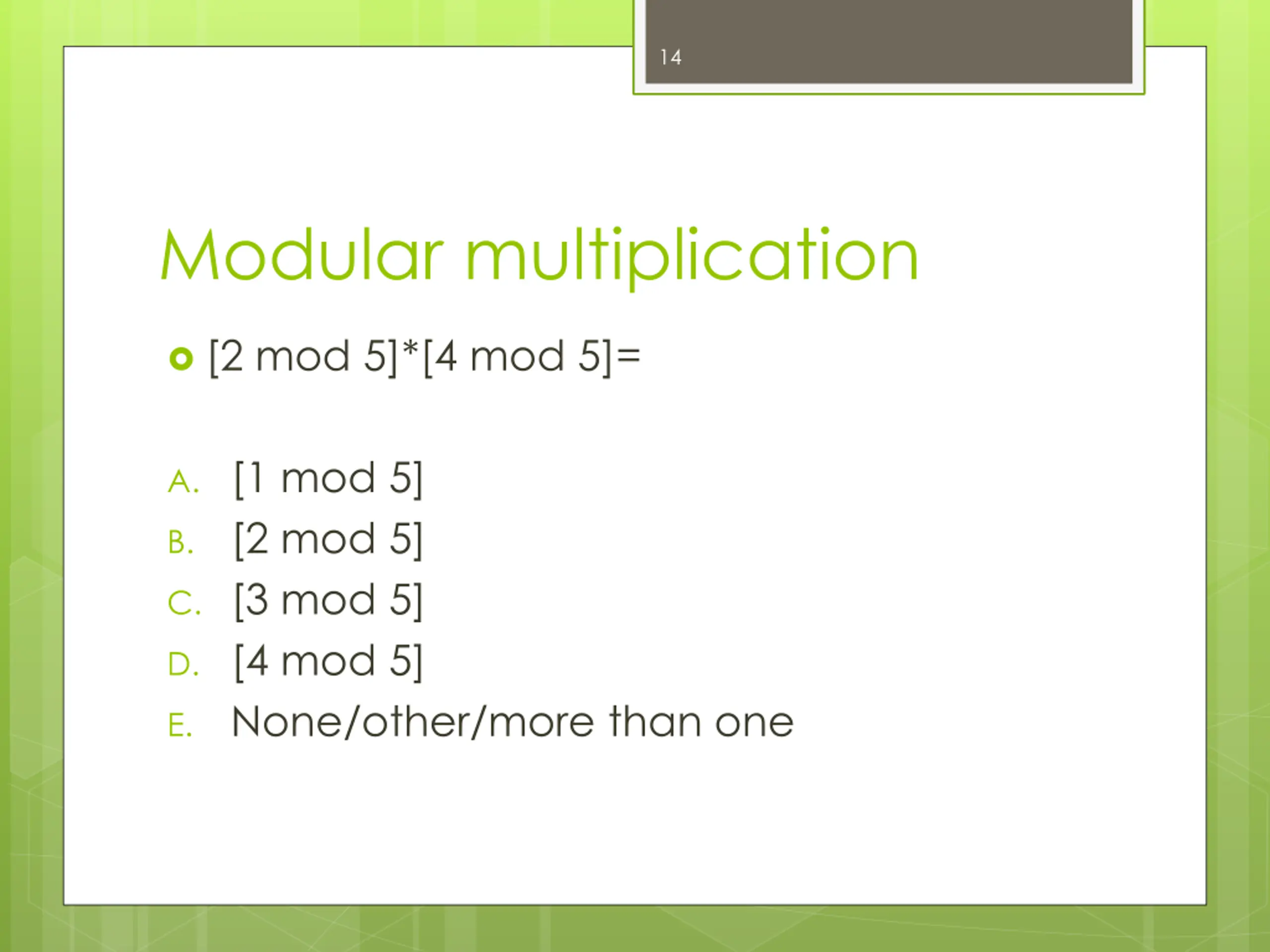

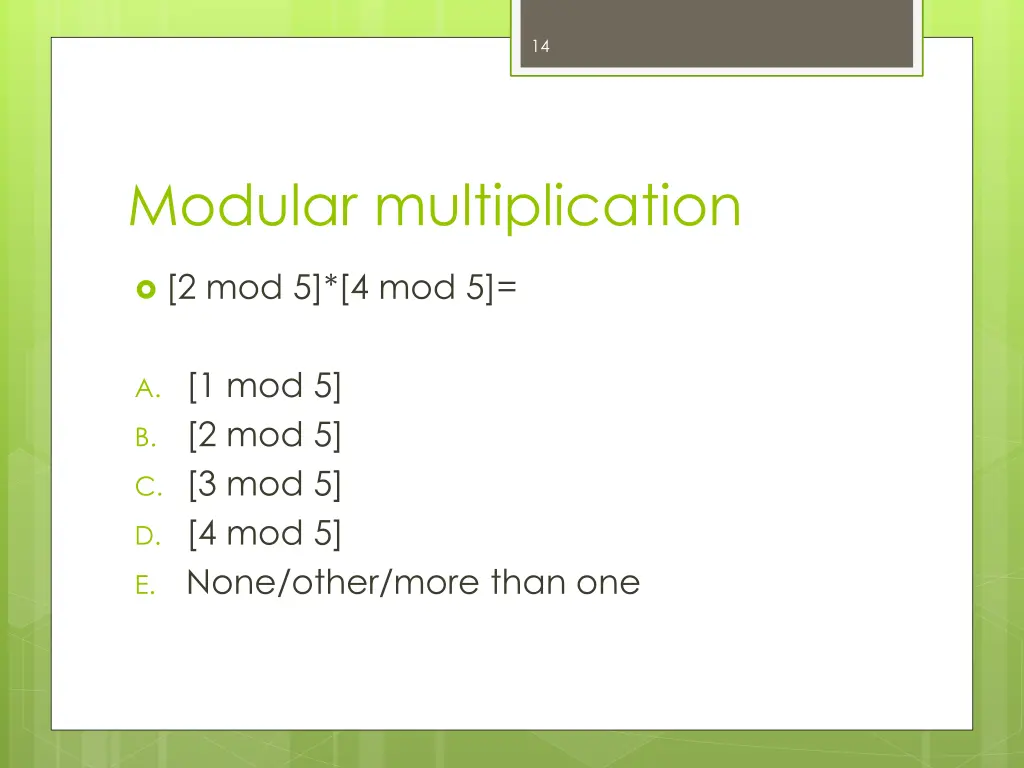

14 Modular multiplication [2 mod 5]*[4 mod 5]= A. [1 mod 5] B. [2 mod 5] C. [3 mod 5] D. [4 mod 5] E. None/other/more than one
15 Modular multiplication [2 mod 5]*[4 mod 7]= A. [1 mod 5] B. [2 mod 7] C. [3 mod 35] D. [8 mod 35] E. None/other/more than one

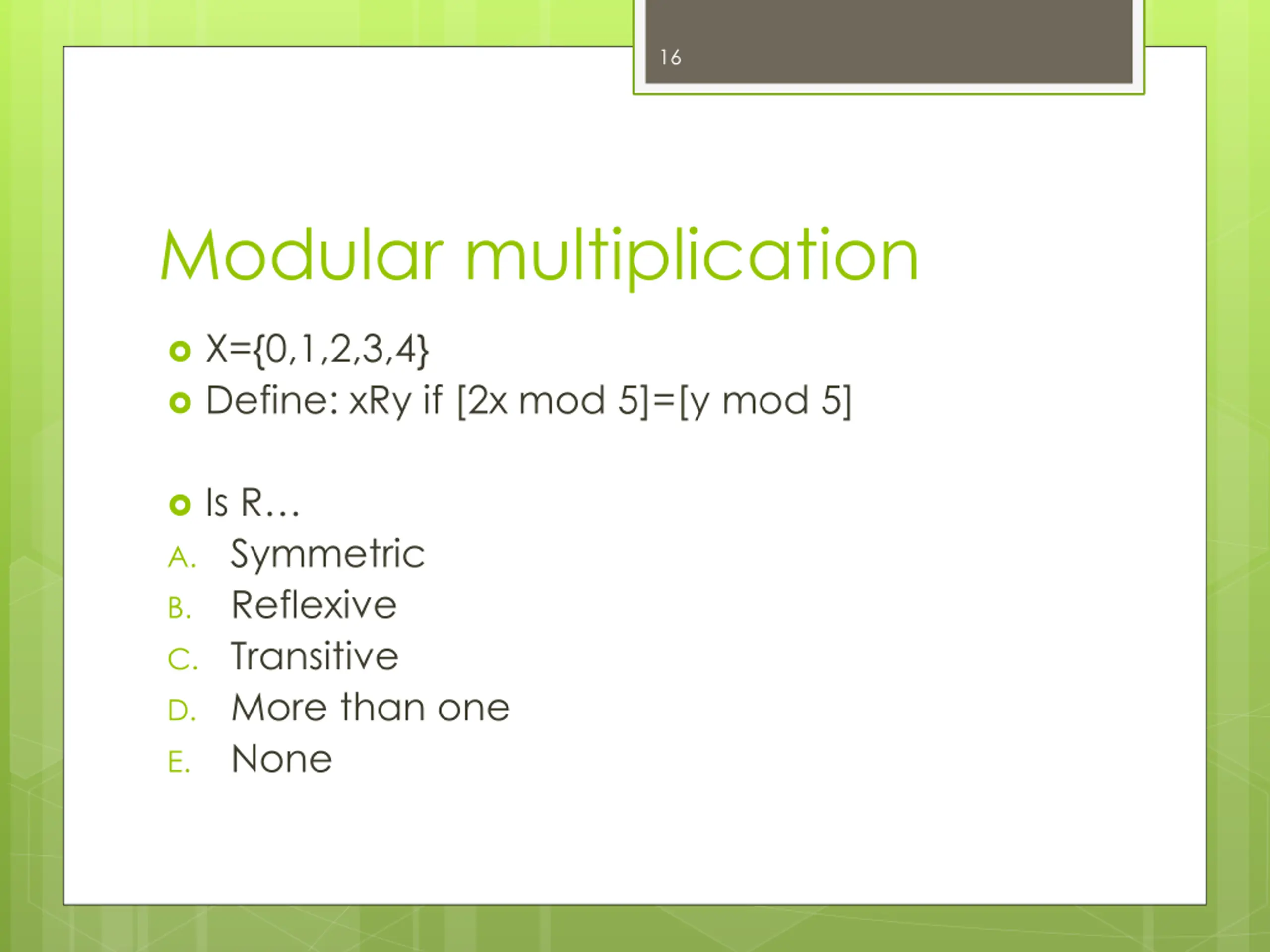

16 Modular multiplication X={0,1,2,3,4} Define: xRy if [2x mod 5]=[y mod 5] Is R A. Symmetric B. Reflexive C. Transitive D. More than one E. None

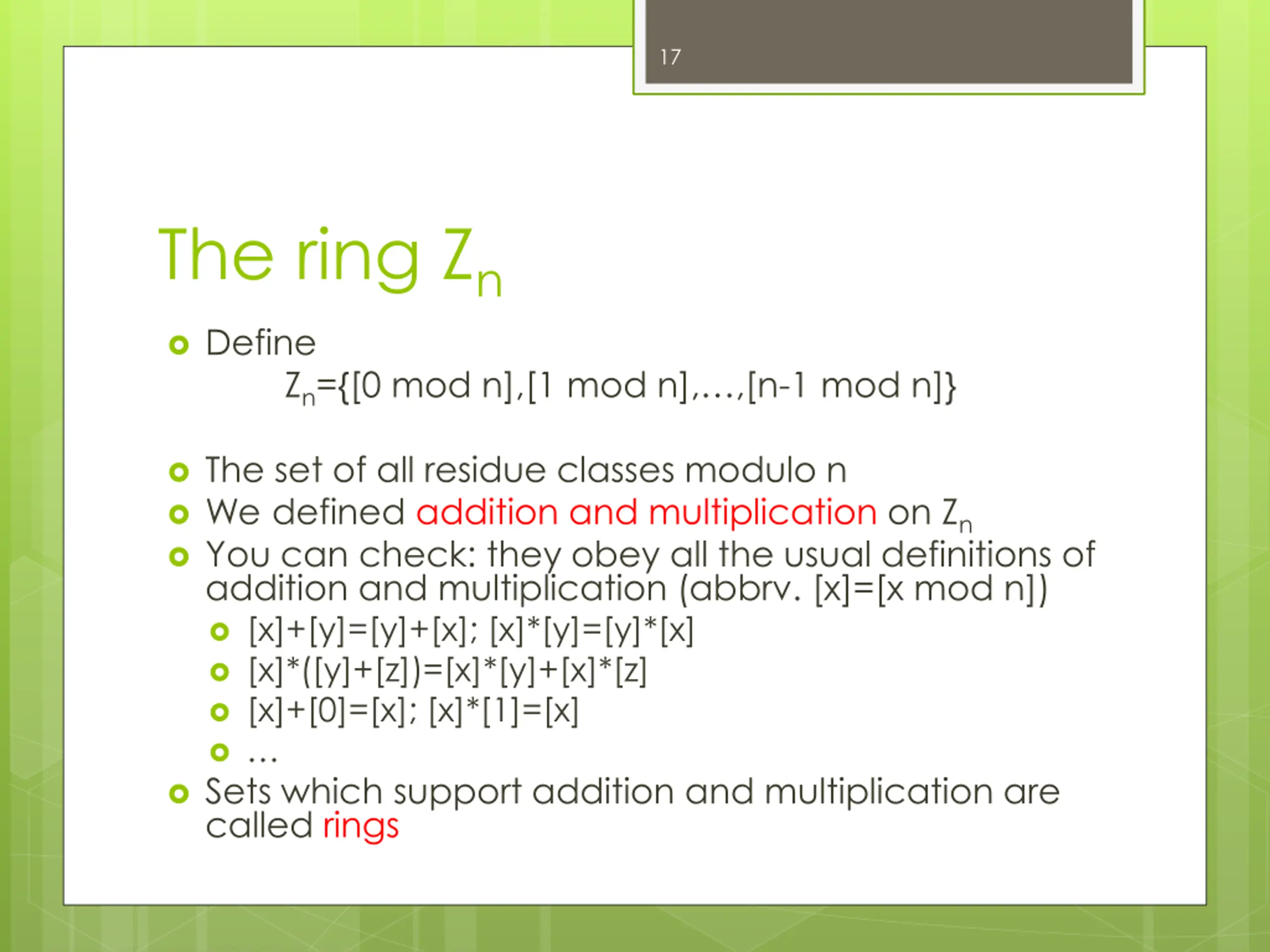

17 The ring Zn Define Zn={[0 mod n],[1 mod n], ,[n-1 mod n]} The set of all residue classes modulo n We defined addition and multiplication on Zn You can check: they obey all the usual definitions of addition and multiplication (abbrv. [x]=[x mod n]) [x]+[y]=[y]+[x]; [x]*[y]=[y]*[x] [x]*([y]+[z])=[x]*[y]+[x]*[z] [x]+[0]=[x]; [x]*[1]=[x] Sets which support addition and multiplication are called rings

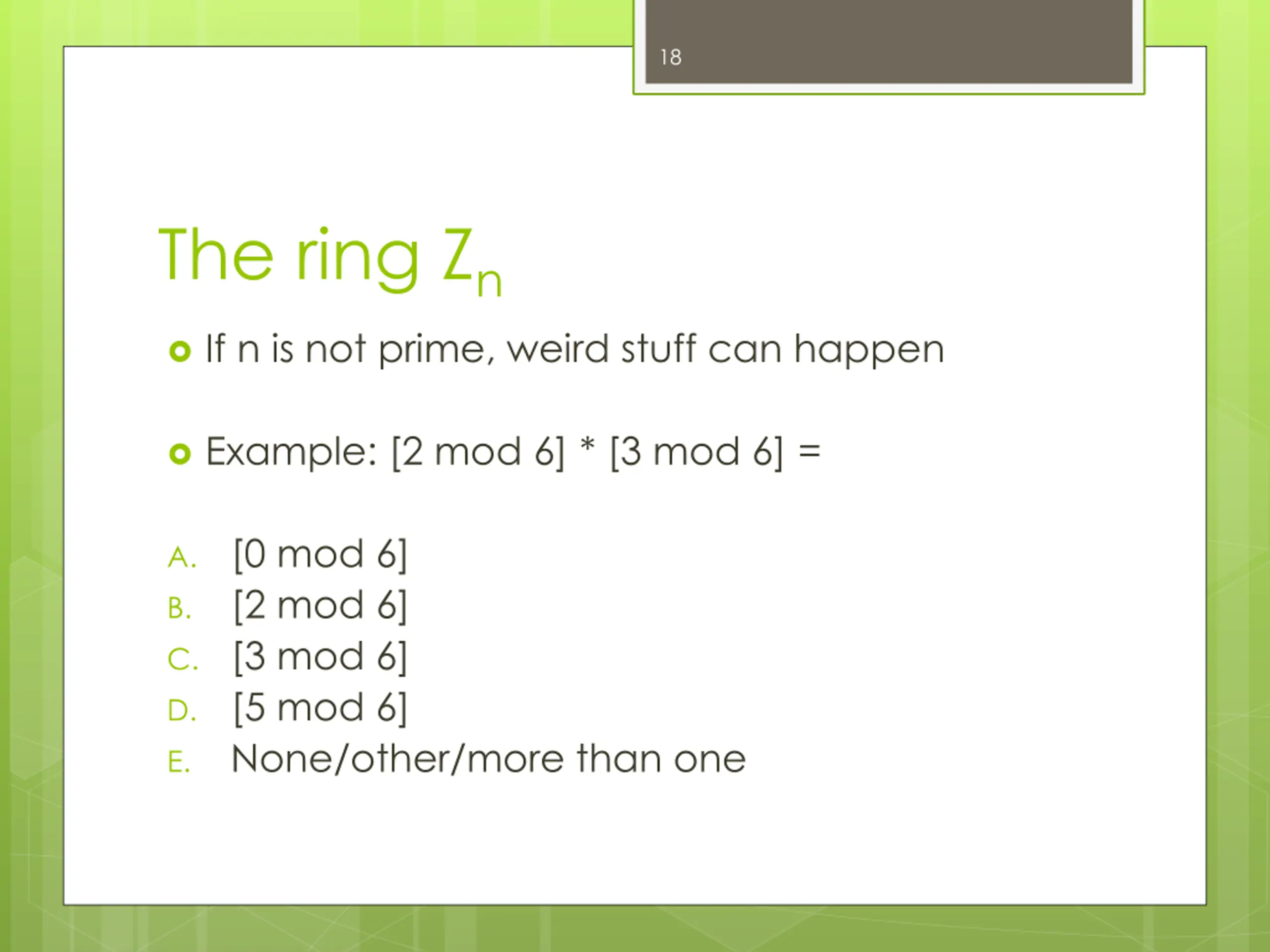

18 The ring Zn If n is not prime, weird stuff can happen Example: [2 mod 6] * [3 mod 6] = A. [0 mod 6] B. [2 mod 6] C. [3 mod 6] D. [5 mod 6] E. None/other/more than one
19 The ring Zn If n is not prime, weird stuff can happen Example: [2 mod 6] * [3 mod 6] = [0 mod 6] That is, we multiplied two nonzero elements, and got zero as a result (these are called zero divisors)
Applications of modular arithmetic For a fixed n 2, we can add, multiply and take modulo m, and the value (modulo n) will stay invariant This is very useful; many algorithmic applications Example 1: verifying calculations Prove that 12294793 2329373 92739273 Hint: use values modulo 10

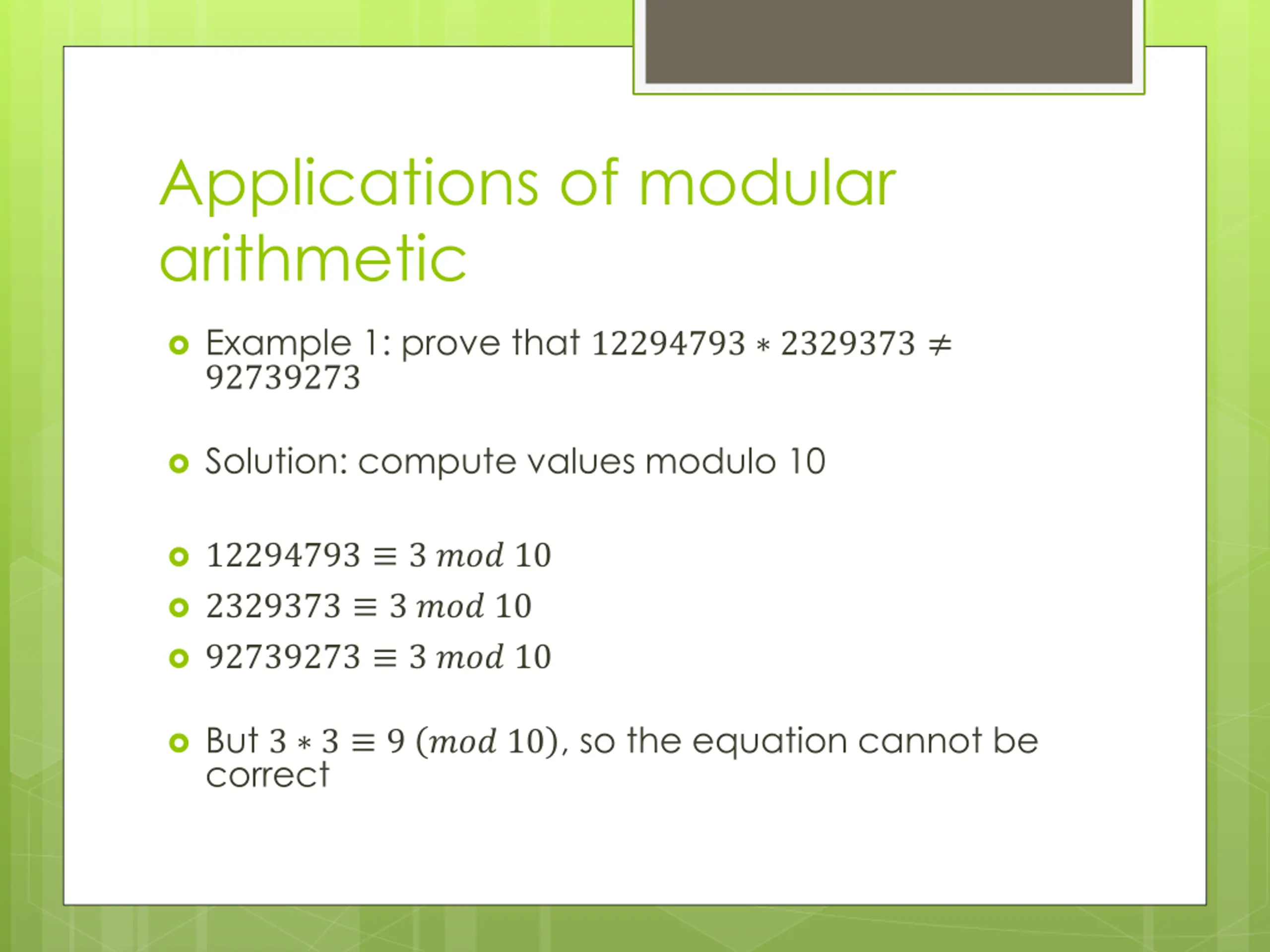

Applications of modular arithmetic Example 1: prove that 12294793 2329373 92739273 Solution: compute values modulo 10 12294793 3 ??? 10 2329373 3 ??? 10 92739273 3 ??? 10 But 3 3 9 ??? 10 , so the equation cannot be correct

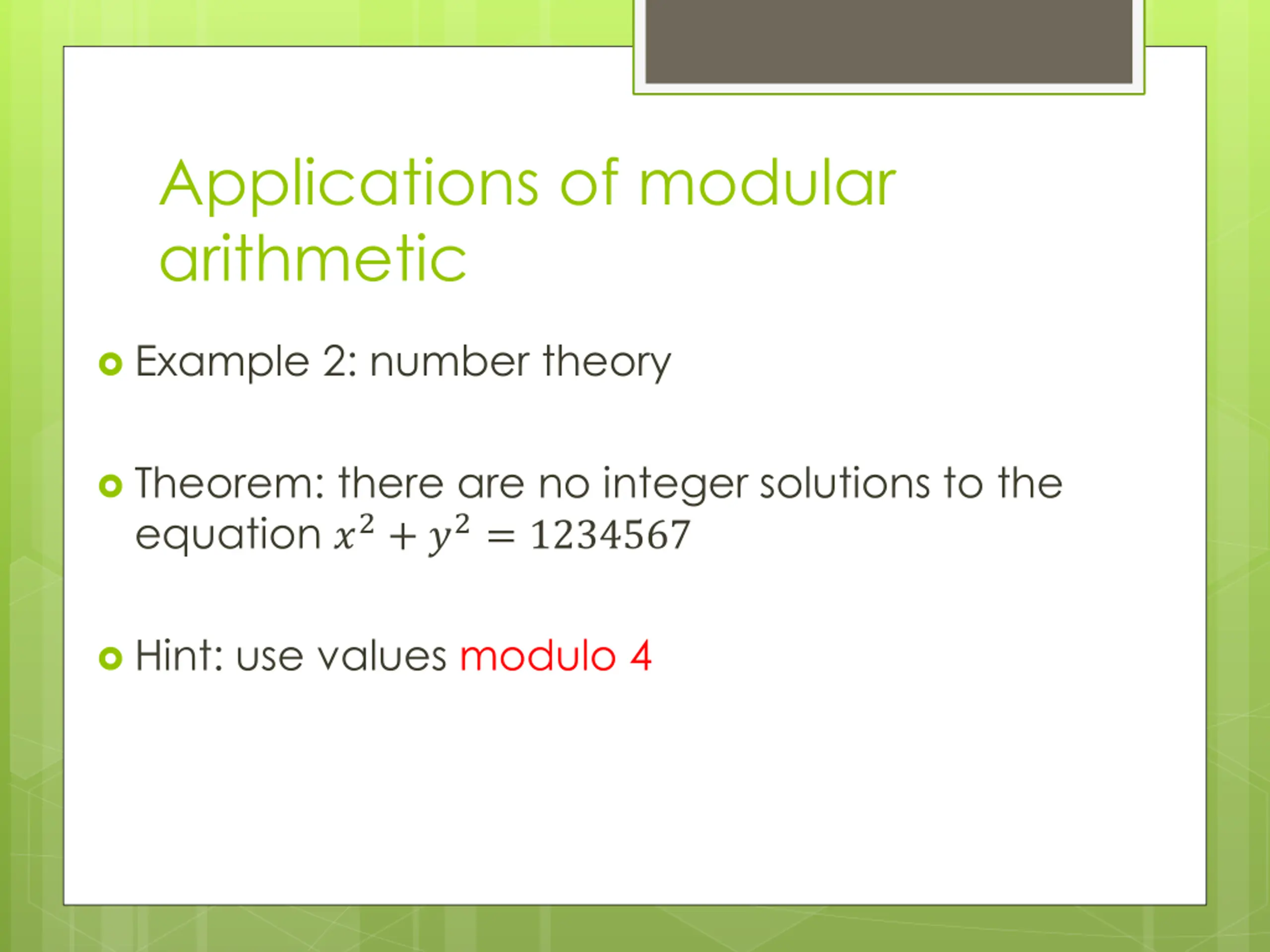

Applications of modular arithmetic Example 2: number theory Theorem: there are no integer solutions to the equation ?2+ ?2= 1234567 Hint: use values modulo 4

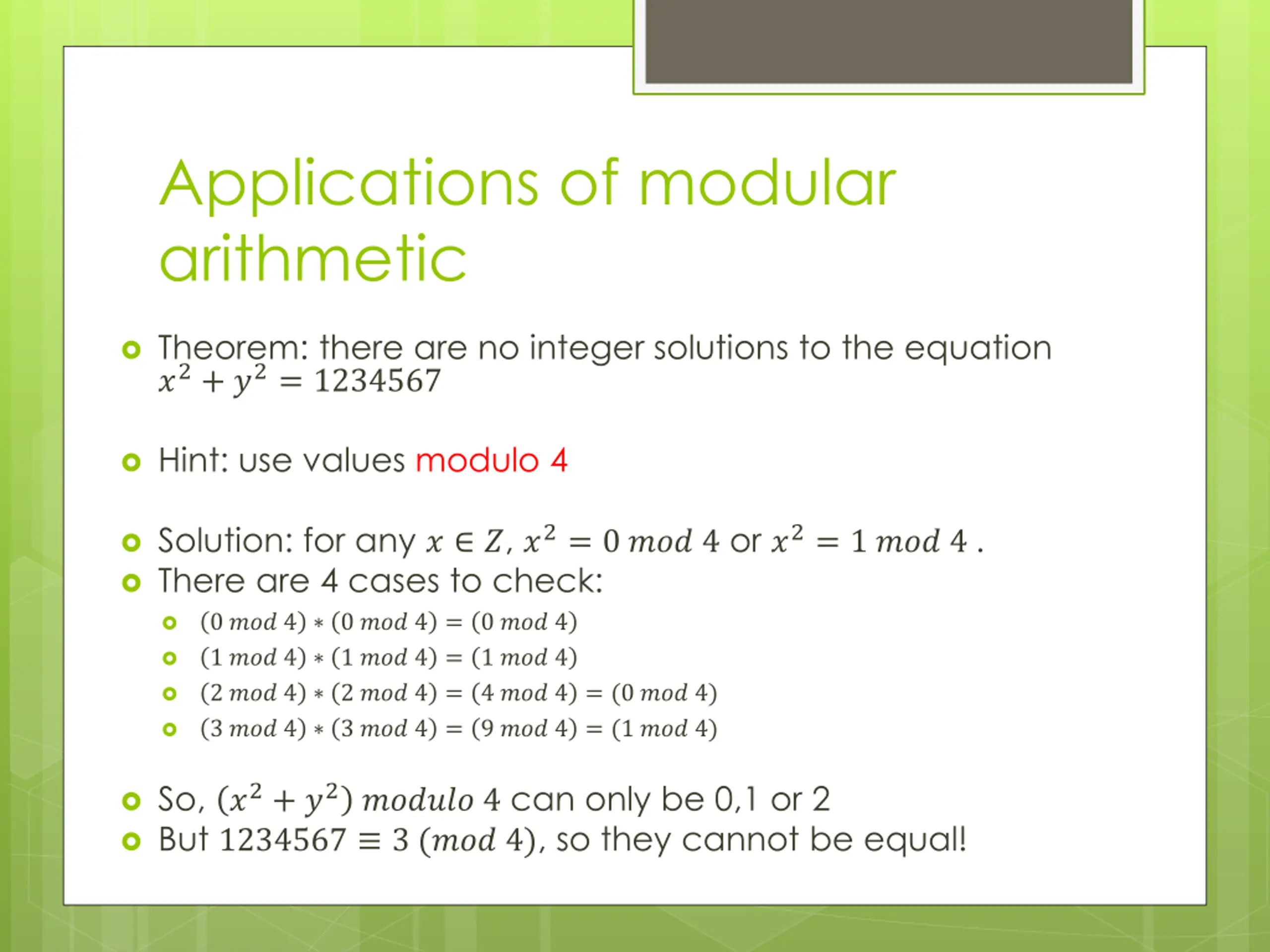

Applications of modular arithmetic Theorem: there are no integer solutions to the equation ?2+ ?2= 1234567 Hint: use values modulo 4 Solution: for any ? ?, ?2= 0 ??? 4 or ?2= 1 ??? 4 . There are 4 cases to check: 0 ??? 4 0 ??? 4 = 0 ??? 4 1 ??? 4 1 ??? 4 = 1 ??? 4 2 ??? 4 2 ??? 4 = 4 ??? 4 = (0 ??? 4) 3 ??? 4 3 ??? 4 = 9 ??? 4 = (1 ??? 4) So, ?2+ ?2 ?????? 4 can only be 0,1 or 2 But 1234567 3 (??? 4), so they cannot be equal!

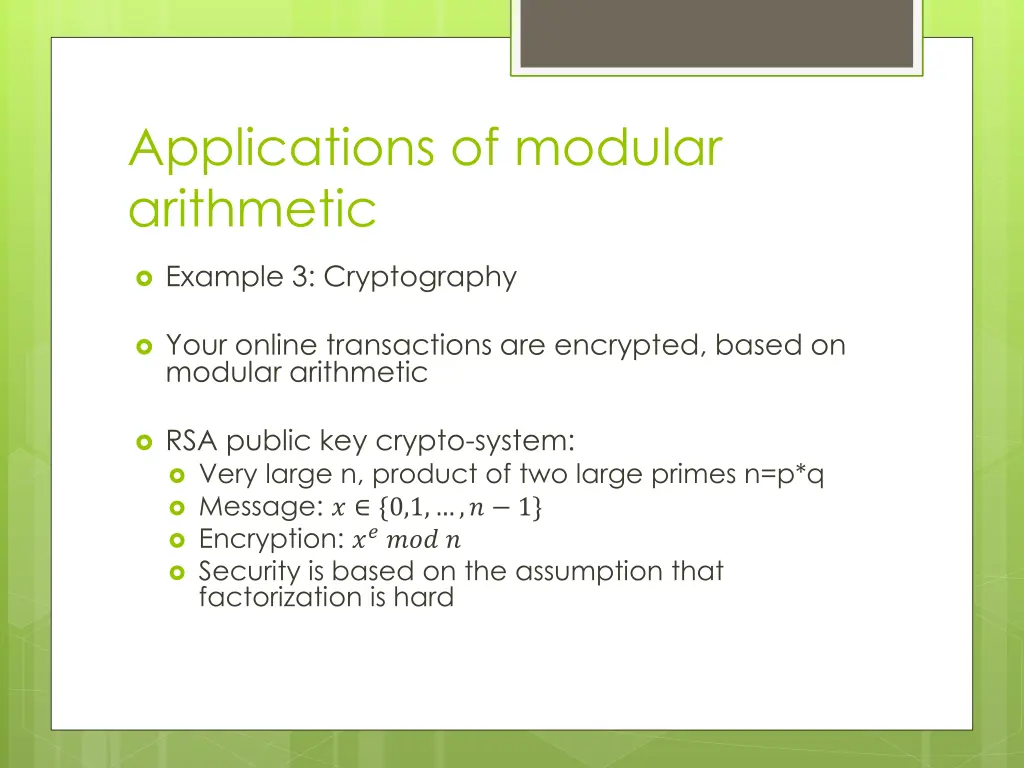

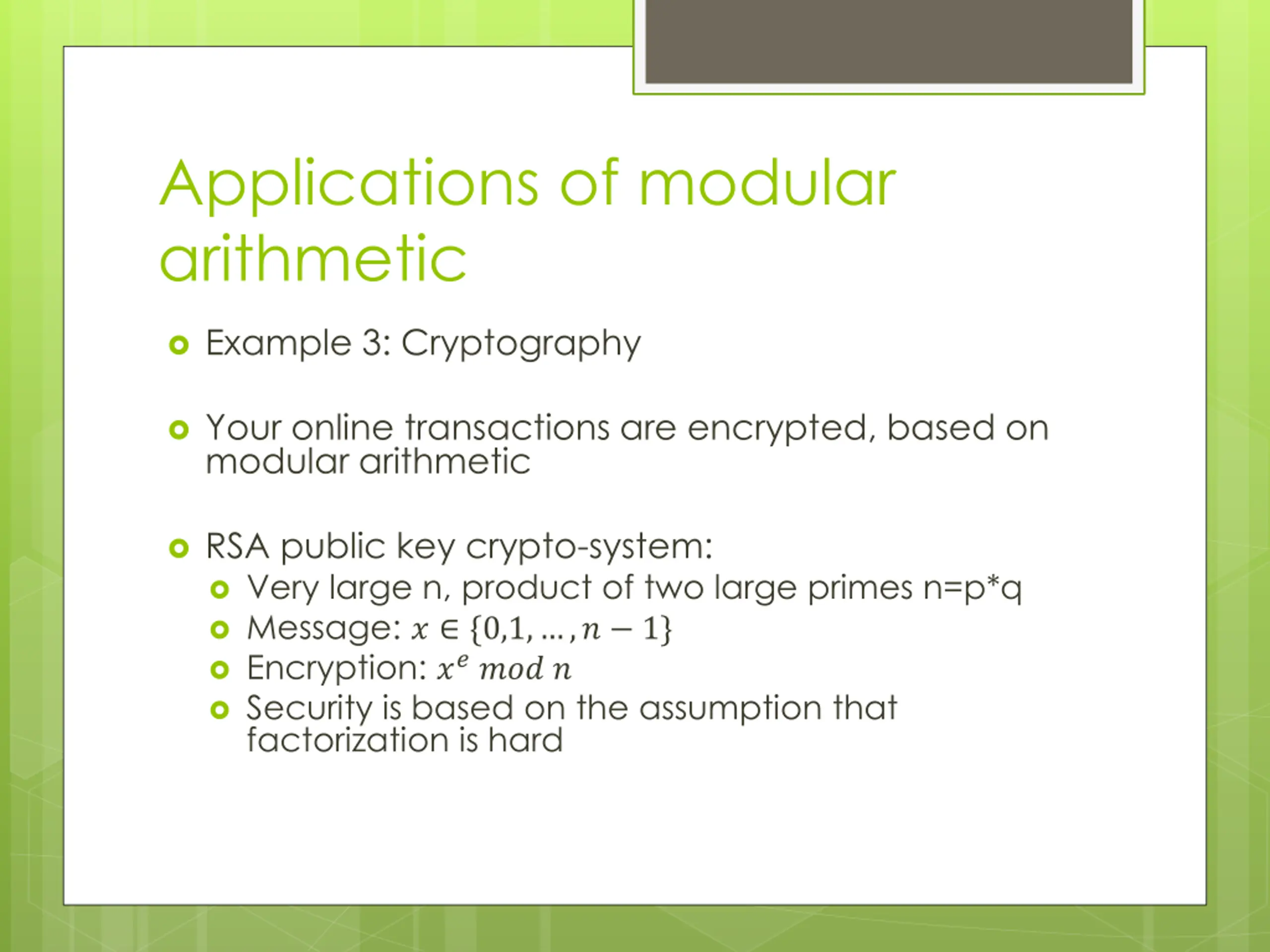

Applications of modular arithmetic Example 3: Cryptography Your online transactions are encrypted, based on modular arithmetic RSA public key crypto-system: Very large n, product of two large primes n=p*q Message: ? {0,1, ,? 1} Encryption: ?? ??? ? Security is based on the assumption that factorization is hard
