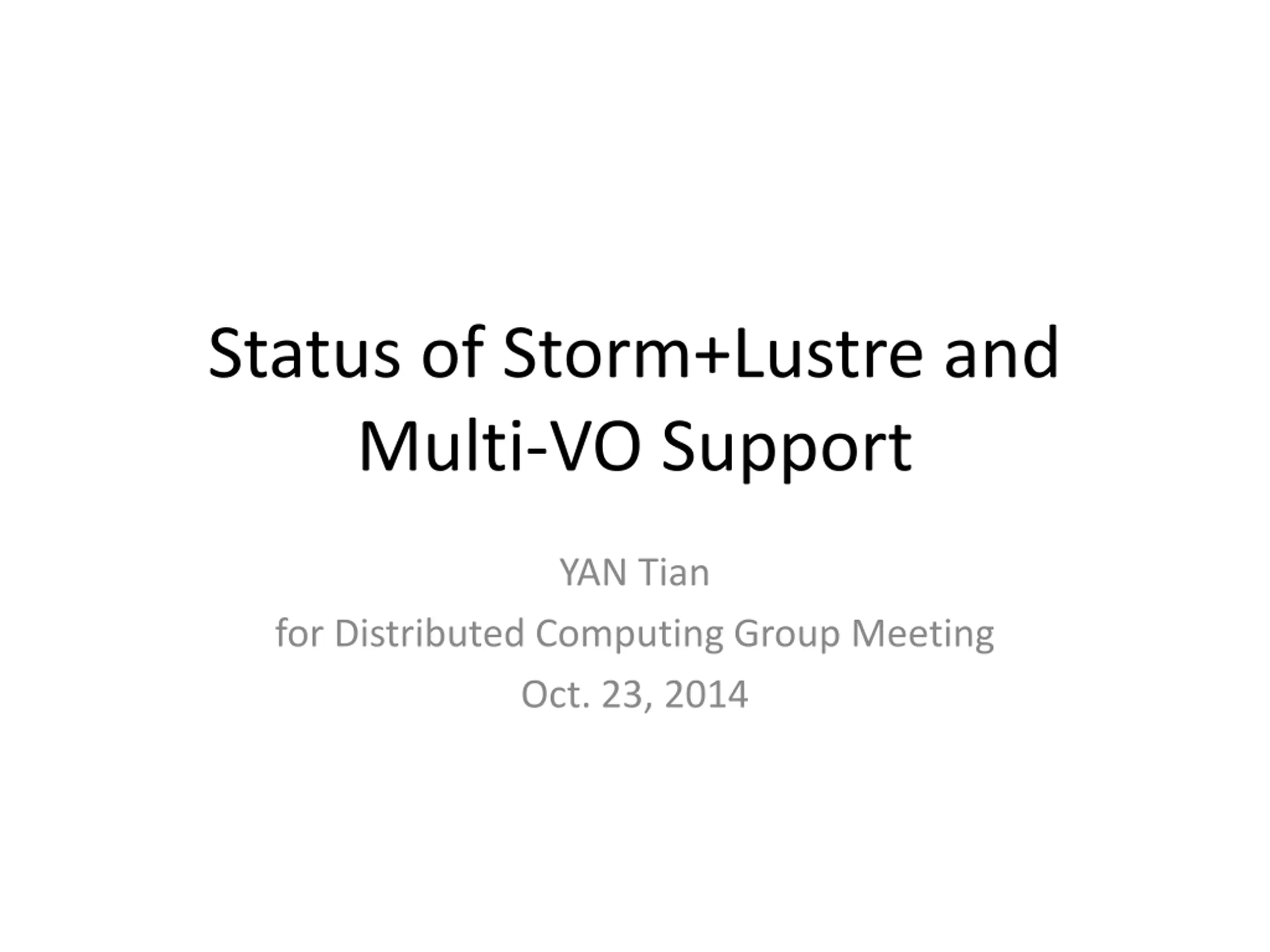

Status of Storm+Lustre and Multi-VO Support YAN Tian for Distributed Computing Group Meeting Oct. 23, 2014

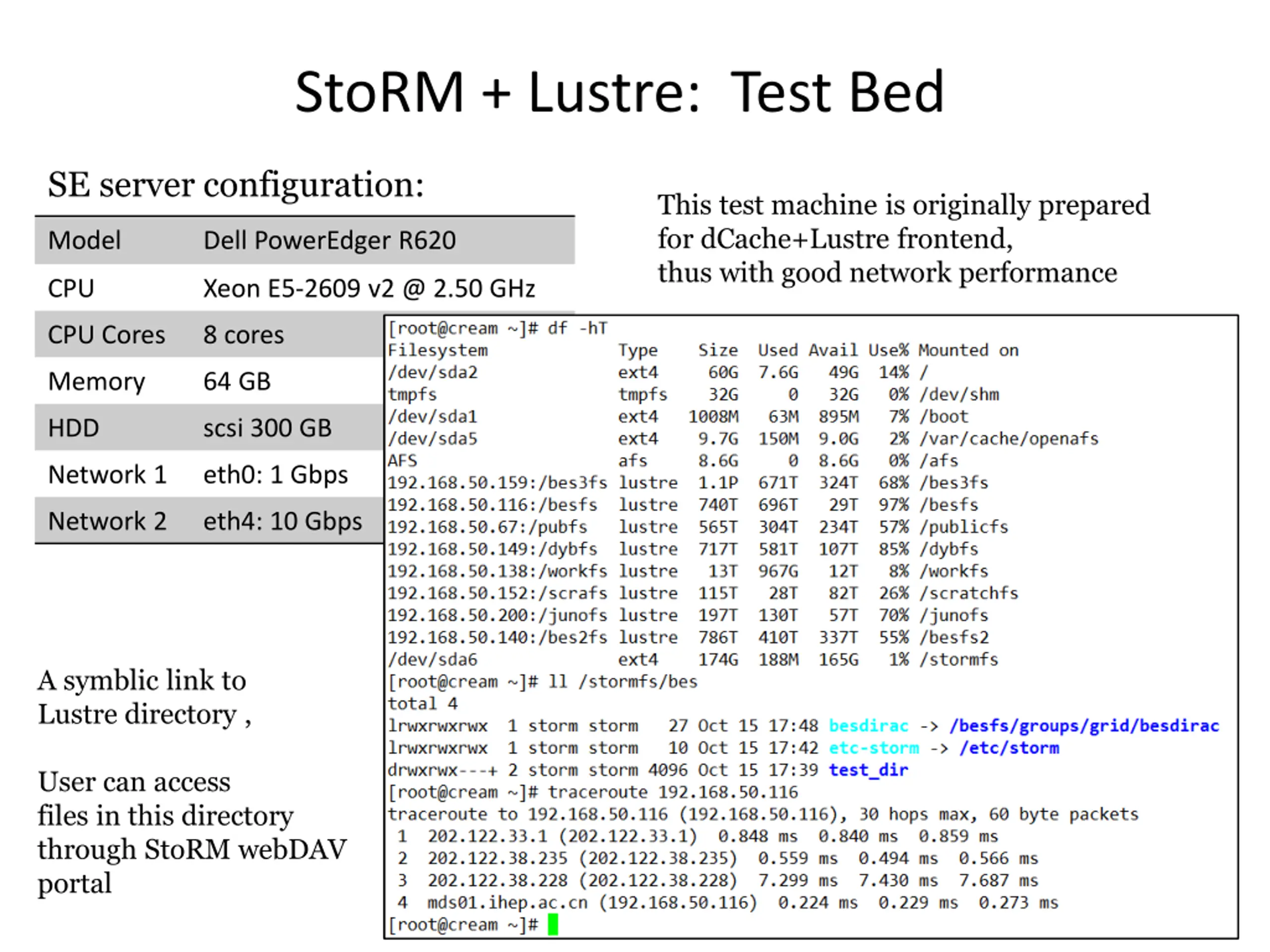

StoRM + Lustre: Test Bed SE server configuration: This test machine is originally prepared for dCache+Lustre frontend, thus with good network performance Model Dell PowerEdger R620 CPU Xeon E5-2609 v2 @ 2.50 GHz CPU Cores 8 cores Memory 64 GB HDD scsi 300 GB Network 1 eth0: 1 Gbps Network 2 eth4: 10 Gbps A symblic link to Lustre directory , User can access files in this directory through StoRM webDAV portal

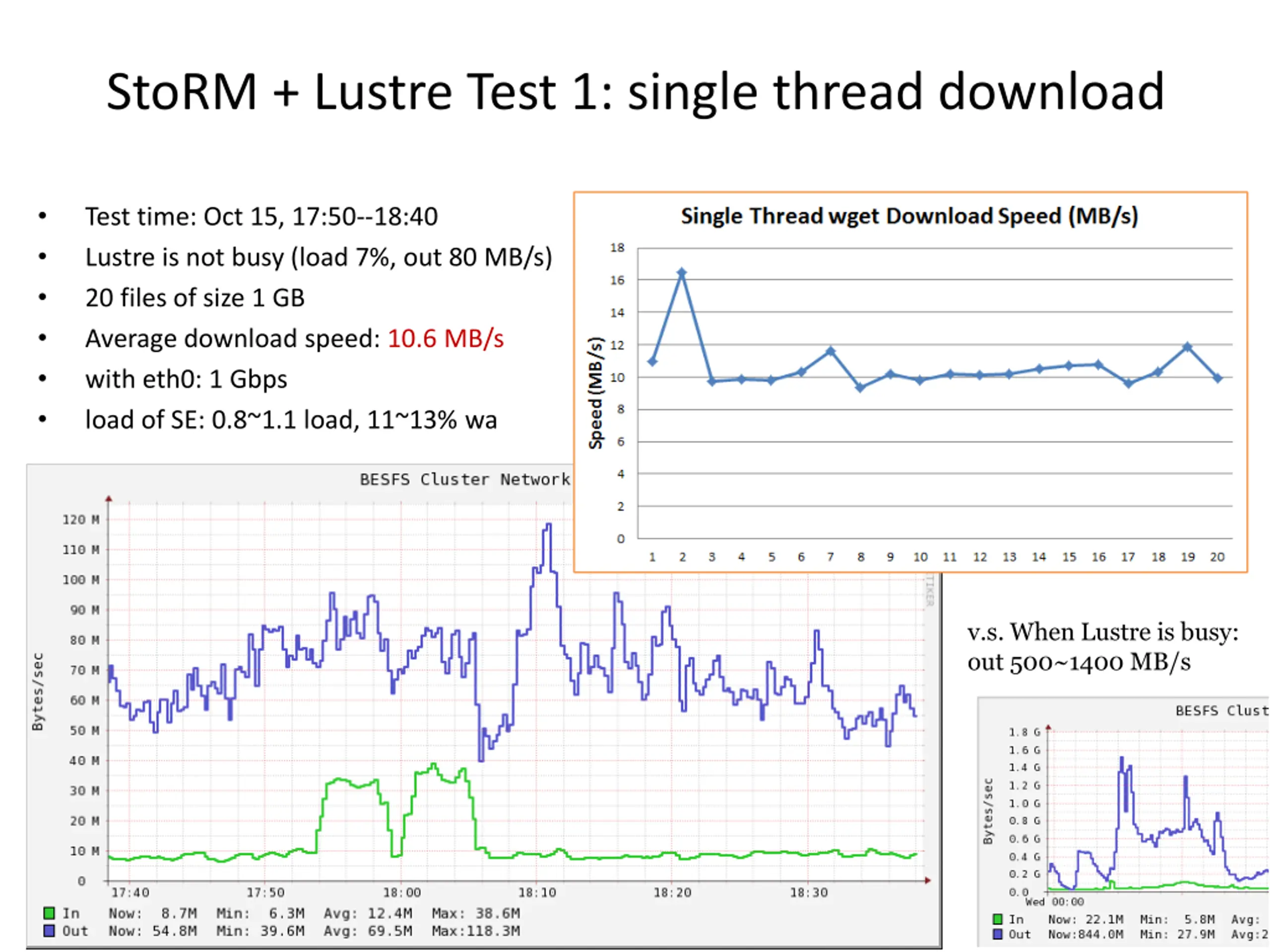

StoRM + Lustre Test 1: single thread download Test time: Oct 15, 17:50--18:40 Lustre is not busy (load 7%, out 80 MB/s) 20 files of size 1 GB Average download speed: 10.6 MB/s with eth0: 1 Gbps load of SE: 0.8~1.1 load, 11~13% wa v.s. When Lustre is busy: out 500~1400 MB/s

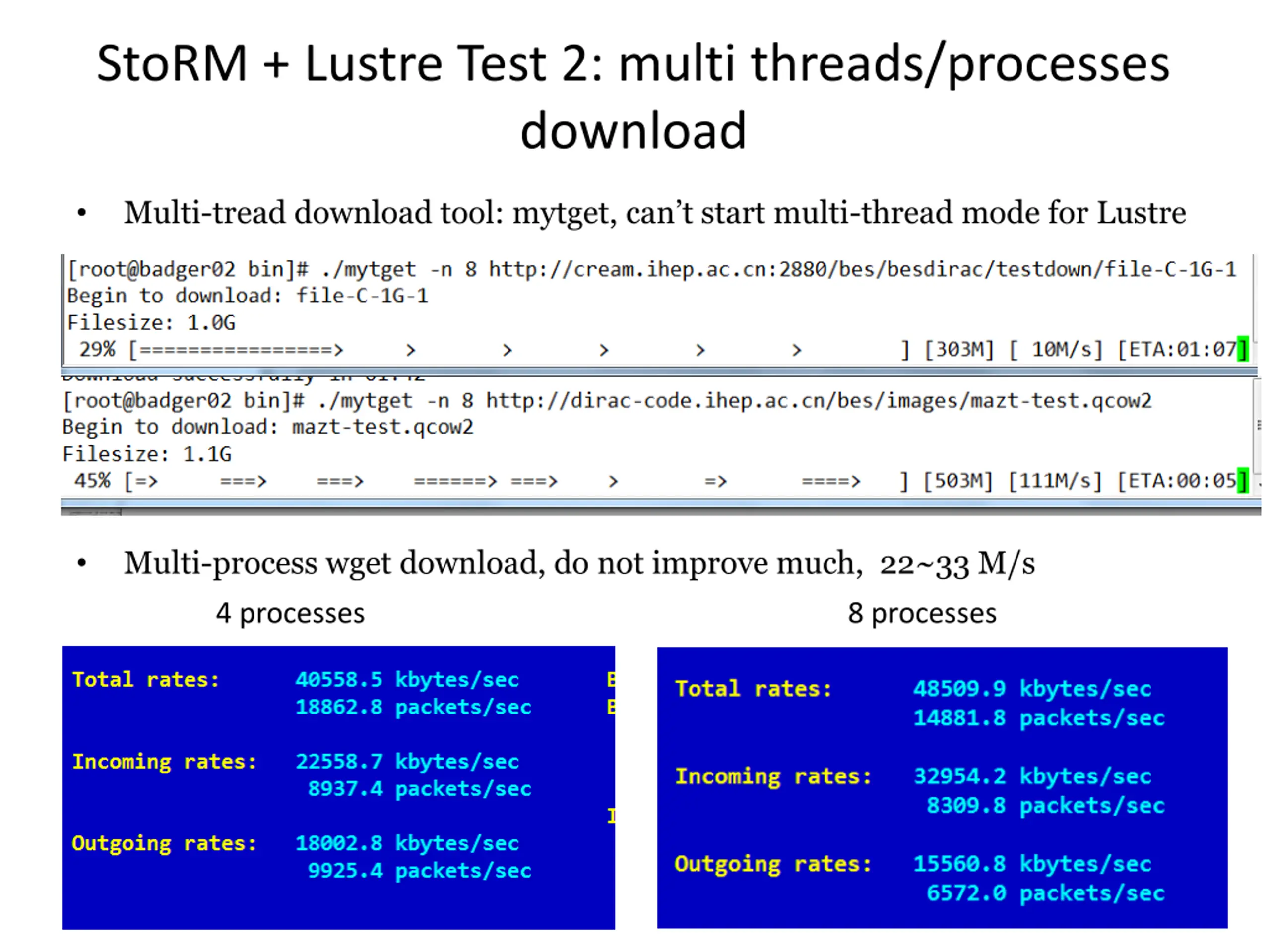

StoRM + Lustre Test 2: multi threads/processes download Multi-tread download tool: mytget, can t start multi-thread mode for Lustre Multi-process wget download, do not improve much, 22~33 M/s 4 processes 8 processes

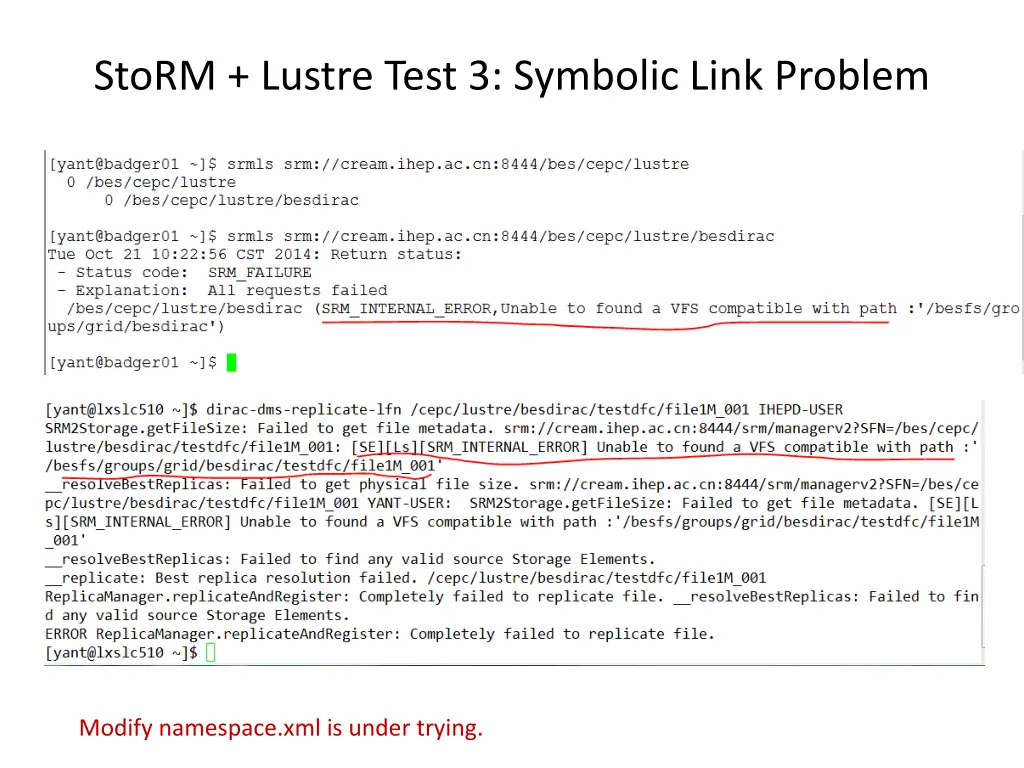

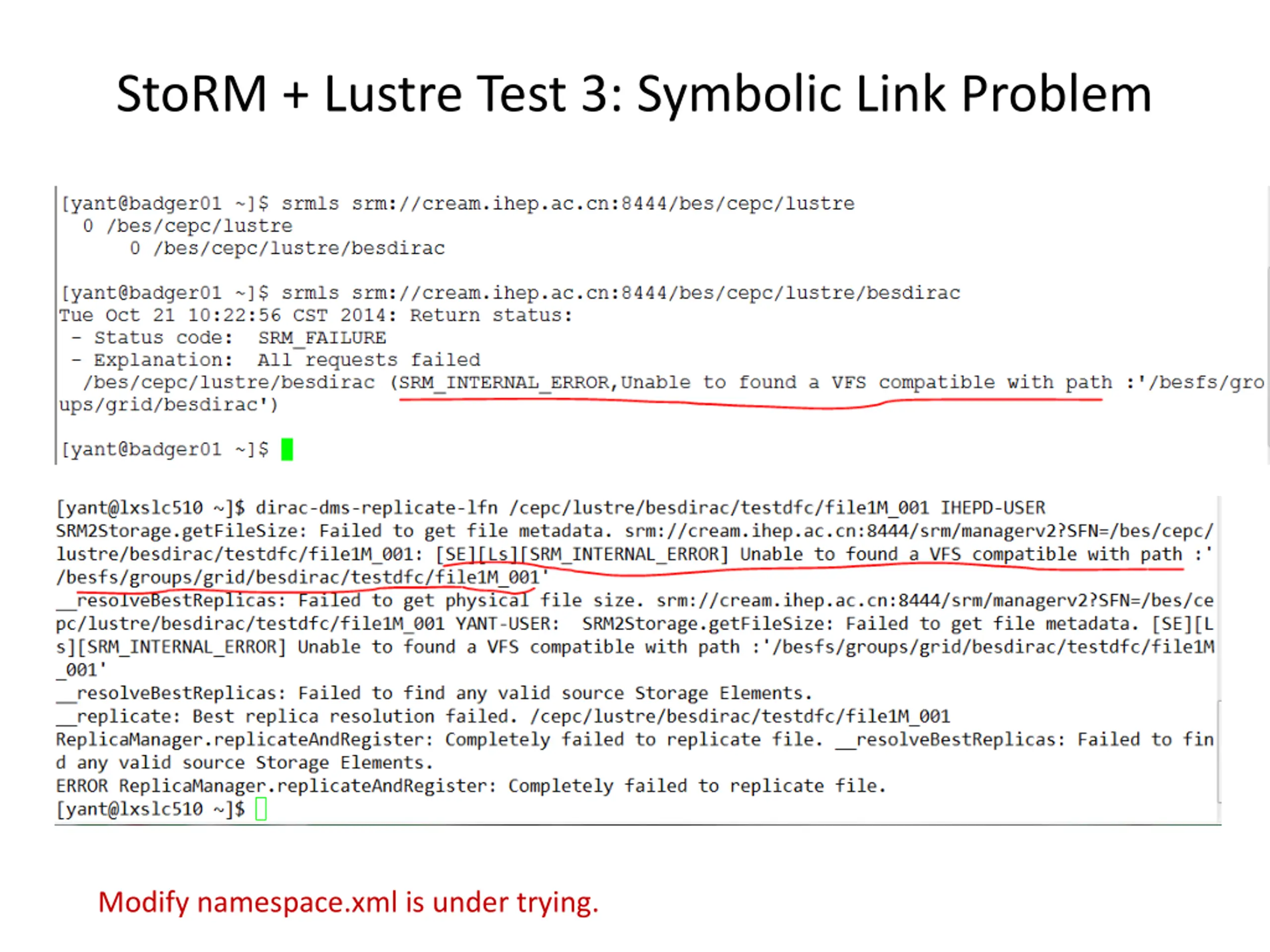

StoRM + Lustre Test 3: Symbolic Link Problem Modify namespace.xml is under trying.

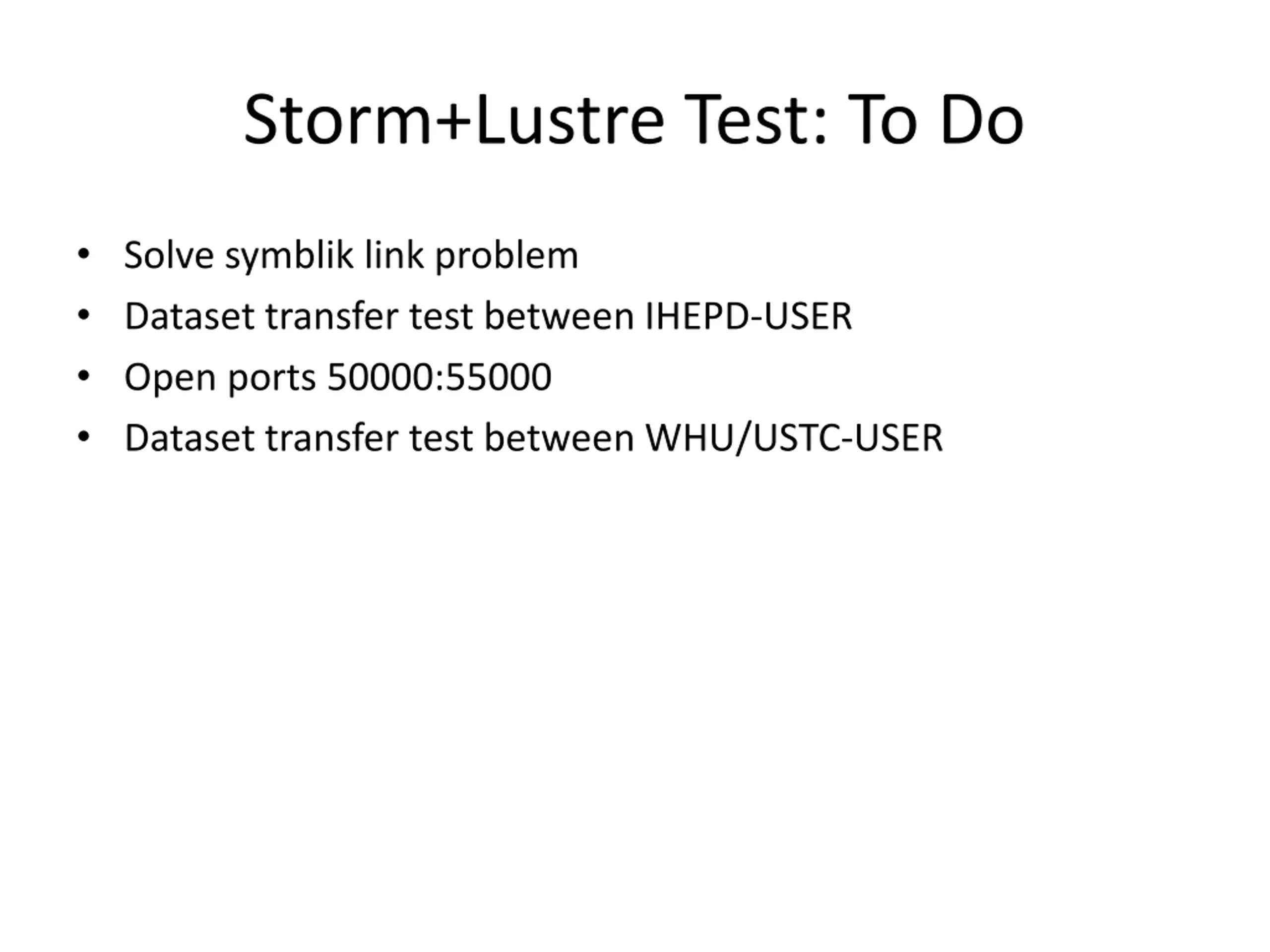

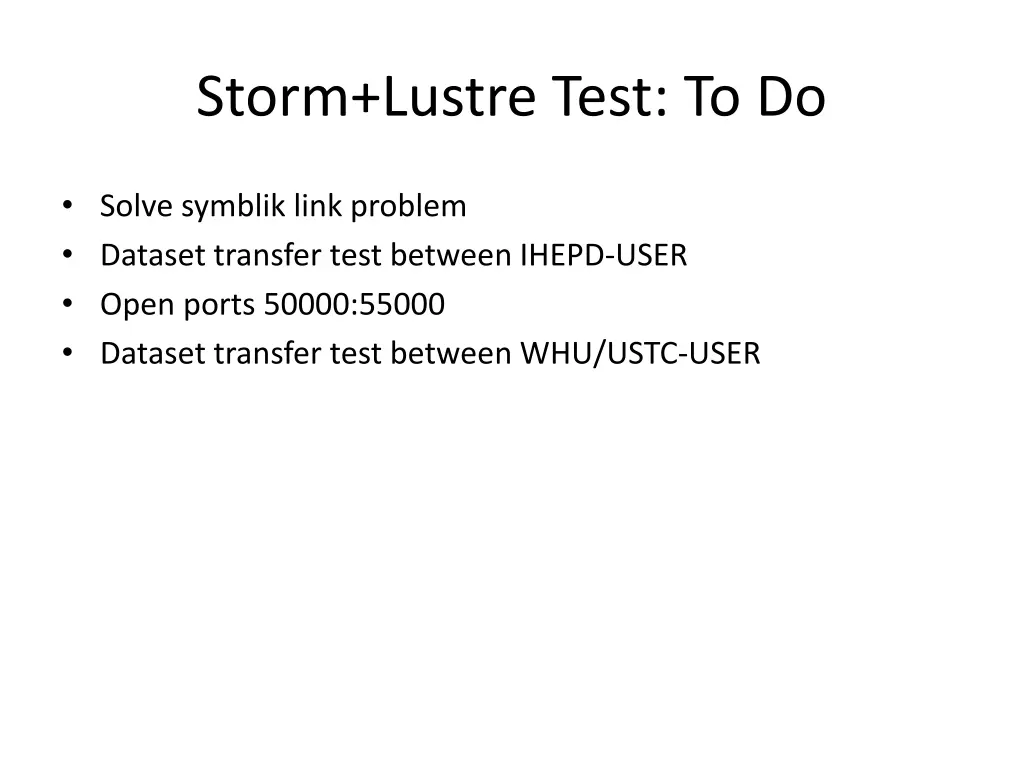

Storm+Lustre Test: To Do Solve symblik link problem Dataset transfer test between IHEPD-USER Open ports 50000:55000 Dataset transfer test between WHU/USTC-USER

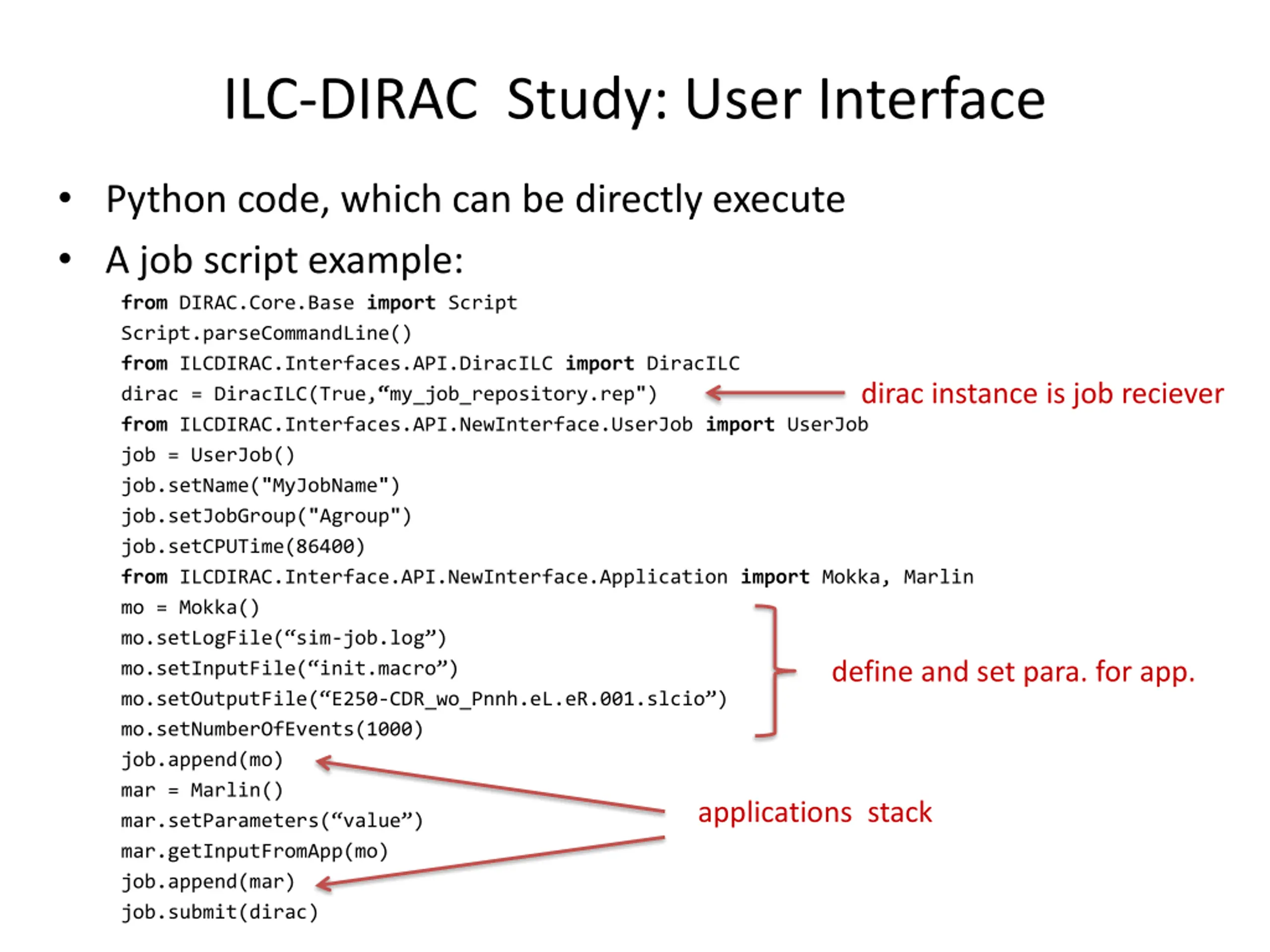

ILC-DIRAC Study: User Interface Python code, which can be directly execute A job script example: from DIRAC.Core.Base import Script Script.parseCommandLine() from ILCDIRAC.Interfaces.API.DiracILC import DiracILC dirac = DiracILC(True, my_job_repository.rep") from ILCDIRAC.Interfaces.API.NewInterface.UserJob import UserJob job = UserJob() job.setName("MyJobName") job.setJobGroup("Agroup") job.setCPUTime(86400) from ILCDIRAC.Interface.API.NewInterface.Application import Mokka, Marlin mo = Mokka() mo.setLogFile( sim-job.log ) mo.setInputFile( init.macro ) mo.setOutputFile( E250-CDR_wo_Pnnh.eL.eR.001.slcio ) mo.setNumberOfEvents(1000) job.append(mo) mar = Marlin() mar.setParameters( value ) mar.getInputFromApp(mo) job.append(mar) job.submit(dirac) dirac instance is job reciever define and set para. for app. applications stack

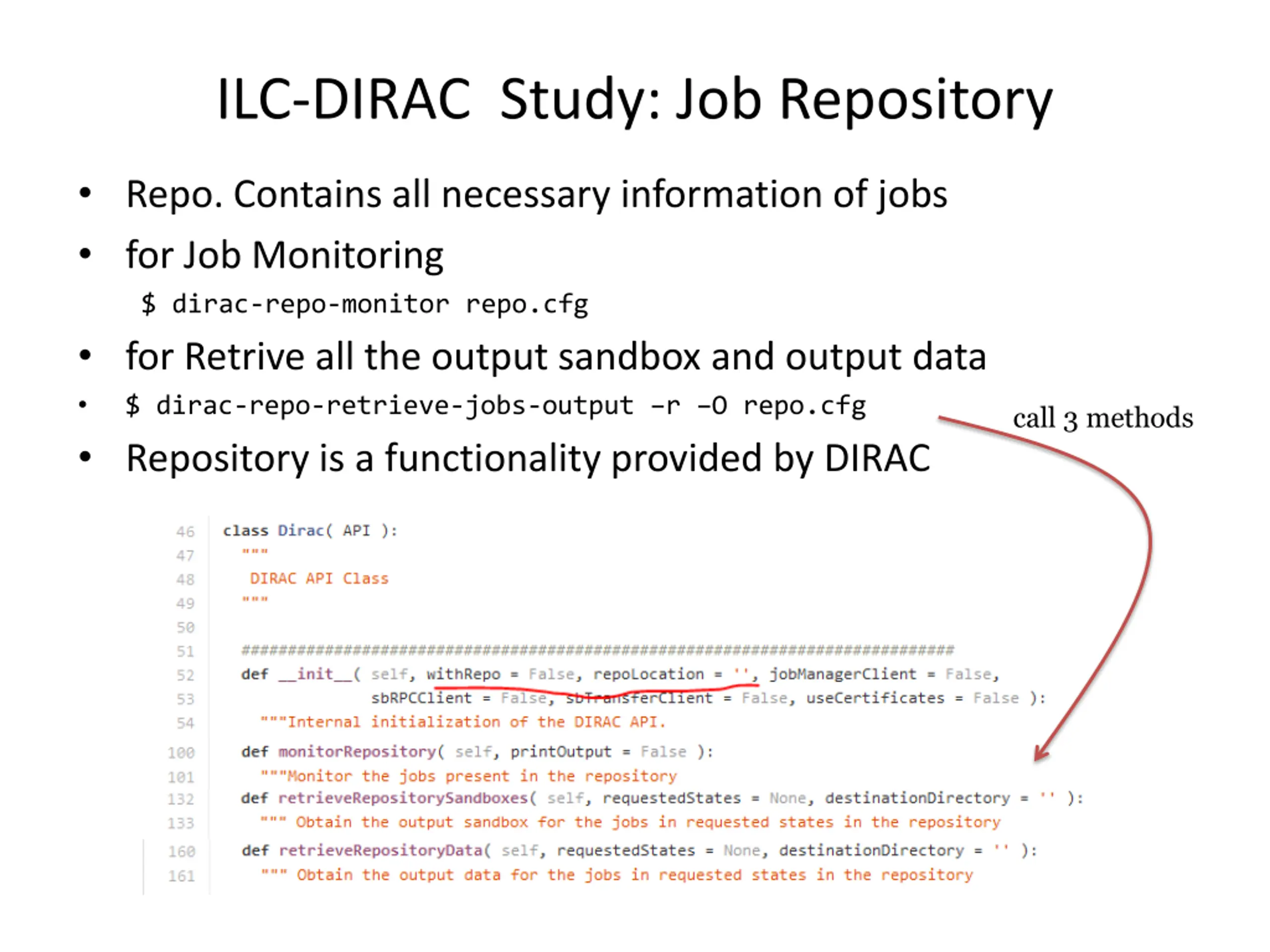

ILC-DIRAC Study: Job Repository Repo. Contains all necessary information of jobs for Job Monitoring $ dirac-repo-monitor repo.cfg for Retrive all the output sandbox and output data $ dirac-repo-retrieve-jobs-output r O repo.cfg Repository is a functionality provided by DIRAC call 3 methods

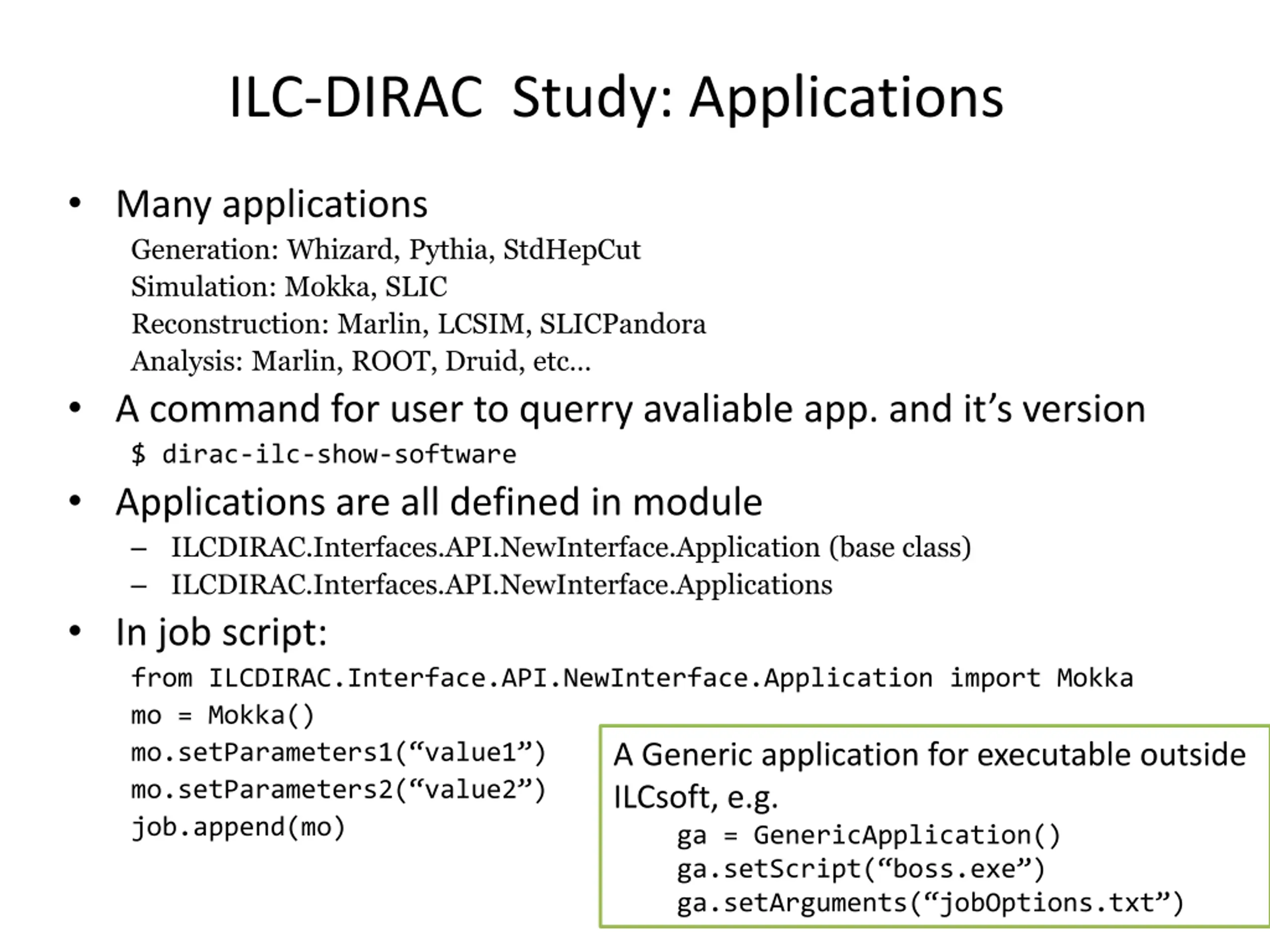

ILC-DIRAC Study: Applications Many applications Generation: Whizard, Pythia, StdHepCut Simulation: Mokka, SLIC Reconstruction: Marlin, LCSIM, SLICPandora Analysis: Marlin, ROOT, Druid, etc A command for user to querry avaliable app. and it s version $ dirac-ilc-show-software Applications are all defined in module ILCDIRAC.Interfaces.API.NewInterface.Application (base class) ILCDIRAC.Interfaces.API.NewInterface.Applications In job script: from ILCDIRAC.Interface.API.NewInterface.Application import Mokka mo = Mokka() mo.setParameters1( value1 ) mo.setParameters2( value2 ) job.append(mo) A Generic application for executable outside ILCsoft, e.g. ga = GenericApplication() ga.setScript( boss.exe ) ga.setArguments( jobOptions.txt )

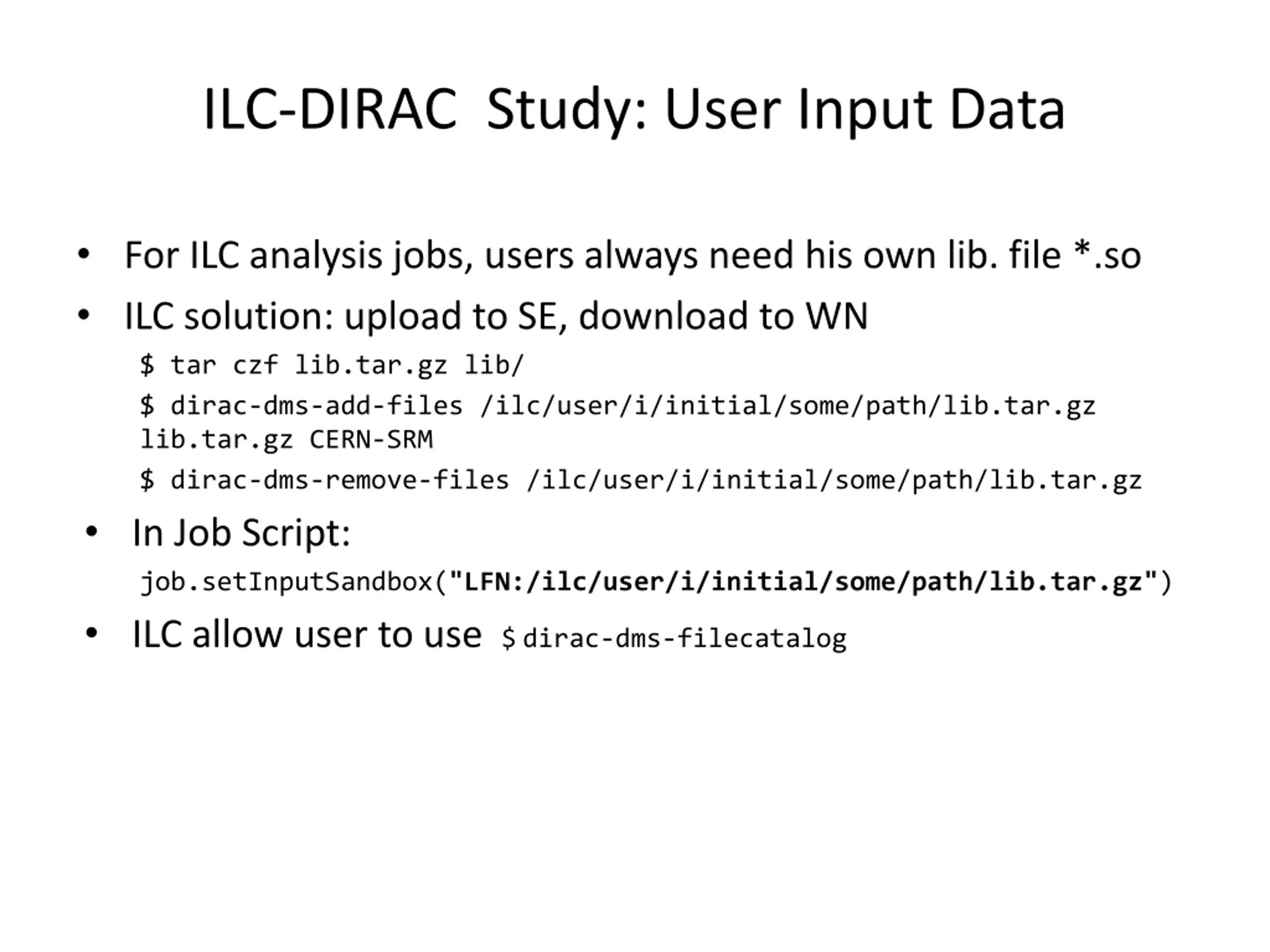

ILC-DIRAC Study: User Input Data For ILC analysis jobs, users always need his own lib. file *.so ILC solution: upload to SE, download to WN $ tar czf lib.tar.gz lib/ $ dirac-dms-add-files /ilc/user/i/initial/some/path/lib.tar.gz lib.tar.gz CERN-SRM $ dirac-dms-remove-files /ilc/user/i/initial/some/path/lib.tar.gz In Job Script: job.setInputSandbox("LFN:/ilc/user/i/initial/some/path/lib.tar.gz") ILC allow user to use $ dirac-dms-filecatalog

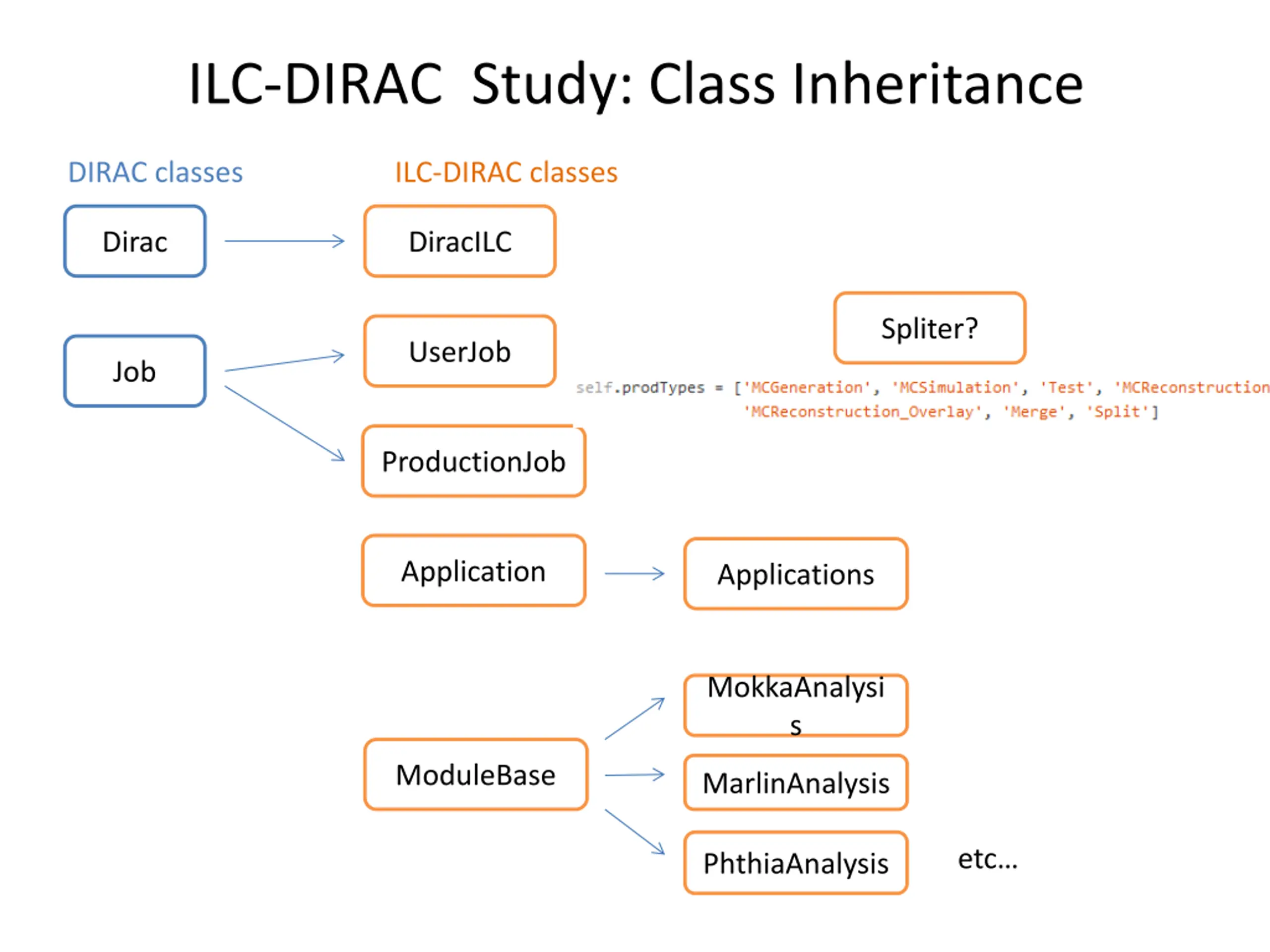

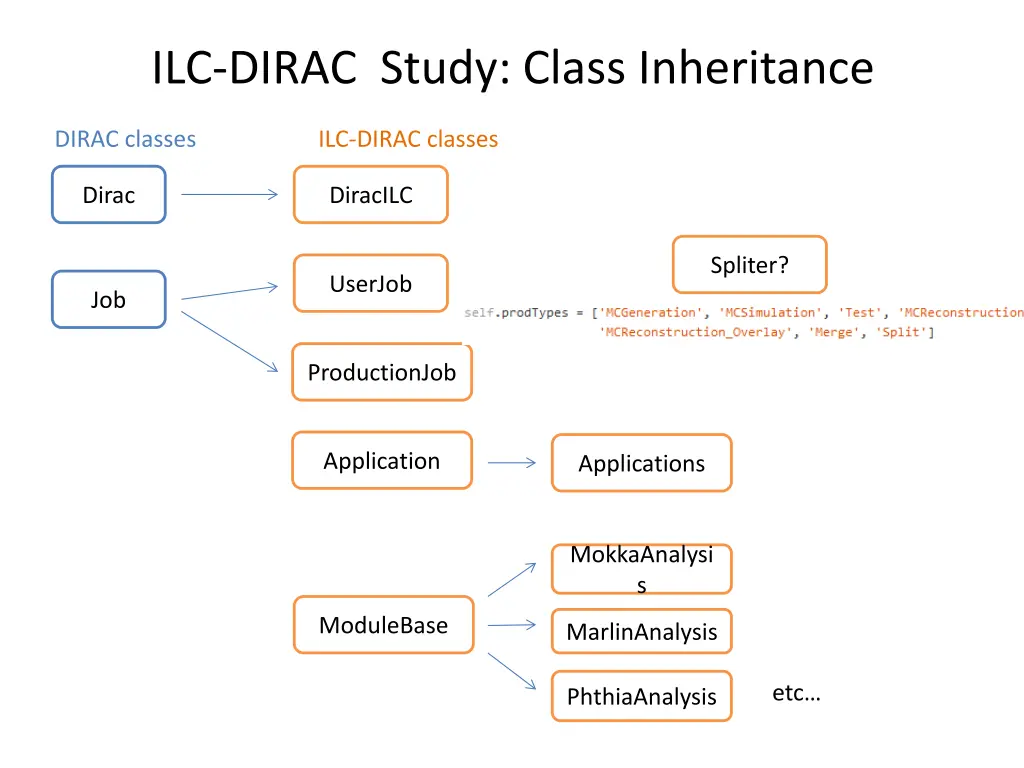

ILC-DIRAC Study: Class Inheritance DIRAC classes ILC-DIRAC classes Dirac DiracILC Spliter? UserJob Job ProductionJob Application Applications MokkaAnalysi s ModuleBase MarlinAnalysis etc PhthiaAnalysis

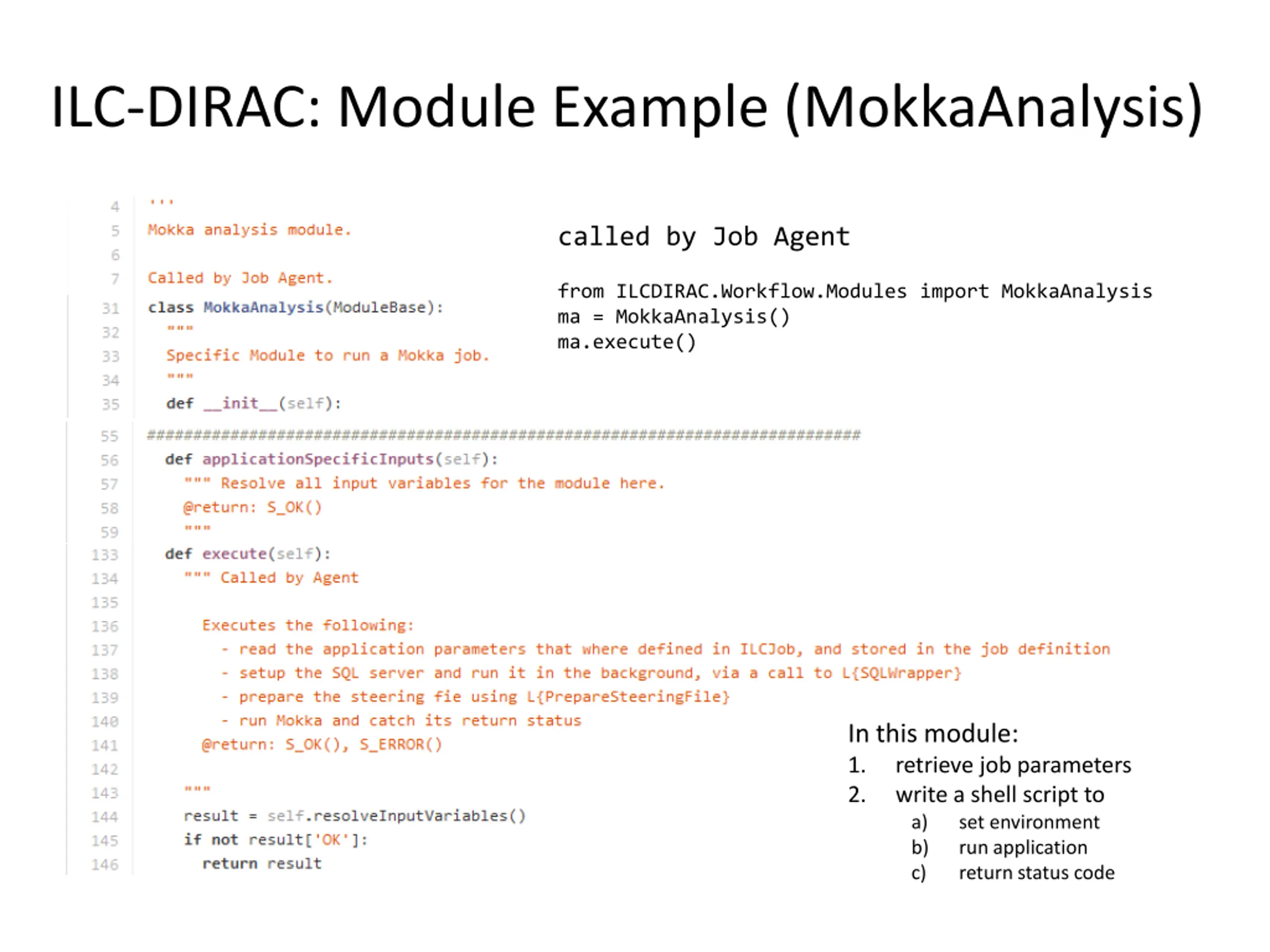

ILC-DIRAC: Module Example (MokkaAnalysis) called by Job Agent from ILCDIRAC.Workflow.Modules import MokkaAnalysis ma = MokkaAnalysis() ma.execute() In this module: 1. retrieve job parameters 2. write a shell script to a) set environment b) run application c) return status code
