Advanced Export To Excel Using Field-Map Scripting IFER Monitoring and Mapping Solutions Ltd. http://www.field-map.com

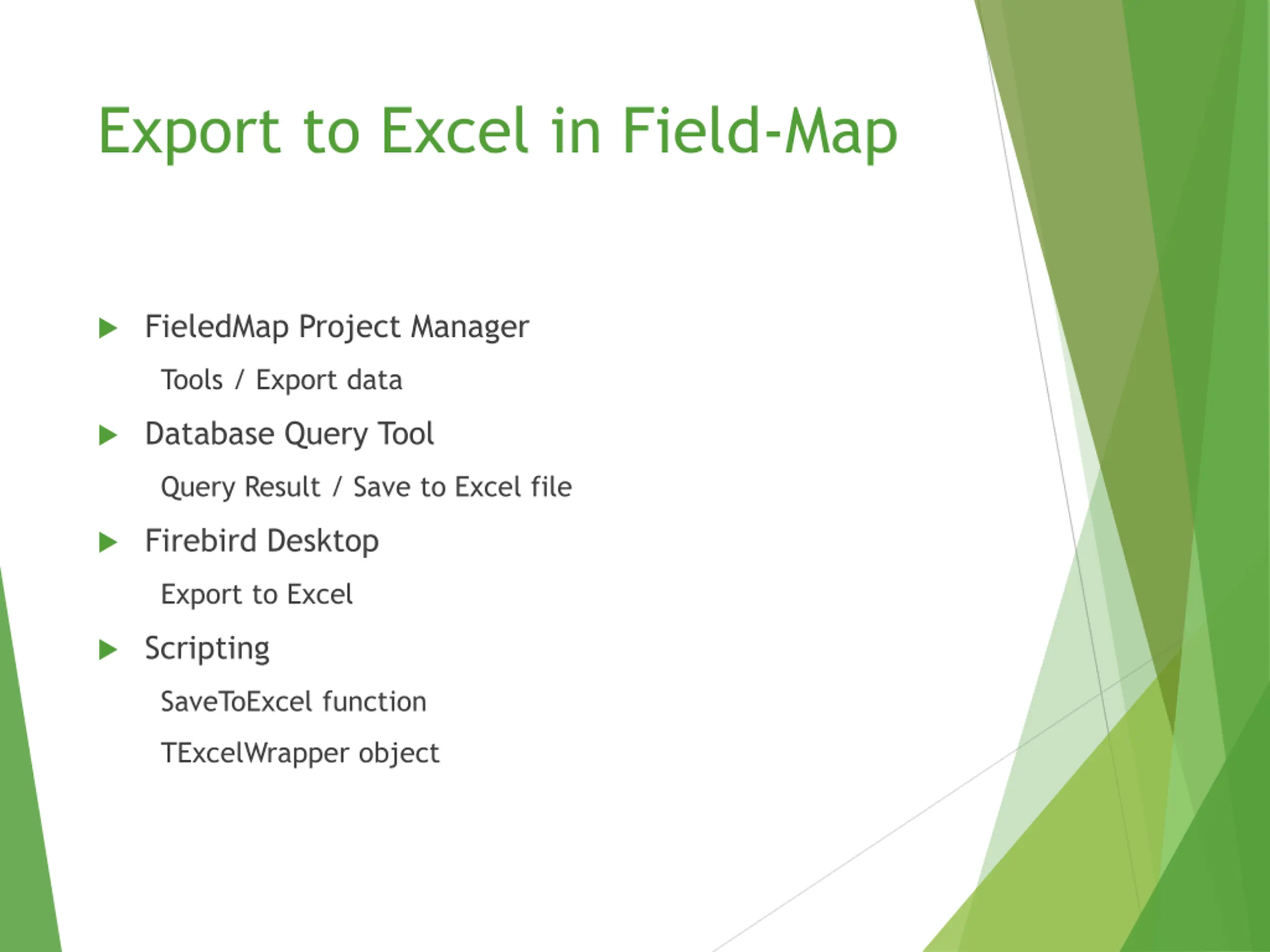

Export to Excel in Field-Map FieledMap Project Manager Tools / Export data Database Query Tool Query Result / Save to Excel file Firebird Desktop Export to Excel Scripting SaveToExcel function TExcelWrapper object

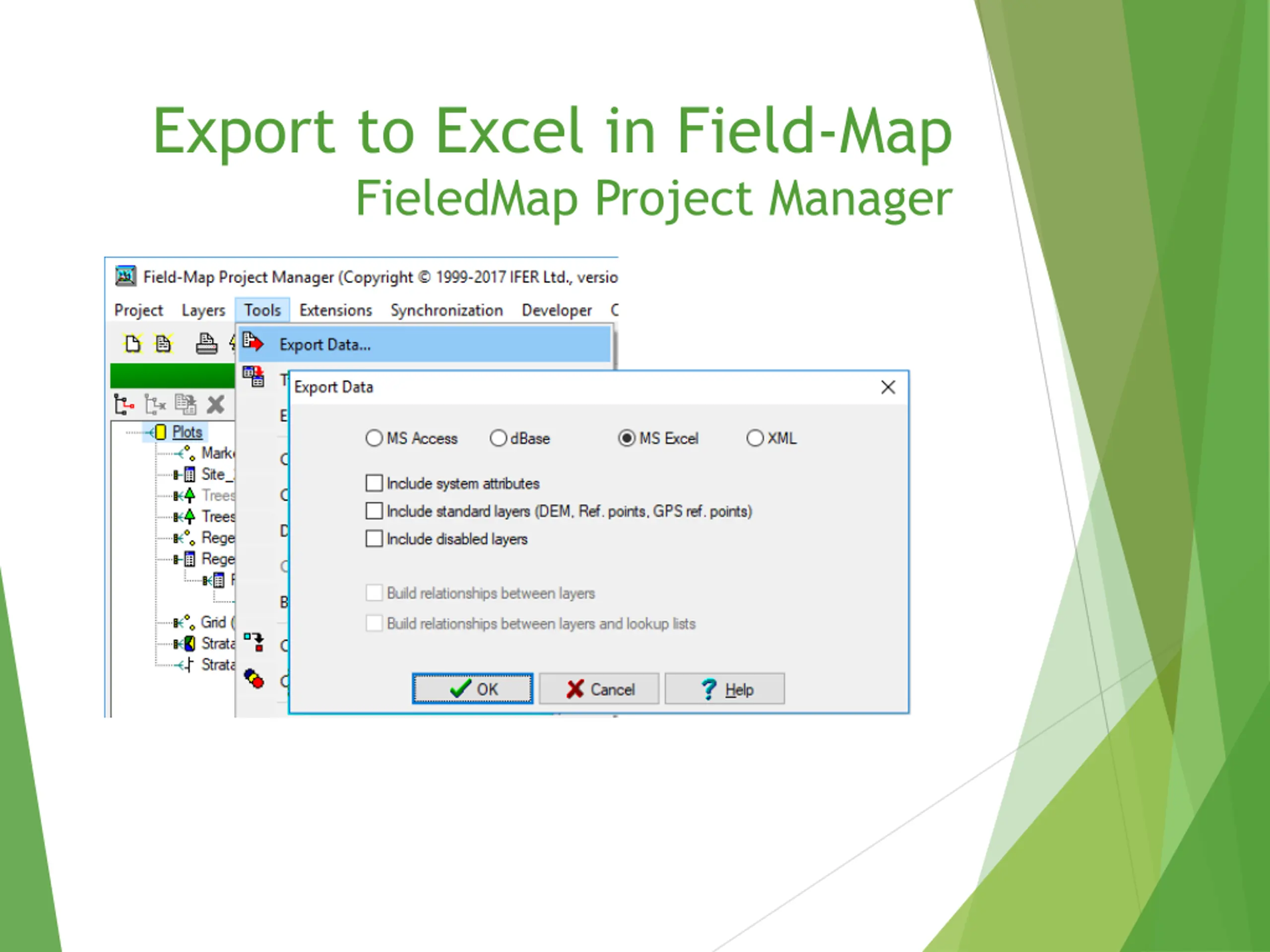

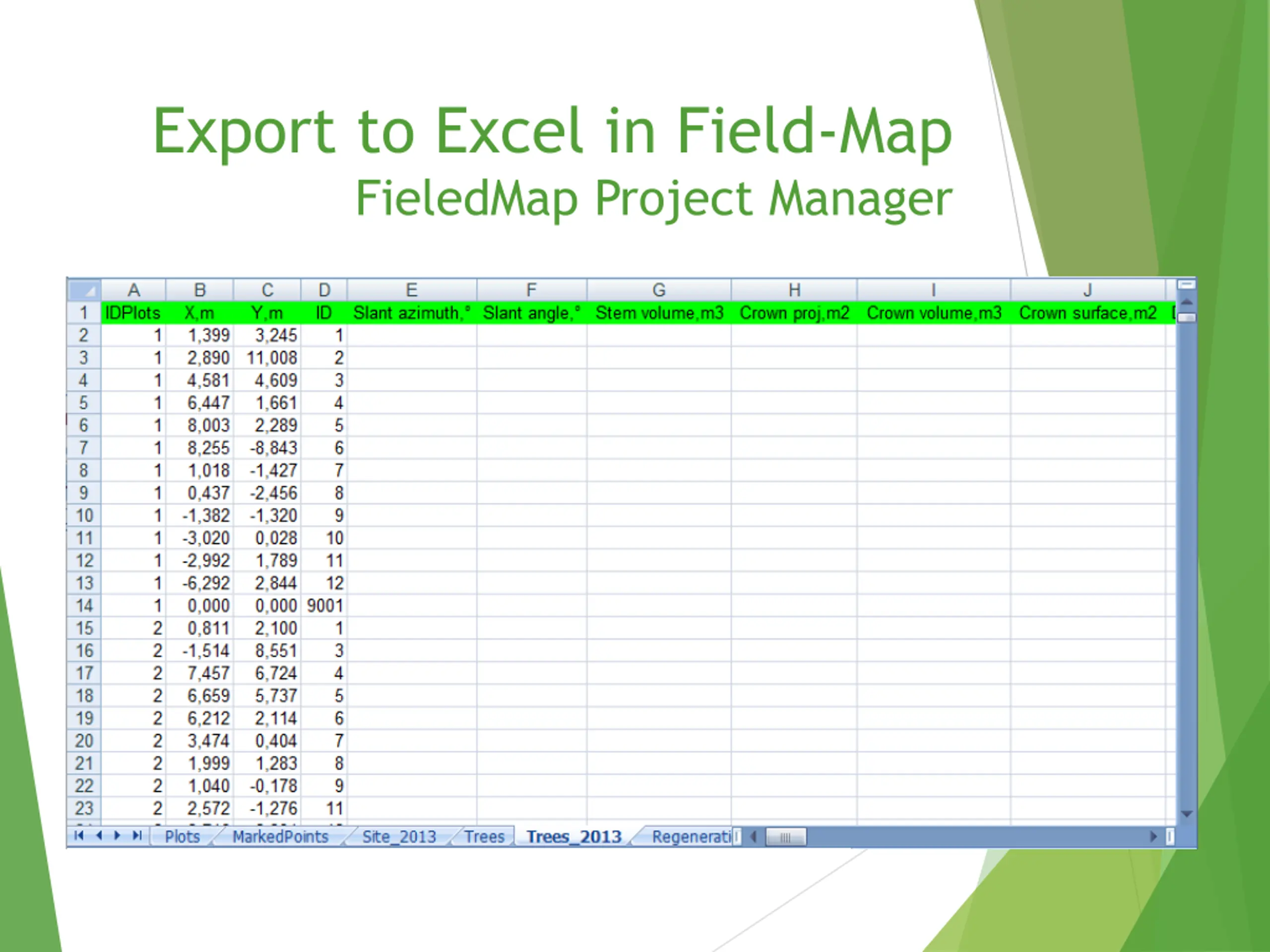

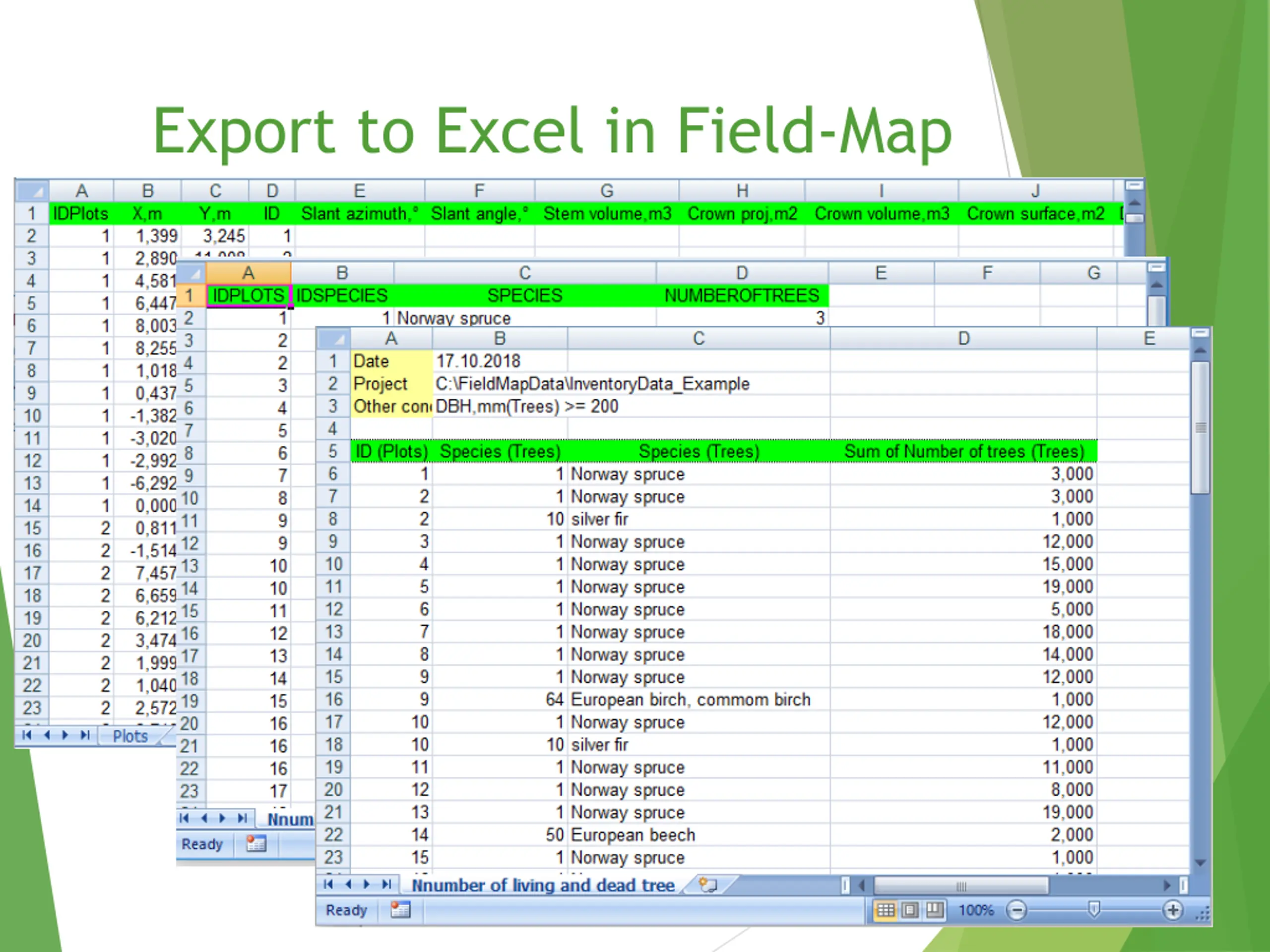

Export to Excel in Field-Map FieledMap Project Manager
Export to Excel in Field-Map FieledMap Project Manager

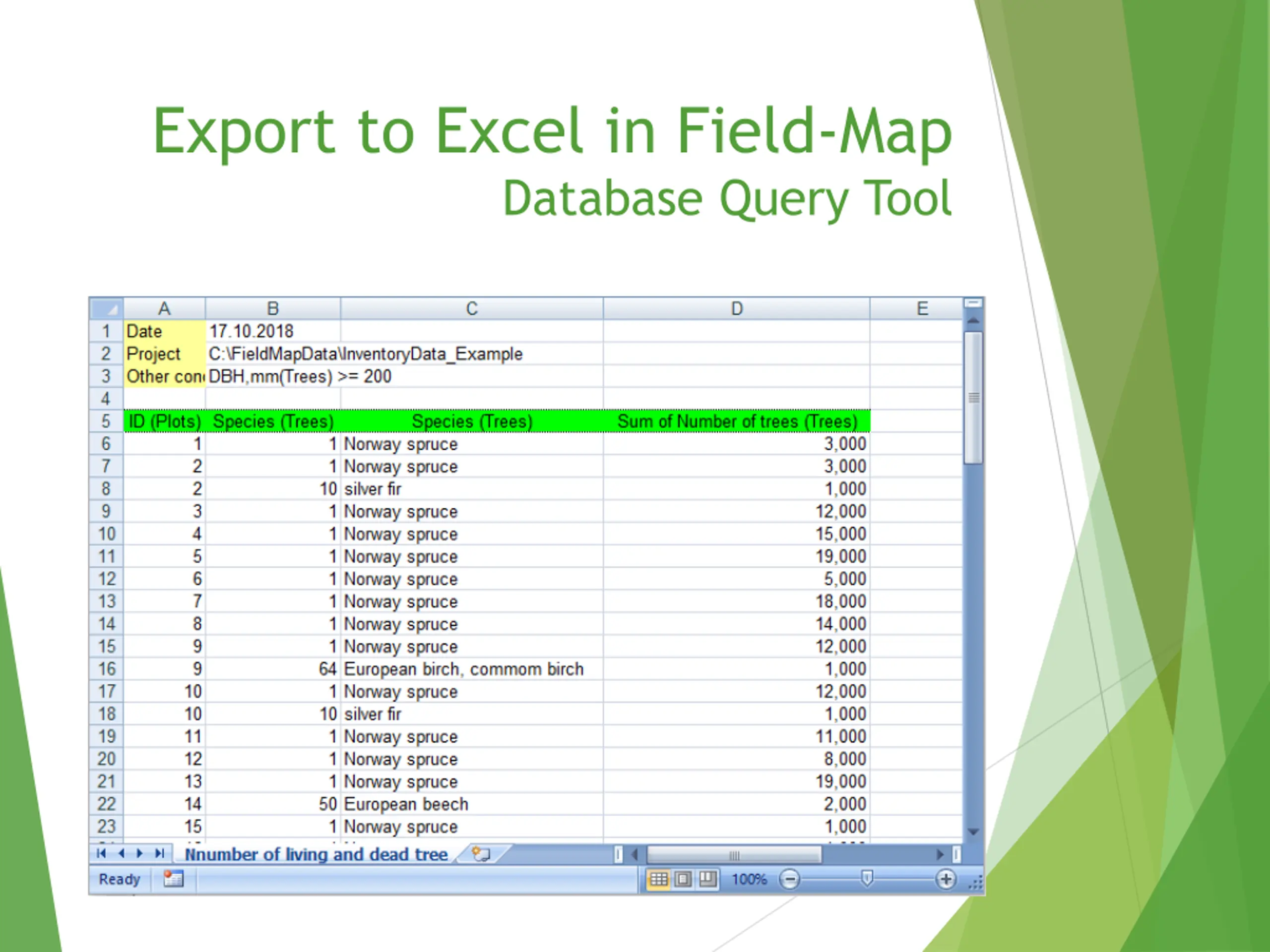

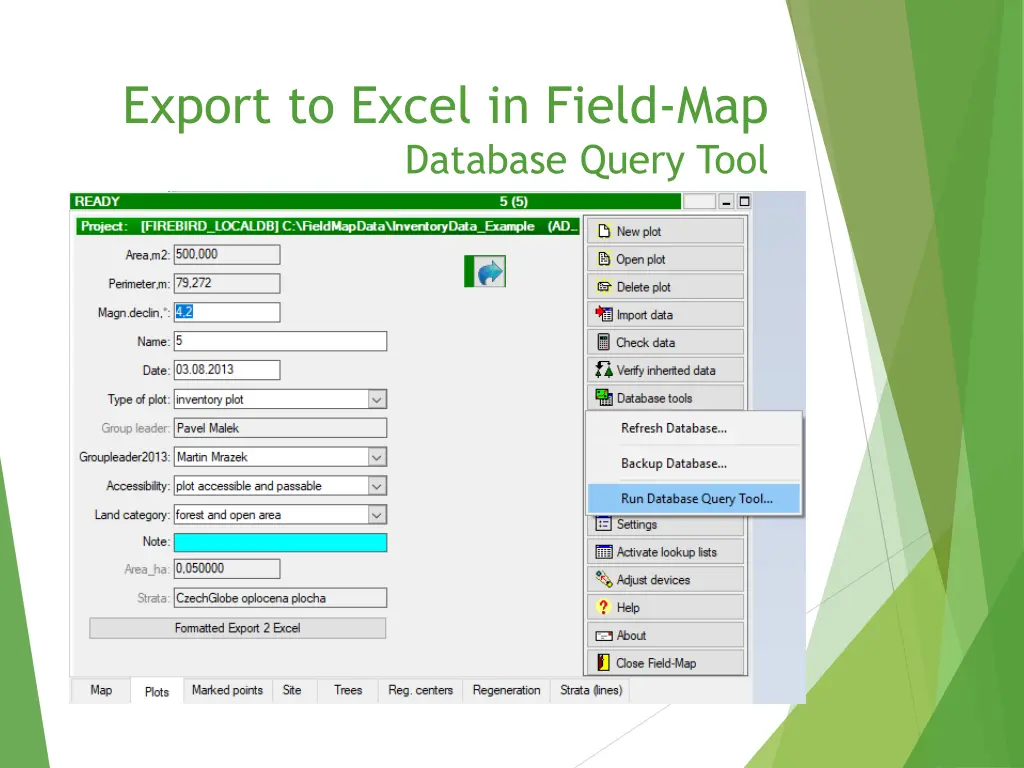

Export to Excel in Field-Map Database Query Tool

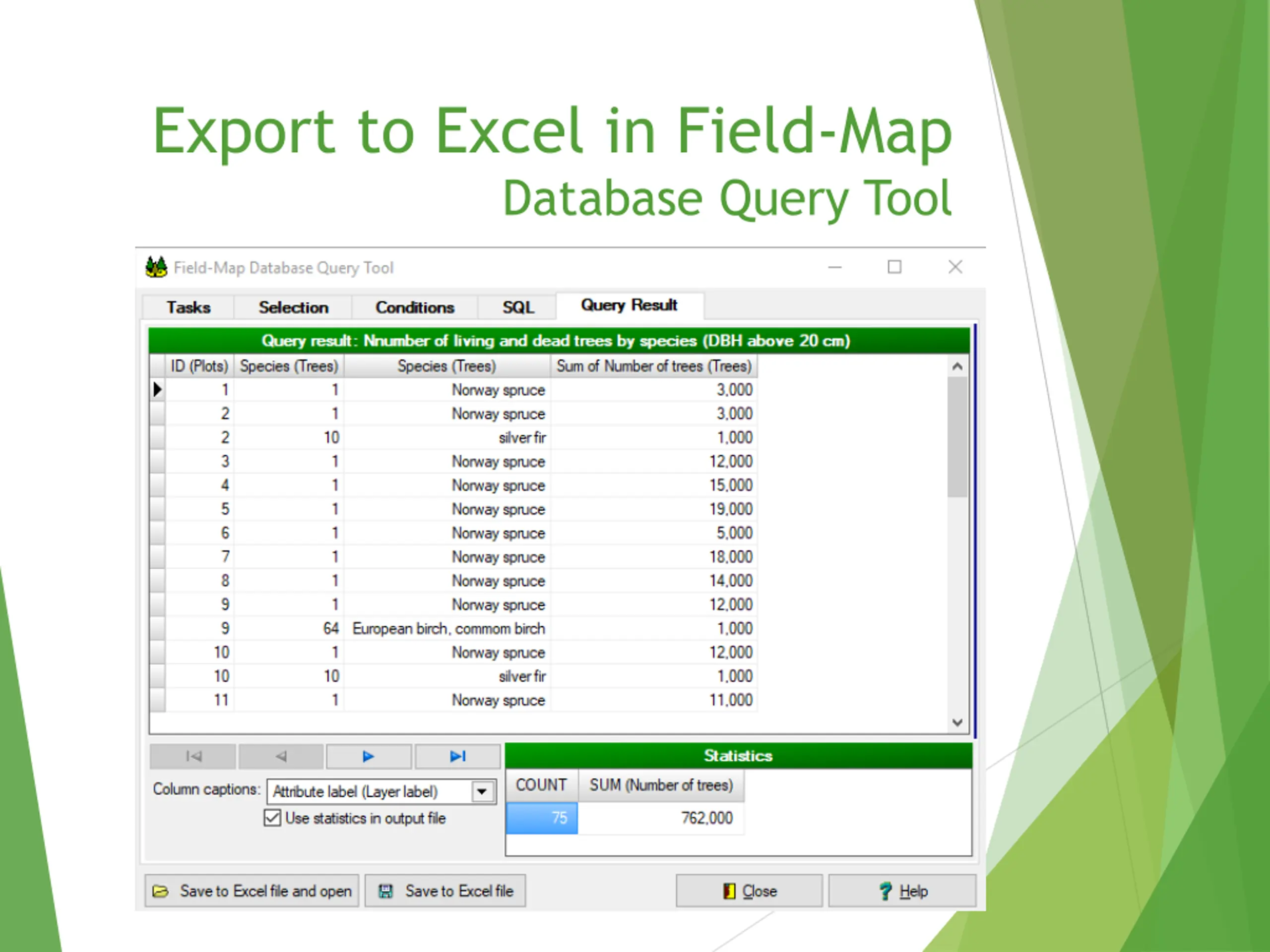

Export to Excel in Field-Map Database Query Tool
Export to Excel in Field-Map Database Query Tool

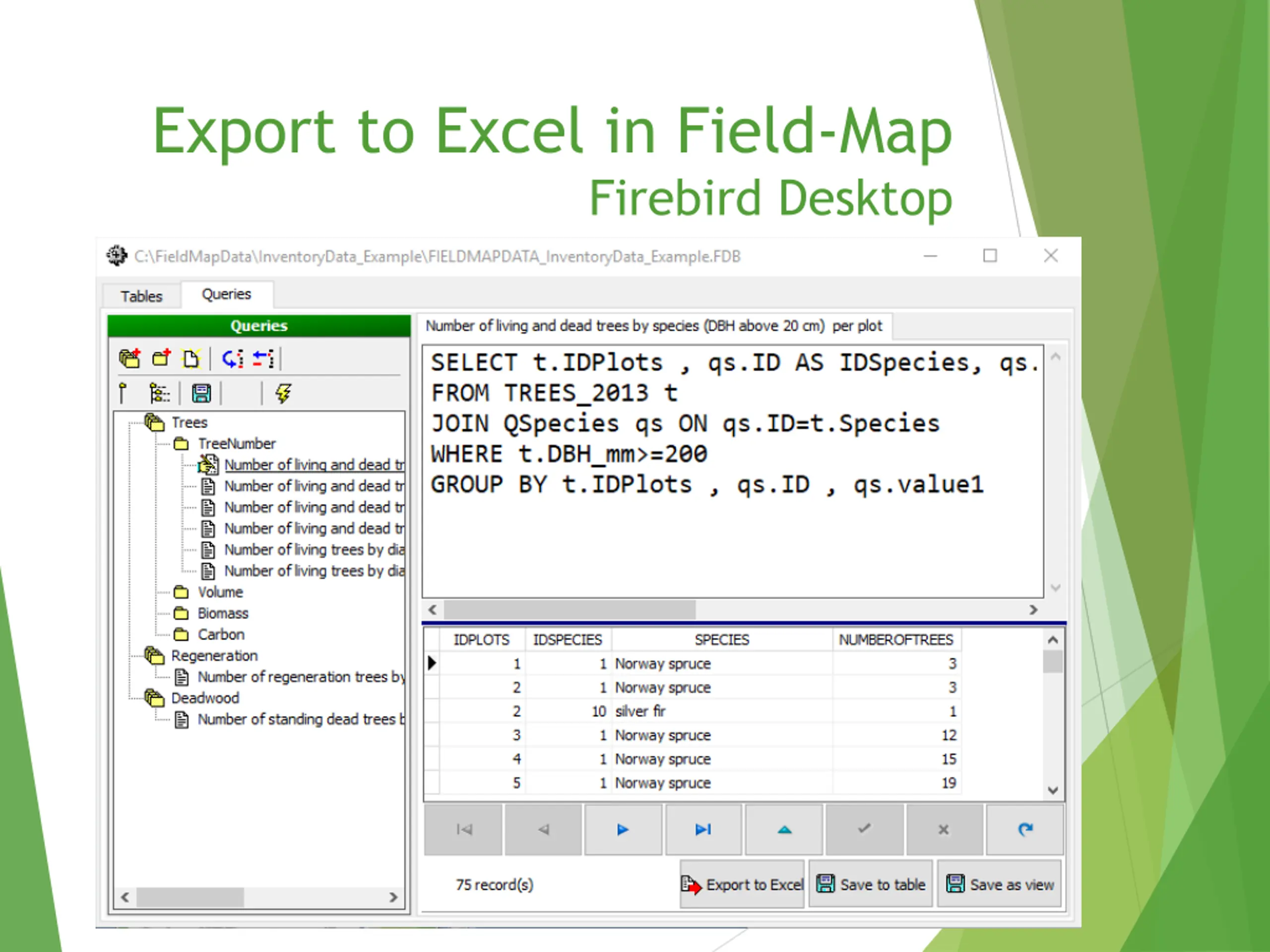

Export to Excel in Field-Map Firebird Desktop

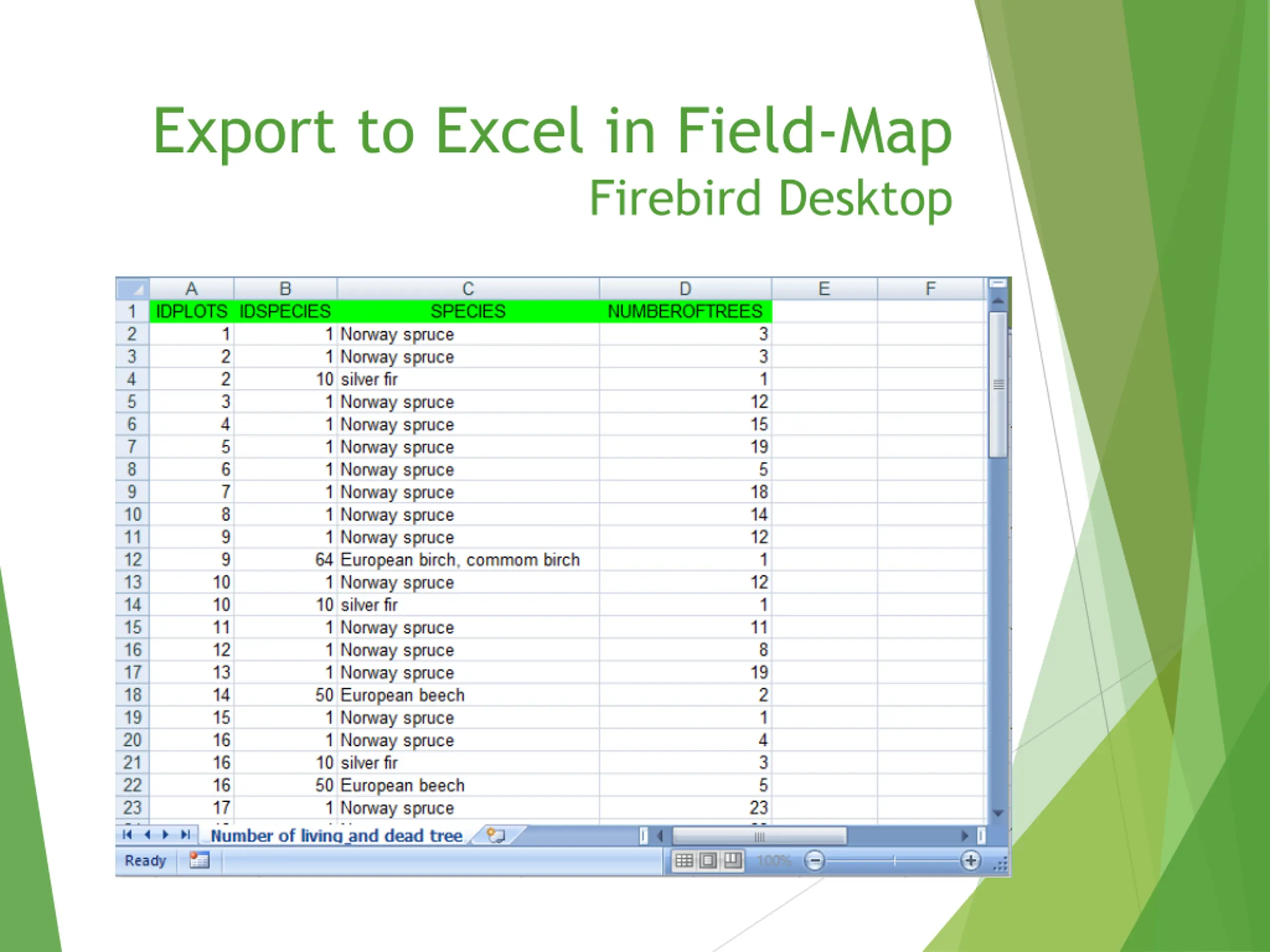

Export to Excel in Field-Map Firebird Desktop

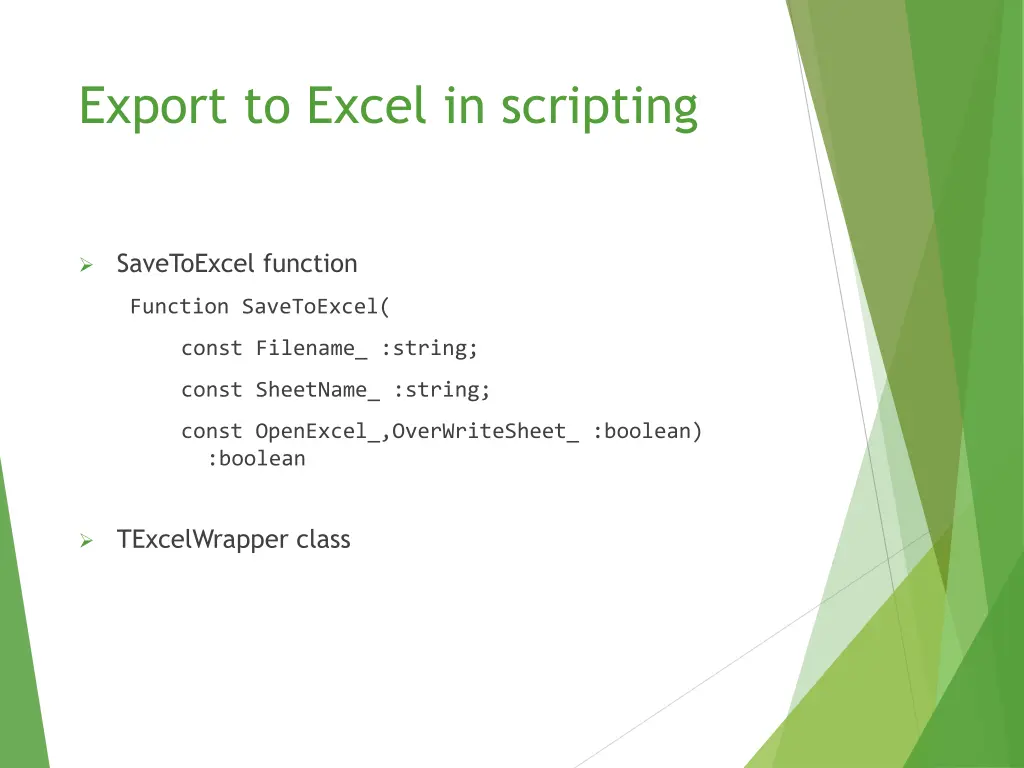

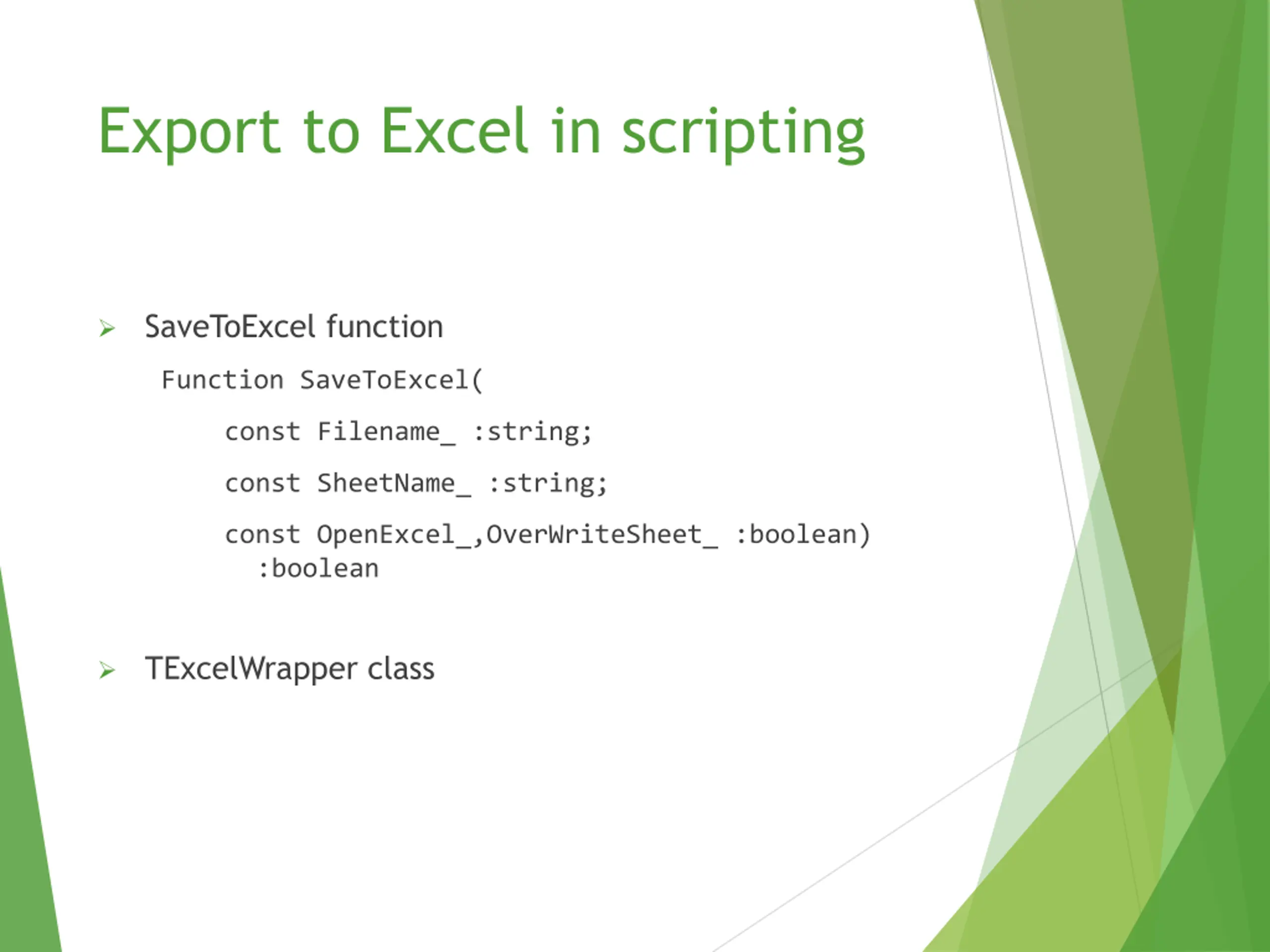

Export to Excel in scripting SaveToExcel function Function SaveToExcel( const Filename_ :string; const SheetName_ :string; const OpenExcel_,OverWriteSheet_ :boolean) :boolean TExcelWrapper class

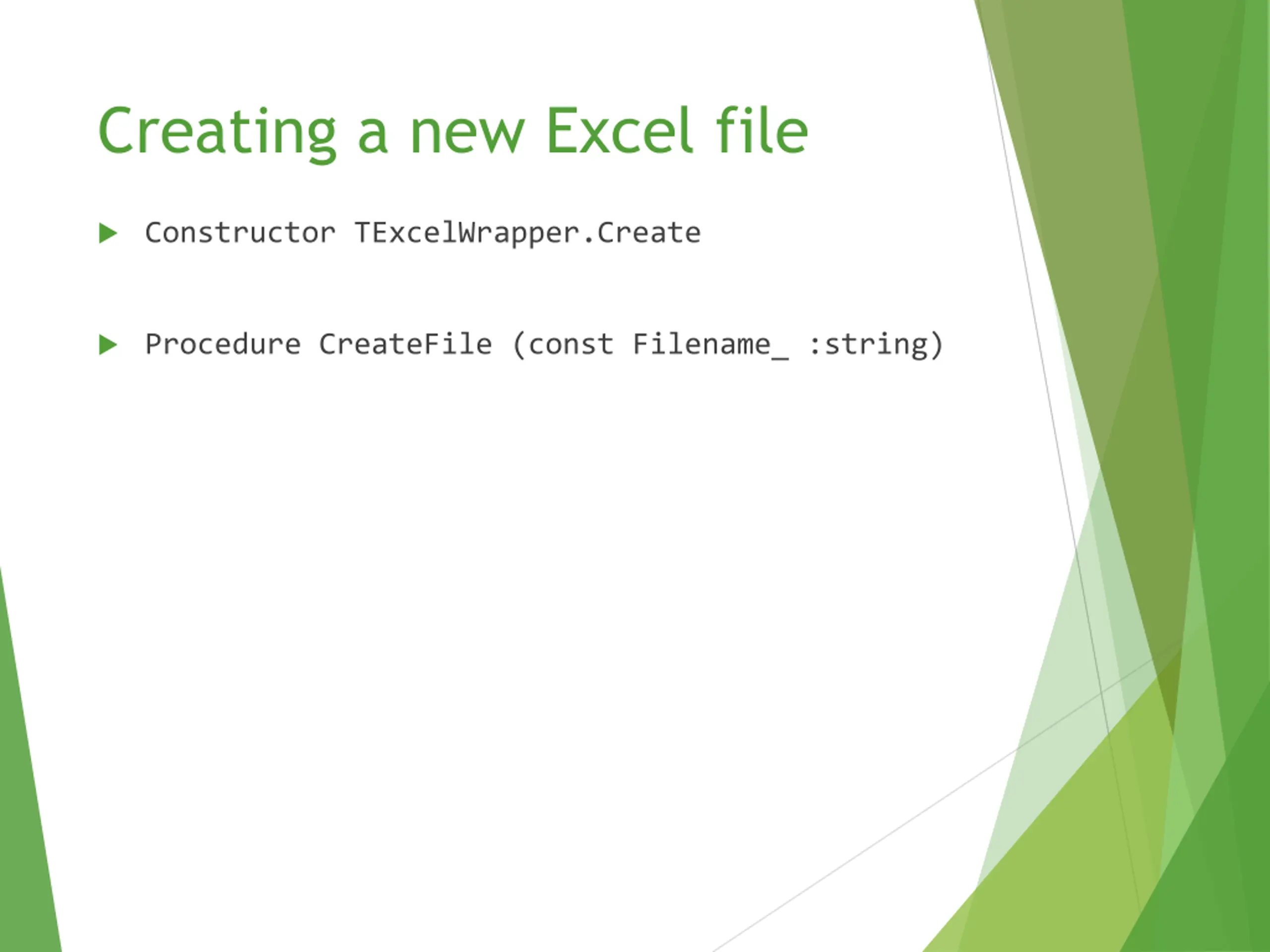

Creating a new Excel file Constructor TExcelWrapper.Create Procedure CreateFile (const Filename_ :string)

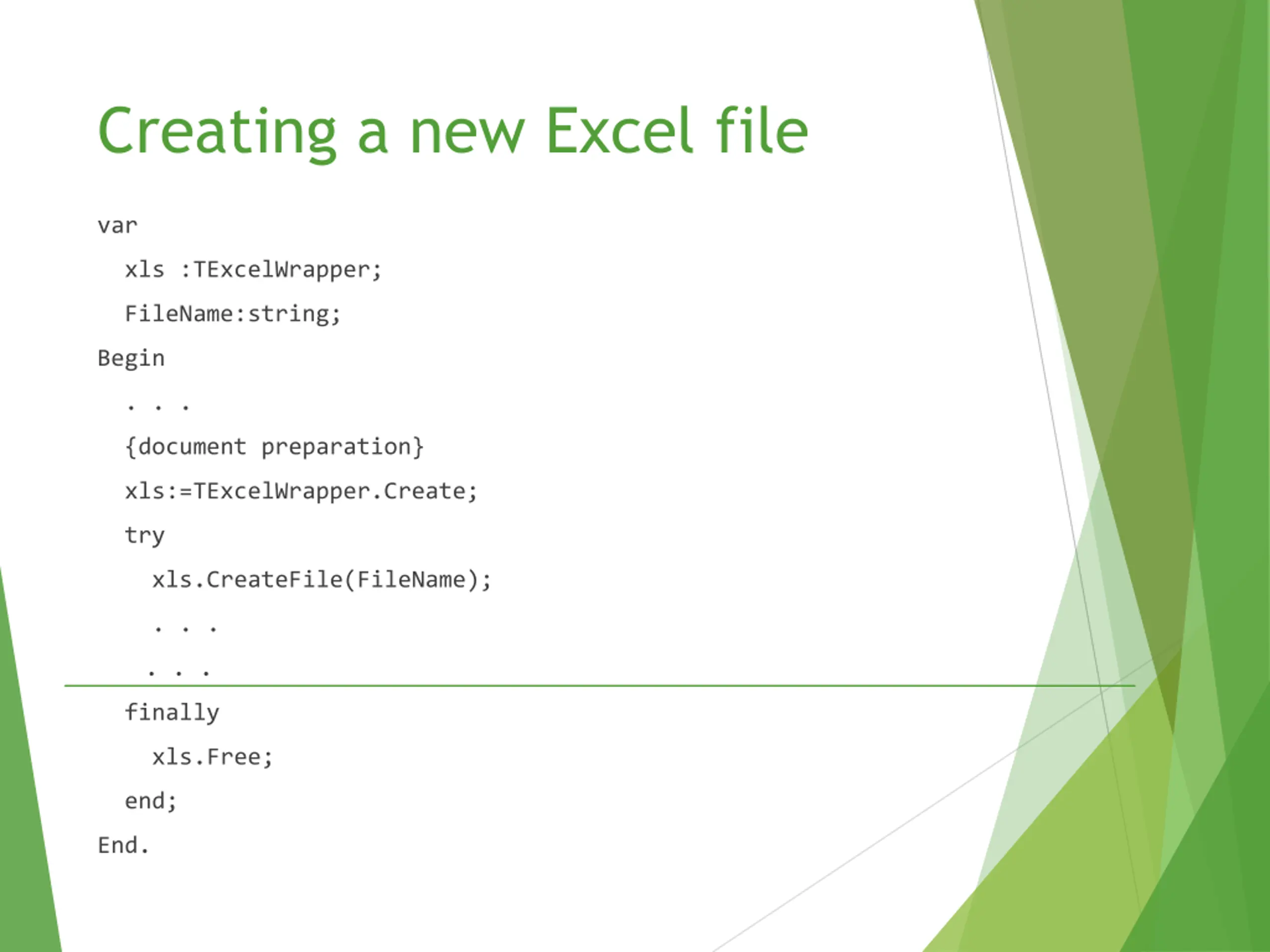

Creating a new Excel file var xls :TExcelWrapper; FileName:string; Begin . . . {document preparation} xls:=TExcelWrapper.Create; try xls.CreateFile(FileName); . . . . . . finally xls.Free; end; End.

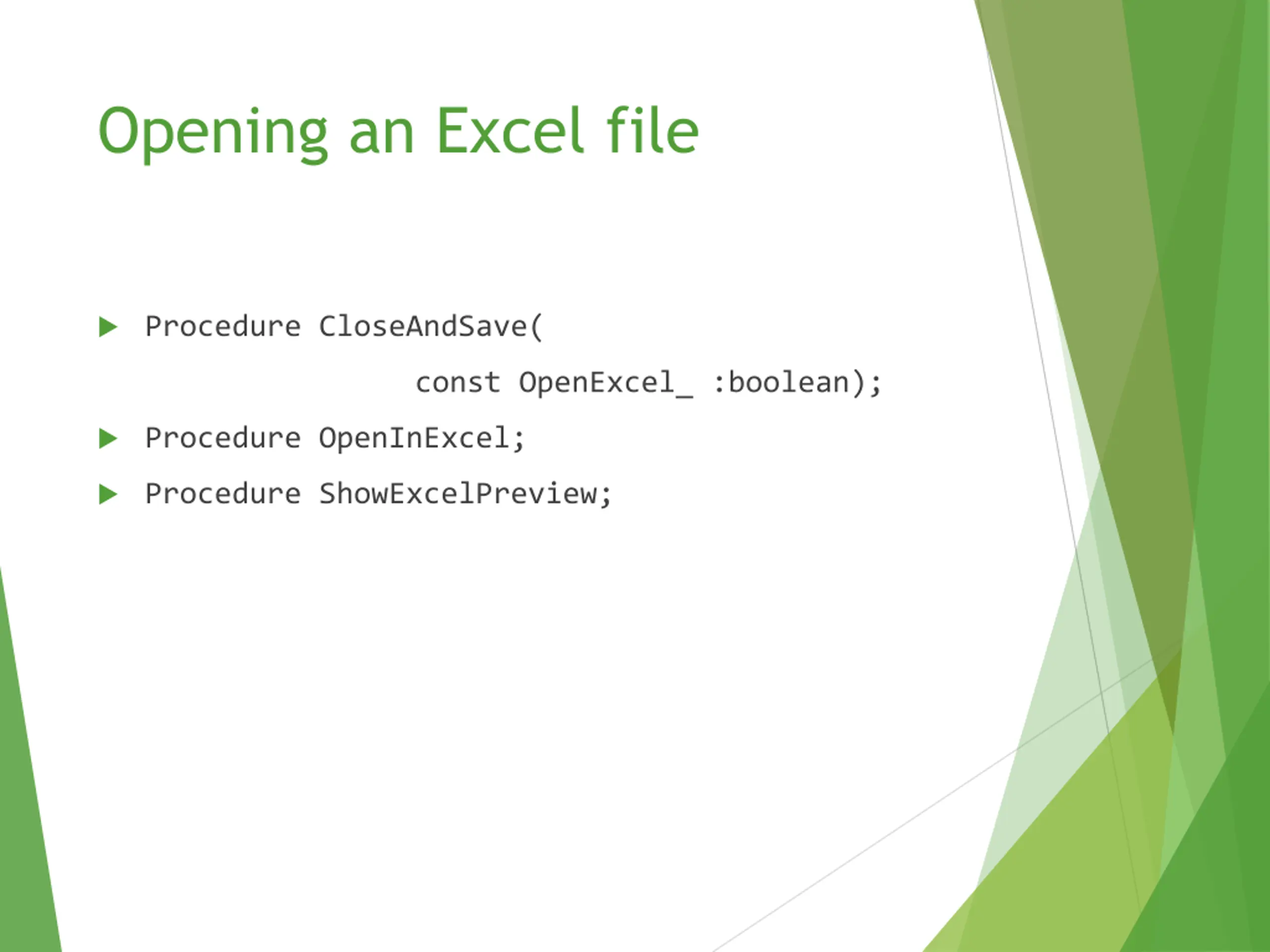

Opening an Excel file Procedure CloseAndSave( const OpenExcel_ :boolean); Procedure OpenInExcel; Procedure ShowExcelPreview;

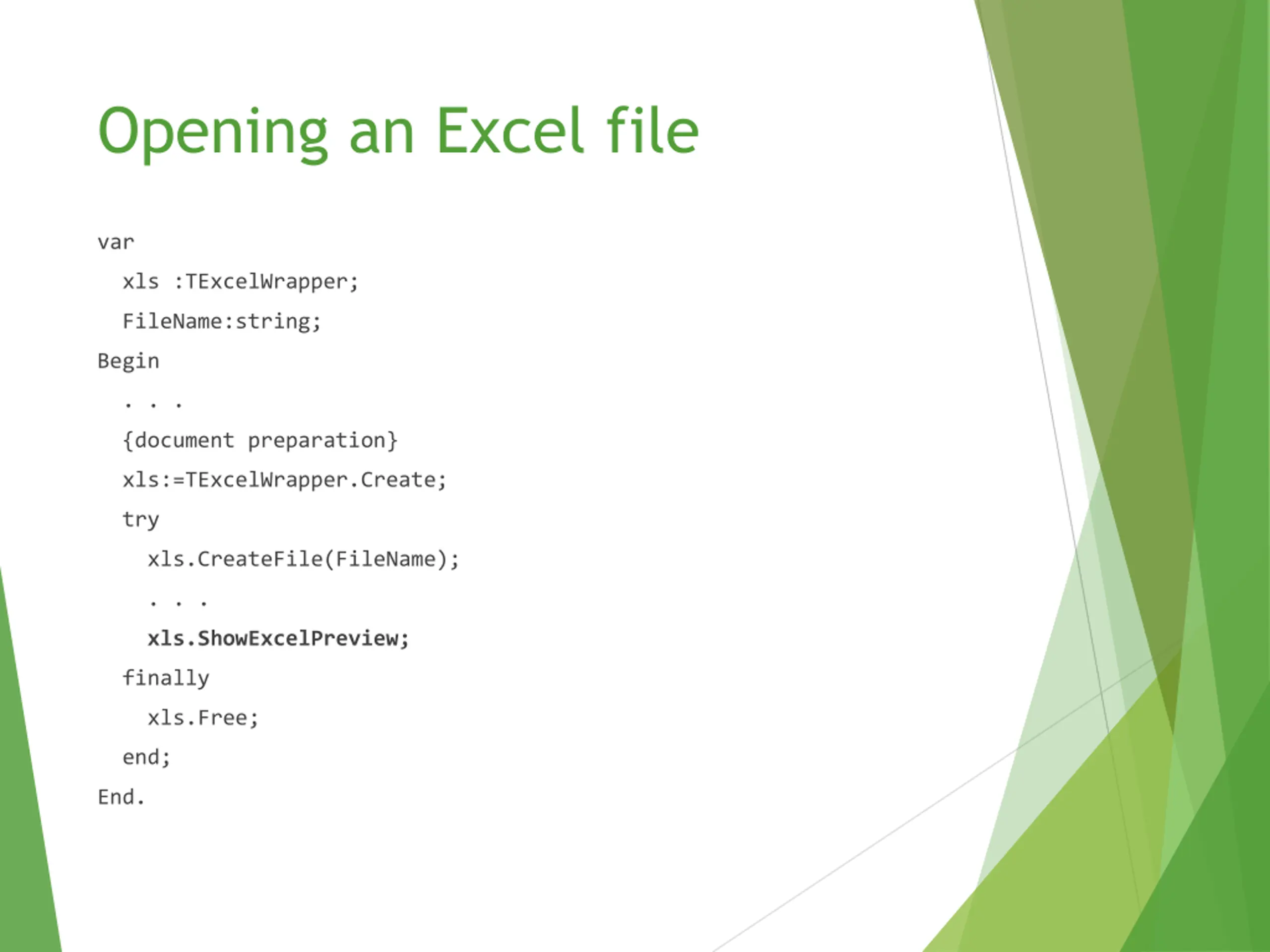

Opening an Excel file var xls :TExcelWrapper; FileName:string; Begin . . . {document preparation} xls:=TExcelWrapper.Create; try xls.CreateFile(FileName); . . . xls.ShowExcelPreview; finally xls.Free; end; End.

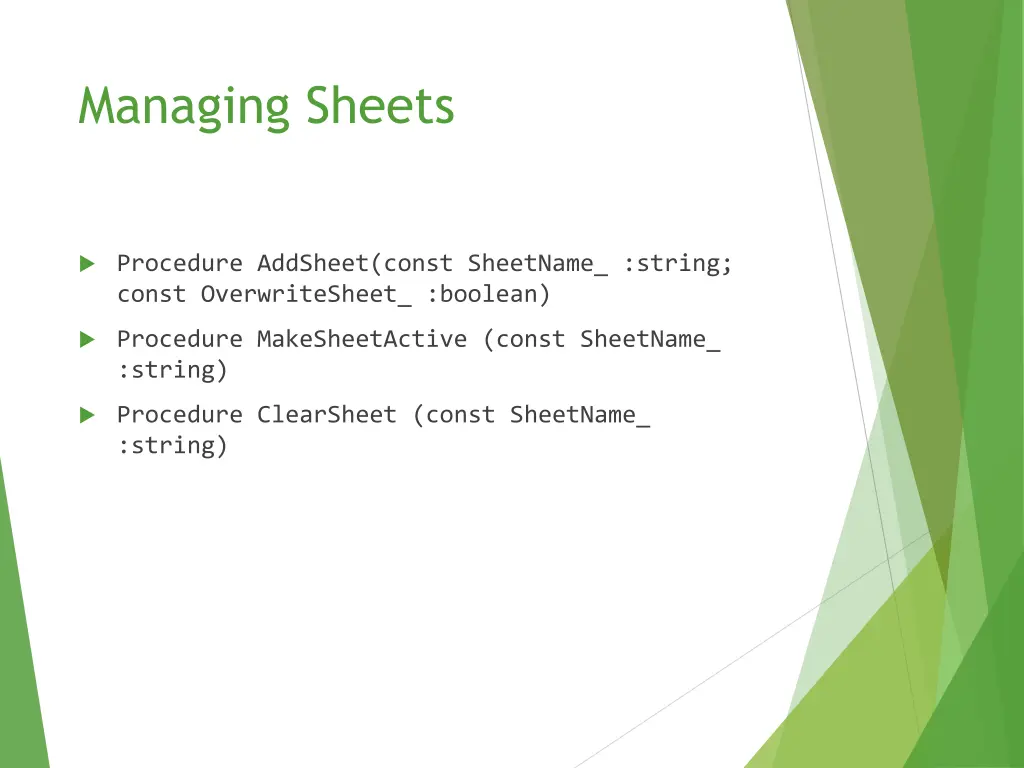

Managing Sheets Procedure AddSheet(const SheetName_ :string; const OverwriteSheet_ :boolean) Procedure MakeSheetActive (const SheetName_ :string) Procedure ClearSheet (const SheetName_ :string)

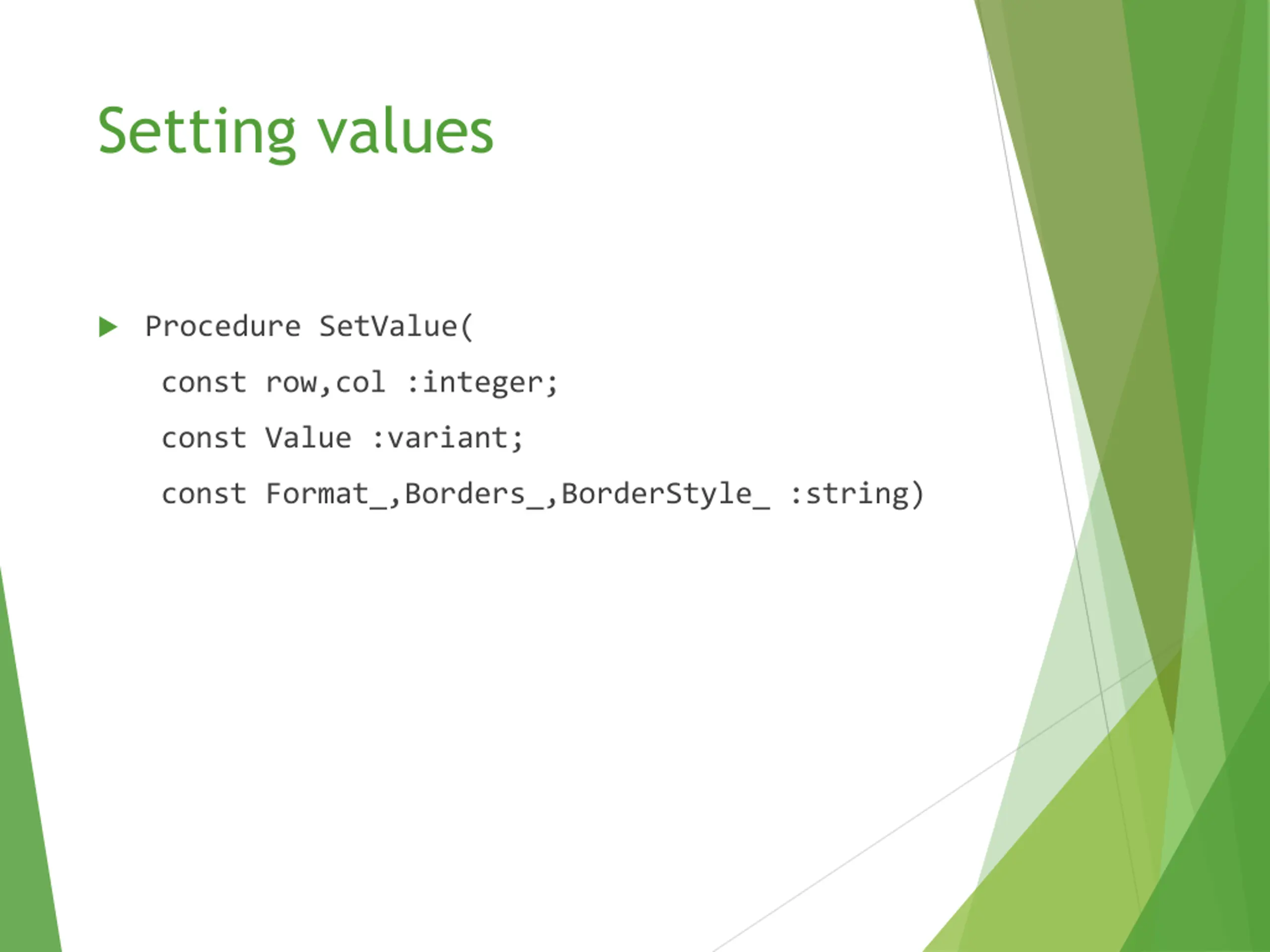

Setting values Procedure SetValue( const row,col :integer; const Value :variant; const Format_,Borders_,BorderStyle_ :string)

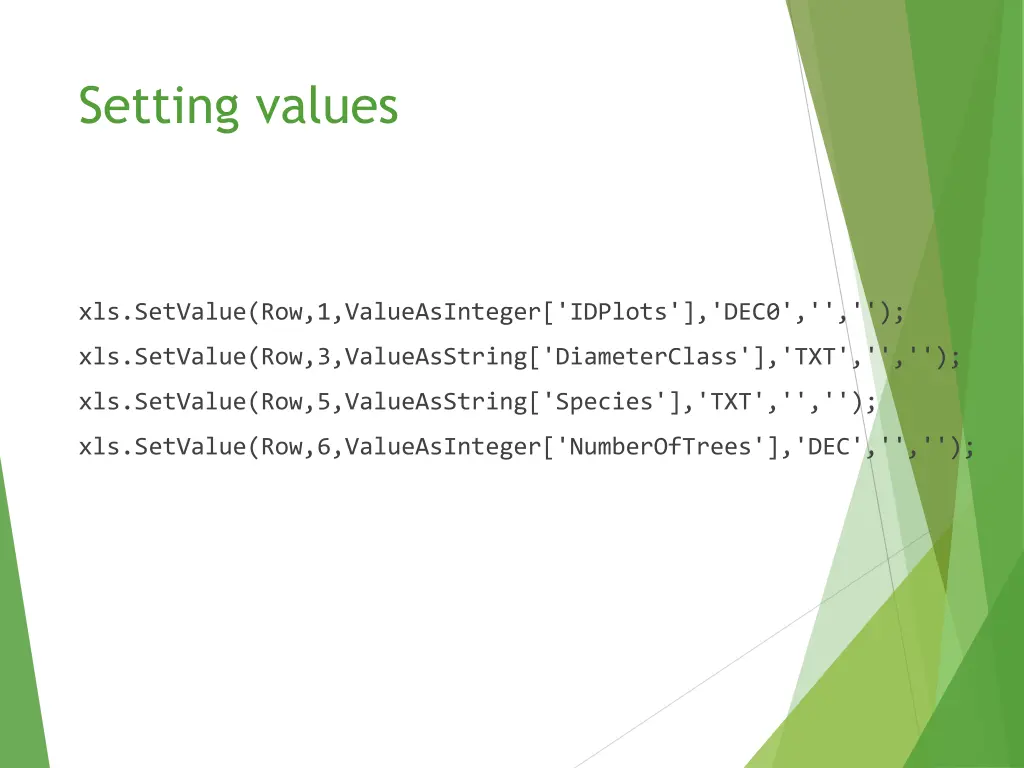

Setting values xls.SetValue(Row,1,ValueAsInteger['IDPlots'],'DEC0','',''); xls.SetValue(Row,3,ValueAsString['DiameterClass'],'TXT','',''); xls.SetValue(Row,5,ValueAsString['Species'],'TXT','',''); xls.SetValue(Row,6,ValueAsInteger['NumberOfTrees'],'DEC','','');

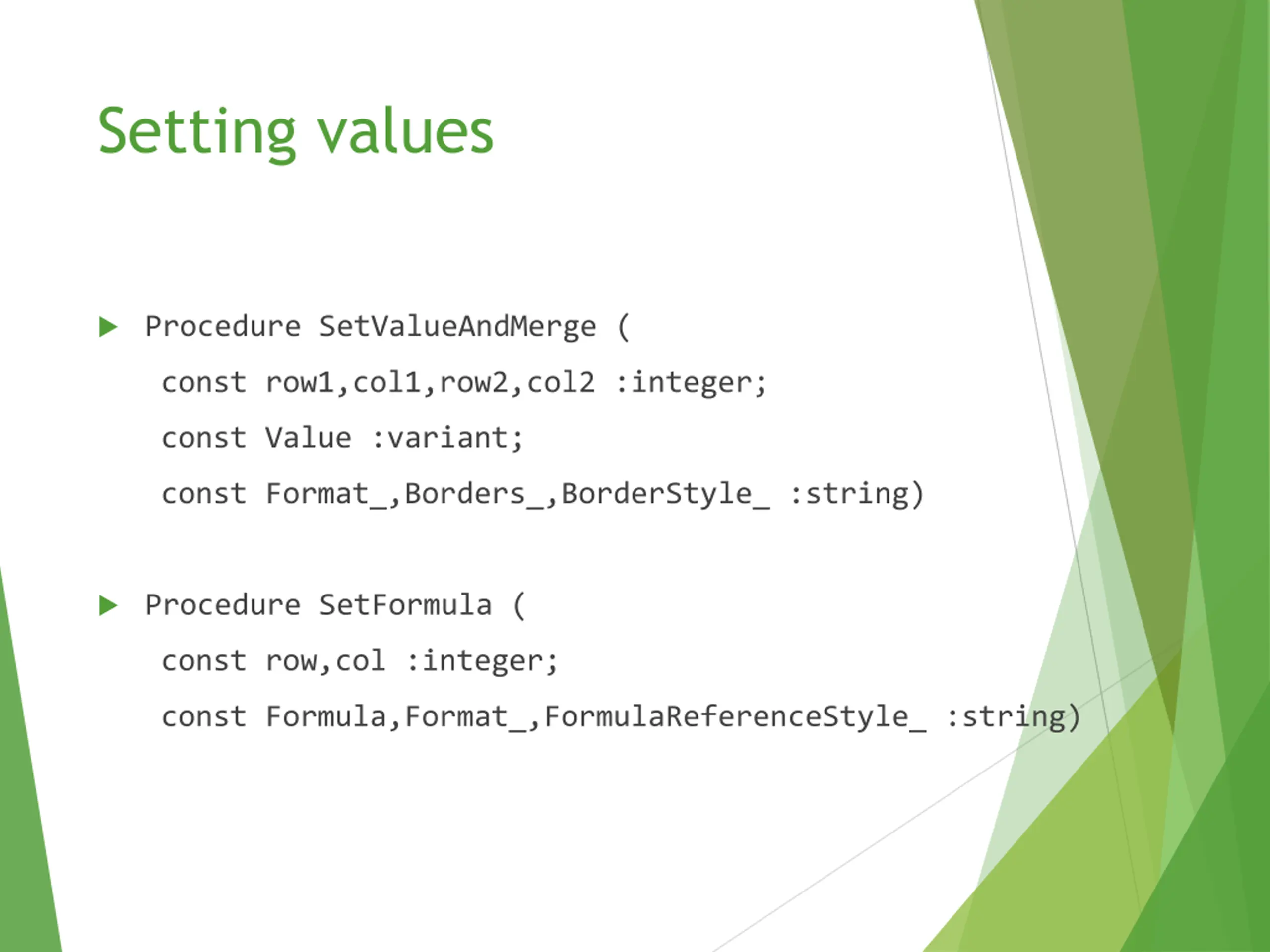

Setting values Procedure SetValueAndMerge ( const row1,col1,row2,col2 :integer; const Value :variant; const Format_,Borders_,BorderStyle_ :string) Procedure SetFormula ( const row,col :integer; const Formula,Format_,FormulaReferenceStyle_ :string)

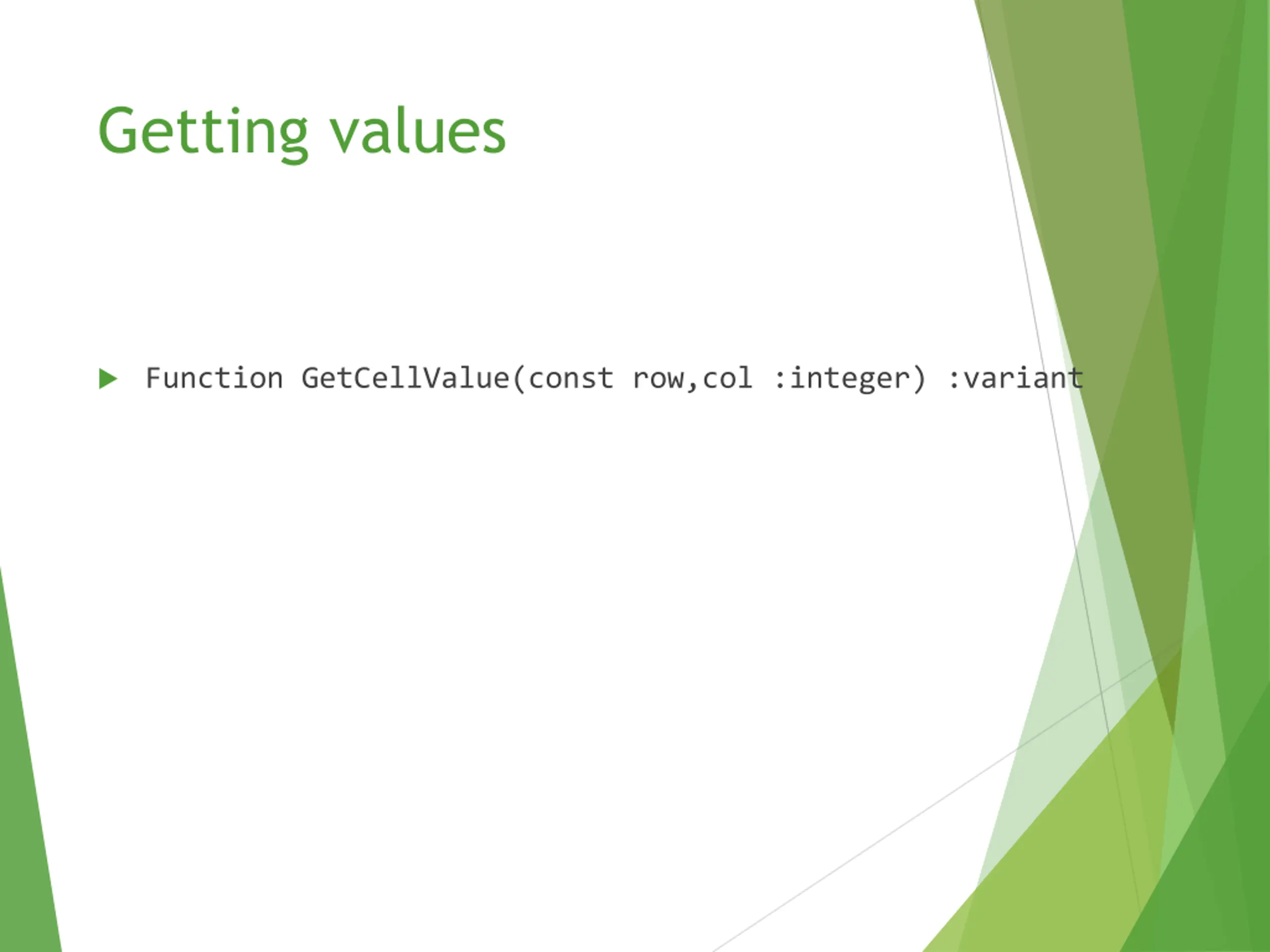

Getting values Function GetCellValue(const row,col :integer) :variant

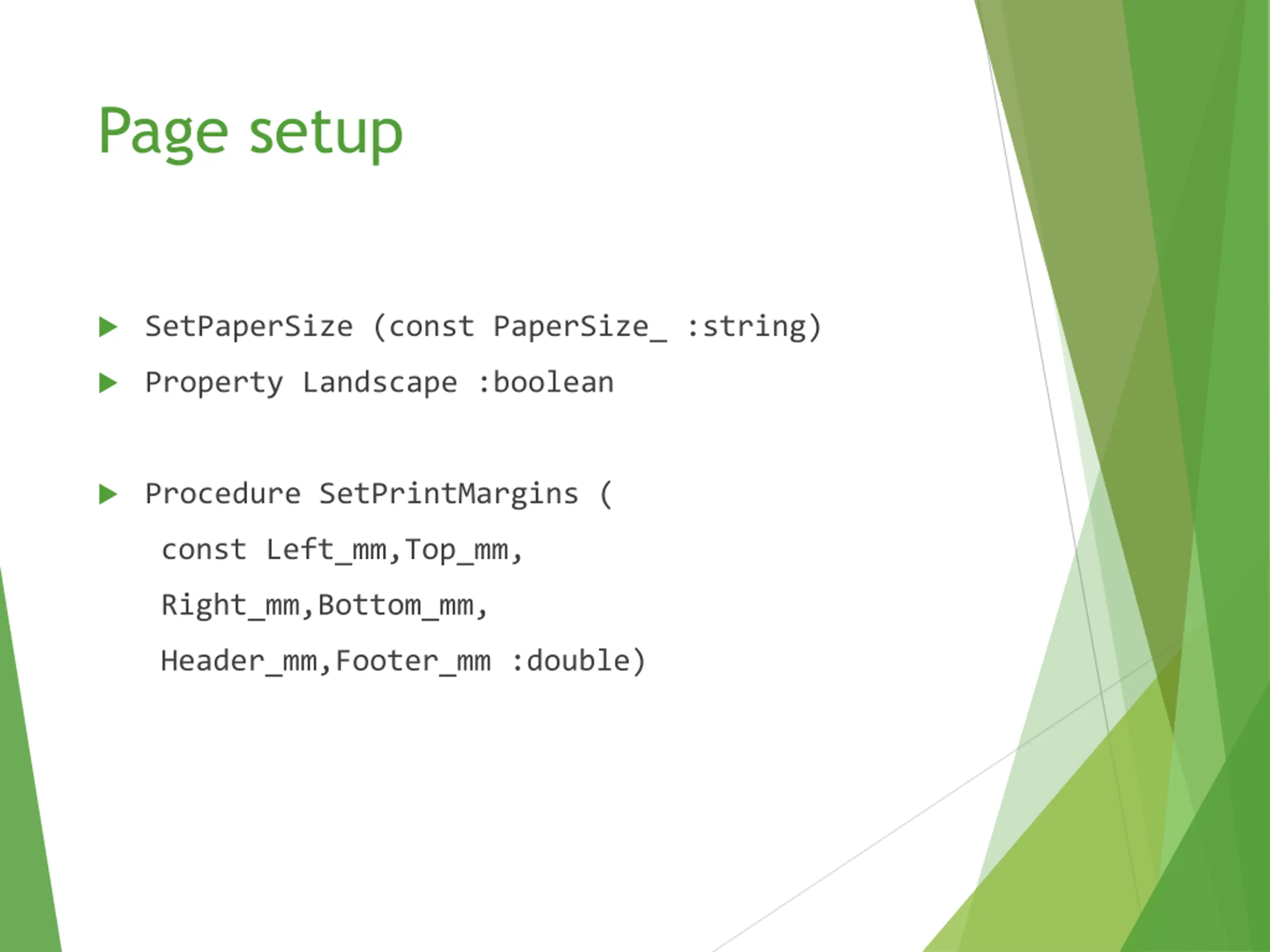

Page setup SetPaperSize (const PaperSize_ :string) Property Landscape :boolean Procedure SetPrintMargins ( const Left_mm,Top_mm, Right_mm,Bottom_mm, Header_mm,Footer_mm :double)

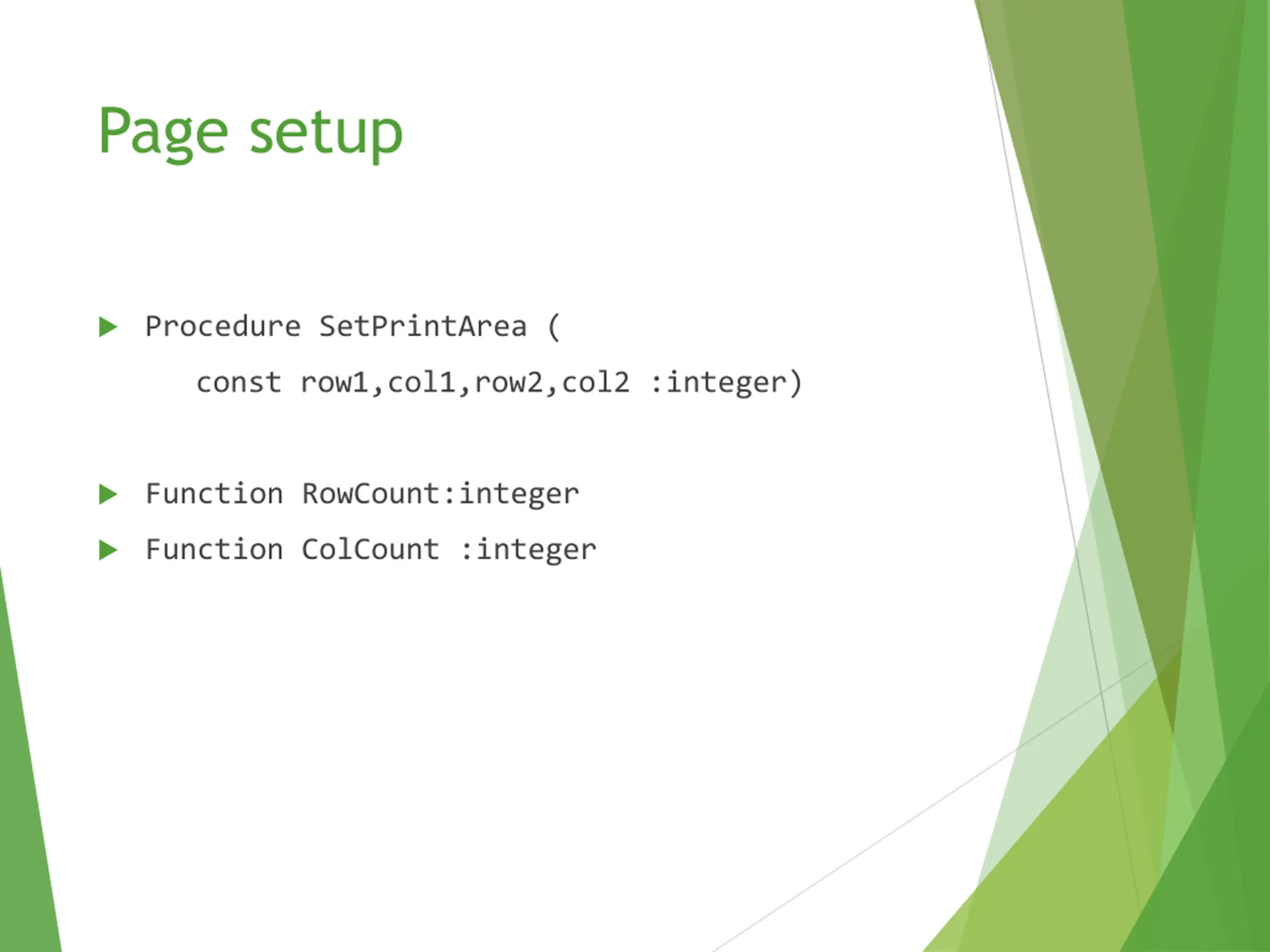

Page setup Procedure SetPrintArea ( const row1,col1,row2,col2 :integer) Function RowCount:integer Function ColCount :integer

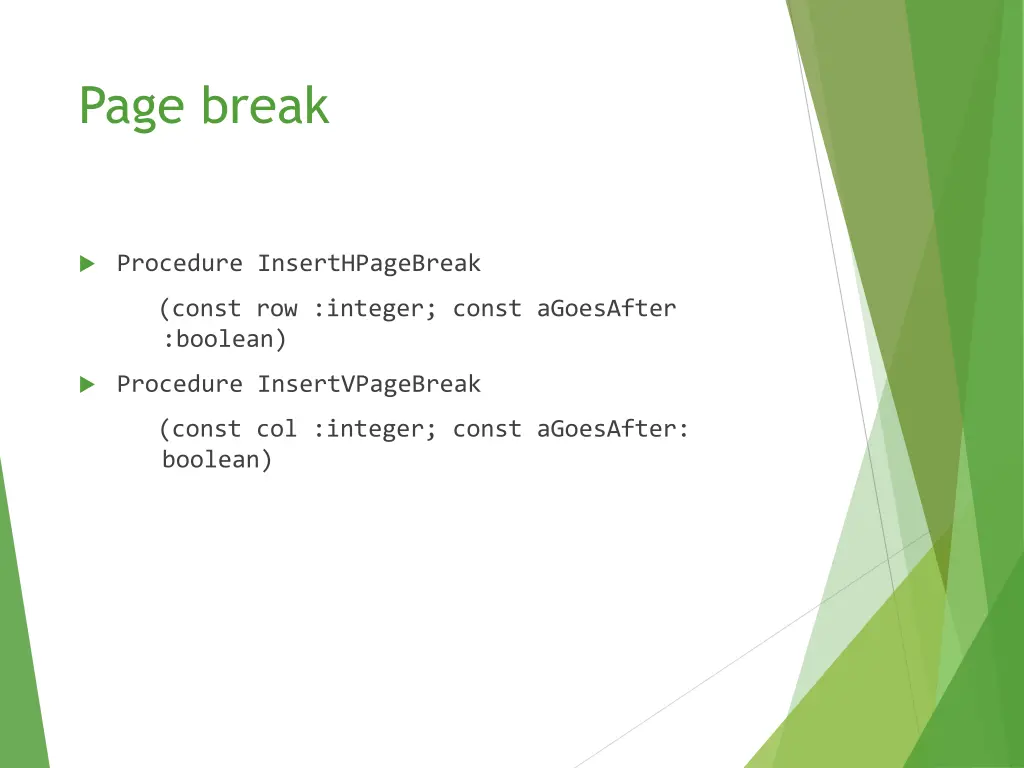

Page break Procedure InsertHPageBreak (const row :integer; const aGoesAfter :boolean) Procedure InsertVPageBreak (const col :integer; const aGoesAfter: boolean)

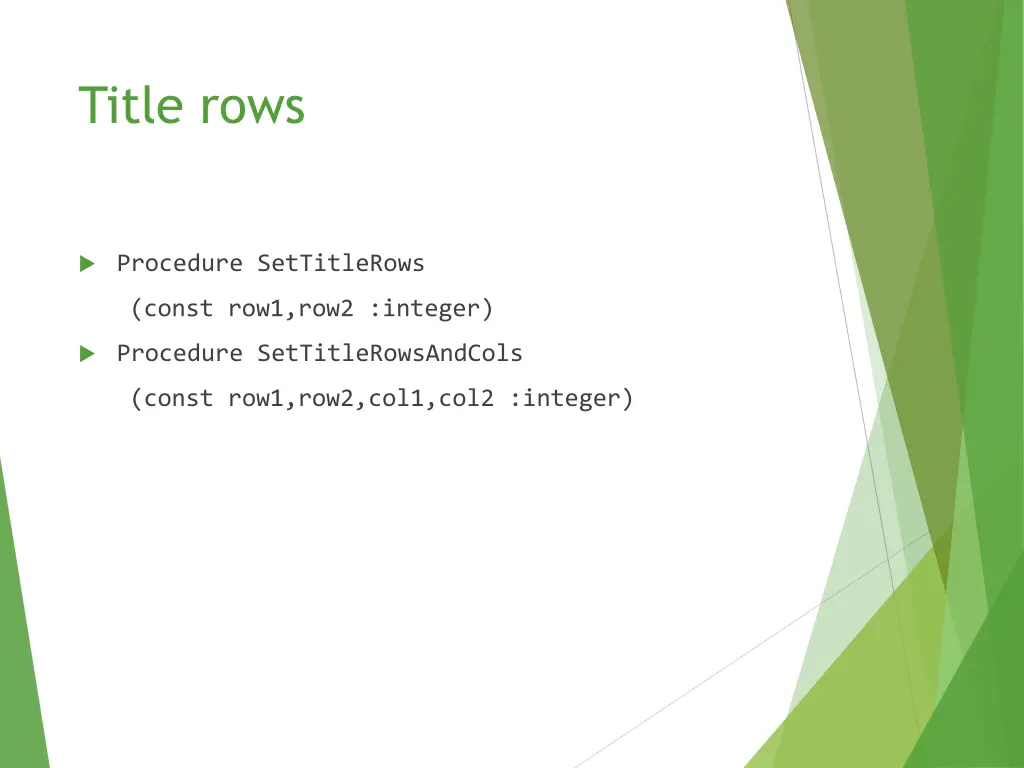

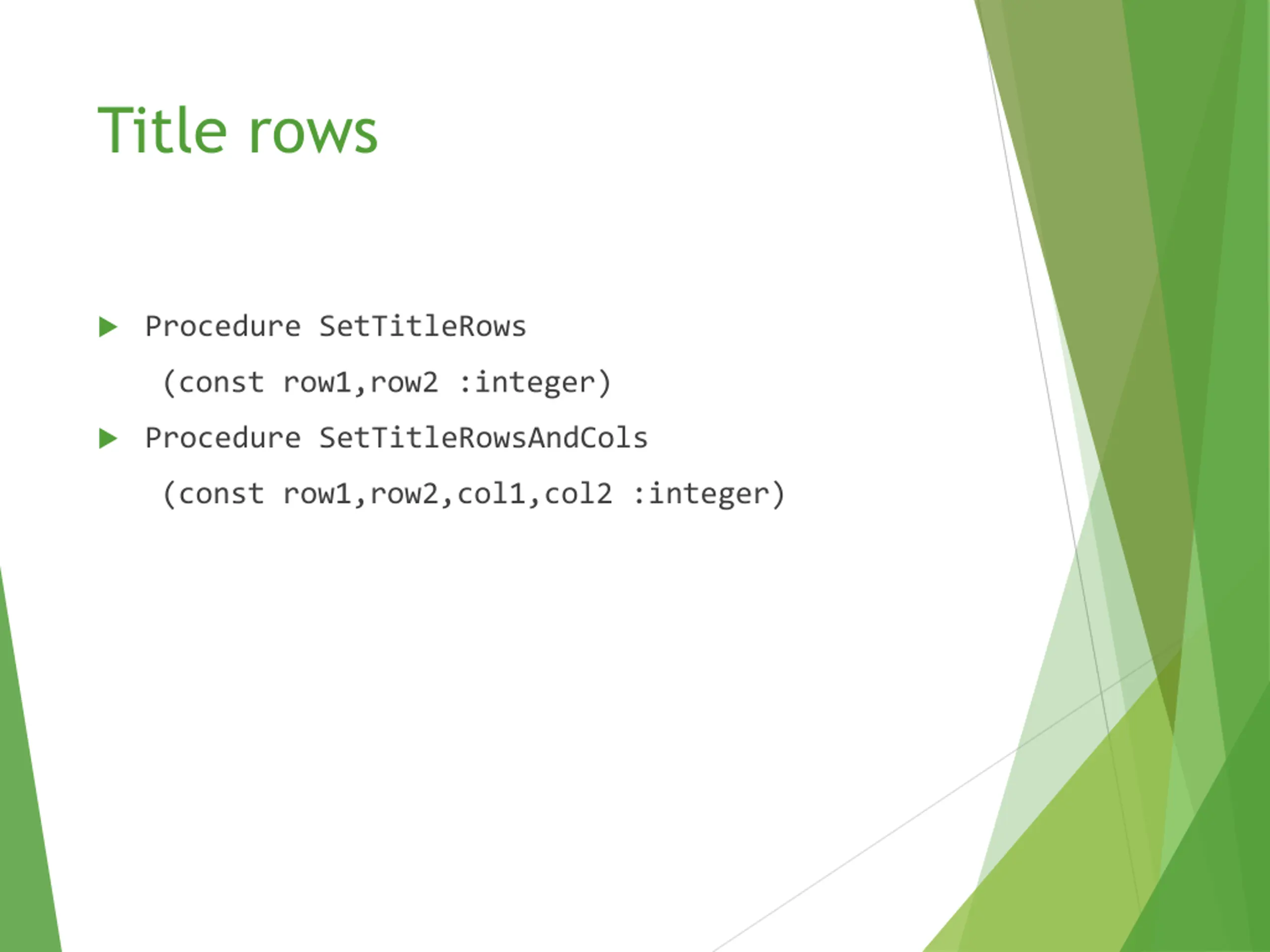

Title rows Procedure SetTitleRows (const row1,row2 :integer) Procedure SetTitleRowsAndCols (const row1,row2,col1,col2 :integer)

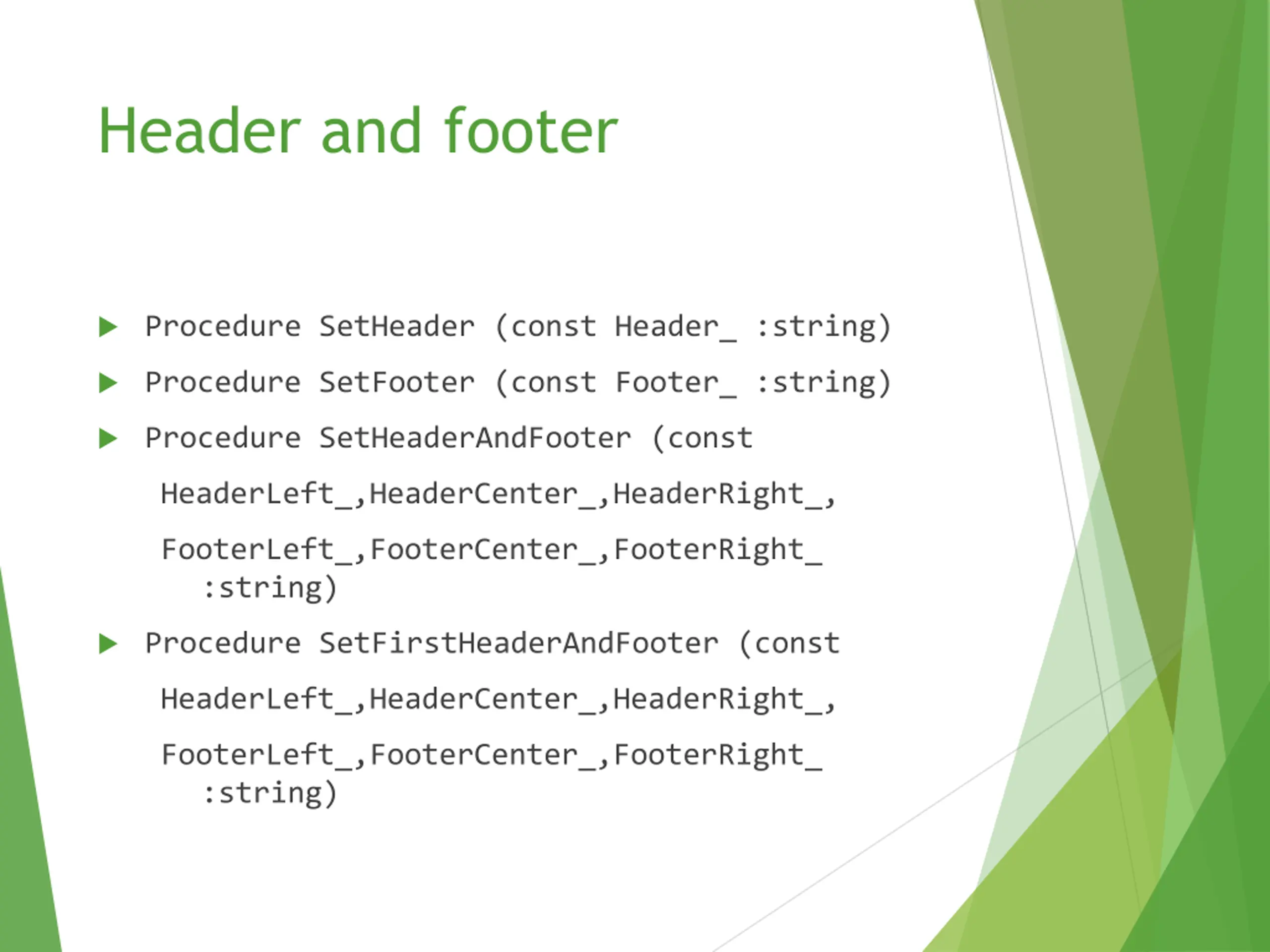

Header and footer Procedure SetHeader (const Header_ :string) Procedure SetFooter (const Footer_ :string) Procedure SetHeaderAndFooter (const HeaderLeft_,HeaderCenter_,HeaderRight_, FooterLeft_,FooterCenter_,FooterRight_ :string) Procedure SetFirstHeaderAndFooter (const HeaderLeft_,HeaderCenter_,HeaderRight_, FooterLeft_,FooterCenter_,FooterRight_ :string)

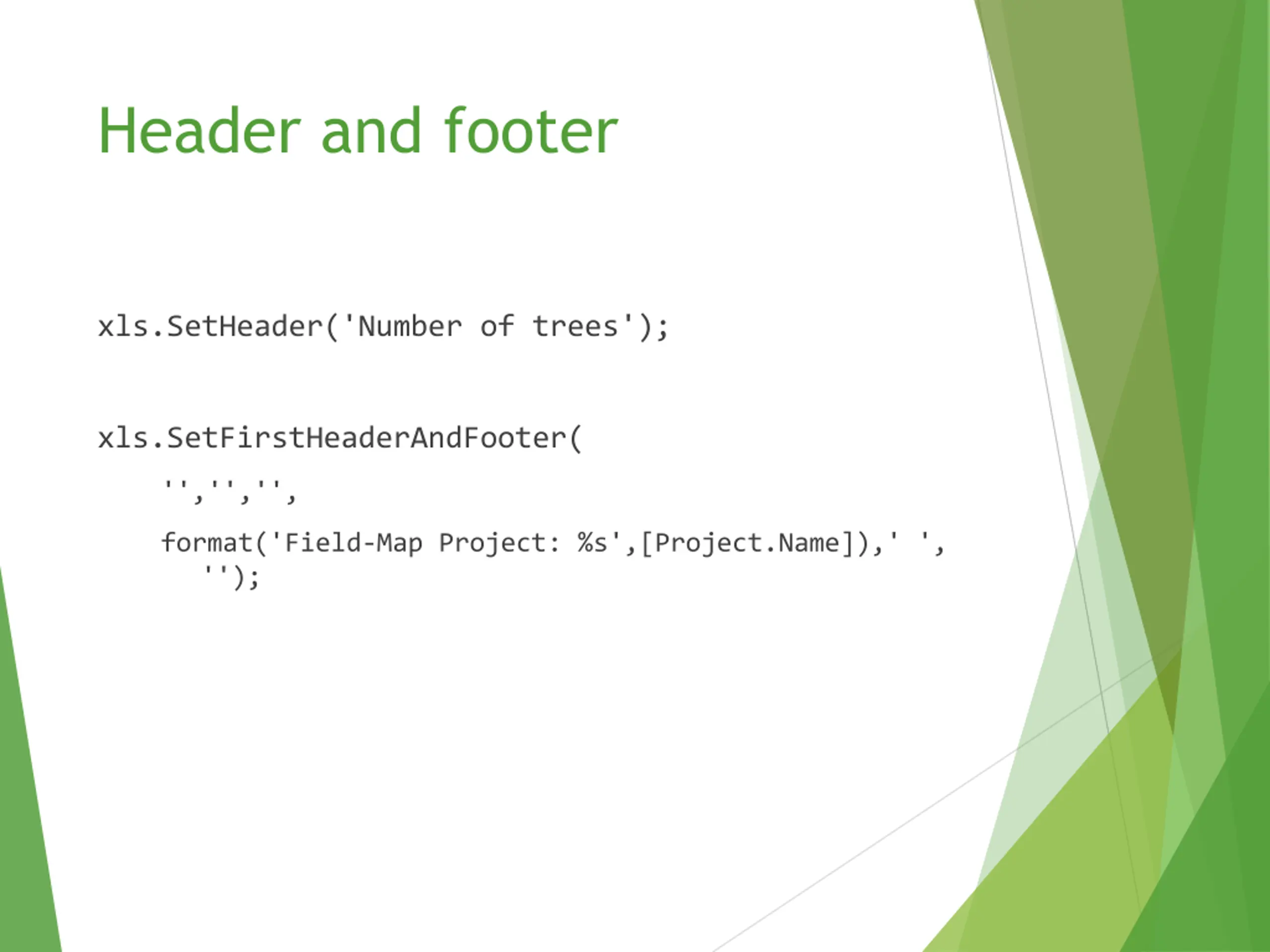

Header and footer xls.SetHeader('Number of trees'); xls.SetFirstHeaderAndFooter( '','','', format('Field-Map Project: %s',[Project.Name]),' ', '');

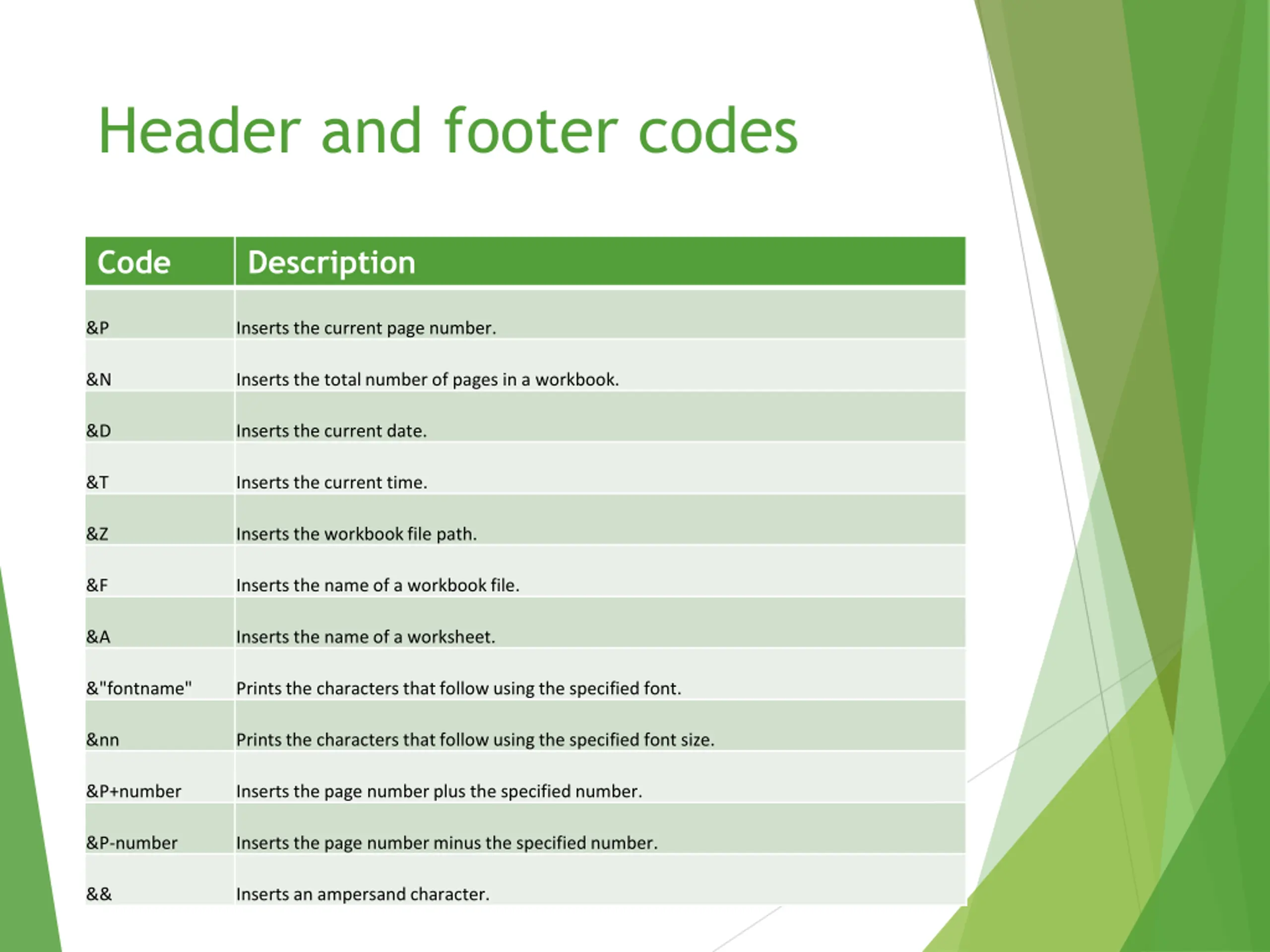

Header and footer codes Code Description &P Inserts the current page number. &N Inserts the total number of pages in a workbook. &D Inserts the current date. &T Inserts the current time. &Z Inserts the workbook file path. &F Inserts the name of a workbook file. &A Inserts the name of a worksheet. &"fontname" Prints the characters that follow using the specified font. &nn Prints the characters that follow using the specified font size. &P+number Inserts the page number plus the specified number. &P-number Inserts the page number minus the specified number. && Inserts an ampersand character.

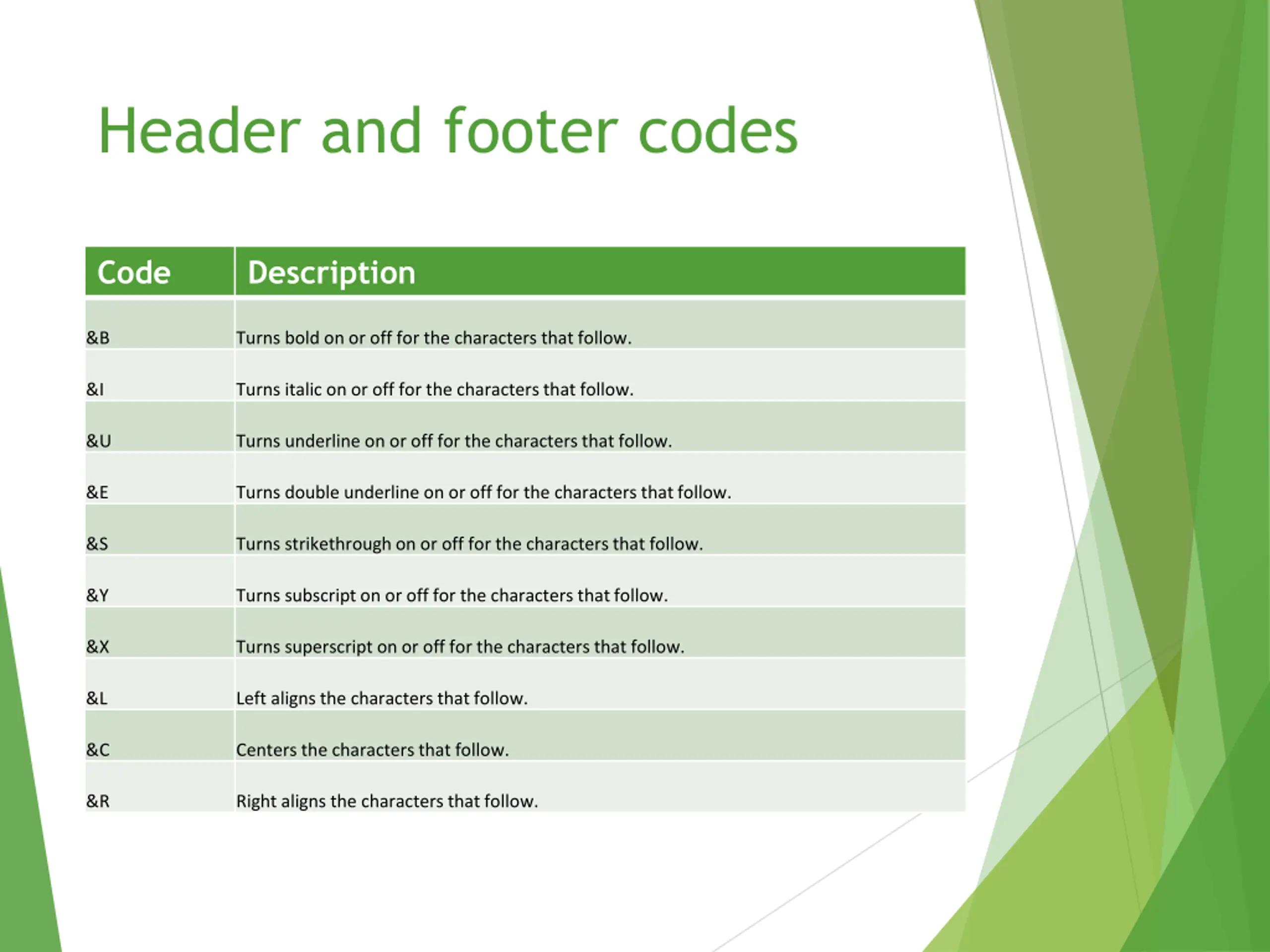

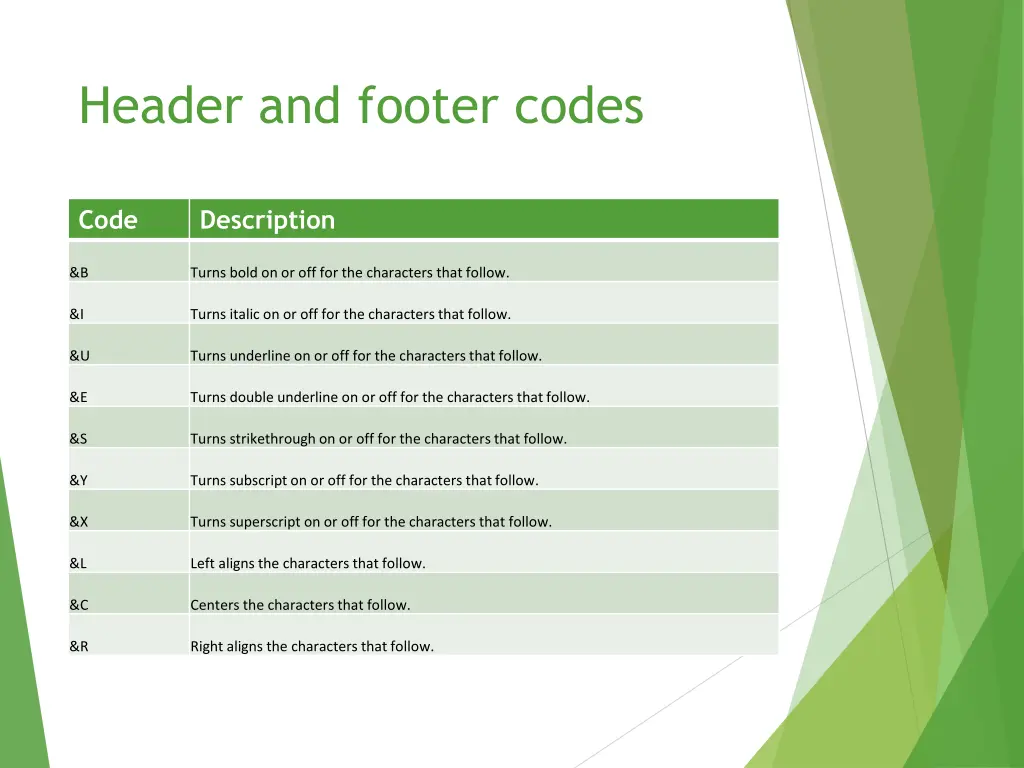

Header and footer codes Code Description &B Turns bold on or off for the characters that follow. &I Turns italic on or off for the characters that follow. &U Turns underline on or off for the characters that follow. &E Turns double underline on or off for the characters that follow. &S Turns strikethrough on or off for the characters that follow. &Y Turns subscript on or off for the characters that follow. &X Turns superscript on or off for the characters that follow. &L Left aligns the characters that follow. &C Centers the characters that follow. &R Right aligns the characters that follow.

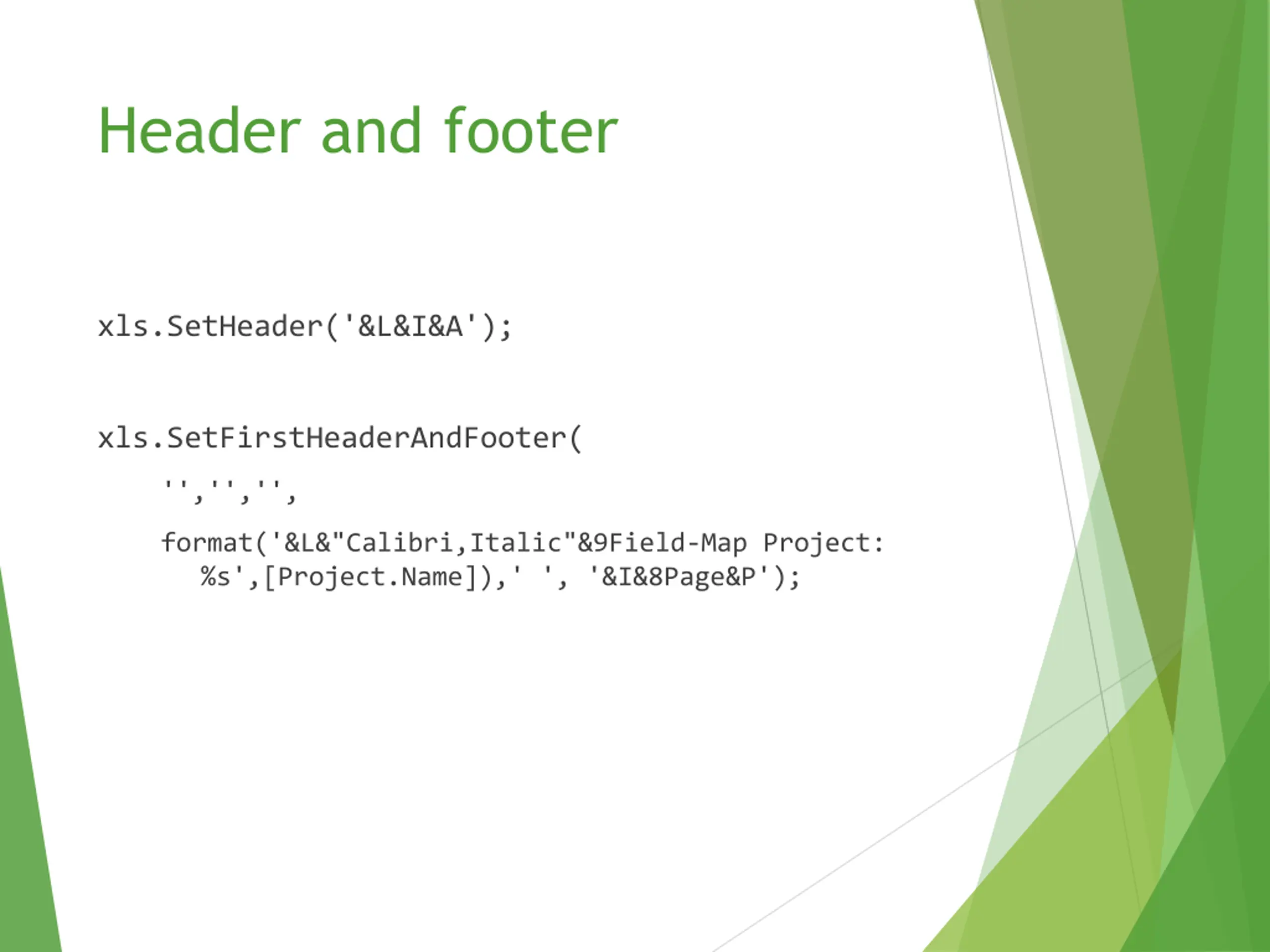

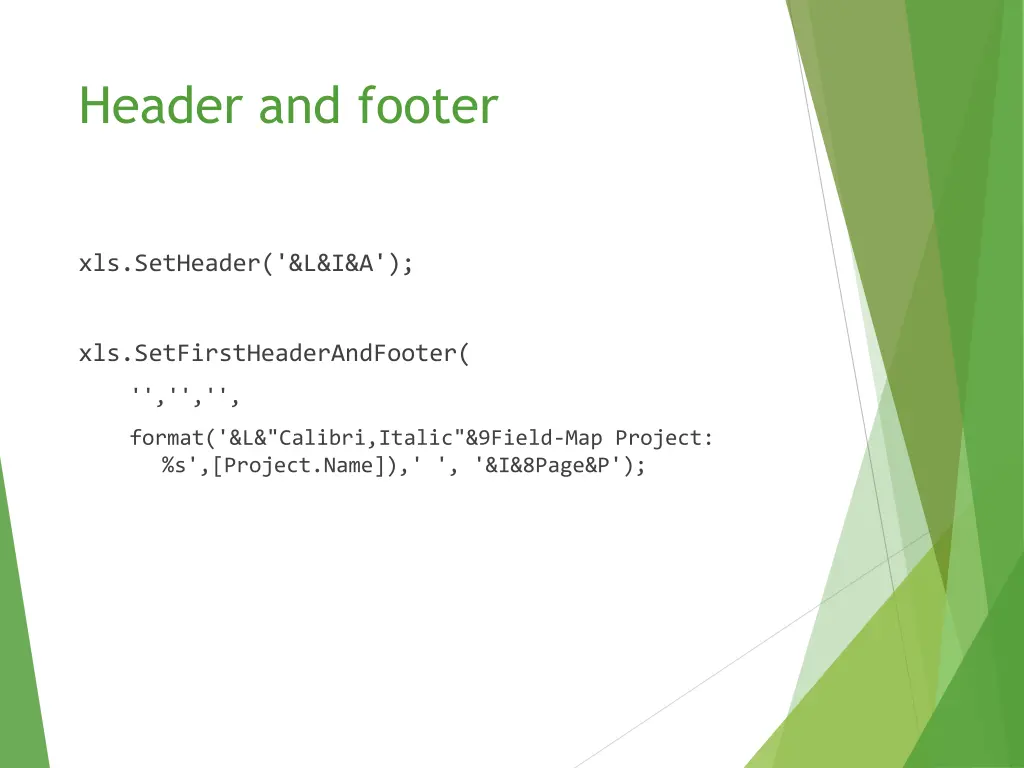

Header and footer xls.SetHeader('&L&I&A'); xls.SetFirstHeaderAndFooter( '','','', format('&L&"Calibri,Italic"&9Field-Map Project: %s',[Project.Name]),' ', '&I&8Page&P');

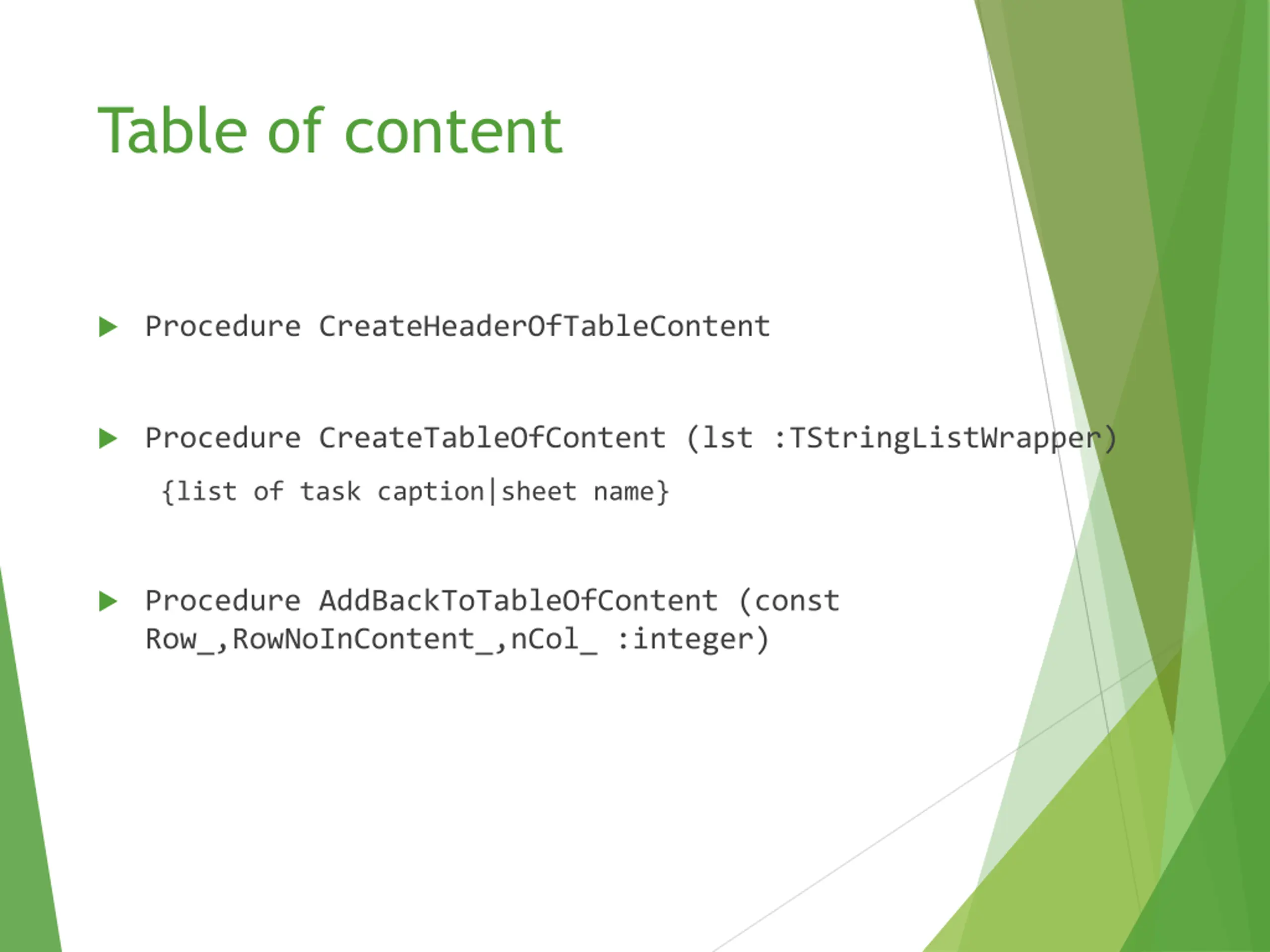

Table of content Procedure CreateHeaderOfTableContent Procedure CreateTableOfContent (lst :TStringListWrapper) {list of task caption|sheet name} Procedure AddBackToTableOfContent (const Row_,RowNoInContent_,nCol_ :integer)

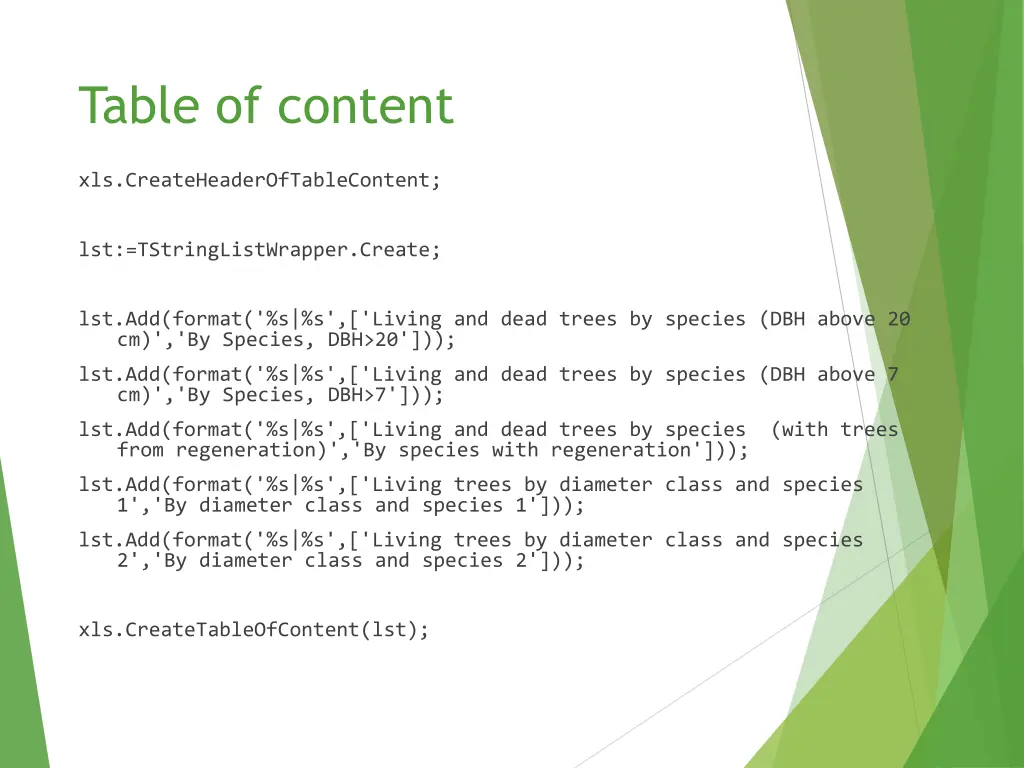

Table of content xls.CreateHeaderOfTableContent; lst:=TStringListWrapper.Create; lst.Add(format('%s|%s',['Living and dead trees by species (DBH above 20 cm)','By Species, DBH>20'])); lst.Add(format('%s|%s',['Living and dead trees by species (DBH above 7 cm)','By Species, DBH>7'])); lst.Add(format('%s|%s',['Living and dead trees by species (with trees from regeneration)','By species with regeneration'])); lst.Add(format('%s|%s',['Living trees by diameter class and species 1','By diameter class and species 1'])); lst.Add(format('%s|%s',['Living trees by diameter class and species 2','By diameter class and species 2'])); xls.CreateTableOfContent(lst);

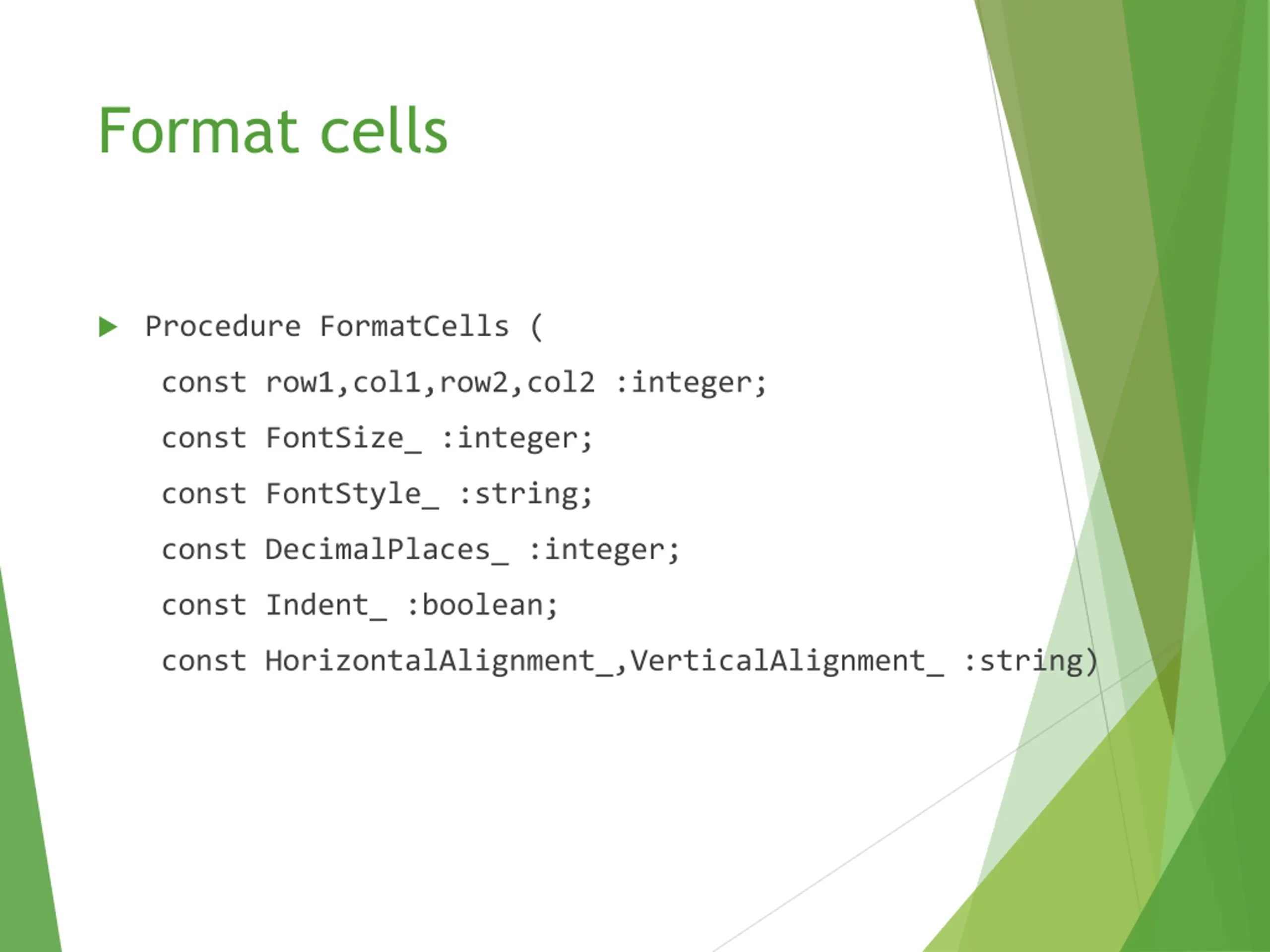

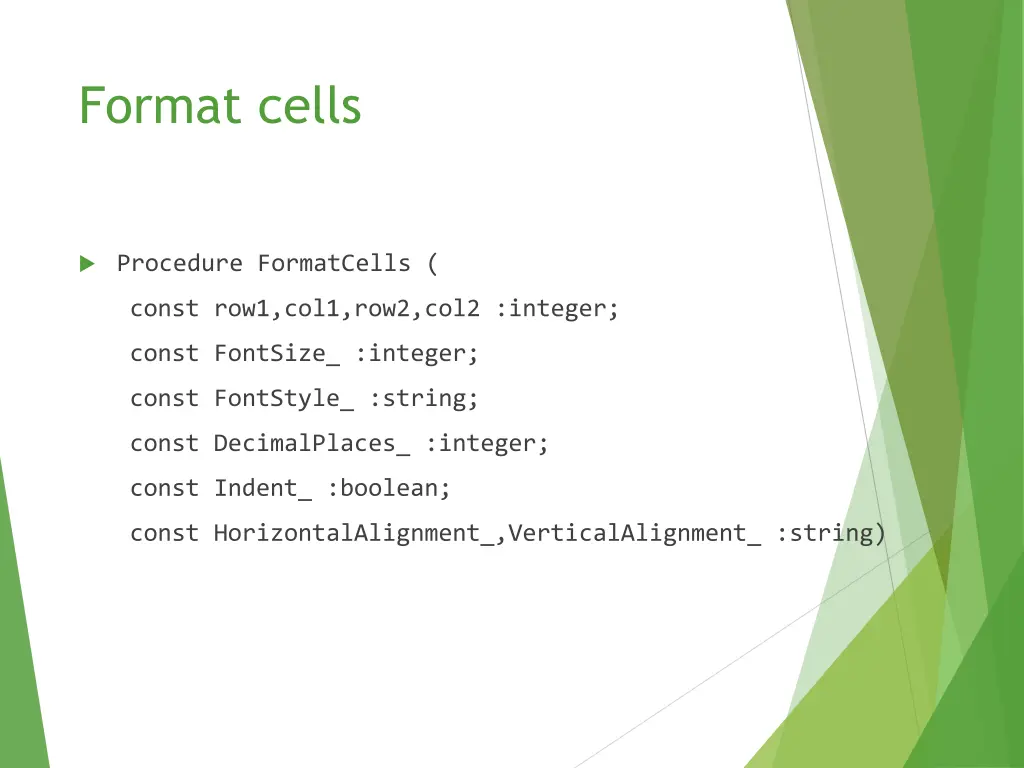

Format cells Procedure FormatCells ( const row1,col1,row2,col2 :integer; const FontSize_ :integer; const FontStyle_ :string; const DecimalPlaces_ :integer; const Indent_ :boolean; const HorizontalAlignment_,VerticalAlignment_ :string)

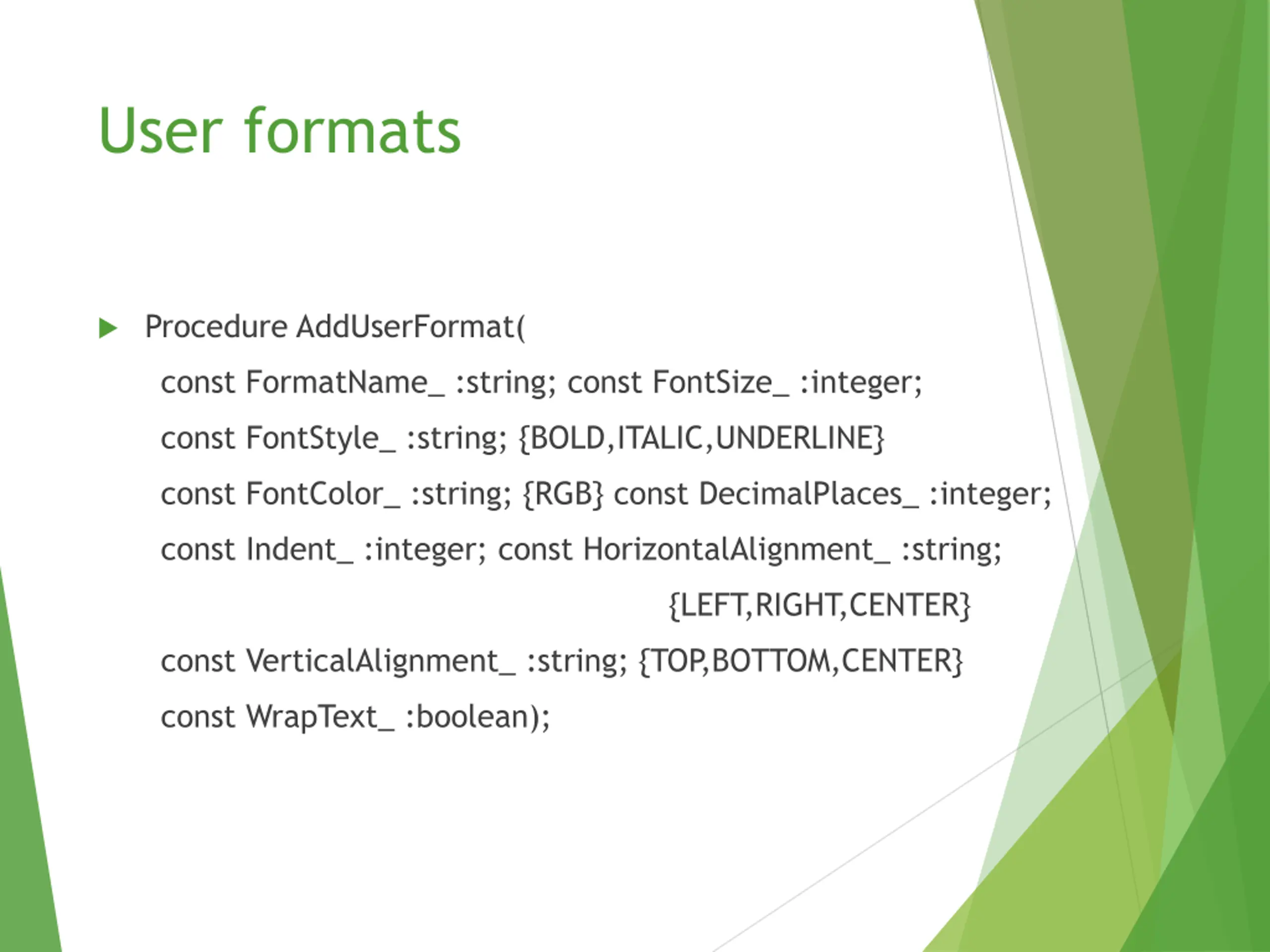

User formats Procedure AddUserFormat( const FormatName_ :string; const FontSize_ :integer; const FontStyle_ :string; {BOLD,ITALIC,UNDERLINE} const FontColor_ :string; {RGB} const DecimalPlaces_ :integer; const Indent_ :integer; const HorizontalAlignment_ :string; {LEFT,RIGHT,CENTER} const VerticalAlignment_ :string; {TOP,BOTTOM,CENTER} const WrapText_ :boolean);

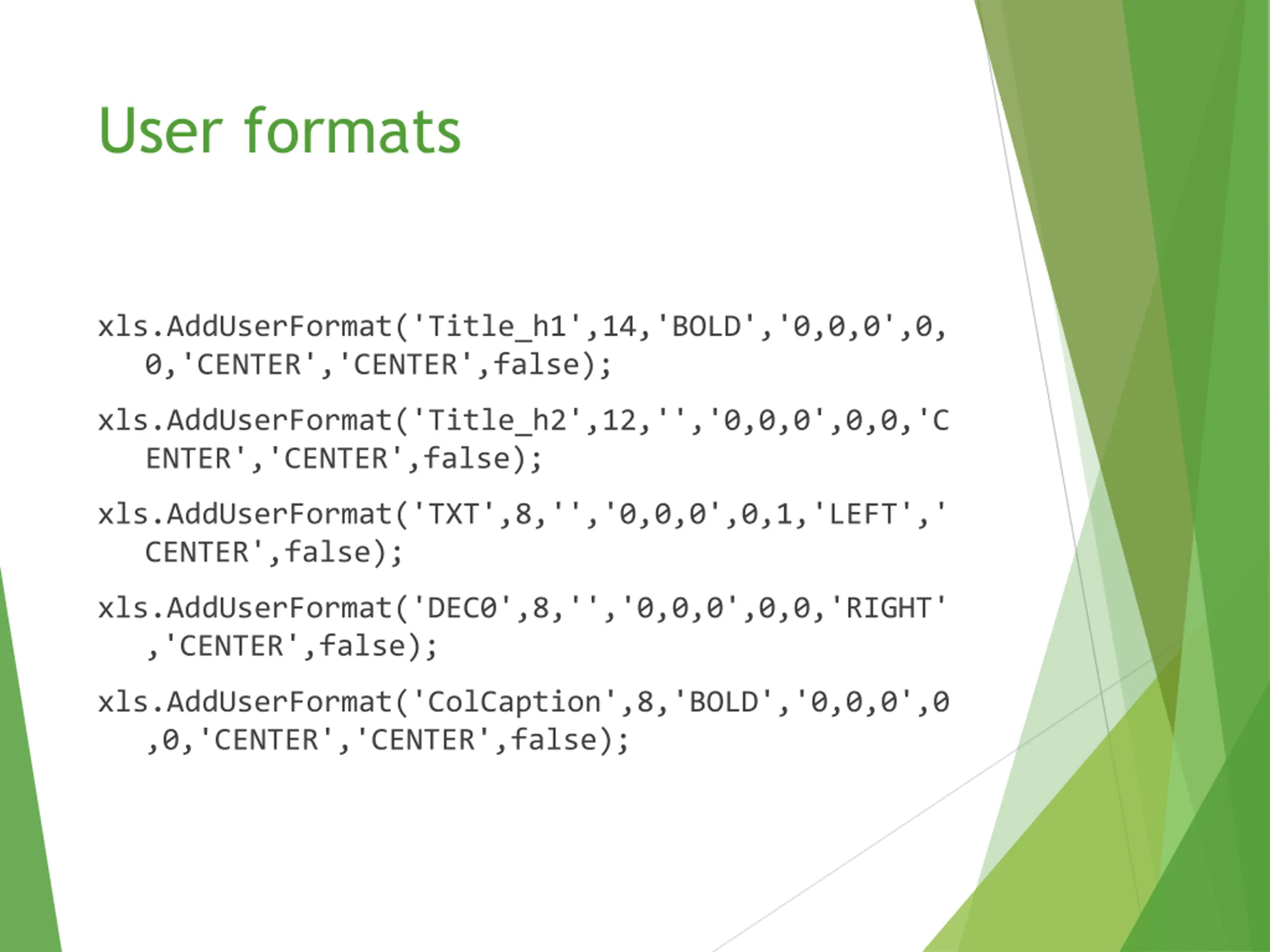

User formats xls.AddUserFormat('Title_h1',14,'BOLD','0,0,0',0, 0,'CENTER','CENTER',false); xls.AddUserFormat('Title_h2',12,'','0,0,0',0,0,'C ENTER','CENTER',false); xls.AddUserFormat('TXT',8,'','0,0,0',0,1,'LEFT',' CENTER',false); xls.AddUserFormat('DEC0',8,'','0,0,0',0,0,'RIGHT' ,'CENTER',false); xls.AddUserFormat('ColCaption',8,'BOLD','0,0,0',0 ,0,'CENTER','CENTER',false);

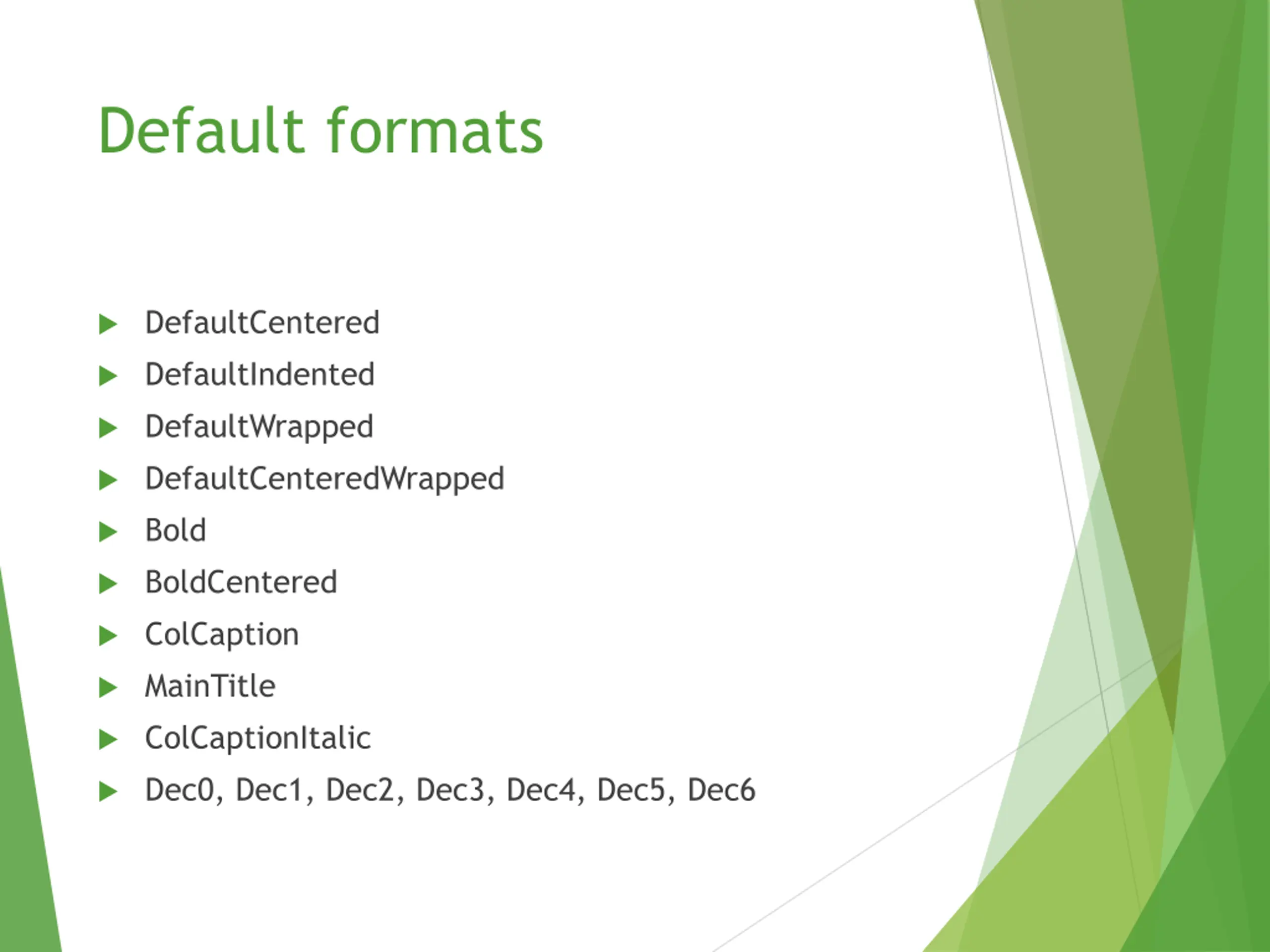

Default formats DefaultCentered DefaultIndented DefaultWrapped DefaultCenteredWrapped Bold BoldCentered ColCaption MainTitle ColCaptionItalic Dec0, Dec1, Dec2, Dec3, Dec4, Dec5, Dec6

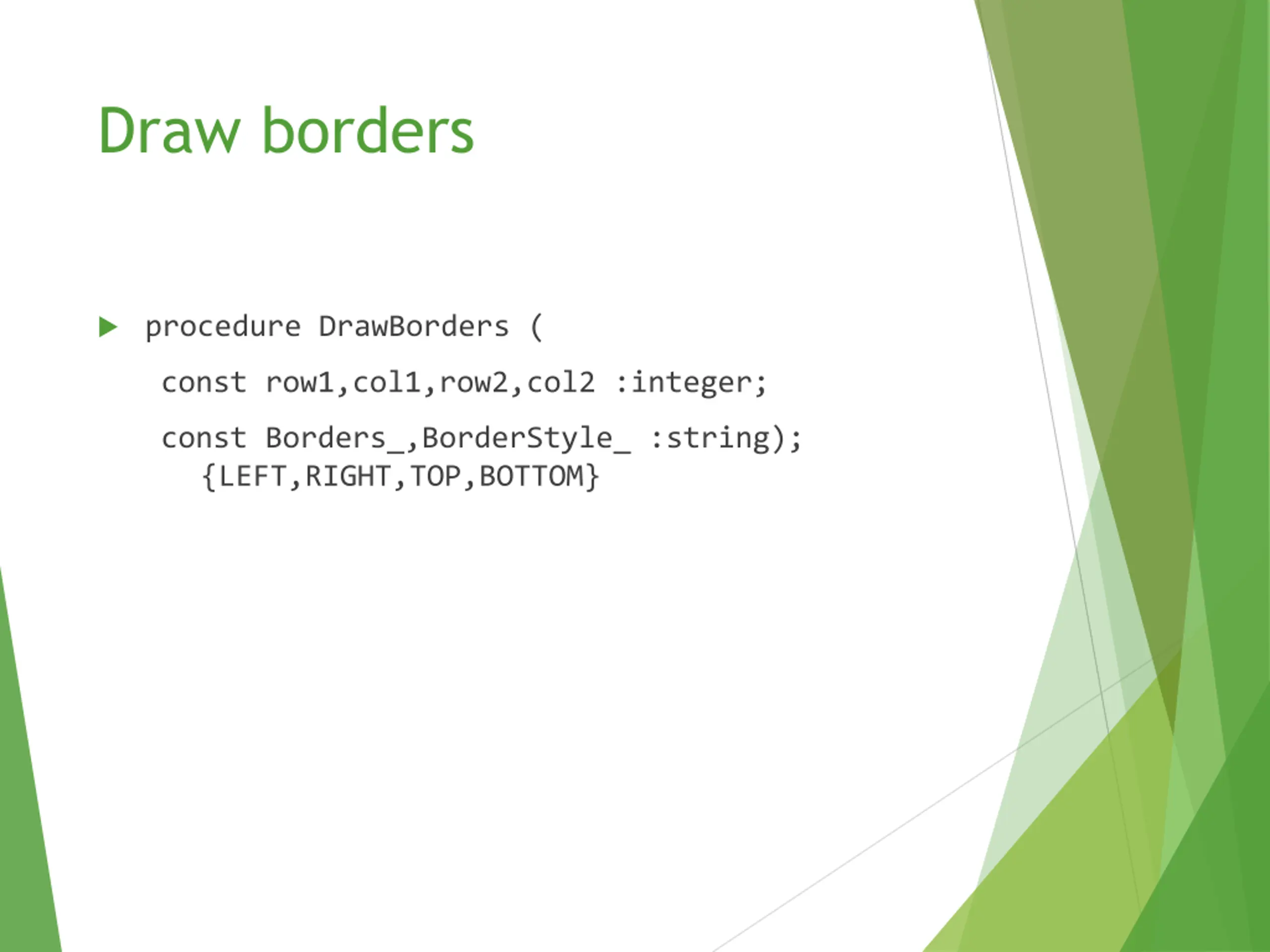

Draw borders procedure DrawBorders ( const row1,col1,row2,col2 :integer; const Borders_,BorderStyle_ :string); {LEFT,RIGHT,TOP,BOTTOM}

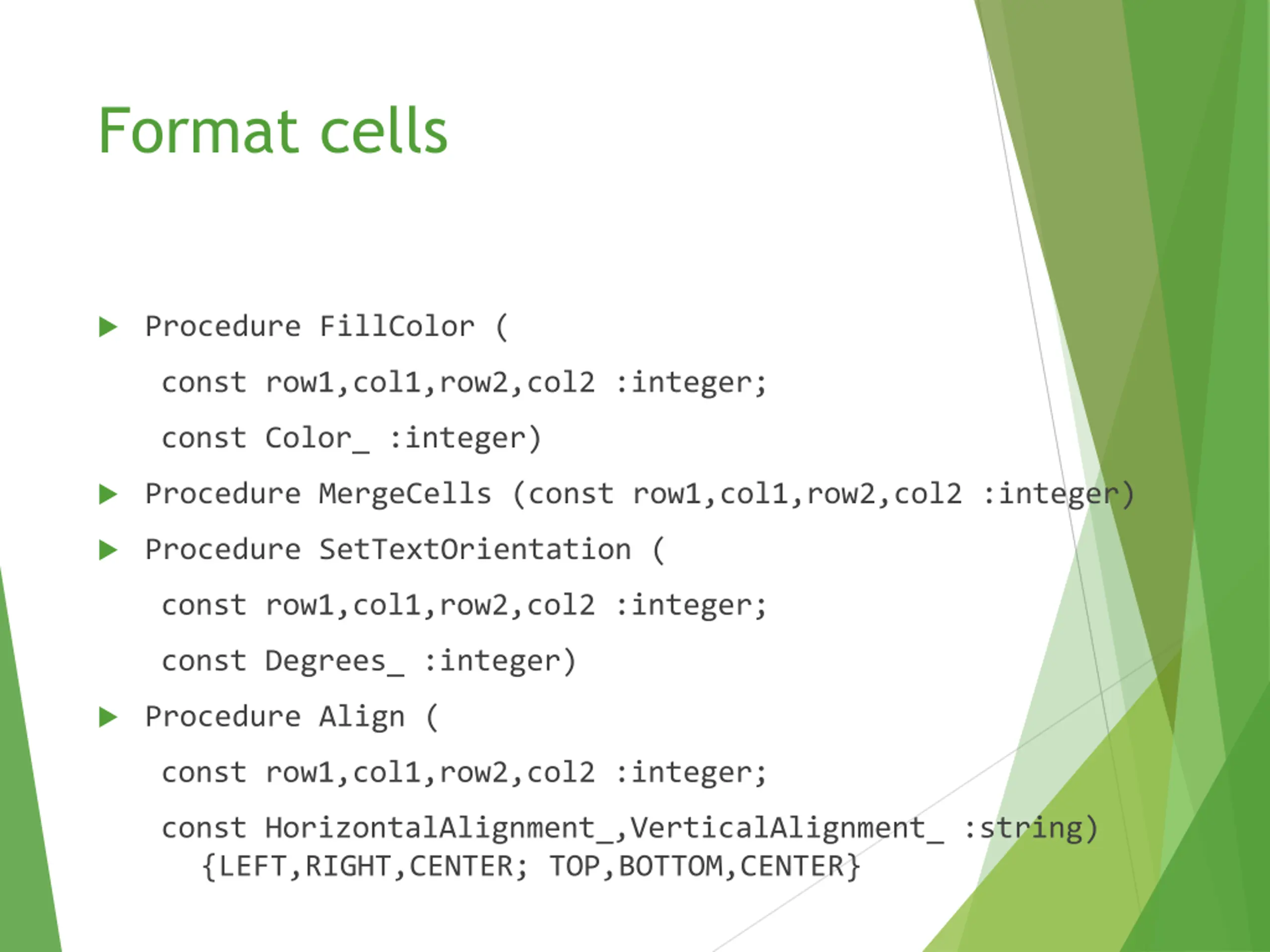

Format cells Procedure FillColor ( const row1,col1,row2,col2 :integer; const Color_ :integer) Procedure MergeCells (const row1,col1,row2,col2 :integer) Procedure SetTextOrientation ( const row1,col1,row2,col2 :integer; const Degrees_ :integer) Procedure Align ( const row1,col1,row2,col2 :integer; const HorizontalAlignment_,VerticalAlignment_ :string) {LEFT,RIGHT,CENTER; TOP,BOTTOM,CENTER}

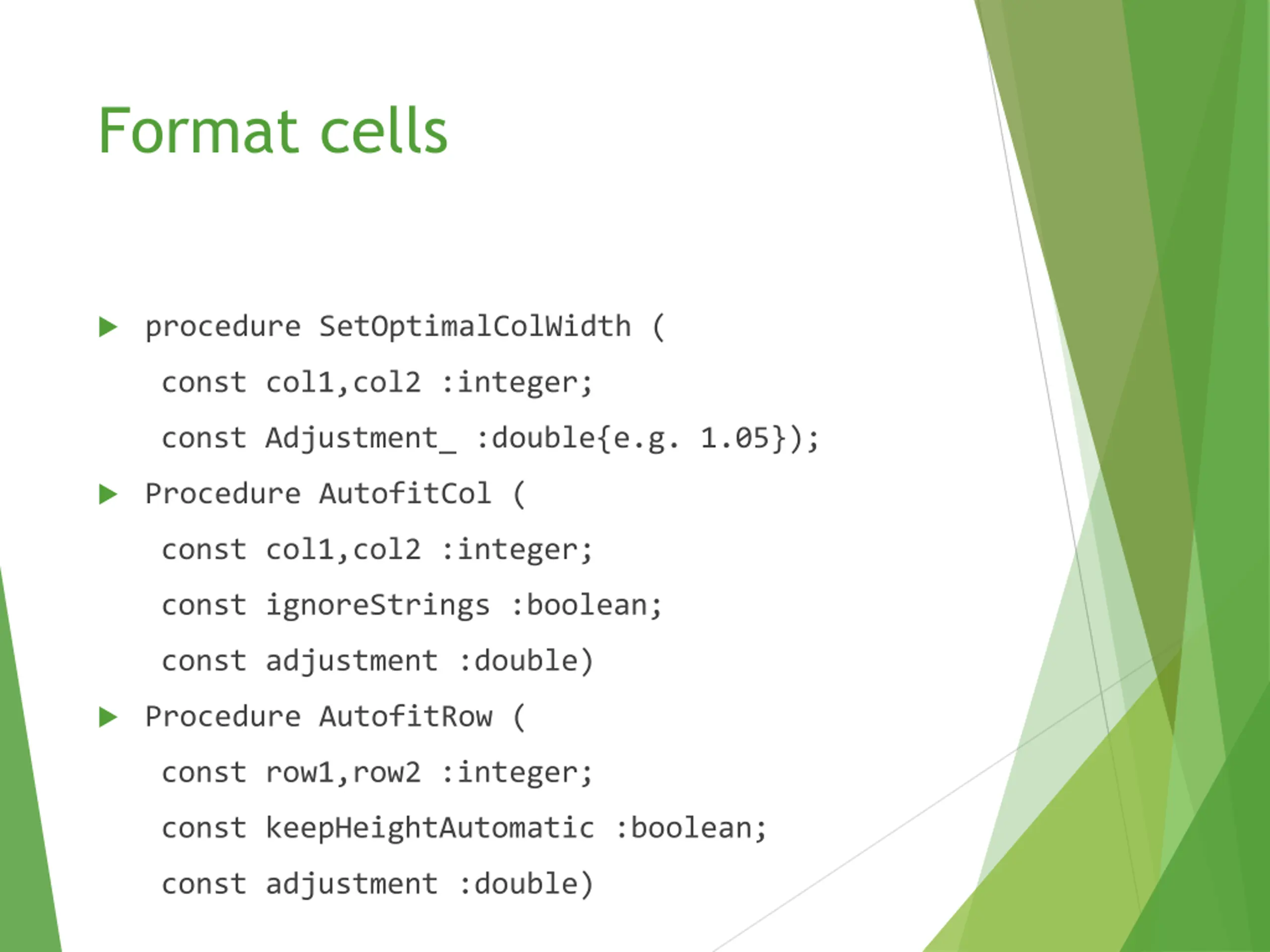

Format cells procedure SetOptimalColWidth ( const col1,col2 :integer; const Adjustment_ :double{e.g. 1.05}); Procedure AutofitCol ( const col1,col2 :integer; const ignoreStrings :boolean; const adjustment :double) Procedure AutofitRow ( const row1,row2 :integer; const keepHeightAutomatic :boolean; const adjustment :double)

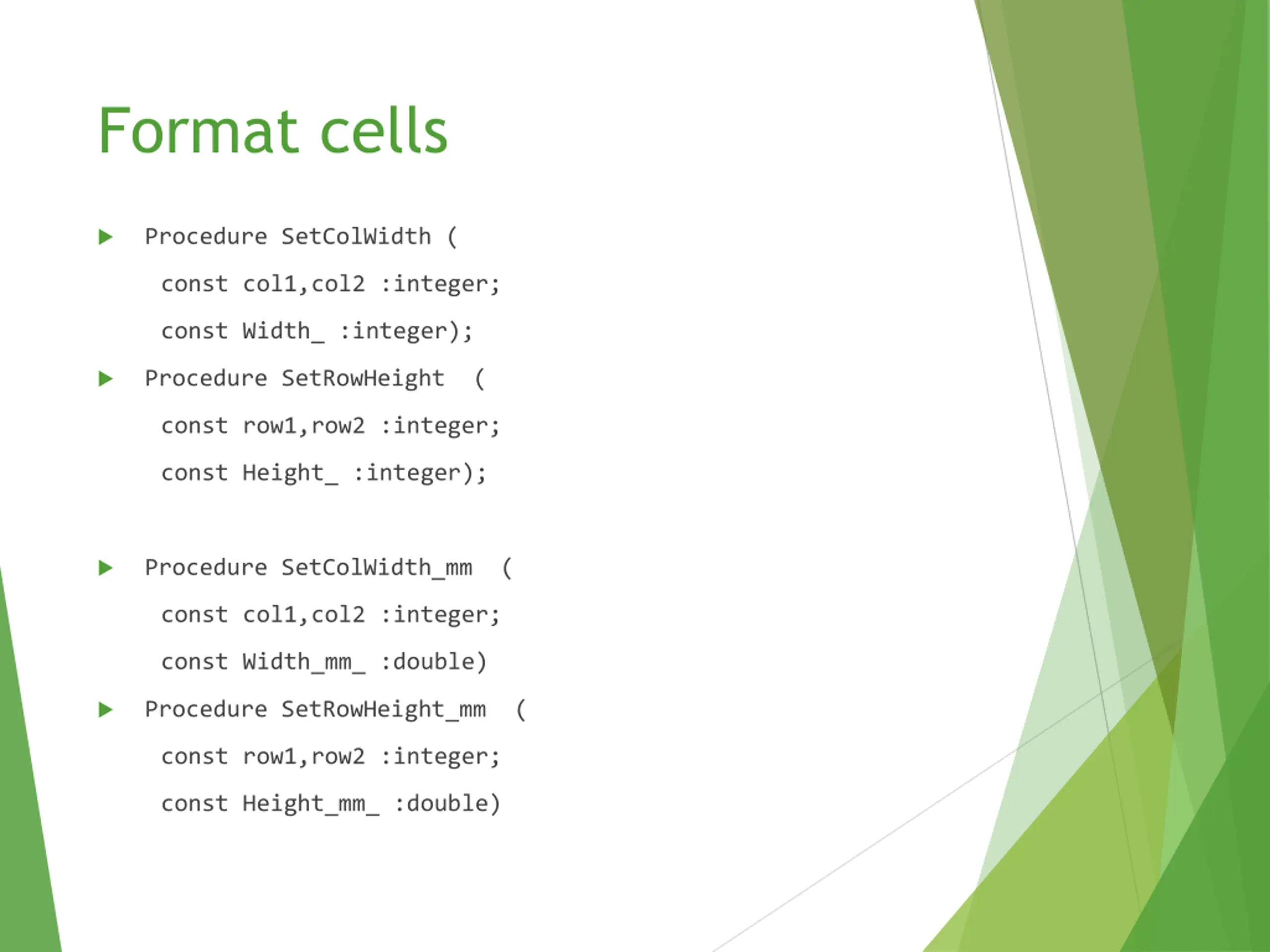

Format cells Procedure SetColWidth ( const col1,col2 :integer; const Width_ :integer); Procedure SetRowHeight ( const row1,row2 :integer; const Height_ :integer); Procedure SetColWidth_mm ( const col1,col2 :integer; const Width_mm_ :double) Procedure SetRowHeight_mm ( const row1,row2 :integer; const Height_mm_ :double)

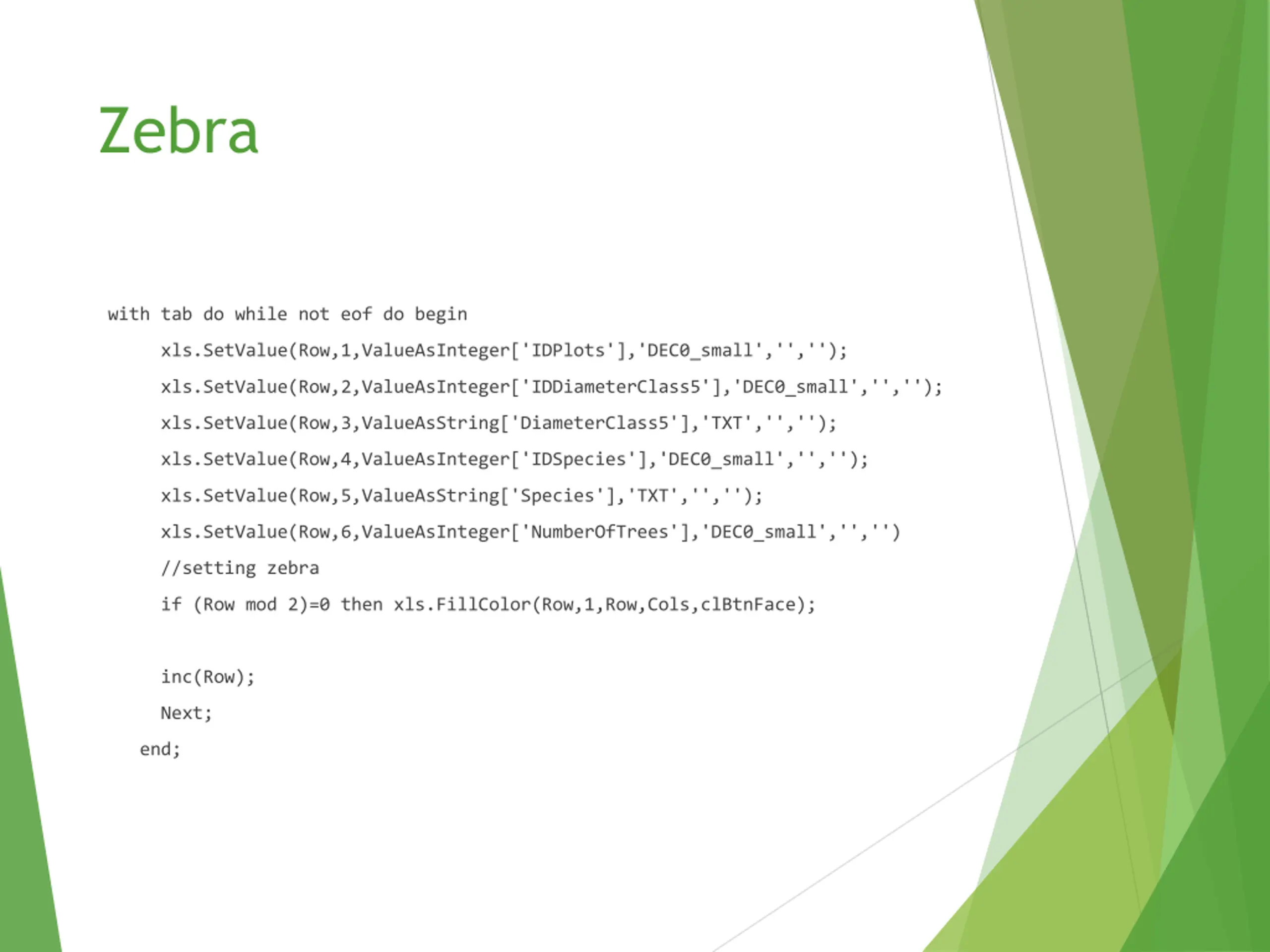

Zebra with tab do while not eof do begin xls.SetValue(Row,1,ValueAsInteger['IDPlots'],'DEC0_small','',''); xls.SetValue(Row,2,ValueAsInteger['IDDiameterClass5'],'DEC0_small','',''); xls.SetValue(Row,3,ValueAsString['DiameterClass5'],'TXT','',''); xls.SetValue(Row,4,ValueAsInteger['IDSpecies'],'DEC0_small','',''); xls.SetValue(Row,5,ValueAsString['Species'],'TXT','',''); xls.SetValue(Row,6,ValueAsInteger['NumberOfTrees'],'DEC0_small','','') //setting zebra if (Row mod 2)=0 then xls.FillColor(Row,1,Row,Cols,clBtnFace); inc(Row); Next; end;
