Dynamic Grid Modeling Considerations for DWG
Explore issues and solutions related to acceleration factors, generic models, and DERs/DGs in dynamic studies discussed during the recent DWG meeting. Learn about modeling considerations for DGR, SODG, UDG aggregation, and more.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

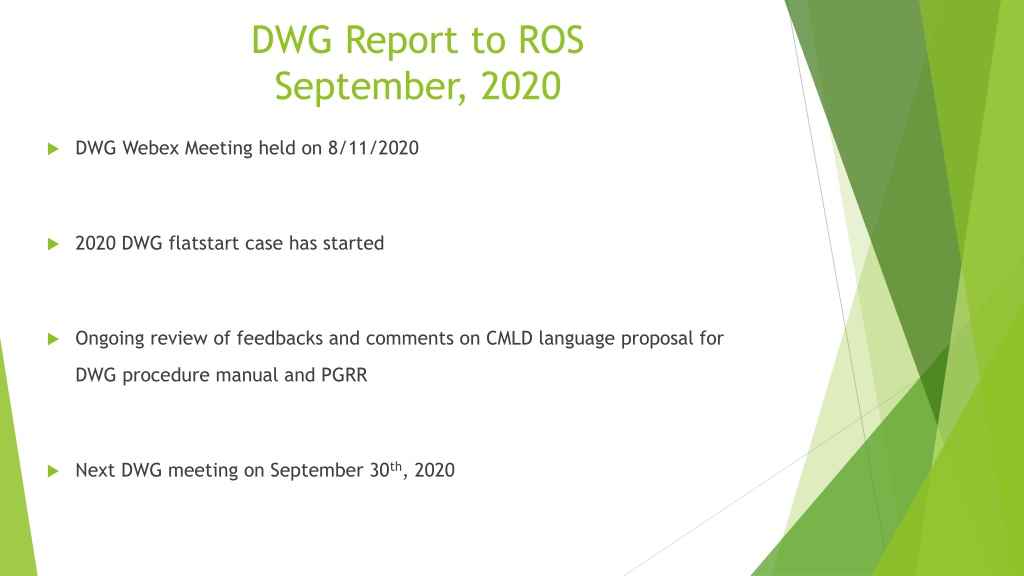

DWG Report to ROS September, 2020 DWG Webex Meeting held on 8/11/2020 2020 DWG flatstart case has started Ongoing review of feedbacks and comments on CMLD language proposal for DWG procedure manual and PGRR Next DWG meeting on September 30th, 2020

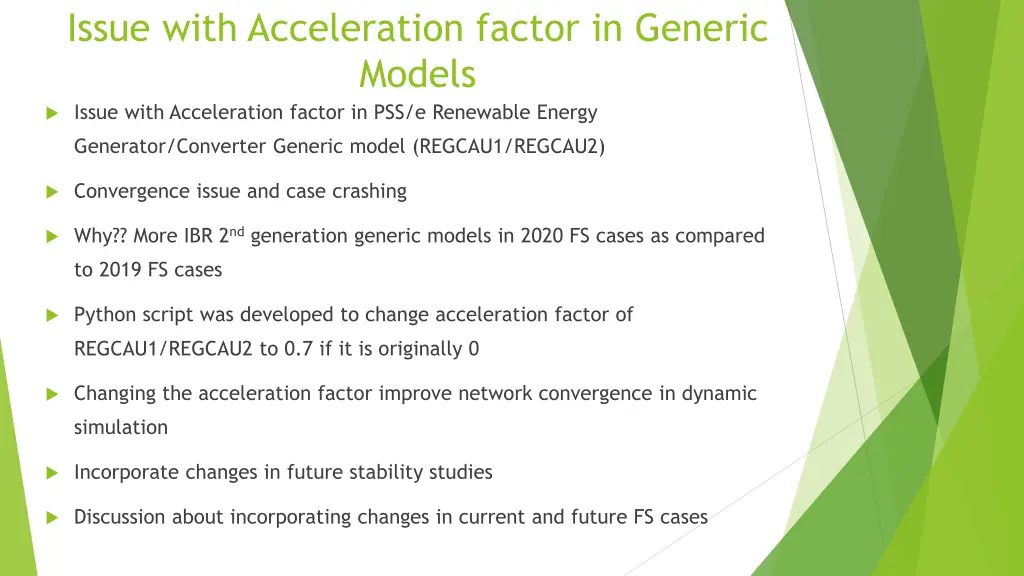

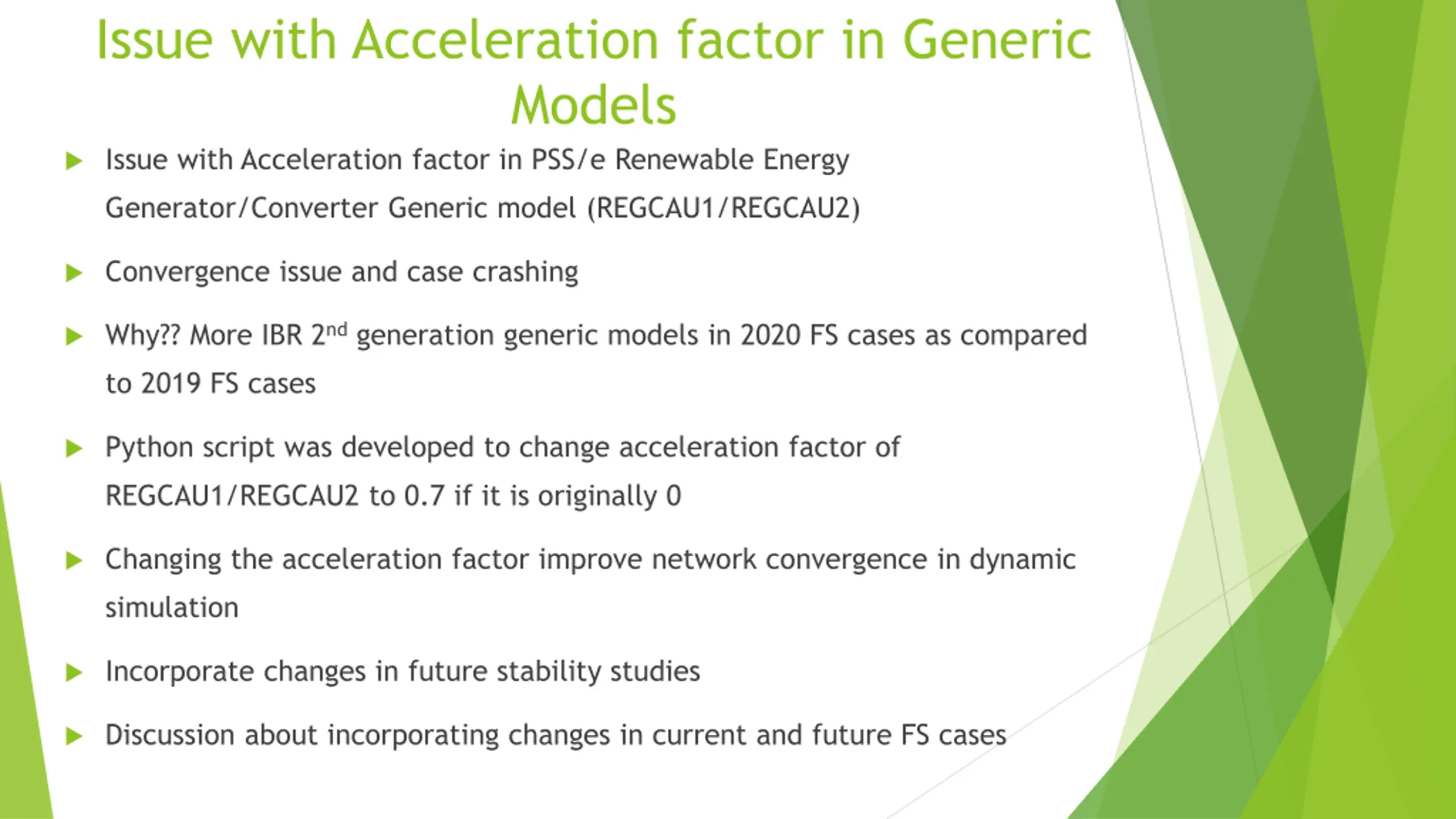

Issue with Acceleration factor in Generic Models Issue with Acceleration factor in PSS/e Renewable Energy Generator/Converter Generic model (REGCAU1/REGCAU2) Convergence issue and case crashing Why?? More IBR 2ndgeneration generic models in 2020 FS cases as compared to 2019 FS cases Python script was developed to change acceleration factor of REGCAU1/REGCAU2 to 0.7 if it is originally 0 Changing the acceleration factor improve network convergence in dynamic simulation Incorporate changes in future stability studies Discussion about incorporating changes in current and future FS cases

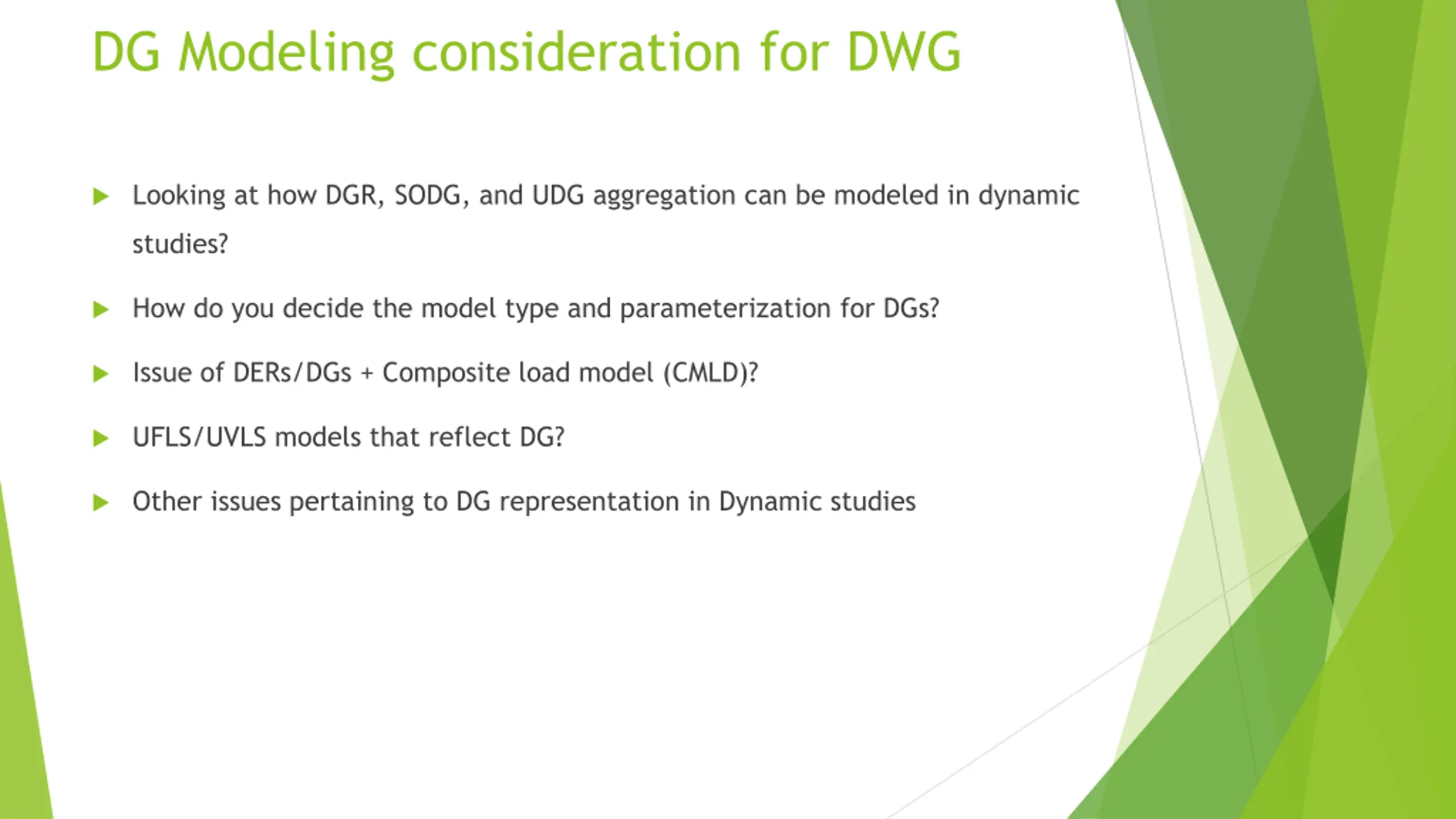

DG Modeling consideration for DWG Looking at how DGR, SODG, and UDG aggregation can be modeled in dynamic studies? How do you decide the model type and parameterization for DGs? Issue of DERs/DGs + Composite load model (CMLD)? UFLS/UVLS models that reflect DG? Other issues pertaining to DG representation in Dynamic studies

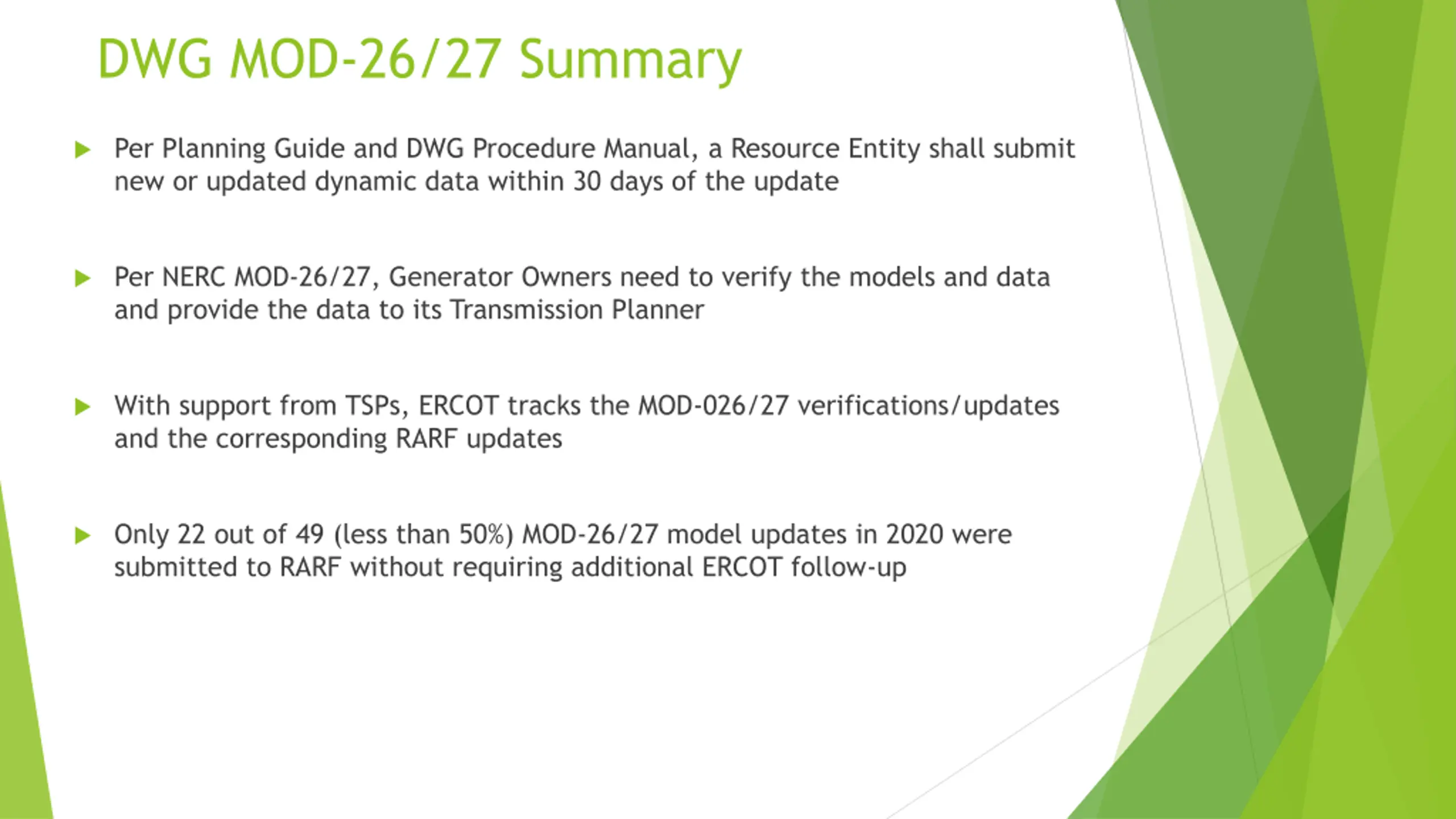

DWG MOD-26/27 Summary Per Planning Guide and DWG Procedure Manual, a Resource Entity shall submit new or updated dynamic data within 30 days of the update Per NERC MOD-26/27, Generator Owners need to verify the models and data and provide the data to its Transmission Planner With support from TSPs, ERCOT tracks the MOD-026/27 verifications/updates and the corresponding RARF updates Only 22 out of 49 (less than 50%) MOD-26/27 model updates in 2020 were submitted to RARF without requiring additional ERCOT follow-up
