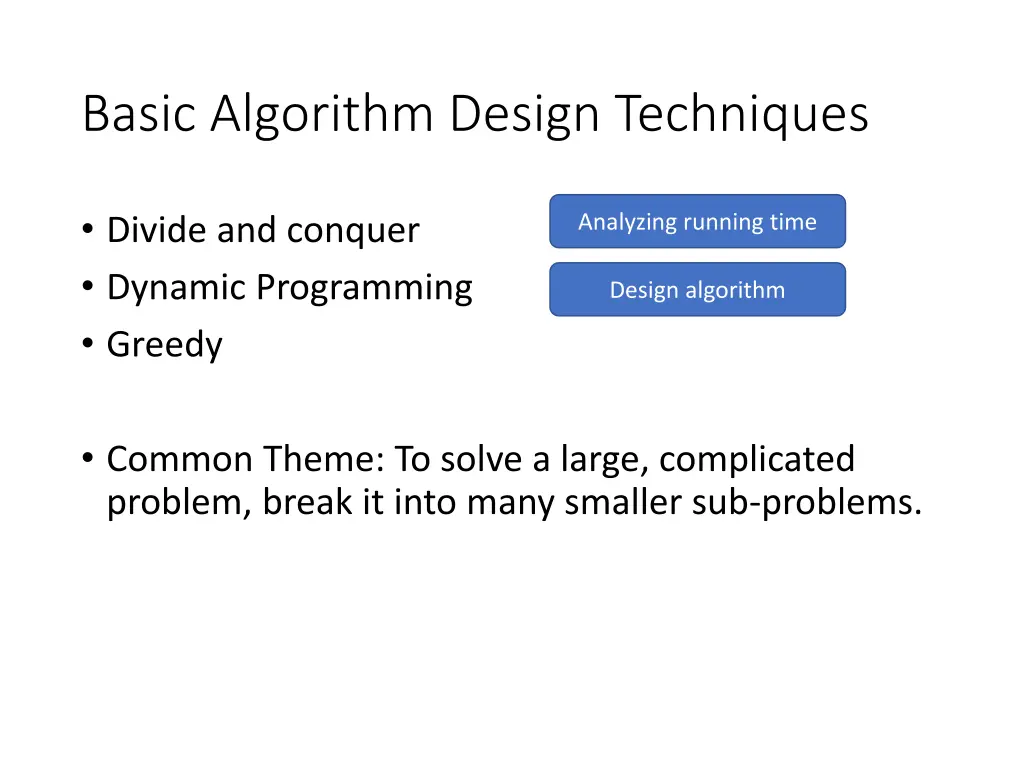

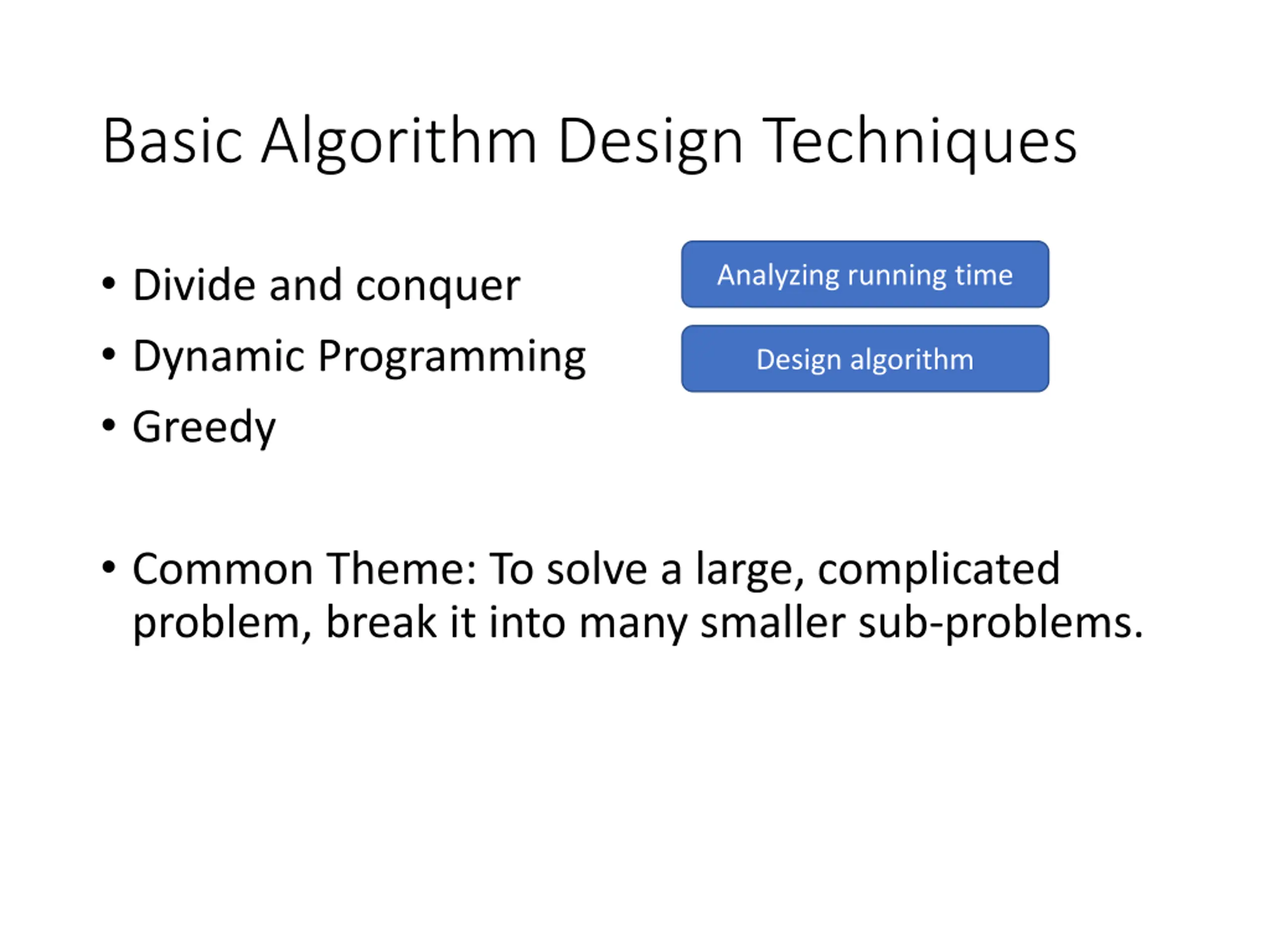

Basic Algorithm Design Techniques Divide and conquer Dynamic Programming Greedy Analyzing running time Design algorithm Common Theme: To solve a large, complicated problem, break it into many smaller sub-problems.

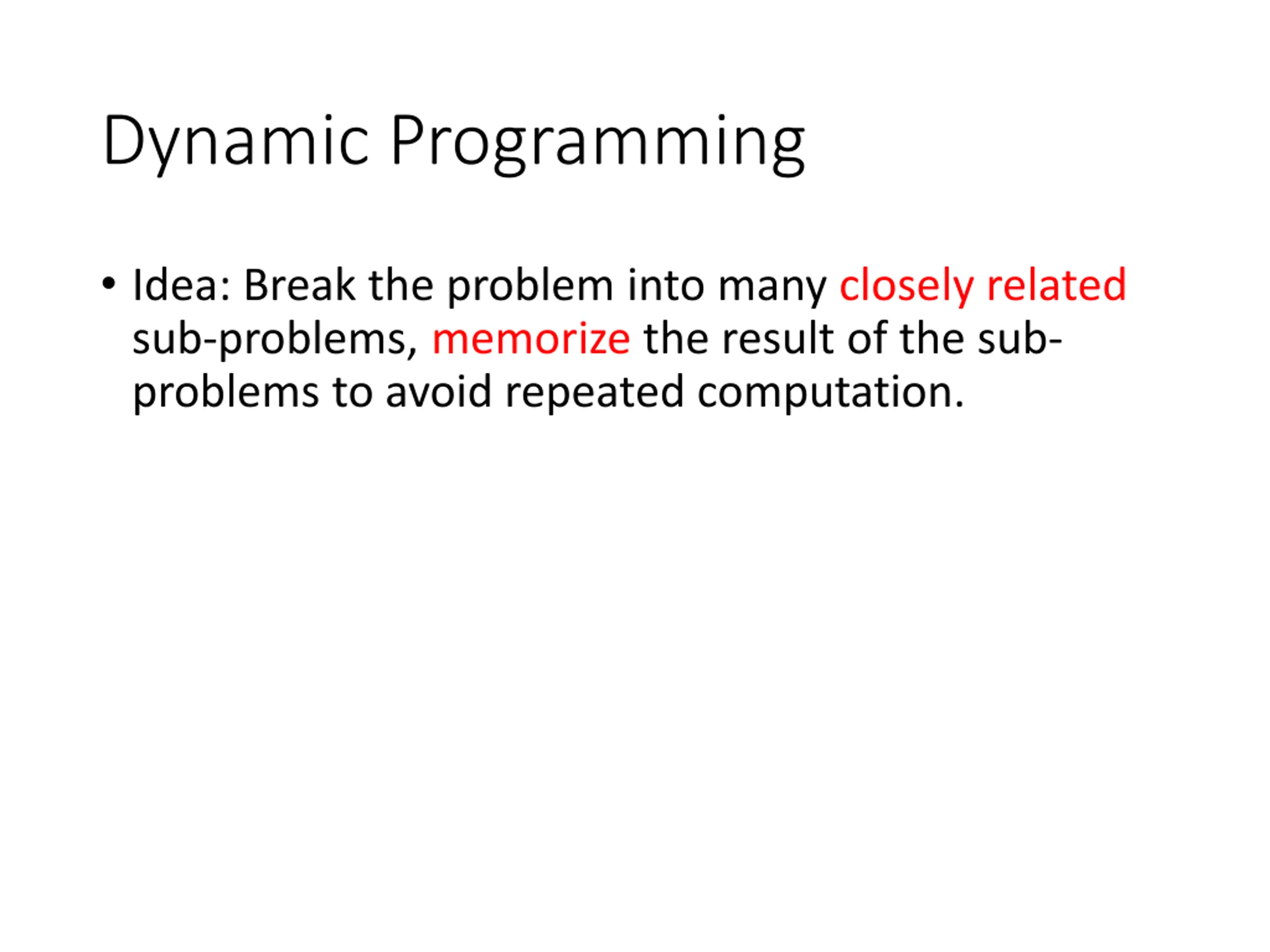

Dynamic Programming Idea: Break the problem into many closely related sub-problems, memorize the result of the sub- problems to avoid repeated computation.

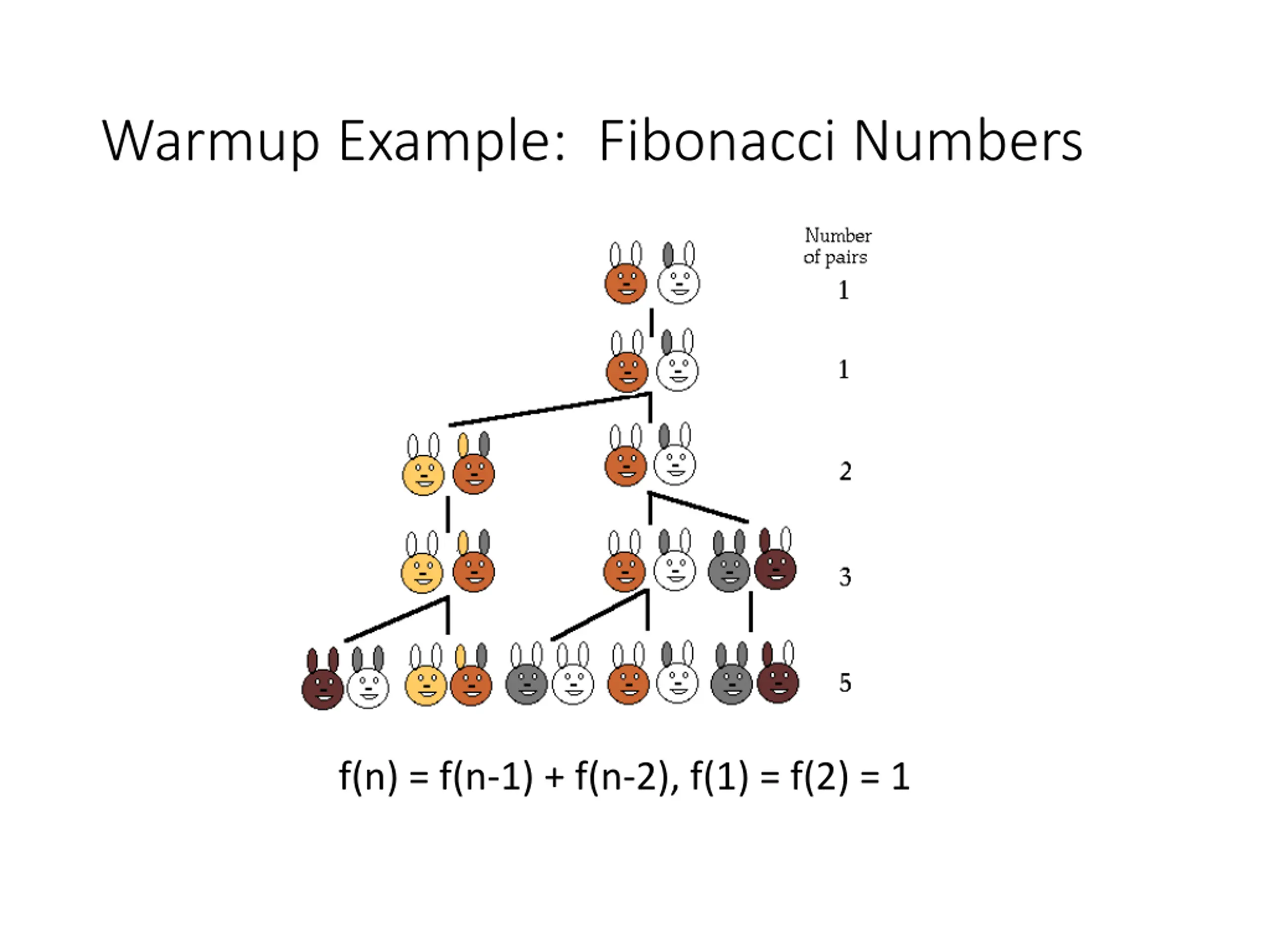

Warmup Example: Fibonacci Numbers f(n) = f(n-1) + f(n-2), f(1) = f(2) = 1

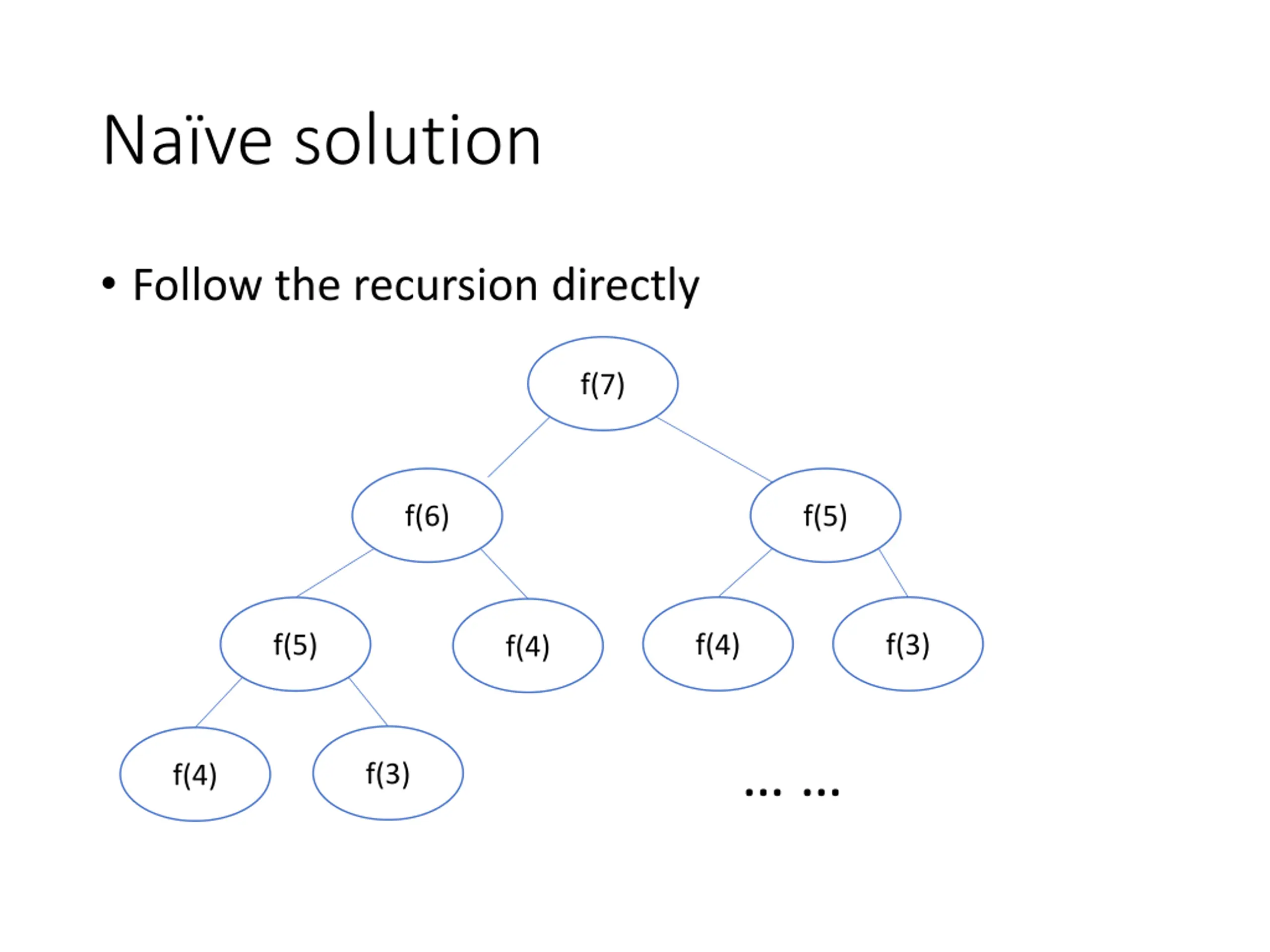

Nave solution Follow the recursion directly f(7) f(6) f(5) f(4) f(3) f(5) f(4) f(3) f(4)

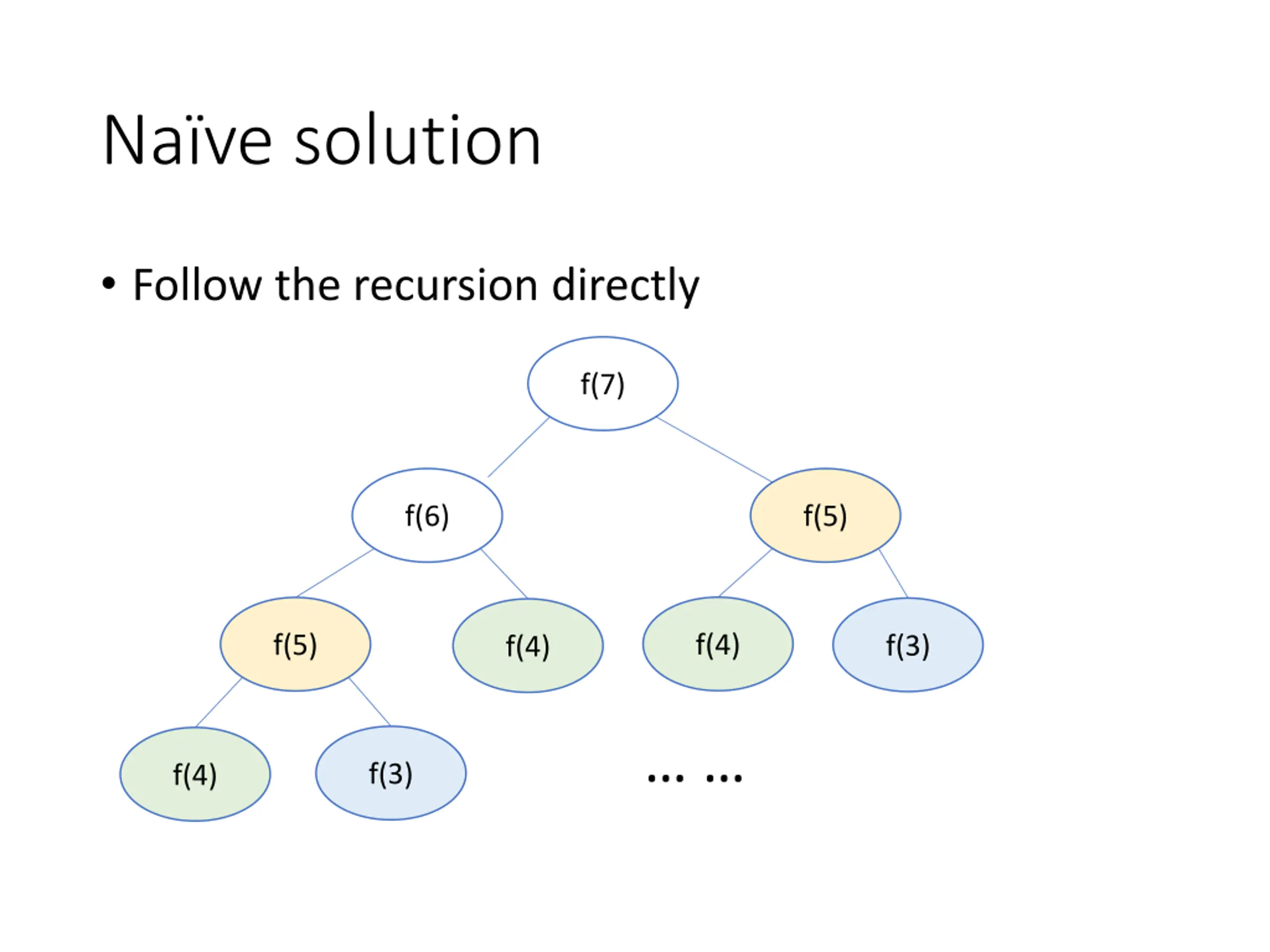

Nave solution Follow the recursion directly f(7) f(6) f(5) f(4) f(5) f(3) f(4) f(3) f(4)

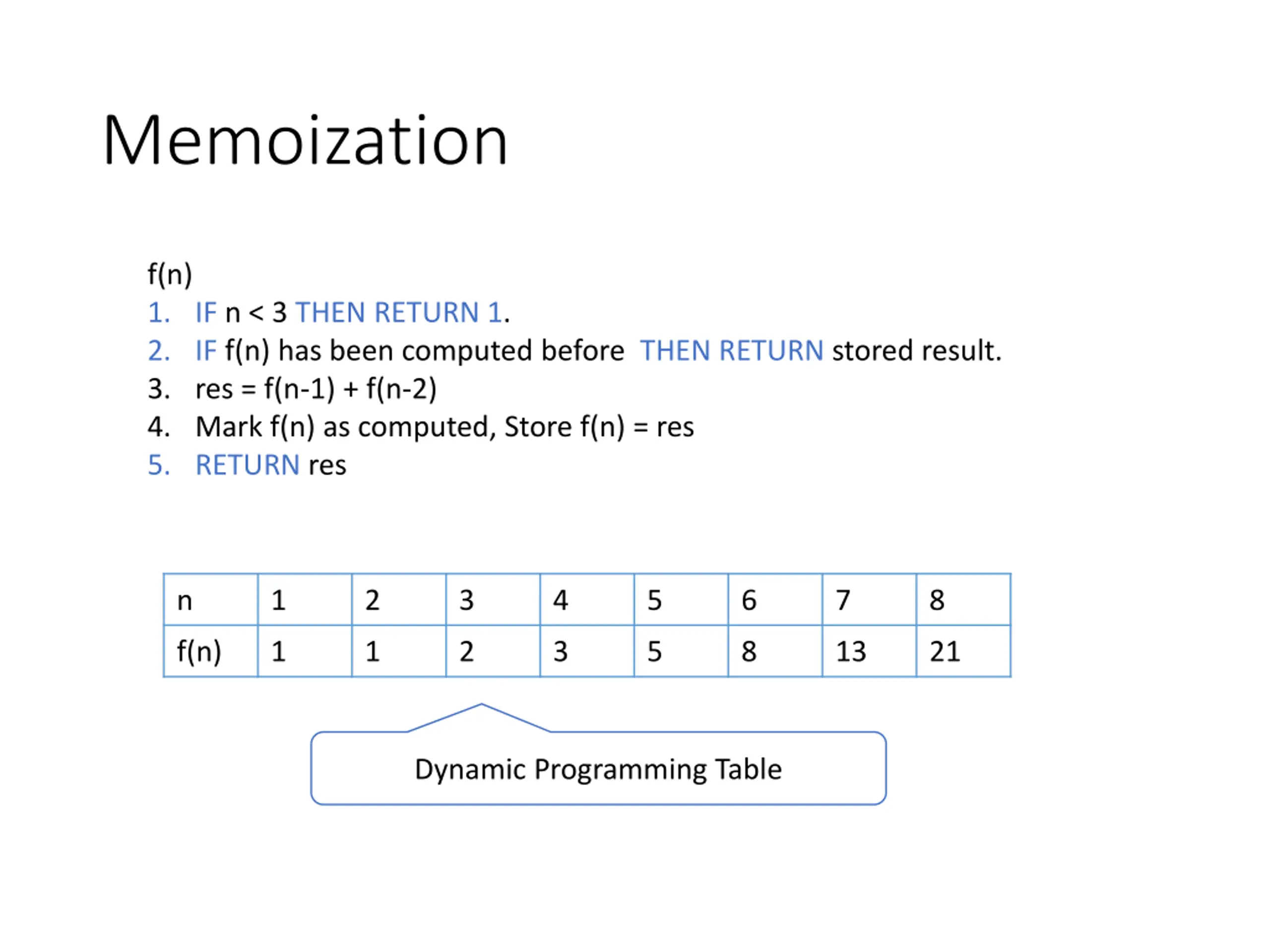

Memoization f(n) 1. IF n < 3 THEN RETURN 1. 2. IF f(n) has been computed before THEN RETURN stored result. 3. res = f(n-1) + f(n-2) 4. Mark f(n) as computed, Store f(n) = res 5. RETURN res n 1 2 3 4 5 6 7 8 f(n) 1 1 2 3 5 8 13 21 Dynamic Programming Table

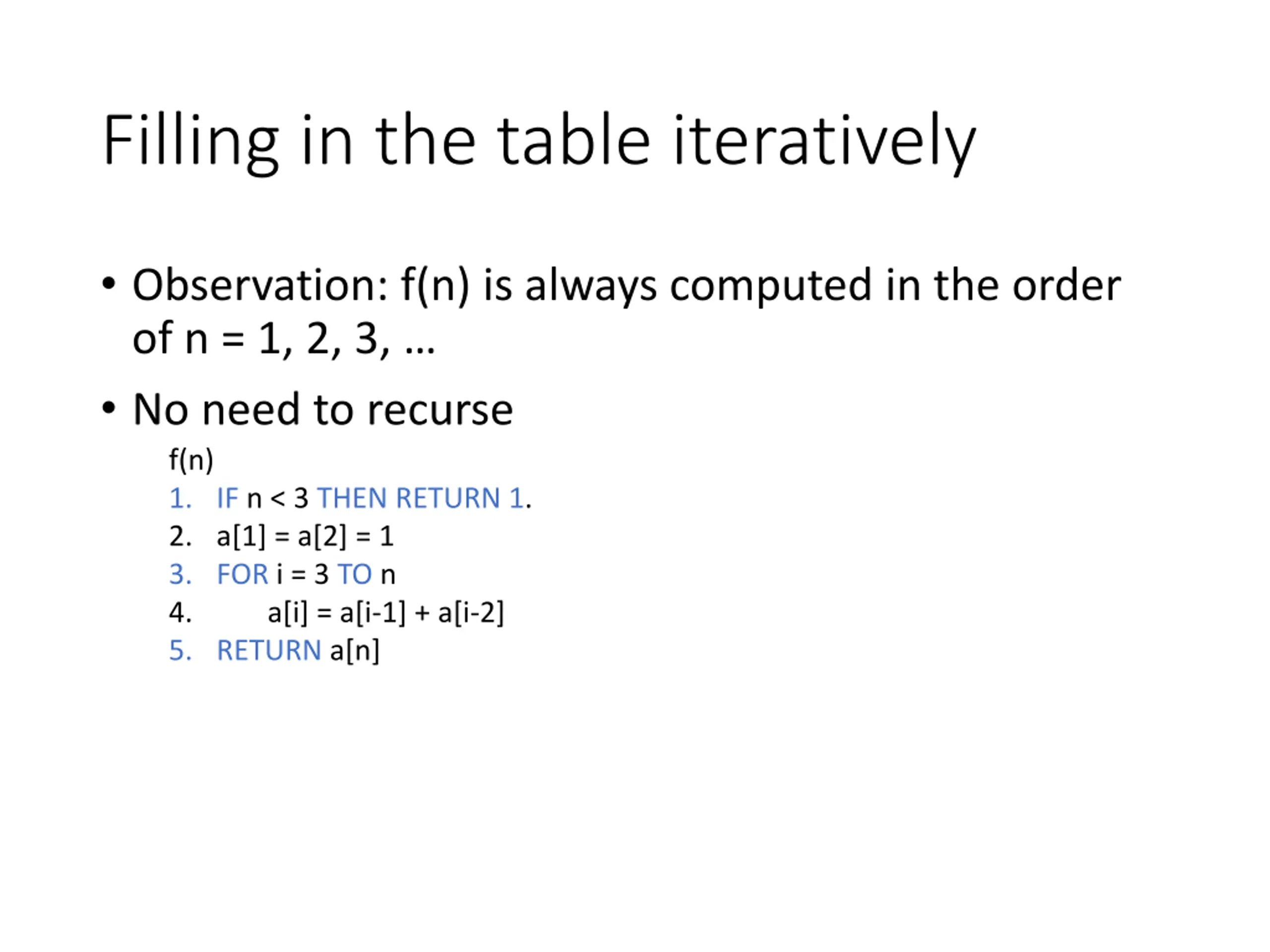

Filling in the table iteratively Observation: f(n) is always computed in the order of n = 1, 2, 3, No need to recurse f(n) 1. IF n < 3 THEN RETURN 1. 2. a[1] = a[2] = 1 3. FOR i = 3 TO n 4. a[i] = a[i-1] + a[i-2] 5. RETURN a[n]

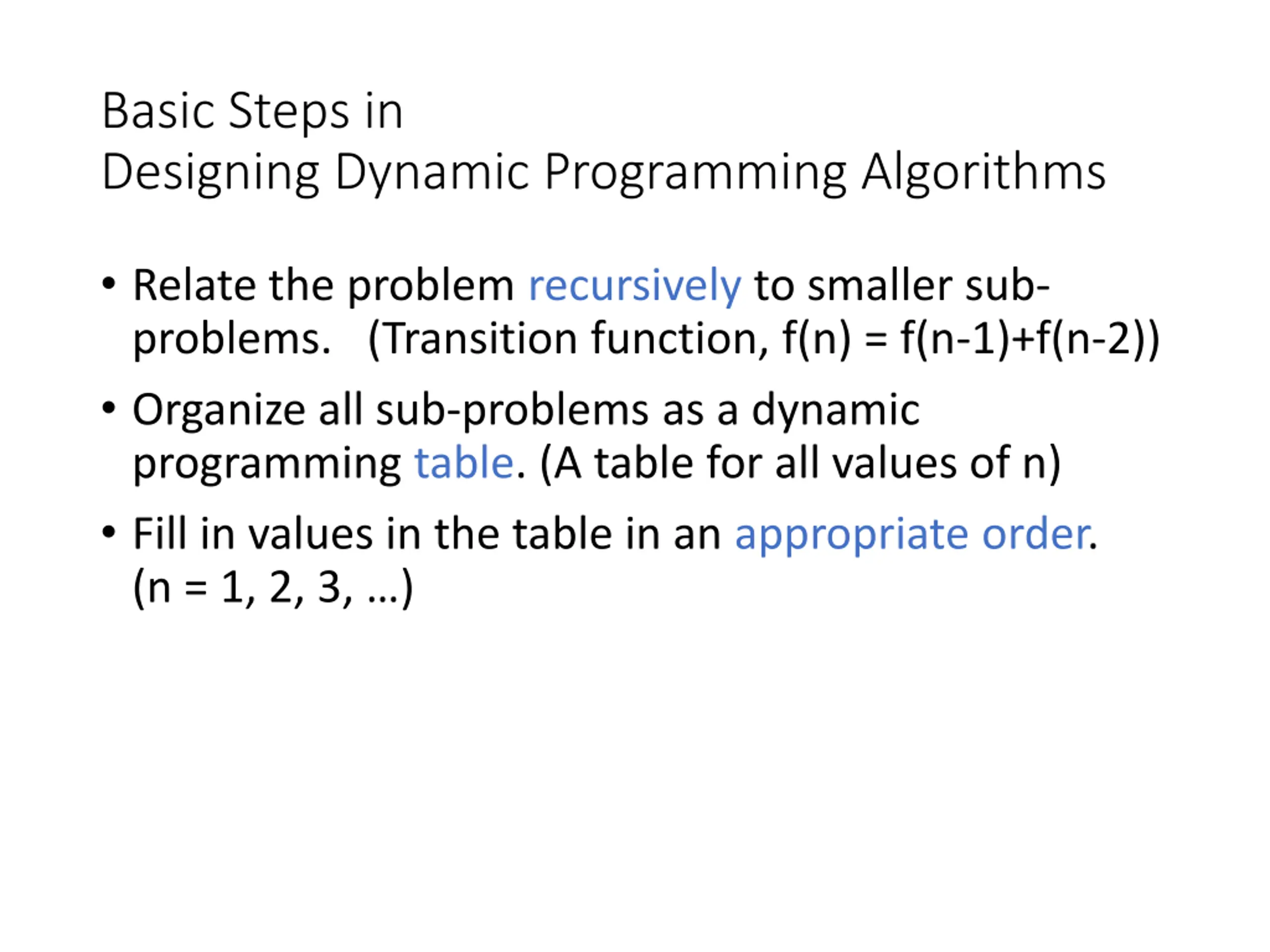

Basic Steps in Designing Dynamic Programming Algorithms Relate the problem recursively to smaller sub- problems. (Transition function, f(n) = f(n-1)+f(n-2)) Organize all sub-problems as a dynamic programming table. (A table for all values of n) Fill in values in the table in an appropriate order. (n = 1, 2, 3, )

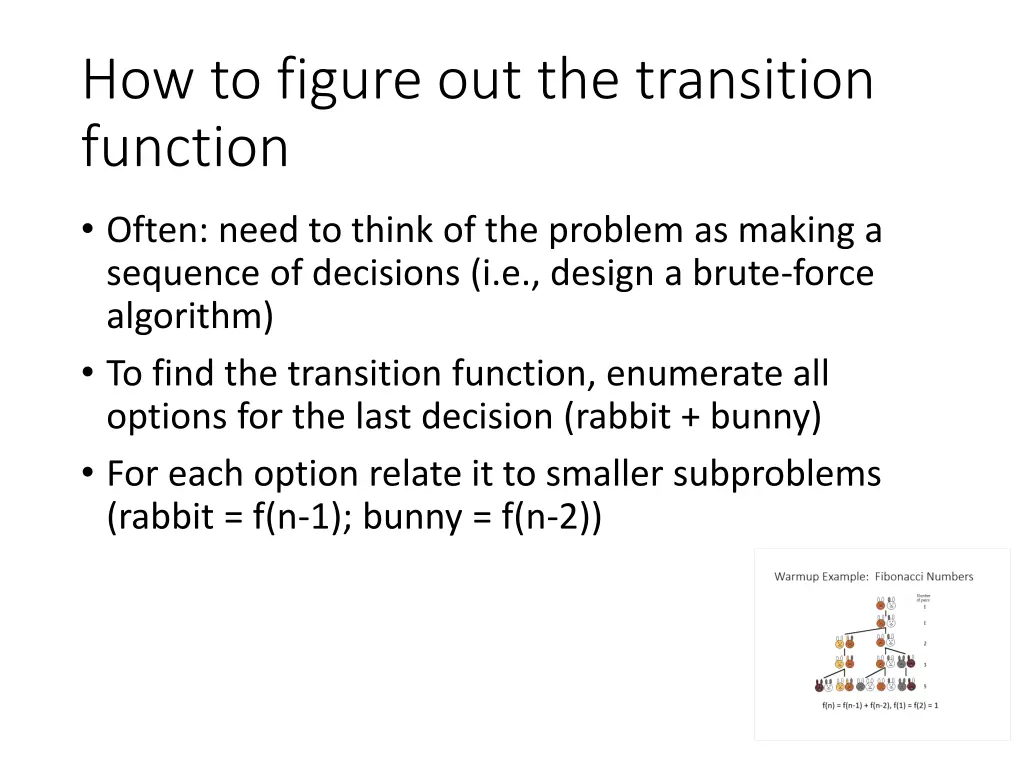

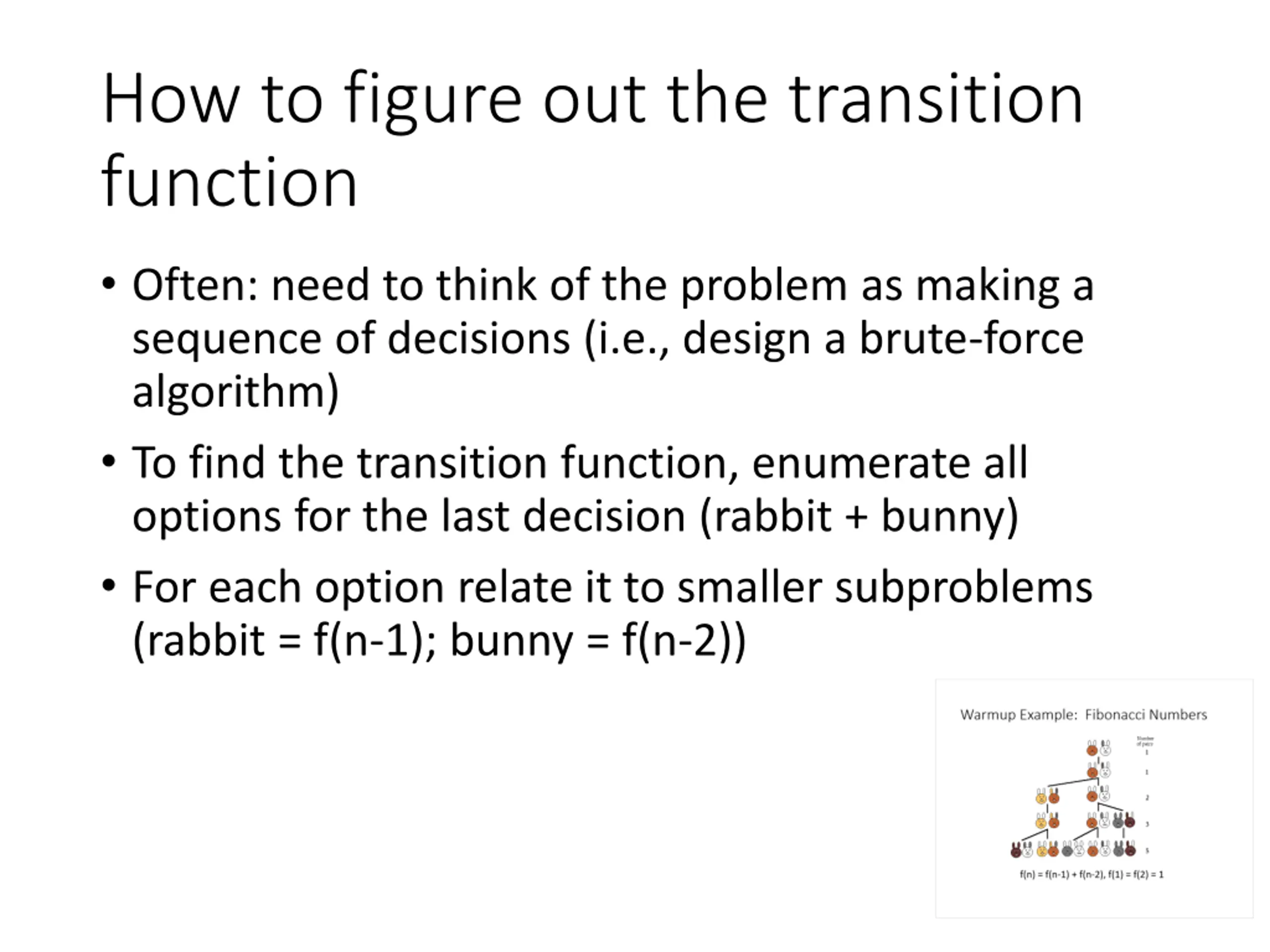

How to figure out the transition function Often: need to think of the problem as making a sequence of decisions (i.e., design a brute-force algorithm) To find the transition function, enumerate all options for the last decision (rabbit + bunny) For each option relate it to smaller subproblems (rabbit = f(n-1); bunny = f(n-2))

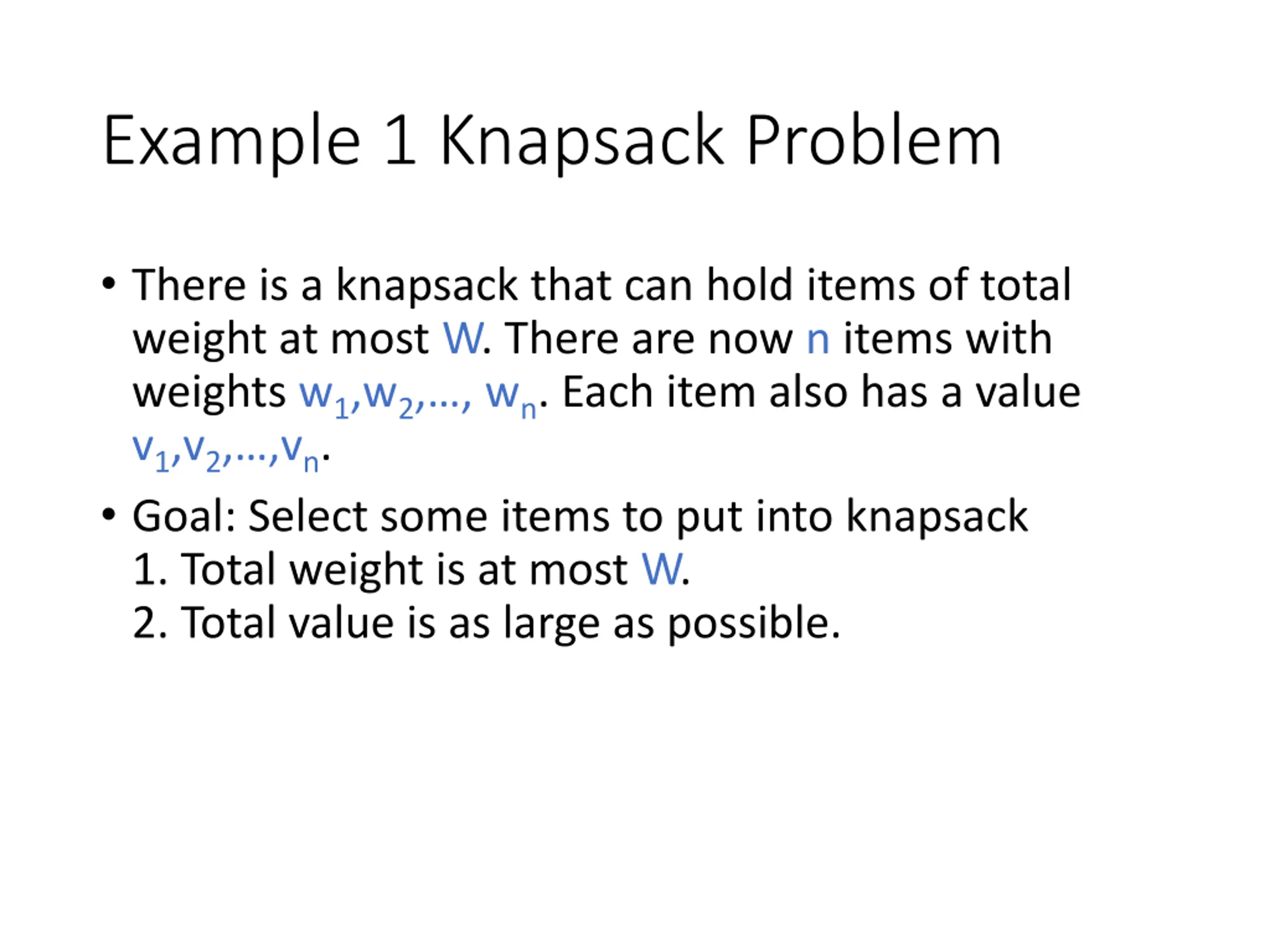

Example 1 Knapsack Problem There is a knapsack that can hold items of total weight at most W. There are now n items with weights w1,w2, , wn. Each item also has a value v1,v2, ,vn. Goal: Select some items to put into knapsack 1. Total weight is at most W. 2. Total value is as large as possible.

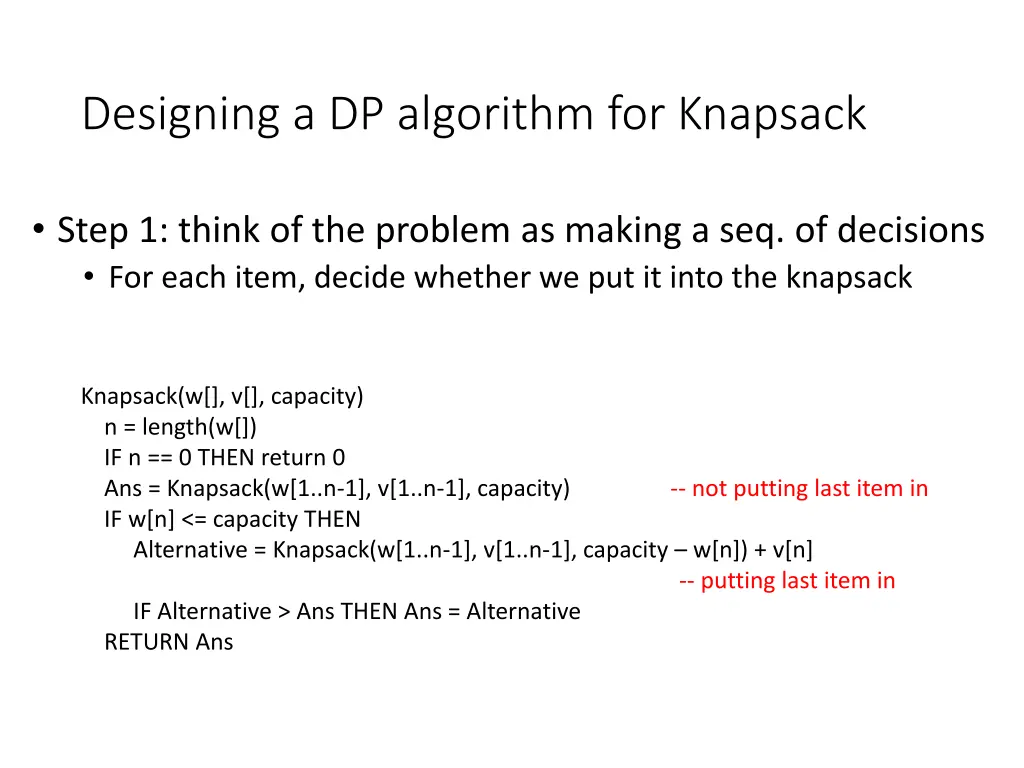

Designing a DP algorithm for Knapsack Step 1: think of the problem as making a seq. of decisions For each item, decide whether we put it into the knapsack Knapsack(w[], v[], capacity) n = length(w[]) IF n == 0 THEN return 0 Ans = Knapsack(w[1..n-1], v[1..n-1], capacity) -- not putting last item in IF w[n] <= capacity THEN Alternative = Knapsack(w[1..n-1], v[1..n-1], capacity w[n]) + v[n] -- putting last item in IF Alternative > Ans THEN Ans = Alternative RETURN Ans

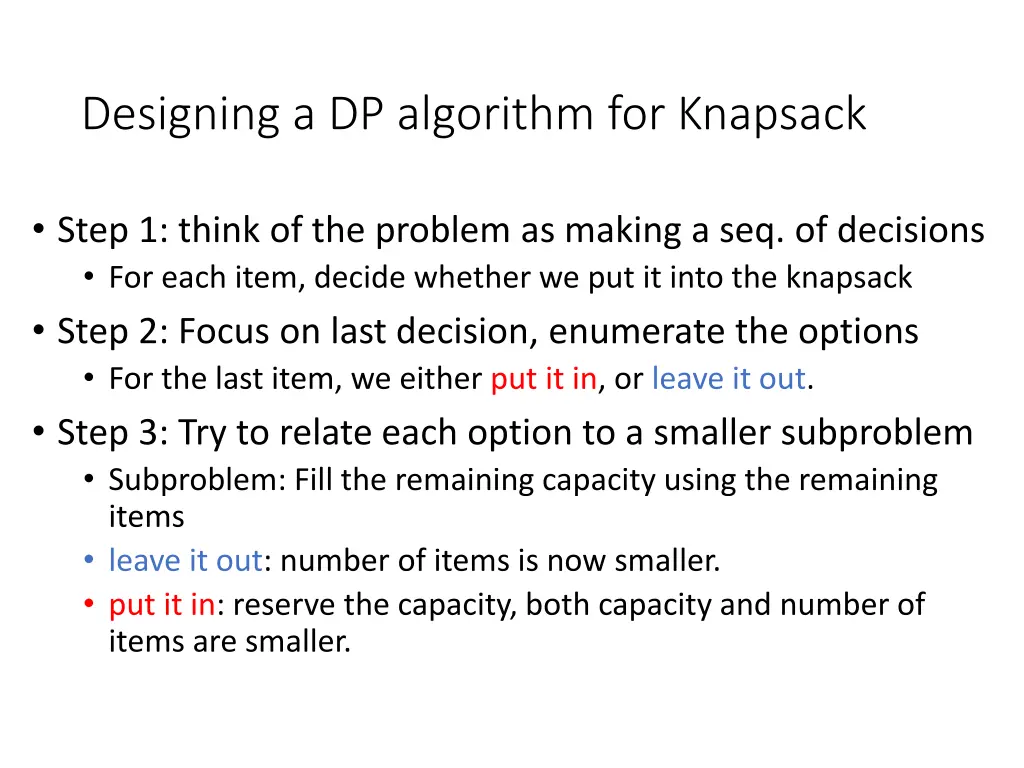

Designing a DP algorithm for Knapsack Step 1: think of the problem as making a seq. of decisions For each item, decide whether we put it into the knapsack Step 2: Focus on last decision, enumerate the options For the last item, we either put it in, or leave it out. Step 3: Try to relate each option to a smaller subproblem Subproblem: Fill the remaining capacity using the remaining items leave it out: number of items is now smaller. put it in: reserve the capacity, both capacity and number of items are smaller.

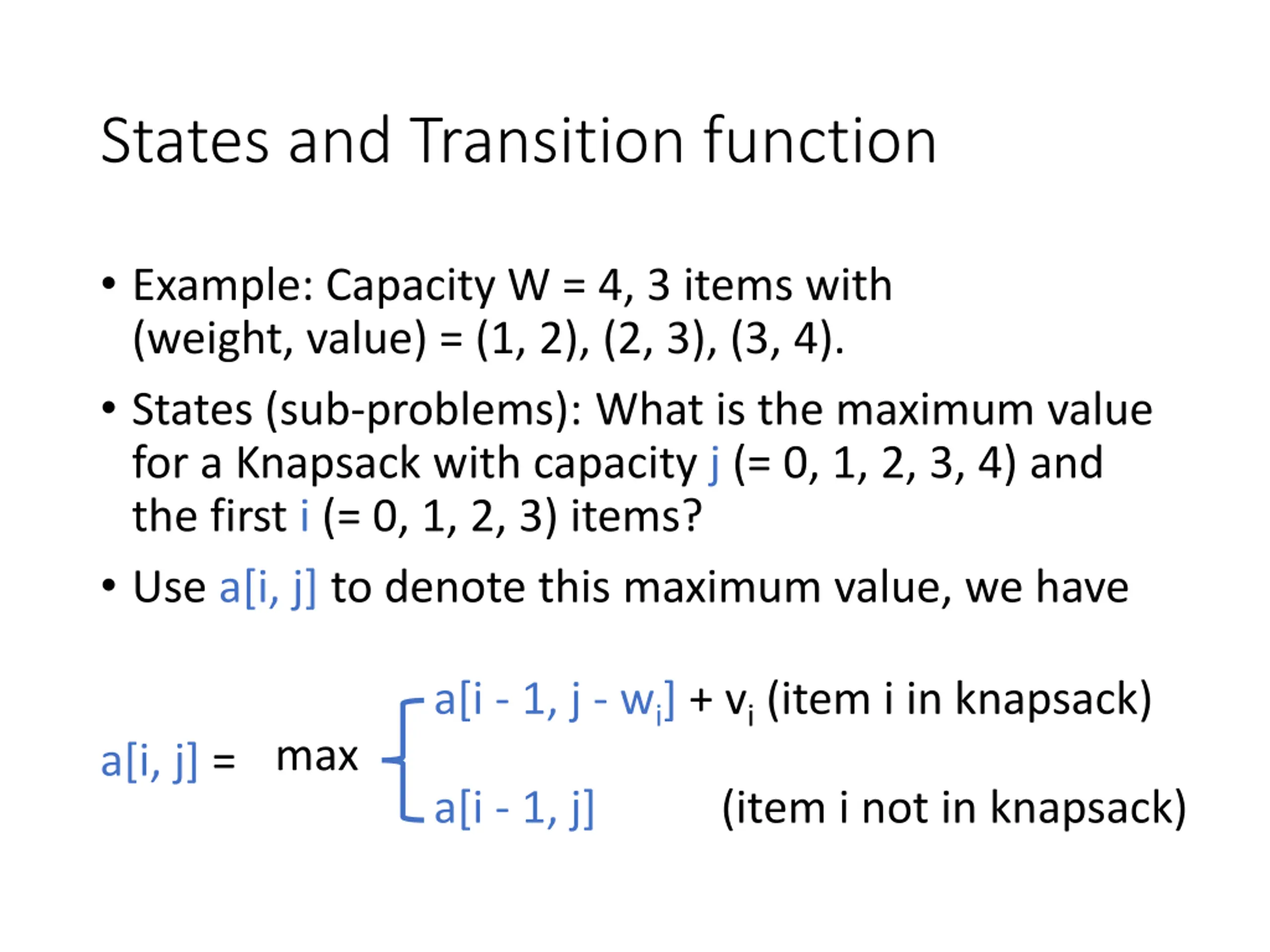

States and Transition function Example: Capacity W = 4, 3 items with (weight, value) = (1, 2), (2, 3), (3, 4). States (sub-problems): What is the maximum value for a Knapsack with capacity j (= 0, 1, 2, 3, 4) and the first i (= 0, 1, 2, 3) items? Use a[i, j] to denote this maximum value, we have a[i - 1, j - wi] + vi (item i in knapsack) max a[i, j] = a[i - 1, j] (item i not in knapsack)

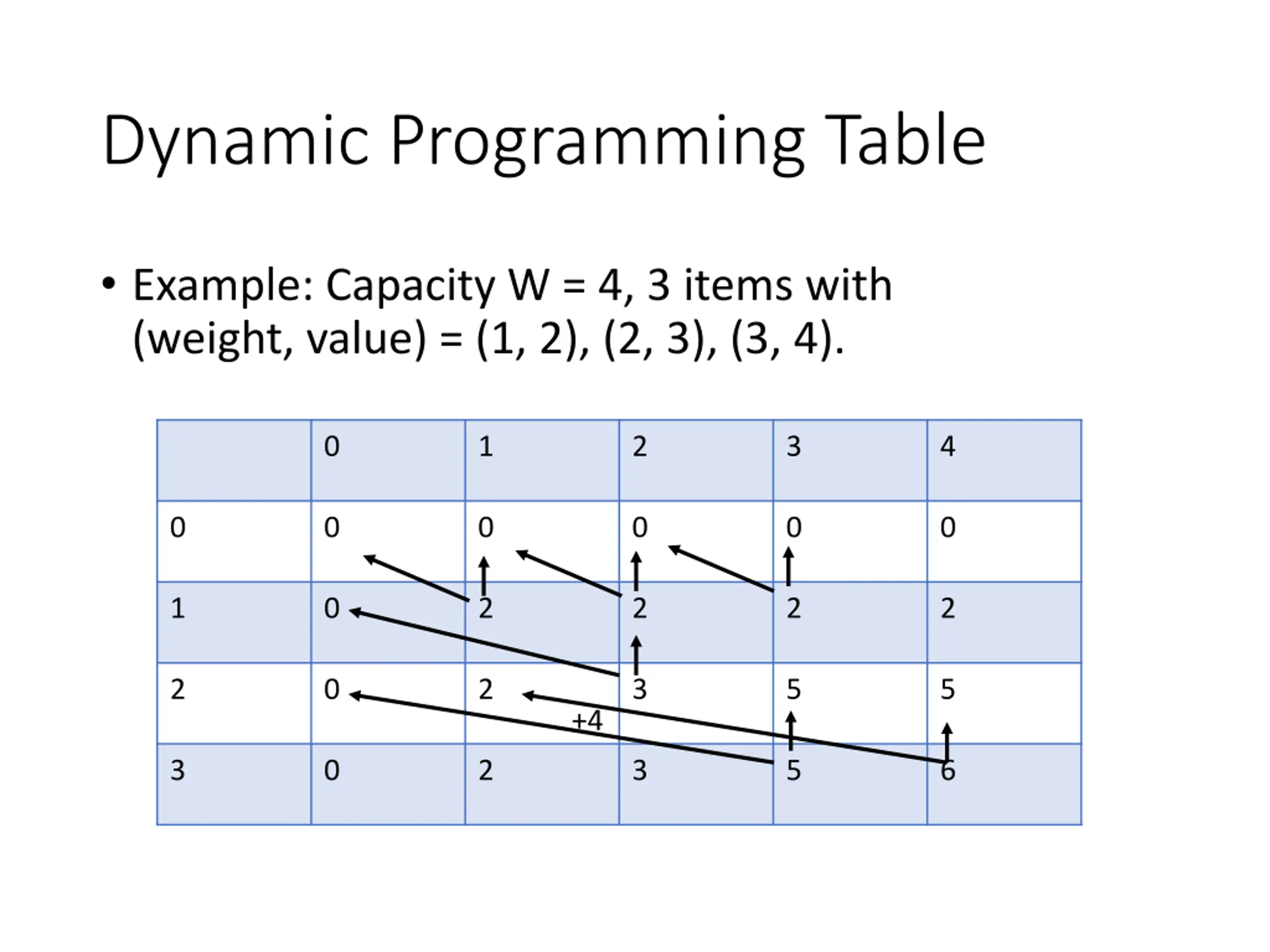

Dynamic Programming Table Example: Capacity W = 4, 3 items with (weight, value) = (1, 2), (2, 3), (3, 4). 0 1 2 3 4 0 0 0 0 0 0 1 0 2 2 2 2 2 0 2 3 5 5 +4 3 0 2 3 5 6

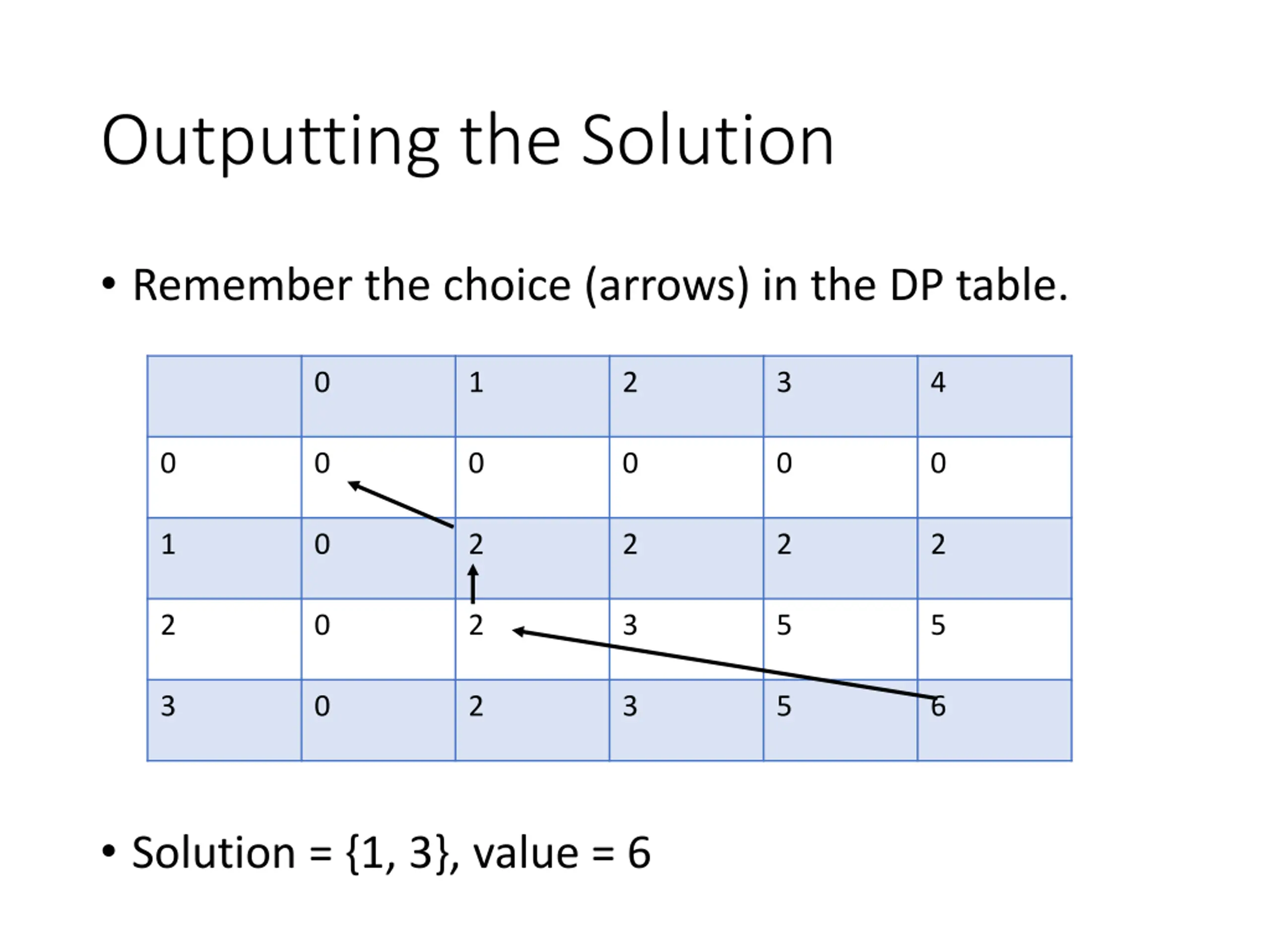

Outputting the Solution Remember the choice (arrows) in the DP table. 0 1 2 3 4 0 0 0 0 0 0 1 0 2 2 2 2 2 0 2 3 5 5 3 0 2 3 5 6 Solution = {1, 3}, value = 6

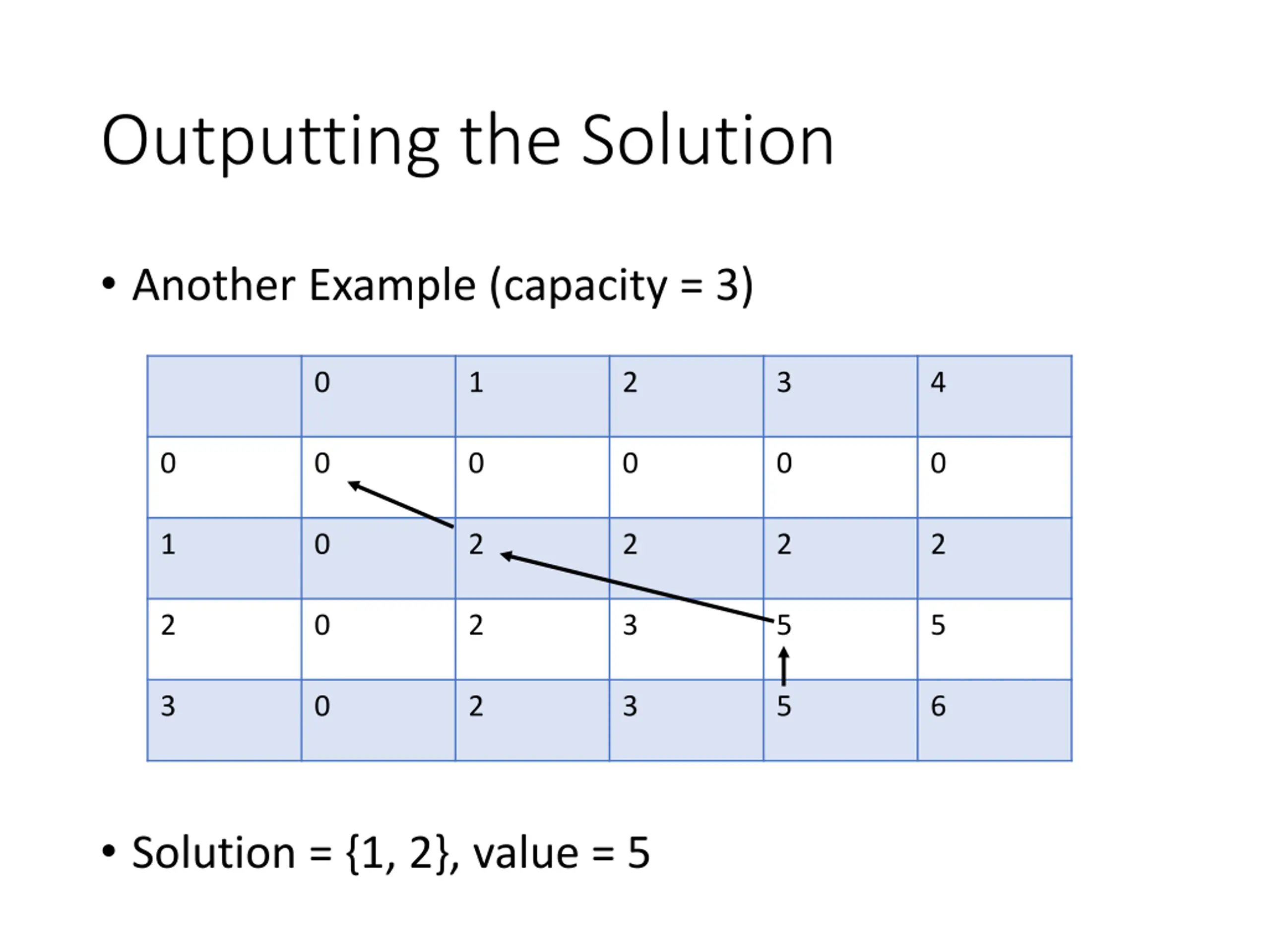

Outputting the Solution Another Example (capacity = 3) 0 1 2 3 4 0 0 0 0 0 0 1 0 2 2 2 2 2 0 2 3 5 5 3 0 2 3 5 6 Solution = {1, 2}, value = 5

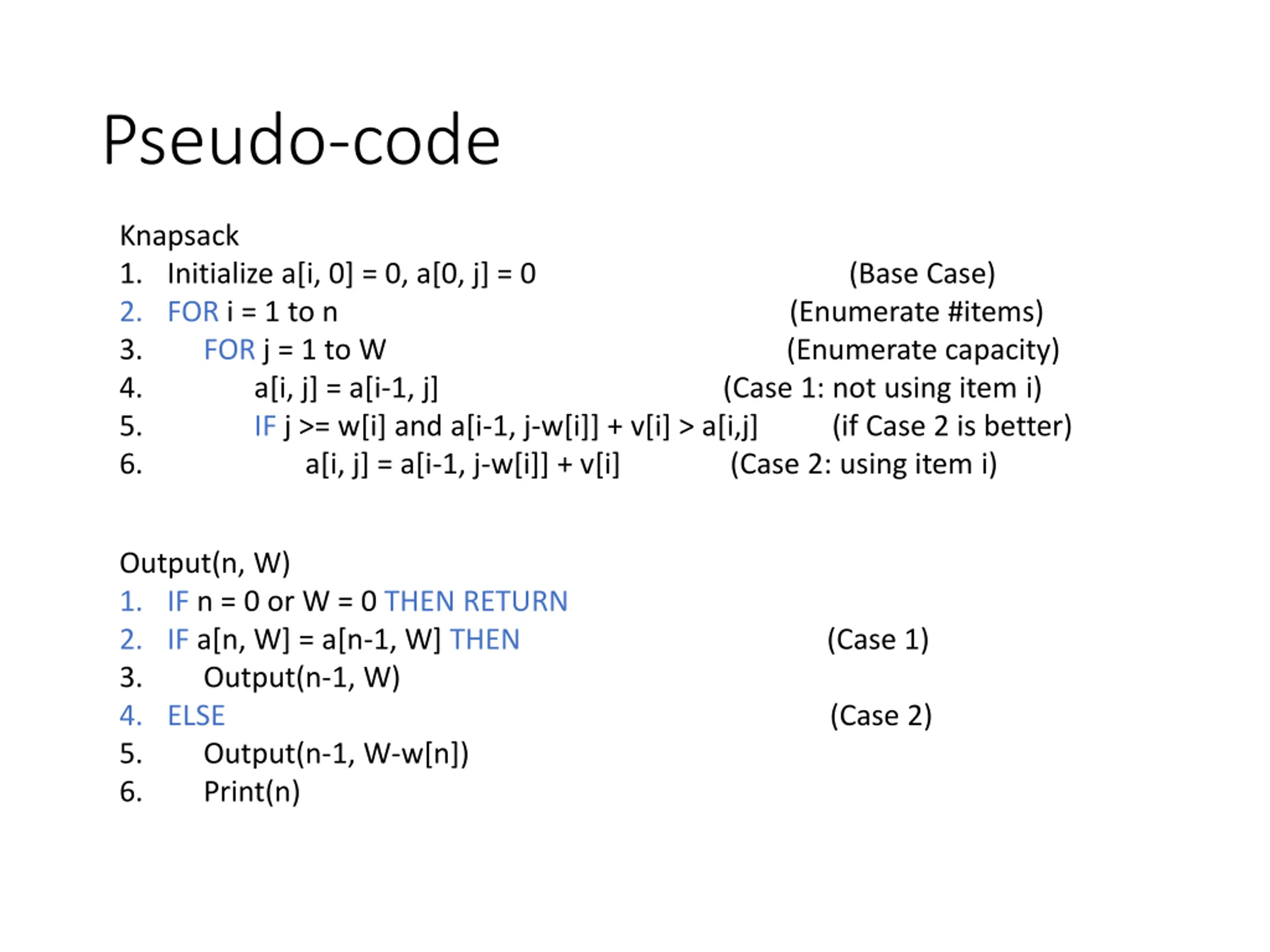

Pseudo-code Knapsack 1. Initialize a[i, 0] = 0, a[0, j] = 0 (Base Case) 2. FOR i = 1 to n (Enumerate #items) 3. FOR j = 1 to W (Enumerate capacity) 4. a[i, j] = a[i-1, j] (Case 1: not using item i) 5. IF j >= w[i] and a[i-1, j-w[i]] + v[i] > a[i,j] (if Case 2 is better) 6. a[i, j] = a[i-1, j-w[i]] + v[i] (Case 2: using item i) Output(n, W) 1. IF n = 0 or W = 0 THEN RETURN 2. IF a[n, W] = a[n-1, W] THEN (Case 1) 3. Output(n-1, W) 4. ELSE (Case 2) 5. Output(n-1, W-w[n]) 6. Print(n)
