Dynamic Storage Reconfiguration and Distributed Shared Storage Solutions

Dynamic Storage Reconfiguration Alexander Spiegelman, Idit Keidar

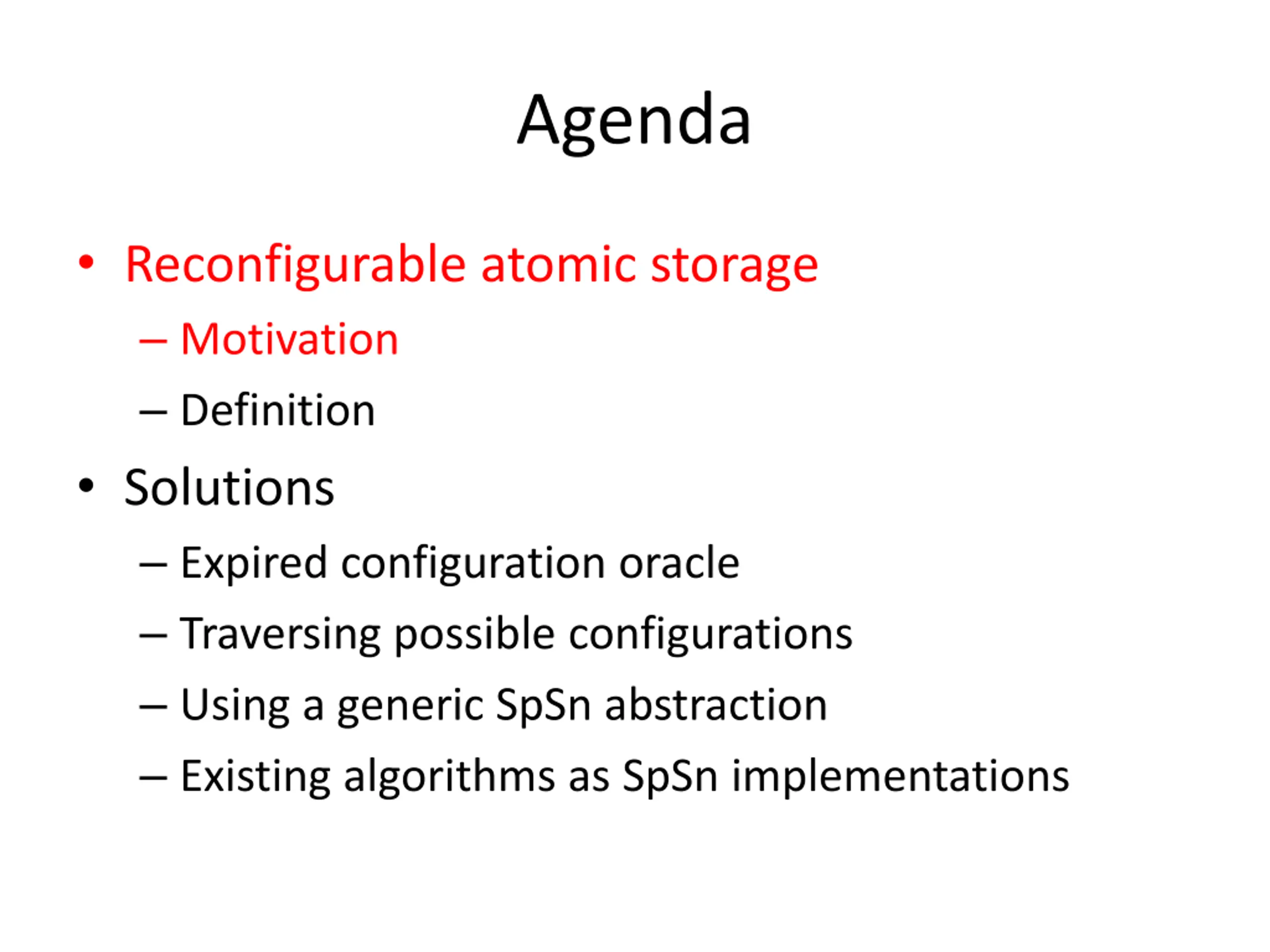

Agenda Reconfigurable atomic storage Motivation Definition Solutions Expired configuration oracle Traversing possible configurations Using a generic SpSn abstraction Existing algorithms as SpSn implementations

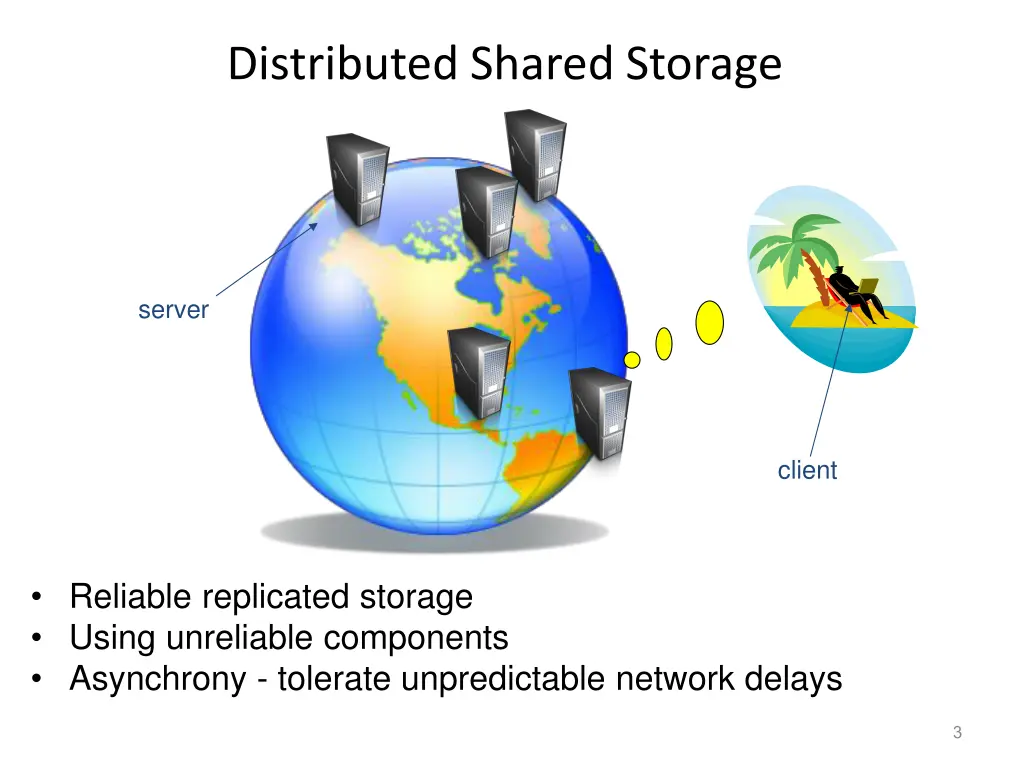

Distributed Shared Storage server client Reliable replicated storage Using unreliable components Asynchrony - tolerate unpredictable network delays 3

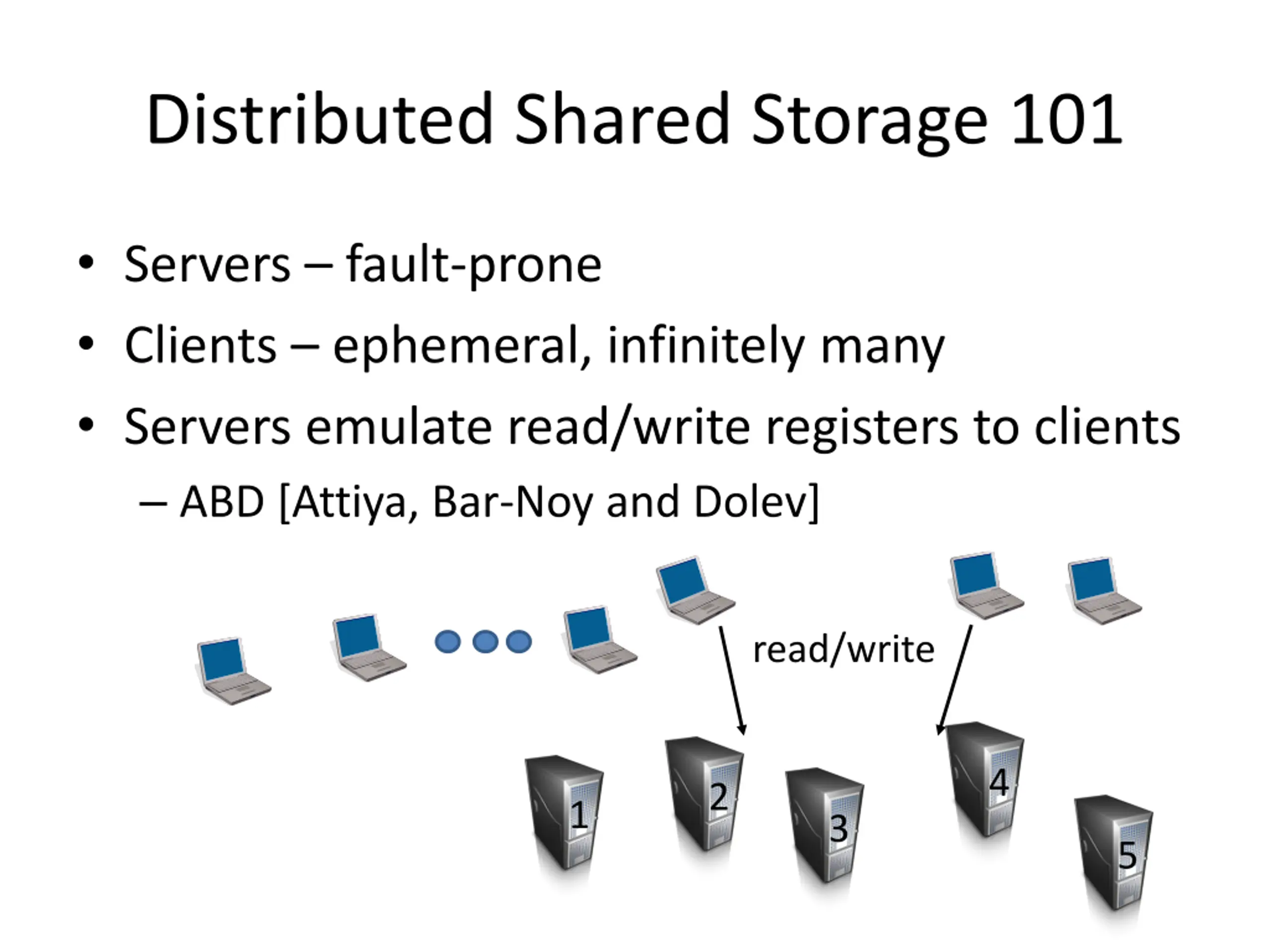

Distributed Shared Storage 101 Servers fault-prone Clients ephemeral, infinitely many Servers emulate read/write registers to clients ABD [Attiya, Bar-Noy and Dolev] read/write 4 2 1 3 5

ABD Register Emulation Write to majority 4 2 1 3 5

ABD Register Emulation 4 2 1 3 5

ABD Register Emulation Read from majority 4 2 1 3 5

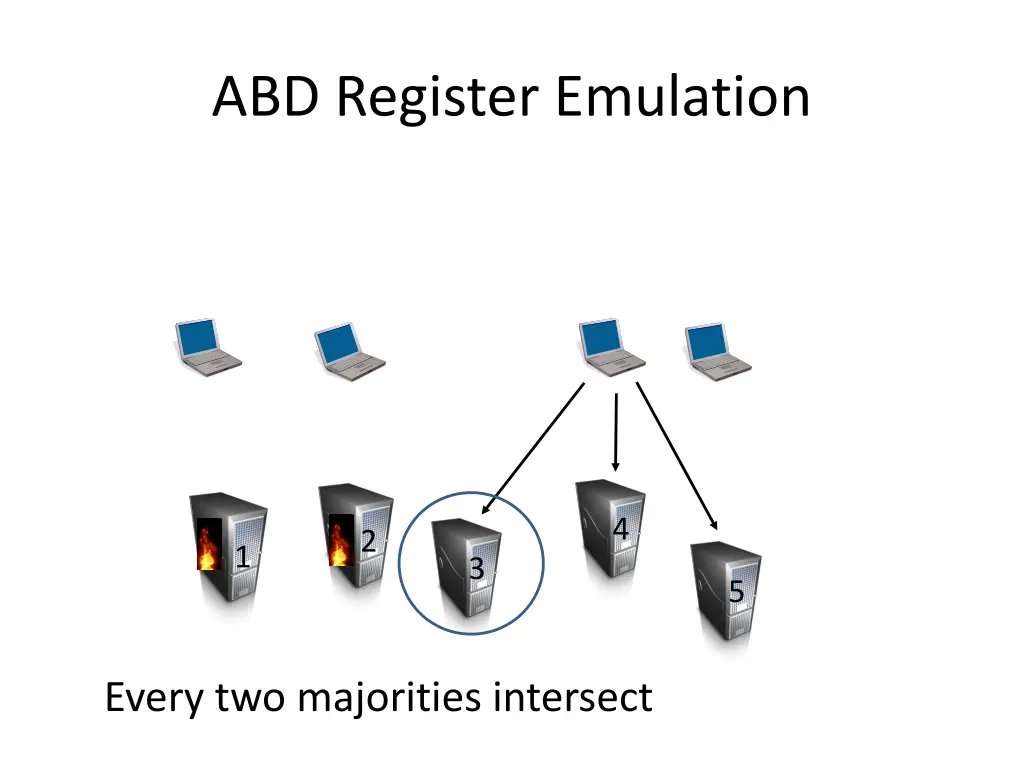

ABD Register Emulation 4 2 1 3 5 Every two majorities intersect

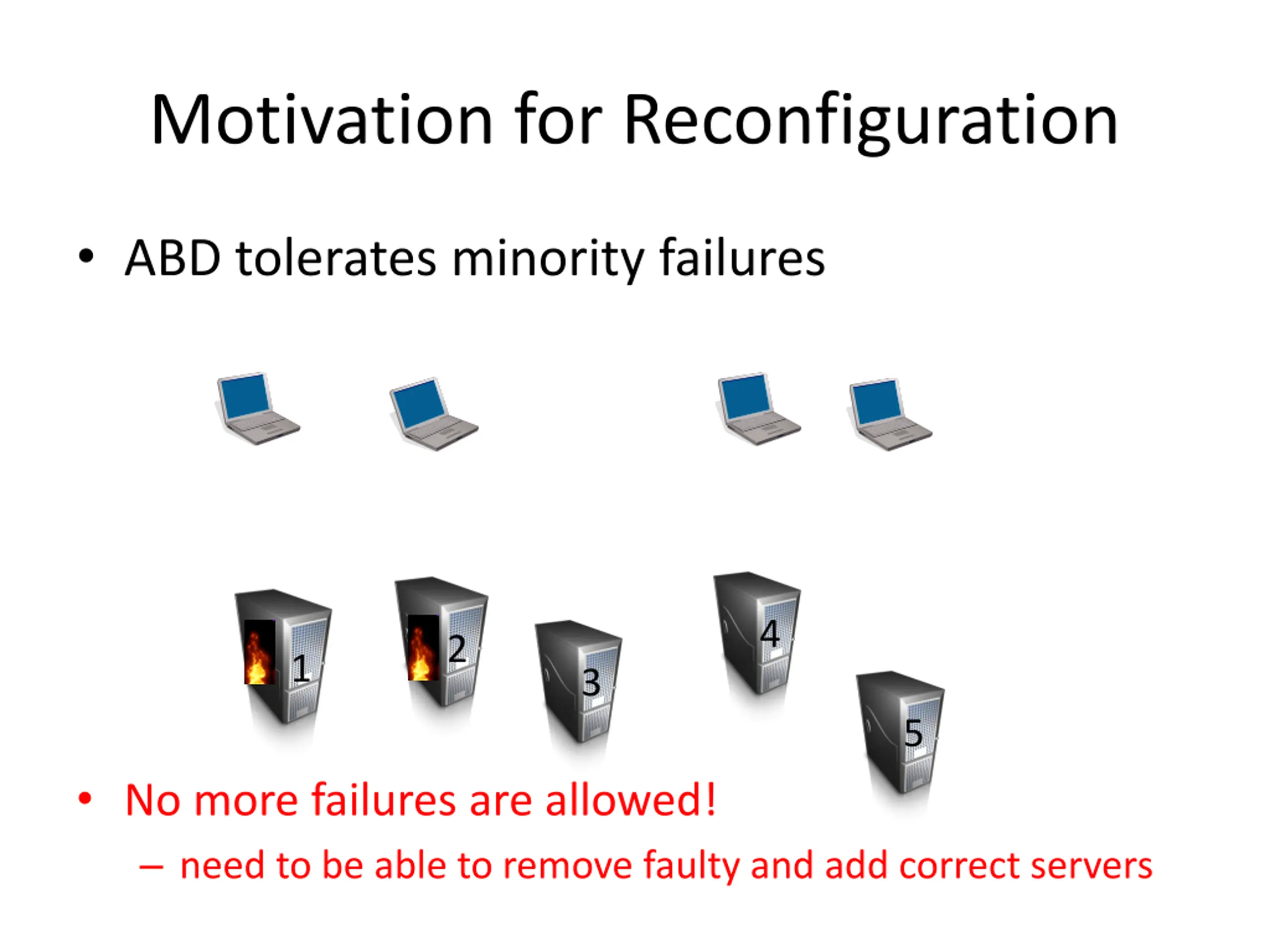

Motivation for Reconfiguration ABD tolerates minority failures 4 2 1 3 5 No more failures are allowed! need to be able to remove faulty and add correct servers

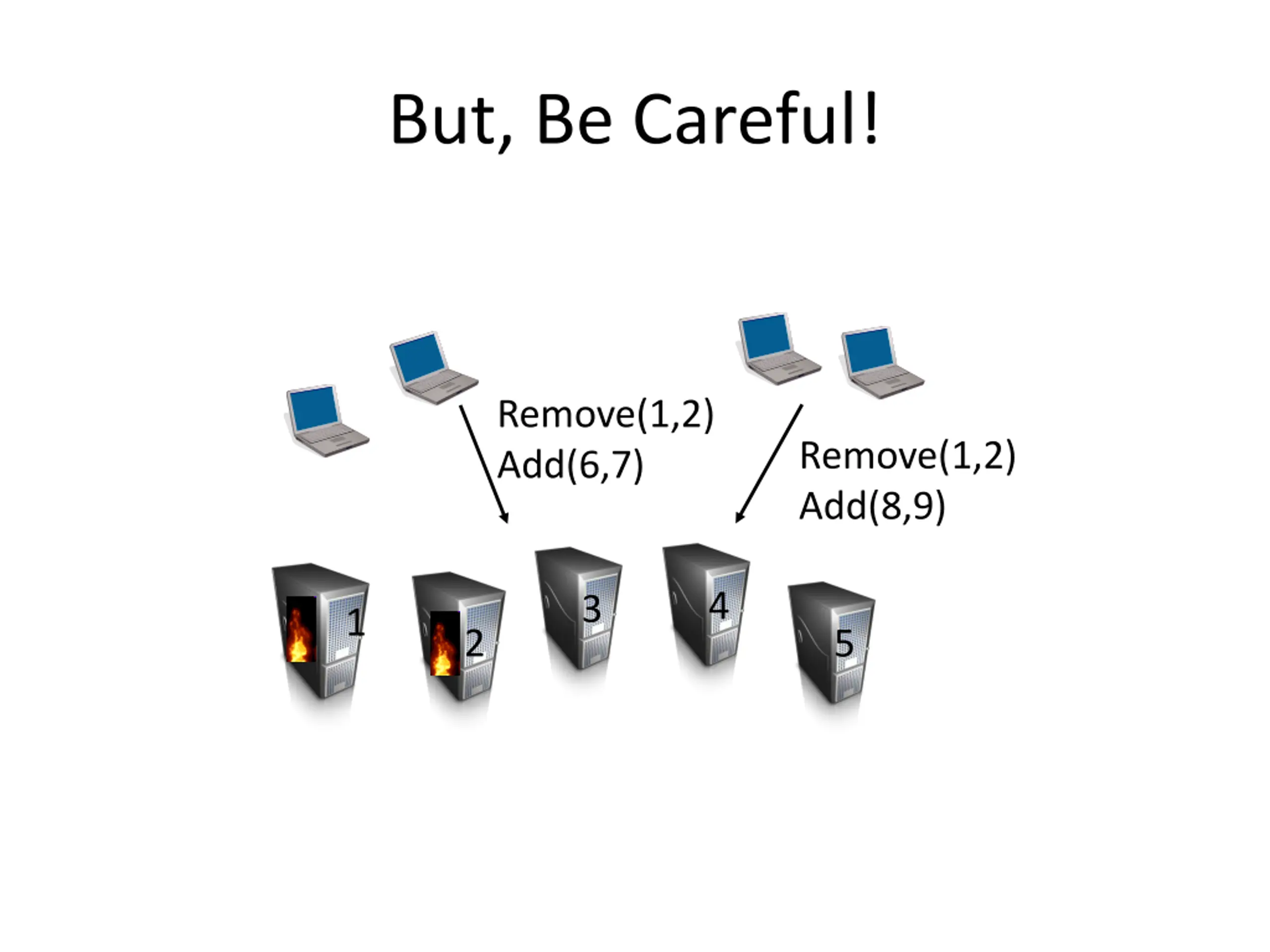

But, Be Careful! Remove(1,2) Add(6,7) Remove(1,2) Add(8,9) 4 3 1 2 5

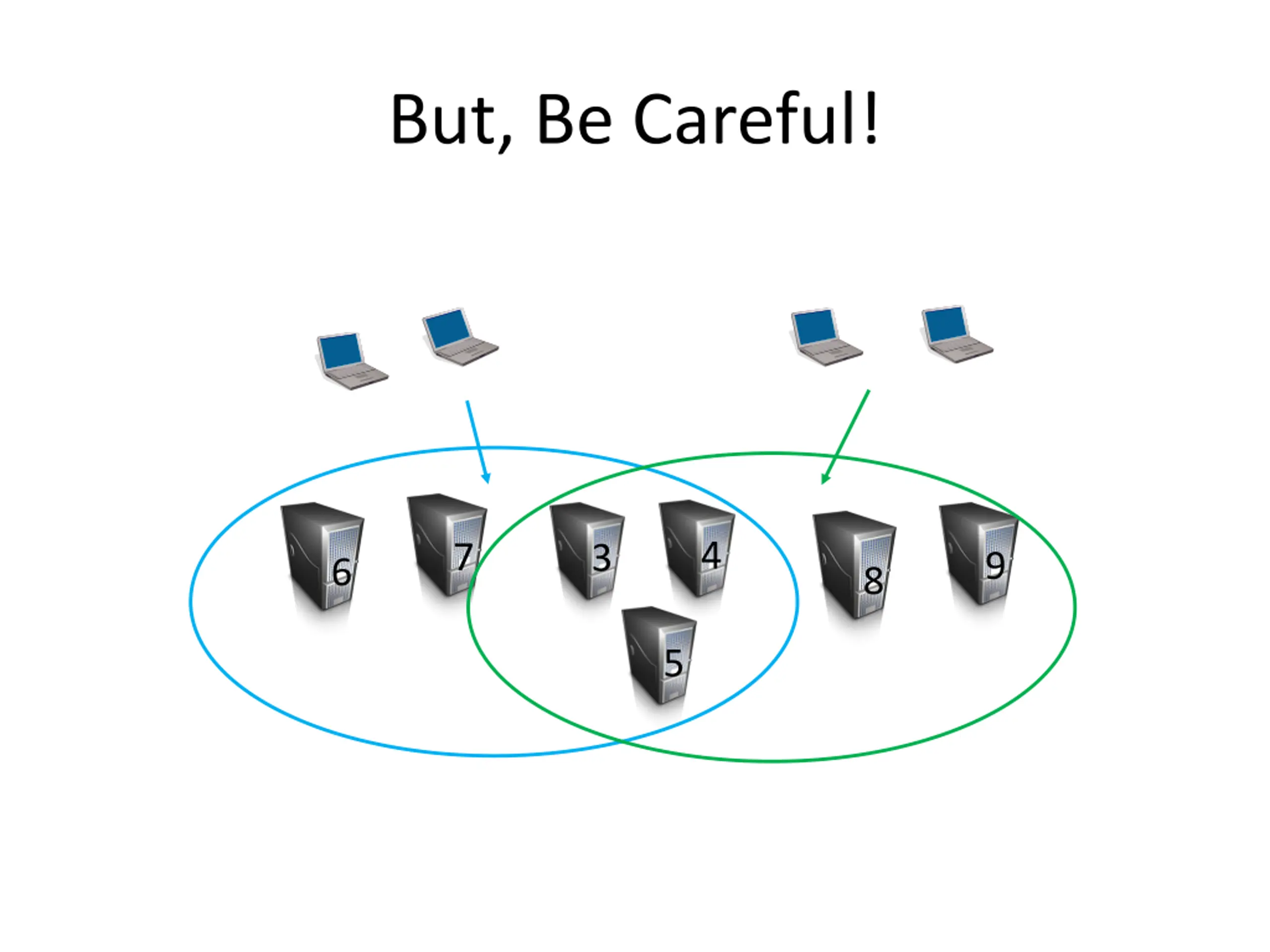

But, Be Careful! 4 7 3 9 6 8 5

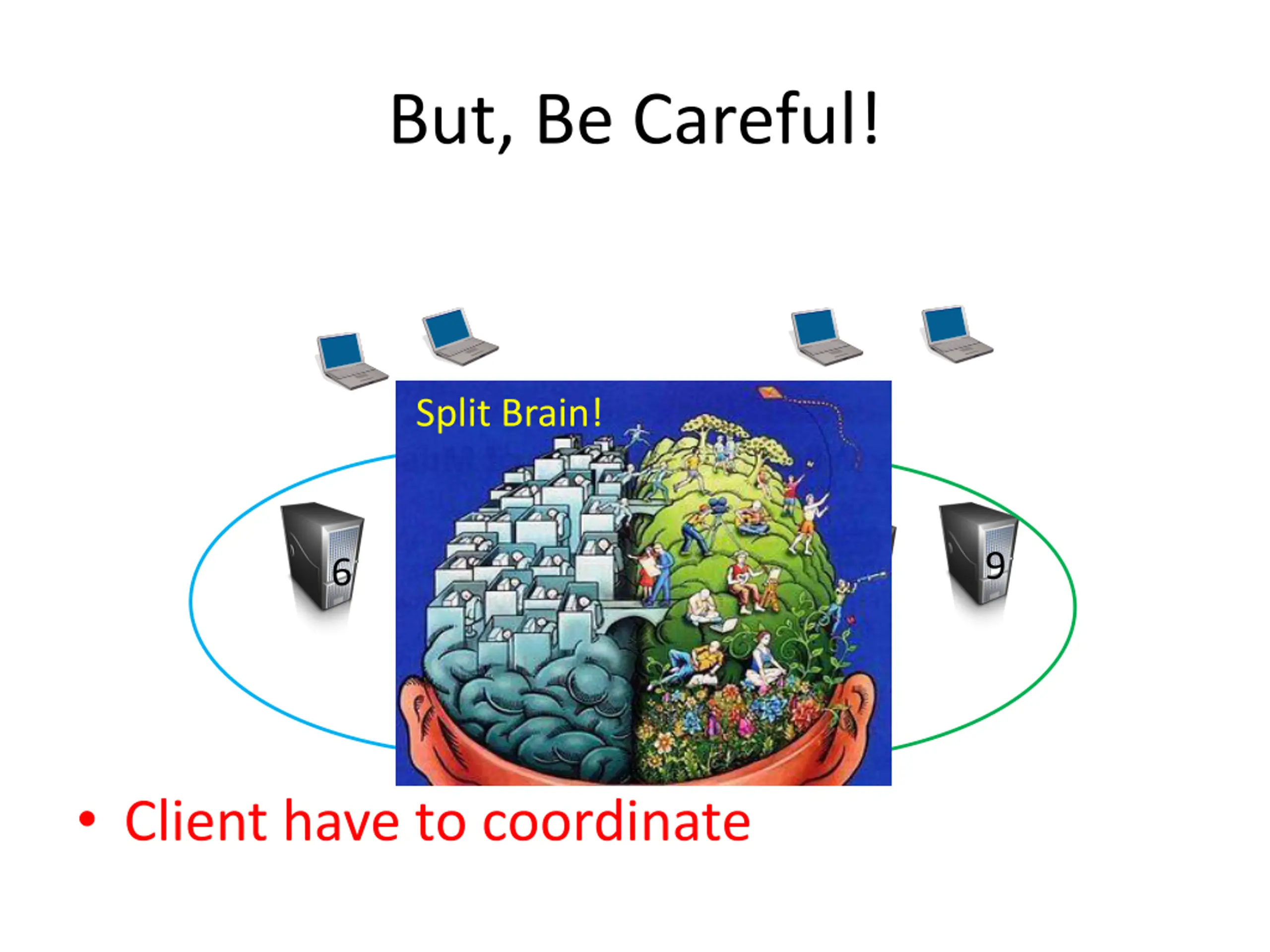

But, Be Careful! Split Brain! 4 7 3 9 6 8 5 Client have to coordinate

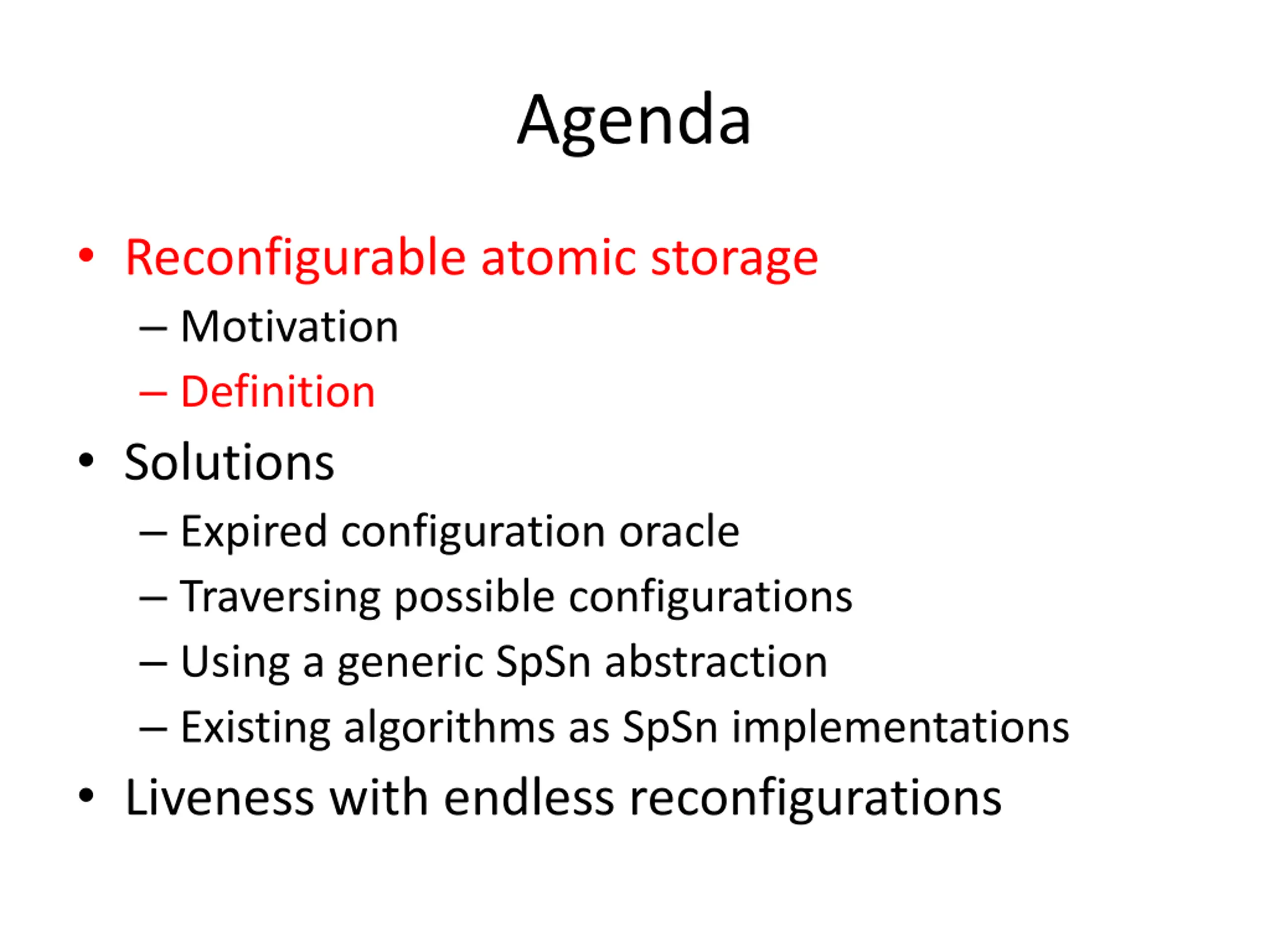

Agenda Reconfigurable atomic storage Motivation Definition Solutions Expired configuration oracle Traversing possible configurations Using a generic SpSn abstraction Existing algorithms as SpSn implementations Liveness with endless reconfigurations

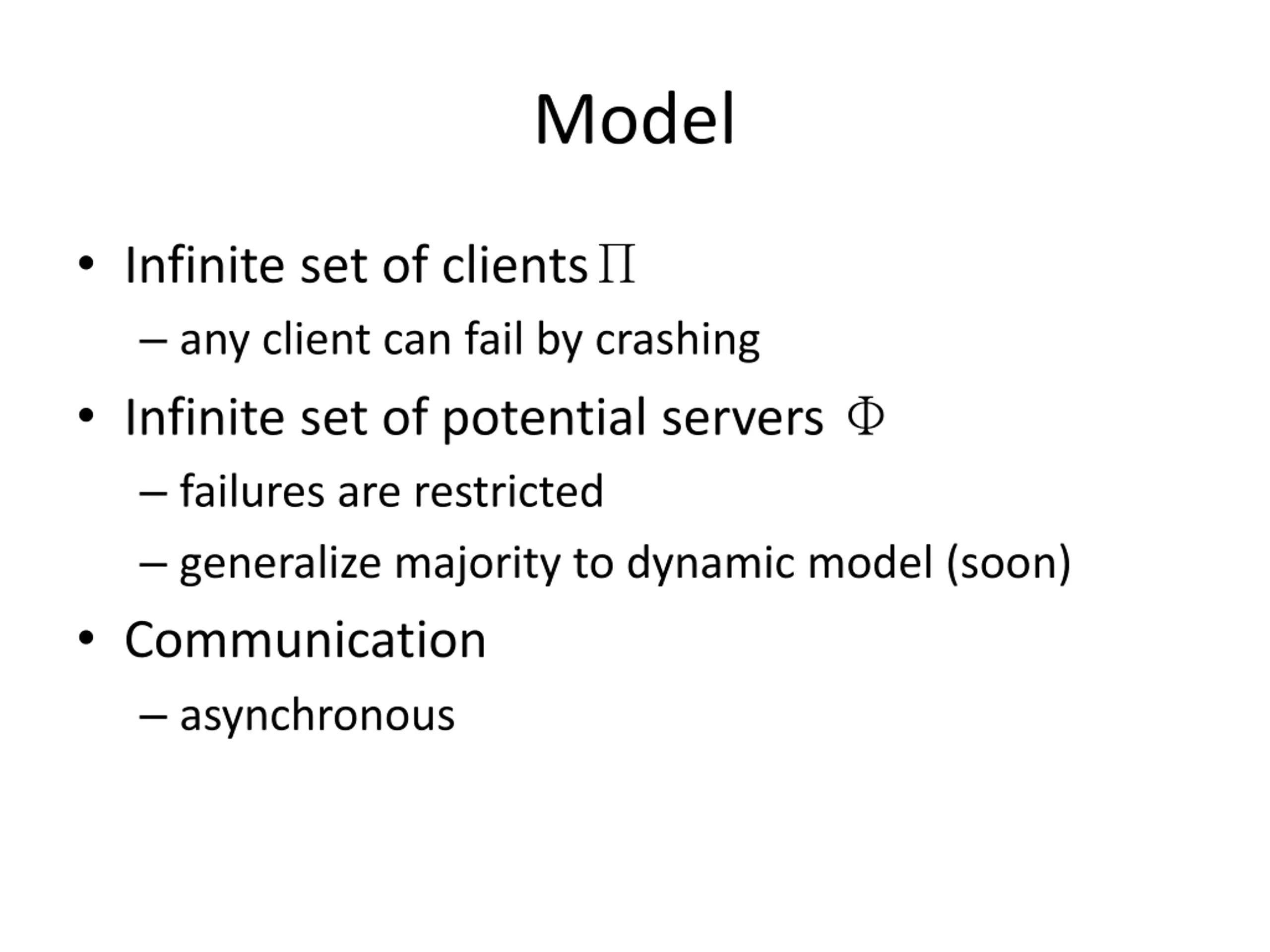

Model Infinite set of clients any client can fail by crashing Infinite set of potential servers failures are restricted generalize majority to dynamic model (soon) Communication asynchronous

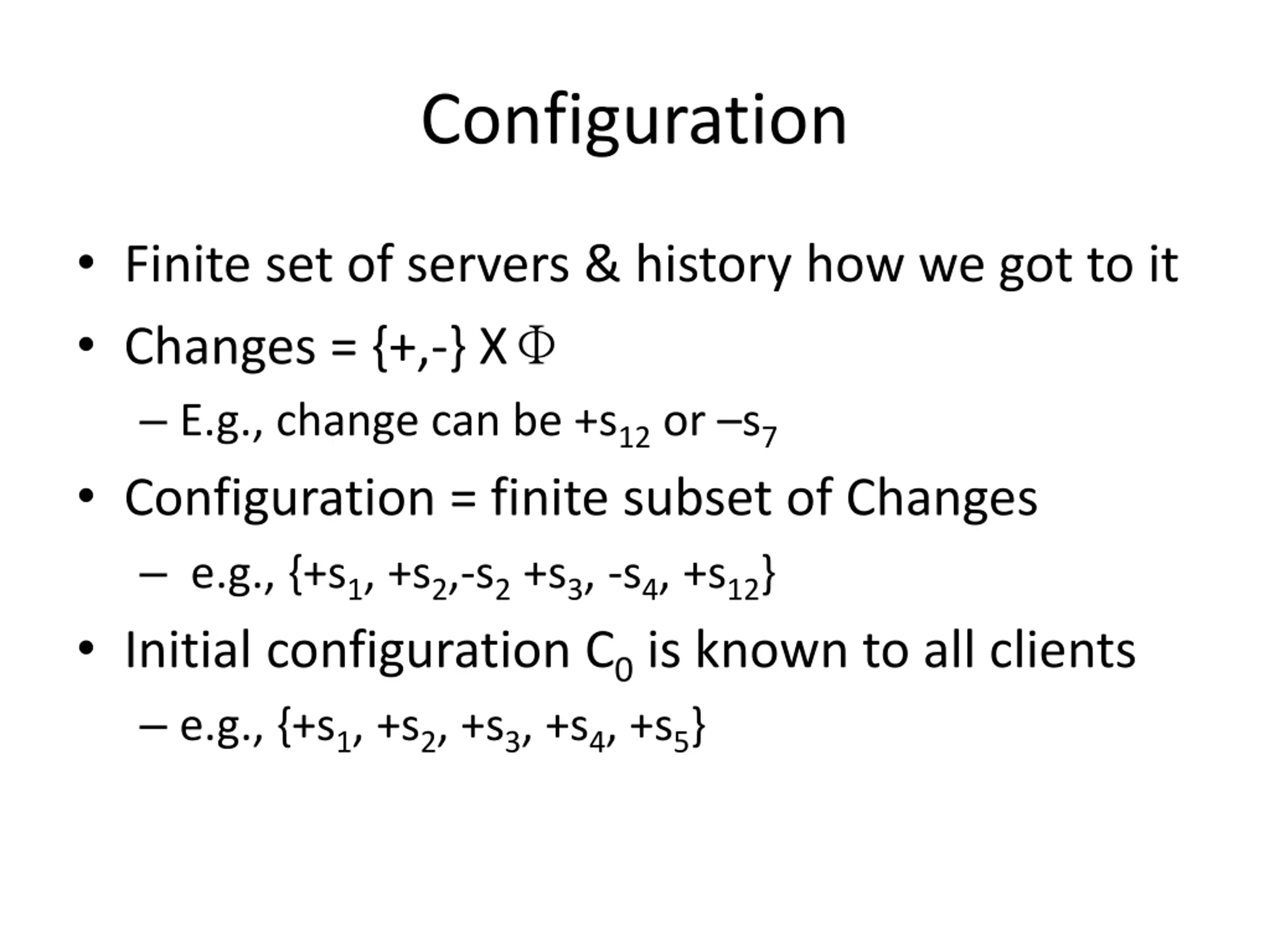

Configuration Finite set of servers & history how we got to it Changes = {+,-} X E.g., change can be +s12 or s7 Configuration = finite subset of Changes e.g., {+s1, +s2,-s2 +s3, -s4, +s12} Initial configuration C0 is known to all clients e.g., {+s1, +s2, +s3, +s4, +s5}

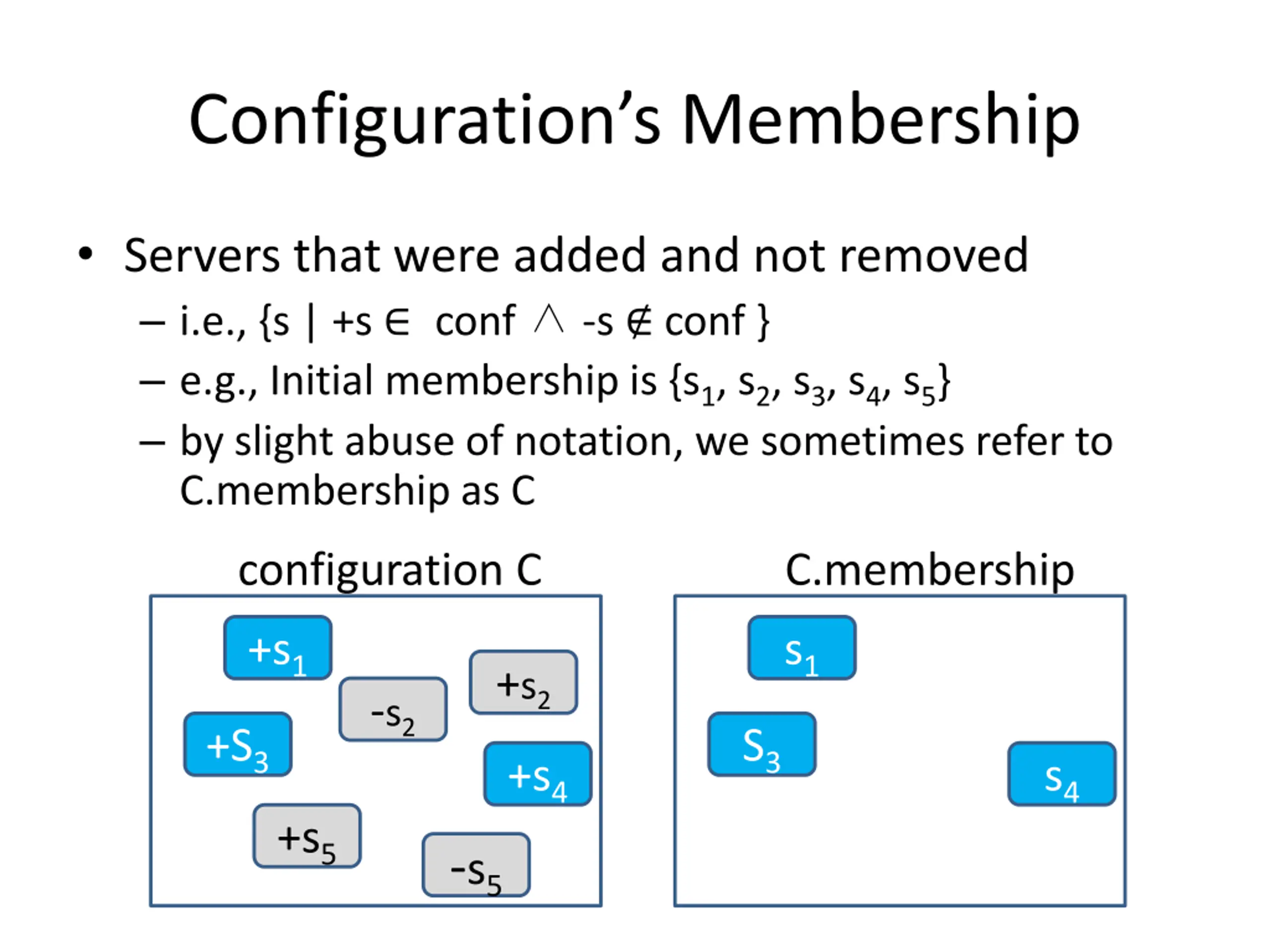

Configurations Membership Servers that were added and not removed i.e., {s | +s conf -s conf } e.g., Initial membership is {s1, s2, s3, s4, s5} by slight abuse of notation, we sometimes refer to C.membership as C configuration C C.membership +s1 s1 +s2 -s2 +S3 S3 +s4 s4 +s5 -s5

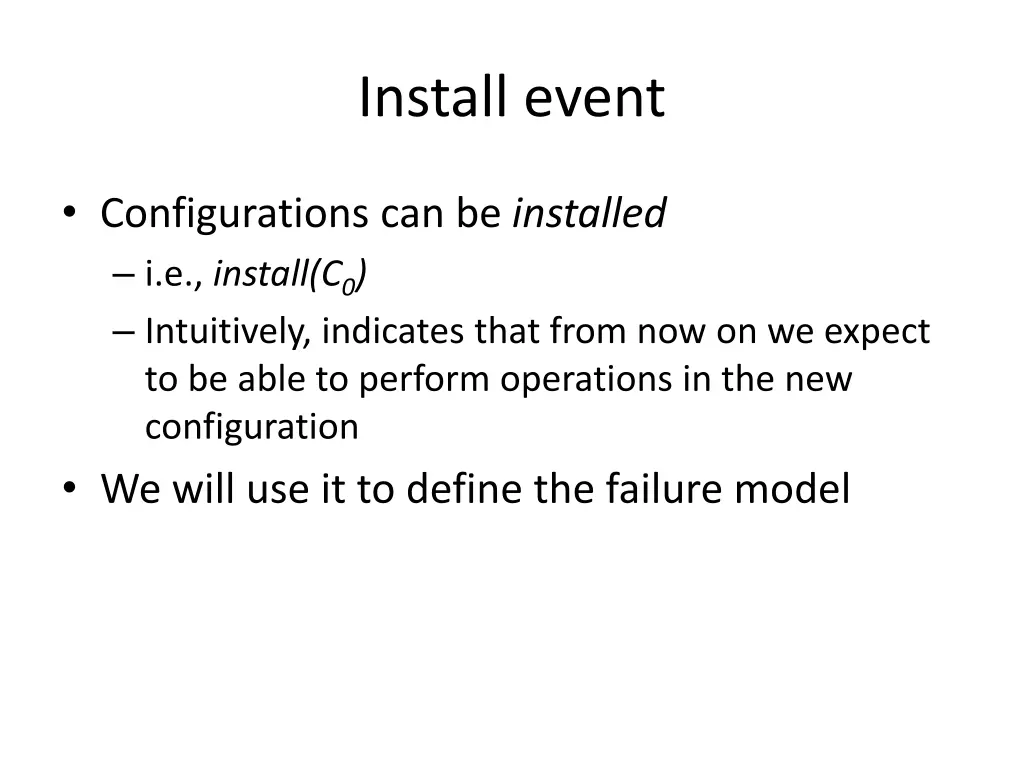

Install event Configurations can be installed i.e., install(C0) Intuitively, indicates that from now on we expect to be able to perform operations in the new configuration We will use it to define the failure model

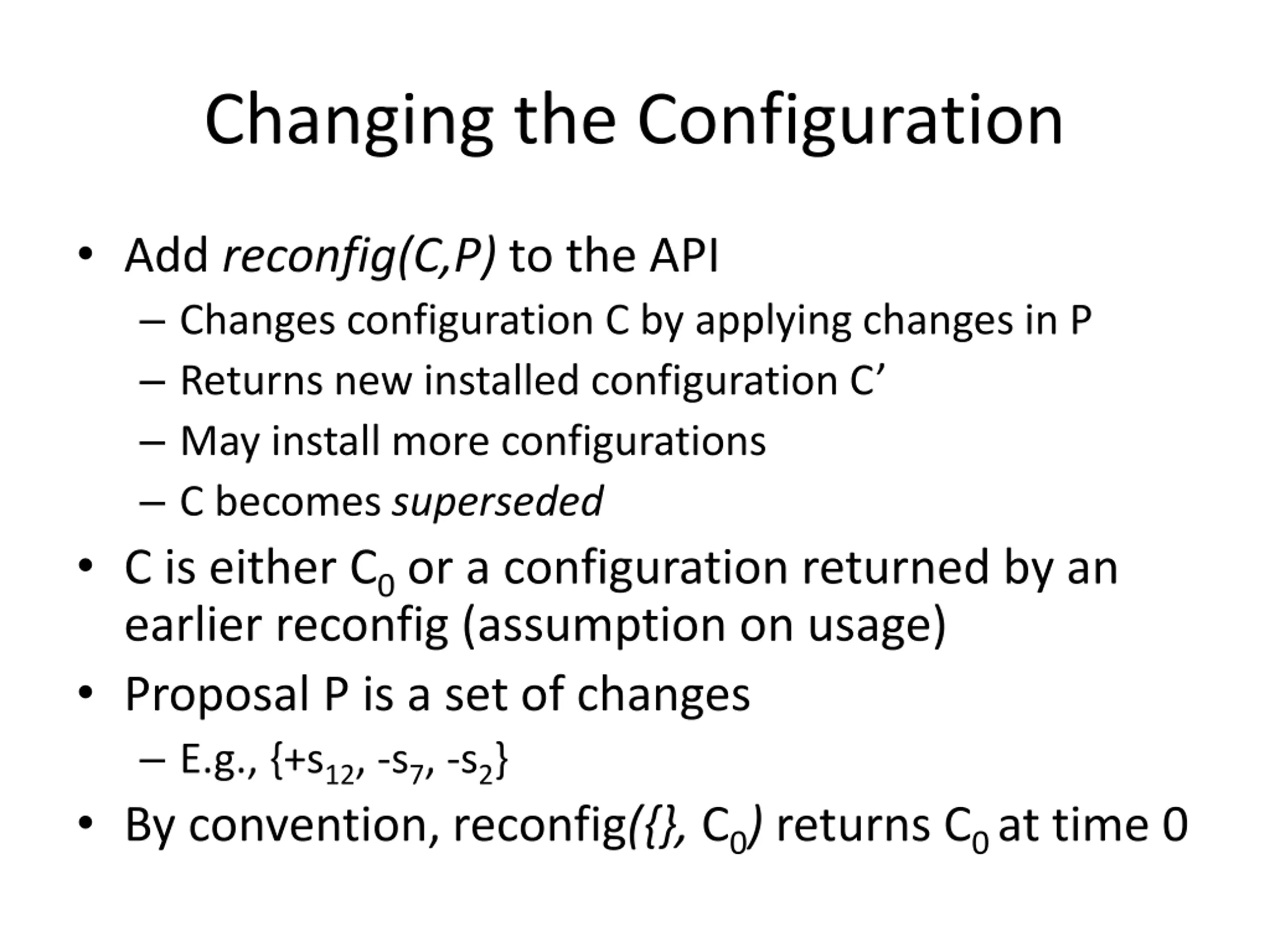

Changing the Configuration Add reconfig(C,P) to the API Changes configuration C by applying changes in P Returns new installed configuration C May install more configurations C becomes superseded C is either C0 or a configuration returned by an earlier reconfig (assumption on usage) Proposal P is a set of changes E.g., {+s12, -s7, -s2} By convention, reconfig({}, C0) returnsC0 at time 0

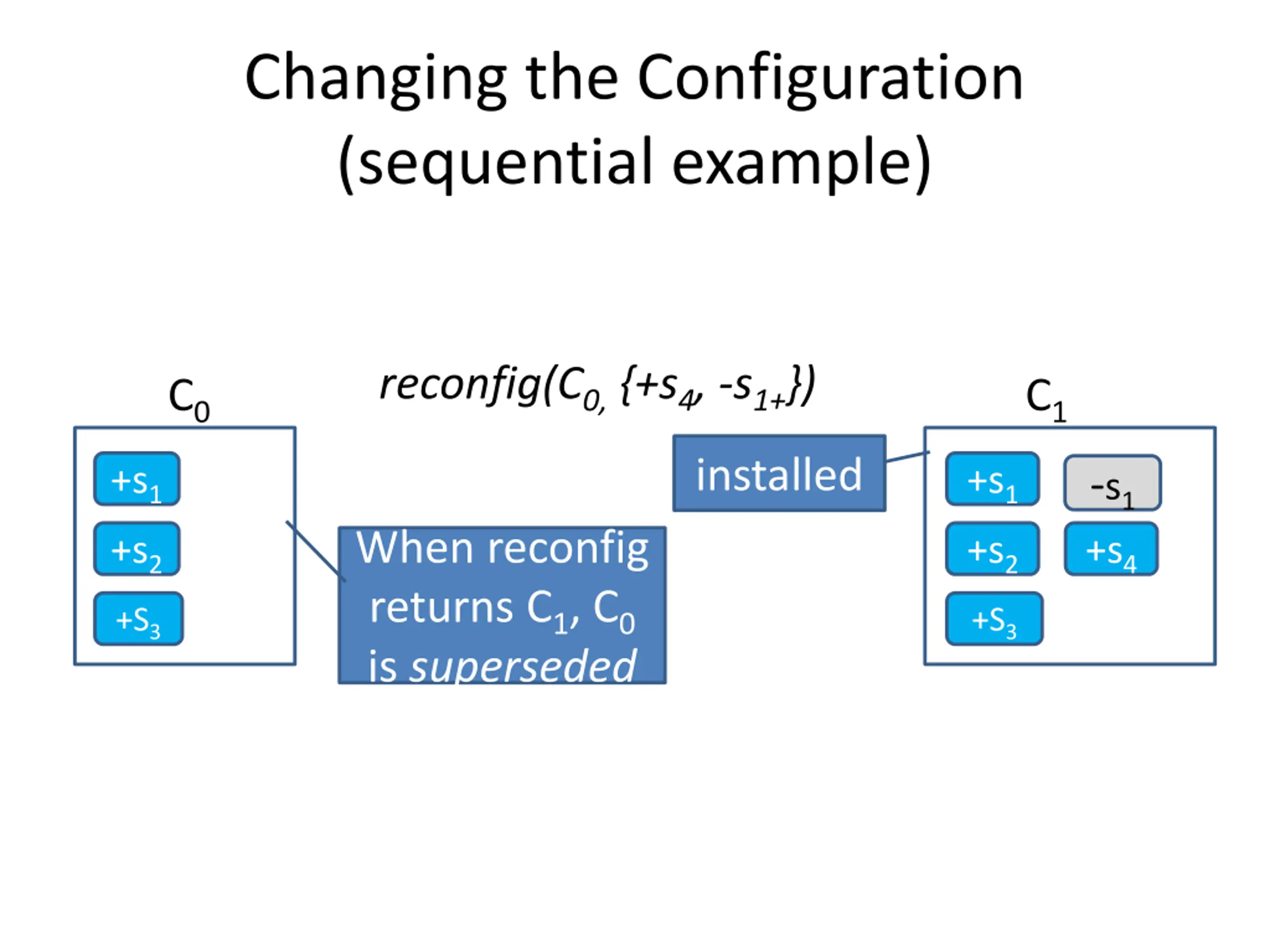

Changing the Configuration (sequential example) reconfig(C0, {+s4, -s1+}) C0 C1 installed +s1 +s1 -s1 +s4 When reconfig returns C1, C0 is superseded +s2 +s2 +S3 +S3

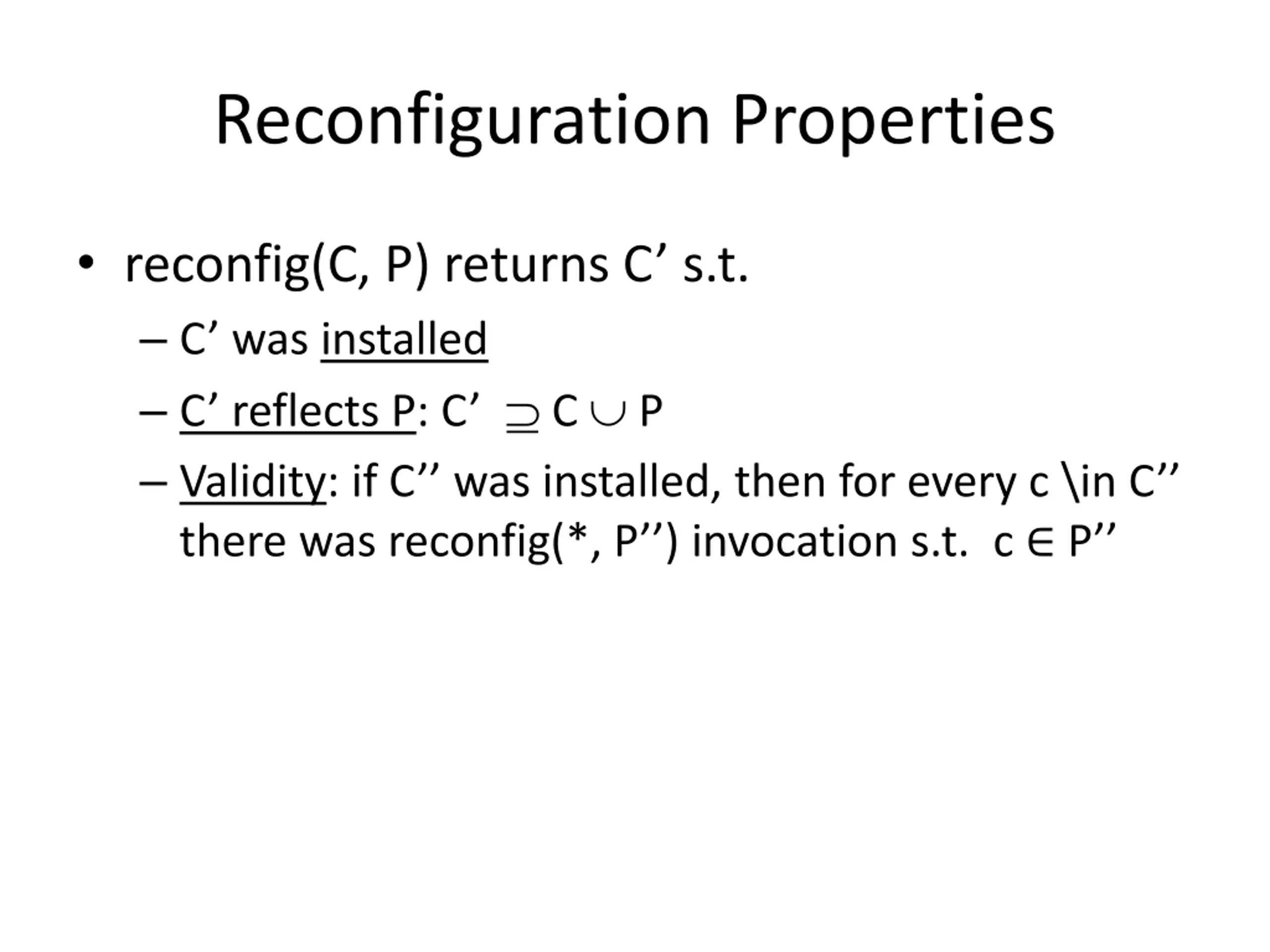

Reconfiguration Properties reconfig(C, P) returns C s.t. C was installed C reflects P: C C P Validity: if C was installed, then for every c \in C there was reconfig(*, P ) invocation s.t. c P

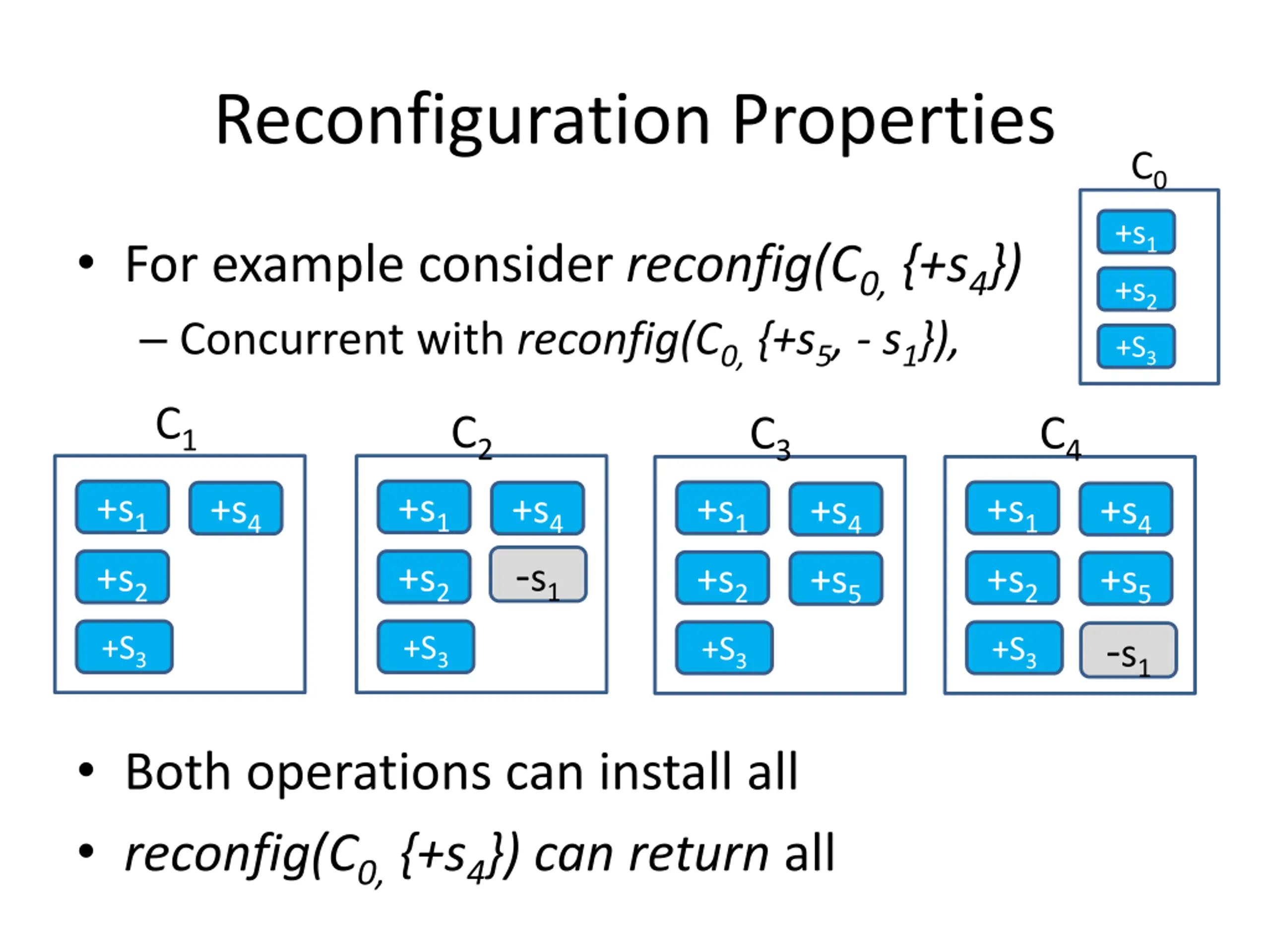

Reconfiguration Properties C0 +s1 For example consider reconfig(C0, {+s4}) Concurrent with reconfig(C0, {+s5, - s1}), +s2 +S3 C1 C2 C3 C4 +s1 +s1 +s1 +s1 +s4 +s4 +s4 +s5 +s4 +s5 -s1 +s2 +s2 +s2 +s2 -s1 +S3 +S3 +S3 +S3 Both operations can install all reconfig(C0, {+s4}) can return all

Failure Model For ABD, need live majority but in which configuration? Availability: A configuration C is available if a majority of C.members is alive Rationale: can emulate register using ABD We require reconfigurability: Every installed configuration C must be available until it superseded (a reconfig returns C C) Rationale: Administrator may take down machines once a reconfiguration removing them returns

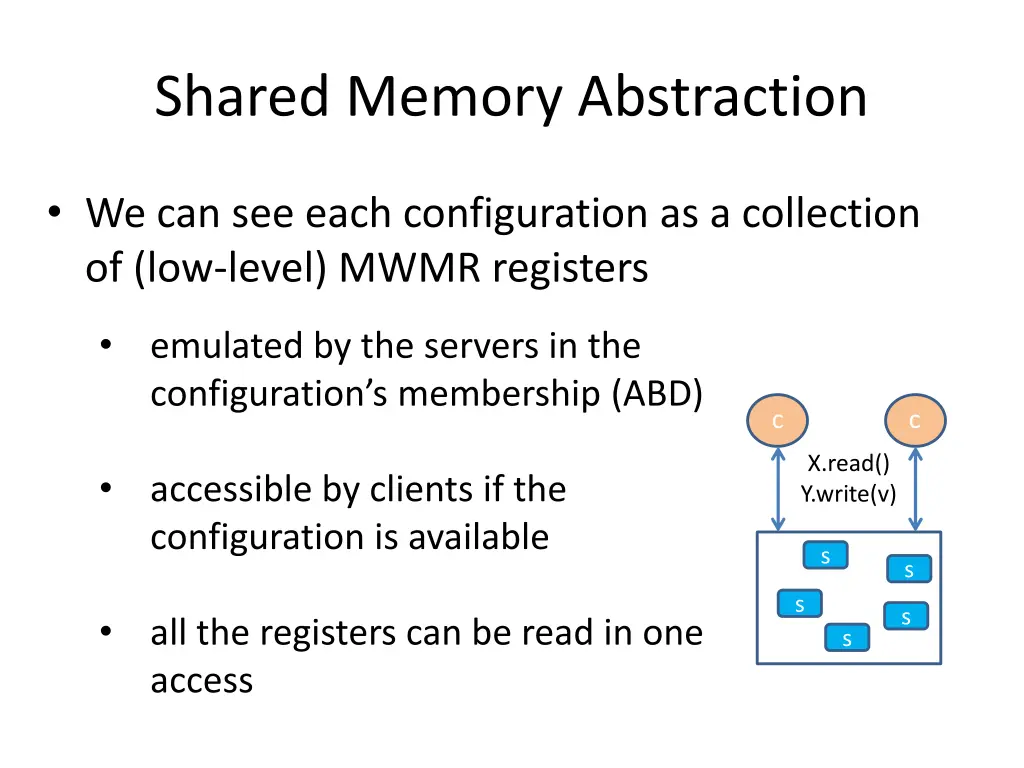

Shared Memory Abstraction We can see each configuration as a collection of (low-level) MWMR registers emulated by the servers in the configuration s membership (ABD) c c X.read() Y.write(v) accessible by clients if the configuration is available s s s s all the registers can be read in one access s

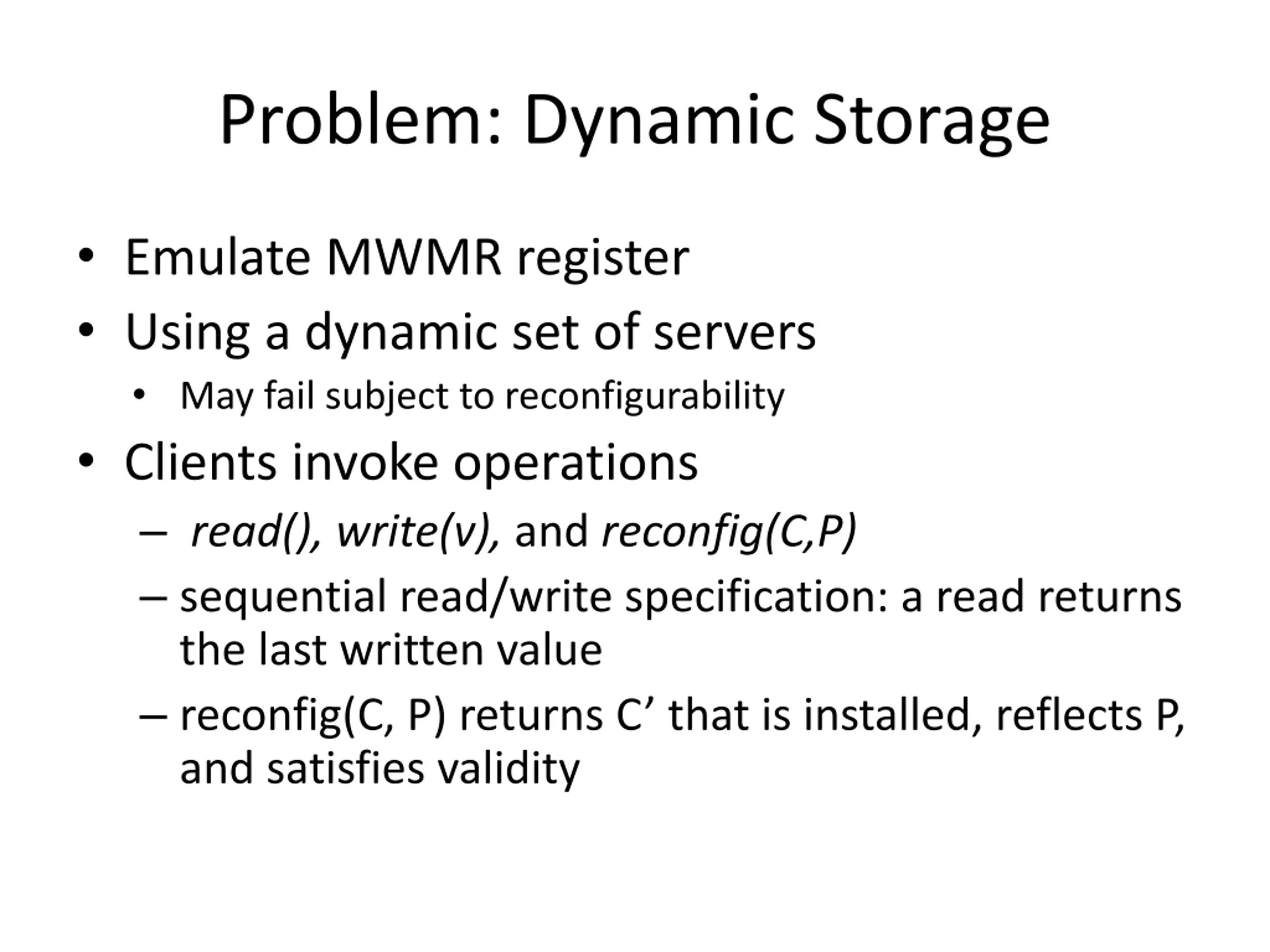

Problem: Dynamic Storage Emulate MWMR register Using a dynamic set of servers May fail subject to reconfigurability Clients invoke operations read(), write(v), and reconfig(C,P) sequential read/write specification: a read returns the last written value reconfig(C, P) returns C that is installed, reflects P, and satisfies validity

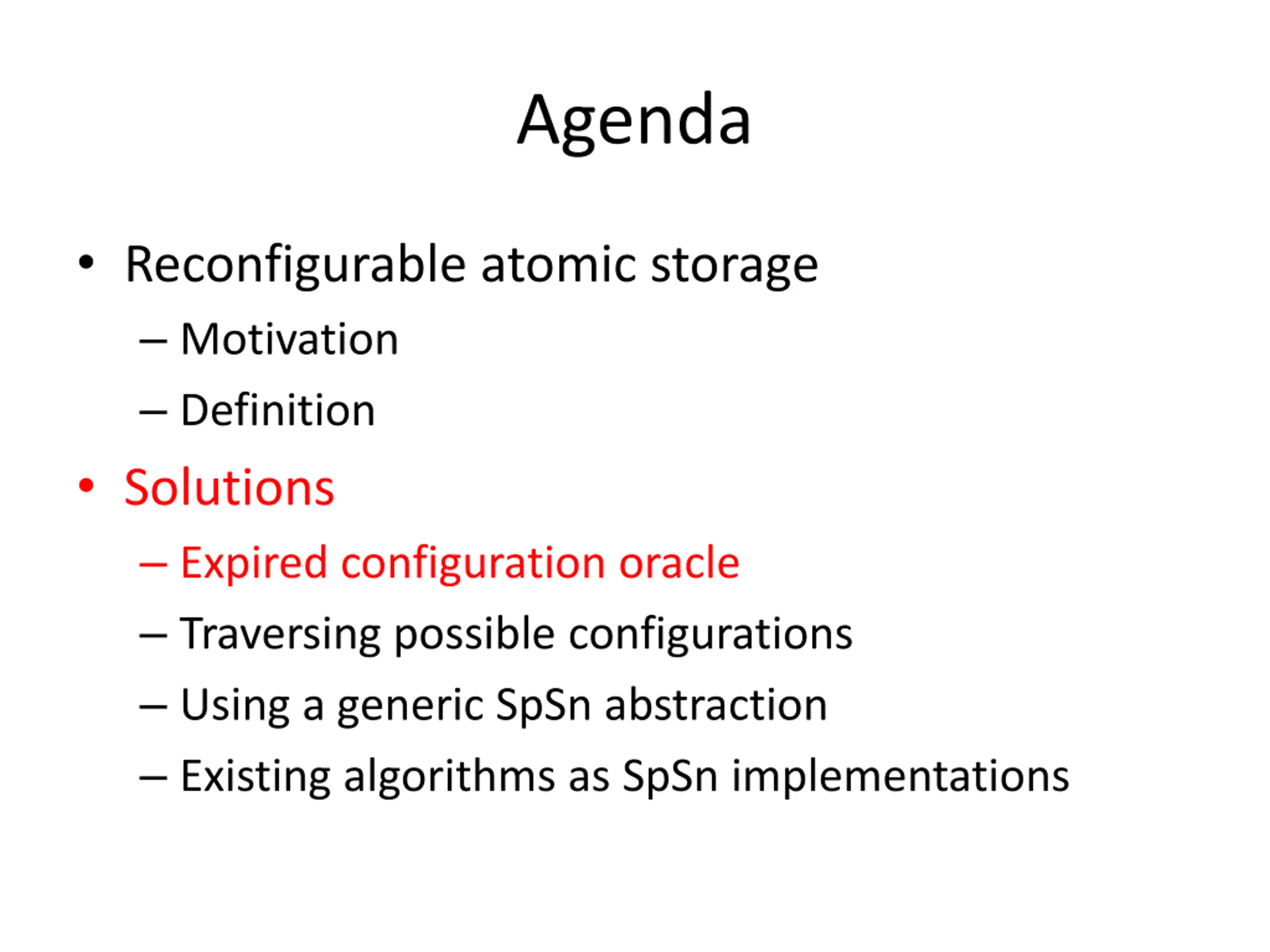

Agenda Reconfigurable atomic storage Motivation Definition Solutions Expired configuration oracle Traversing possible configurations Using a generic SpSn abstraction Existing algorithms as SpSn implementations

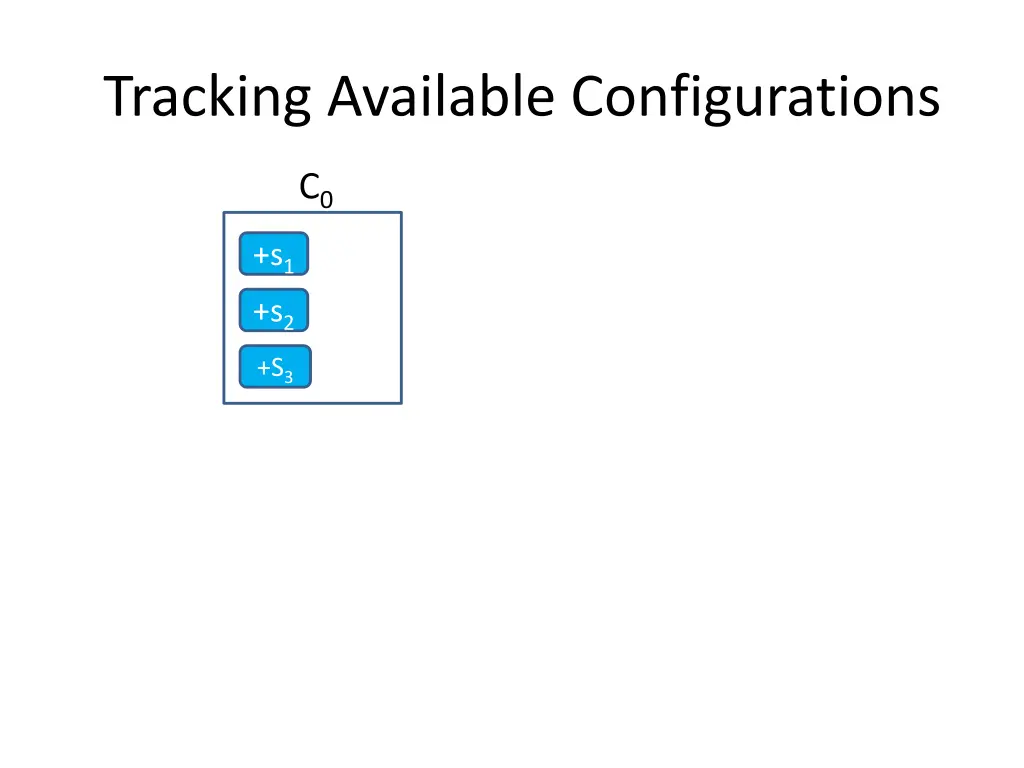

Tracking Available Configurations C0 +s1 +s2 +S3

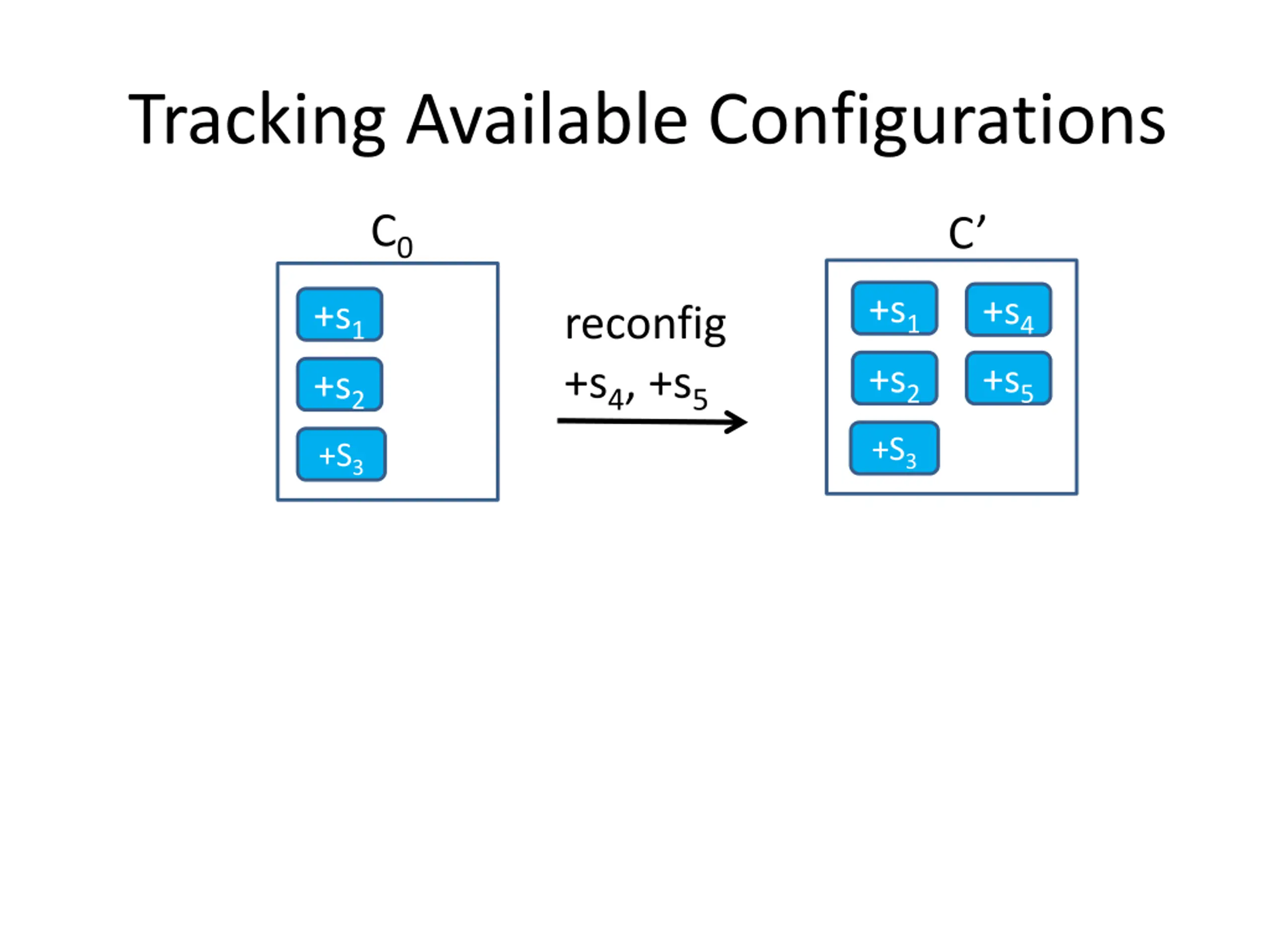

Tracking Available Configurations C0 C +s1 +s4 +s5 +s1 reconfig +s4, +s5 +s2 +s2 +S3 +S3

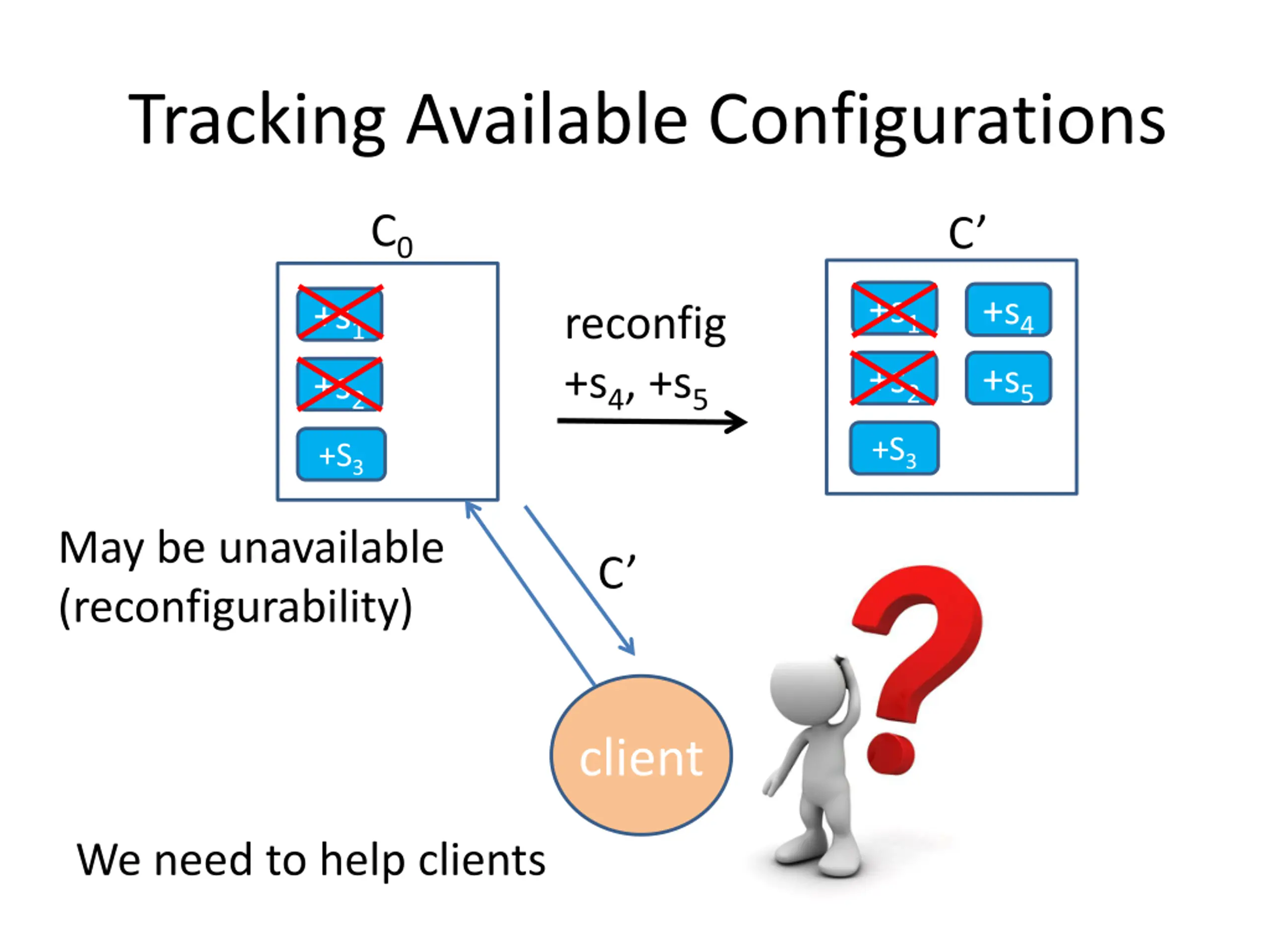

Tracking Available Configurations C0 C +s1 +s4 +s5 +s1 reconfig +s4, +s5 +s2 +s2 +S3 +S3 May be unavailable (reconfigurability) C client We need to help clients

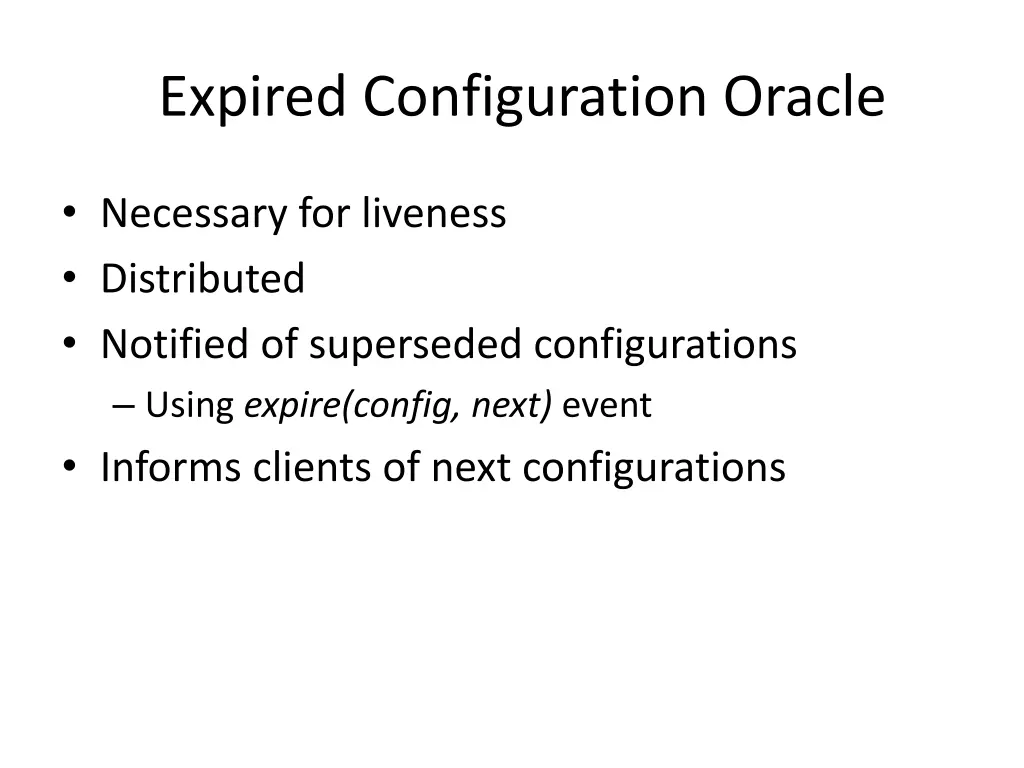

Expired Configuration Oracle Necessary for liveness Distributed Notified of superseded configurations Using expire(config, next) event Informs clients of next configurations

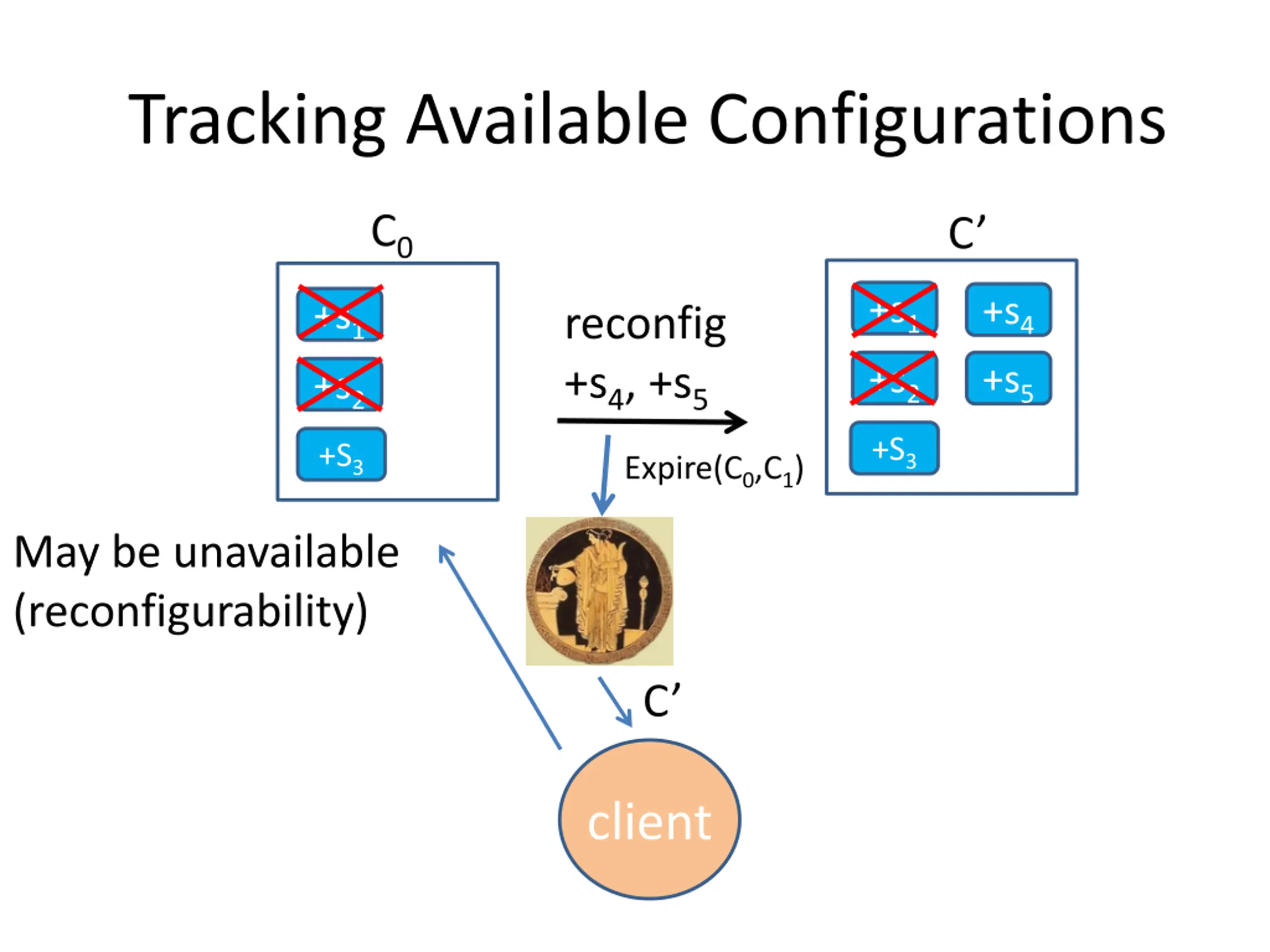

Tracking Available Configurations C0 C +s1 +s4 +s5 +s1 reconfig +s4, +s5 +s2 +s2 +S3 +S3 Expire(C0,C1) May be unavailable (reconfigurability) C client

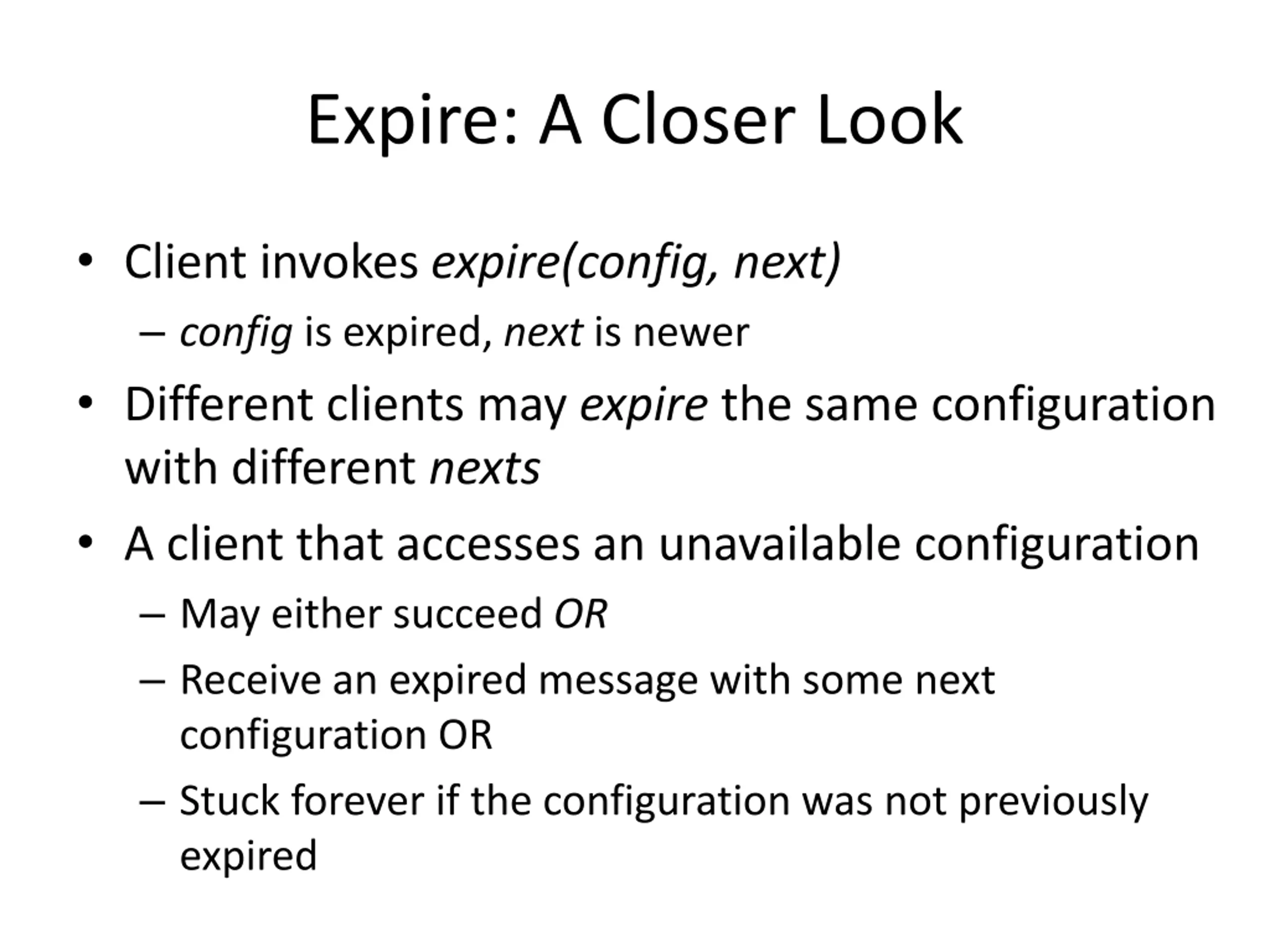

Expire: A Closer Look Client invokes expire(config, next) config is expired, next is newer Different clients may expire the same configuration withdifferent nexts A client that accesses an unavailable configuration May either succeed OR Receive an expired message with some next configuration OR Stuck forever if the configuration was not previously expired

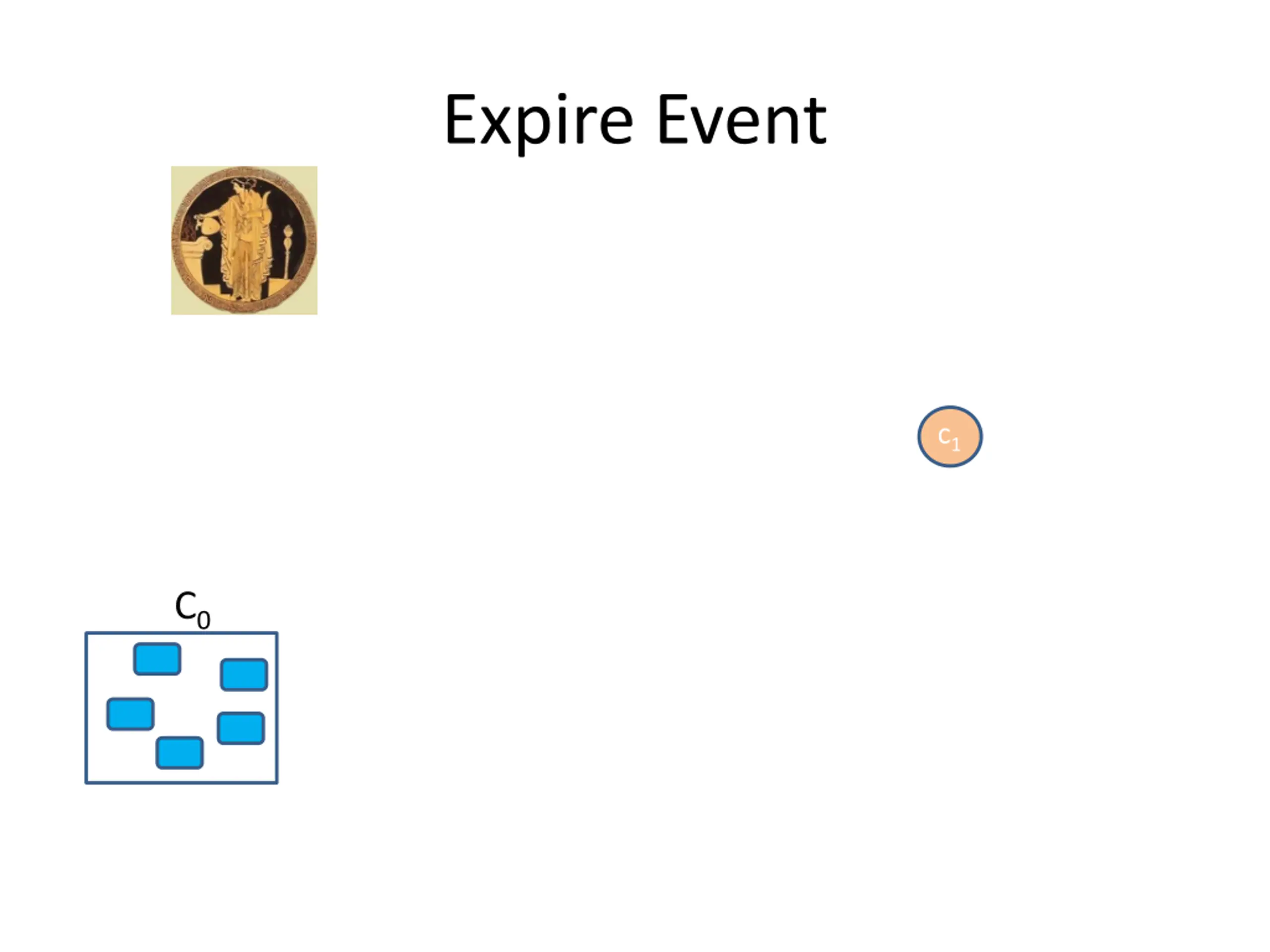

Expire Event c1 C0

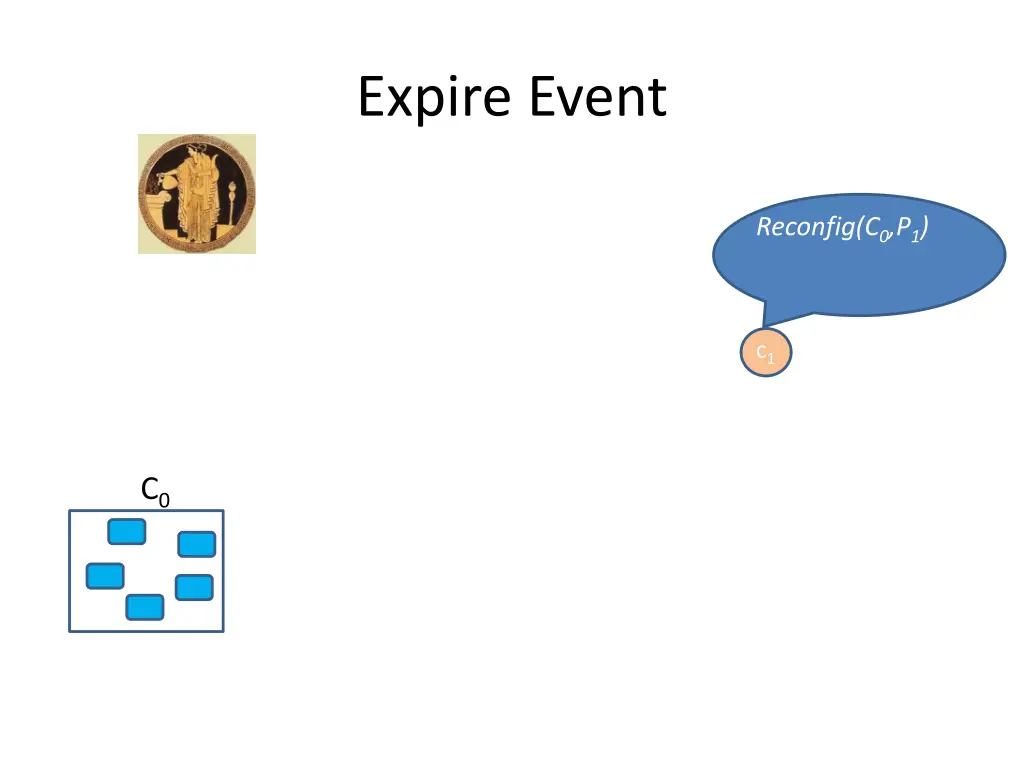

Expire Event Reconfig(C0,P1) c1 C0

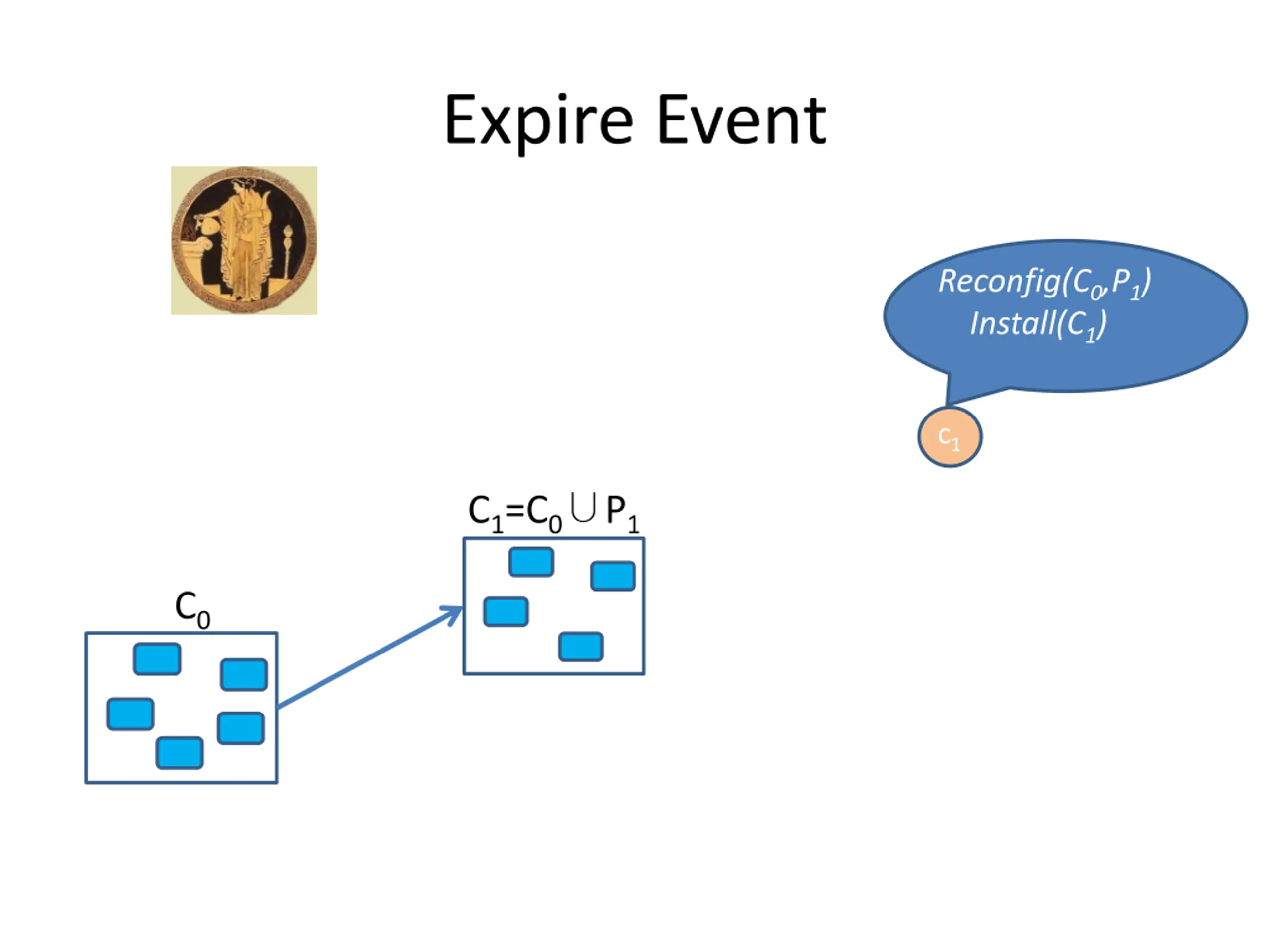

Expire Event Reconfig(C0,P1) Install(C1) c1 C1=C0 P1 C0

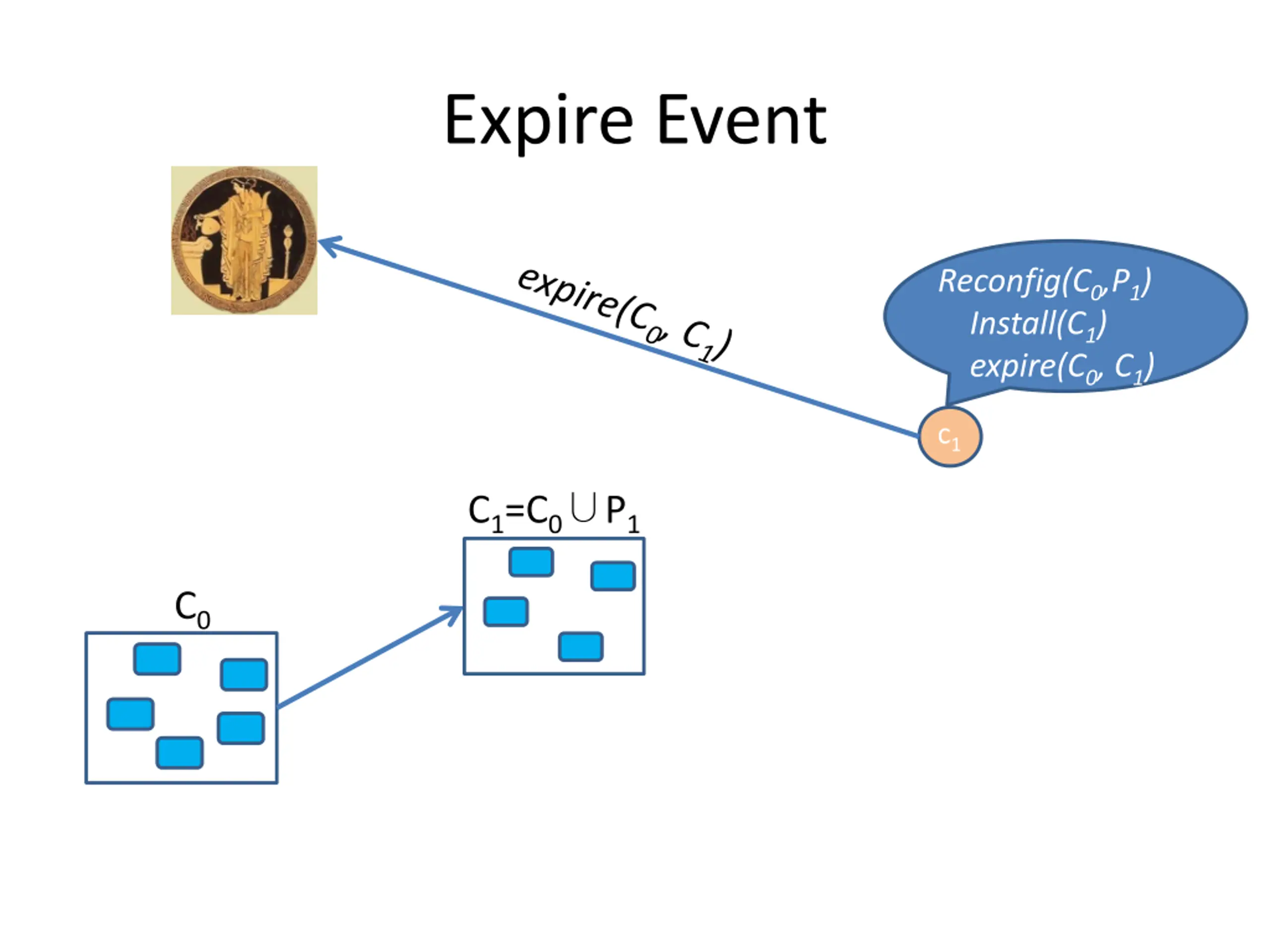

Expire Event Reconfig(C0,P1) Install(C1) expire(C0, C1) c1 C1=C0 P1 C0

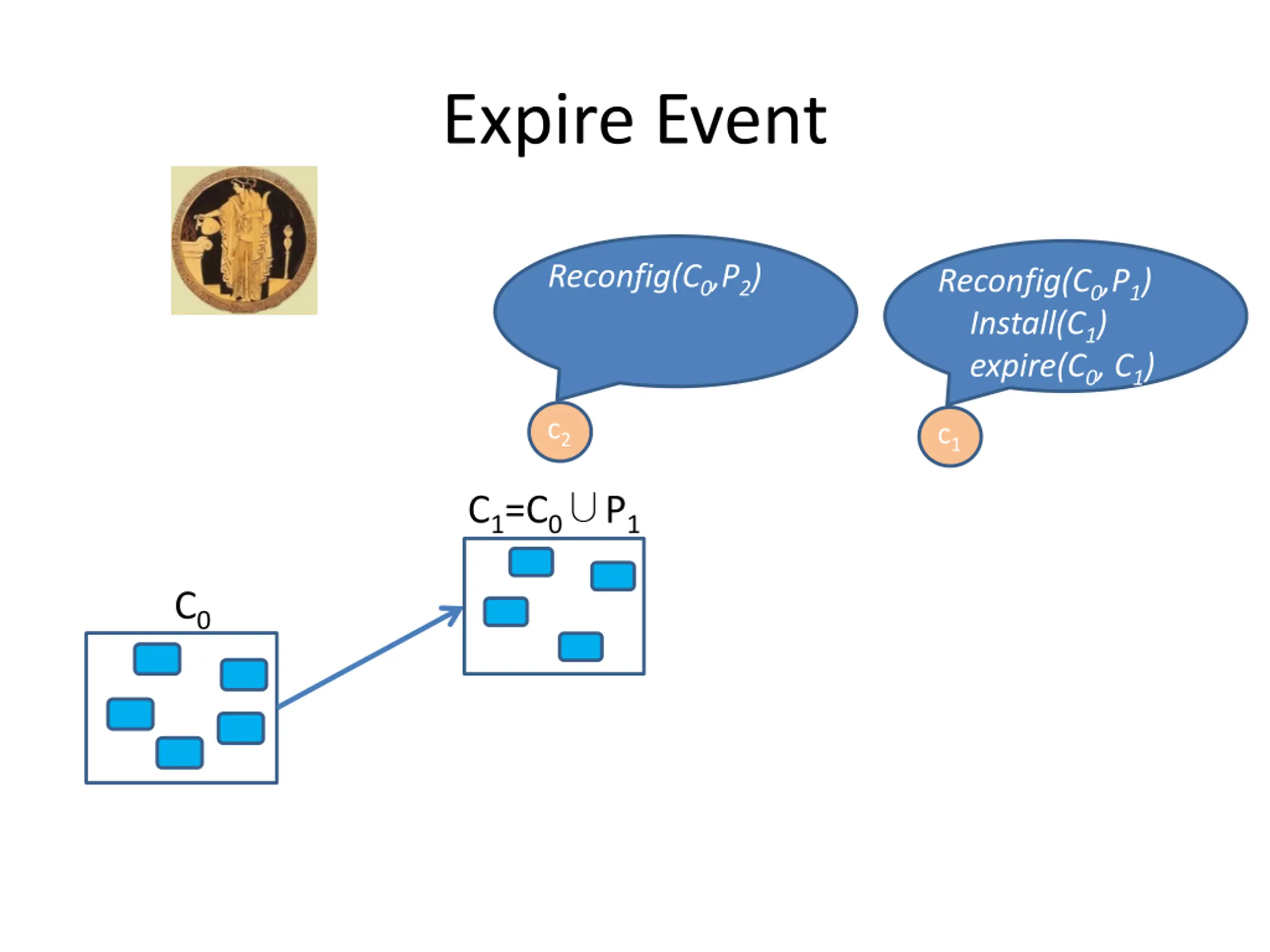

Expire Event Reconfig(C0,P2) Reconfig(C0,P1) Install(C1) expire(C0, C1) c2 c1 C1=C0 P1 C0

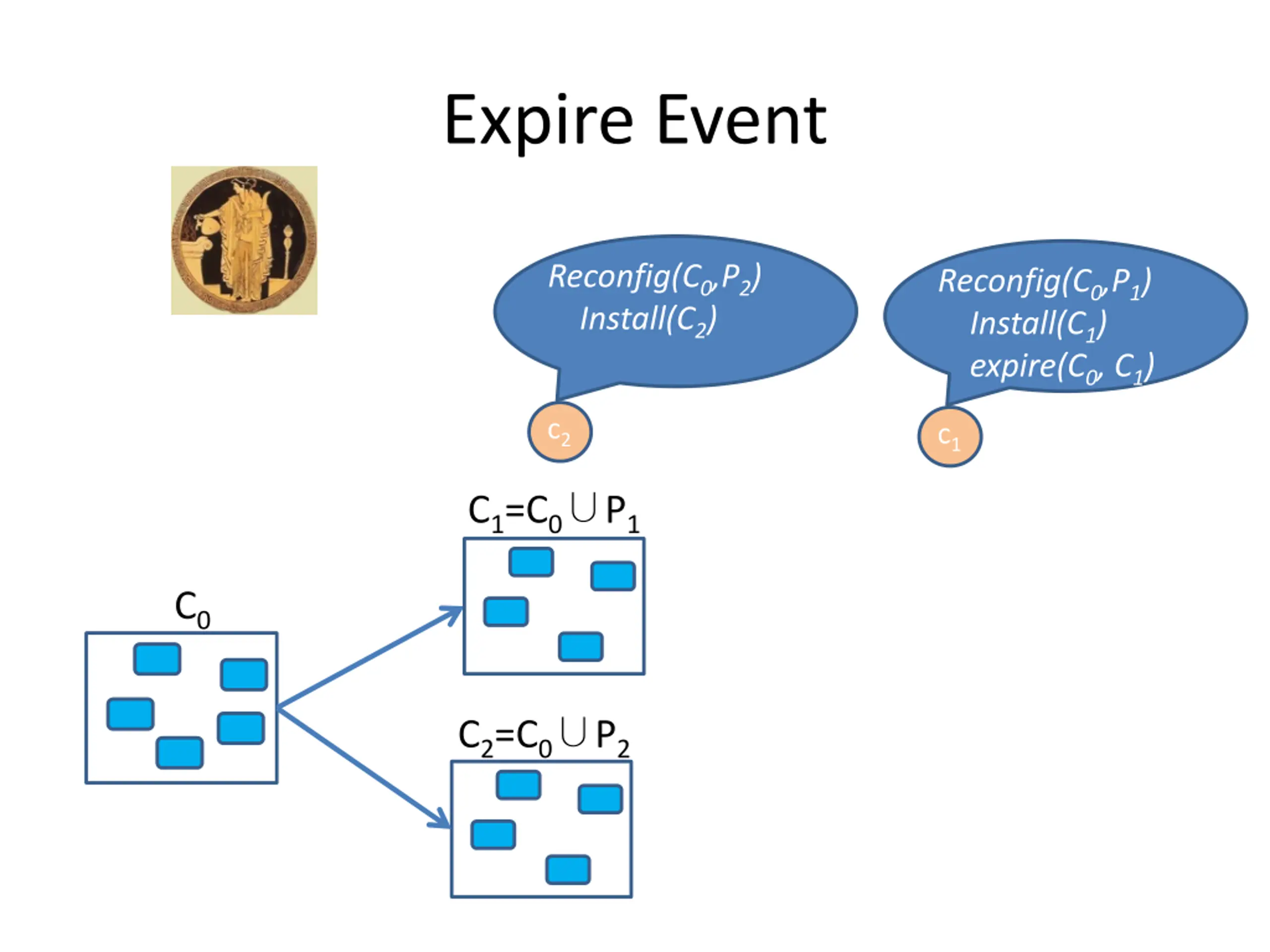

Expire Event Reconfig(C0,P2) Install(C2) Reconfig(C0,P1) Install(C1) expire(C0, C1) c2 c1 C1=C0 P1 C0 C2=C0 P2

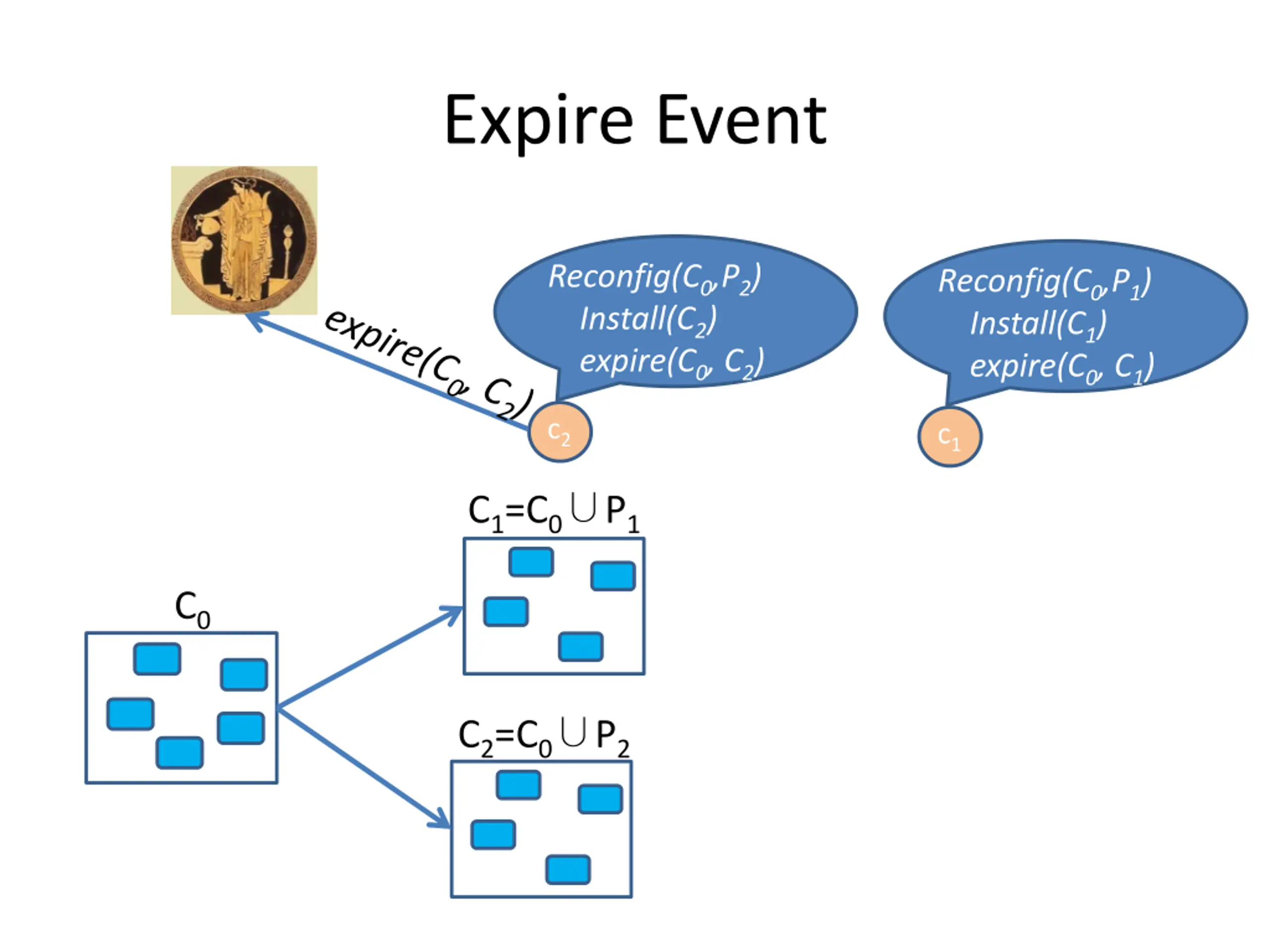

Expire Event Reconfig(C0,P2) Install(C2) expire(C0, C2) Reconfig(C0,P1) Install(C1) expire(C0, C1) c2 c1 C1=C0 P1 C0 C2=C0 P2

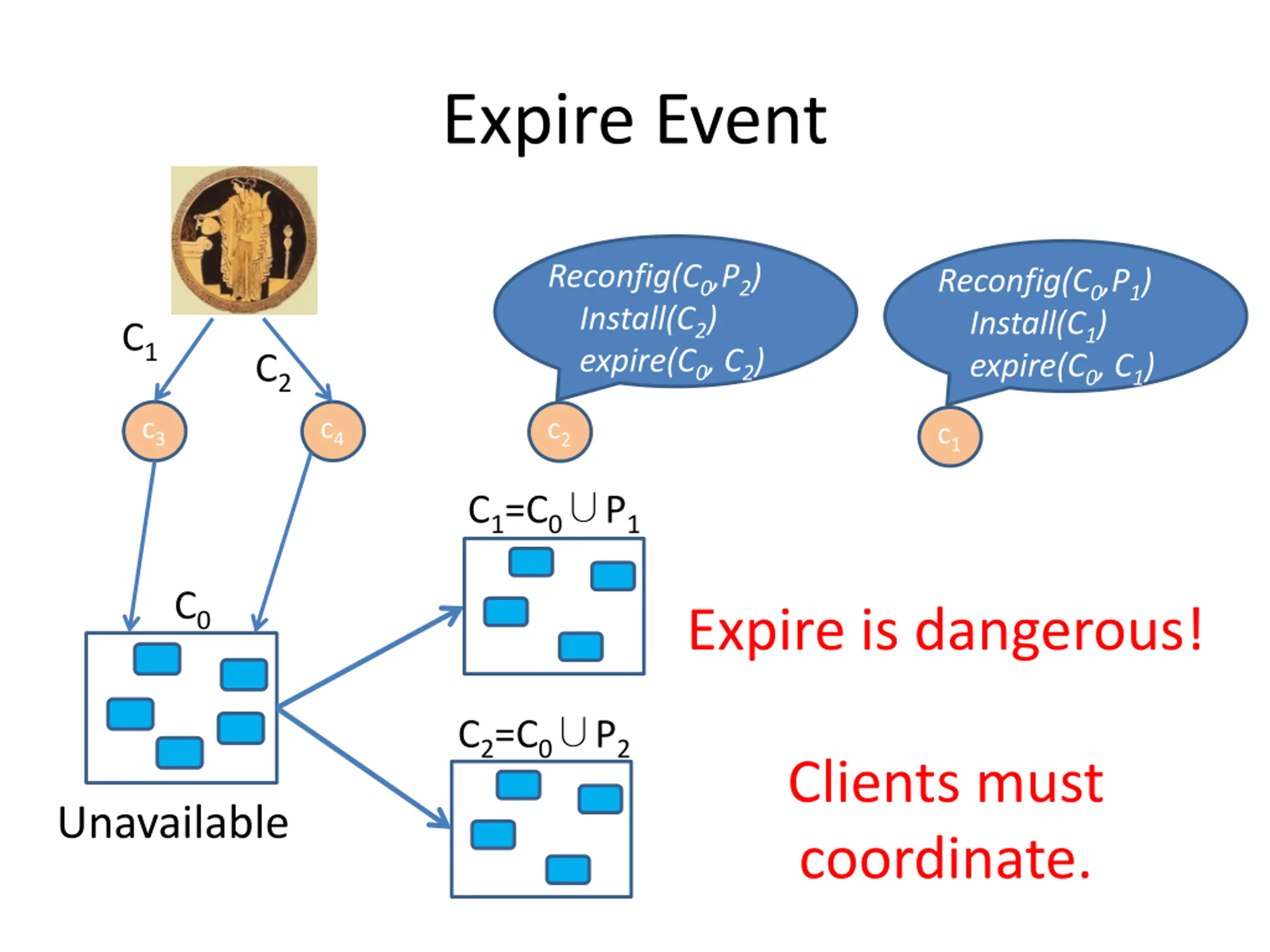

Expire Event Reconfig(C0,P2) Install(C2) expire(C0, C2) Reconfig(C0,P1) Install(C1) expire(C0, C1) C1 C2 c3 c4 c2 c1 C1=C0 P1 C0 Expire is dangerous! C2=C0 P2 Clients must coordinate. Unavailable

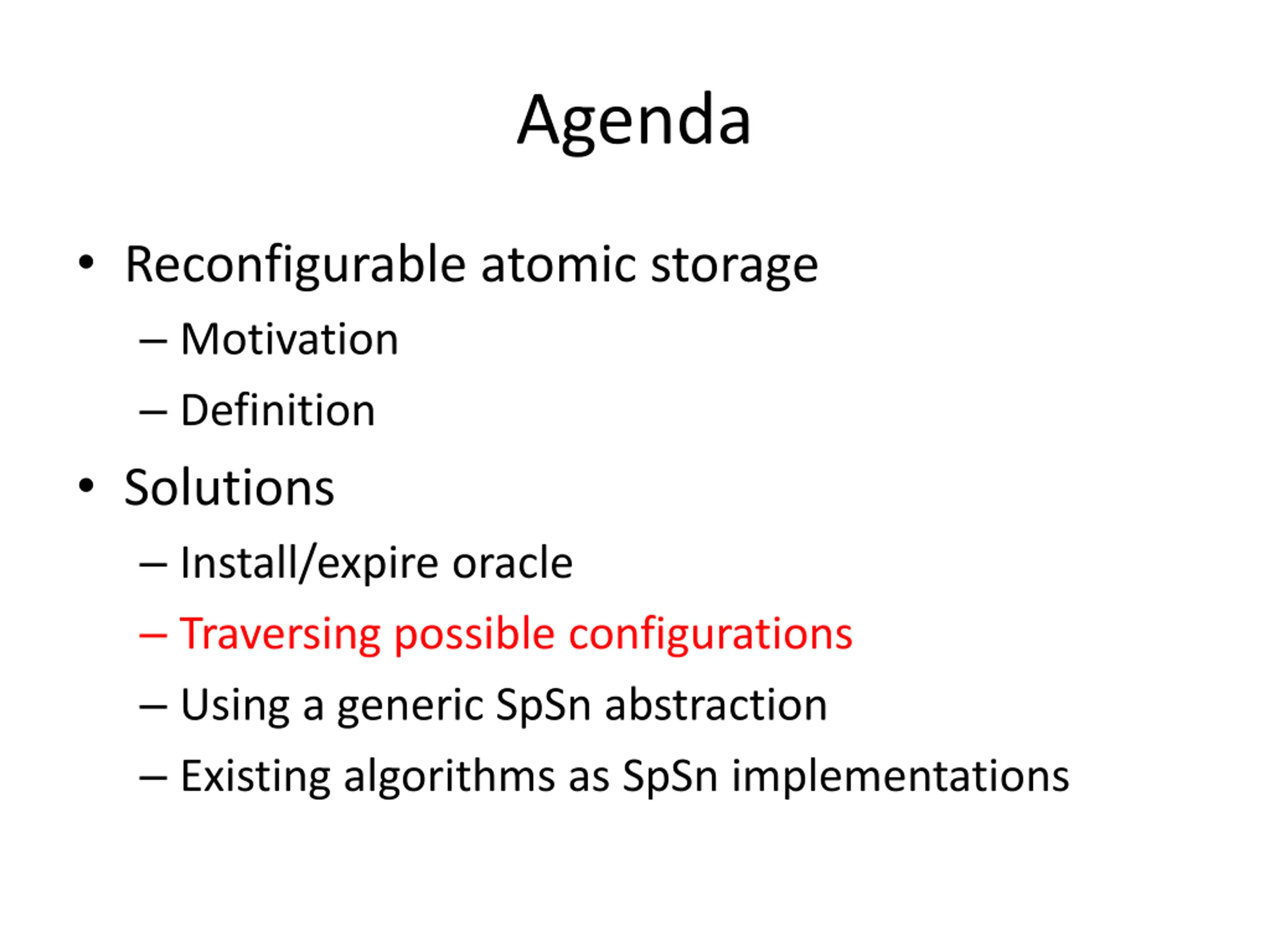

Agenda Reconfigurable atomic storage Motivation Definition Solutions Install/expire oracle Traversing possible configurations Using a generic SpSn abstraction Existing algorithms as SpSn implementations

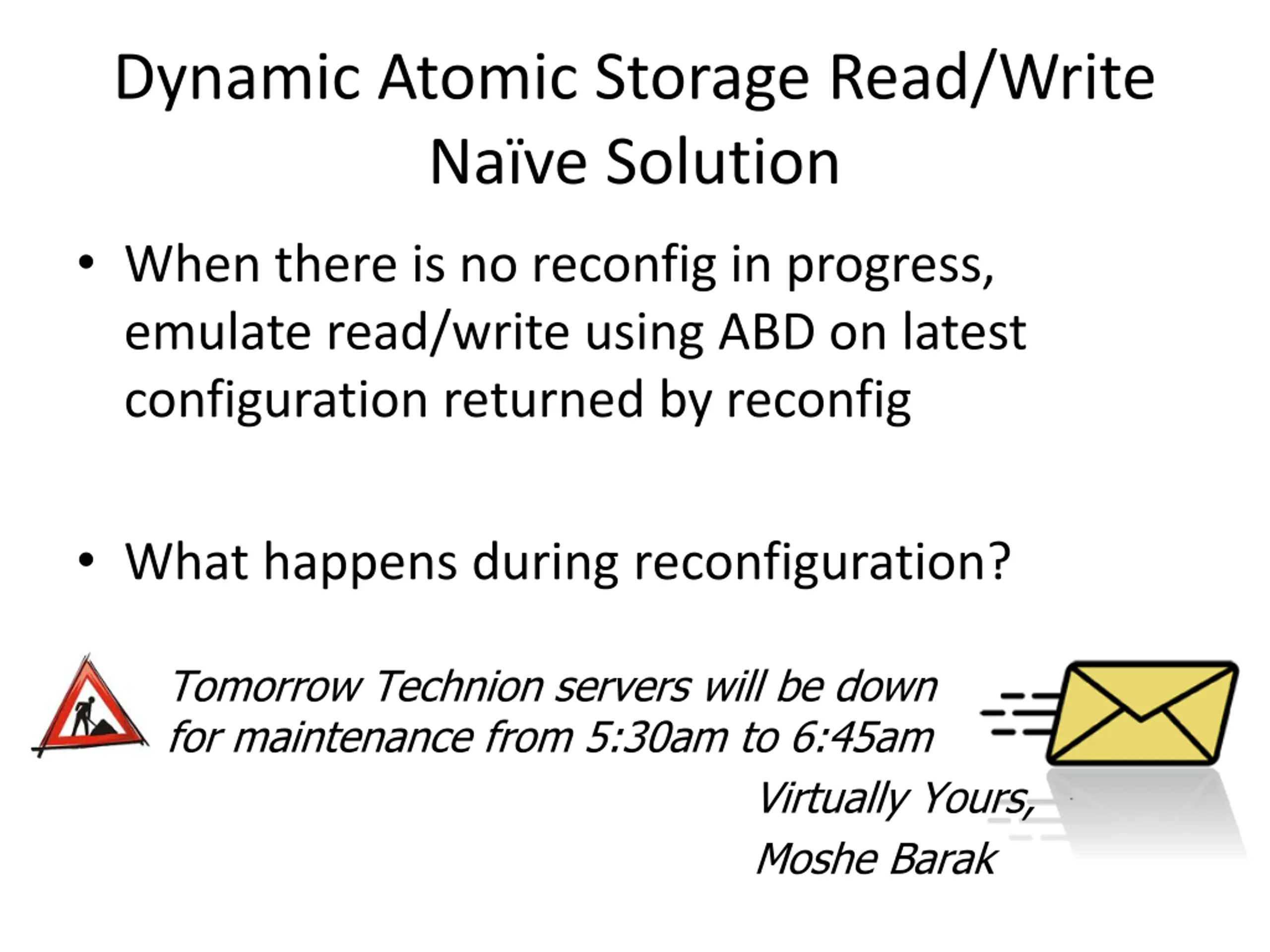

Dynamic Atomic Storage Read/Write Na ve Solution When there is no reconfig in progress, emulate read/write using ABD on latest configuration returned by reconfig What happens during reconfiguration? Tomorrow Technion servers will be down for maintenance from 5:30am to 6:45am Virtually Yours, Moshe Barak

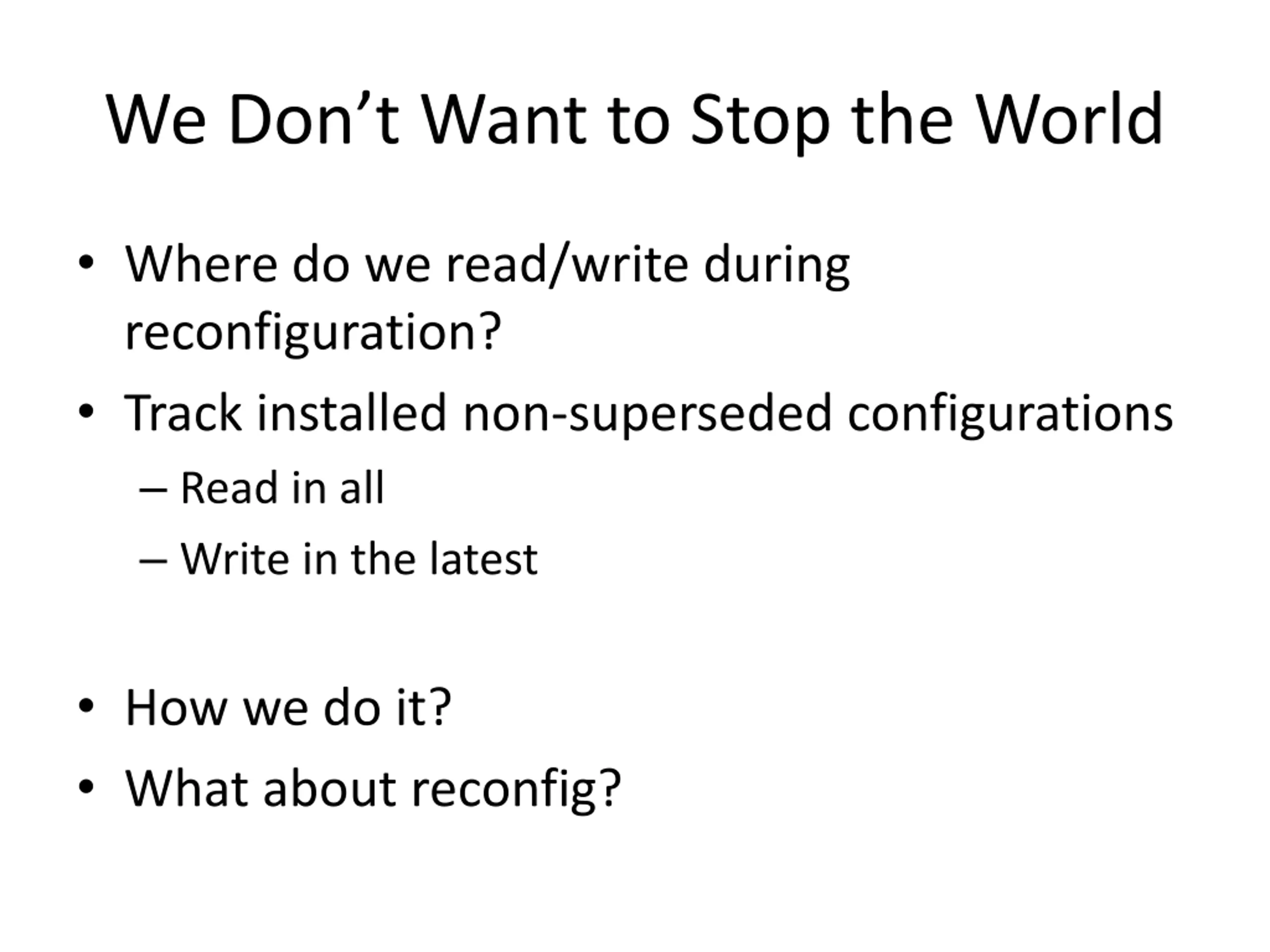

We Dont Want to Stop the World Where do we read/write during reconfiguration? Track installed non-superseded configurations Read in all Write in the latest How we do it? What about reconfig?

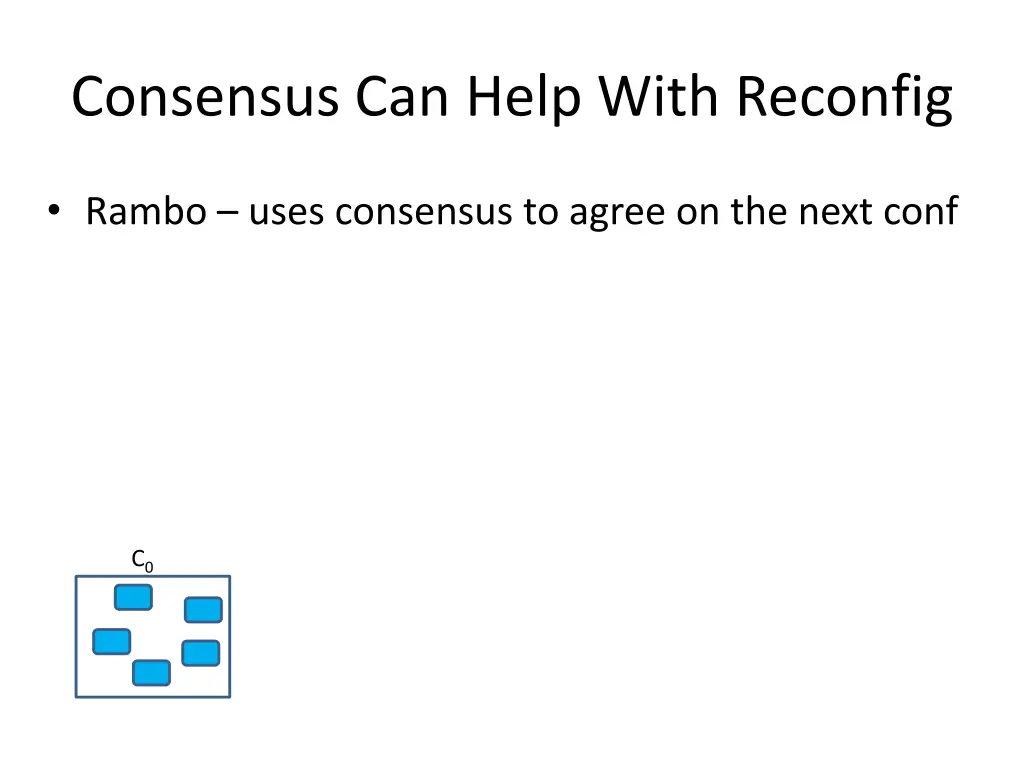

Consensus Can Help With Reconfig Rambo uses consensus to agree on the next conf C0

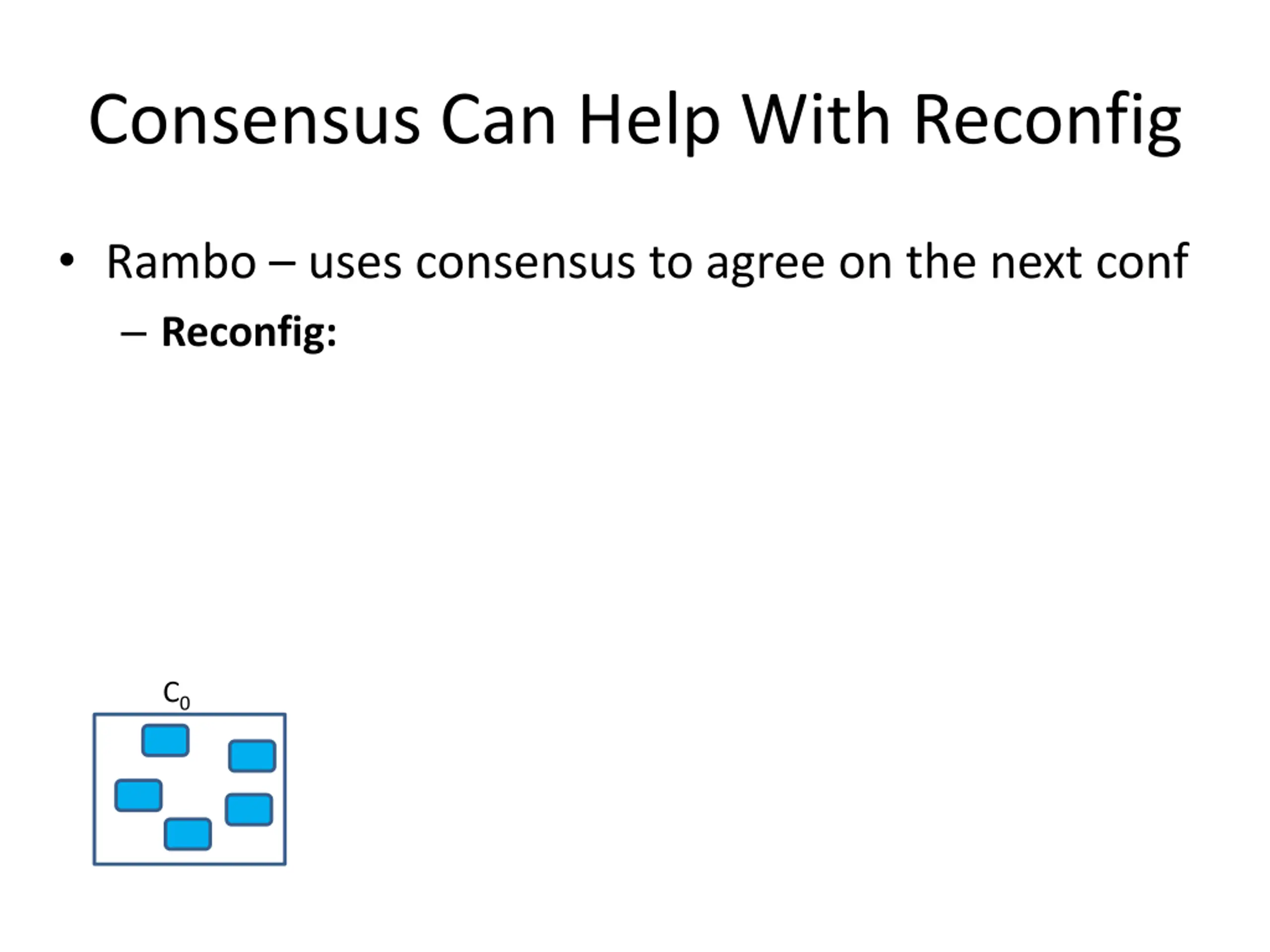

Consensus Can Help With Reconfig Rambo uses consensus to agree on the next conf Reconfig: C0

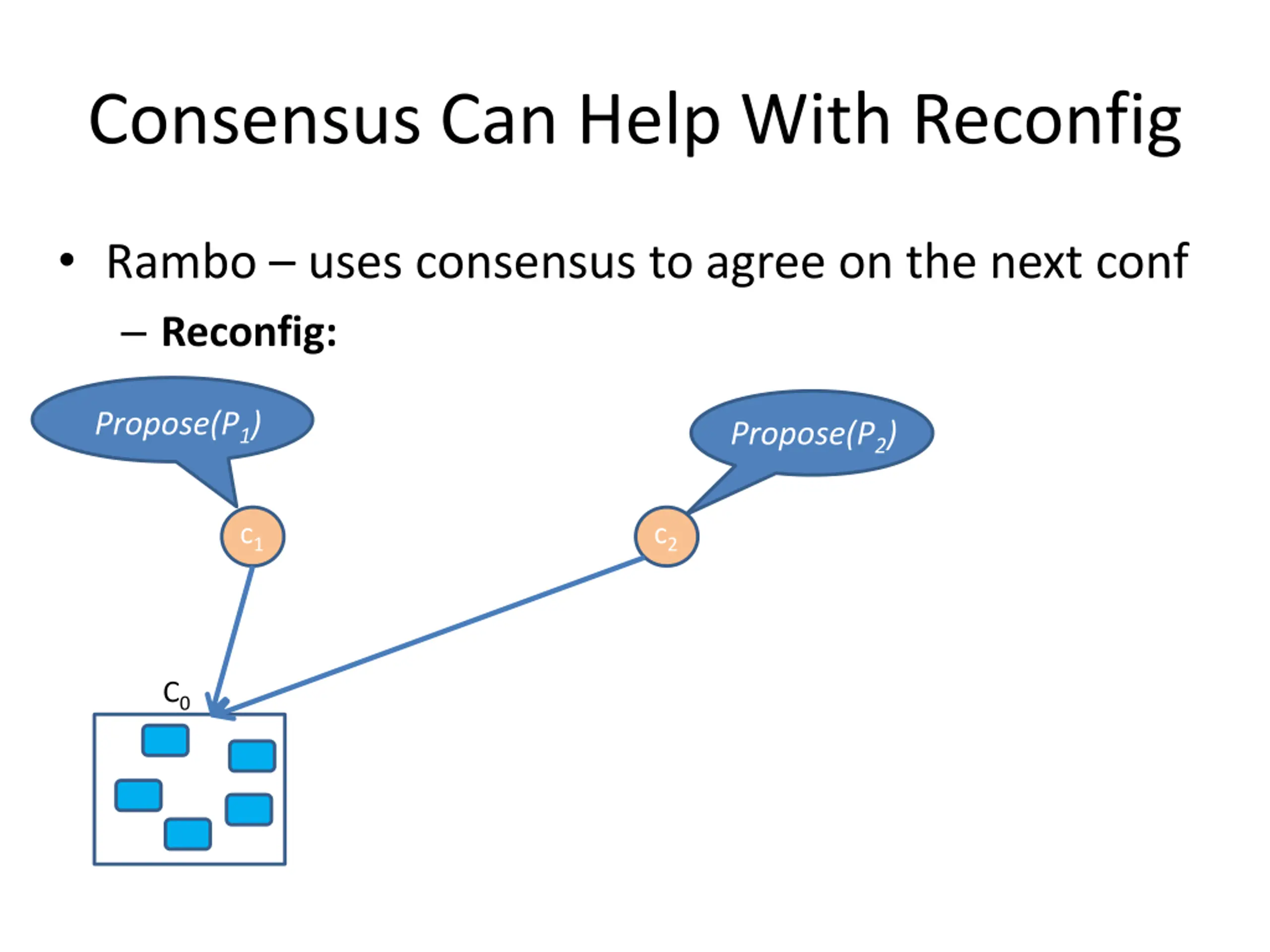

Consensus Can Help With Reconfig Rambo uses consensus to agree on the next conf Reconfig: Propose(P1) Propose(P2) c1 c2 C0

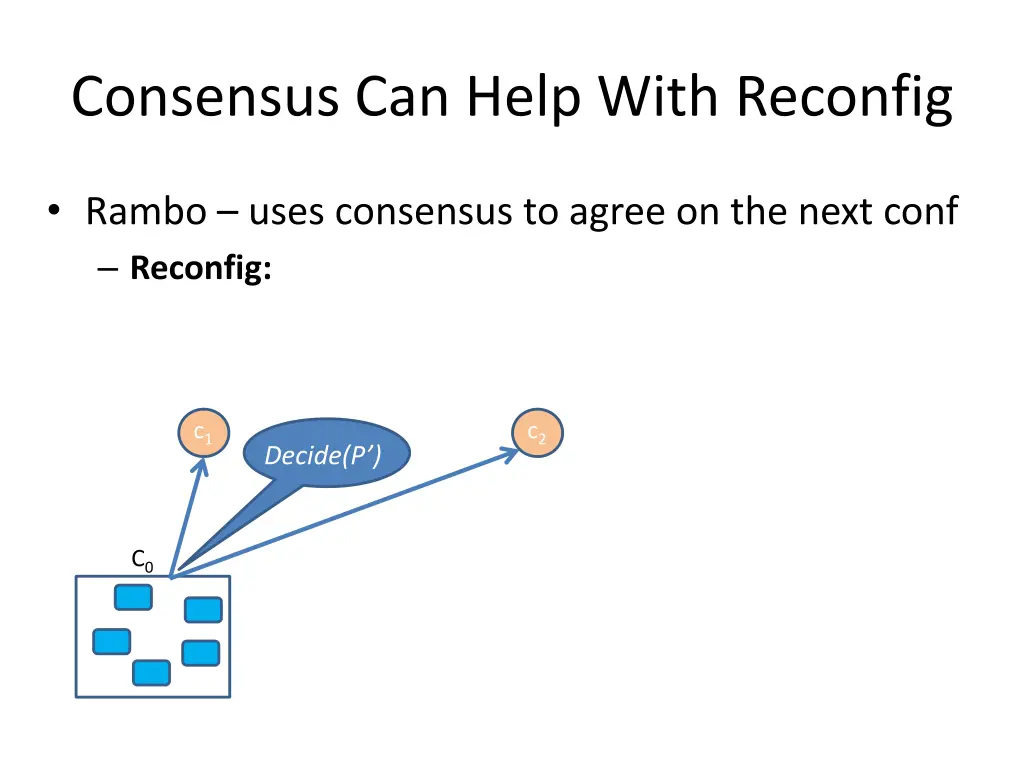

Consensus Can Help With Reconfig Rambo uses consensus to agree on the next conf Reconfig: c1 c2 Decide(P ) C0

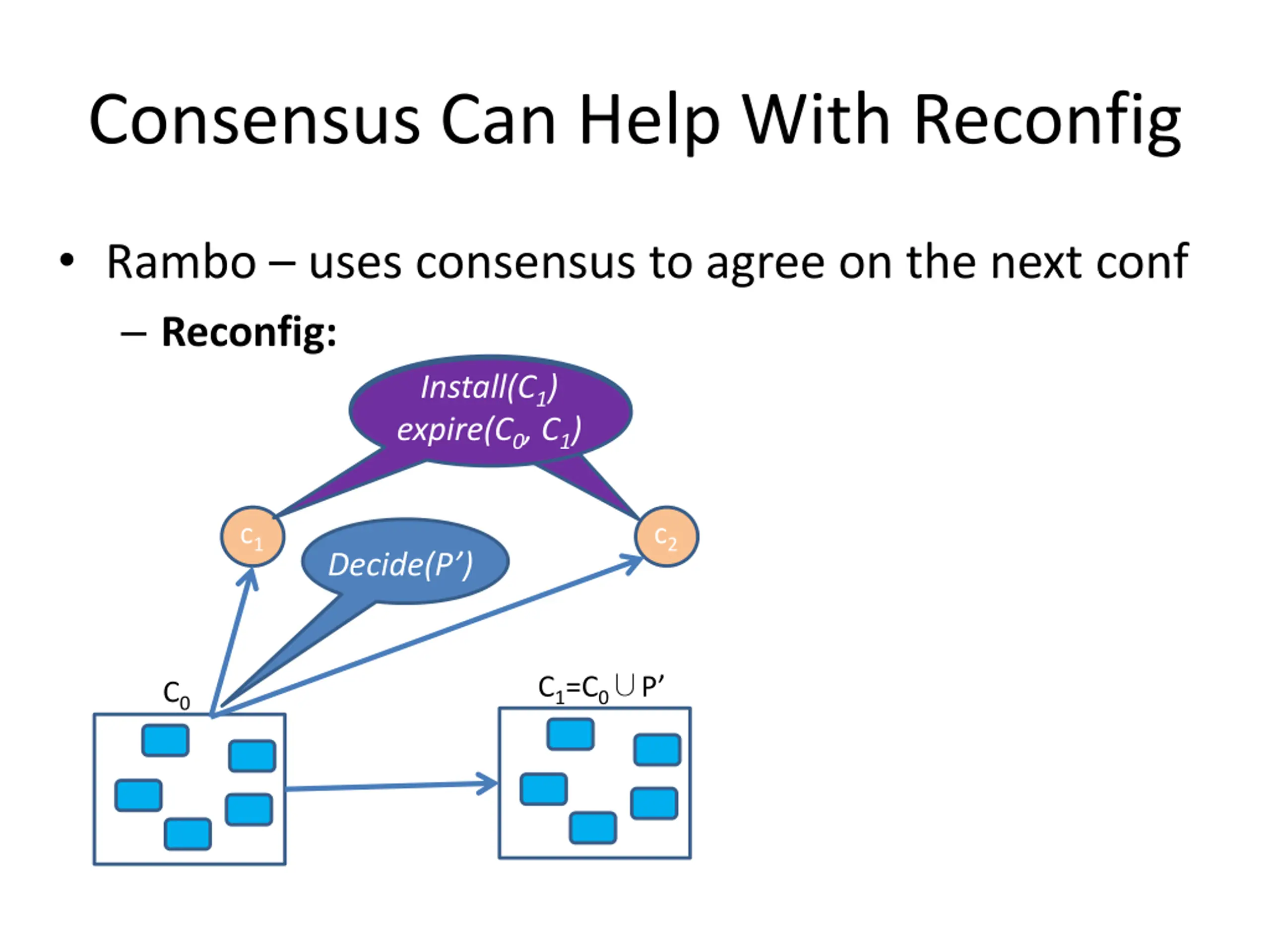

Consensus Can Help With Reconfig Rambo uses consensus to agree on the next conf Reconfig: Install(C1) expire(C0, C1) c1 c2 Decide(P ) C1=C0 P C0

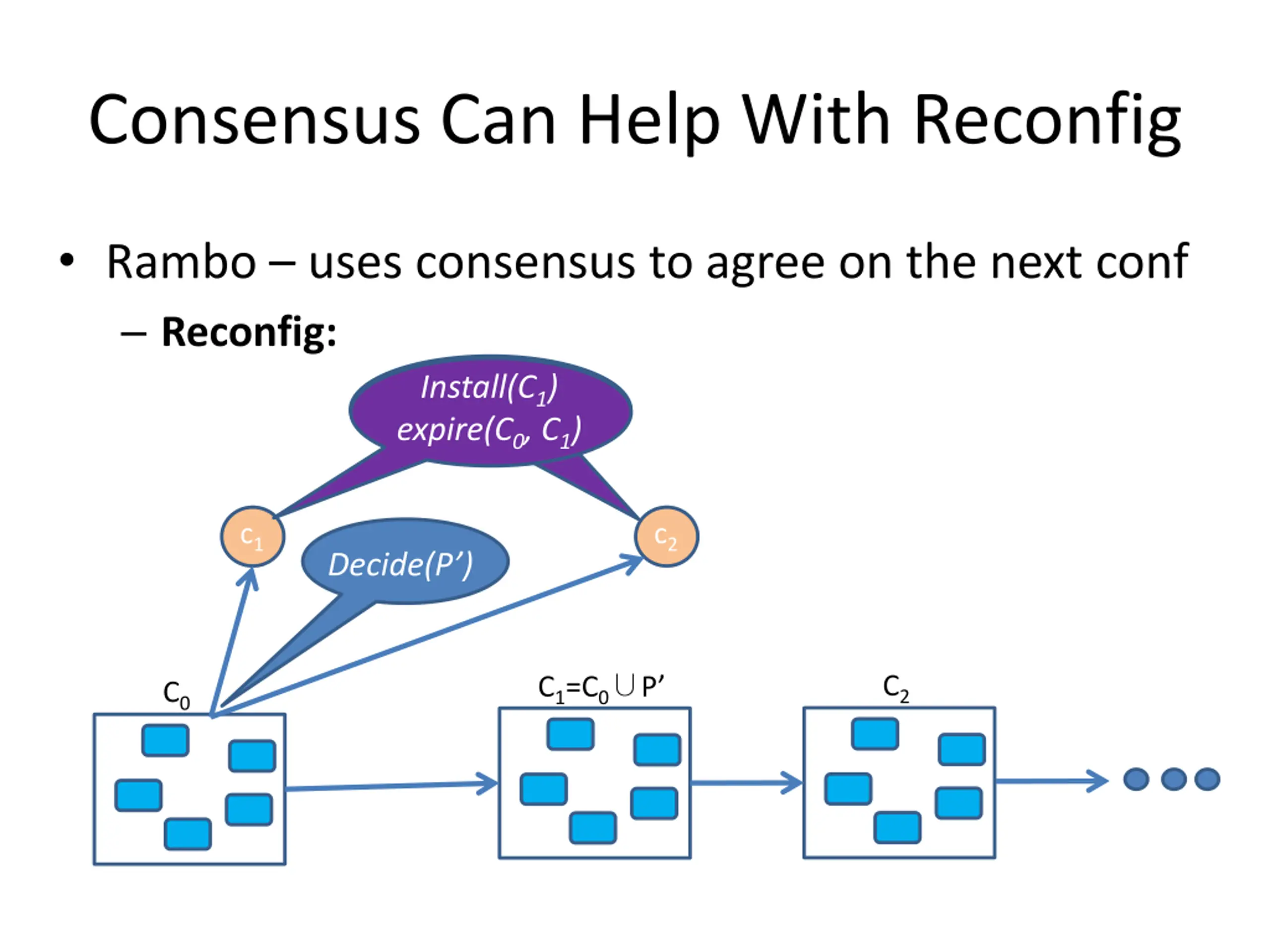

Consensus Can Help With Reconfig Rambo uses consensus to agree on the next conf Reconfig: Install(C1) expire(C0, C1) c1 c2 Decide(P ) C1=C0 P C2 C0

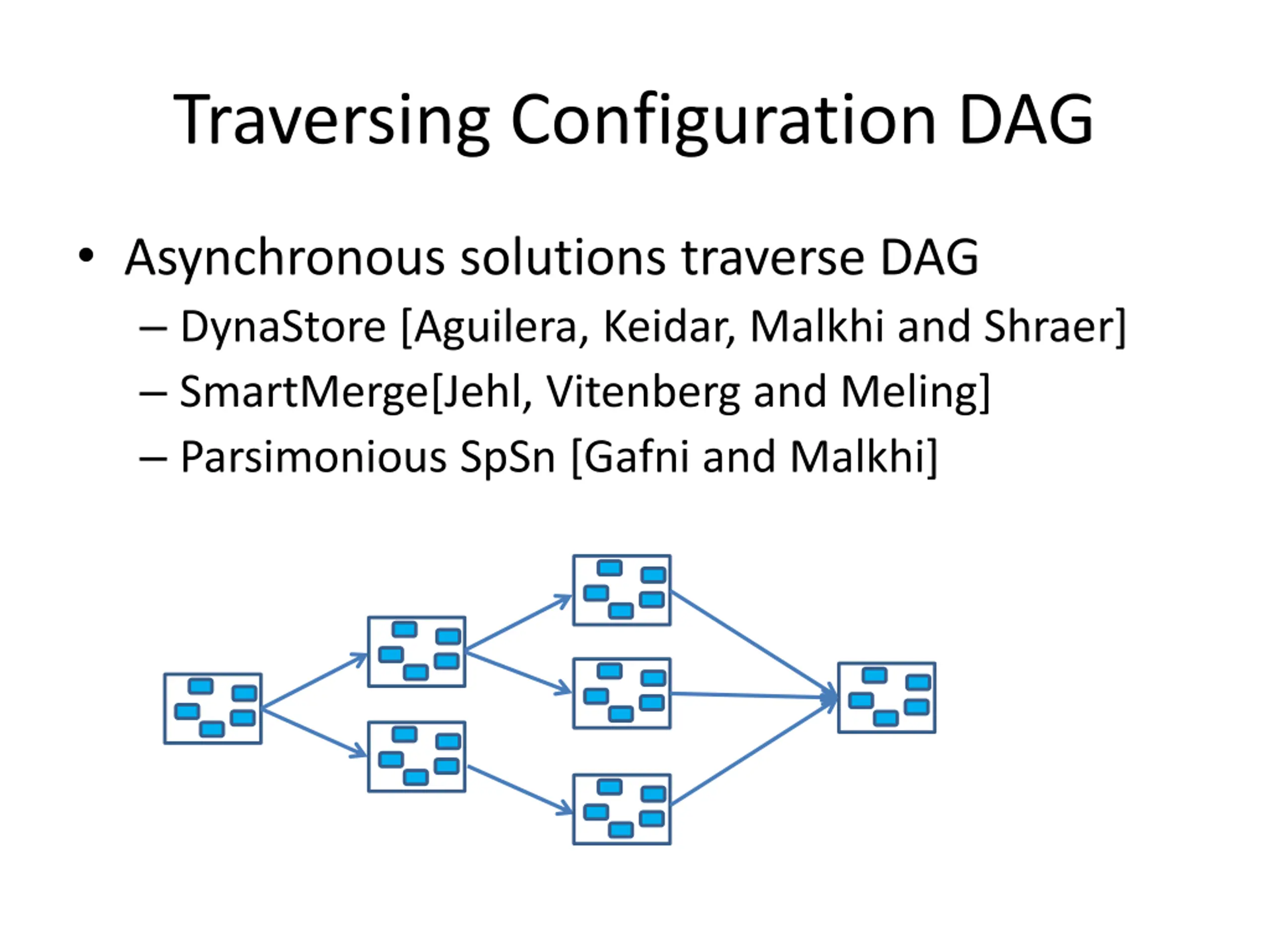

Traversing Configuration DAG Asynchronous solutions traverse DAG DynaStore [Aguilera, Keidar, Malkhi and Shraer] SmartMerge[Jehl, Vitenberg and Meling] Parsimonious SpSn [Gafni and Malkhi]

Traversing Configuration DAG
