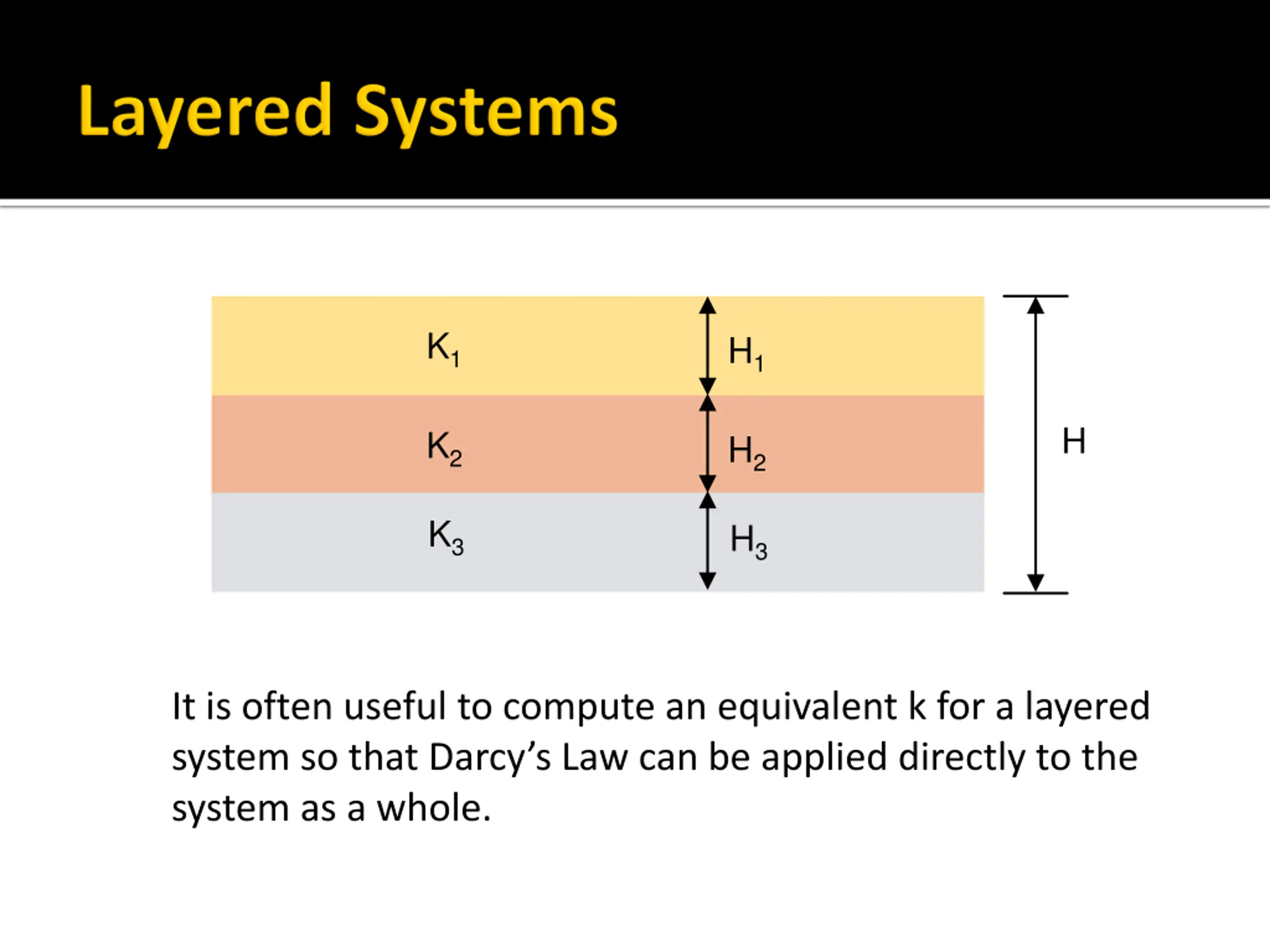

K1 H1 H K2 H2 K3 H3 It is often useful to compute an equivalent k for a layered system so that Darcy s Law can be applied directly to the system as a whole.

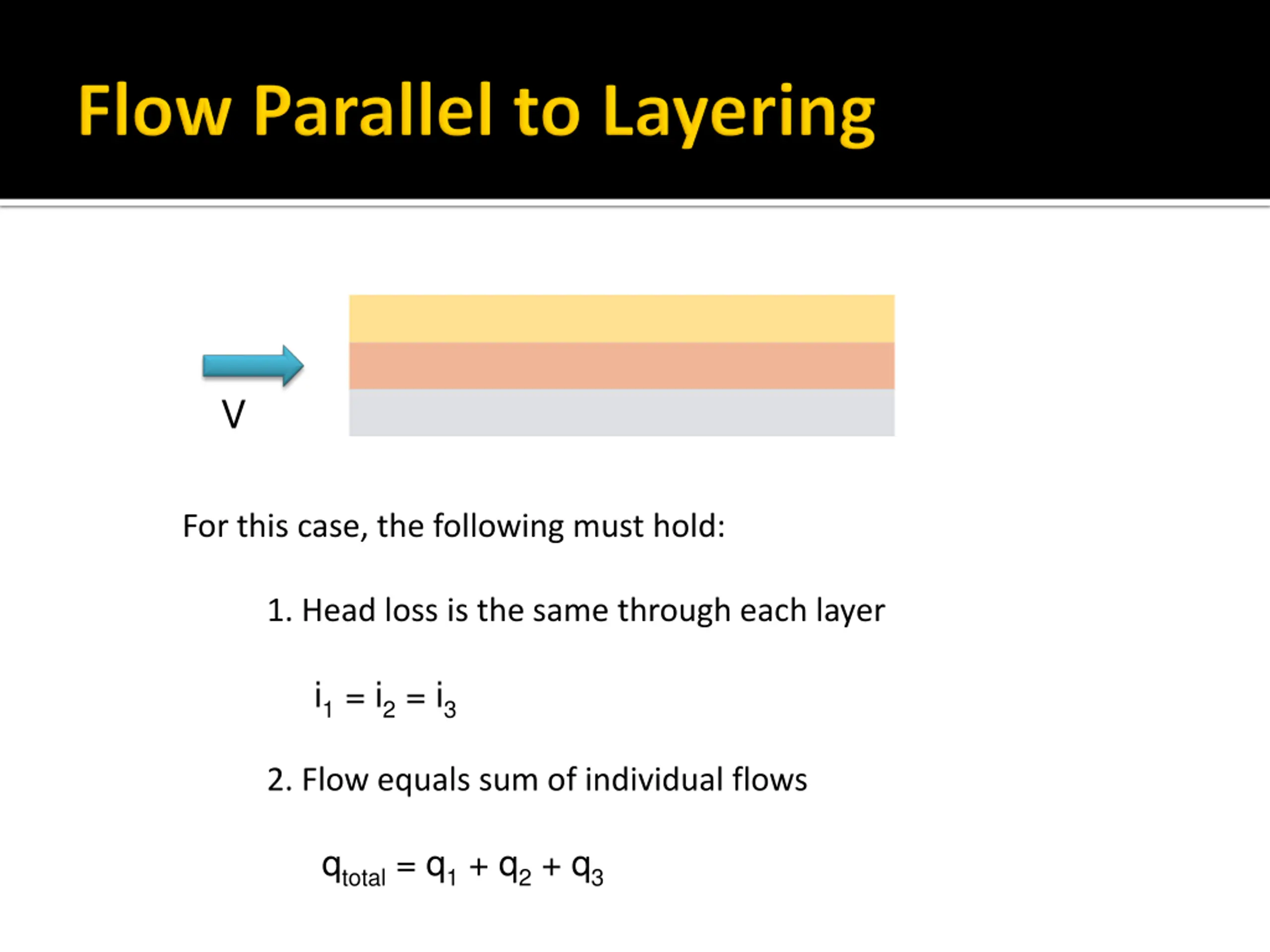

V For this case, the following must hold: 1. Head loss is the same through each layer i1 = i2 = i3 2. Flow equals sum of individual flows qtotal = q1 + q2 + q3

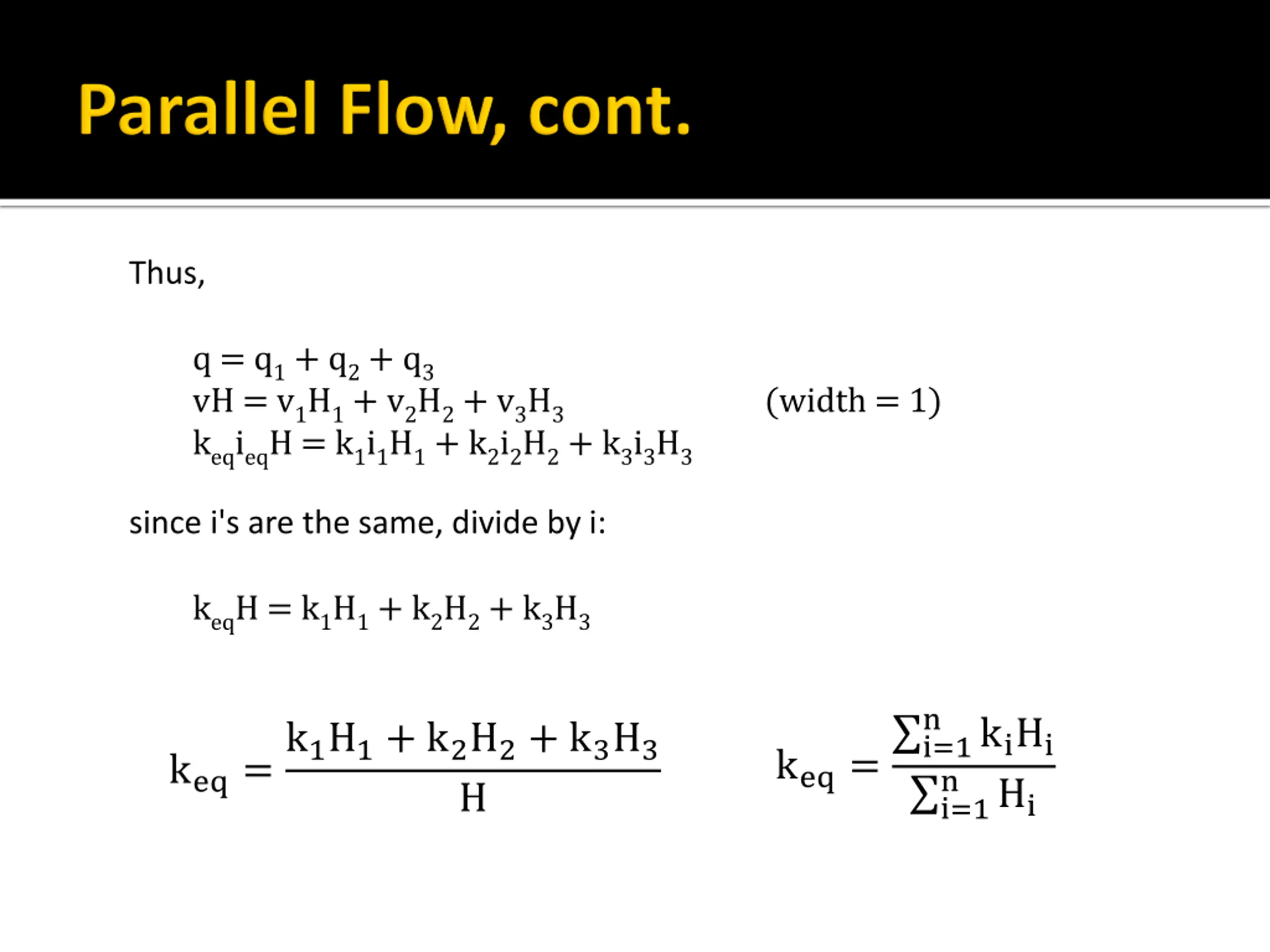

Thus, q = q1 + q2 + q3 vH = v1H1 + v2H2 + v3H3 keqieqH = k1i1H1 + k2i2H2 + k3i3H3 (width = 1) since i's are the same, divide by i: keqH = k1H1 + k2H2 + k3H3 n keq= i=1 kiHi Hi keq=k1H1+ k2H2+ k3H3 n i=1 H

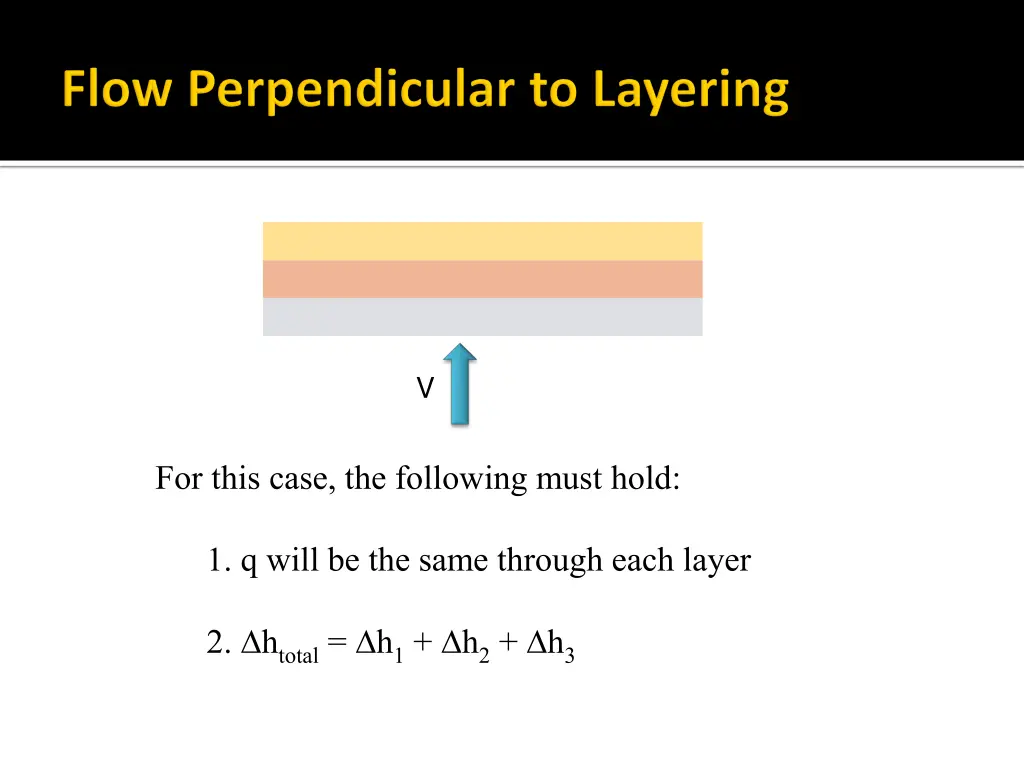

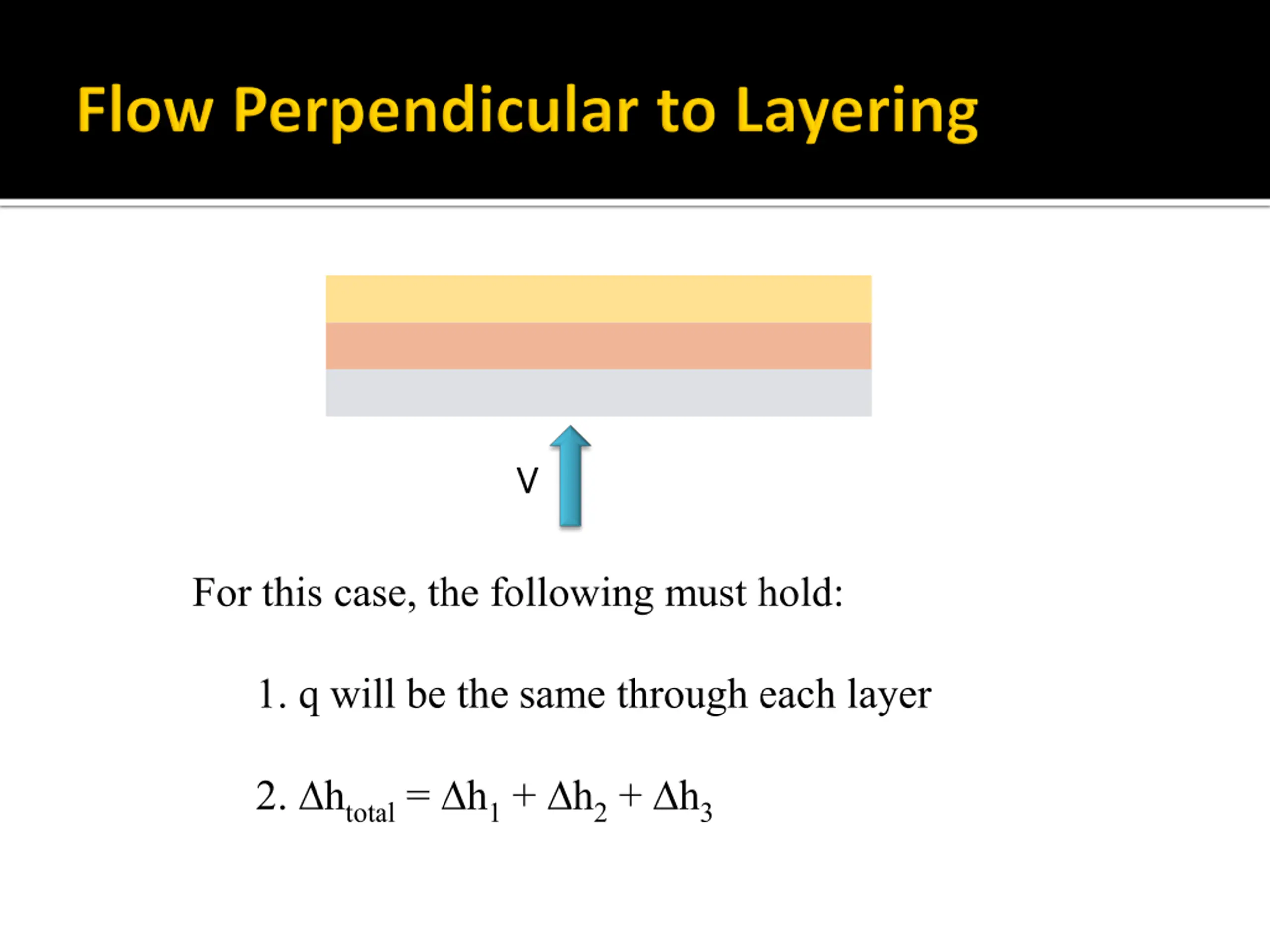

V For this case, the following must hold: 1. q will be the same through each layer htotal = h1 + h2 + h3

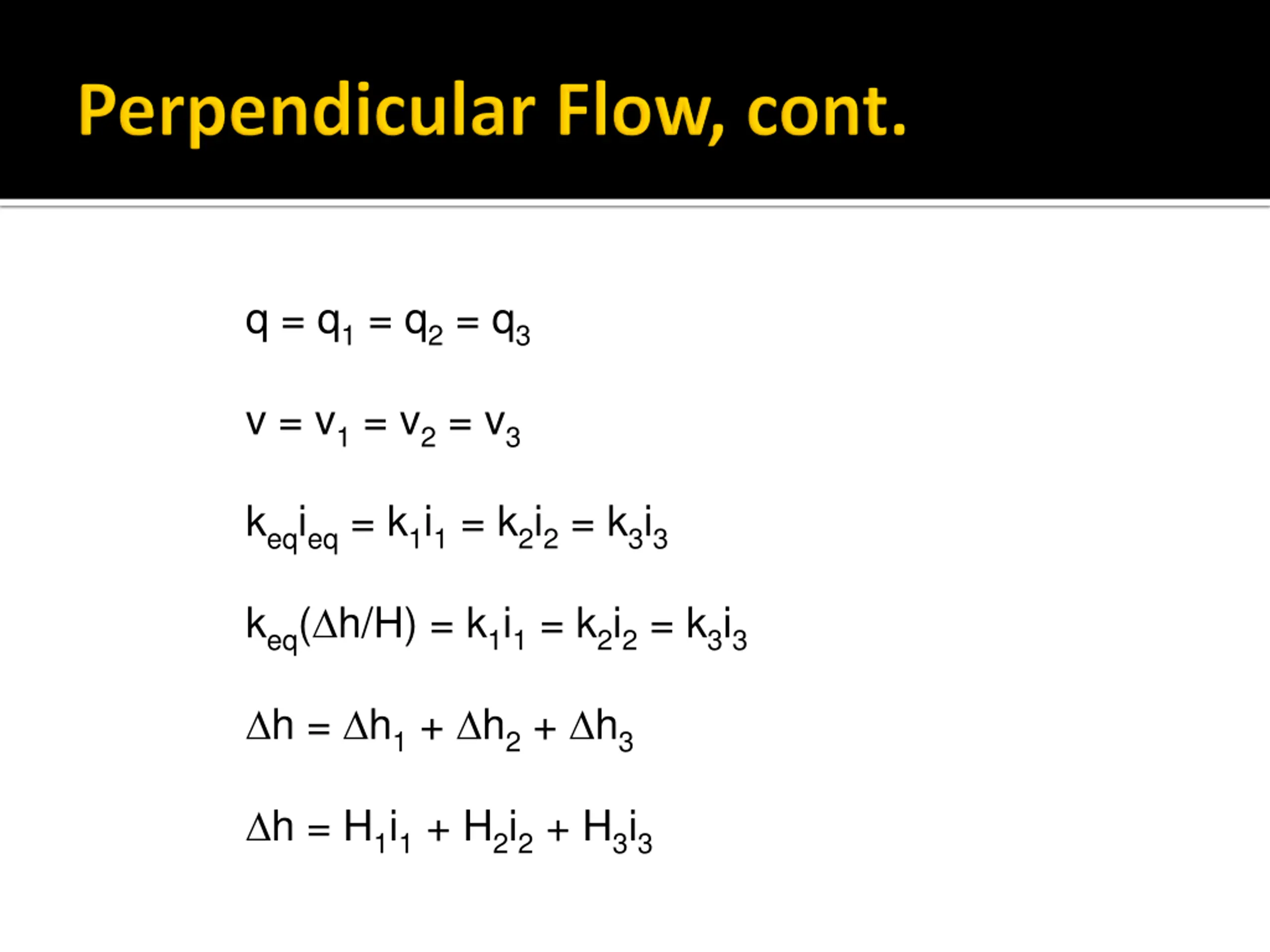

q = q1 = q2 = q3 v = v1 = v2 = v3 keqieq = k1i1 = k2i2 = k3i3 keq( h/H) = k1i1 = k2i2 = k3i3 h = h1 + h2 + h3 h = H1i1 + H2i2 + H3i3

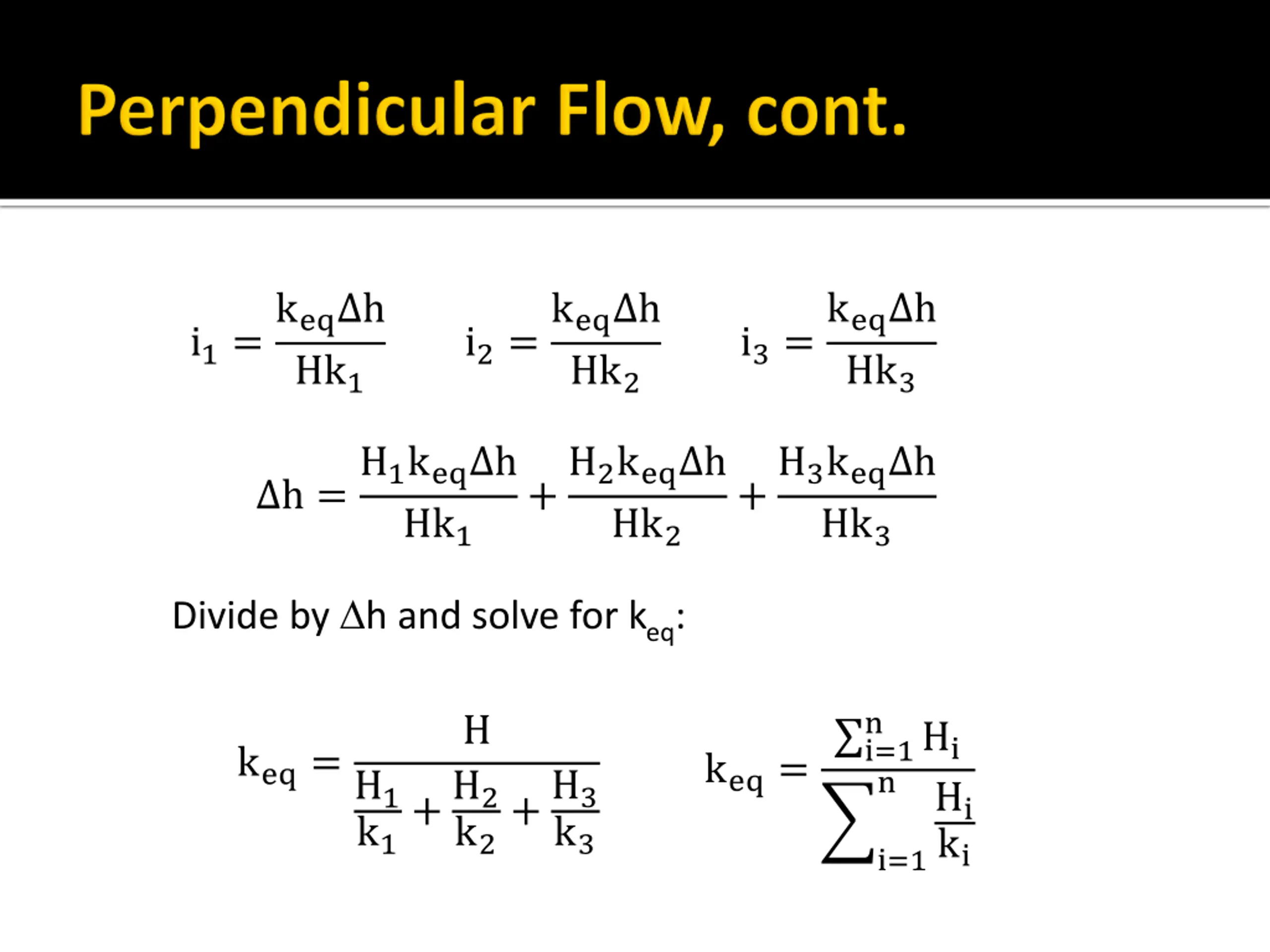

i3=keqh i1=keq h i2=keq h Hk3 Hk1 Hk2 h =H1keq h +H2keq h Hk2 +H3keq h Hk3 Hk1 Divide by h and solve for keq: n H k2+H3 i=1 Hi Hi ki keq= keq= H1 k1+H2 n k3 i=1
