HOMER 3 TRAINING WEBINAR SERIES PRESENTERS: DAVID A. BOAS and MERYEM AY E Y CEL DATE: 02/25/2021 TOPIC: Loading and saving snirf files https://github.com/BUNPC/Homer3 https://github.com/BUNPC/AtlasViewer

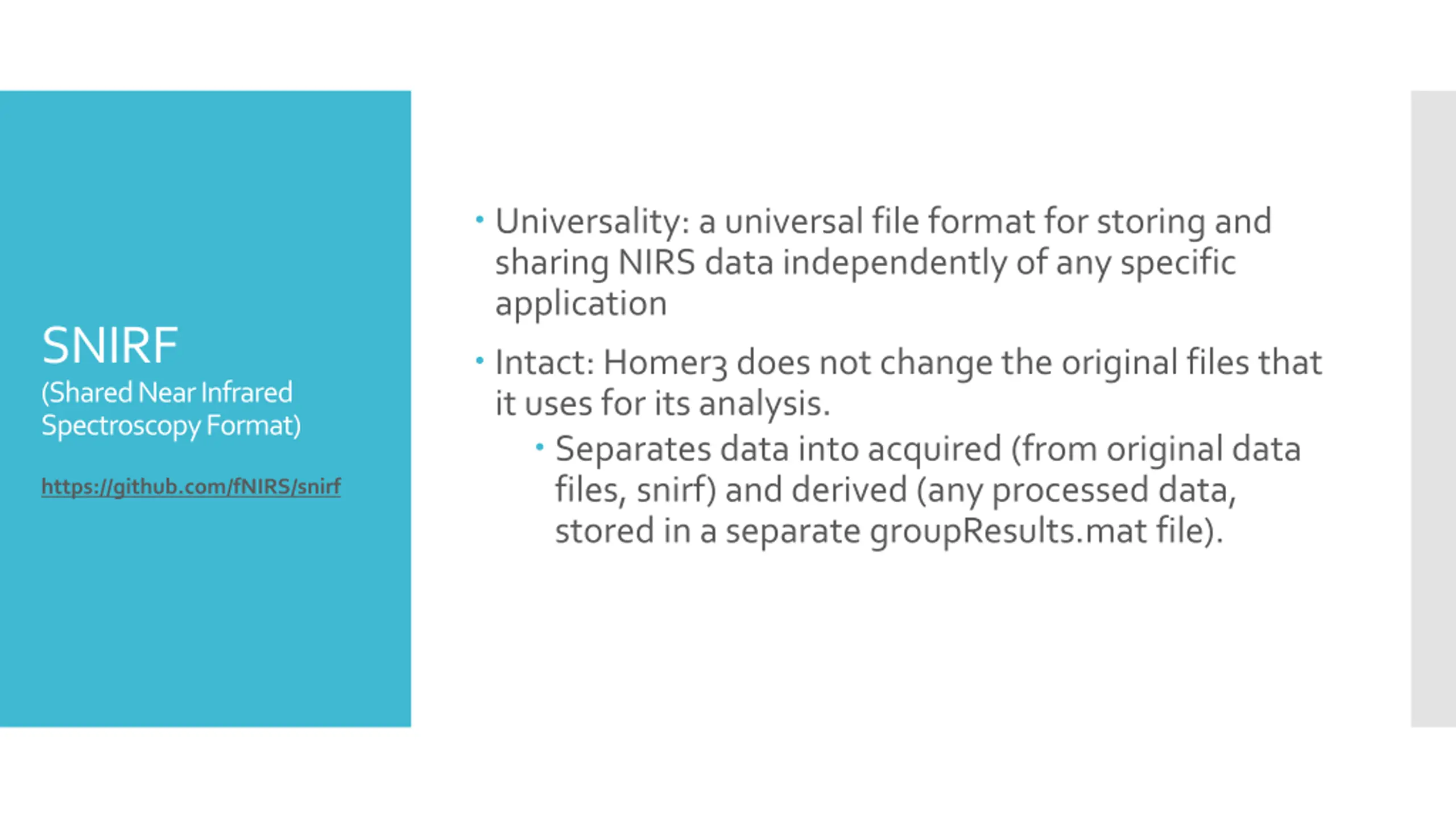

Universality: a universal file format for storing and sharing NIRS data independently of any specific application Intact: Homer3 does not change the original files that it uses for its analysis. Separates data into acquired (from original data files, snirf) and derived (any processed data, stored in a separate groupResults.mat file). SNIRF (Shared Near Infrared Spectroscopy Format) https://github.com/fNIRS/snirf

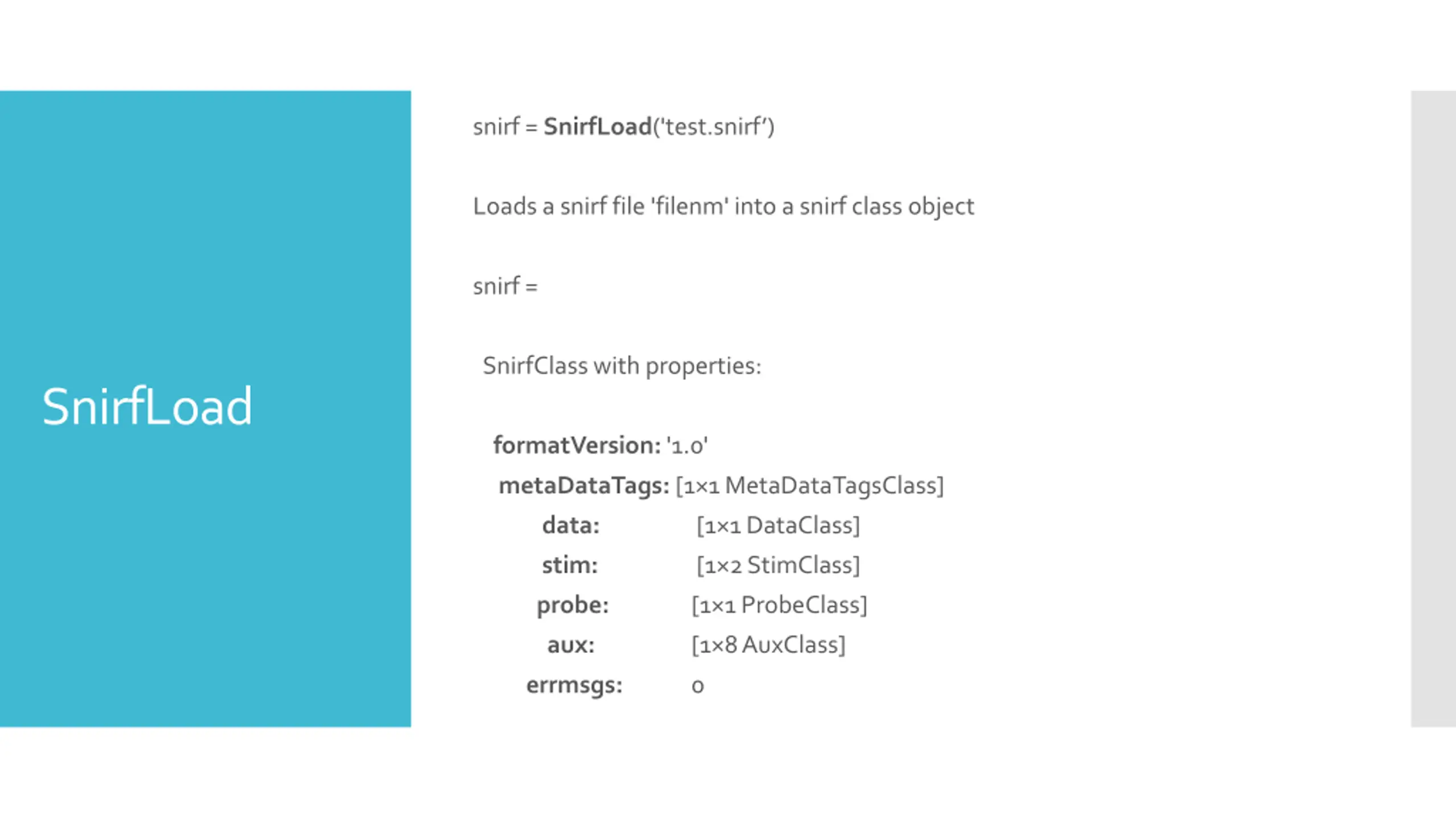

snirf = SnirfLoad('test.snirf) Loads a snirf file 'filenm' into a snirf class object snirf = SnirfClass with properties: SnirfLoad formatVersion: '1.0' metaDataTags: [1 1 MetaDataTagsClass] data: [1 1 DataClass] stim: [1 2 StimClass] probe: [1 1 ProbeClass] aux: [1 8 AuxClass] errmsgs: 0

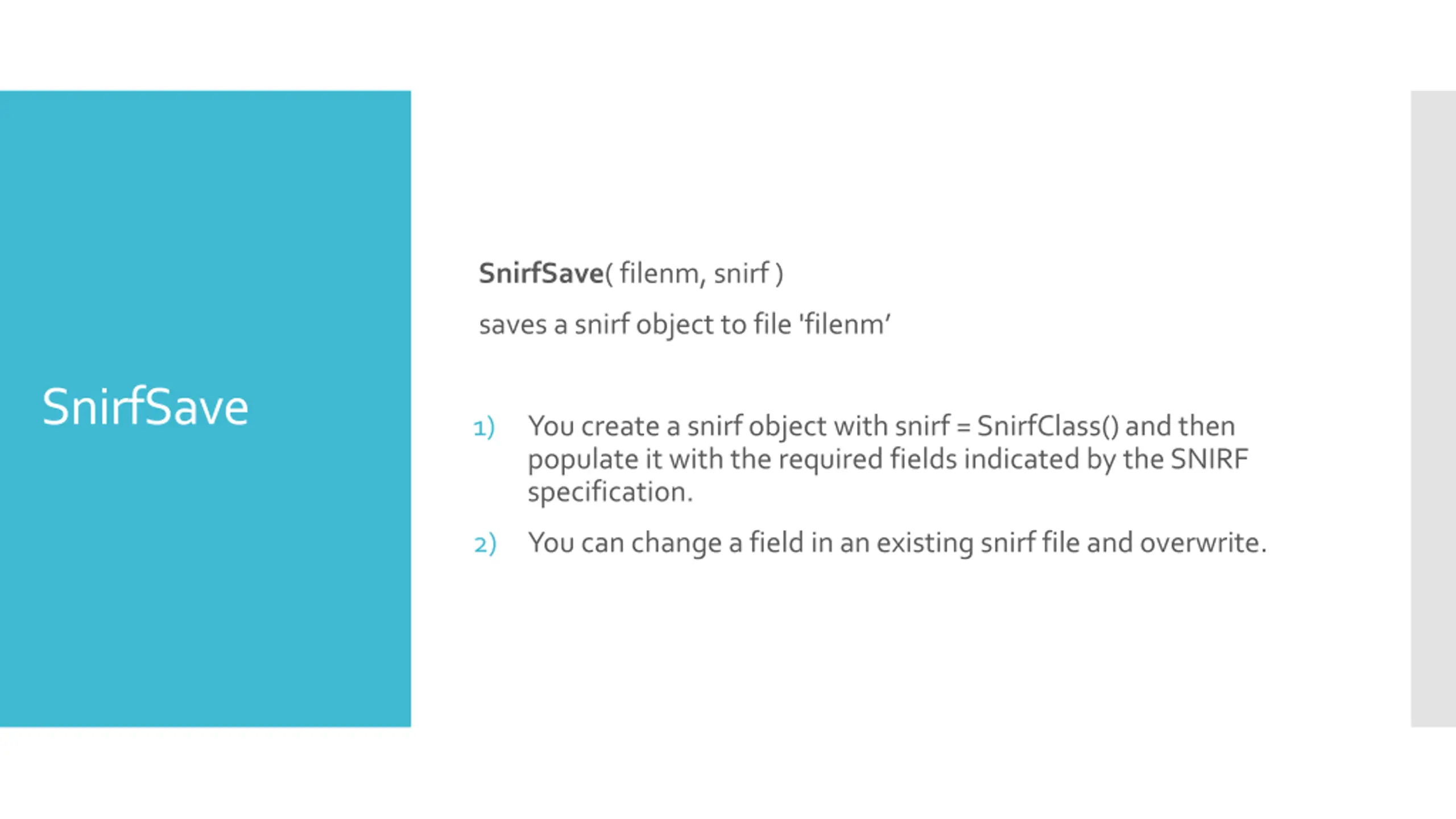

SnirfSave( filenm, snirf ) saves a snirf object to file 'filenm SnirfSave 1) You create a snirf object with snirf = SnirfClass() and then populate it with the required fields indicated by the SNIRF specification. 2) You can change a field in an existing snirf file and overwrite.

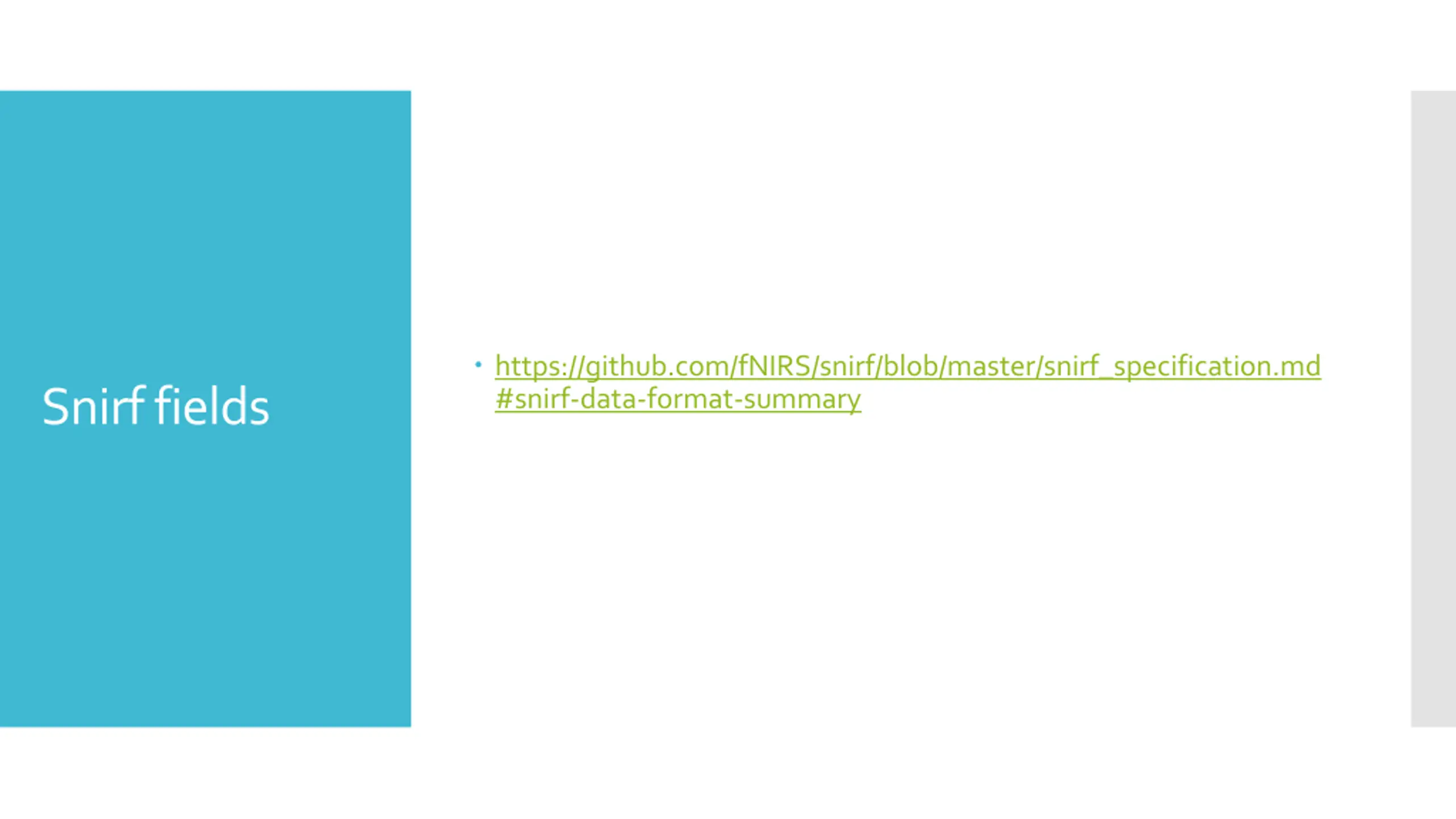

https://github.com/fNIRS/snirf/blob/master/snirf_specification.md #snirf-data-format-summary Snirf fields

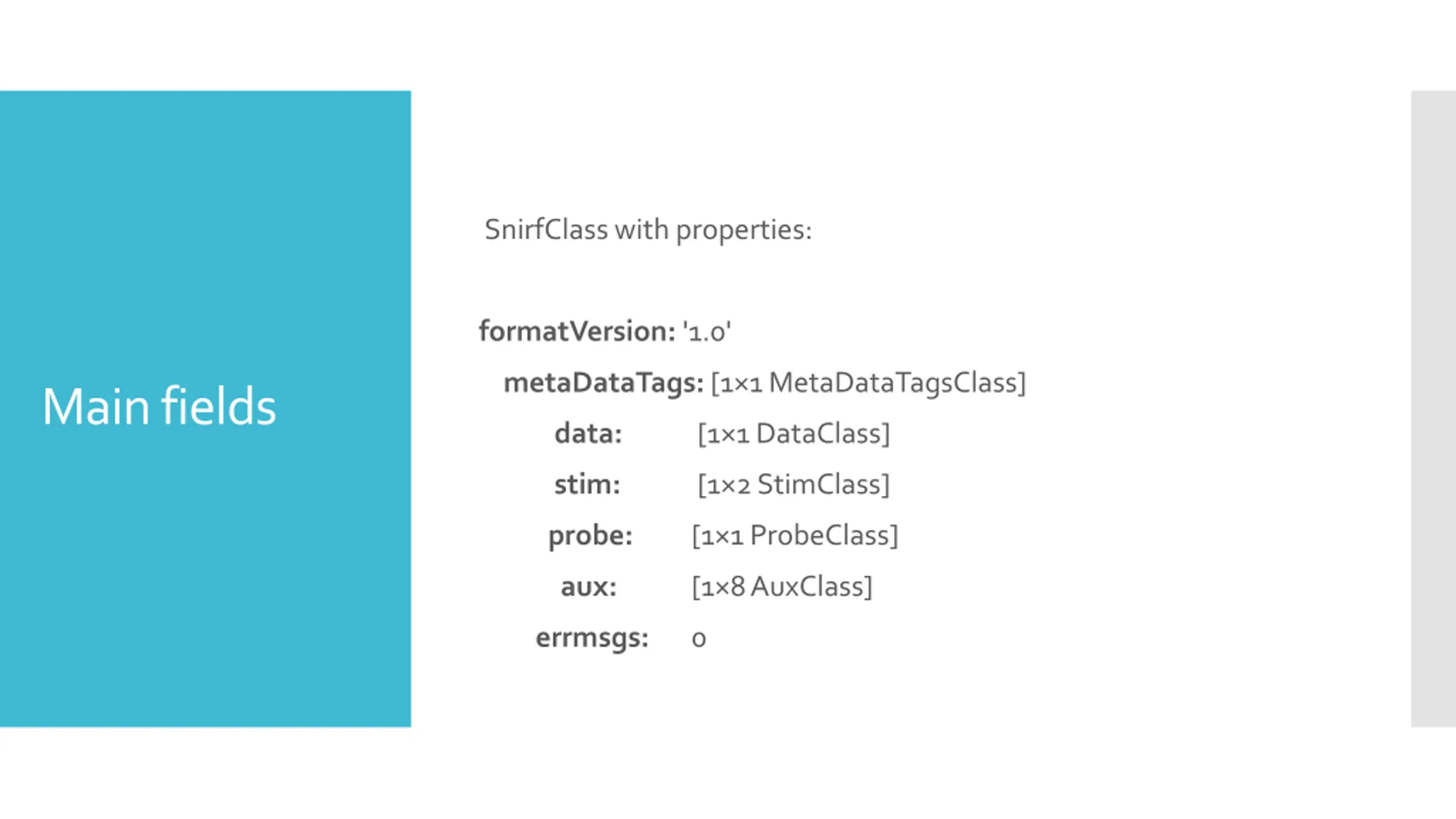

SnirfClass with properties: formatVersion: '1.0' metaDataTags: [1 1 MetaDataTagsClass] Main fields data: [1 1 DataClass] stim: [1 2 StimClass] probe: [1 1 ProbeClass] aux: [1 8 AuxClass] errmsgs: 0

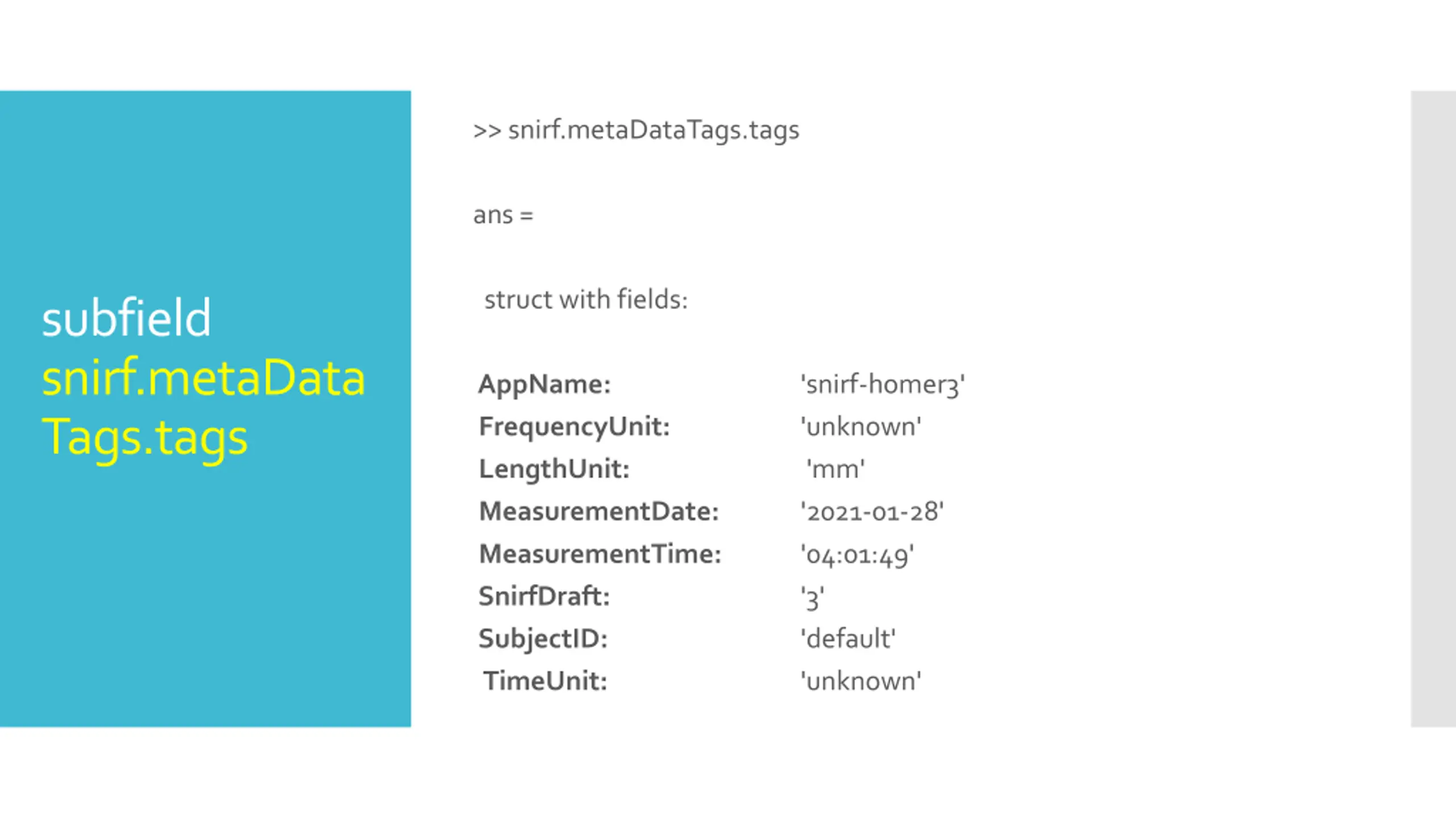

>> snirf.metaDataTags.tags ans = struct with fields: subfield snirf.metaData Tags.tags AppName: FrequencyUnit: LengthUnit: MeasurementDate: MeasurementTime: SnirfDraft: SubjectID: TimeUnit: 'snirf-homer3' 'unknown' 'mm' '2021-01-28' '04:01:49' '3' 'default' 'unknown'

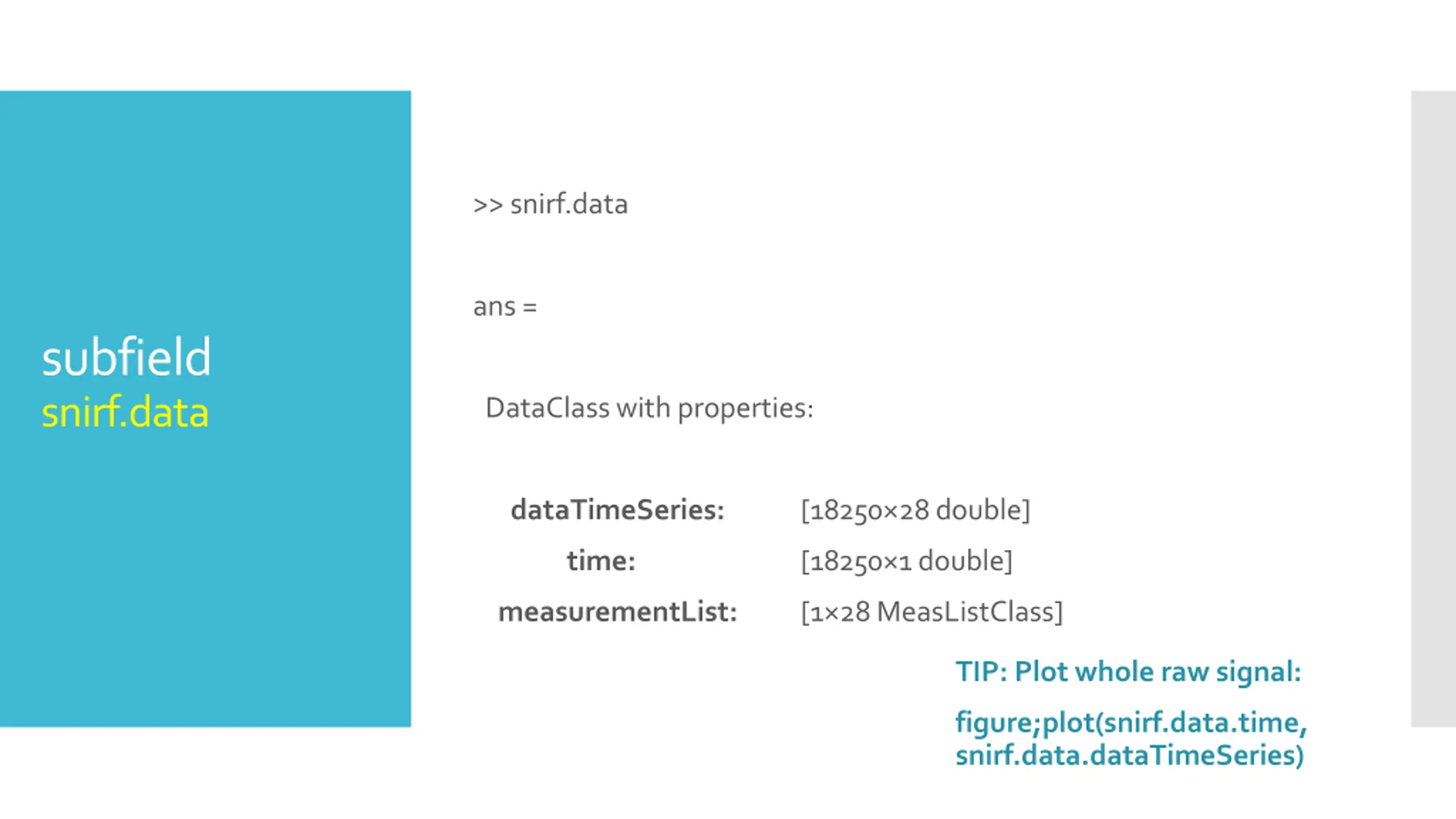

>> snirf.data ans = subfield snirf.data DataClass with properties: dataTimeSeries: [18250 28 double] time: [18250 1 double] measurementList: [1 28 MeasListClass] TIP: Plot whole raw signal: figure;plot(snirf.data.time, snirf.data.dataTimeSeries)

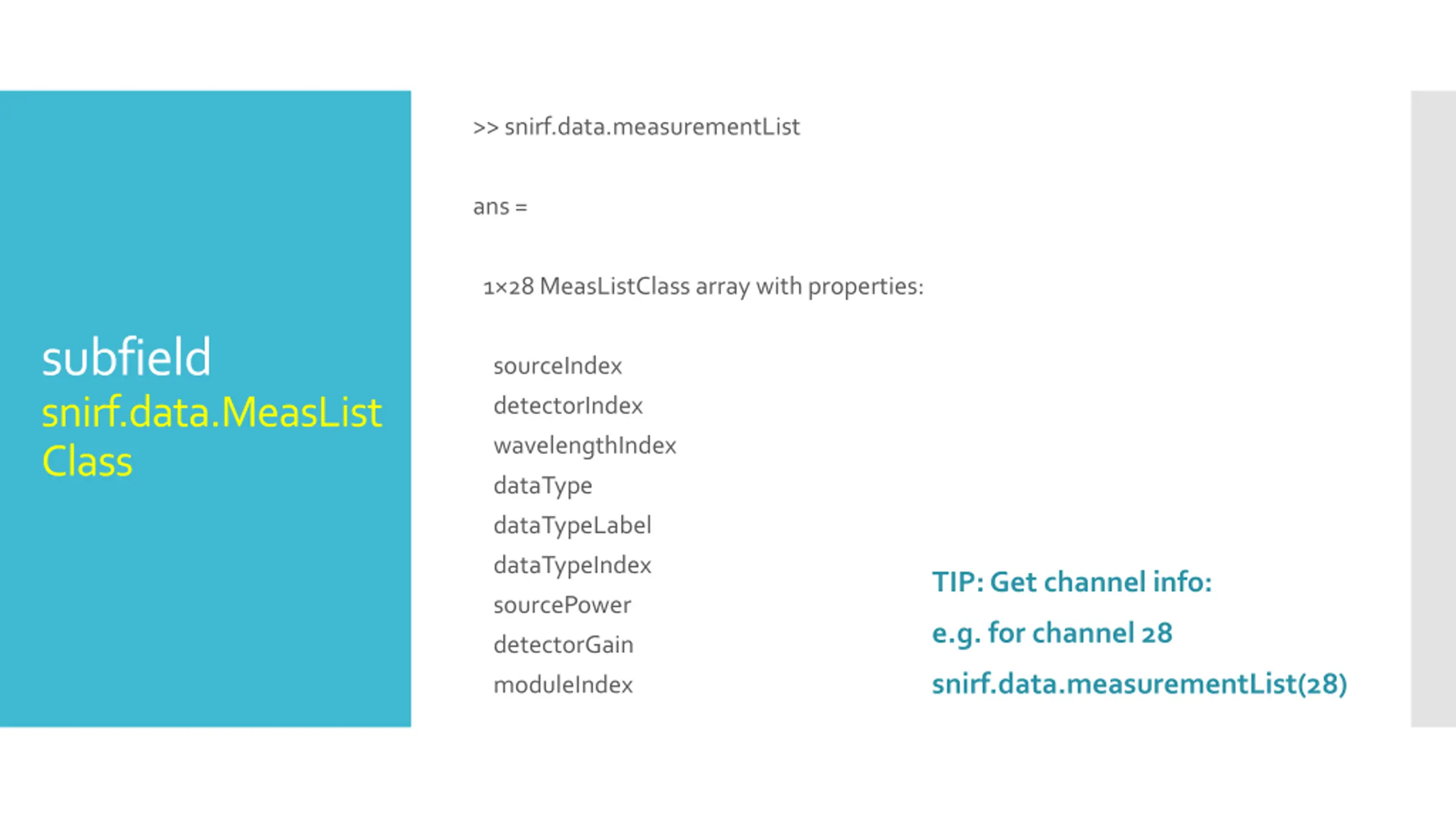

>> snirf.data.measurementList ans = 1 28 MeasListClass array with properties: subfield snirf.data.MeasList Class sourceIndex detectorIndex wavelengthIndex dataType dataTypeLabel dataTypeIndex TIP: Get channel info: sourcePower e.g. for channel 28 detectorGain snirf.data.measurementList(28) moduleIndex

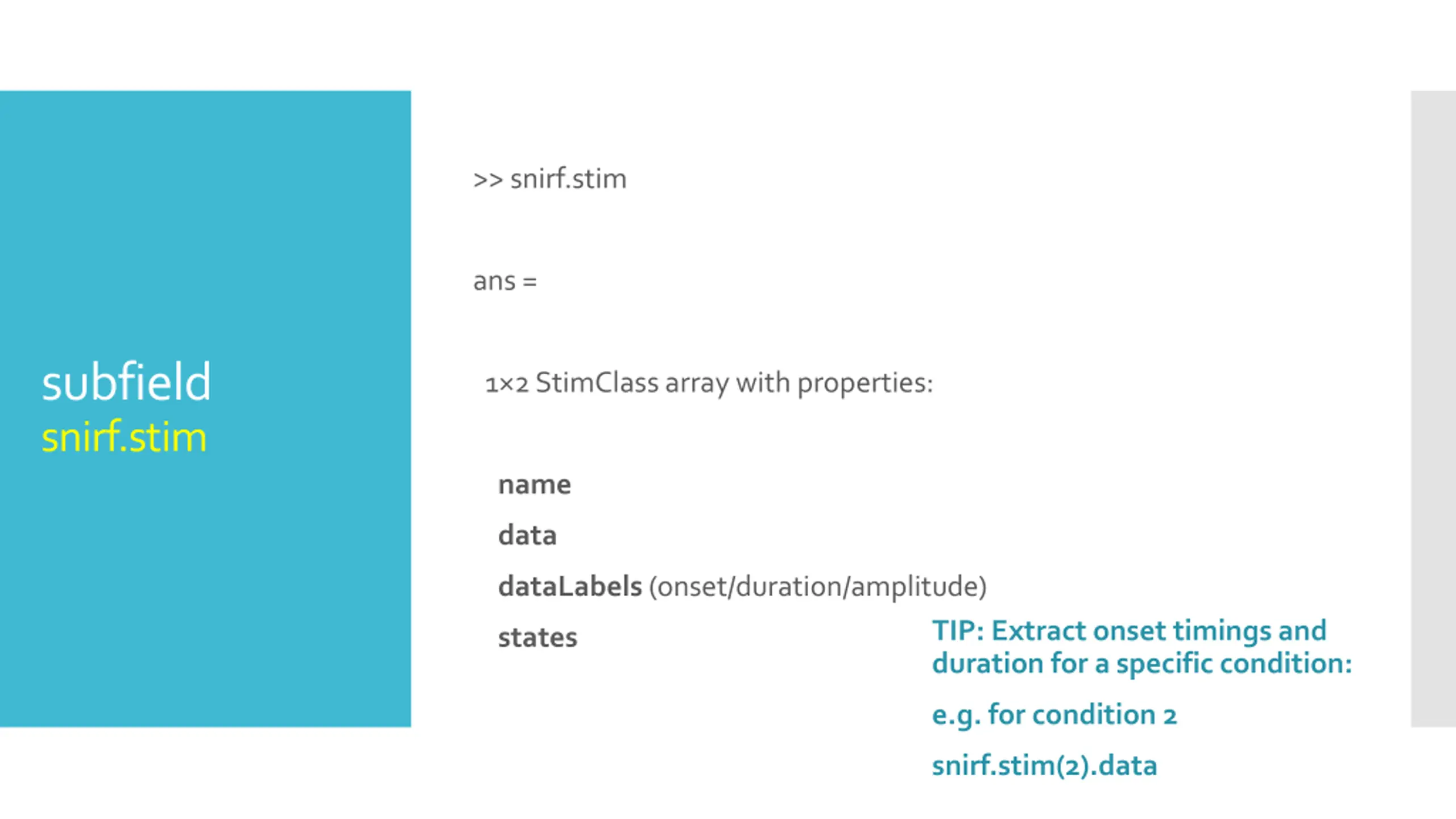

>> snirf.stim ans = subfield snirf.stim 1 2 StimClass array with properties: name data dataLabels (onset/duration/amplitude) TIP: Extract onset timings and duration for a specific condition: states e.g. for condition 2 snirf.stim(2).data

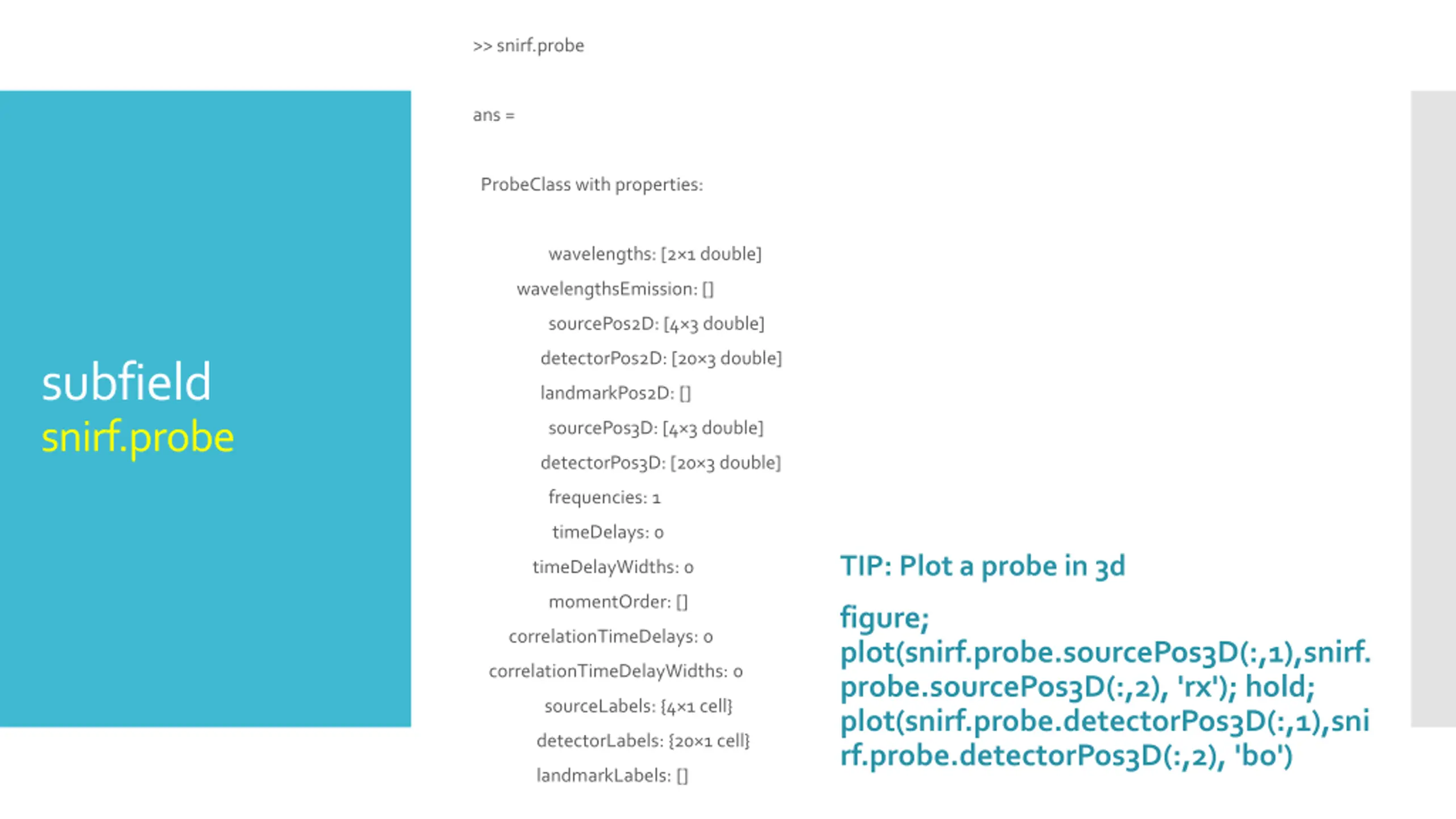

>> snirf.probe ans = ProbeClass with properties: wavelengths: [2 1 double] wavelengthsEmission: [] sourcePos2D: [4 3 double] detectorPos2D: [20 3 double] subfield snirf.probe landmarkPos2D: [] sourcePos3D: [4 3 double] detectorPos3D: [20 3 double] frequencies: 1 timeDelays: 0 TIP: Plot a probe in 3d timeDelayWidths: 0 momentOrder: [] figure; plot(snirf.probe.sourcePos3D(:,1),snirf. probe.sourcePos3D(:,2), 'rx'); hold; plot(snirf.probe.detectorPos3D(:,1),sni rf.probe.detectorPos3D(:,2), 'bo') correlationTimeDelays: 0 correlationTimeDelayWidths: 0 sourceLabels: {4 1 cell} detectorLabels: {20 1 cell} landmarkLabels: []

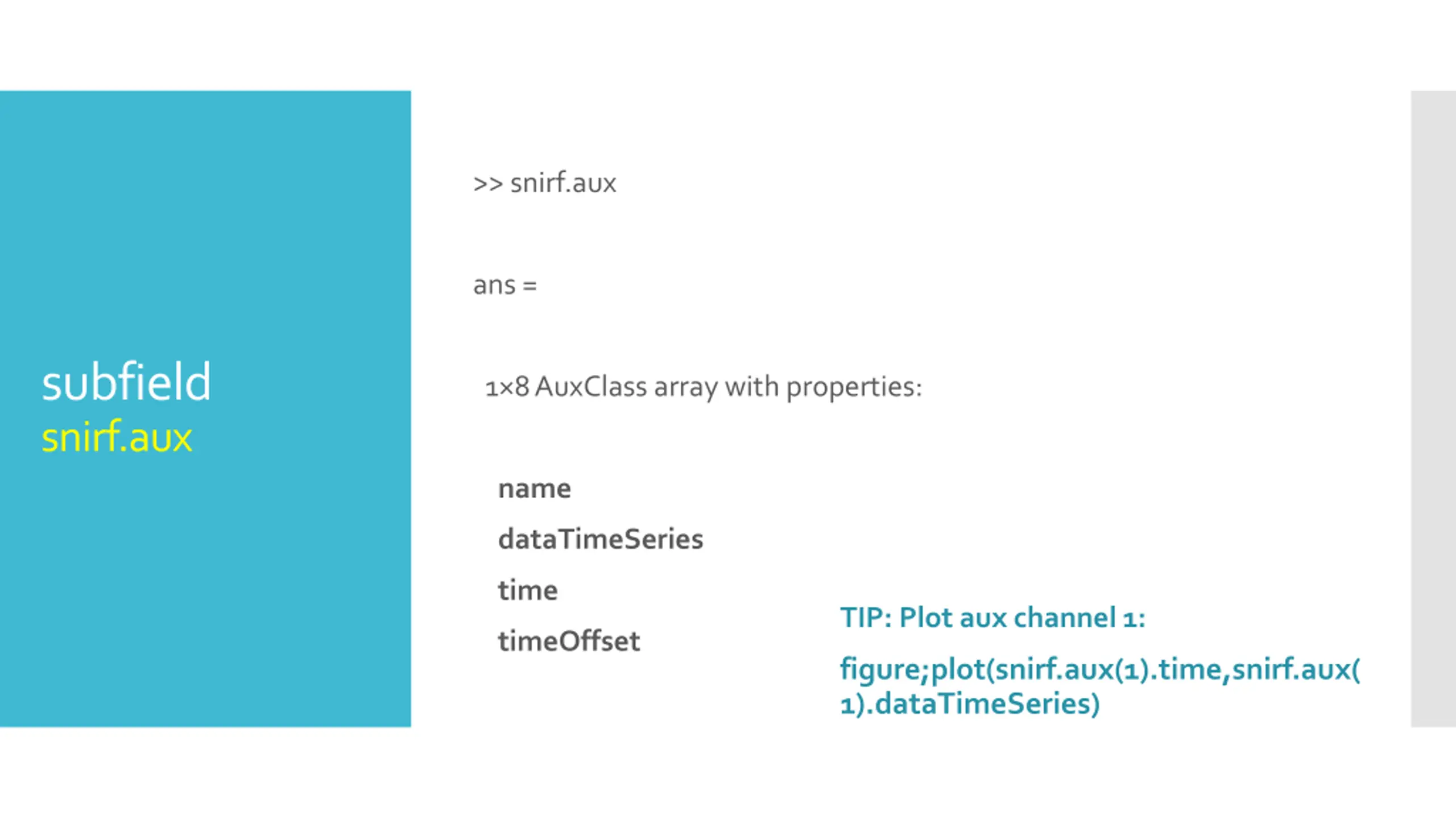

>> snirf.aux ans = subfield snirf.aux 1 8 AuxClass array with properties: name dataTimeSeries time TIP: Plot aux channel 1: timeOffset figure;plot(snirf.aux(1).time,snirf.aux( 1).dataTimeSeries)
