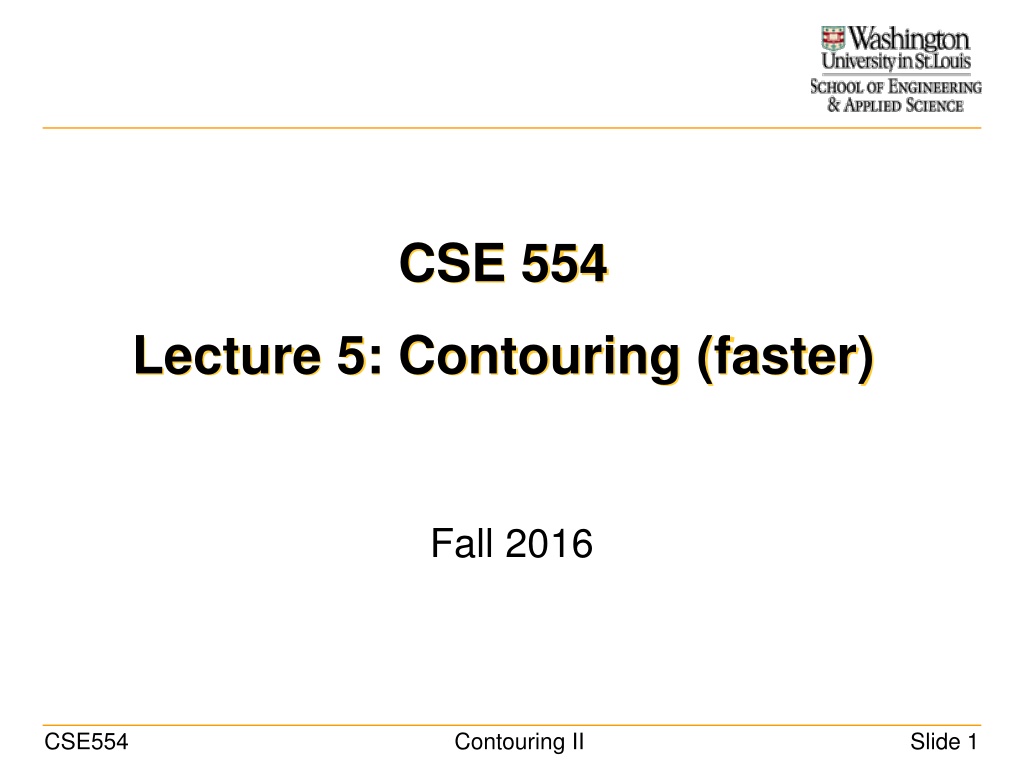

  1. Washington University in St. Louis, School of Engineering and Applied Science CSE 554 Lecture 5: Contouring (faster) Fall 2016 CSE554 Contouring II Slide 1

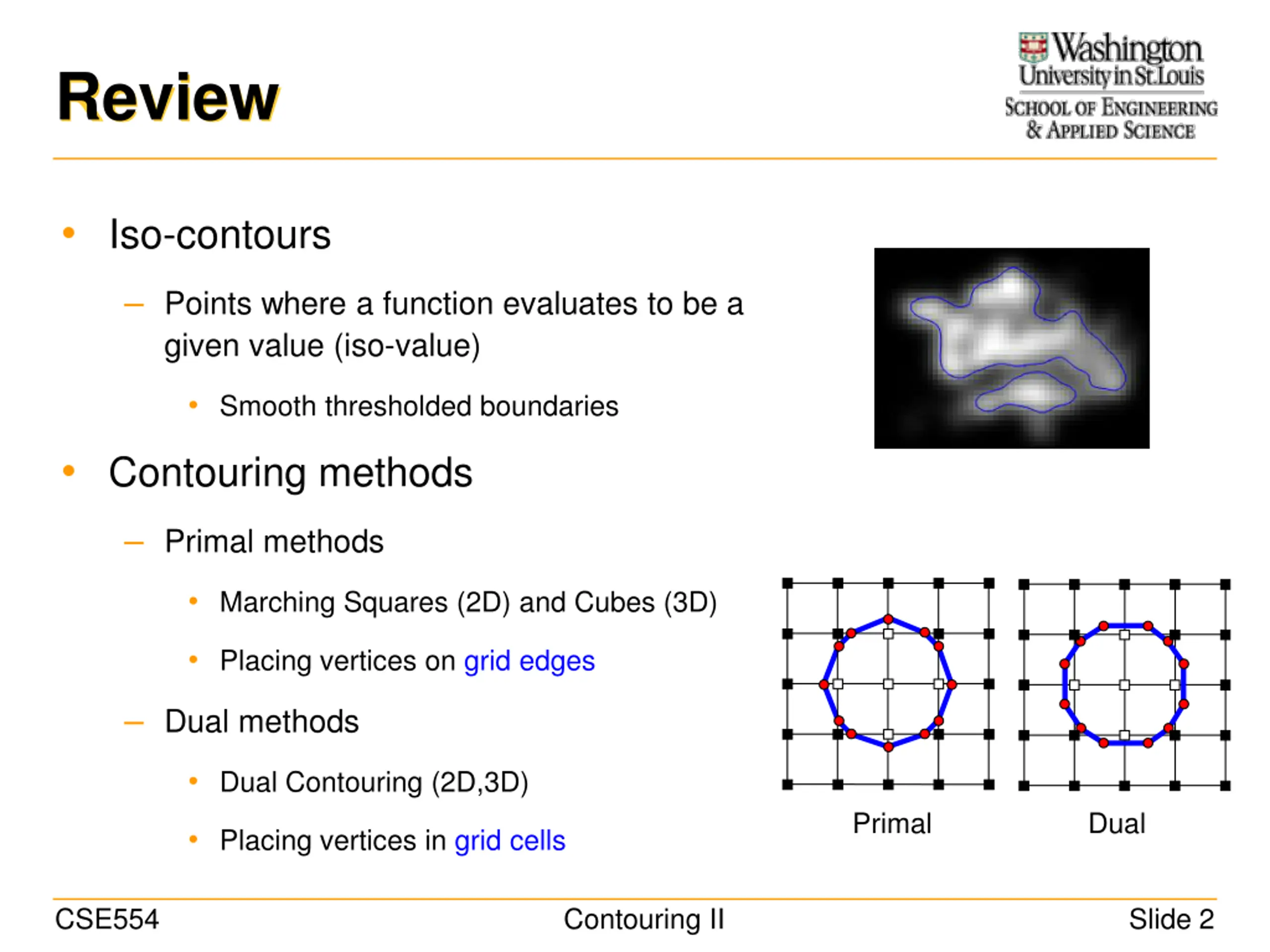

  2. Washington University in St. Louis, School of Engineering and Applied Science Review Iso-contours Points where a function evaluates to be a given value (iso-value) Smooth thresholded boundaries Contouring methods Primal methods Marching Squares (2D) and Cubes (3D) Placing vertices on grid edges Dual methods Dual Contouring (2D,3D) Primal Dual Placing vertices in grid cells CSE554 Contouring II Slide 2

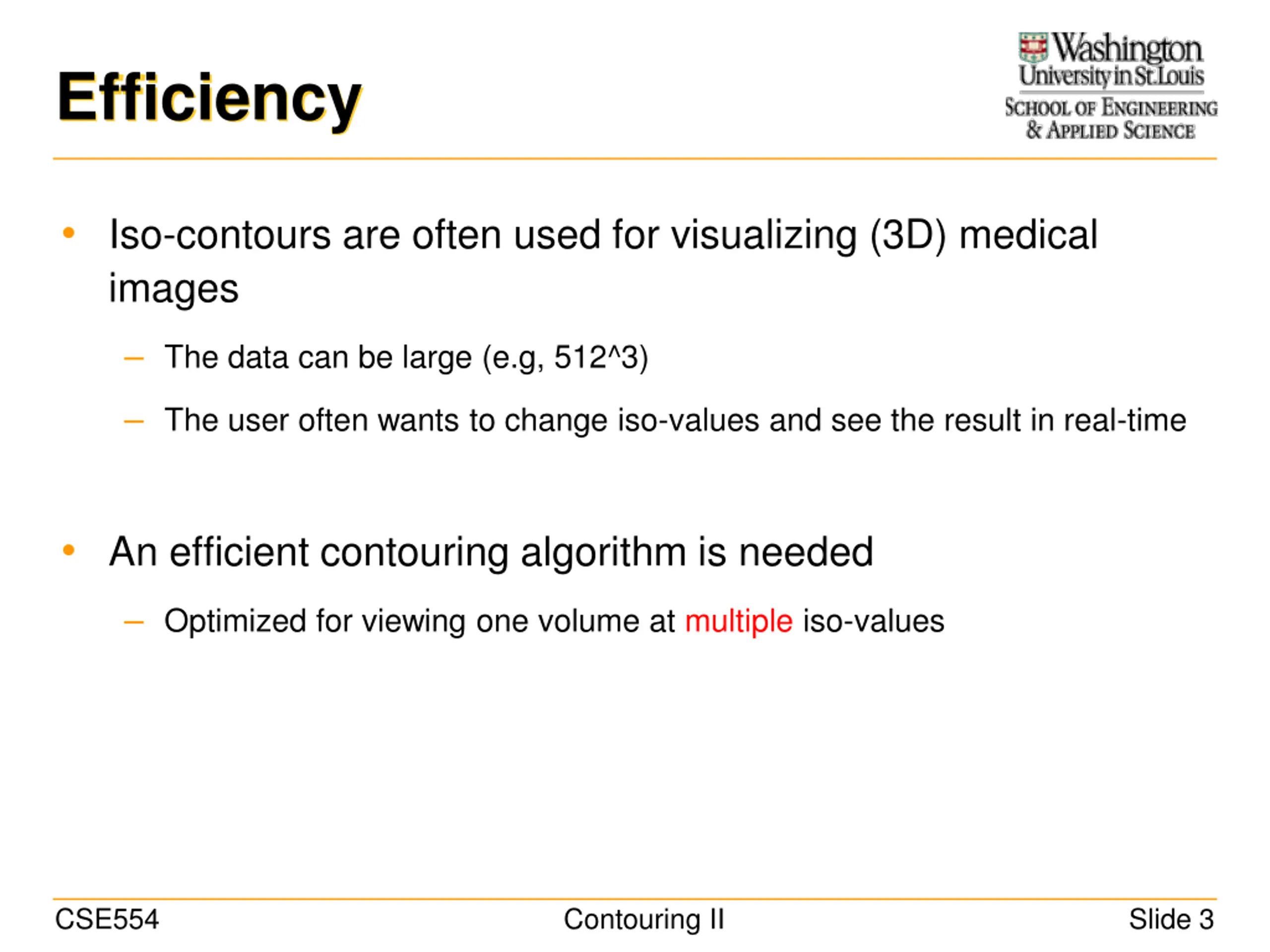

  3. Washington University in St. Louis, School of Engineering and Applied Science Efficiency Iso-contours are often used for visualizing (3D) medical images The data can be large (e.g, 512^3) The user often wants to change iso-values and see the result in real-time An efficient contouring algorithm is needed Optimized for viewing one volume at multiple iso-values CSE554 Contouring II Slide 3

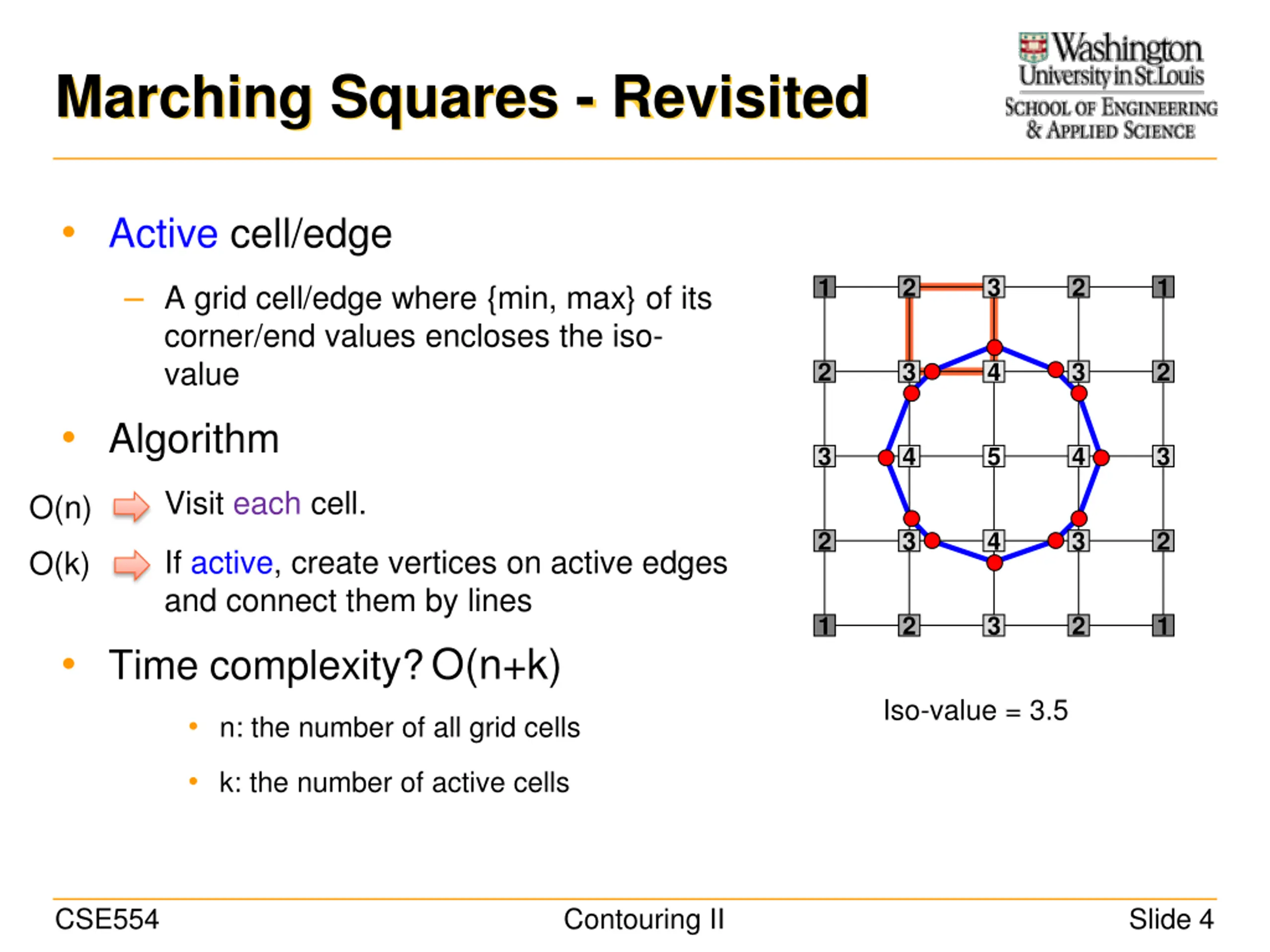

  4. Washington University in St. Louis, School of Engineering and Applied Science Marching Squares - Revisited Active cell/edge 1 2 3 2 1 A grid cell/edge where {min, max} of its corner/end values encloses the iso- value Algorithm 2 3 4 3 2 3 4 5 4 3 Visit each cell. O(n) 2 3 4 3 2 If active, create vertices on active edges and connect them by lines Time complexity? O(k) 1 2 3 2 1 O(n+k) Iso-value = 3.5 n: the number of all grid cells k: the number of active cells CSE554 Contouring II Slide 4

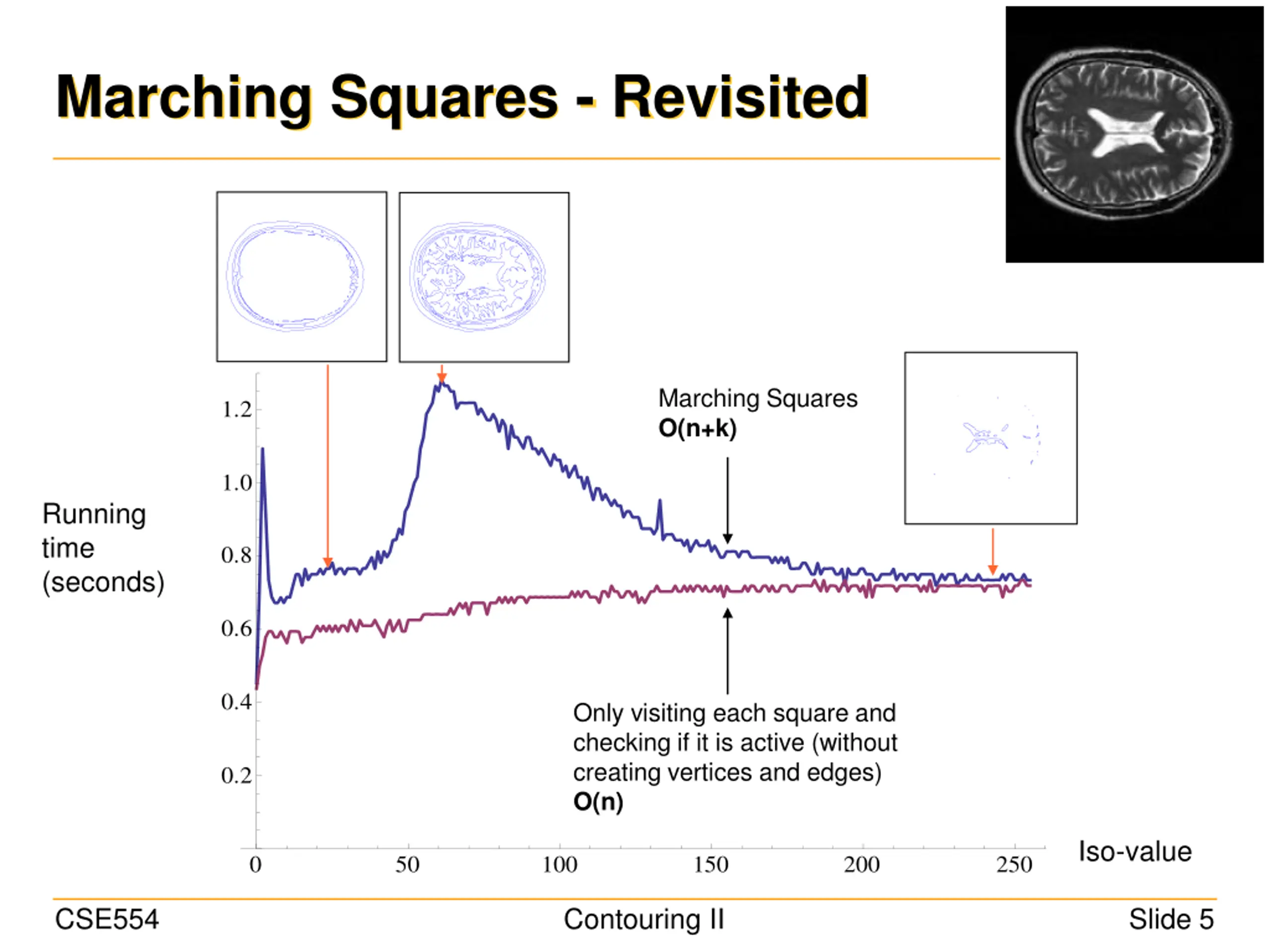

  5. Washington University in St. Louis, School of Engineering and Applied Science Marching Squares - Revisited Marching Squares O(n+k) 1.2 1.2 1.0 1.0 Running time (seconds) 0.8 0.8 0.6 0.6 0.4 0.4 Only visiting each square and checking if it is active (without creating vertices and edges) O(n) 0.2 0.2 Iso-value 0 0 50 50 100 100 150 150 200 200 250 250 CSE554 Contouring II Slide 5

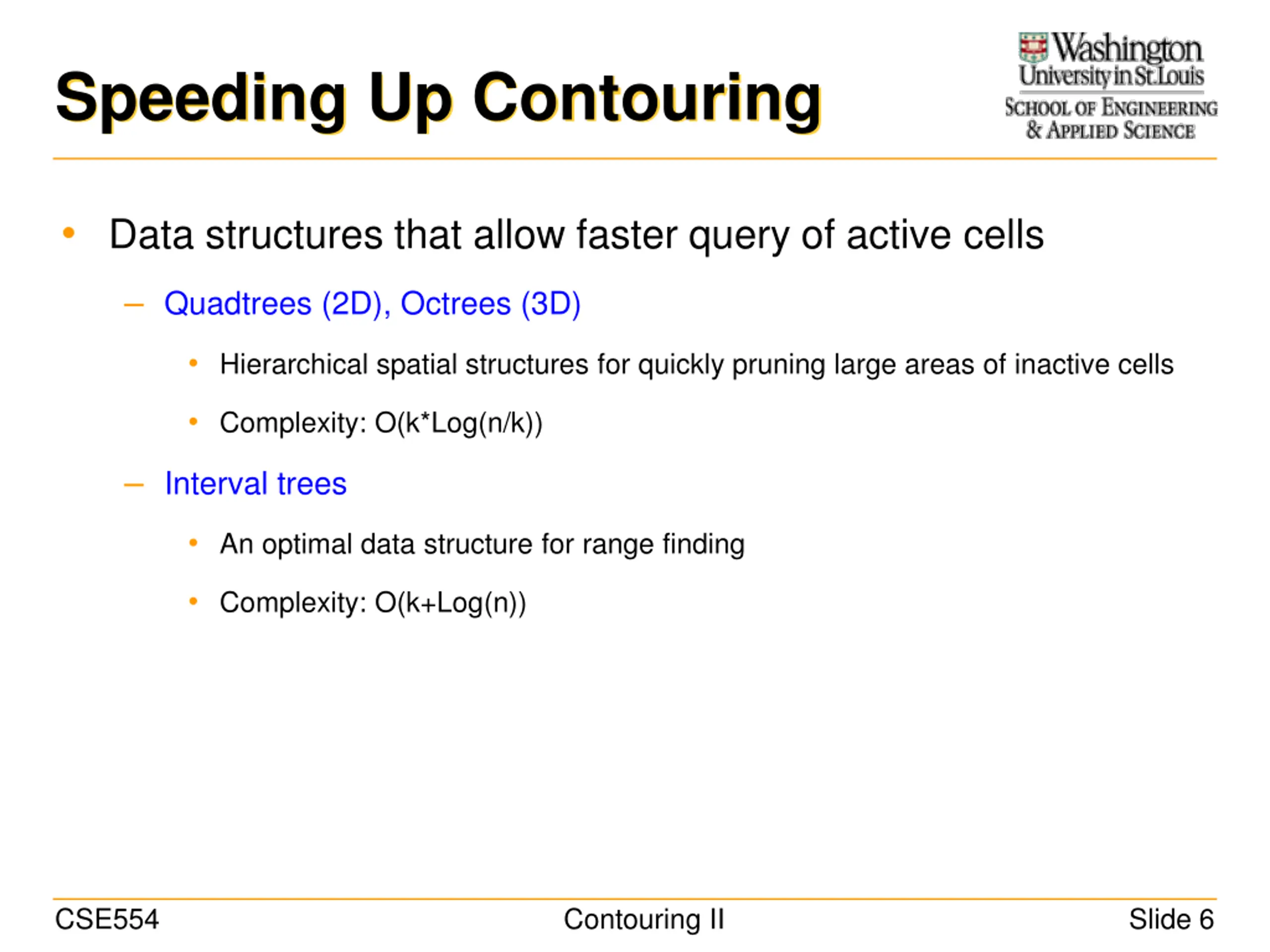

  6. Washington University in St. Louis, School of Engineering and Applied Science Speeding Up Contouring Data structures that allow faster query of active cells Quadtrees (2D), Octrees (3D) Hierarchical spatial structures for quickly pruning large areas of inactive cells Complexity: O(k*Log(n/k)) Interval trees An optimal data structure for range finding Complexity: O(k+Log(n)) CSE554 Contouring II Slide 6

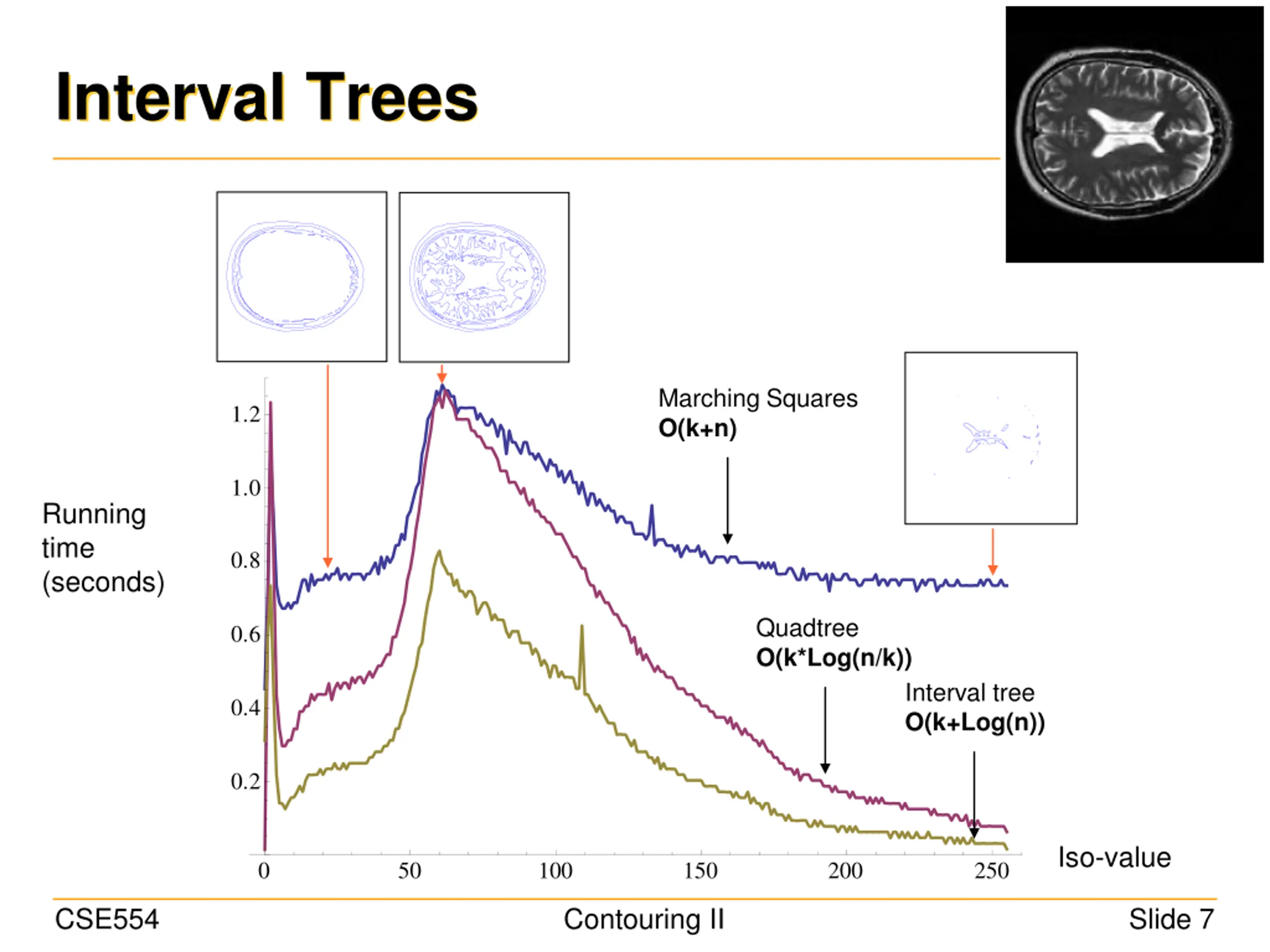

  7. Washington University in St. Louis, School of Engineering and Applied Science Interval Trees Marching Squares O(k+n) 1.2 1.0 Running time (seconds) 0.8 Quadtree O(k*Log(n/k)) 0.6 Interval tree O(k+Log(n)) 0.4 0.2 Iso-value 0 50 100 150 200 250 CSE554 Contouring II Slide 7

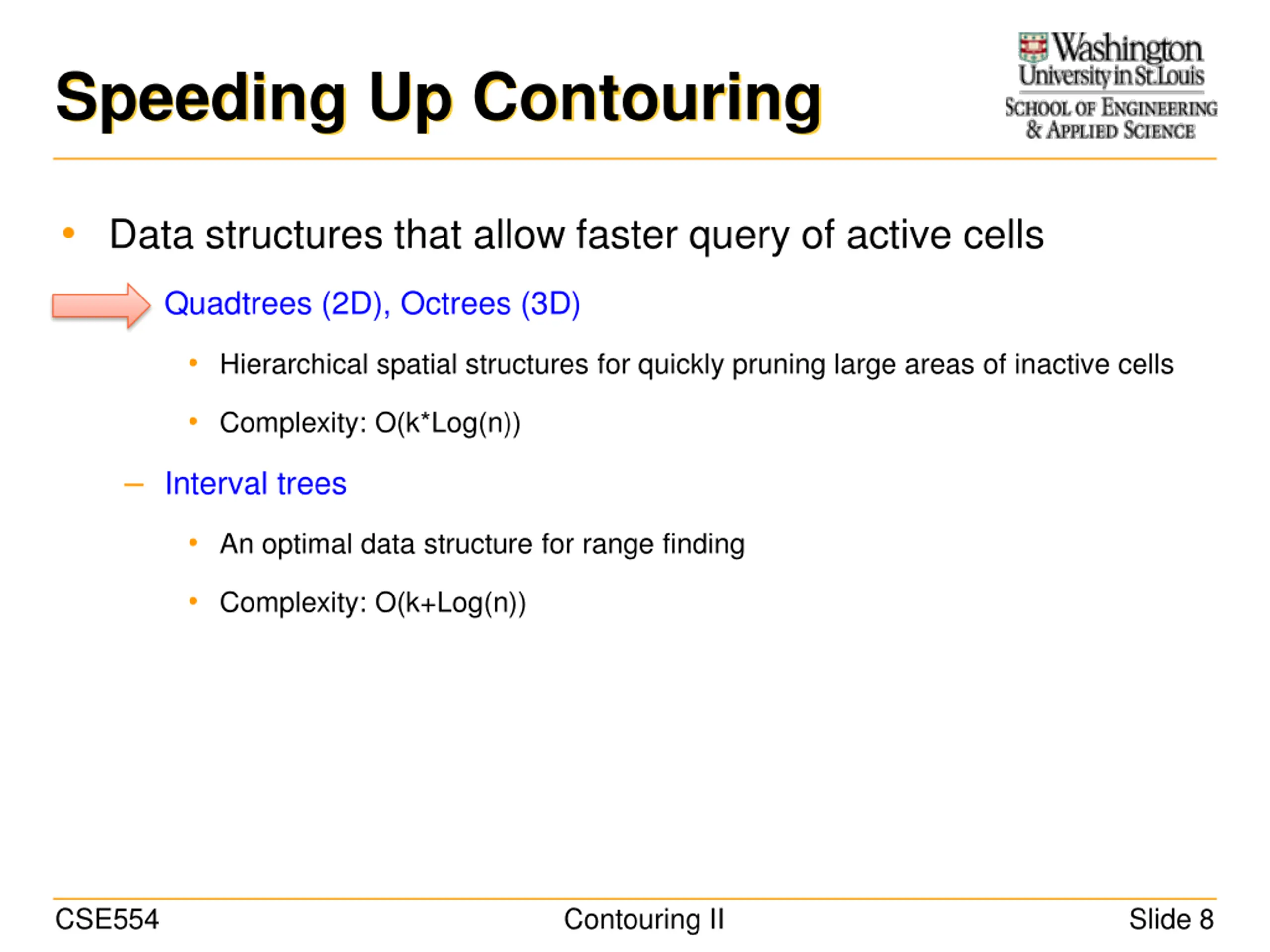

  8. Washington University in St. Louis, School of Engineering and Applied Science Speeding Up Contouring Data structures that allow faster query of active cells Quadtrees (2D), Octrees (3D) Hierarchical spatial structures for quickly pruning large areas of inactive cells Complexity: O(k*Log(n)) Interval trees An optimal data structure for range finding Complexity: O(k+Log(n)) CSE554 Contouring II Slide 8

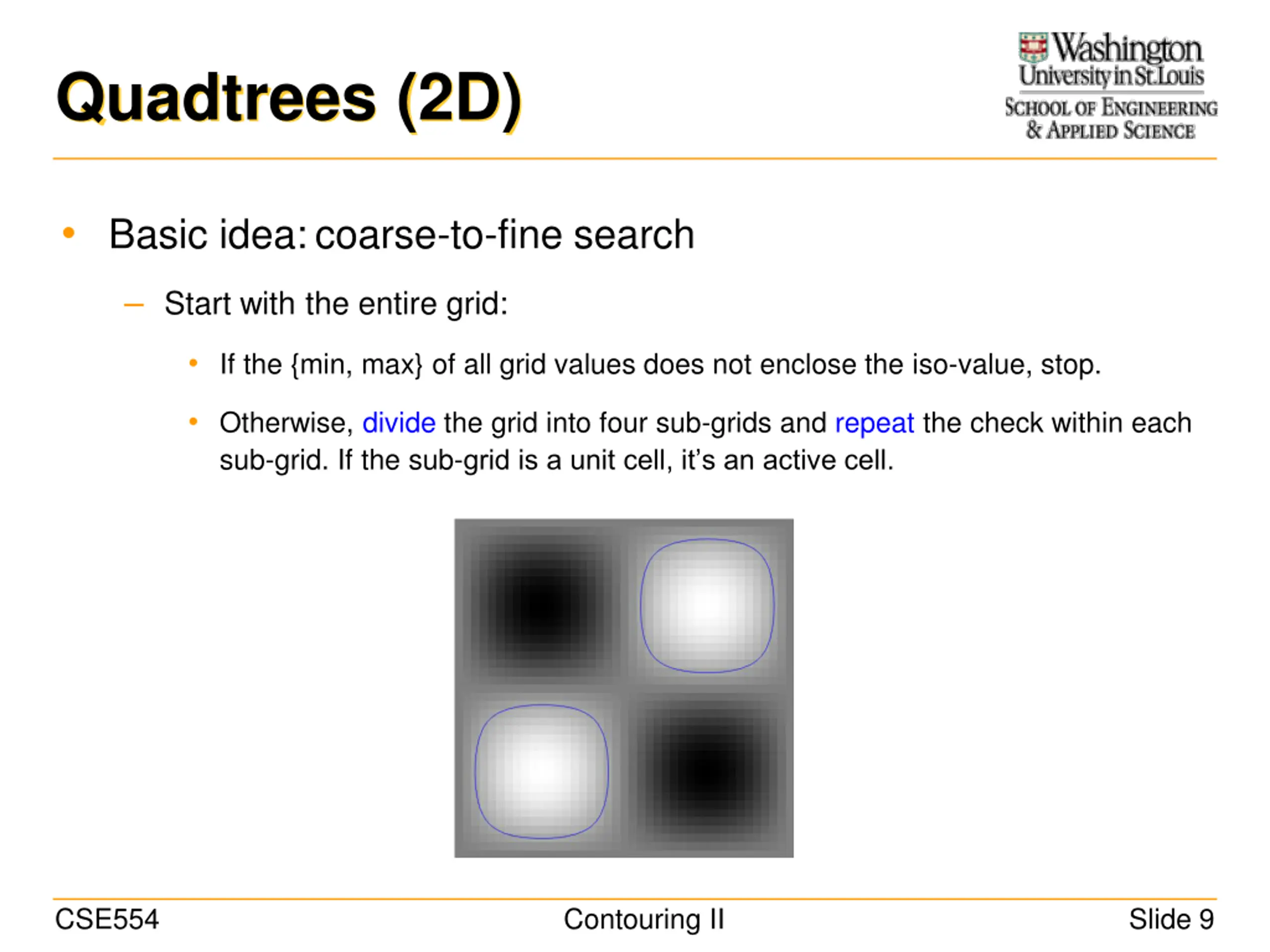

  9. Washington University in St. Louis, School of Engineering and Applied Science Quadtrees (2D) Basic idea: coarse-to-fine search Start with the entire grid: If the {min, max} of all grid values does not enclose the iso-value, stop. Otherwise, divide the grid into four sub-grids and repeat the check within each sub-grid. If the sub-grid is a unit cell, it s an active cell. CSE554 Contouring II Slide 9

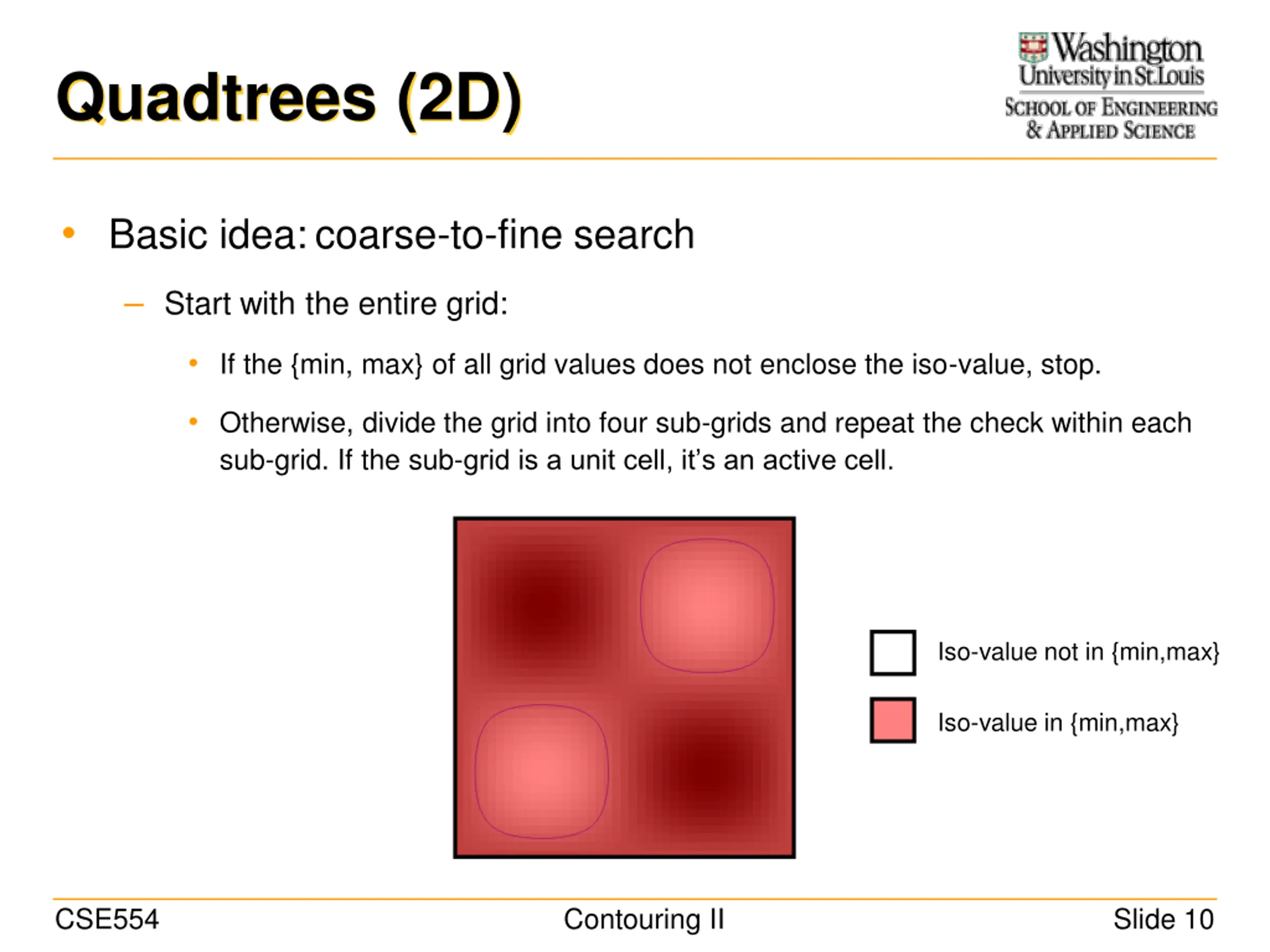

  10. Washington University in St. Louis, School of Engineering and Applied Science Quadtrees (2D) Basic idea: coarse-to-fine search Start with the entire grid: If the {min, max} of all grid values does not enclose the iso-value, stop. Otherwise, divide the grid into four sub-grids and repeat the check within each sub-grid. If the sub-grid is a unit cell, it s an active cell. Iso-value not in {min,max} Iso-value in {min,max} CSE554 Contouring II Slide 10

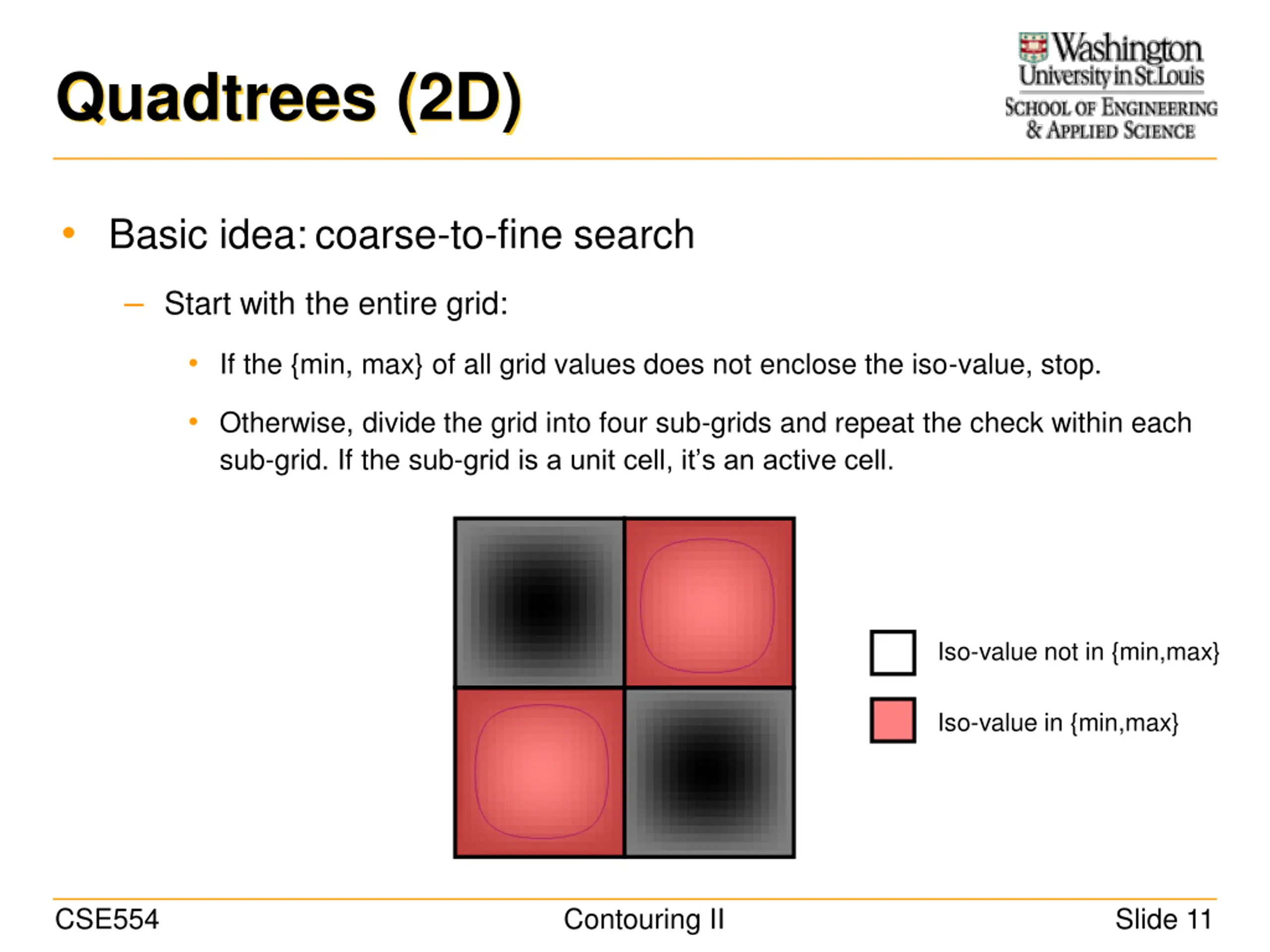

  11. Washington University in St. Louis, School of Engineering and Applied Science Quadtrees (2D) Basic idea: coarse-to-fine search Start with the entire grid: If the {min, max} of all grid values does not enclose the iso-value, stop. Otherwise, divide the grid into four sub-grids and repeat the check within each sub-grid. If the sub-grid is a unit cell, it s an active cell. Iso-value not in {min,max} Iso-value in {min,max} CSE554 Contouring II Slide 11

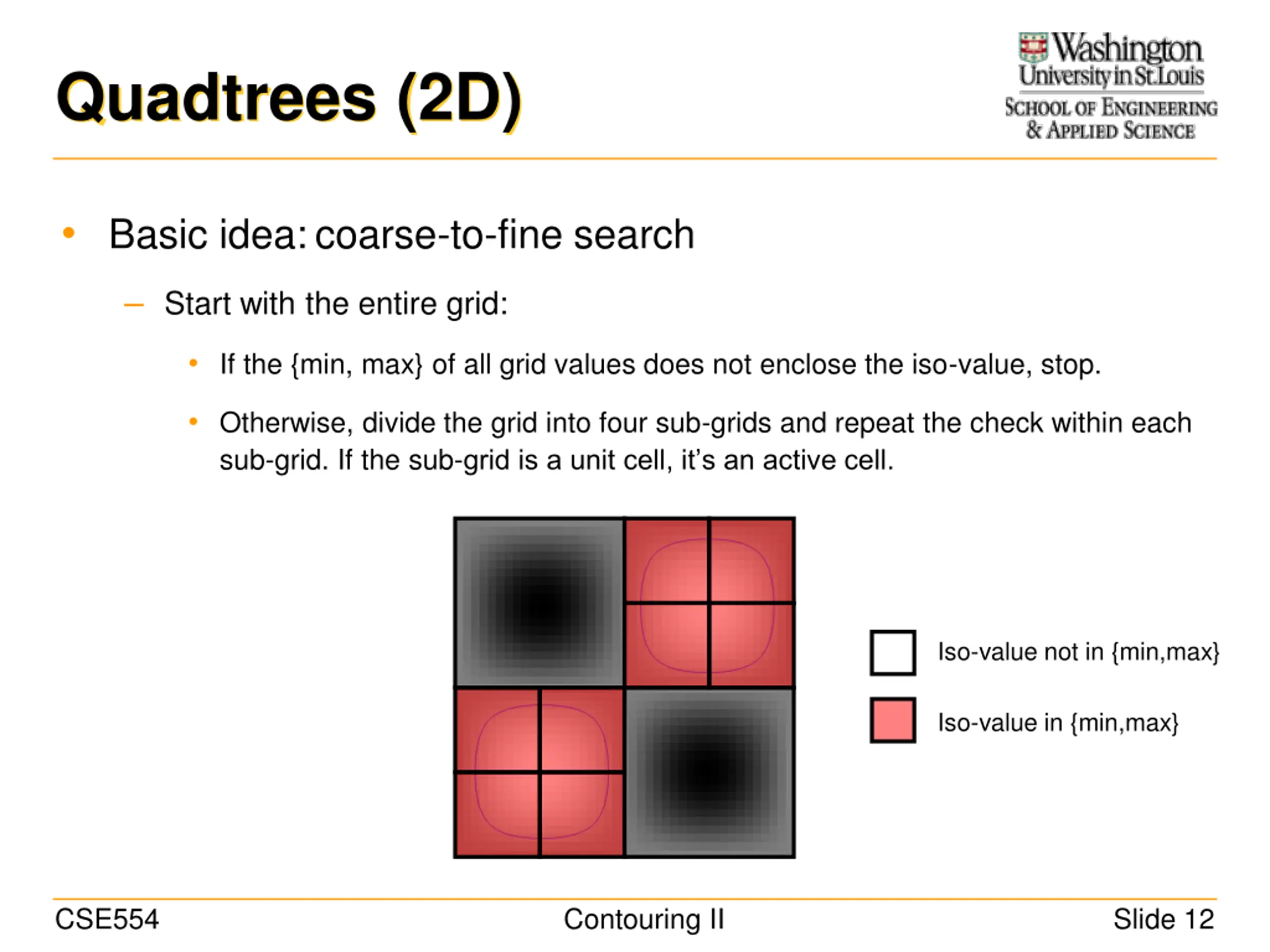

  12. Washington University in St. Louis, School of Engineering and Applied Science Quadtrees (2D) Basic idea: coarse-to-fine search Start with the entire grid: If the {min, max} of all grid values does not enclose the iso-value, stop. Otherwise, divide the grid into four sub-grids and repeat the check within each sub-grid. If the sub-grid is a unit cell, it s an active cell. Iso-value not in {min,max} Iso-value in {min,max} CSE554 Contouring II Slide 12

  13. Washington University in St. Louis, School of Engineering and Applied Science Quadtrees (2D) Basic idea: coarse-to-fine search Start with the entire grid: If the {min, max} of all grid values does not enclose the iso-value, stop. Otherwise, divide the grid into four sub-grids and repeat the check within each sub-grid. If the sub-grid is a unit cell, it s an active cell. Iso-value not in {min,max} Iso-value in {min,max} CSE554 Contouring II Slide 13

  14. Washington University in St. Louis, School of Engineering and Applied Science Quadtrees (2D) Basic idea: coarse-to-fine search Start with the entire grid: If the {min, max} of all grid values does not enclose the iso-value, stop. Otherwise, divide the grid into four sub-grids and repeat the check within each sub-grid. If the sub-grid is a unit cell, it s an active cell. Iso-value not in {min,max} Iso-value in {min,max} CSE554 Contouring II Slide 14

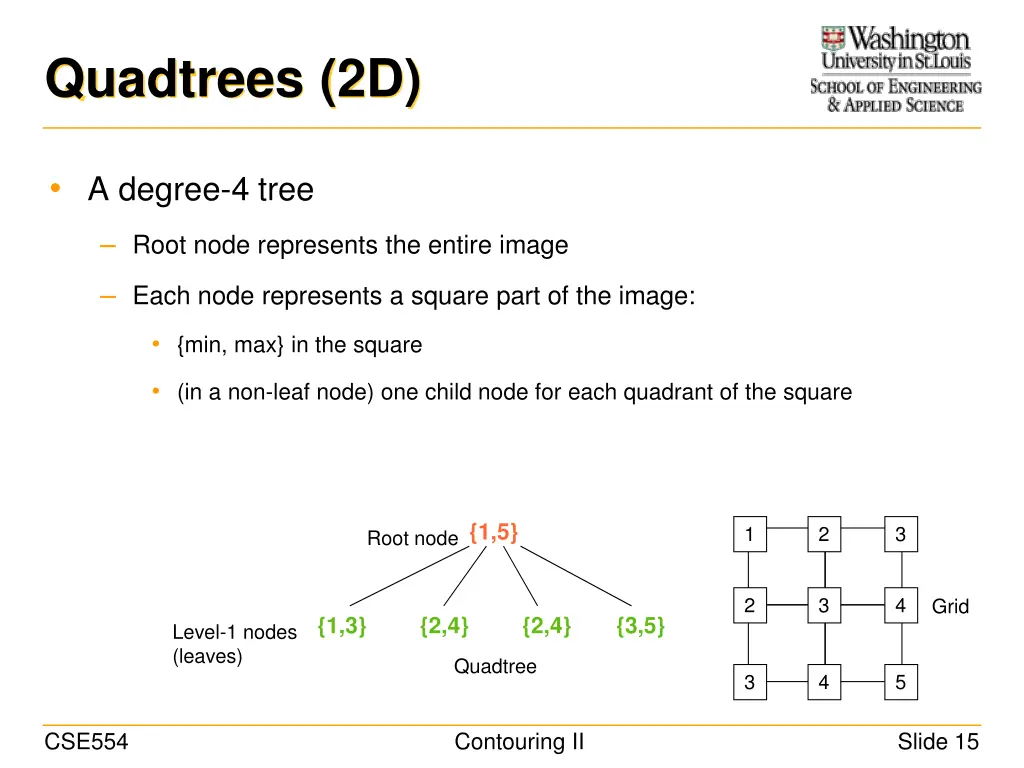

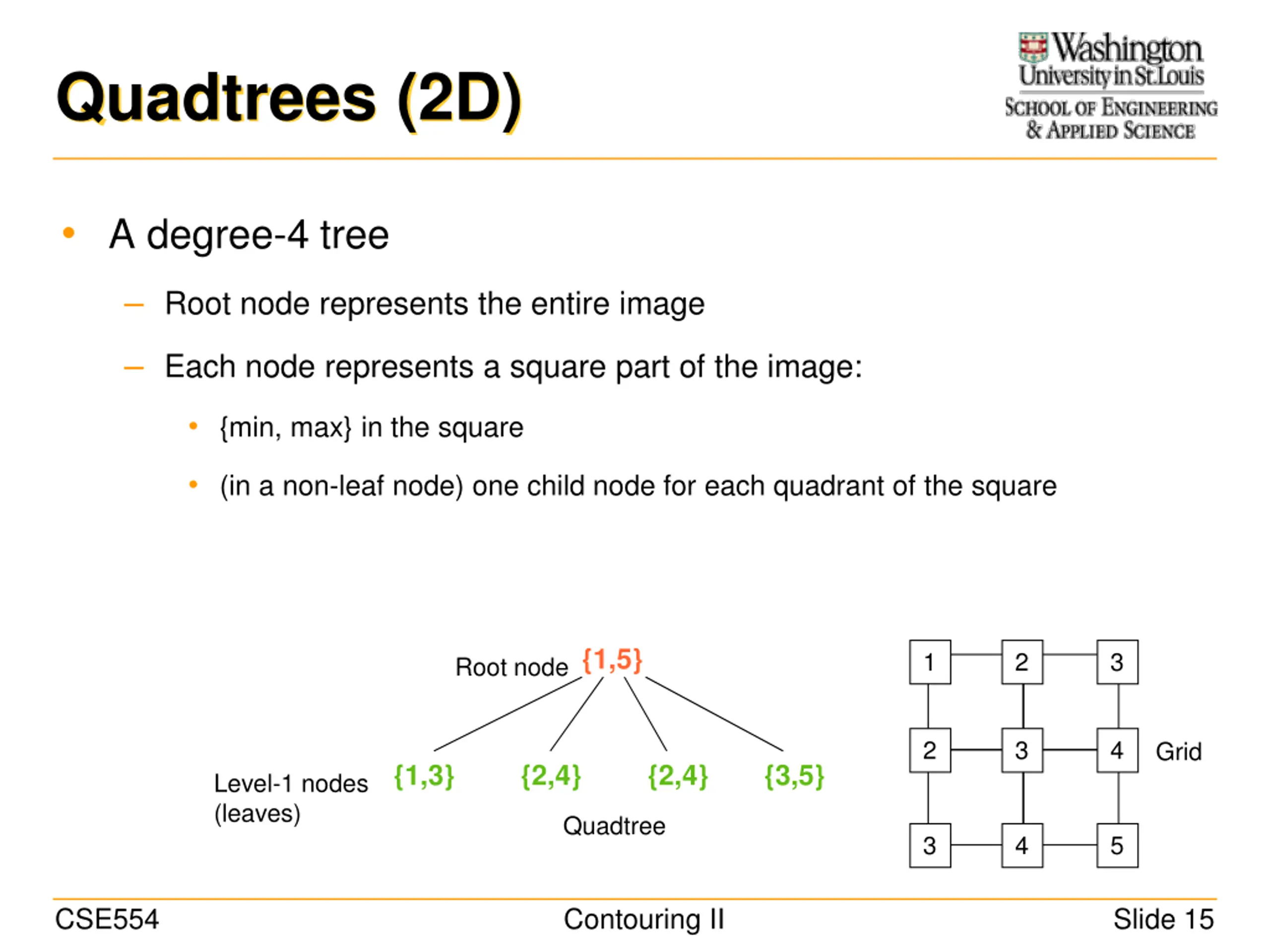

  15. Washington University in St. Louis, School of Engineering and Applied Science Quadtrees (2D) A degree-4 tree Root node represents the entire image Each node represents a square part of the image: {min, max} in the square (in a non-leaf node) one child node for each quadrant of the square {1,5} 1 2 3 Root node 2 3 4 Grid {1,3} {2,4} {2,4} {3,5} Level-1 nodes (leaves) Quadtree 3 4 5 CSE554 Contouring II Slide 15

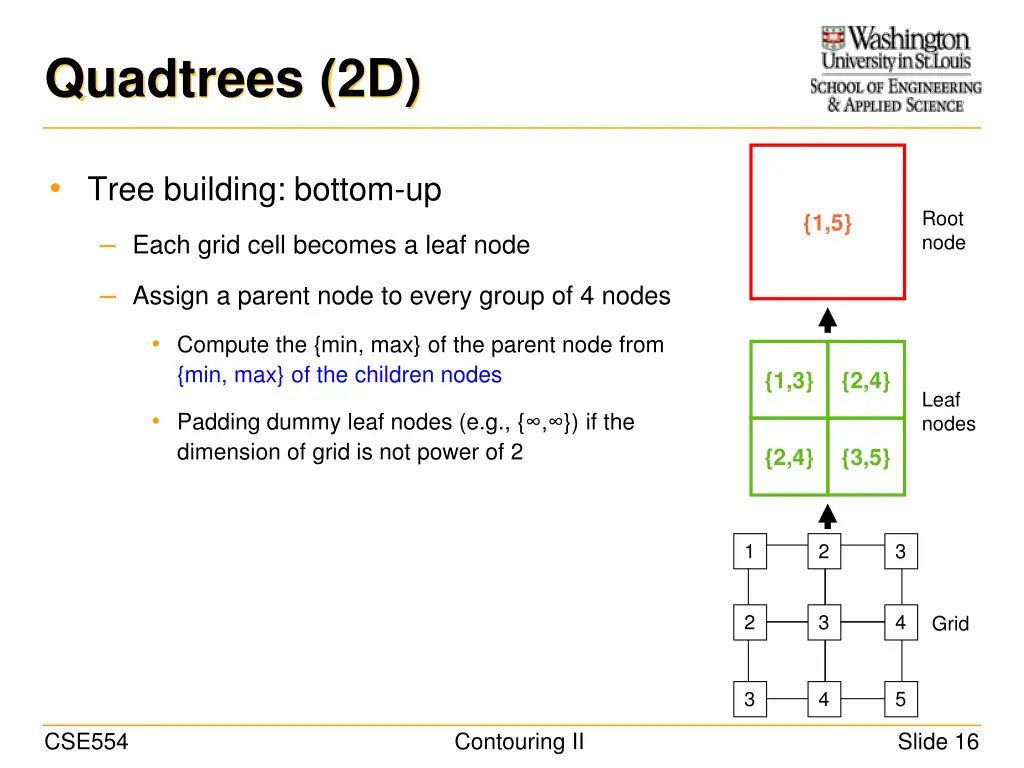

  16. Washington University in St. Louis, School of Engineering and Applied Science Quadtrees (2D) Tree building: bottom-up Root node {1,5} Each grid cell becomes a leaf node Assign a parent node to every group of 4 nodes Compute the {min, max} of the parent node from {min, max} of the children nodes {1,3} {2,4} Leaf nodes Padding dummy leaf nodes (e.g., { , }) if the dimension of grid is not power of 2 {2,4} {3,5} 1 2 3 2 3 4 Grid 3 4 5 CSE554 Contouring II Slide 16

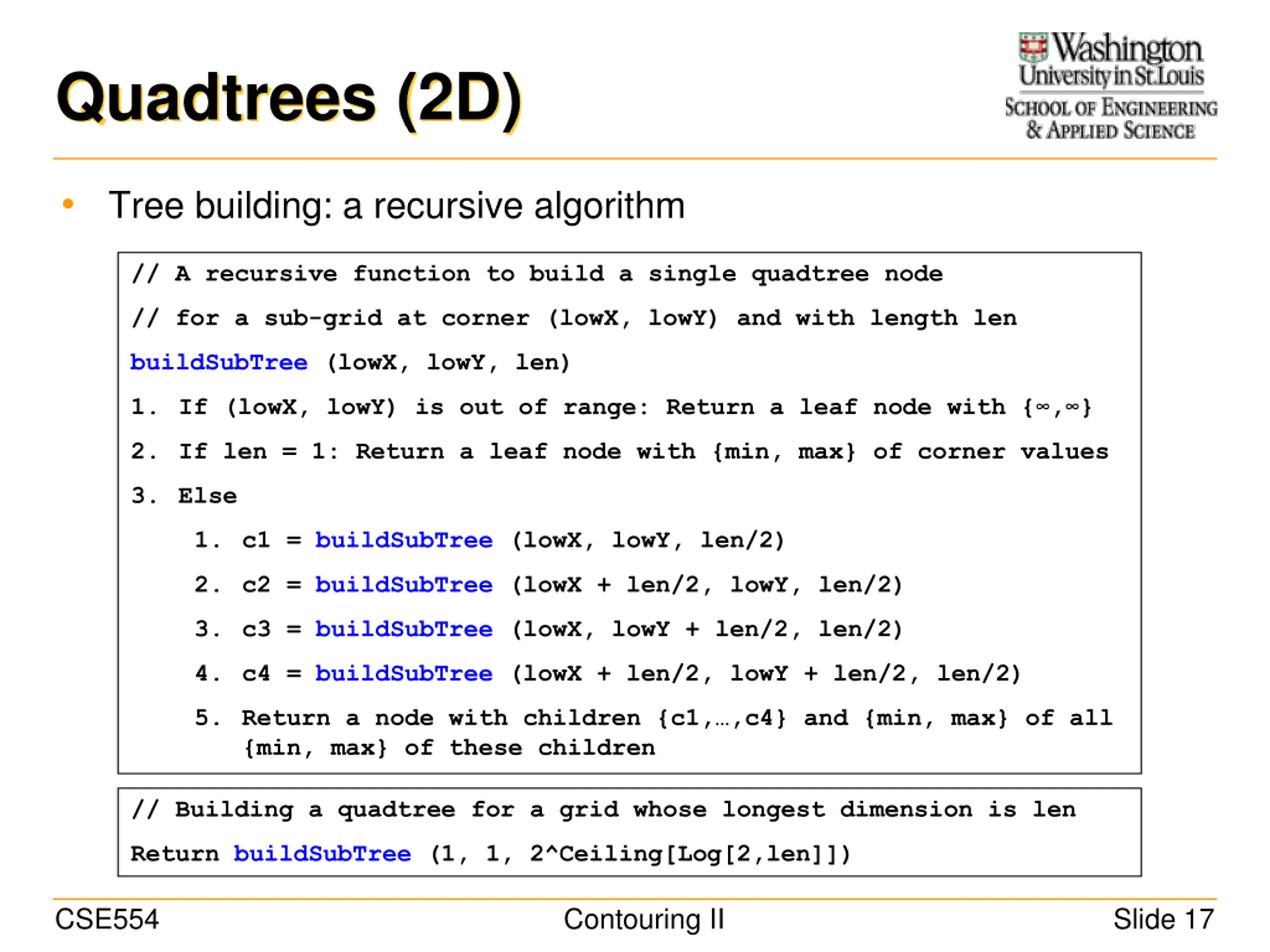

  17. Washington University in St. Louis, School of Engineering and Applied Science Quadtrees (2D) Tree building: a recursive algorithm // A recursive function to build a single quadtree node // for a sub-grid at corner (lowX, lowY) and with length len buildSubTree (lowX, lowY, len) 1. If (lowX, lowY) is out of range: Return a leaf node with { , } 2. If len = 1: Return a leaf node with {min, max} of corner values 3. Else 1. c1 = buildSubTree (lowX, lowY, len/2) 2. c2 = buildSubTree (lowX + len/2, lowY, len/2) 3. c3 = buildSubTree (lowX, lowY + len/2, len/2) 4. c4 = buildSubTree (lowX + len/2, lowY + len/2, len/2) 5. Return a node with children {c1, ,c4} and {min, max} of all {min, max} of these children // Building a quadtree for a grid whose longest dimension is len Return buildSubTree (1, 1, 2^Ceiling[Log[2,len]]) CSE554 Contouring II Slide 17

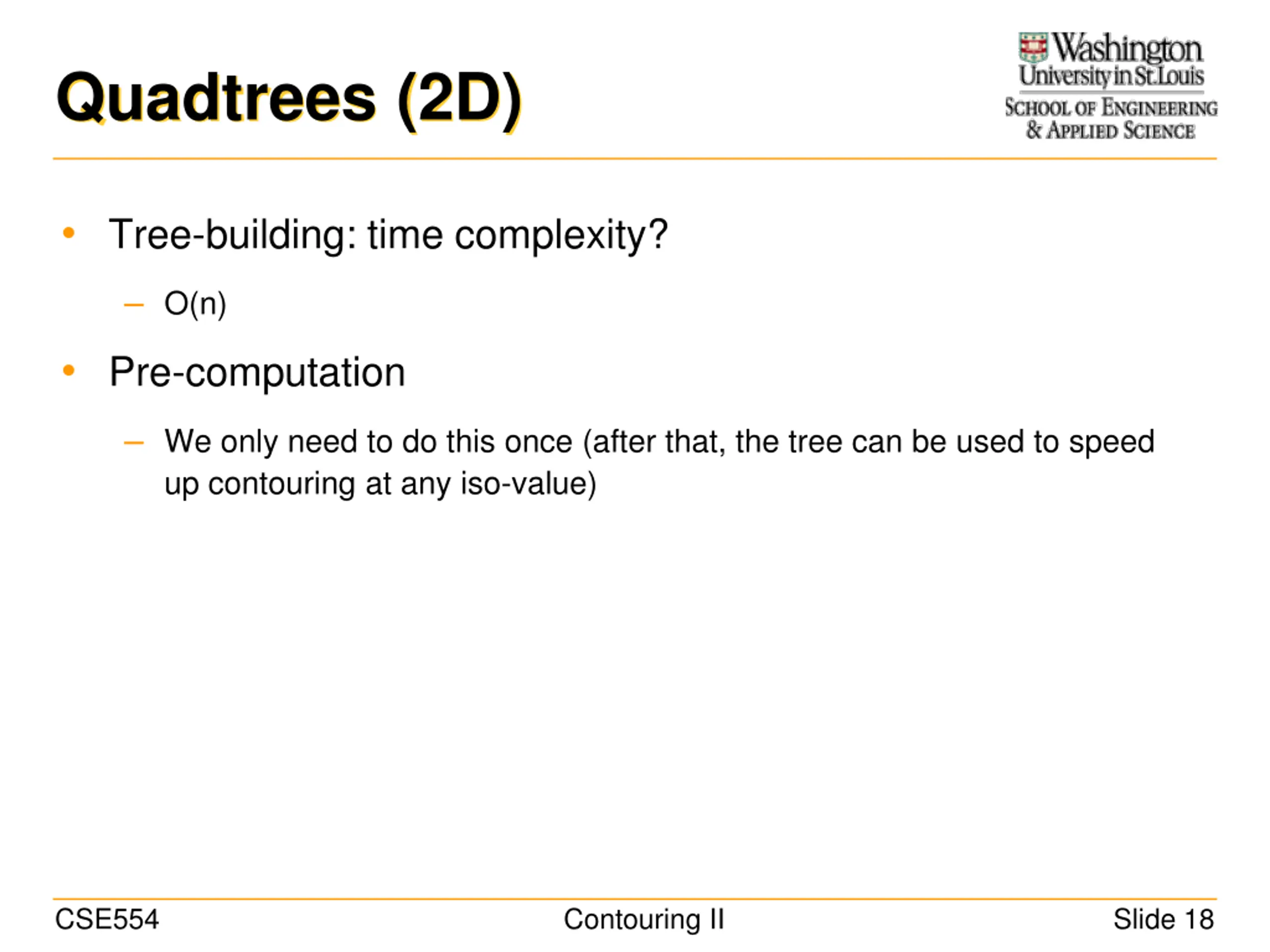

  18. Washington University in St. Louis, School of Engineering and Applied Science Quadtrees (2D) Tree-building: time complexity? O(n) Pre-computation We only need to do this once (after that, the tree can be used to speed up contouring at any iso-value) CSE554 Contouring II Slide 18

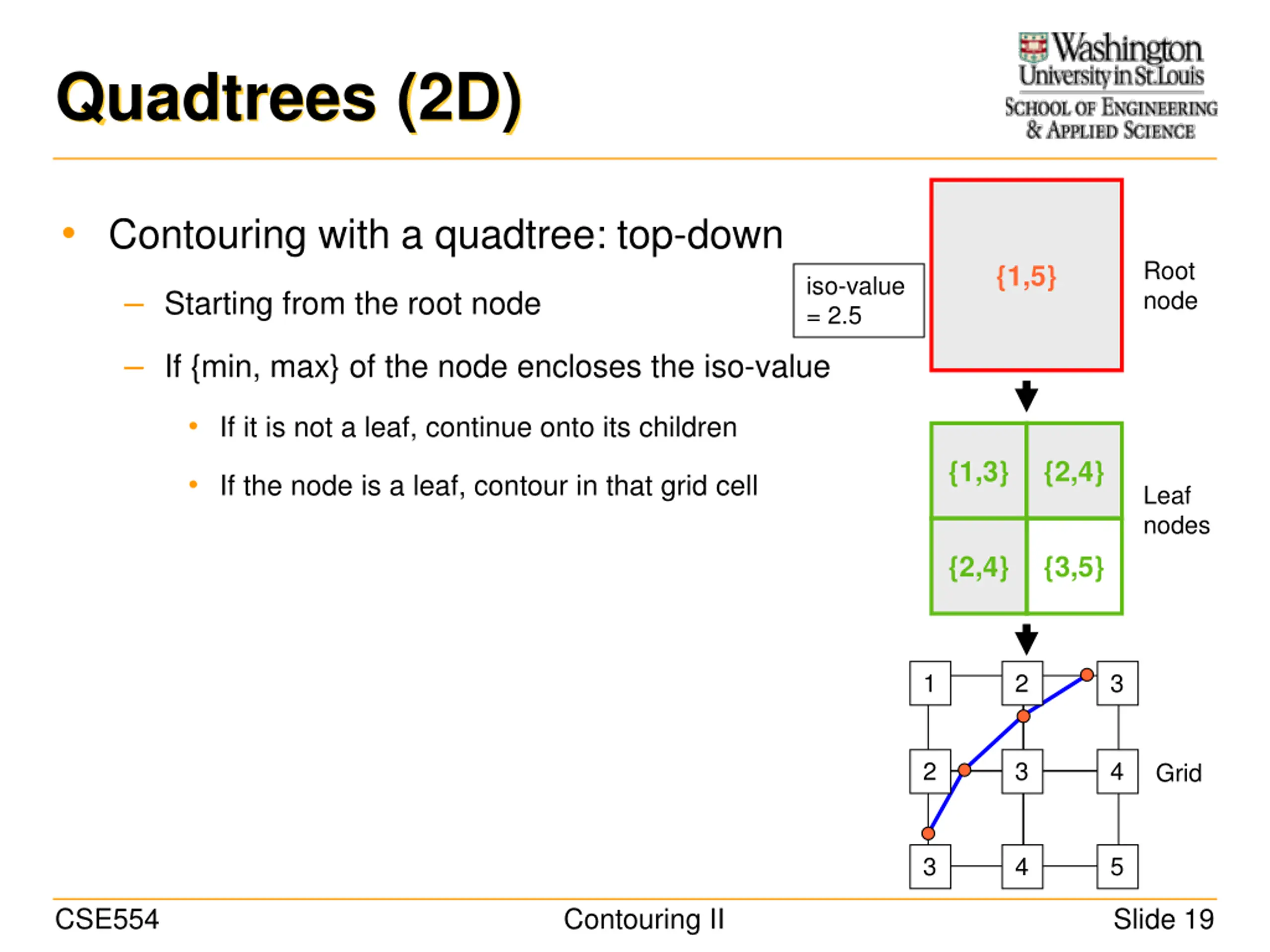

  19. Washington University in St. Louis, School of Engineering and Applied Science Quadtrees (2D) Contouring with a quadtree: top-down Root node {1,5} iso-value = 2.5 Starting from the root node If {min, max} of the node encloses the iso-value If it is not a leaf, continue onto its children {1,3} {2,4} If the node is a leaf, contour in that grid cell Leaf nodes {2,4} {3,5} 1 2 3 2 3 4 Grid 3 4 5 CSE554 Contouring II Slide 19

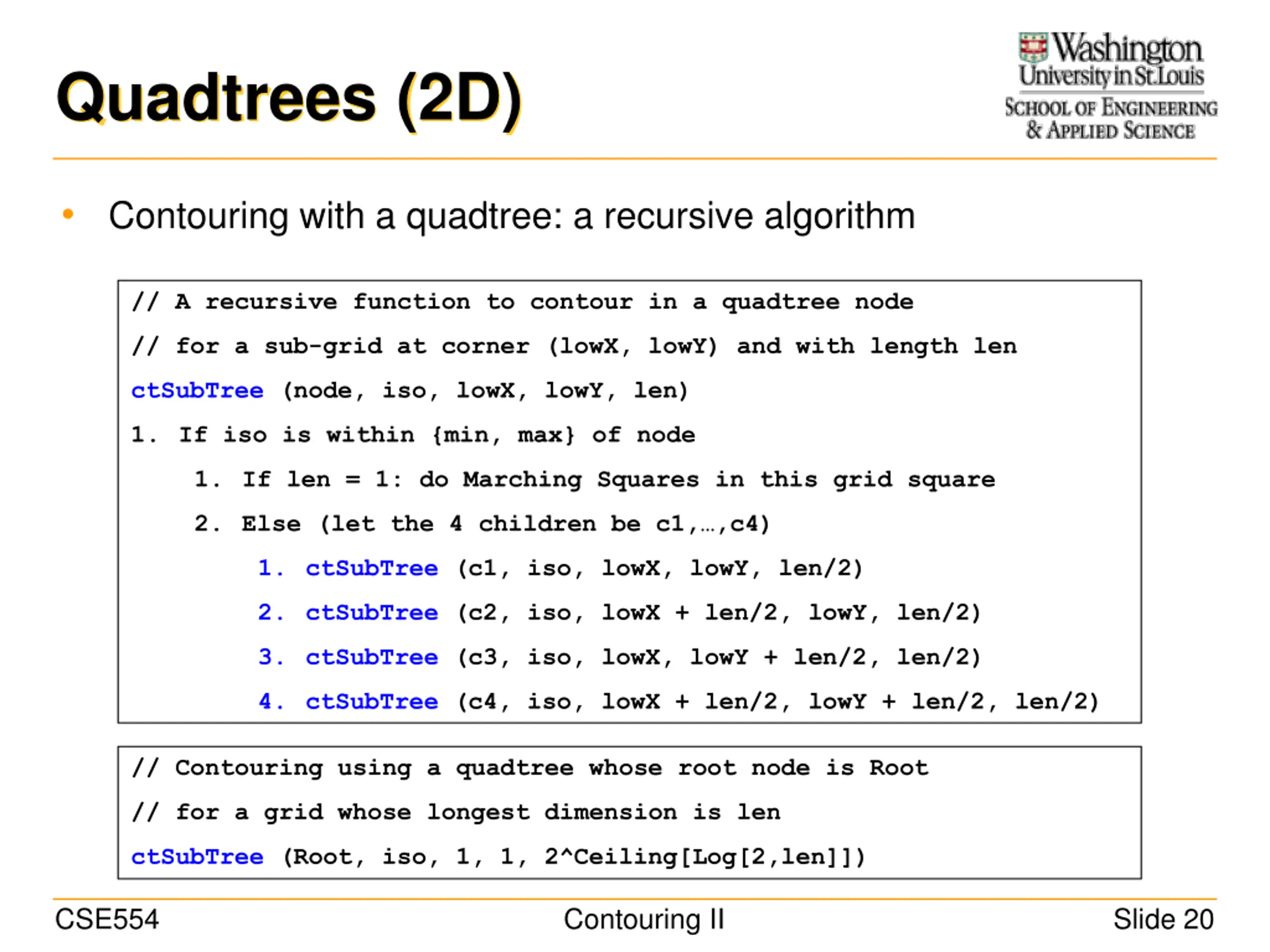

  20. Washington University in St. Louis, School of Engineering and Applied Science Quadtrees (2D) Contouring with a quadtree: a recursive algorithm // A recursive function to contour in a quadtree node // for a sub-grid at corner (lowX, lowY) and with length len ctSubTree (node, iso, lowX, lowY, len) 1. If iso is within {min, max} of node 1. If len = 1: do Marching Squares in this grid square 2. Else (let the 4 children be c1, ,c4) 1. ctSubTree (c1, iso, lowX, lowY, len/2) 2. ctSubTree (c2, iso, lowX + len/2, lowY, len/2) 3. ctSubTree (c3, iso, lowX, lowY + len/2, len/2) 4. ctSubTree (c4, iso, lowX + len/2, lowY + len/2, len/2) // Contouring using a quadtree whose root node is Root // for a grid whose longest dimension is len ctSubTree (Root, iso, 1, 1, 2^Ceiling[Log[2,len]]) CSE554 Contouring II Slide 20

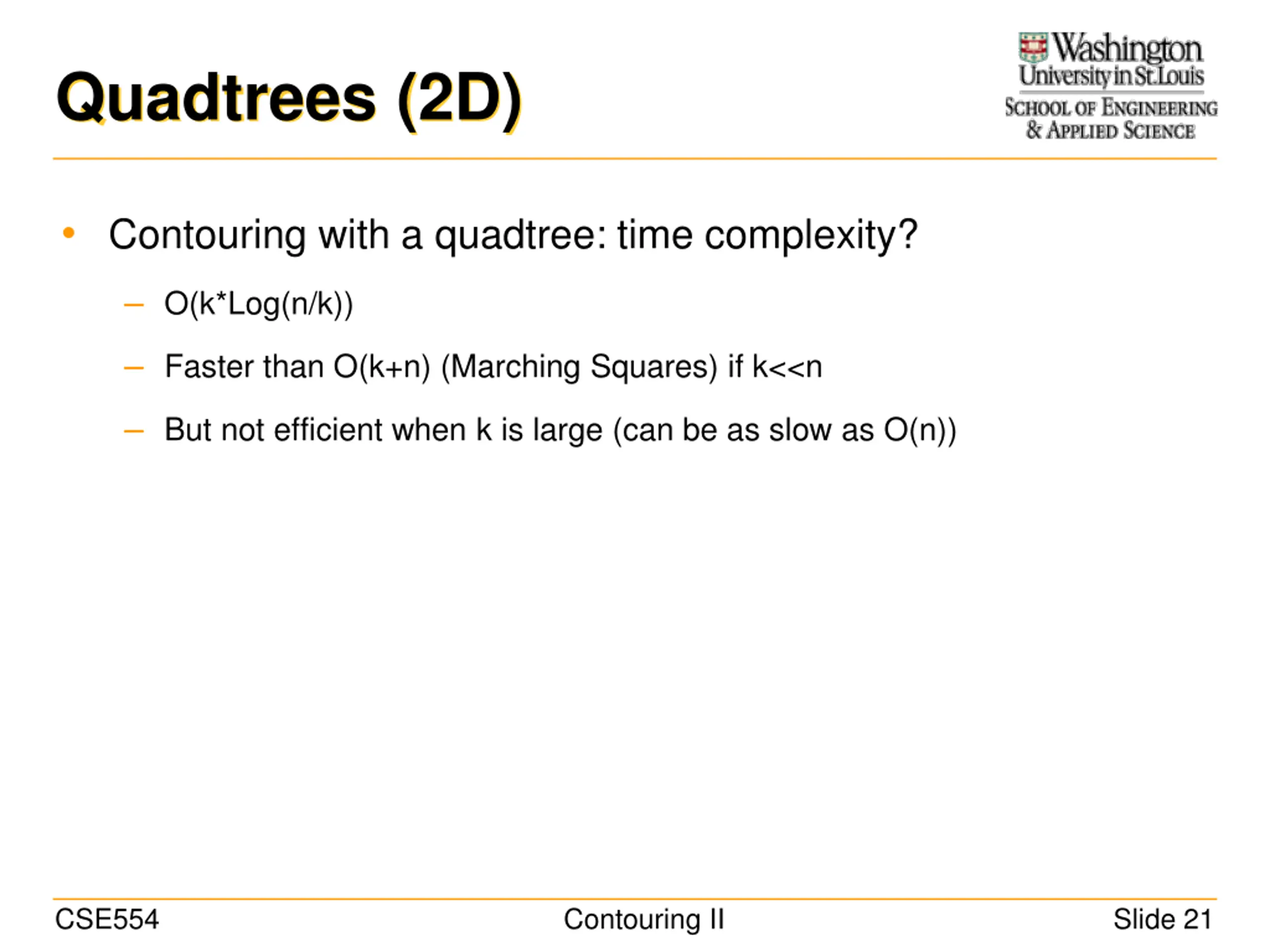

  21. Washington University in St. Louis, School of Engineering and Applied Science Quadtrees (2D) Contouring with a quadtree: time complexity? O(k*Log(n/k)) Faster than O(k+n) (Marching Squares) if k<<n But not efficient when k is large (can be as slow as O(n)) CSE554 Contouring II Slide 21

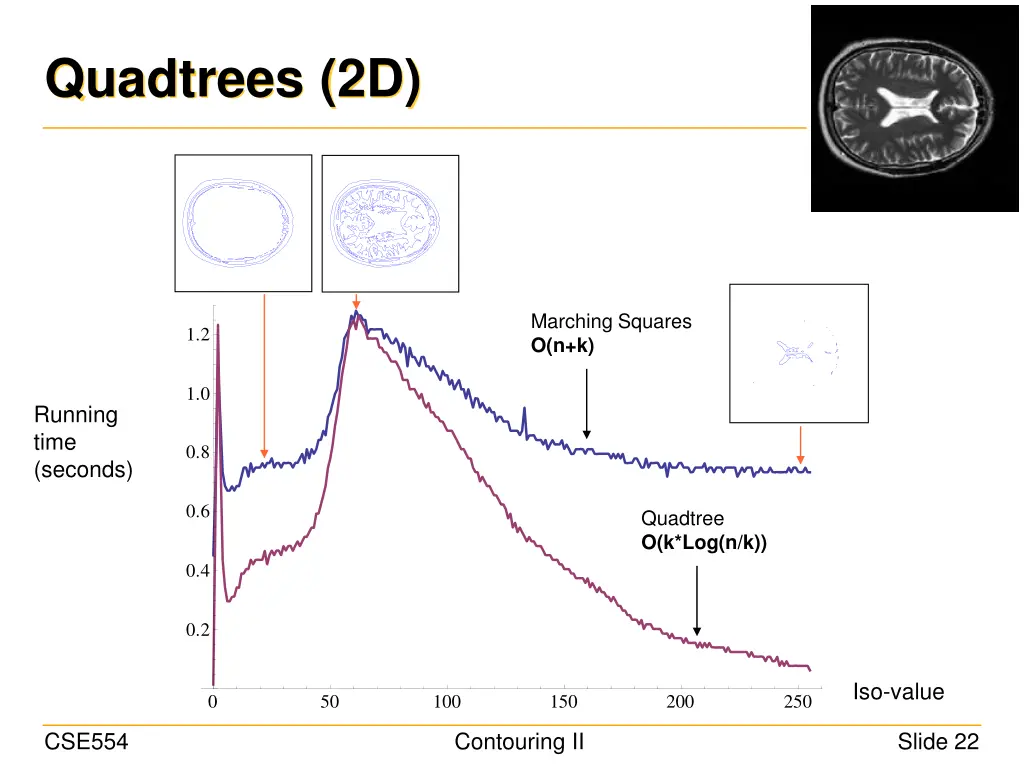

  22. Washington University in St. Louis, School of Engineering and Applied Science Quadtrees (2D) Marching Squares O(n+k) 1.2 1.0 Running time (seconds) 0.8 0.6 Quadtree O(k*Log(n/k)) 0.4 0.2 Iso-value 0 50 100 150 200 250 CSE554 Contouring II Slide 22

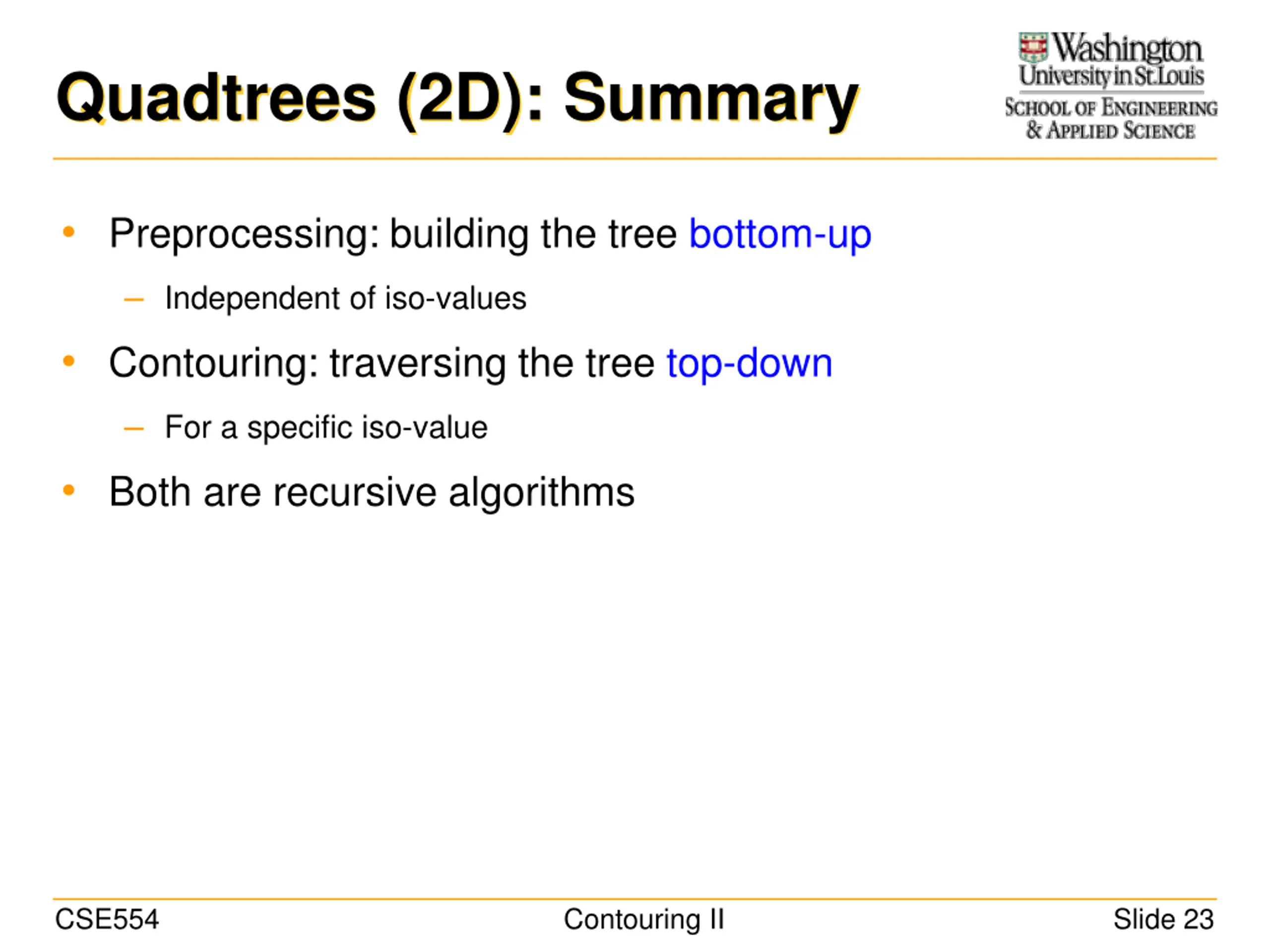

  23. Washington University in St. Louis, School of Engineering and Applied Science Quadtrees (2D): Summary Preprocessing: building the tree bottom-up Independent of iso-values Contouring: traversing the tree top-down For a specific iso-value Both are recursive algorithms CSE554 Contouring II Slide 23

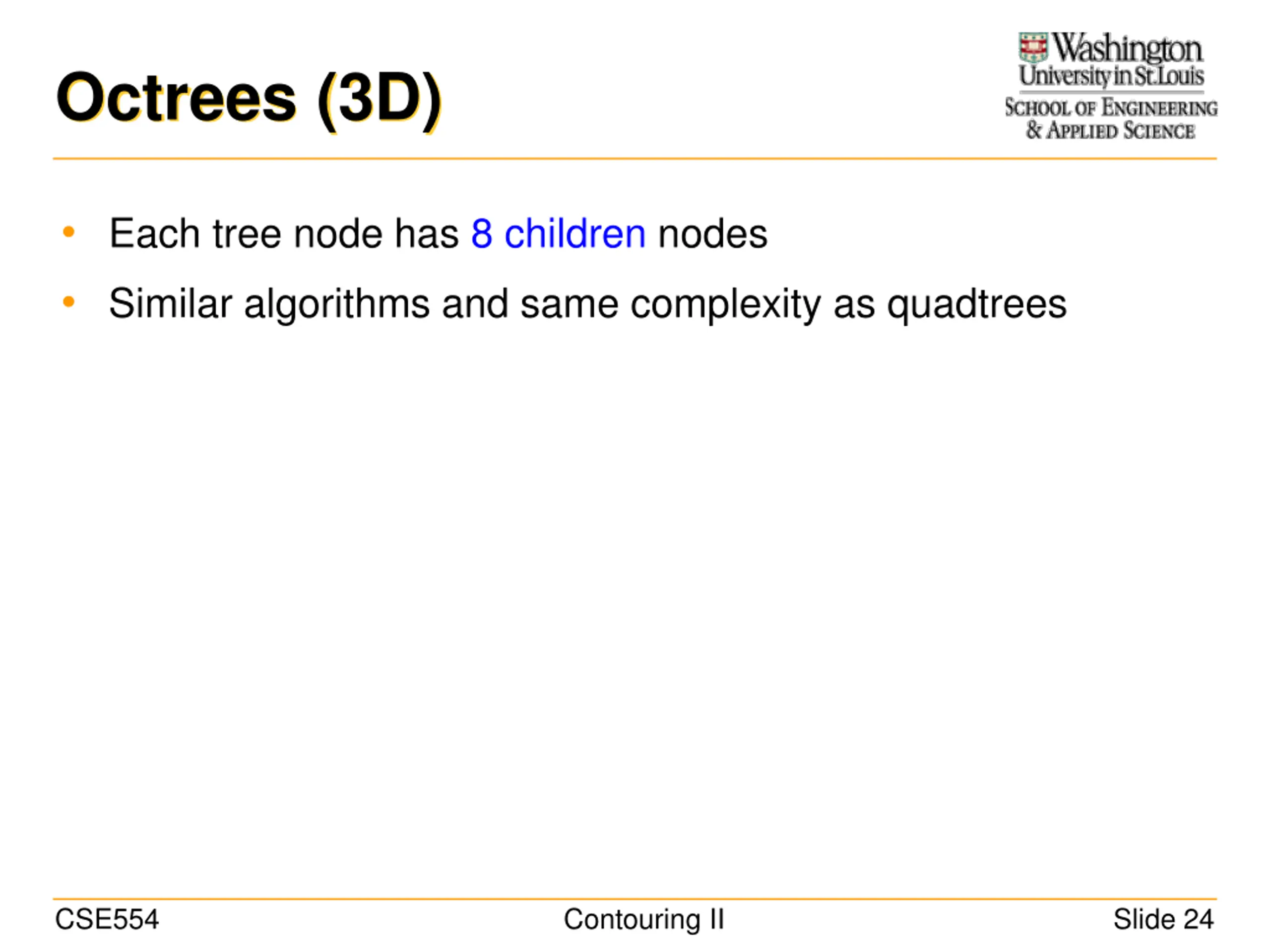

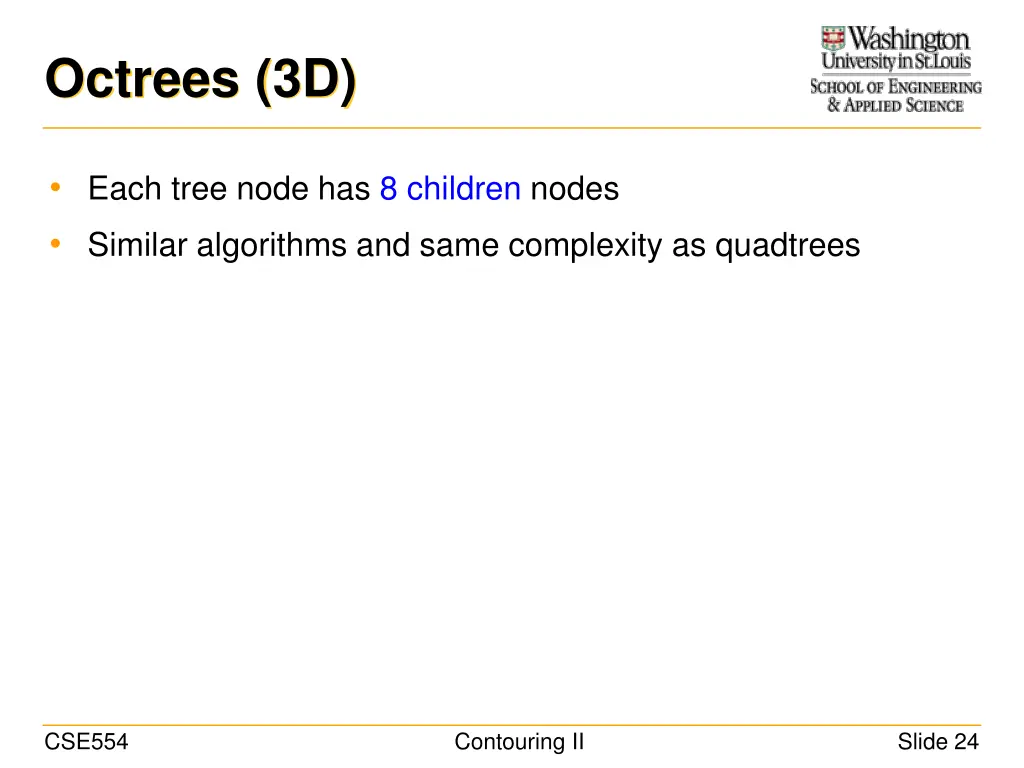

  24. Washington University in St. Louis, School of Engineering and Applied Science Octrees (3D) Each tree node has 8 children nodes Similar algorithms and same complexity as quadtrees CSE554 Contouring II Slide 24

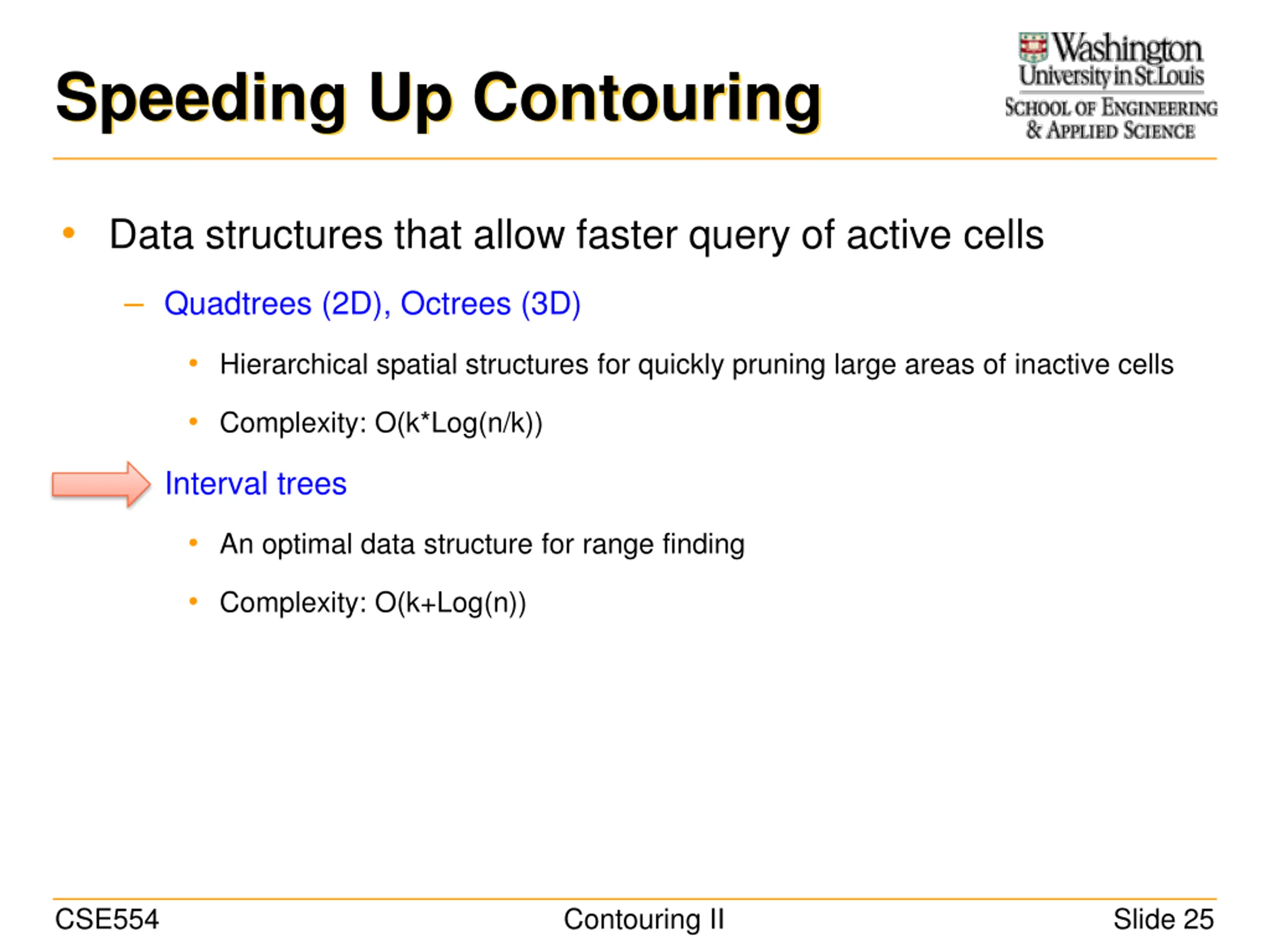

  25. Washington University in St. Louis, School of Engineering and Applied Science Speeding Up Contouring Data structures that allow faster query of active cells Quadtrees (2D), Octrees (3D) Hierarchical spatial structures for quickly pruning large areas of inactive cells Complexity: O(k*Log(n/k)) Interval trees An optimal data structure for range finding Complexity: O(k+Log(n)) CSE554 Contouring II Slide 25

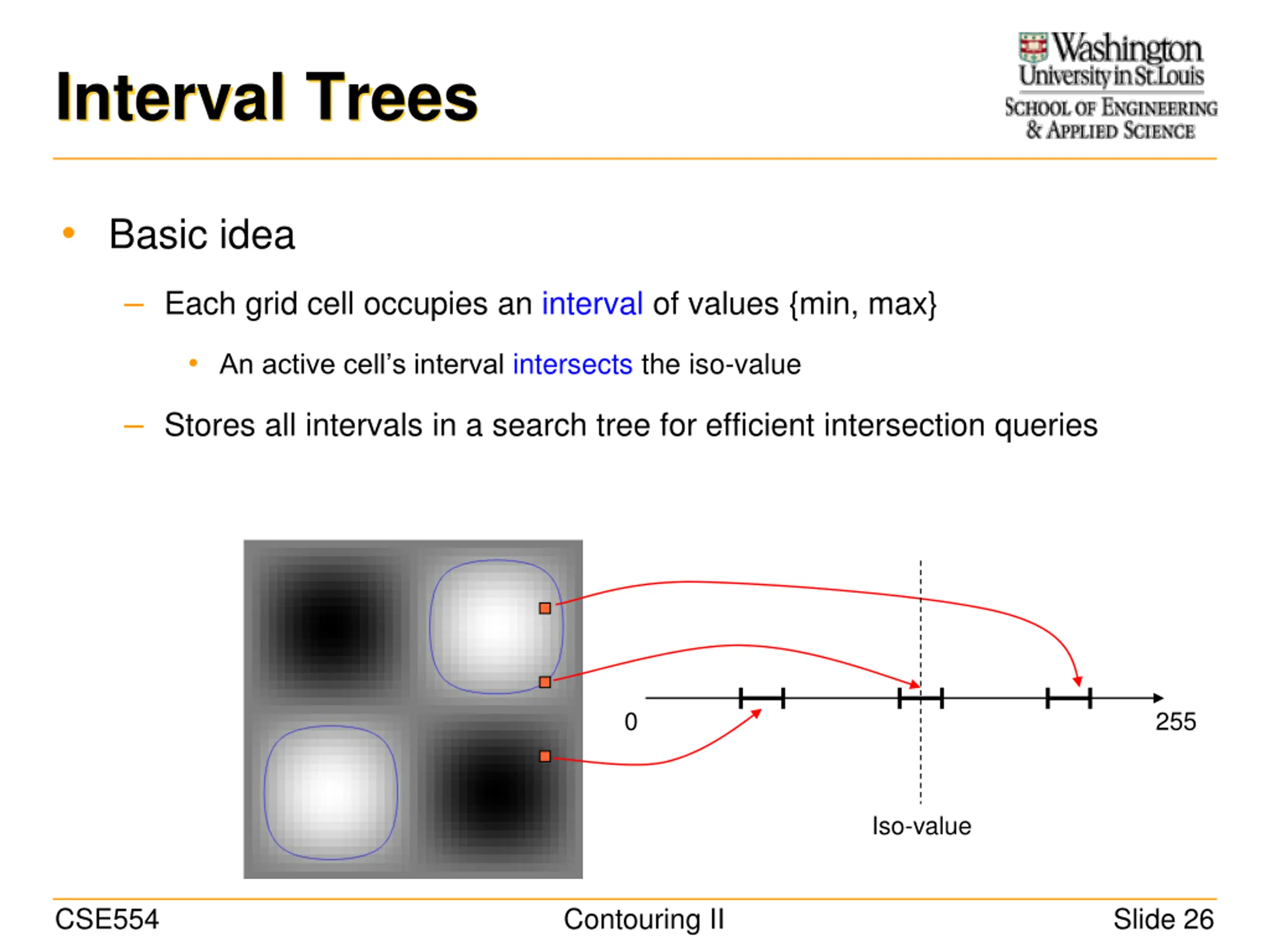

  26. Washington University in St. Louis, School of Engineering and Applied Science Interval Trees Basic idea Each grid cell occupies an interval of values {min, max} An active cell s interval intersects the iso-value Stores all intervals in a search tree for efficient intersection queries 0 255 Iso-value CSE554 Contouring II Slide 26

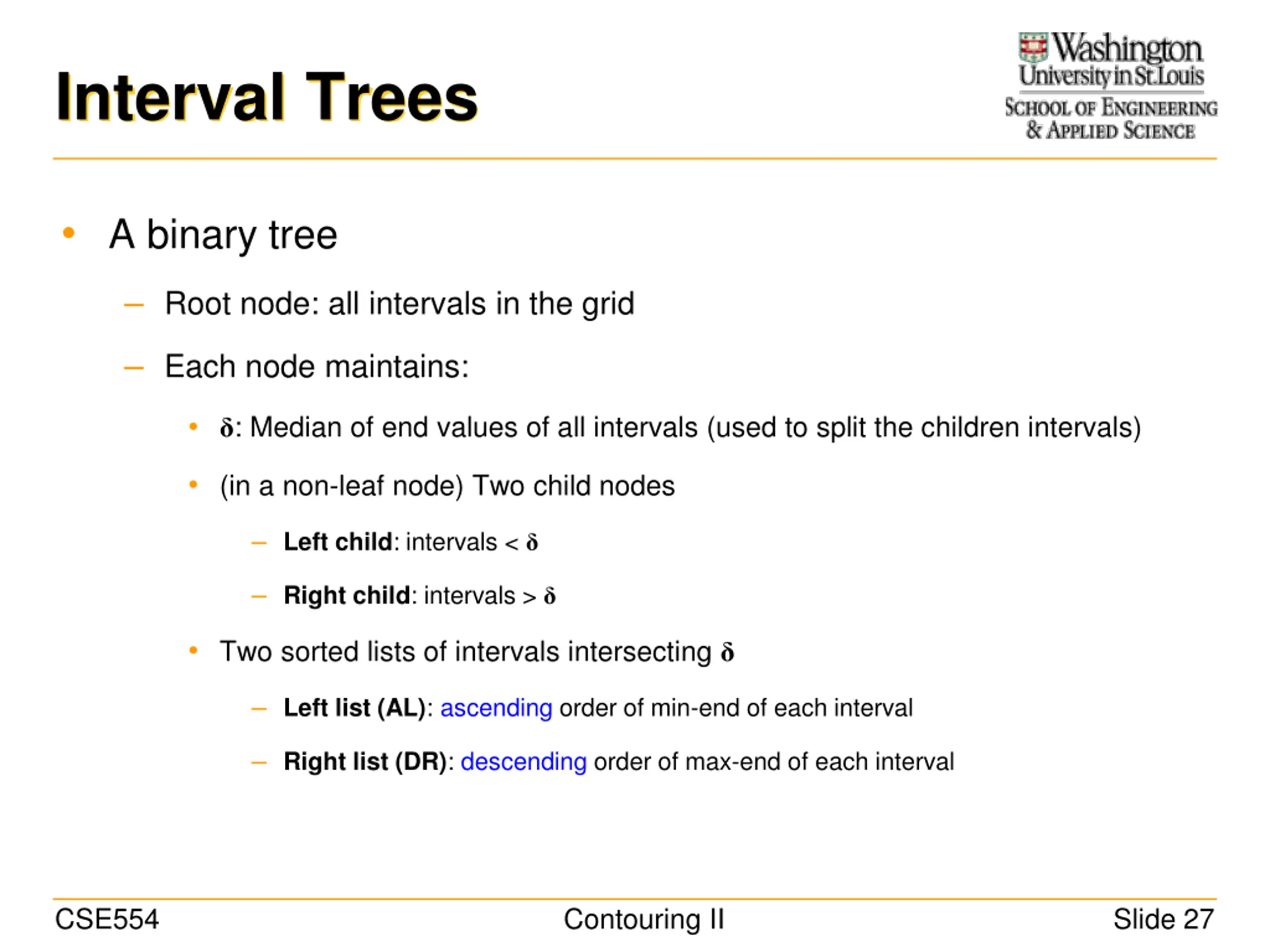

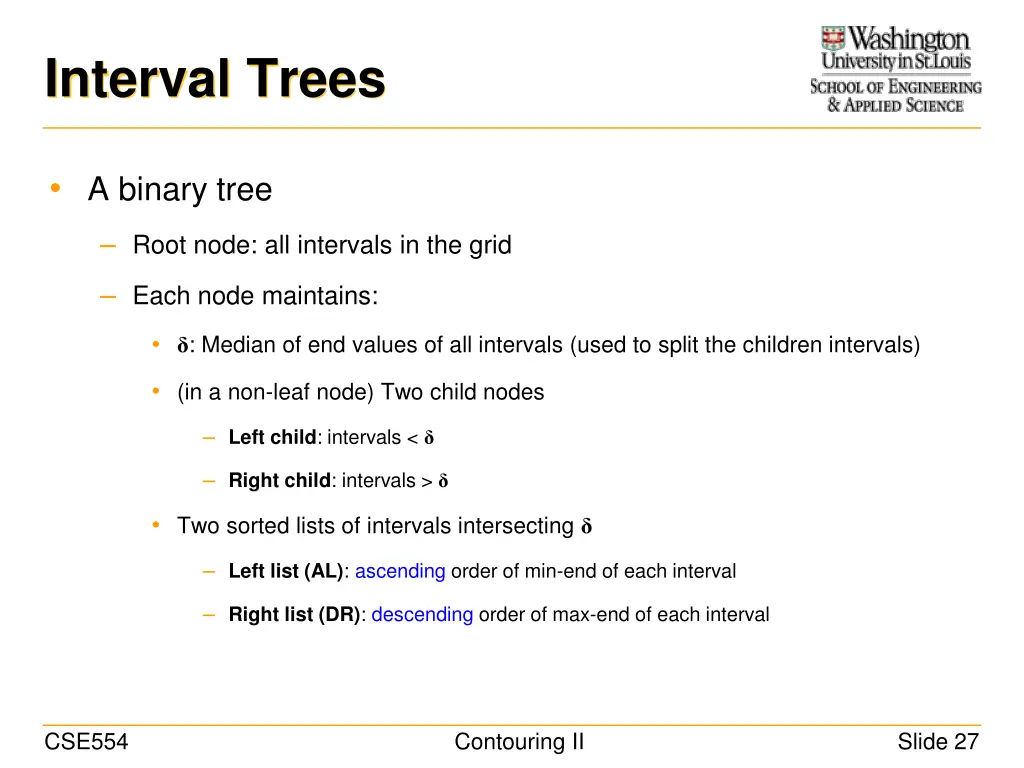

  27. Washington University in St. Louis, School of Engineering and Applied Science Interval Trees A binary tree Root node: all intervals in the grid Each node maintains: : Median of end values of all intervals (used to split the children intervals) (in a non-leaf node) Two child nodes Left child: intervals < Right child: intervals > Two sorted lists of intervals intersecting Left list (AL): ascending order of min-end of each interval Right list (DR): descending order of max-end of each interval CSE554 Contouring II Slide 27

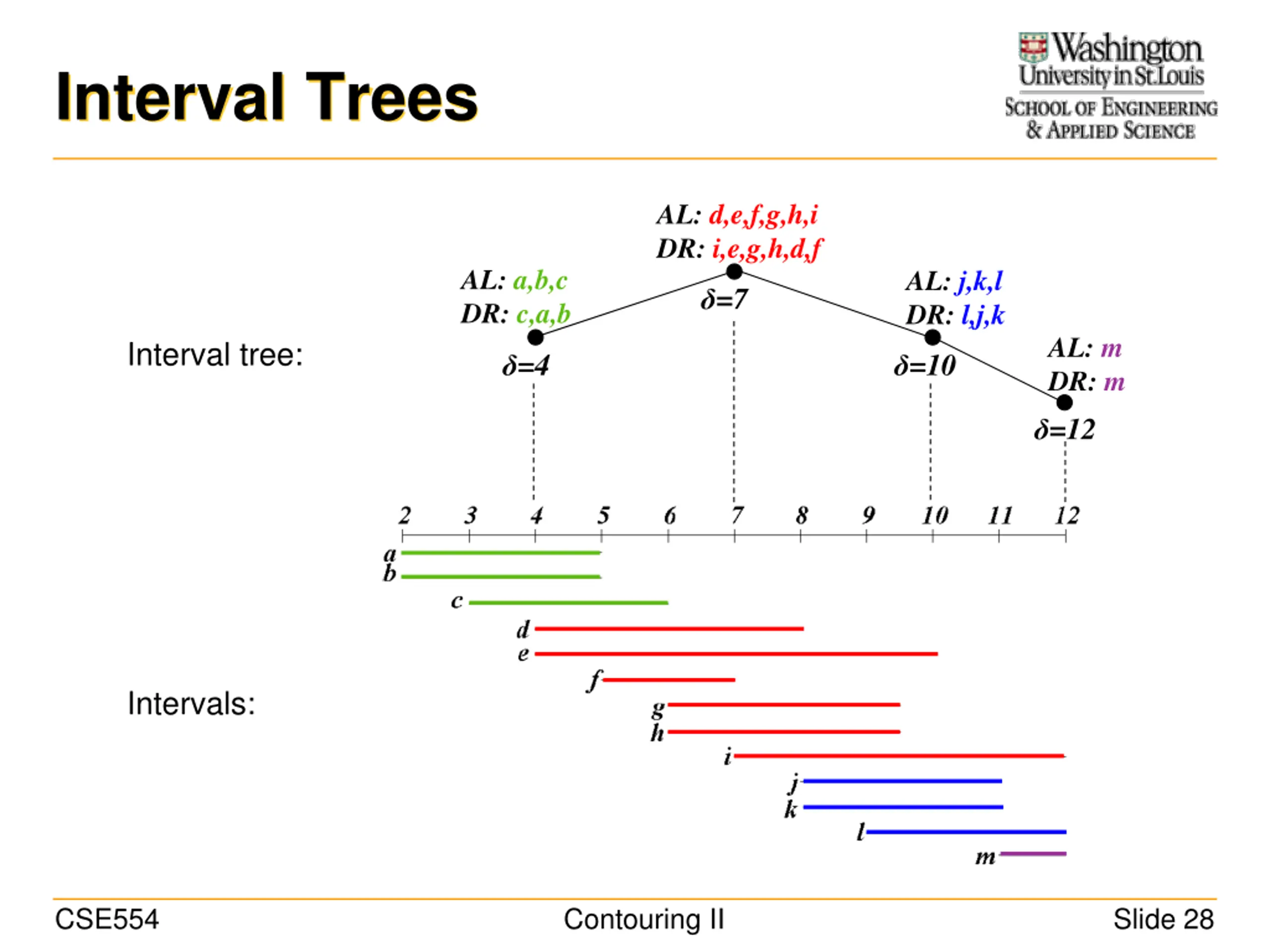

  28. Washington University in St. Louis, School of Engineering and Applied Science Interval Trees AL: d,e,f,g,h,i DR: i,e,g,h,d,f AL: a,b,c DR: c,a,b AL: j,k,l DR: l,j,k =7 AL: m DR: m =12 Interval tree: =4 =10 Intervals: CSE554 Contouring II Slide 28

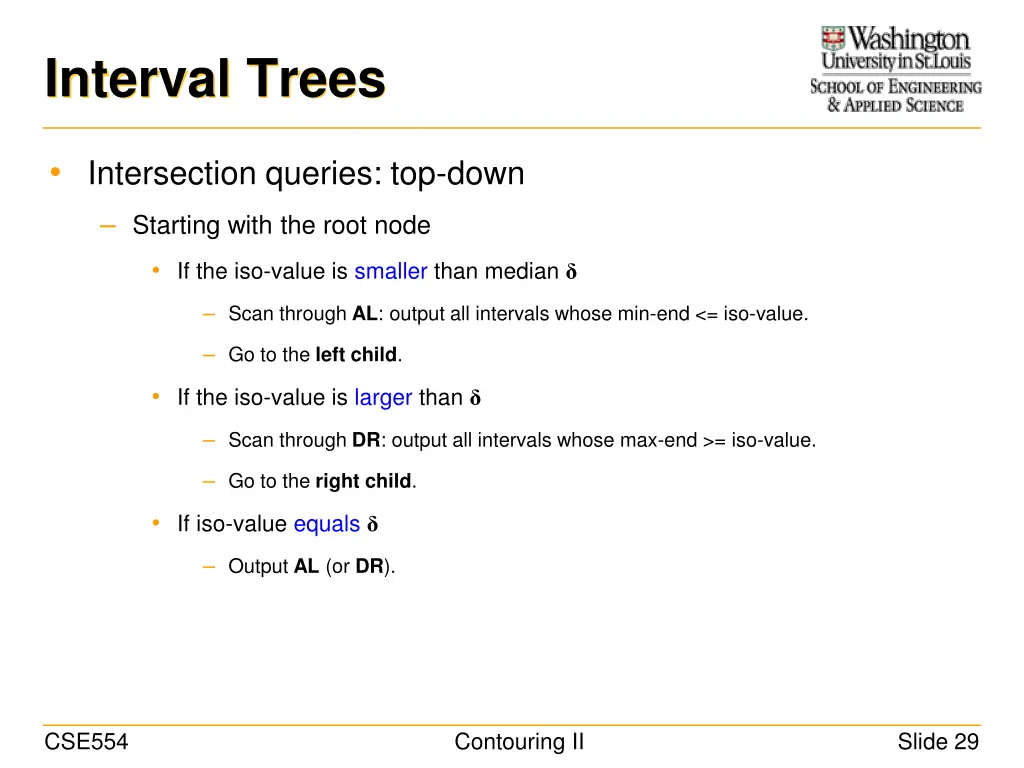

  29. Washington University in St. Louis, School of Engineering and Applied Science Interval Trees Intersection queries: top-down Starting with the root node If the iso-value is smaller than median Scan through AL: output all intervals whose min-end <= iso-value. Go to the left child. If the iso-value is larger than Scan through DR: output all intervals whose max-end >= iso-value. Go to the right child. If iso-value equals Output AL (or DR). CSE554 Contouring II Slide 29

  30. Washington University in St. Louis, School of Engineering and Applied Science Interval Trees AL: d,e,f,g,h,i DR: i,e,g,h,d,f iso-value = 9 AL: a,b,c DR: c,a,b AL: j,k,l DR: l,j,k =7 AL: m DR: m =12 Interval tree: =4 =10 Intervals: CSE554 Contouring II Slide 30

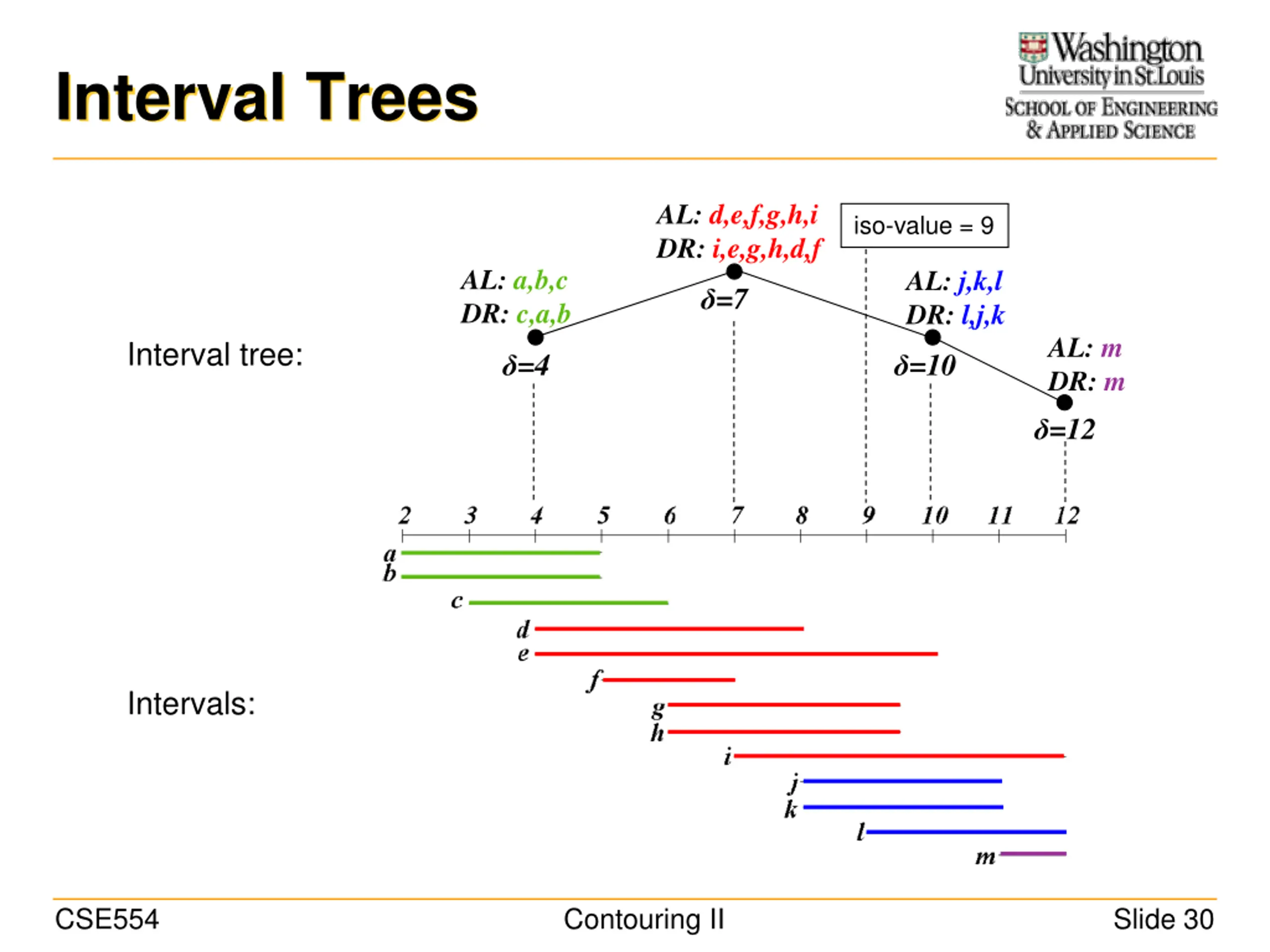

  31. Washington University in St. Louis, School of Engineering and Applied Science Interval Trees AL: d,e,f,g,h,i DR: i,e,g,h,d,f iso-value = 9 AL: a,b,c DR: c,a,b AL: j,k,l DR: l,j,k =7 AL: m DR: m =12 Interval tree: =4 =10 Intervals: CSE554 Contouring II Slide 31

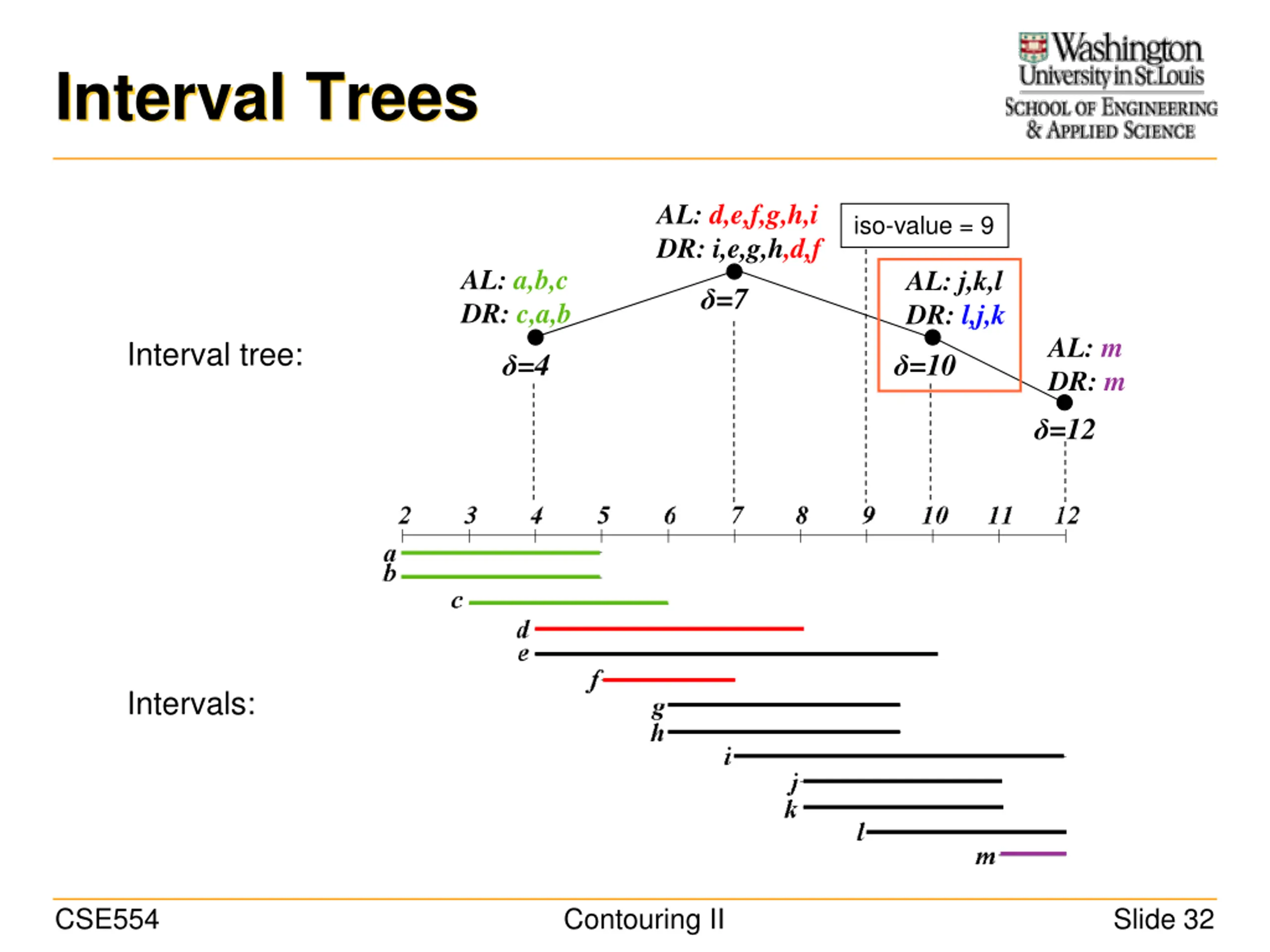

  32. Washington University in St. Louis, School of Engineering and Applied Science Interval Trees AL: d,e,f,g,h,i DR: i,e,g,h,d,f iso-value = 9 AL: a,b,c DR: c,a,b AL: j,k,l DR: l,j,k =7 AL: m DR: m =12 Interval tree: =4 =10 Intervals: CSE554 Contouring II Slide 32

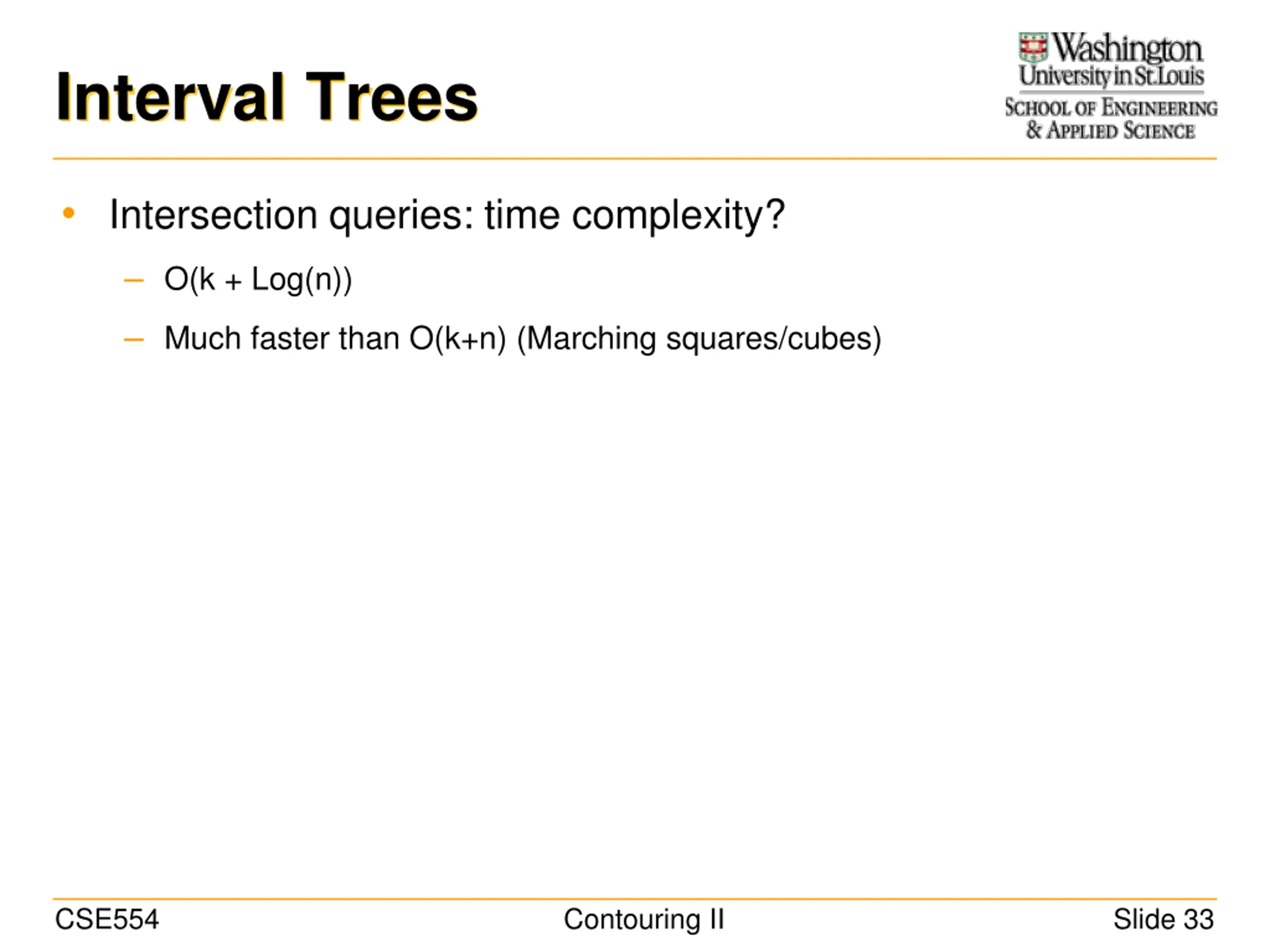

  33. Washington University in St. Louis, School of Engineering and Applied Science Interval Trees Intersection queries: time complexity? O(k + Log(n)) Much faster than O(k+n) (Marching squares/cubes) CSE554 Contouring II Slide 33

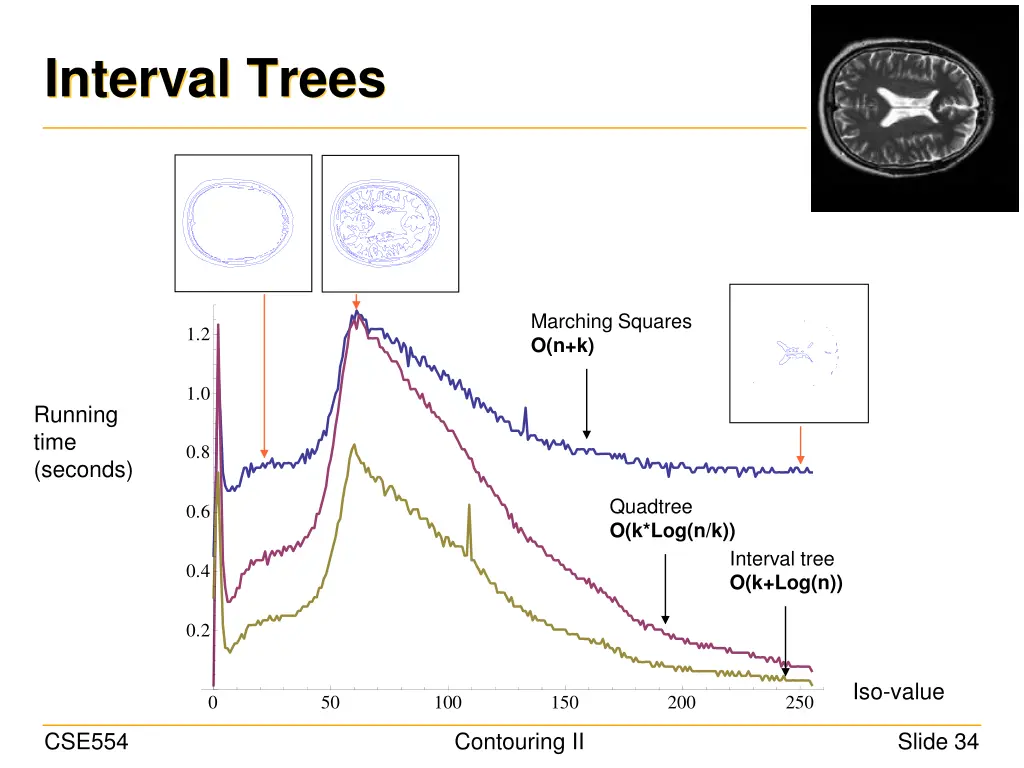

  34. Washington University in St. Louis, School of Engineering and Applied Science Interval Trees Marching Squares O(n+k) 1.2 1.0 Running time (seconds) 0.8 Quadtree O(k*Log(n/k)) 0.6 Interval tree O(k+Log(n)) 0.4 0.2 Iso-value 0 50 100 150 200 250 CSE554 Contouring II Slide 34

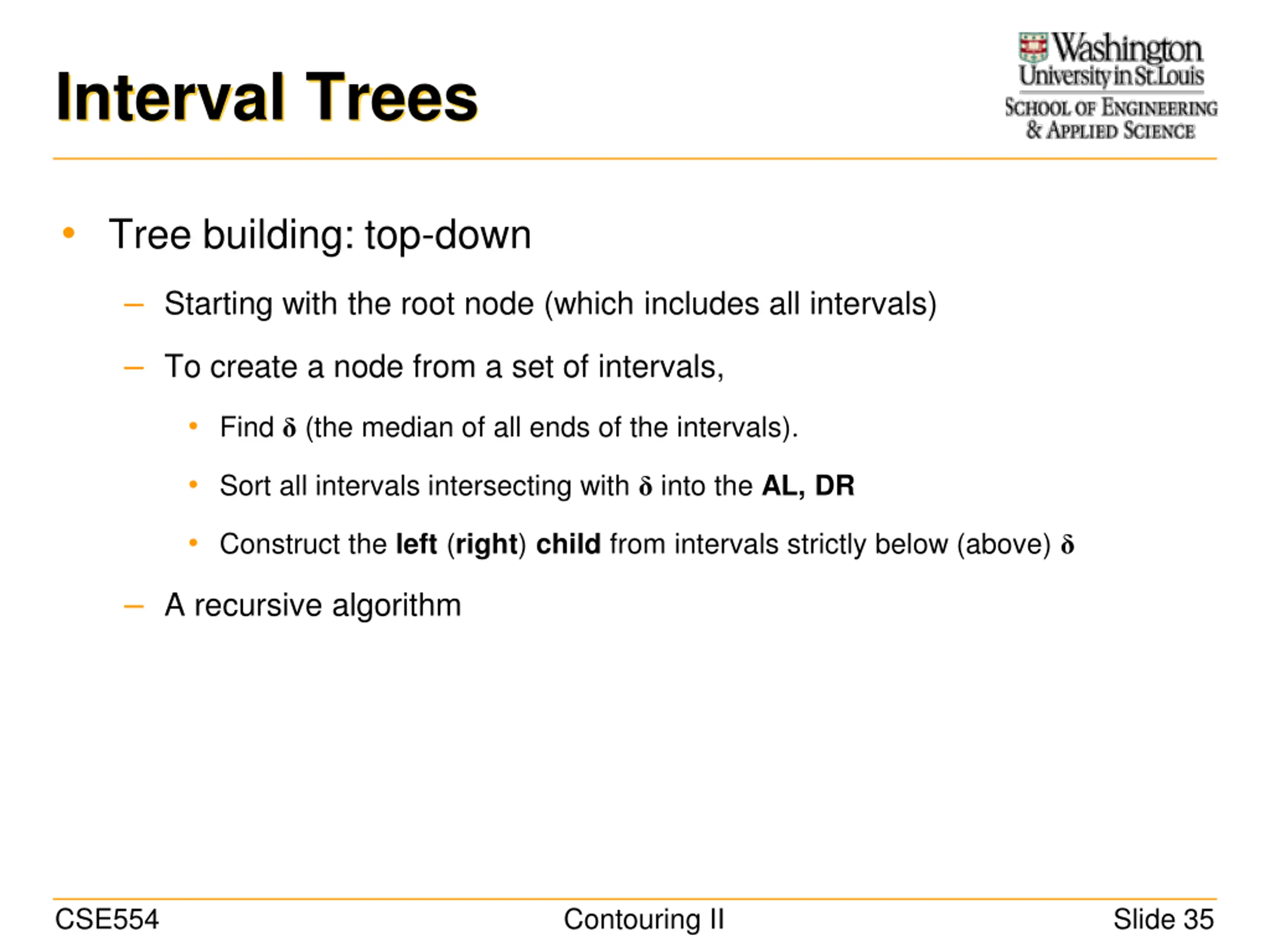

  35. Washington University in St. Louis, School of Engineering and Applied Science Interval Trees Tree building: top-down Starting with the root node (which includes all intervals) To create a node from a set of intervals, Find (the median of all ends of the intervals). Sort all intervals intersecting with into the AL, DR Construct the left (right) child from intervals strictly below (above) A recursive algorithm CSE554 Contouring II Slide 35

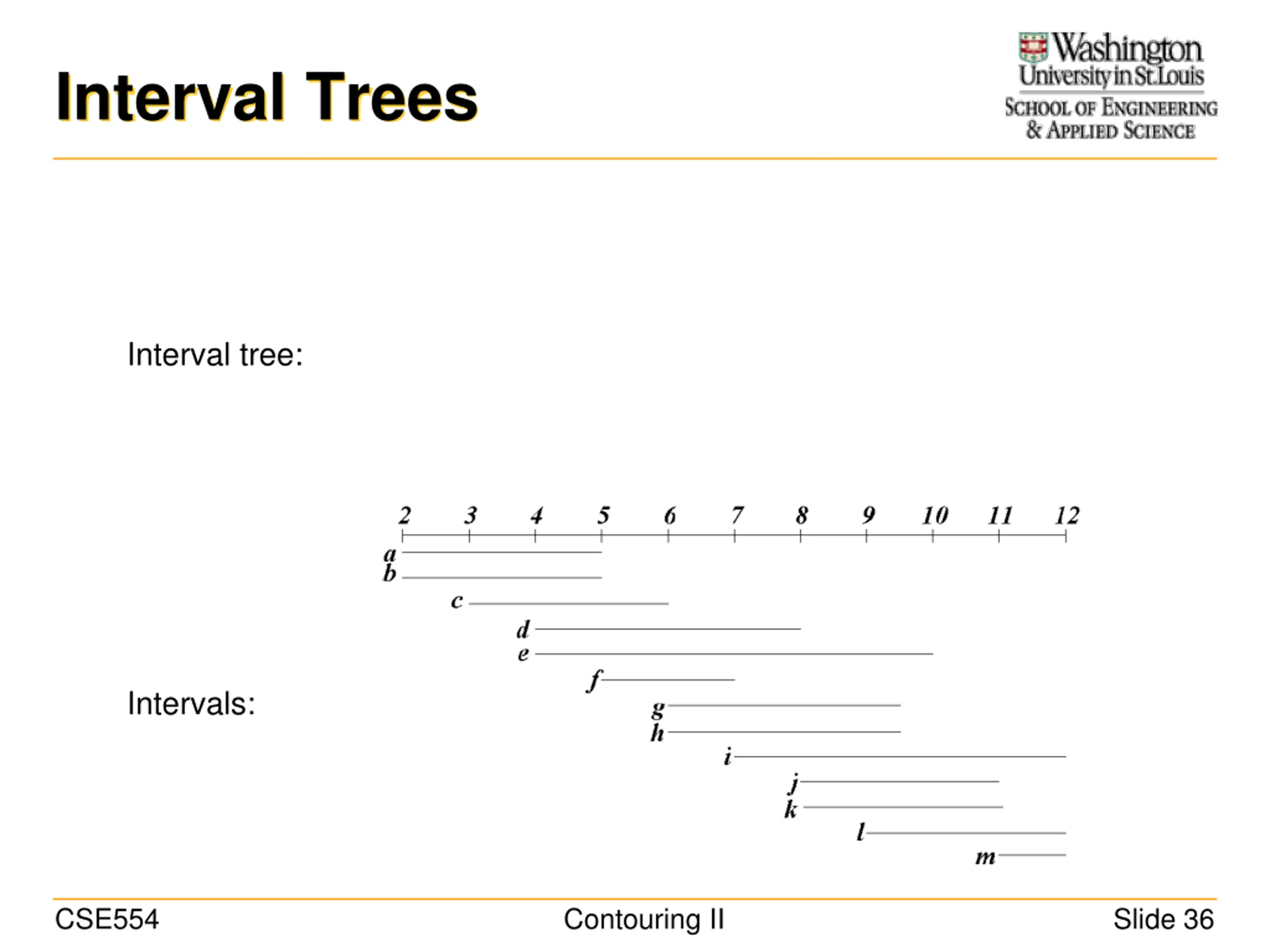

  36. Washington University in St. Louis, School of Engineering and Applied Science Interval Trees Interval tree: Intervals: CSE554 Contouring II Slide 36

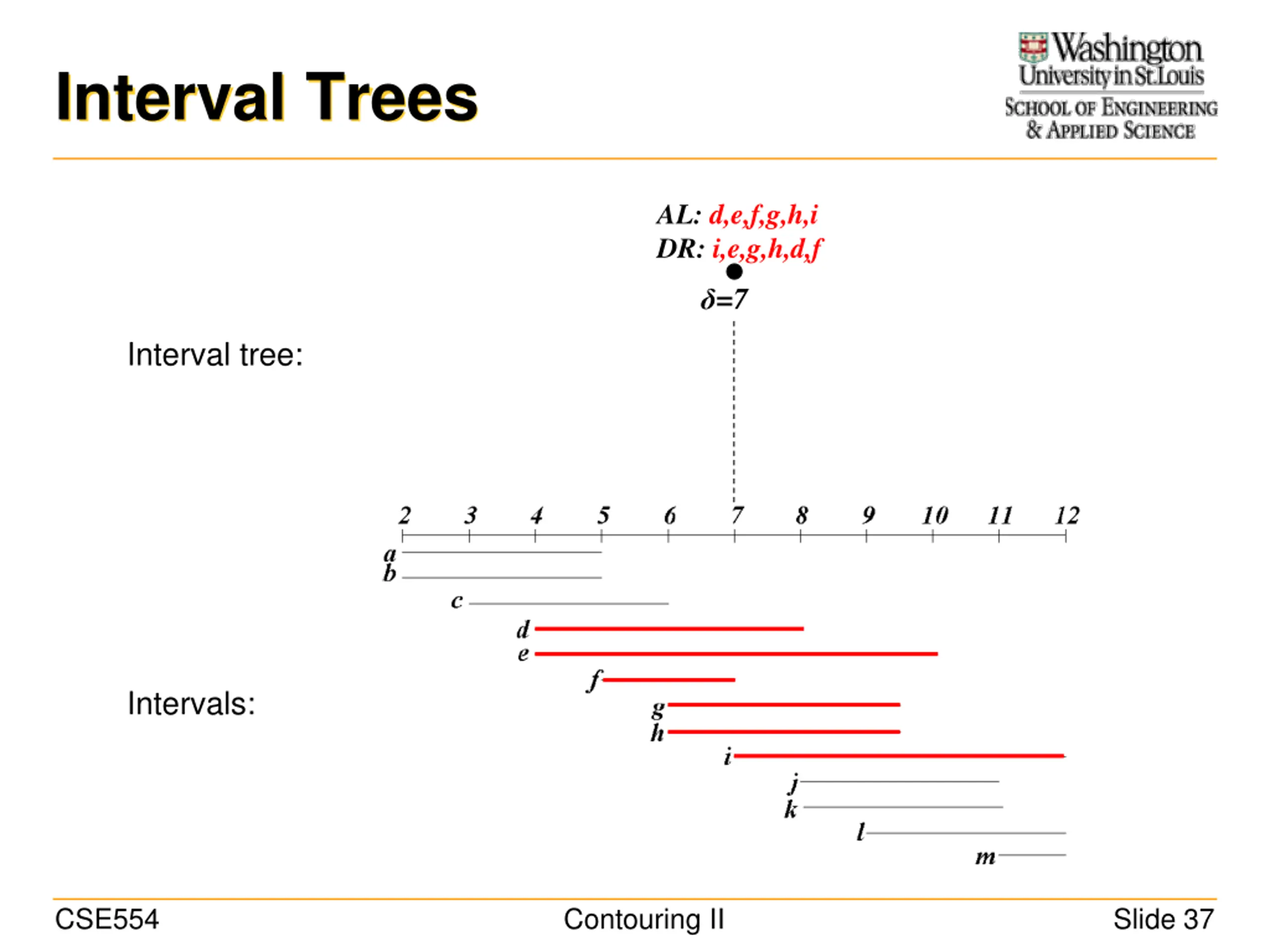

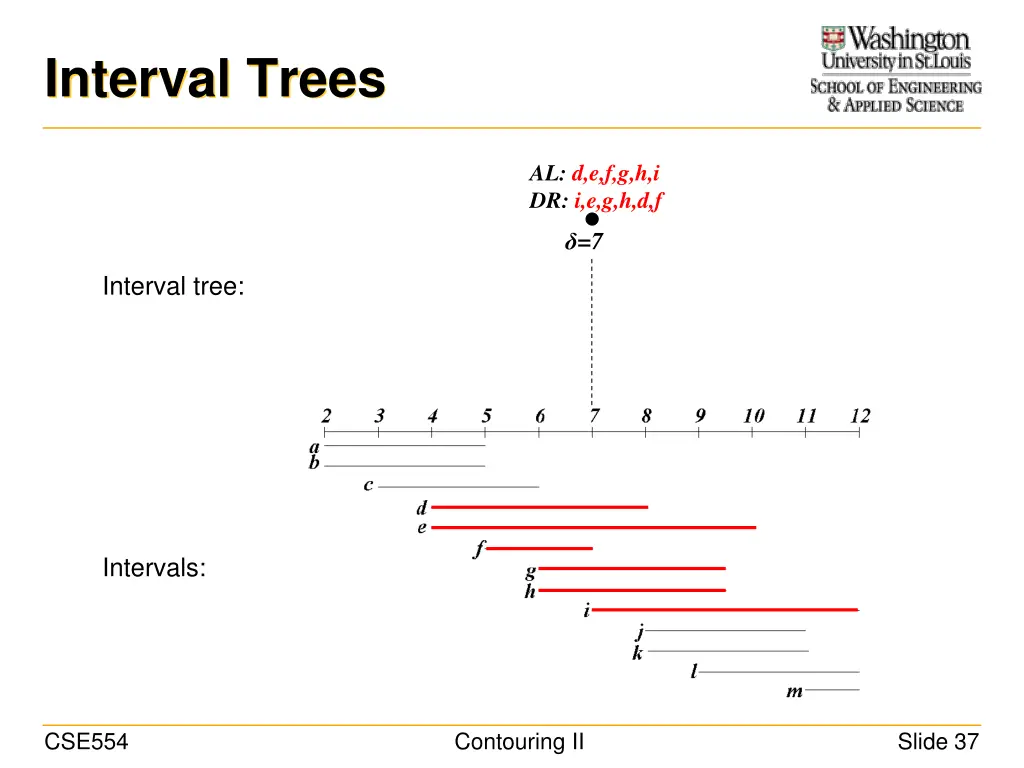

  37. Washington University in St. Louis, School of Engineering and Applied Science Interval Trees AL: d,e,f,g,h,i DR: i,e,g,h,d,f =7 Interval tree: Intervals: CSE554 Contouring II Slide 37

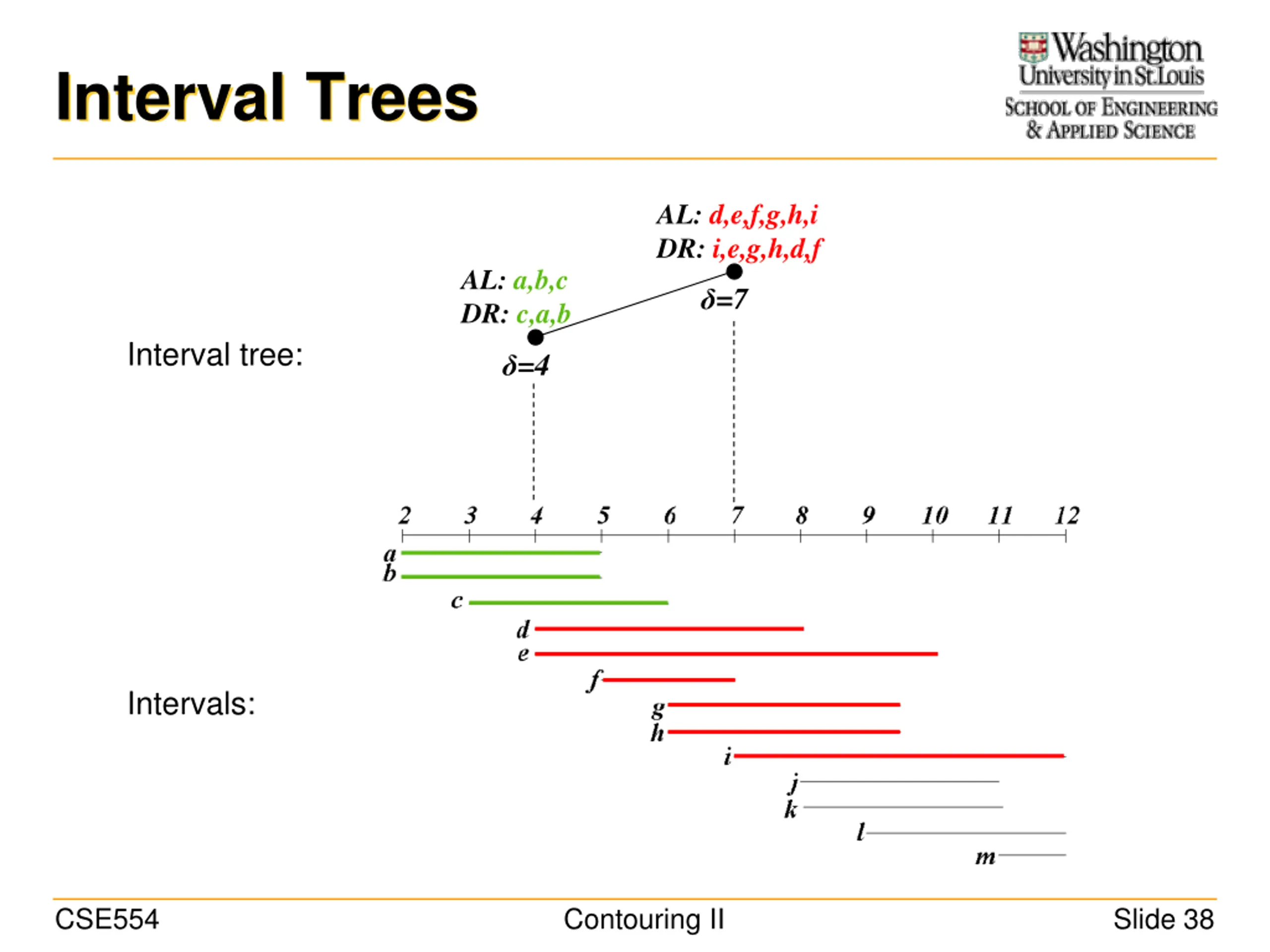

  38. Washington University in St. Louis, School of Engineering and Applied Science Interval Trees AL: d,e,f,g,h,i DR: i,e,g,h,d,f AL: a,b,c DR: c,a,b =7 Interval tree: =4 Intervals: CSE554 Contouring II Slide 38

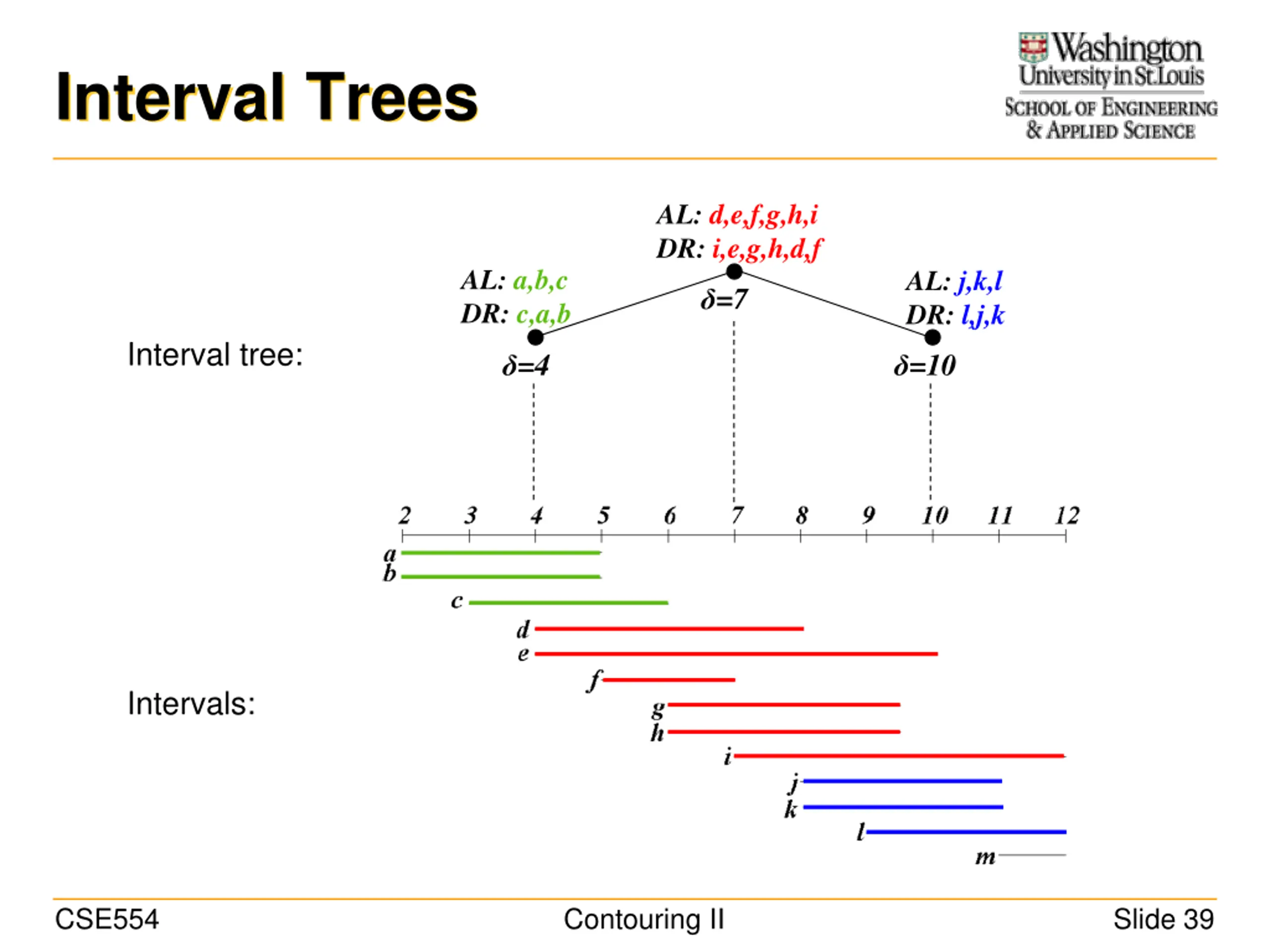

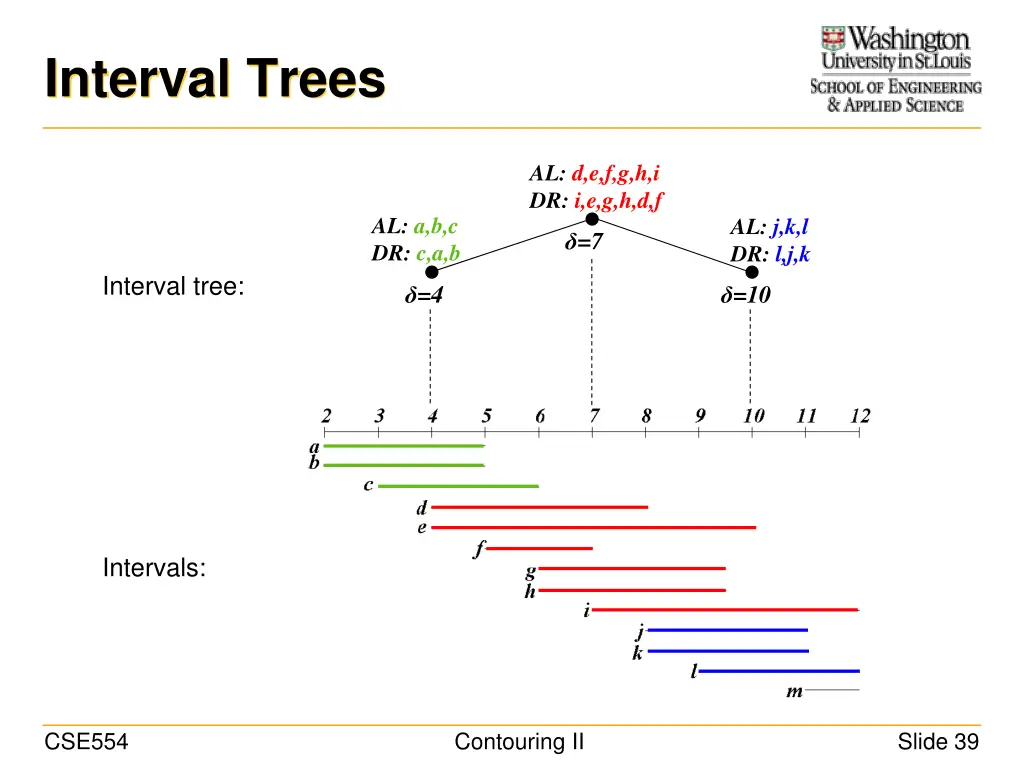

  39. Washington University in St. Louis, School of Engineering and Applied Science Interval Trees AL: d,e,f,g,h,i DR: i,e,g,h,d,f AL: a,b,c DR: c,a,b AL: j,k,l DR: l,j,k =7 Interval tree: =4 =10 Intervals: CSE554 Contouring II Slide 39

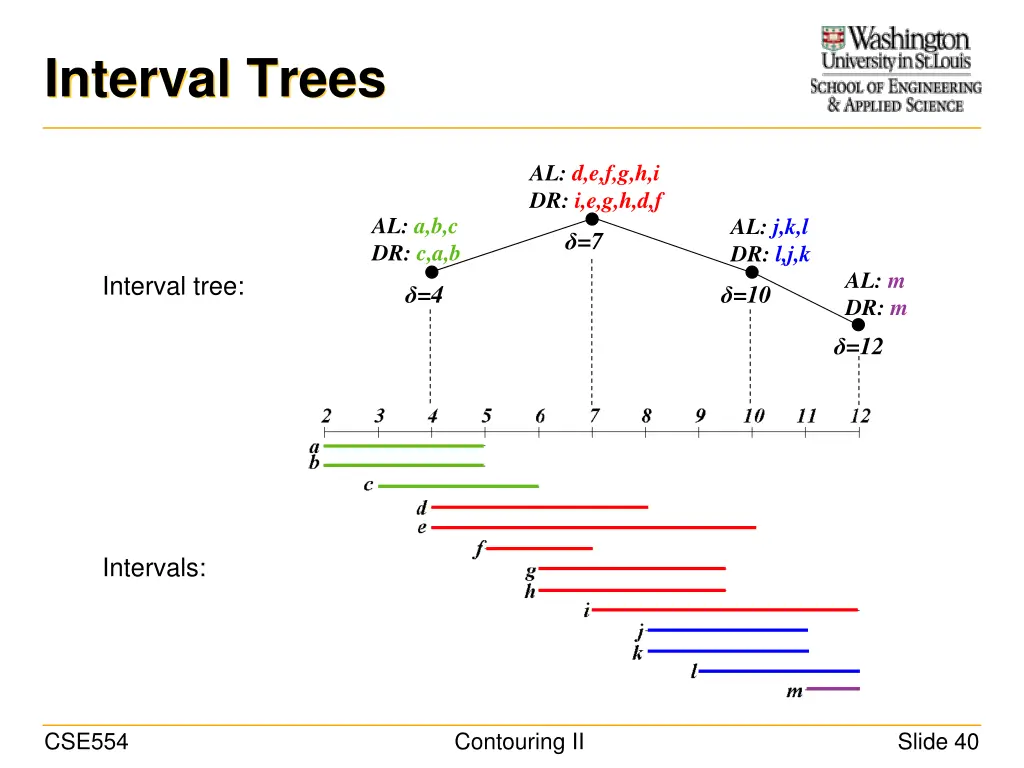

  40. Washington University in St. Louis, School of Engineering and Applied Science Interval Trees AL: d,e,f,g,h,i DR: i,e,g,h,d,f AL: a,b,c DR: c,a,b AL: j,k,l DR: l,j,k =7 AL: m DR: m =12 Interval tree: =4 =10 Intervals: CSE554 Contouring II Slide 40

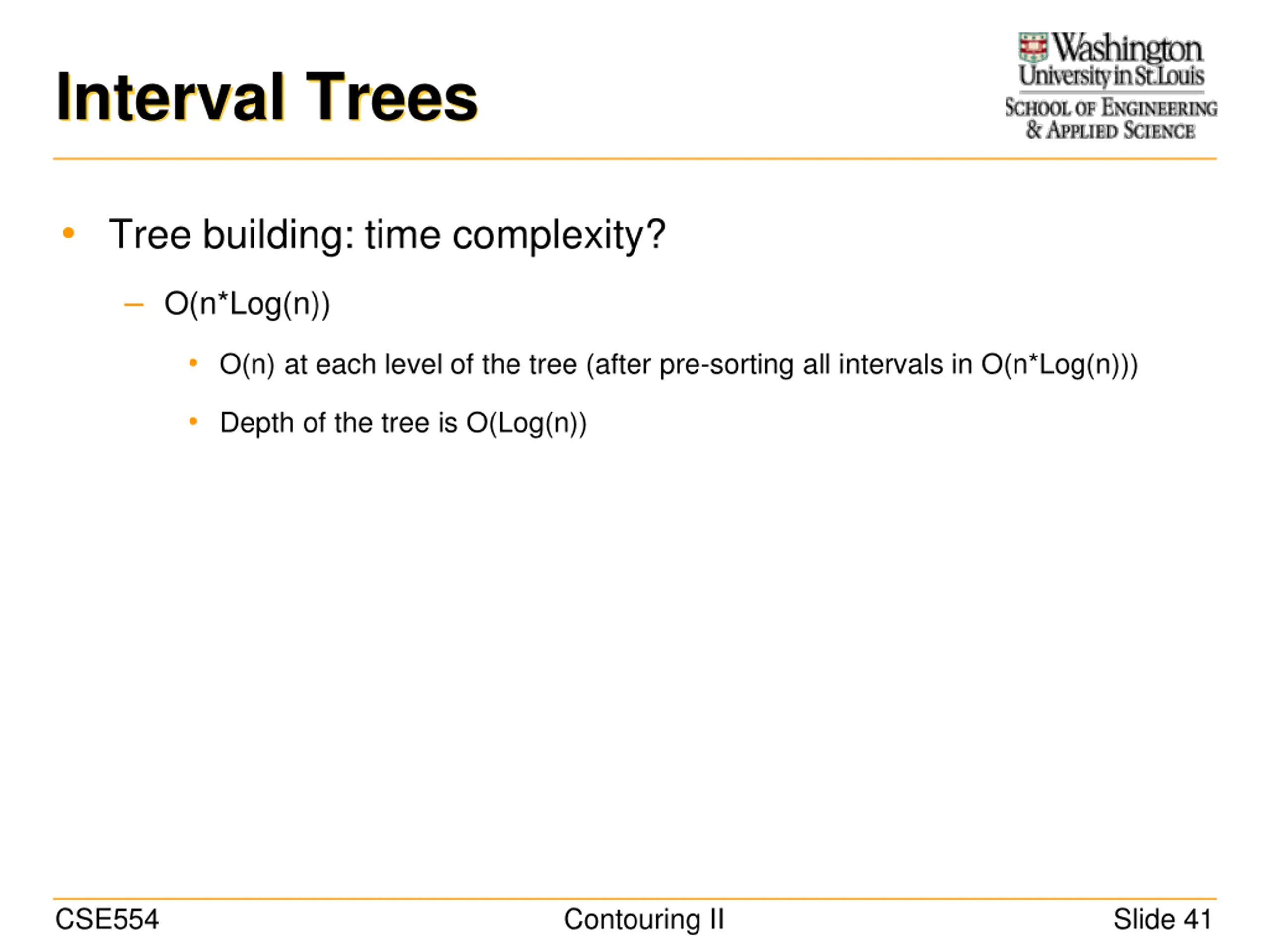

  41. Washington University in St. Louis, School of Engineering and Applied Science Interval Trees Tree building: time complexity? O(n*Log(n)) O(n) at each level of the tree (after pre-sorting all intervals in O(n*Log(n))) Depth of the tree is O(Log(n)) CSE554 Contouring II Slide 41

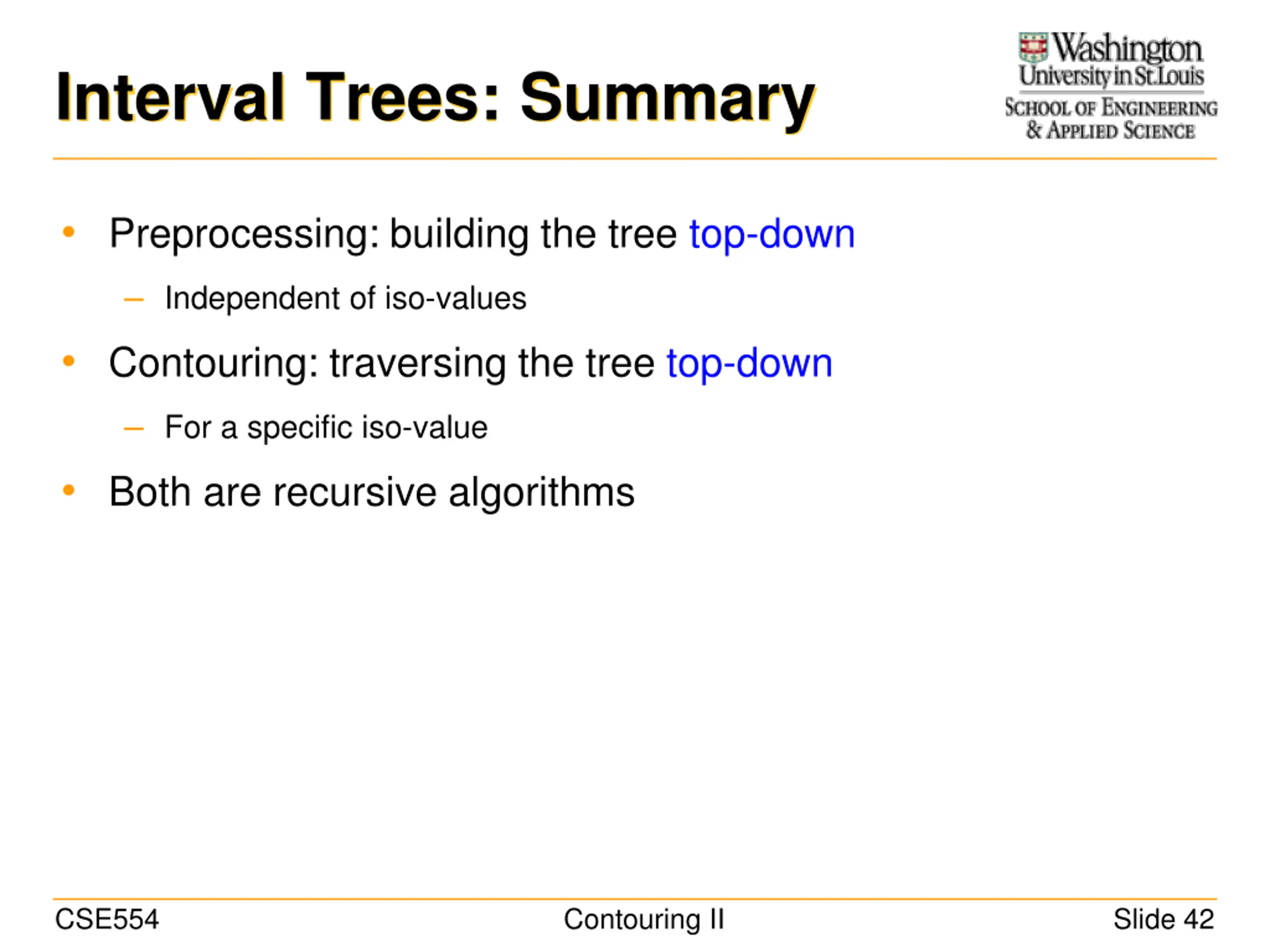

  42. Washington University in St. Louis, School of Engineering and Applied Science Interval Trees: Summary Preprocessing: building the tree top-down Independent of iso-values Contouring: traversing the tree top-down For a specific iso-value Both are recursive algorithms CSE554 Contouring II Slide 42

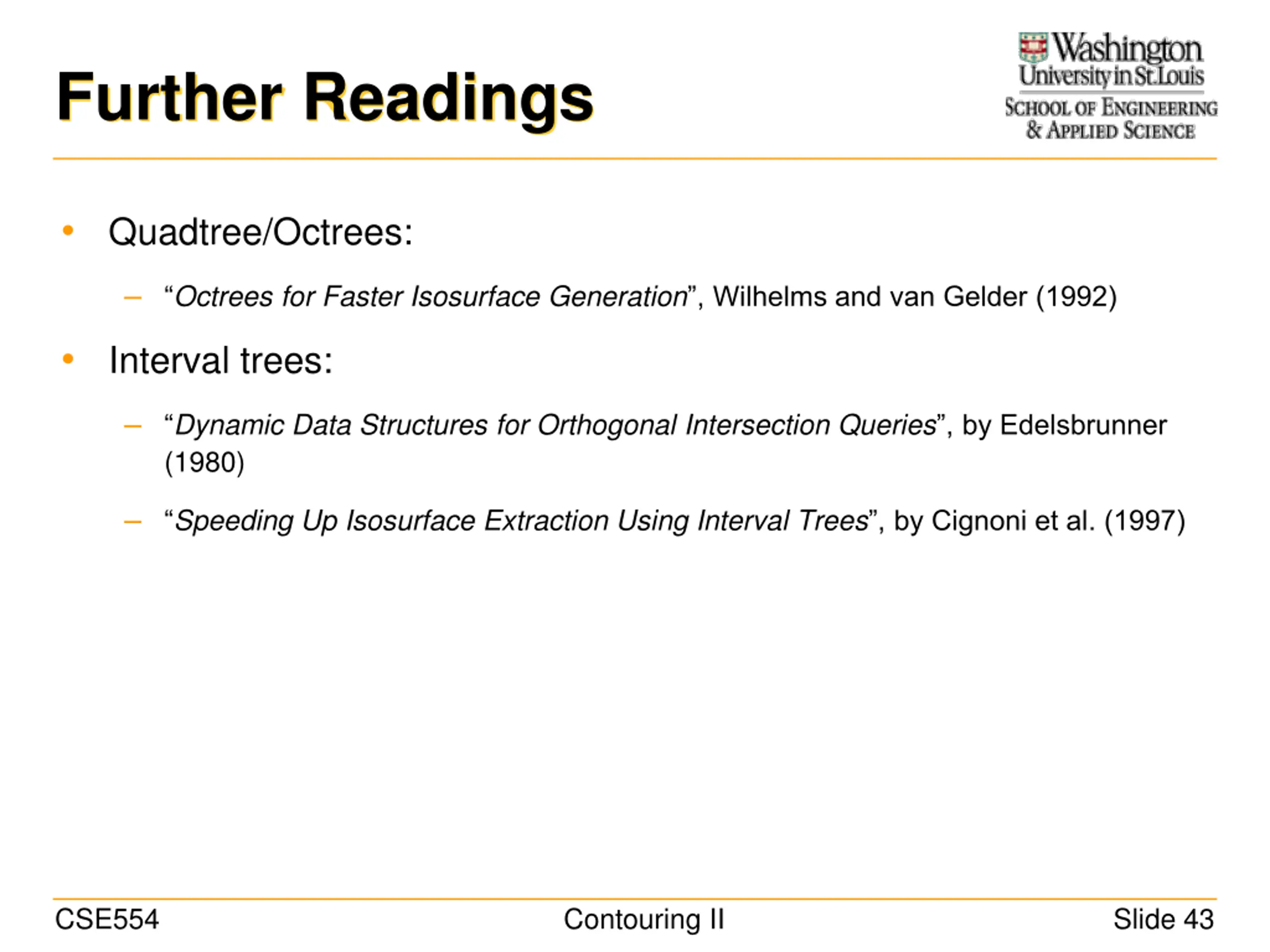

  43. Washington University in St. Louis, School of Engineering and Applied Science Further Readings Quadtree/Octrees: Octrees for Faster Isosurface Generation , Wilhelms and van Gelder (1992) Interval trees: Dynamic Data Structures for Orthogonal Intersection Queries , by Edelsbrunner (1980) Speeding Up Isosurface Extraction Using Interval Trees , by Cignoni et al. (1997) CSE554 Contouring II Slide 43

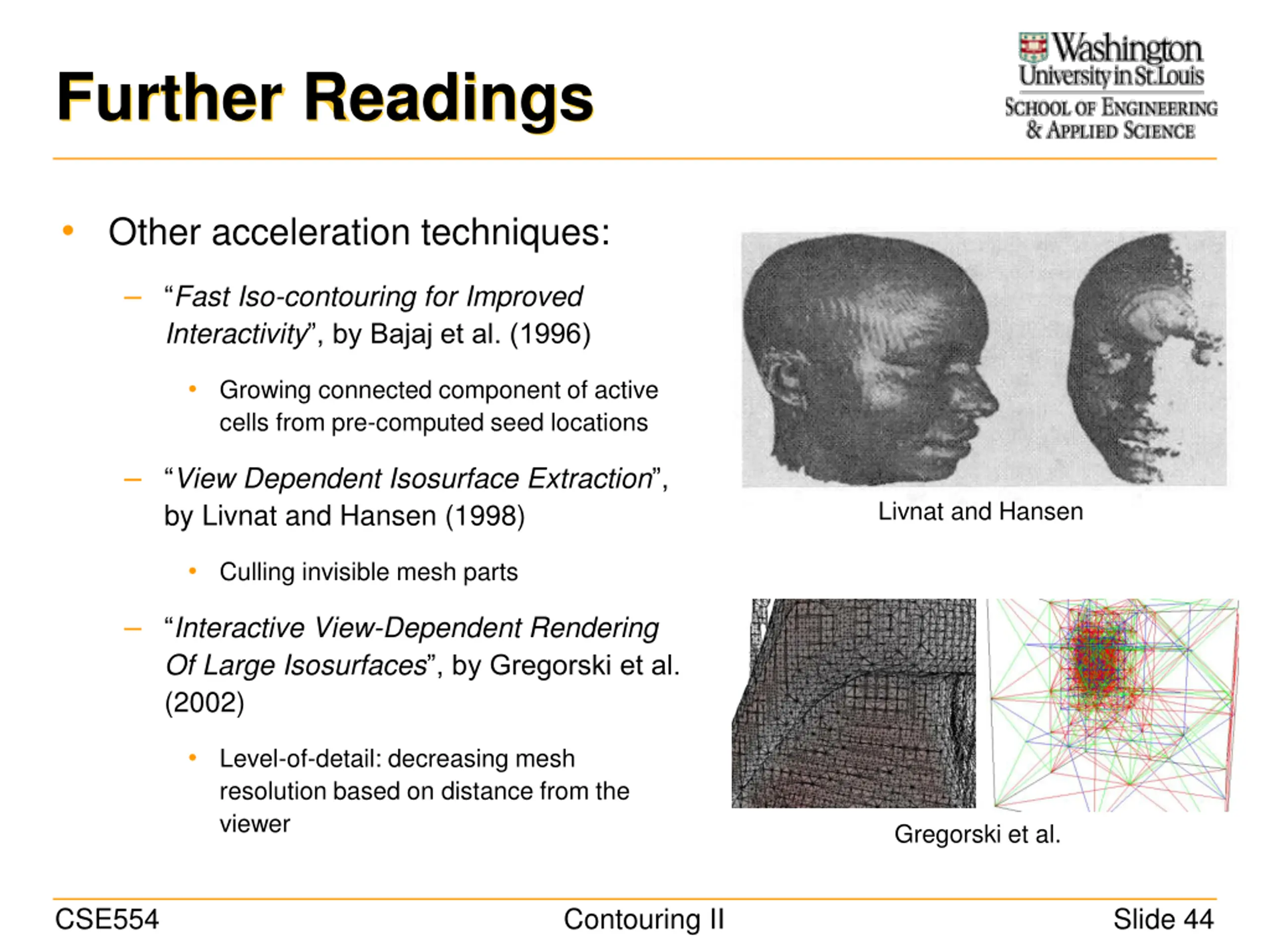

  44. Washington University in St. Louis, School of Engineering and Applied Science Further Readings Other acceleration techniques: Fast Iso-contouring for Improved Interactivity , by Bajaj et al. (1996) Growing connected component of active cells from pre-computed seed locations View Dependent Isosurface Extraction , by Livnat and Hansen (1998) Livnat and Hansen Culling invisible mesh parts Interactive View-Dependent Rendering Of Large Isosurfaces , by Gregorski et al. (2002) Level-of-detail: decreasing mesh resolution based on distance from the viewer Gregorski et al. CSE554 Contouring II Slide 44
