Efficient Heterogeneous Computing with DCompute Compiler

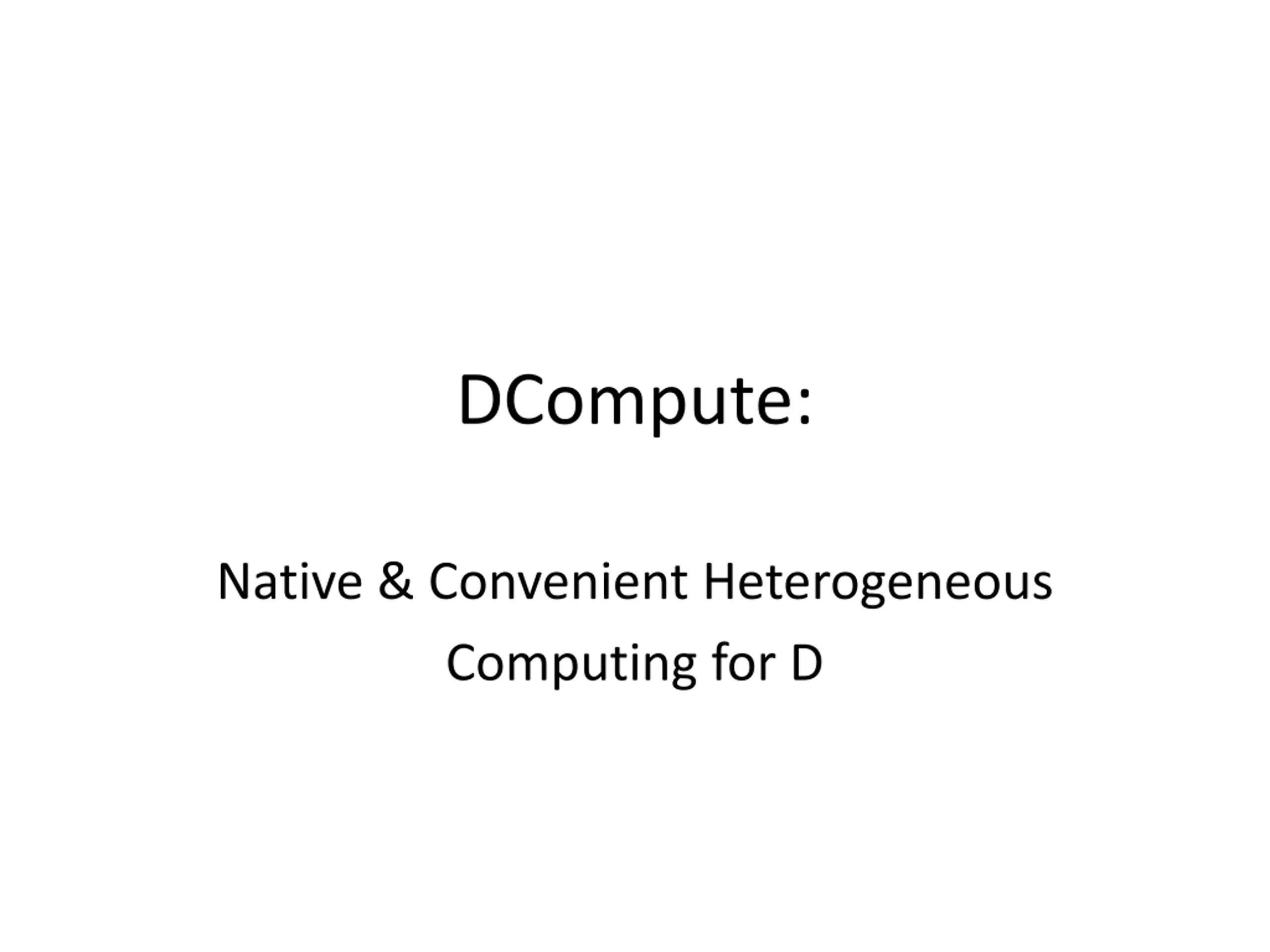

DCompute: Native & Convenient Heterogeneous Computing for D

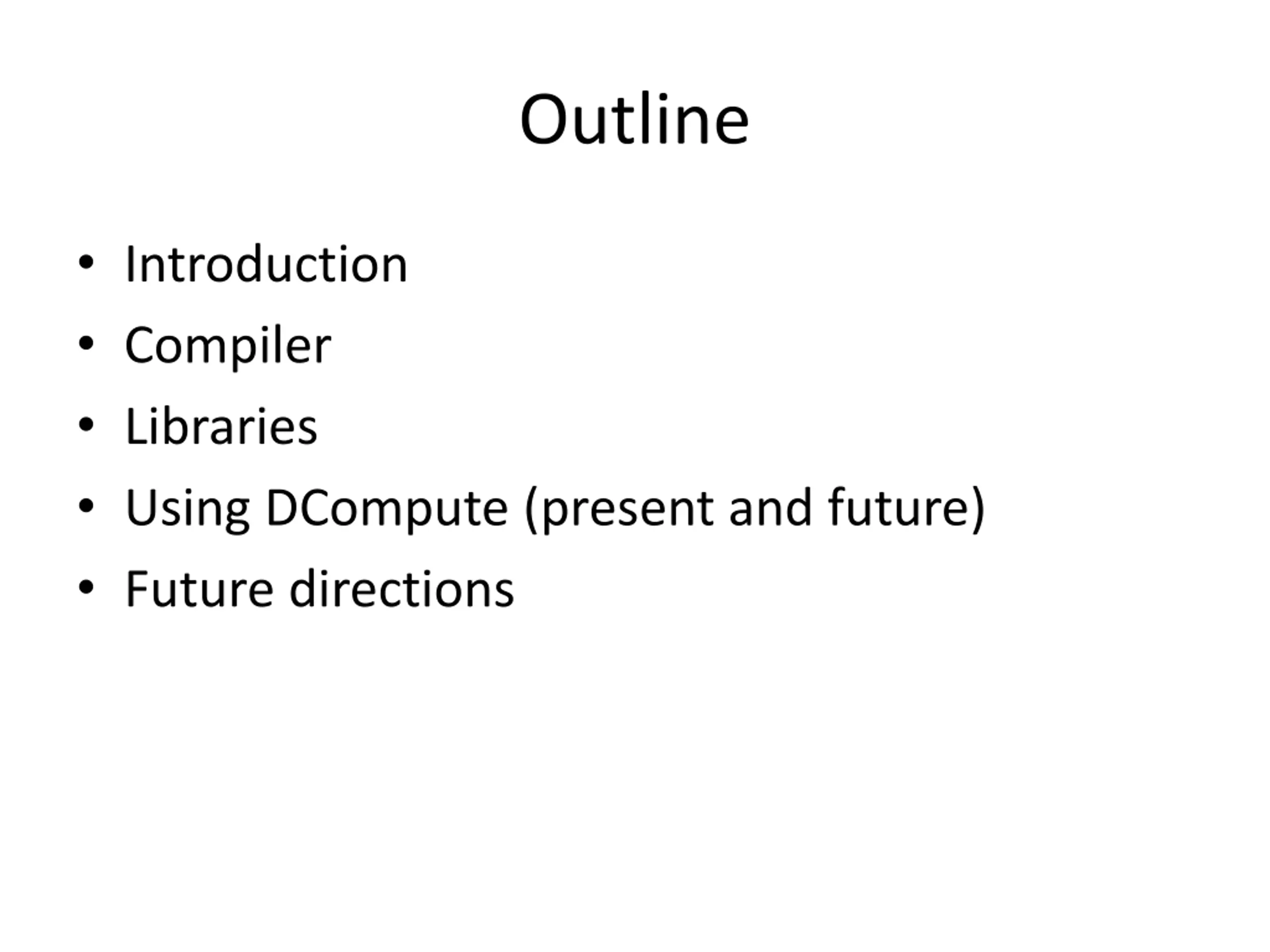

Outline Introduction Compiler Libraries Using DCompute (present and future) Future directions

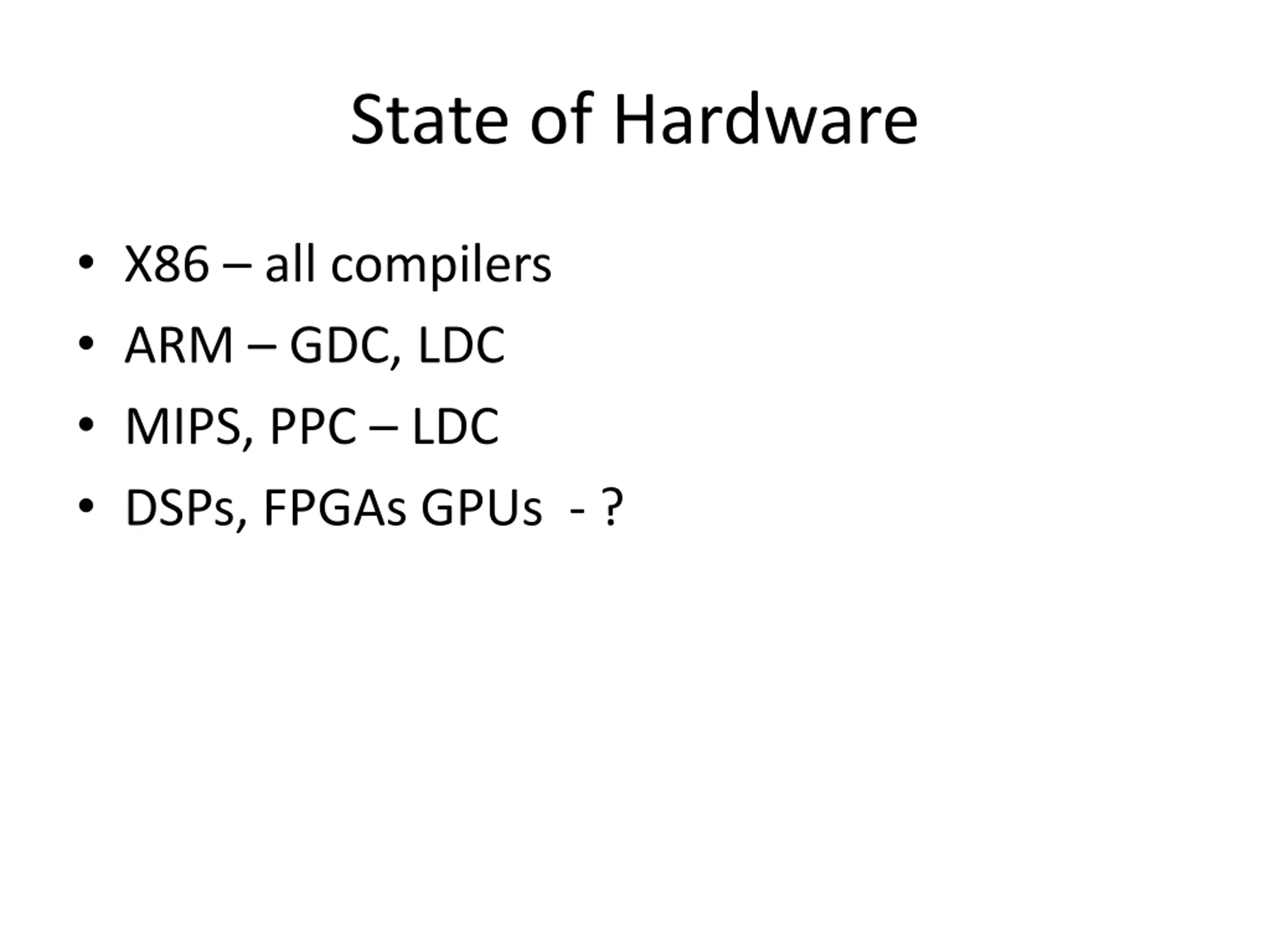

State of Hardware X86 all compilers ARM GDC, LDC MIPS, PPC LDC DSPs, FPGAs GPUs - ?

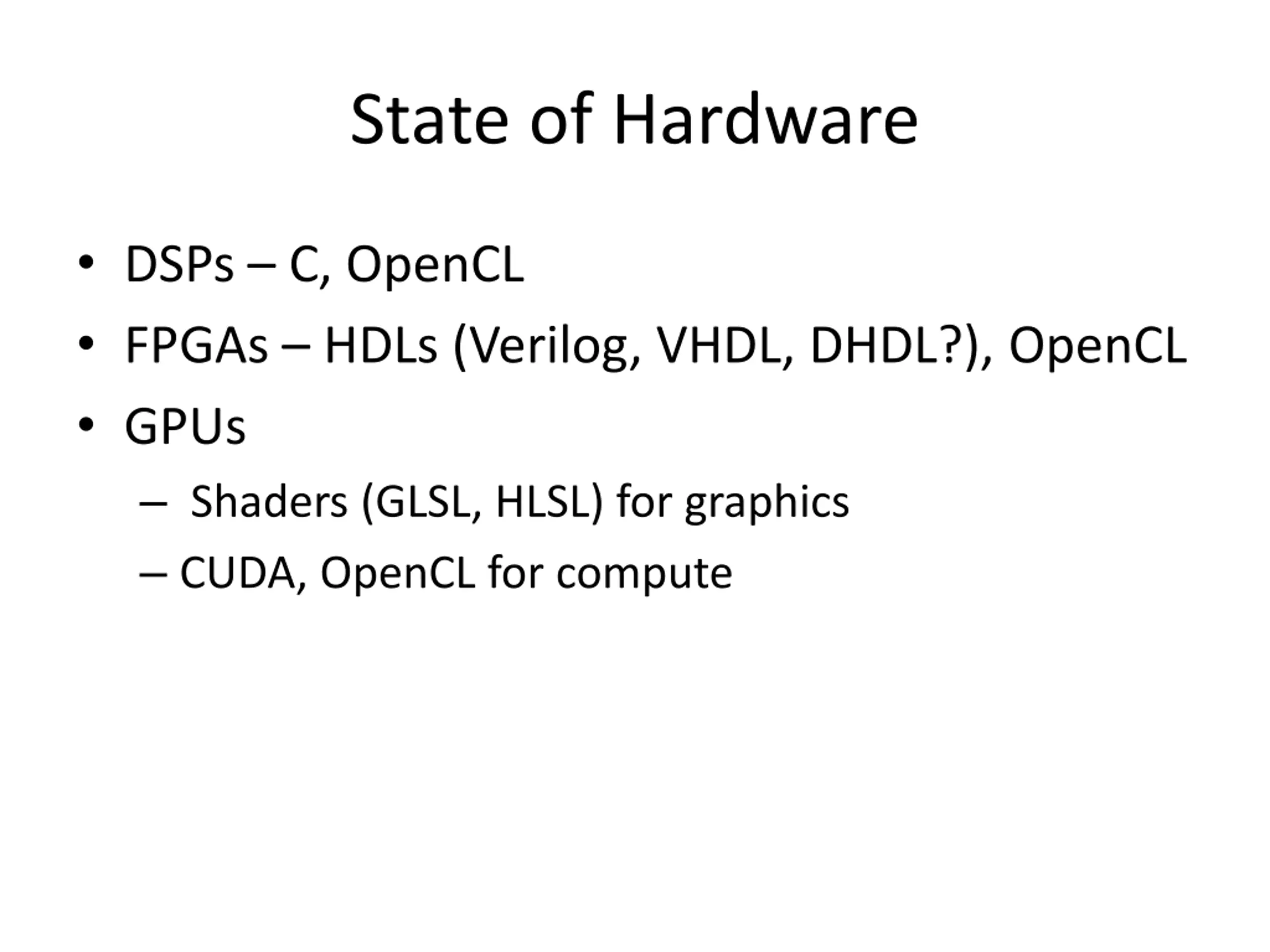

State of Hardware DSPs C, OpenCL FPGAs HDLs (Verilog, VHDL, DHDL?), OpenCL GPUs Shaders (GLSL, HLSL) for graphics CUDA, OpenCL for compute

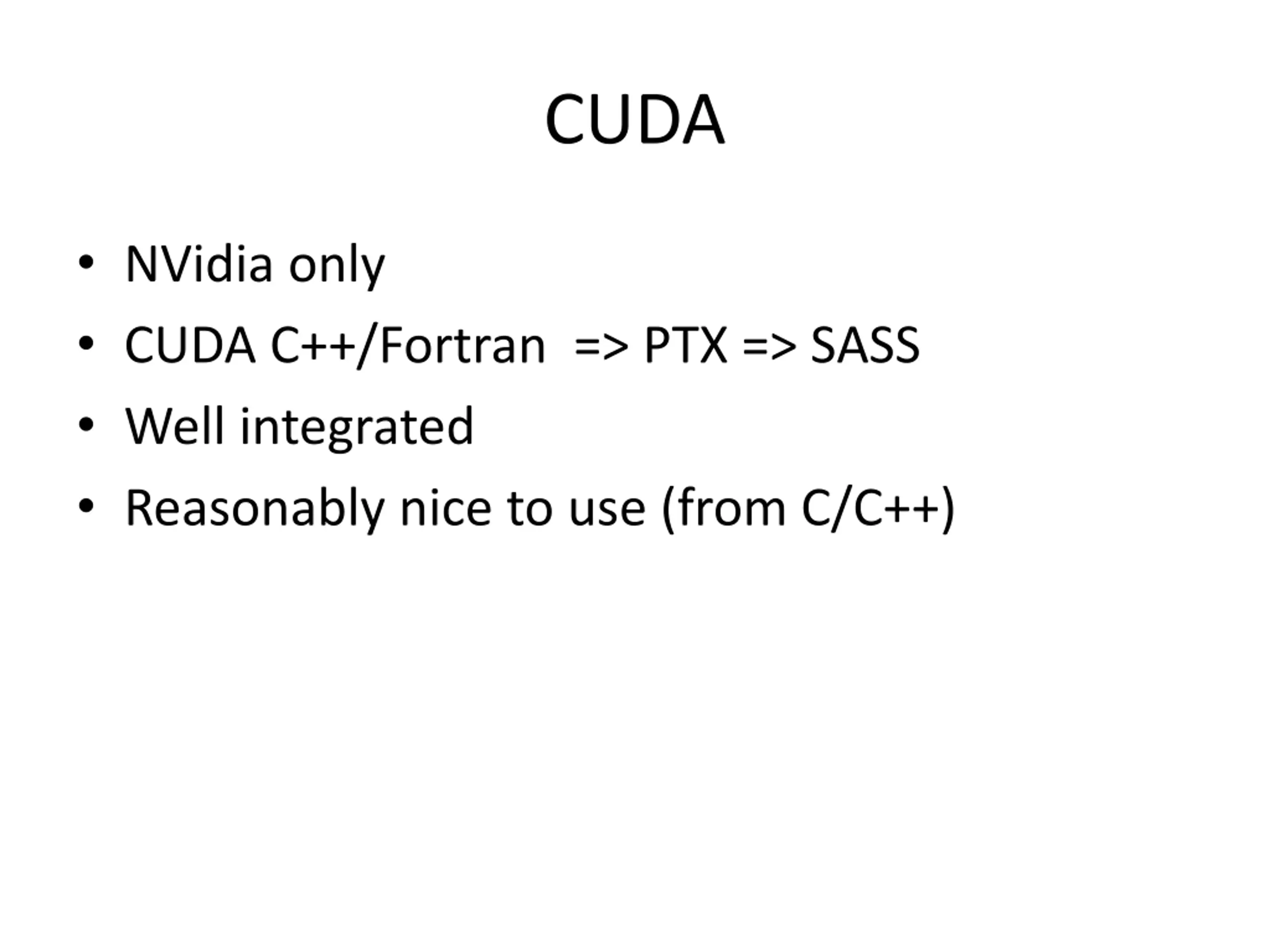

CUDA NVidia only CUDA C++/Fortran => PTX => SASS Well integrated Reasonably nice to use (from C/C++)

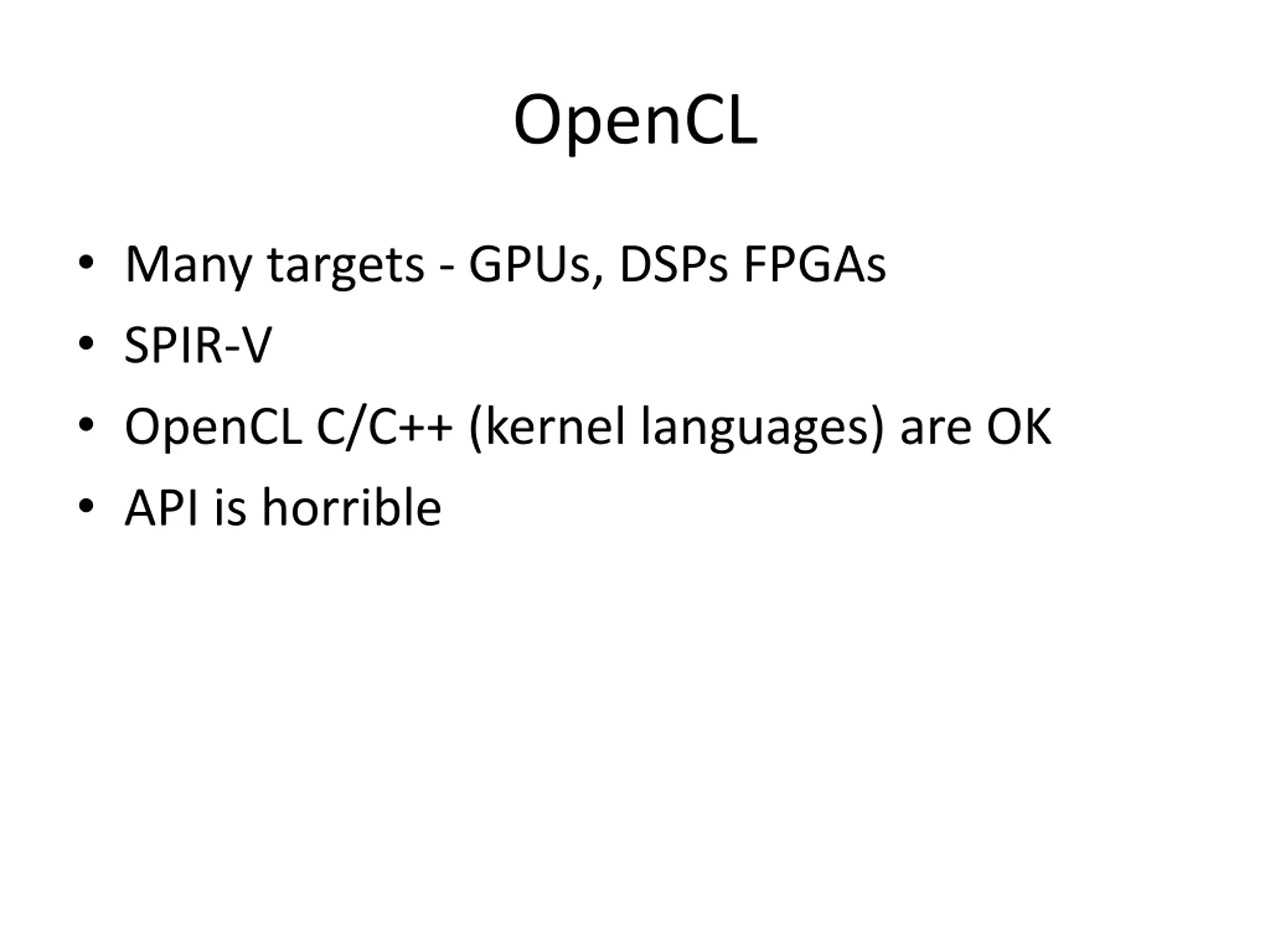

OpenCL Many targets - GPUs, DSPs FPGAs SPIR-V OpenCL C/C++ (kernel languages) are OK API is horrible

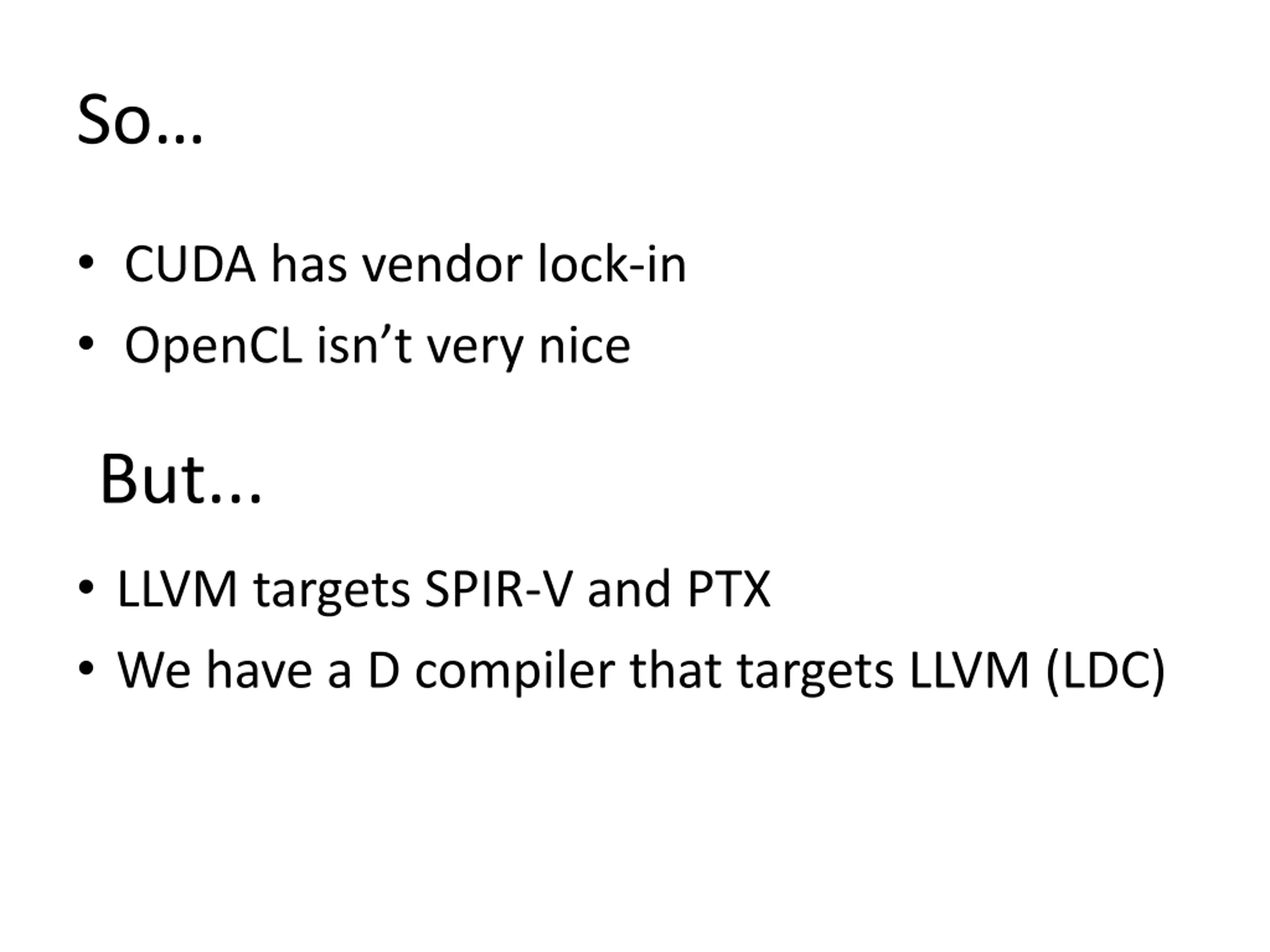

So CUDA has vendor lock-in OpenCL isn t very nice But... LLVM targets SPIR-V and PTX We have a D compiler that targets LLVM (LDC)

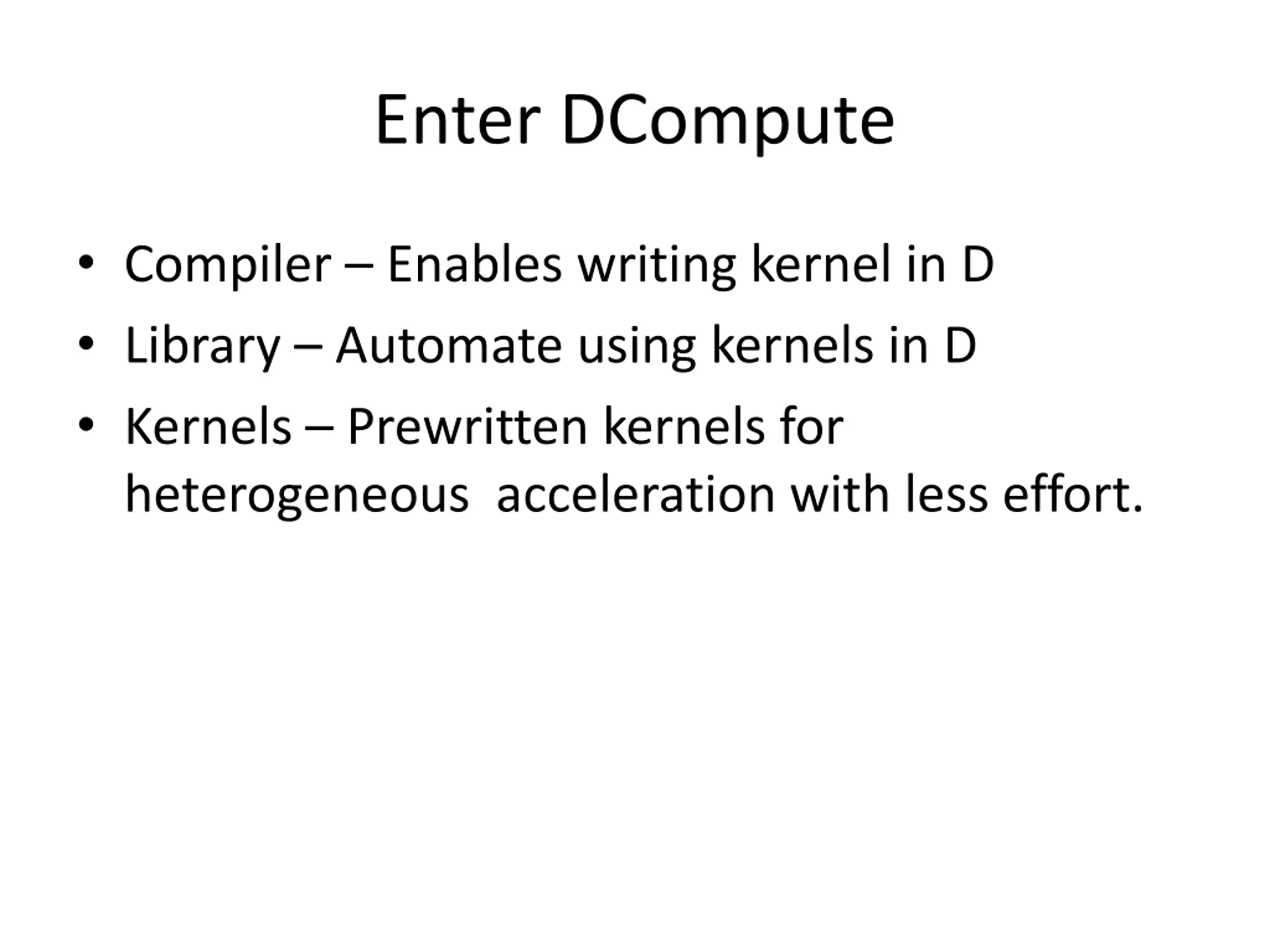

Enter DCompute Compiler Enables writing kernel in D Library Automate using kernels in D Kernels Prewritten kernels for heterogeneous acceleration with less effort.

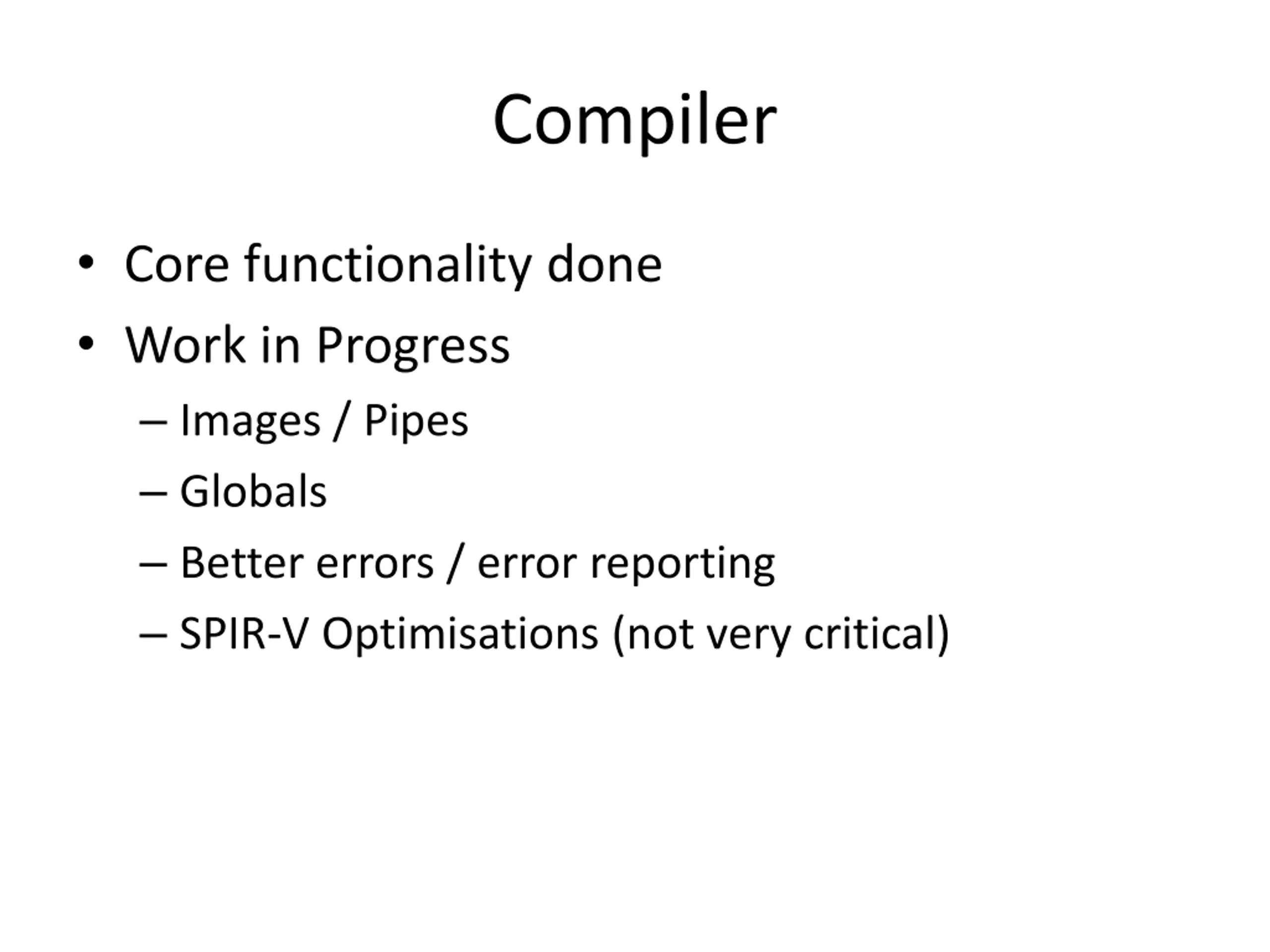

Compiler Core functionality done Work in Progress Images / Pipes Globals Better errors / error reporting SPIR-V Optimisations (not very critical)

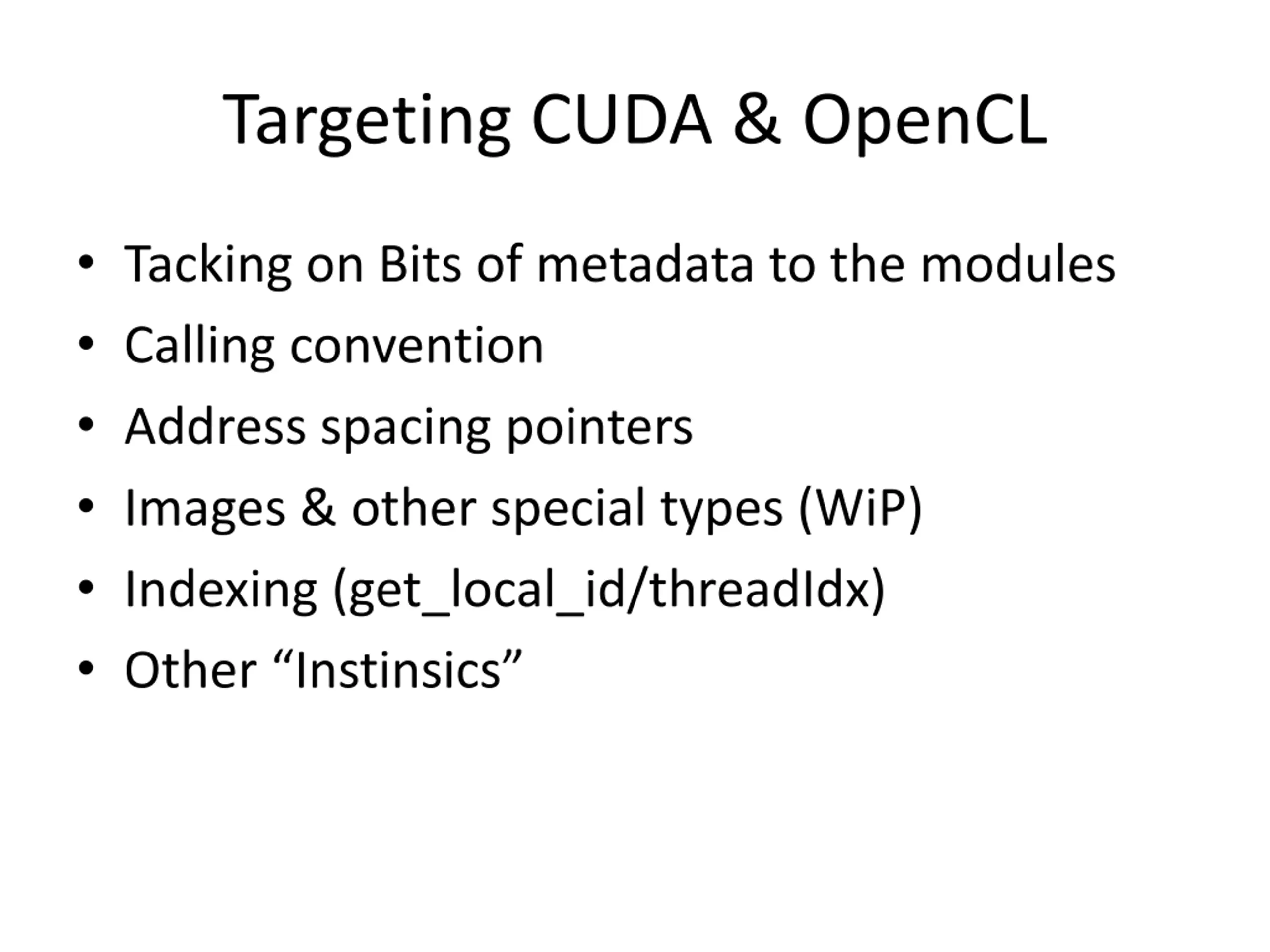

Targeting CUDA & OpenCL Tacking on Bits of metadata to the modules Calling convention Address spacing pointers Images & other special types (WiP) Indexing (get_local_id/threadIdx) Other Instinsics

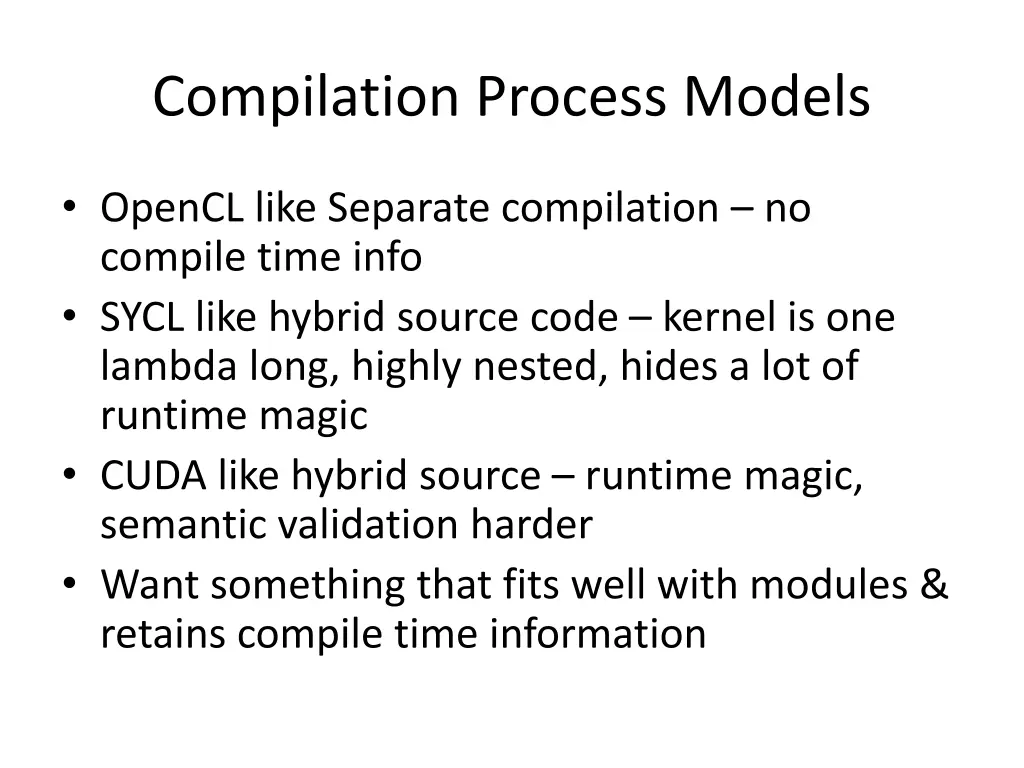

Compilation Process Models OpenCL like Separate compilation no compile time info SYCL like hybrid source code kernel is one lambda long, highly nested, hides a lot of runtime magic CUDA like hybrid source runtime magic, semantic validation harder Want something that fits well with modules & retains compile time information

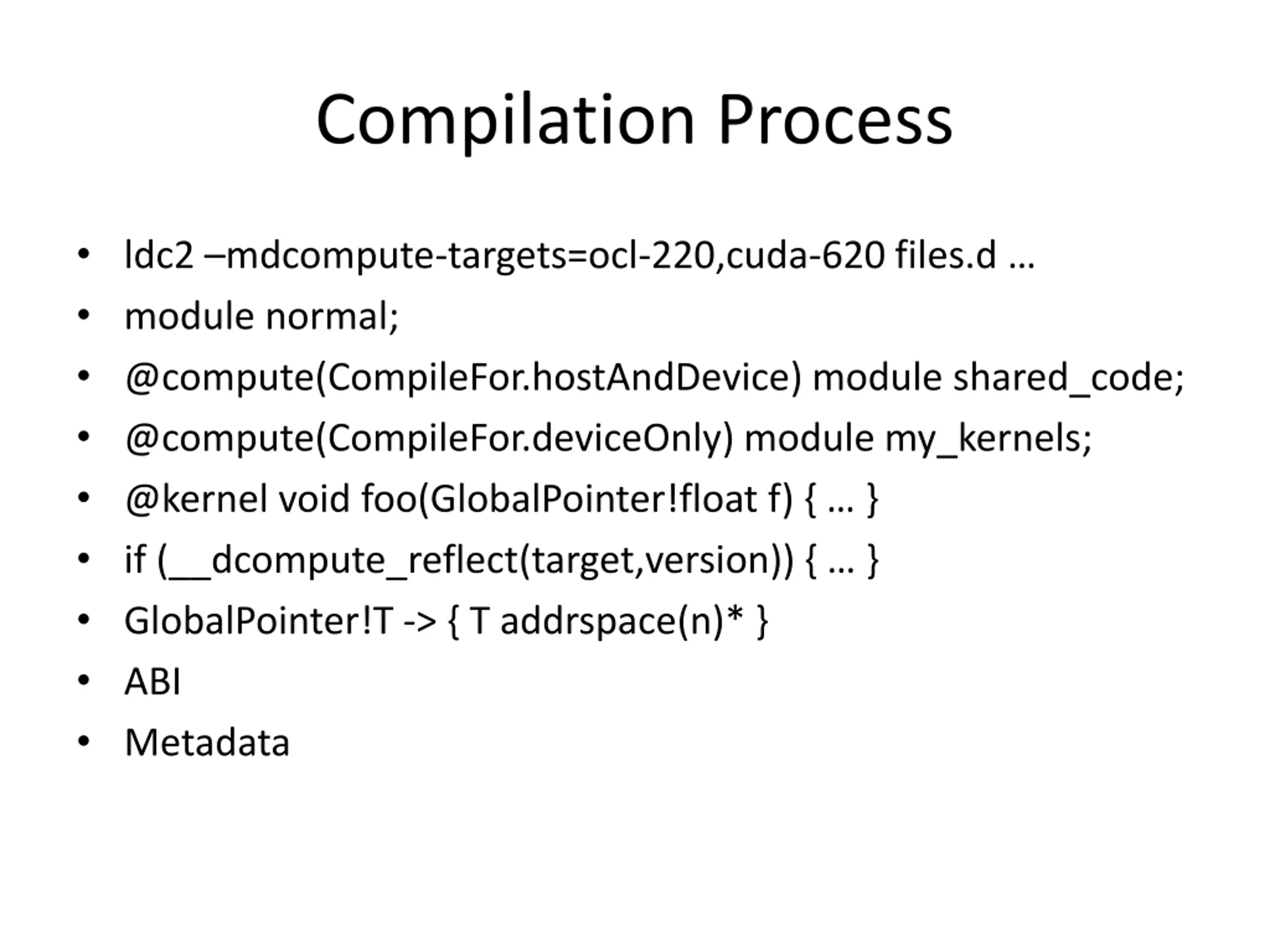

Compilation Process ldc2 mdcompute-targets=ocl-220,cuda-620 files.d module normal; @compute(CompileFor.hostAndDevice) module shared_code; @compute(CompileFor.deviceOnly) module my_kernels; @kernel void foo(GlobalPointer!float f) { } if (__dcompute_reflect(target,version)) { } GlobalPointer!T -> { T addrspace(n)* } ABI Metadata

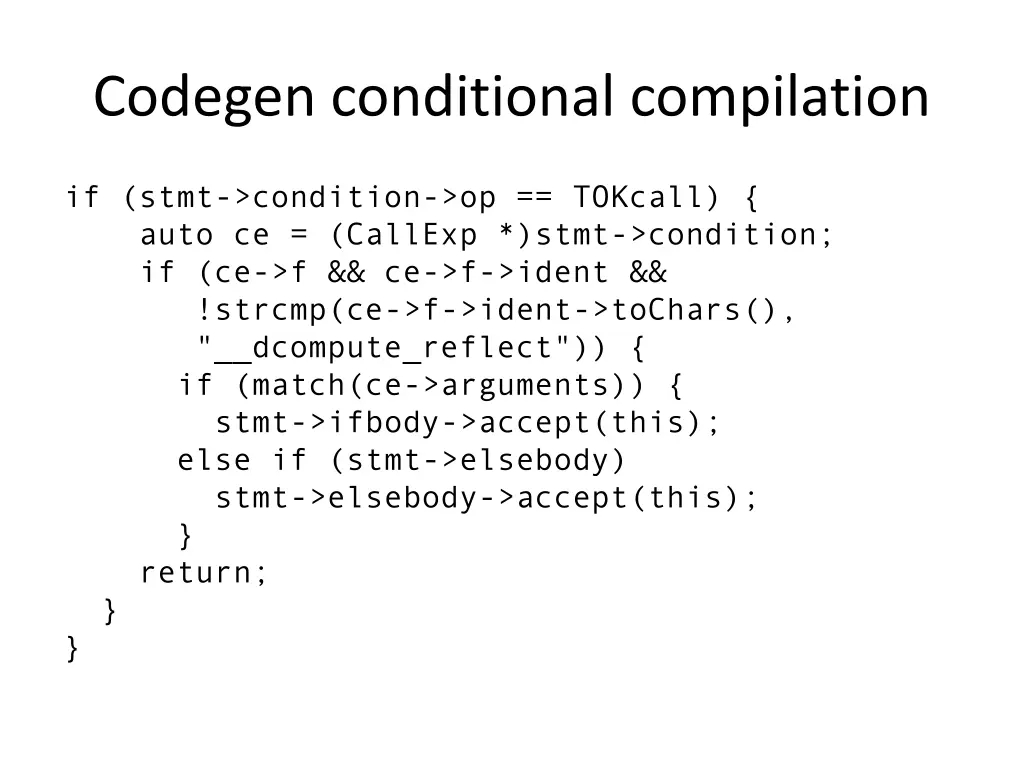

Codegen conditional compilation if (stmt->condition->op == TOKcall) { auto ce = (CallExp *)stmt->condition; if (ce->f && ce->f->ident && !strcmp(ce->f->ident->toChars(), "__dcompute_reflect")) { if (match(ce->arguments)) { stmt->ifbody->accept(this); else if (stmt->elsebody) stmt->elsebody->accept(this); } return; } }

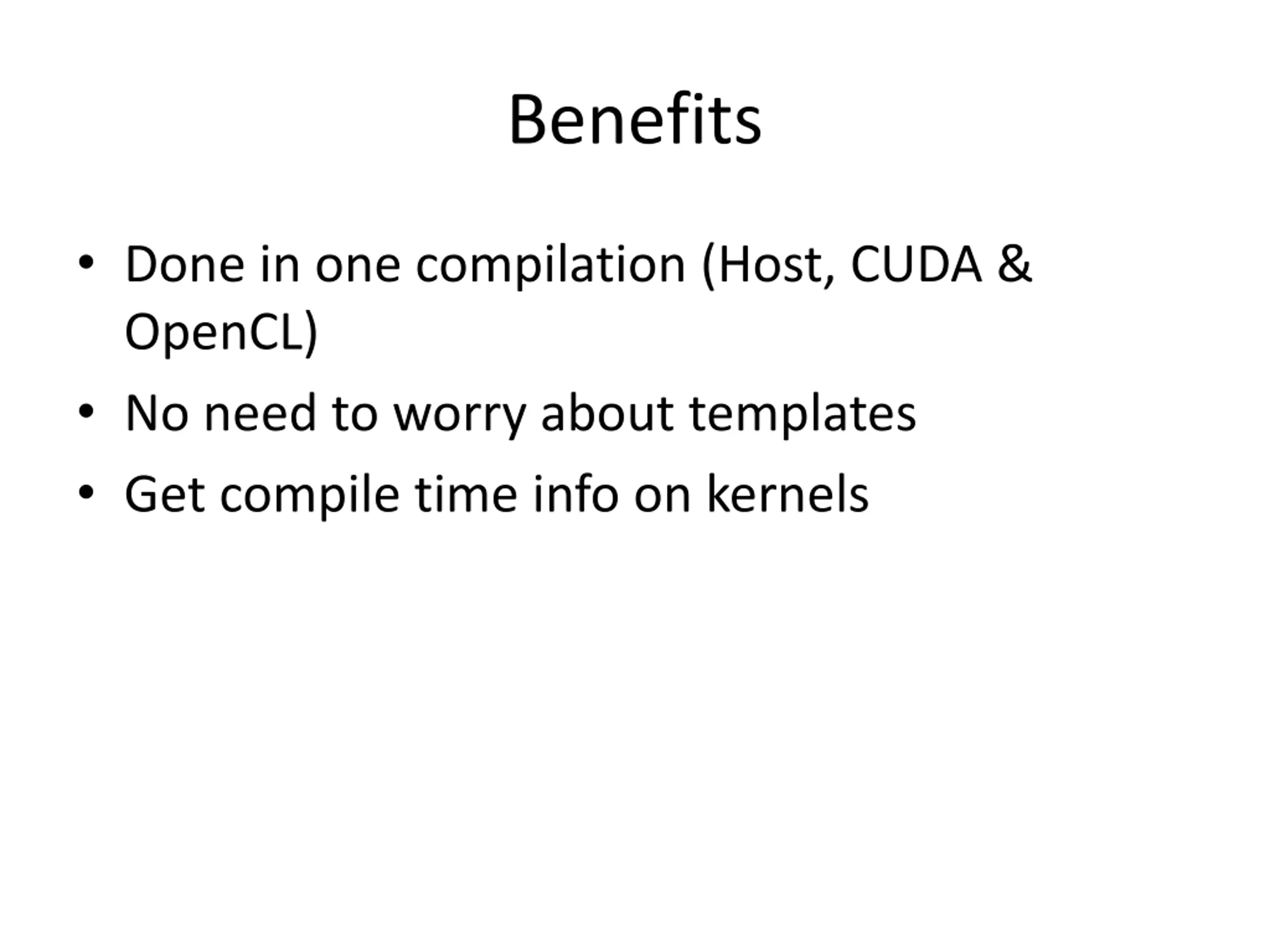

Benefits Done in one compilation (Host, CUDA & OpenCL) No need to worry about templates Get compile time info on kernels

DCompute Standard Library for compute operations For use with kernels Driver Abstraction over OpenCl and CUDA runtimes Handles Device and Host interactions Launching kernels Managing memory Standard collection of Kernels

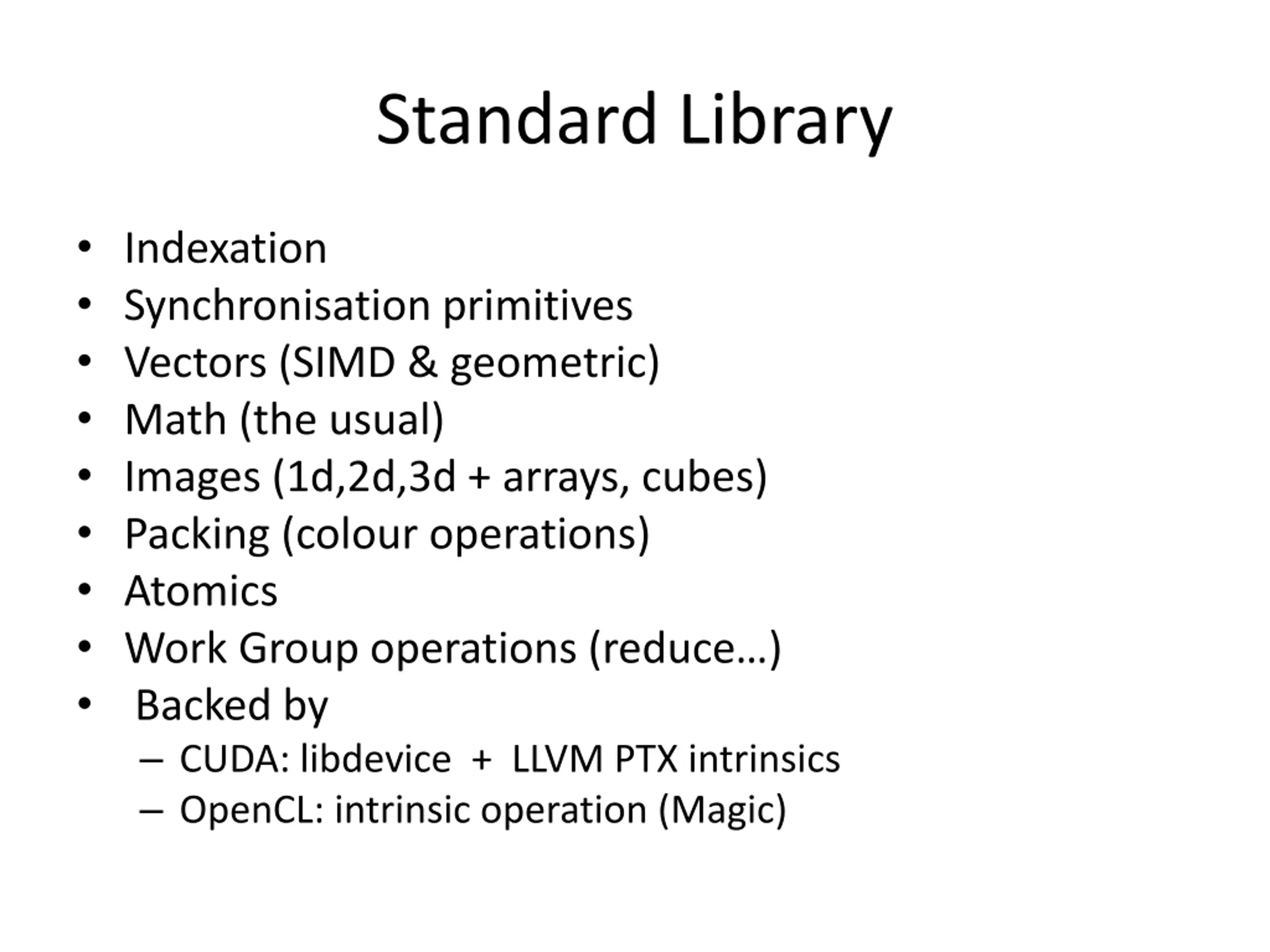

Standard Library Indexation Synchronisation primitives Vectors (SIMD & geometric) Math (the usual) Images (1d,2d,3d + arrays, cubes) Packing (colour operations) Atomics Work Group operations (reduce ) Backed by CUDA: libdevice + LLVM PTX intrinsics OpenCL: intrinsic operation (Magic)

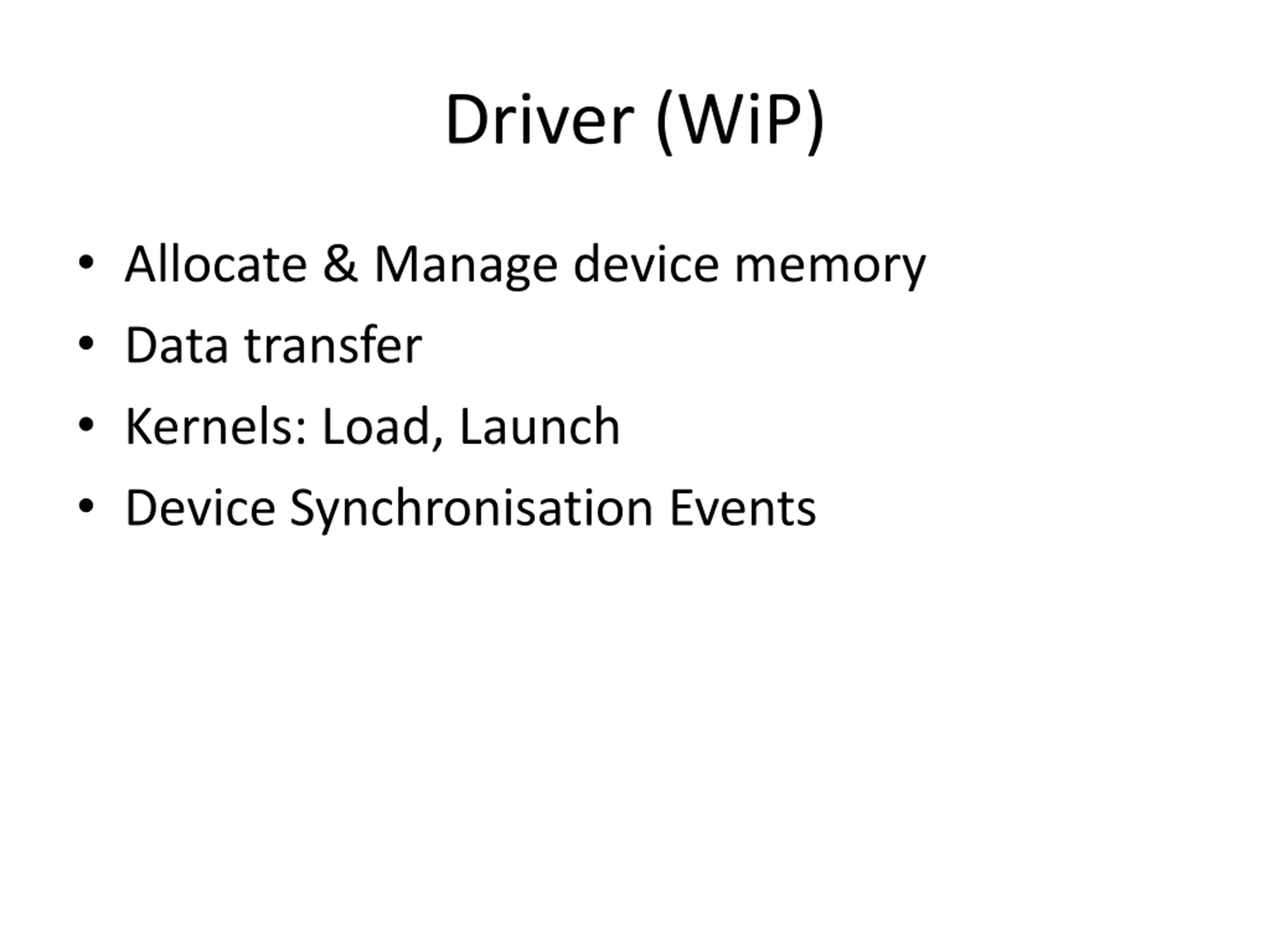

Driver (WiP) Allocate & Manage device memory Data transfer Kernels: Load, Launch Device Synchronisation Events

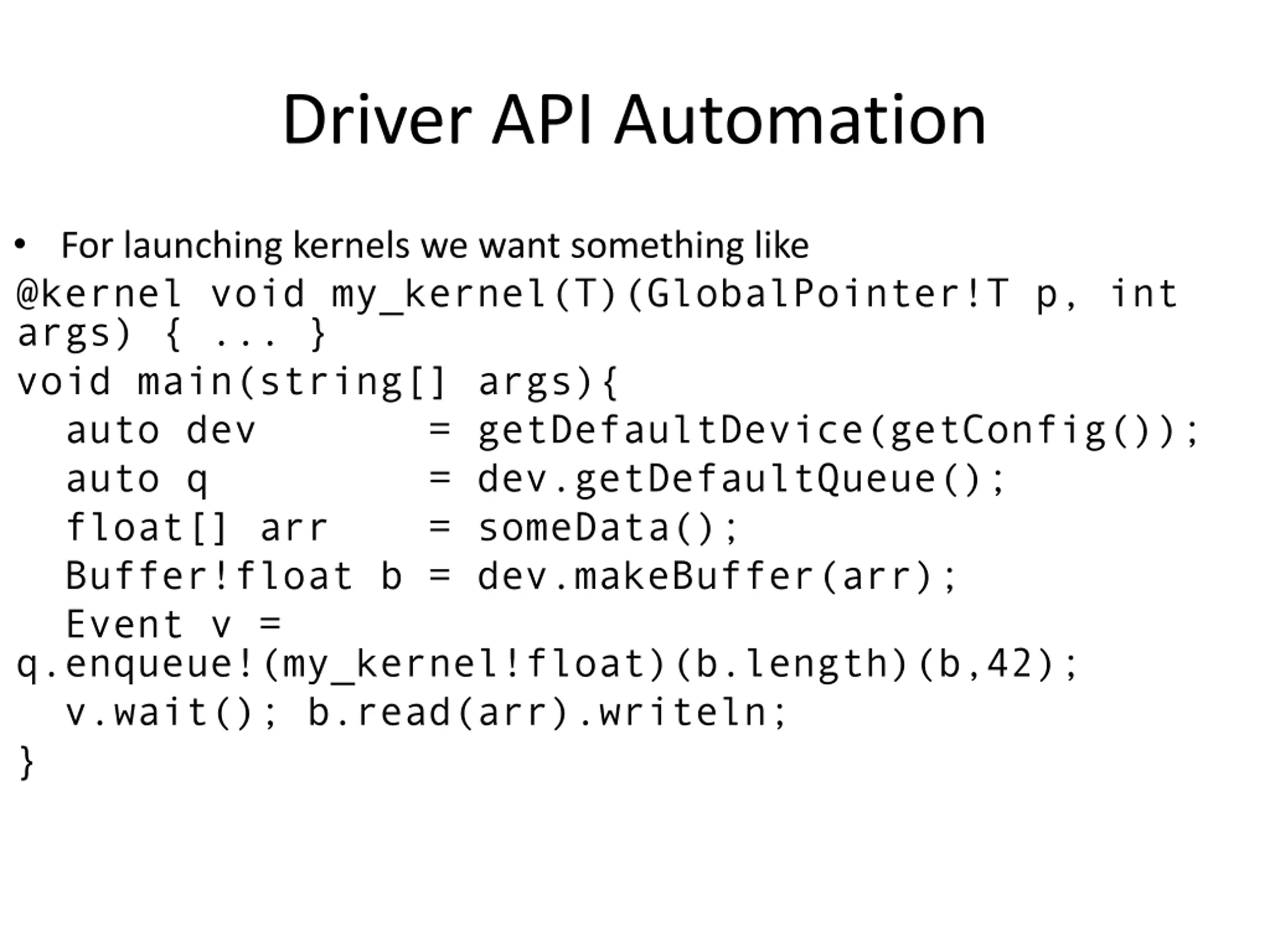

Driver API Automation For launching kernels we want something like @kernel void my_kernel(T)(GlobalPointer!T p, int args) { ... } void main(string[] args){ auto dev = getDefaultDevice(getConfig()); auto q = dev.getDefaultQueue(); float[] arr = someData(); Buffer!float b = dev.makeBuffer(arr); Event v = q.enqueue!(my_kernel!float)(b.length)(b,42); v.wait(); b.read(arr).writeln; }

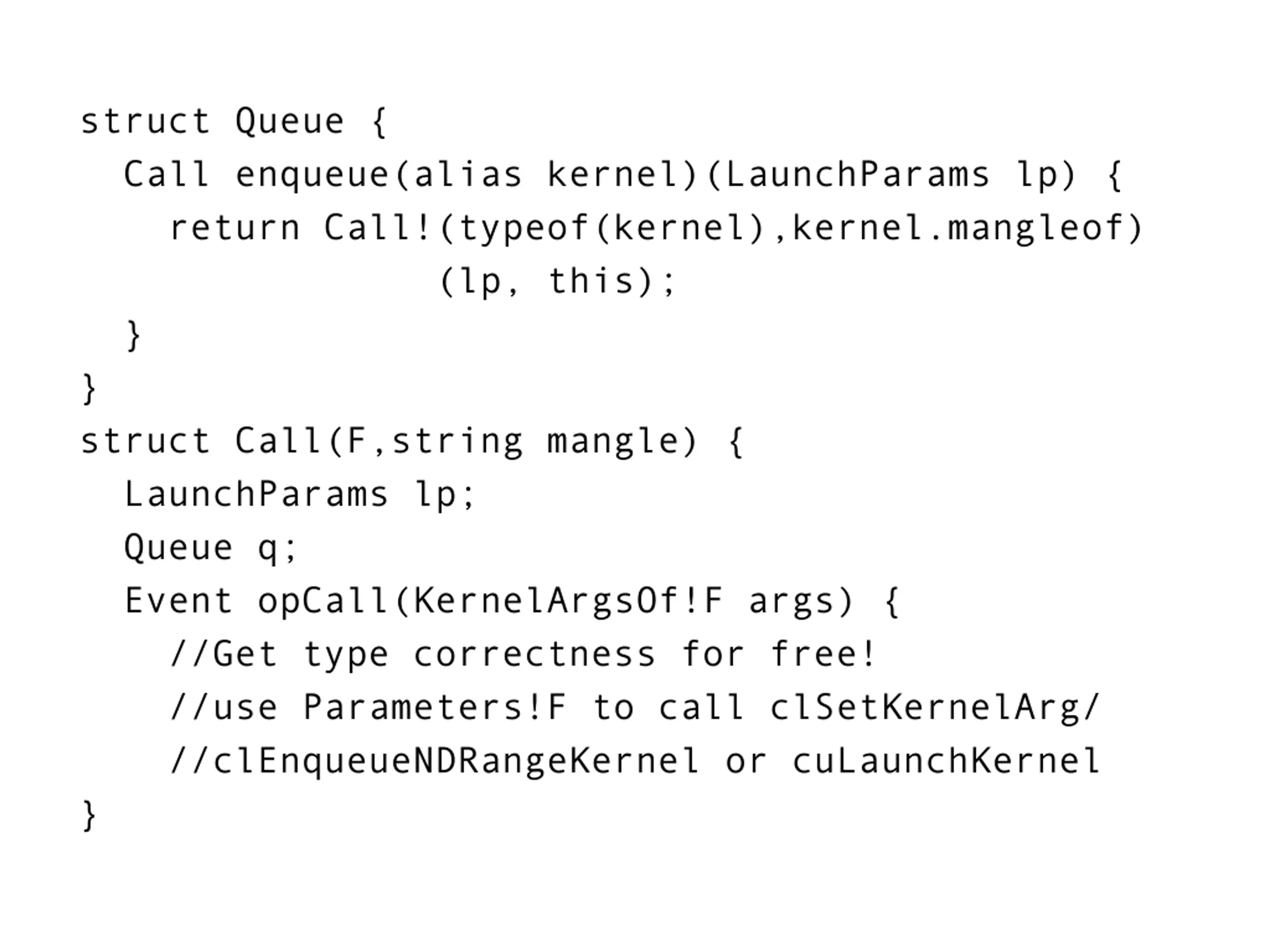

struct Queue { Call enqueue(alias kernel)(LaunchParams lp) { return Call!(typeof(kernel),kernel.mangleof) (lp, this); } } struct Call(F,string mangle) { LaunchParams lp; Queue q; Event opCall(KernelArgsOf!F args) { //Get type correctness for free! //use Parameters!F to call clSetKernelArg/ //clEnqueueNDRangeKernel or cuLaunchKernel }

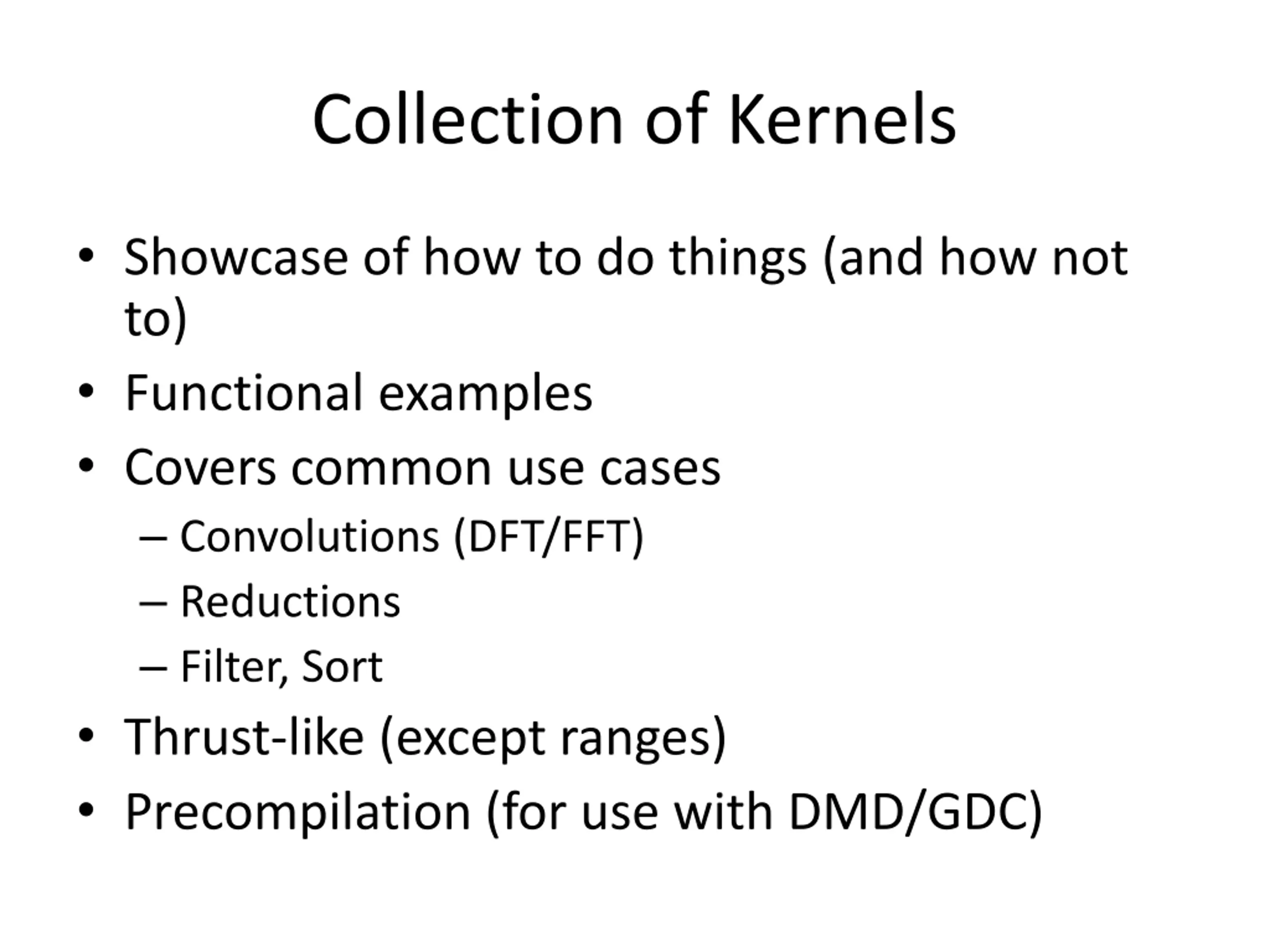

Collection of Kernels Showcase of how to do things (and how not to) Functional examples Covers common use cases Convolutions (DFT/FFT) Reductions Filter, Sort Thrust-like (except ranges) Precompilation (for use with DMD/GDC)

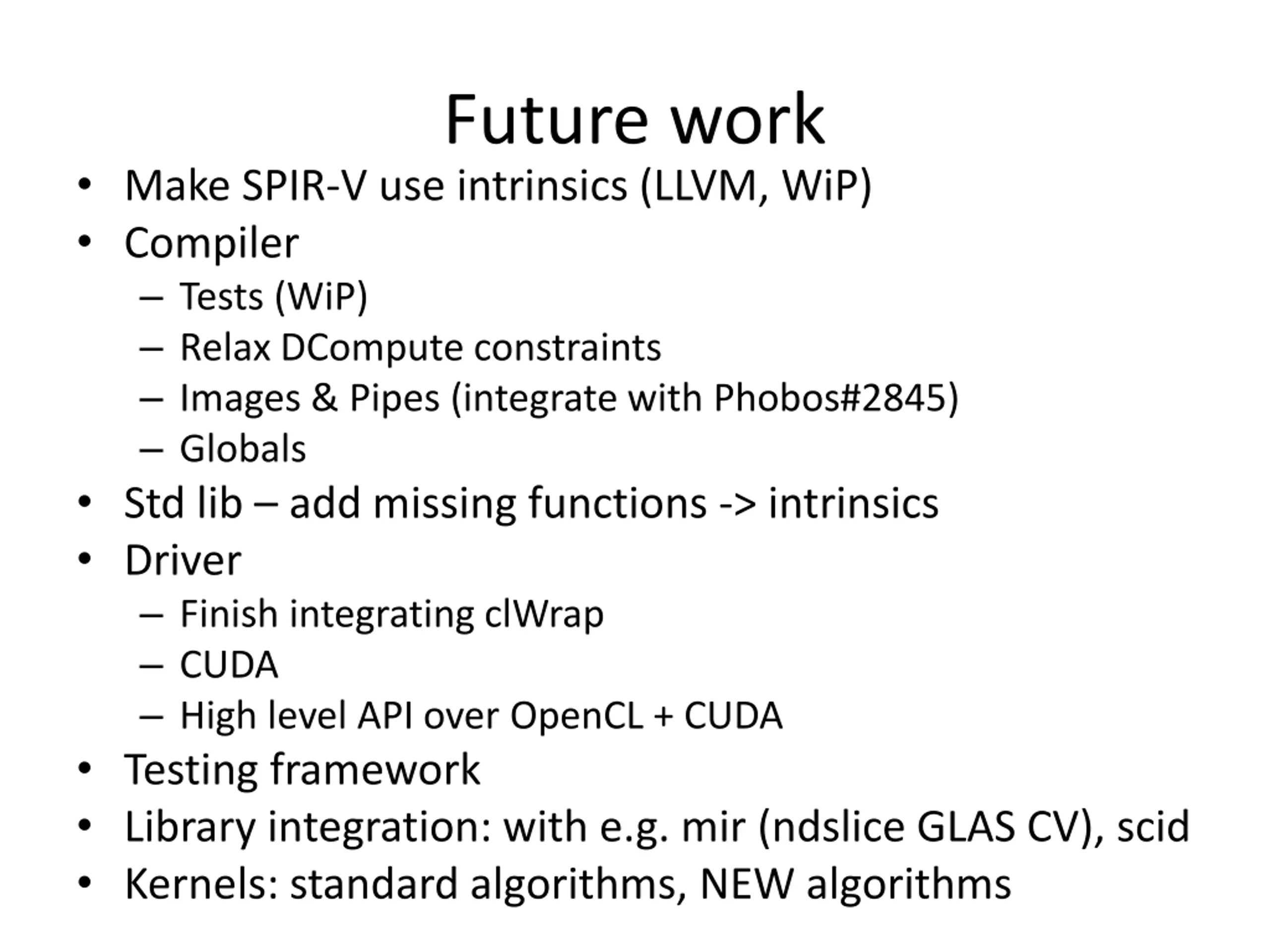

Future work Make SPIR-V use intrinsics (LLVM, WiP) Compiler Tests (WiP) Relax DCompute constraints Images & Pipes (integrate with Phobos#2845) Globals Std lib add missing functions -> intrinsics Driver Finish integrating clWrap CUDA High level API over OpenCL + CUDA Testing framework Library integration: with e.g. mir (ndslice GLAS CV), scid Kernels: standard algorithms, NEW algorithms

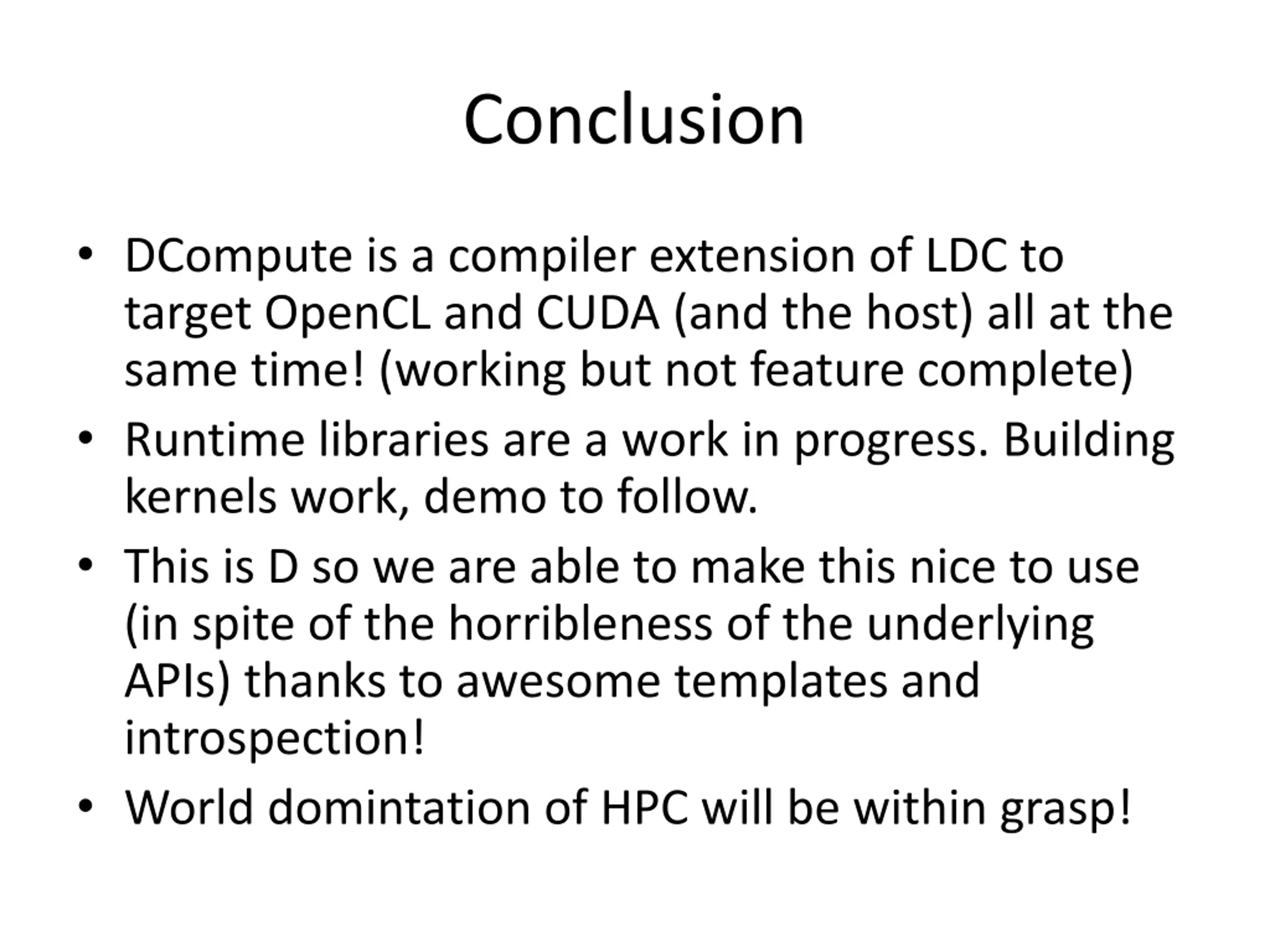

Conclusion DCompute is a compiler extension of LDC to target OpenCL and CUDA (and the host) all at the same time! (working but not feature complete) Runtime libraries are a work in progress. Building kernels work, demo to follow. This is D so we are able to make this nice to use (in spite of the horribleness of the underlying APIs) thanks to awesome templates and introspection! World domintation of HPC will be within grasp!

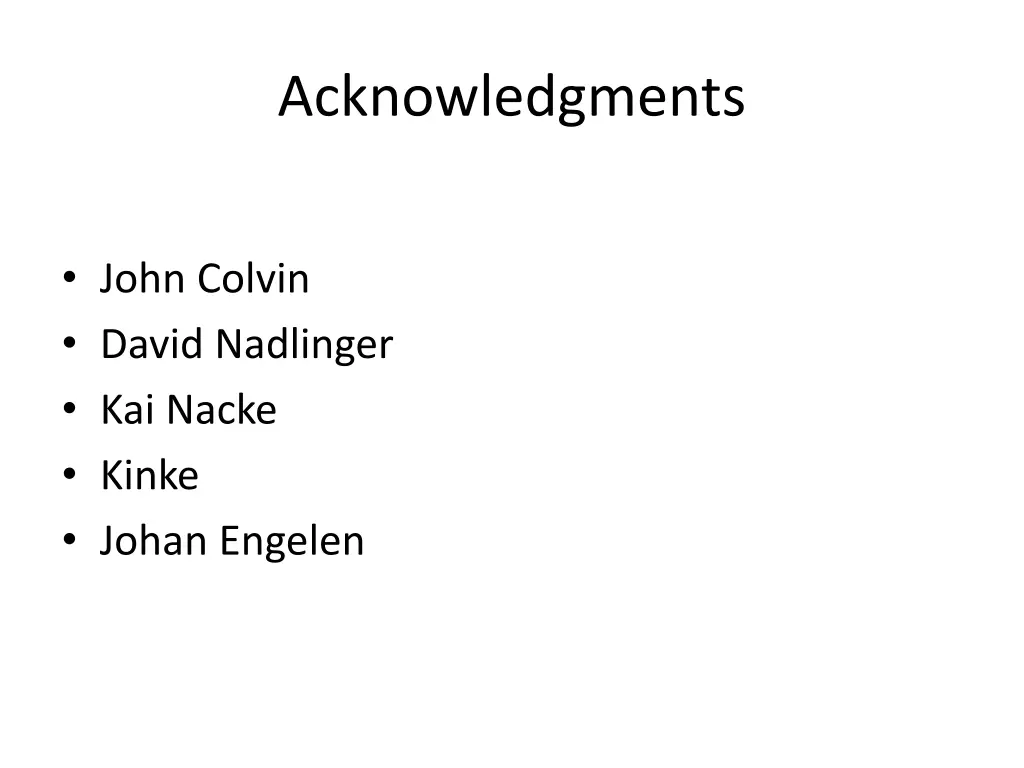

Acknowledgments John Colvin David Nadlinger Kai Nacke Kinke Johan Engelen

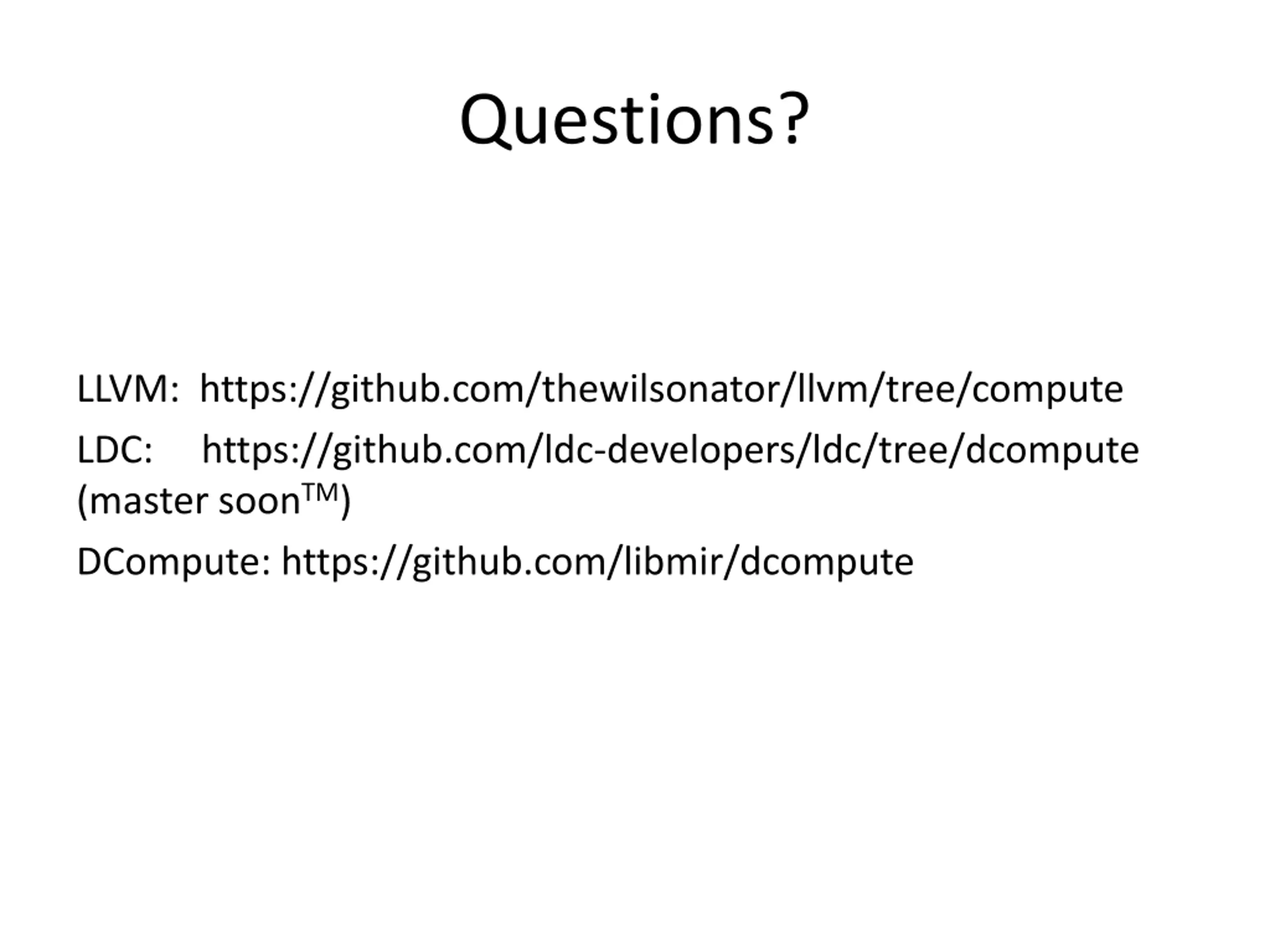

Questions? LLVM: https://github.com/thewilsonator/llvm/tree/compute LDC: https://github.com/ldc-developers/ldc/tree/dcompute (master soonTM) DCompute: https://github.com/libmir/dcompute
