Electret and Condenser Microphones
Learn about the differences between electret and condenser microphones, how they work, their applications, and the role of electrets in microphone construction. Electrets are dielectrics with permanent electric dipole moments used in various microphone types for different purposes.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

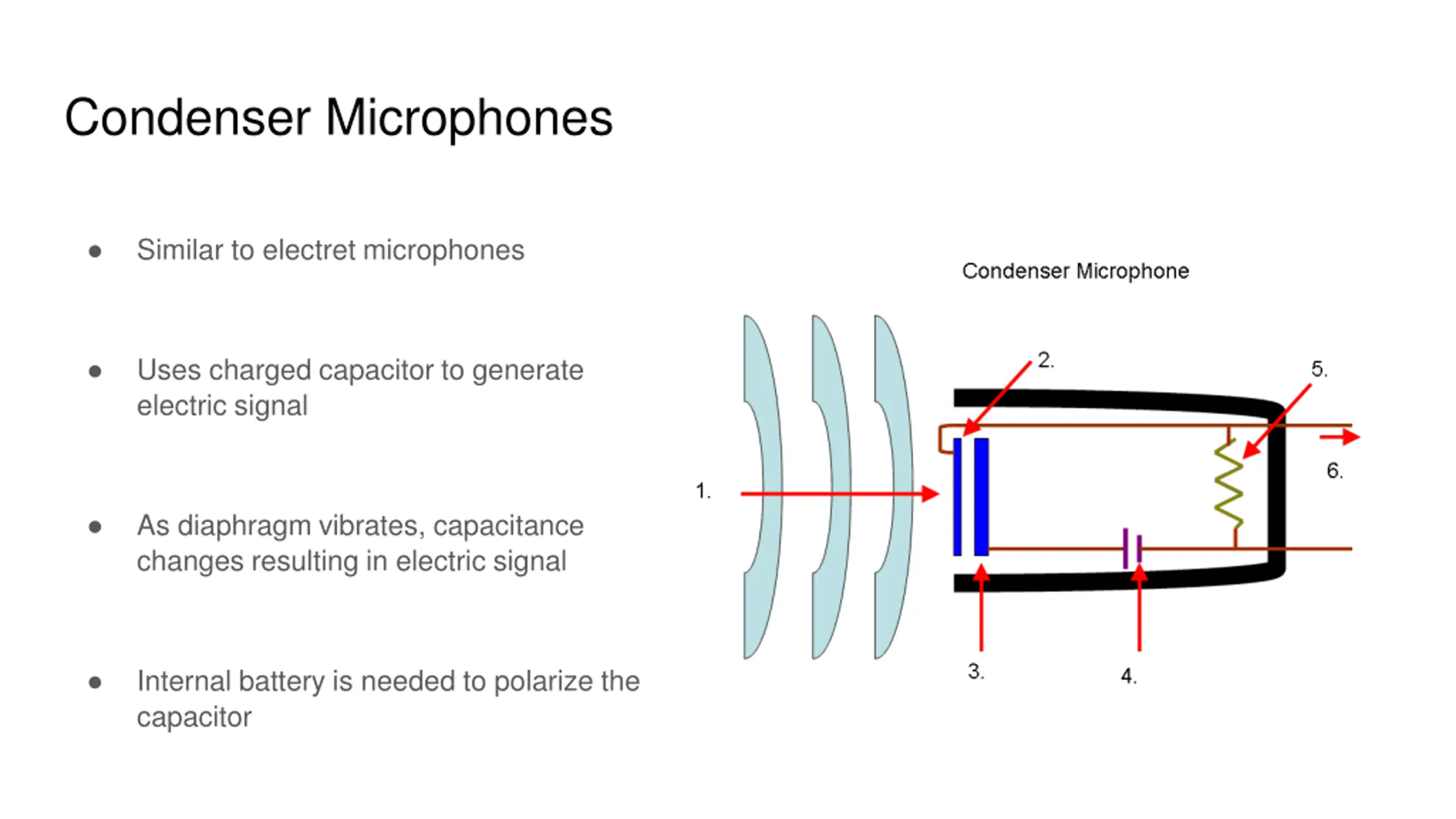

Condenser Microphones Similar to electret microphones Uses charged capacitor to generate electric signal As diaphragm vibrates, capacitance changes resulting in electric signal Internal battery is needed to polarize the capacitor

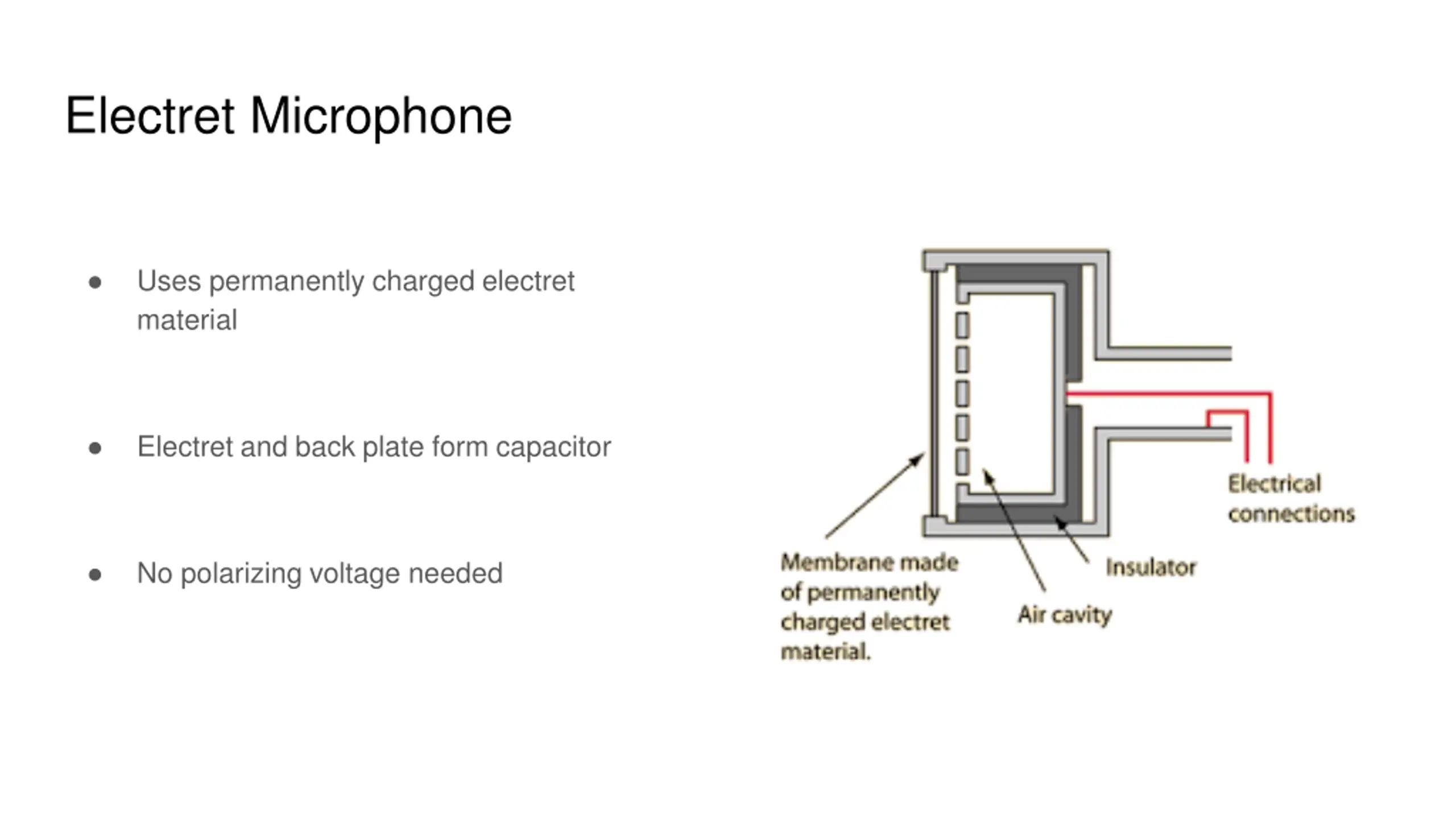

Electret Microphone Uses permanently charged electret material Electret and back plate form capacitor No polarizing voltage needed

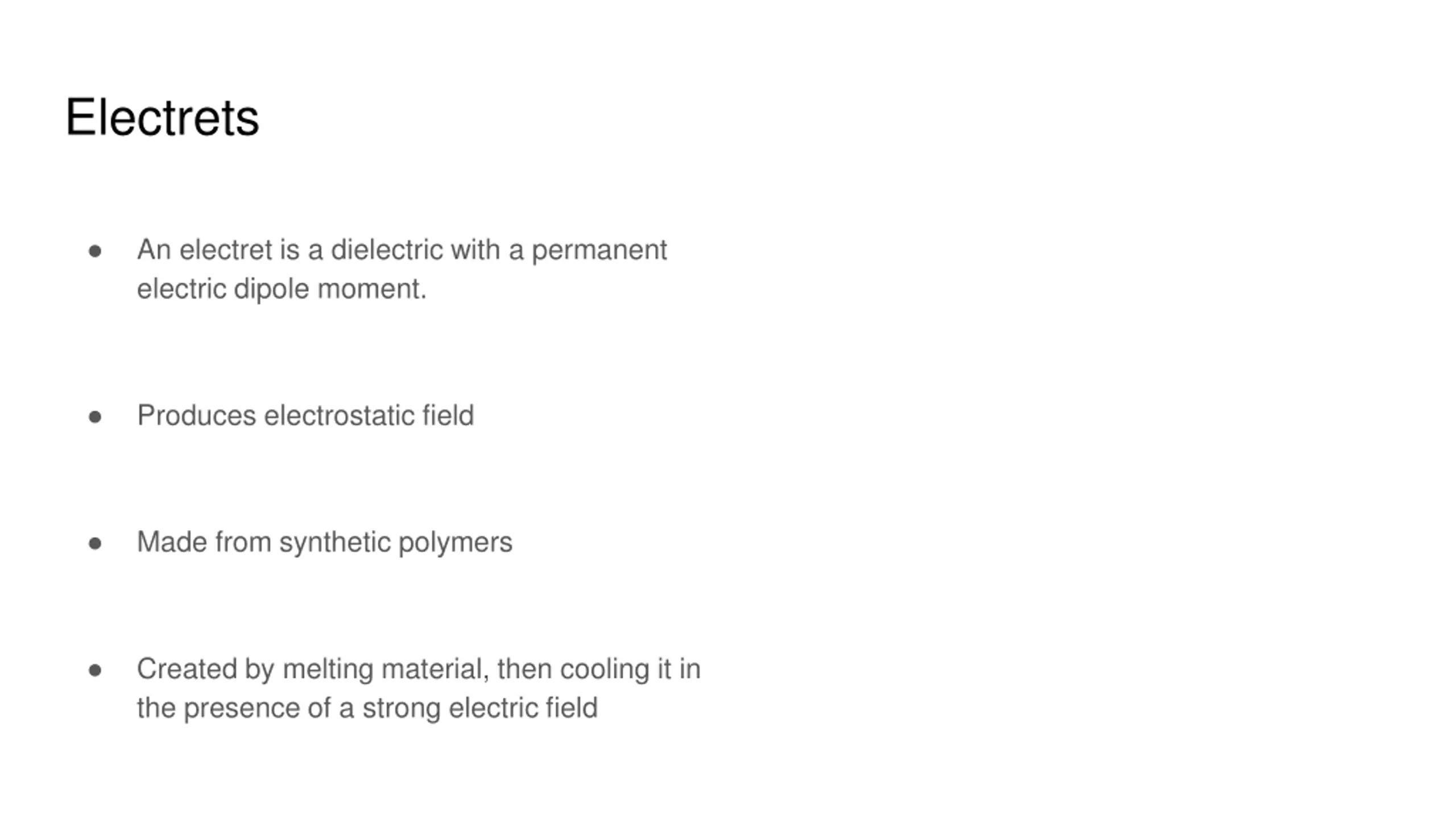

Electrets An electret is a dielectric with a permanent electric dipole moment. Produces electrostatic field Made from synthetic polymers Created by melting material, then cooling it in the presence of a strong electric field

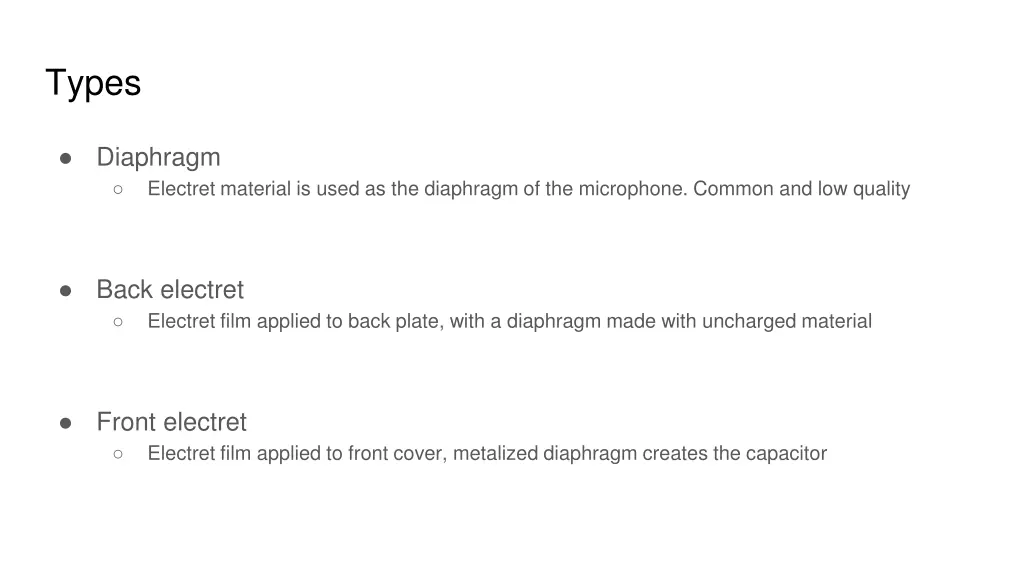

Types Diaphragm Electret material is used as the diaphragm of the microphone. Common and low quality Back electret Electret film applied to back plate, with a diaphragm made with uncharged material Front electret Electret film applied to front cover, metalized diaphragm creates the capacitor

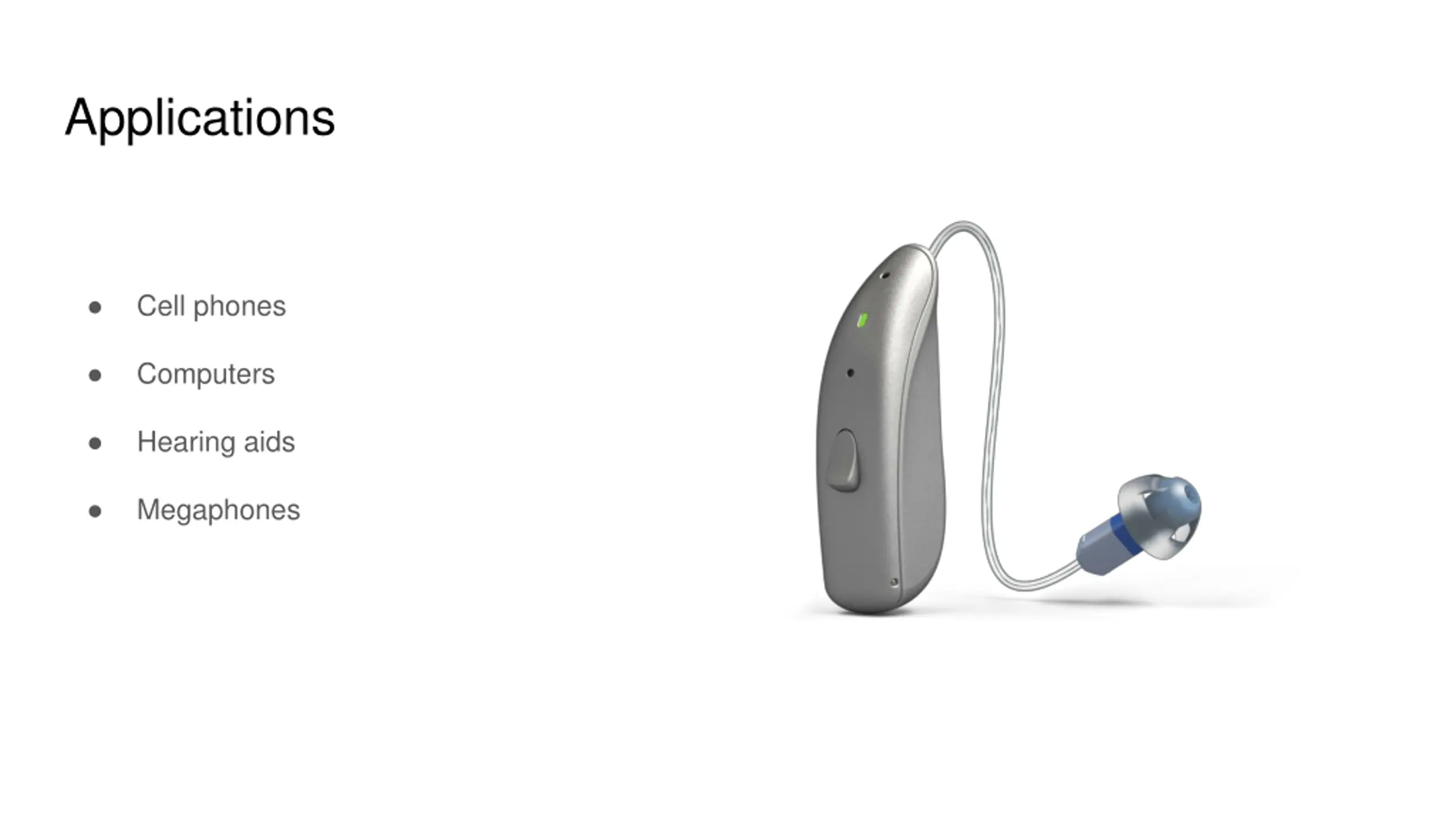

Applications Cell phones Computers Hearing aids Megaphones
