Presentation Transcript

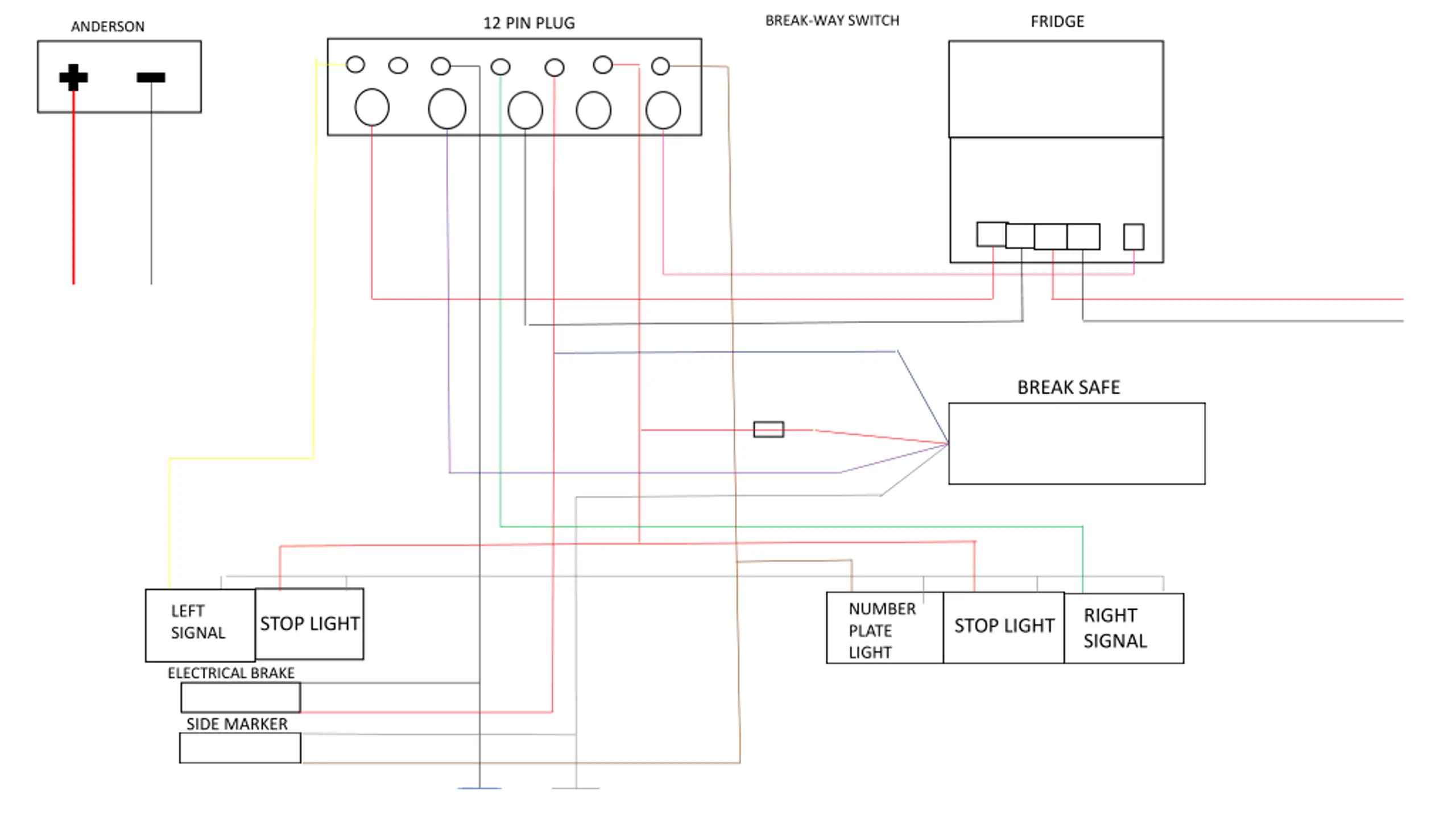

BREAK-WAY SWITCH FRIDGE 12 PIN PLUG ANDERSON BREAK SAFE NUMBER PLATE LIGHT LEFT SIGNAL RIGHT SIGNAL STOP LIGHT STOP LIGHT ELECTRICAL BRAKE SIDE MARKER

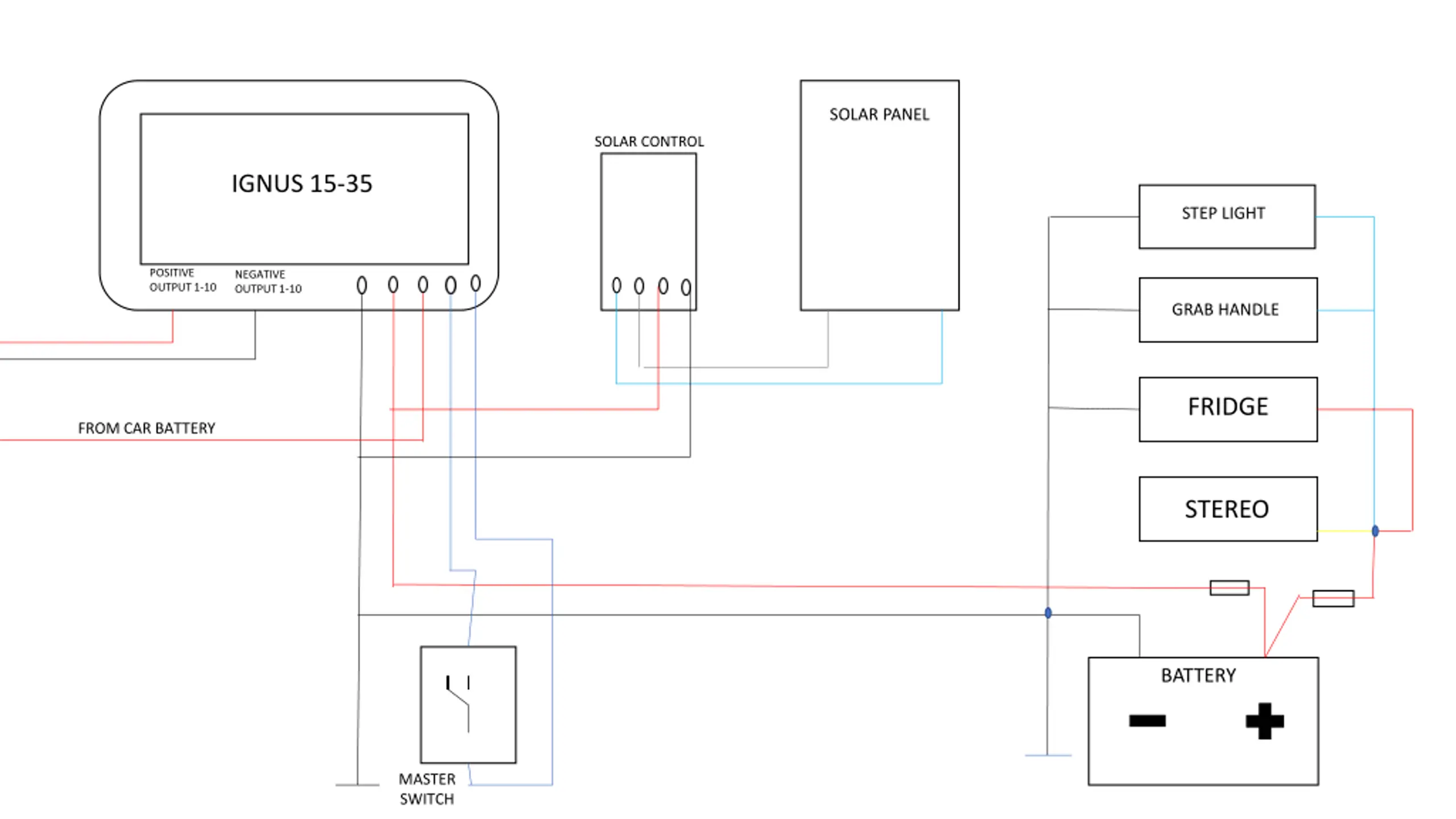

SOLAR PANEL SOLAR CONTROL IGNUS 15-35 STEP LIGHT POSITIVE OUTPUT 1-10 NEGATIVE OUTPUT 1-10 GRAB HANDLE FRIDGE FROM CAR BATTERY STEREO BATTERY MASTER SWITCH

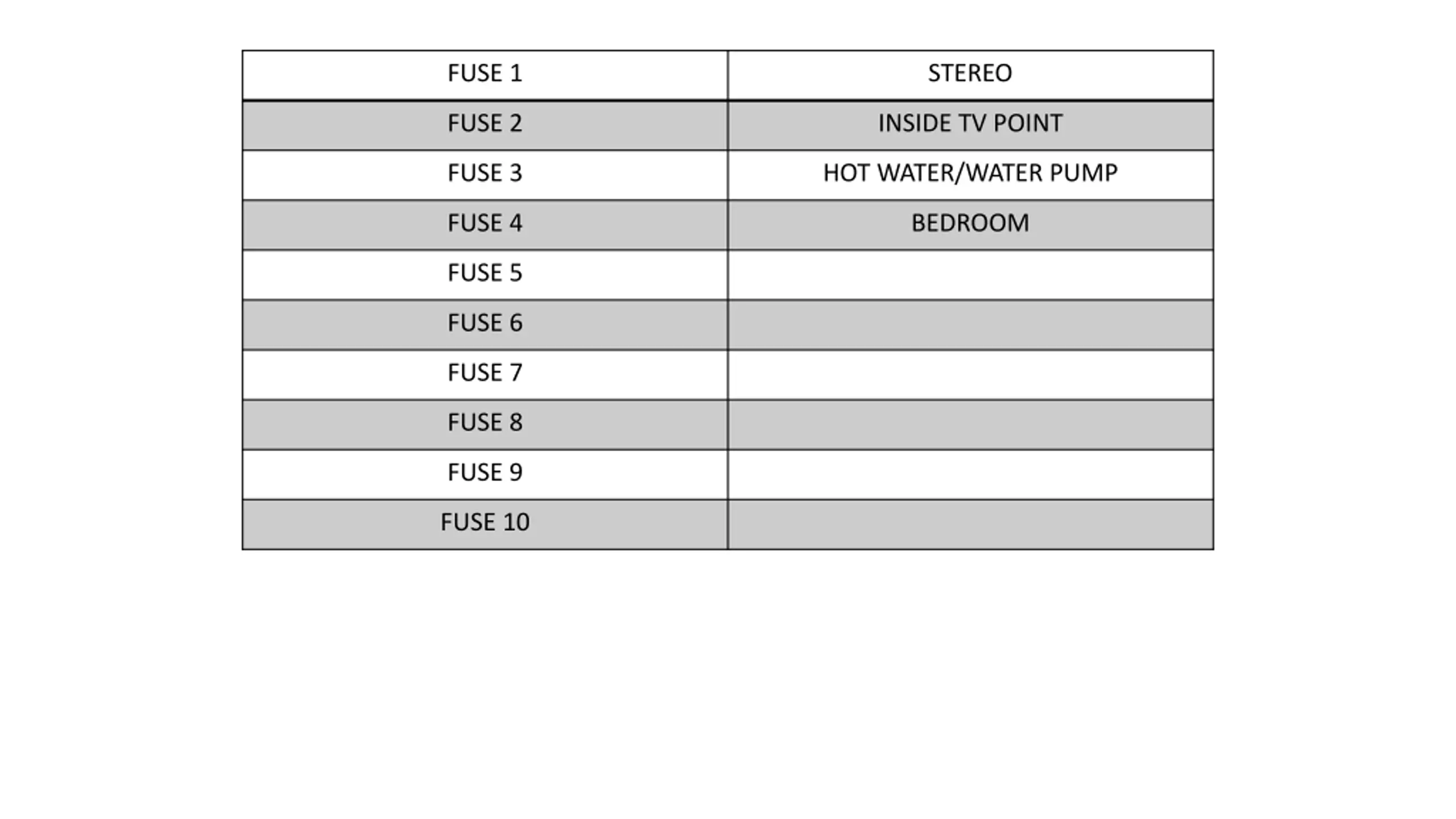

FUSE 1 STEREO FUSE 2 INSIDE TV POINT FUSE 3 HOT WATER/WATER PUMP FUSE 4 BEDROOM FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 10

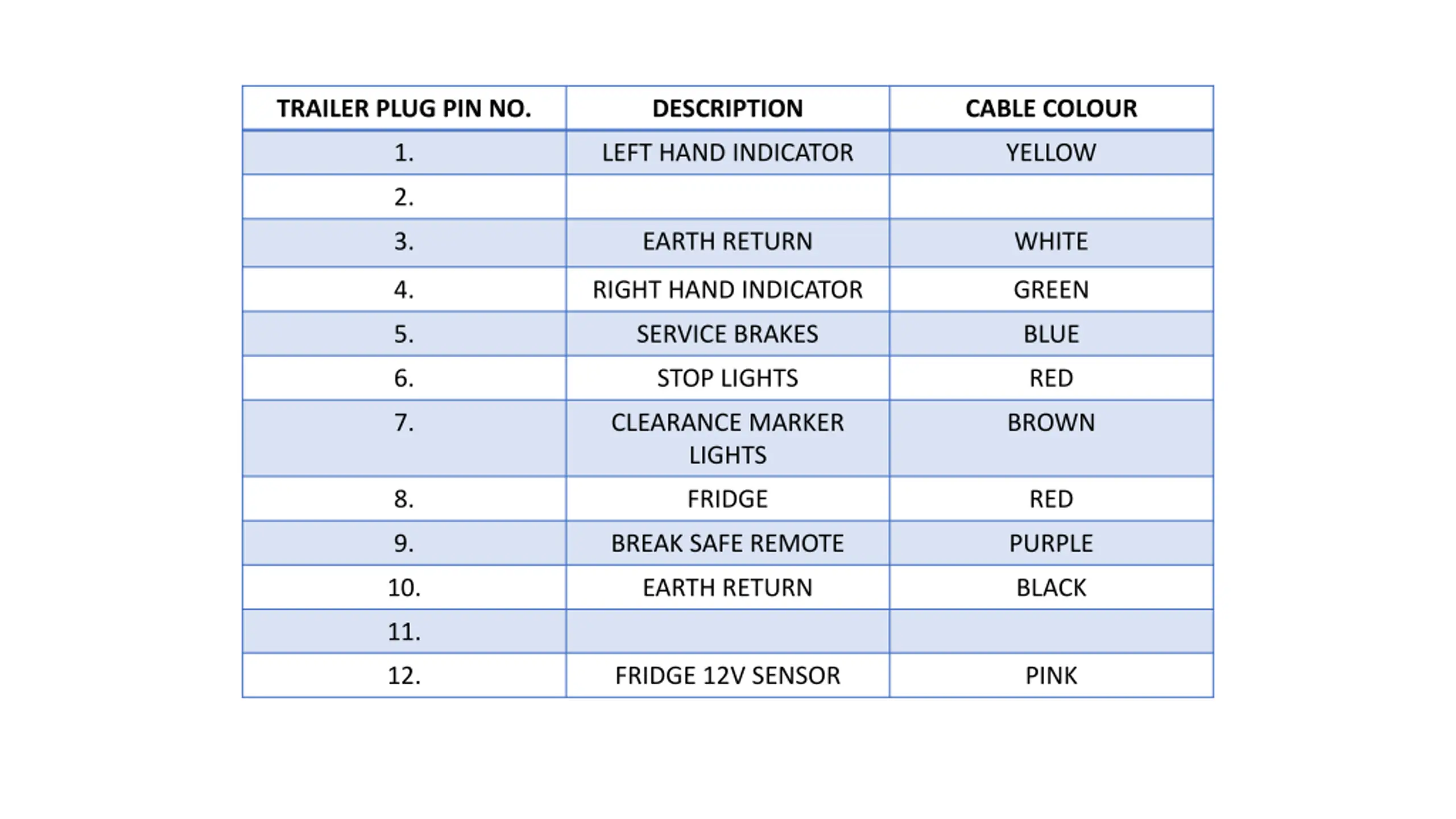

TRAILER PLUG PIN NO. DESCRIPTION CABLE COLOUR 1. LEFT HAND INDICATOR YELLOW 2. 3. EARTH RETURN WHITE 4. RIGHT HAND INDICATOR GREEN 5. SERVICE BRAKES BLUE 6. STOP LIGHTS RED 7. CLEARANCE MARKER LIGHTS BROWN 8. FRIDGE RED 9. BREAK SAFE REMOTE PURPLE 10. EARTH RETURN BLACK 11. 12. FRIDGE 12V SENSOR PINK
