FAC-008 Related Definitions & Graphics Internal Use Only

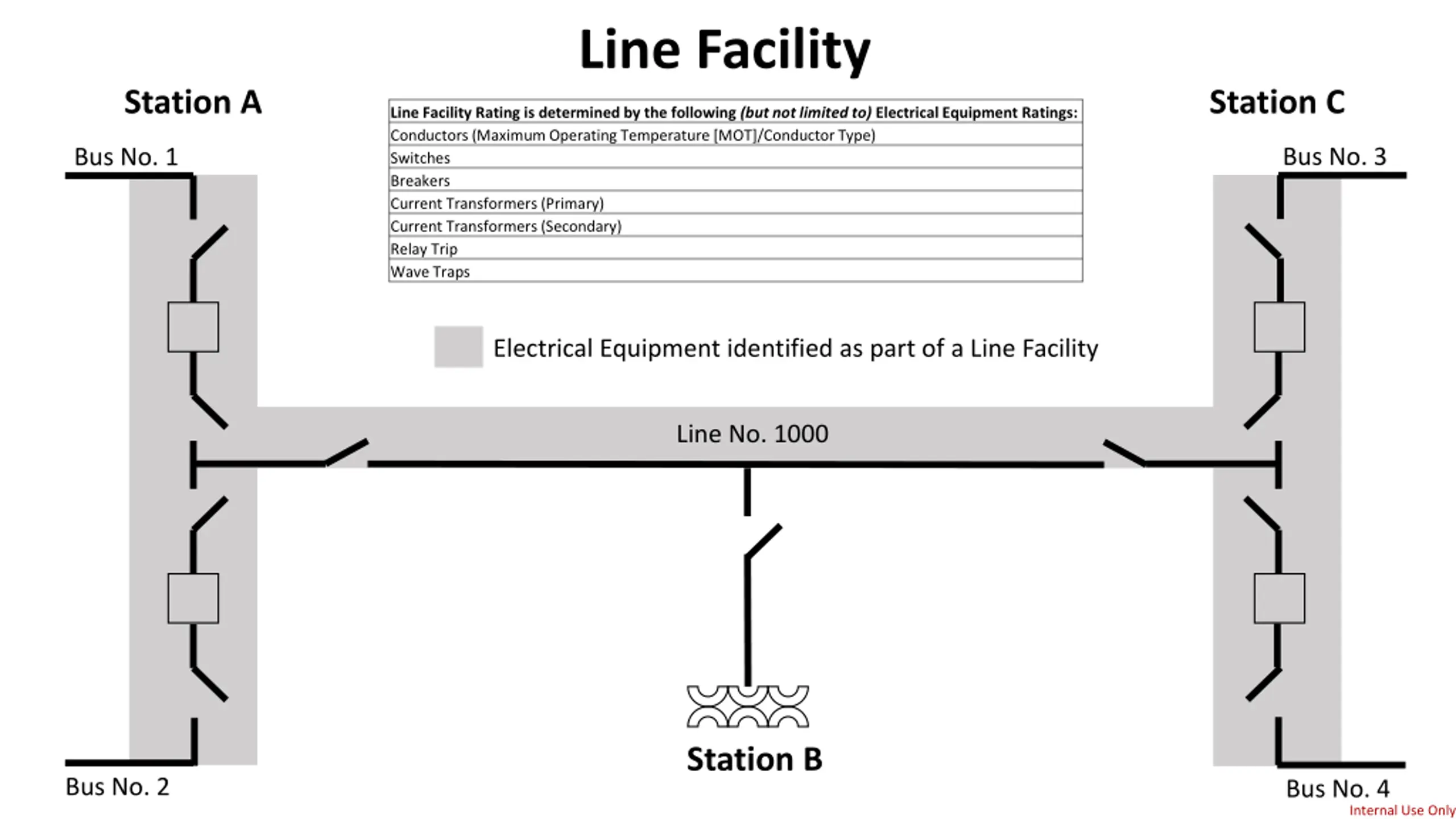

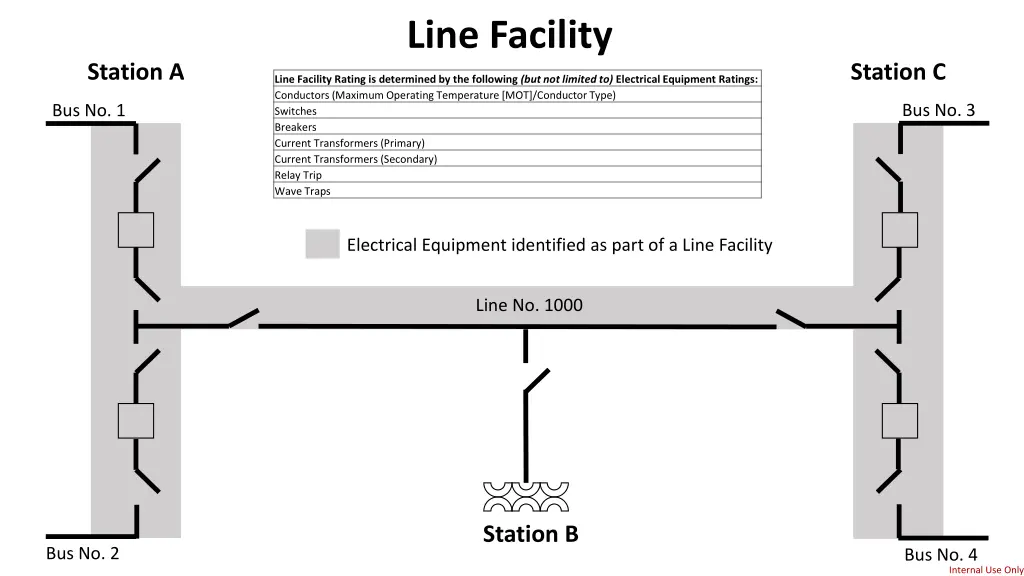

Line Facility Station A Station C Line Facility Rating is determined by the following (but not limited to) Electrical Equipment Ratings: Conductors (Maximum Operating Temperature [MOT]/Conductor Type) Switches Breakers Current Transformers (Primary) Current Transformers (Secondary) Relay Trip Wave Traps Bus No. 3 Bus No. 1 Electrical Equipment identified as part of a Line Facility Line No. 1000 Station B Bus No. 2 Bus No. 4 Internal Use Only

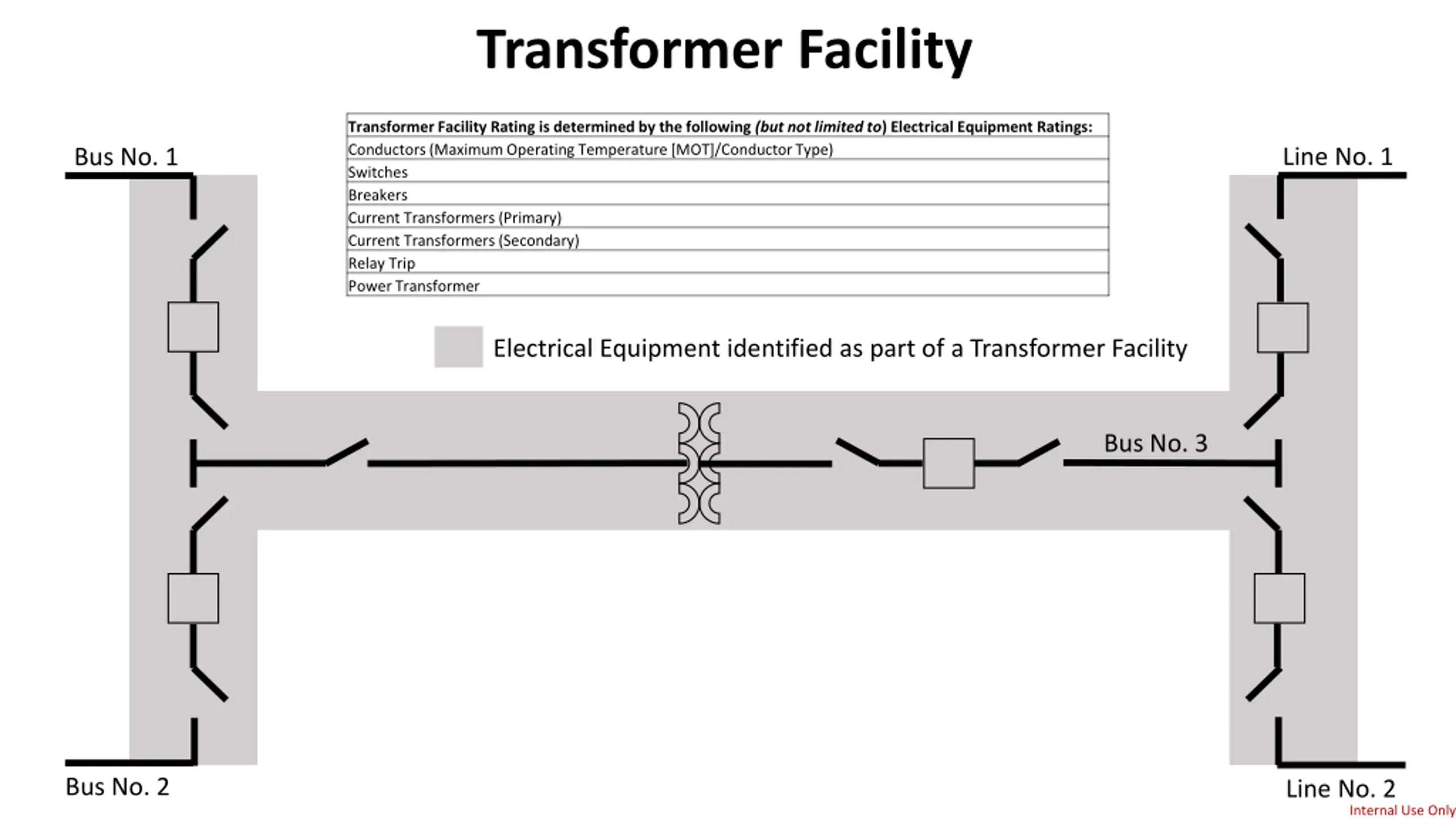

Transformer Facility Transformer Facility Rating is determined by the following (but not limited to) Electrical Equipment Ratings: Conductors (Maximum Operating Temperature [MOT]/Conductor Type) Switches Breakers Current Transformers (Primary) Current Transformers (Secondary) Relay Trip Power Transformer Line No. 1 Bus No. 1 Electrical Equipment identified as part of a Transformer Facility Bus No. 3 Bus No. 2 Line No. 2 Internal Use Only

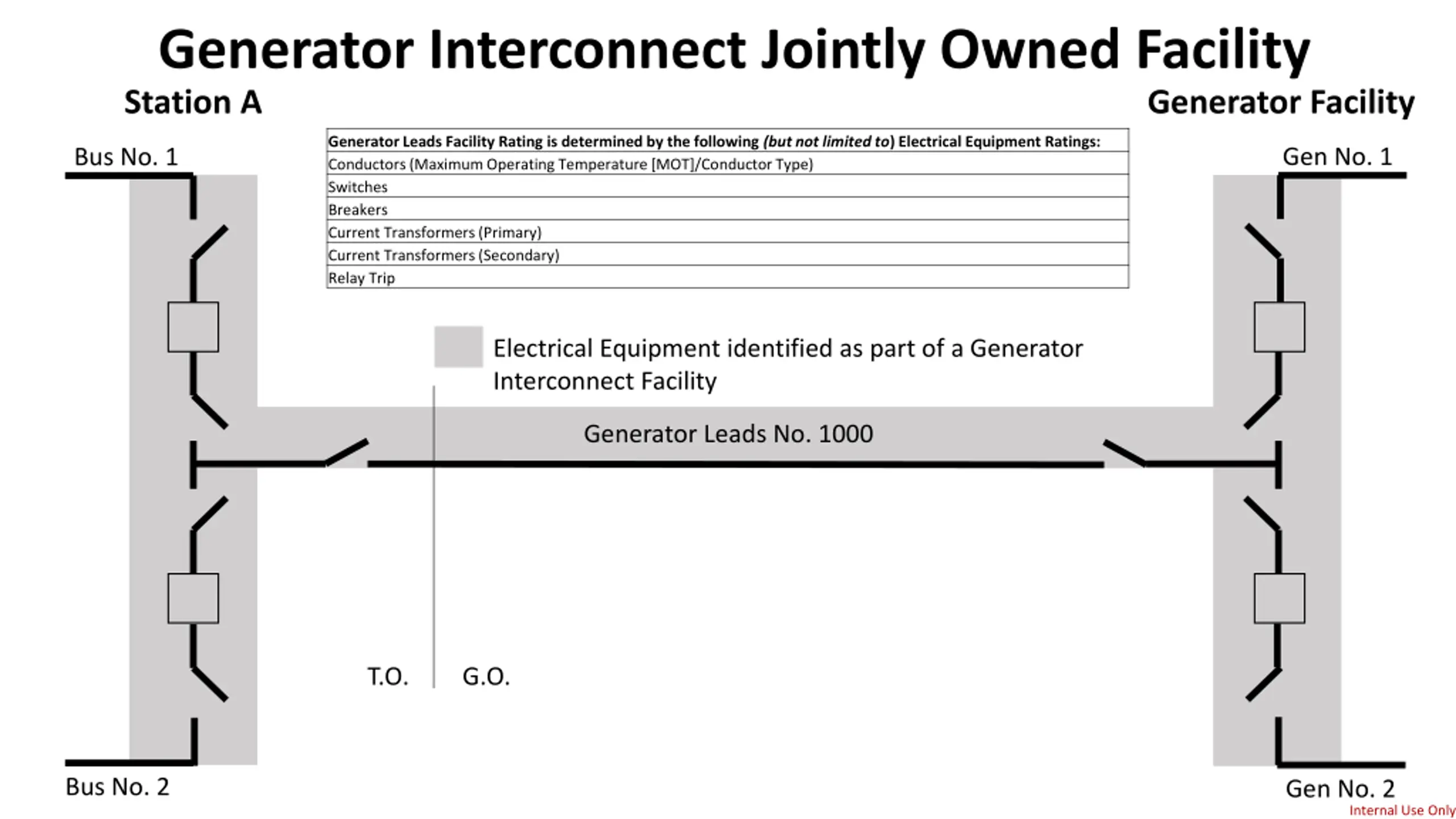

Generator Interconnect Jointly Owned Facility Station A Generator Facility Generator Leads Facility Rating is determined by the following (but not limited to) Electrical Equipment Ratings: Conductors (Maximum Operating Temperature [MOT]/Conductor Type) Switches Breakers Current Transformers (Primary) Current Transformers (Secondary) Relay Trip Gen No. 1 Bus No. 1 Electrical Equipment identified as part of a Generator Interconnect Facility Generator Leads No. 1000 T.O. G.O. Bus No. 2 Gen No. 2 Internal Use Only
