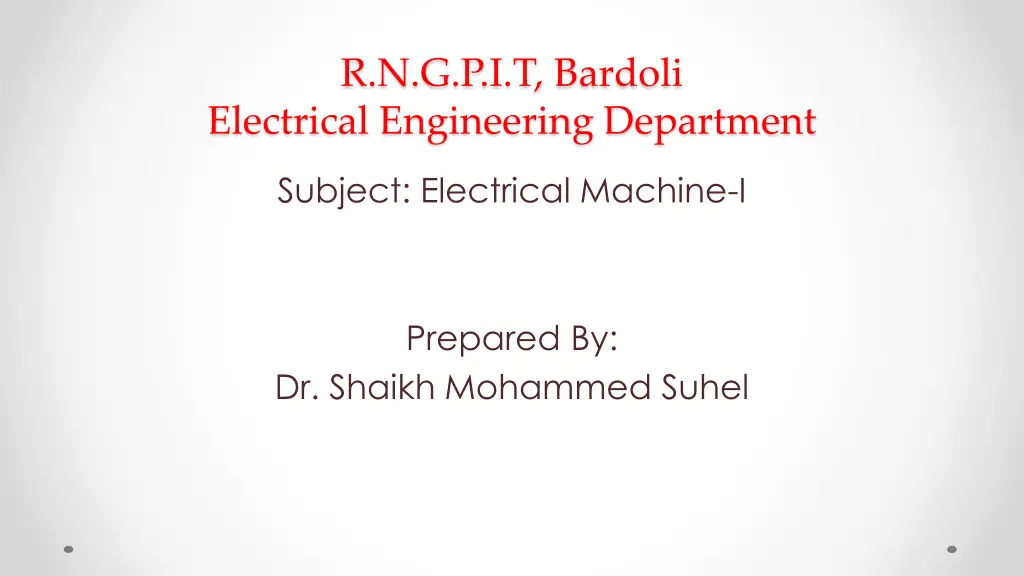

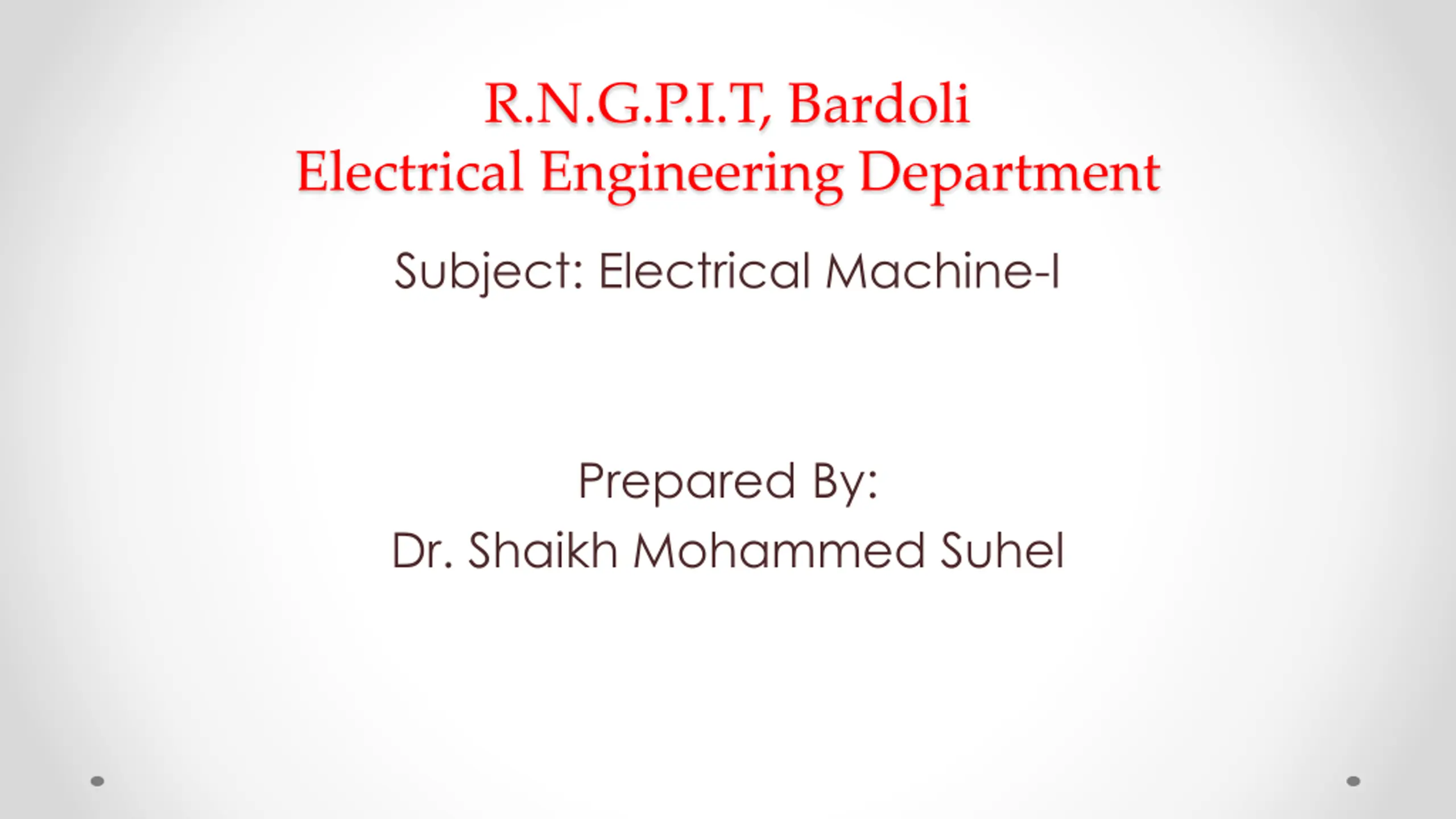

R.N.G.P.I.T, Bardoli Electrical Engineering Department Subject: Electrical Machine-I Prepared By: Dr. Shaikh Mohammed Suhel

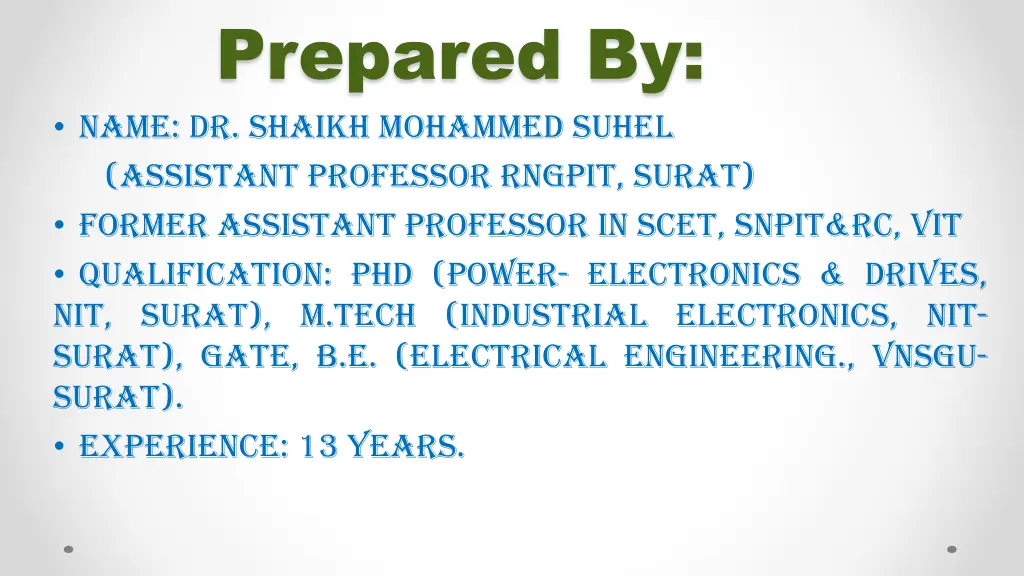

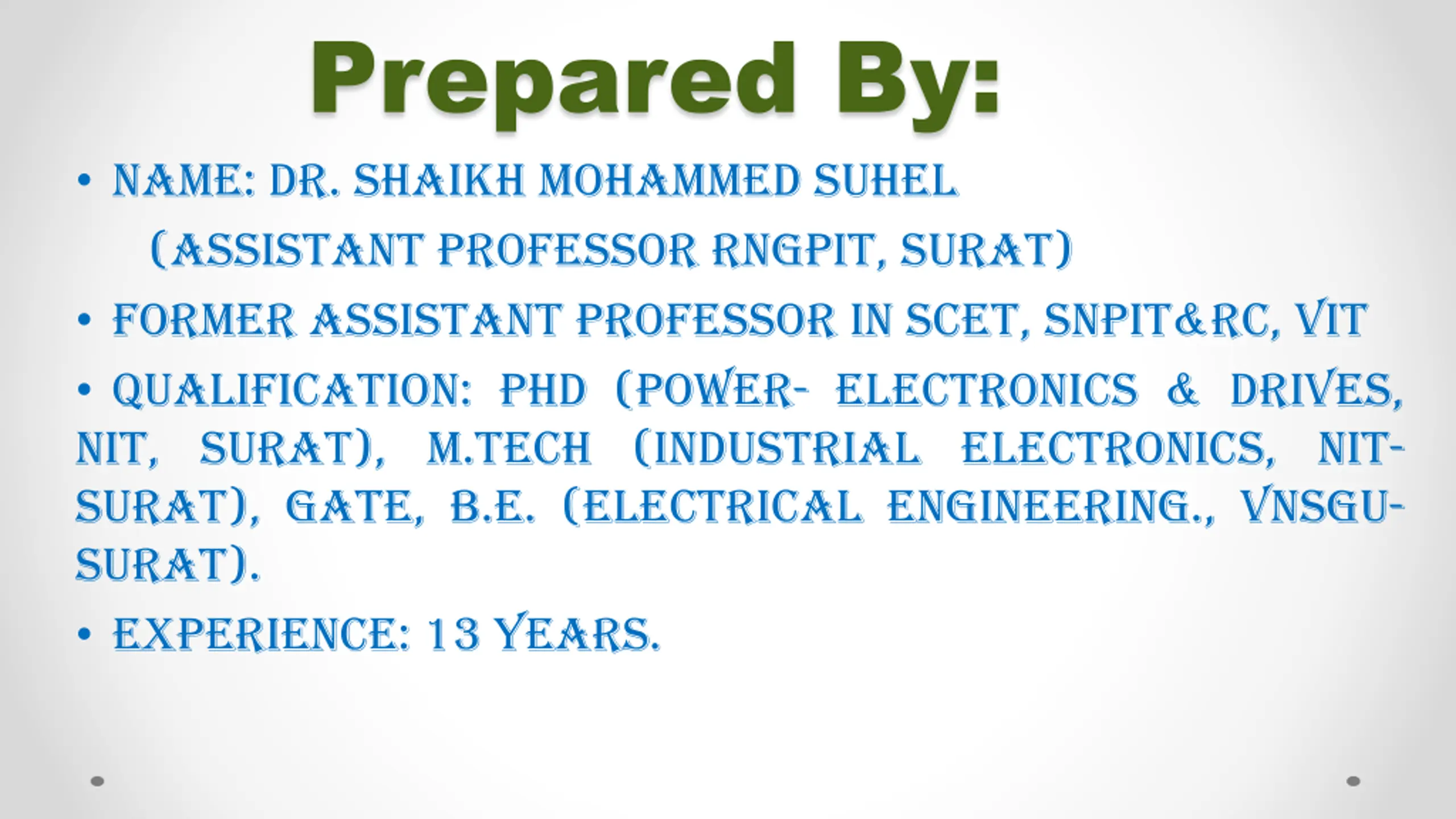

Prepared By: Name: Dr. Shaikh Mohammed Suhel (Assistant Professor RNGPIT, Surat) Former Assistant Professor in SCET, SNPIT&RC, VIT Qualification: PhD (Power- Electronics & Drives, NIT, Surat), M.Tech (Industrial Electronics, NIT- Surat), Gate, B.E. (Electrical Engineering., VNSGU- Surat). Experience: 13 Years.

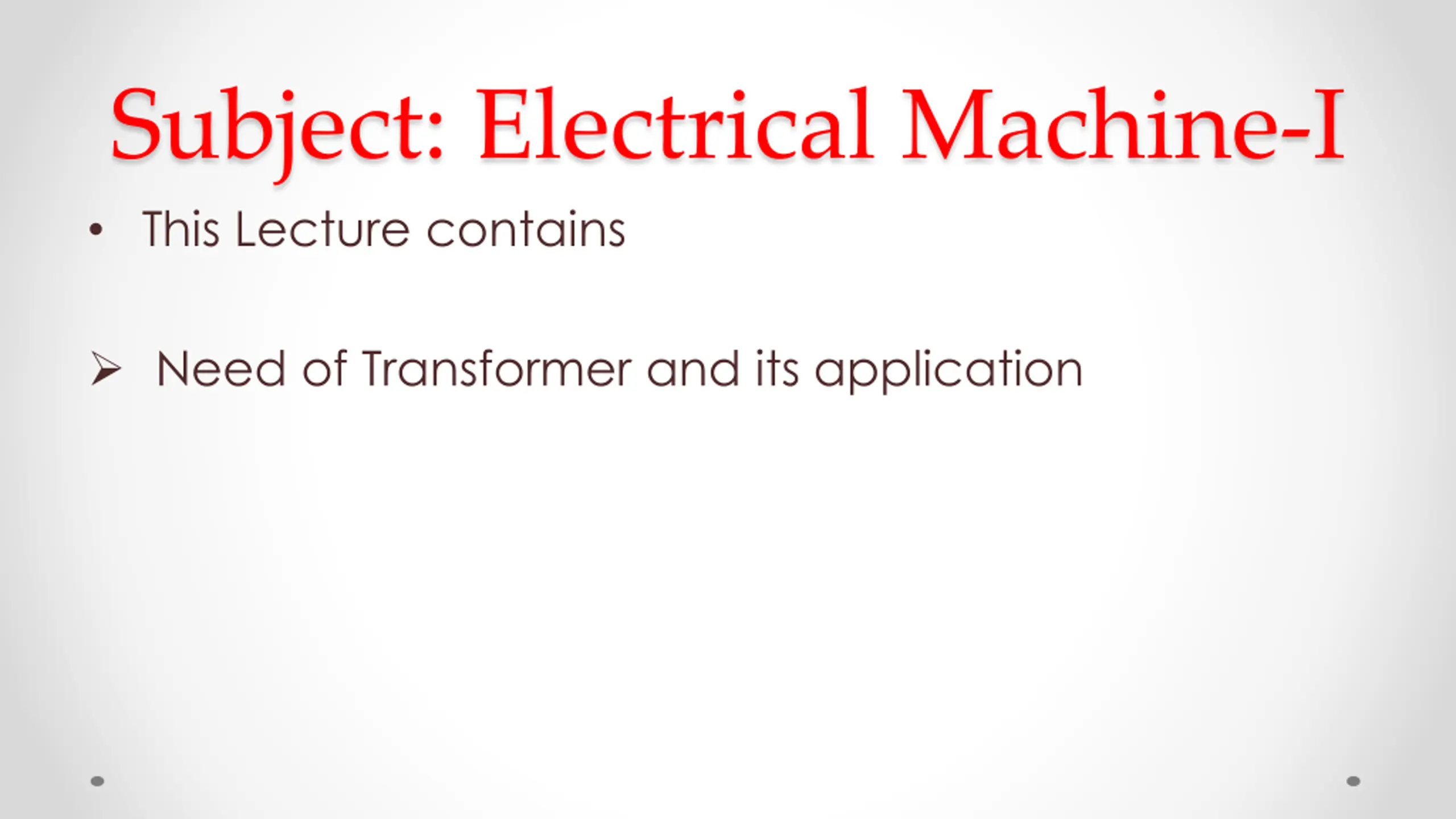

Subject: Electrical Machine-I This Lecture contains Need of Transformer and its application

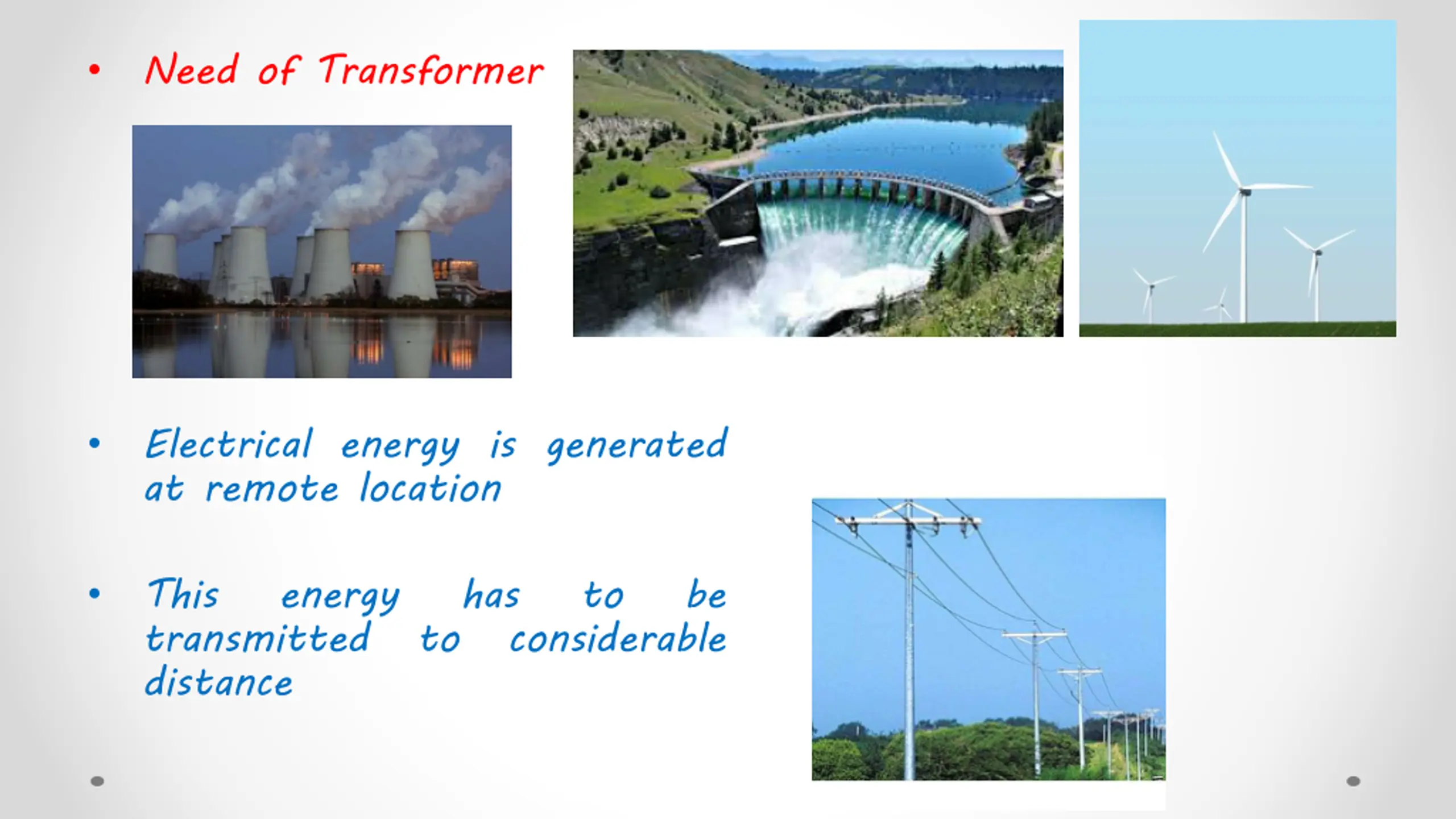

Need of Transformer Electrical energy is generated at remote location This transmitted to considerable distance energy has to be

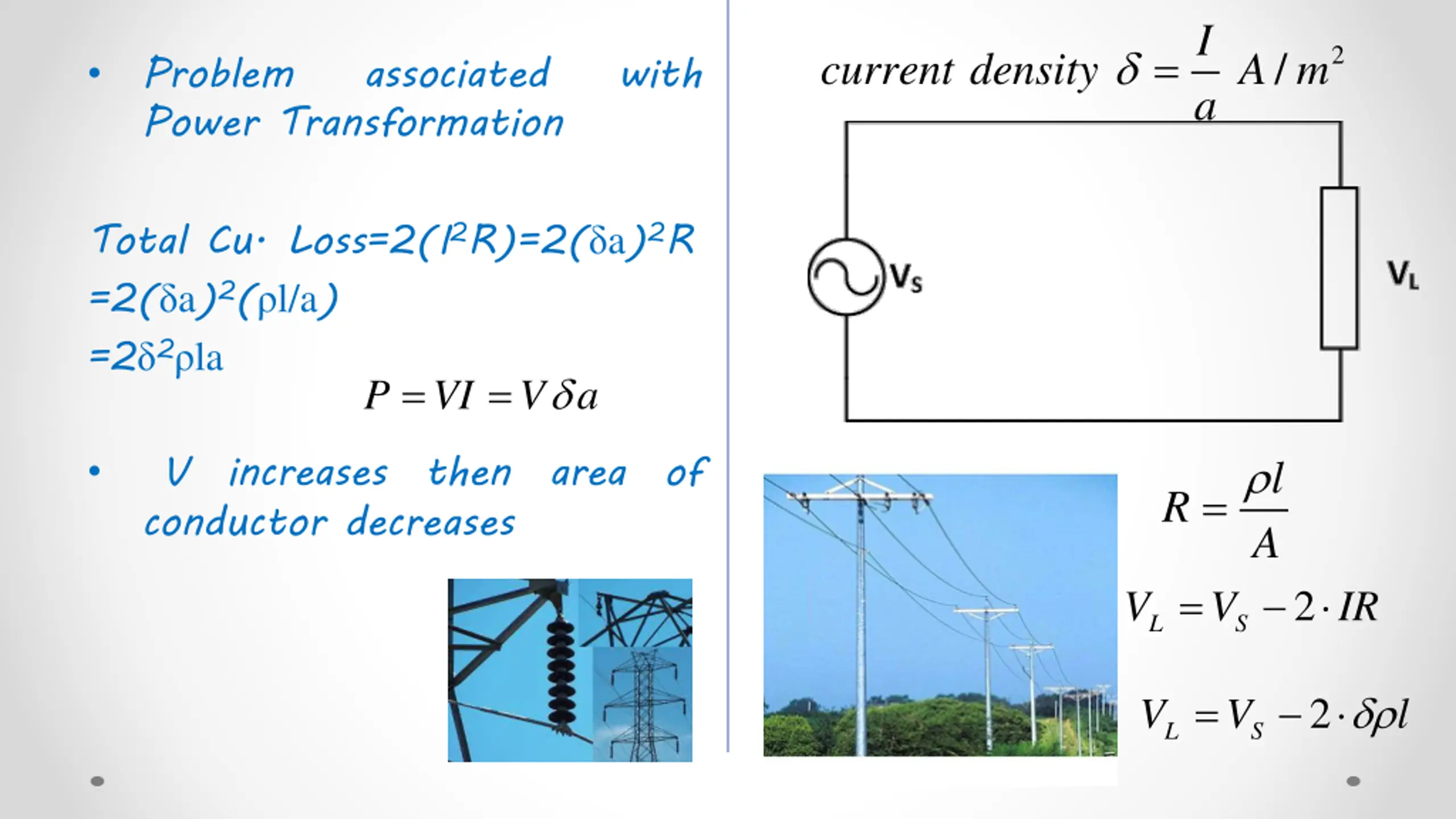

I a = 2 Problem Power Transformation associated with / A m current density Total Cu. Loss=2(I2R)=2( a)2R =2( a)2( l/a) =2 2 la P = = V a VI V increases then area of conductor decreases l = R A = 2 V V IR L S = 2 V V l L S

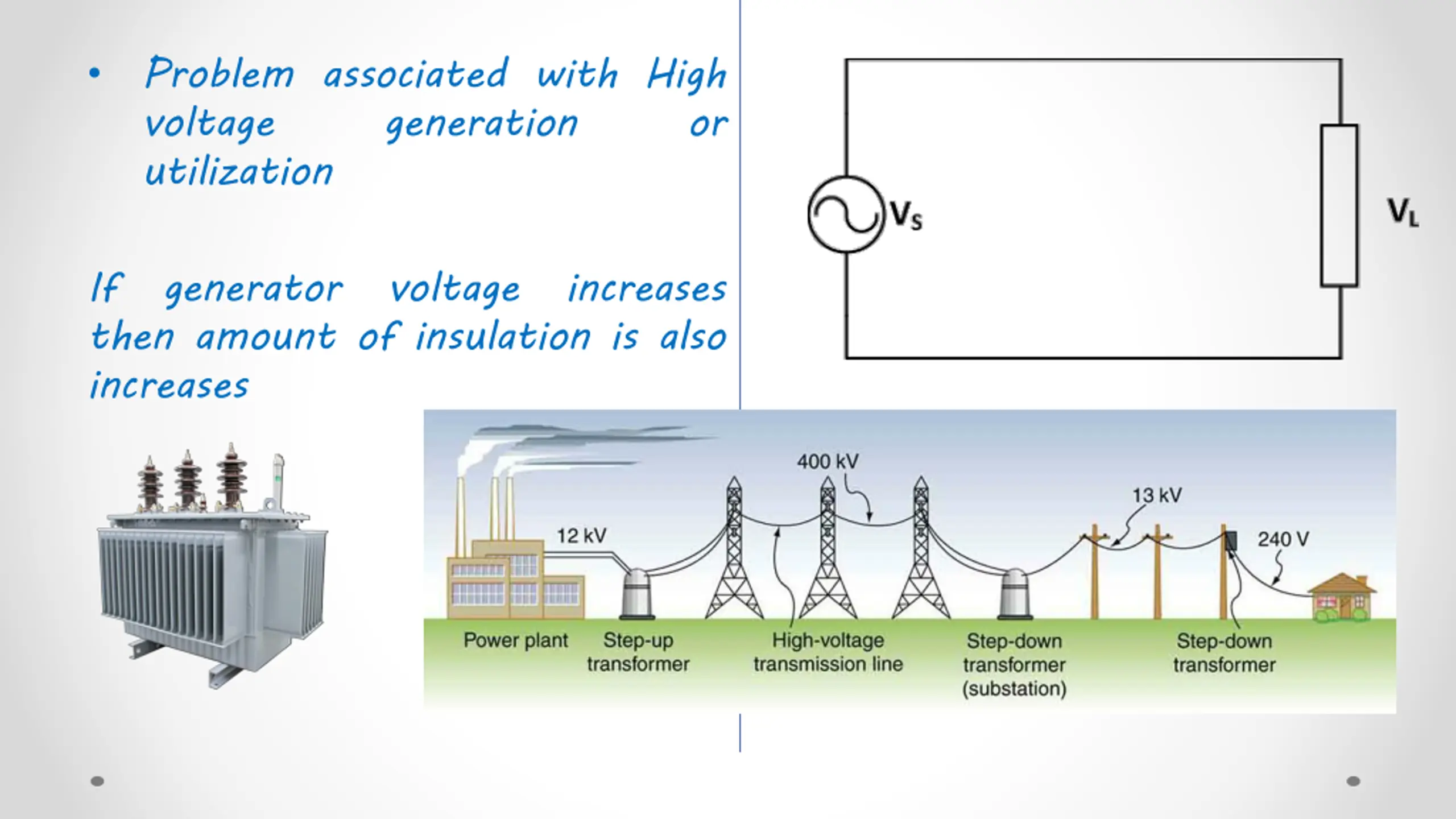

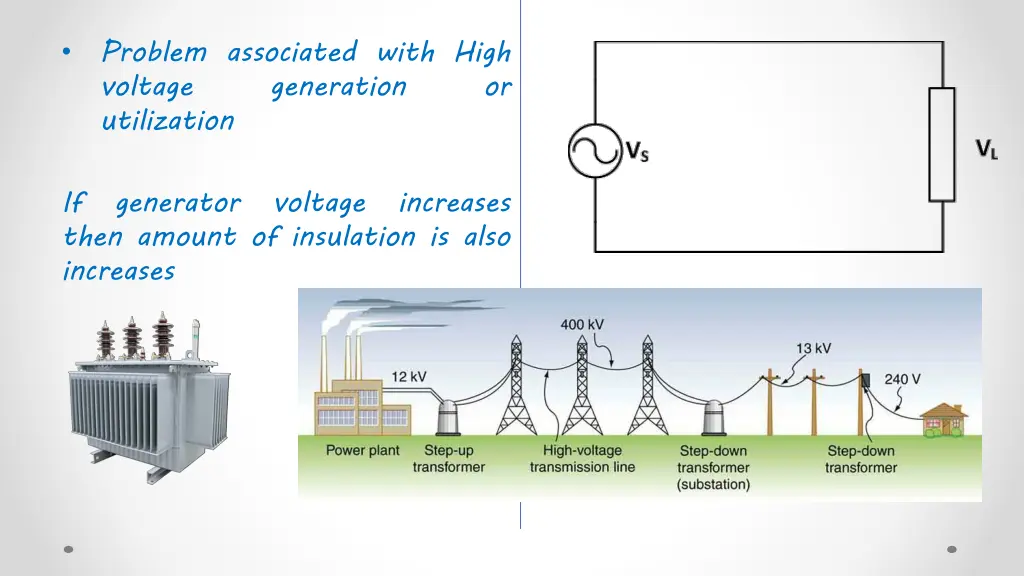

Problem associated with High voltage utilization generation or If generator voltage increases then amount of insulation is also increases

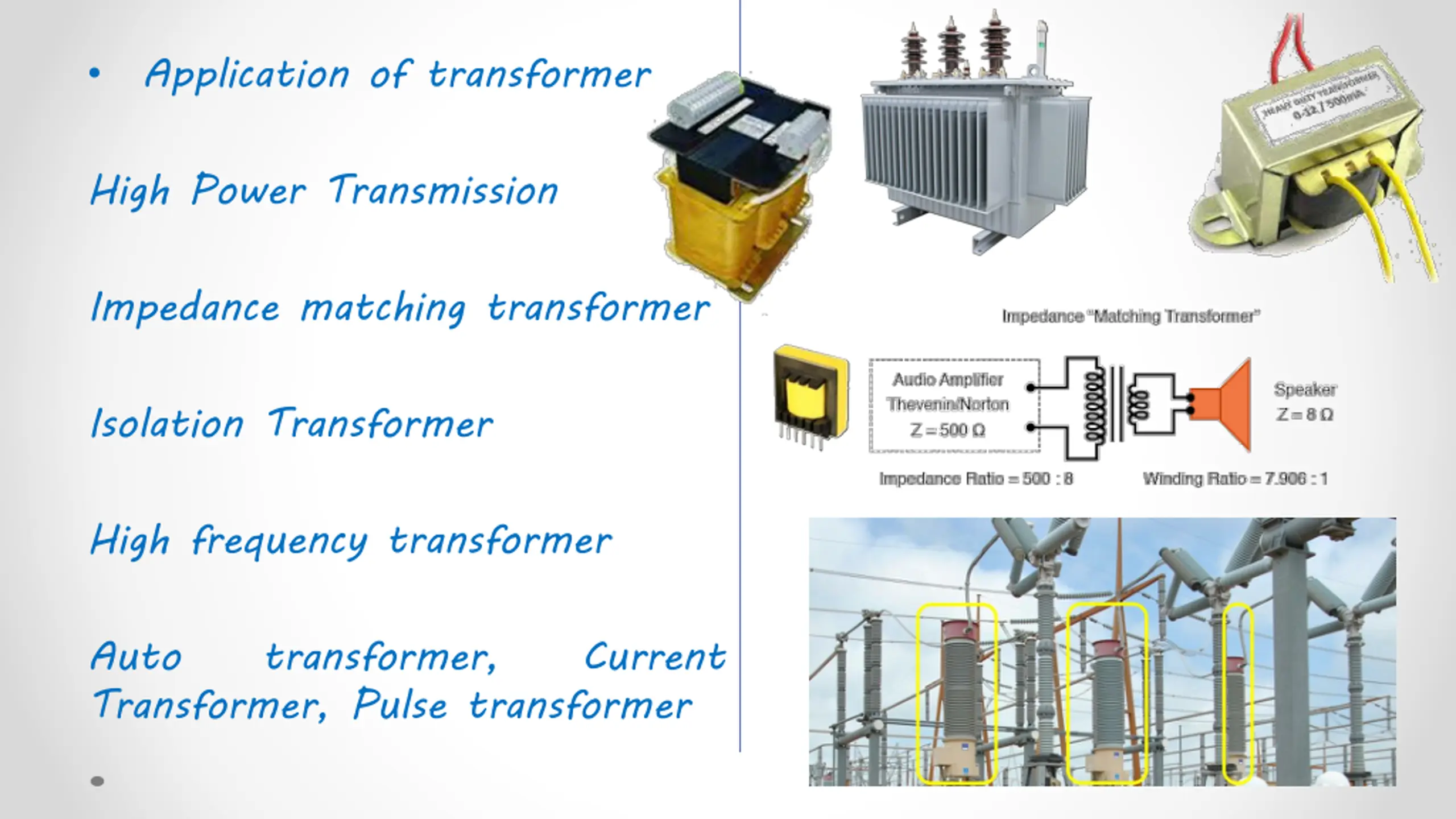

Application of transformer High Power Transmission Impedance matching transformer Isolation Transformer High frequency transformer Auto Transformer, Pulse transformer transformer, Current

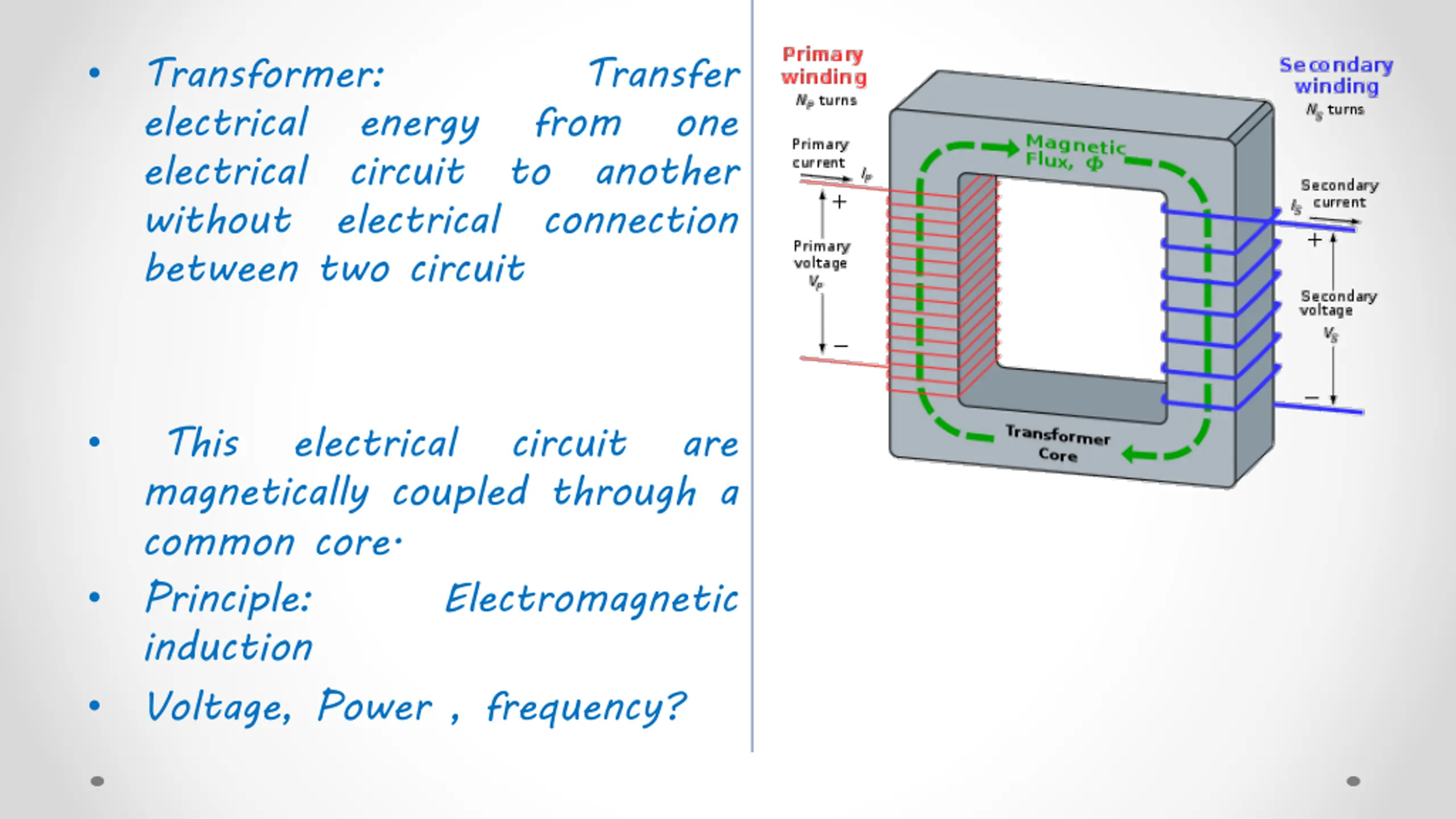

Transformer: electrical energy from one electrical circuit to another without electrical connection between two circuit Transfer This electrical circuit are magnetically coupled through a common core. Principle: induction Voltage, Power , frequency? Electromagnetic
