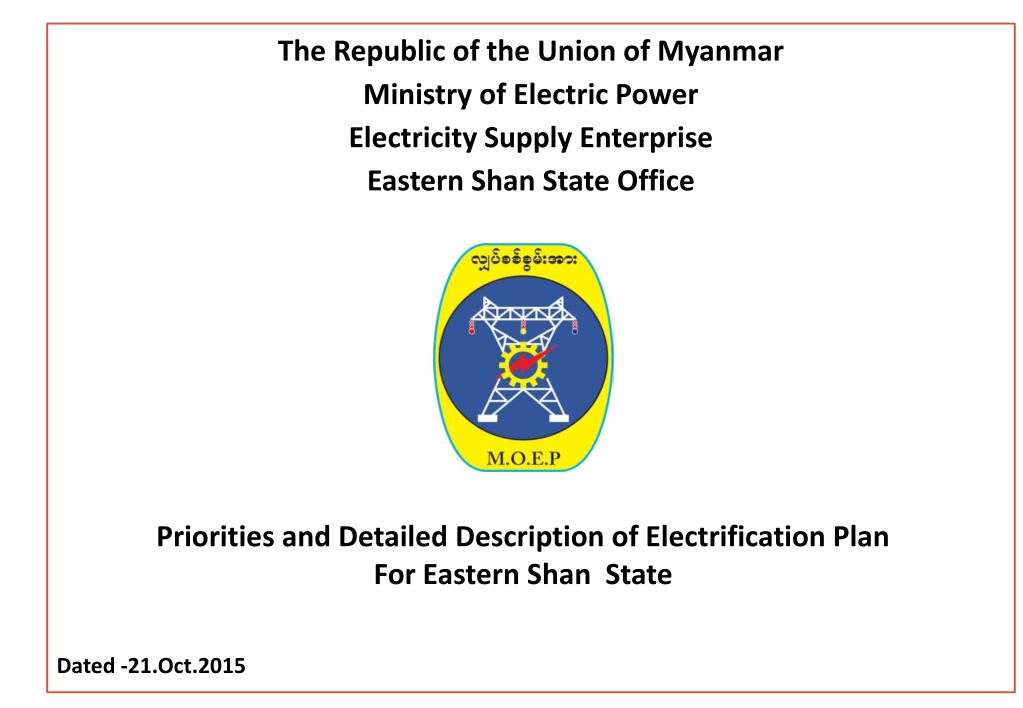

The Republic of the Union of Myanmar Ministry of Electric Power Electricity Supply Enterprise Eastern Shan State Office Priorities and Detailed Description of Electrification Plan For Eastern Shan State Dated -21.Oct.2015

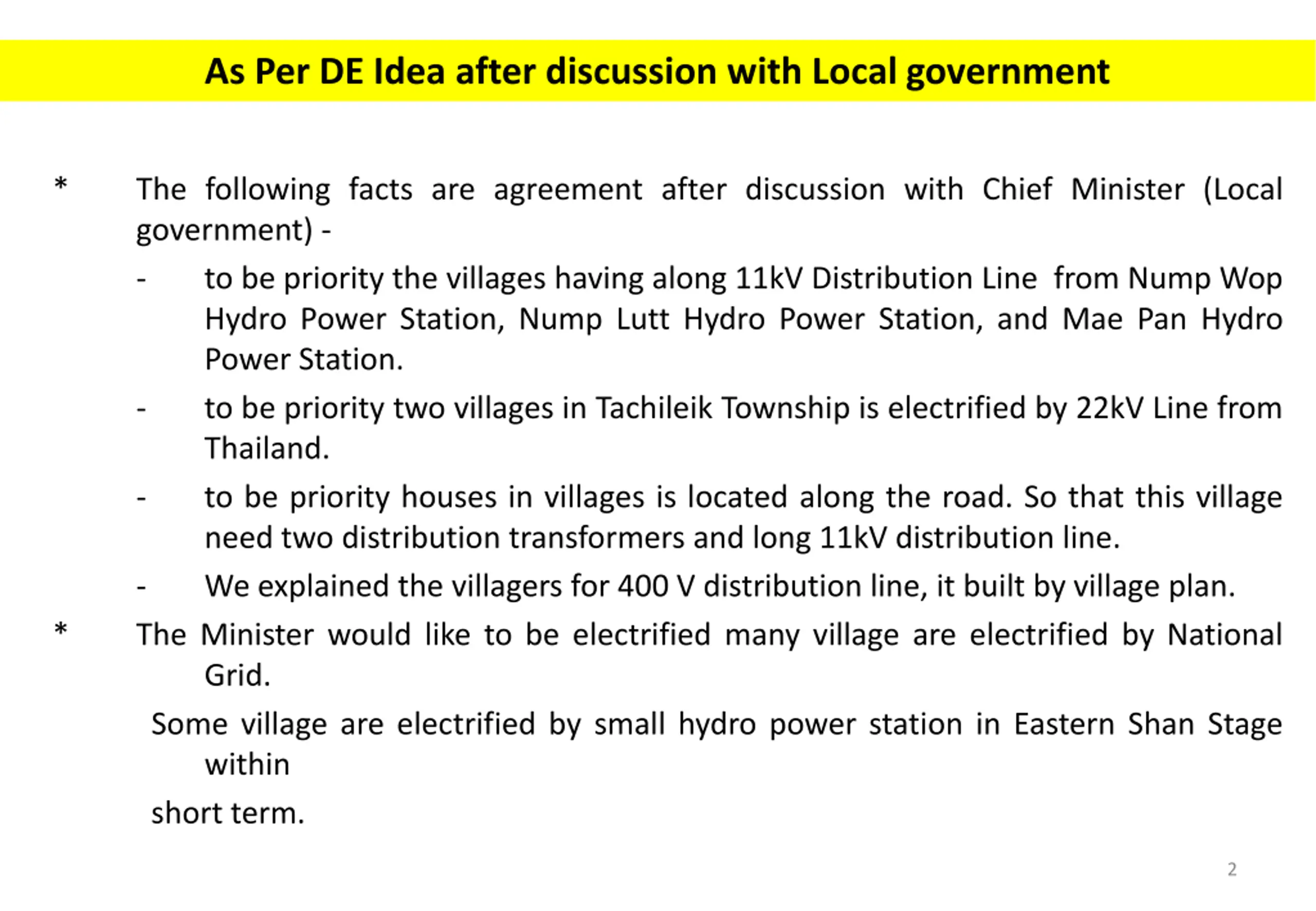

As Per DE Idea after discussion with Local government * The following facts are agreement after discussion with Chief Minister (Local government) - - to be priority the villages having along 11kV Distribution Line from Nump Wop Hydro Power Station, Nump Lutt Hydro Power Station, and Mae Pan Hydro Power Station. - to be priority two villages in Tachileik Township is electrified by 22kV Line from Thailand. - to be priority houses in villages is located along the road. So that this village need two distribution transformers and long 11kV distribution line. - We explained the villagers for 400 V distribution line, it built by village plan. The Minister would like to be electrified many village are electrified by National Grid. Some village are electrified by small hydro power station in Eastern Shan Stage within short term. * 2

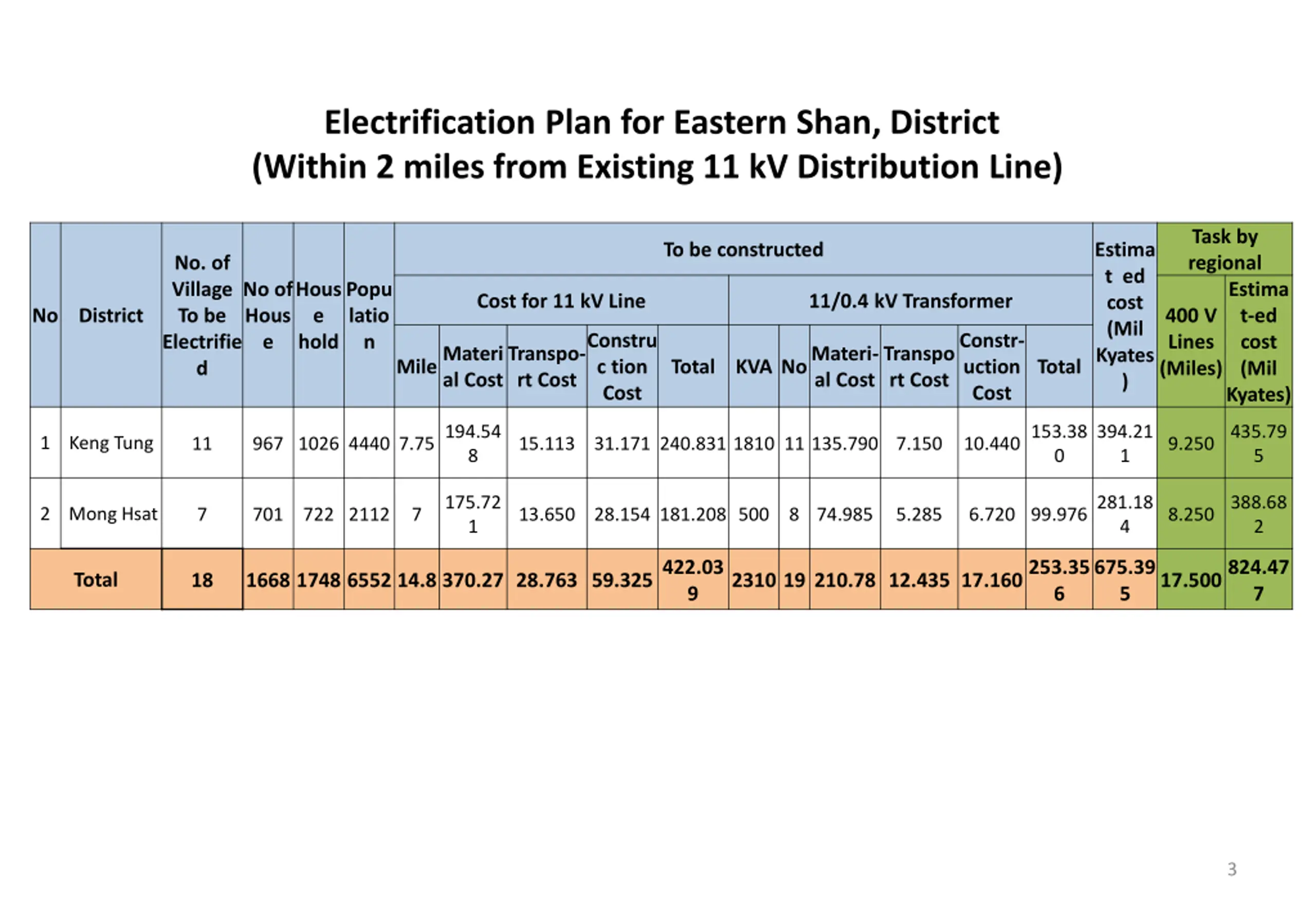

Electrification Plan for Eastern Shan, District (Within 2 miles from Existing 11 kV Distribution Line) Task by regional To be constructed Estima t ed cost (Mil Kyates ) No. of Village To be Electrifie d No of Hous e Hous e hold Popu latio n Estima t-ed cost (Mil Kyates) Cost for 11 kV Line 11/0.4 kV Transformer No District 400 V Lines (Miles) Constru c tion Cost Constr- uction Cost MileMateri al Cost Transpo- rt Cost KVA NoMateri- Transpo rt Cost Total Total al Cost 967 1026 4440 7.75194.54 10.440153.38 394.21 1 435.79 5 1 Keng Tung 11 15.113 31.171 240.831 1810 11 135.790 7.150 9.250 8 0 175.72 1 6.720 99.976281.18 388.68 2 2 Mong Hsat 7 701 722 2112 7 13.650 28.154 181.208 500 8 74.985 5.285 8.250 4 1668 1748 6552 14.8 370.27 28.763 59.325422.03 2310 19 210.78 12.435 17.160253.35 675.39 5 17.500824.47 Total 18 9 6 7 3

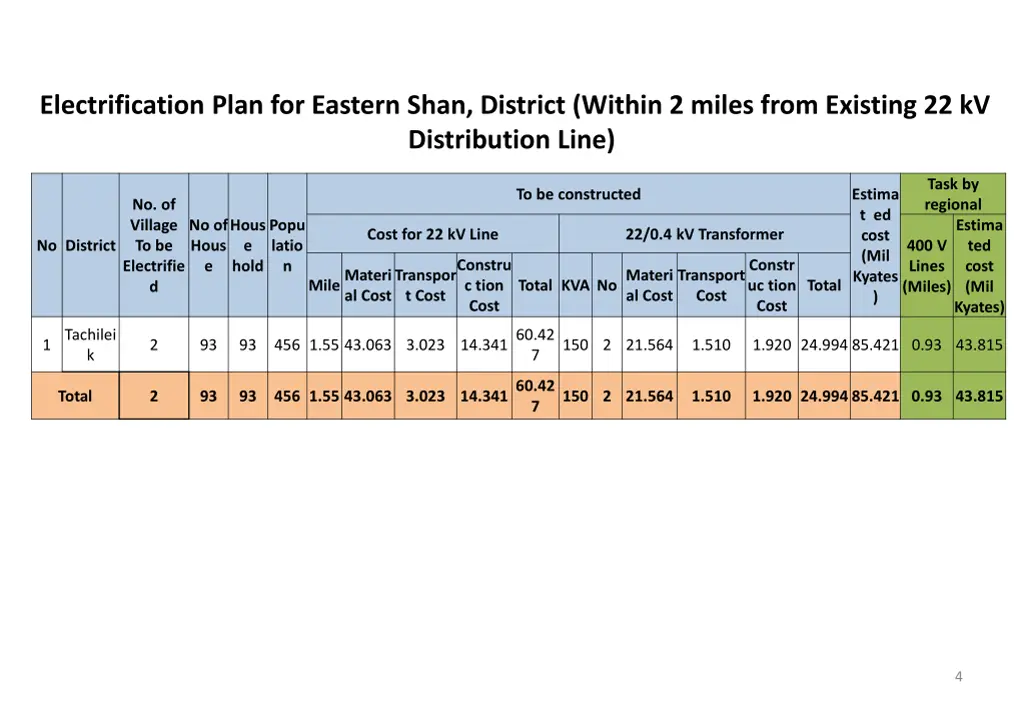

Electrification Plan for Eastern Shan, District (Within 2 miles from Existing 22 kV Distribution Line) Task by regional To be constructed Estima t ed cost (Mil Kyates ) No. of Village To be Electrifie d No of Hous e Hous e hold Popu latio n Estima ted cost (Mil Kyates) Cost for 22 kV Line 22/0.4 kV Transformer No District 400 V Lines (Miles) Constru c tion Cost Constr uc tion Cost MileMateri al Cost Transpor t Cost Total KVA NoMateri Transport Cost Total al Cost Tachilei k 14.34160.42 1 2 93 93 456 1.55 43.063 3.023 150 2 21.564 1.510 1.920 24.994 85.421 0.93 43.815 7 456 1.55 43.063 3.023 14.34160.42 Total 2 93 93 150 2 21.564 1.510 1.920 24.99485.421 0.93 43.815 7 4

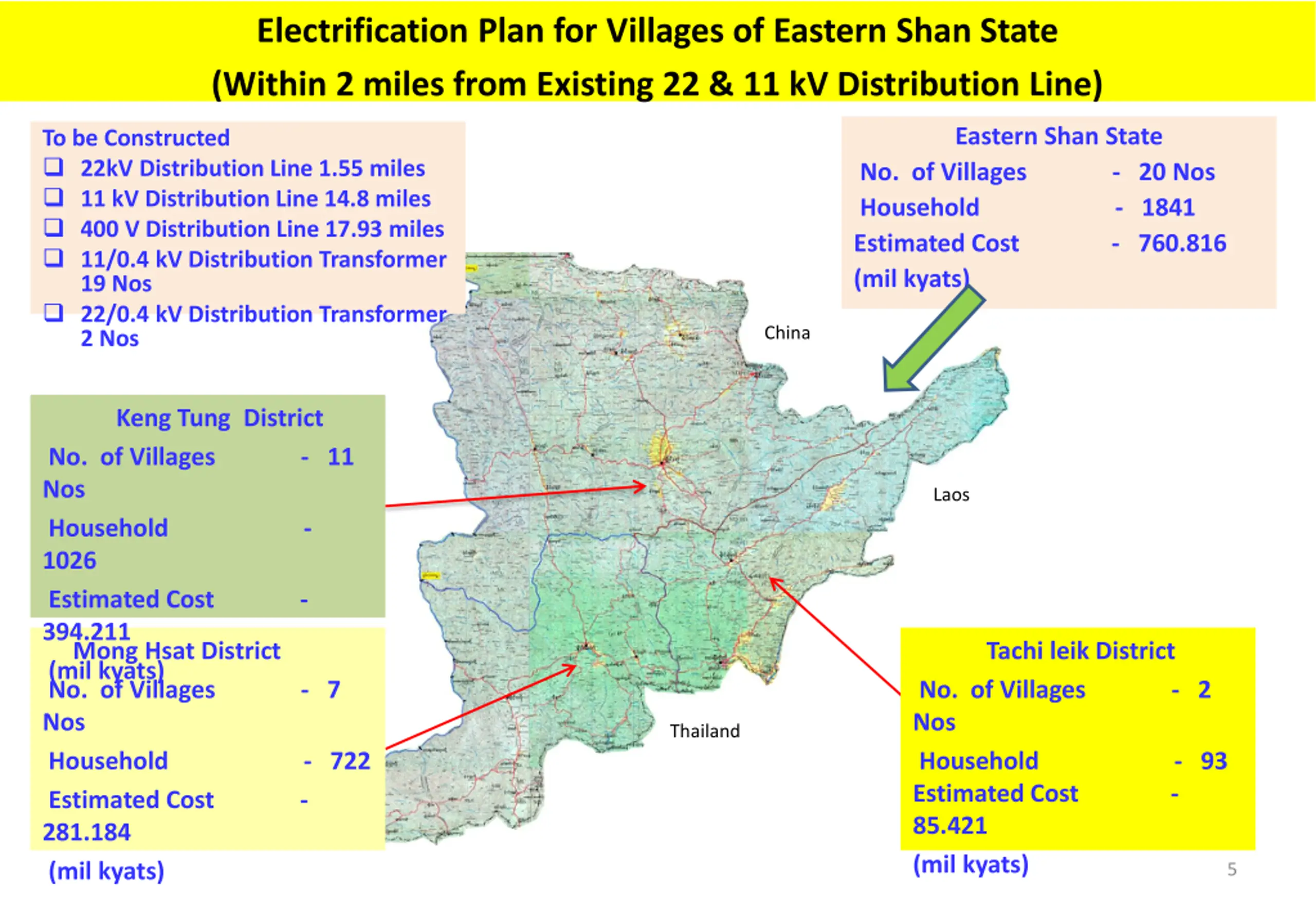

Electrification Plan for Villages of Eastern Shan State (Within 2 miles from Existing 22 & 11 kV Distribution Line) Eastern Shan State No. of Villages - 20 Nos Household - 1841 Estimated Cost - 760.816 (mil kyats) To be Constructed 22kV Distribution Line 1.55 miles 11 kV Distribution Line 14.8 miles 400 V Distribution Line 17.93 miles 11/0.4 kV Distribution Transformer 19 Nos 22/0.4 kV Distribution Transformer 2 Nos China Keng Tung District No. of Villages - 11 Nos Household - 1026 Estimated Cost - 394.211 (mil kyats) Laos Mong Hsat District No. of Villages - 7 Nos Household - 722 Estimated Cost - 281.184 (mil kyats) Tachi leik District No. of Villages - 2 Nos Household - 93 Estimated Cost - 85.421 (mil kyats) Thailand 5

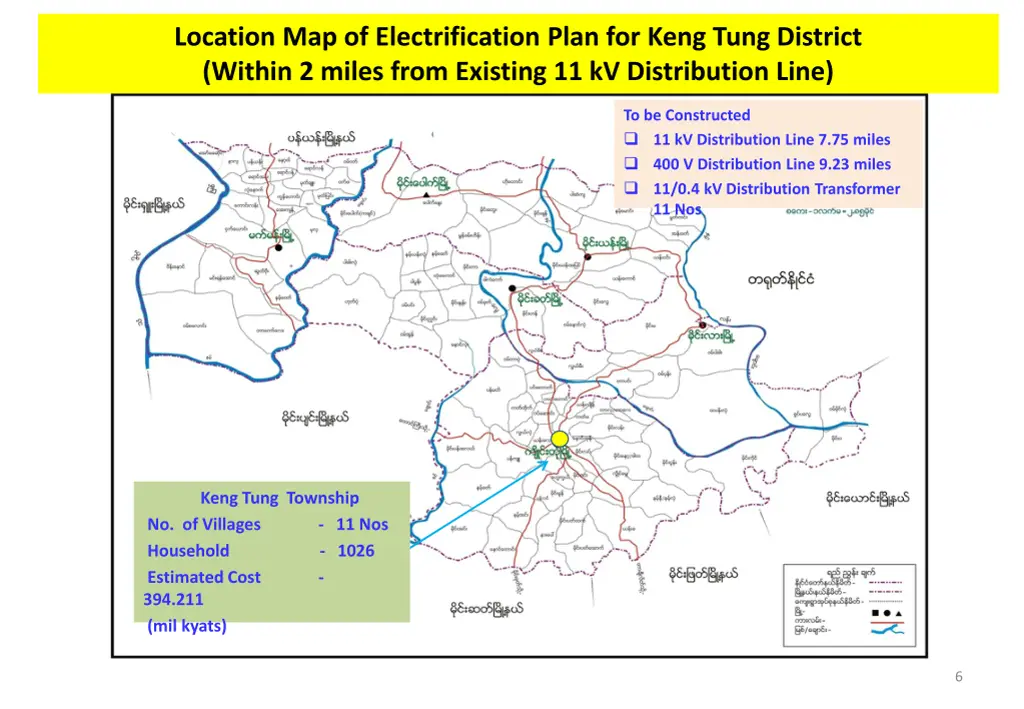

Location Map of Electrification Plan for Keng Tung District (Within 2 miles from Existing 11 kV Distribution Line) To be Constructed 11 kV Distribution Line 7.75 miles 400 V Distribution Line 9.23 miles 11/0.4 kV Distribution Transformer 11 Nos Existing 11 kV Toll gate feeder Keng Tung Township No. of Villages - 11 Nos Household - 1026 Estimated Cost - 394.211 (mil kyats) 6

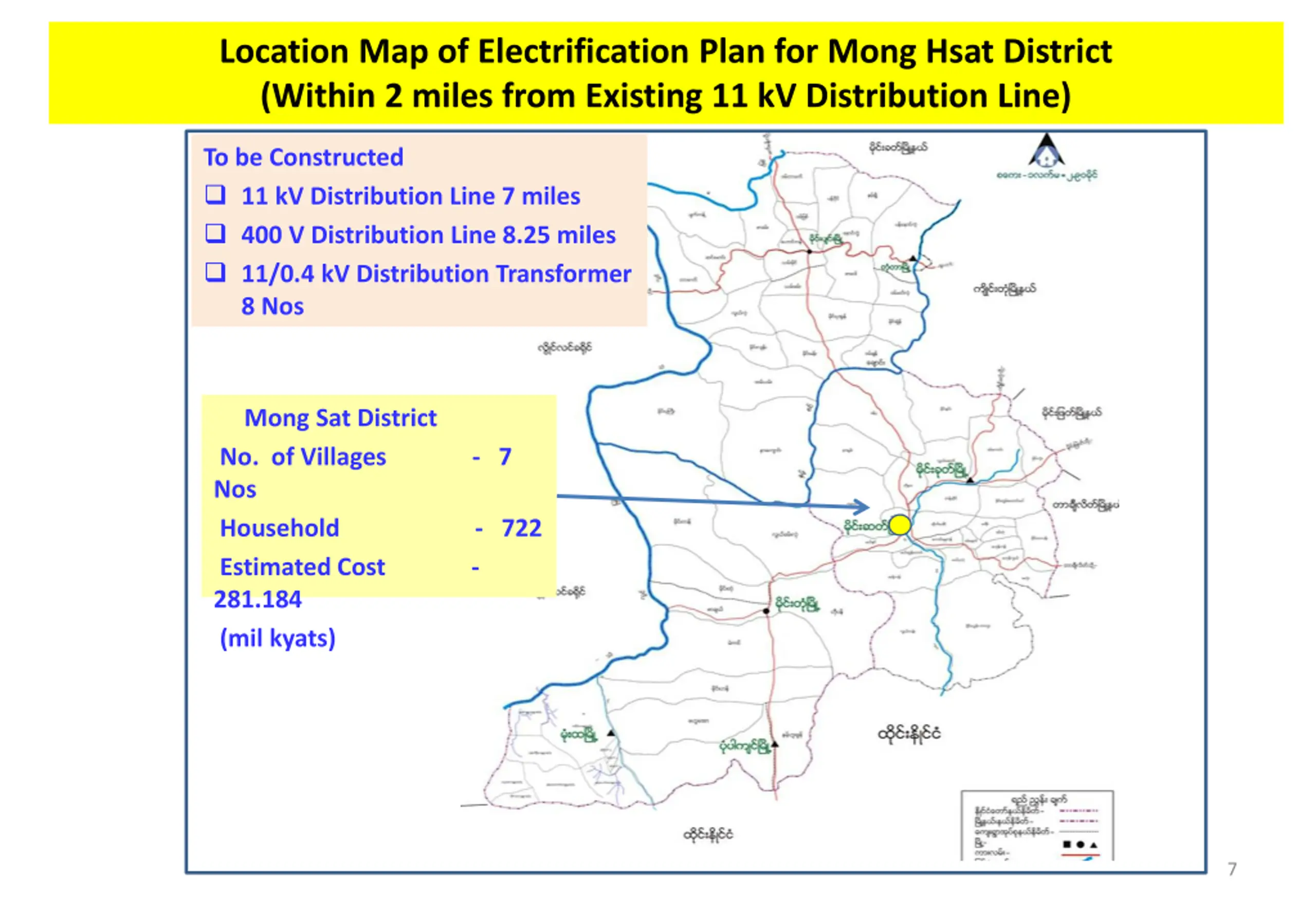

Location Map of Electrification Plan for Mong Hsat District (Within 2 miles from Existing 11 kV Distribution Line) To be Constructed 11 kV Distribution Line 7 miles 400 V Distribution Line 8.25 miles 11/0.4 kV Distribution Transformer 8 Nos Mong Sat District No. of Villages - 7 Nos Household - 722 Estimated Cost - 281.184 (mil kyats) 7

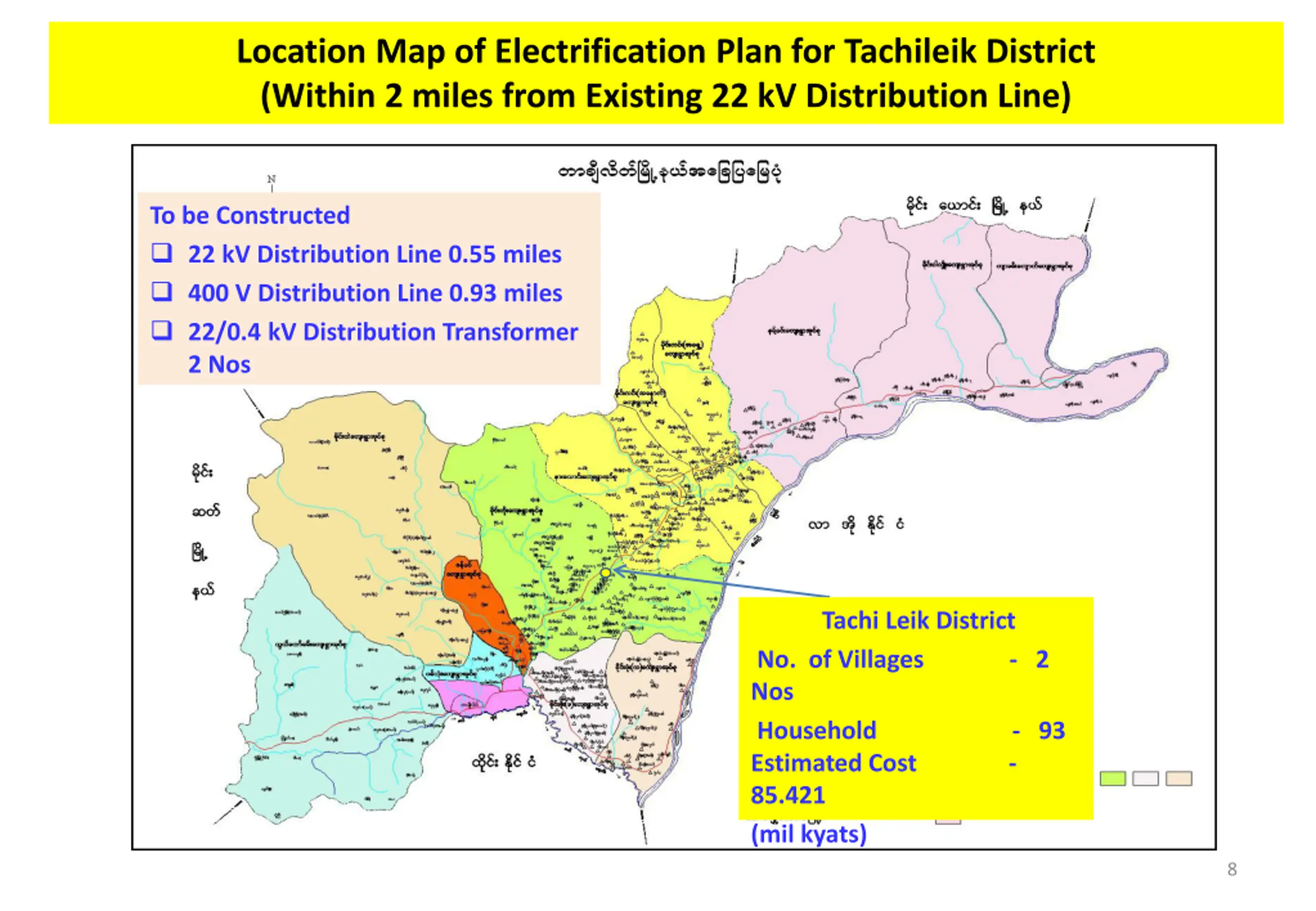

Location Map of Electrification Plan for Tachileik District (Within 2 miles from Existing 22 kV Distribution Line) To be Constructed 22 kV Distribution Line 0.55 miles 400 V Distribution Line 0.93 miles 22/0.4 kV Distribution Transformer 2 Nos Tachi Leik District No. of Villages - 2 Nos Household - 93 Estimated Cost - 85.421 (mil kyats) 8

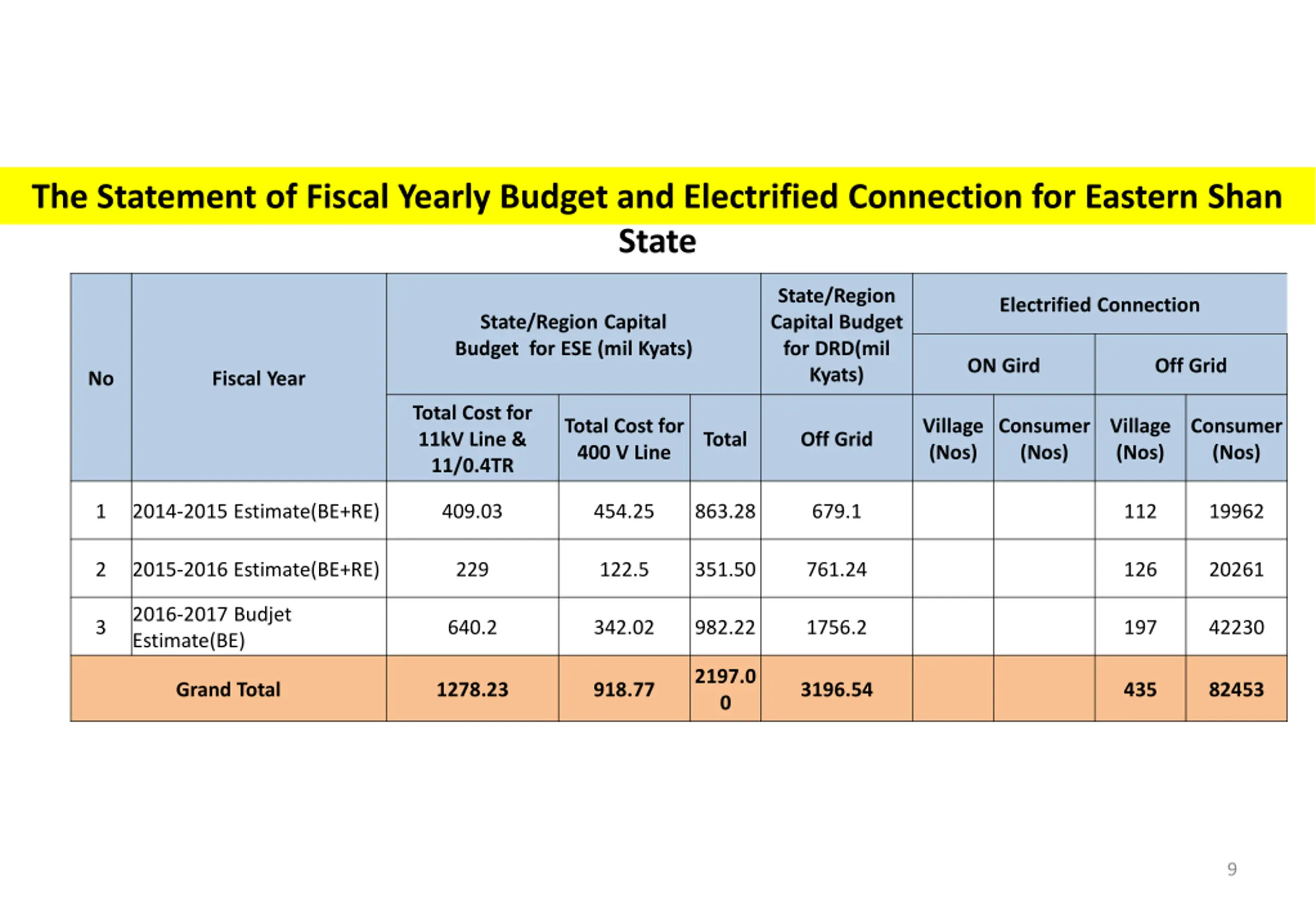

The Statement of Fiscal Yearly Budget and Electrified Connection for Eastern Shan State State/Region Capital Budget for DRD(mil Kyats) Electrified Connection State/Region Capital Budget for ESE (mil Kyats) ON Gird Off Grid No Fiscal Year Total Cost for 11kV Line & 11/0.4TR Total Cost for 400 V Line Village (Nos) Consumer (Nos) Village (Nos) Consumer (Nos) Total Off Grid 1 2014-2015 Estimate(BE+RE) 409.03 454.25 863.28 679.1 112 19962 2 2015-2016 Estimate(BE+RE) 229 122.5 351.50 761.24 126 20261 2016-2017 Budjet Estimate(BE) 3 640.2 342.02 982.22 1756.2 197 42230 2197.0 0 Grand Total 1278.23 918.77 3196.54 435 82453 9

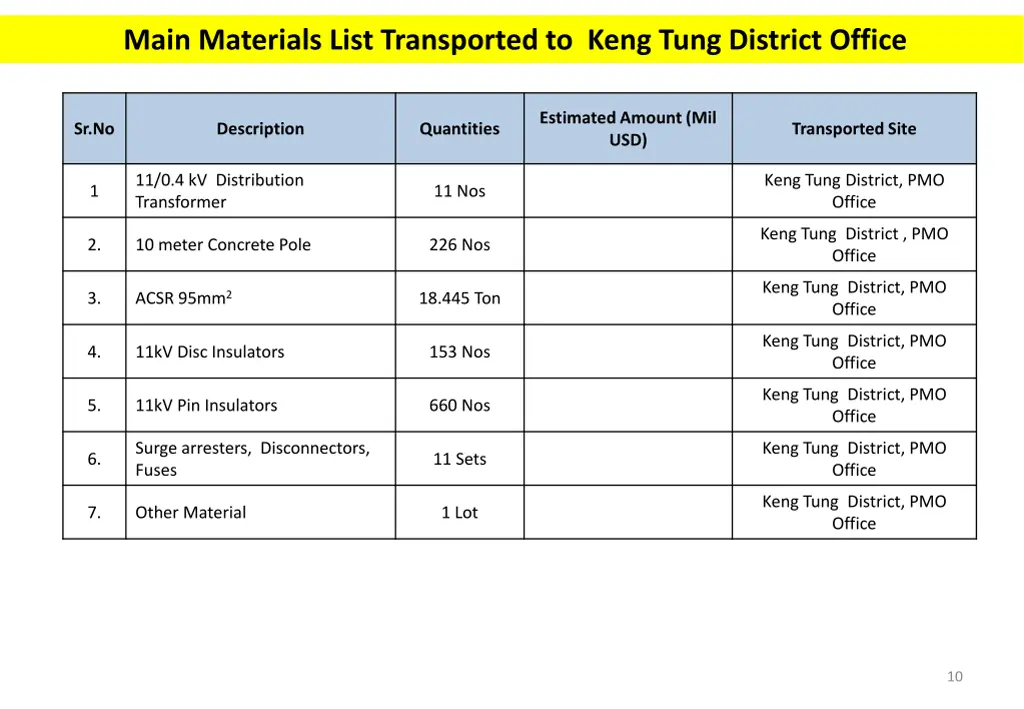

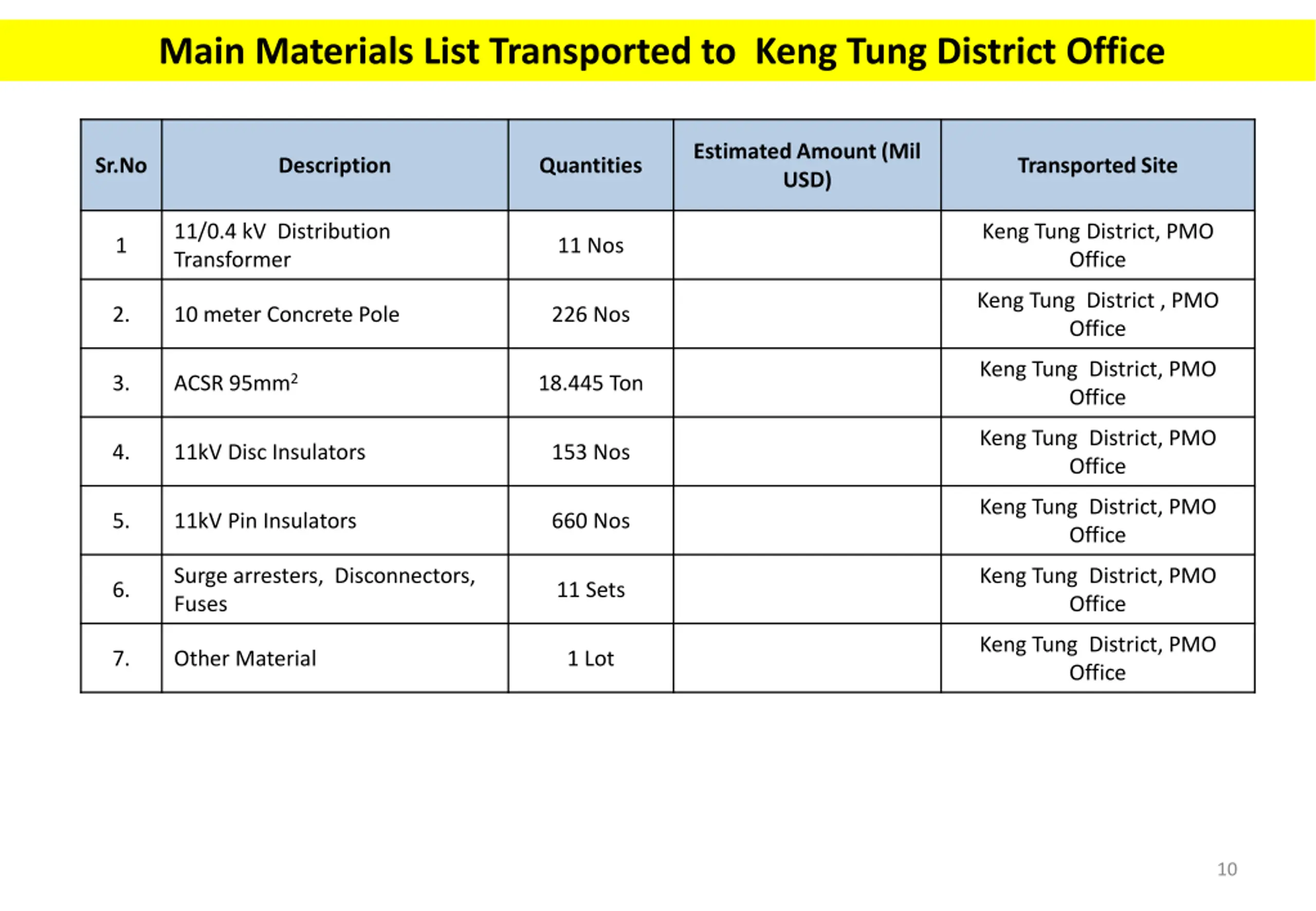

Main Materials List Transported to Keng Tung District Office Estimated Amount (Mil USD) Sr.No Description Quantities Transported Site 11/0.4 kV Distribution Transformer Keng Tung District, PMO Office 1 11 Nos Keng Tung District , PMO Office 2. 10 meter Concrete Pole 226 Nos Keng Tung District, PMO Office ACSR 95mm2 3. 18.445 Ton Keng Tung District, PMO Office 4. 11kV Disc Insulators 153 Nos Keng Tung District, PMO Office 5. 11kV Pin Insulators 660 Nos Surge arresters, Disconnectors, Fuses Keng Tung District, PMO Office 6. 11 Sets Keng Tung District, PMO Office 7. Other Material 1 Lot 10

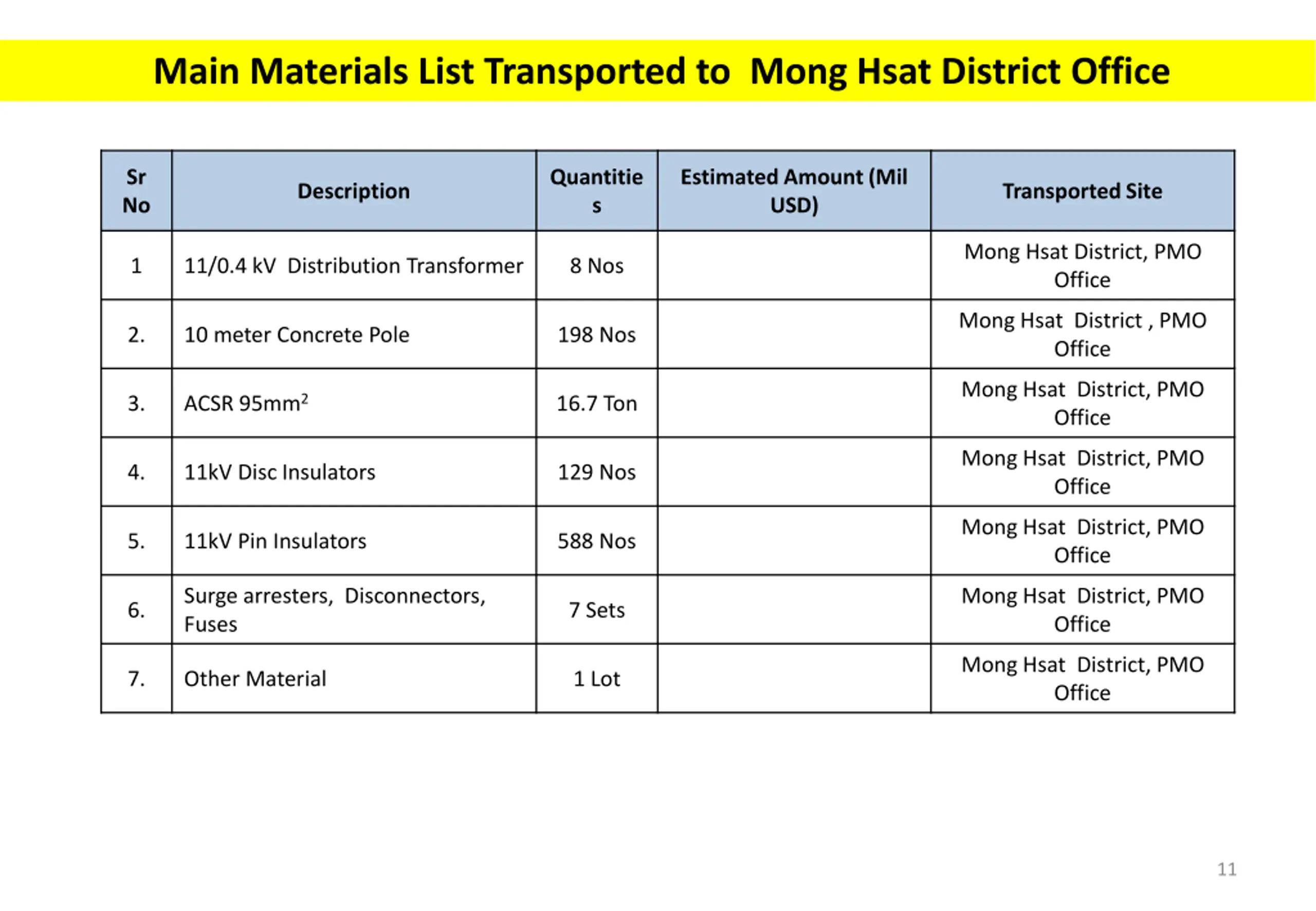

Main Materials List Transported to Mong Hsat District Office Sr No Quantitie s Estimated Amount (Mil USD) Description Transported Site Mong Hsat District, PMO Office 1 11/0.4 kV Distribution Transformer 8 Nos Mong Hsat District , PMO Office 2. 10 meter Concrete Pole 198 Nos Mong Hsat District, PMO Office ACSR 95mm2 3. 16.7 Ton Mong Hsat District, PMO Office 4. 11kV Disc Insulators 129 Nos Mong Hsat District, PMO Office 5. 11kV Pin Insulators 588 Nos Surge arresters, Disconnectors, Fuses Mong Hsat District, PMO Office 6. 7 Sets Mong Hsat District, PMO Office 7. Other Material 1 Lot 11

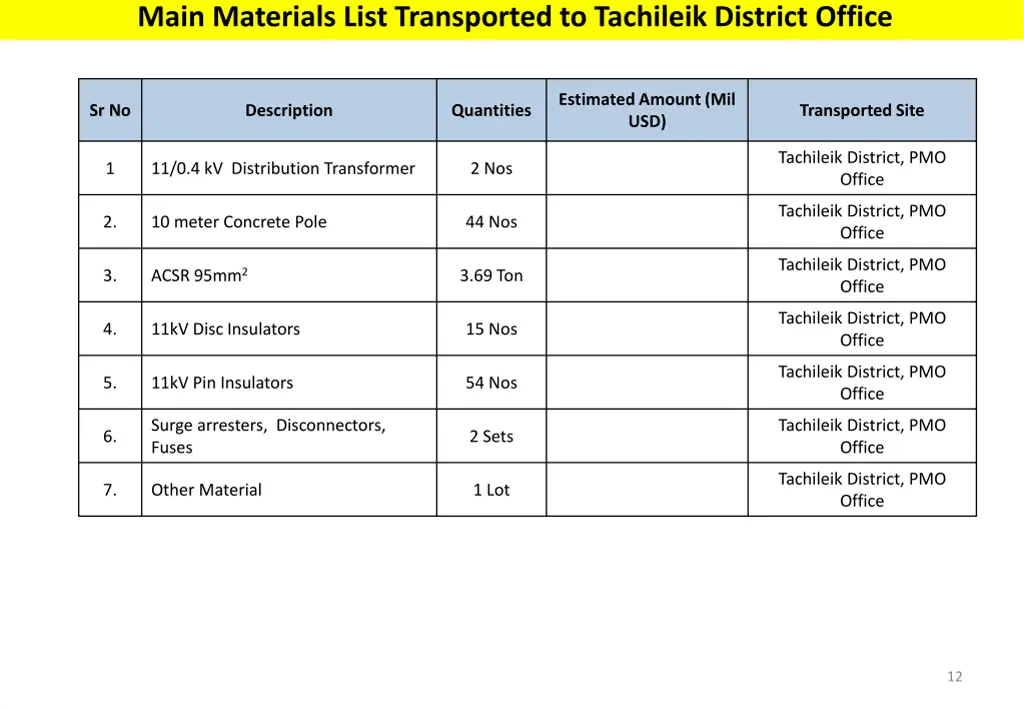

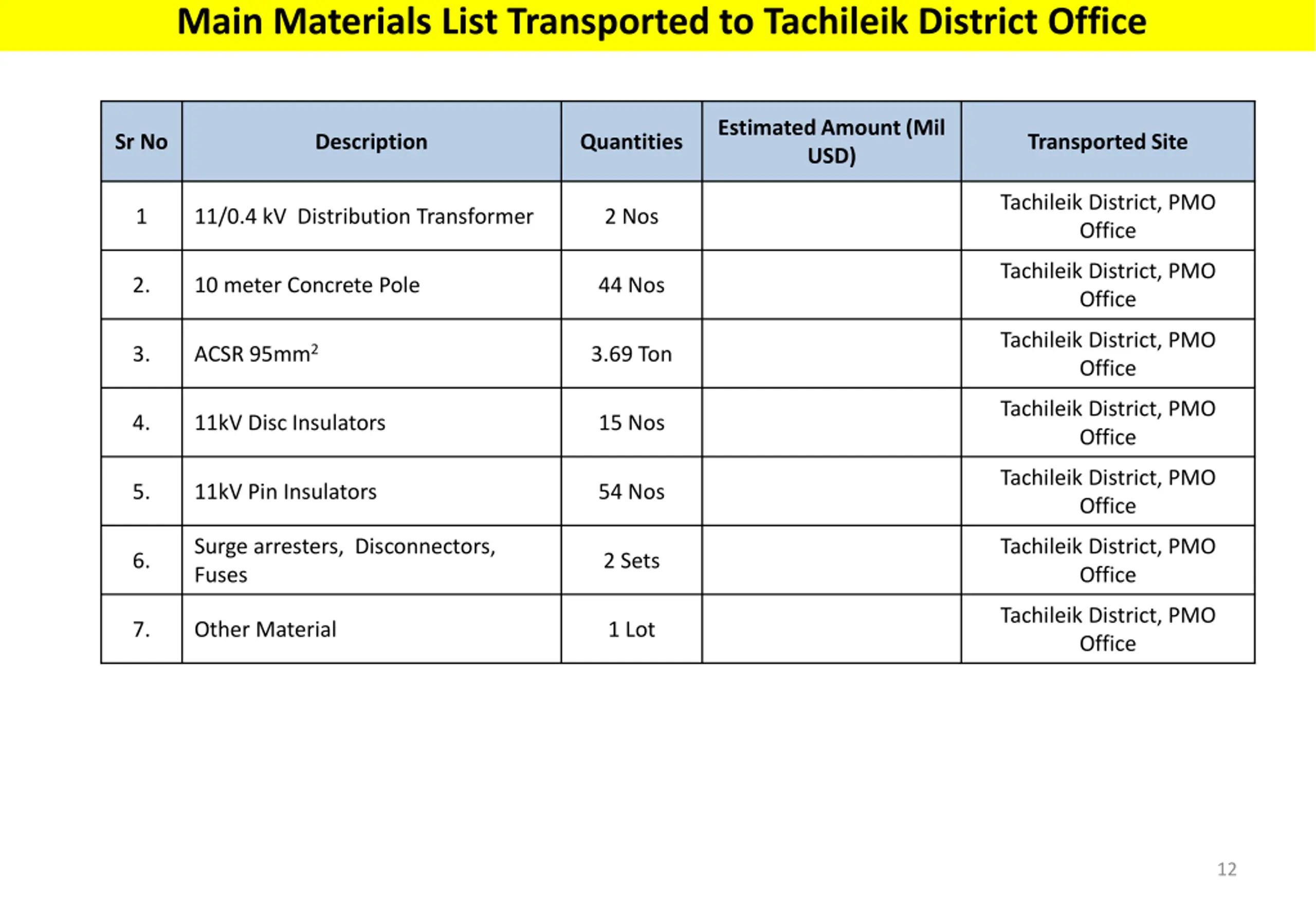

Main Materials List Transported to Tachileik District Office Estimated Amount (Mil USD) Sr No Description Quantities Transported Site Tachileik District, PMO Office 1 11/0.4 kV Distribution Transformer 2 Nos Tachileik District, PMO Office 2. 10 meter Concrete Pole 44 Nos Tachileik District, PMO Office ACSR 95mm2 3. 3.69 Ton Tachileik District, PMO Office 4. 11kV Disc Insulators 15 Nos Tachileik District, PMO Office 5. 11kV Pin Insulators 54 Nos Surge arresters, Disconnectors, Fuses Tachileik District, PMO Office 6. 2 Sets Tachileik District, PMO Office 7. Other Material 1 Lot 12
