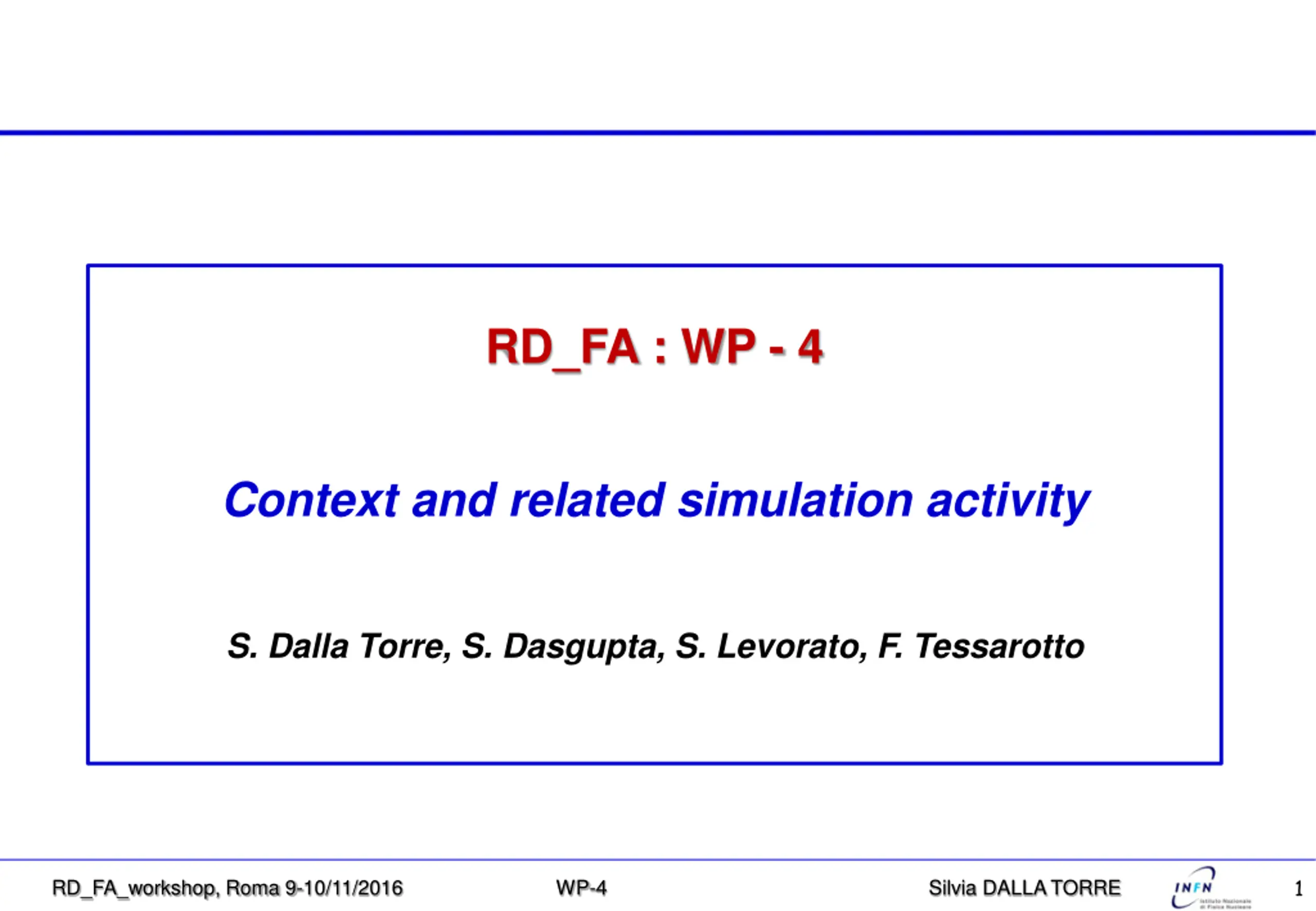

RD_FA : WP - 4 Context and related simulation activity S. Dalla Torre, S. Dasgupta, S. Levorato, F. Tessarotto 1 RD_FA_workshop, Roma 9-10/11/2016 WP-4 Silvia DALLA TORRE

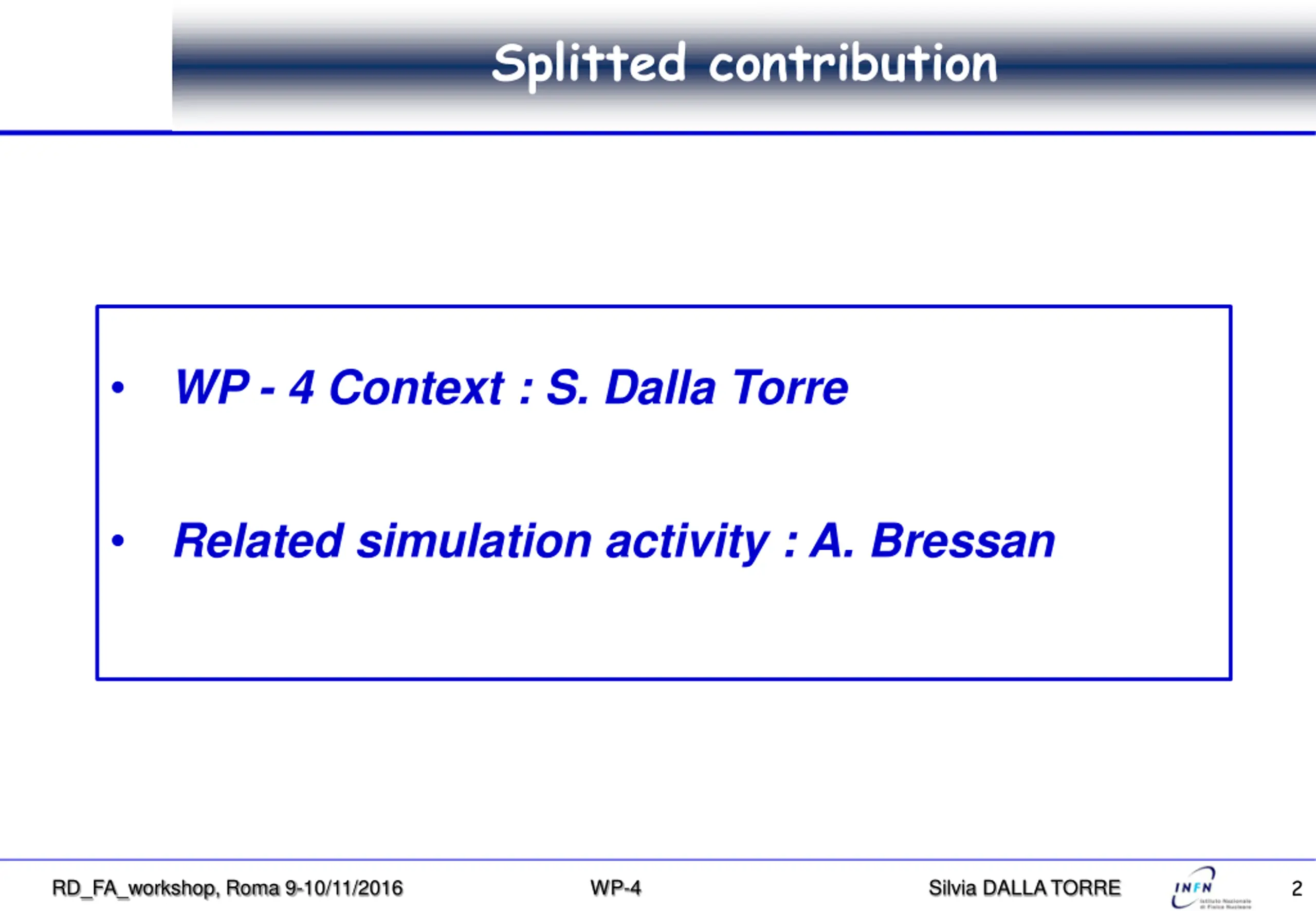

Splitted contribution WP - 4 Context : S. Dalla Torre Related simulation activity : A. Bressan 2 RD_FA_workshop, Roma 9-10/11/2016 WP-4 Silvia DALLA TORRE

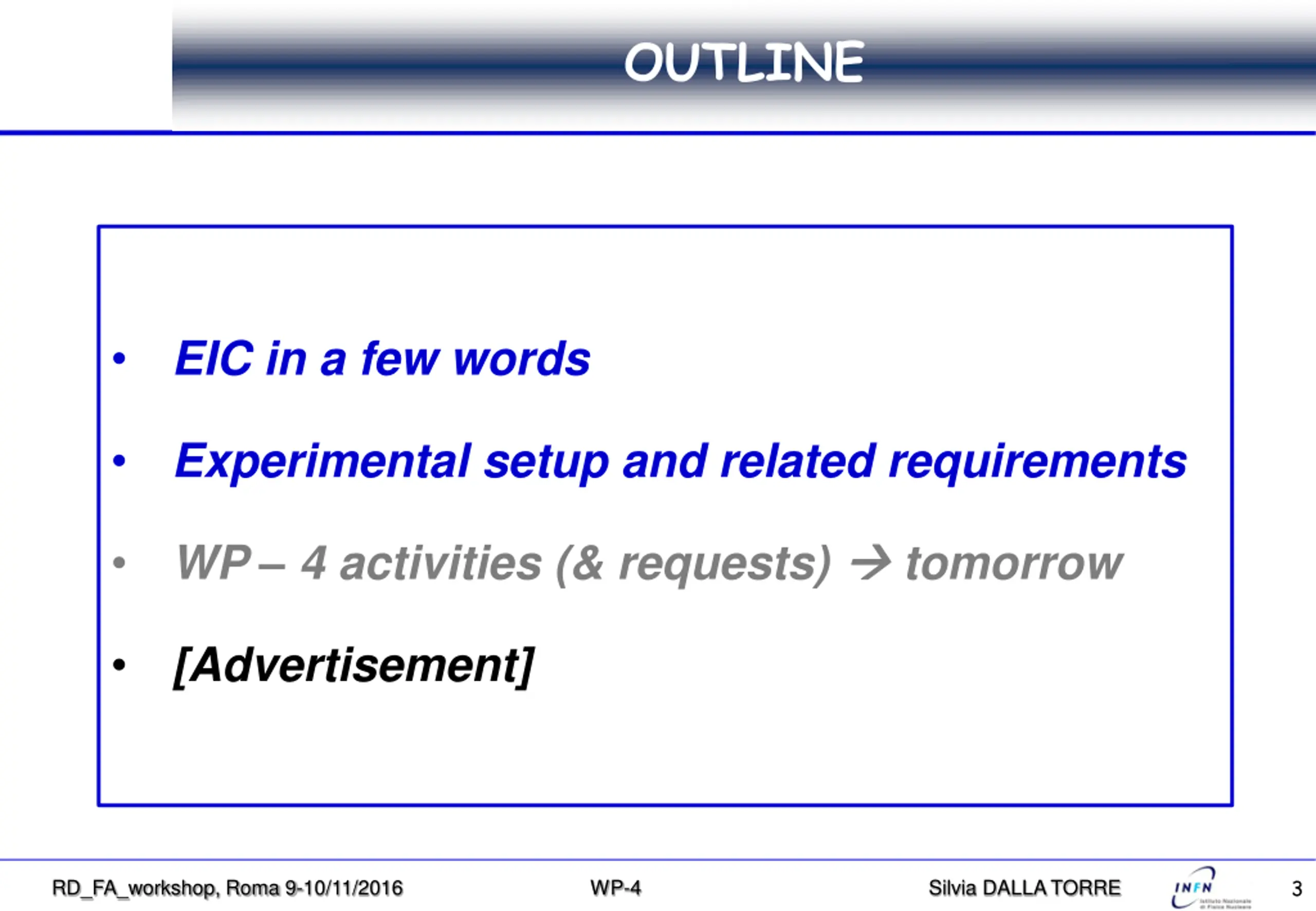

OUTLINE EIC in a few words Experimental setup and related requirements WP 4 activities (& requests) tomorrow [Advertisement] 3 RD_FA_workshop, Roma 9-10/11/2016 WP-4 Silvia DALLA TORRE

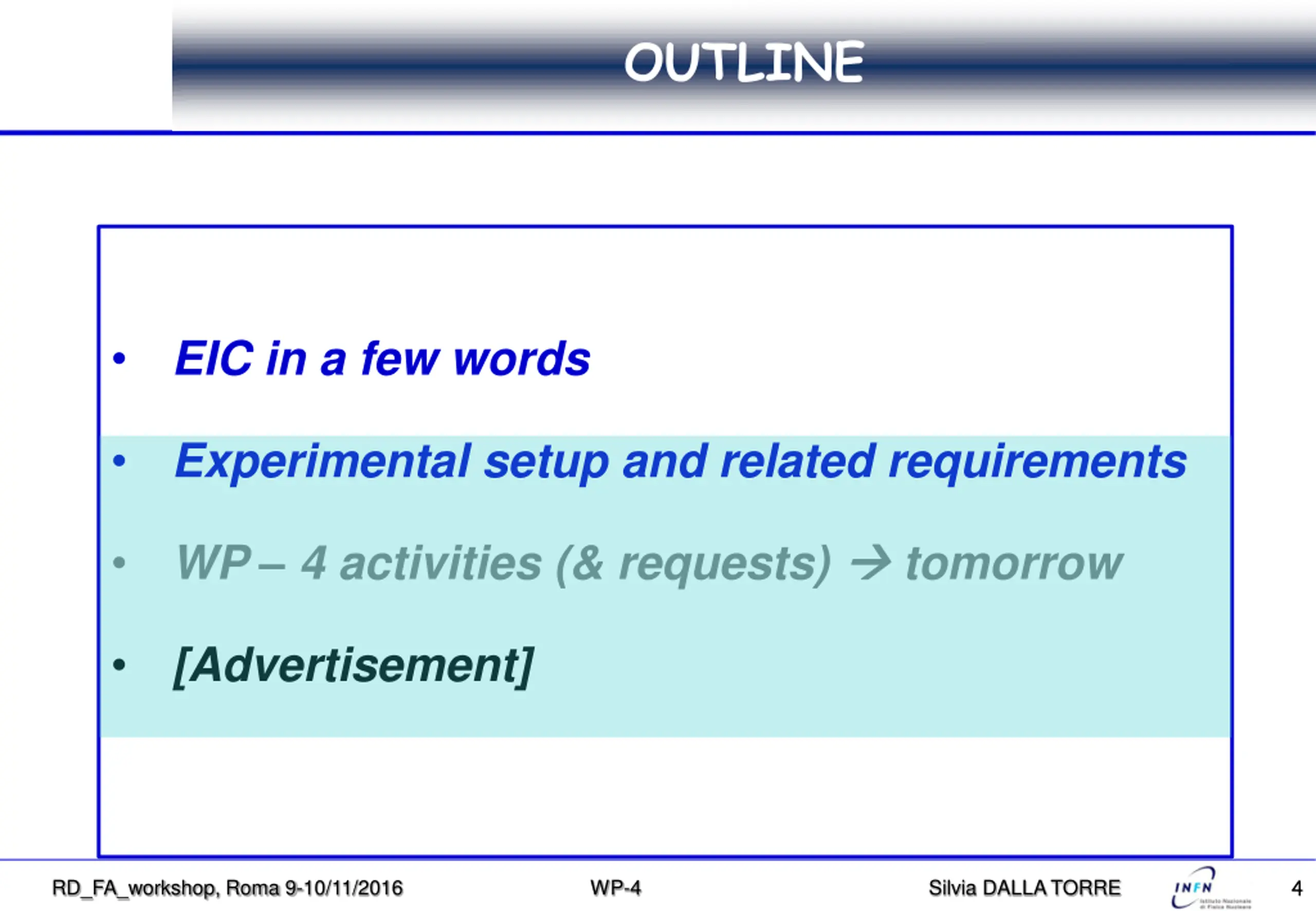

OUTLINE EIC in a few words Experimental setup and related requirements WP 4 activities (& requests) tomorrow [Advertisement] 4 RD_FA_workshop, Roma 9-10/11/2016 WP-4 Silvia DALLA TORRE

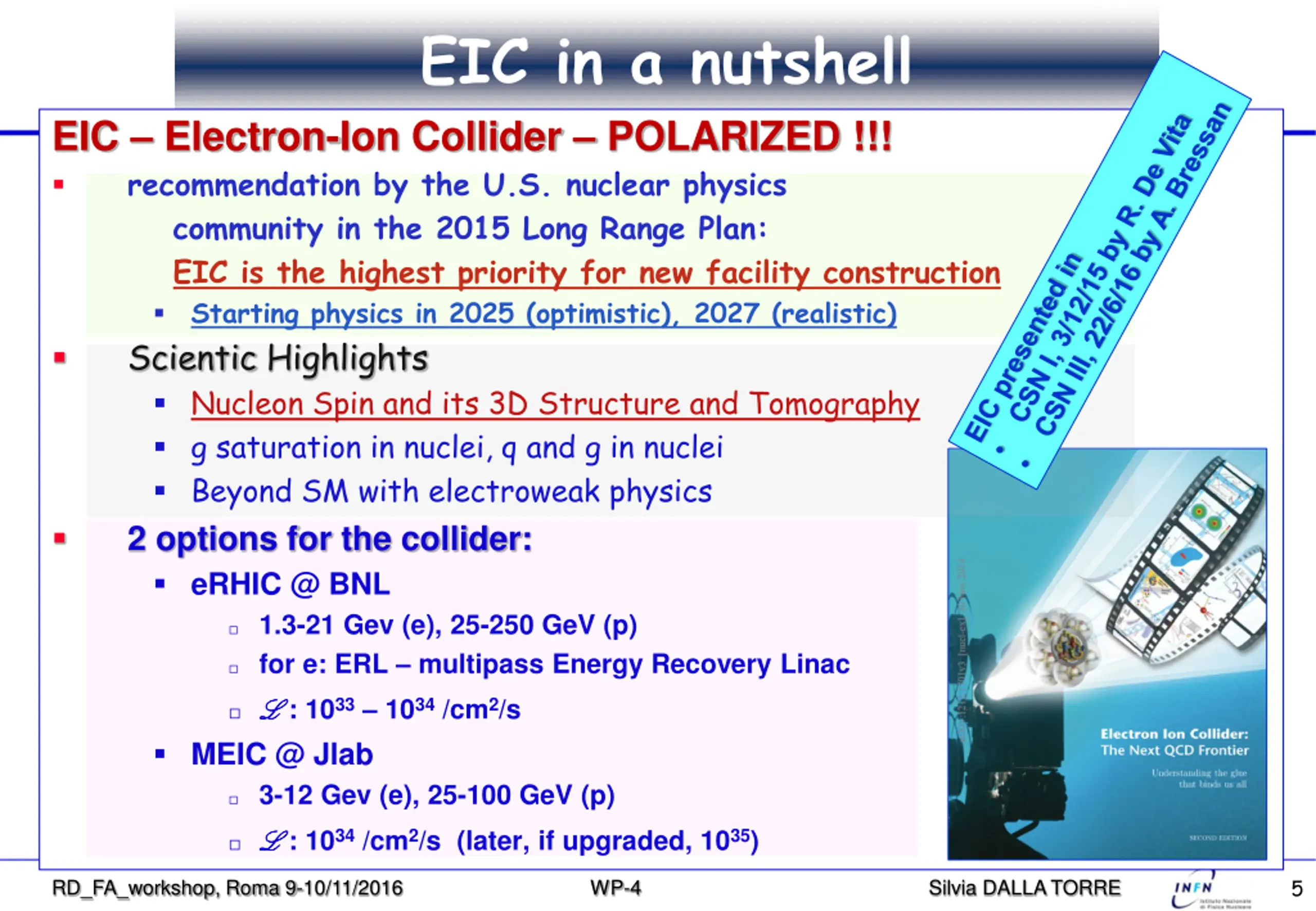

EIC in a nutshell EIC Electron-Ion Collider POLARIZED !!! recommendation by the U.S. nuclear physics community in the 2015 Long Range Plan: EIC is the highest priority for new facility construction Starting physics in 2025 (optimistic), 2027 (realistic) Scientic Highlights Nucleon Spin and its 3D Structure and Tomography g saturation in nuclei, q and g in nuclei Beyond SM with electroweak physics 2 options for the collider: eRHIC @ BNL 1.3-21 Gev (e), 25-250 GeV (p) for e: ERL multipass Energy Recovery Linac L L: 1033 1034 /cm2/s MEIC @ Jlab 3-12 Gev (e), 25-100 GeV (p) L L: 1034 /cm2/s (later, if upgraded, 1035) 5 RD_FA_workshop, Roma 9-10/11/2016 WP-4 Silvia DALLA TORRE

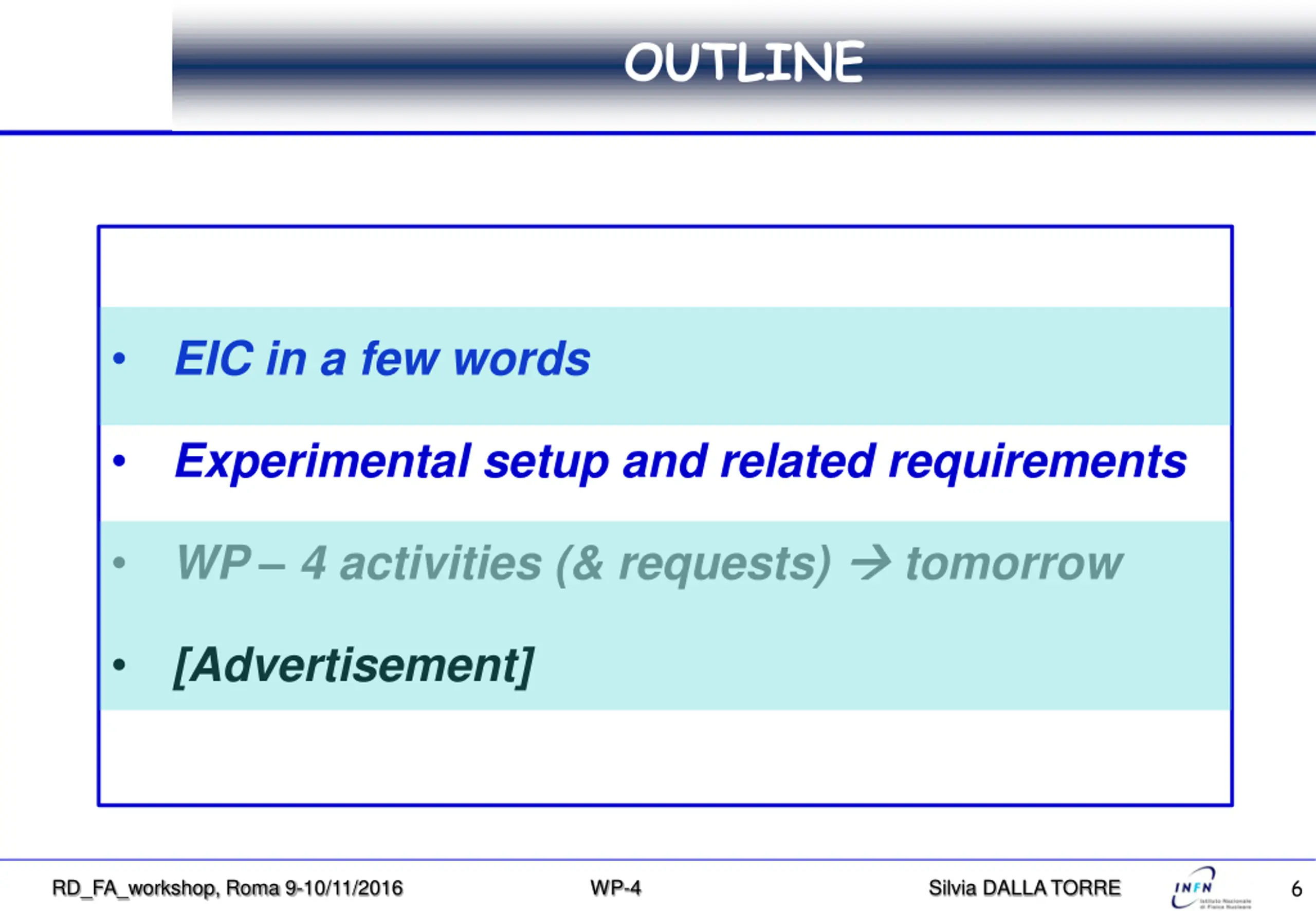

OUTLINE EIC in a few words Experimental setup and related requirements WP 4 activities (& requests) tomorrow [Advertisement] 6 RD_FA_workshop, Roma 9-10/11/2016 WP-4 Silvia DALLA TORRE

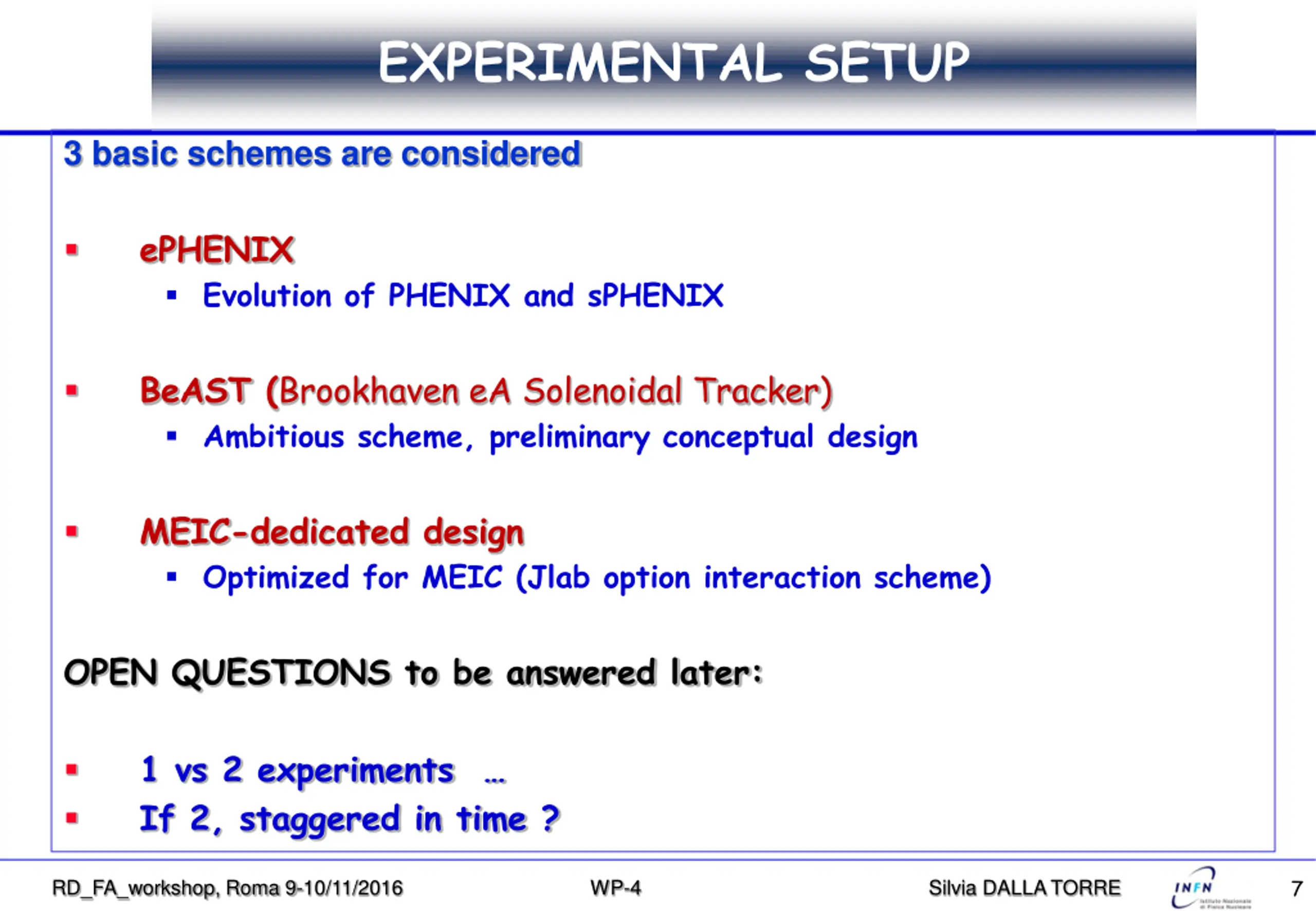

EXPERIMENTAL SETUP 3 basic schemes are considered ePHENIX Evolution of PHENIX and sPHENIX BeAST (Brookhaven eA Solenoidal Tracker) Ambitious scheme, preliminary conceptual design MEIC-dedicated design Optimized for MEIC (Jlab option interaction scheme) OPEN QUESTIONS to be answered later: 1 vs 2 experiments If 2, staggered in time ? 7 RD_FA_workshop, Roma 9-10/11/2016 WP-4 Silvia DALLA TORRE

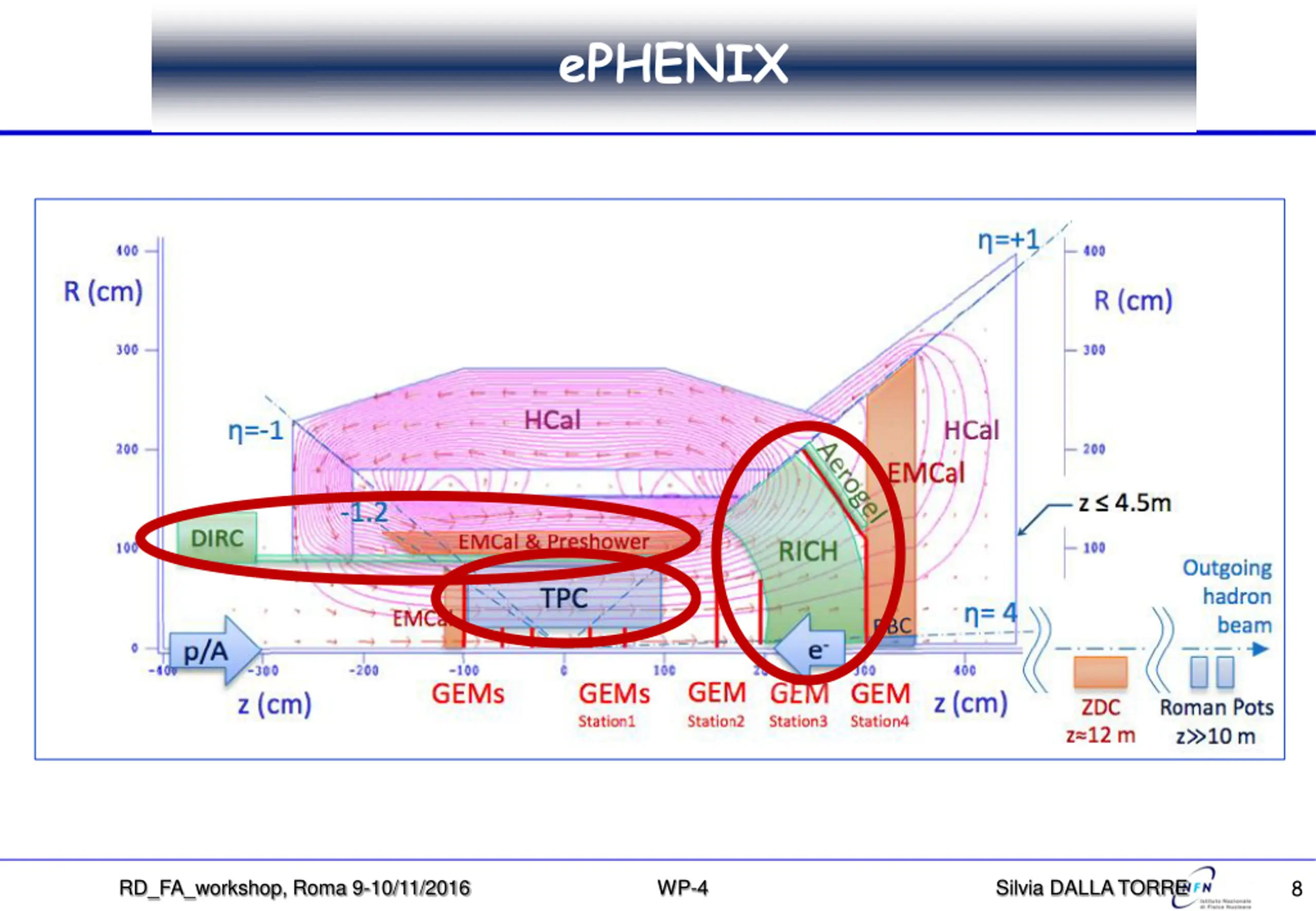

ePHENIX 8 RD_FA_workshop, Roma 9-10/11/2016 WP-4 Silvia DALLA TORRE

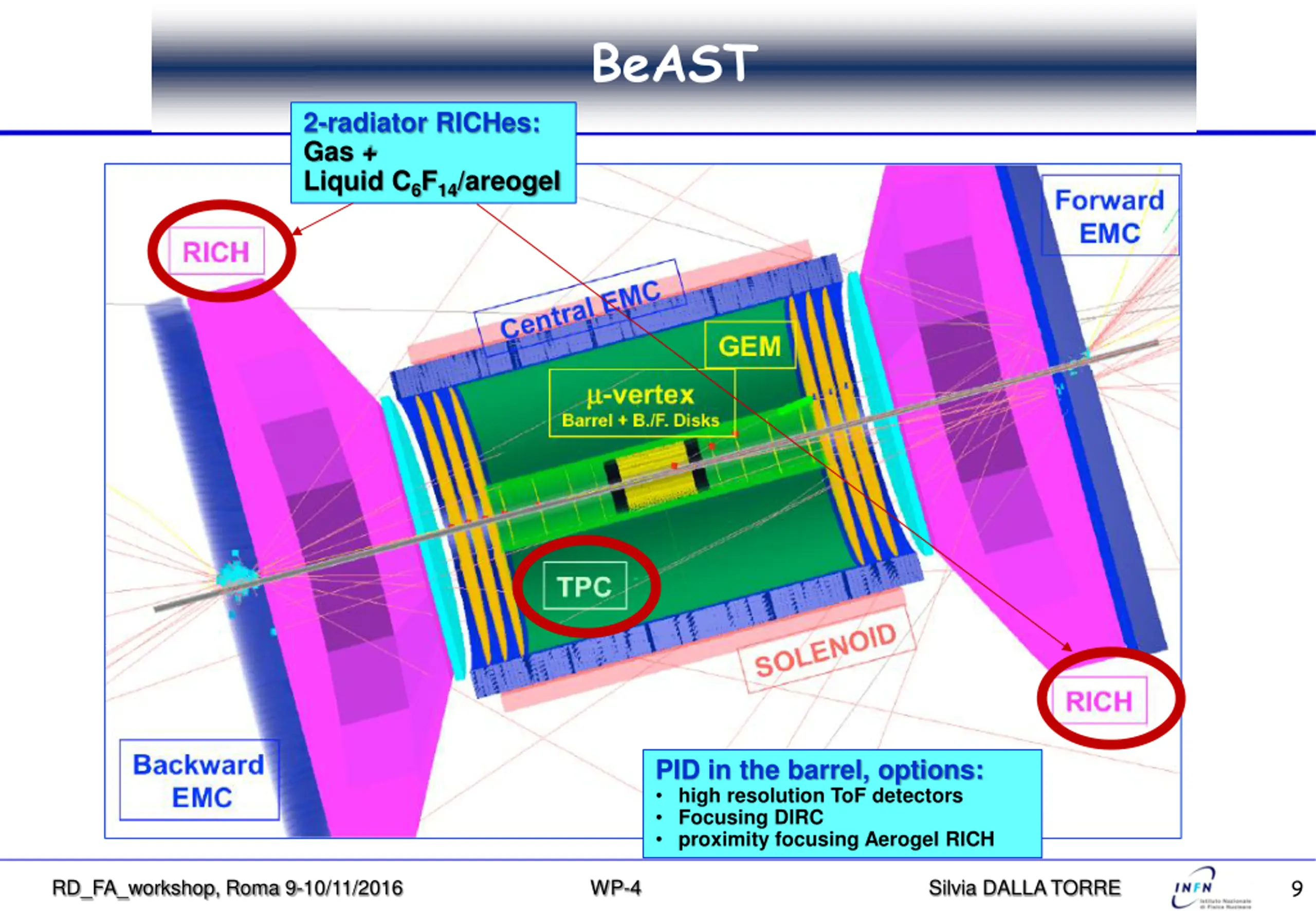

BeAST 2-radiator RICHes: Gas + Liquid C6F14/areogel PID in the barrel, options: high resolution ToF detectors Focusing DIRC proximity focusing Aerogel RICH 9 RD_FA_workshop, Roma 9-10/11/2016 WP-4 Silvia DALLA TORRE

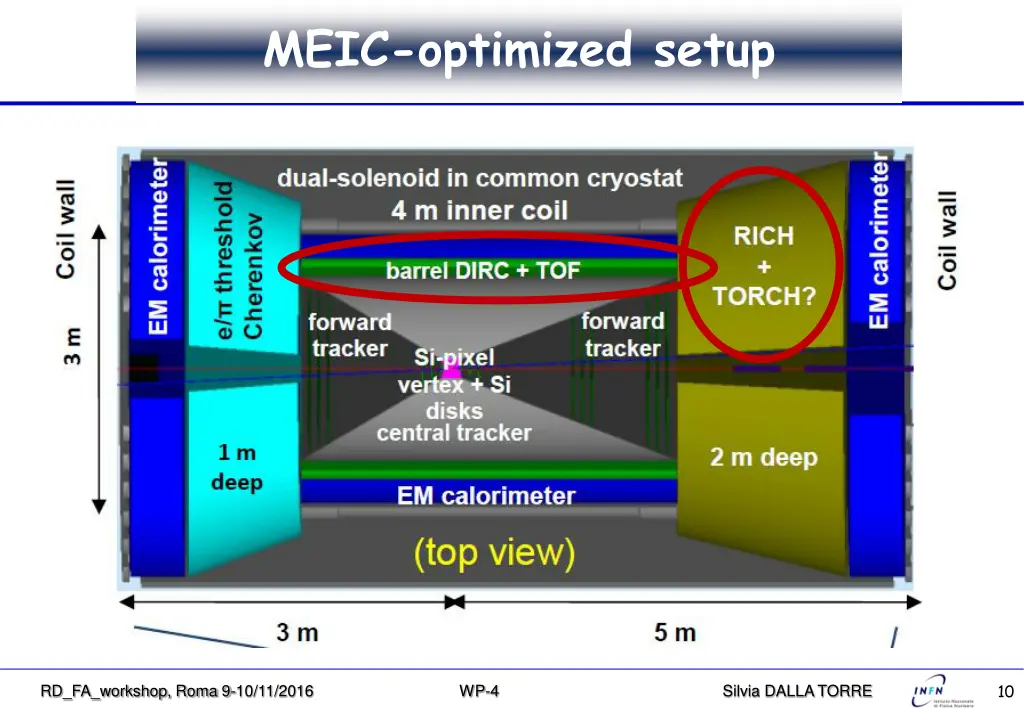

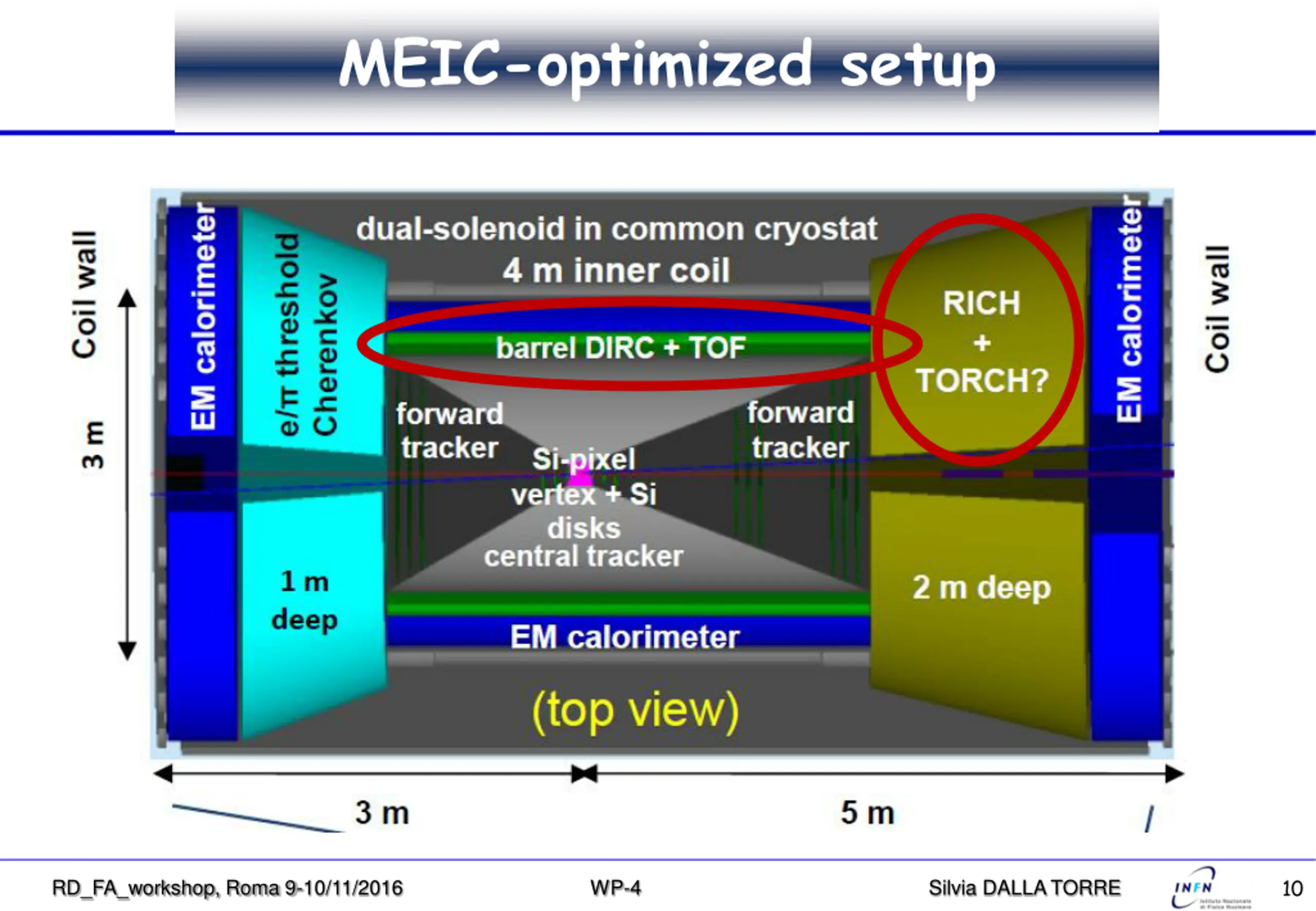

MEIC-optimized setup 10 RD_FA_workshop, Roma 9-10/11/2016 WP-4 Silvia DALLA TORRE

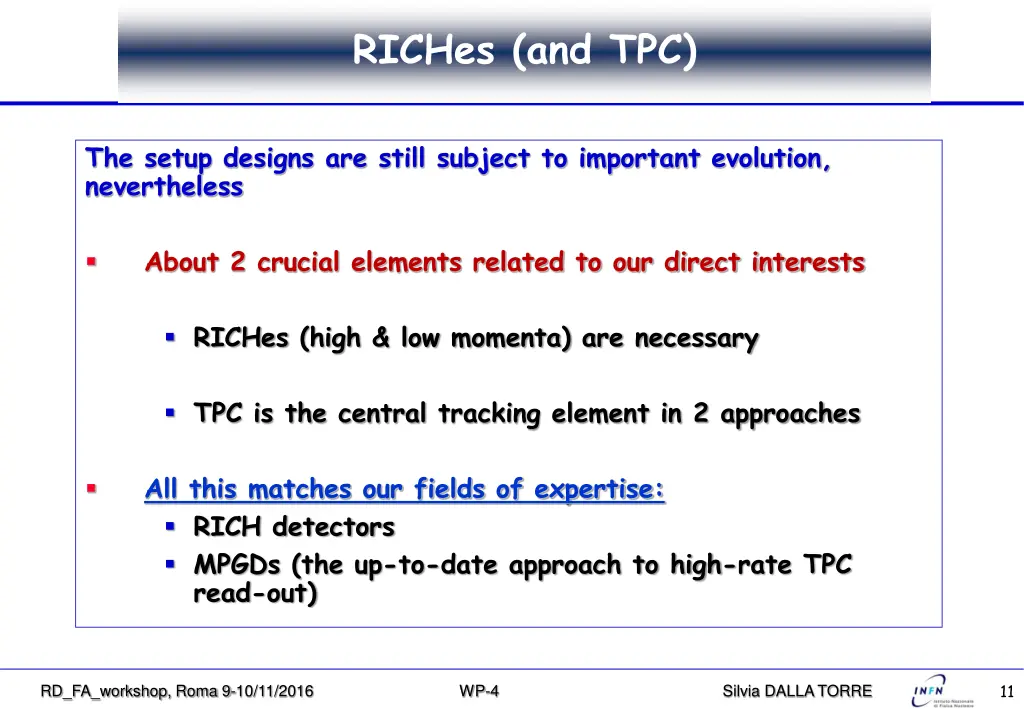

RICHes (and TPC) The setup designs are still subject to important evolution, nevertheless About 2 crucial elements related to our direct interests RICHes (high & low momenta) are necessary TPC is the central tracking element in 2 approaches All this matches our fields of expertise: RICH detectors MPGDs (the up-to-date approach to high-rate TPC read-out) 11 RD_FA_workshop, Roma 9-10/11/2016 WP-4 Silvia DALLA TORRE

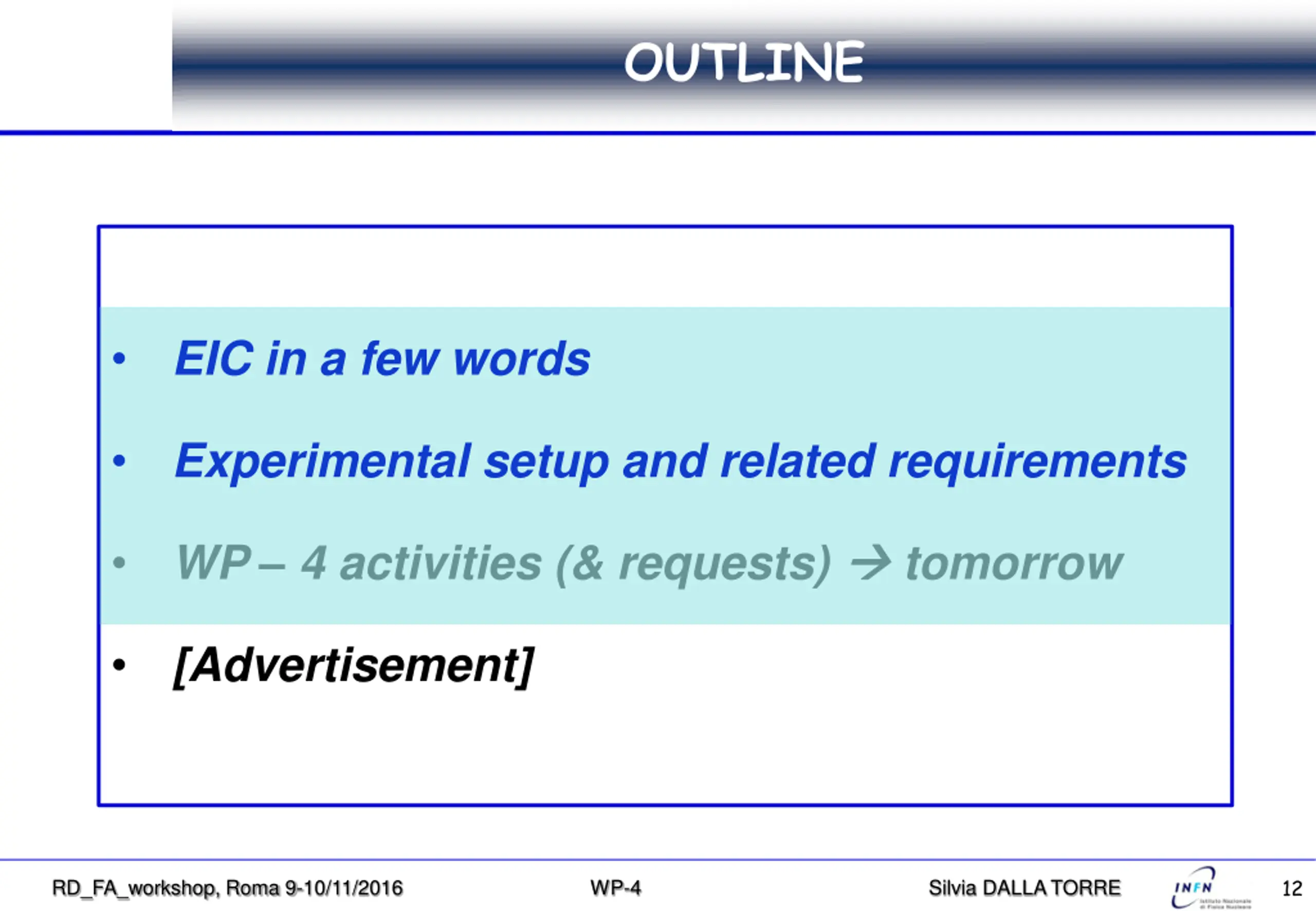

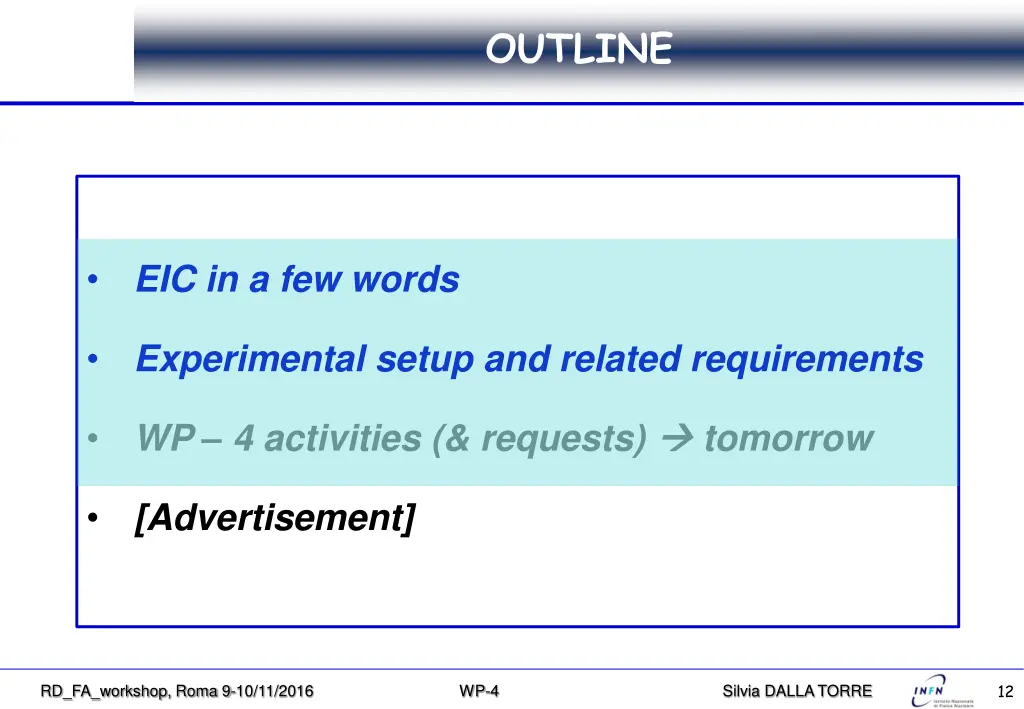

OUTLINE EIC in a few words Experimental setup and related requirements WP 4 activities (& requests) tomorrow [Advertisement] 12 RD_FA_workshop, Roma 9-10/11/2016 WP-4 Silvia DALLA TORRE

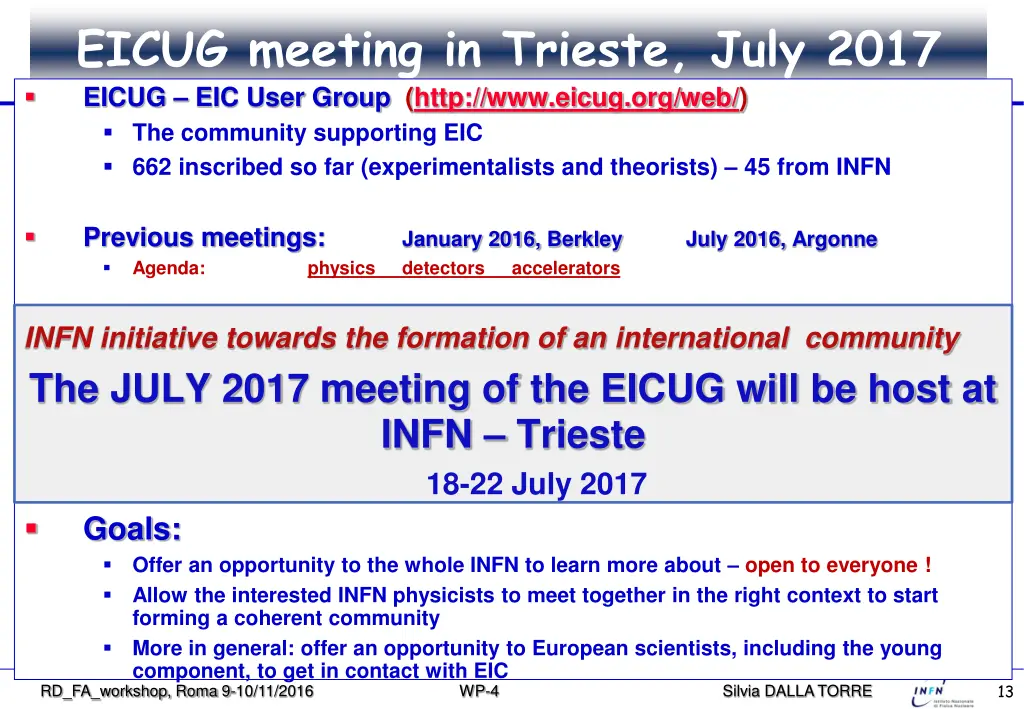

EICUG meeting in Trieste, July 2017 EICUG EIC User Group (http://www.eicug.org/web/) The community supporting EIC 662 inscribed so far (experimentalists and theorists) 45 from INFN Previous meetings: Agenda: January 2016, Berkley detectors accelerators July 2016, Argonne physics INFN initiative towards the formation of an international community The JULY 2017 meeting of the EICUG will be host at INFN Trieste 18-22 July 2017 Goals: Offer an opportunity to the whole INFN to learn more about open to everyone ! Allow the interested INFN physicists to meet together in the right context to start forming a coherent community More in general: offer an opportunity to European scientists, including the young component, to get in contact with EIC RD_FA_workshop, Roma 9-10/11/2016 WP-4 13 Silvia DALLA TORRE
