Emerson TX7 Series Thermostatic Expansion Valve
Explore the reliable performance, easy installation, and competitive advantages of the Emerson TX7 Series Thermostatic Expansion Valve. With features such as enhanced power element design, hermetic construction, and optimum superheat control, this valve ensures extended valve life and stable operation in various HVAC applications. Find out how the TX7 surpasses the competition in endurance and reliability tests, providing best-in-class valve life for your commercial and residential needs.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

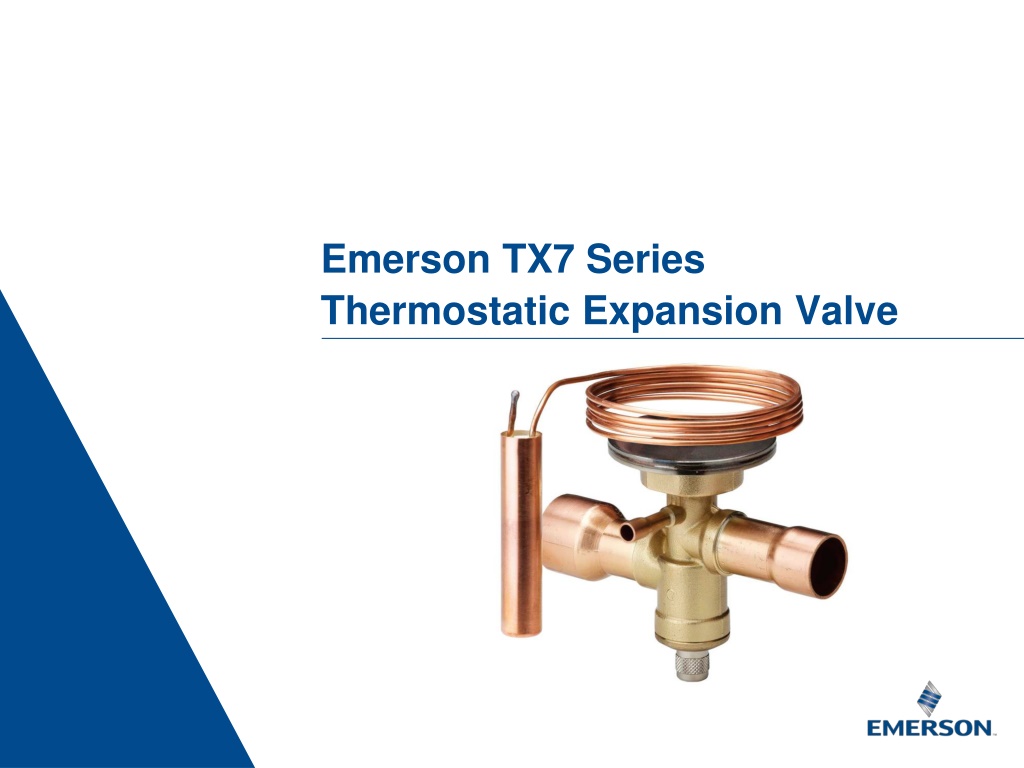

Emerson TX7 Series Thermostatic Expansion Valve 1

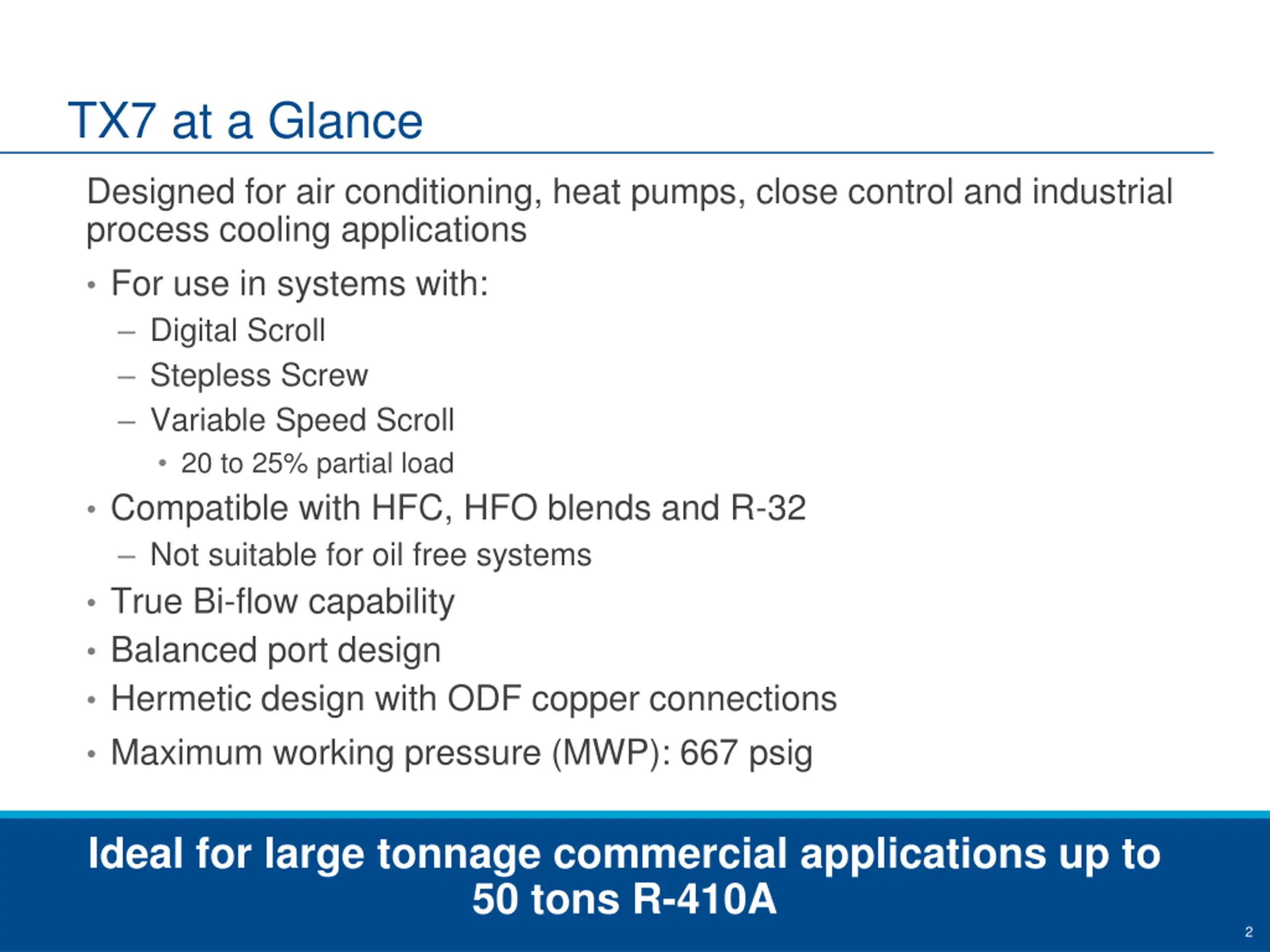

TX7 at a Glance Designed for air conditioning, heat pumps, close control and industrial process cooling applications For use in systems with: Digital Scroll Stepless Screw Variable Speed Scroll 20 to 25% partial load Compatible with HFC, HFO blends and R-32 Not suitable for oil free systems True Bi-flow capability Balanced port design Hermetic design with ODF copper connections Maximum working pressure (MWP): 667 psig Ideal for large tonnage commercial applications up to 50 tons R-410A 2 2

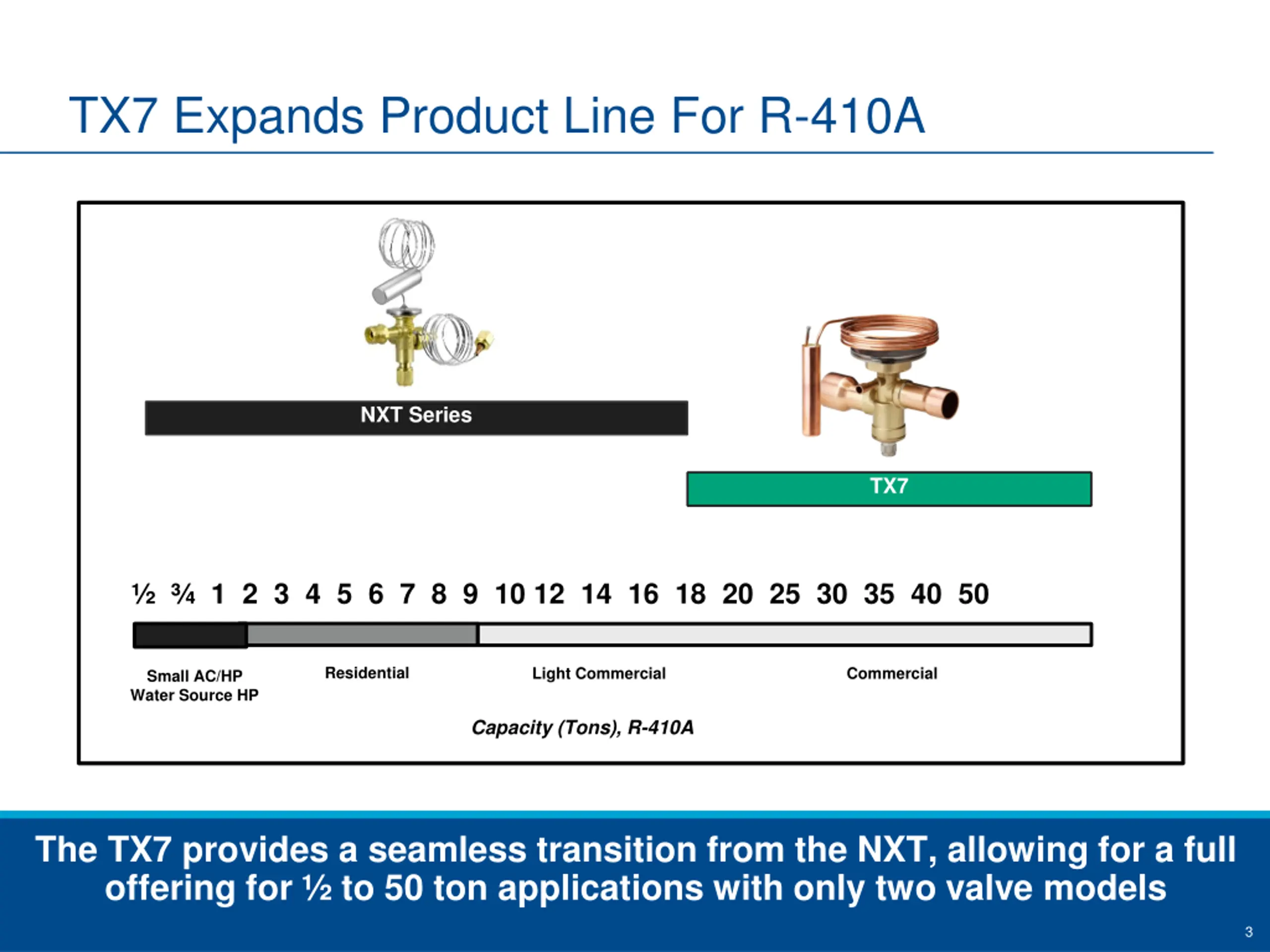

TX7 Expands Product Line For R-410A NXT Series TX7 1 2 3 4 5 6 7 8 9 10 12 14 16 18 20 25 30 35 40 50 Residential Light Commercial Commercial Small AC/HP Water Source HP Capacity (Tons), R-410A The TX7 provides a seamless transition from the NXT, allowing for a full offering for to 50 ton applications with only two valve models 3 3

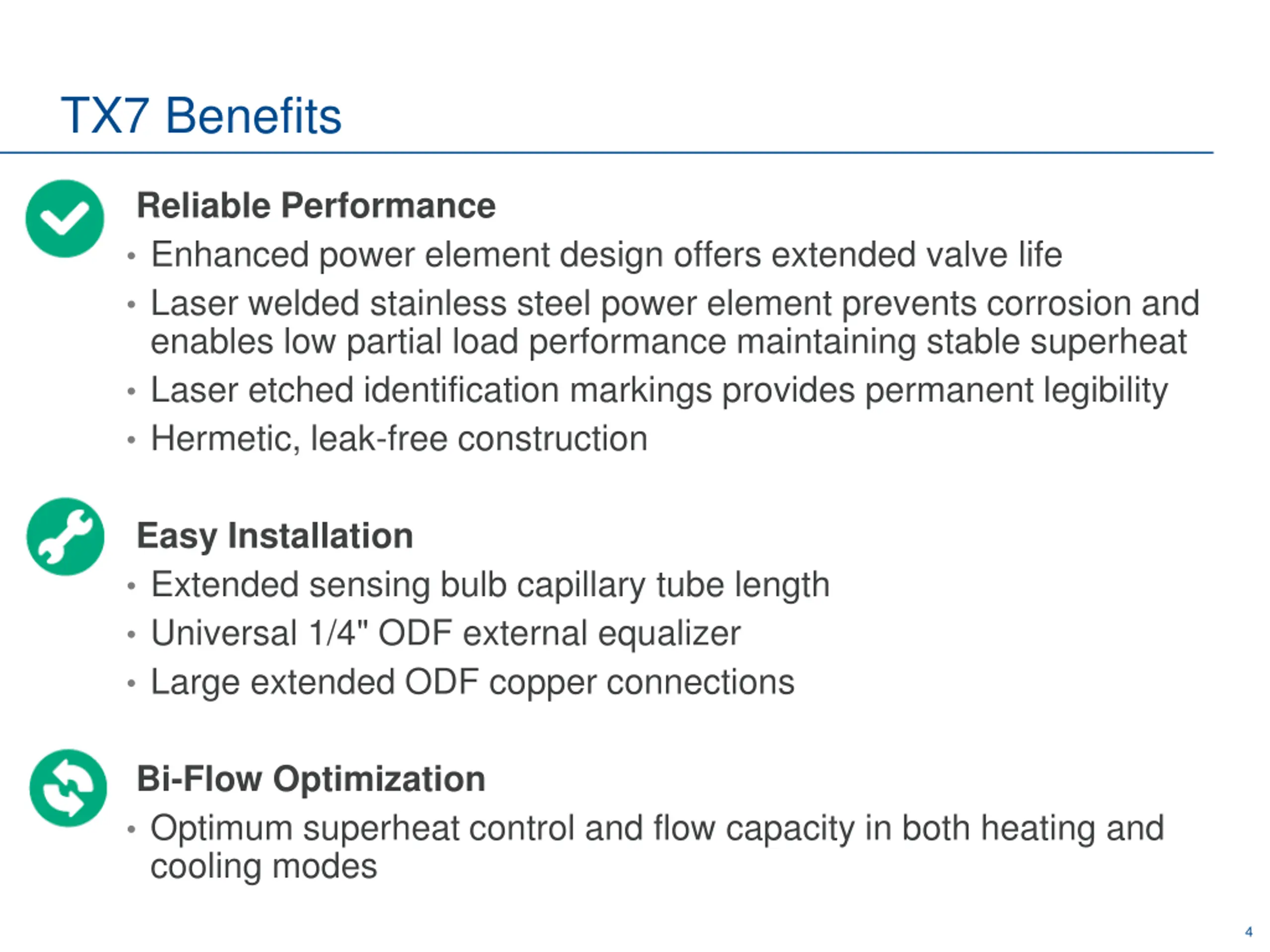

TX7 Benefits Reliable Performance Enhanced power element design offers extended valve life Laser welded stainless steel power element prevents corrosion and enables low partial load performance maintaining stable superheat Laser etched identification markings provides permanent legibility Hermetic, leak-free construction Easy Installation Extended sensing bulb capillary tube length Universal 1/4" ODF external equalizer Large extended ODF copper connections Bi-Flow Optimization Optimum superheat control and flow capacity in both heating and cooling modes 4

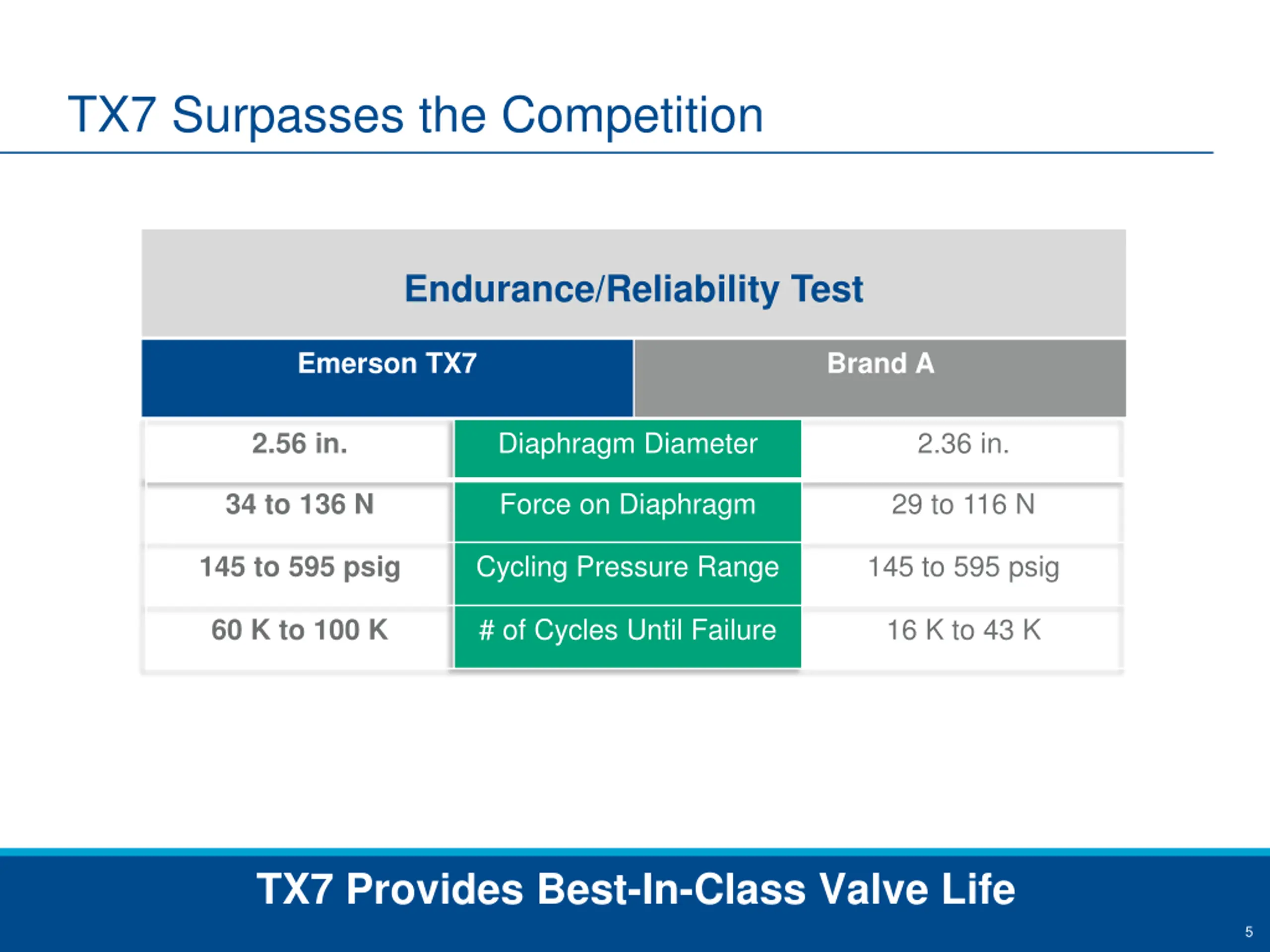

TX7 Surpasses the Competition Endurance/Reliability Test Emerson TX7 Brand A Diaphragm Diameter 2.36 in. 2.56 in. Force on Diaphragm 29 to 116 N 34 to 136 N Cycling Pressure Range 145 to 595 psig 145 to 595 psig # of Cycles Until Failure 16 K to 43 K 60 K to 100 K TX7 Provides Best-In-Class Valve Life 5 5

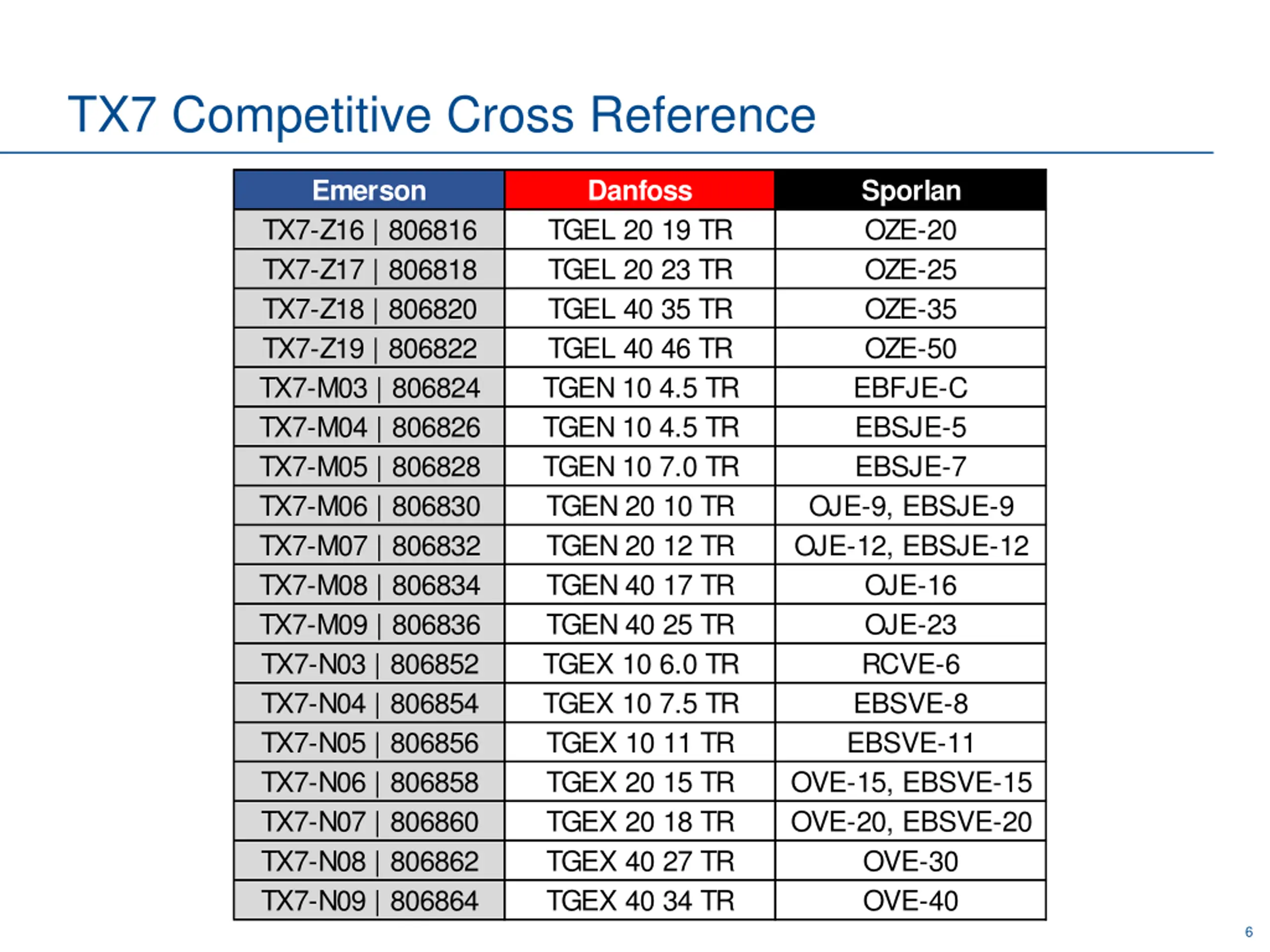

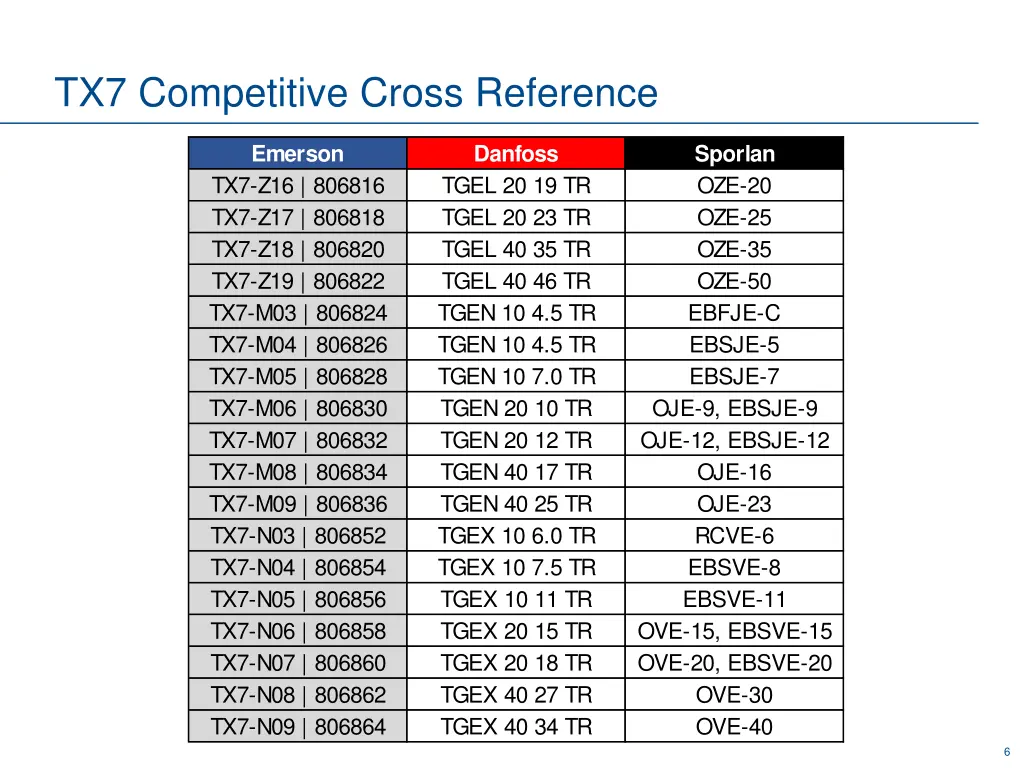

TX7 Competitive Cross Reference Emerson TX7-Z16 | 806816 TX7-Z17 | 806818 TX7-Z18 | 806820 TX7-Z19 | 806822 TX7-M03 | 806824 TX7-M04 | 806826 TX7-M05 | 806828 TX7-M06 | 806830 TX7-M07 | 806832 TX7-M08 | 806834 TX7-M09 | 806836 TX7-N03 | 806852 TX7-N04 | 806854 TX7-N05 | 806856 TX7-N06 | 806858 TX7-N07 | 806860 TX7-N08 | 806862 TX7-N09 | 806864 Danfoss TGEL 20 19 TR TGEL 20 23 TR TGEL 40 35 TR TGEL 40 46 TR TGEN 10 4.5 TR TGEN 10 4.5 TR TGEN 10 7.0 TR TGEN 20 10 TR TGEN 20 12 TR TGEN 40 17 TR TGEN 40 25 TR TGEX 10 6.0 TR TGEX 10 7.5 TR TGEX 10 11 TR TGEX 20 15 TR TGEX 20 18 TR TGEX 40 27 TR TGEX 40 34 TR Sporlan OZE-20 OZE-25 OZE-35 OZE-50 EBFJE-C EBSJE-5 EBSJE-7 OJE-9, EBSJE-9 OJE-12, EBSJE-12 OJE-16 OJE-23 RCVE-6 EBSVE-8 EBSVE-11 OVE-15, EBSVE-15 OVE-20, EBSVE-20 OVE-30 OVE-40 6
