Emitter-Feedback and Collector-Feedback Biases
Explore the concepts of emitter-feedback and collector-feedback biases in electronics, how they improve upon base bias, and the impact of beta DC on base current reduction. Dive into review questions to test your understanding.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

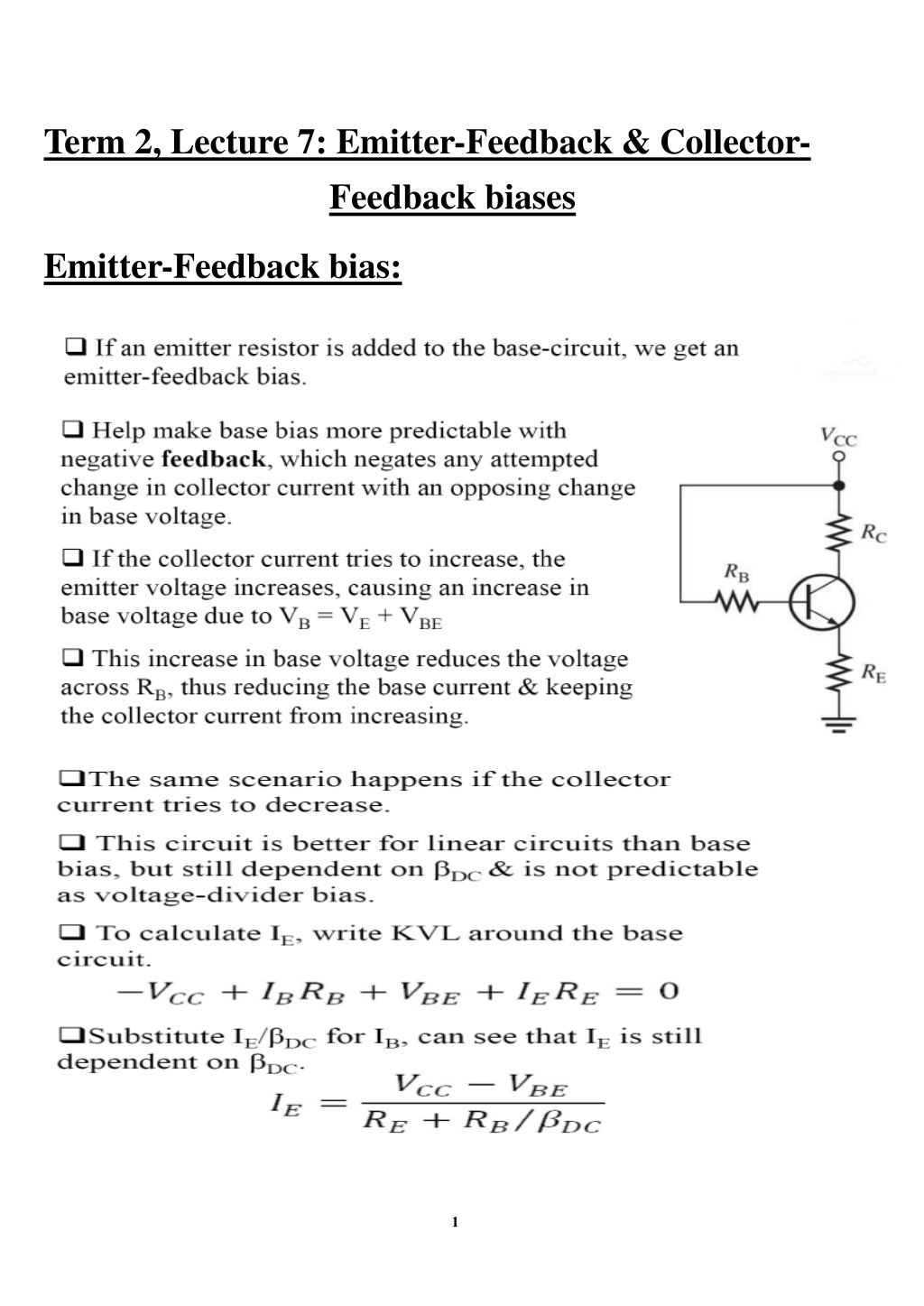

Term 2, Lecture 7: Emitter-Feedback & Collector- Feedback biases Emitter-Feedback bias: 1

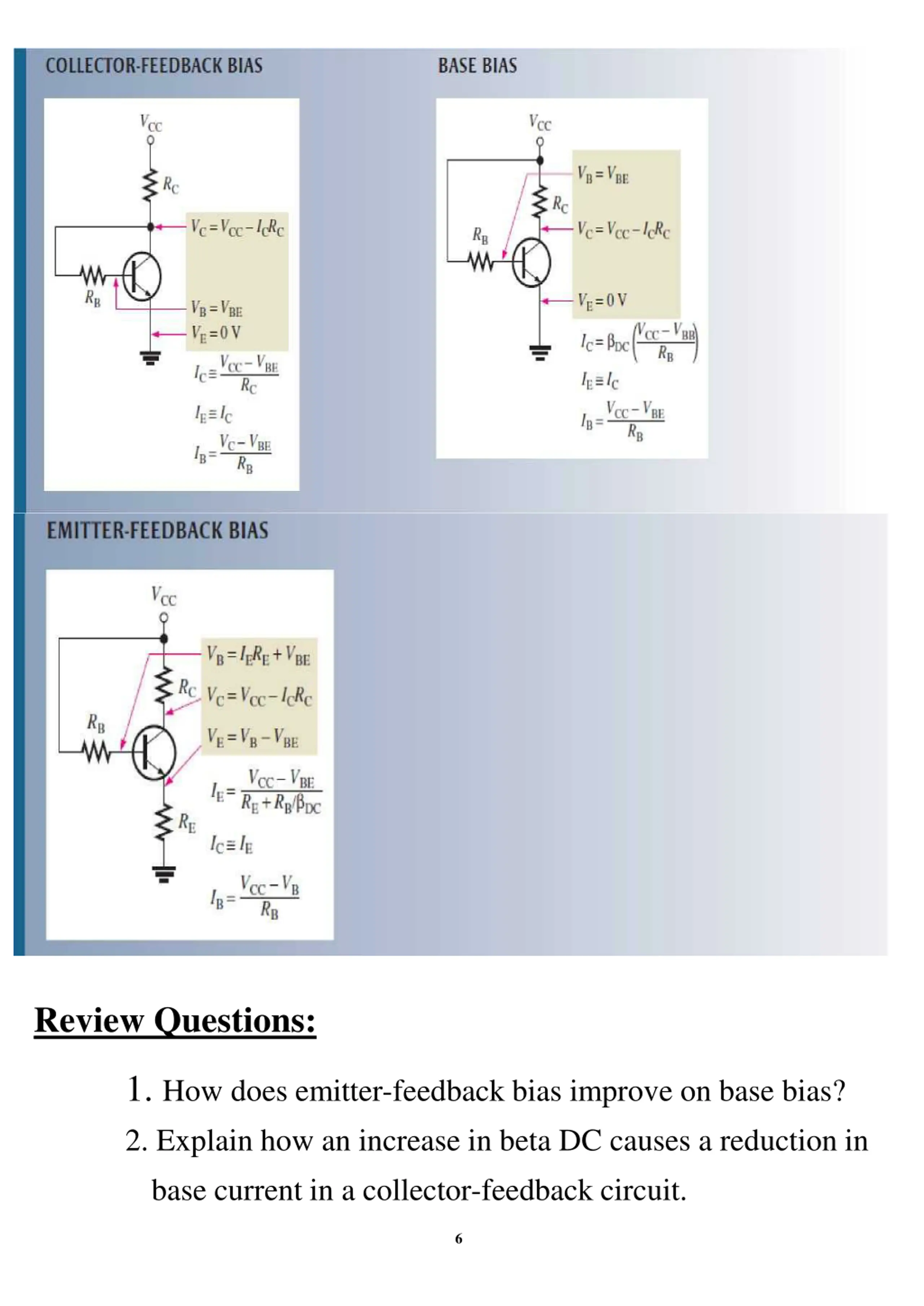

Review Questions: 1. How does emitter-feedback bias improve on base bias? 2. Explain how an increase in beta DC causes a reduction in base current in a collector-feedback circuit. 6
