Presentation Transcript

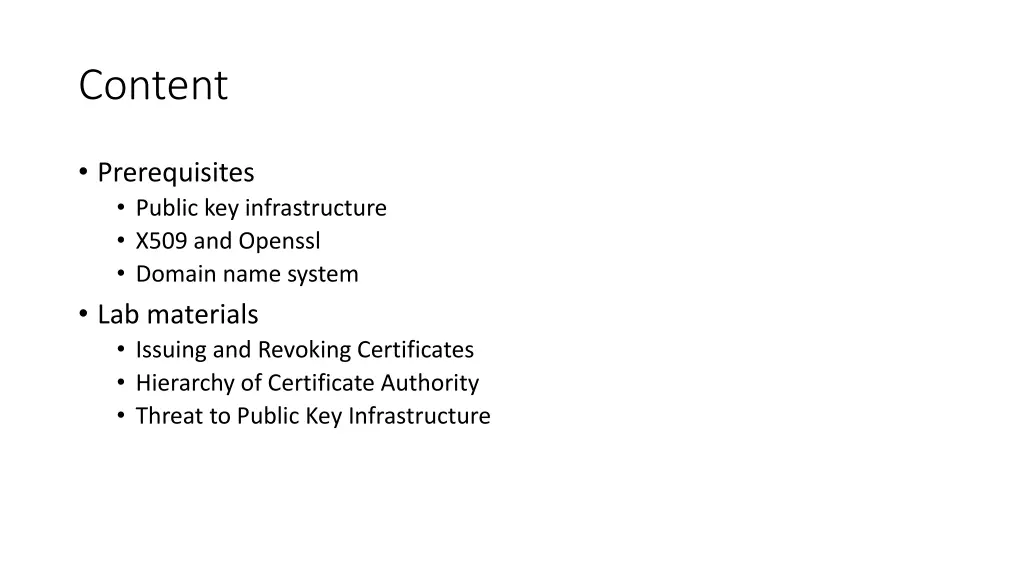

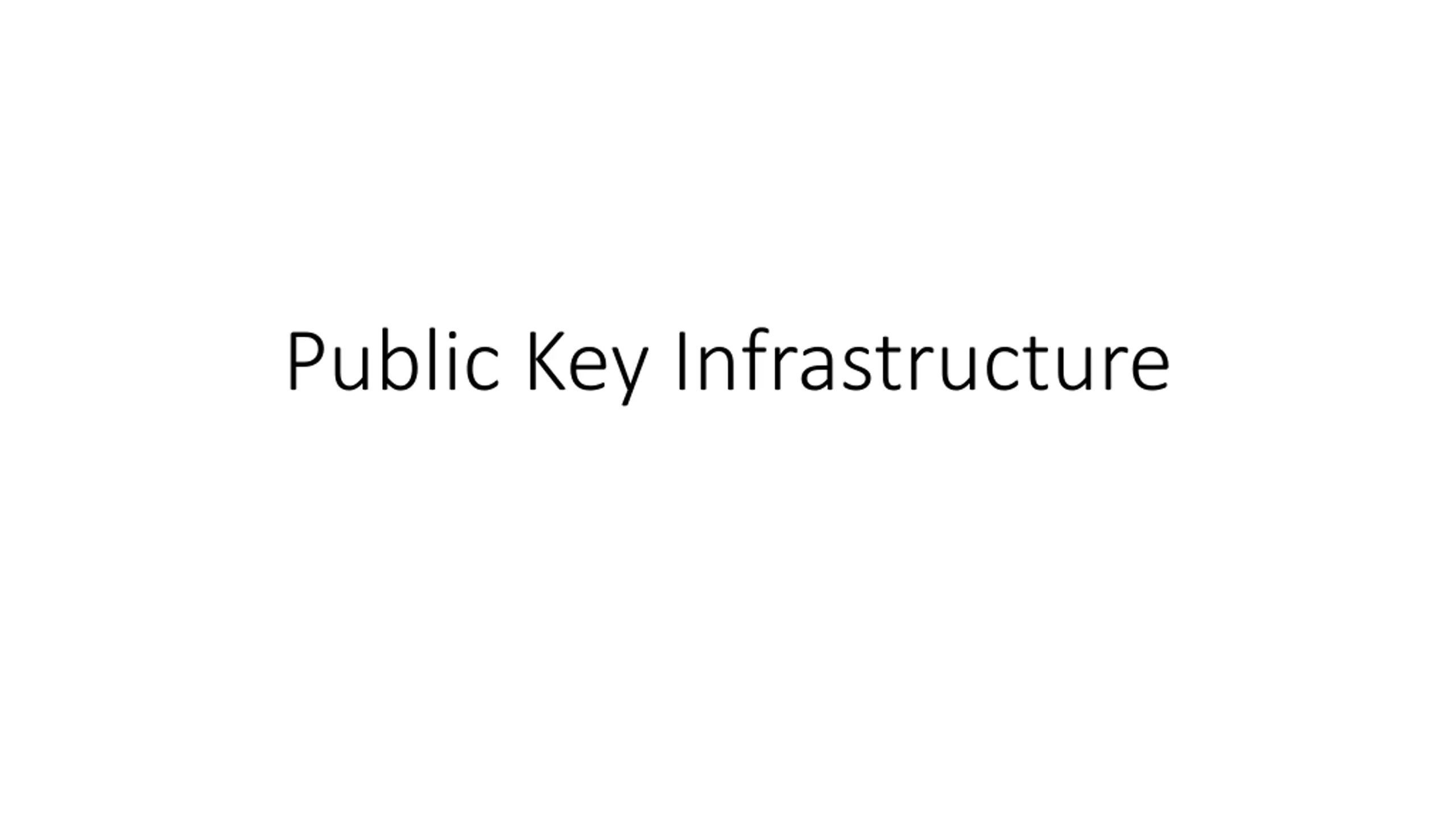

Content Prerequisites Public key infrastructure X509 and Openssl Domain name system Lab materials Issuing and Revoking Certificates Hierarchy of Certificate Authority Threat to Public Key Infrastructure

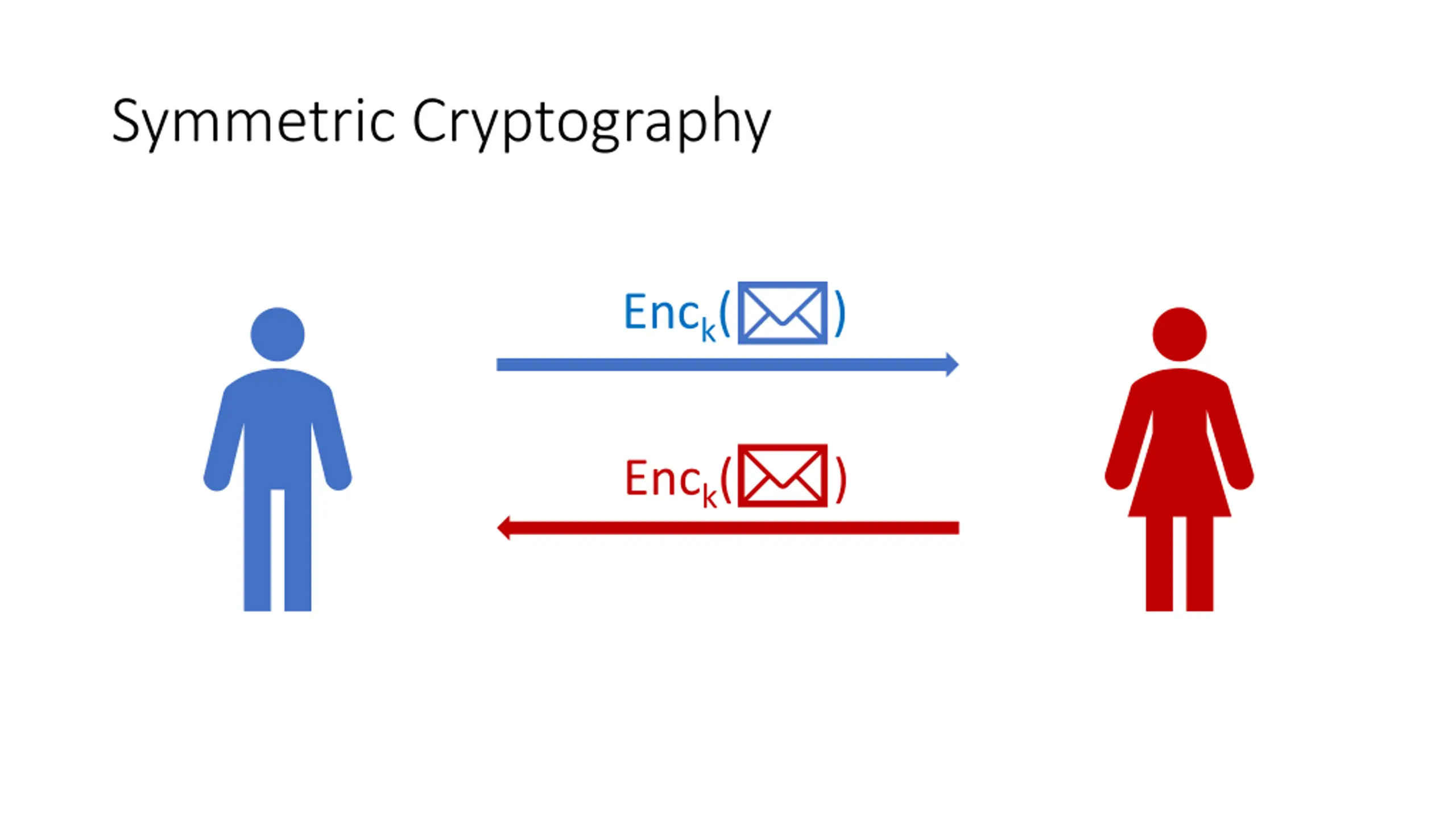

Symmetric Cryptography Enck( ) Enck( )

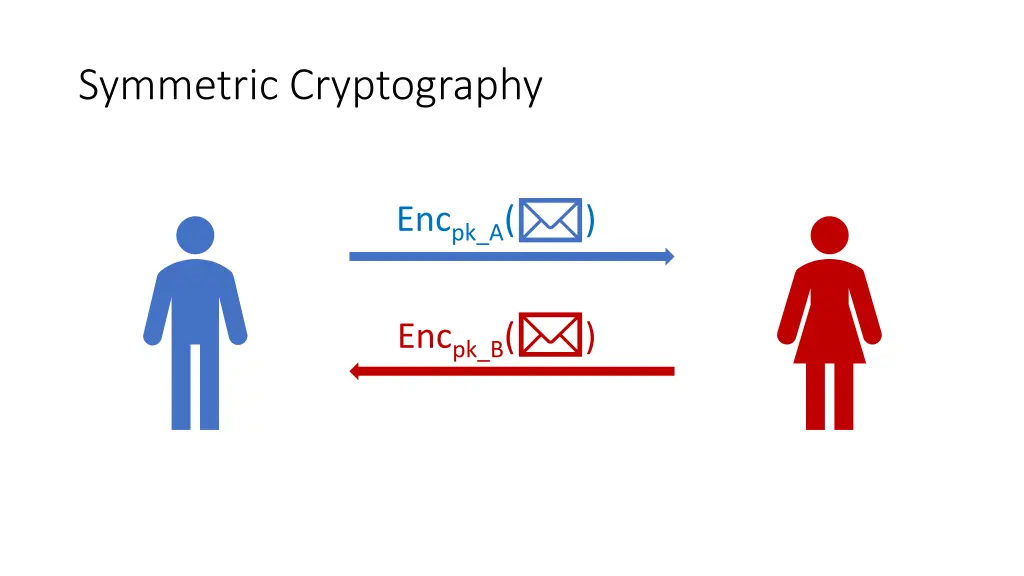

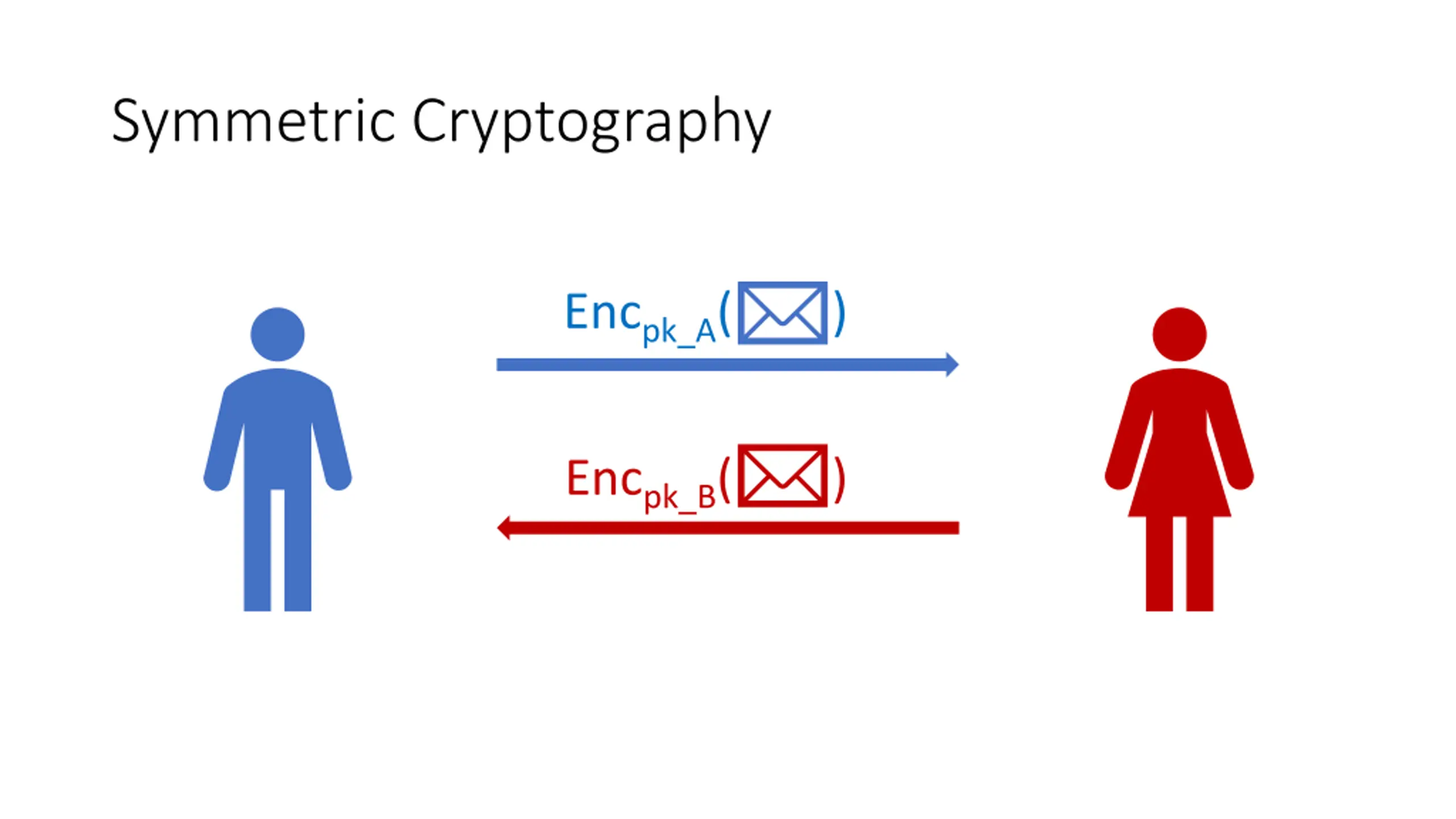

Symmetric Cryptography Encpk_A( ) Encpk_B( )

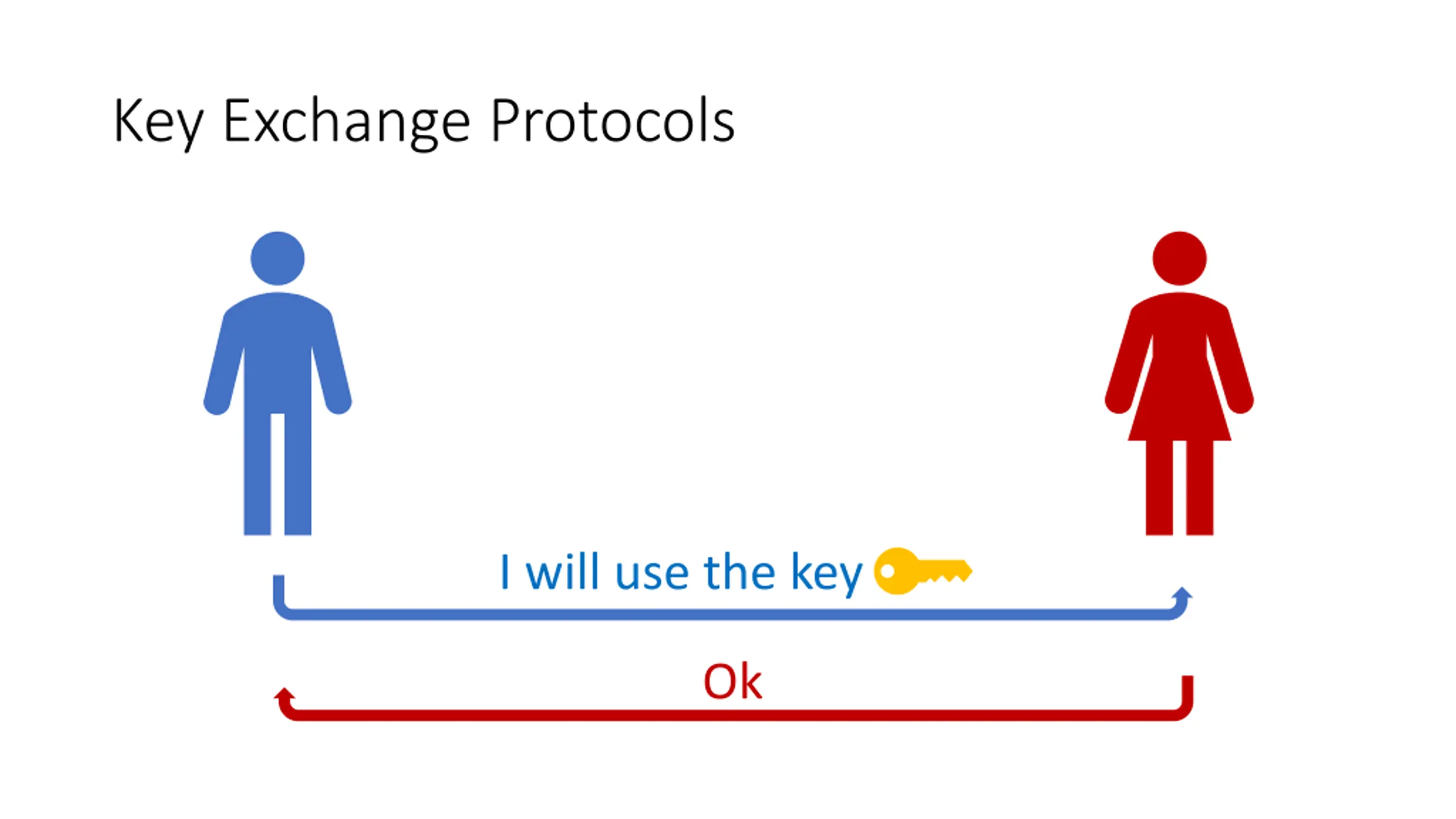

Key Exchange Protocols I will use the key Ok

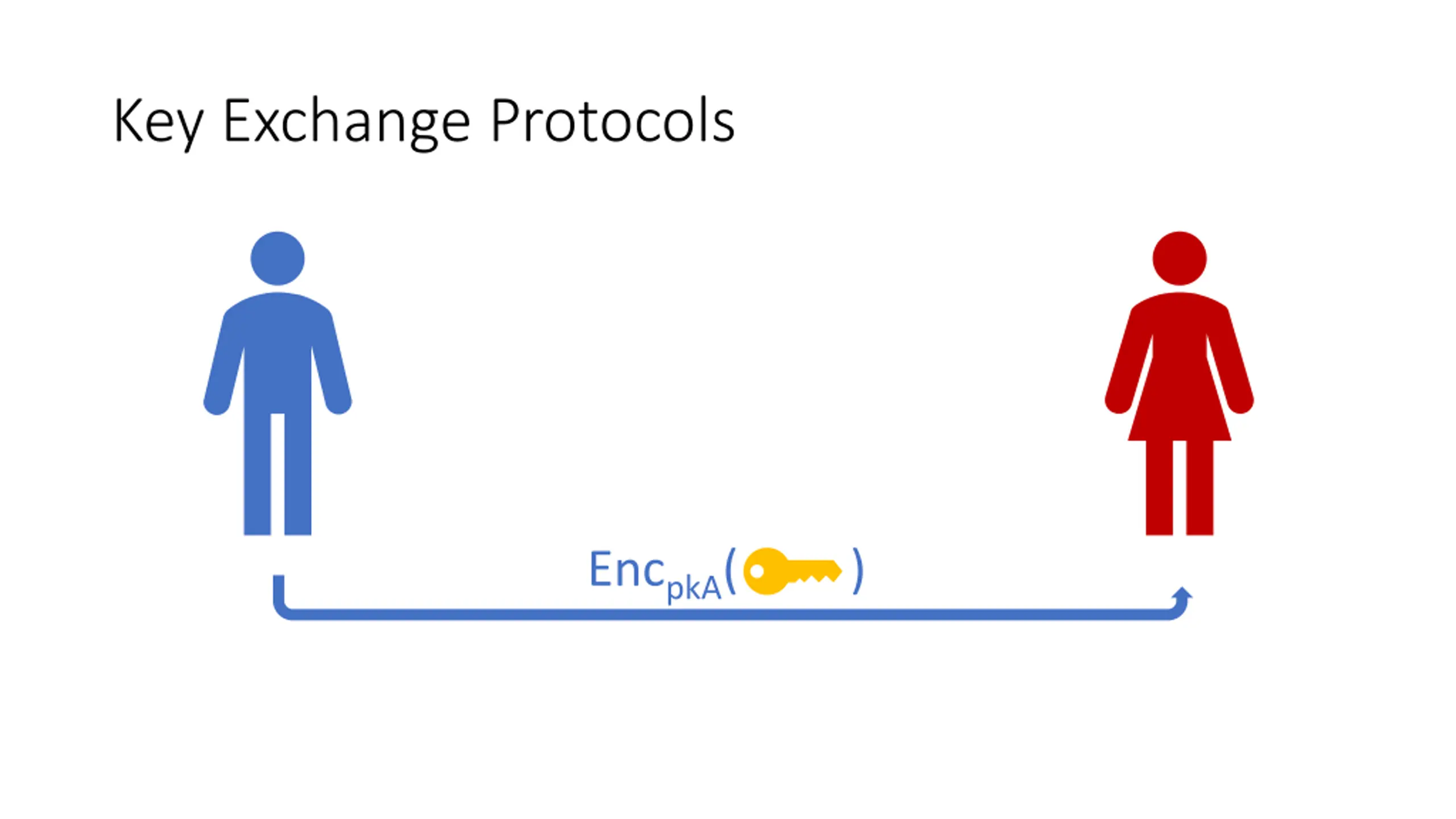

Key Exchange Protocols EncpkA( )

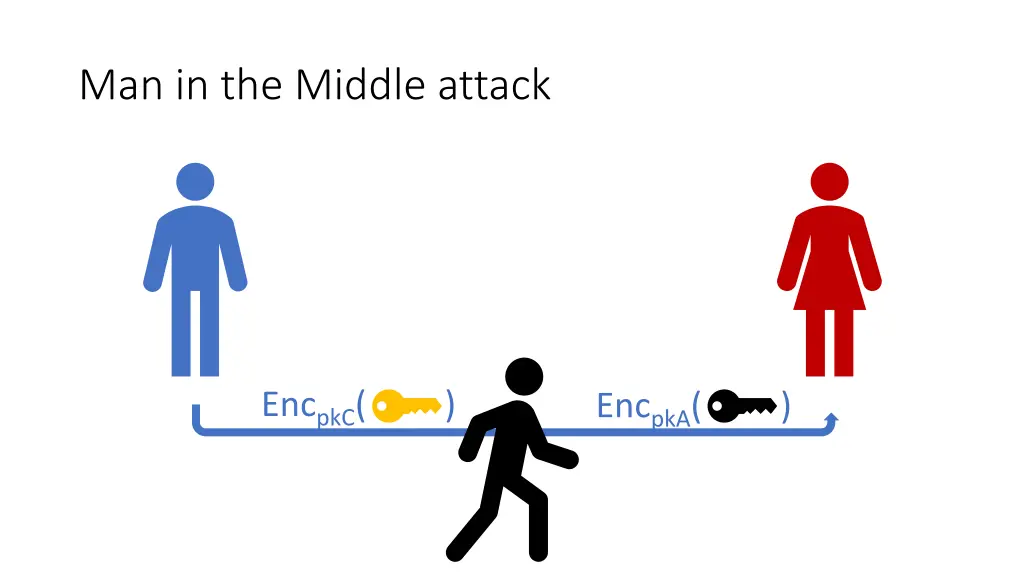

Man in the Middle attack EncpkC( ) EncpkA( )

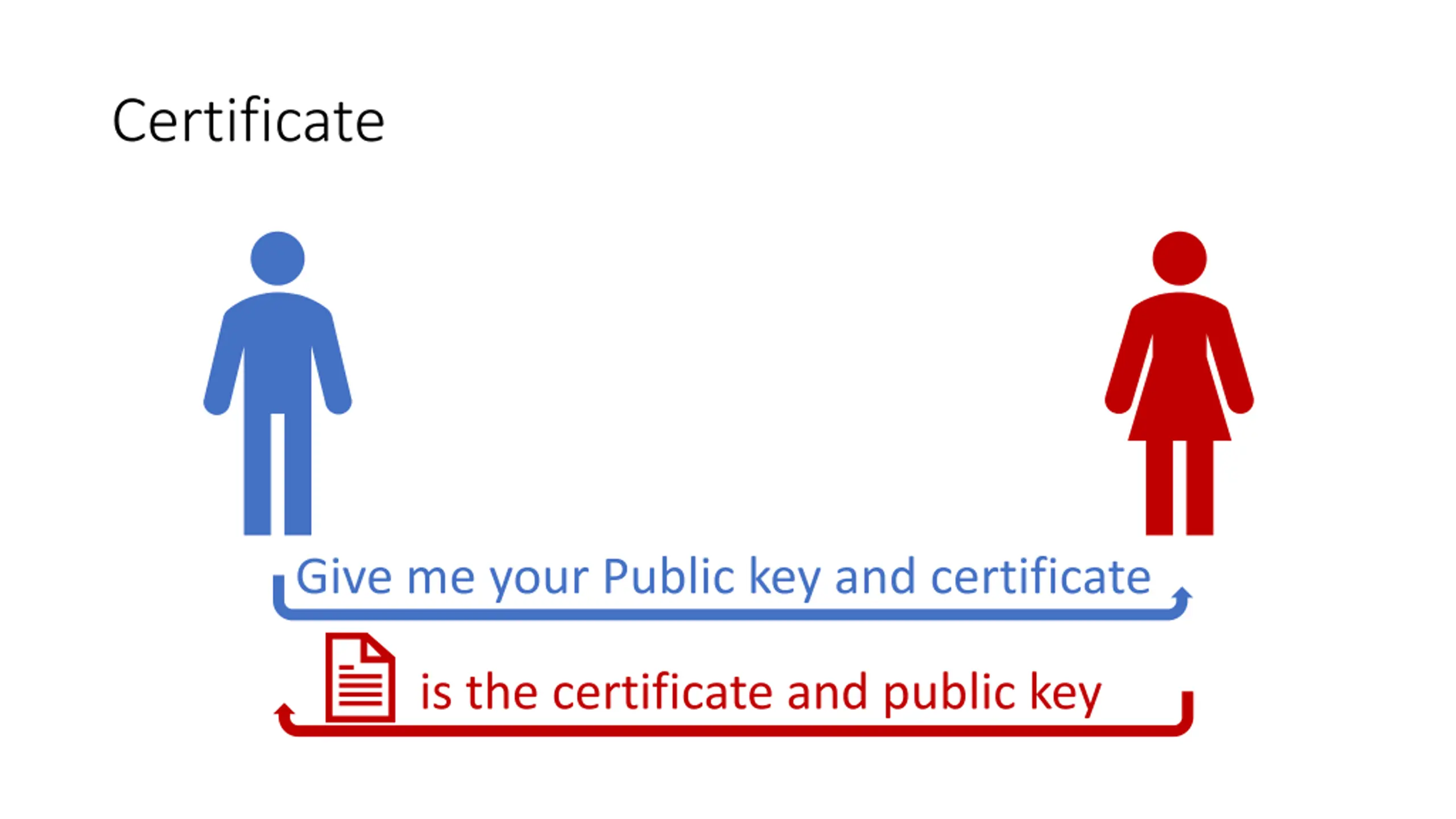

Certificate Give me your Public key and certificate is the certificate and public key

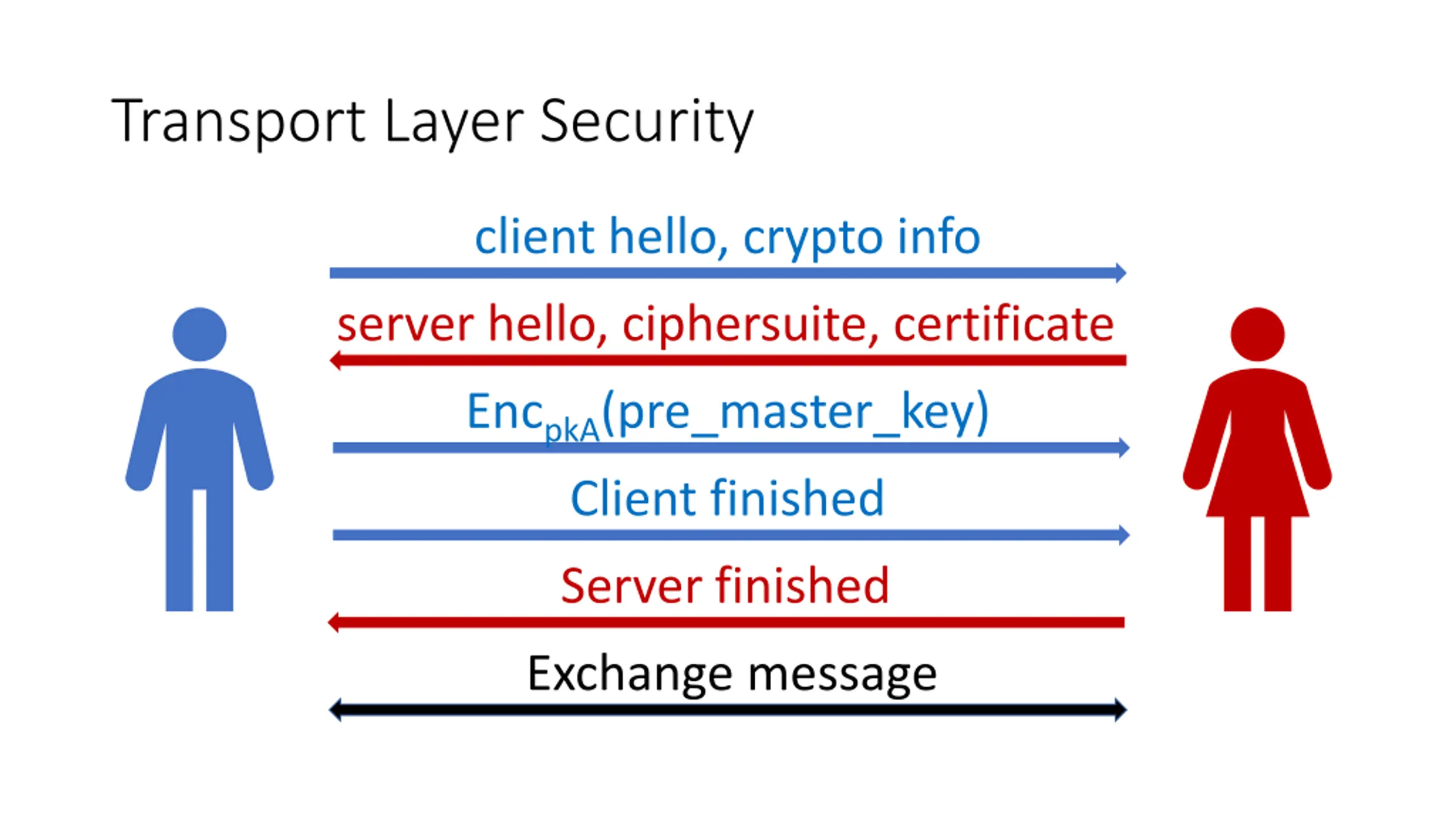

Transport Layer Security client hello, crypto info server hello, ciphersuite, certificate EncpkA(pre_master_key) Client finished Server finished Exchange message

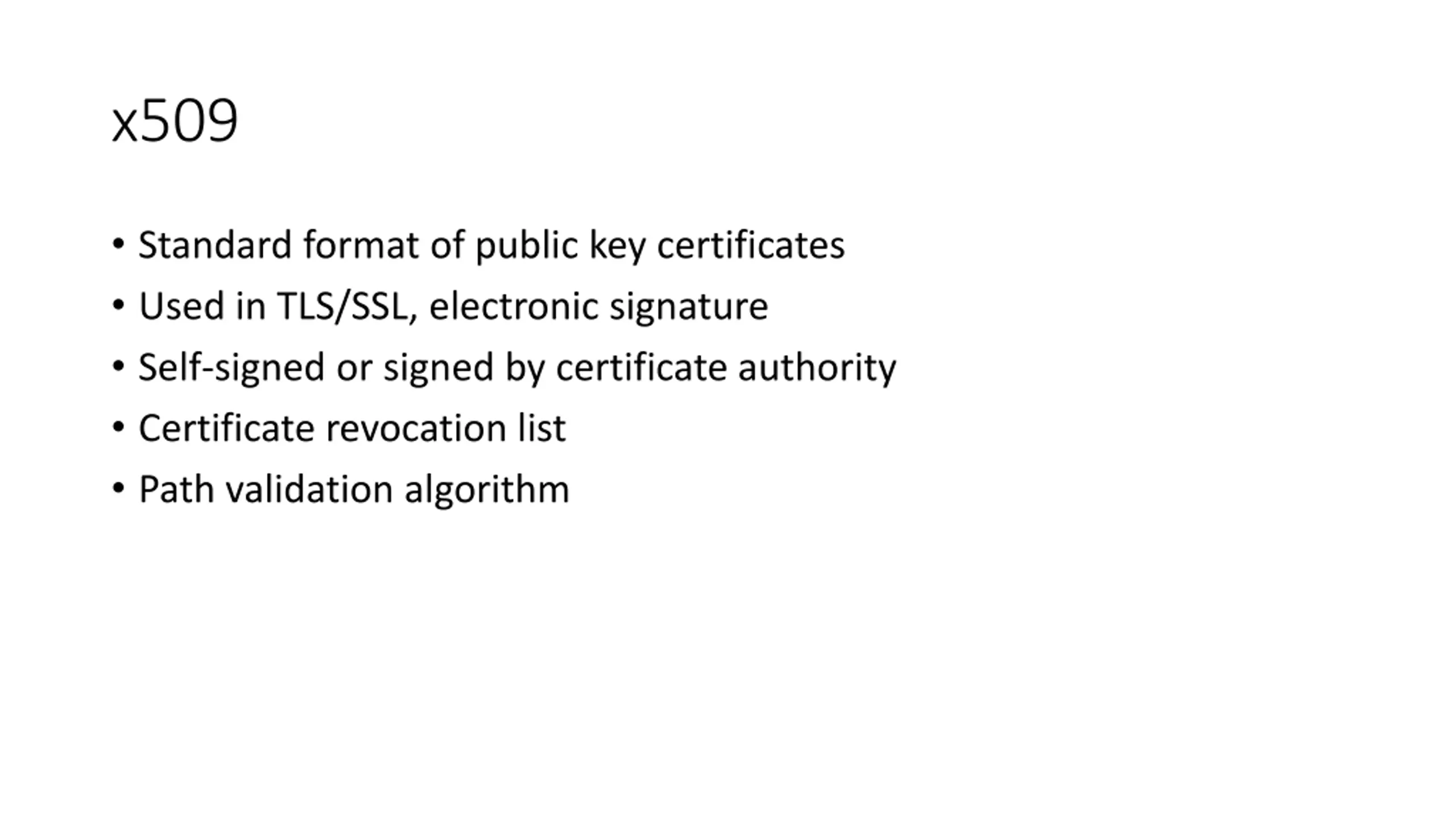

x509 Standard format of public key certificates Used in TLS/SSL, electronic signature Self-signed or signed by certificate authority Certificate revocation list Path validation algorithm

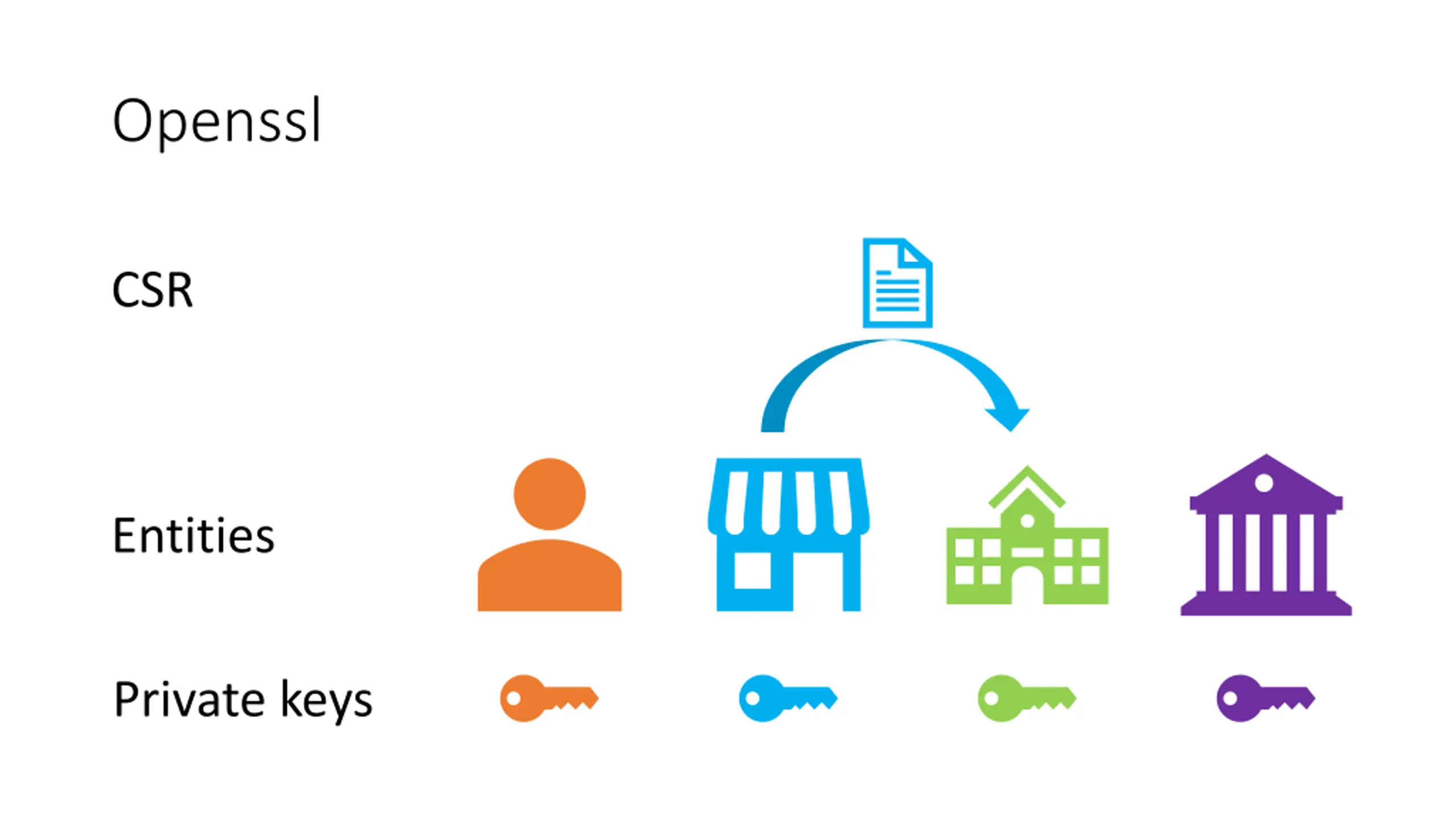

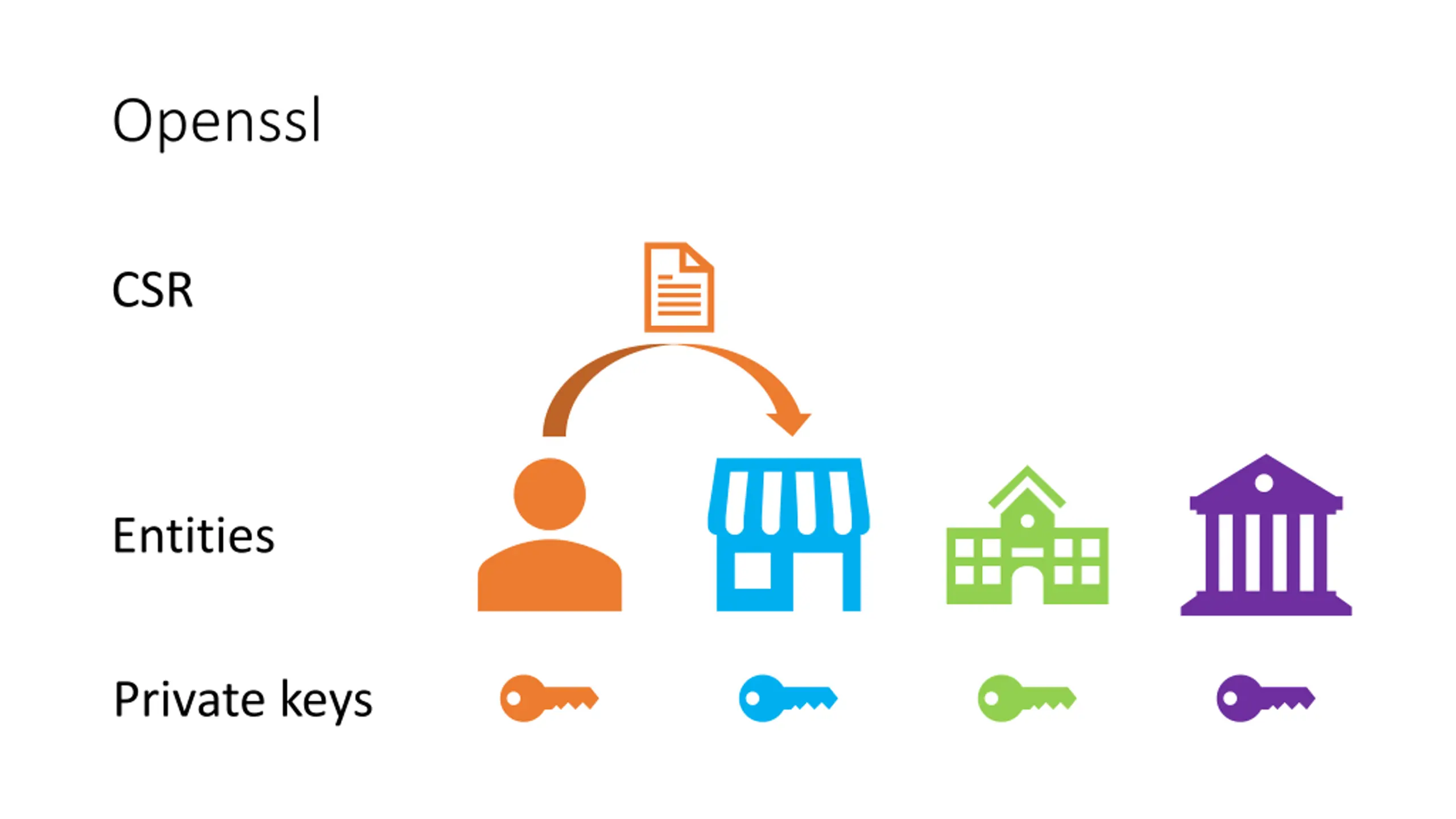

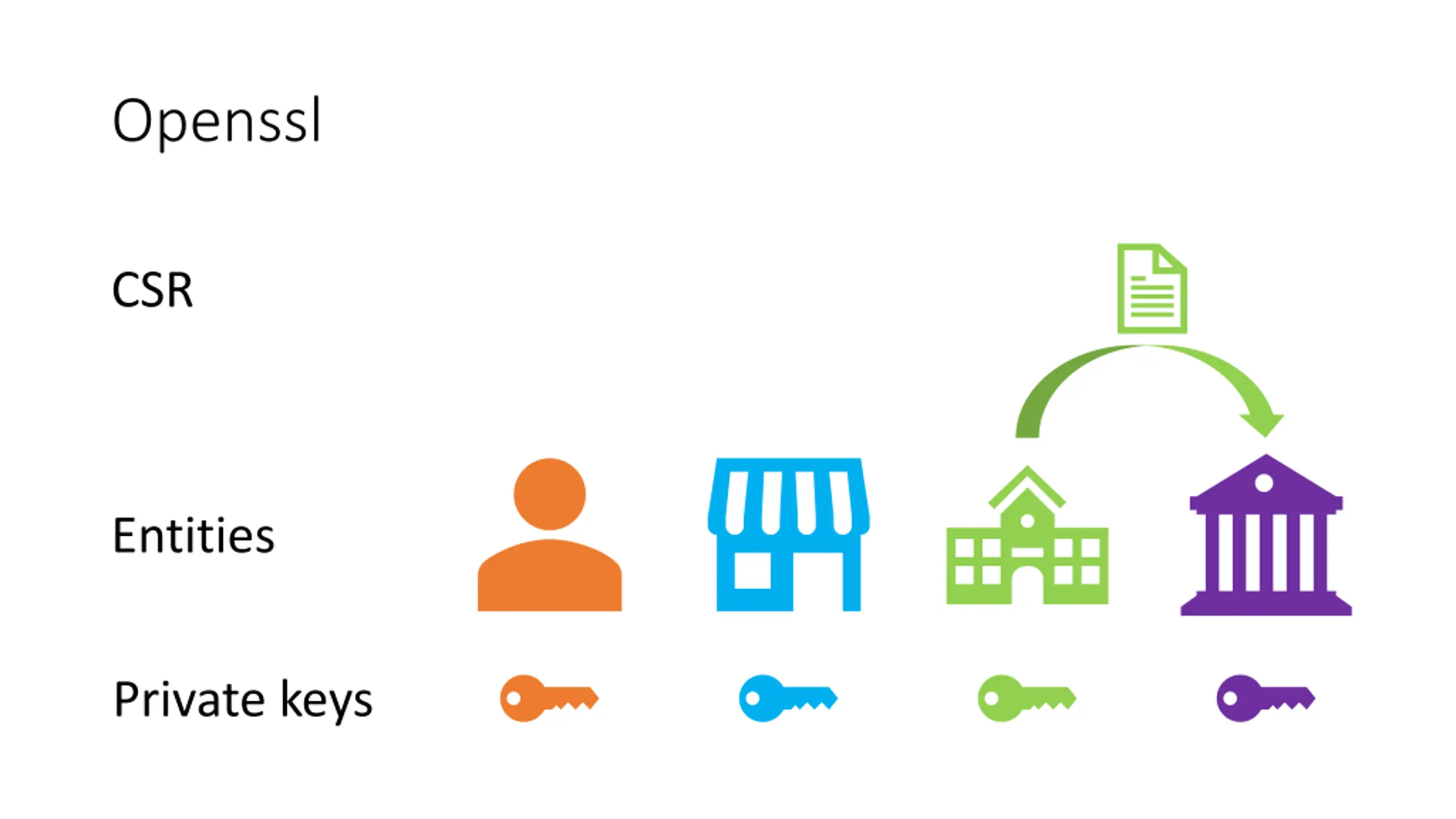

Openssl CSR Entities Private keys
Openssl CSR Entities Private keys
Openssl CSR Entities Private keys
Sample commands Generate a Private Key and a CSR openssl req \ -newkey rsa:2048 -nodes -keyout domain.key \ -out domain.csr Generate a Self-Signed Certificate openssl req \ -newkey rsa:2048 -nodes -keyout domain.key \ -x509 -days 365 -out domain.crt Sign a certificate openssl x509 -req -days 360 -in <CSR-for-the-new-device> -CA <your-intermediate-CA-certificate> -CAkey <your- intermediate-CA-key> -out <your-new-certificate> - set_serial <a random number>

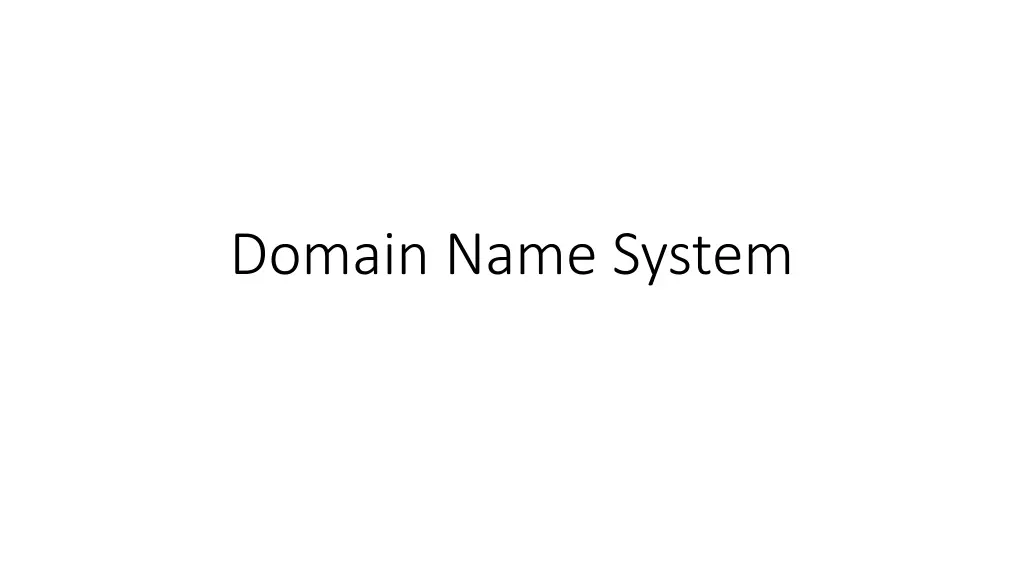

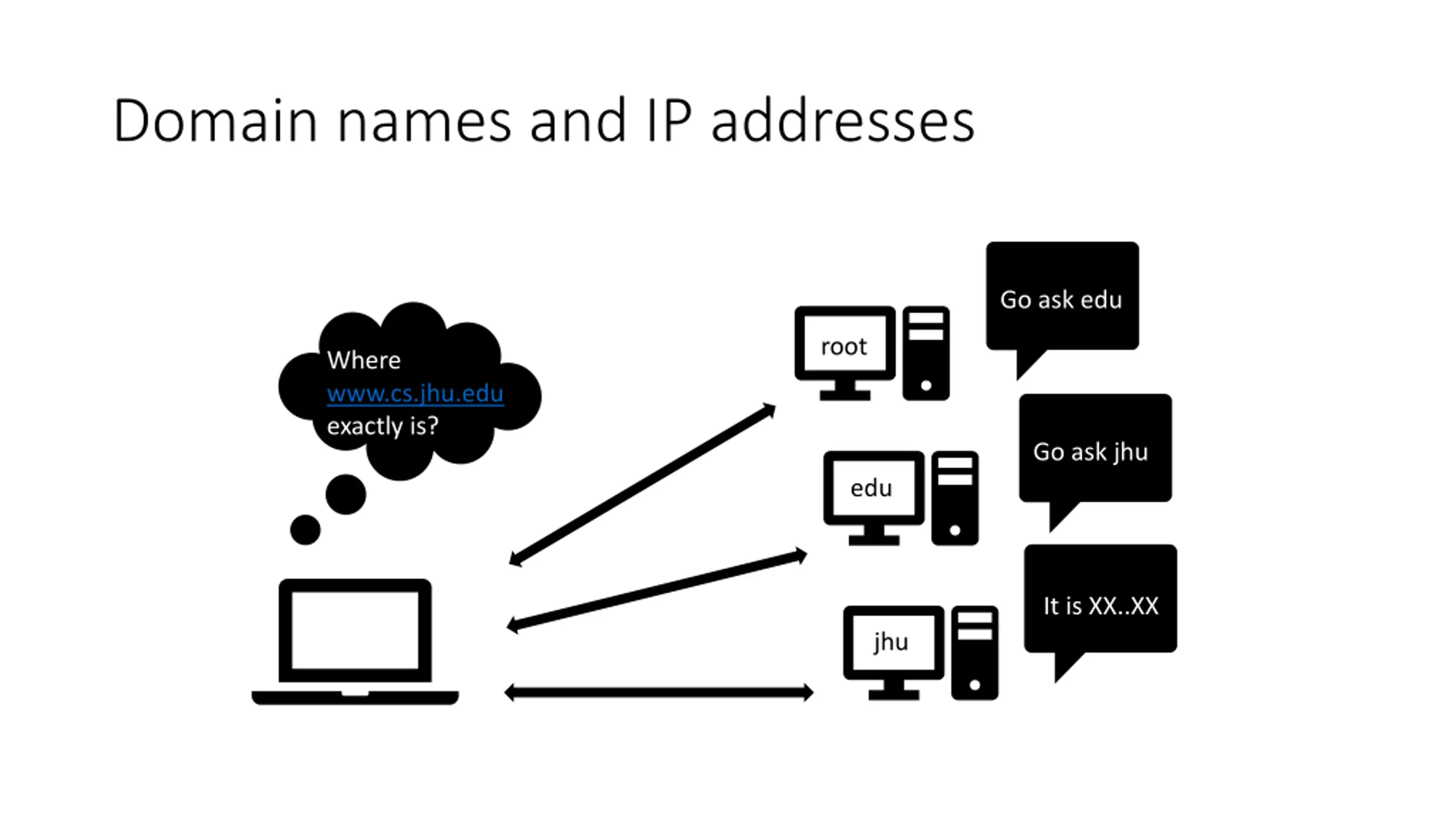

Domain names and IP addresses Go ask edu root Where www.cs.jhu.edu exactly is? Go ask jhu edu It is XX..XX jhu
Connect to DNS through DHCP and ARP Got a DHCP offer, the DNS server is

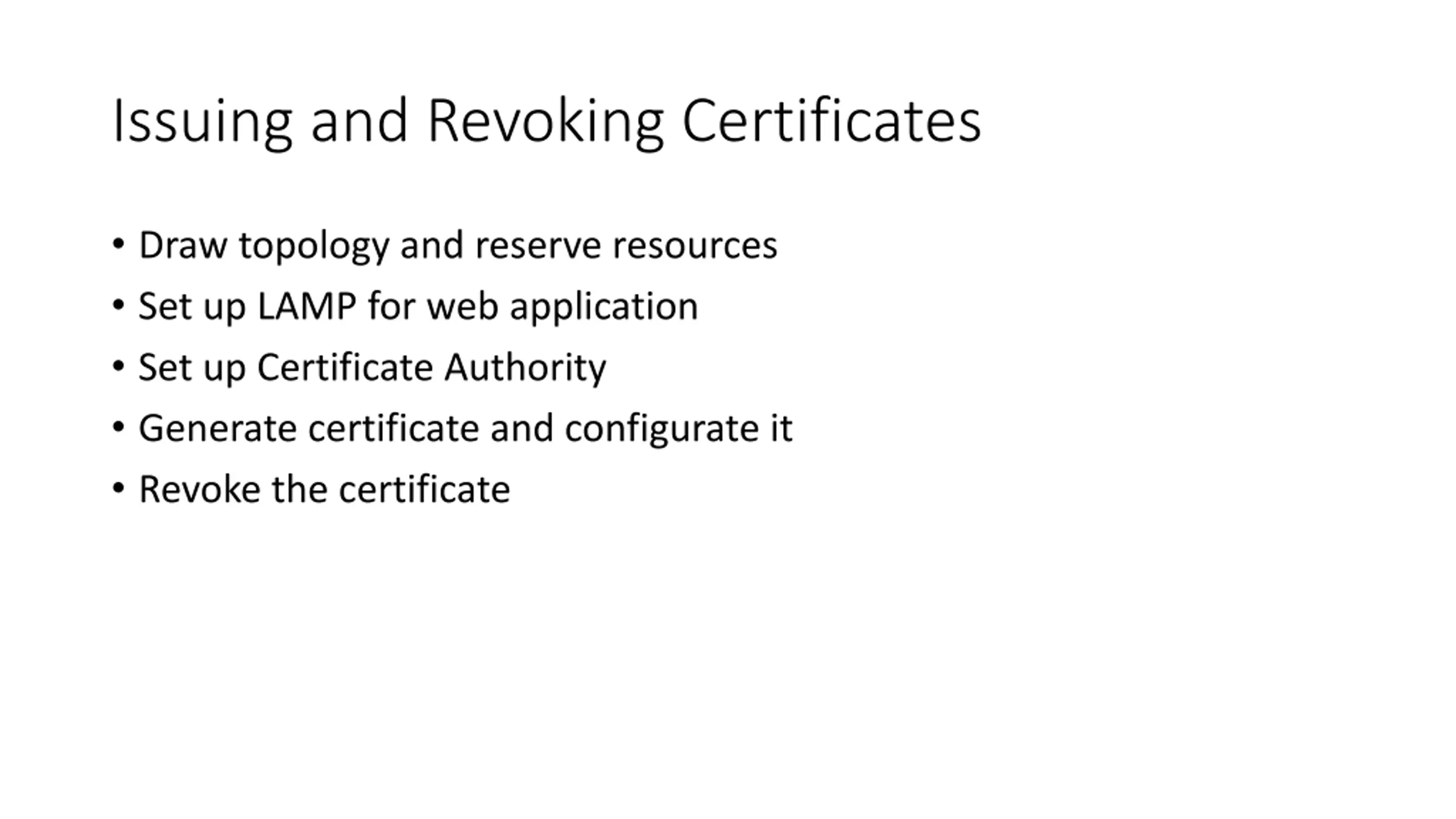

Issuing and Revoking Certificates Draw topology and reserve resources Set up LAMP for web application Set up Certificate Authority Generate certificate and configurate it Revoke the certificate

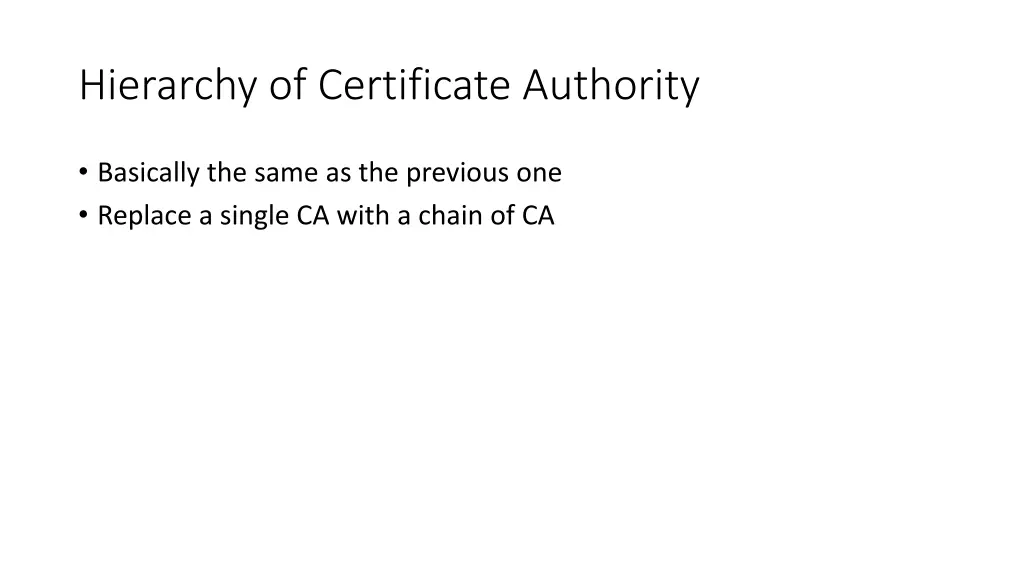

Hierarchy of Certificate Authority Basically the same as the previous one Replace a single CA with a chain of CA

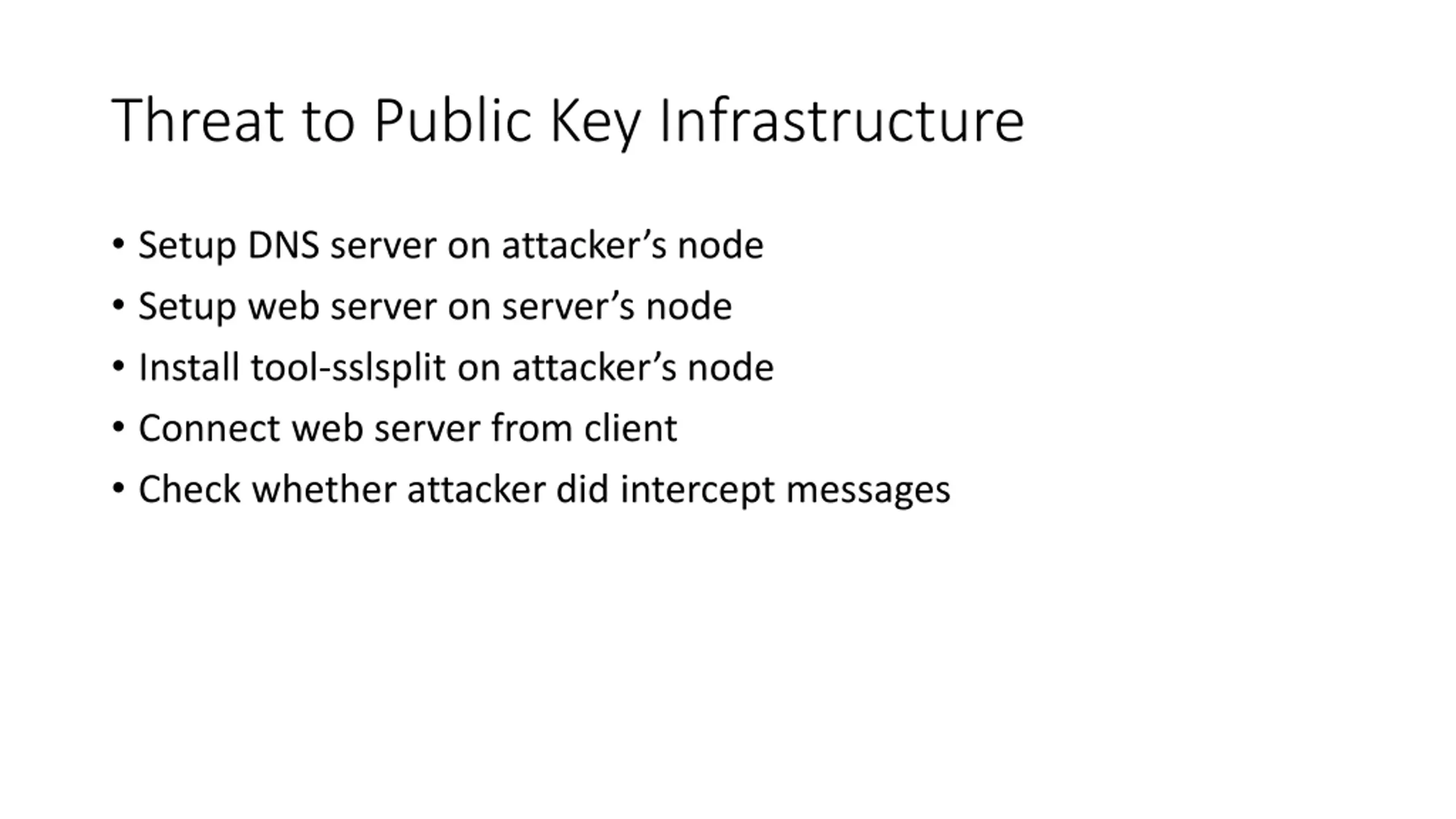

Threat to Public Key Infrastructure Setup DNS server on attacker s node Setup web server on server s node Install tool-sslsplit on attacker s node Connect web server from client Check whether attacker did intercept messages
