Application Mapping Over OFIWG SFI Sean Hefty

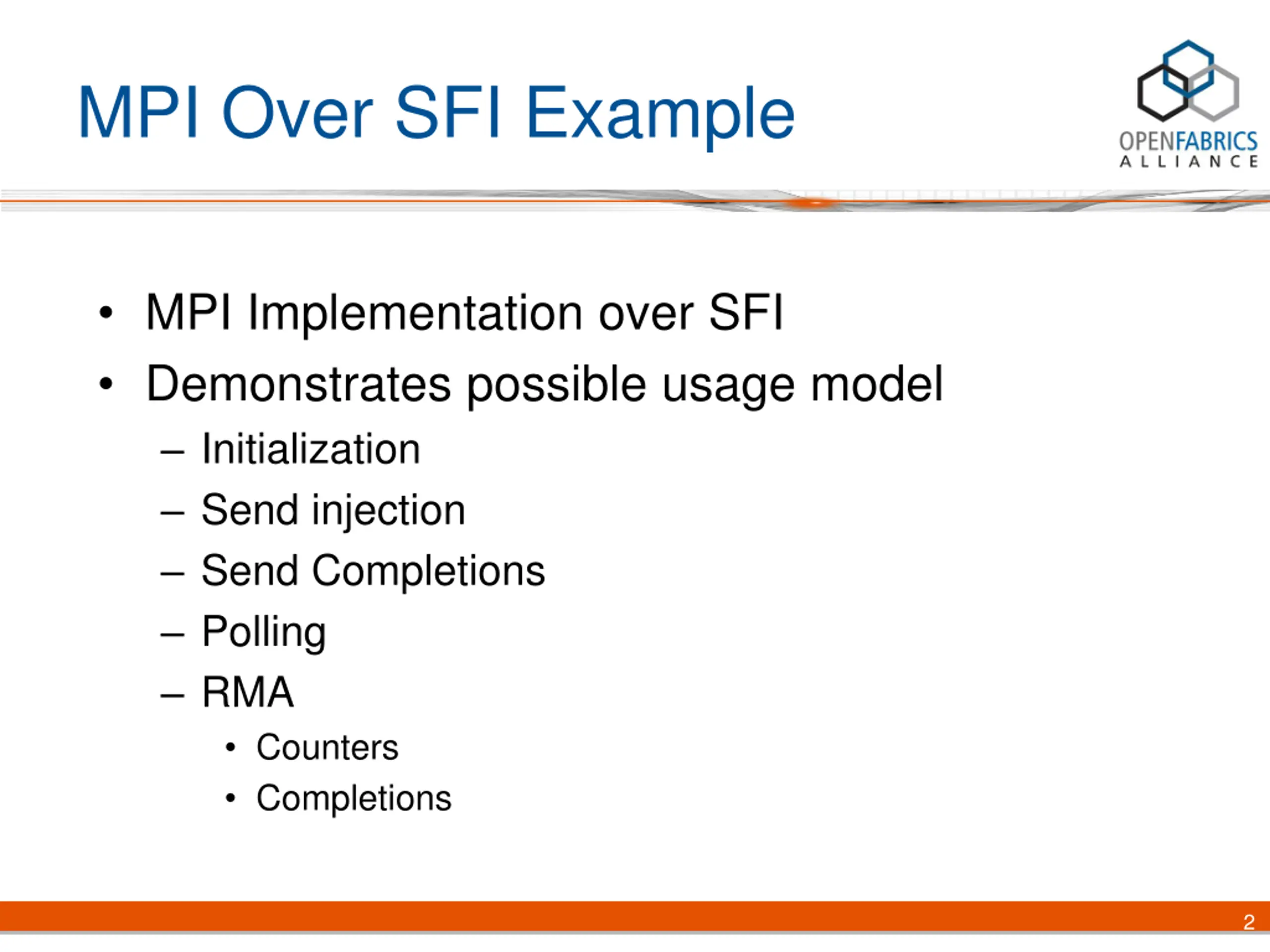

MPI Over SFI Example MPI Implementation over SFI Demonstrates possible usage model Initialization Send injection Send Completions Polling RMA Counters Completions 2

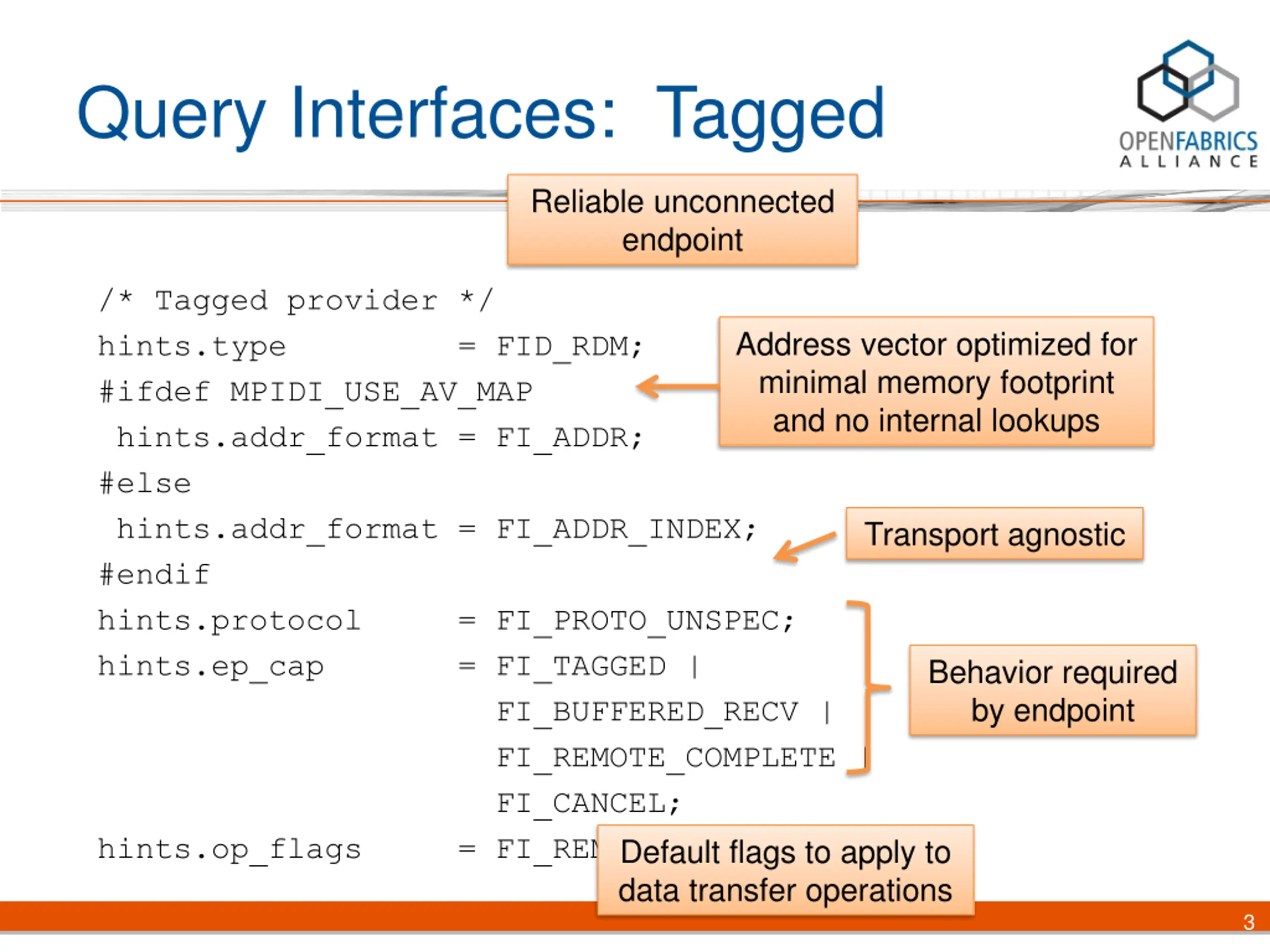

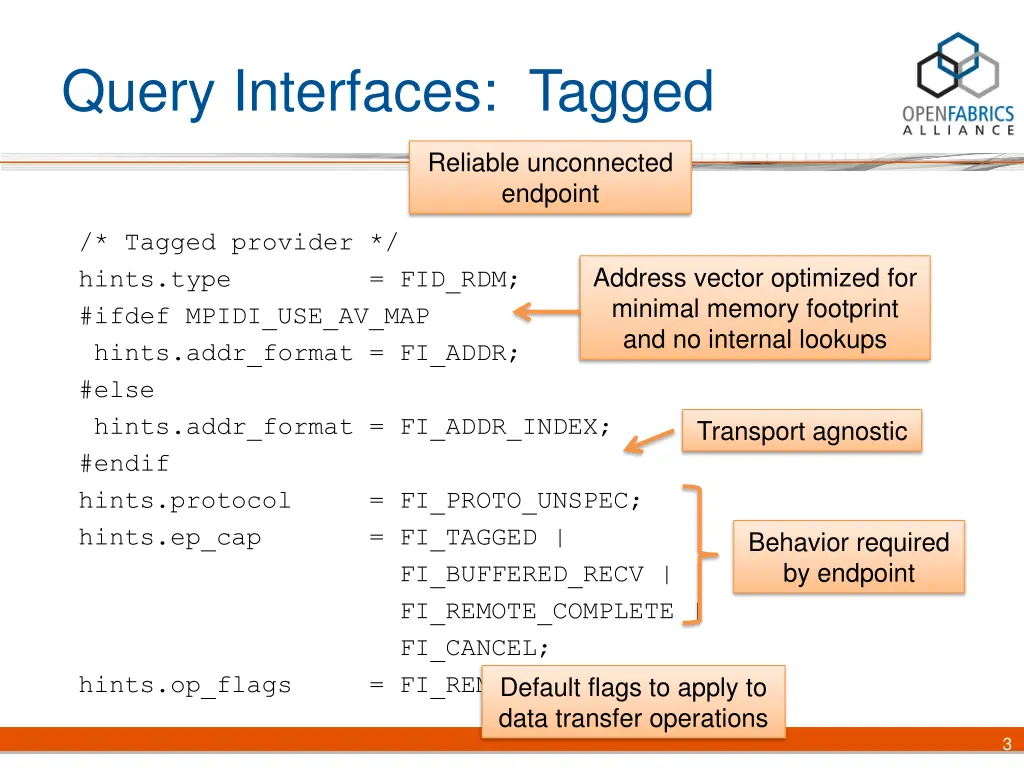

Query Interfaces: Tagged Reliable unconnected endpoint /* Tagged provider */ hints.type = FID_RDM; #ifdef MPIDI_USE_AV_MAP hints.addr_format = FI_ADDR; #else hints.addr_format = FI_ADDR_INDEX; #endif hints.protocol = FI_PROTO_UNSPEC; hints.ep_cap = FI_TAGGED | FI_BUFFERED_RECV | FI_REMOTE_COMPLETE | hints.op_flags = FI_REMOTE_COMPLETE; Address vector optimized for minimal memory footprint and no internal lookups Transport agnostic Behavior required by endpoint FI_CANCEL; Default flags to apply to data transfer operations 3

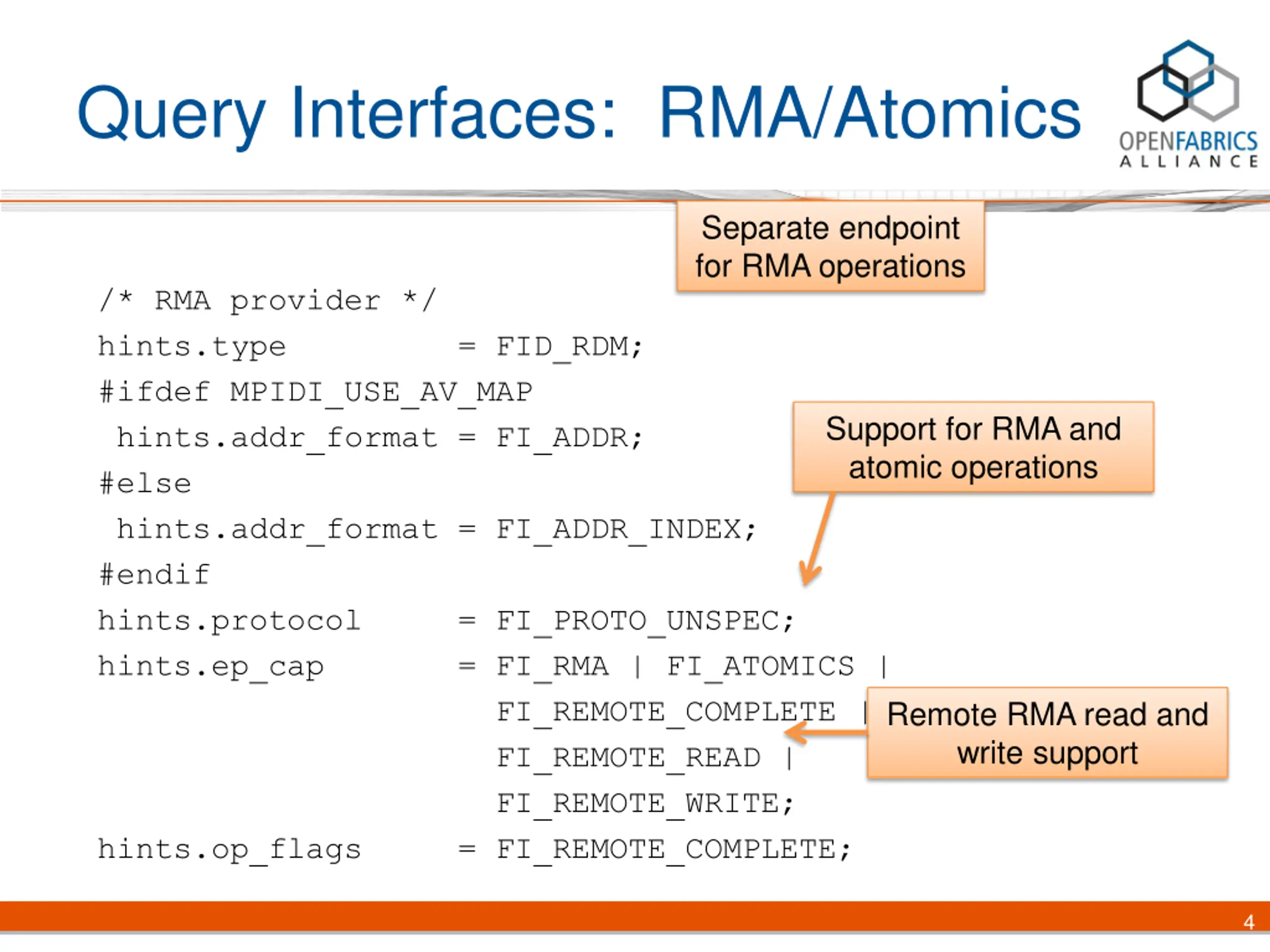

Query Interfaces: RMA/Atomics Separate endpoint for RMA operations /* RMA provider */ hints.type = FID_RDM; #ifdef MPIDI_USE_AV_MAP hints.addr_format = FI_ADDR; #else hints.addr_format = FI_ADDR_INDEX; #endif hints.protocol = FI_PROTO_UNSPEC; hints.ep_cap = FI_RMA | FI_ATOMICS | FI_REMOTE_COMPLETE | FI_REMOTE_READ | FI_REMOTE_WRITE; hints.op_flags = FI_REMOTE_COMPLETE; Support for RMA and atomic operations Remote RMA read and write support 4

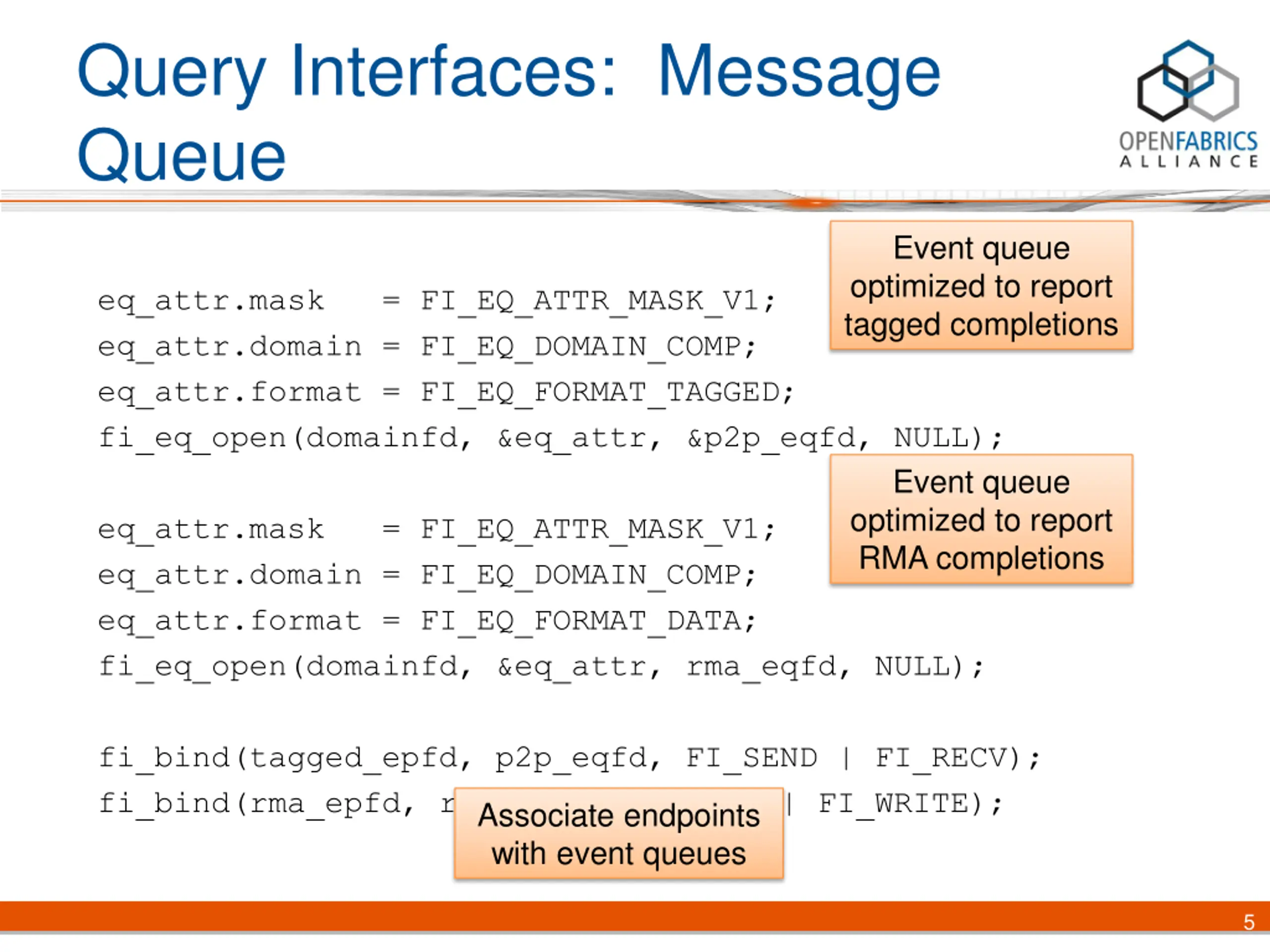

Query Interfaces: Message Queue Event queue optimized to report tagged completions eq_attr.mask = FI_EQ_ATTR_MASK_V1; eq_attr.domain = FI_EQ_DOMAIN_COMP; eq_attr.format = FI_EQ_FORMAT_TAGGED; fi_eq_open(domainfd, &eq_attr, &p2p_eqfd, NULL); Event queue optimized to report RMA completions eq_attr.mask = FI_EQ_ATTR_MASK_V1; eq_attr.domain = FI_EQ_DOMAIN_COMP; eq_attr.format = FI_EQ_FORMAT_DATA; fi_eq_open(domainfd, &eq_attr, rma_eqfd, NULL); fi_bind(tagged_epfd, p2p_eqfd, FI_SEND | FI_RECV); fi_bind(rma_epfd, rma_eqfd, FI_READ | FI_WRITE); Associate endpoints with event queues 5

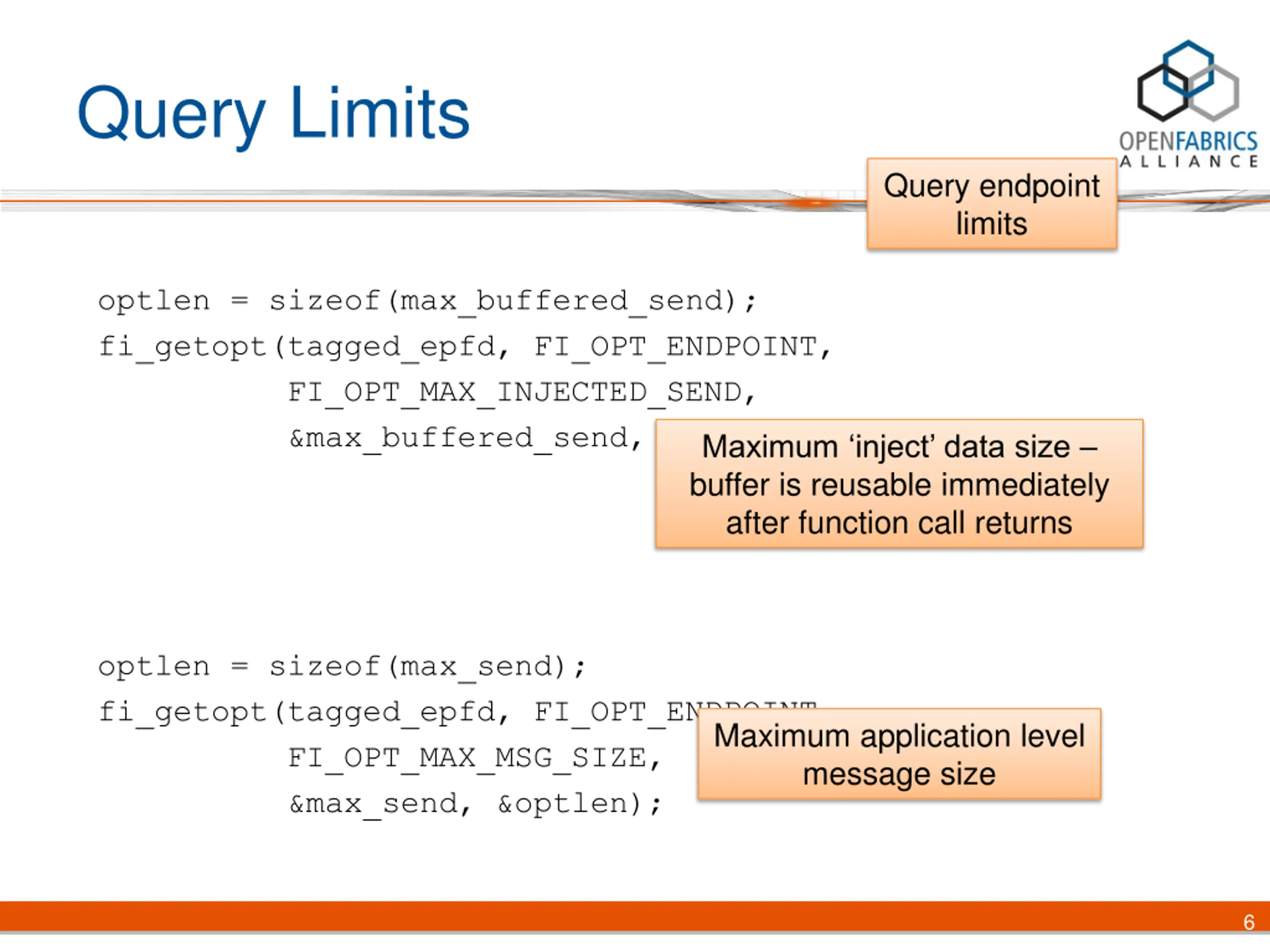

Query Limits Query endpoint limits optlen = sizeof(max_buffered_send); fi_getopt(tagged_epfd, FI_OPT_ENDPOINT, FI_OPT_MAX_INJECTED_SEND, &max_buffered_send, &optlen); Maximum inject data size buffer is reusable immediately after function call returns optlen = sizeof(max_send); fi_getopt(tagged_epfd, FI_OPT_ENDPOINT, FI_OPT_MAX_MSG_SIZE, &max_send, &optlen); Maximum application level message size 6

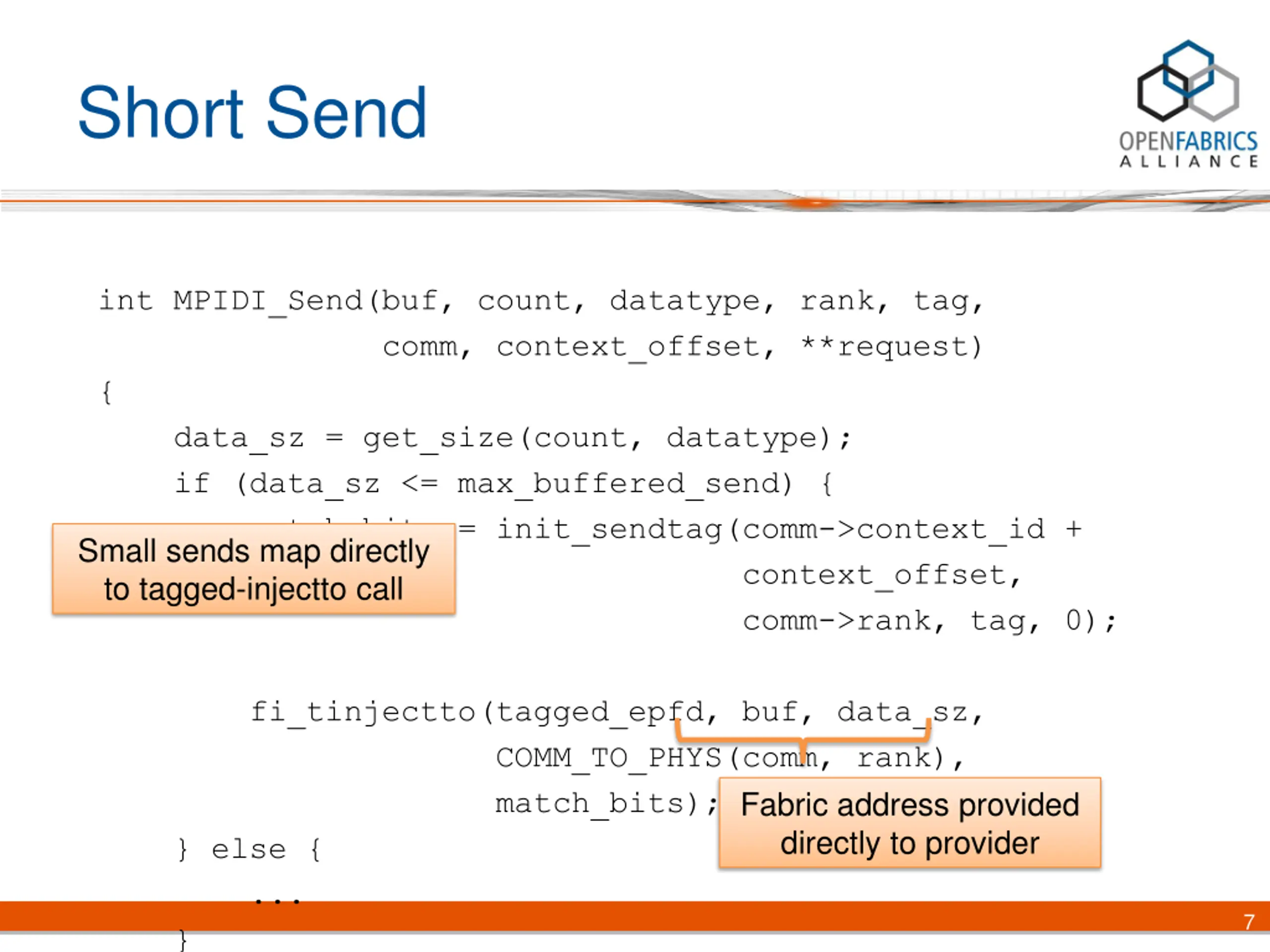

Short Send int MPIDI_Send(buf, count, datatype, rank, tag, comm, context_offset, **request) { data_sz = get_size(count, datatype); if (data_sz <= max_buffered_send) { match_bits = init_sendtag(comm->context_id + comm->rank, tag, 0); Small sends map directly to tagged-injectto call context_offset, COMM_TO_PHYS(comm, rank), match_bits); } else { ... } fi_tinjectto(tagged_epfd, buf, data_sz, Fabric address provided directly to provider 7

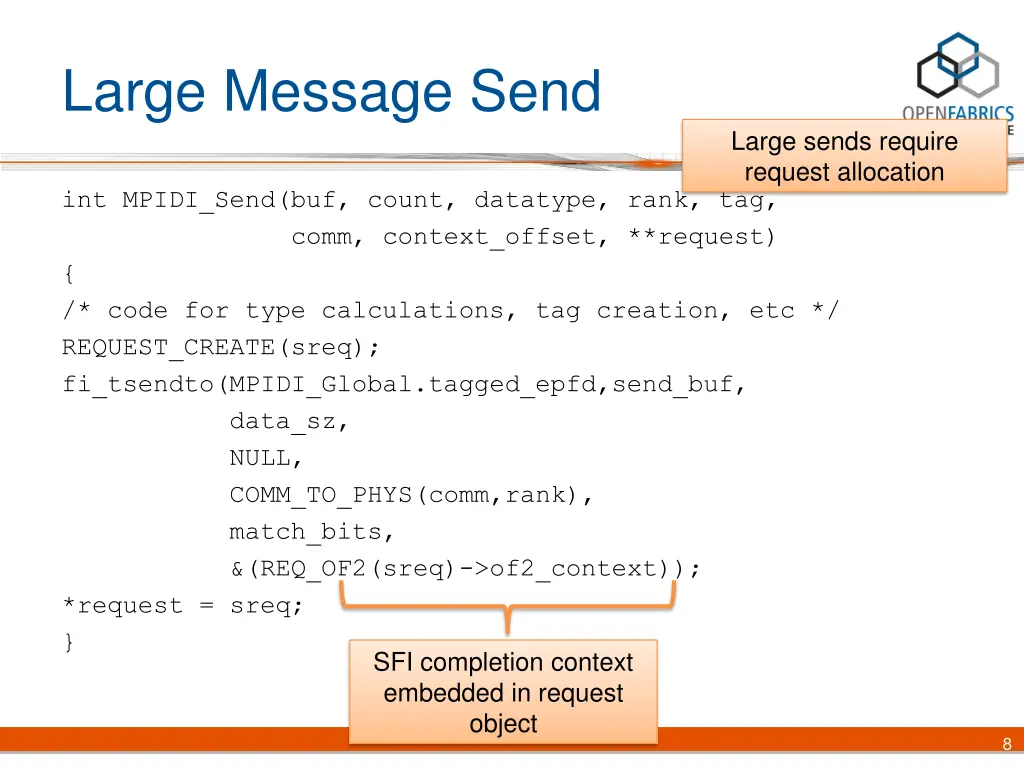

Large Message Send Large sends require request allocation int MPIDI_Send(buf, count, datatype, rank, tag, comm, context_offset, **request) { /* code for type calculations, tag creation, etc */ REQUEST_CREATE(sreq); fi_tsendto(MPIDI_Global.tagged_epfd,send_buf, data_sz, NULL, COMM_TO_PHYS(comm,rank), match_bits, &(REQ_OF2(sreq)->of2_context)); *request = sreq; } SFI completion context embedded in request object 8

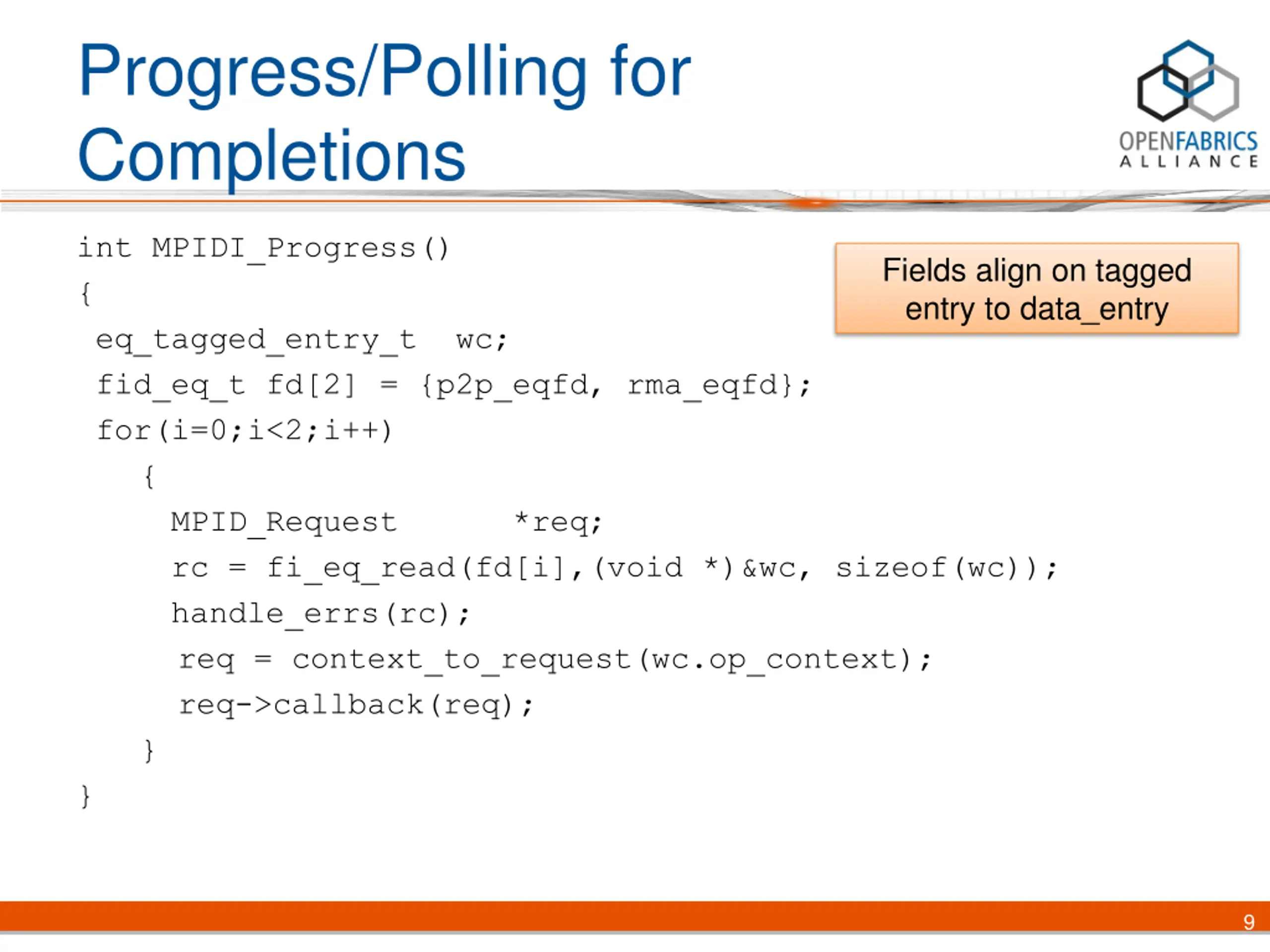

Progress/Polling for Completions int MPIDI_Progress() { eq_tagged_entry_t wc; fid_eq_t fd[2] = {p2p_eqfd, rma_eqfd}; for(i=0;i<2;i++) { MPID_Request *req; rc = fi_eq_read(fd[i],(void *)&wc, sizeof(wc)); handle_errs(rc); req = context_to_request(wc.op_context); req->callback(req); } } Fields align on tagged entry to data_entry 9

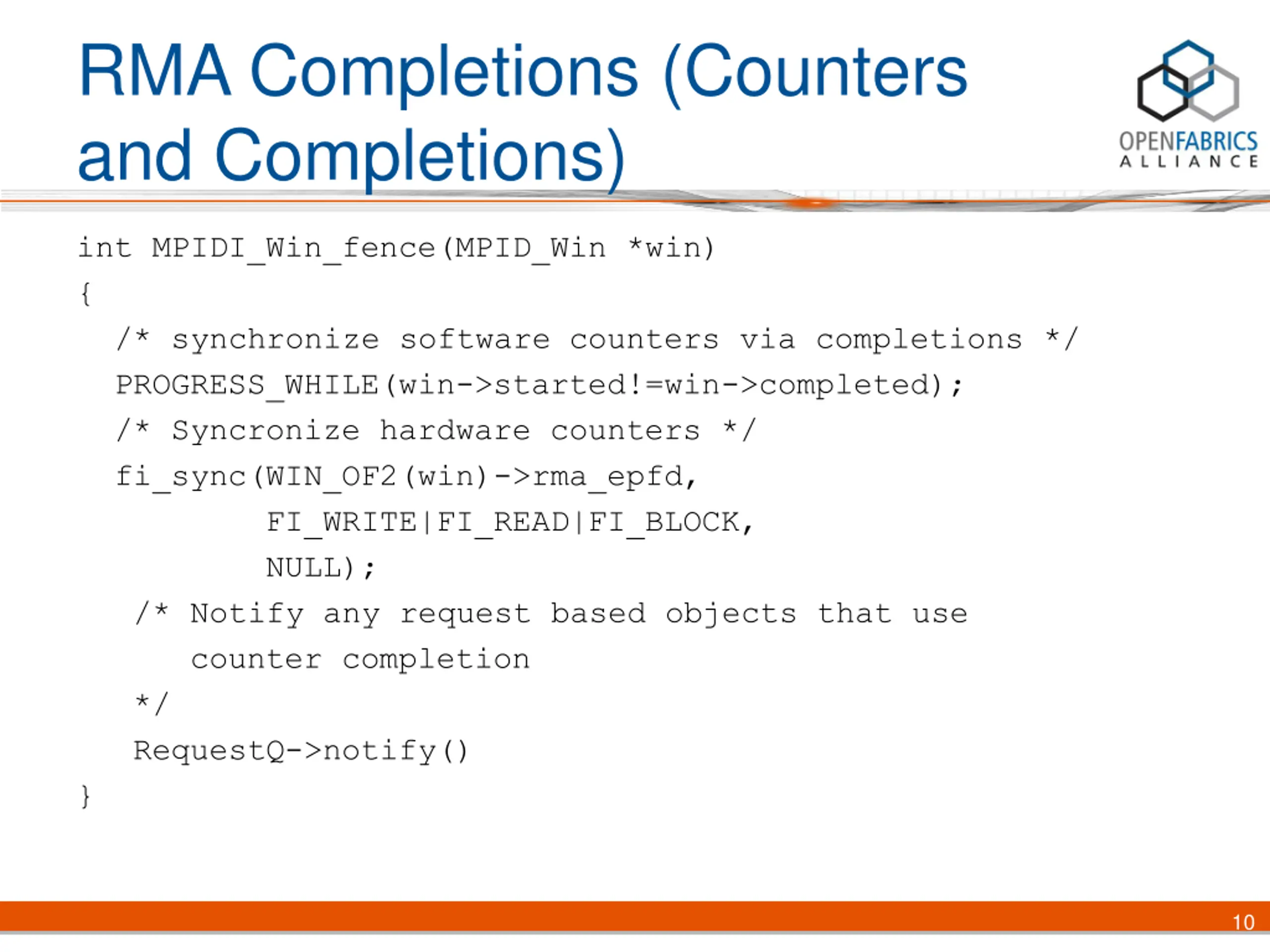

RMA Completions (Counters and Completions) int MPIDI_Win_fence(MPID_Win *win) { /* synchronize software counters via completions */ PROGRESS_WHILE(win->started!=win->completed); /* Syncronize hardware counters */ fi_sync(WIN_OF2(win)->rma_epfd, FI_WRITE|FI_READ|FI_BLOCK, NULL); /* Notify any request based objects that use counter completion */ RequestQ->notify() } 10
