Enhanced Light Communications (ELC) Underwater Prototype Performance
Researchers from Kyocera SLD Laser present their work on Enhanced Light Communications for underwater applications. They discuss the development of various LiFi prototypes with high data rates and impressive performance, culminating in the demonstration of a 4 Gbps capable OFDM LiFi system. The experiments showcase the feasibility of achieving data rates exceeding 1 Gbps and distances over 100m in both freshwater and saltwater environments, highlighting the adaptability of the system for different conditions and potential wide-ranging applications.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

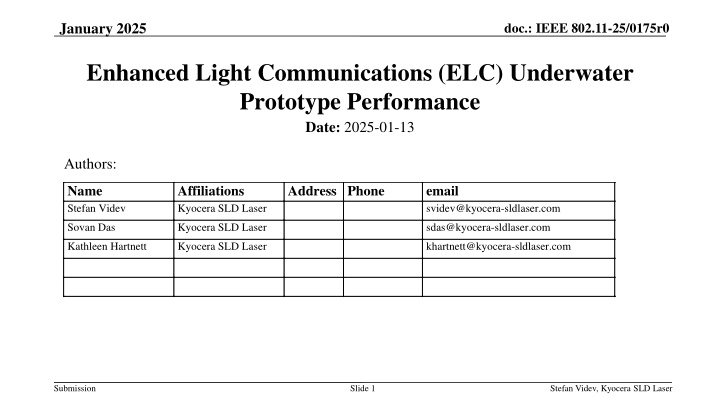

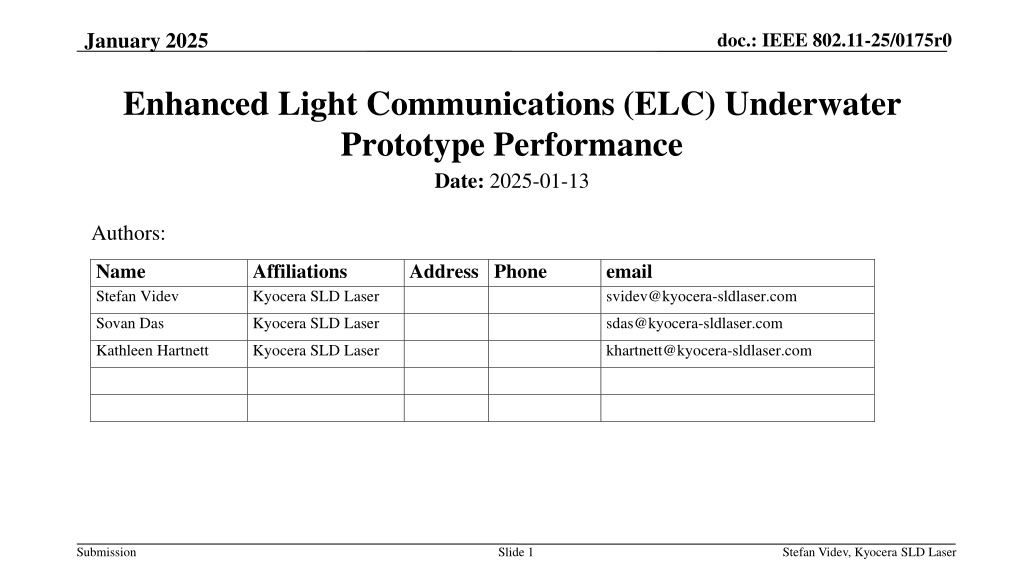

January 2025 doc.: IEEE 802.11-25/0175r0 Enhanced Light Communications (ELC) Underwater Prototype Performance Date: 2025-01-13 Authors: Name Stefan Videv Affiliations Kyocera SLD Laser Address Phone email svidev@kyocera-sldlaser.com Sovan Das Kyocera SLD Laser sdas@kyocera-sldlaser.com Kathleen Hartnett Kyocera SLD Laser khartnett@kyocera-sldlaser.com Submission Slide 1 Stefan Videv, Kyocera SLD Laser

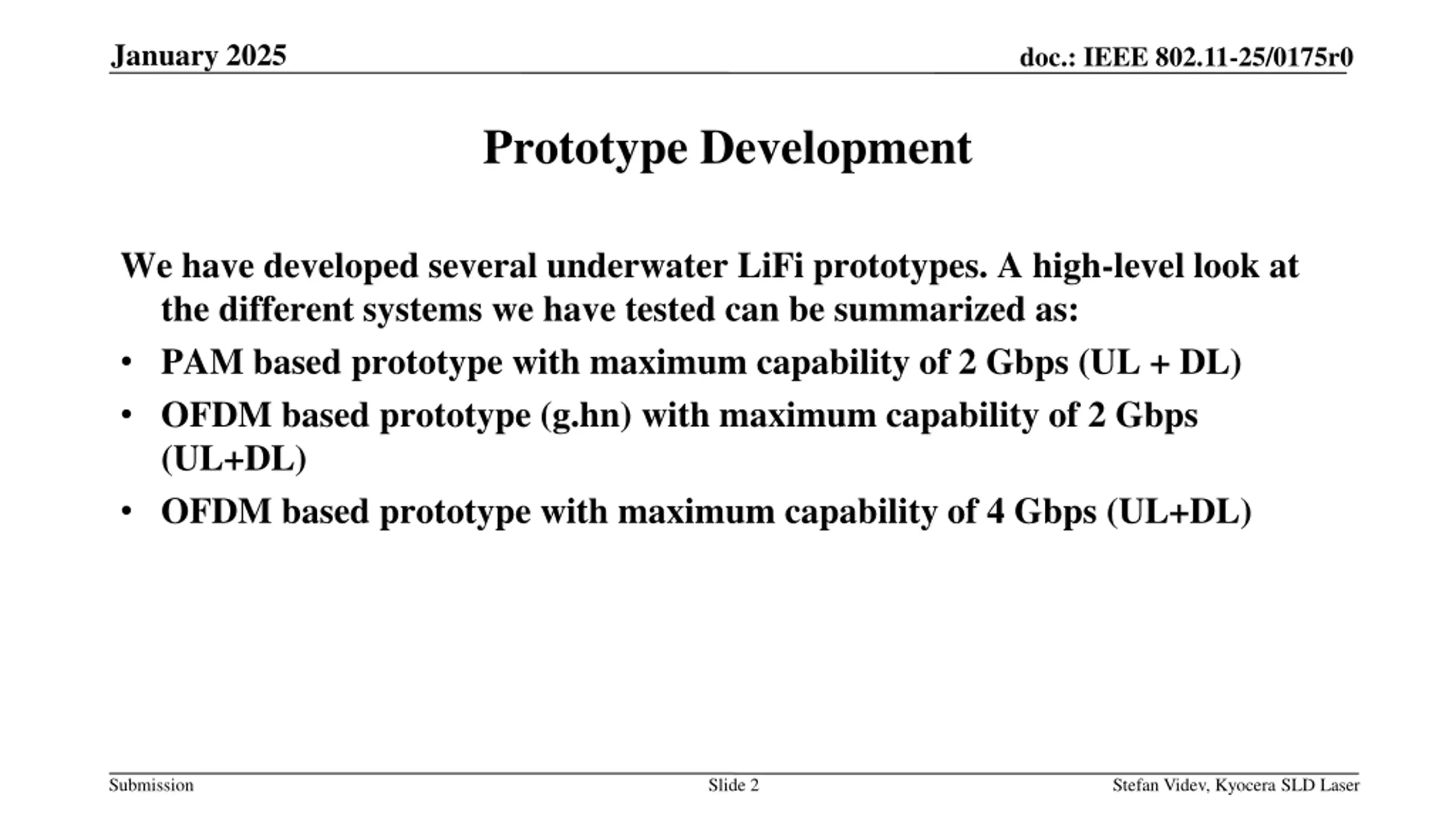

January 2025 doc.: IEEE 802.11-25/0175r0 Prototype Development We have developed several underwater LiFi prototypes. A high-level look at the different systems we have tested can be summarized as: PAM based prototype with maximum capability of 2 Gbps (UL + DL) OFDM based prototype (g.hn) with maximum capability of 2 Gbps (UL+DL) OFDM based prototype with maximum capability of 4 Gbps (UL+DL) Submission Slide 2 Stefan Videv, Kyocera SLD Laser

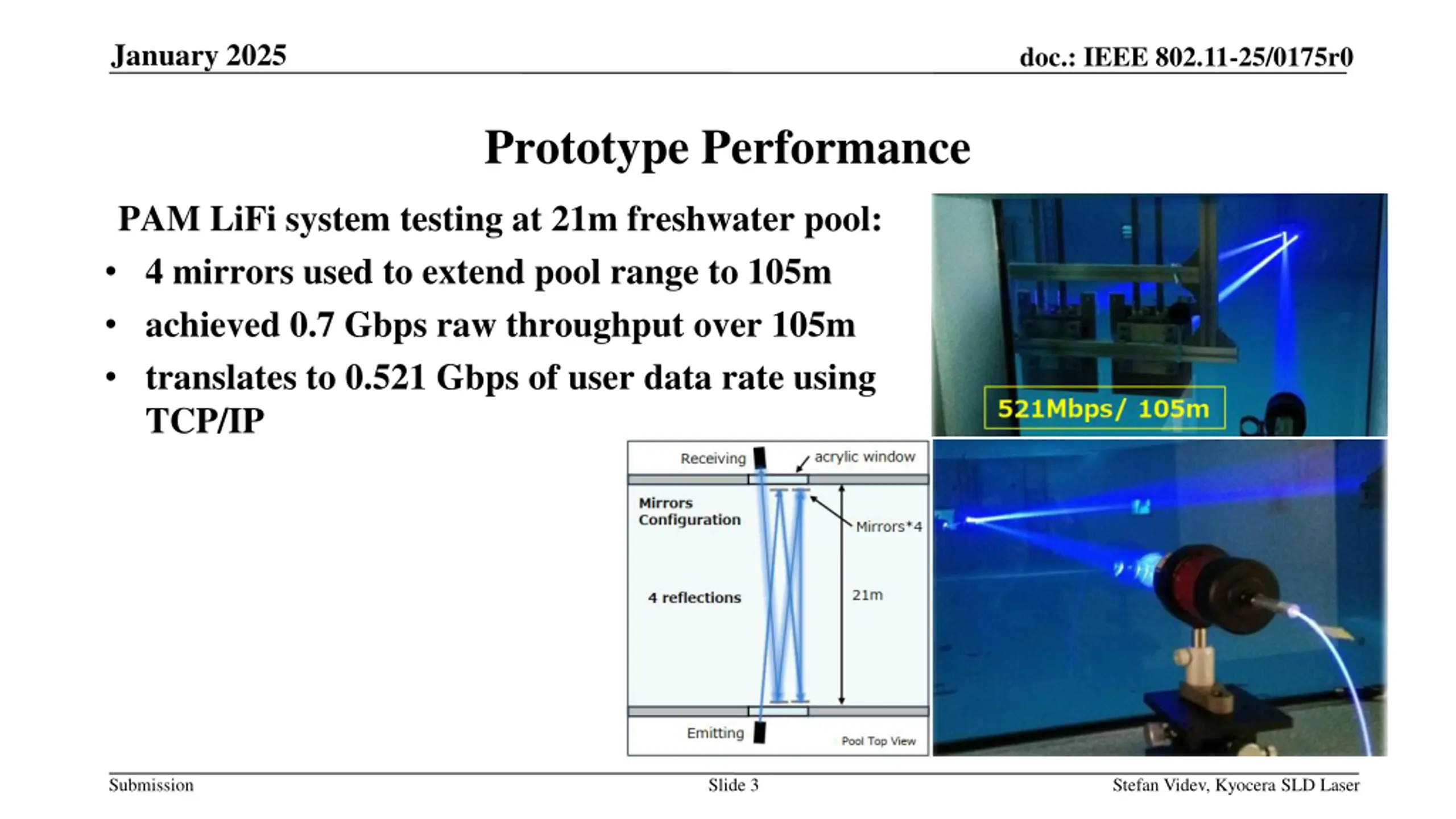

January 2025 doc.: IEEE 802.11-25/0175r0 Prototype Performance PAM LiFi system testing at 21m freshwater pool: 4 mirrors used to extend pool range to 105m achieved 0.7 Gbps raw throughput over 105m translates to 0.521 Gbps of user data rate using TCP/IP Submission Slide 3 Stefan Videv, Kyocera SLD Laser

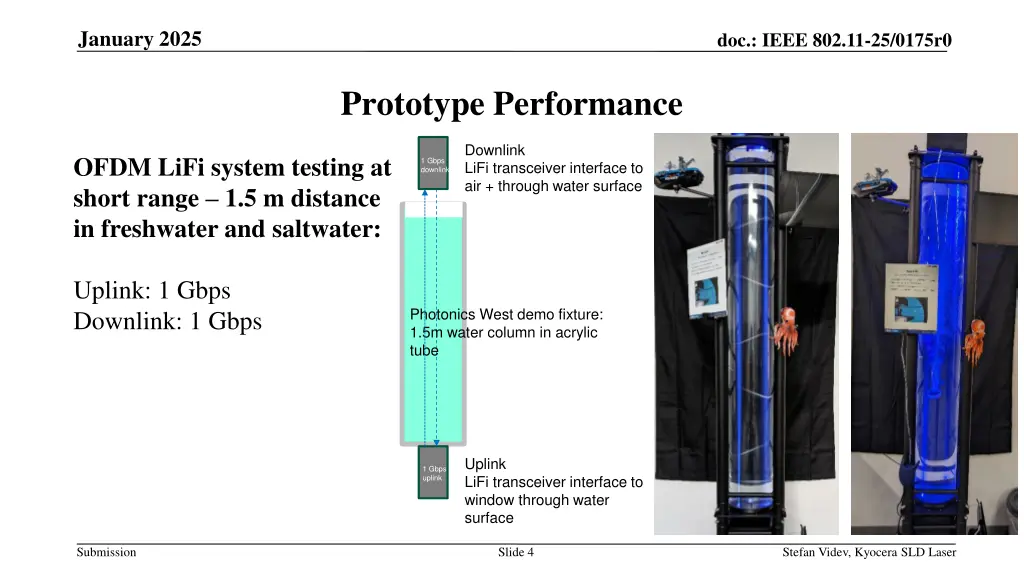

January 2025 doc.: IEEE 802.11-25/0175r0 Prototype Performance Downlink LiFi transceiver interface to air + through water surface OFDM LiFi system testing at short range 1.5 m distance in freshwater and saltwater: 1 Gbps downlink Uplink: 1 Gbps Downlink: 1 Gbps Photonics West demo fixture: 1.5m water column in acrylic tube Uplink LiFi transceiver interface to window through water surface 1 Gbps uplink Submission Slide 4 Stefan Videv, Kyocera SLD Laser

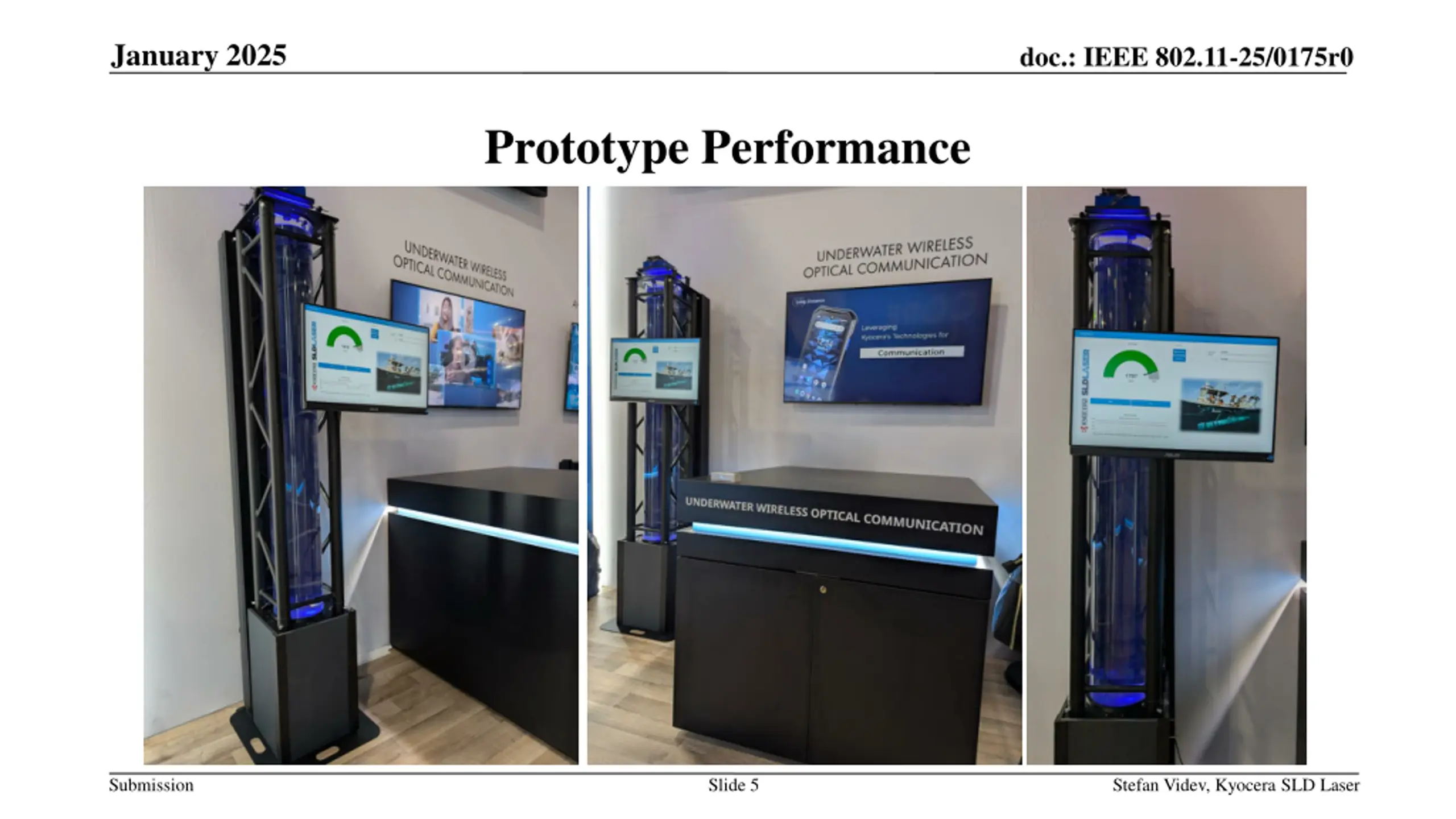

January 2025 doc.: IEEE 802.11-25/0175r0 Prototype Performance Submission Slide 5 Stefan Videv, Kyocera SLD Laser

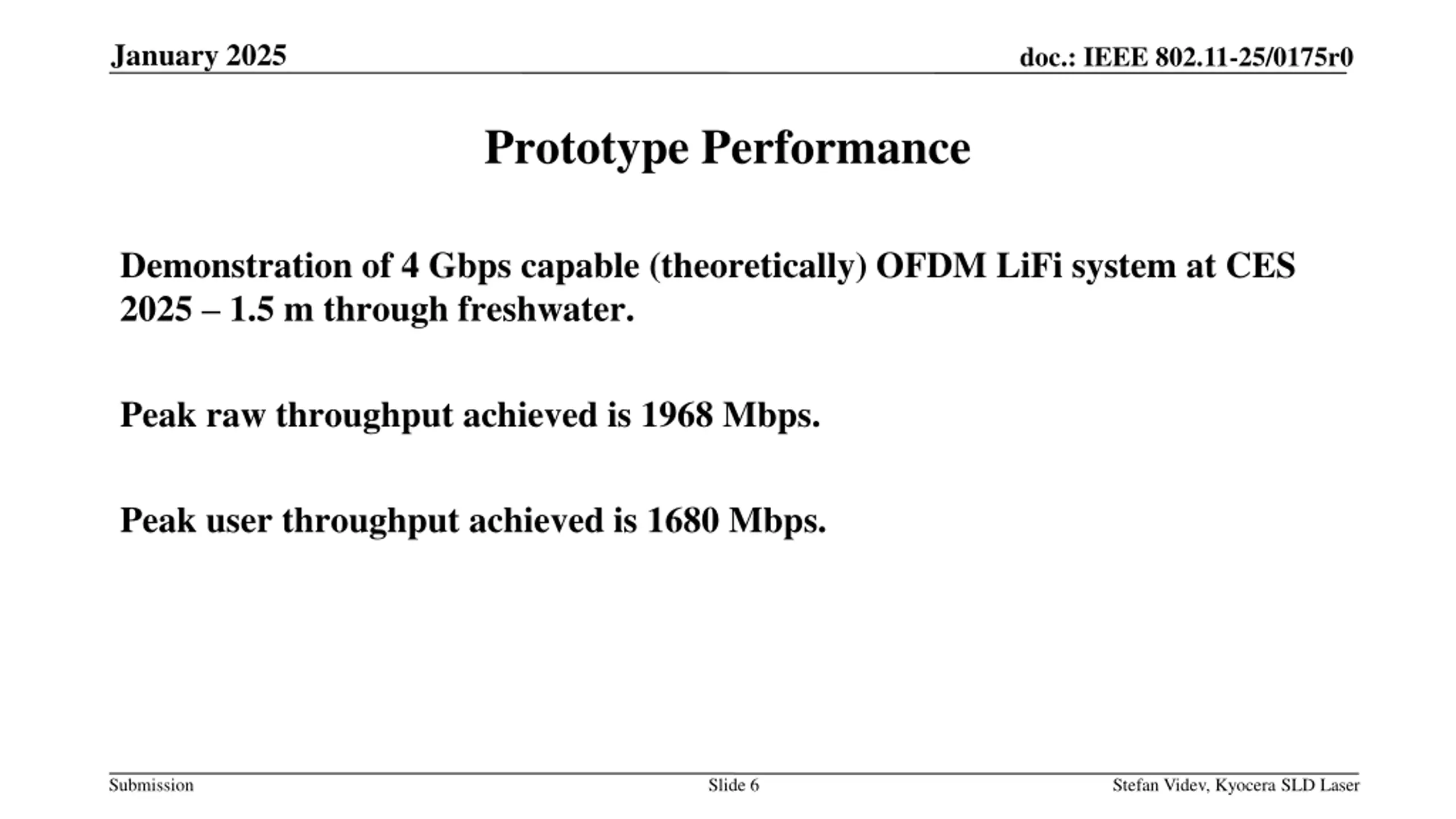

January 2025 doc.: IEEE 802.11-25/0175r0 Prototype Performance Demonstration of 4 Gbps capable (theoretically) OFDM LiFi system at CES 2025 1.5 m through freshwater. Peak raw throughput achieved is 1968 Mbps. Peak user throughput achieved is 1680 Mbps. Submission Slide 6 Stefan Videv, Kyocera SLD Laser

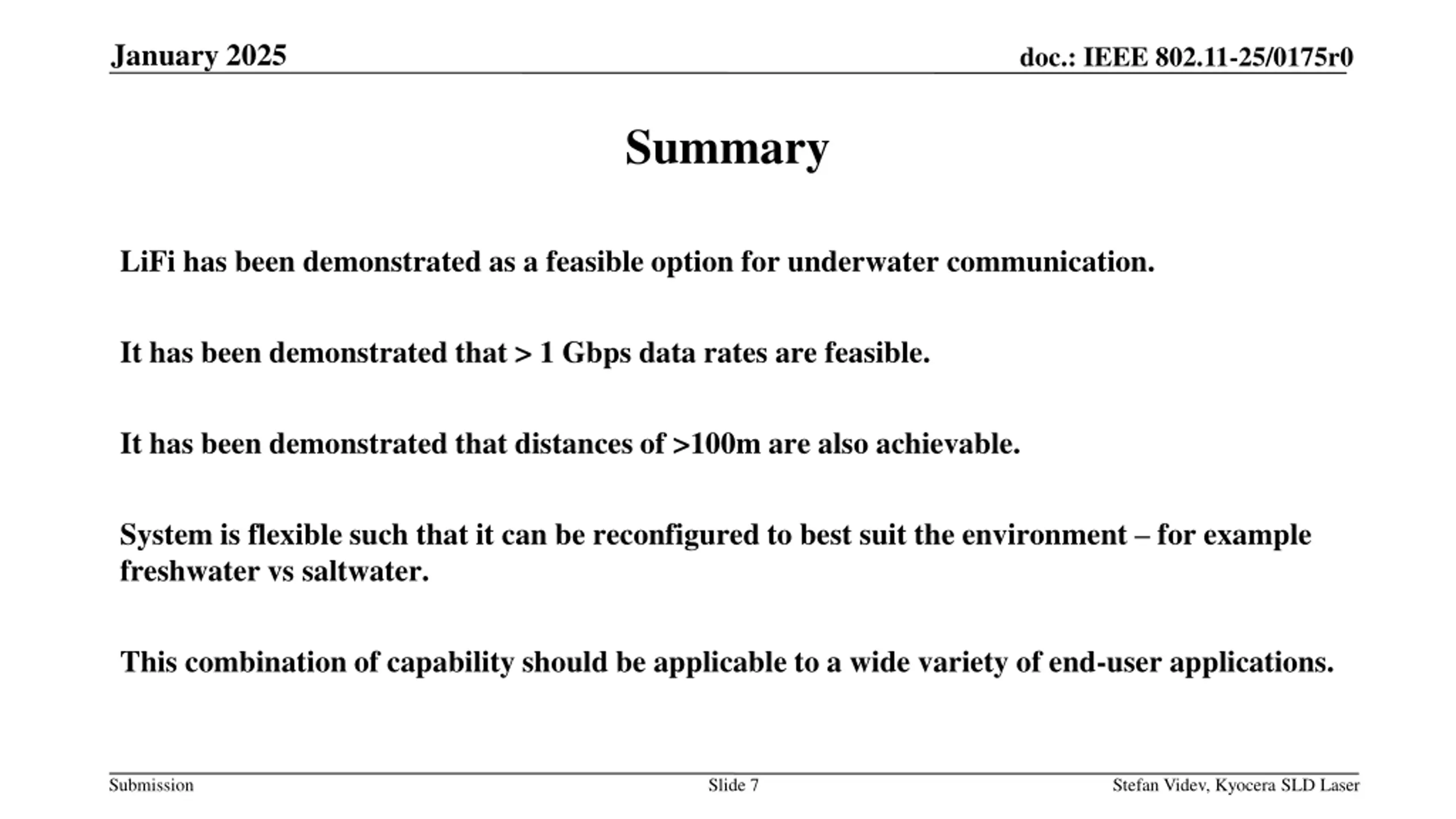

January 2025 doc.: IEEE 802.11-25/0175r0 Summary LiFi has been demonstrated as a feasible option for underwater communication. It has been demonstrated that > 1 Gbps data rates are feasible. It has been demonstrated that distances of >100m are also achievable. System is flexible such that it can be reconfigured to best suit the environment for example freshwater vs saltwater. This combination of capability should be applicable to a wide variety of end-user applications. Submission Slide 7 Stefan Videv, Kyocera SLD Laser
