Enhancing Infrared Transmission with Pyramid-Shaped Microstructure Coating
Explore the application of pyramid-shaped microstructure coating for enhancing infrared transmission, achieving over 94% transmittance in the 7-14um spectrum. The study includes geometry assumptions, modeling considerations, transmission profiles, and references validating the findings. Reference to Douglas S. Hobbs et al.'s work adds credibility to the results obtained. Discover how this innovative approach improves transmittance while accounting for angle of incidence variations.
Uploaded on | 0 Views
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript
Antireflection Coating for Infrared Wavelength Pyramid-Shaped Microstructure COMSOL
Geometry Assumptions Pitch of the periodic structure is 2.4 um Height of the CZT pyramid is 5 um Top width of the CZT pyramid is 100 nm Bottom width of the CZT pyramid is 2.16 um Single unit cell model

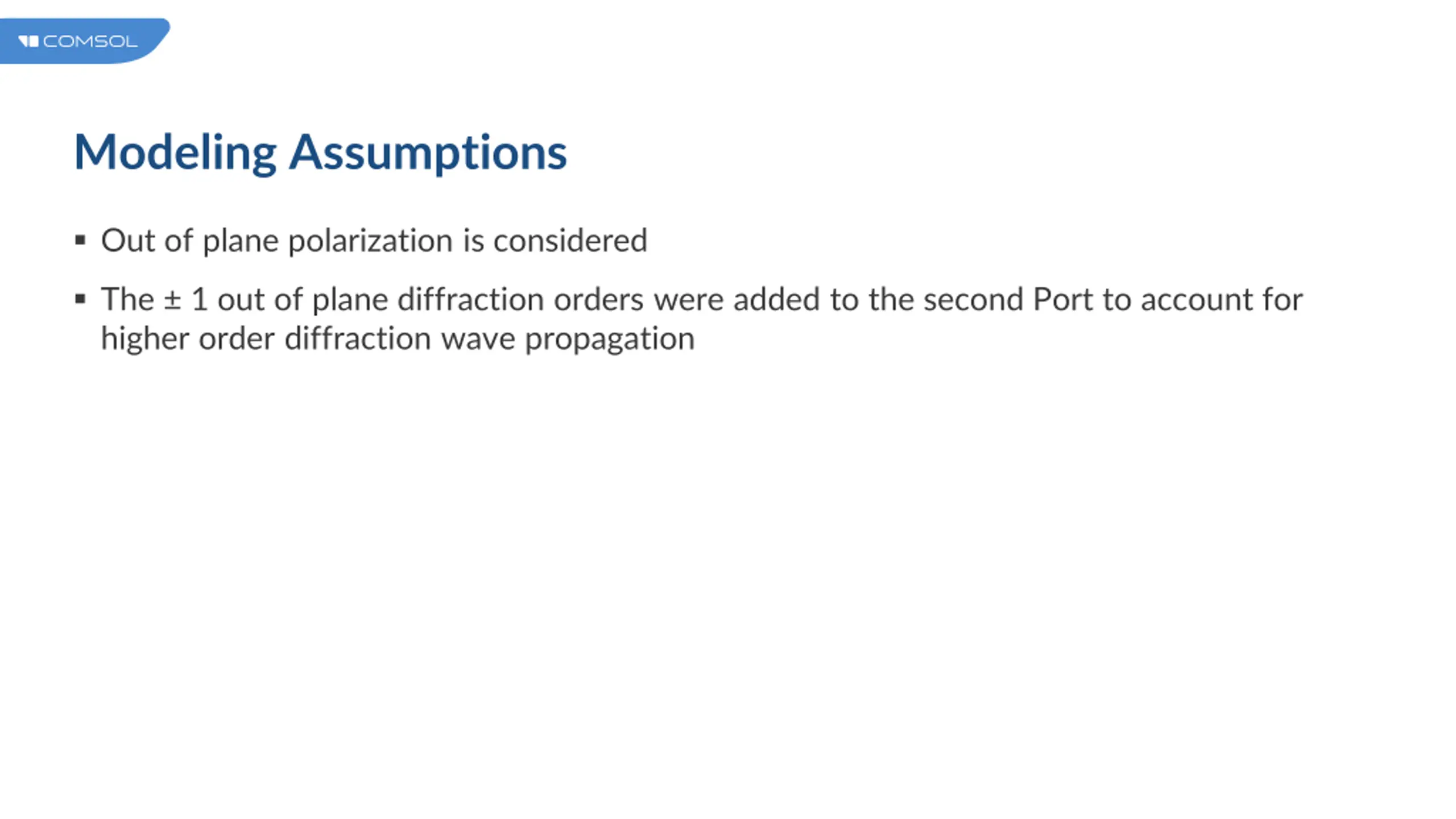

Modeling Assumptions Out of plane polarization is considered The 1 out of plane diffraction orders were added to the second Port to account for higher order diffraction wave propagation

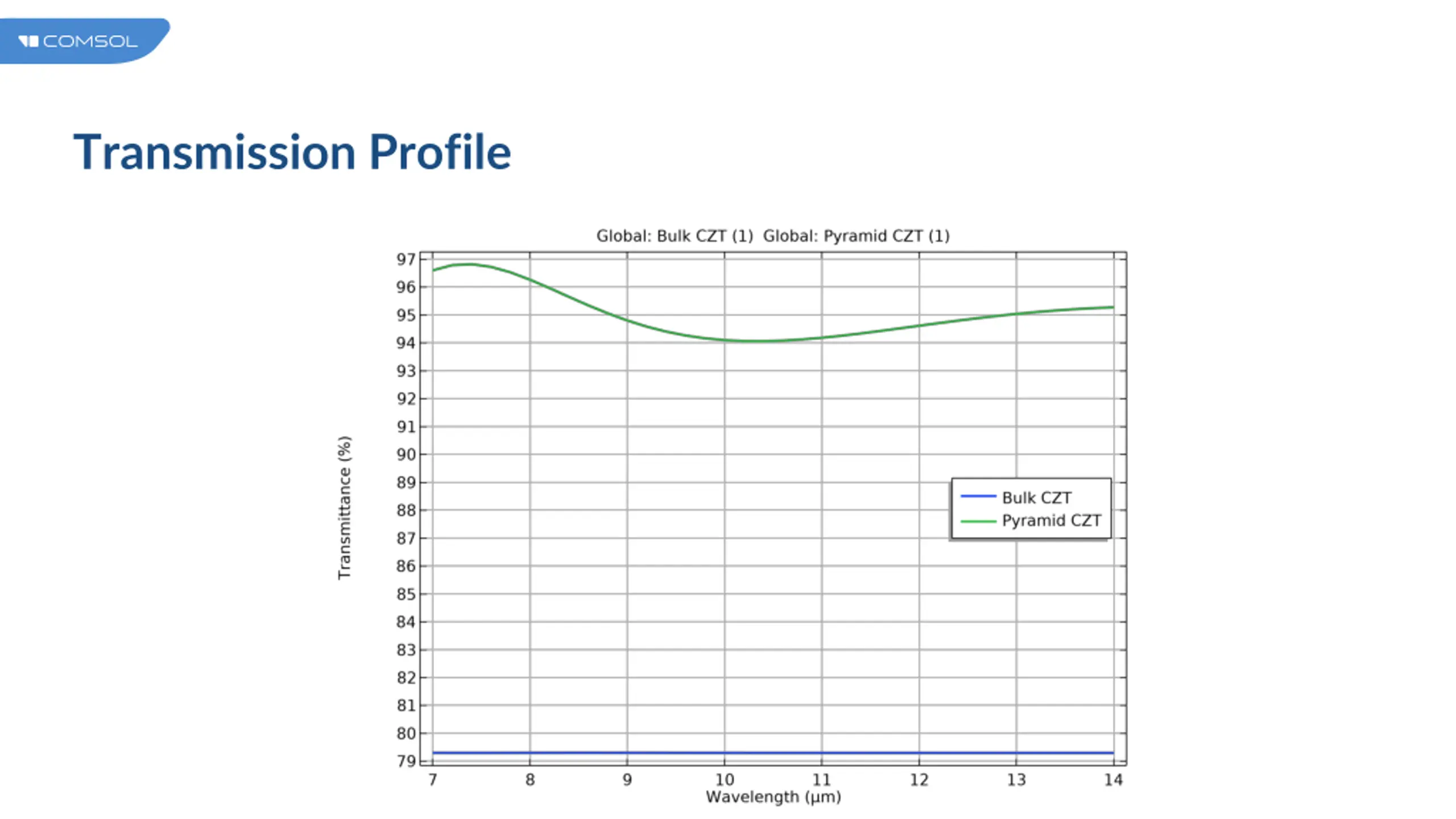

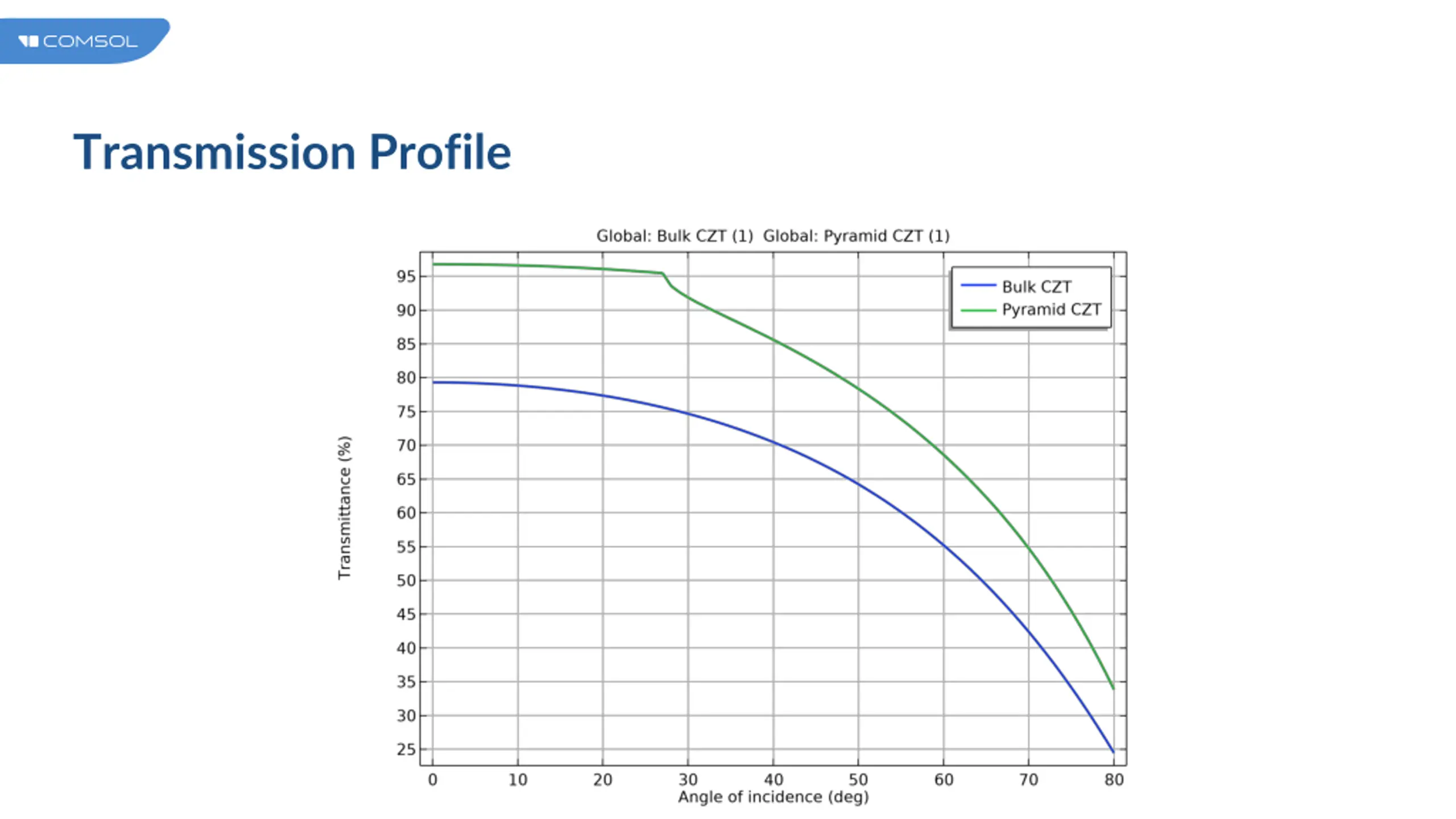

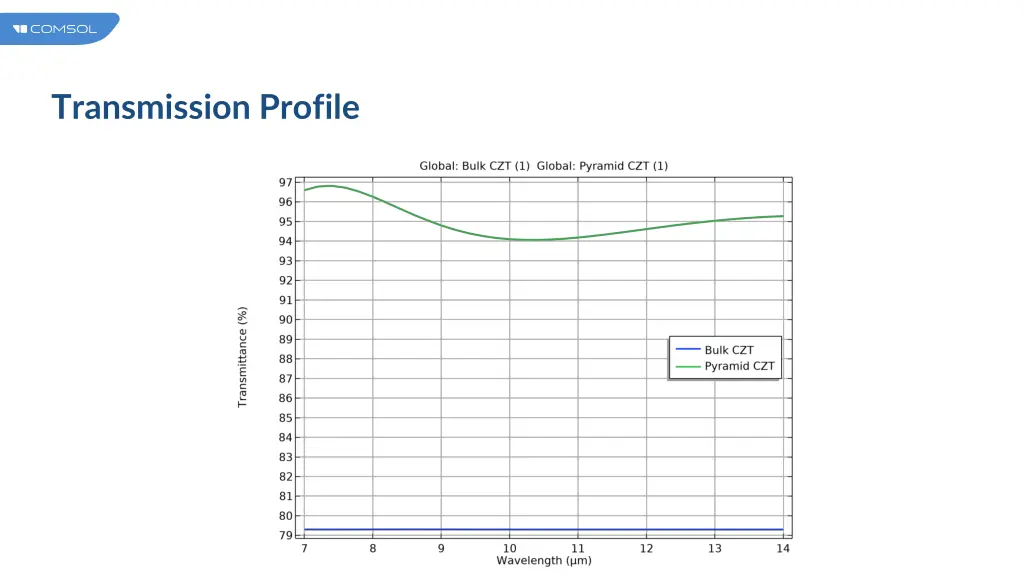

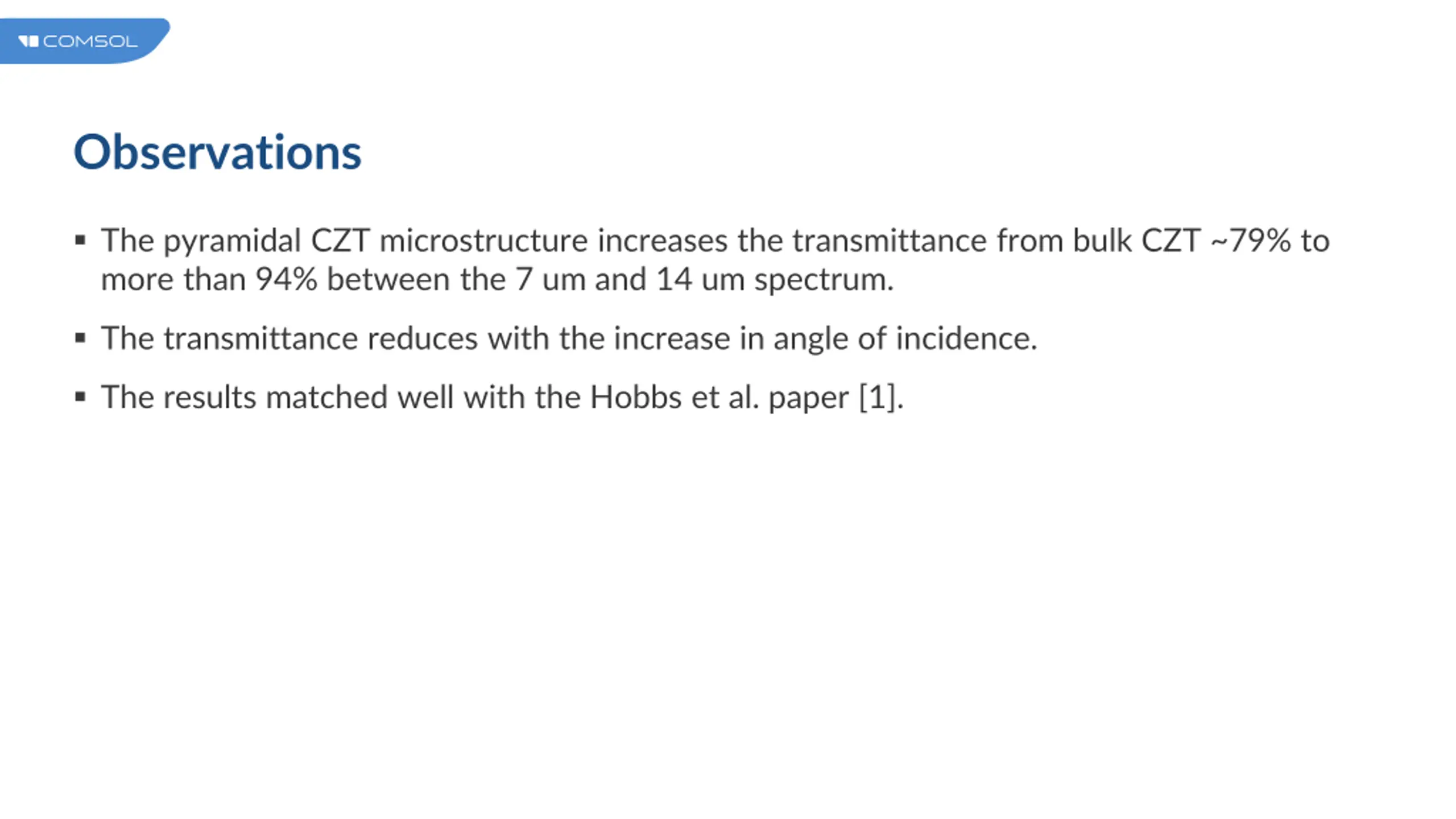

Observations The pyramidal CZT microstructure increases the transmittance from bulk CZT ~79% to more than 94% between the 7 um and 14 um spectrum. The transmittance reduces with the increase in angle of incidence. The results matched well with the Hobbs et al. paper [1].

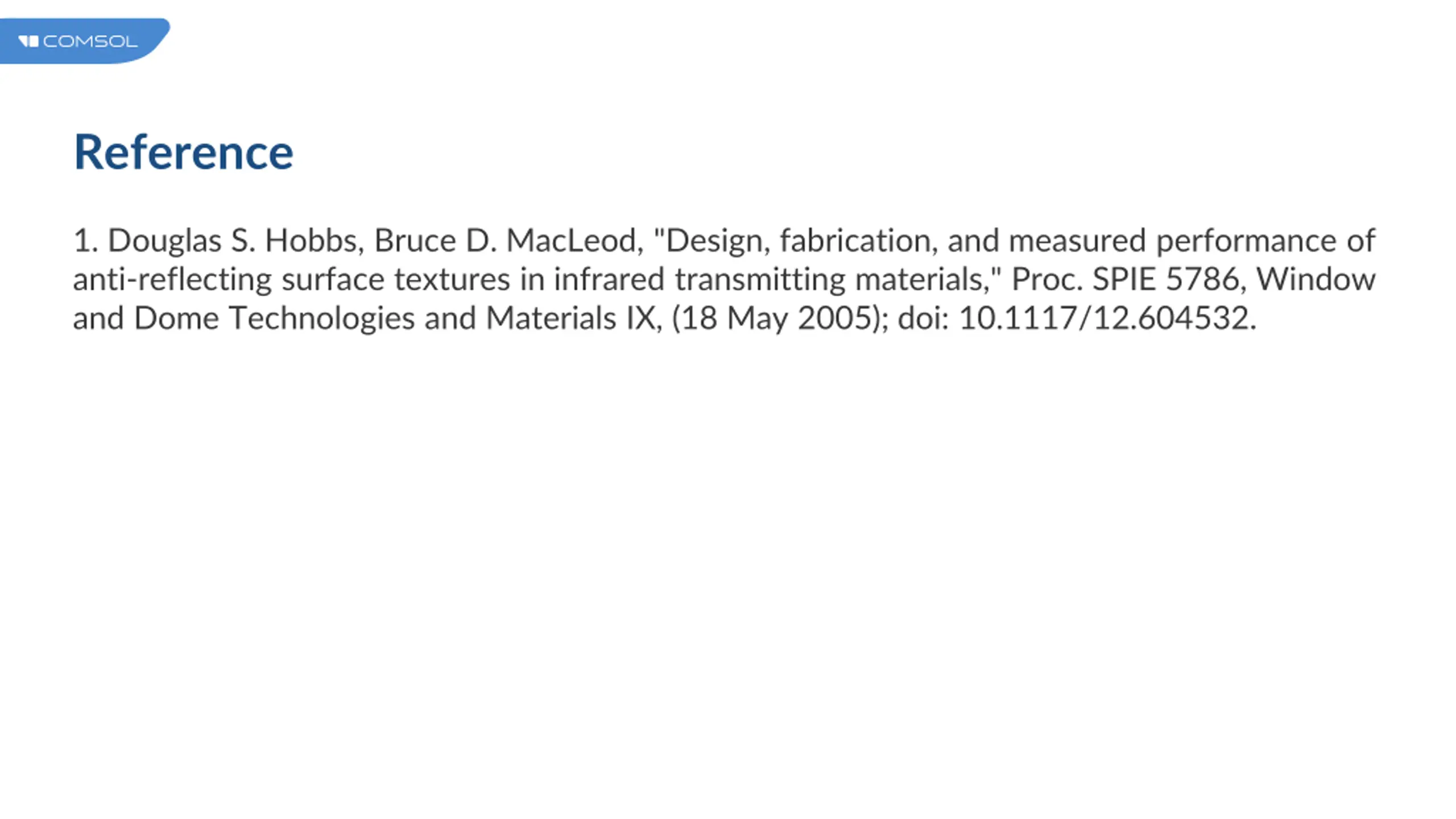

Reference 1. Douglas S. Hobbs, Bruce D. MacLeod, "Design, fabrication, and measured performance of anti-reflecting surface textures in infrared transmitting materials," Proc. SPIE 5786, Window and Dome Technologies and Materials IX, (18 May 2005); doi: 10.1117/12.604532.
