Enhancing Wireless Personal Area Networks Sensitivity Levels
"Explore changes in reference receiver sensitivity levels for IEEE P802.15 WPANs, aiming to optimize module size and power consumption by modifying sensitivity levels. Lower gain antennas may enable smaller modules, while reducing power consumption of amplifiers. Proposed adjustments offer potential benefits in device design and performance."
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

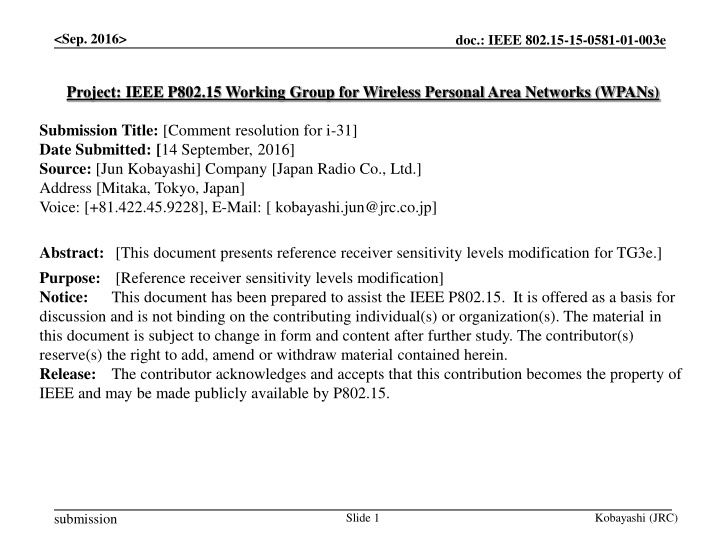

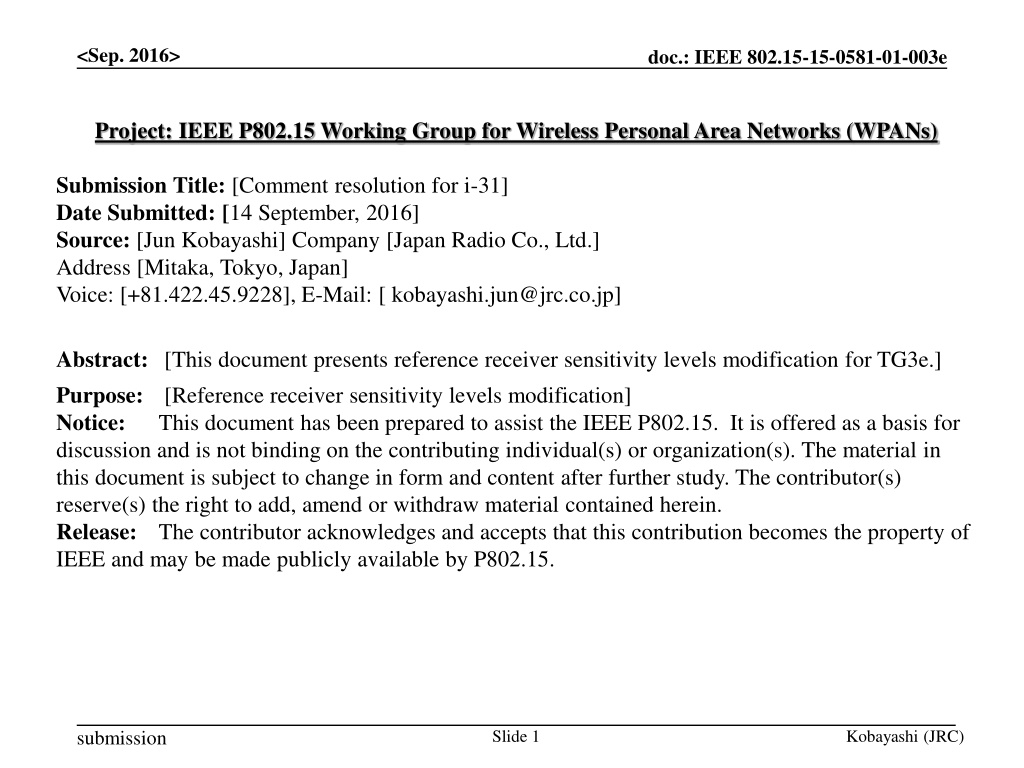

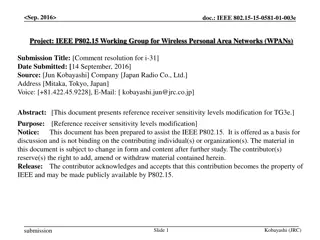

<Sep. 2016> doc.: IEEE 802.15-15-0581-01-003e Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title: [Comment resolution for i-31] Date Submitted: [14 September, 2016] Source: [Jun Kobayashi] Company [Japan Radio Co., Ltd.] Address [Mitaka, Tokyo, Japan] Voice: [+81.422.45.9228], E-Mail: [ kobayashi.jun@jrc.co.jp] Abstract: [This document presents reference receiver sensitivity levels modification for TG3e.] Purpose: [Reference receiver sensitivity levels modification] Notice: This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15. Slide 1 Kobayashi (JRC) submission

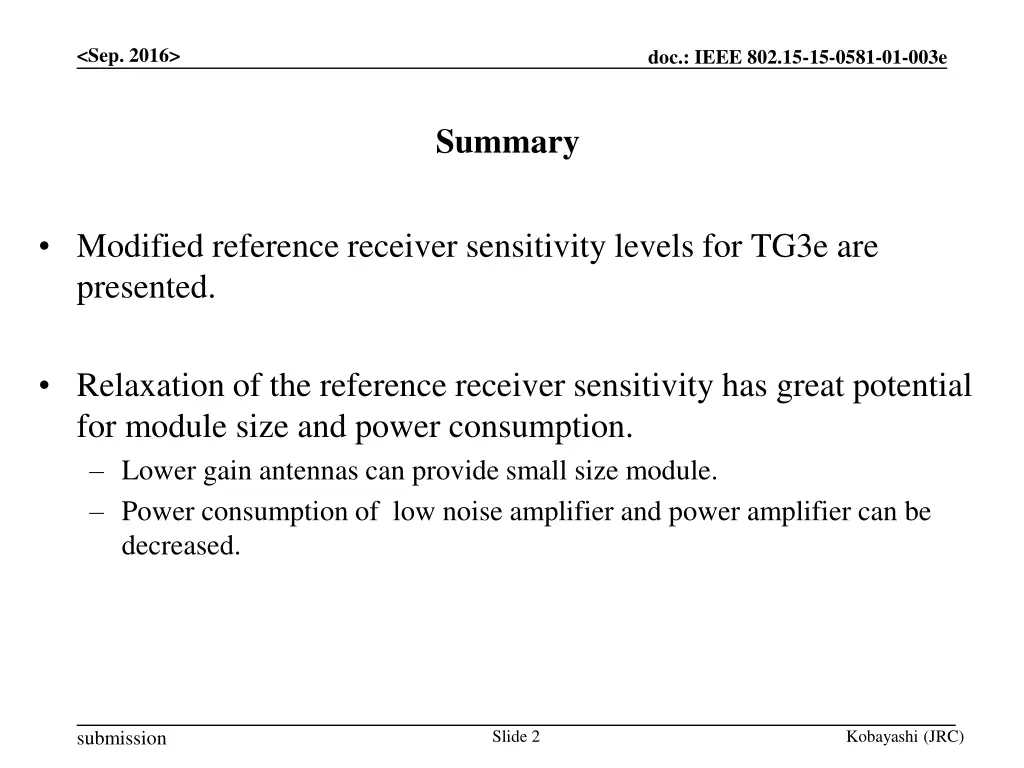

<Sep. 2016> doc.: IEEE 802.15-15-0581-01-003e Summary Modified reference receiver sensitivity levels for TG3e are presented. Relaxation of the reference receiver sensitivity has great potential for module size and power consumption. Lower gain antennas can provide small size module. Power consumption of low noise amplifier and power amplifier can be decreased. Slide 2 Kobayashi (JRC) submission

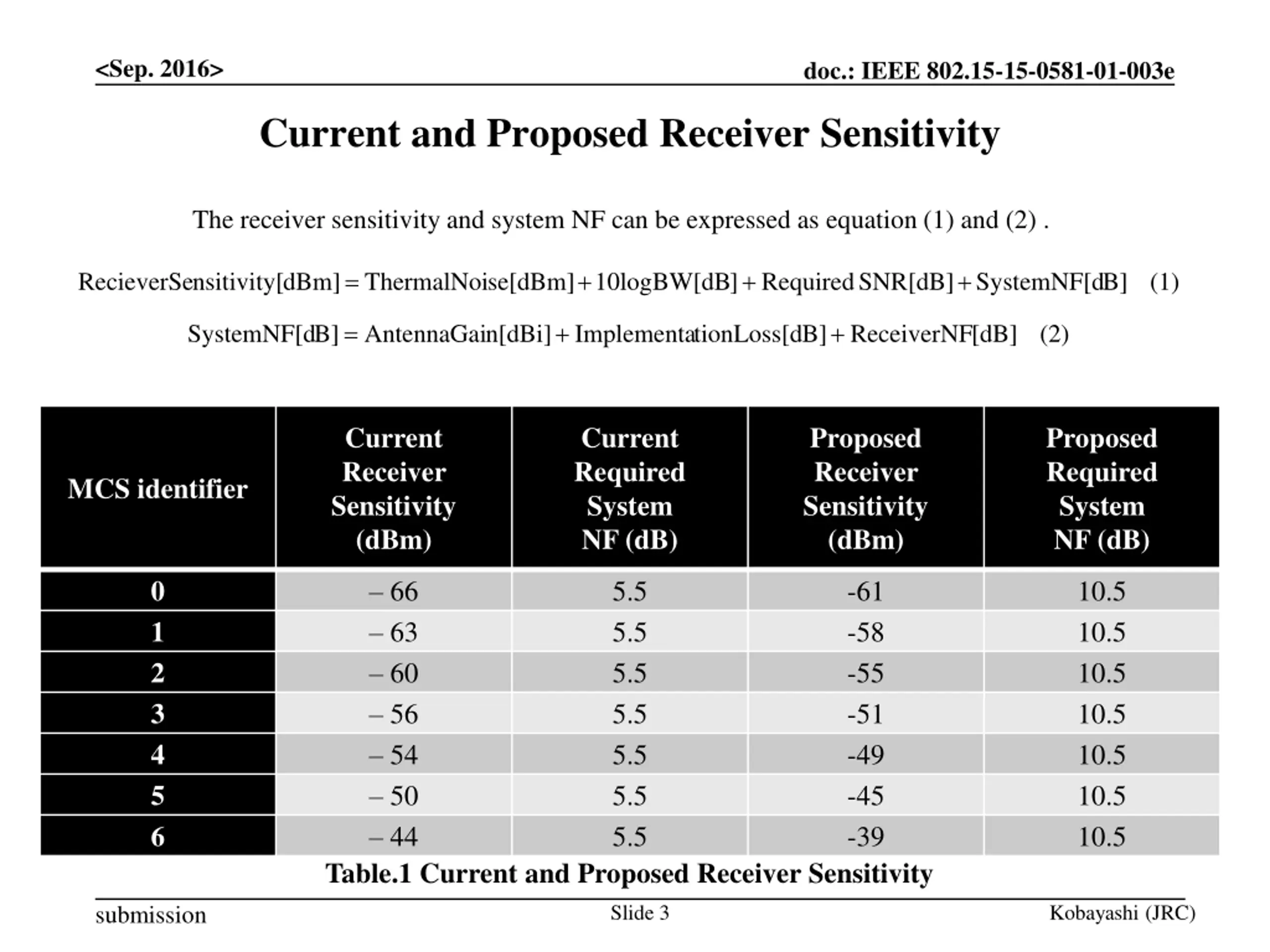

<Sep. 2016> doc.: IEEE 802.15-15-0581-01-003e Current and Proposed Receiver Sensitivity The receiver sensitivity and system NF can be expressed as equation (1) and (2) . = + + + RecieverSe nsitivity[ dBm] ThermalNoi se[dBm] 10logBW[dB ] Required SNR[dB] SystemNF[d B] (1) = + + SystemNF[d B] AntennaGai n[dBi] Implementa tionLoss[d B] ReceiverNF [dB] (2) Current Receiver Sensitivity (dBm) Current Required System NF (dB) Proposed Receiver Sensitivity (dBm) Proposed Required System NF (dB) MCS identifier 0 1 2 3 4 5 6 66 63 60 56 54 50 44 5.5 5.5 5.5 5.5 5.5 5.5 5.5 -61 -58 -55 -51 -49 -45 -39 10.5 10.5 10.5 10.5 10.5 10.5 10.5 Table.1 Current and Proposed Receiver Sensitivity Slide 3 Kobayashi (JRC) submission

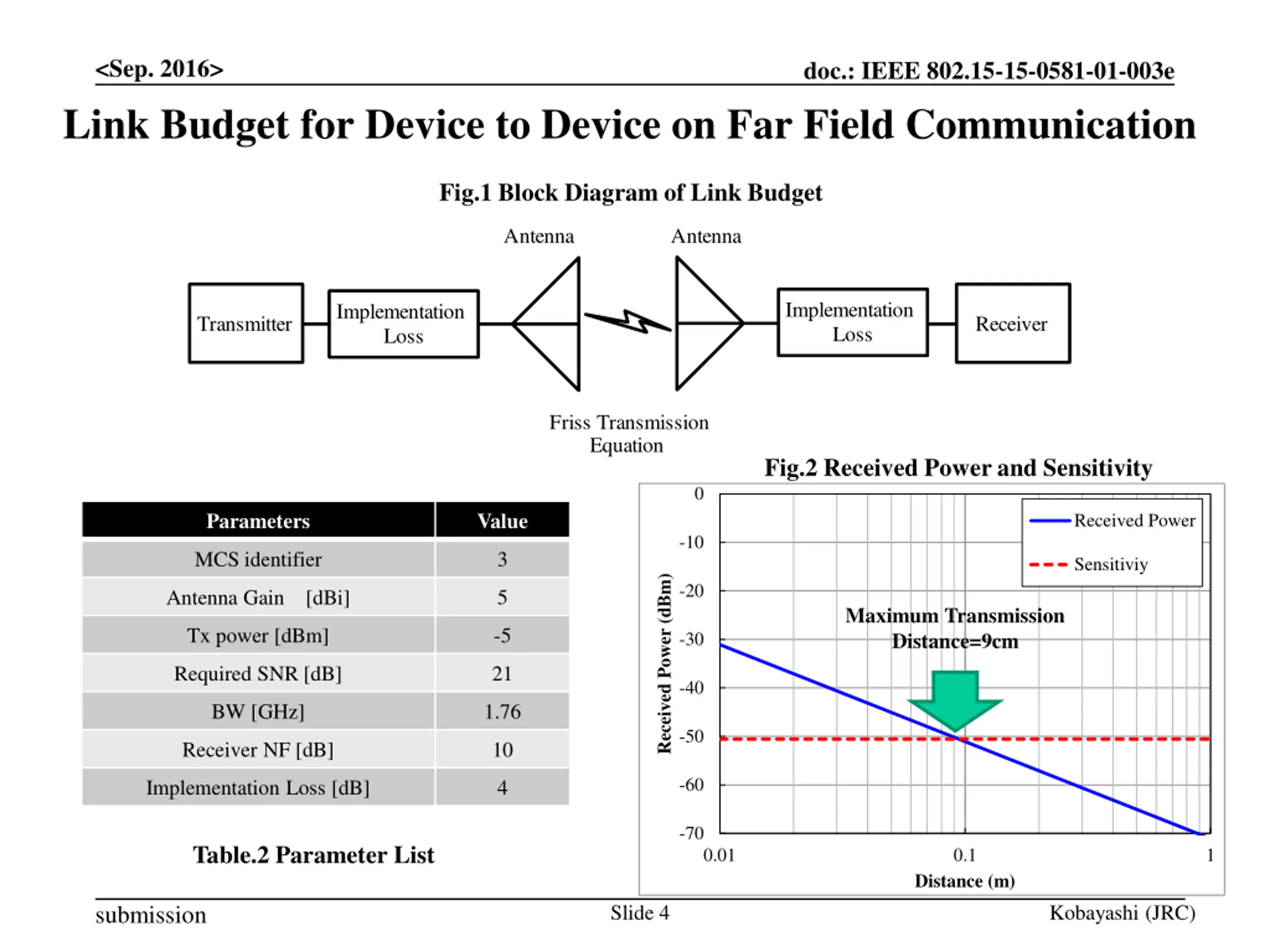

<Sep. 2016> Link Budget for Device to Device on Far Field Communication doc.: IEEE 802.15-15-0581-01-003e Fig.1 Block Diagram of Link Budget Antenna Antenna Implementation Loss Implementation Loss Transmitter Receiver Friss Transmission Equation Fig.2 Received Power and Sensitivity 0 Parameters Value Received Power -10 MCS identifier 3 Sensitiviy Received Power (dBm) -20 5 Antenna Gain [dBi] Maximum Transmission Distance=9cm Tx power [dBm] -5 -30 Required SNR [dB] 21 -40 BW [GHz] 1.76 -50 Receiver NF [dB] 10 -60 Implementation Loss [dB] 4 -70 Table.2 Parameter List 0.01 0.1 1 Distance (m) Slide 4 Kobayashi (JRC) submission

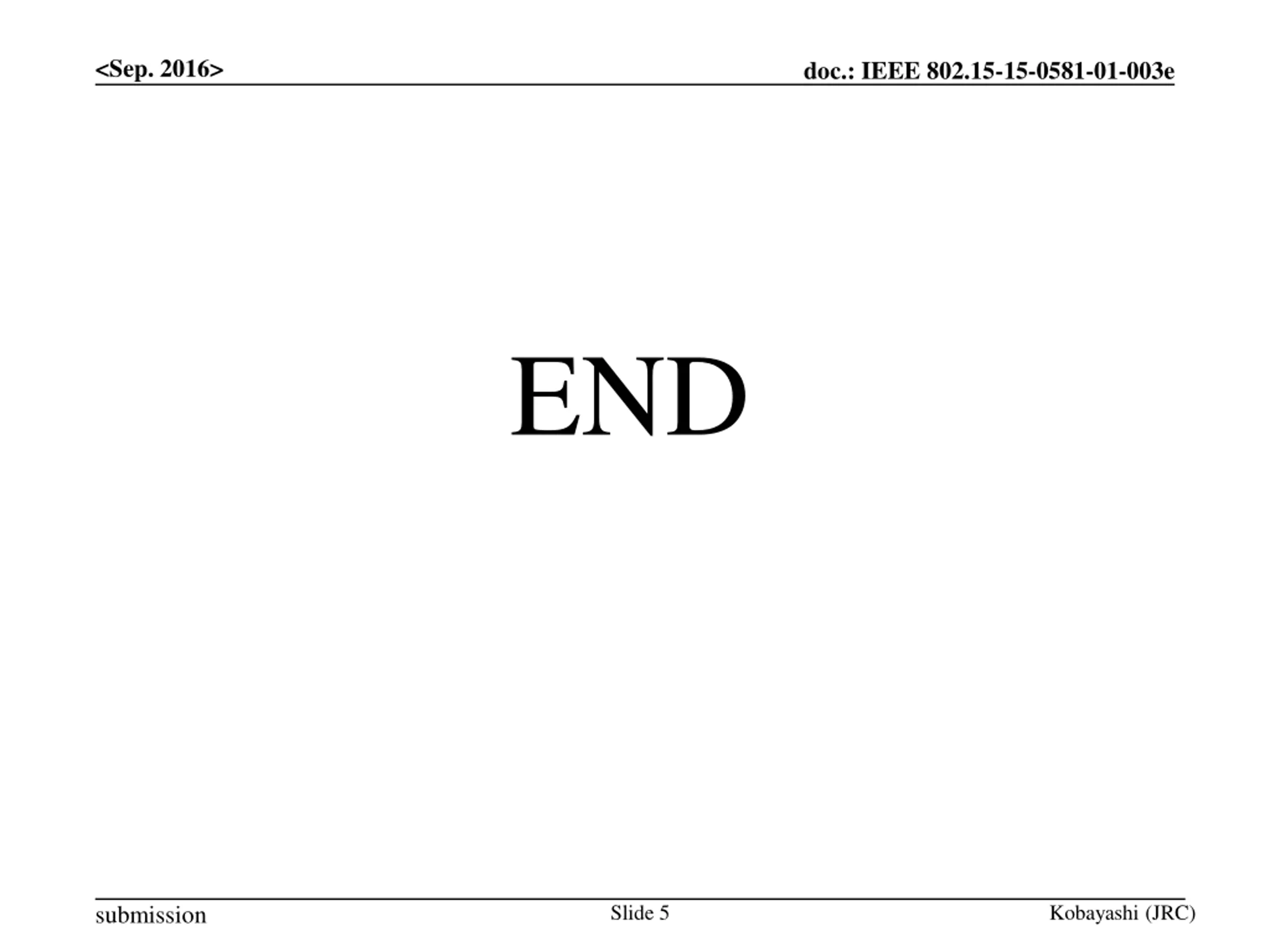

<Sep. 2016> doc.: IEEE 802.15-15-0581-01-003e END Slide 5 Kobayashi (JRC) submission
