Environmental Data Analysis with MatLab 2ndEdition Lecture 23: Adaptable Approximations with Neural Networks

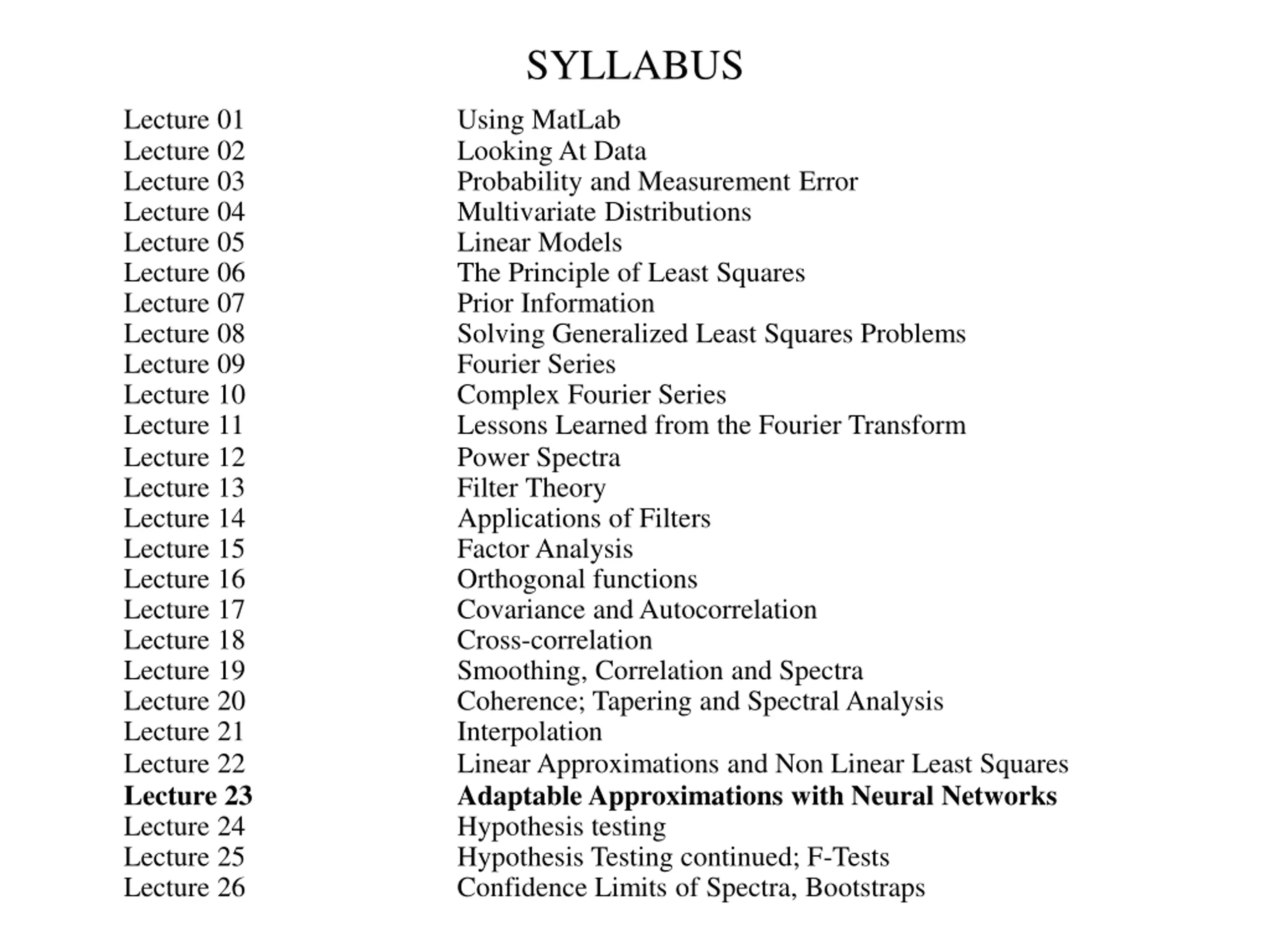

SYLLABUS Lecture 01 Lecture 02 Lecture 03 Lecture 04 Lecture 05 Lecture 06 Lecture 07 Lecture 08 Lecture 09 Lecture 10 Lecture 11 Lecture 12 Lecture 13 Lecture 14 Lecture 15 Lecture 16 Lecture 17 Lecture 18 Lecture 19 Lecture 20 Lecture 21 Lecture 22 Lecture 23 Lecture 24 Lecture 25 Lecture 26 Using MatLab Looking At Data Probability and Measurement Error Multivariate Distributions Linear Models The Principle of Least Squares Prior Information Solving Generalized Least Squares Problems Fourier Series Complex Fourier Series Lessons Learned from the Fourier Transform Power Spectra Filter Theory Applications of Filters Factor Analysis Orthogonal functions Covariance and Autocorrelation Cross-correlation Smoothing, Correlation and Spectra Coherence; Tapering and Spectral Analysis Interpolation Linear Approximations and Non Linear Least Squares Adaptable Approximations with Neural Networks Hypothesis testing Hypothesis Testing continued; F-Tests Confidence Limits of Spectra, Bootstraps

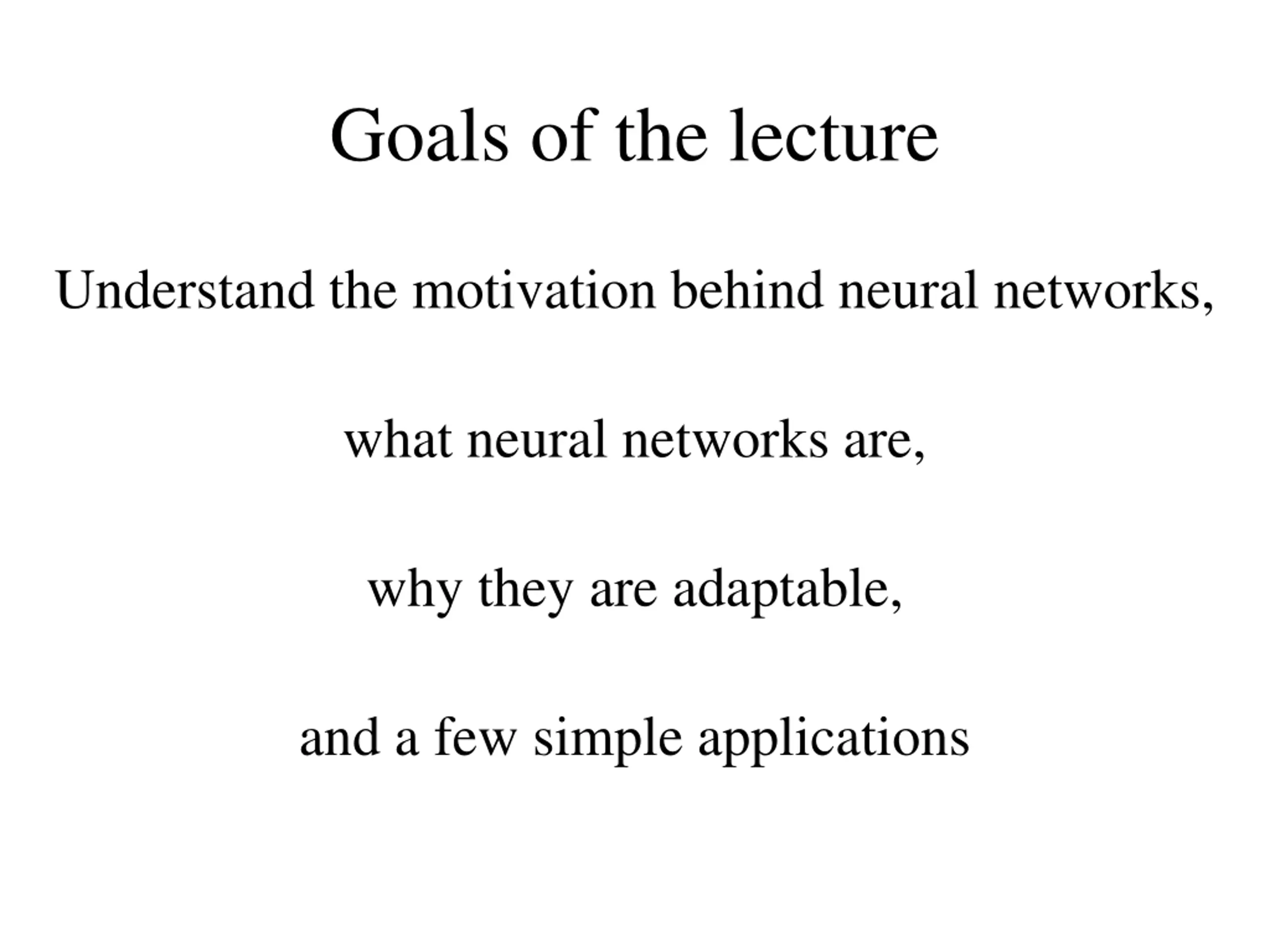

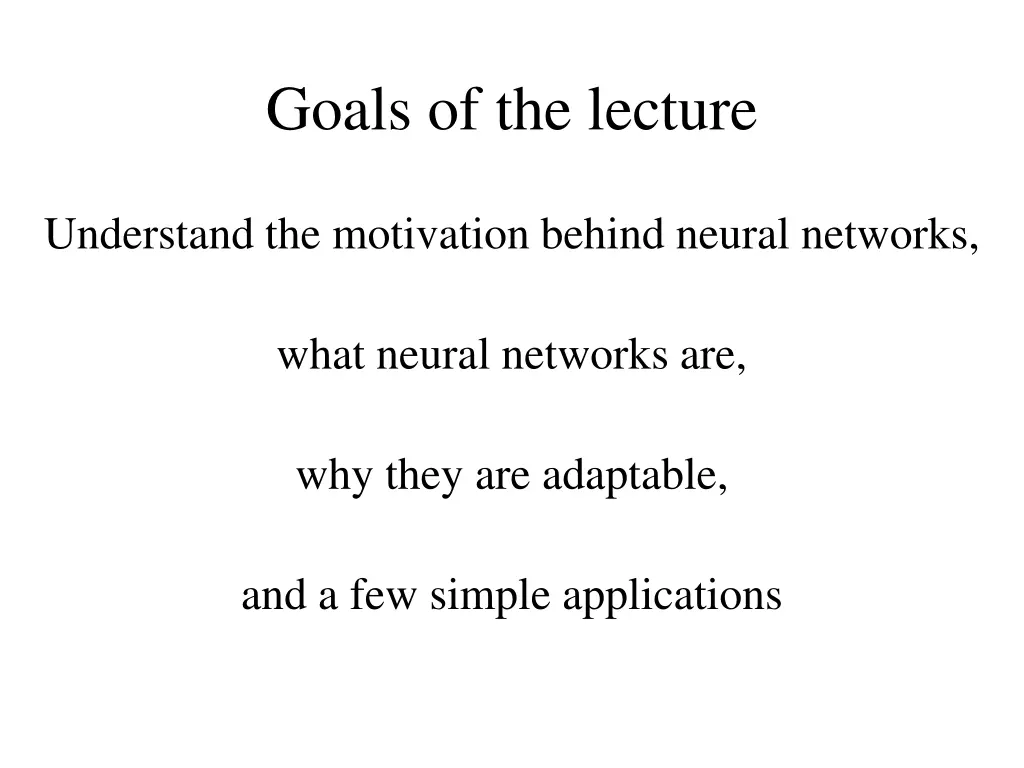

Goals of the lecture Understand the motivation behind neural networks, what neural networks are, why they are adaptable, and a few simple applications

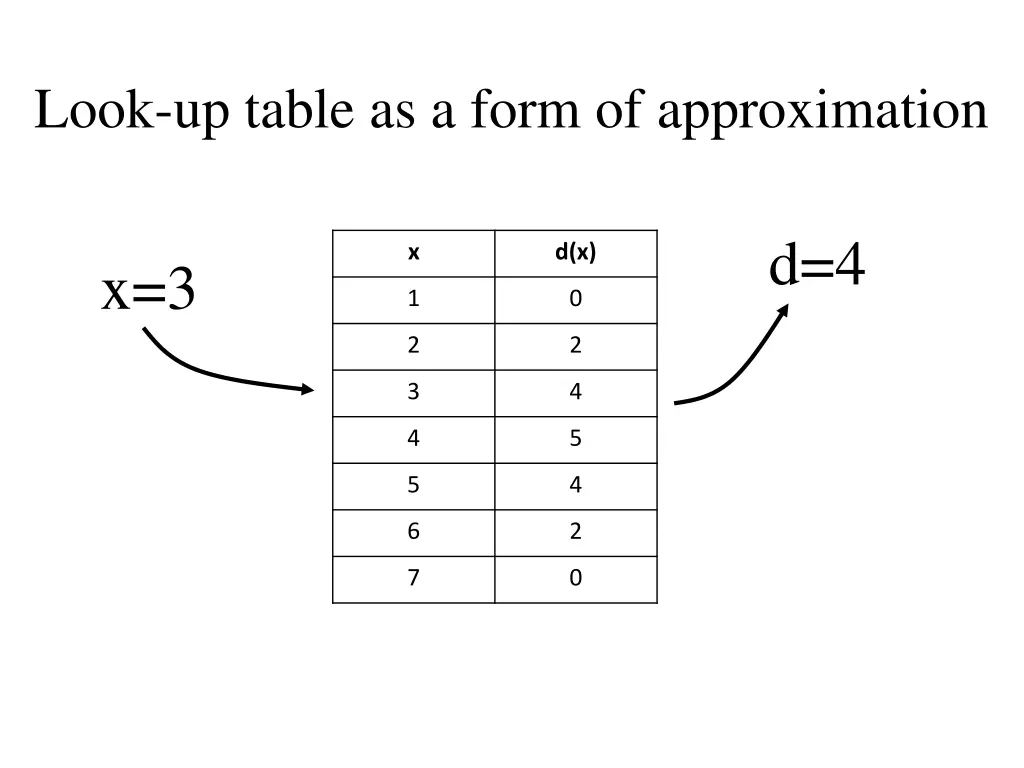

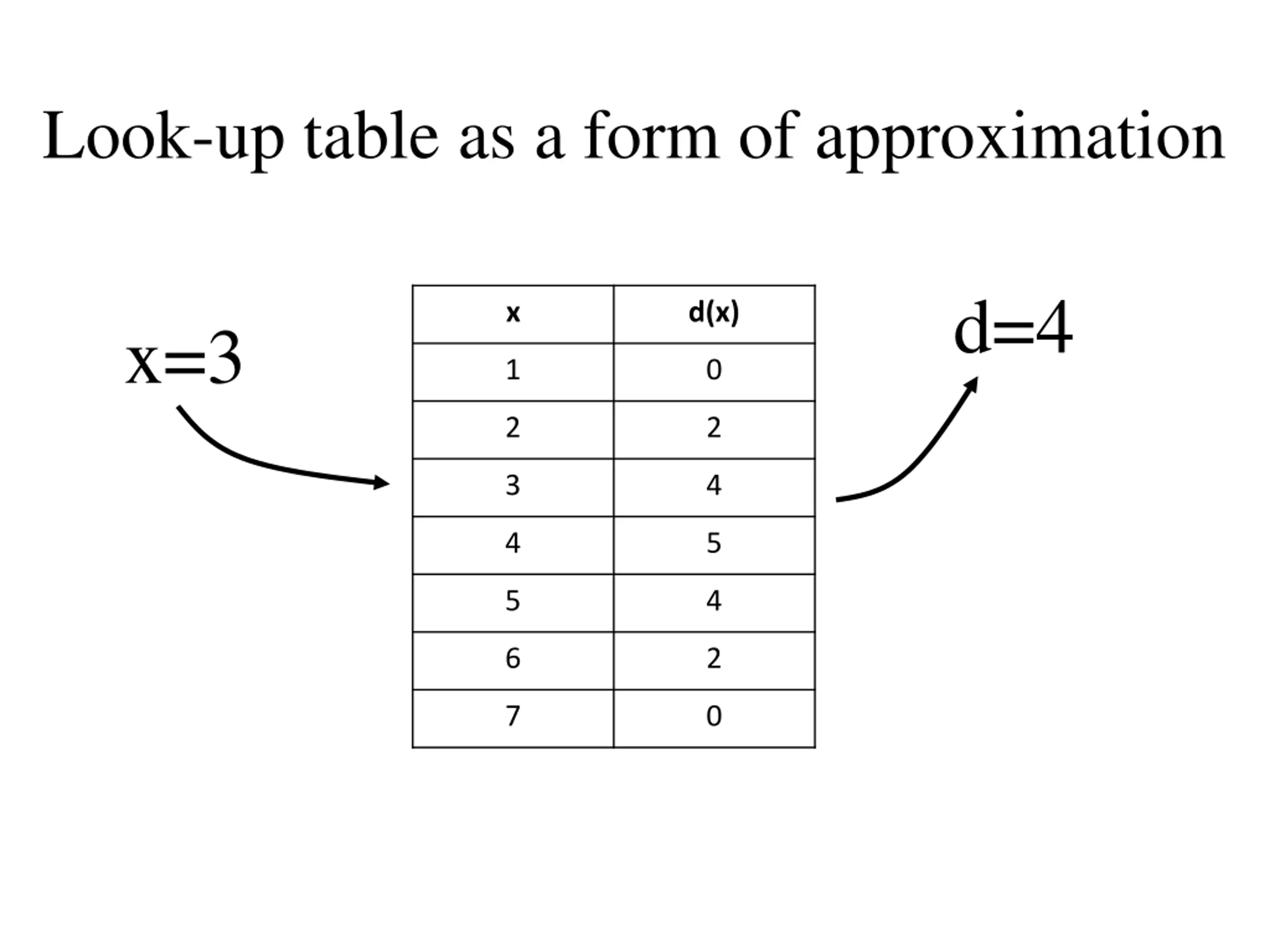

Look-up table as a form of approximation d=4 x d(x) x=3 1 0 2 2 3 4 4 5 5 4 6 2 7 0

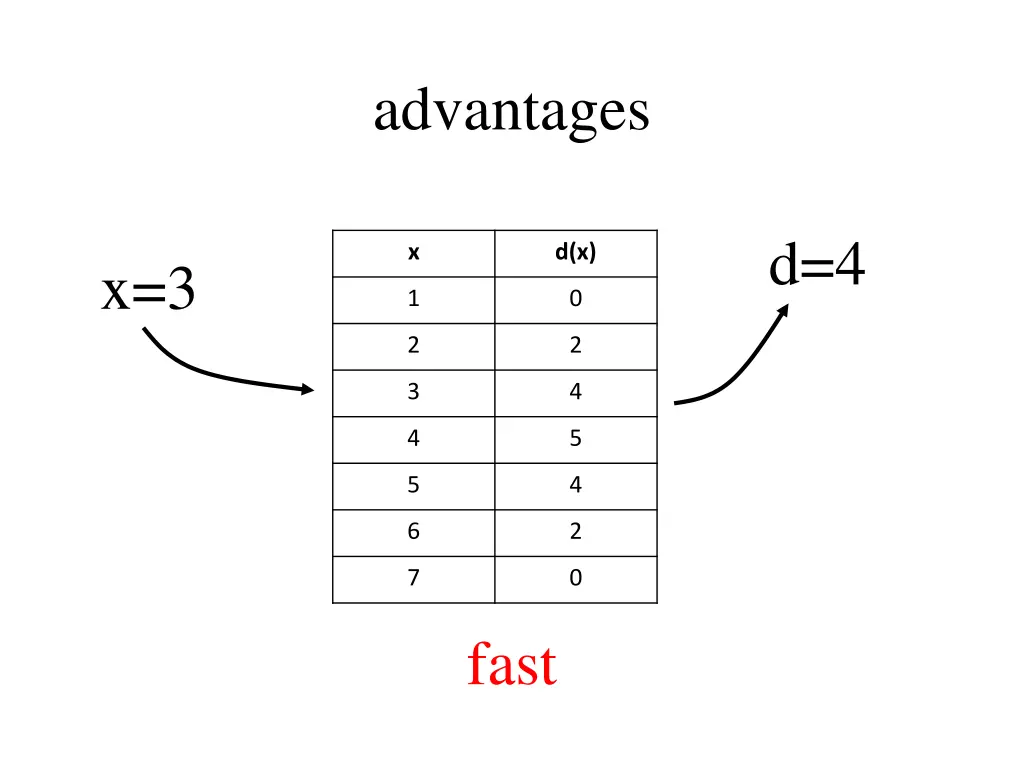

advantages d=4 x d(x) x=3 1 0 2 2 3 4 4 5 5 4 6 2 7 0 fast

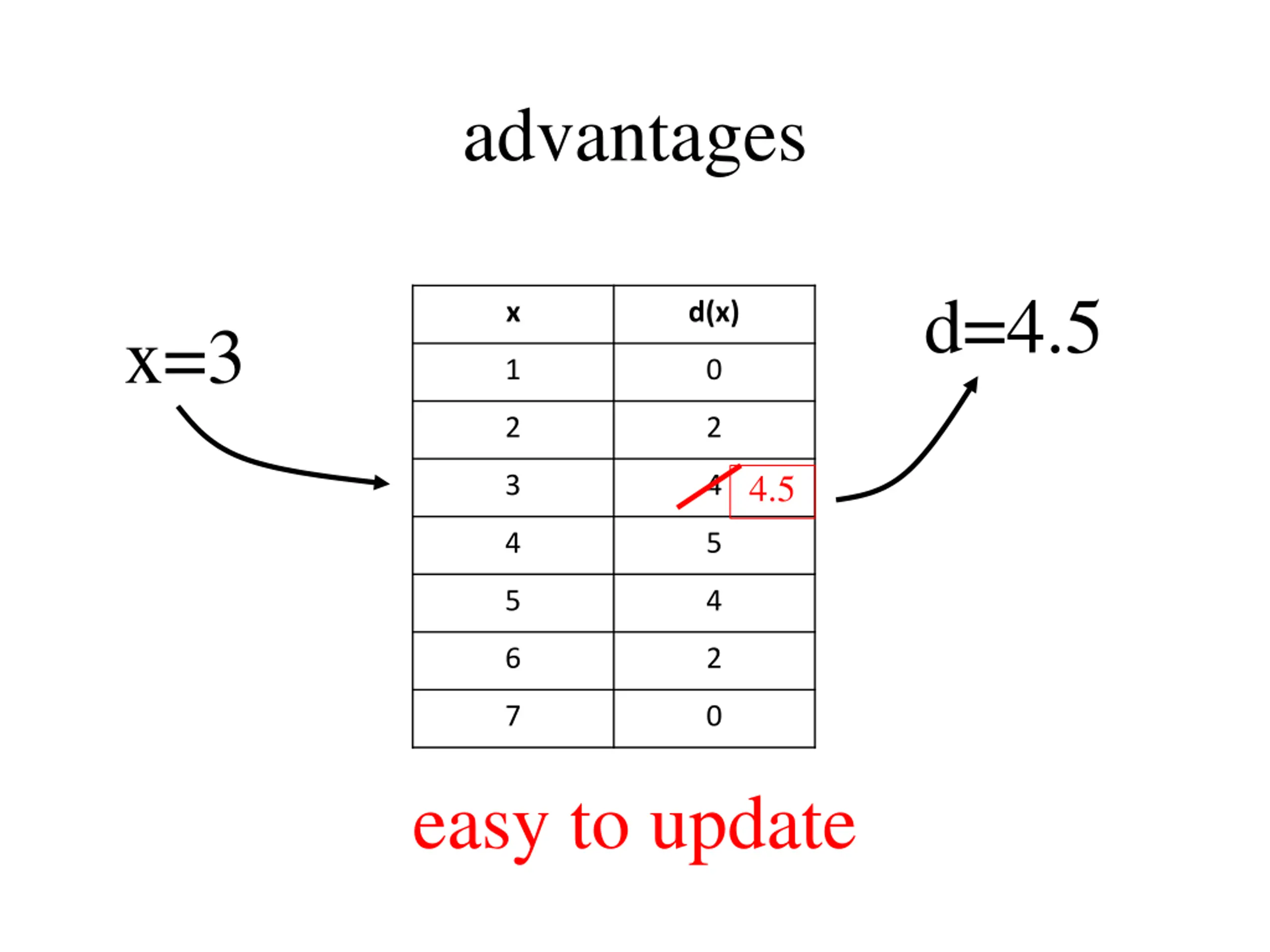

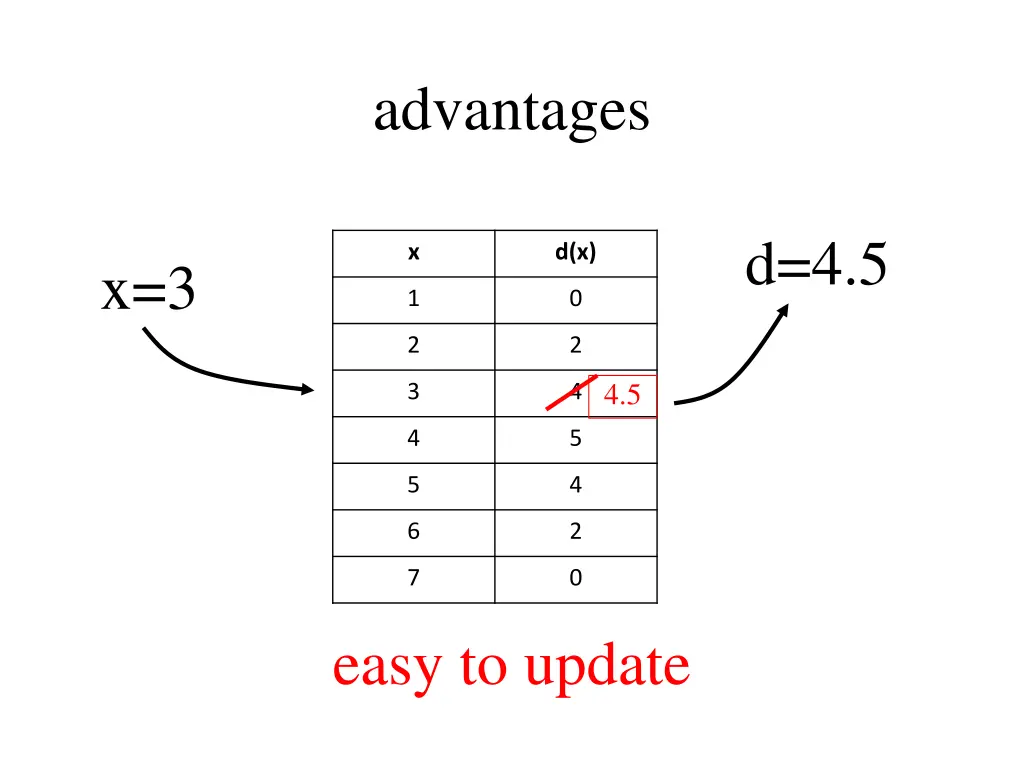

advantages d=4.5 x d(x) x=3 1 0 2 2 4.5 3 4 4 5 5 4 6 2 7 0 easy to update

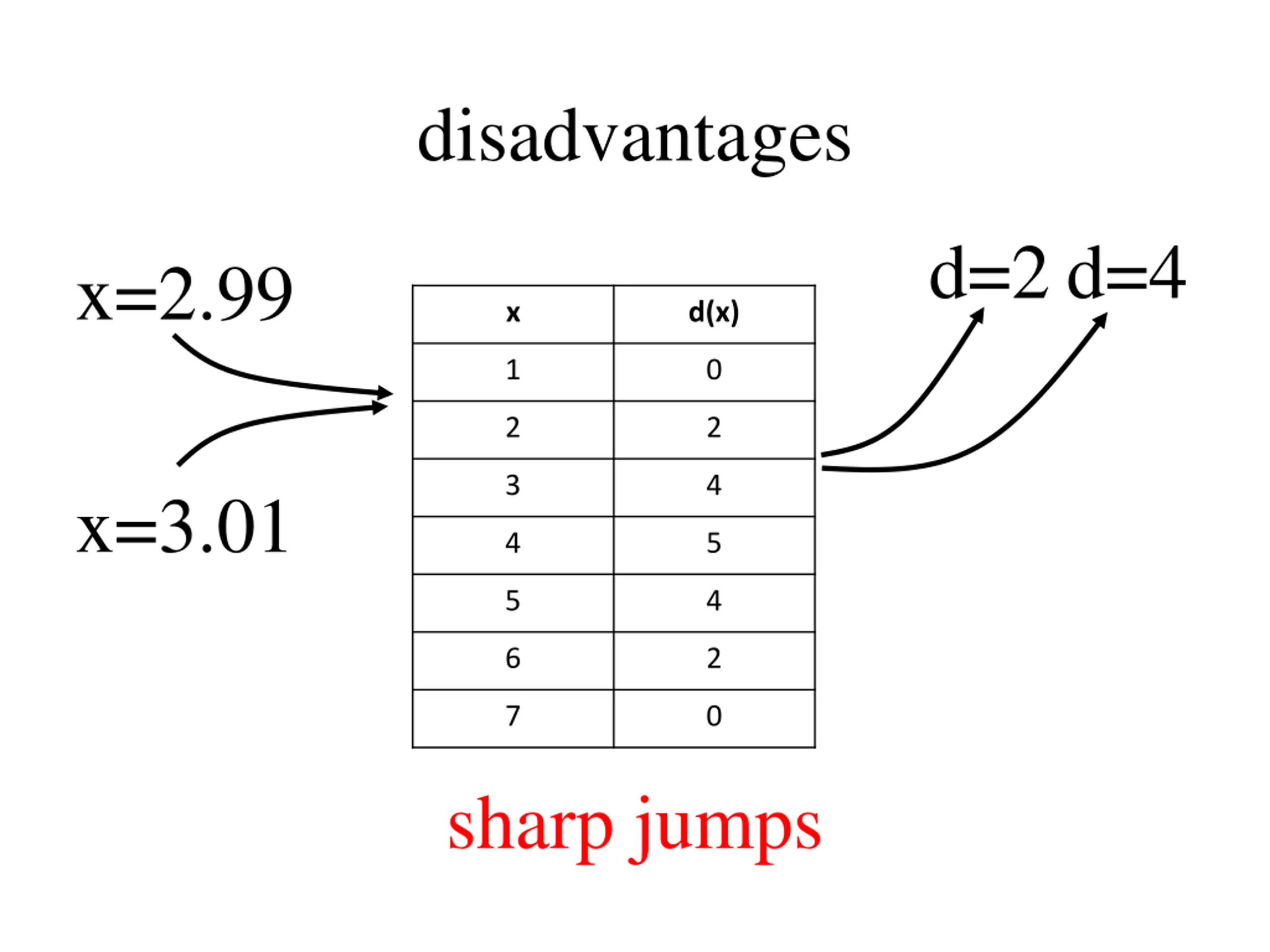

disadvantages d=2 d=4 x=2.99 x d(x) 1 0 2 2 3 4 x=3.01 4 5 5 4 6 2 7 0 sharp jumps

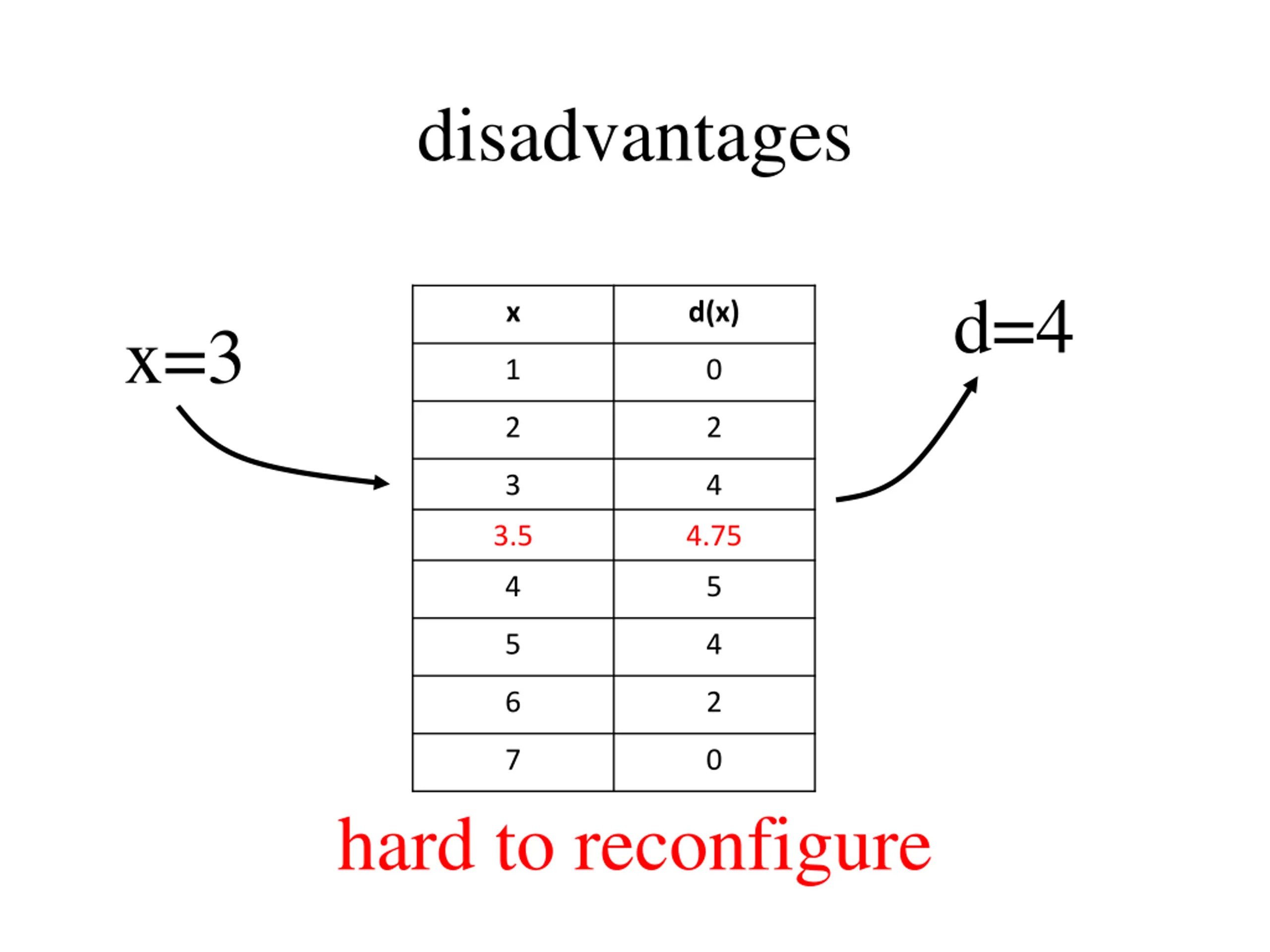

disadvantages d=4 x d(x) x=3 1 0 2 2 3 4 3.5 4.75 4 5 5 4 6 2 7 0 hard to reconfigure

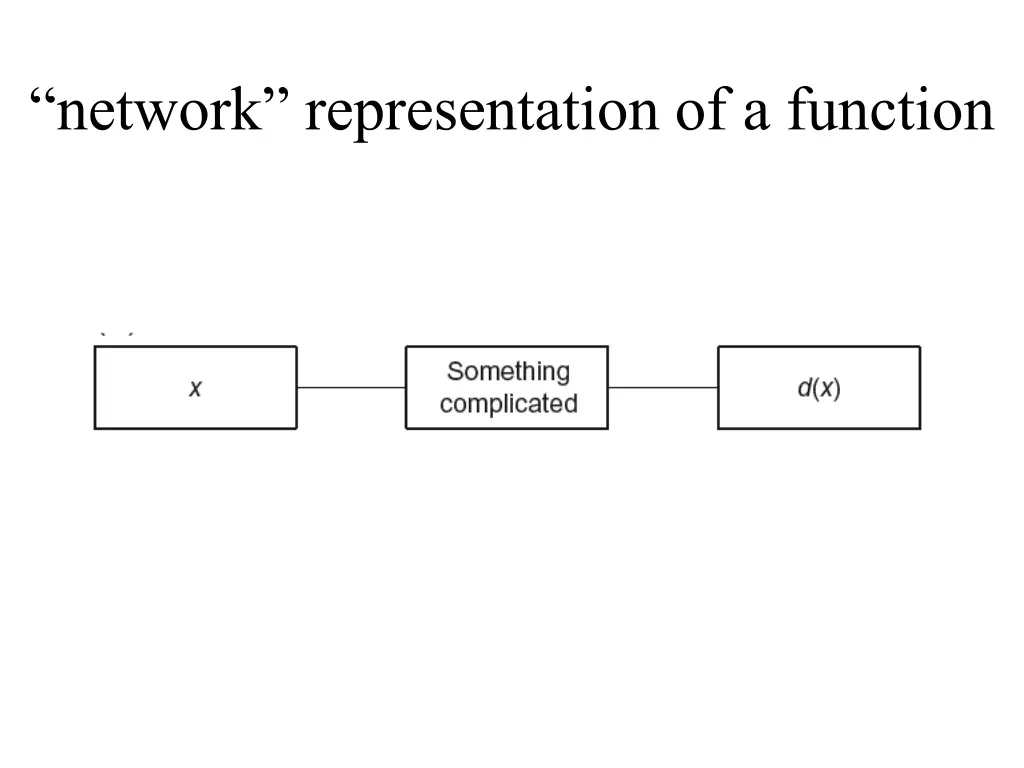

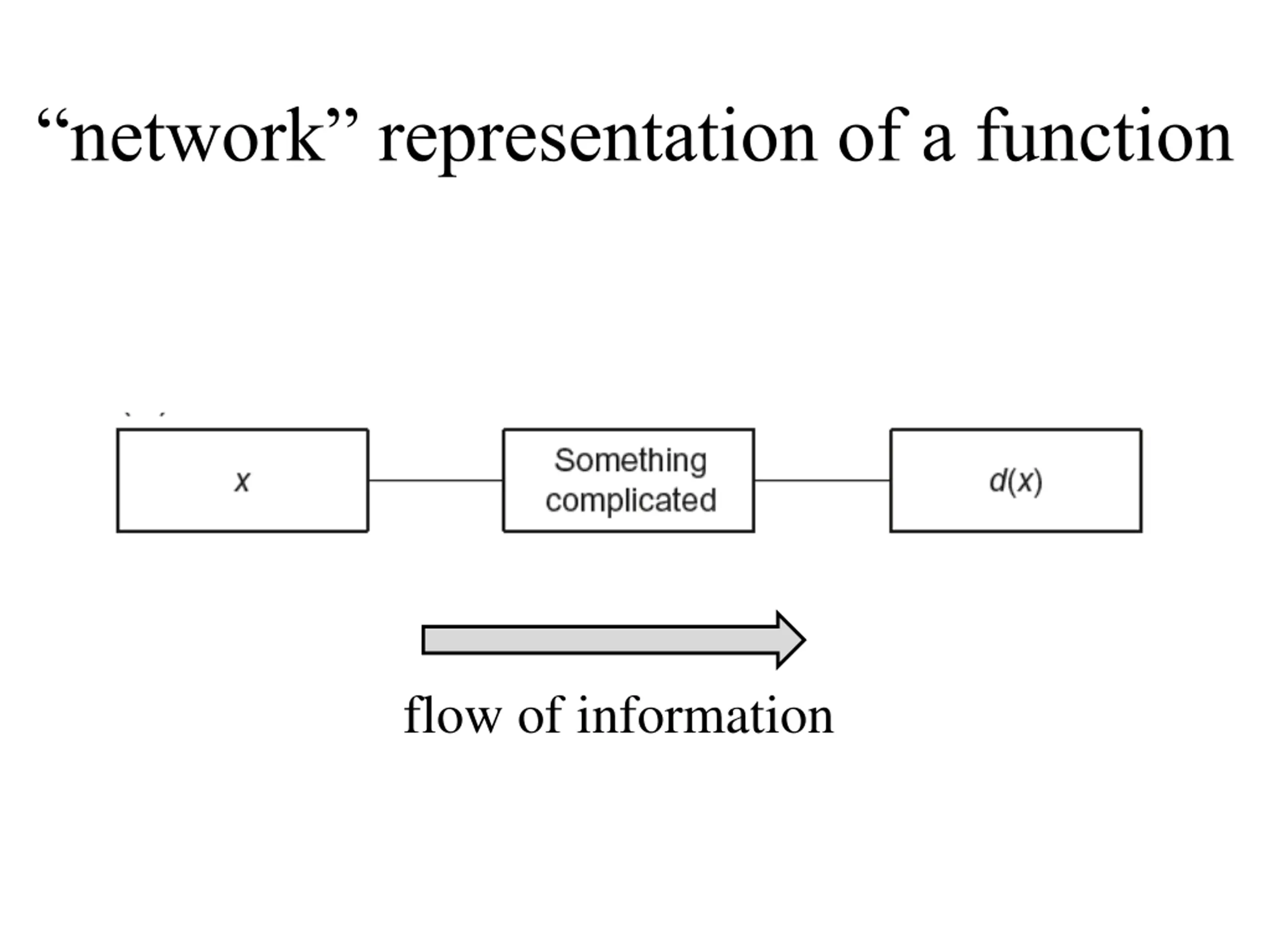

network representation of a function flow of information

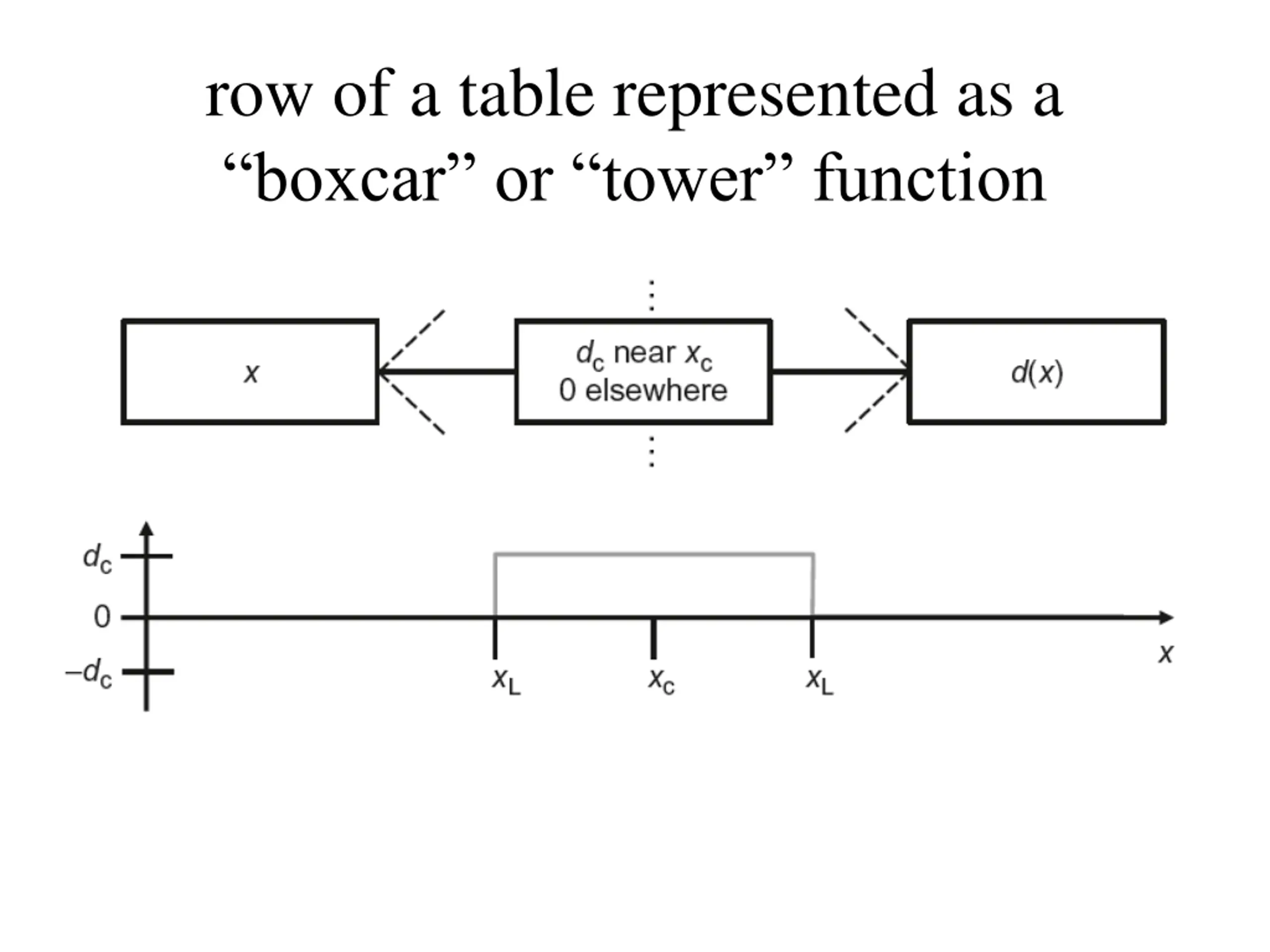

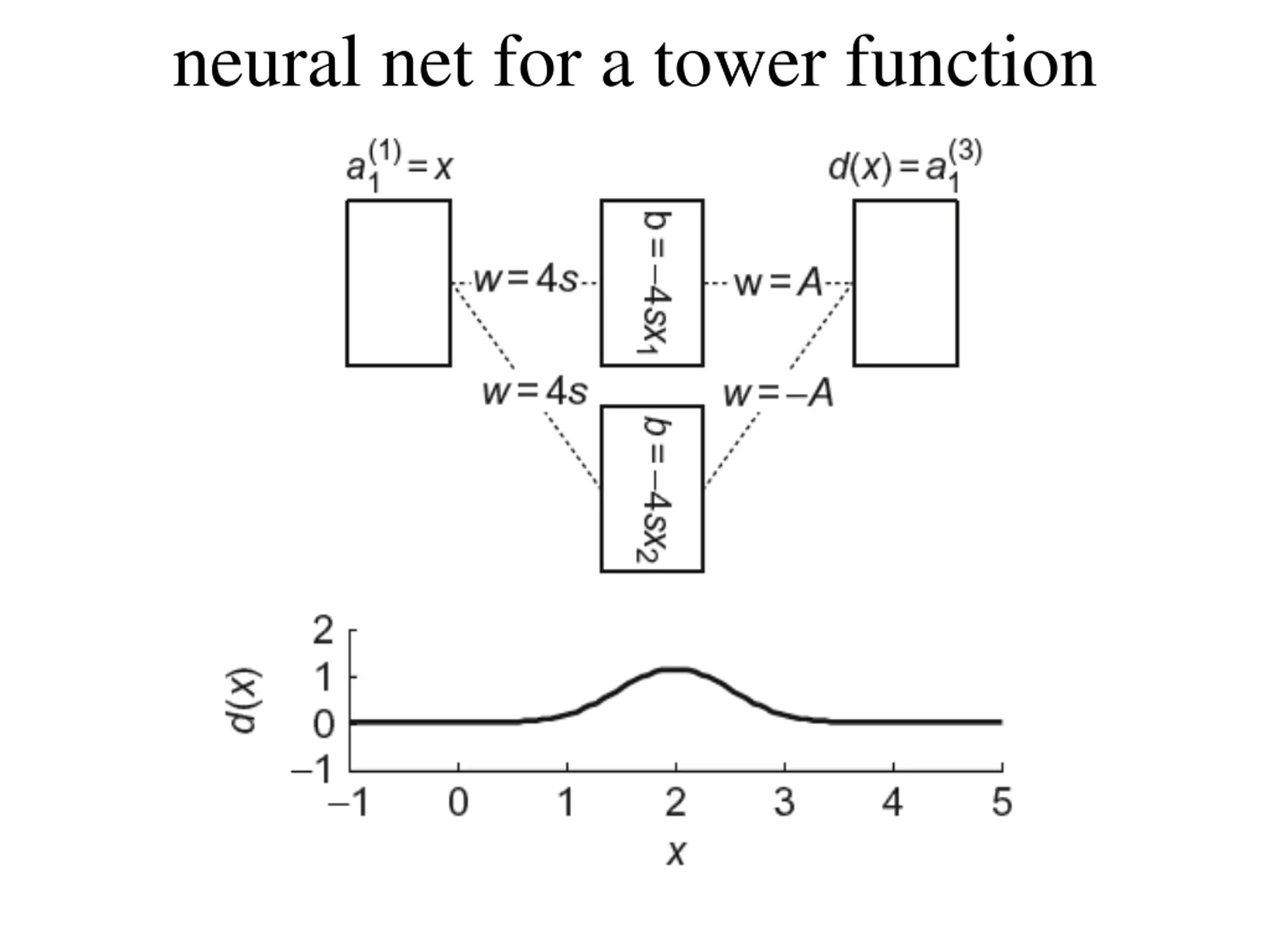

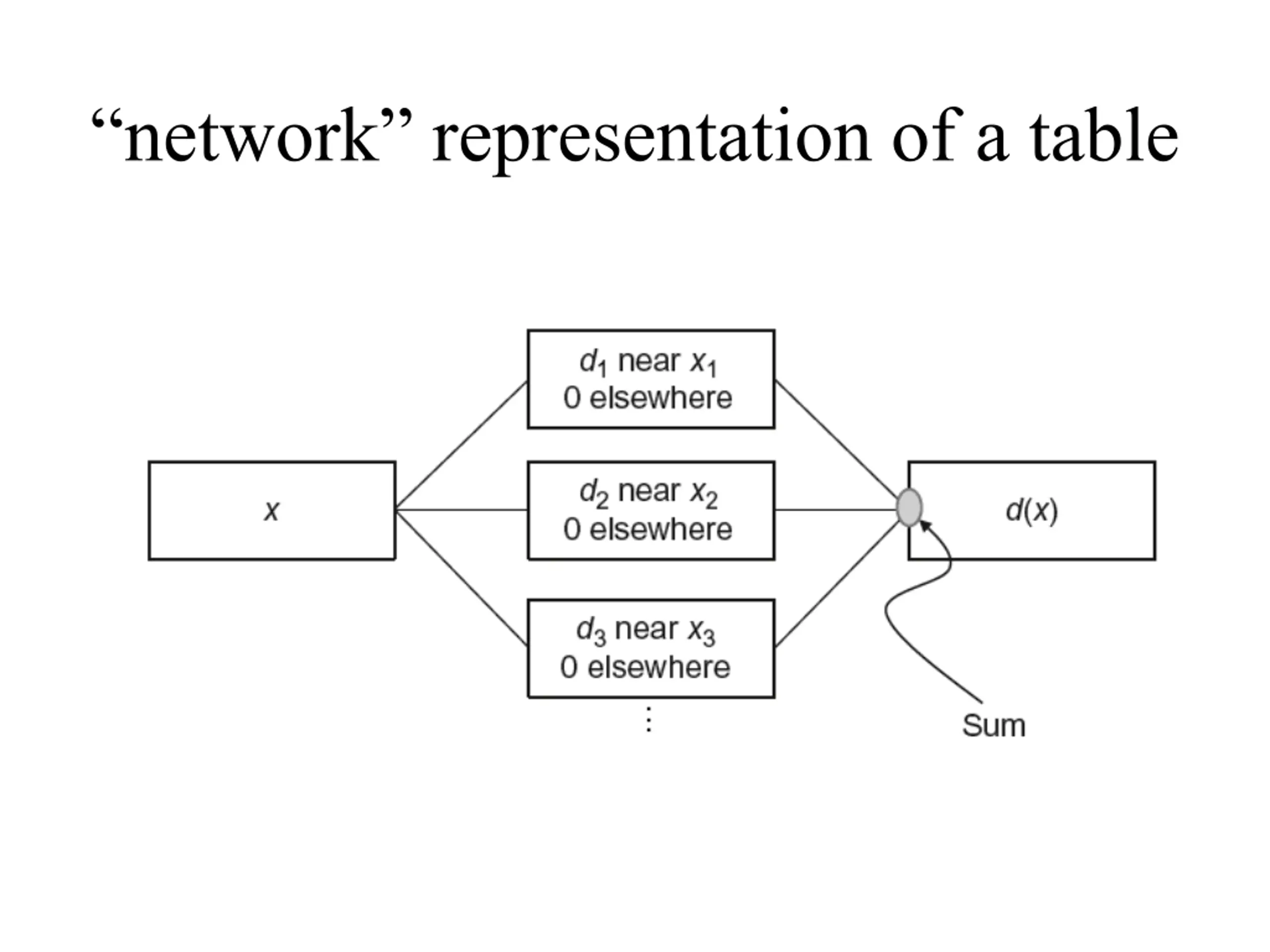

row of a table represented as a boxcar or tower function

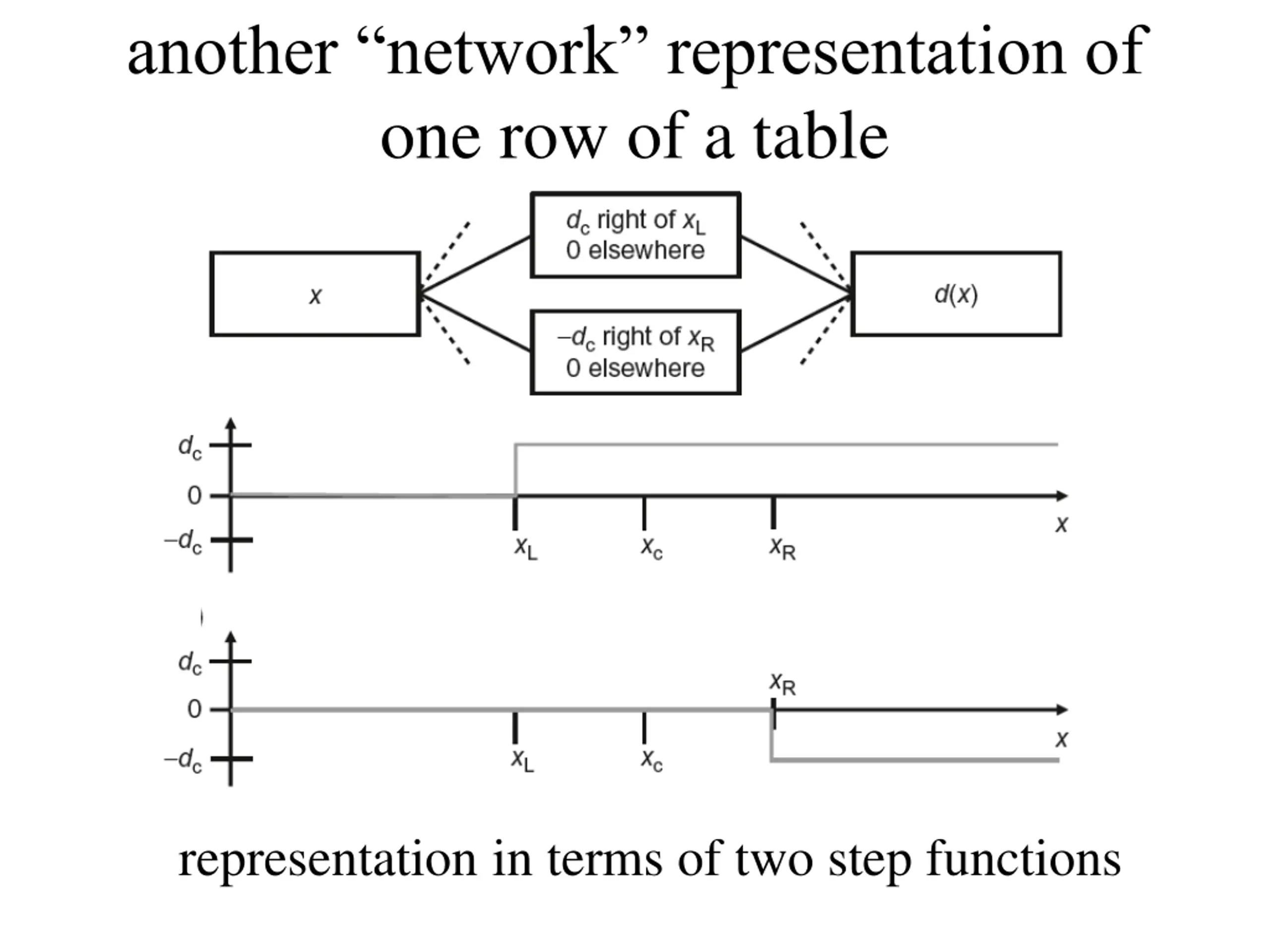

another network representation of one row of a table representation in terms of two step functions

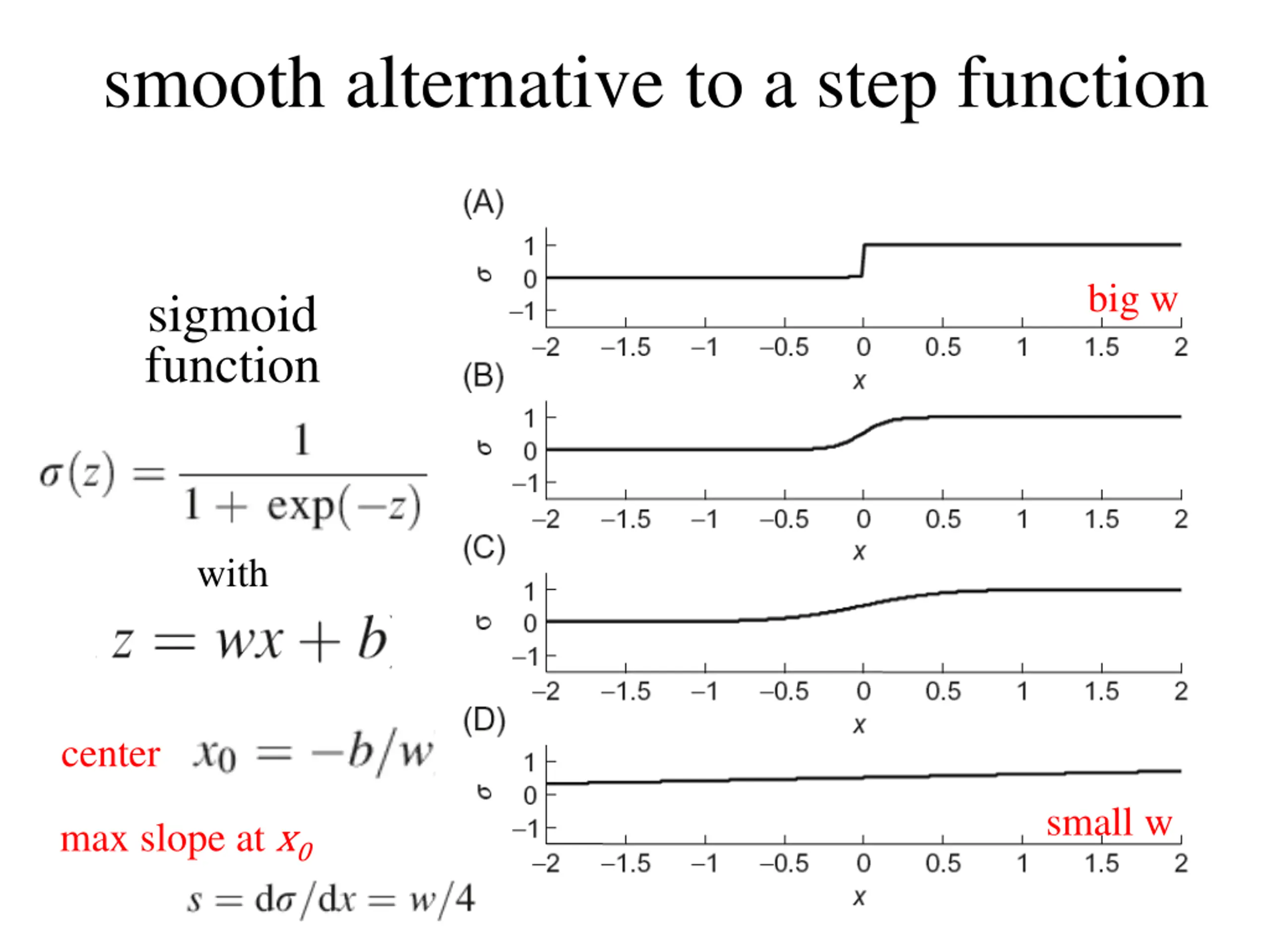

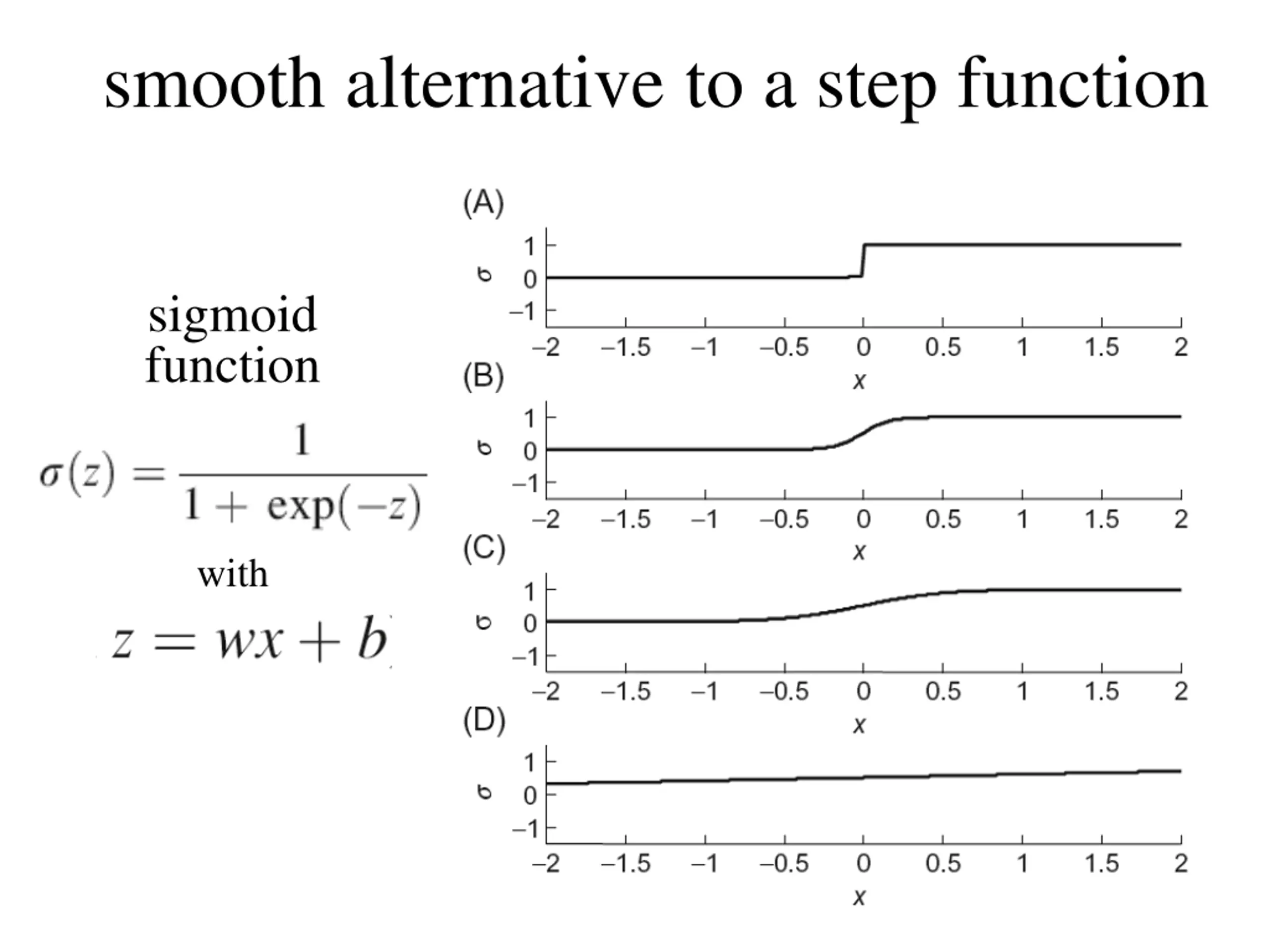

smooth alternative to a step function sigmoid function with

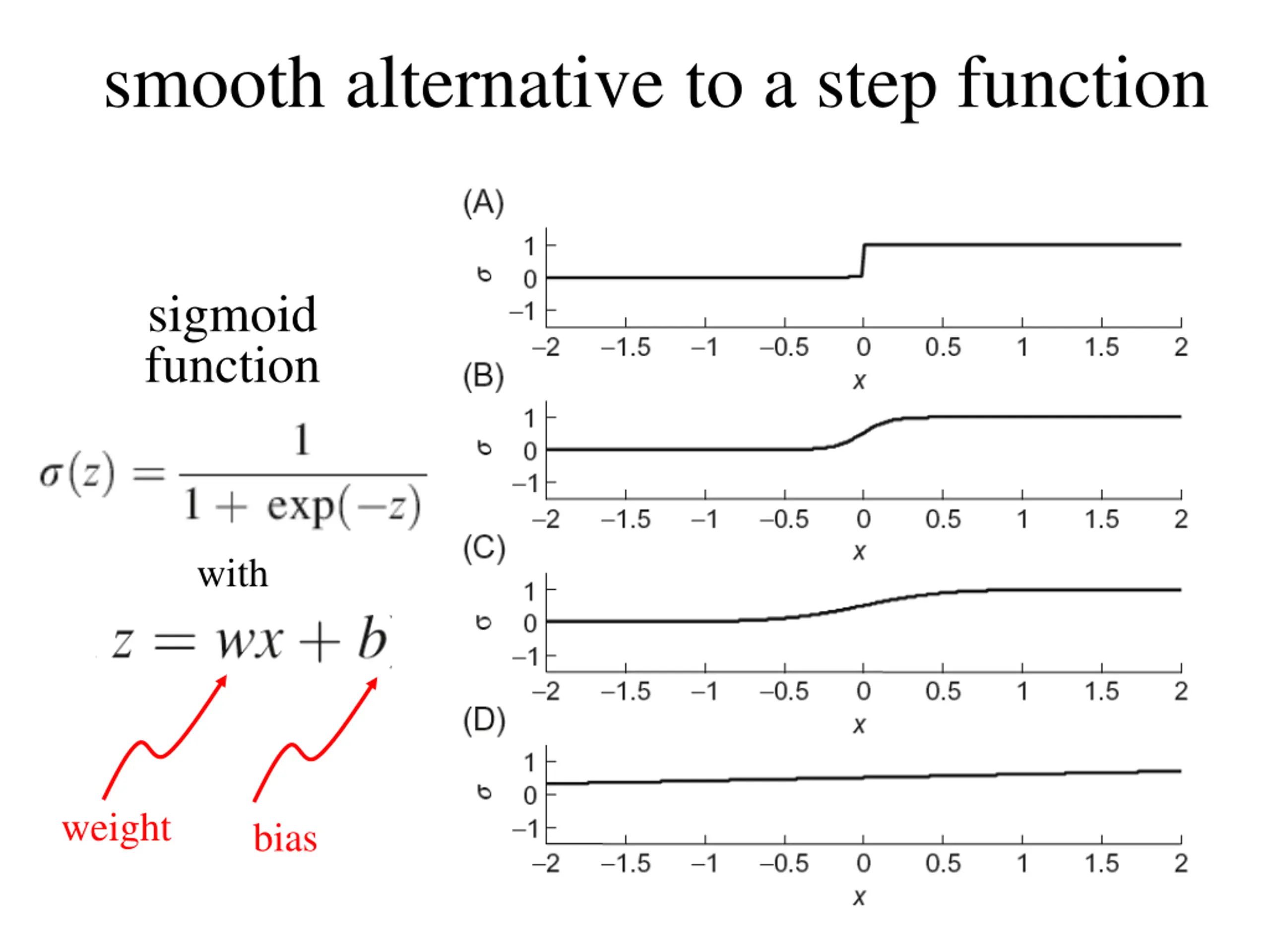

smooth alternative to a step function sigmoid function with weight bias
smooth alternative to a step function big w sigmoid function with center small w max slope at x0

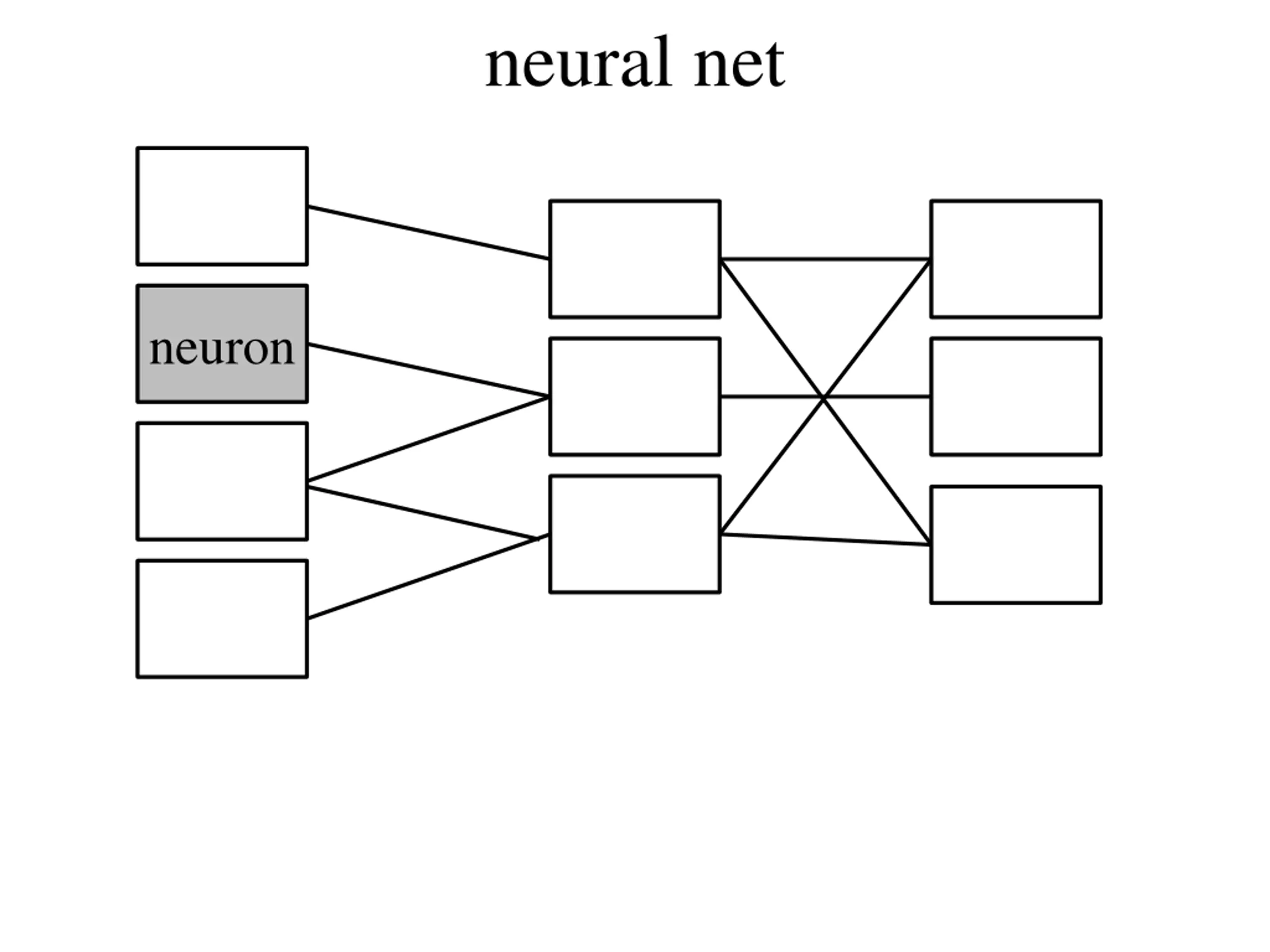

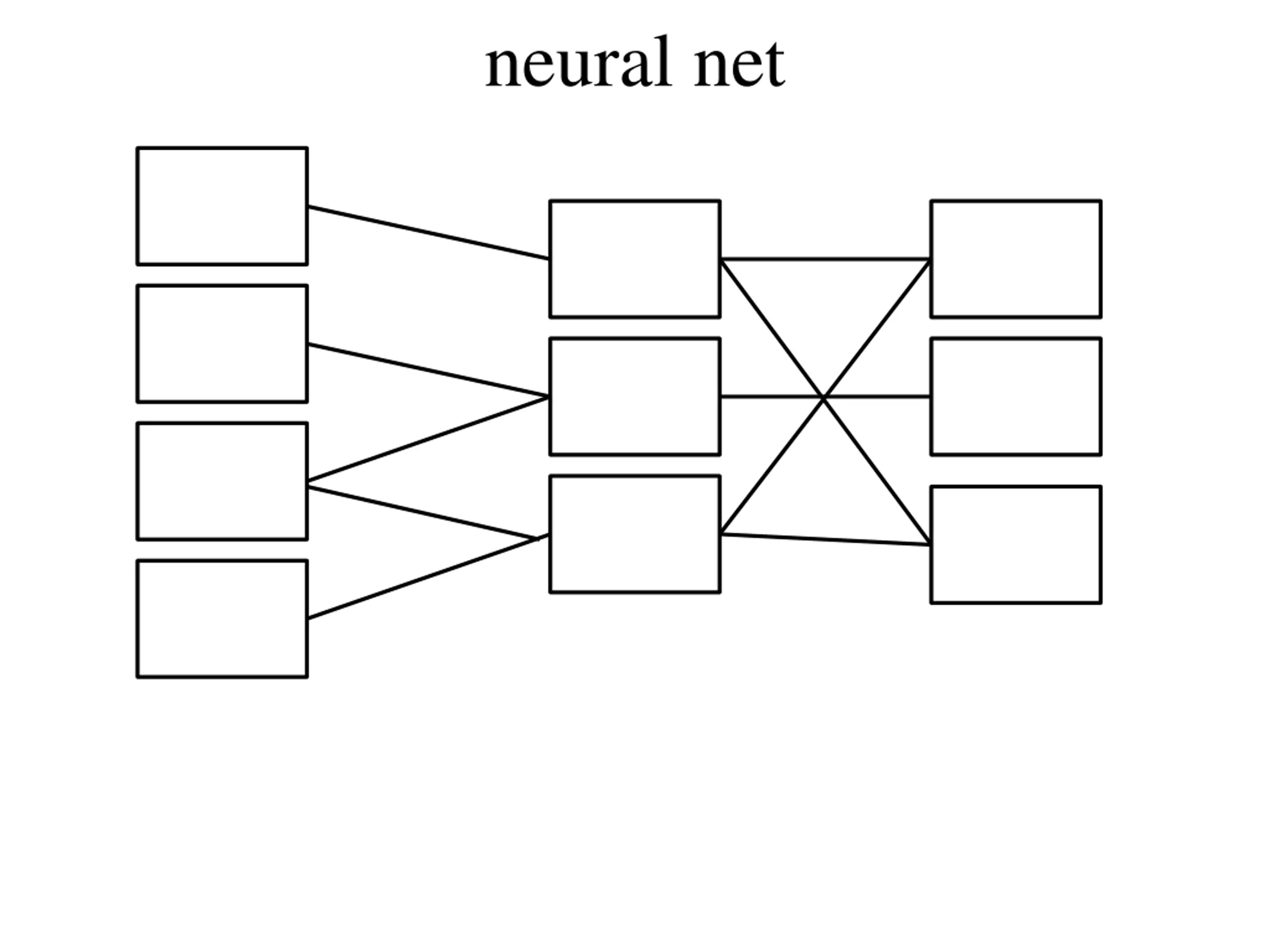

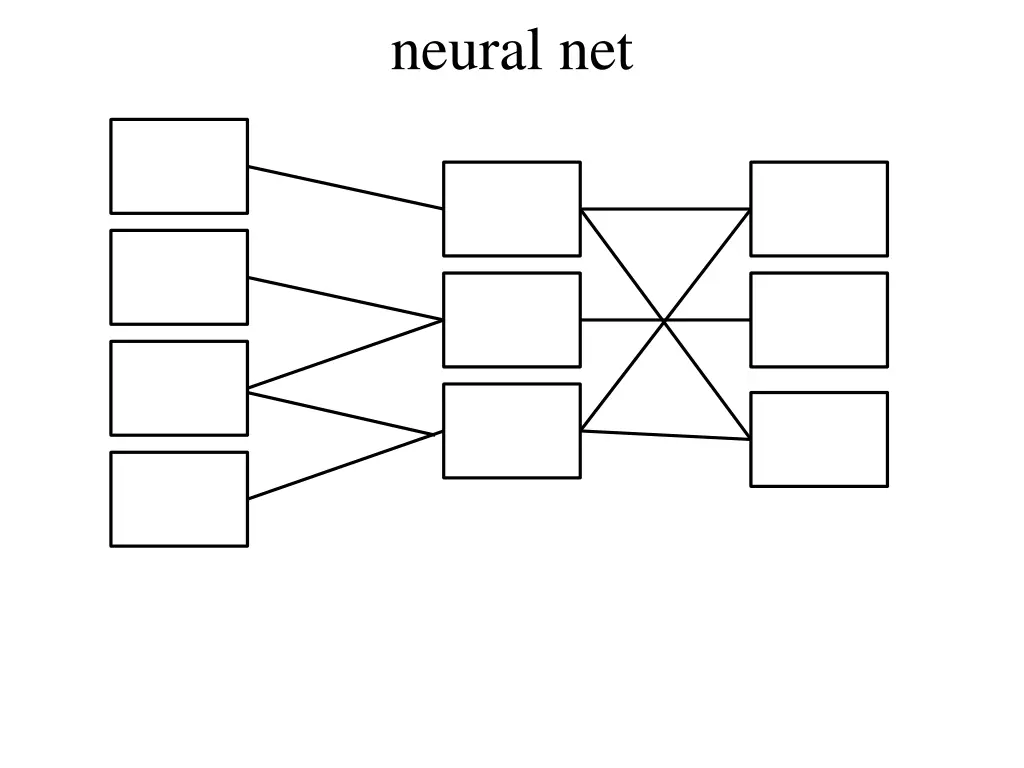

neural net neuron

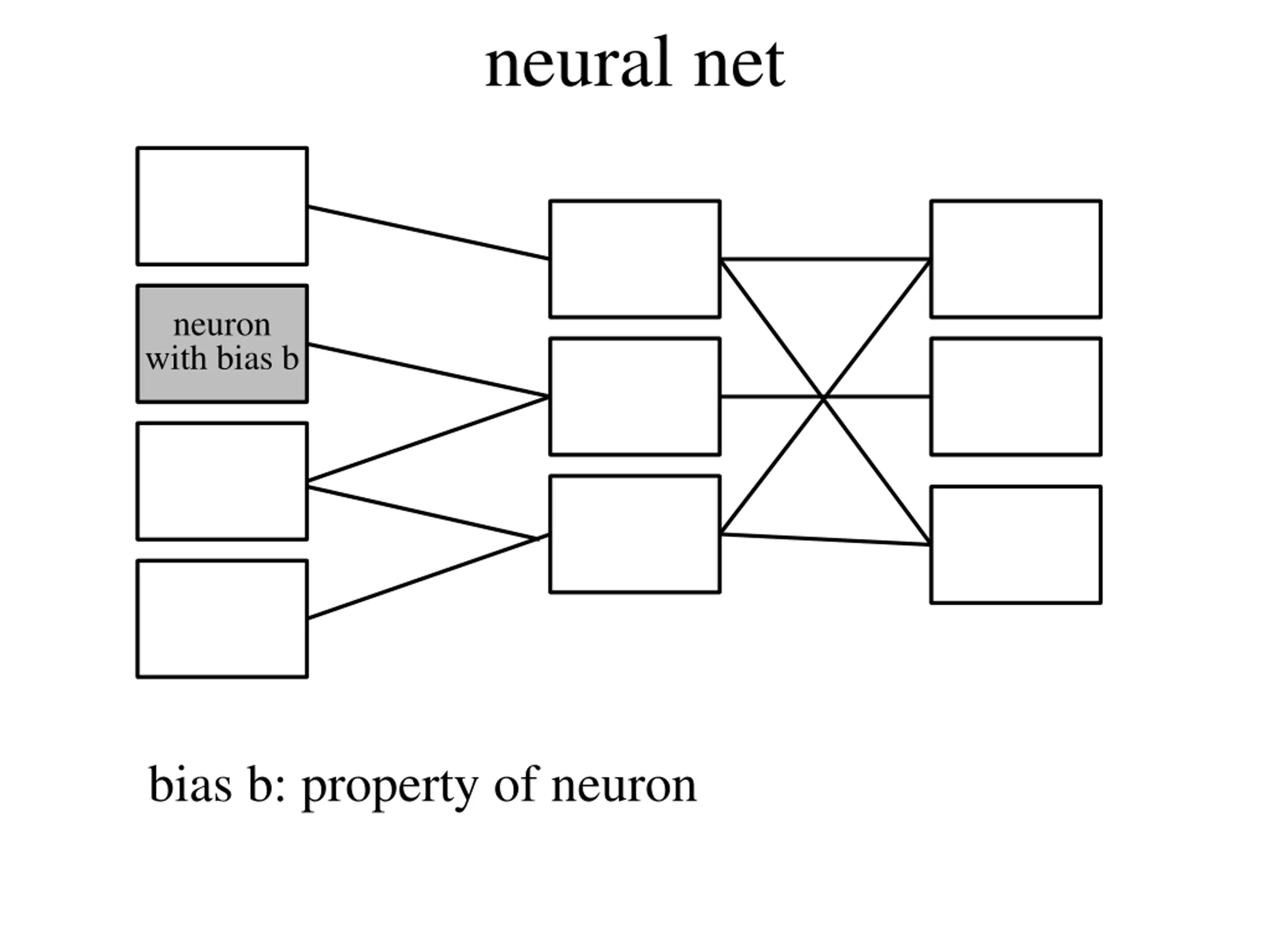

neural net neuron with bias b bias b: property of neuron

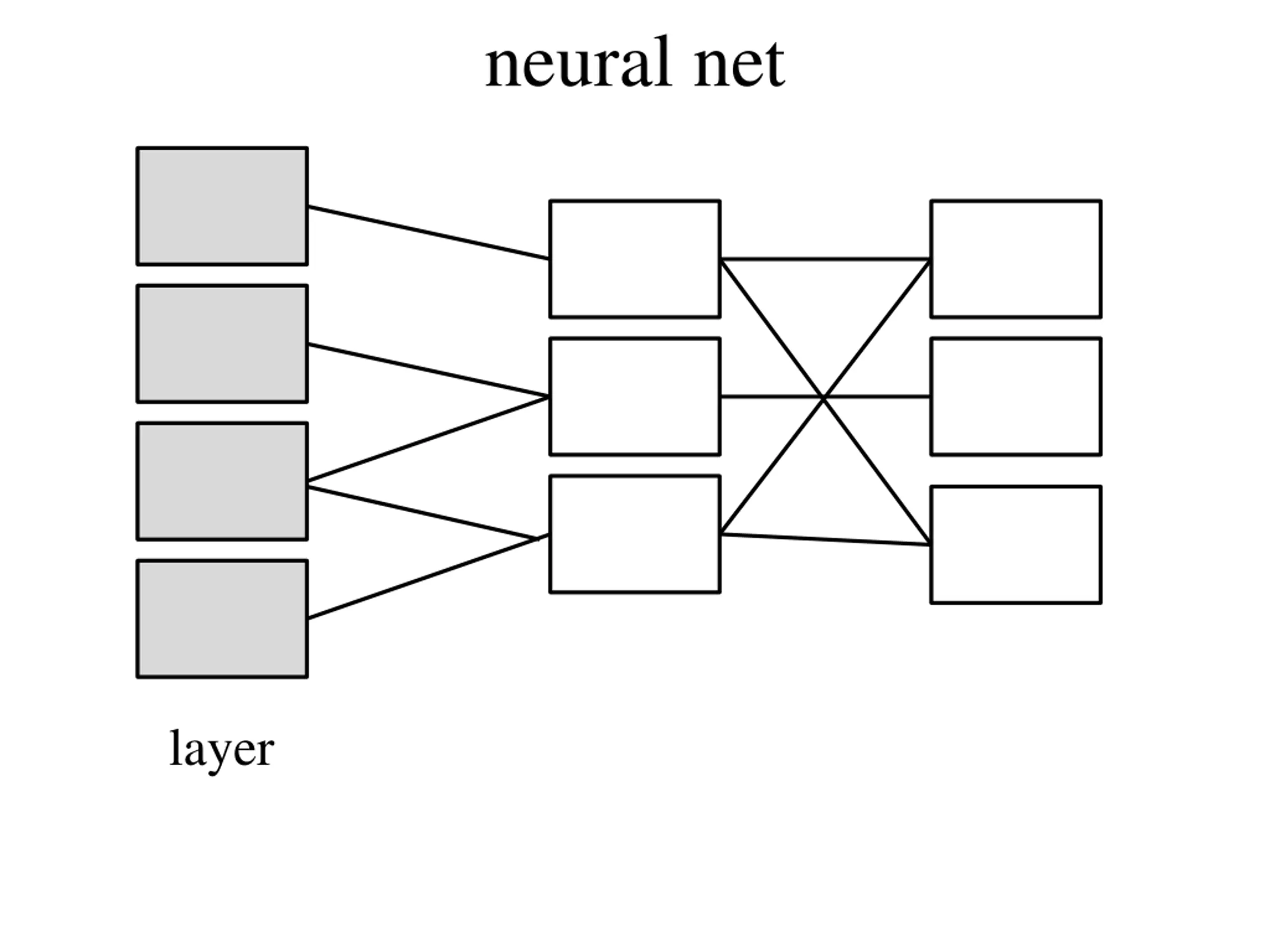

neural net layer

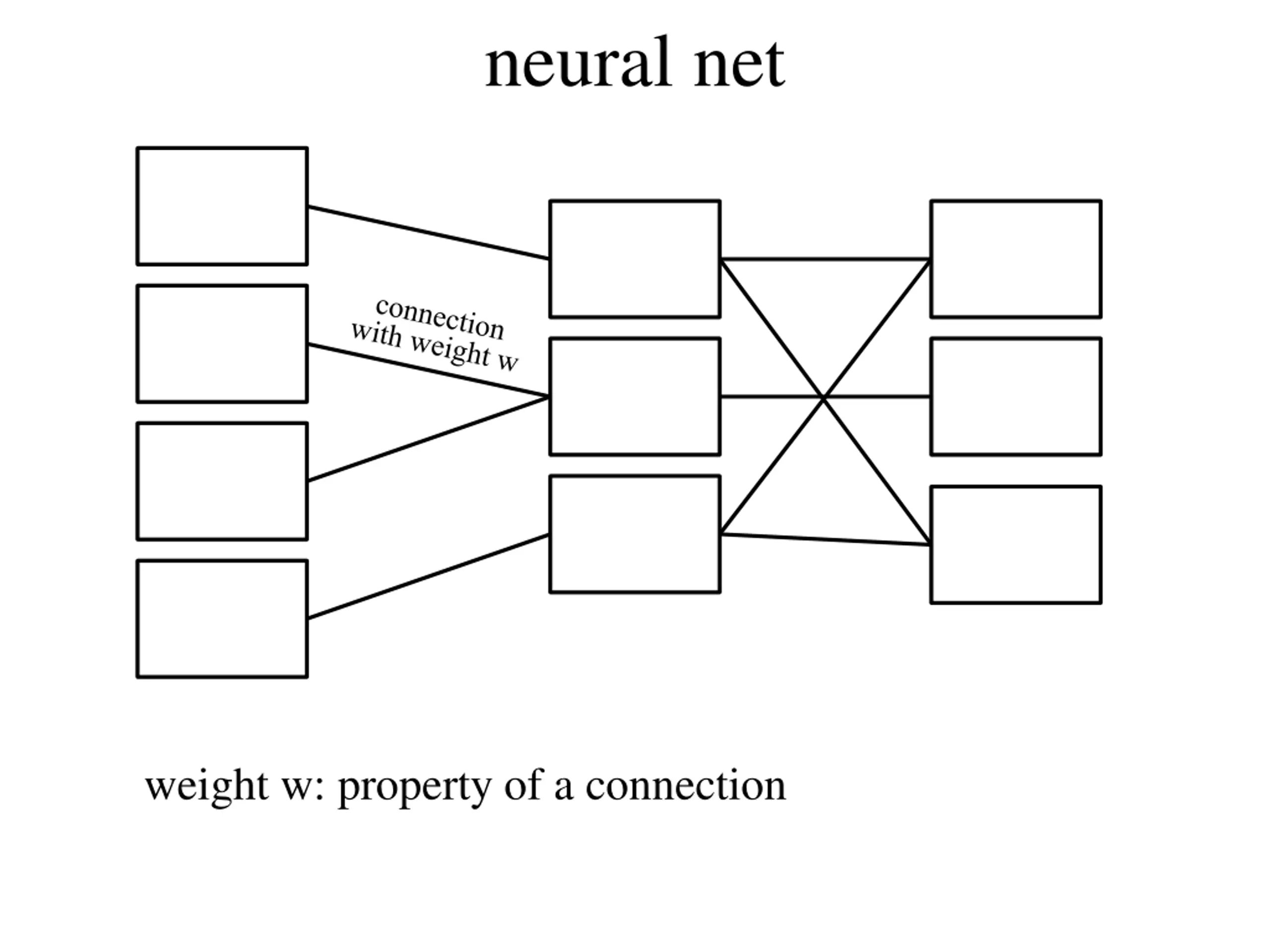

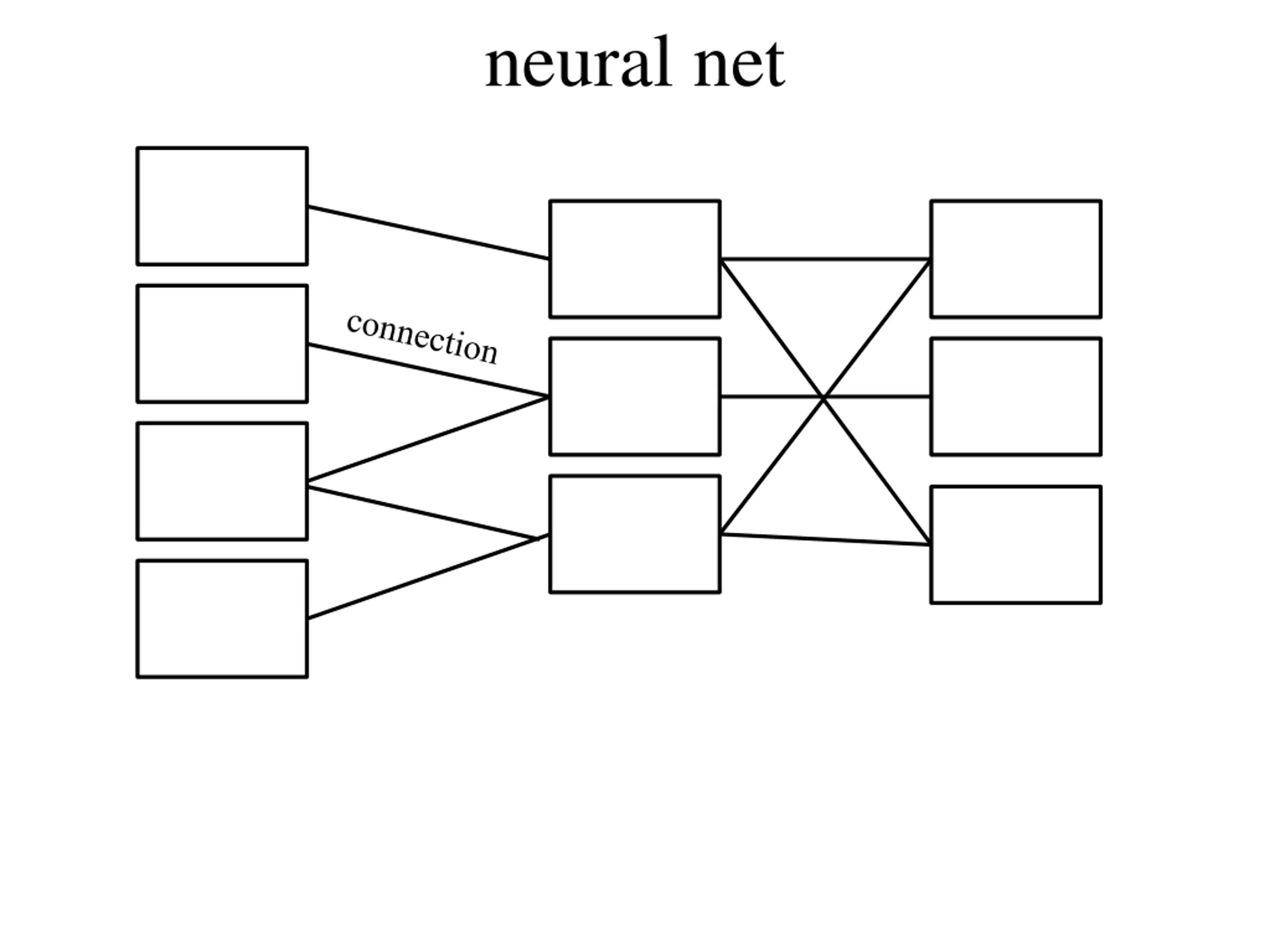

neural net weight w: property of a connection

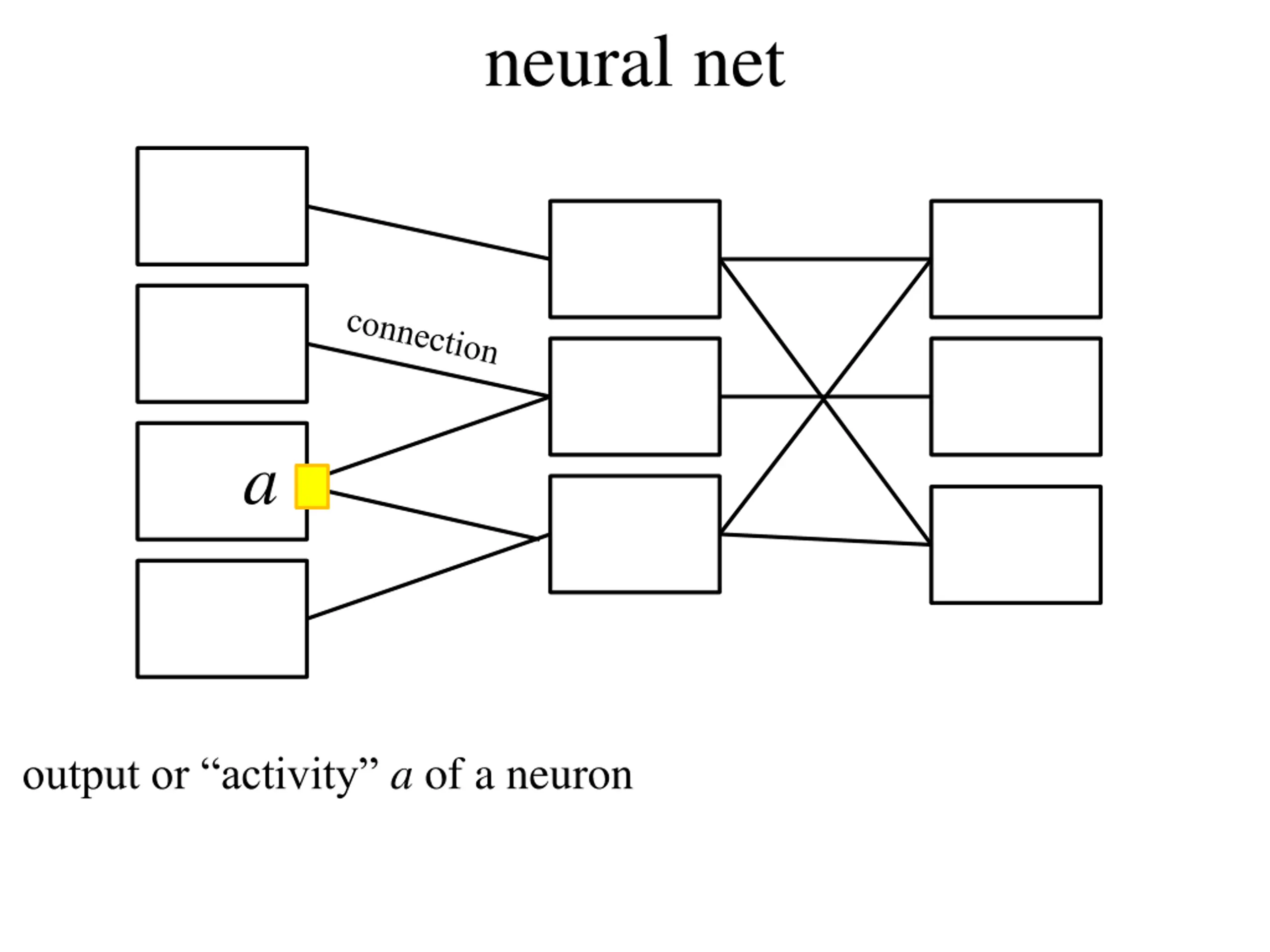

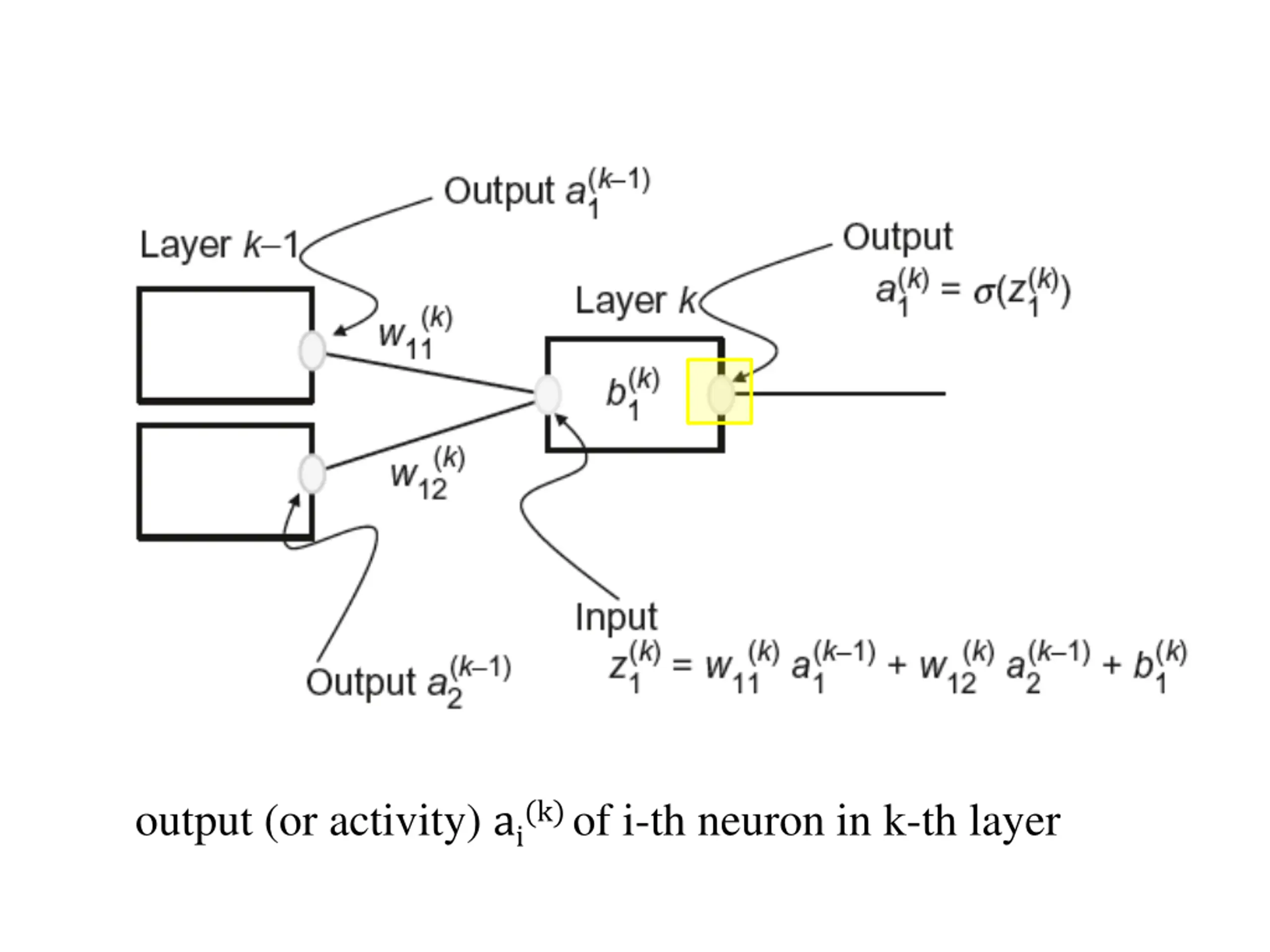

neural net a output or activity a of a neuron

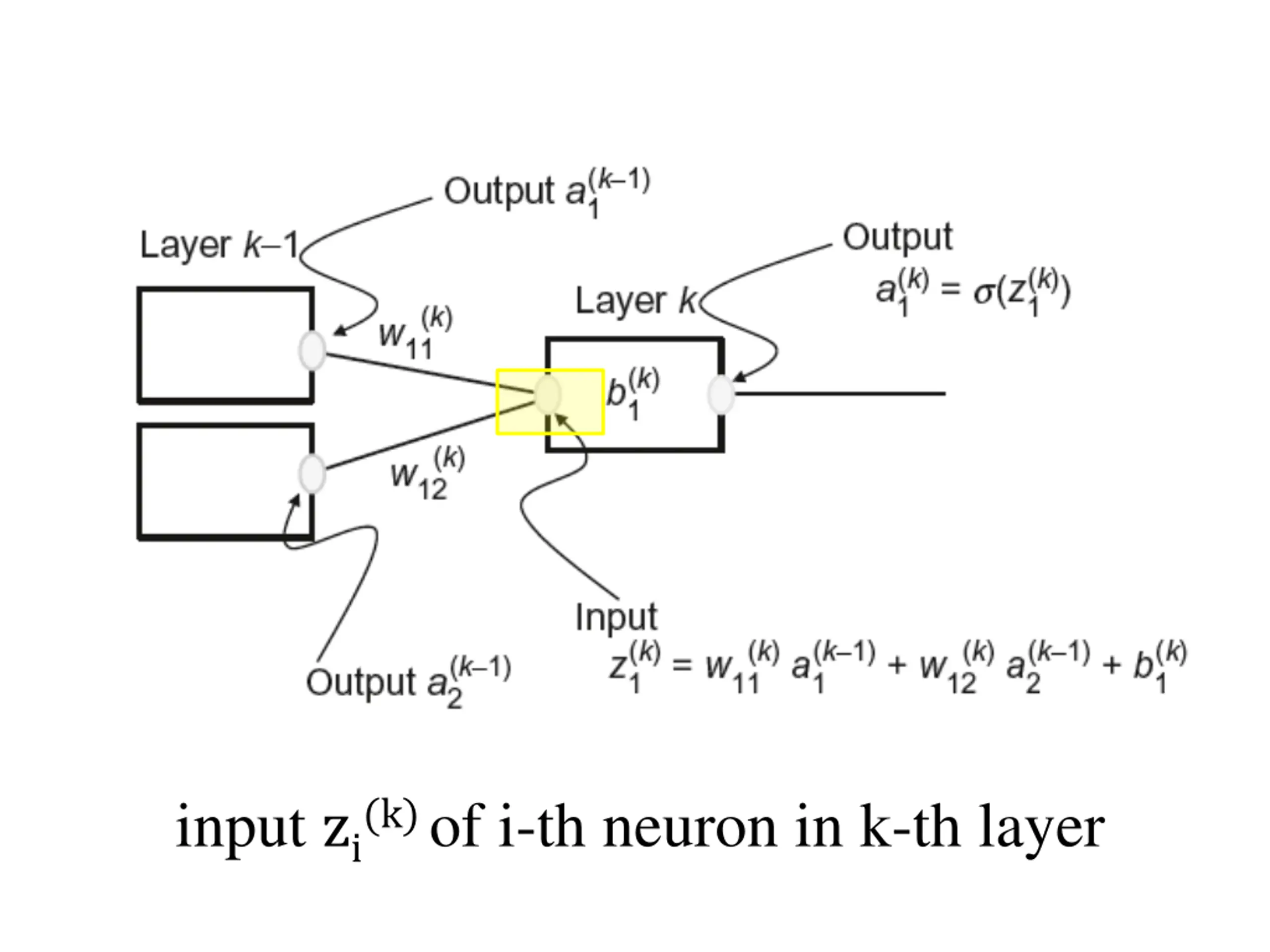

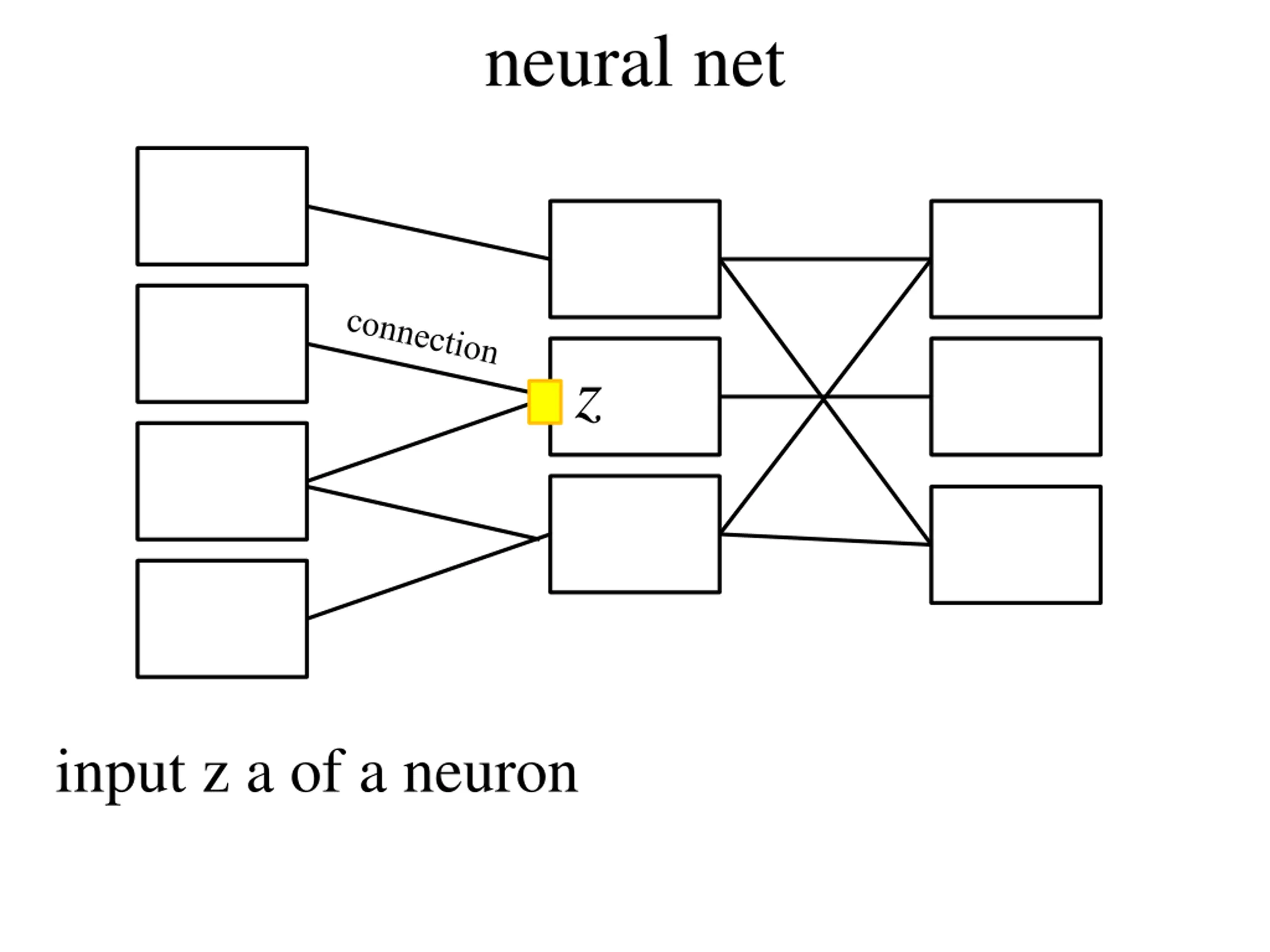

neural net z input z a of a neuron

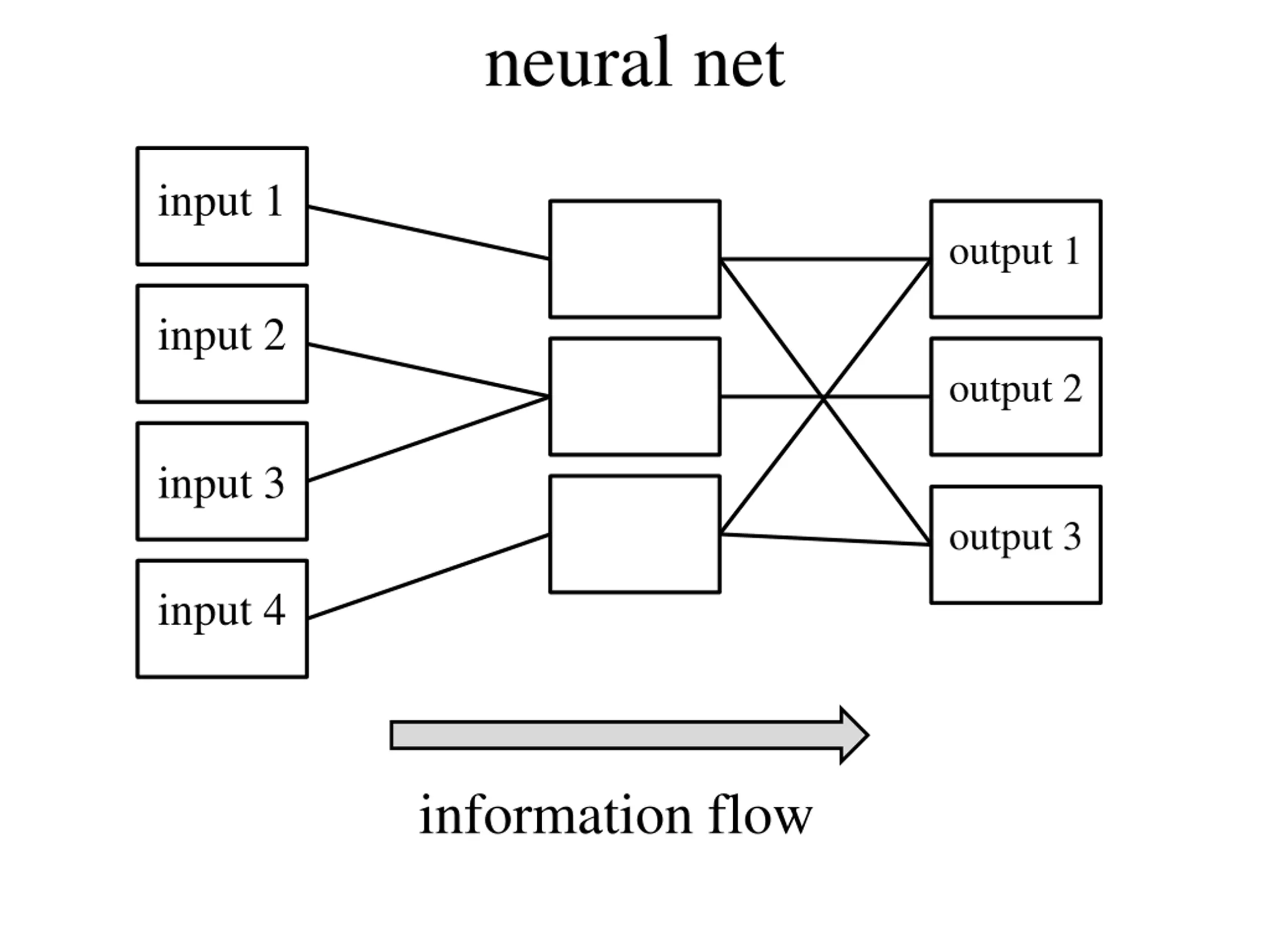

neural net input 1 output 1 input 2 output 2 input 3 output 3 input 4 information flow

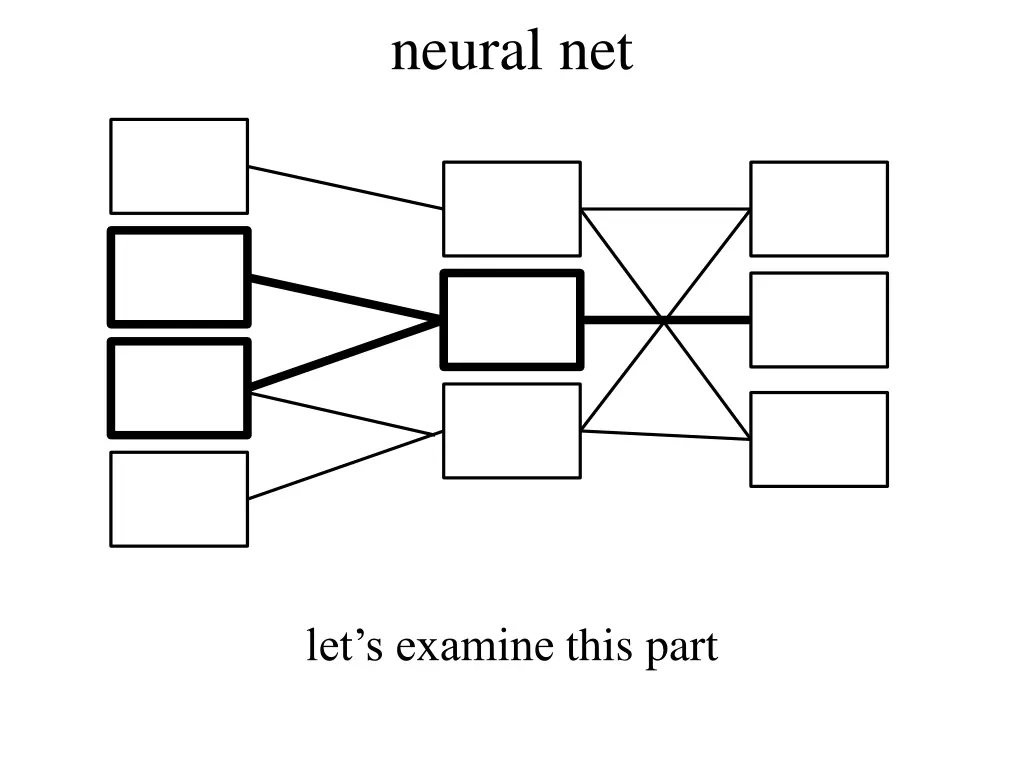

neural net let s examine this part

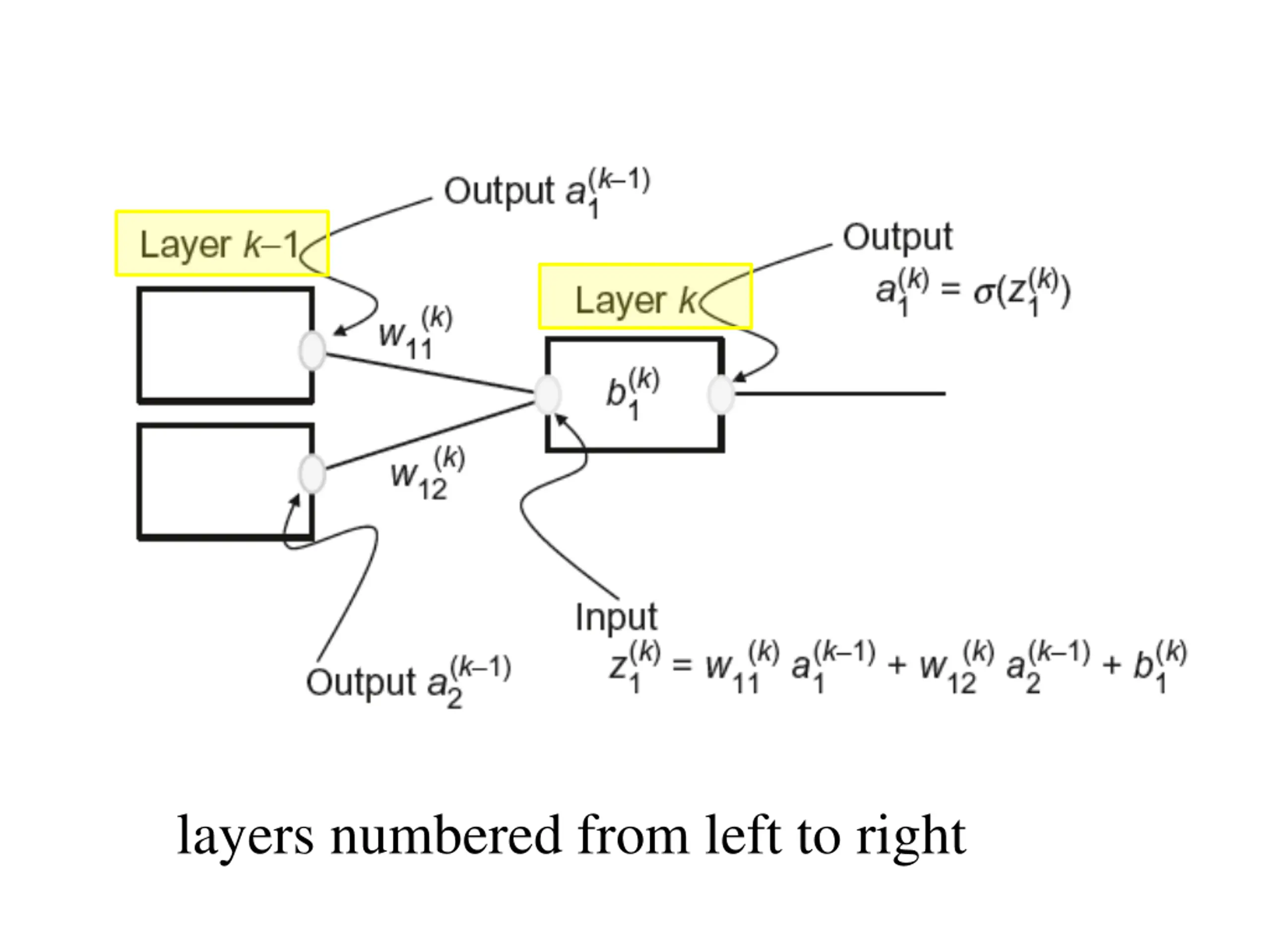

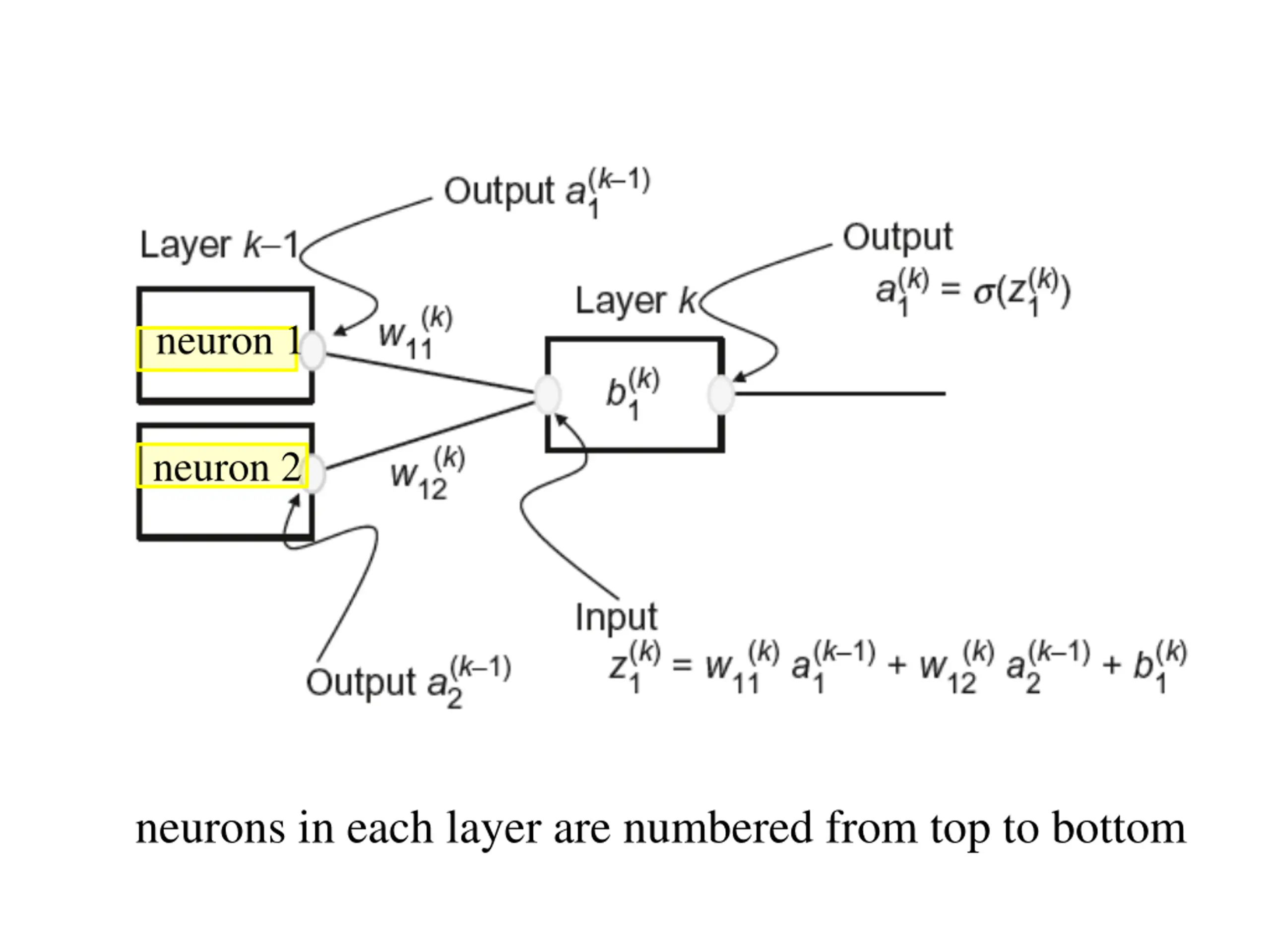

neuron 1 neuron 2 neurons in each layer are numbered from top to bottom

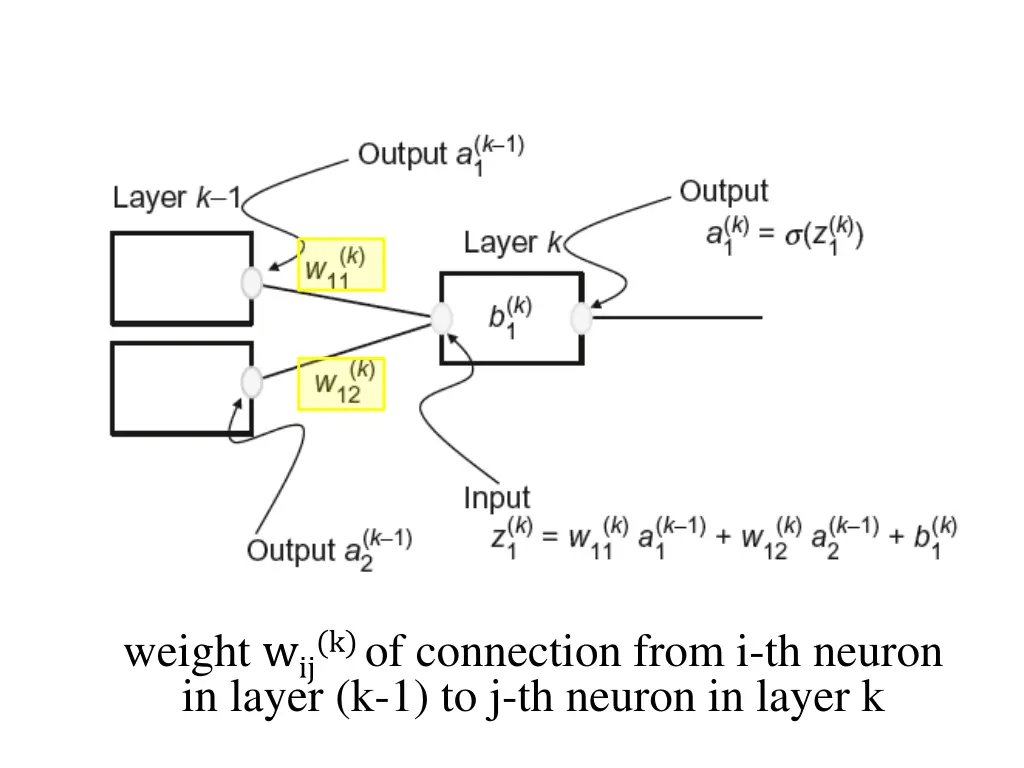

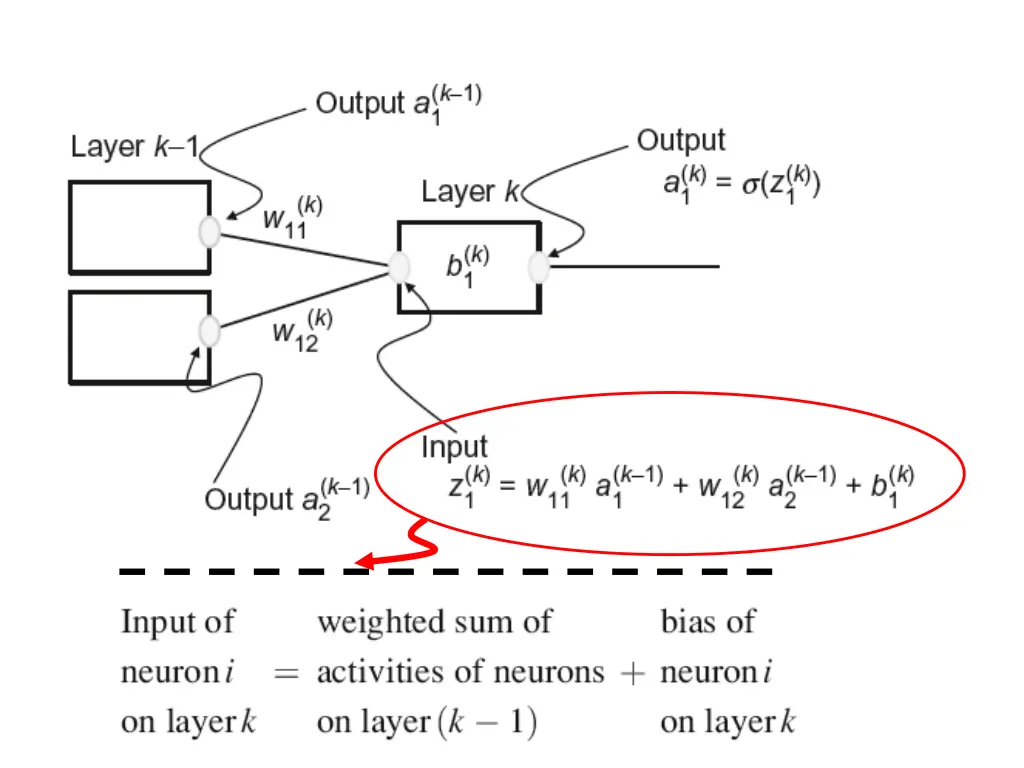

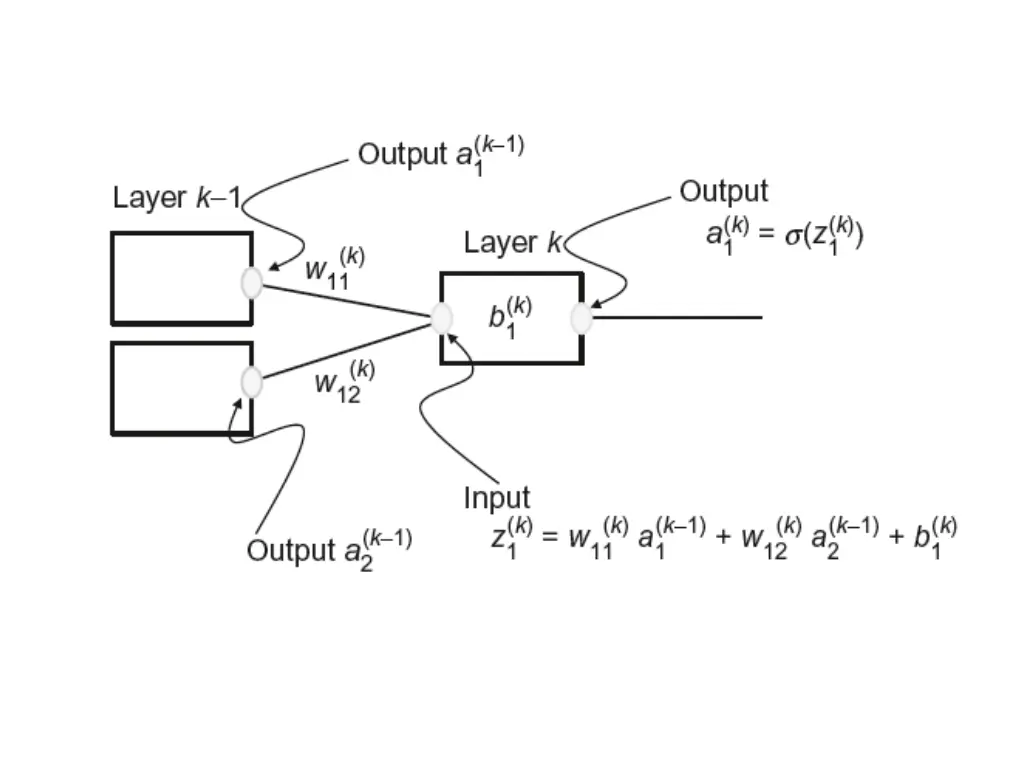

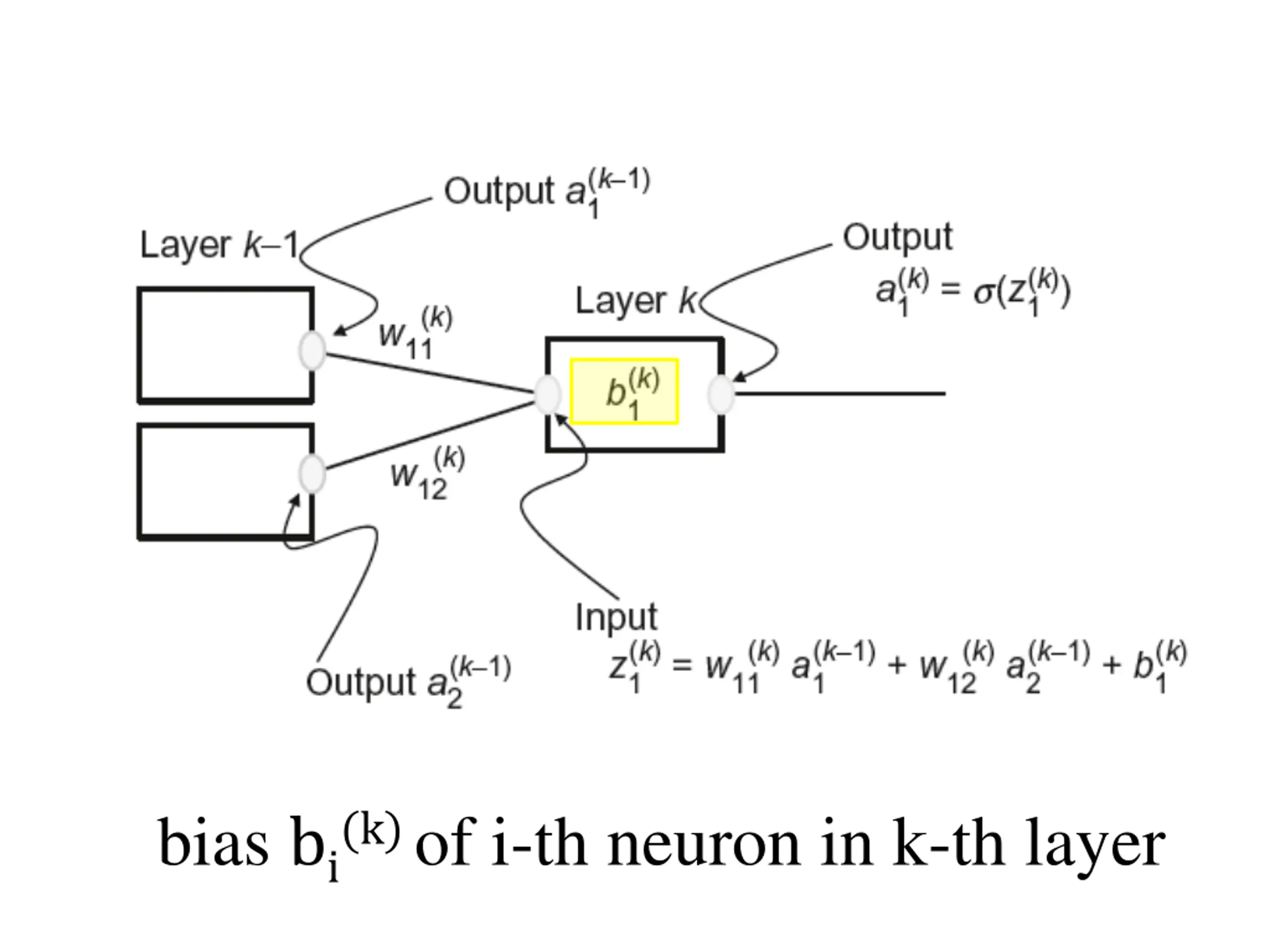

weight wij(k) of connection from i-th neuron in layer (k-1) to j-th neuron in layer k

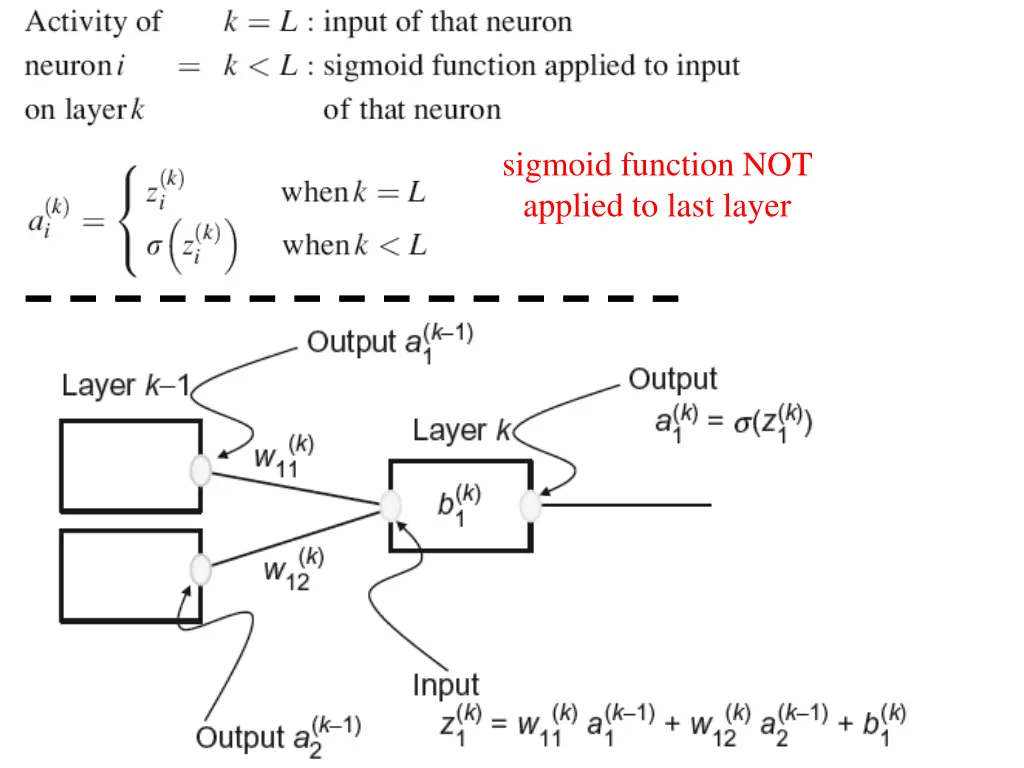

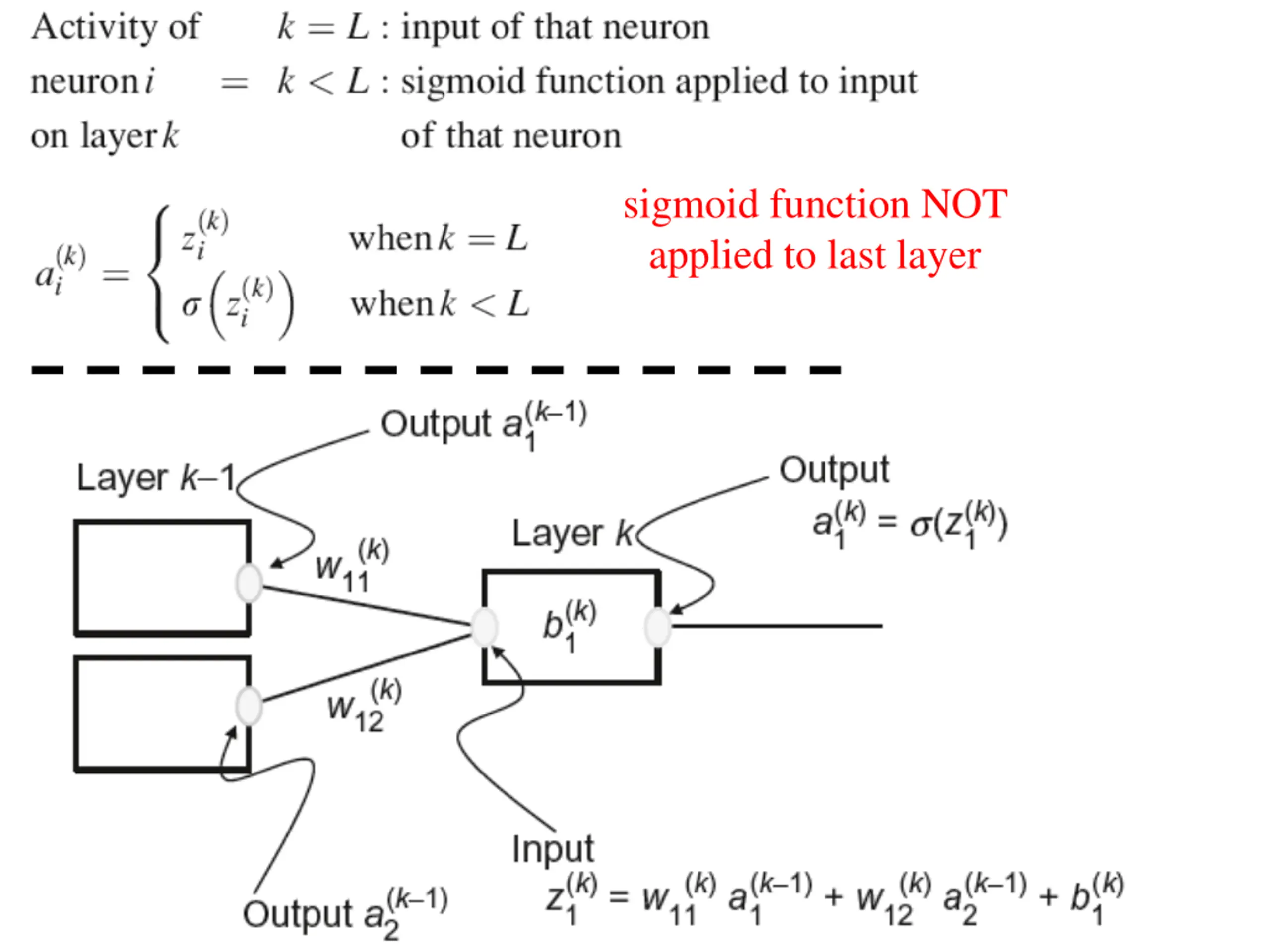

sigmoid function NOT applied to last layer

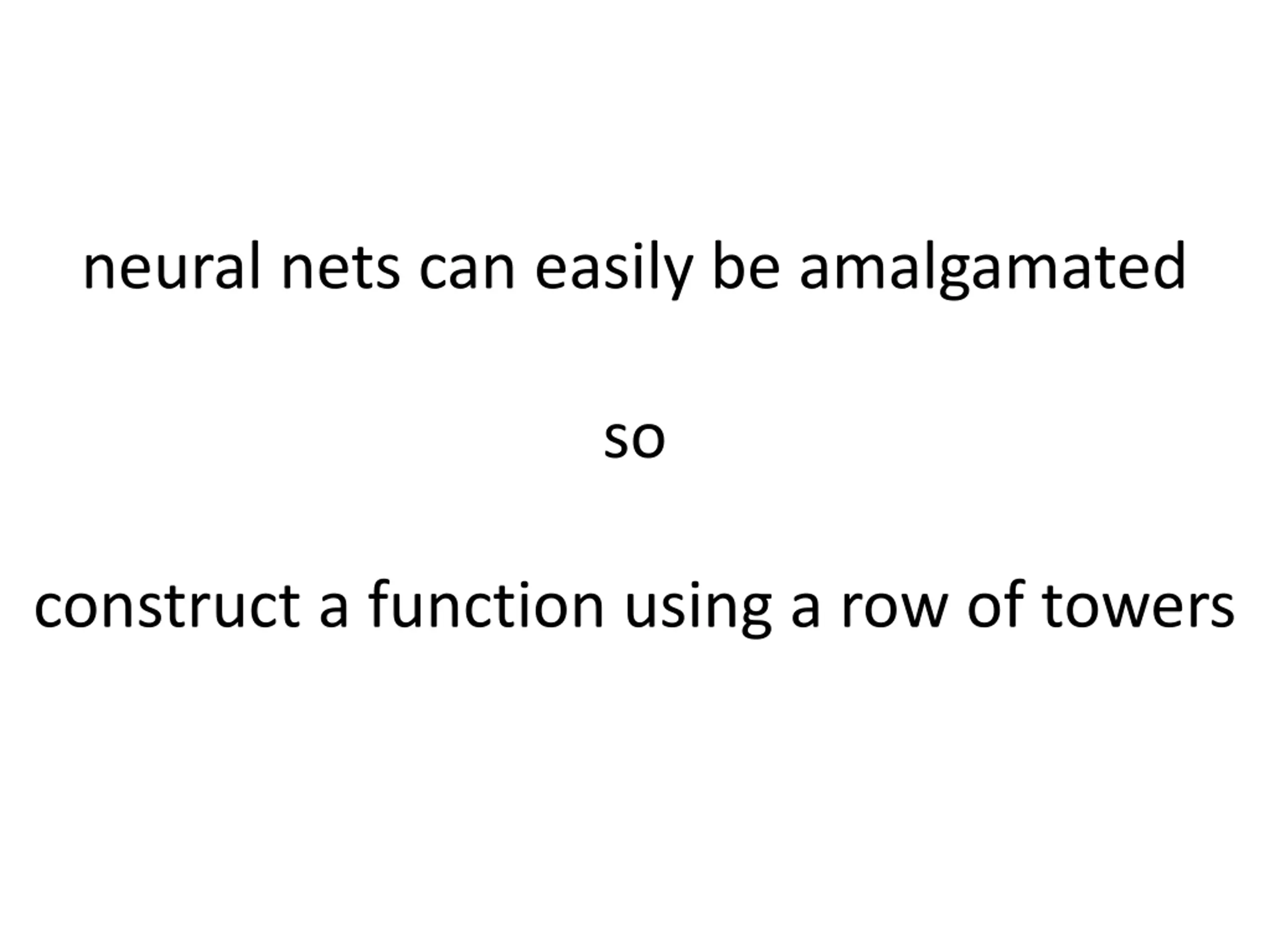

neural nets can easily be amalgamated so construct a function using a row of towers

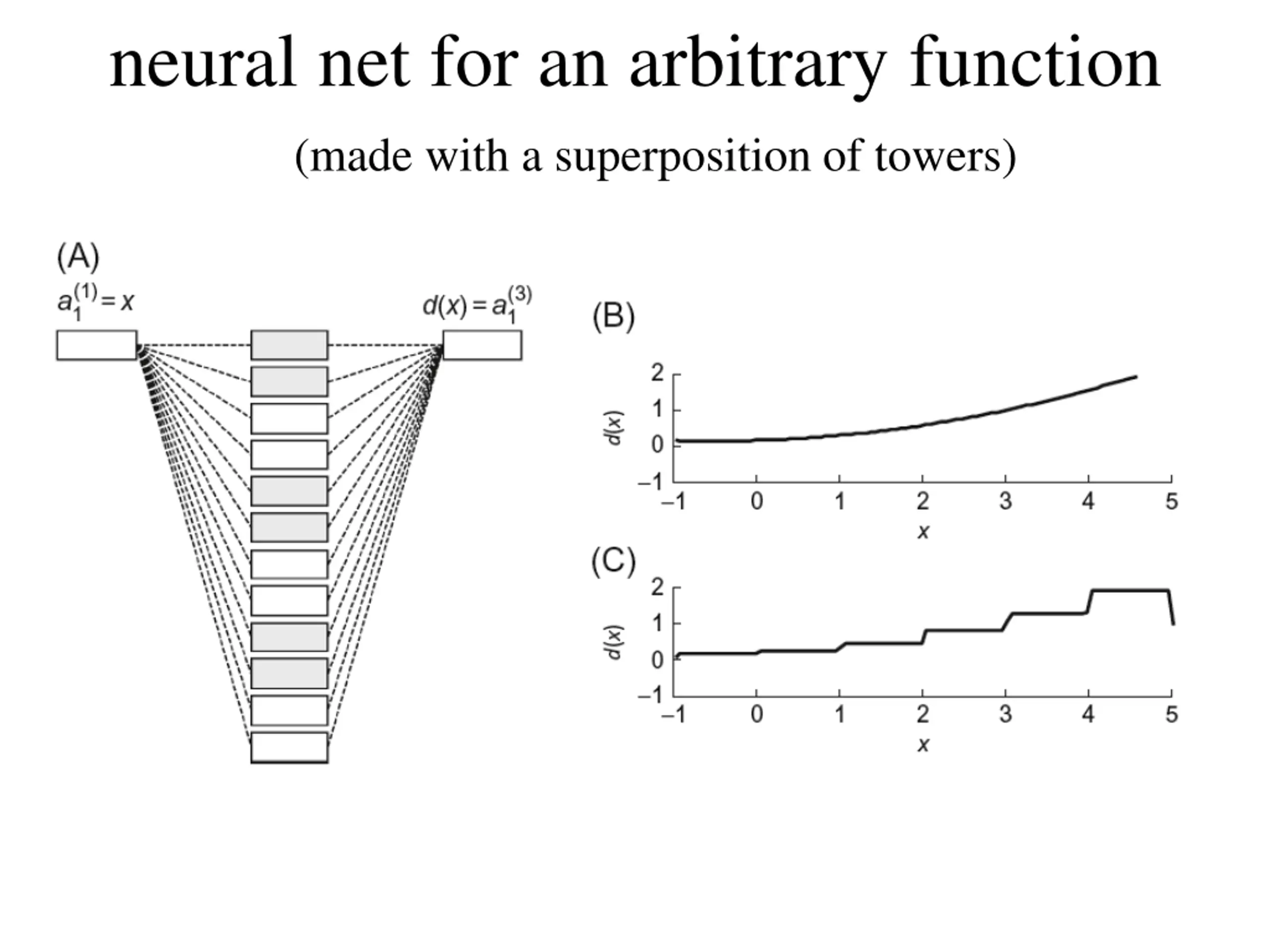

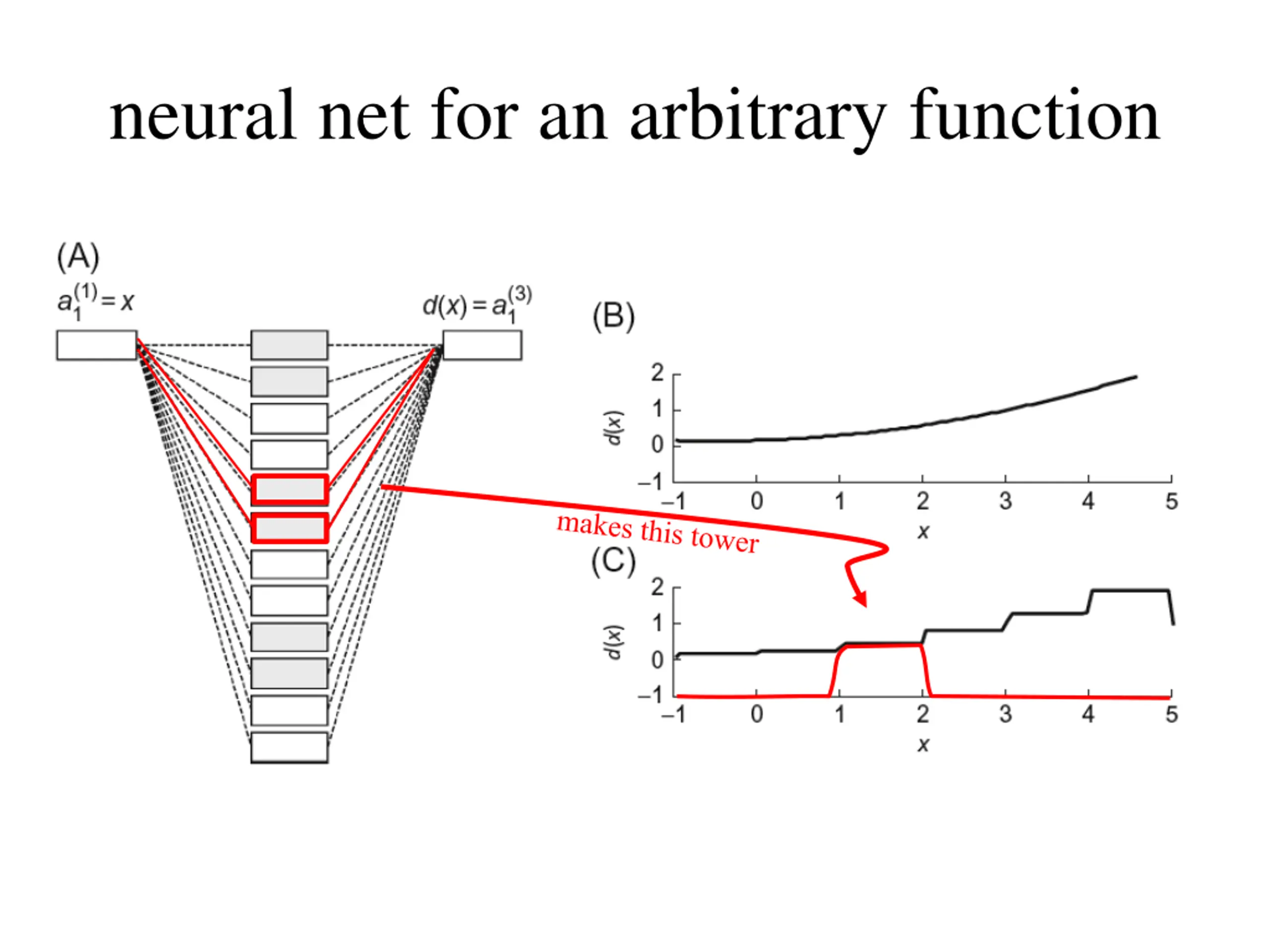

neural net for an arbitrary function (made with a superposition of towers)

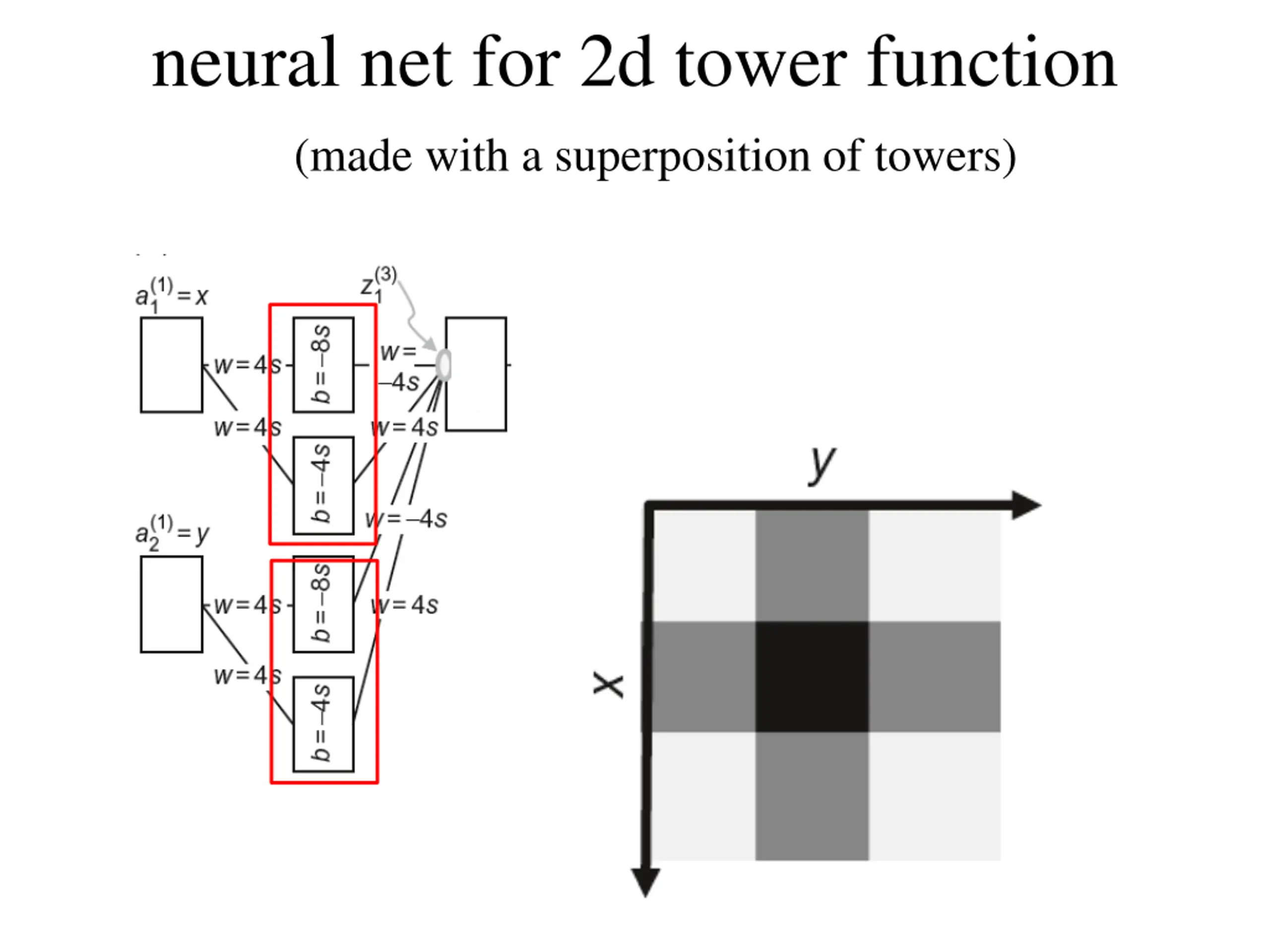

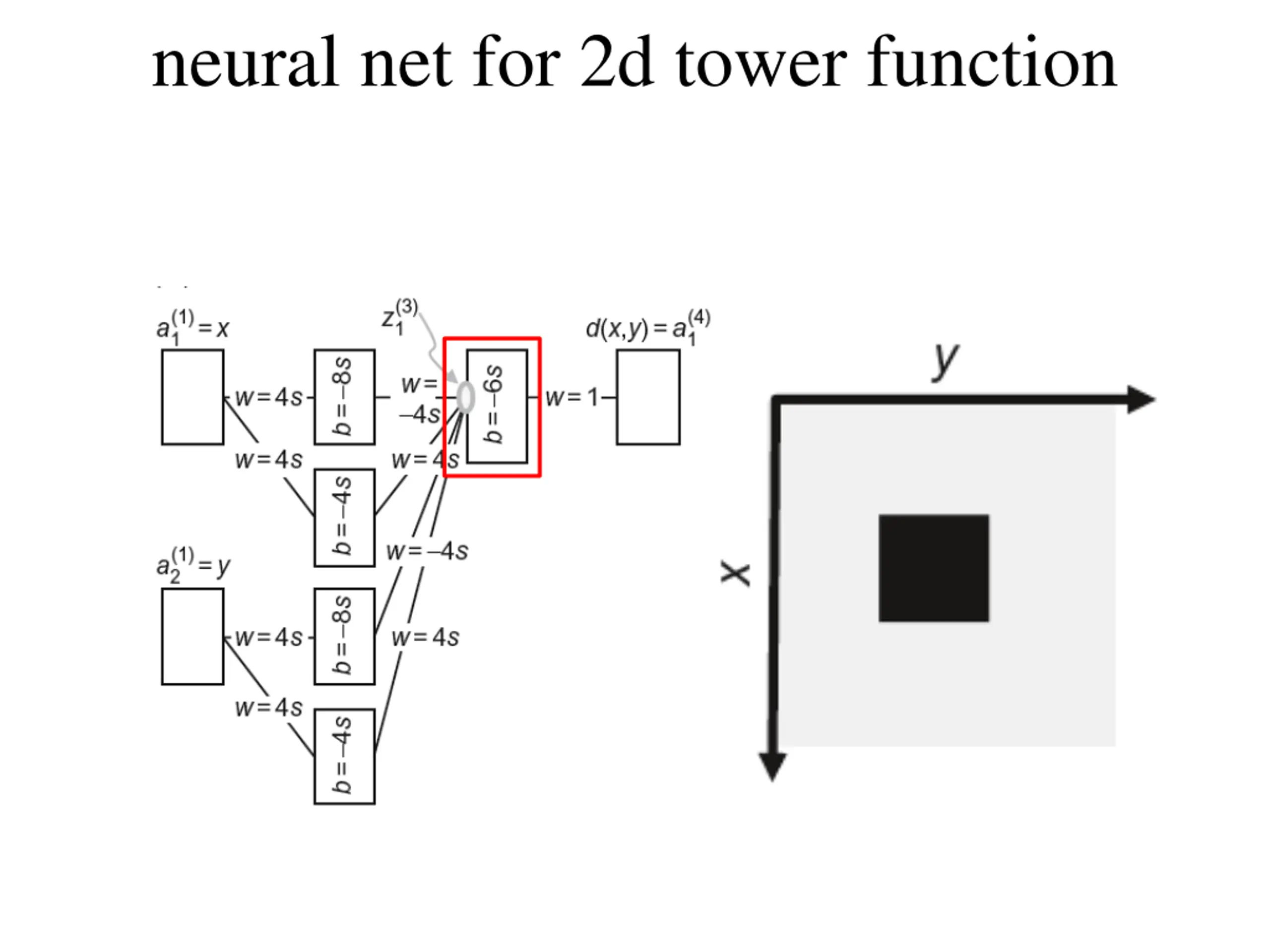

neural net for 2d tower function (made with a superposition of towers)

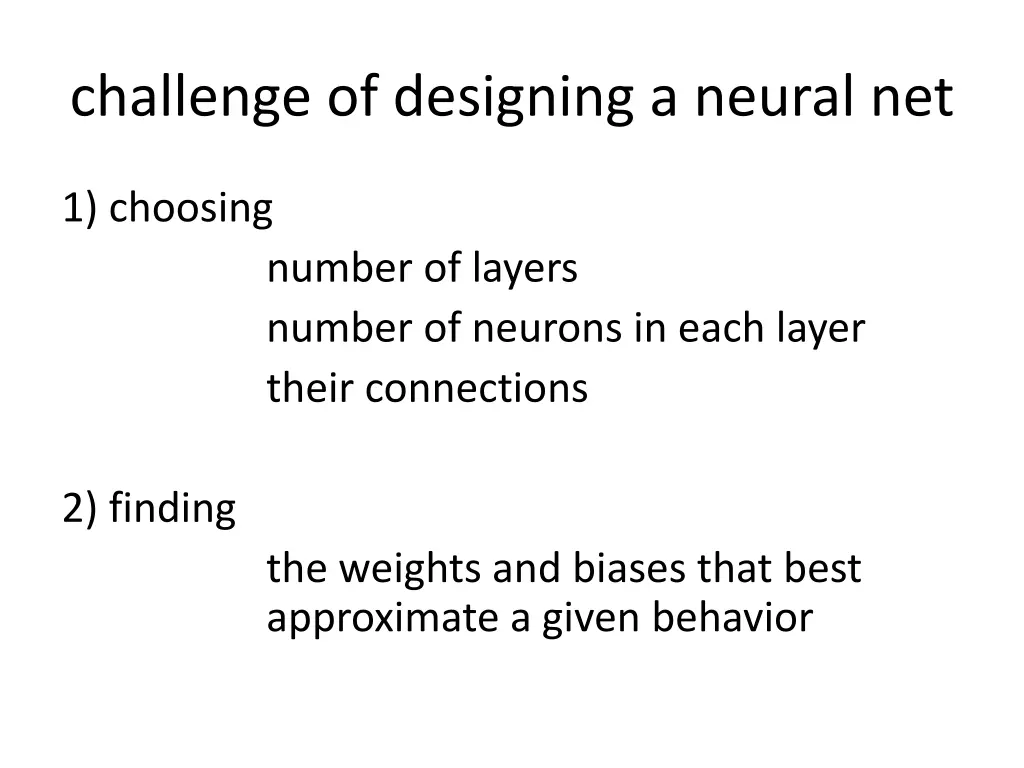

challenge of designing a neural net 1) choosing number of layers number of neurons in each layer their connections 2) finding the weights and biases that best approximate a given behavior

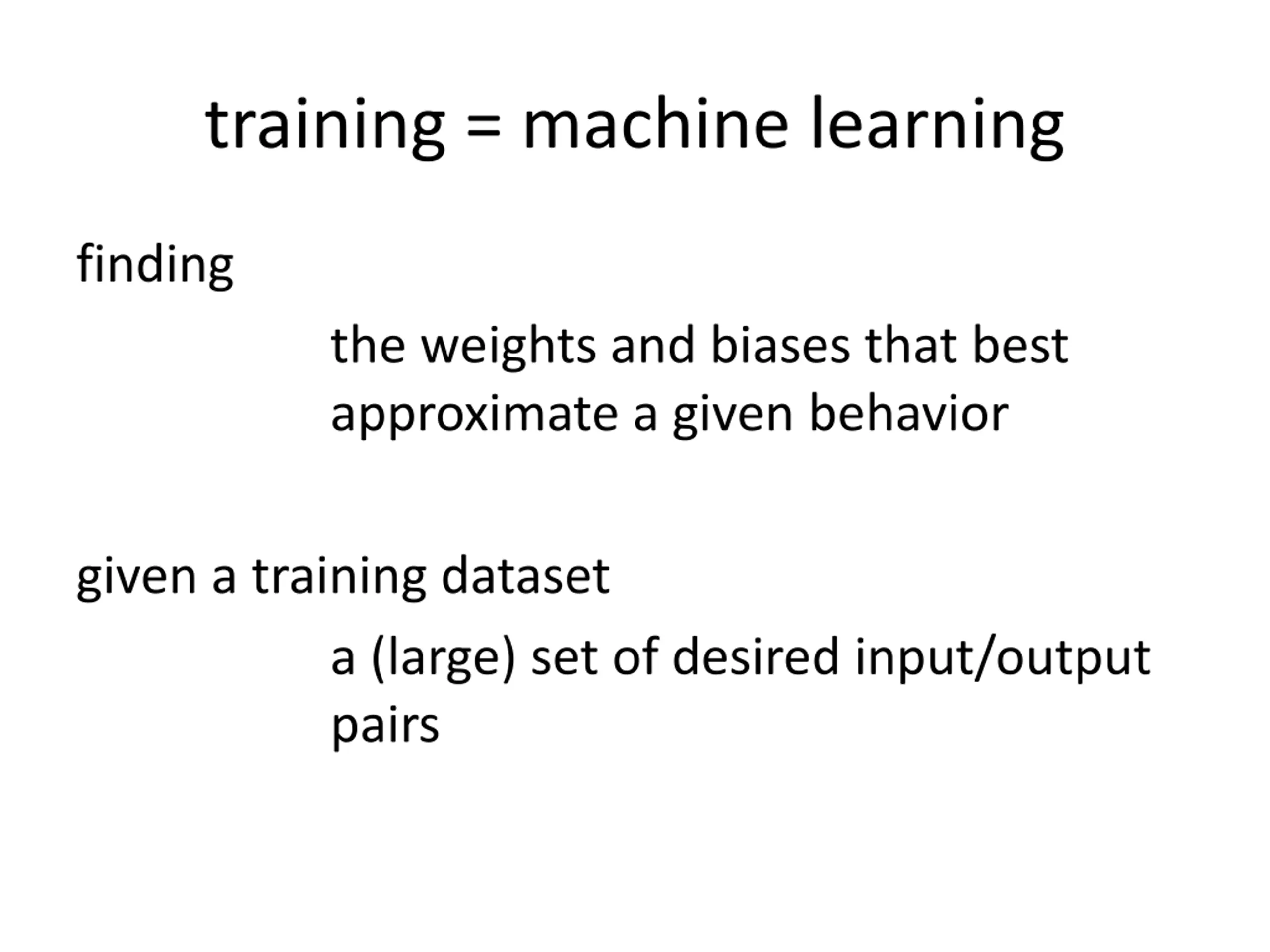

training = machine learning finding the weights and biases that best approximate a given behavior given a training dataset a (large) set of desired input/output pairs
treat as a least squares problem find the weights and biases that minimize the total error between the desired output and the actual output

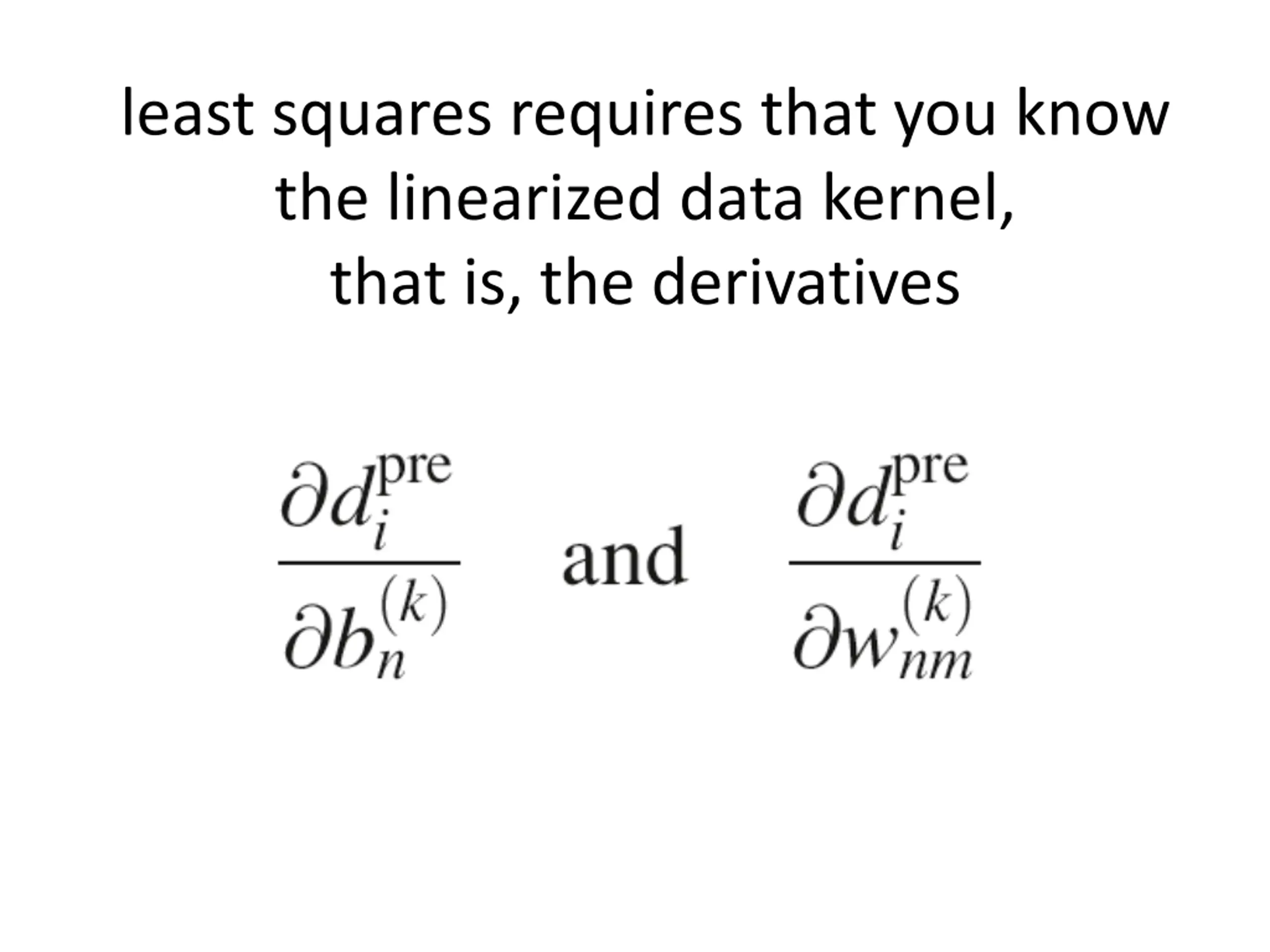

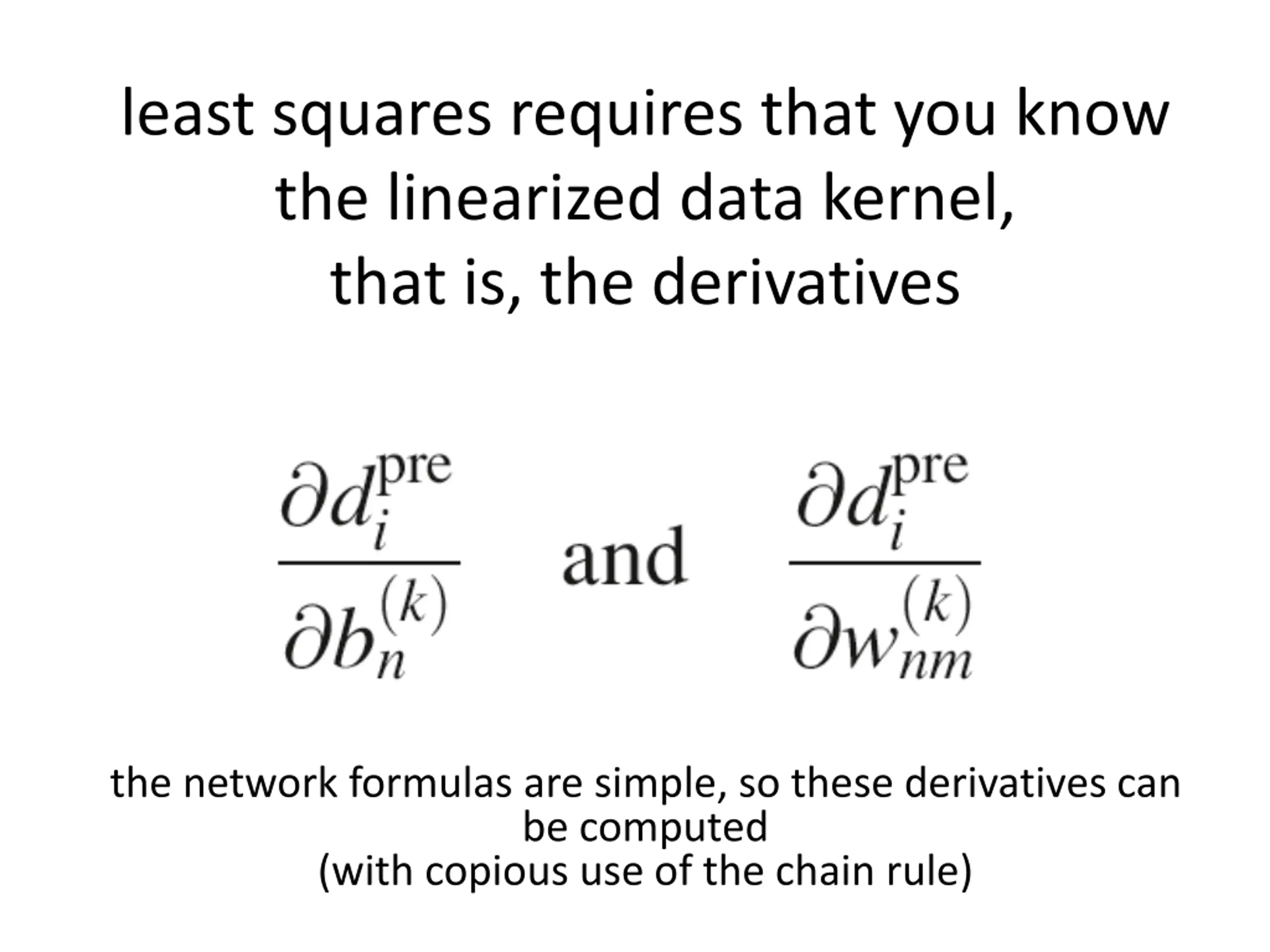

least squares requires that you know the linearized data kernel, that is, the derivatives
least squares requires that you know the linearized data kernel, that is, the derivatives the network formulas are simple, so these derivatives can be computed (with copious use of the chain rule)

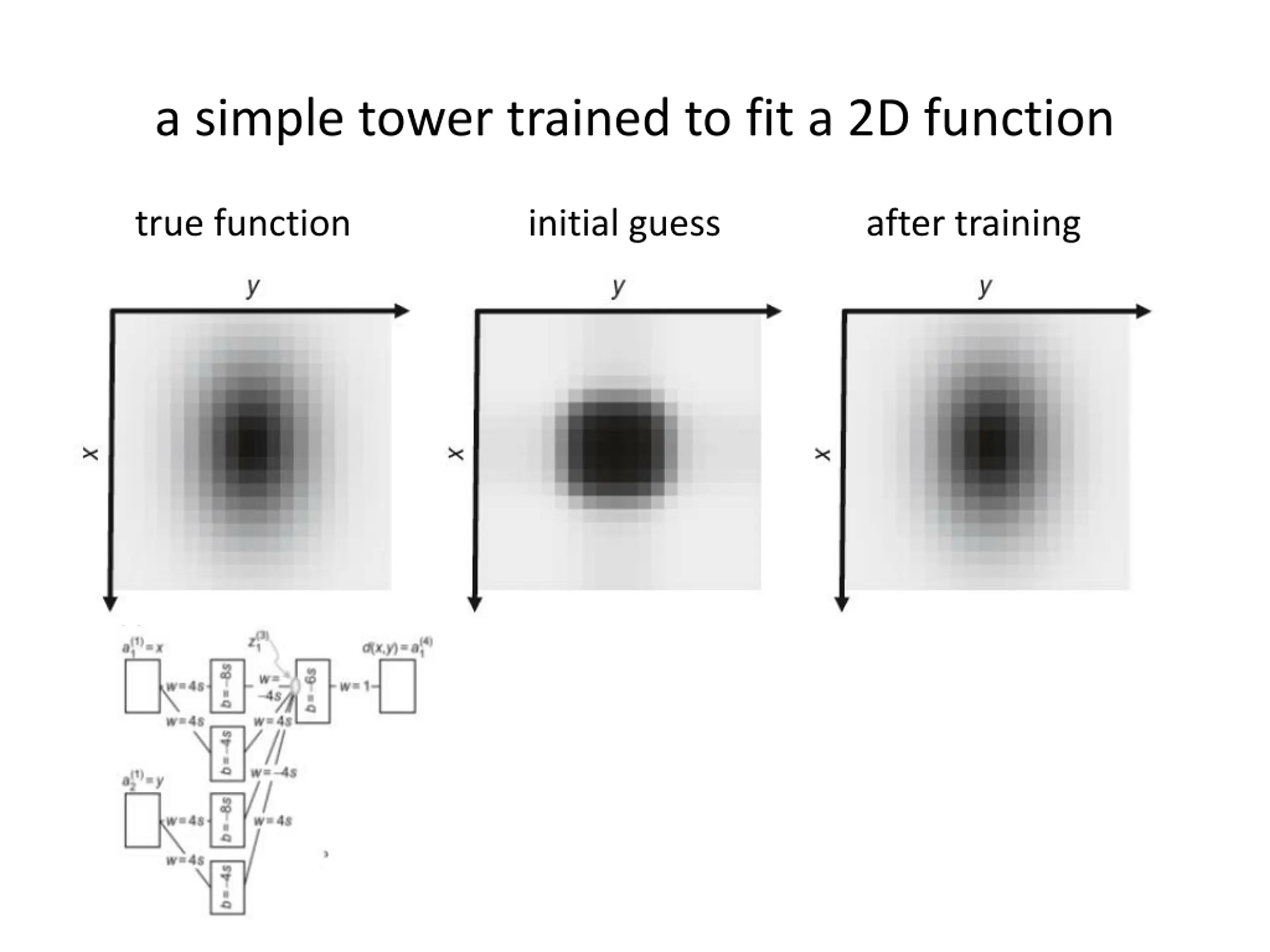

a simple tower trained to fit a 2D function true function initial guess after training
