ESO9 Technology Tom Urych, ESO9 international www.eso9.cz

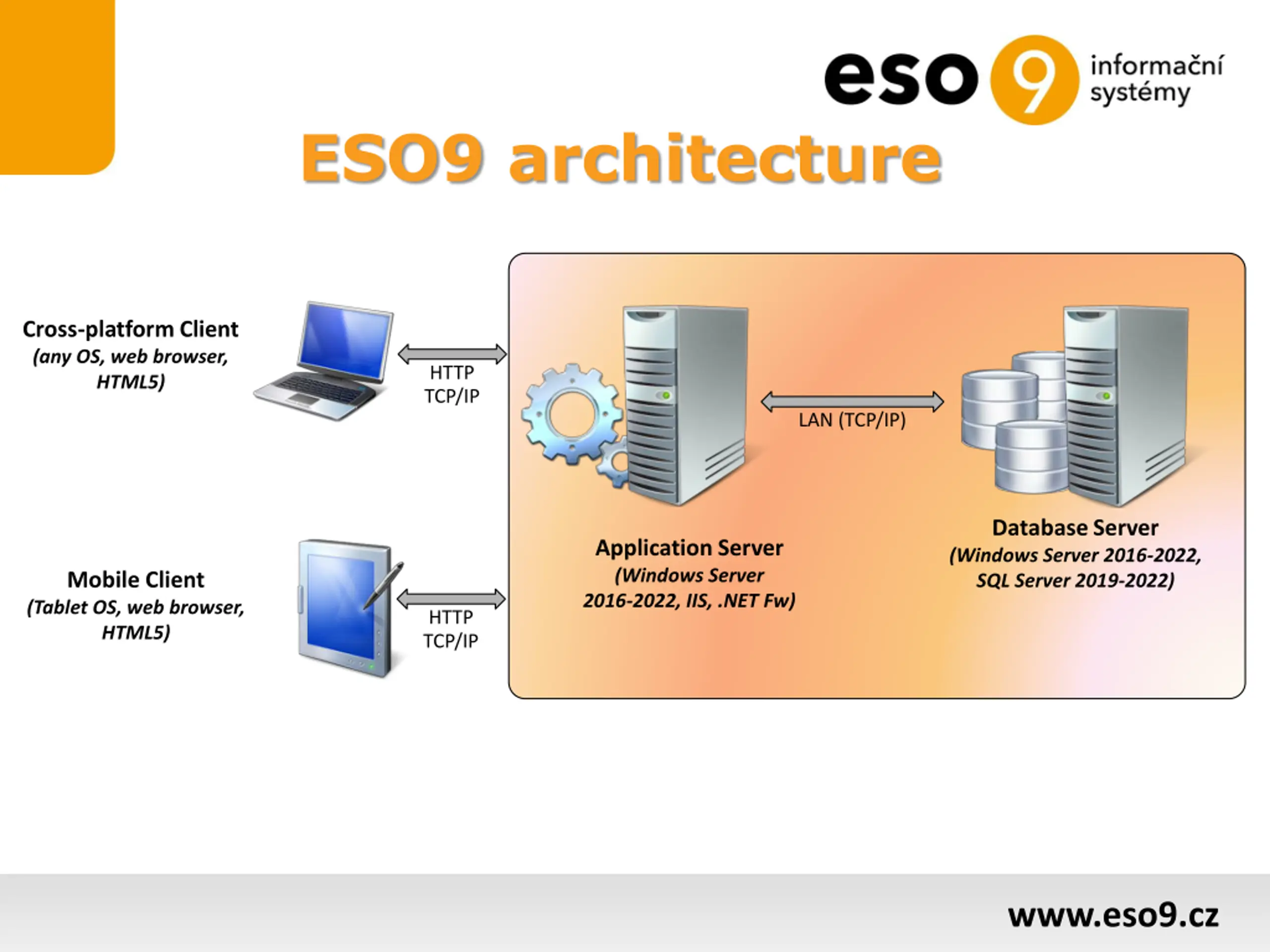

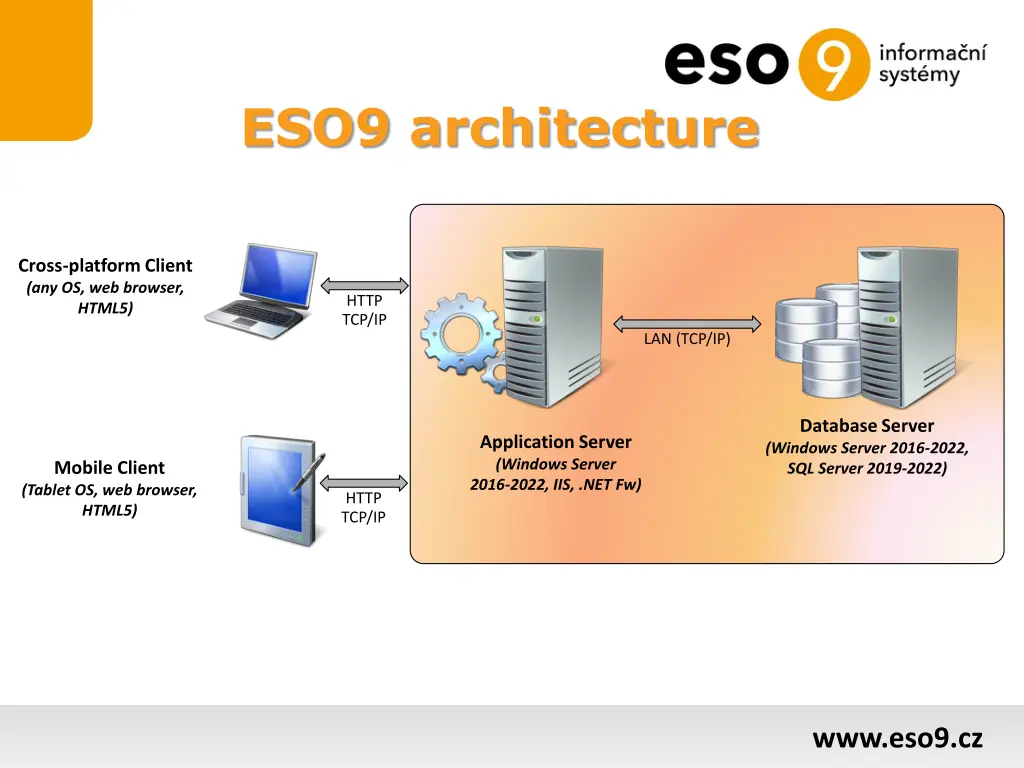

ESO9 architecture Cross-platform Client (any OS, web browser, HTML5) HTTP TCP/IP LAN (TCP/IP) Database Server (Windows Server 2016-2022, SQL Server 2019-2022) Application Server (Windows Server 2016-2022, IIS, .NET Fw) Mobile Client (Tablet OS, web browser, HTML5) HTTP TCP/IP www.eso9.cz

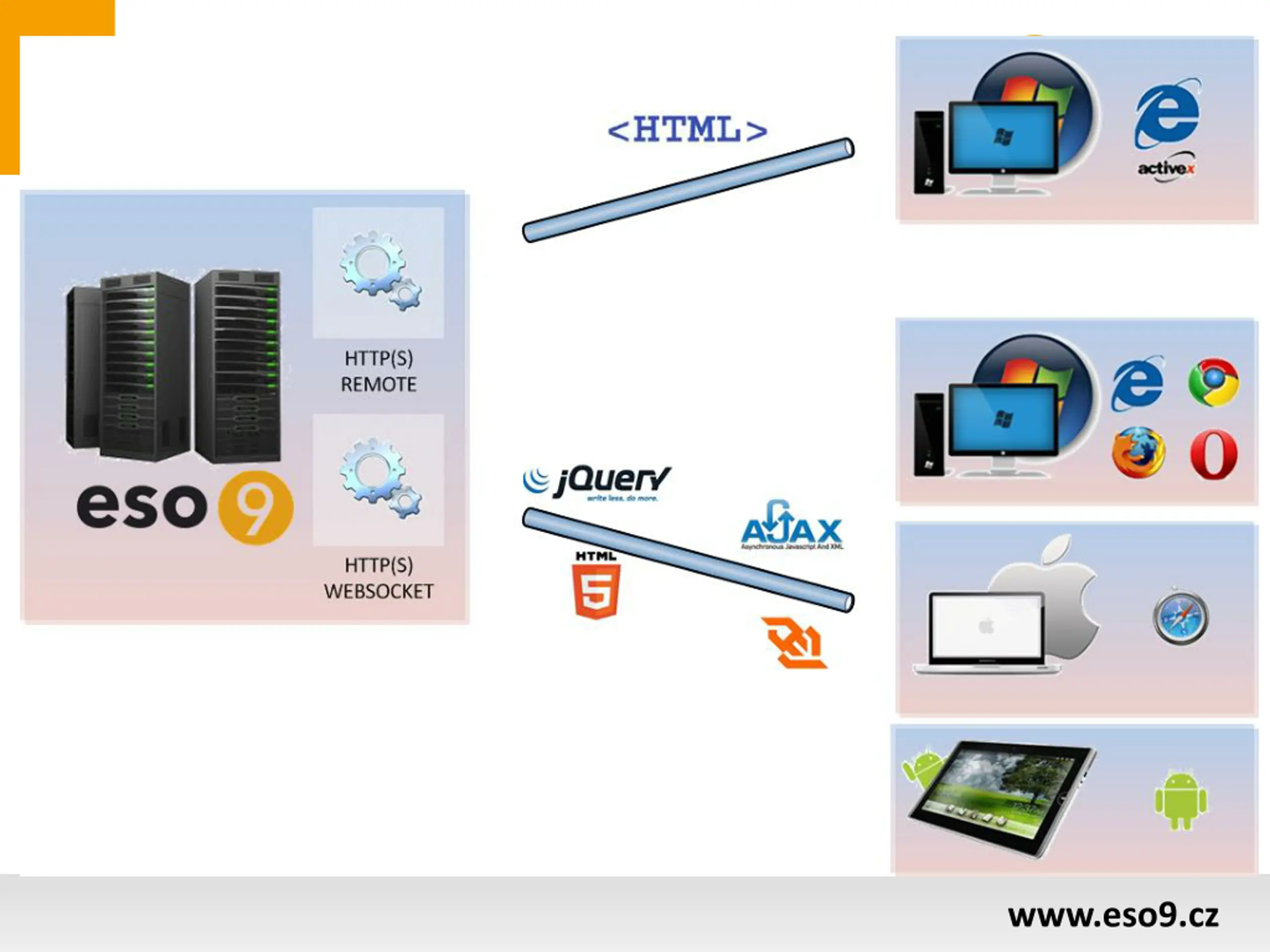

Obecn klient ESO9 www.eso9.cz

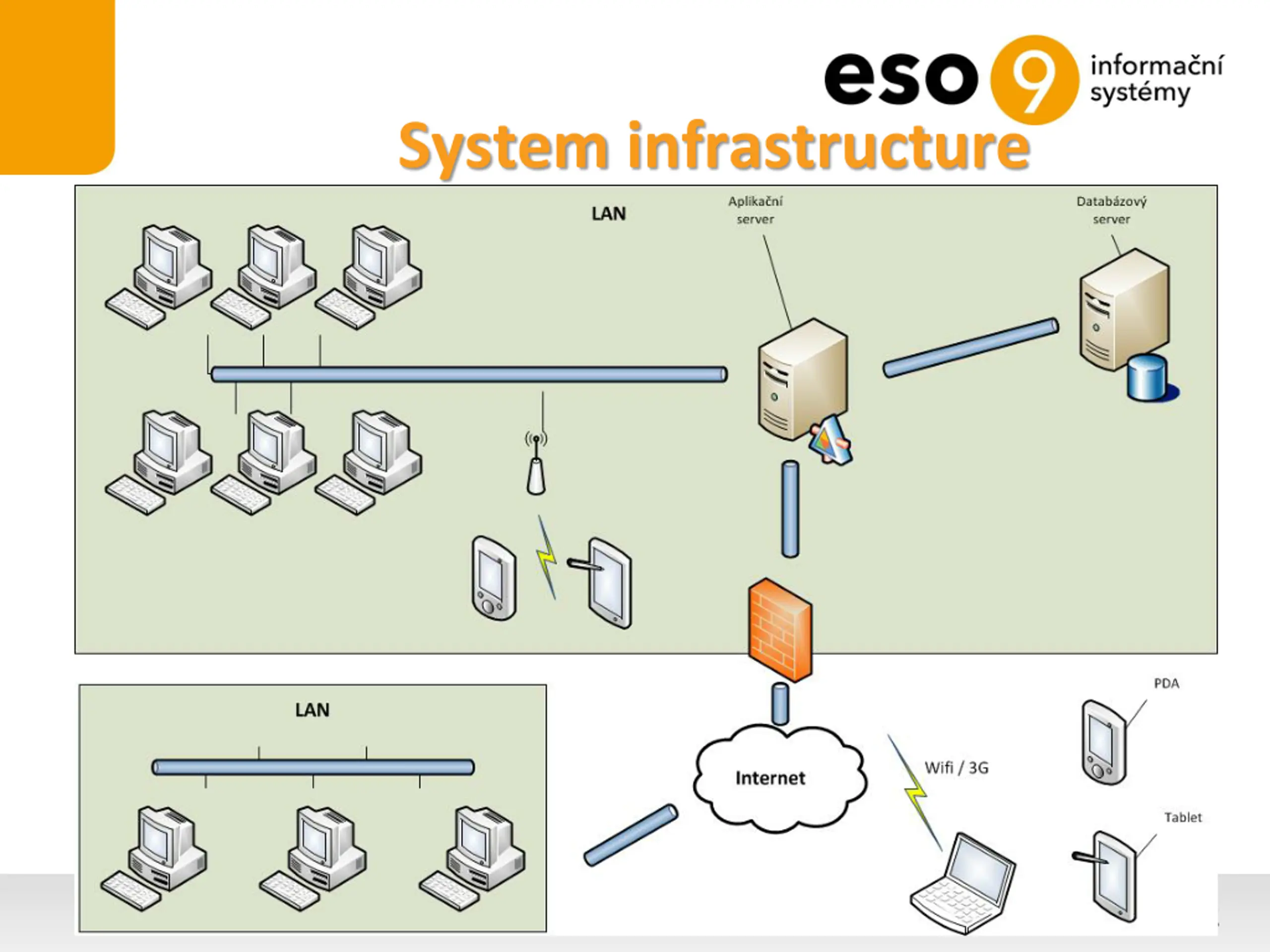

System infrastructure www.eso9.cz

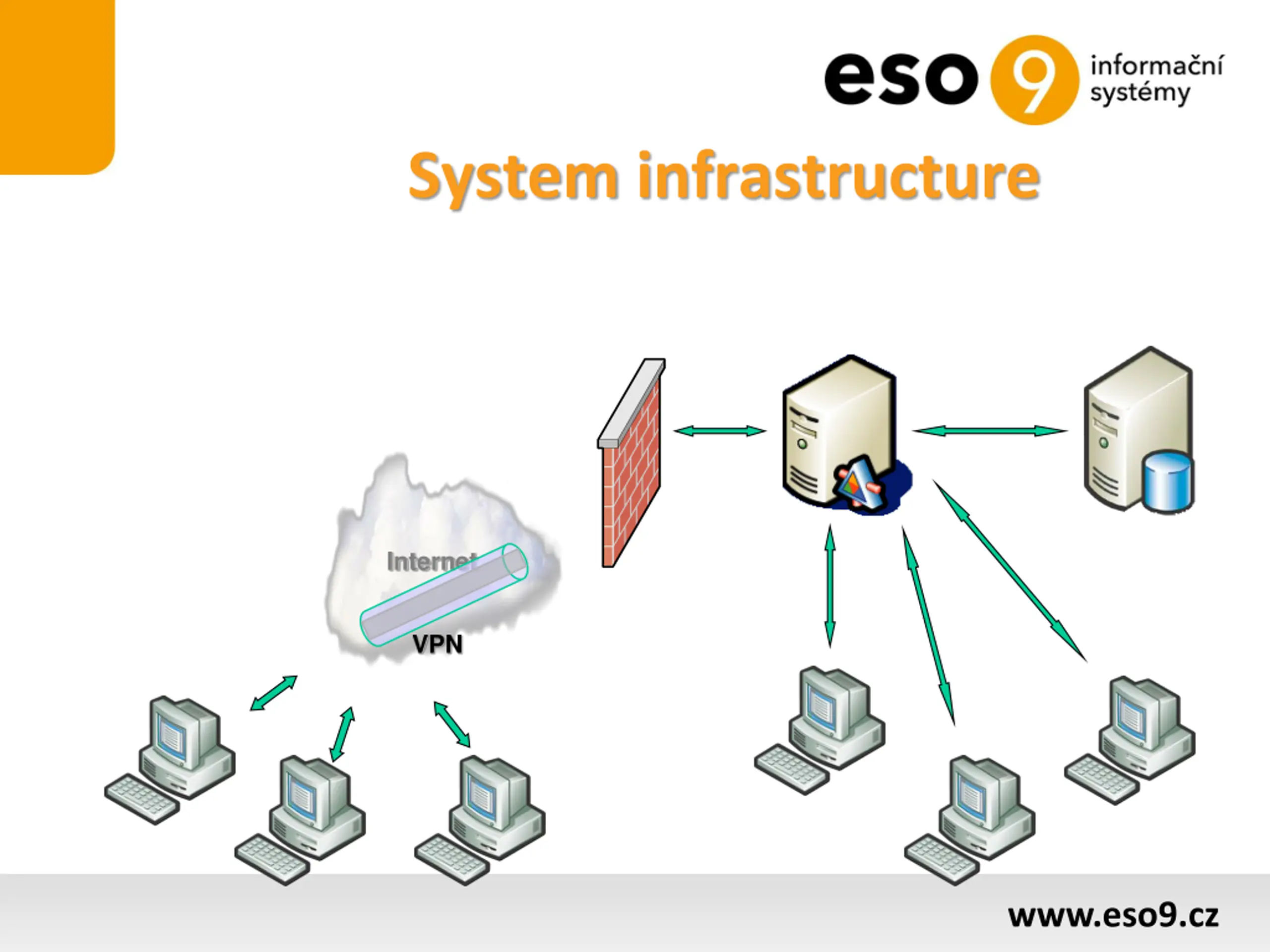

System infrastructure Internet VPN www.eso9.cz

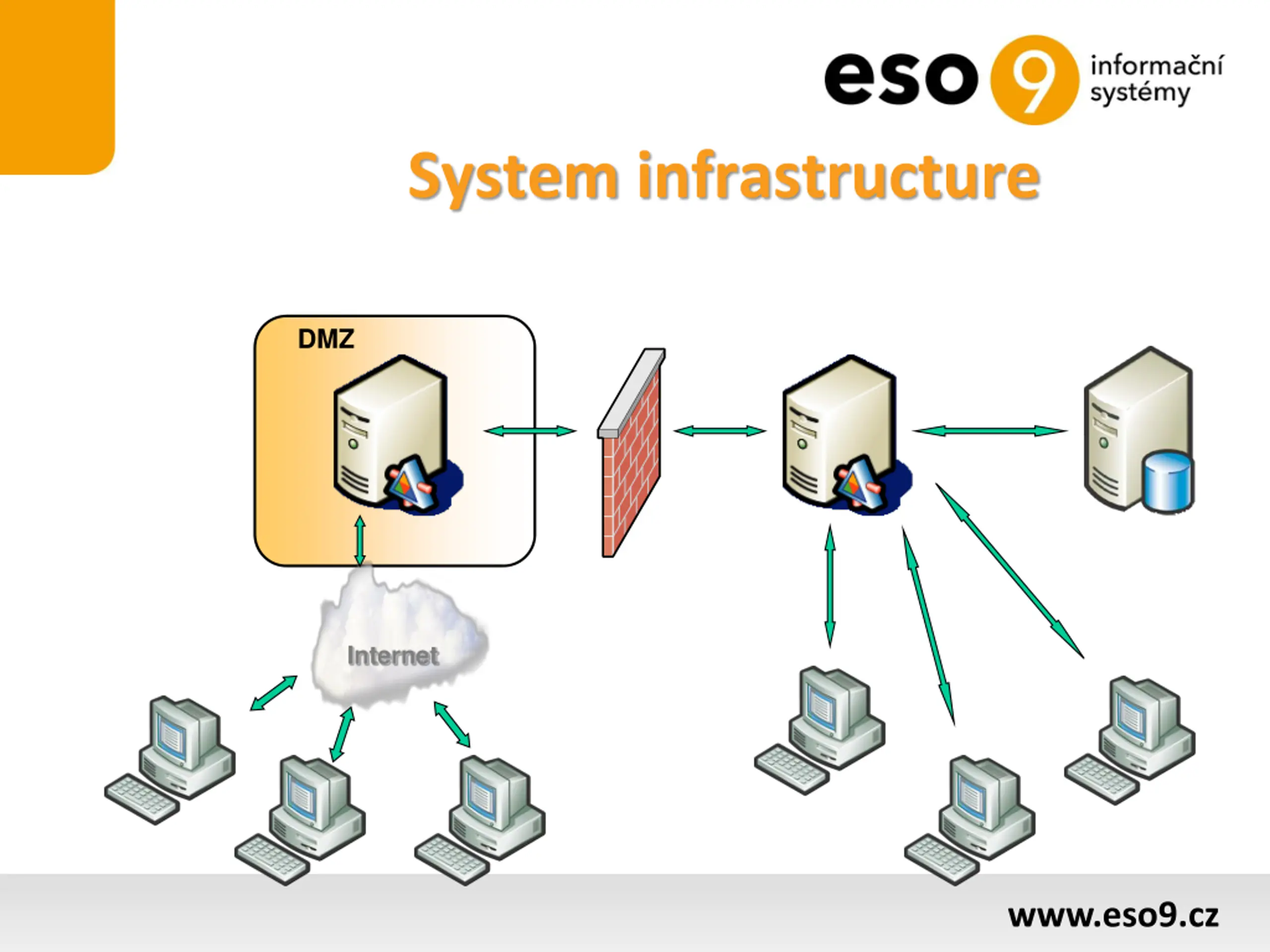

System infrastructure DMZ Internet www.eso9.cz

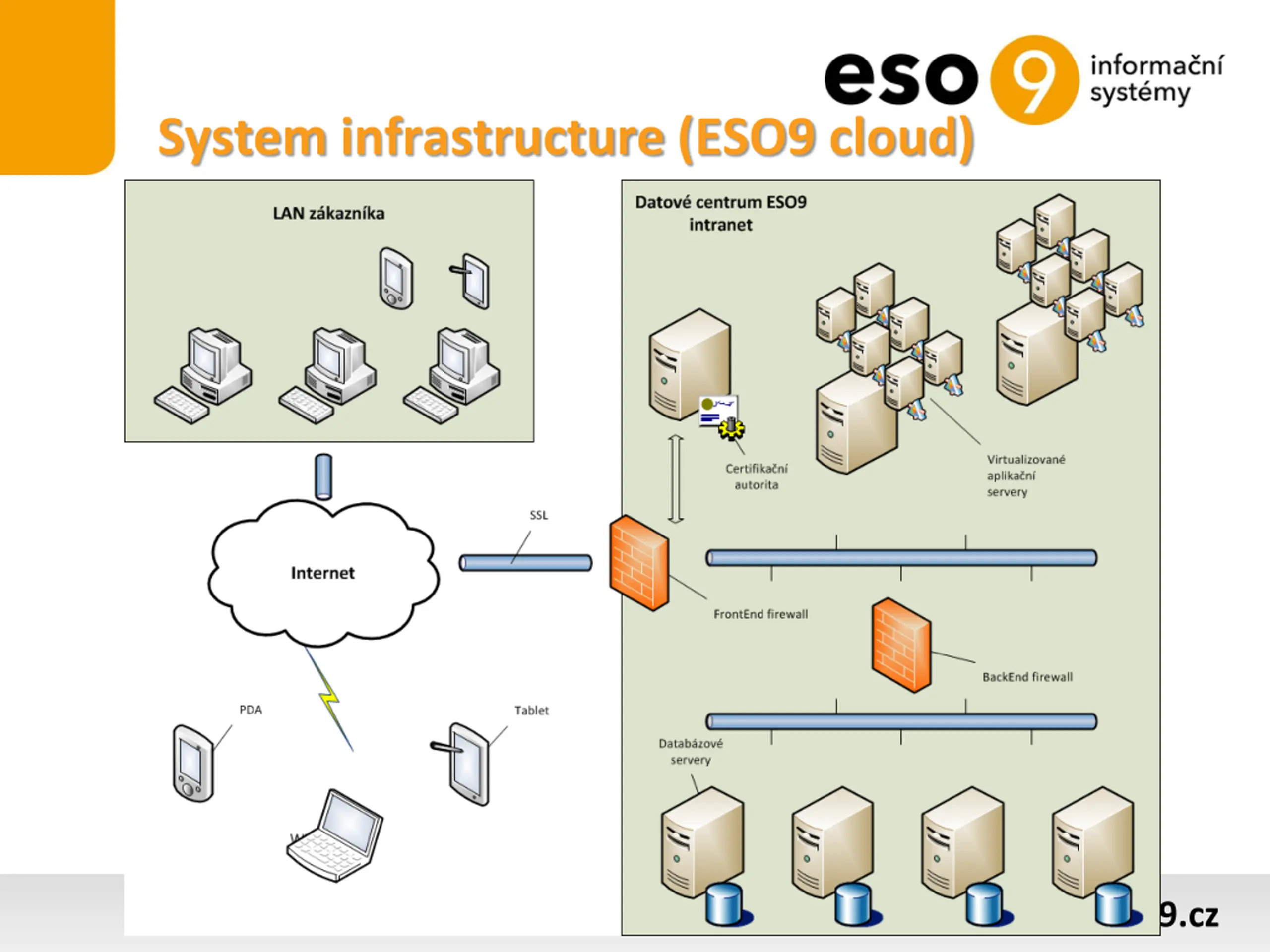

System infrastructure (ESO9 cloud) www.eso9.cz

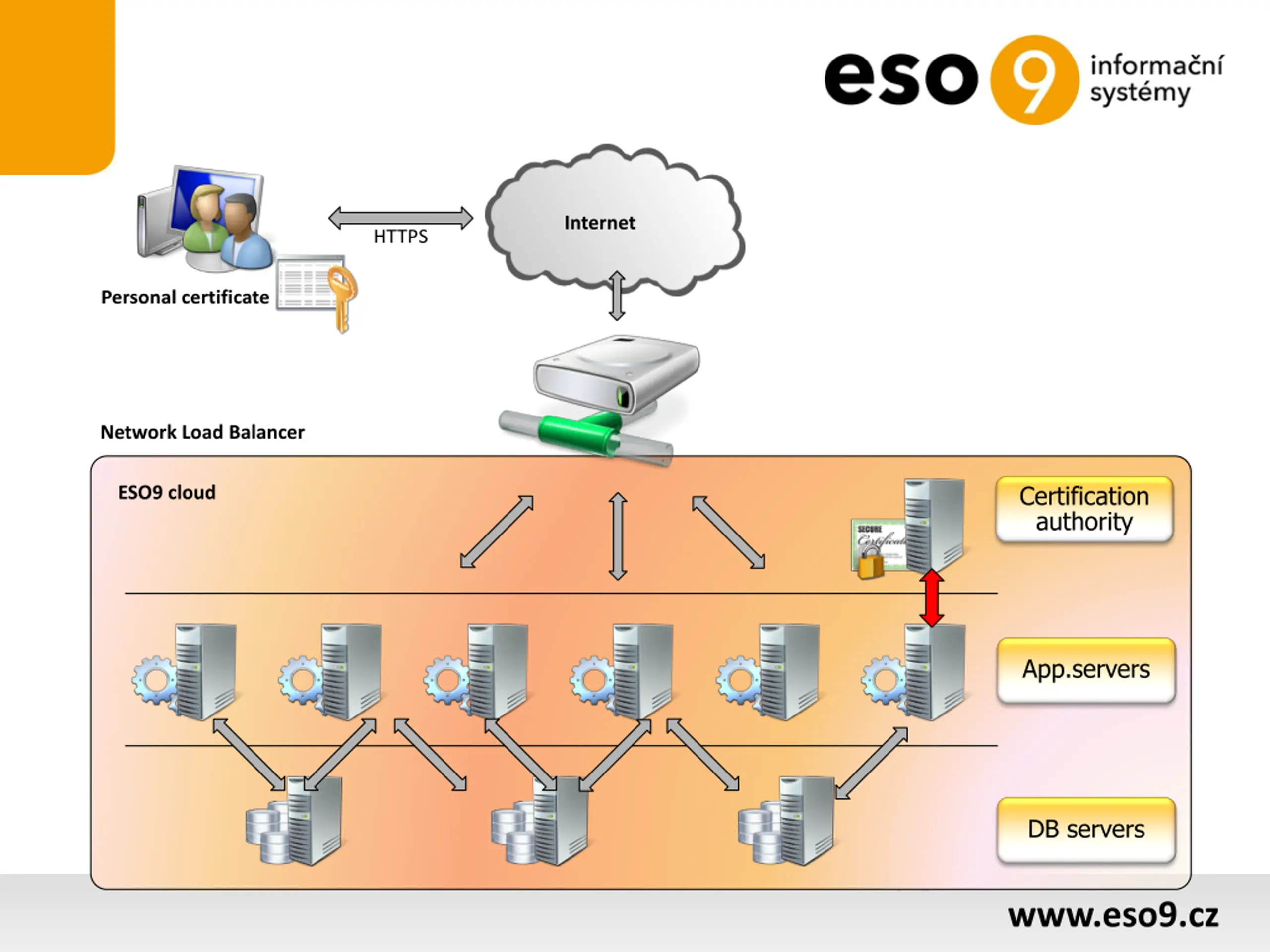

Internet HTTPS Personal certificate Network Load Balancer Certification authority ESO9 cloud App.servers DB servers www.eso9.cz

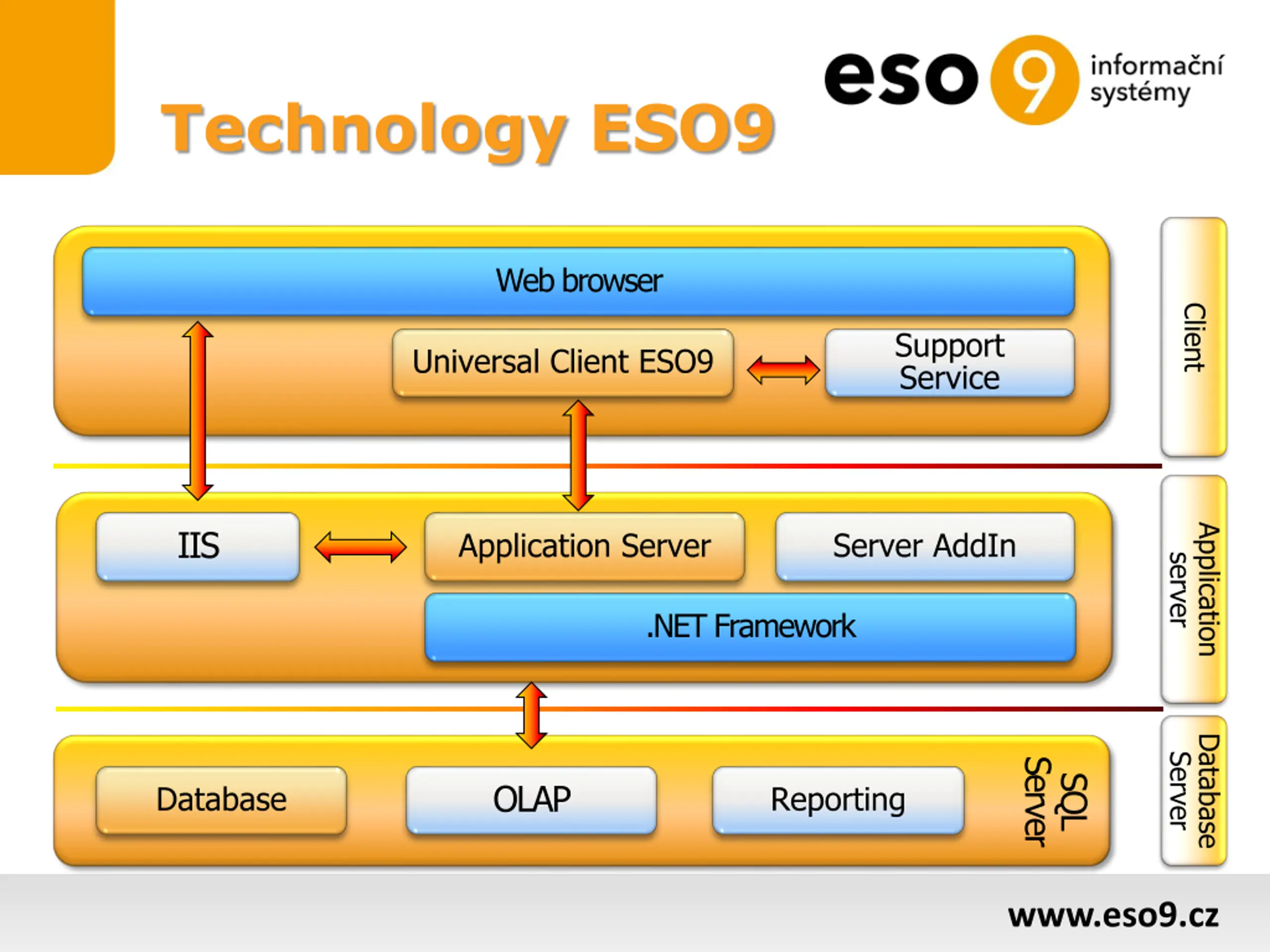

Technology ESO9 Web browser Client Support Service Universal Client ESO9 Application IIS Server AddIn Application Server server .NET Framework Database Server Server SQL OLAP Database Reporting www.eso9.cz

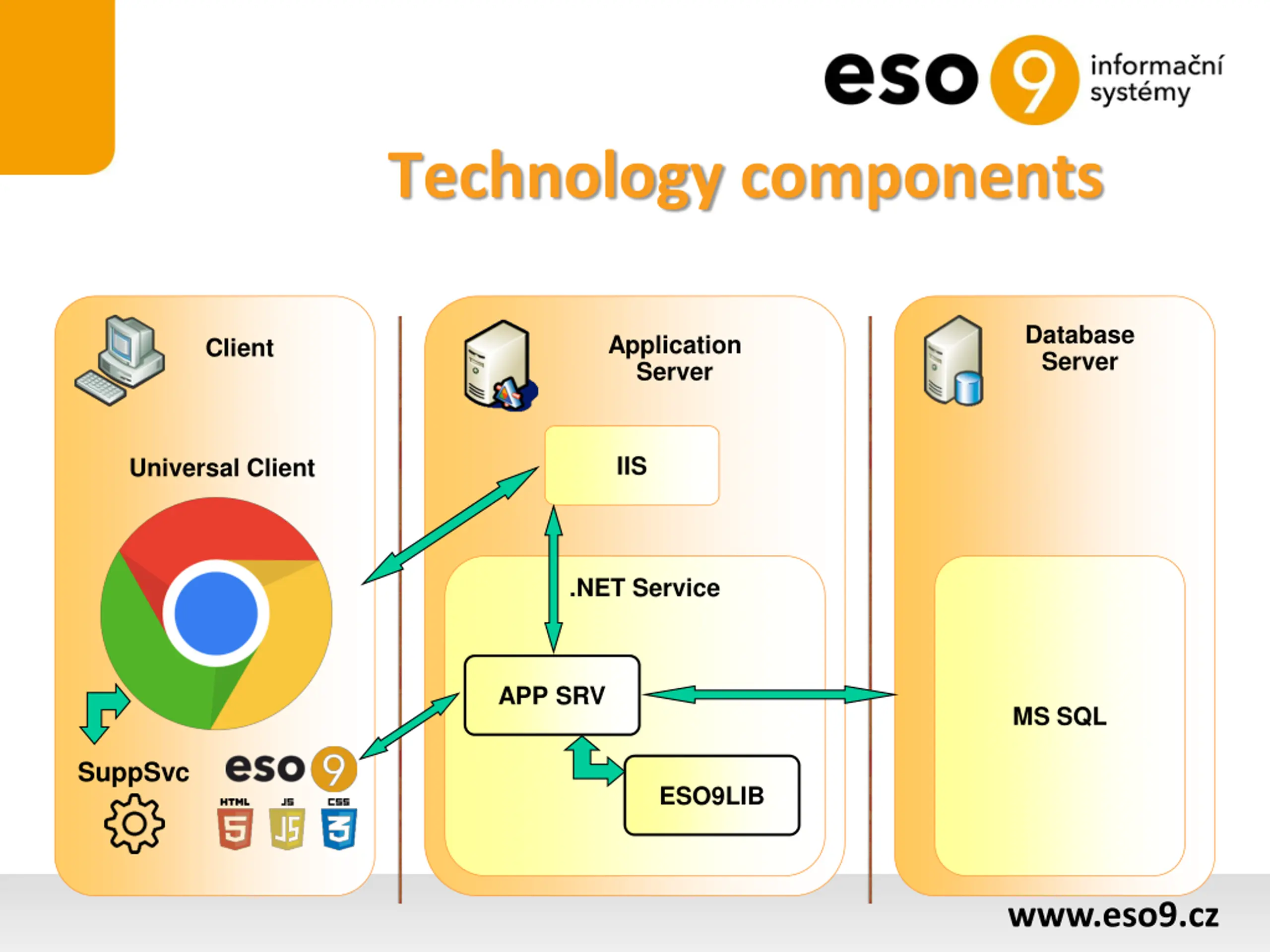

Technology components Database Server Application Server Client IIS Universal Client .NET Service APP SRV MS SQL SuppSvc ESO9LIB www.eso9.cz

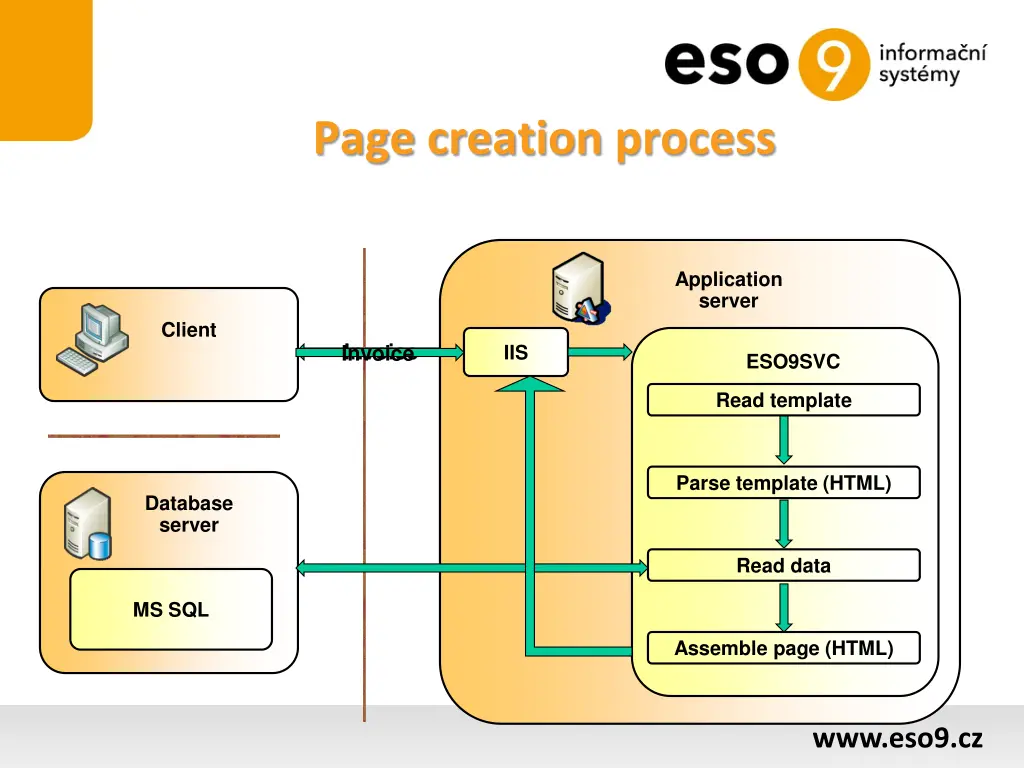

Page creation process Application server Client Invoice IIS ESO9SVC Read template Parse template (HTML) Database server Read data MS SQL Assemble page (HTML) www.eso9.cz

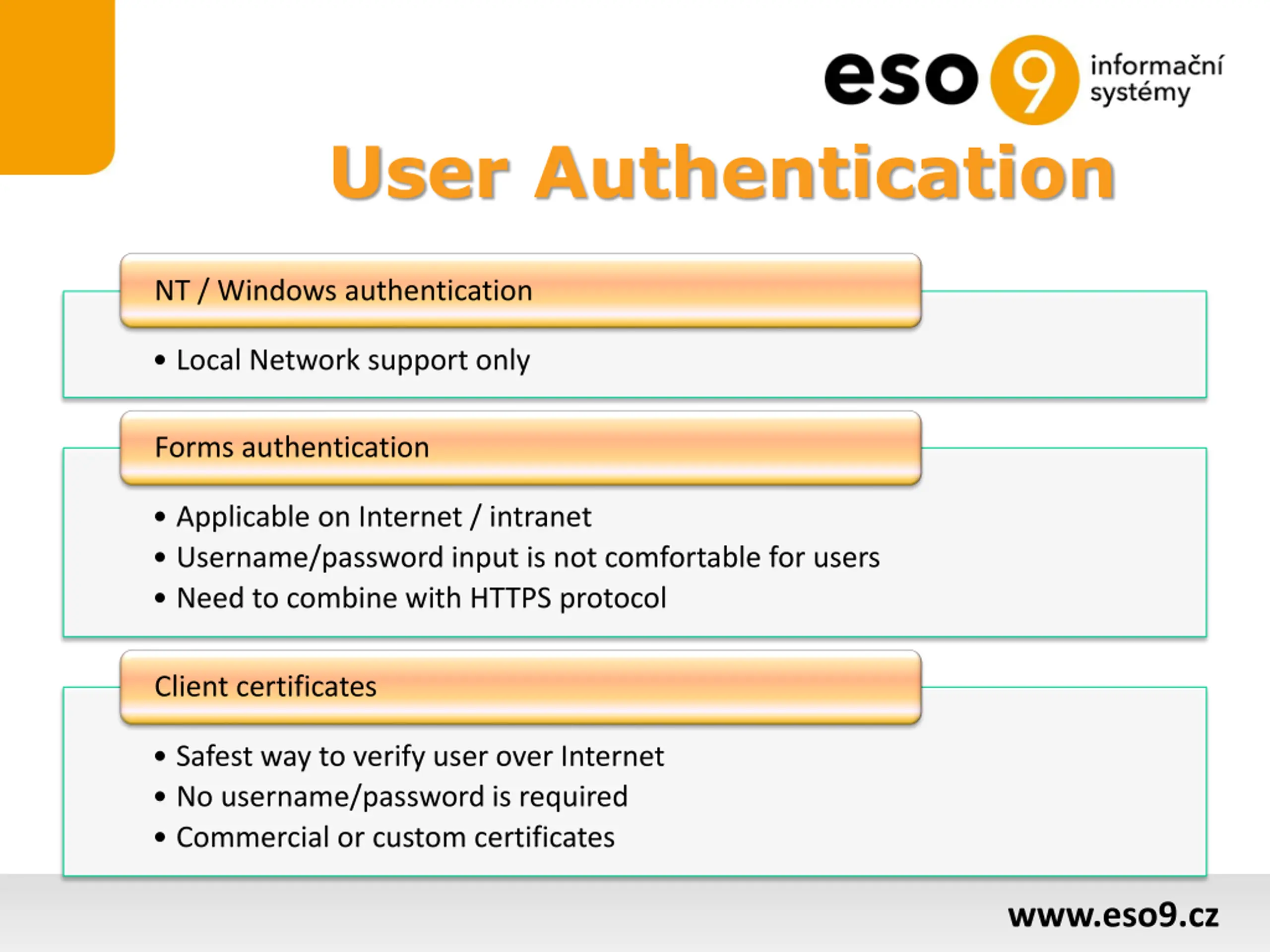

User Authentication NT / Windows authentication Local Network support only Forms authentication Applicable on Internet / intranet Username/password input is not comfortable for users Need to combine with HTTPS protocol Client certificates Safest way to verify user over Internet No username/password is required Commercial or custom certificates www.eso9.cz

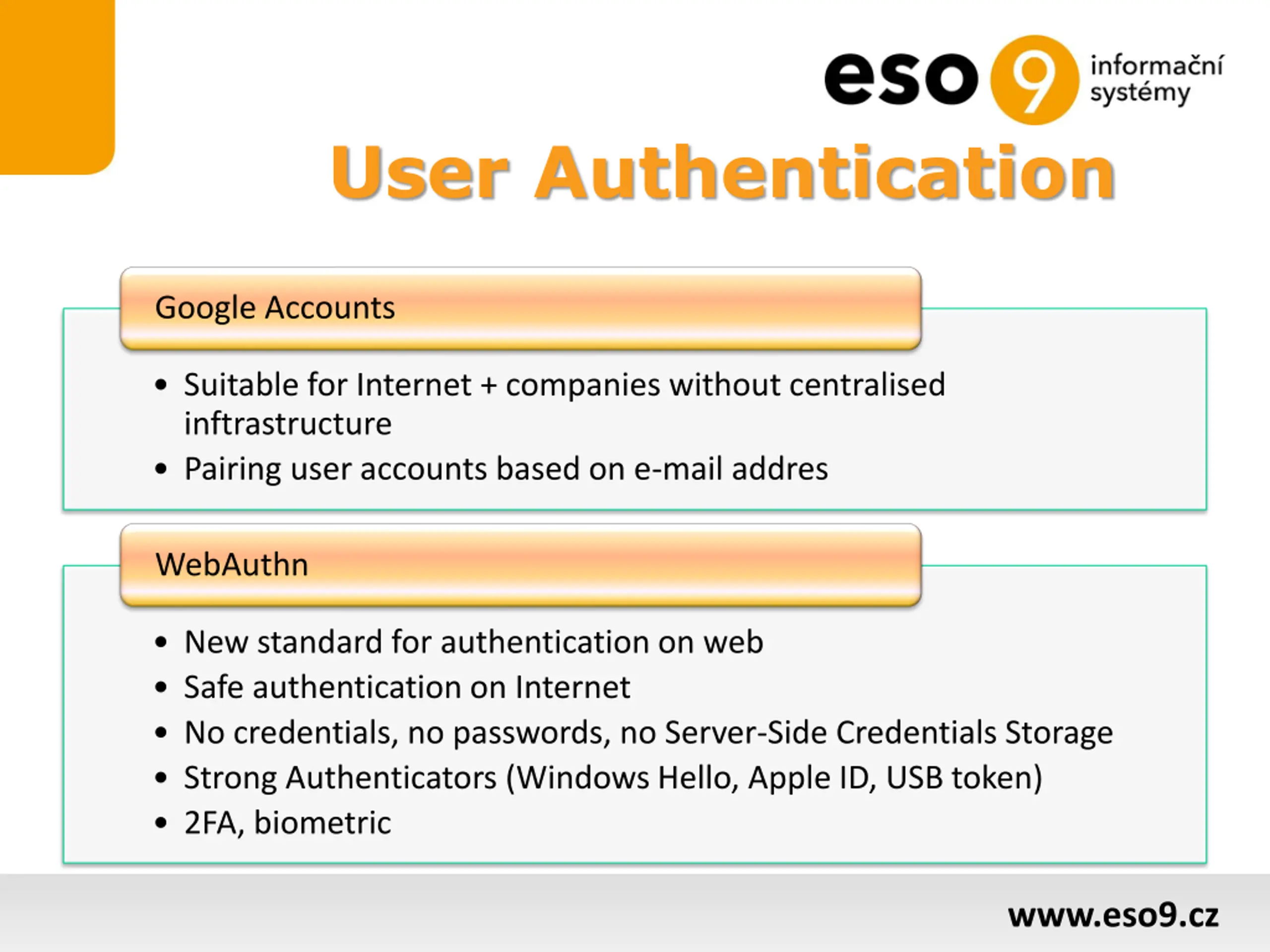

User Authentication Google Accounts Suitable for Internet + companies without centralised inftrastructure Pairing user accounts based on e-mail addres WebAuthn New standard for authentication on web Safe authentication on Internet No credentials, no passwords, no Server-Side Credentials Storage Strong Authenticators (Windows Hello, Apple ID, USB token) 2FA, biometric www.eso9.cz

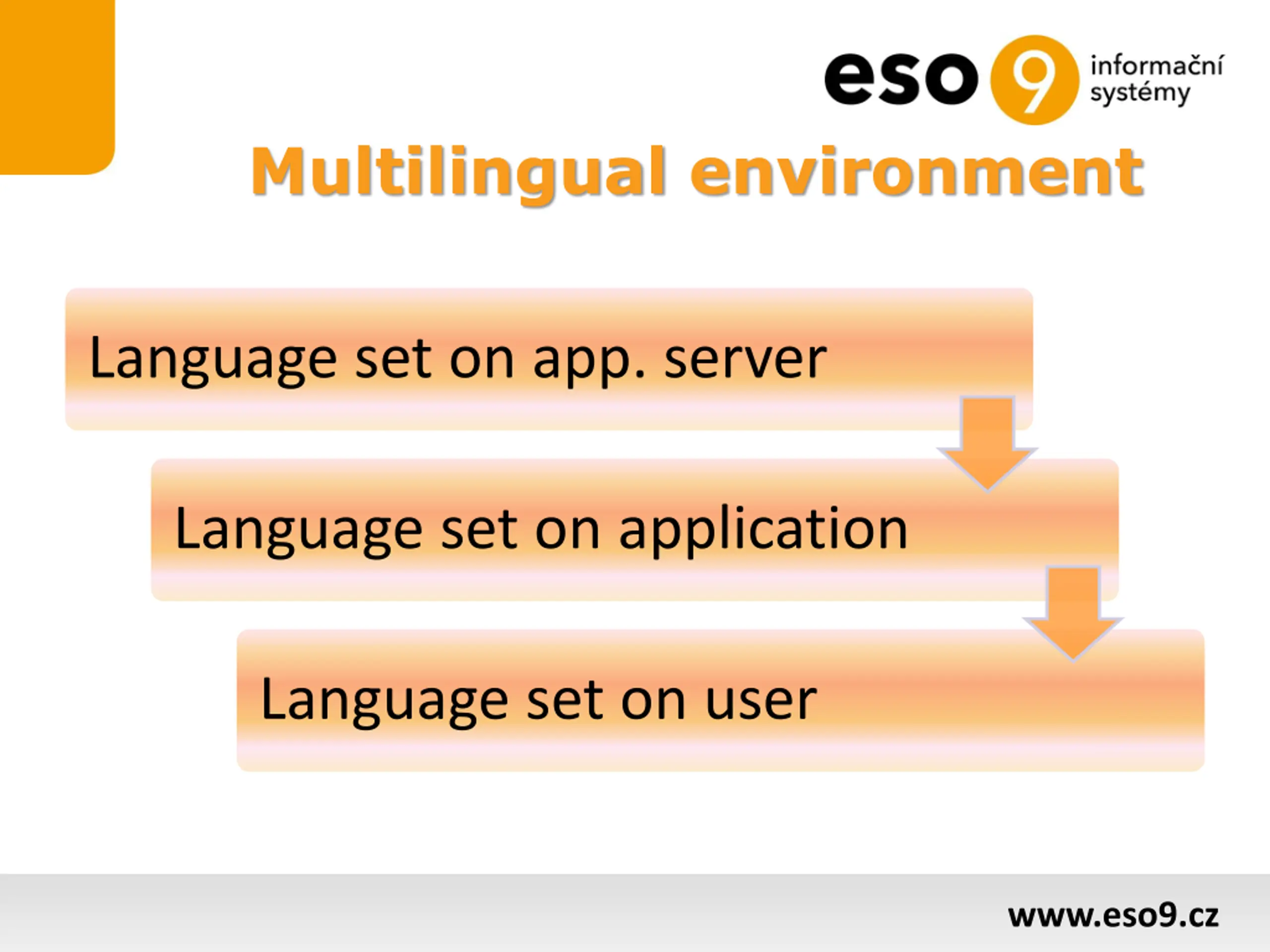

Multilingual environment Language set on app. server Language set on application Language set on user www.eso9.cz

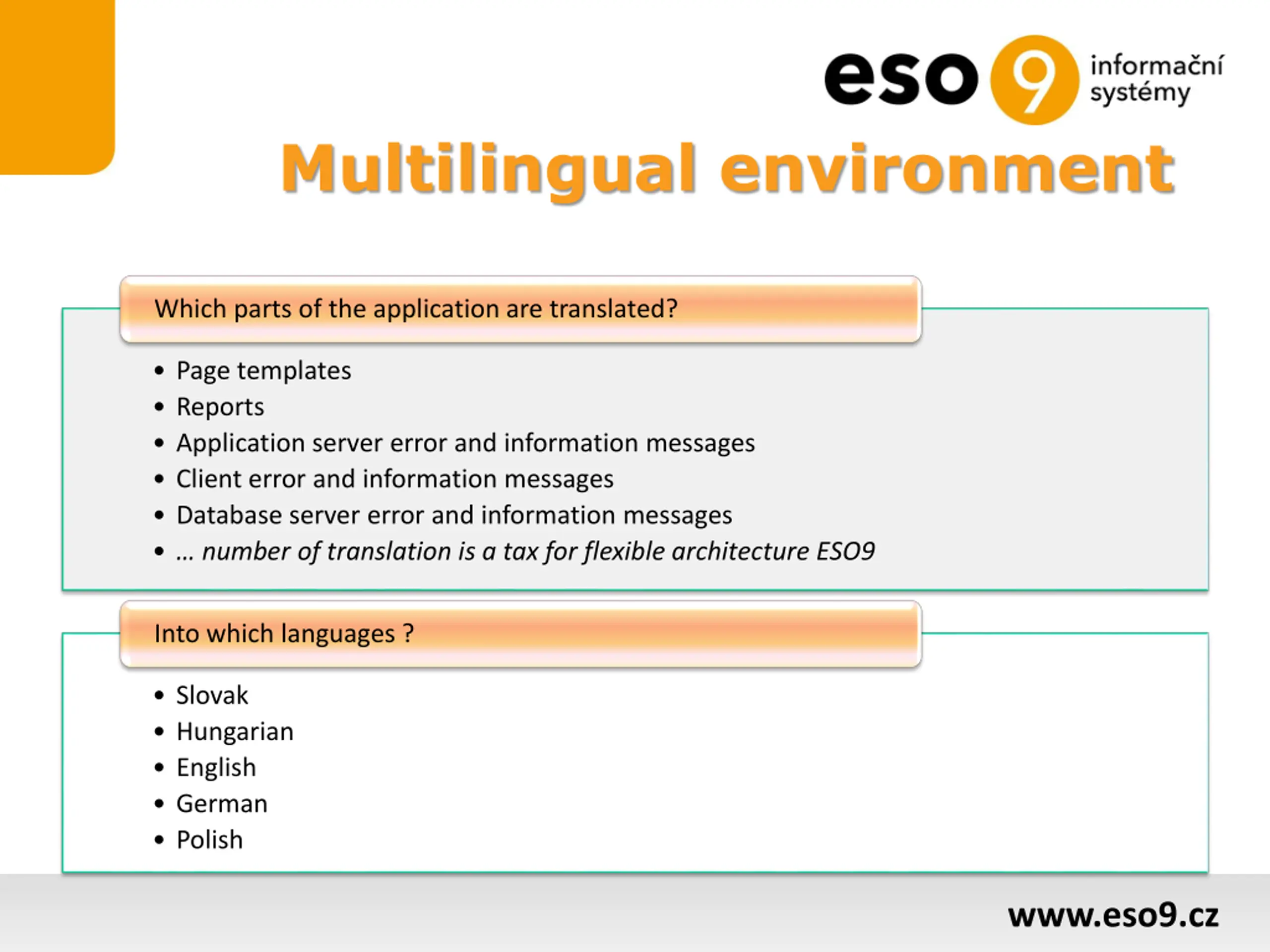

Multilingual environment Which parts of the application are translated? Page templates Reports Application server error and information messages Client error and information messages Database server error and information messages number of translation is a tax for flexible architecture ESO9 Into which languages ? Slovak Hungarian English German Polish www.eso9.cz

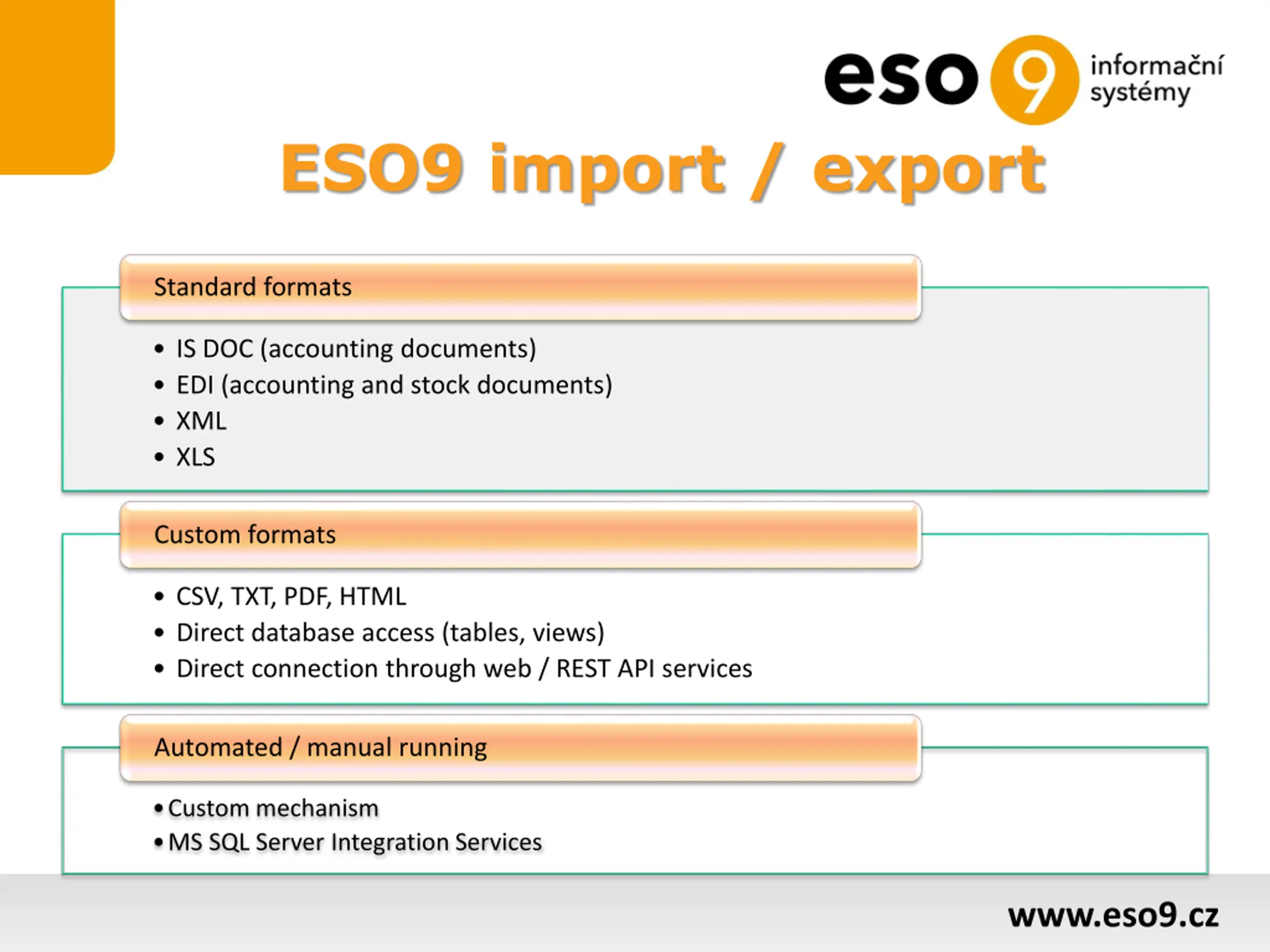

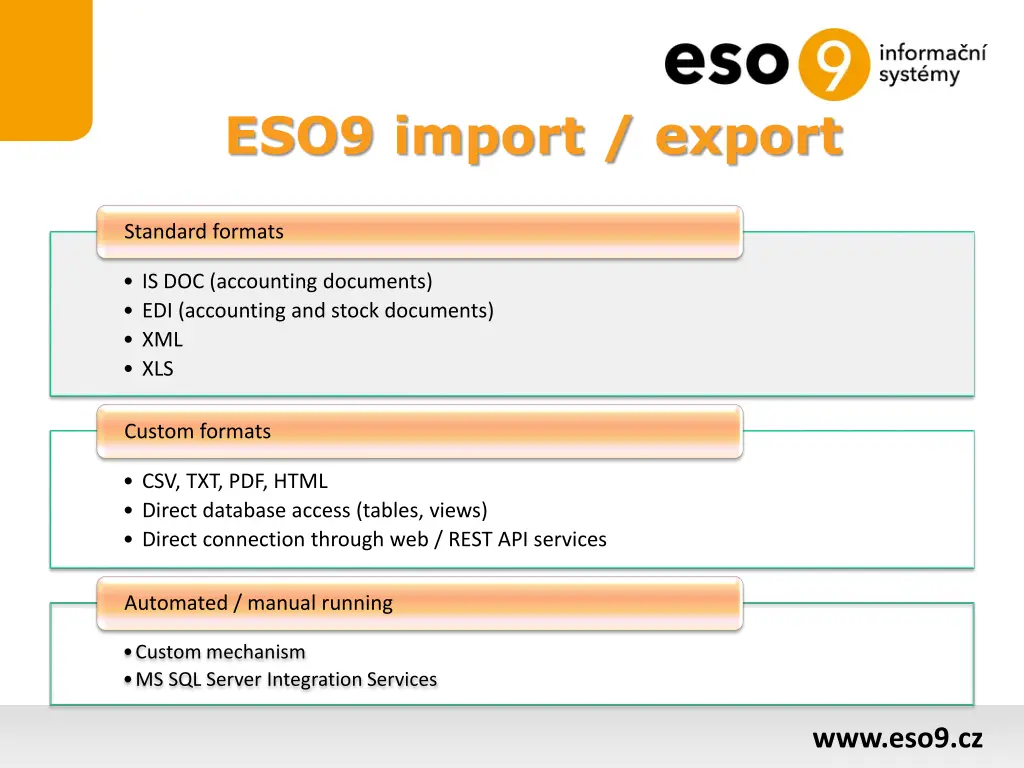

ESO9 import / export Standard formats IS DOC (accounting documents) EDI (accounting and stock documents) XML XLS Custom formats CSV, TXT, PDF, HTML Direct database access (tables, views) Direct connection through web / REST API services Automated / manual running Custom mechanism MS SQL Server Integration Services www.eso9.cz

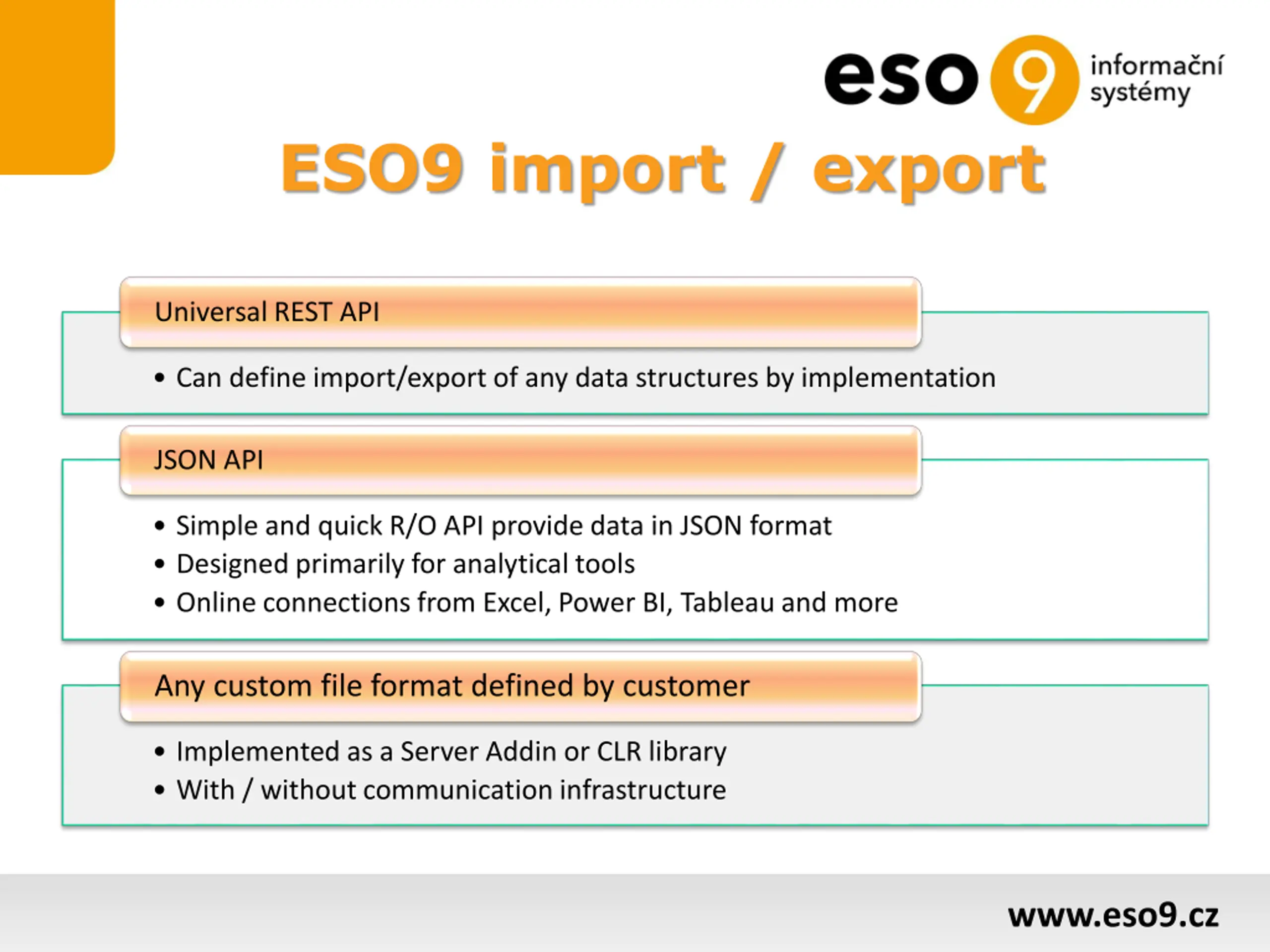

ESO9 import / export Universal REST API Can define import/export of any data structures by implementation JSON API Simple and quick R/O API provide data in JSON format Designed primarily for analytical tools Online connections from Excel, Power BI, Tableau and more Any custom file format defined by customer Implemented as a Server Addin or CLR library With / without communication infrastructure www.eso9.cz
Thank you for your attention 13.4.2010 www.eso9.cz www.eso9.cz
