W hat isa file form at com m only used for 3D printing and com puter-aided design and is an acronym that stands for stereolithography? CAD LCD C A D L C D .STL Group .STL G roup

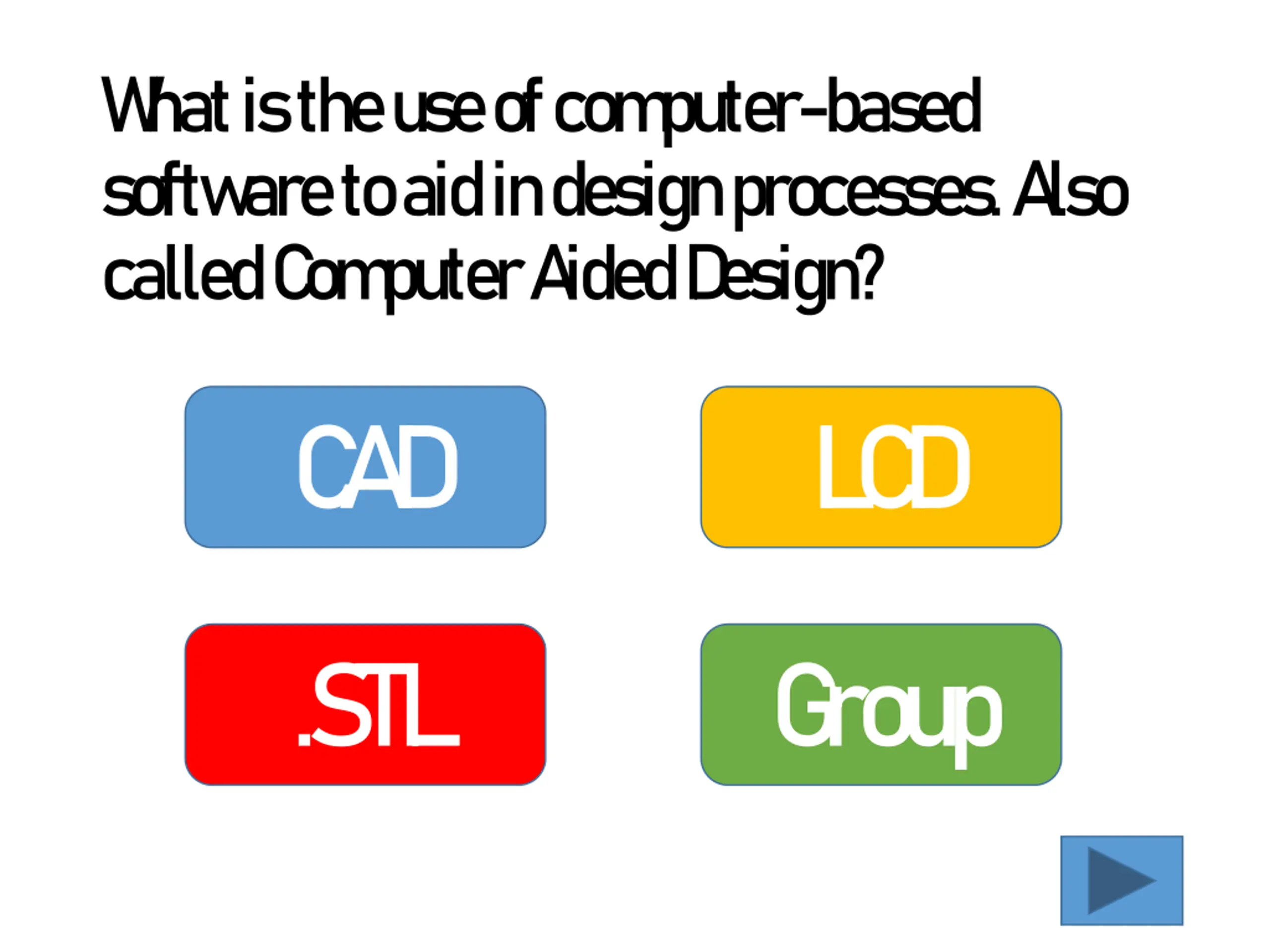

W hat is the use of com puter-based softw are to aid in design processes. A lso called C om puter A ided D esign? CAD LCD C A D L C D .STL Group .STL G roup

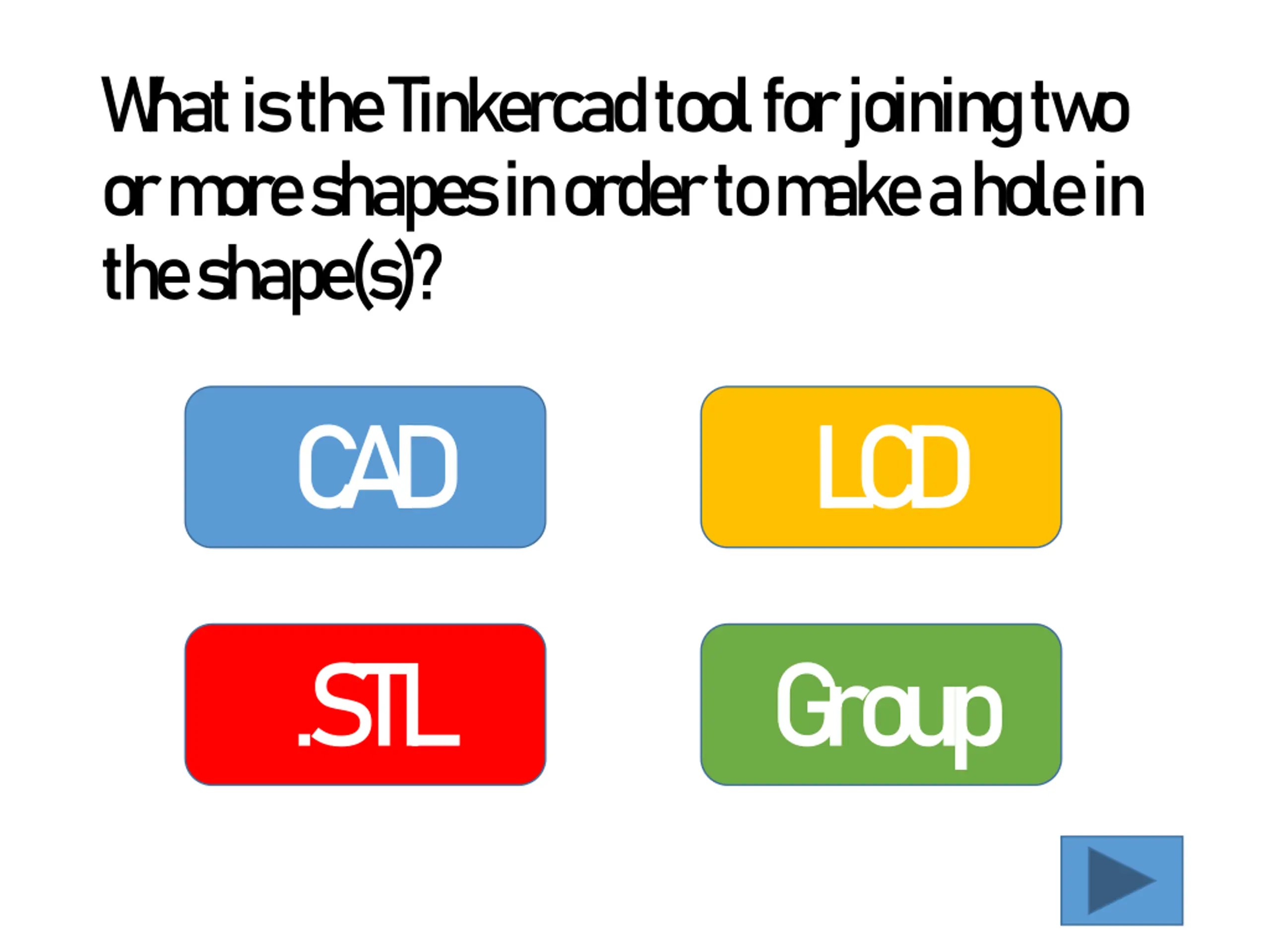

W hat is the Tinkercad tool for joining tw o or m ore shapes in order to m ake a hole in the shape(s)? CAD LCD C A D L C D .STL Group .STL G roup

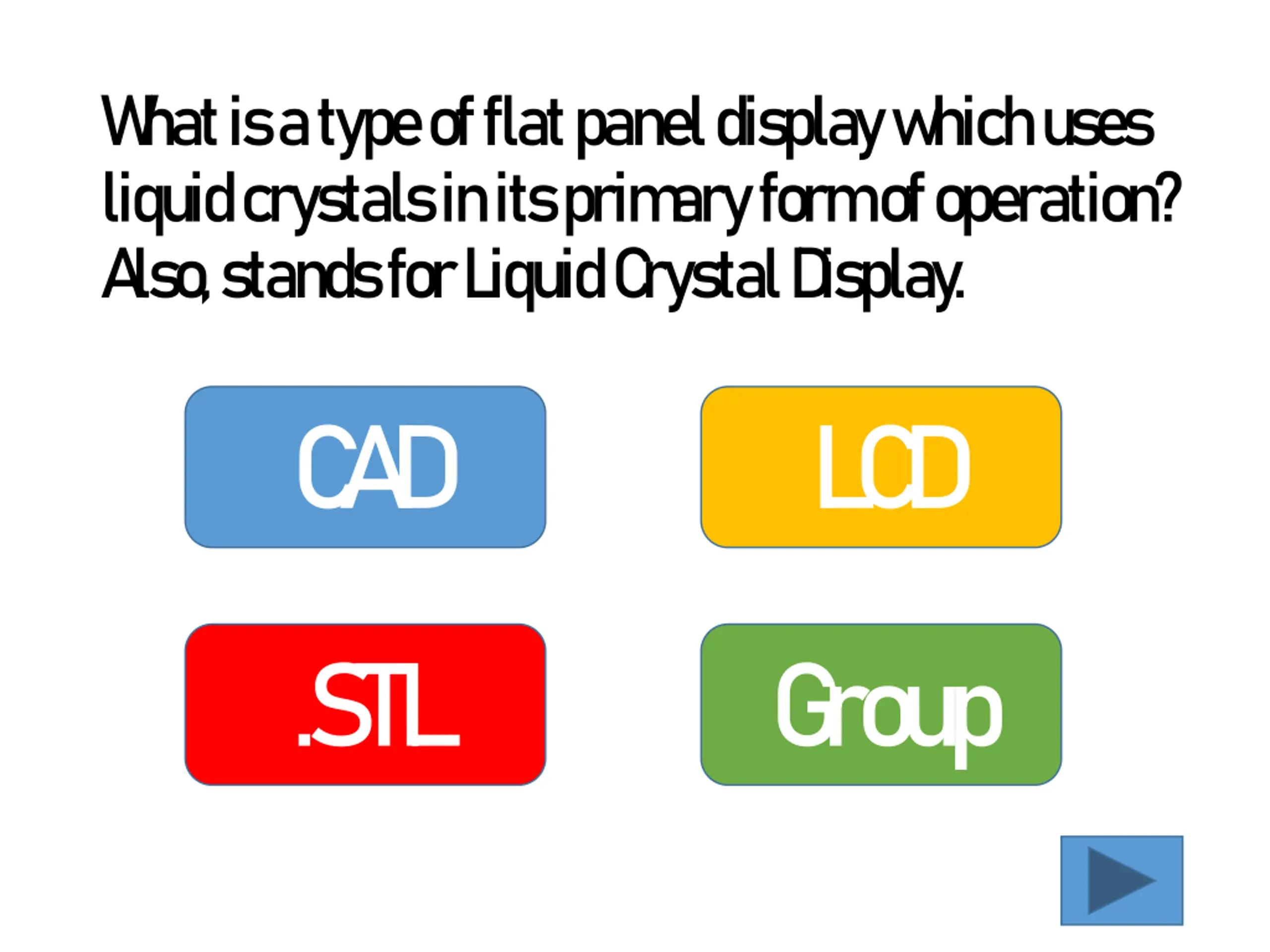

W hat is a type of flat panel display w hich uses liquid crystals in its prim ary form of operation? A lso, stands for L iquid C rystal D isplay. CAD LCD C A D L C D .STL Group .STL G roup

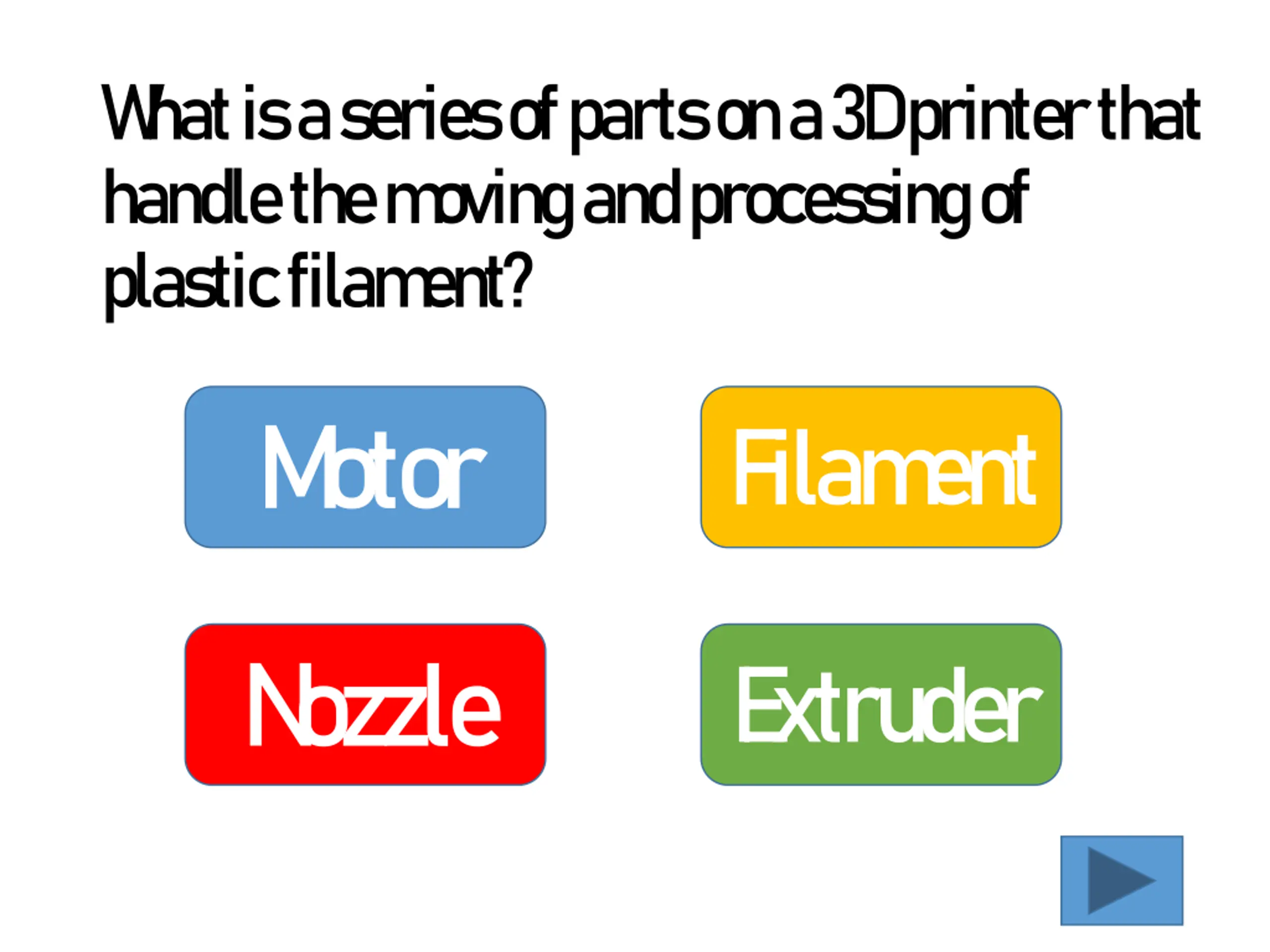

W hat is a series of parts on a 3D printer that handle the m oving and processing of plastic filam ent? Motor Filament M otor Filam ent Nozzle Extruder N ozzle E xtruder

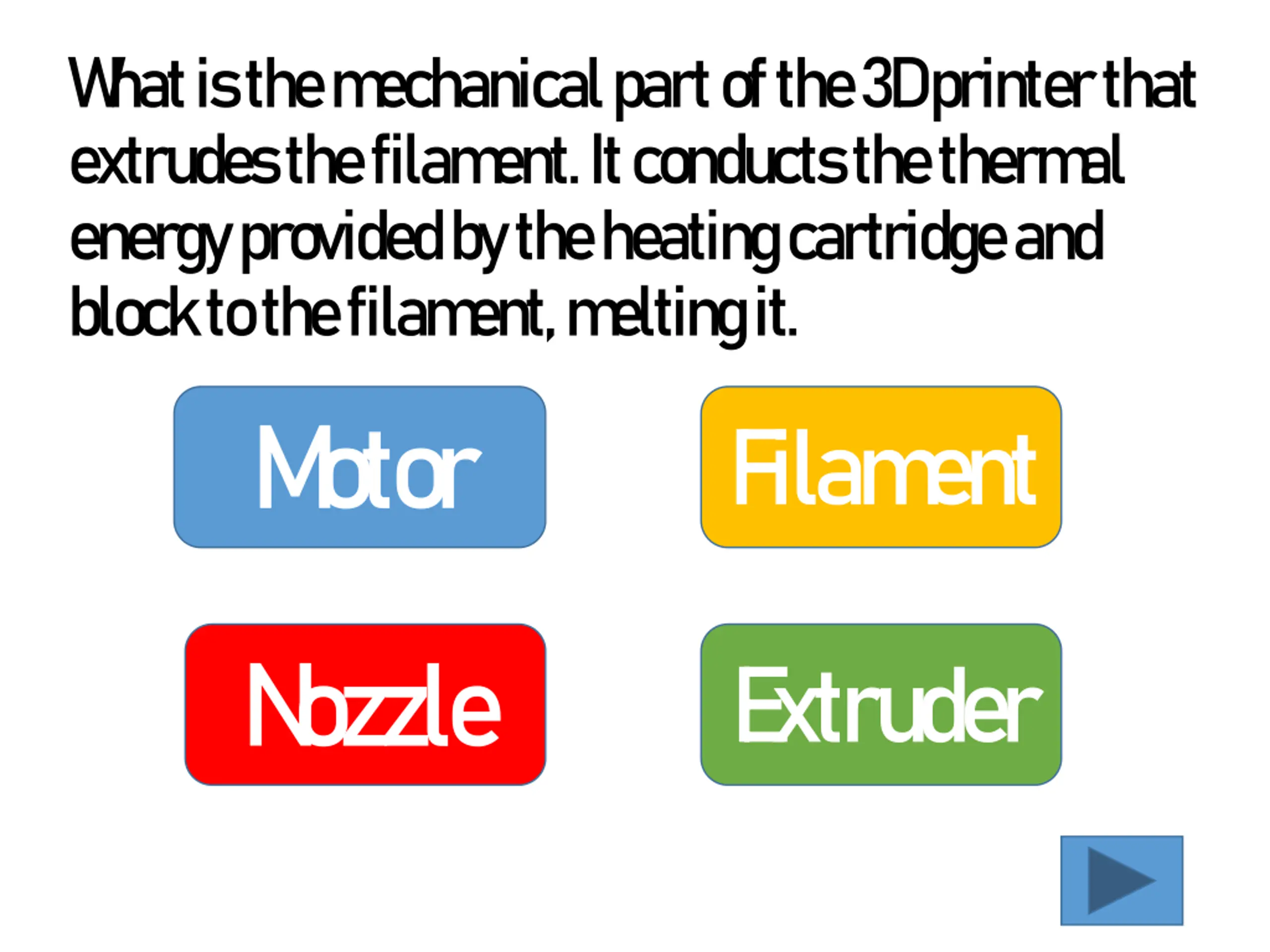

W hat is the m echanical part of the 3D printer that extrudes the filam ent. It conducts the therm al energy provided by the heating cartridge and block to the filam ent, m elting it. M otor Motor Filament Filam ent Nozzle Extruder N ozzle E xtruder

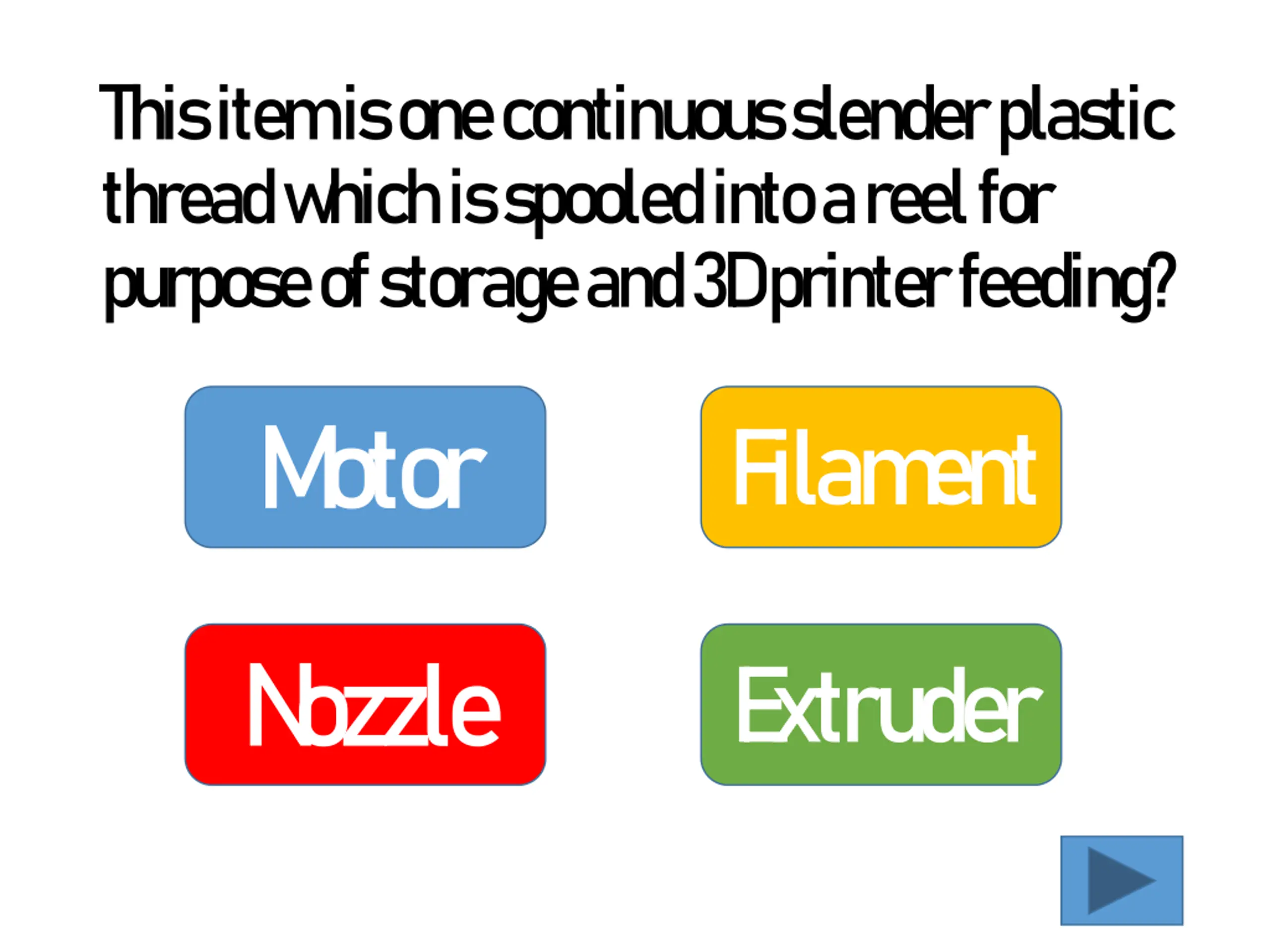

This item is one continuous slender plastic thread w hich is spooled into a reel for purpose of storage and 3D printer feeding? Motor Filament M otor Filam ent Nozzle Extruder N ozzle E xtruder

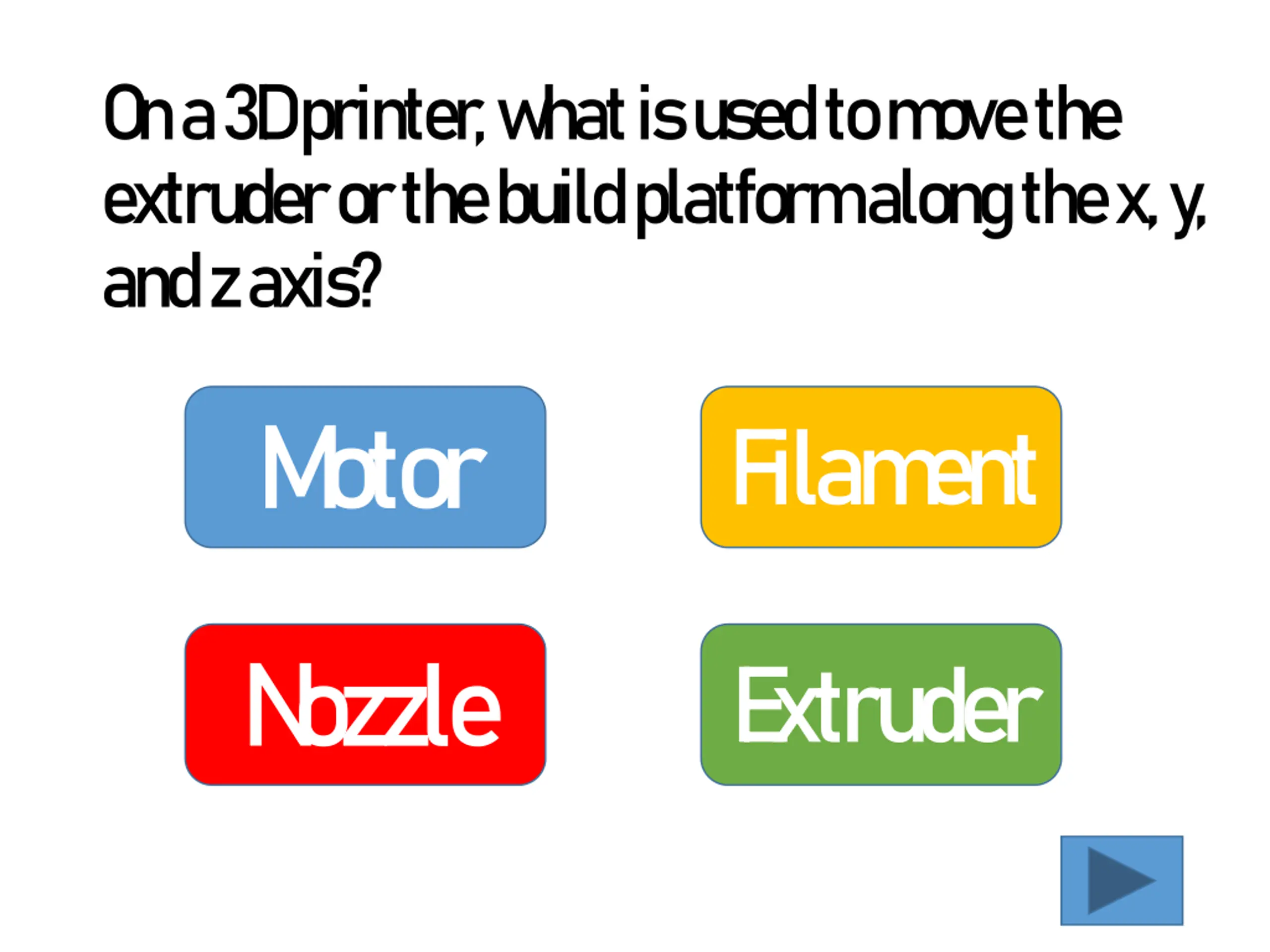

On a 3D printer, w hat is used to m ove the extruder or the build platform along the x, y, and z axis? Motor Filament M otor Filam ent Nozzle Extruder N ozzle E xtruder

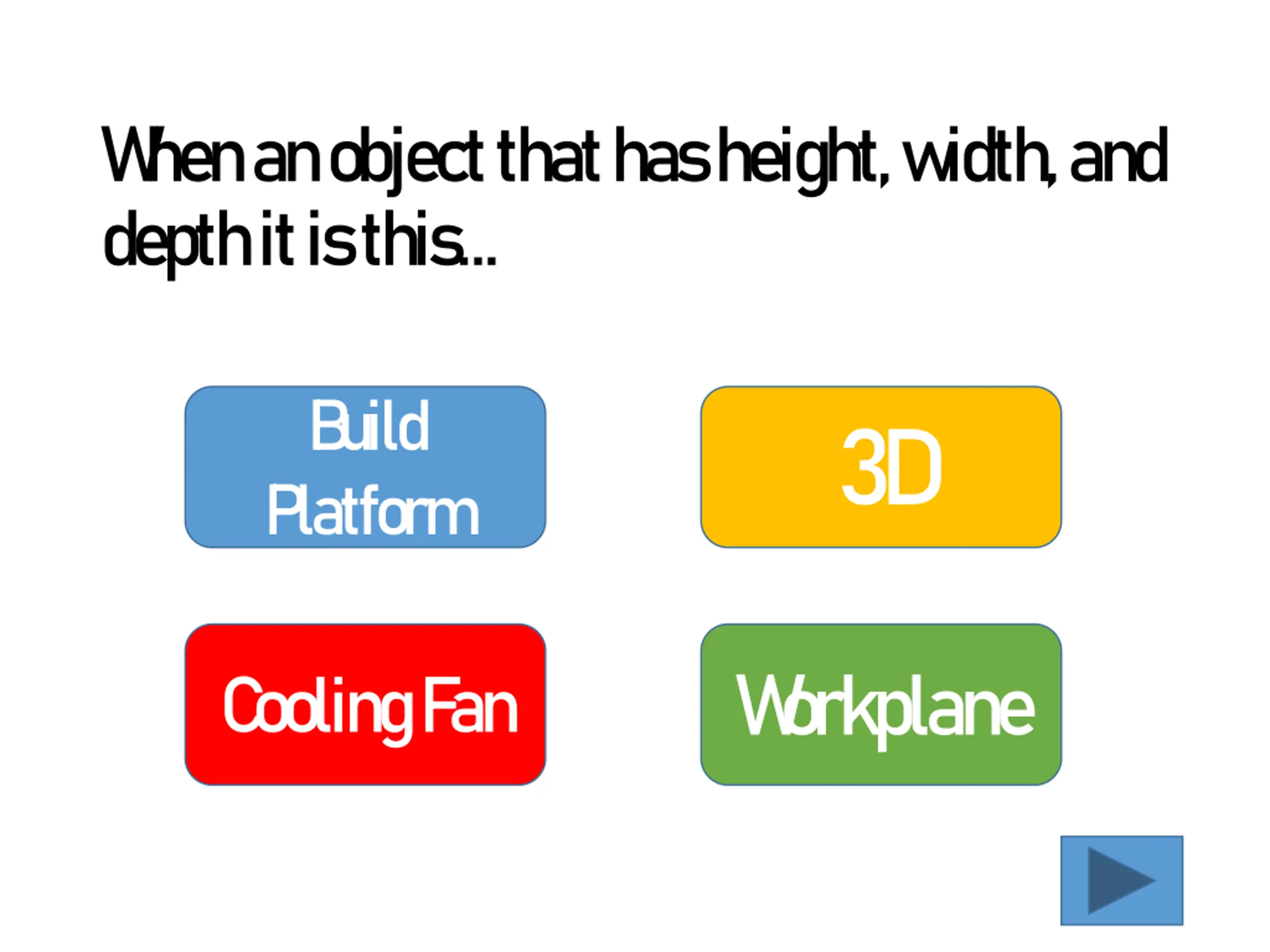

W hen an object that has height, w idth, and depth it is this Build Platform 3D B uild Platform 3D Cooling Fan Workplane W orkplane C ooling Fan

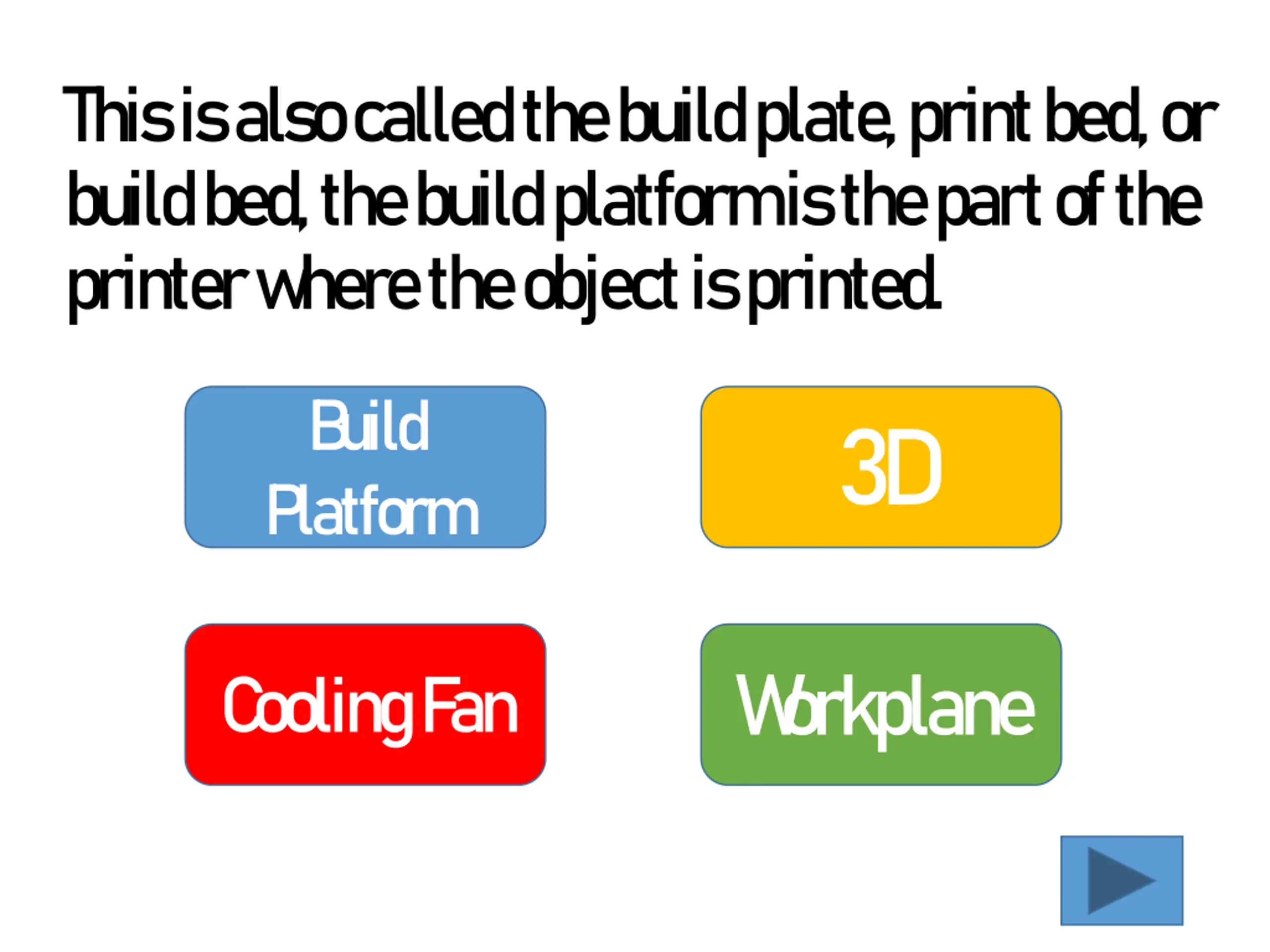

This is also called the build plate, print bed, or build bed, the build platform is the part of the printer w here the object is printed. Build Platform 3D B uild Platform 3D Cooling Fan Workplane W orkplane C ooling Fan

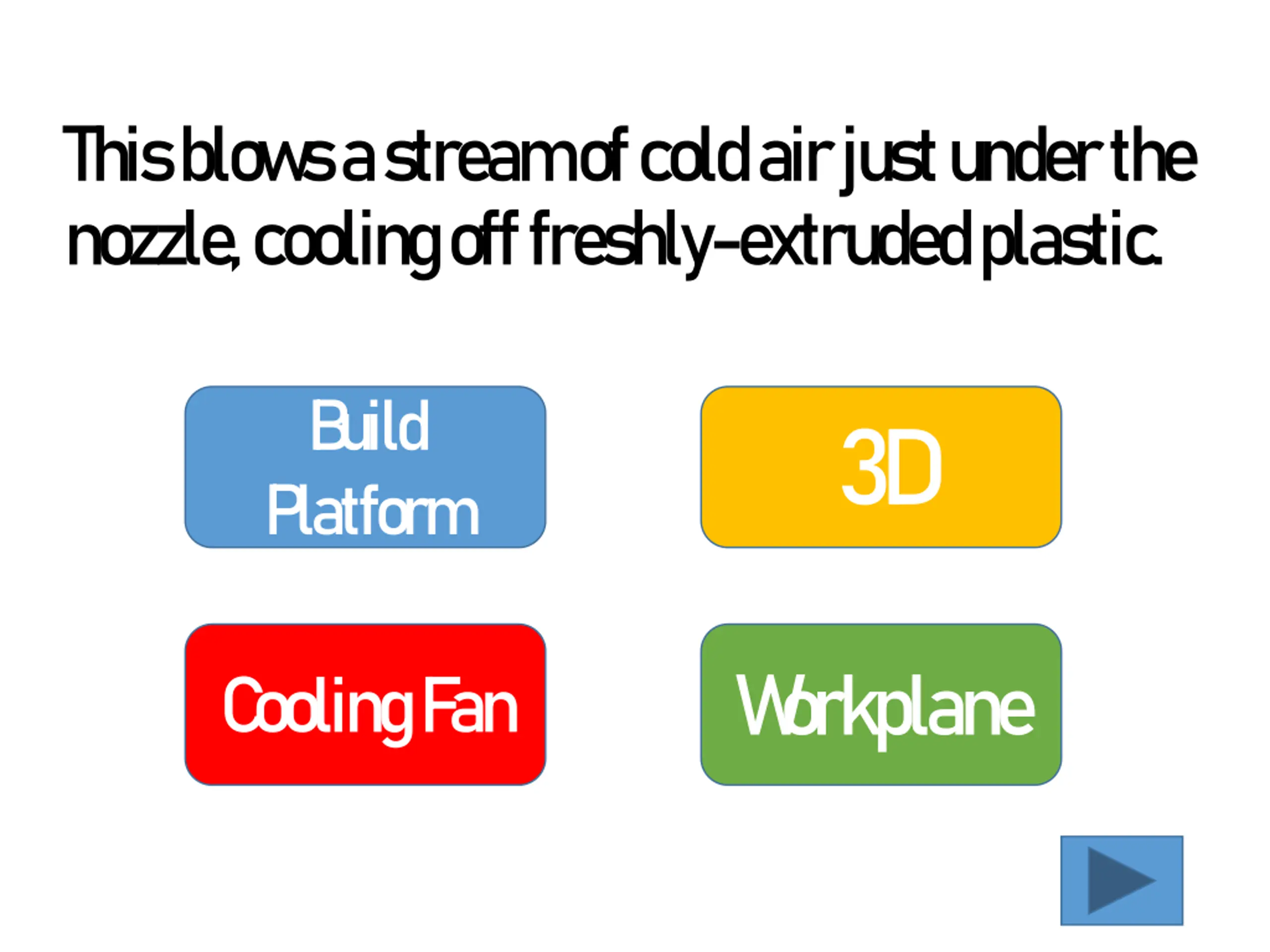

This blow s a stream of cold air just under the nozzle, cooling off freshly-extruded plastic. Build Platform 3D B uild Platform 3D Cooling Fan Workplane W orkplane C ooling Fan

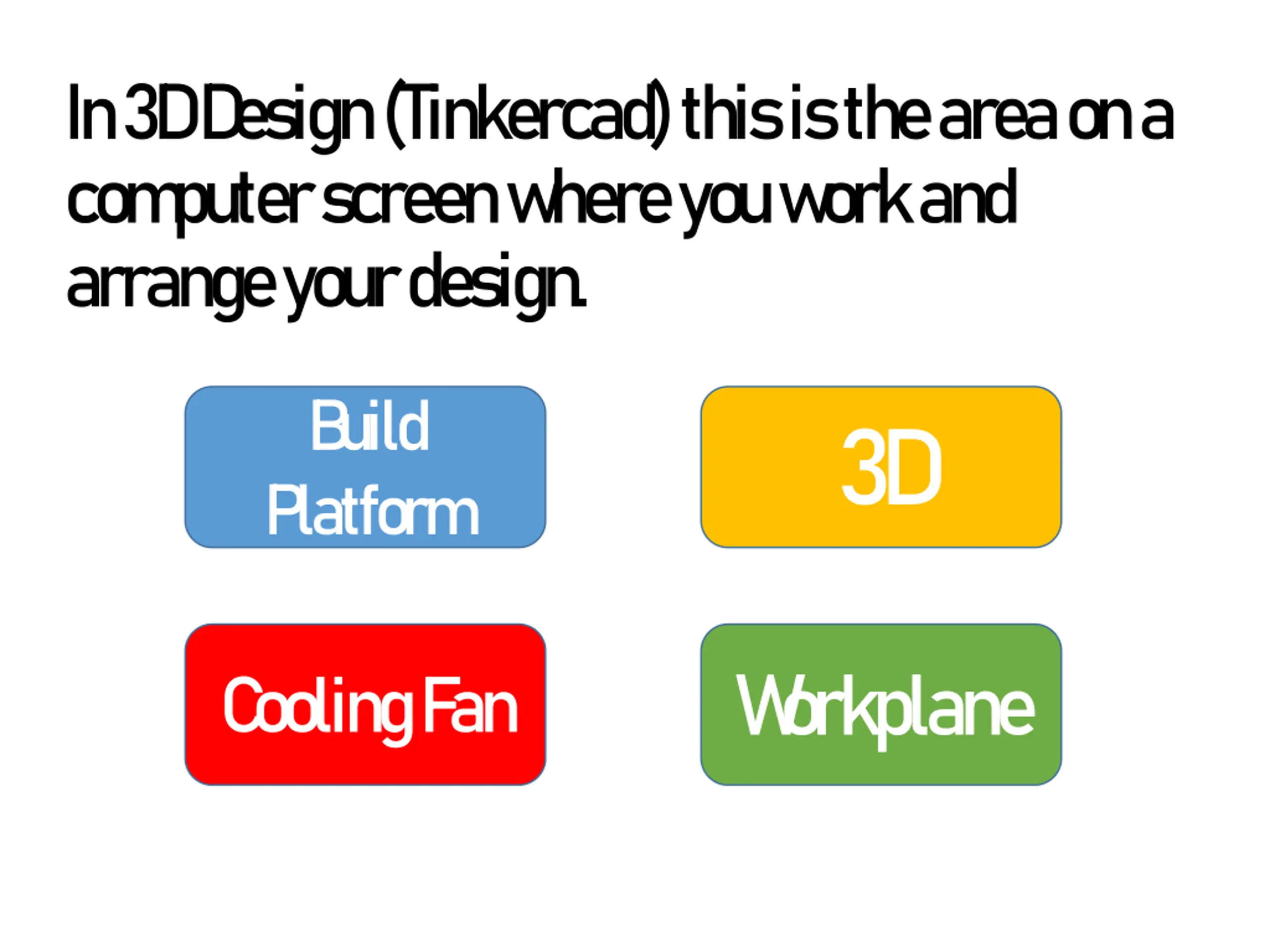

In 3D D esign (Tinkercad) this is the area on a com puter screen w here you w ork and arrange your design. Build Platform 3D B uild Platform 3D Cooling Fan Workplane W orkplane C ooling Fan
