EURISOL Distributed Facility (DF) Initiative: Working Group for Spectrometers & Detectors

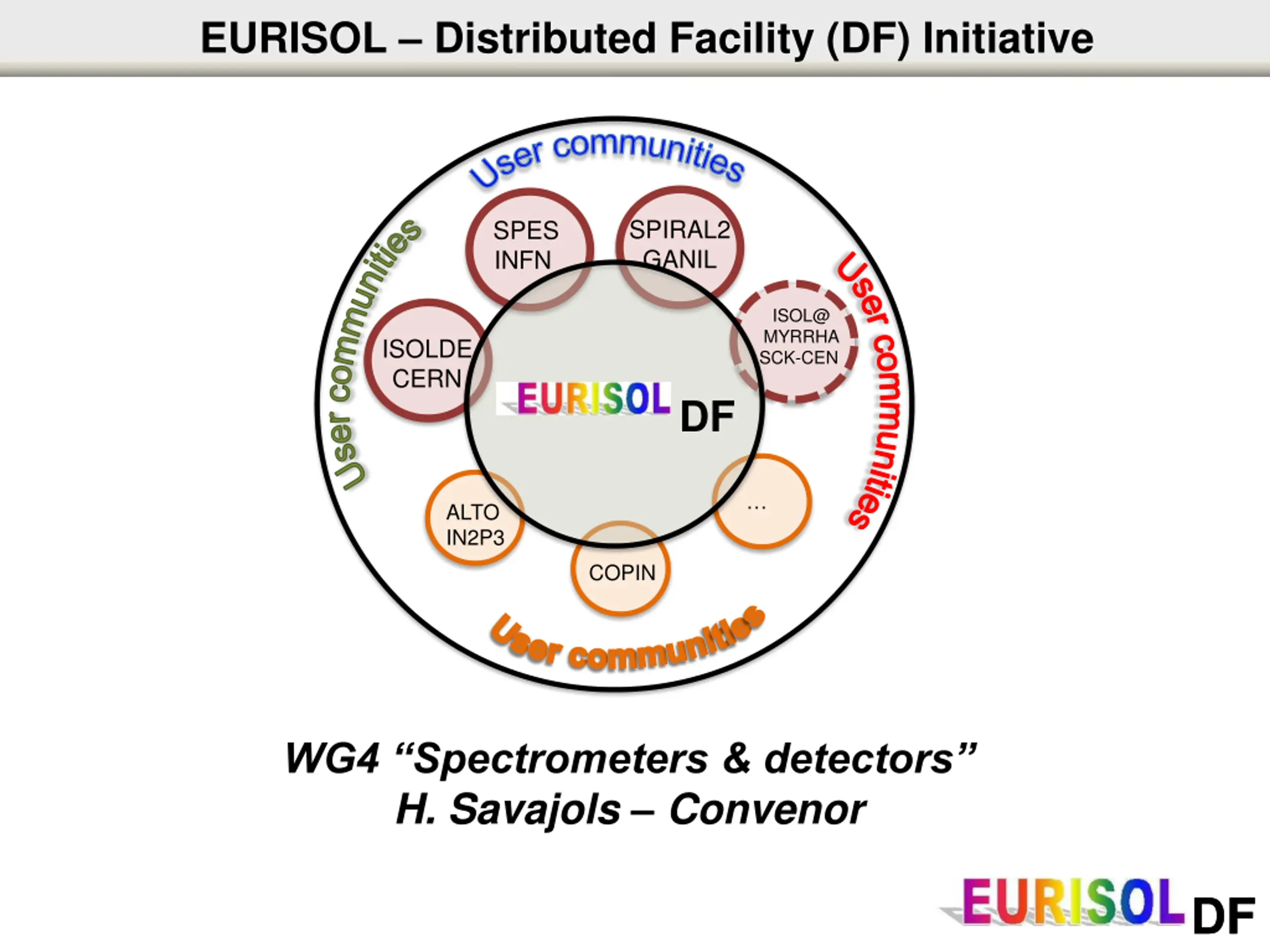

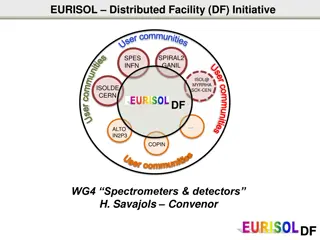

EURISOL Distributed Facility (DF) Initiative User communities User communities SPIRAL2 GANIL SPES INFN User communities ISOL@ MYRRHA SCK-CEN ISOLDE CERN DF ALTO IN2P3 COPIN User communities WG4 Spectrometers & detectors H. Savajols Convenor DF DF

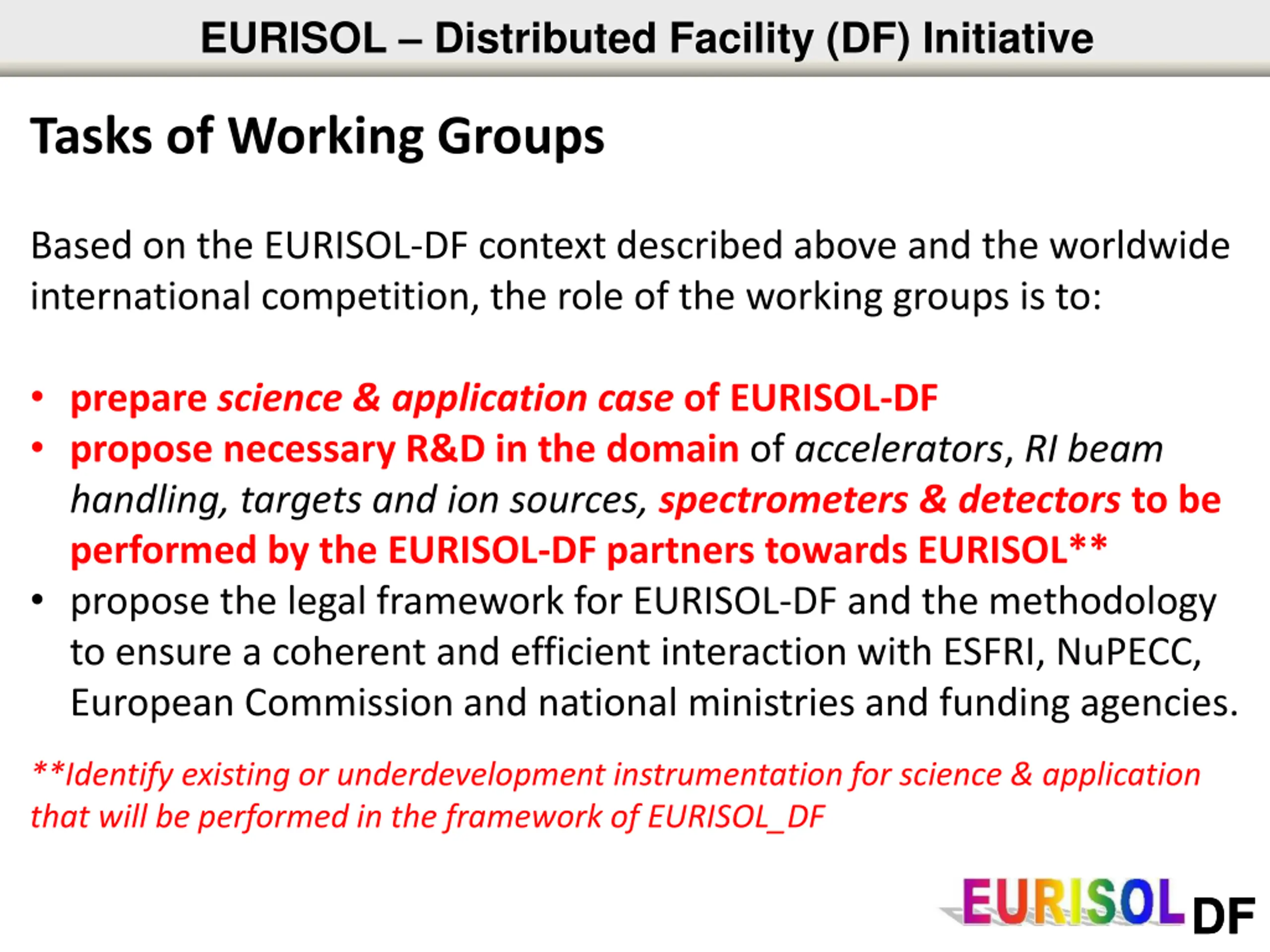

EURISOL Distributed Facility (DF) Initiative Tasks of Working Groups Based on the EURISOL-DF context described above and the worldwide international competition, the role of the working groups is to: prepare science & application case of EURISOL-DF propose necessary R&D in the domain of accelerators, RI beam handling, targets and ion sources, spectrometers & detectors to be performed by the EURISOL-DF partners towards EURISOL** propose the legal framework for EURISOL-DF and the methodology to ensure a coherent and efficient interaction with ESFRI, NuPECC, European Commission and national ministries and funding agencies. **Identify existing or underdevelopment instrumentation for science & application that will be performed in the framework of EURISOL_DF DF DF

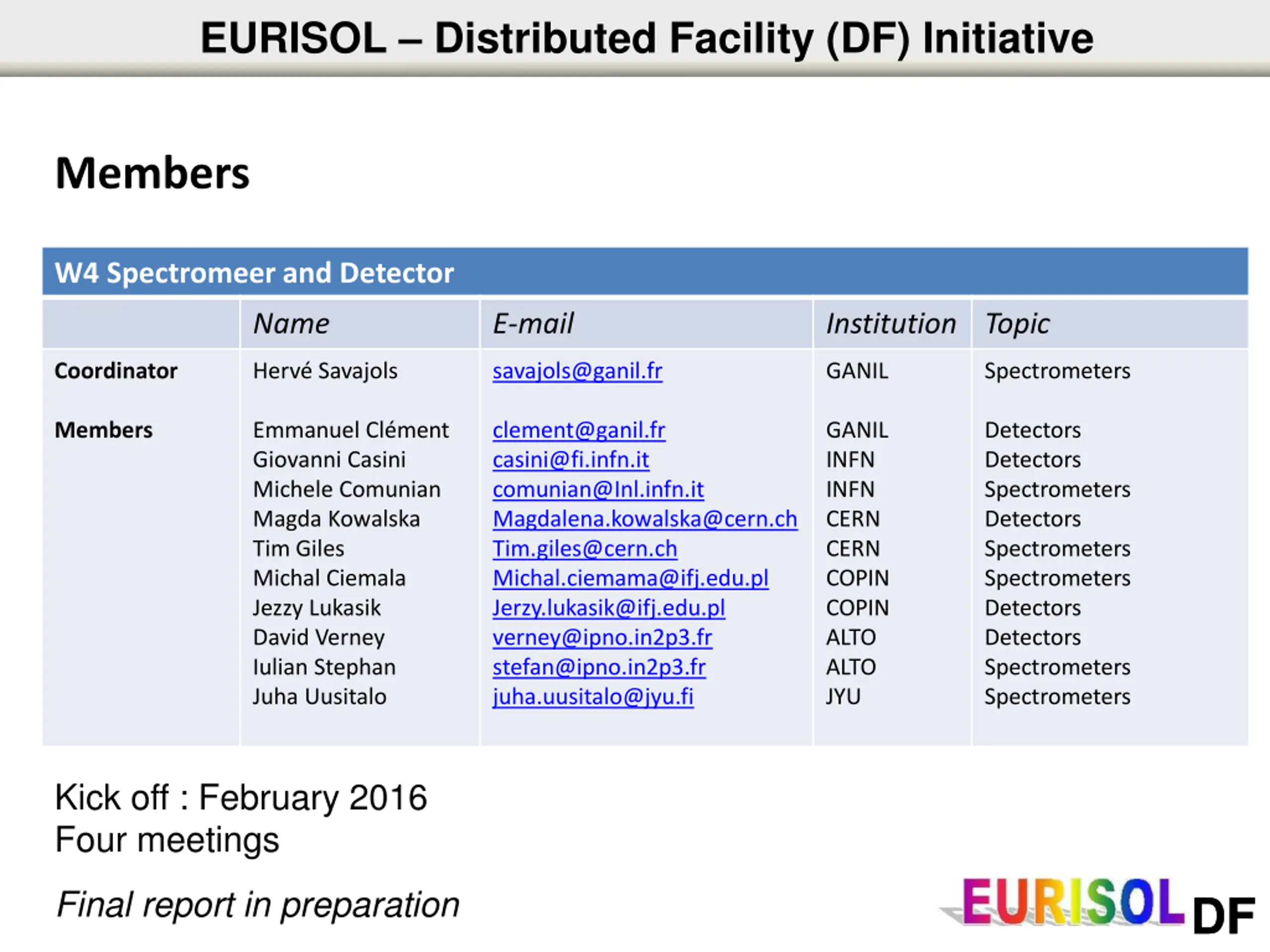

EURISOL Distributed Facility (DF) Initiative Members W4 Spectromeer and Detector Name E-mail Institution Topic Coordinator Herv Savajols savajols@ganil.fr GANIL Spectrometers Members Emmanuel Cl ment Giovanni Casini Michele Comunian Magda Kowalska Tim Giles Michal Ciemala Jezzy Lukasik David Verney Iulian Stephan Juha Uusitalo clement@ganil.fr casini@fi.infn.it comunian@Inl.infn.it Magdalena.kowalska@cern.ch Tim.giles@cern.ch Michal.ciemama@ifj.edu.pl Jerzy.lukasik@ifj.edu.pl verney@ipno.in2p3.fr stefan@ipno.in2p3.fr juha.uusitalo@jyu.fi GANIL INFN INFN CERN CERN COPIN COPIN ALTO ALTO JYU Detectors Detectors Spectrometers Detectors Spectrometers Spectrometers Detectors Detectors Spectrometers Spectrometers Kick off : February 2016 Four meetings Final report in preparation DF DF

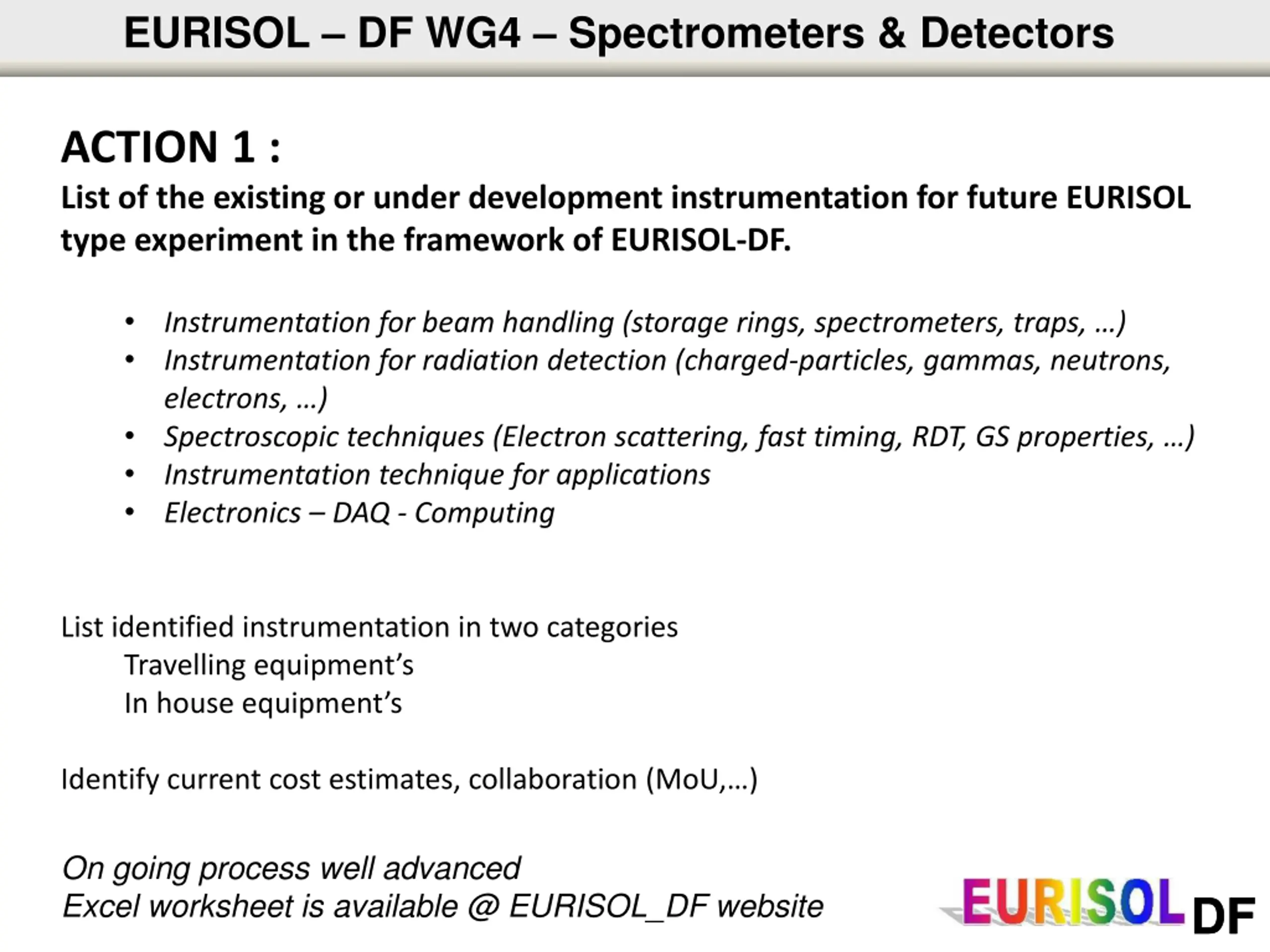

EURISOL DF WG4 Spectrometers & Detectors ACTION 1 : List of the existing or under development instrumentation for future EURISOL type experiment in the framework of EURISOL-DF. Instrumentation for beam handling (storage rings, spectrometers, traps, ) Instrumentation for radiation detection (charged-particles, gammas, neutrons, electrons, ) Spectroscopic techniques (Electron scattering, fast timing, RDT, GS properties, ) Instrumentation technique for applications Electronics DAQ - Computing List identified instrumentation in two categories Travelling equipment s In house equipment s Identify current cost estimates, collaboration (MoU, ) On going process well advanced Excel worksheet is available @ EURISOL_DF website DF DF

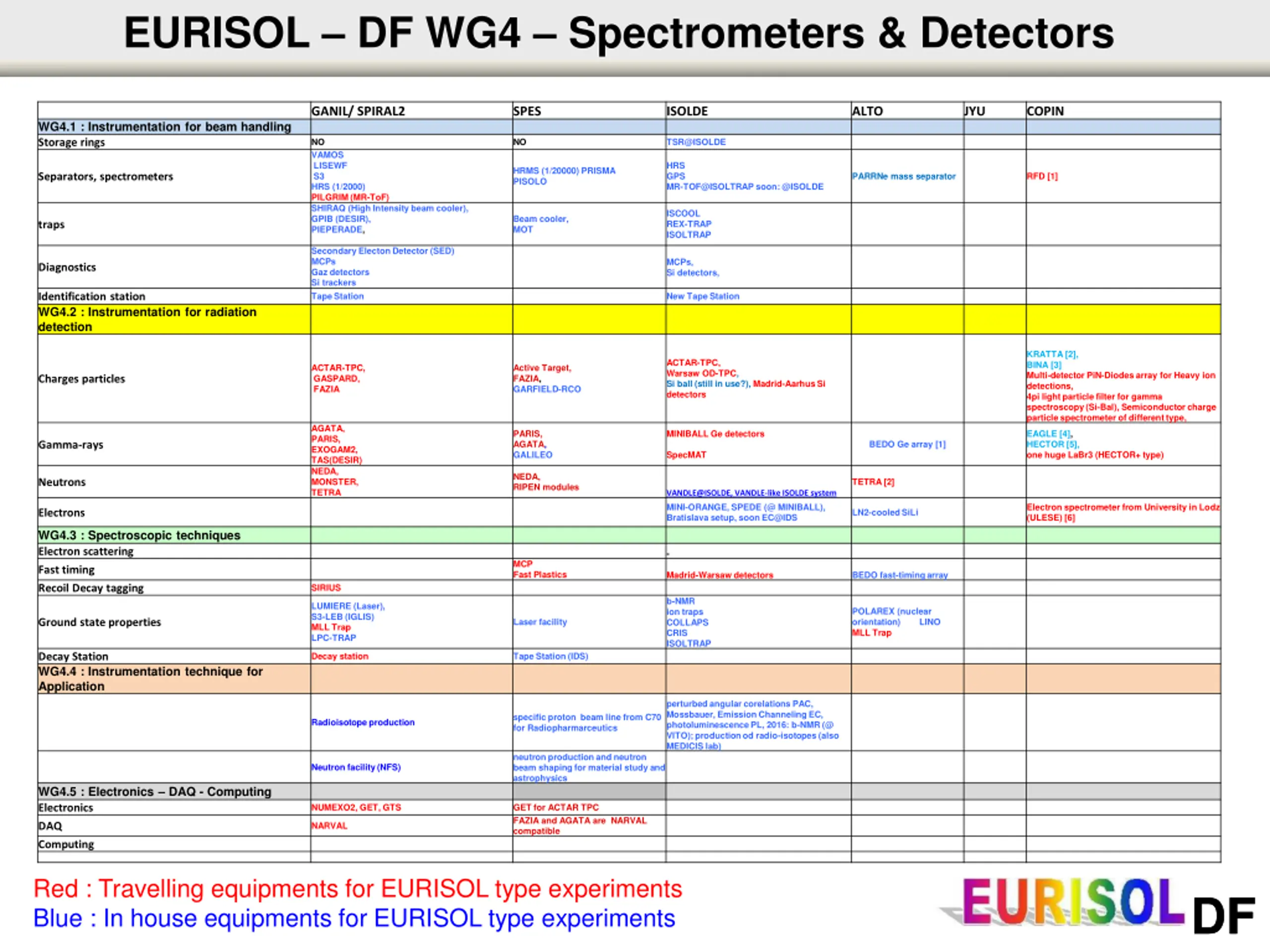

EURISOL DF WG4 Spectrometers & Detectors GANIL/ SPIRAL2 SPES ISOLDE ALTO JYU COPIN WG4.1 : Instrumentation for beam handling Storage rings NO VAMOS LISEWF S3 HRS (1/2000) PILGRIM (MR-ToF) SHIRAQ (High Intensity beam cooler), GPIB (DESIR), PIEPERADE, NO TSR@ISOLDE HRS GPS MR-TOF@ISOLTRAP soon: @ISOLDE HRMS (1/20000) PRISMA PISOLO PARRNe mass separator RFD [1] Separators, spectrometers ISCOOL REX-TRAP ISOLTRAP Beam cooler, MOT traps Secondary Electon Detector (SED) MCPs Gaz detectors Si trackers Tape Station MCPs, Si detectors, Diagnostics New Tape Station Identification station WG4.2 : Instrumentation for radiation detection KRATTA [2], BINA [3] Multi-detector PiN-Diodes array for Heavy ion detections, 4pi light particle filter for gamma spectroscopy (Si-Bal), Semiconductor charge particle spectrometer of different type, ACTAR-TPC, Warsaw OD-TPC, Si ball (still in use?), Madrid-Aarhus Si detectors ACTAR-TPC, GASPARD, FAZIA Active Target, FAZIA, GARFIELD-RCO Charges particles AGATA, PARIS, EXOGAM2, TAS(DESIR) NEDA, MONSTER, TETRA PARIS, AGATA, GALILEO MINIBALL Ge detectors EAGLE [4], HECTOR [5], one huge LaBr3 (HECTOR+ type) BEDO Ge array [1] Gamma-rays SpecMAT NEDA, RIPEN modules TETRA [2] Neutrons VANDLE@ISOLDE, VANDLE-like ISOLDE system MINI-ORANGE, SPEDE (@ MINIBALL), Bratislava setup, soon EC@IDS Electron spectrometer from University in Lodz (ULESE) [6] LN2-cooled SiLi Electrons WG4.3 : Spectroscopic techniques Electron scattering Fast timing Recoil Decay tagging - MCP Fast Plastics Madrid-Warsaw detectors BEDO fast-timing array SIRIUS b-NMR ion traps COLLAPS CRIS ISOLTRAP LUMIERE (Laser), S3-LEB (IGLIS) MLL Trap LPC-TRAP POLAREX (nuclear orientation) LINO MLL Trap Laser facility Ground state properties Decay station Tape Station (IDS) Decay Station WG4.4 : Instrumentation technique for Application perturbed angular corelations PAC, Mossbauer, Emission Channeling EC, photoluminescence PL, 2016: b-NMR (@ VITO); production od radio-isotopes (also MEDICIS lab) specific proton beam line from C70 for Radiopharmarceutics Radioisotope production neutron production and neutron beam shaping for material study and astrophysics Neutron facility (NFS) WG4.5 : Electronics DAQ - Computing Electronics DAQ Computing NUMEXO2, GET, GTS GET for ACTAR TPC FAZIA and AGATA are NARVAL compatible NARVAL Red : Travelling equipments for EURISOL type experiments Blue : In house equipments for EURISOL type experiments DF DF

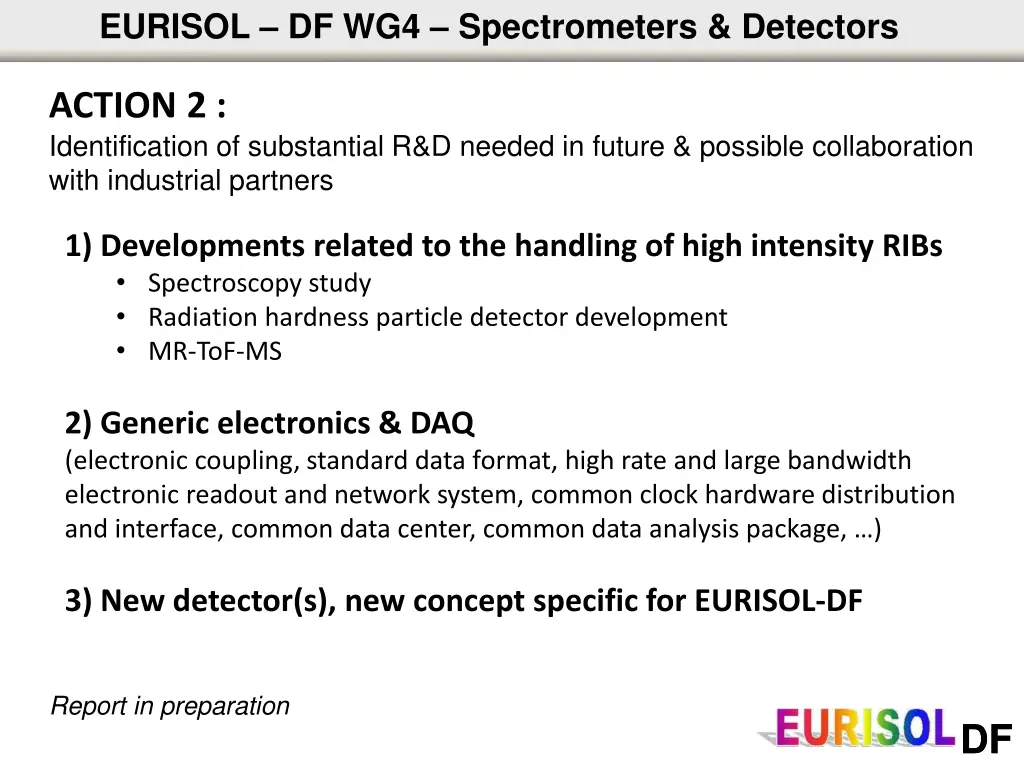

EURISOL DF WG4 Spectrometers & Detectors ACTION 2 : Identification of substantial R&D needed in future & possible collaboration with industrial partners 1) Developments related to the handling of high intensity RIBs Spectroscopy study Radiation hardness particle detector development MR-ToF-MS 2) Generic electronics & DAQ (electronic coupling, standard data format, high rate and large bandwidth electronic readout and network system, common clock hardware distribution and interface, common data center, common data analysis package, ) 3) New detector(s), new concept specific for EURISOL-DF Report in preparation DF DF

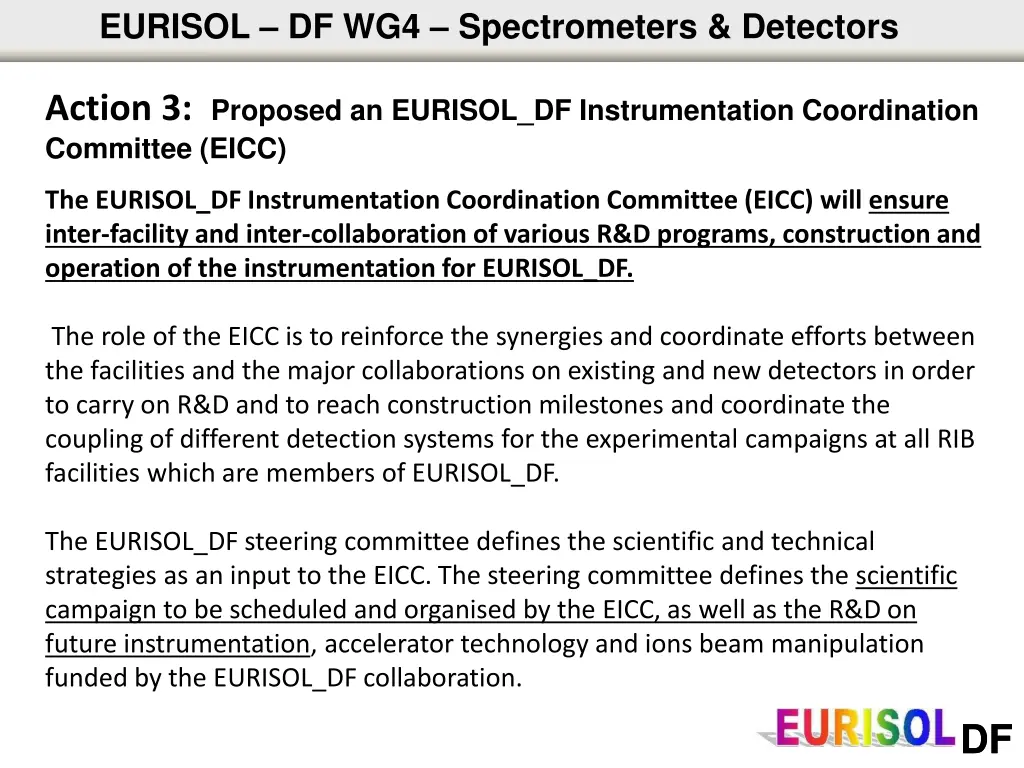

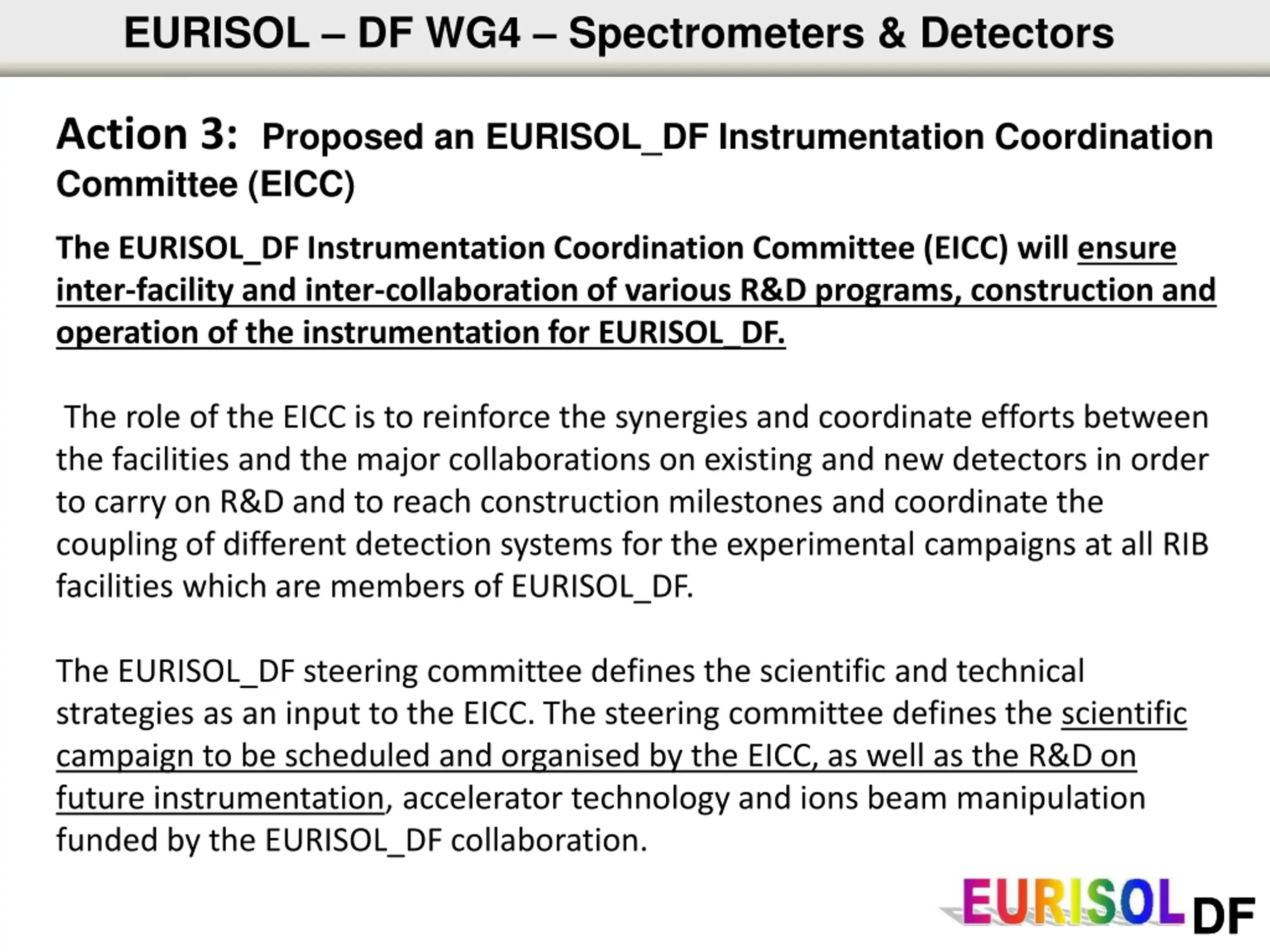

EURISOL DF WG4 Spectrometers & Detectors Action 3: Proposed an EURISOL_DF Instrumentation Coordination Committee (EICC) The EURISOL_DF Instrumentation Coordination Committee (EICC) will ensure inter-facility and inter-collaboration of various R&D programs, construction and operation of the instrumentation for EURISOL_DF. The role of the EICC is to reinforce the synergies and coordinate efforts between the facilities and the major collaborations on existing and new detectors in order to carry on R&D and to reach construction milestones and coordinate the coupling of different detection systems for the experimental campaigns at all RIB facilities which are members of EURISOL_DF. The EURISOL_DF steering committee defines the scientific and technical strategies as an input to the EICC. The steering committee defines the scientific campaign to be scheduled and organised by the EICC, as well as the R&D on future instrumentation, accelerator technology and ions beam manipulation funded by the EURISOL_DF collaboration. DF DF

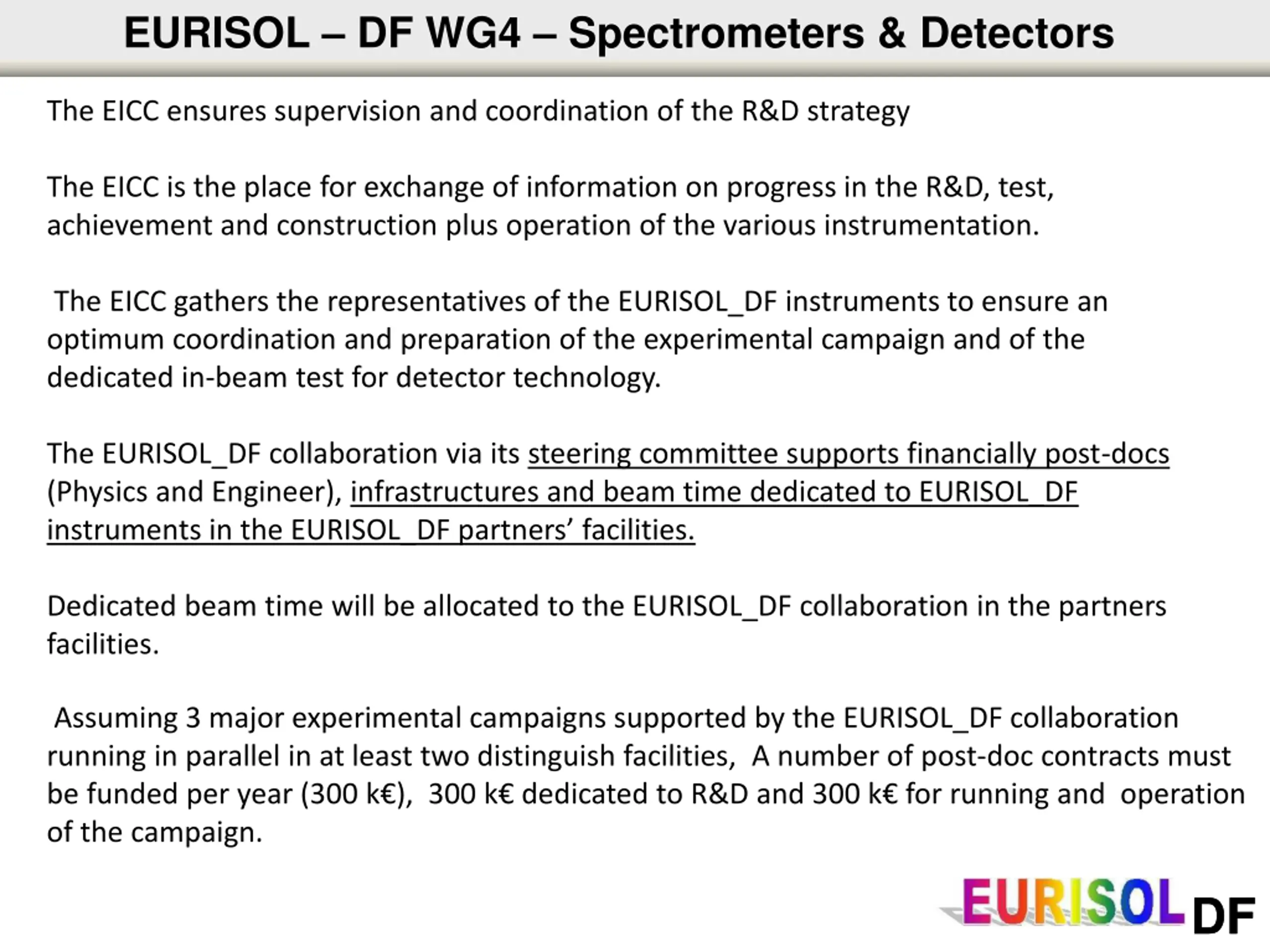

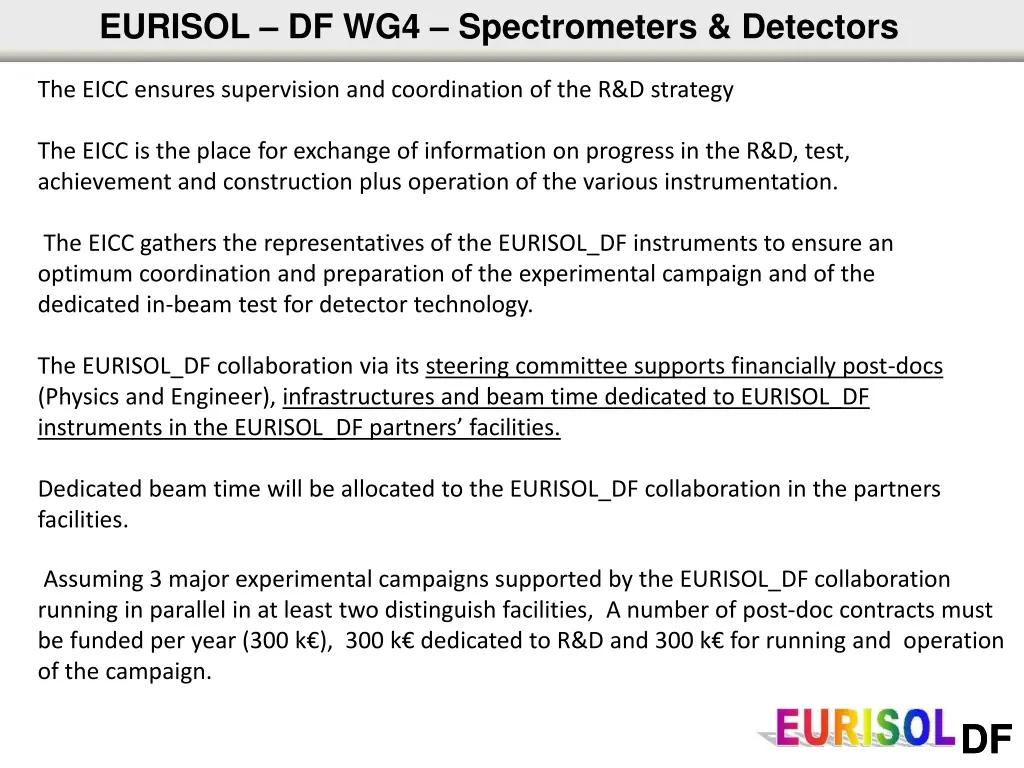

EURISOL DF WG4 Spectrometers & Detectors The EICC ensures supervision and coordination of the R&D strategy The EICC is the place for exchange of information on progress in the R&D, test, achievement and construction plus operation of the various instrumentation. The EICC gathers the representatives of the EURISOL_DF instruments to ensure an optimum coordination and preparation of the experimental campaign and of the dedicated in-beam test for detector technology. The EURISOL_DF collaboration via its steering committee supports financially post-docs (Physics and Engineer), infrastructures and beam time dedicated to EURISOL_DF instruments in the EURISOL_DF partners facilities. Dedicated beam time will be allocated to the EURISOL_DF collaboration in the partners facilities. Assuming 3 major experimental campaigns supported by the EURISOL_DF collaboration running in parallel in at least two distinguish facilities, A number of post-doc contracts must be funded per year (300 k ), 300 k dedicated to R&D and 300 k for running and operation of the campaign. DF DF

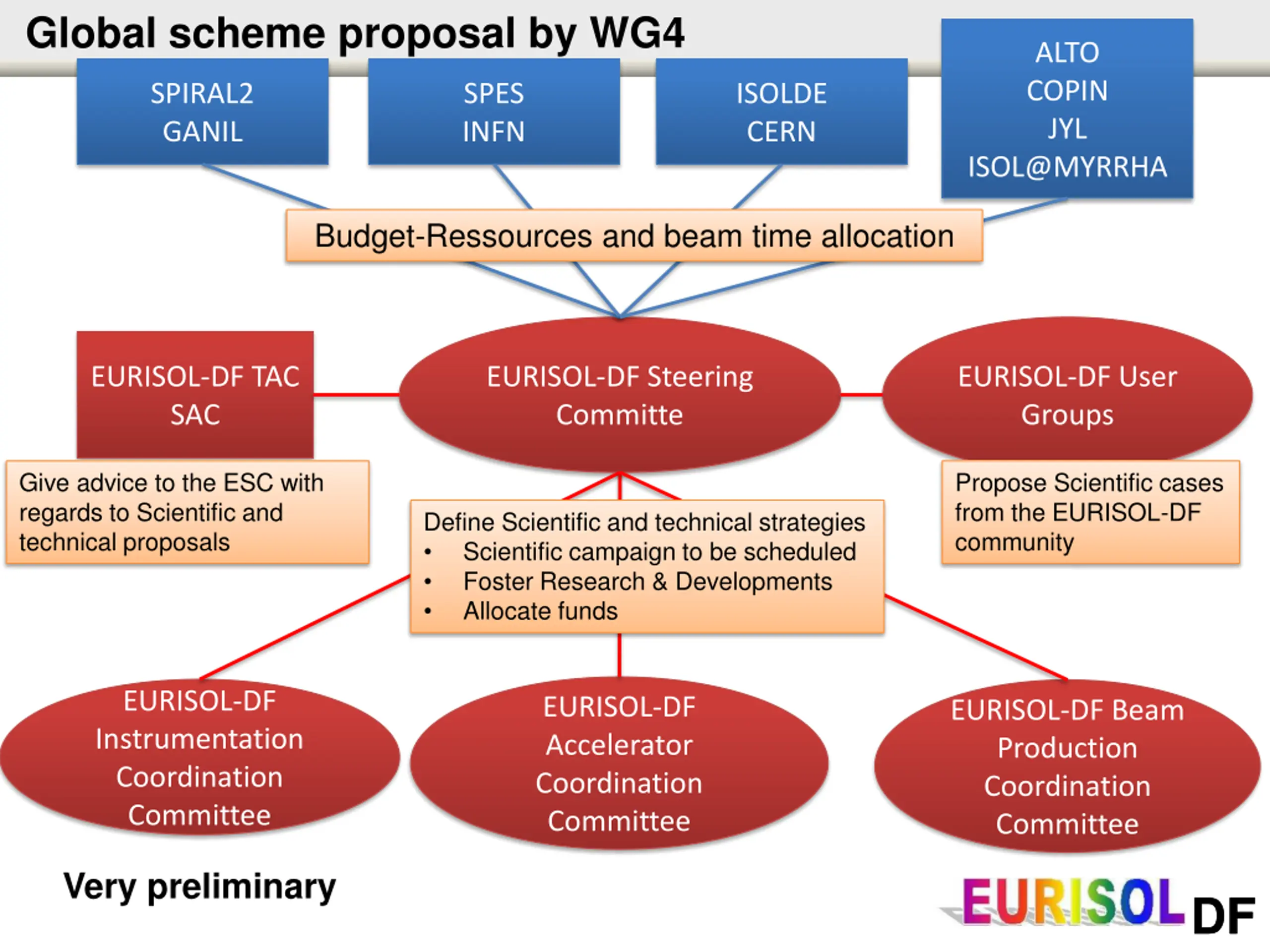

Global scheme proposal by WG4 ALTO COPIN JYL SPIRAL2 GANIL SPES INFN ISOLDE CERN ISOL@MYRRHA Budget-Ressources and beam time allocation EURISOL-DF TAC SAC EURISOL-DF Steering Committe EURISOL-DF User Groups Give advice to the ESC with regards to Scientific and technical proposals Propose Scientific cases from the EURISOL-DF community Define Scientific and technical strategies Scientific campaign to be scheduled Foster Research & Developments Allocate funds EURISOL-DF Instrumentation Coordination Committee EURISOL-DF Accelerator Coordination Committee EURISOL-DF Beam Production Coordination Committee Very preliminary DF DF

EURISOL DF WG4 Spectrometers & Detectors We have to be ambitious Still a lot of work Need your input DF DF
