Evaluation of OPA548 EVM: Analysis and Results
Explore the evaluation of OPA548 Evaluation Module (EVM) conducted by Errol Leon in Precision Linear Analog Applications. The analysis includes oscilloscope measurements with varying load resistances and enable/disable pin settings, providing valuable insights into the performance of the OPA548 EVM.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

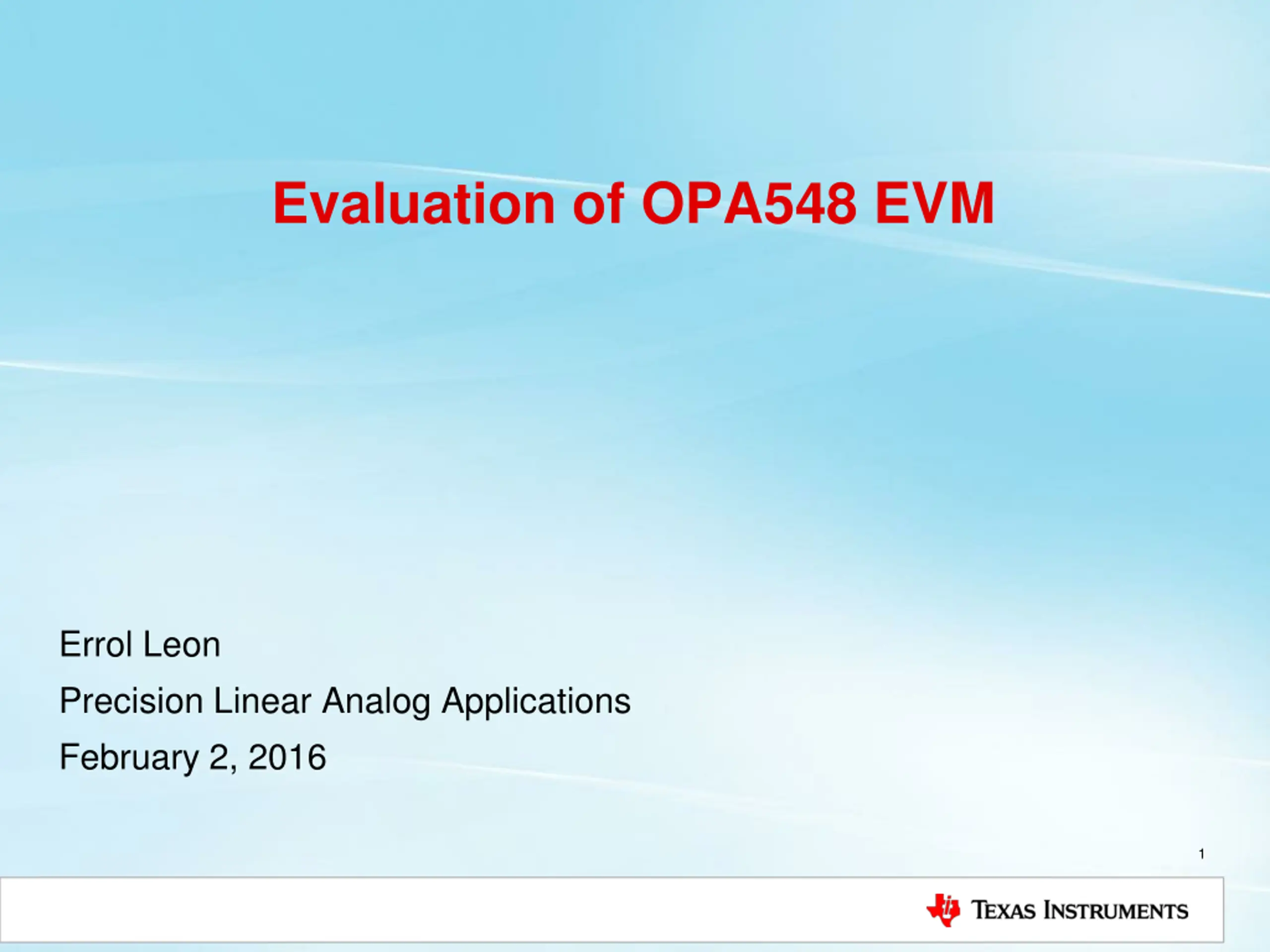

Evaluation of OPA548 EVM Errol Leon Precision Linear Analog Applications February 2, 2016 1

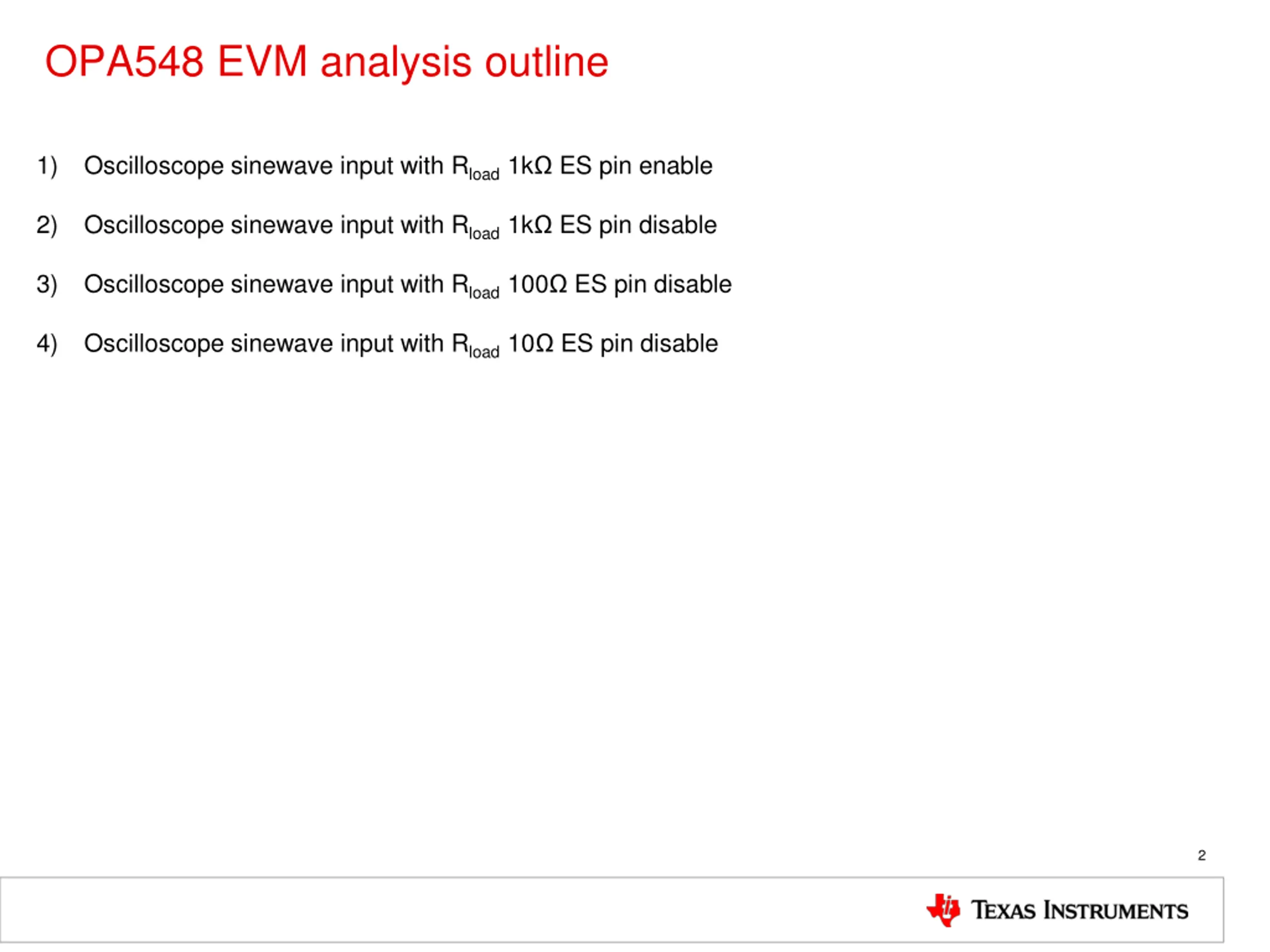

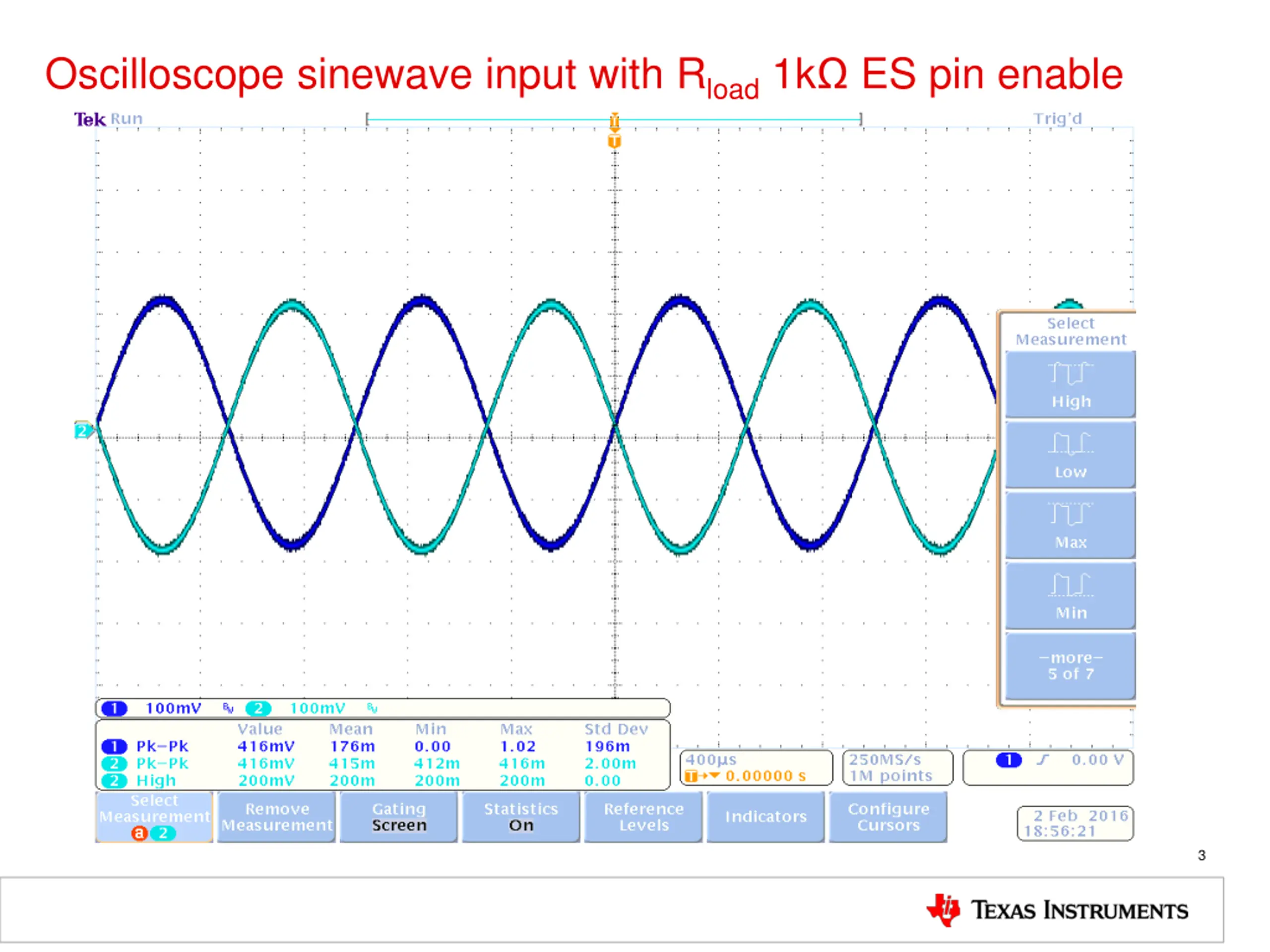

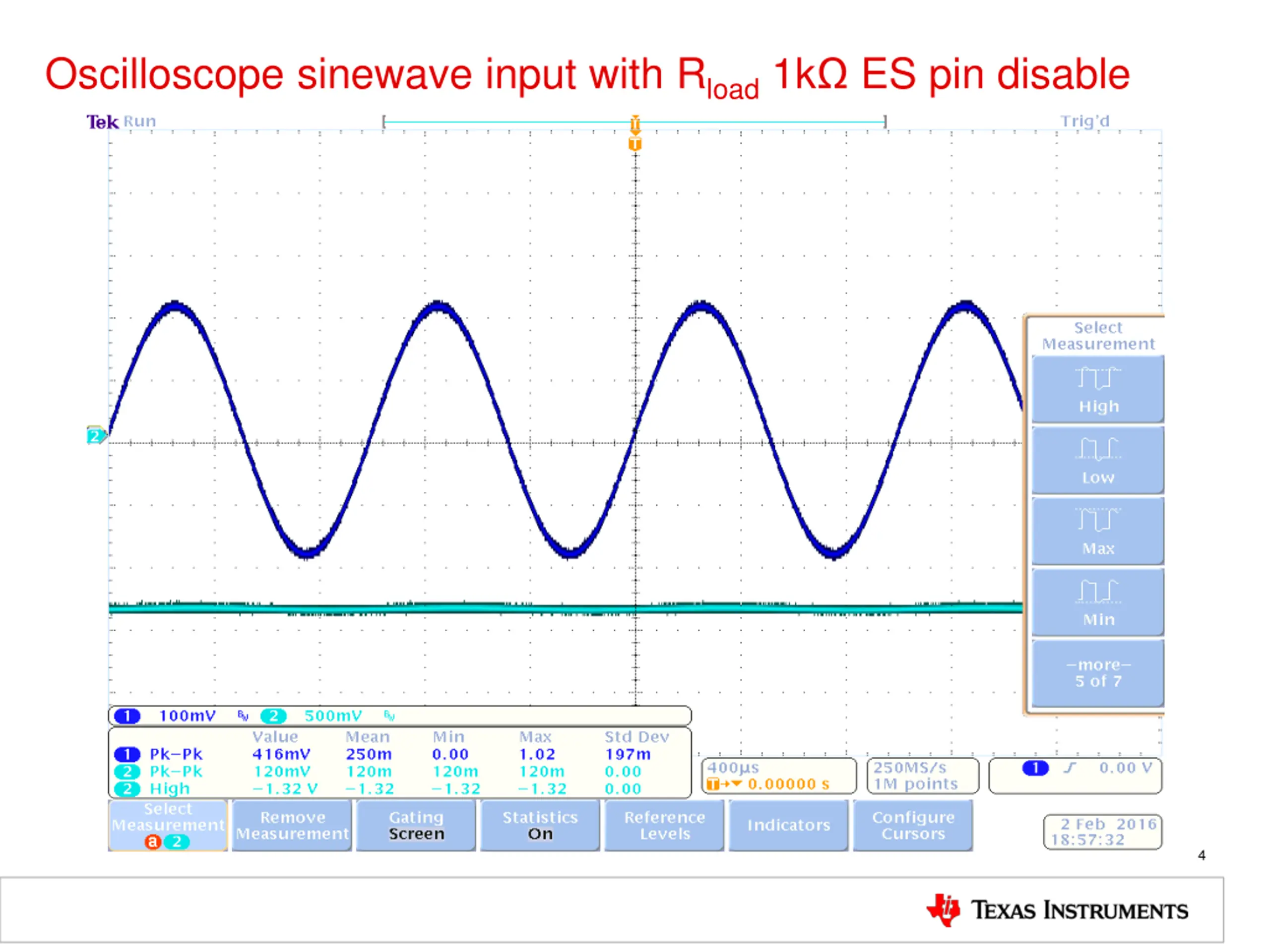

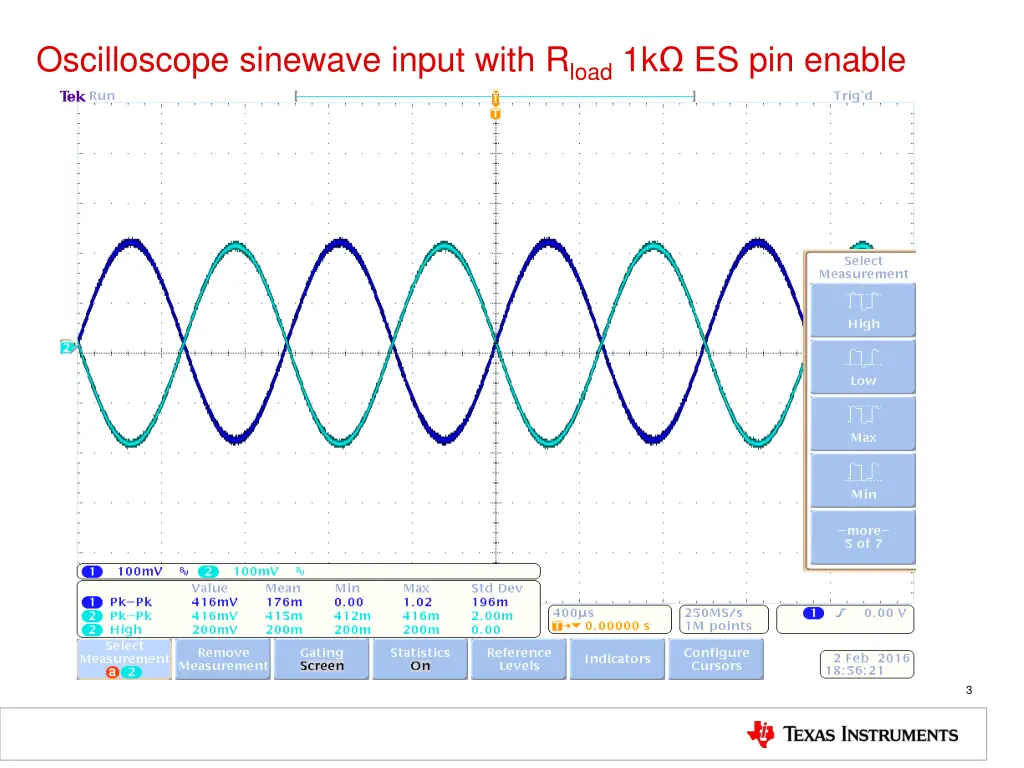

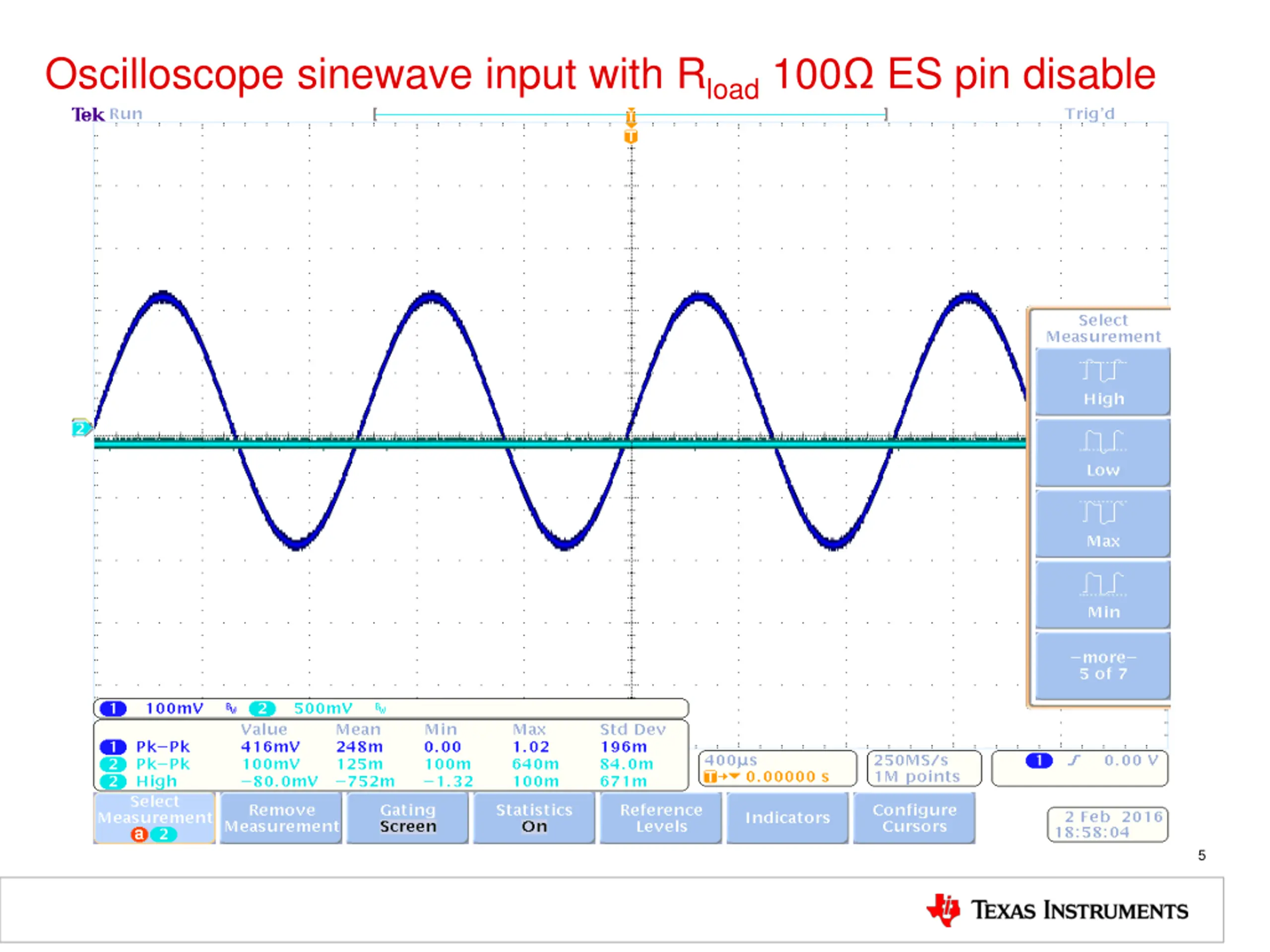

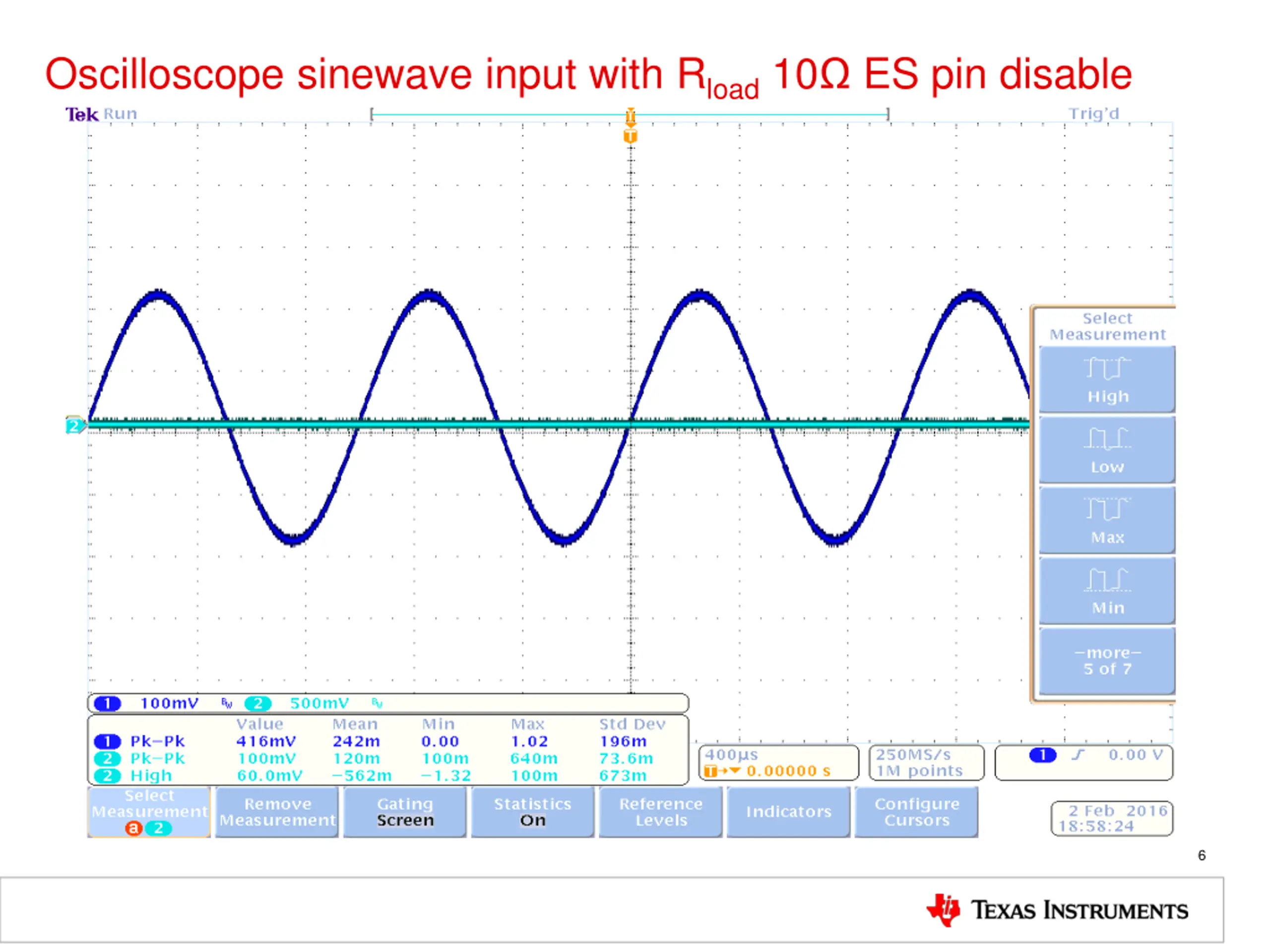

OPA548 EVM analysis outline 1) Oscilloscope sinewave input with Rload 1k ES pin enable 2) Oscilloscope sinewave input with Rload 1k ES pin disable 3) Oscilloscope sinewave input with Rload 100 ES pin disable 4) Oscilloscope sinewave input with Rload 10 ES pin disable 2
