Evaporation Process of Seawater and Mineral Precipitation
Explore the evaporation process of seawater and mineral precipitation using thermo dataset with Pitzer equations. Set up titration paths, simulate mineral fractionation, and observe which minerals precipitate and dissolve during the evaporation process.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

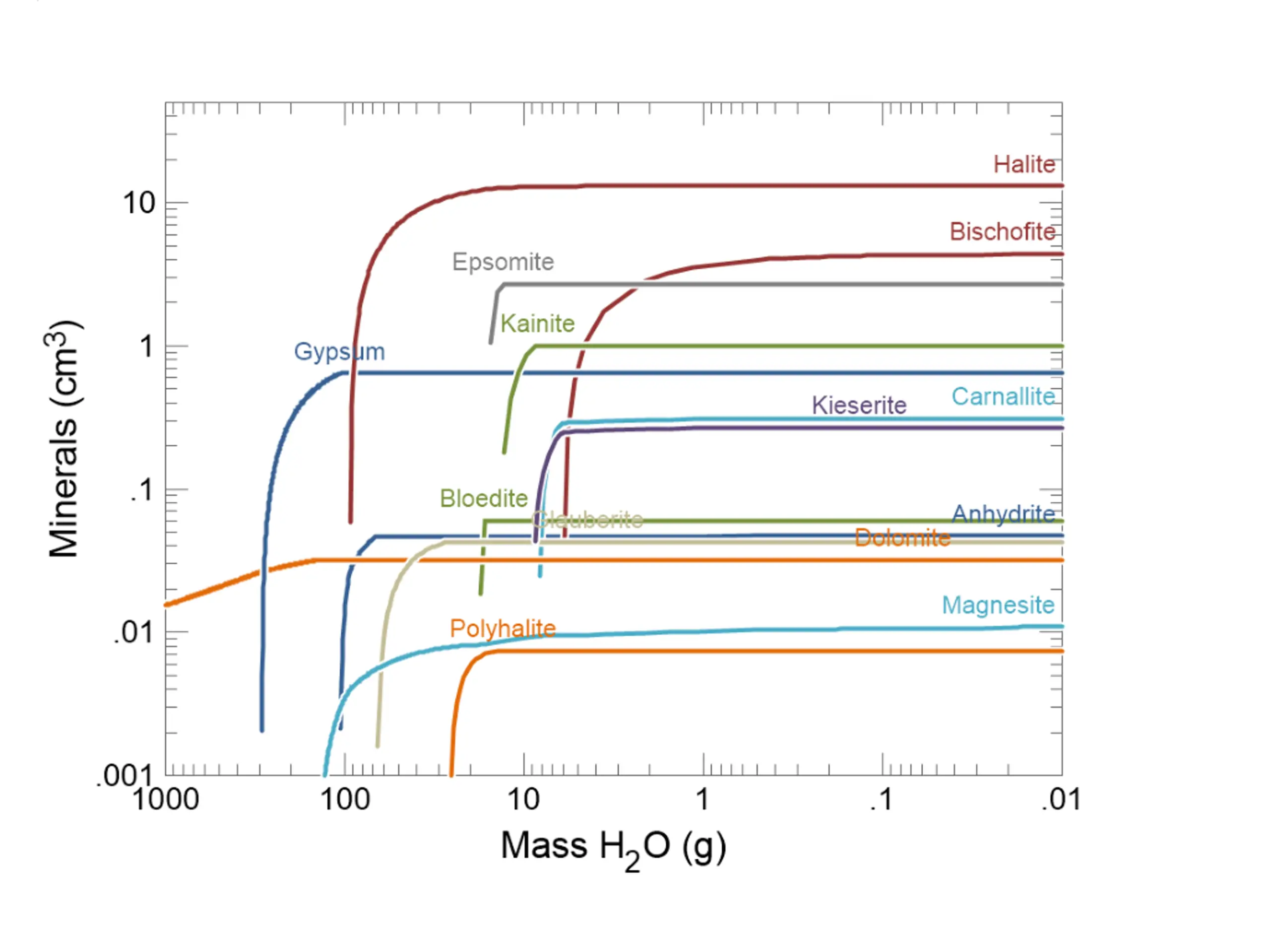

Halite 10 Bischofite Epsomite Kainite Minerals (cm3) 1 Gypsum Carnallite Kieserite .1 Bloedite Anhydrite Glauberite Dolomite Magnesite Polyhalite .01 .001 1000 100 10 1 .1 Mass H2O (g)

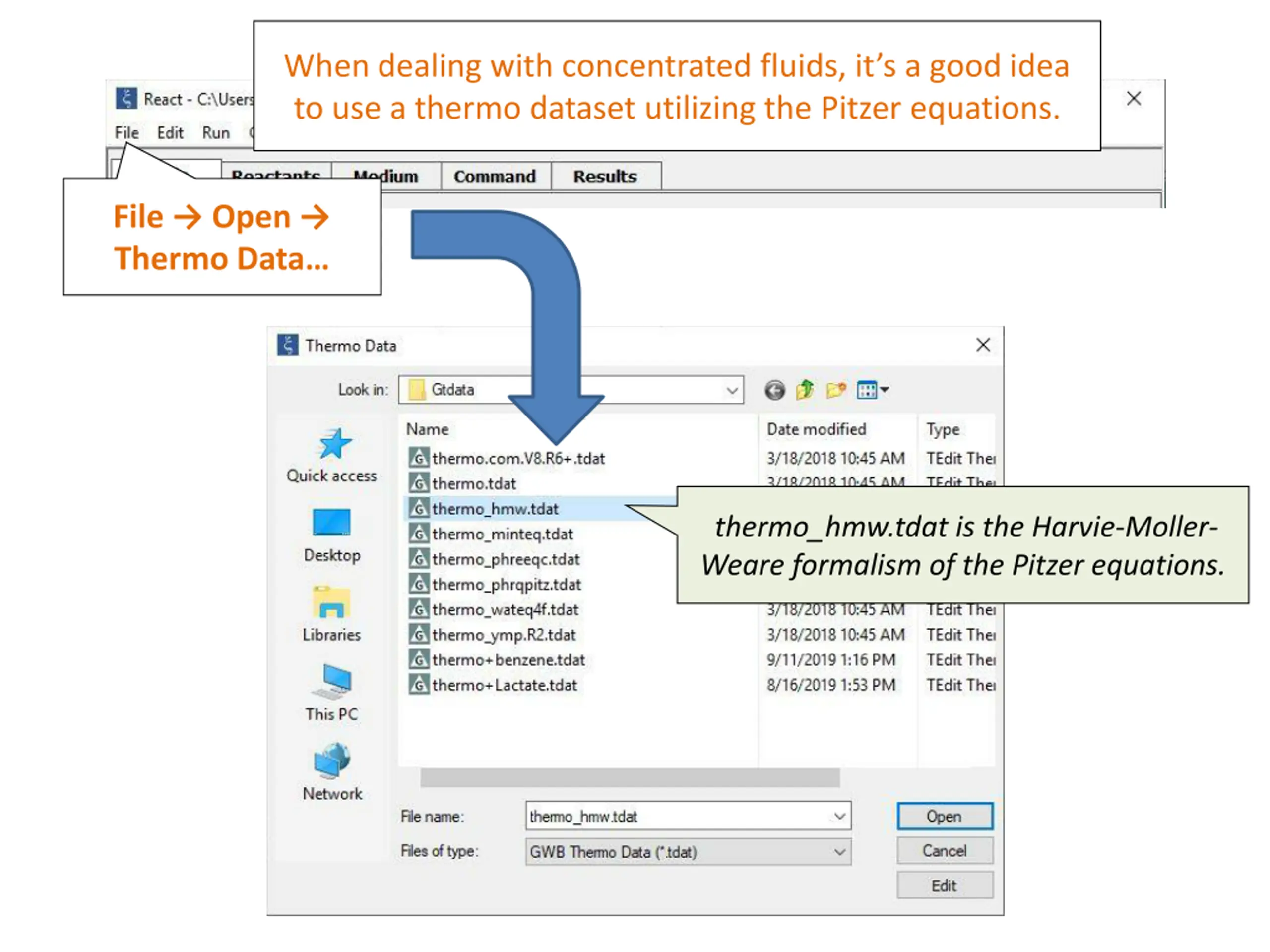

When dealing with concentrated fluids, its a good idea to use a thermo dataset utilizing the Pitzer equations. File Open Thermo Data thermo_hmw.tdat is the Harvie-Moller- Weare formalism of the Pitzer equations.

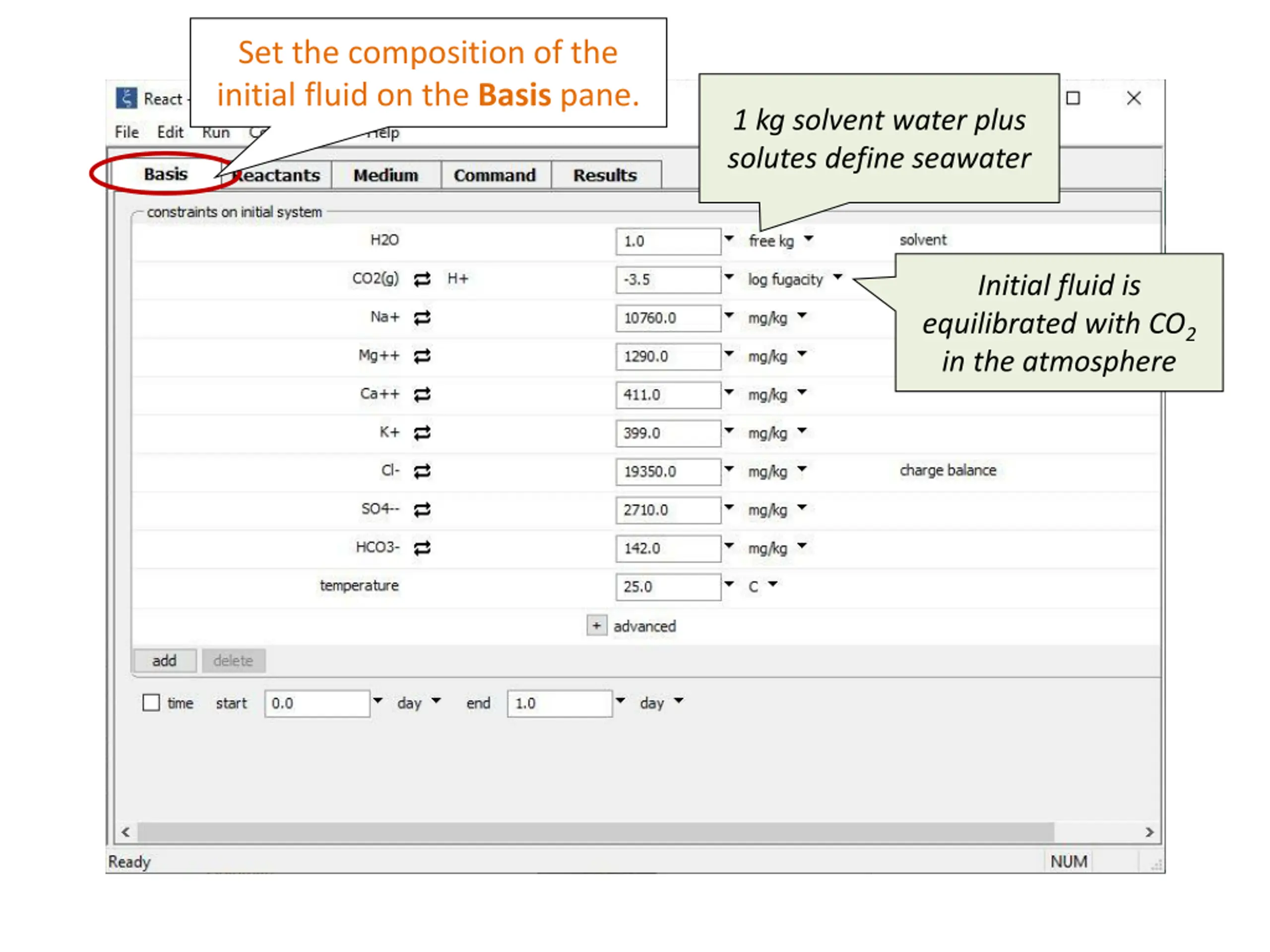

Set the composition of the initial fluid on the Basis pane. 1 kg solvent water plus solutes define seawater Initial fluid is equilibrated with CO2 in the atmosphere

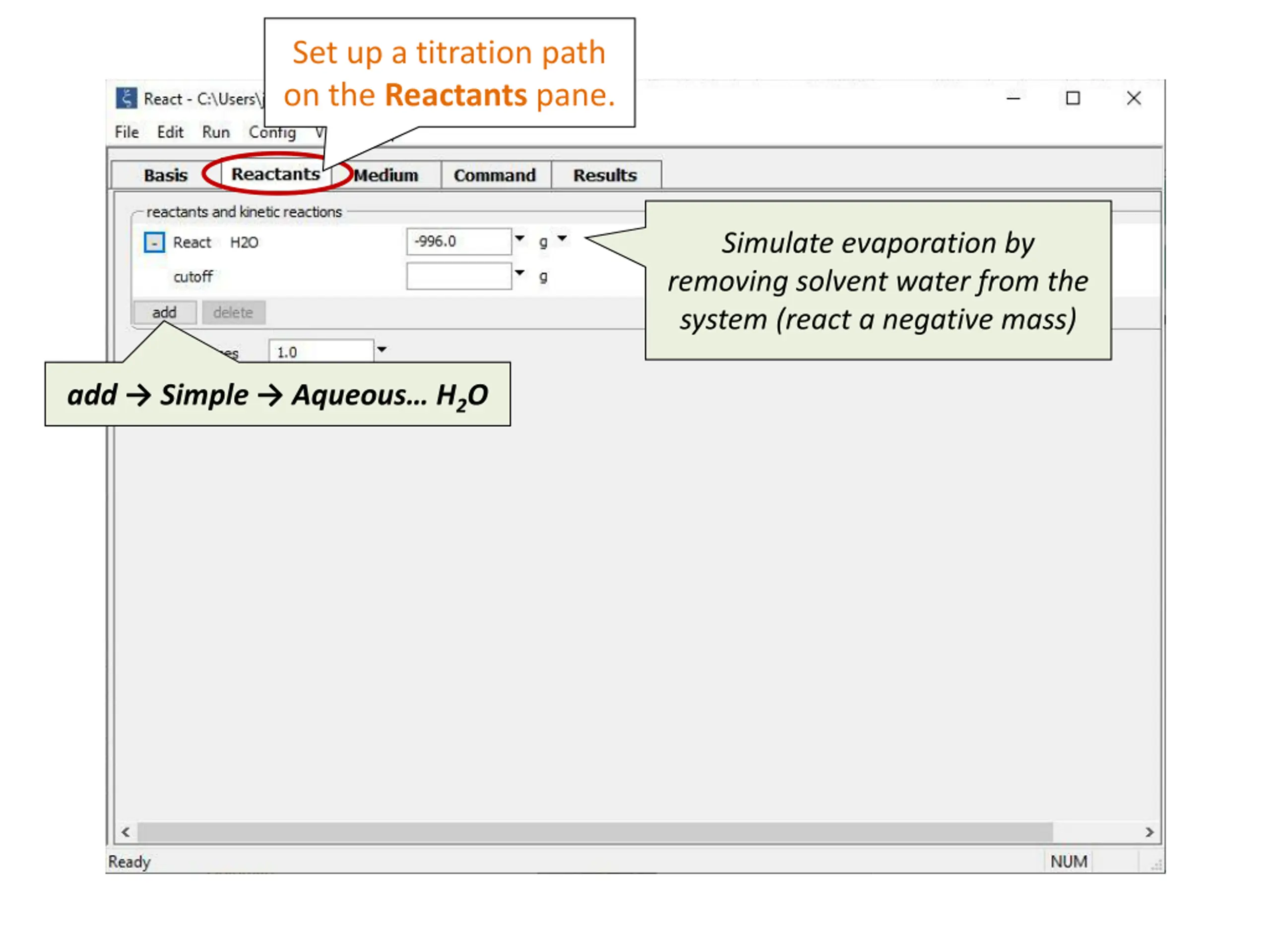

Set up a titration path on the Reactants pane. Simulate evaporation by removing solvent water from the system (react a negative mass) add Simple Aqueous H2O

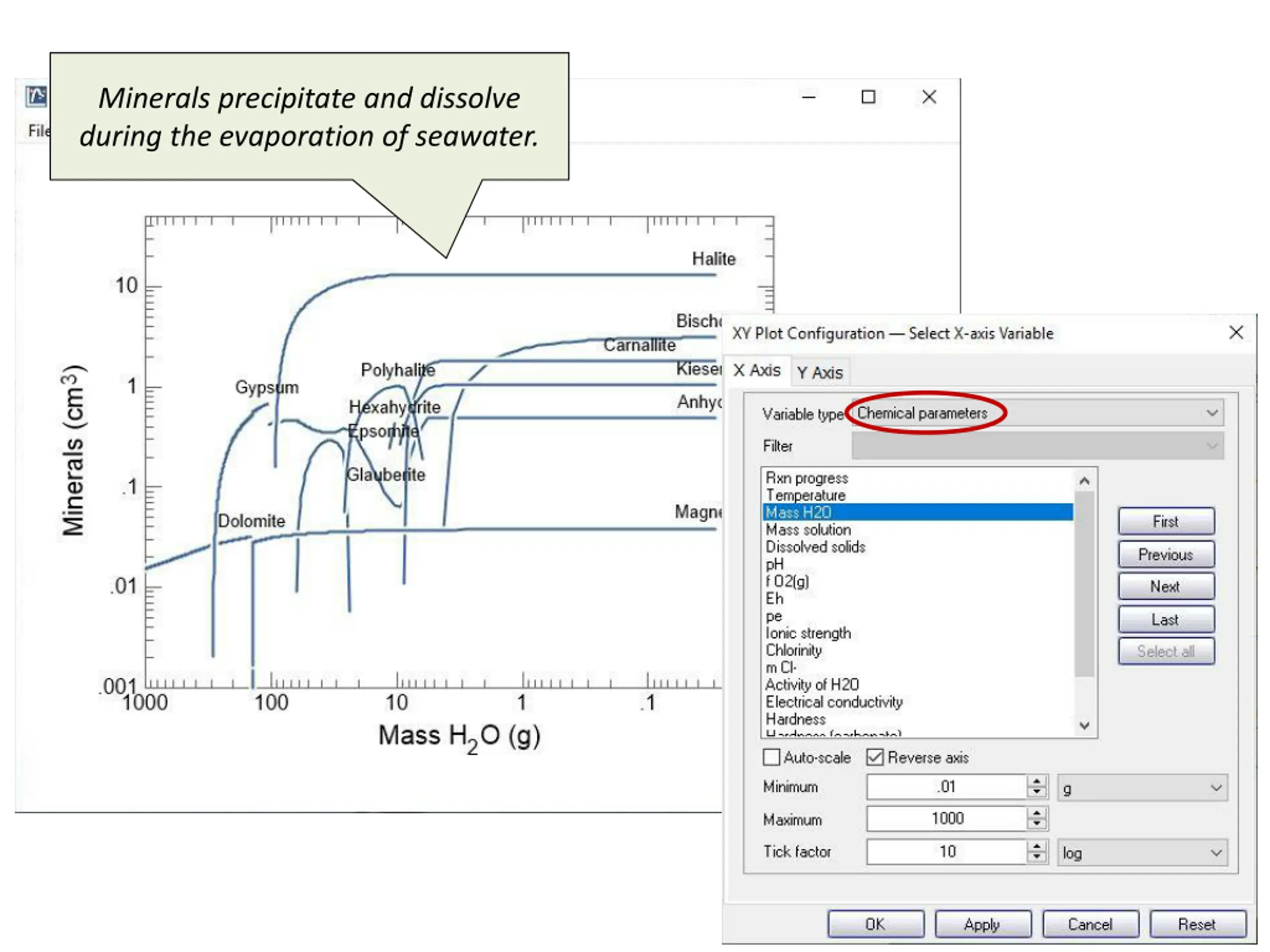

Minerals precipitate and dissolve during the evaporation of seawater.

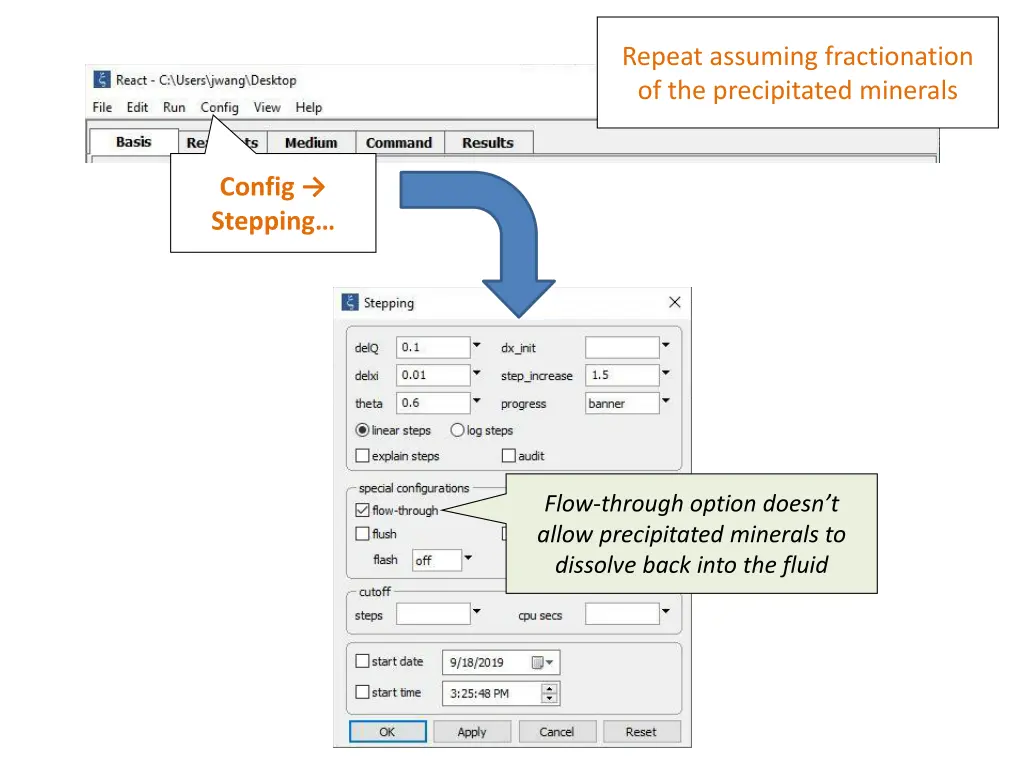

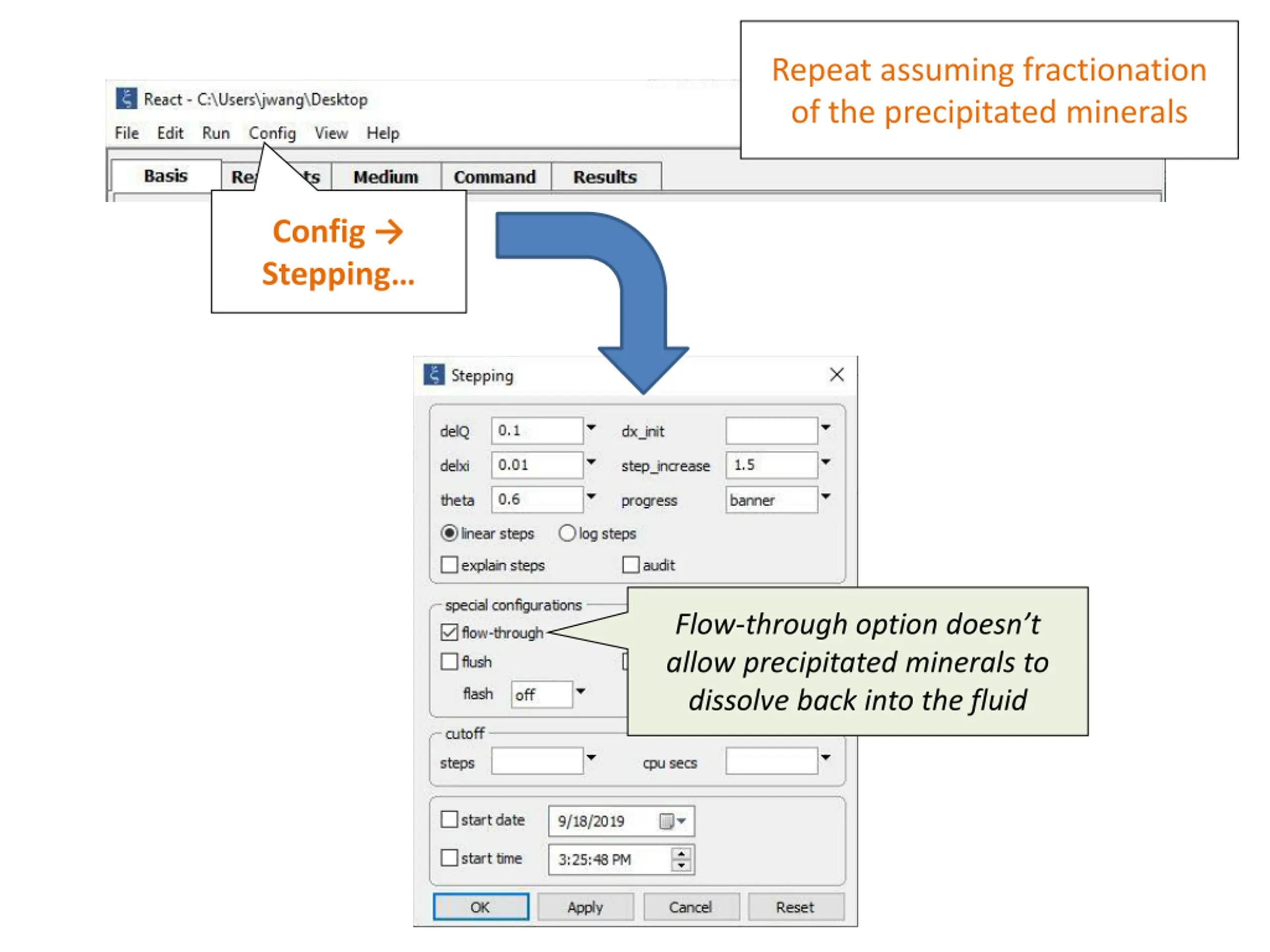

Repeat assuming fractionation of the precipitated minerals Config Stepping Flow-through option doesn t allow precipitated minerals to dissolve back into the fluid

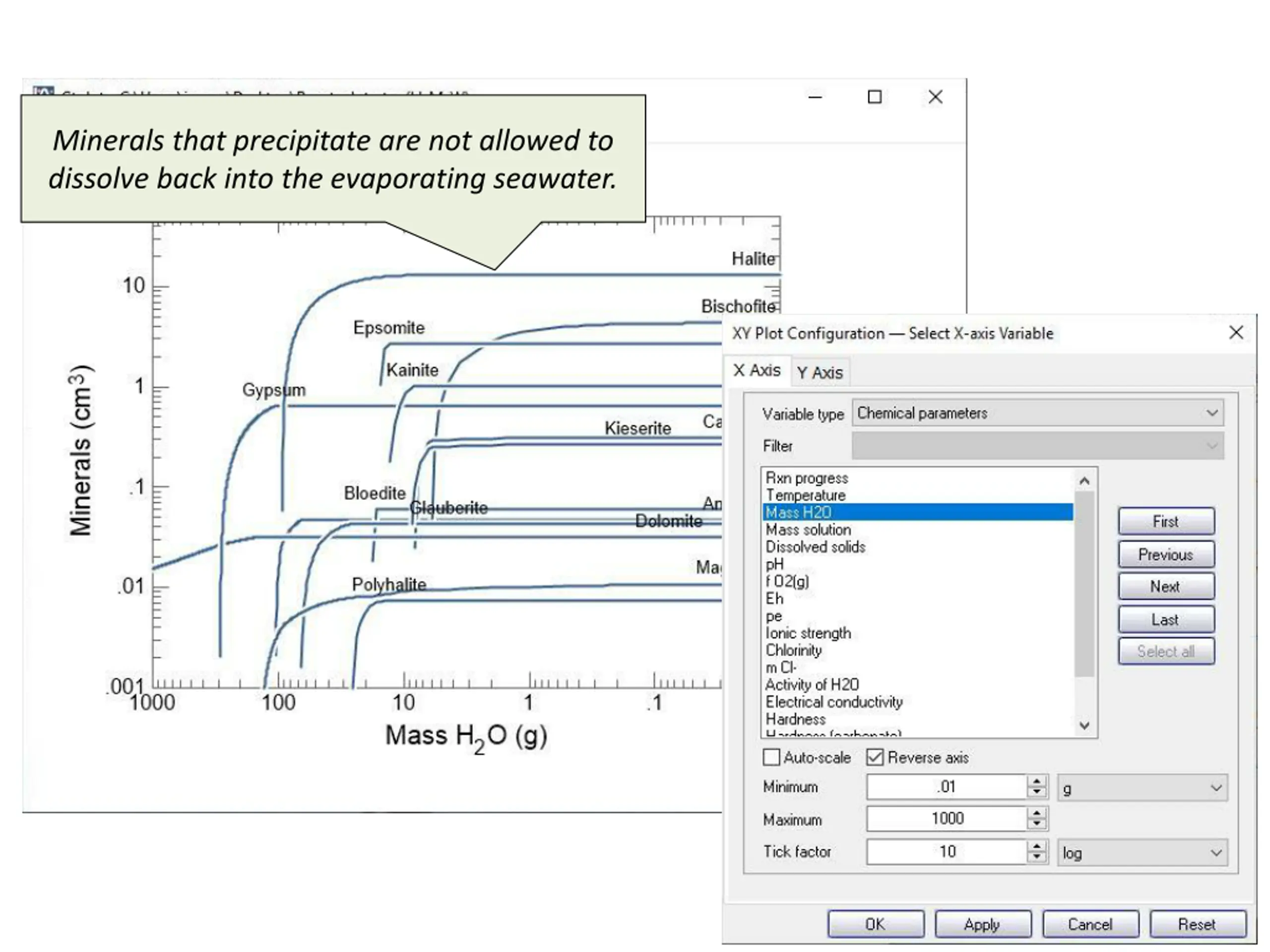

Minerals that precipitate are not allowed to dissolve back into the evaporating seawater.
