Tropical Cyclone test case: Edouard (2014) ATM 419 Spring 2016 Fovell 1

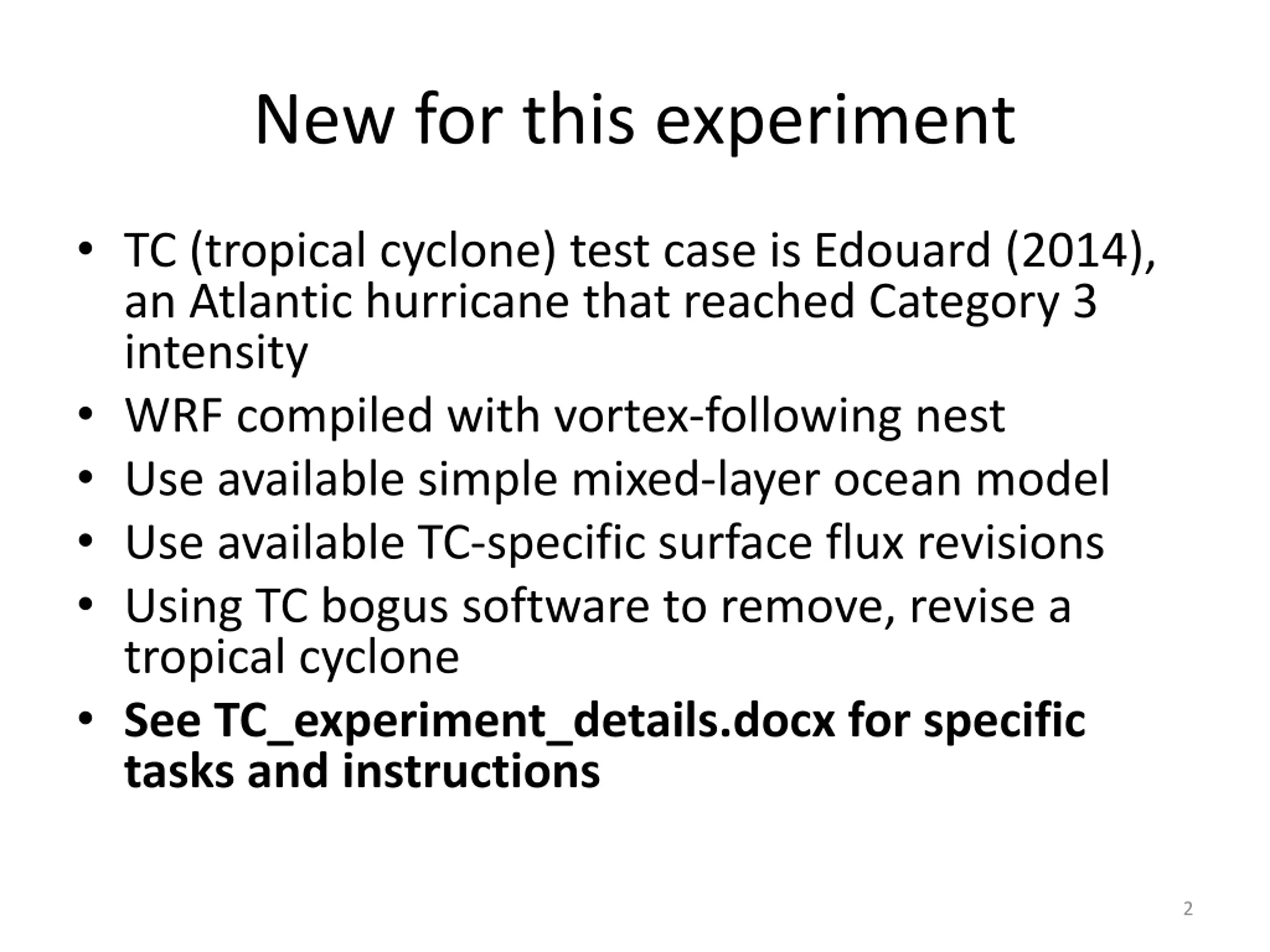

New for this experiment TC (tropical cyclone) test case is Edouard (2014), an Atlantic hurricane that reached Category 3 intensity WRF compiled with vortex-following nest Use available simple mixed-layer ocean model Use available TC-specific surface flux revisions Using TC bogus software to remove, revise a tropical cyclone See TC_experiment_details.docx for specific tasks and instructions 2

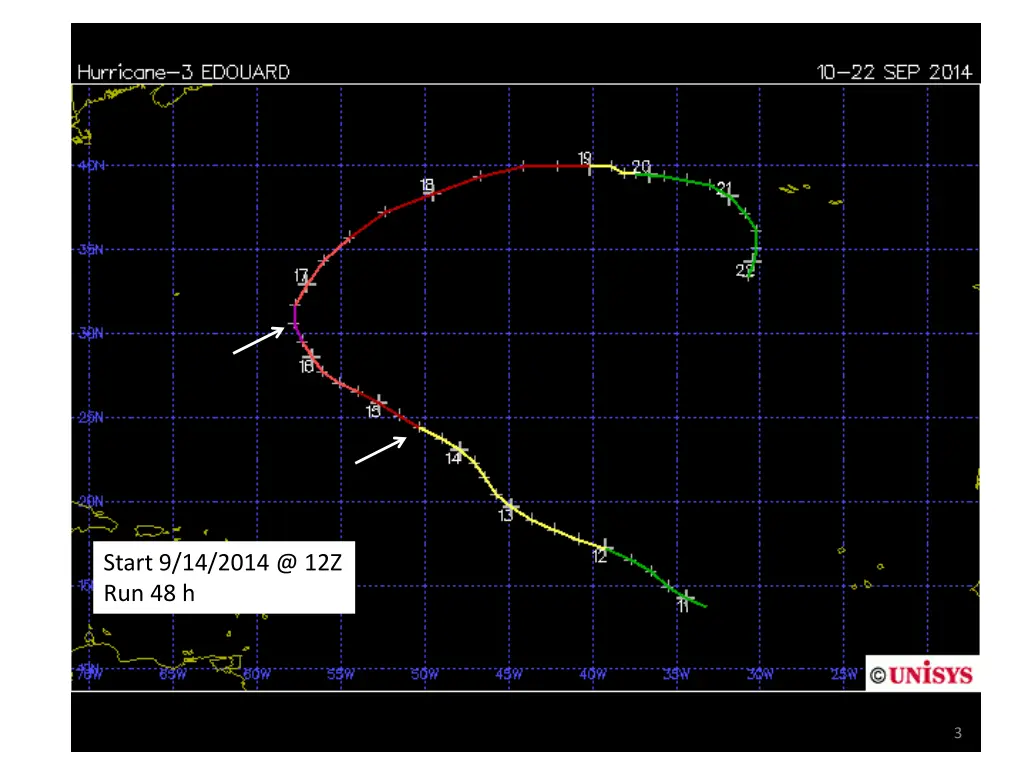

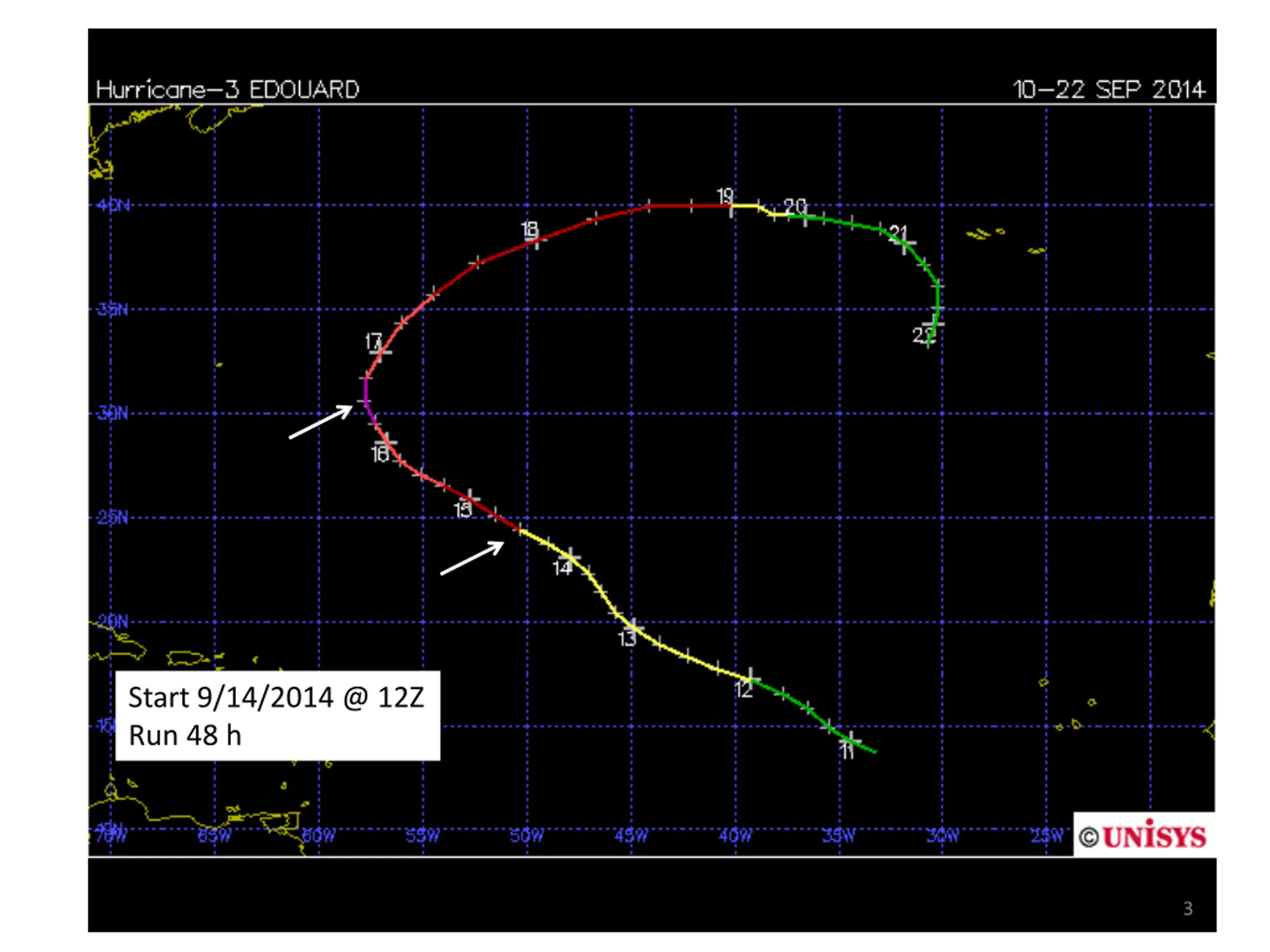

Start 9/14/2014 @ 12Z Run 48 h 3

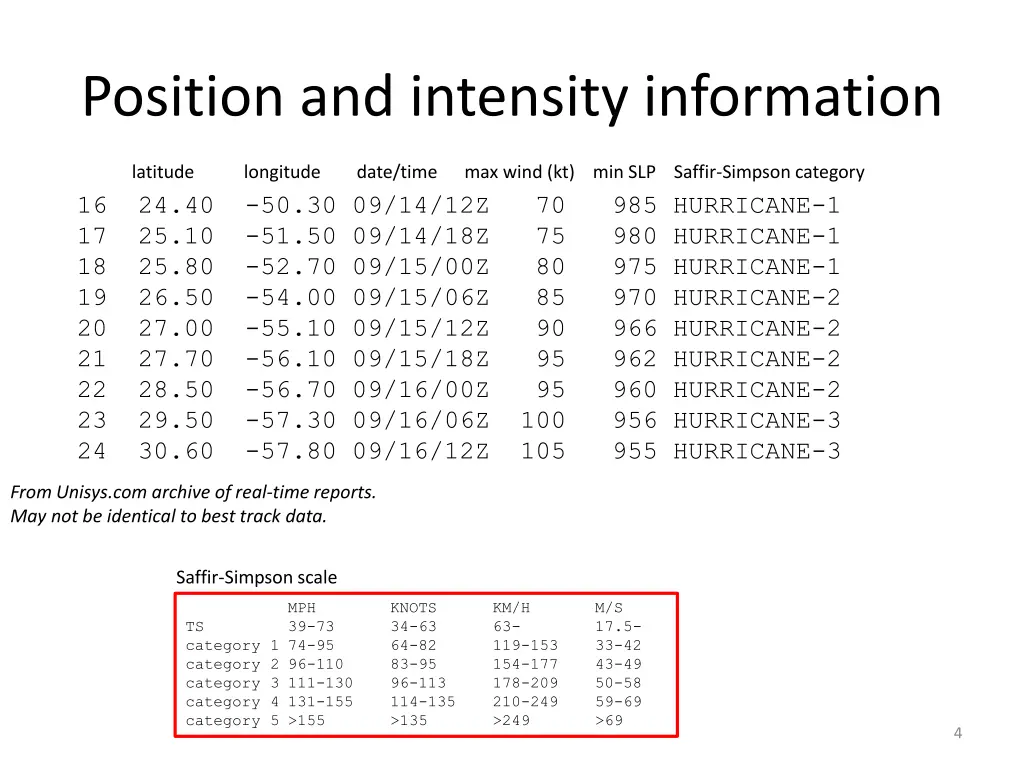

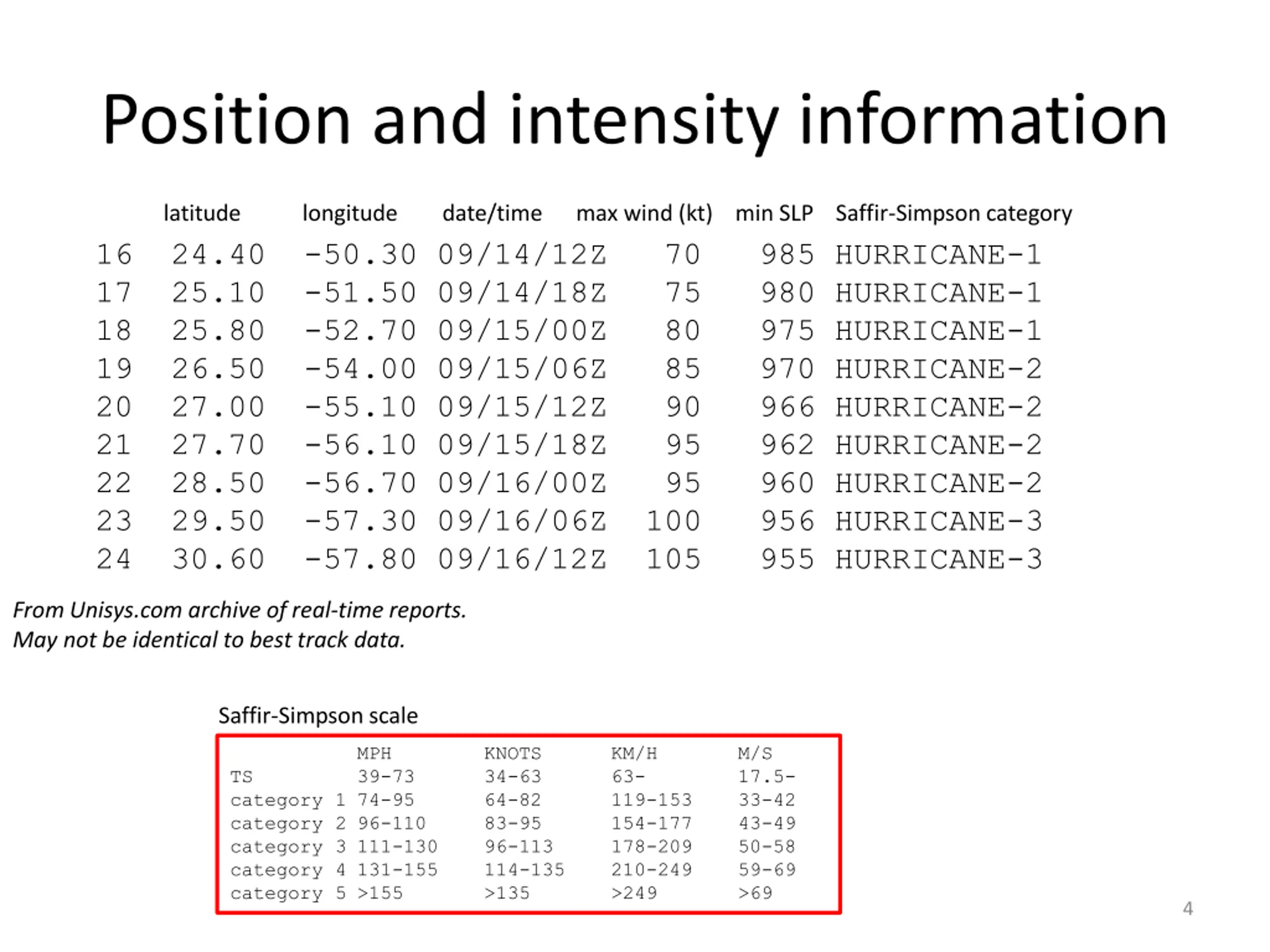

Position and intensity information latitude longitude date/time max wind (kt) min SLP Saffir-Simpson category 16 24.40 -50.30 09/14/12Z 70 985 HURRICANE-1 17 25.10 -51.50 09/14/18Z 75 980 HURRICANE-1 18 25.80 -52.70 09/15/00Z 80 975 HURRICANE-1 19 26.50 -54.00 09/15/06Z 85 970 HURRICANE-2 20 27.00 -55.10 09/15/12Z 90 966 HURRICANE-2 21 27.70 -56.10 09/15/18Z 95 962 HURRICANE-2 22 28.50 -56.70 09/16/00Z 95 960 HURRICANE-2 23 29.50 -57.30 09/16/06Z 100 956 HURRICANE-3 24 30.60 -57.80 09/16/12Z 105 955 HURRICANE-3 From Unisys.com archive of real-time reports. May not be identical to best track data. Saffir-Simpson scale MPH 39-73 KNOTS 34-63 64-82 83-95 96-113 114-135 >135 KM/H 63- 119-153 154-177 178-209 210-249 >249 M/S 17.5- 33-42 43-49 50-58 59-69 >69 TS category 1 74-95 category 2 96-110 category 3 111-130 category 4 131-155 category 5 >155 4

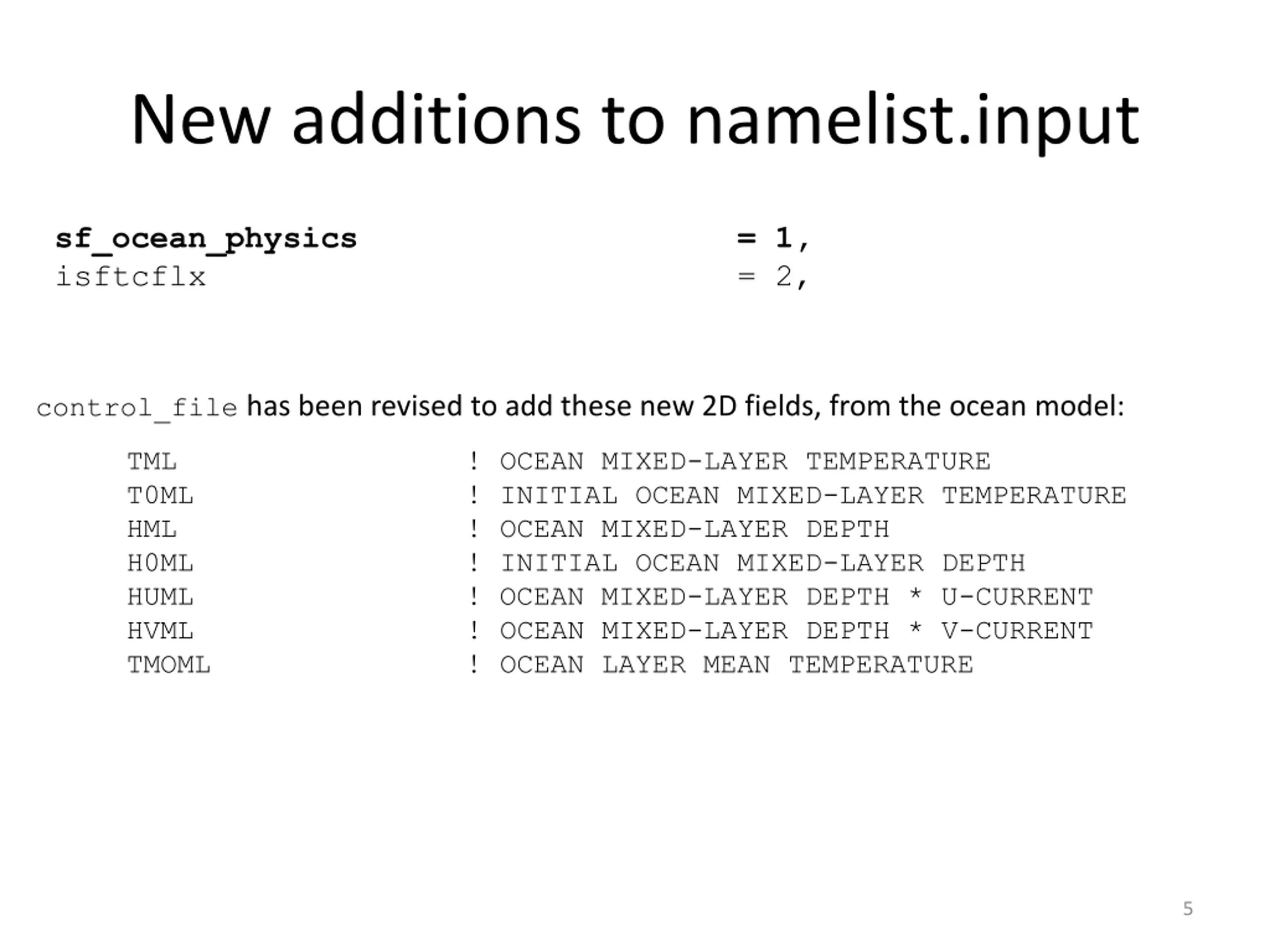

New additions to namelist.input sf_ocean_physics = 1, isftcflx = 2, control_file has been revised to add these new 2D fields, from the ocean model: TML ! OCEAN MIXED-LAYER TEMPERATURE T0ML ! INITIAL OCEAN MIXED-LAYER TEMPERATURE HML ! OCEAN MIXED-LAYER DEPTH H0ML ! INITIAL OCEAN MIXED-LAYER DEPTH HUML ! OCEAN MIXED-LAYER DEPTH * U-CURRENT HVML ! OCEAN MIXED-LAYER DEPTH * V-CURRENT TMOML ! OCEAN LAYER MEAN TEMPERATURE 5

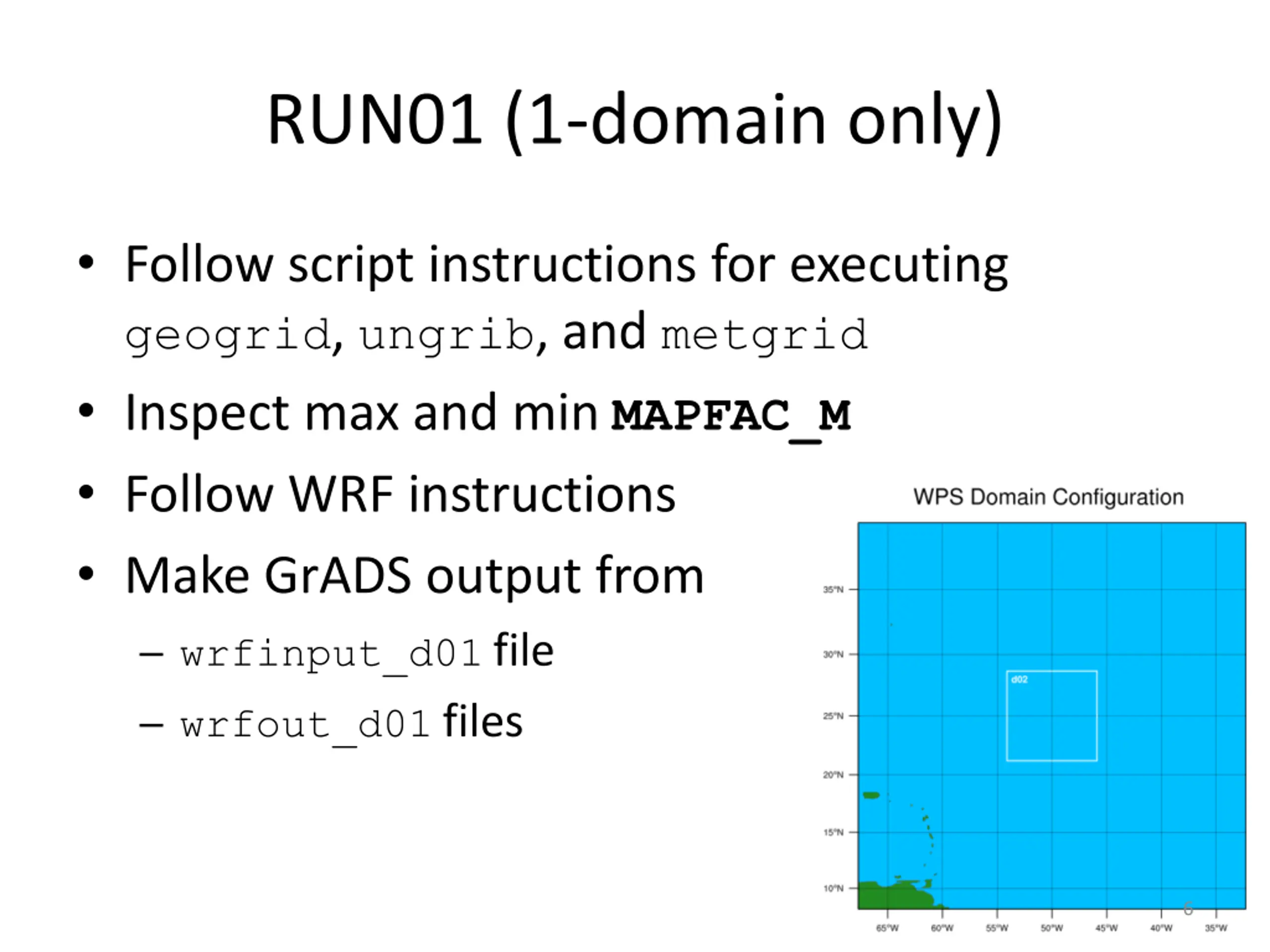

RUN01 (1-domain only) Follow script instructions for executing geogrid, ungrib, and metgrid Inspect max and min MAPFAC_M Follow WRF instructions Make GrADS output from wrfinput_d01file wrfout_d01files 6

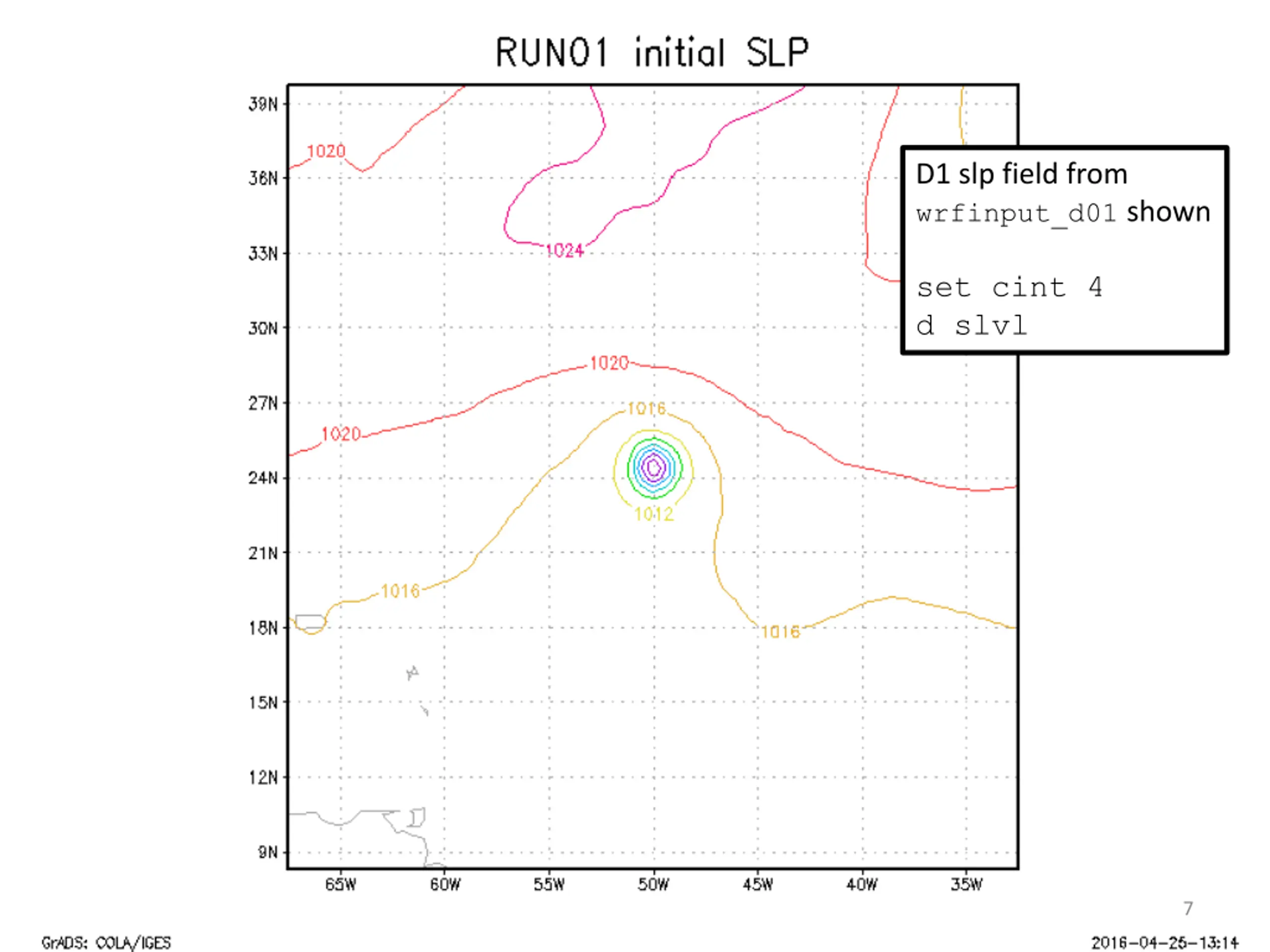

D1 slp field from wrfinput_d01 shown set cint 4 d slvl 7

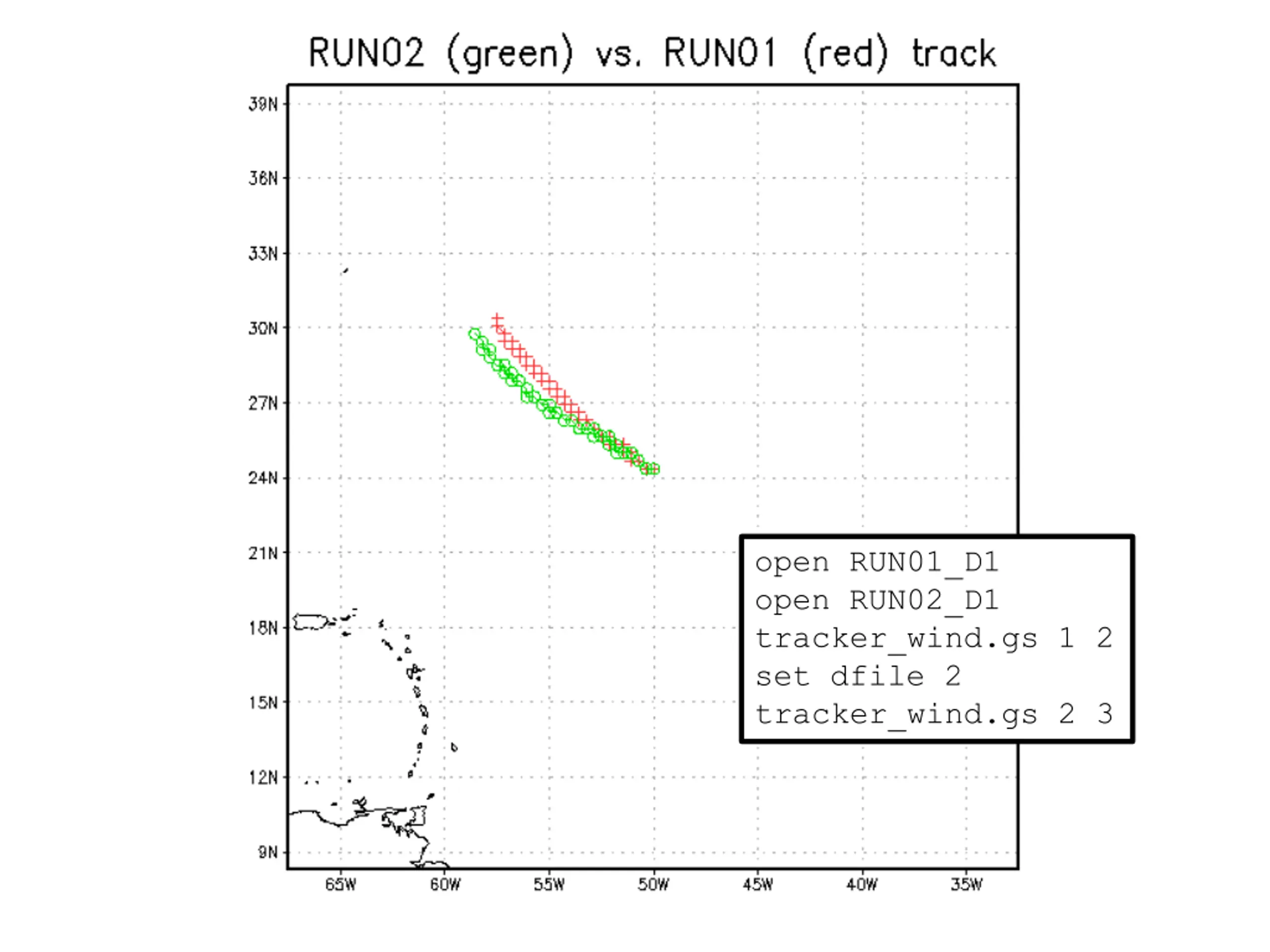

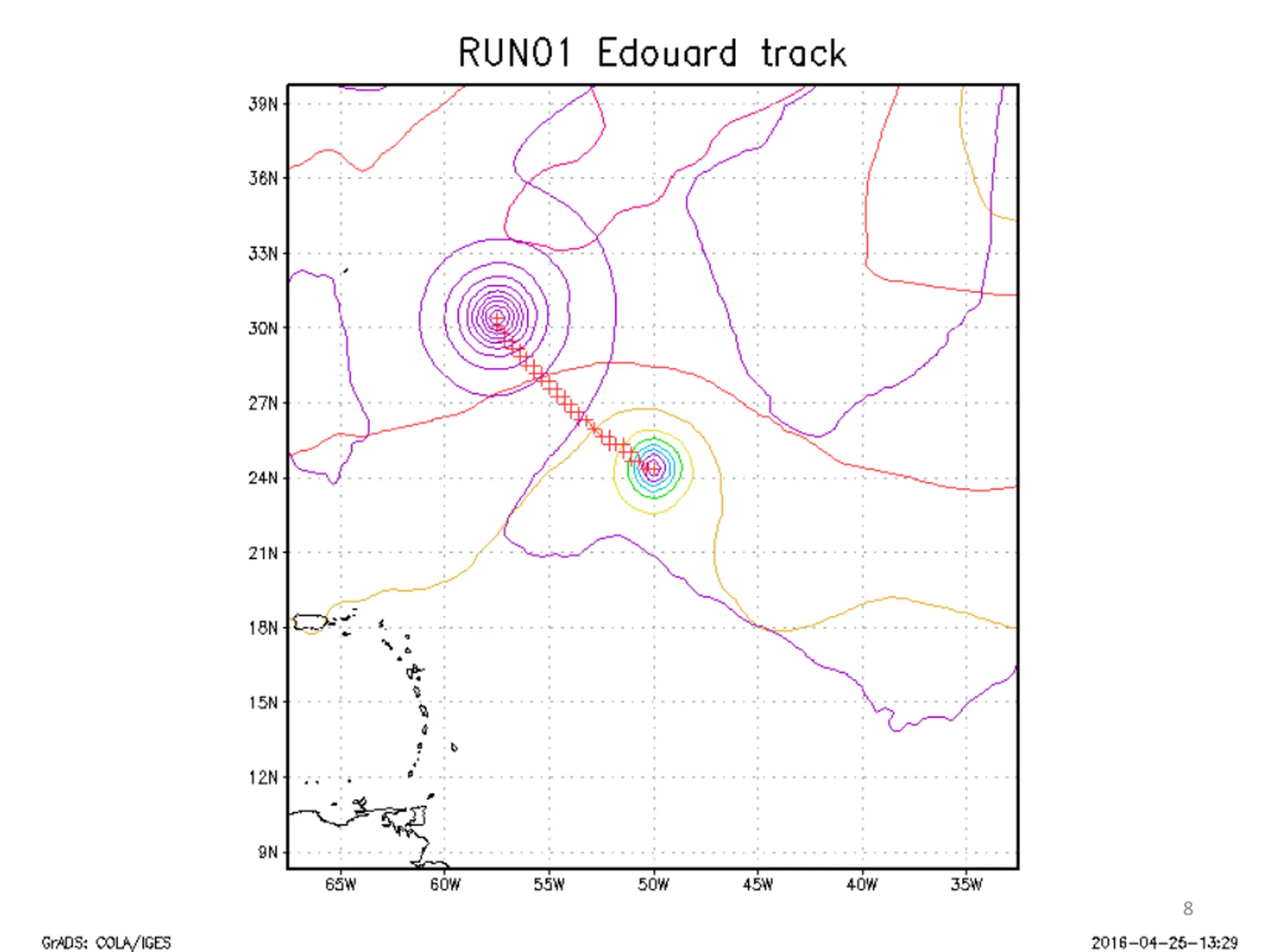

open RUN01_D1 open RUN02_D1 tracker_wind.gs 1 2 set dfile 2 tracker_wind.gs 2 3 10

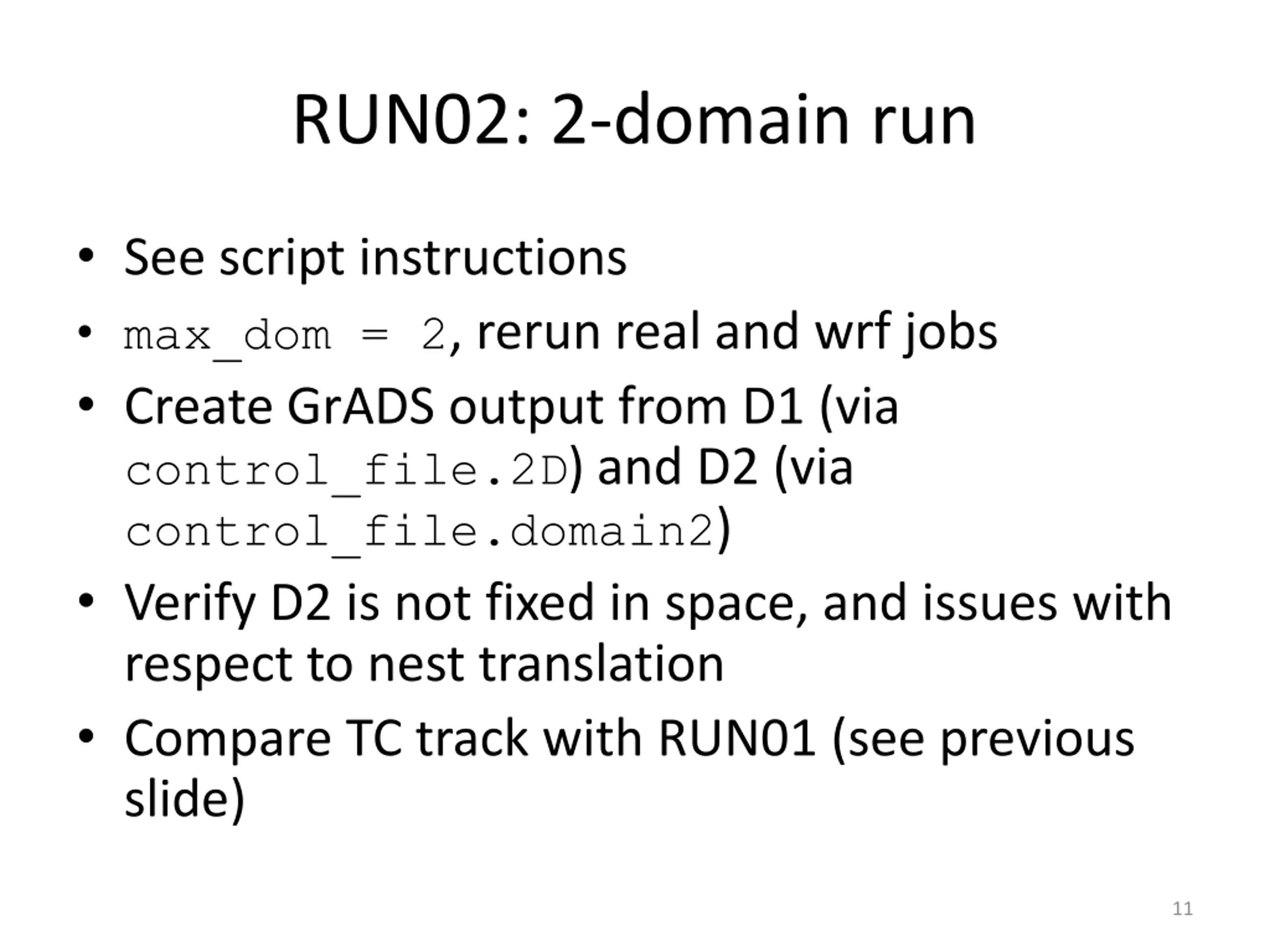

RUN02: 2-domain run See script instructions max_dom = 2, rerun real and wrf jobs Create GrADS output from D1 (via control_file.2D) and D2 (via control_file.domain2) Verify D2 is not fixed in space, and issues with respect to nest translation Compare TC track with RUN01 (see previous slide) 11
