Exploit Mitigation using Multi-Variant Execution Stijn Volckaert University of California, Irvine OWASP Belgium Chapter Meeting 18 October 2016

Possible Solutions Type-Safe Languages (e.g. Rust) Type-Safe Languages (e.g. Rust) Mitigations: Integrity-Based (e.g. CFI) Randomization-Based (e.g. ASLR) Randomization-Based (e.g. ASLR) Multi-Variant Execution Environments (MVEEs) Mitigations: Integrity-Based (e.g. CFI) 3

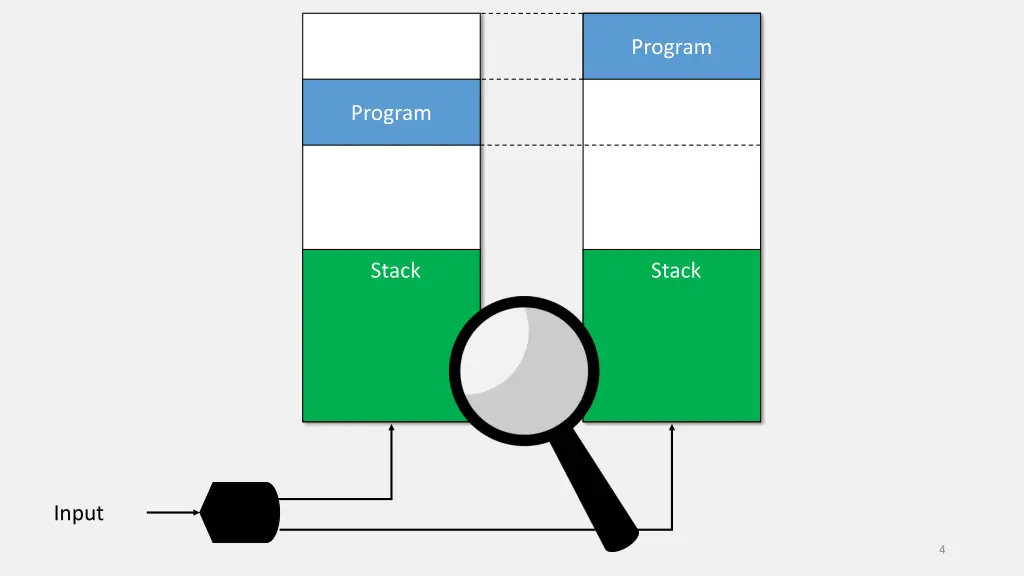

Program Program Stack Stack Input 4

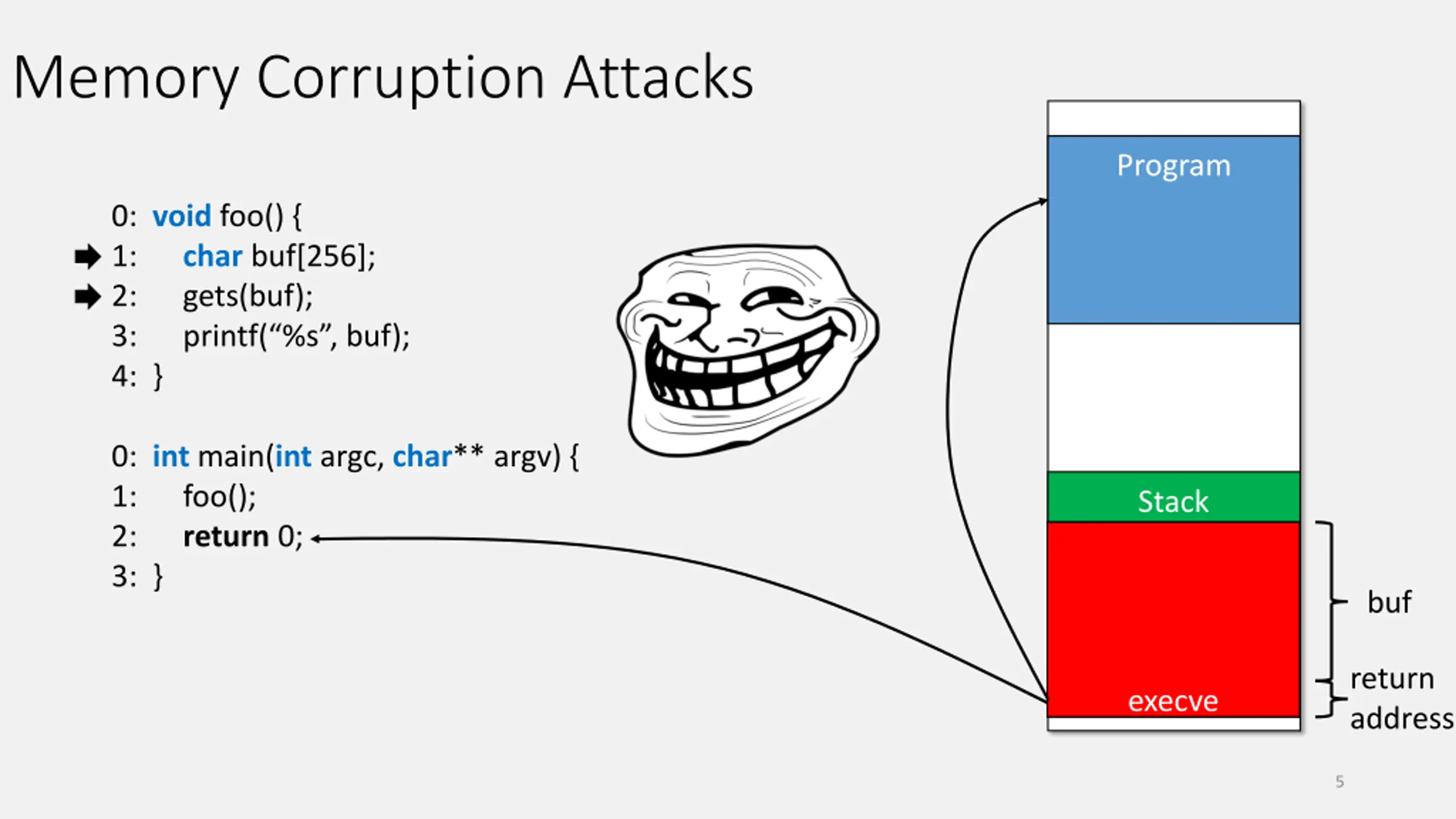

Memory Corruption Attacks Program 0: void foo() { 1: char buf[256]; 2: gets(buf); 3: printf( %s , buf); 4: } 0: int main(int argc, char** argv) { 1: foo(); 2: return 0; 3: } Stack buf return address main + 2 execve 5

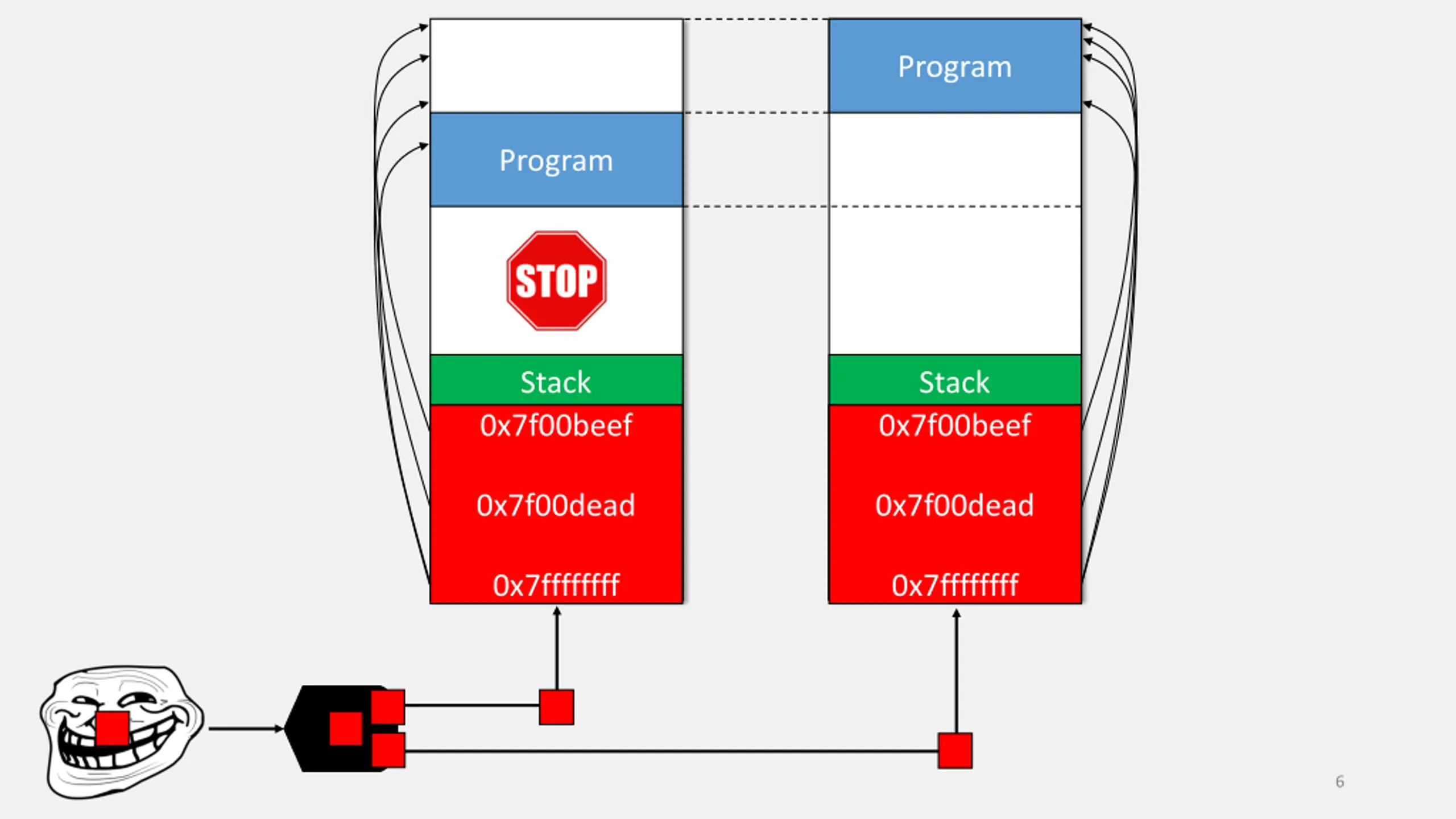

Program Program Stack Stack 0x7f00beef 0x7f00beef 0x7f00dead 0x7f00dead main + 2 0x7ffffffff main + 2 0x7ffffffff 6

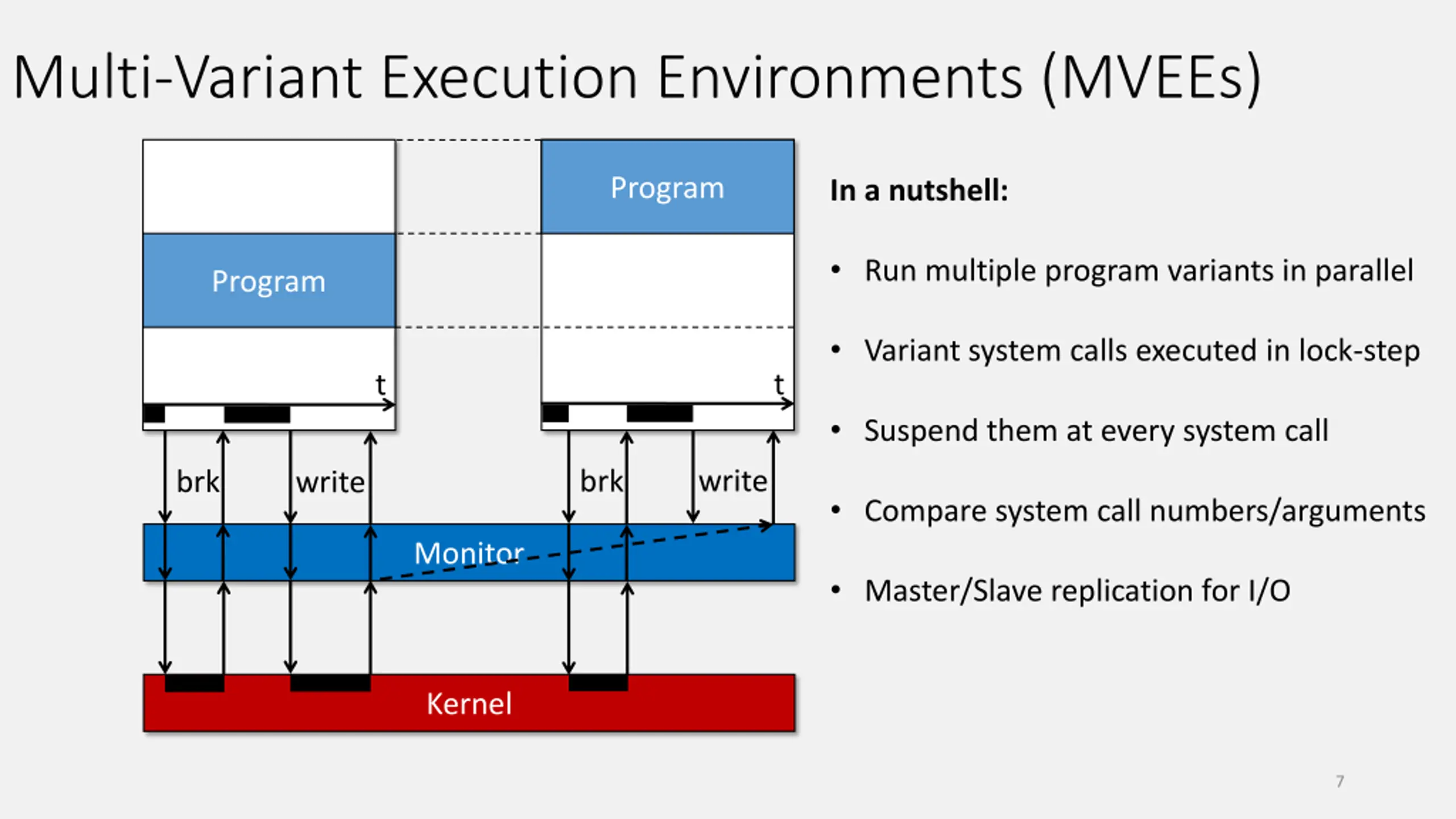

Multi-Variant Execution Environments (MVEEs) Program In a nutshell: Run multiple program variants in parallel Program Variant system calls executed in lock-step t t Suspend them at every system call write brk brk write Compare system call numbers/arguments Monitor Master/Slave replication for I/O Kernel 7

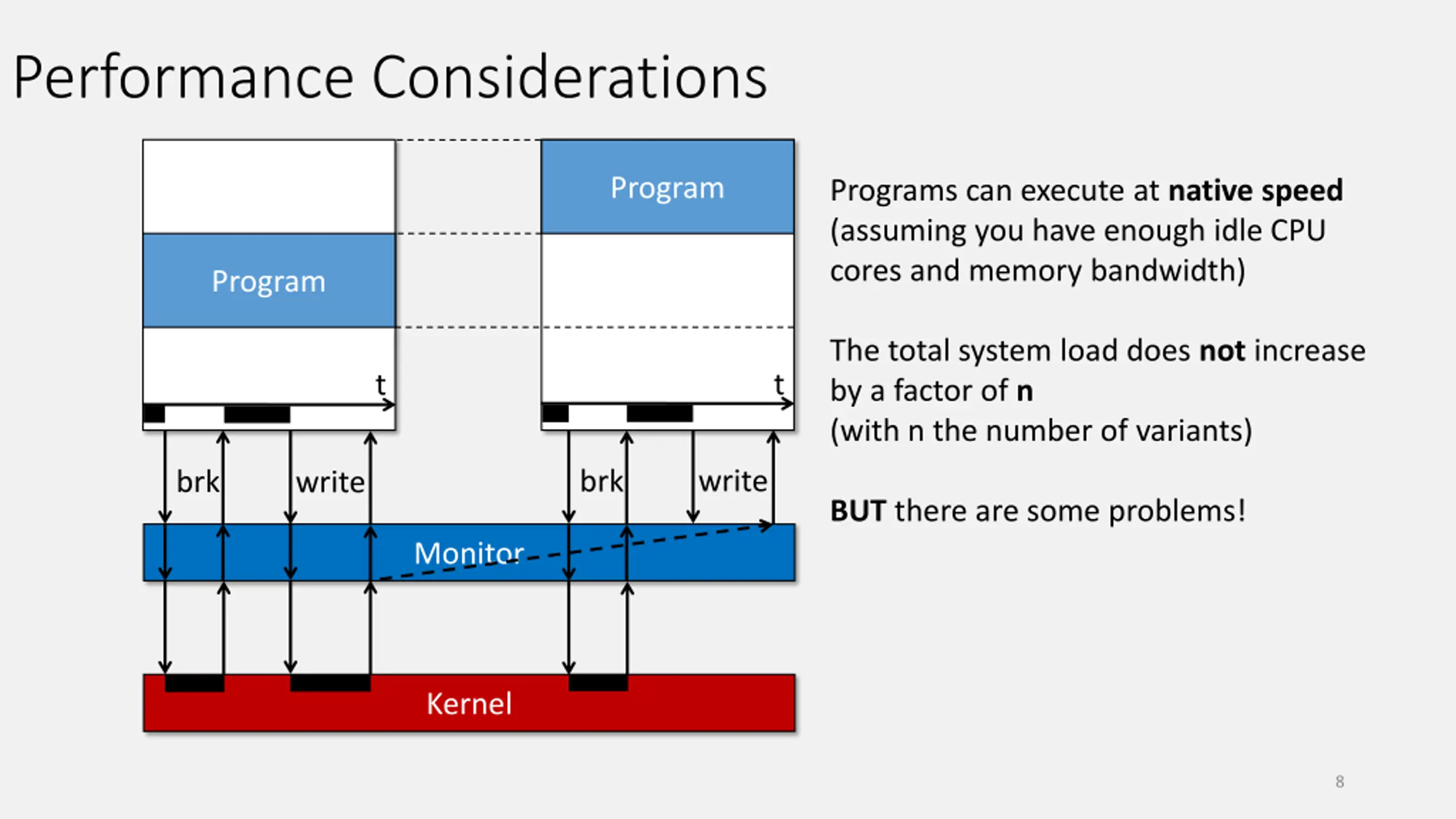

Performance Considerations Program Programs can execute at native speed (assuming you have enough idle CPU cores and memory bandwidth) Program The total system load does not increase by a factor of n (with n the number of variants) t t Stack Stack write brk brk write BUT there are some problems! Monitor Kernel 8

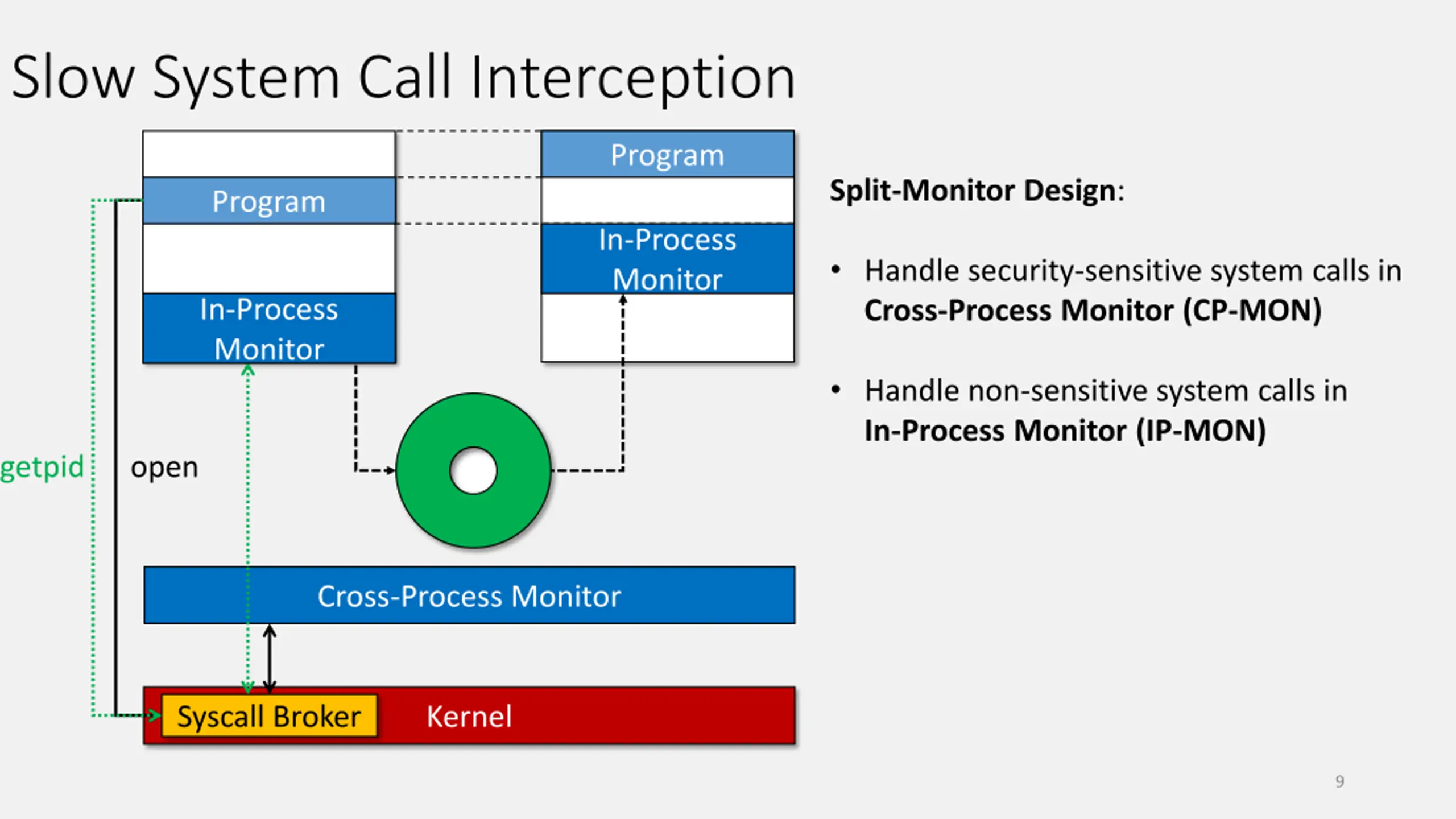

Slow System Call Interception Program Split-Monitor Design: Program In-Process Monitor Handle security-sensitive system calls in Cross-Process Monitor (CP-MON) In-Process Monitor Handle non-sensitive system calls in In-Process Monitor (IP-MON) getpid open Cross-Process Monitor Syscall Broker Kernel 9

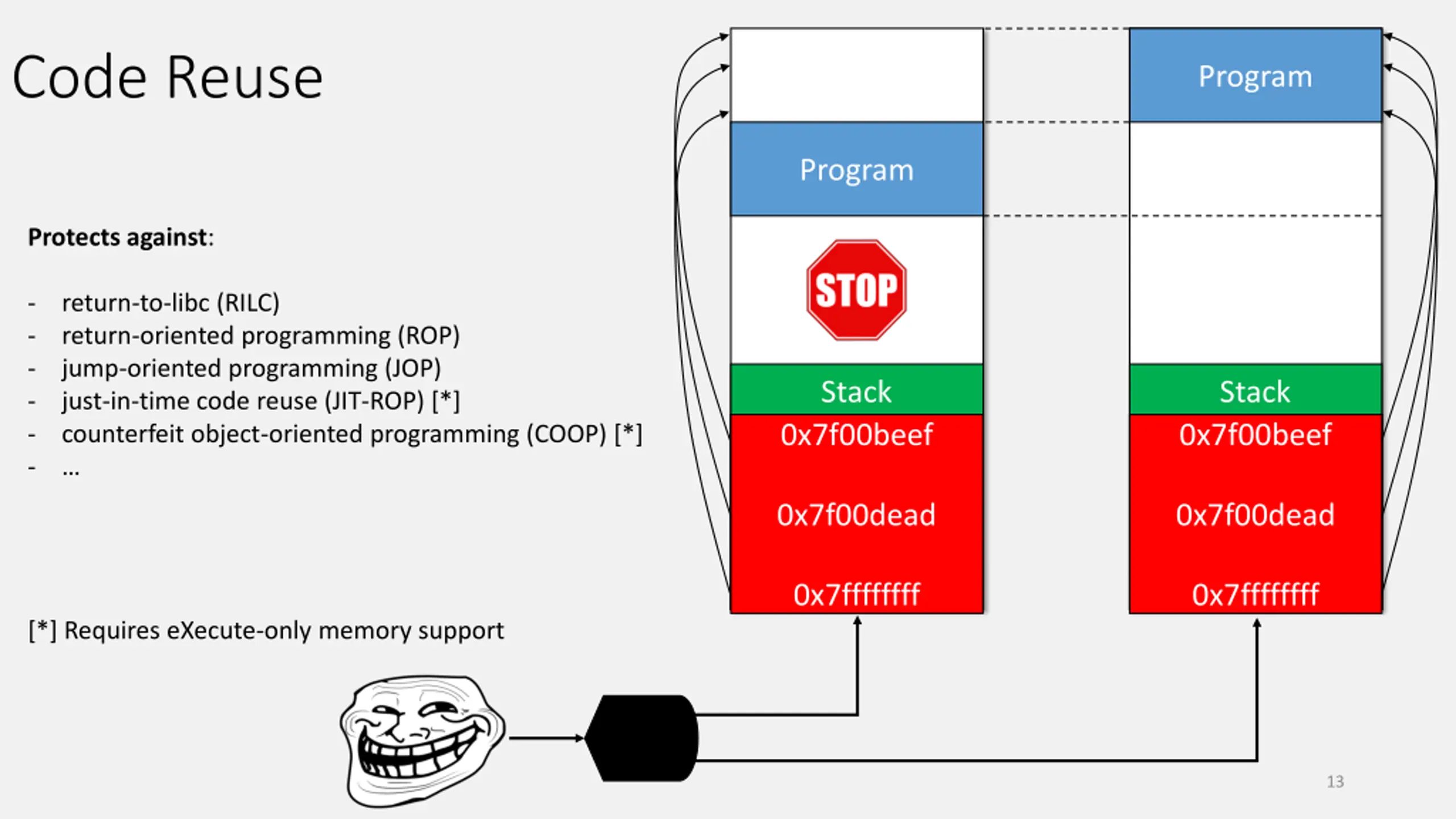

Code Reuse Program Program Protects against: - - - - - - return-to-libc (RILC) return-oriented programming (ROP) jump-oriented programming (JOP) just-in-time code reuse (JIT-ROP) [*] counterfeit object-oriented programming (COOP) [*] Stack Stack 0x7f00beef 0x7f00beef 0x7f00dead 0x7f00dead main + 2 0x7ffffffff main + 2 0x7ffffffff [*] Requires eXecute-only memory support 13

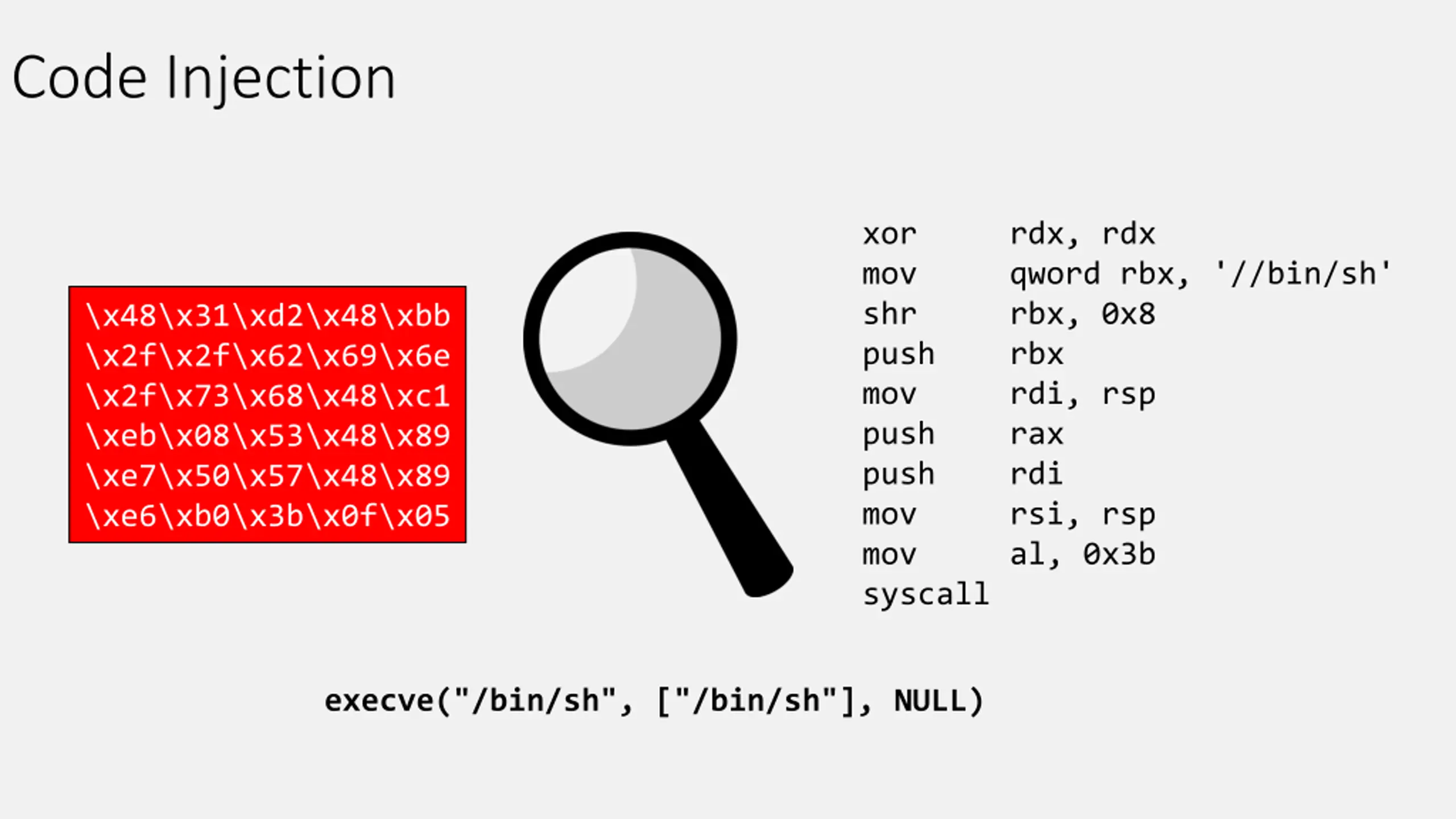

Code Injection xor rdx, rdx mov qword rbx, '//bin/sh' shr rbx, 0x8 push rbx mov rdi, rsp push rax push rdi mov rsi, rsp mov al, 0x3b syscall \x48\x31\xd2\x48\xbb \x2f\x2f\x62\x69\x6e \x2f\x73\x68\x48\xc1 \xeb\x08\x53\x48\x89 \xe7\x50\x57\x48\x89 \xe6\xb0\x3b\x0f\x05 execve("/bin/sh", ["/bin/sh"], NULL)

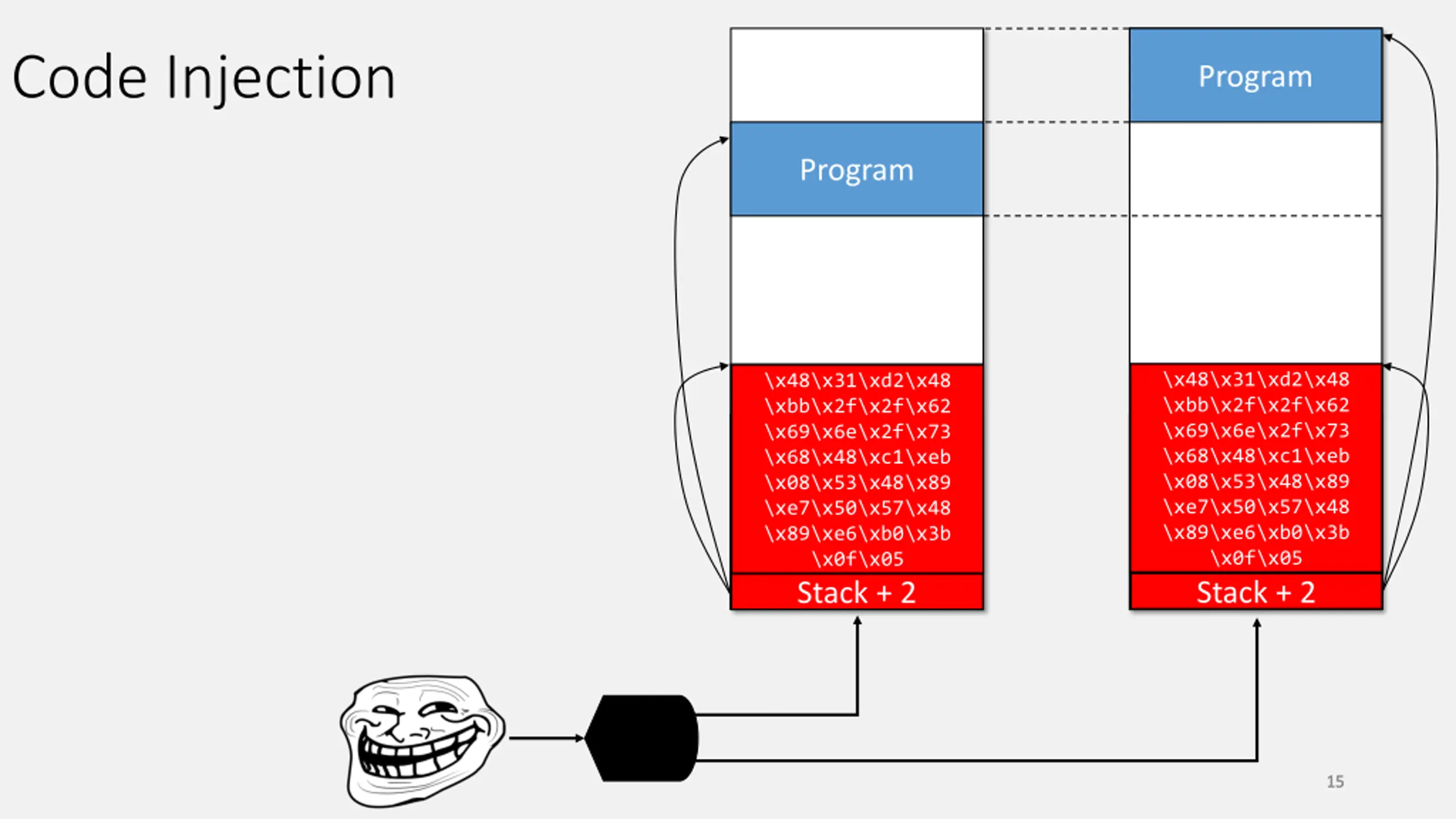

Code Injection Program Program \x48\x31\xd2\x48 \xbb\x2f\x2f\x62 \x69\x6e\x2f\x73 \x68\x48\xc1\xeb \x08\x53\x48\x89 \xe7\x50\x57\x48 \x89\xe6\xb0\x3b \x0f\x05 \x48\x31\xd2\x48 \xbb\x2f\x2f\x62 \x69\x6e\x2f\x73 \x68\x48\xc1\xeb \x08\x53\x48\x89 \xe7\x50\x57\x48 \x89\xe6\xb0\x3b \x0f\x05 Stack Stack main + 2 Stack + 2 main + 2 Stack + 2 15 15

Program + VM (ARM) Code Injection Program + VM (x86_64) \x48\x31\xd2\x48 \xbb\x2f\x2f\x62 \x69\x6e\x2f\x73 \x68\x48\xc1\xeb \x08\x53\x48\x89 \xe7\x50\x57\x48 \x89\xe6\xb0\x3b \x0f\x05 \x48\x31\xd2\x48 \xbb\x2f\x2f\x62 \x69\x6e\x2f\x73 \x68\x48\xc1\xeb \x08\x53\x48\x89 \xe7\x50\x57\x48 \x89\xe6\xb0\x3b \x0f\x05 Stack Stack main + 2 Stack + 2 main + 2 Stack + 2 16 16

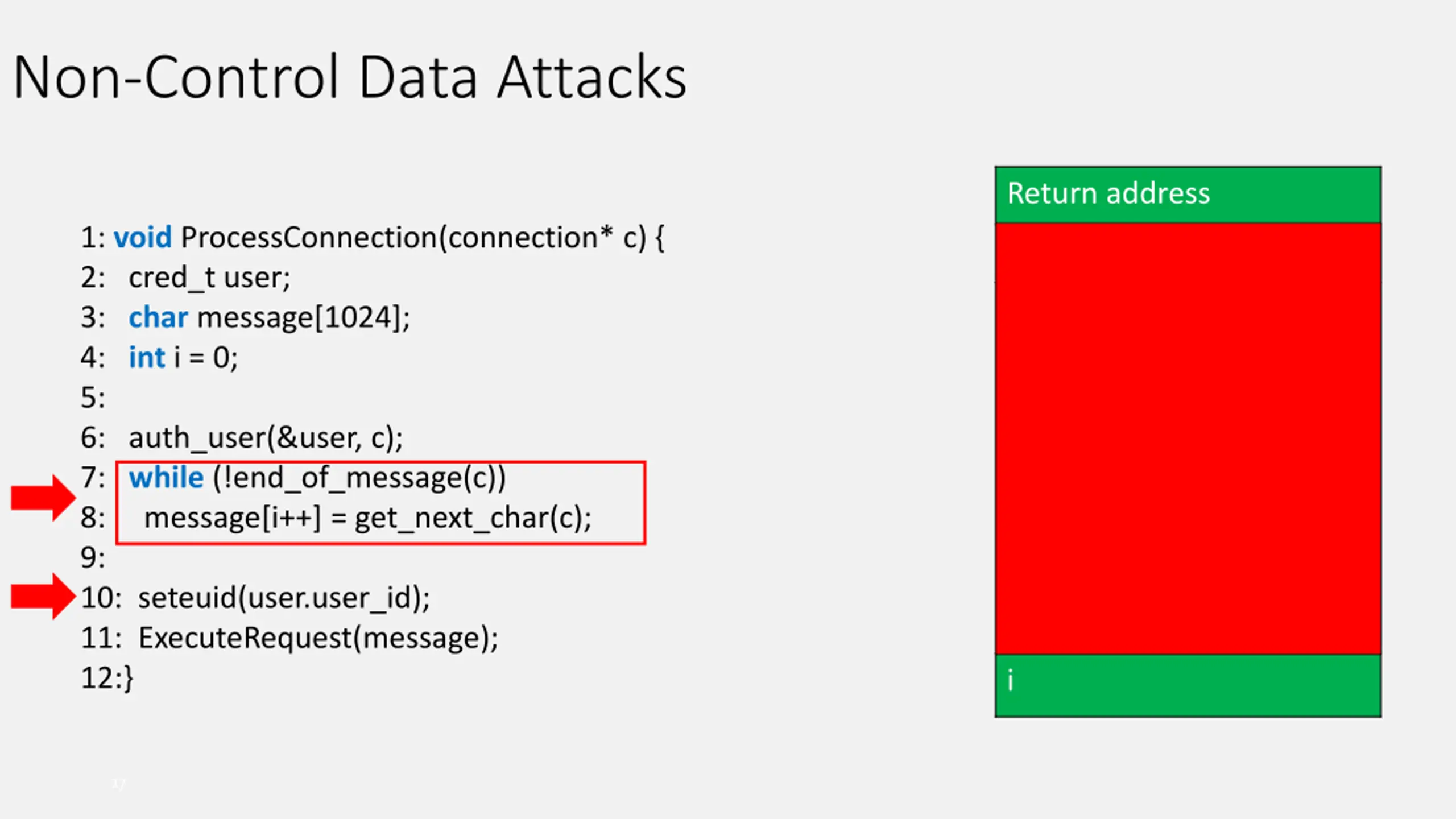

Non-Control Data Attacks Return address 1: void ProcessConnection(connection* c) { 2: cred_t user; 3: char message[1024]; 4: int i = 0; 5: 6: auth_user(&user, c); 7: while (!end_of_message(c)) 8: message[i++] = get_next_char(c); 9: 10: seteuid(user.user_id); 11: ExecuteRequest(message); 12:} user message i 17

Non-Control Data Attacks 1: void ProcessConnection(connection* c) { 2: cred_t user; 3: char message[1024]; 4: int i = encrypt(0, ); 5: 6: auth_user(&user, c); 7: while (!end_of_message(c)) { 8: register int tmp = decrypt(i, ); 9: message[tmp] = encrypt(get_next_char(c),); 10: i = encrypt(tmp + 1, ); 11: } 12: 13: seteuid(decrypt(user.user_id, )); 14: ExecuteRequest(message); 15:} 18 Return address 1: void ProcessConnection(connection* c) { 2: cred_t user; 3: char message[1024]; 4: int i = 0; 5: 6: auth_user(&user, c); 7: while (!end_of_message(c)) 8: message[i++] = get_next_char(c); 9: 10: seteuid(user.user_id); 11: ExecuteRequest(message); 12:} user message i

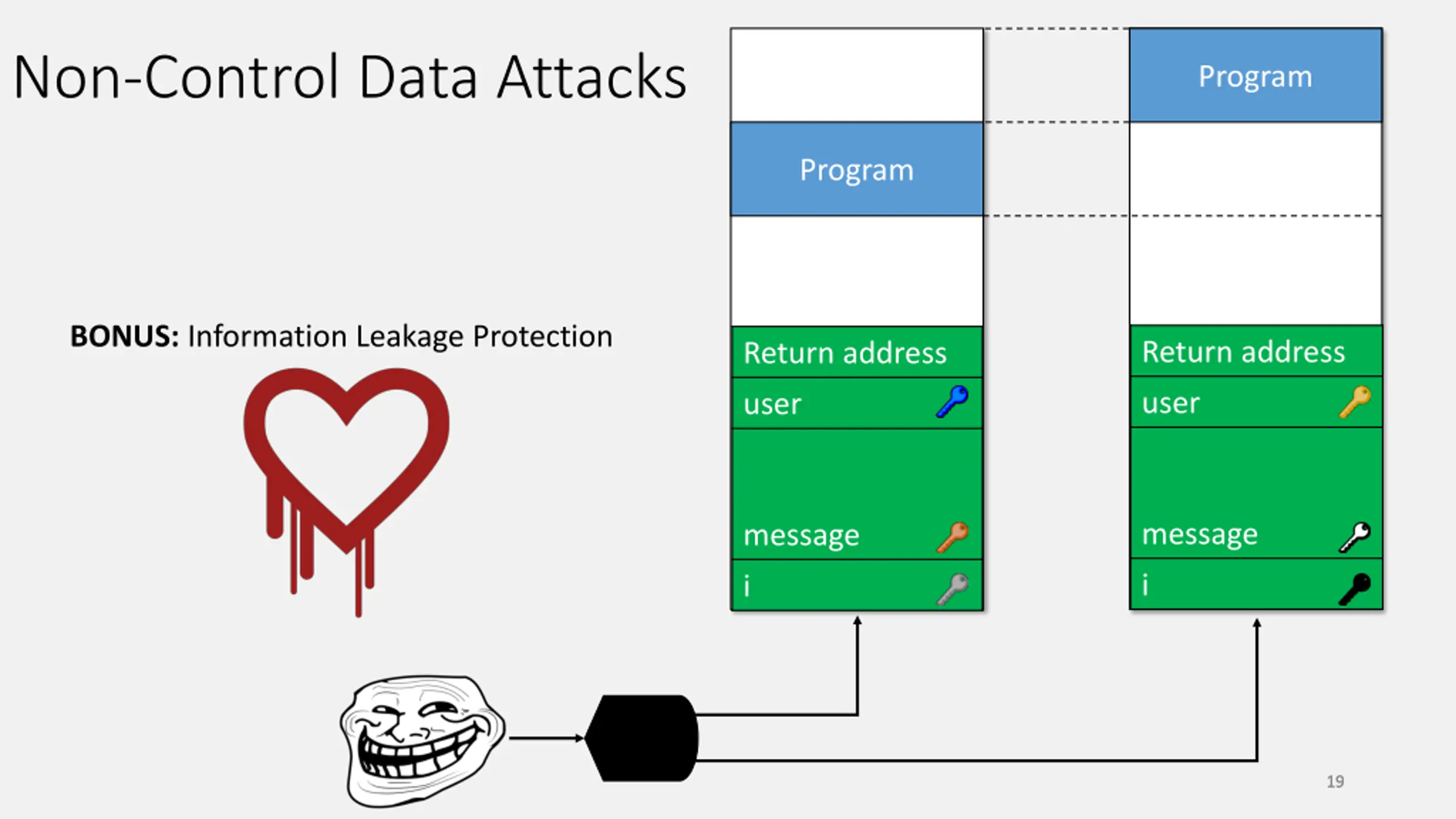

Non-Control Data Attacks Program Program BONUS: Information Leakage Protection Return address Return address Stack Stack user user message message i i main + 2 main + 2 19 19

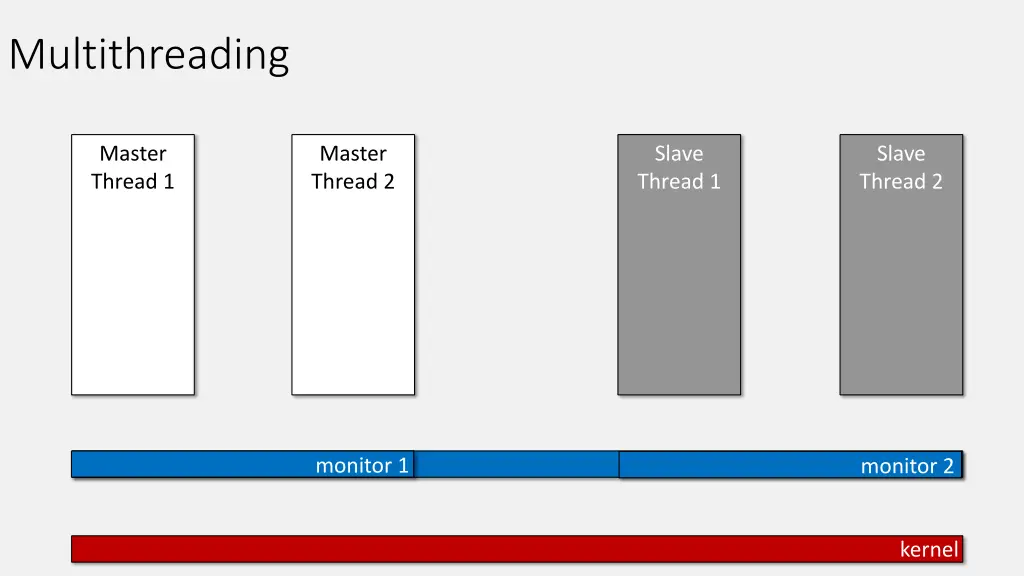

Multithreading Master Thread 1 Master Thread 2 Slave Thread 1 Slave Thread 2 monitor monitor 2 monitor 1 kernel 21

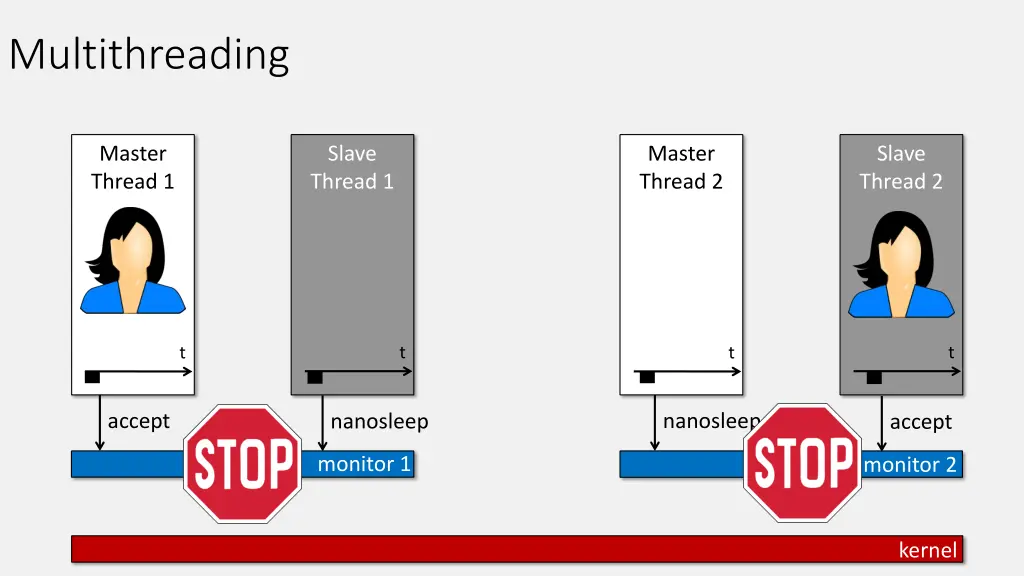

Multithreading Master Thread 1 Slave Thread 1 Master Thread 2 Slave Thread 2 t t t t accept nanosleep nanosleep accept monitor 1 GHUMVEE monitor monitor 2 kernel

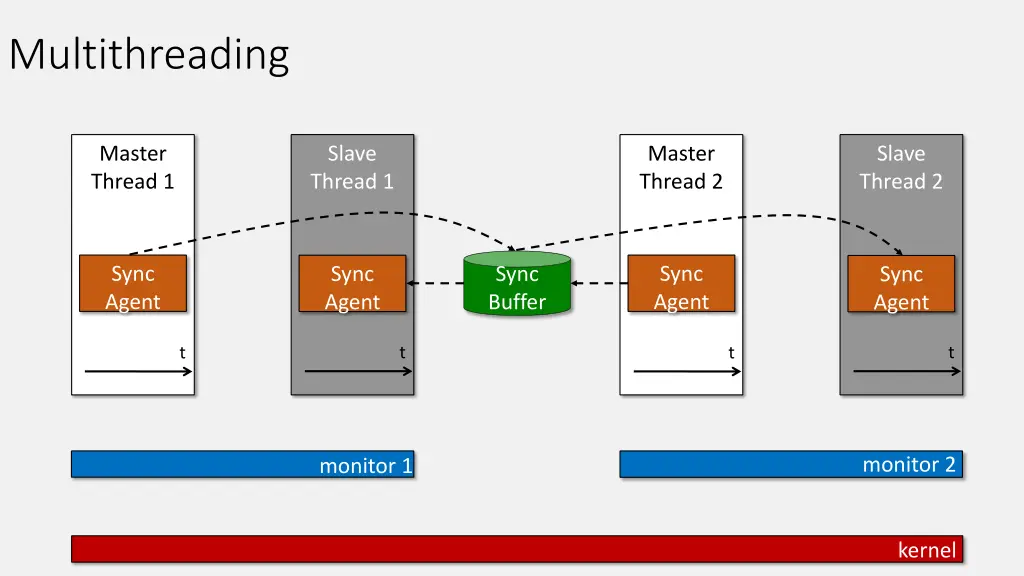

Multithreading Master Thread 1 Slave Thread 1 Master Thread 2 Slave Thread 2 Sync Agent Sync Agent Sync Agent Sync Buffer Sync Agent t t t t GHUMVEE monitor monitor 2 monitor 1 kernel
