Use machine learning to Use machine learning to study study aQGCs aQGCs Ji-Chong Yang Liaoning Normal University Collaborator Yu-Chen Guo, Chong-Xing Yue 2021-11-9 CEPC 2021

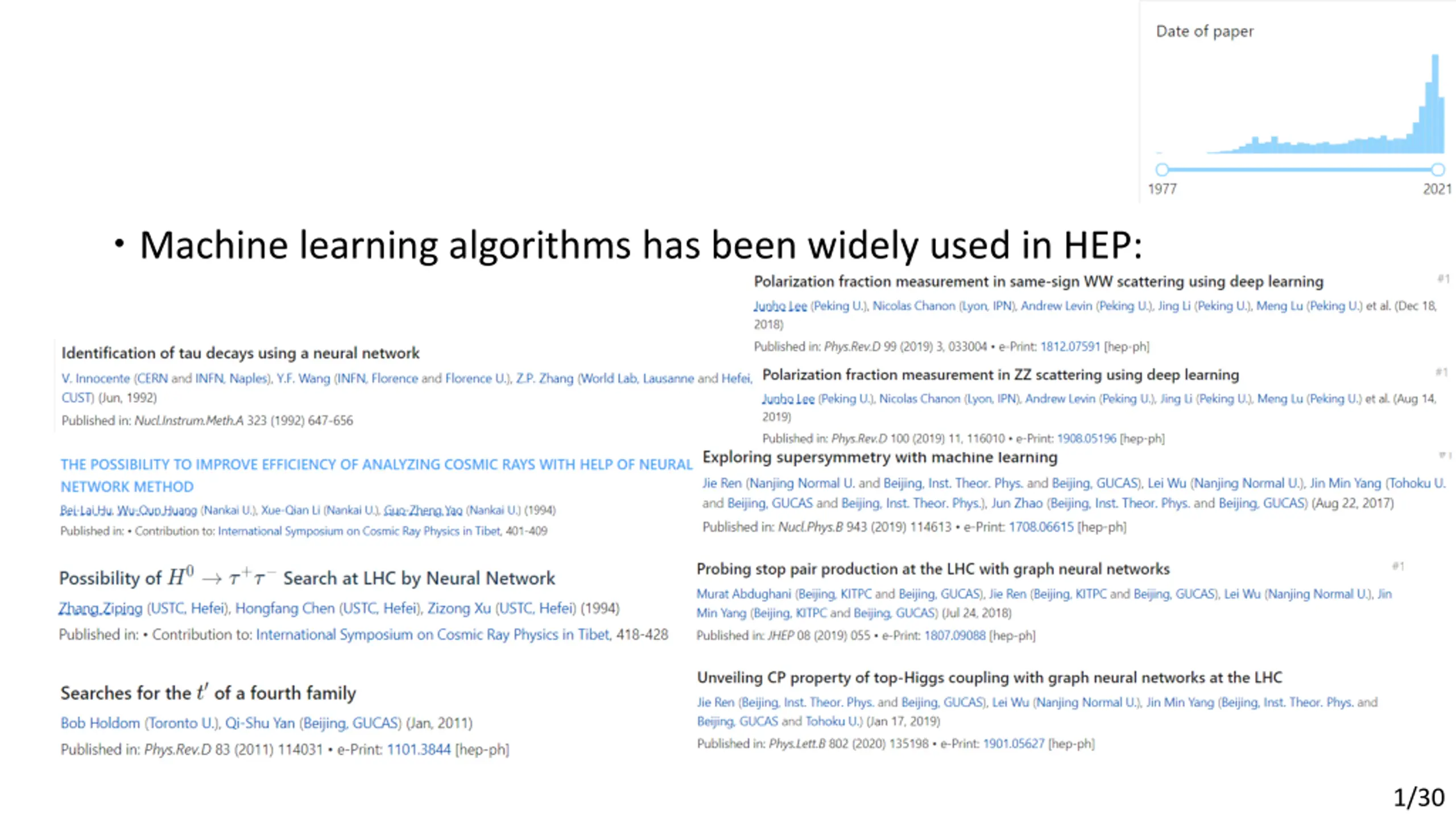

Machine learning algorithms has been widely used in HEP: 1/30

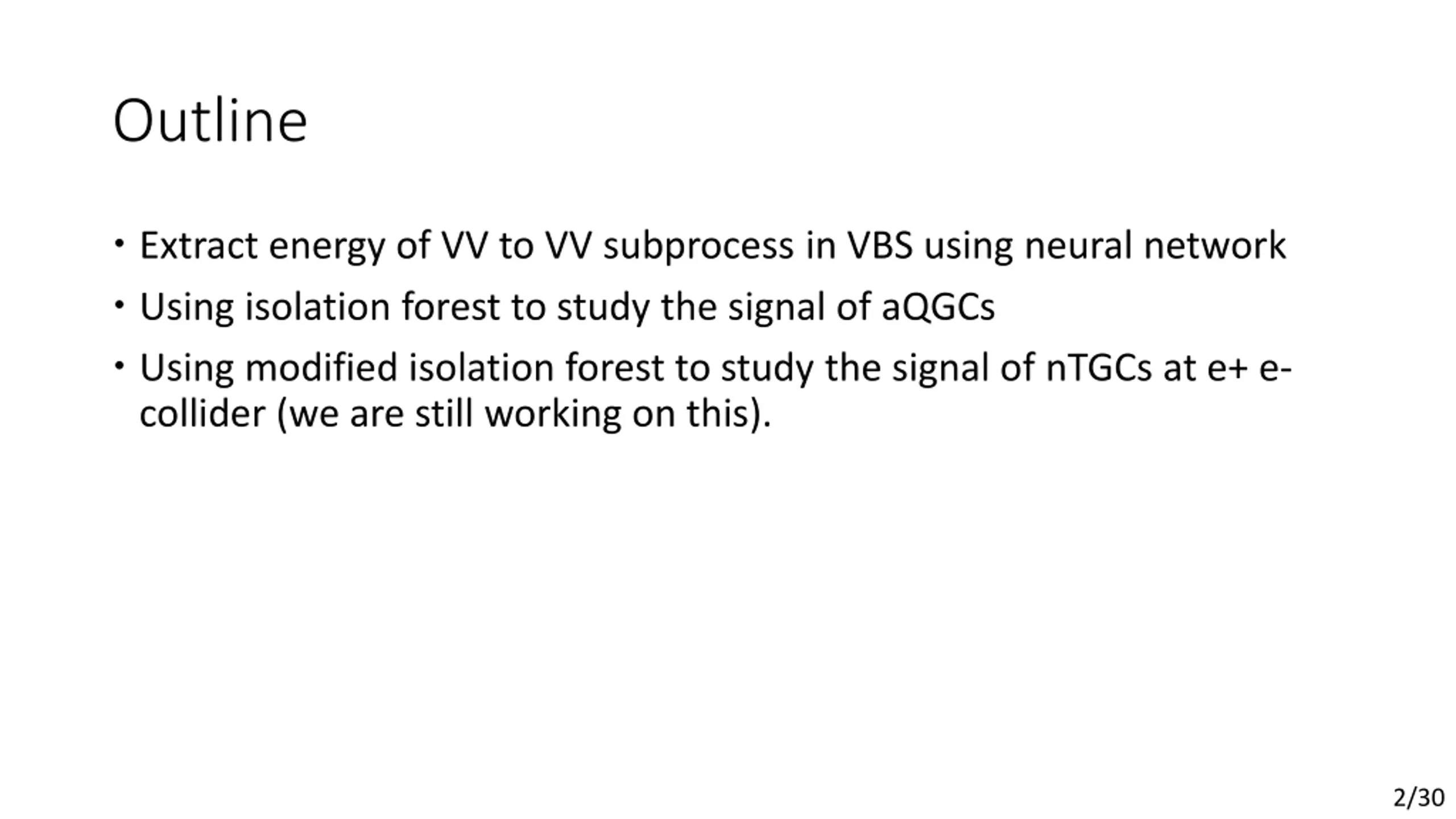

Outline Extract energy of VV to VV subprocess in VBS using neural network Using isolation forest to study the signal of aQGCs Using modified isolation forest to study the signal of nTGCs at e+ e- collider (we are still working on this). 2/30

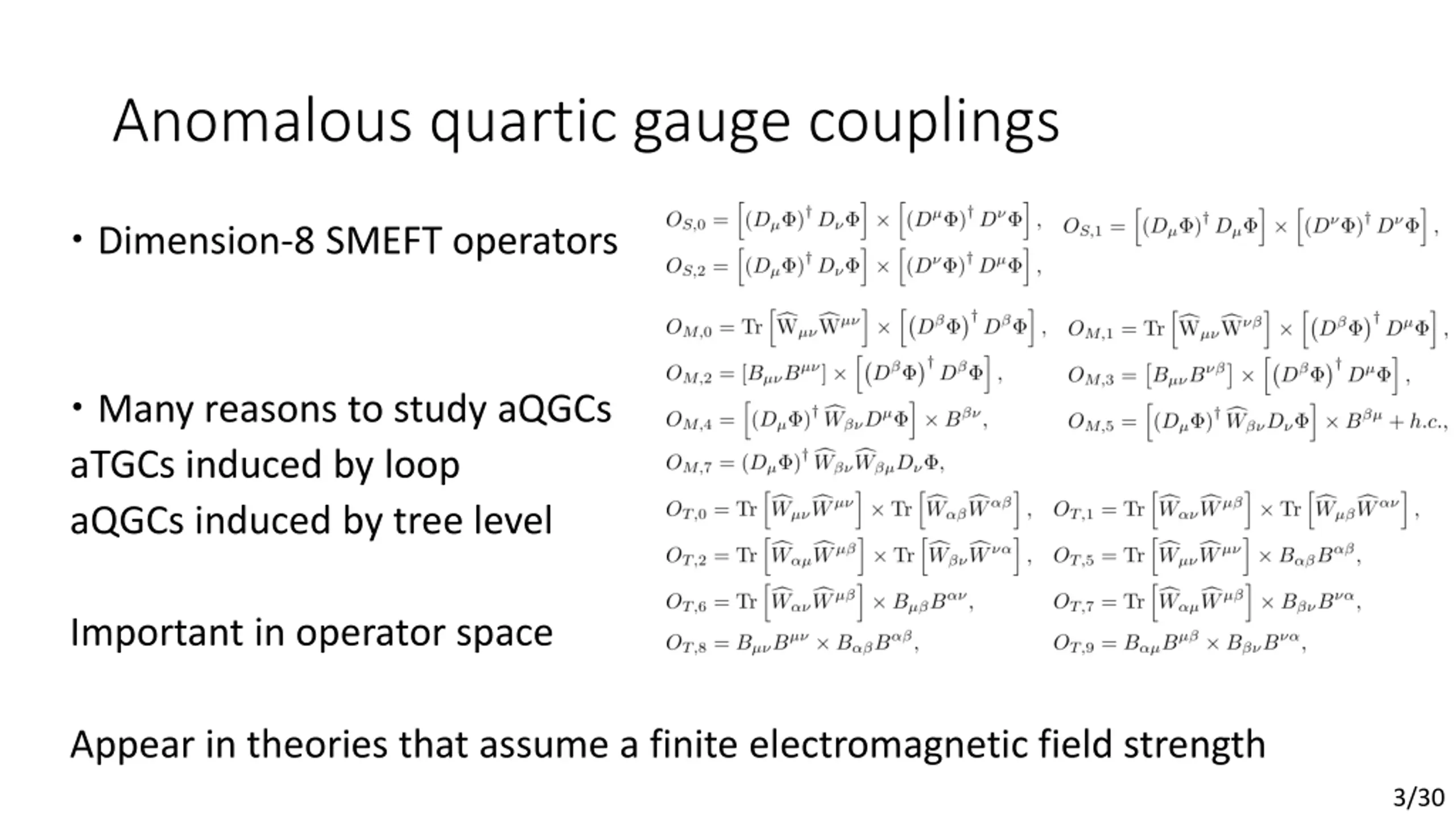

Anomalous quartic gauge couplings Dimension-8 SMEFT operators Many reasons to study aQGCs aTGCs induced by loop aQGCs induced by tree level Important in operator space Appear in theories that assume a finite electromagnetic field strength 3/30

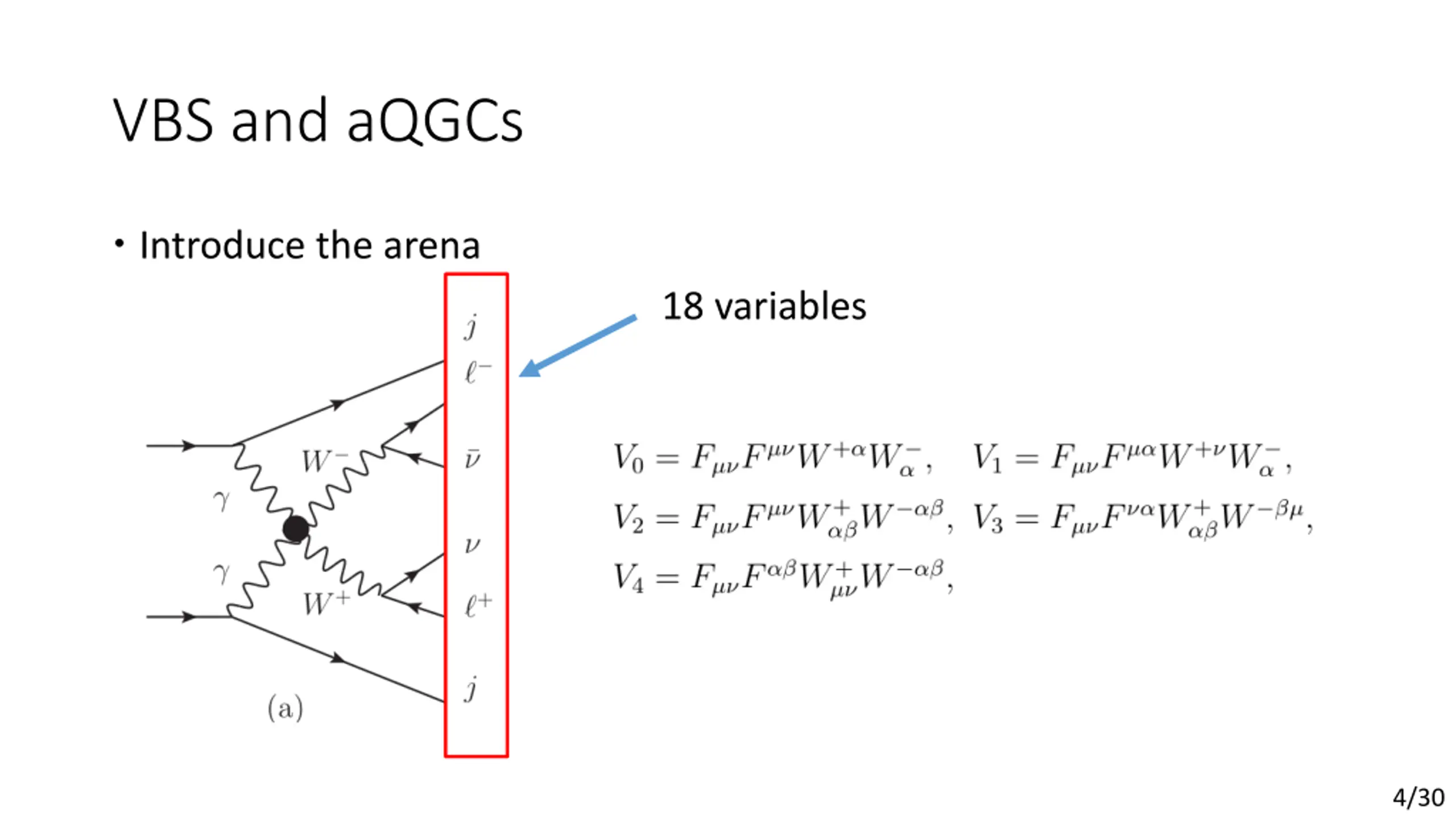

VBS and aQGCs Introduce the arena 18 variables 4/30

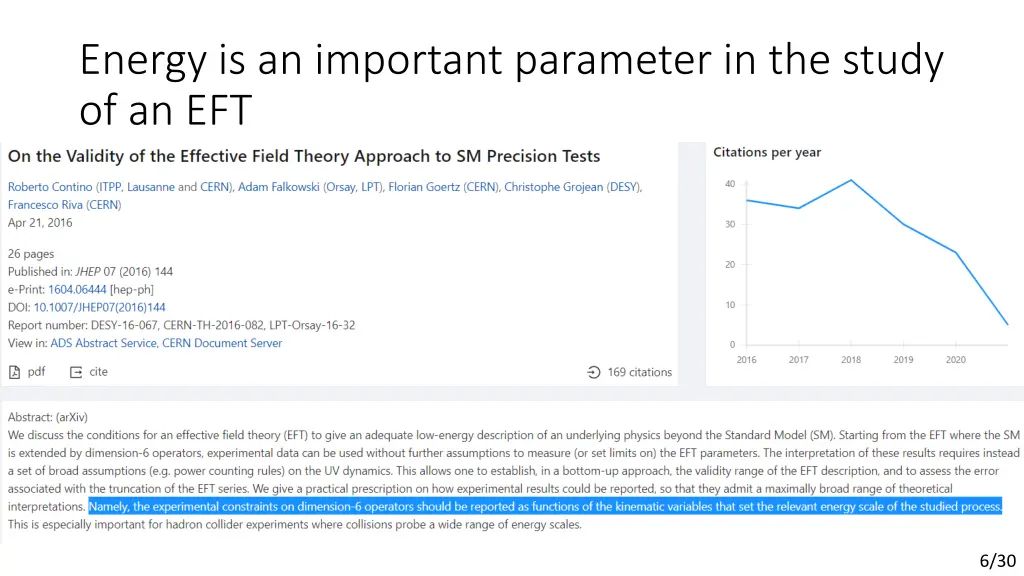

Energy is an important parameter in the study of an EFT 6/30

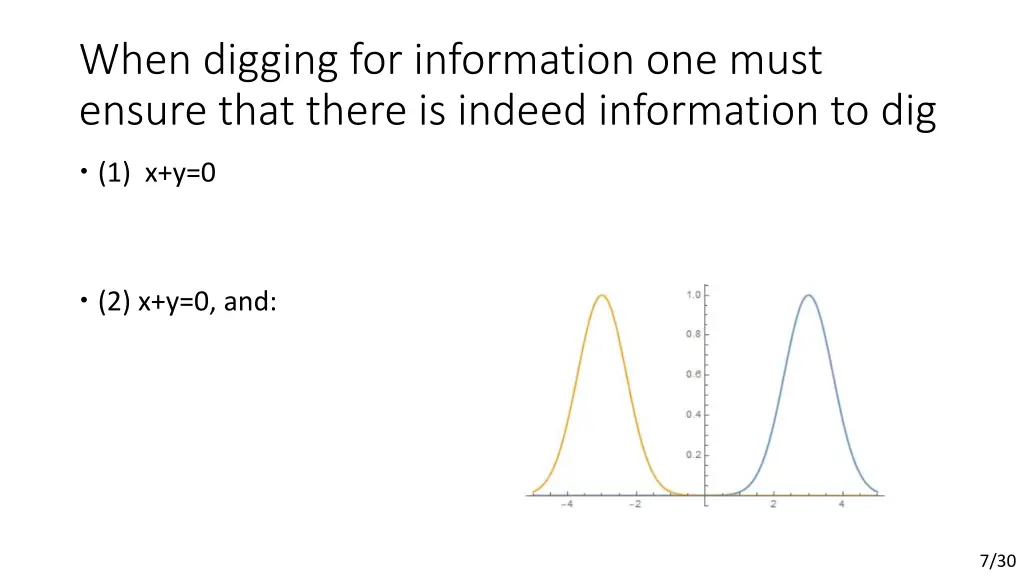

When digging for information one must ensure that there is indeed information to dig (1) x+y=0 (2) x+y=0, and: 7/30

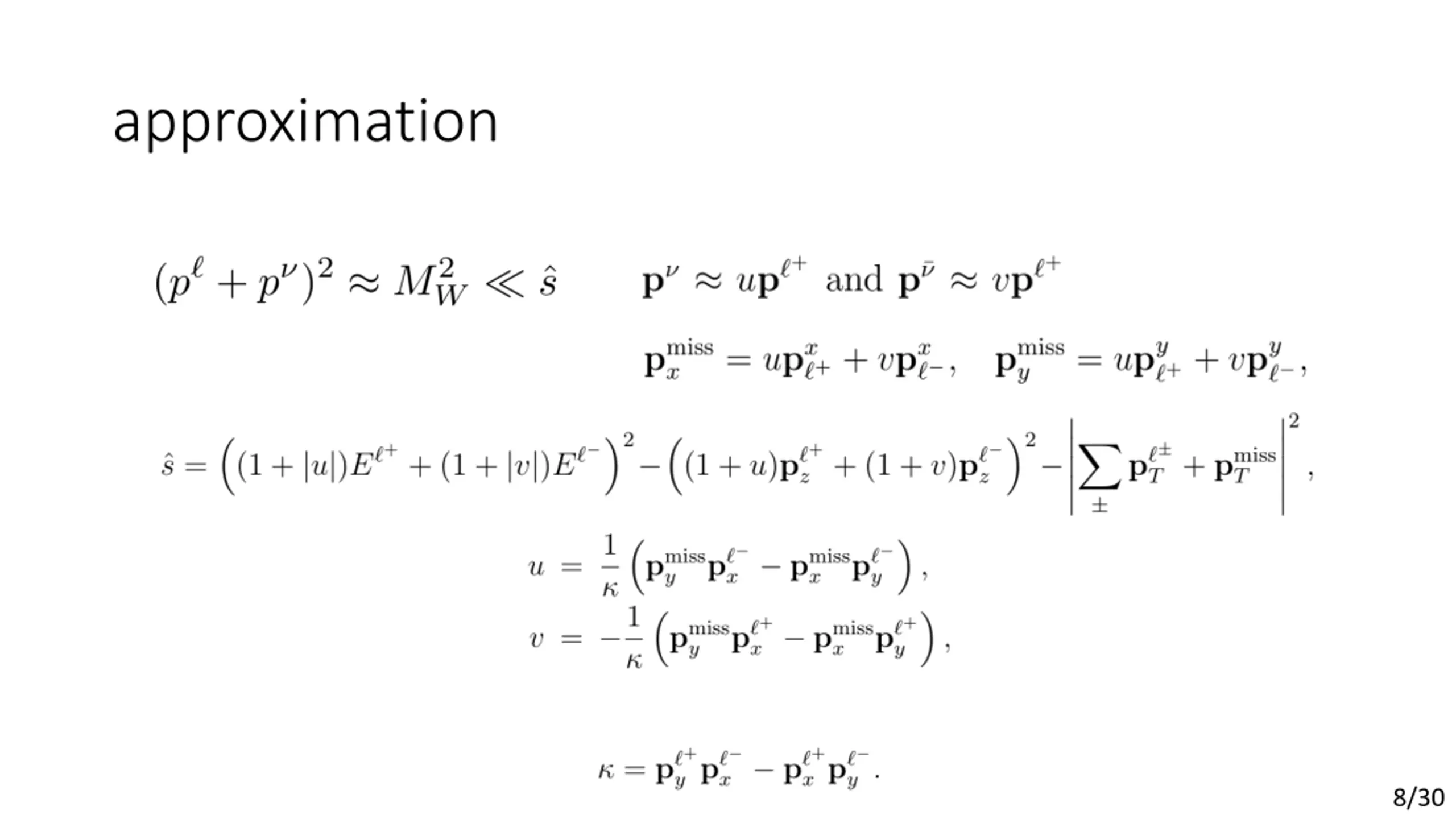

approximation 8/30

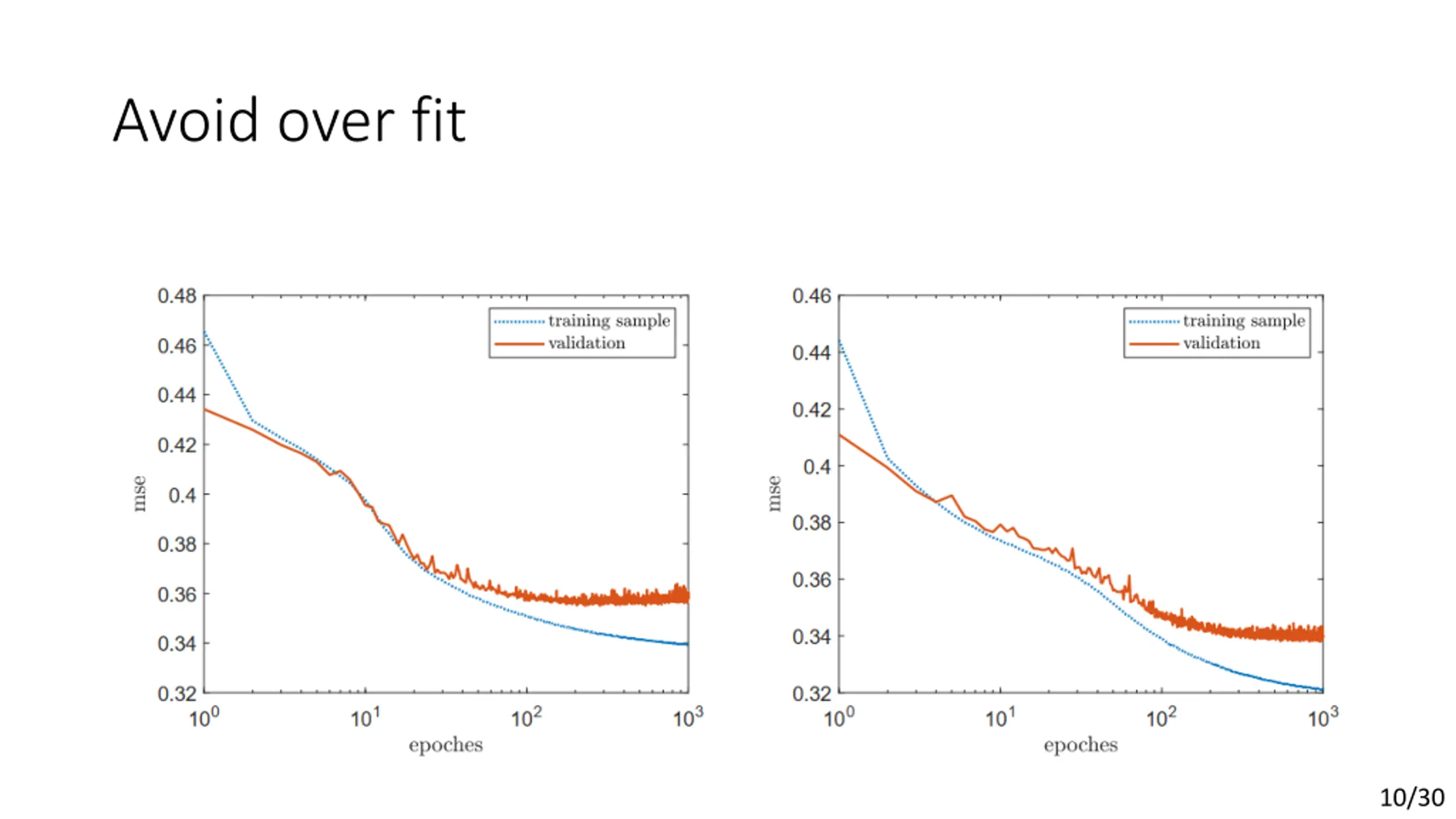

Avoid over fit 10/30

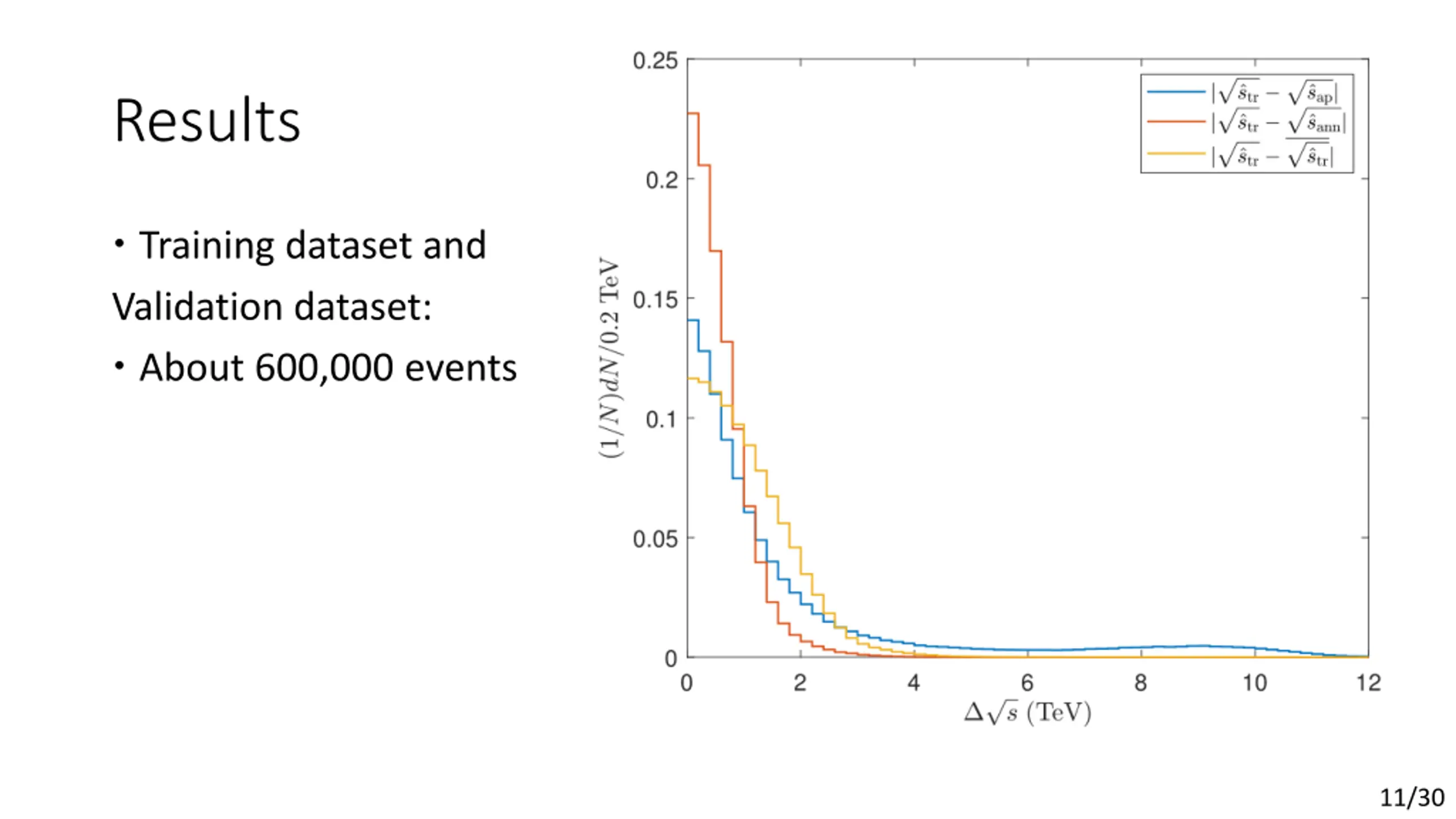

Results Training dataset and Validation dataset: About 600,000 events 11/30

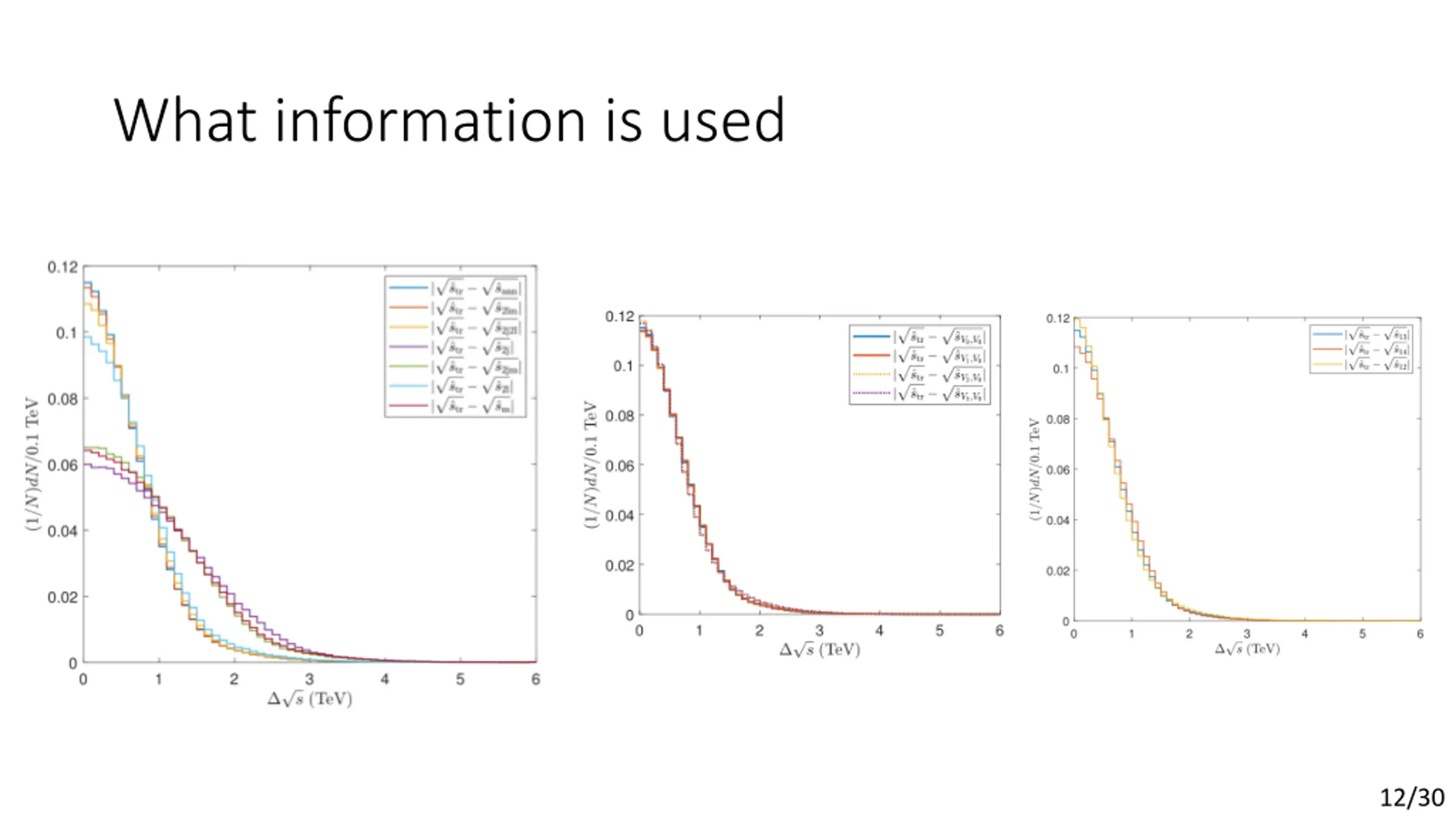

What information is used 12/30

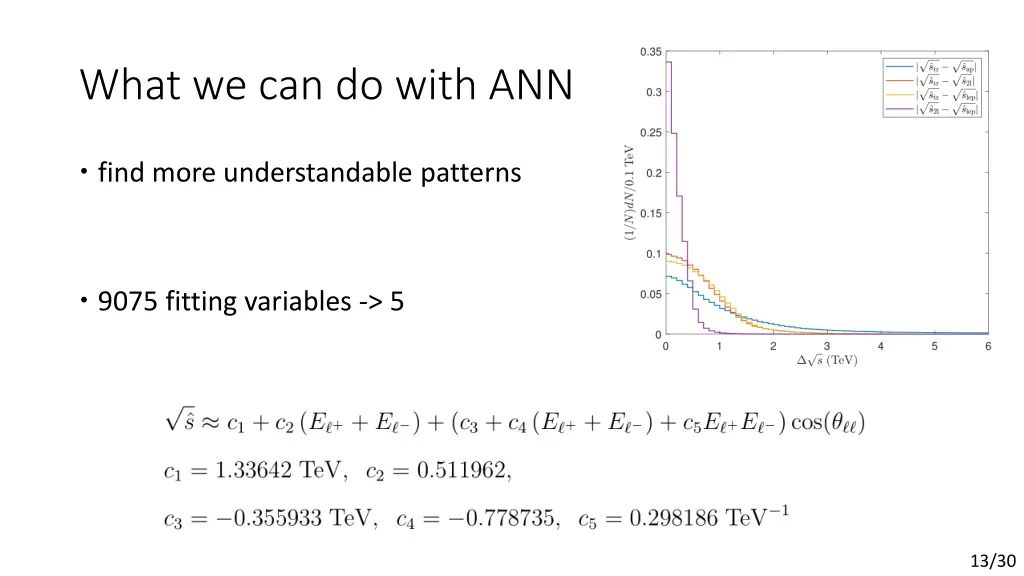

What we can do with ANN find more understandable patterns 9075 fitting variables -> 5 13/30

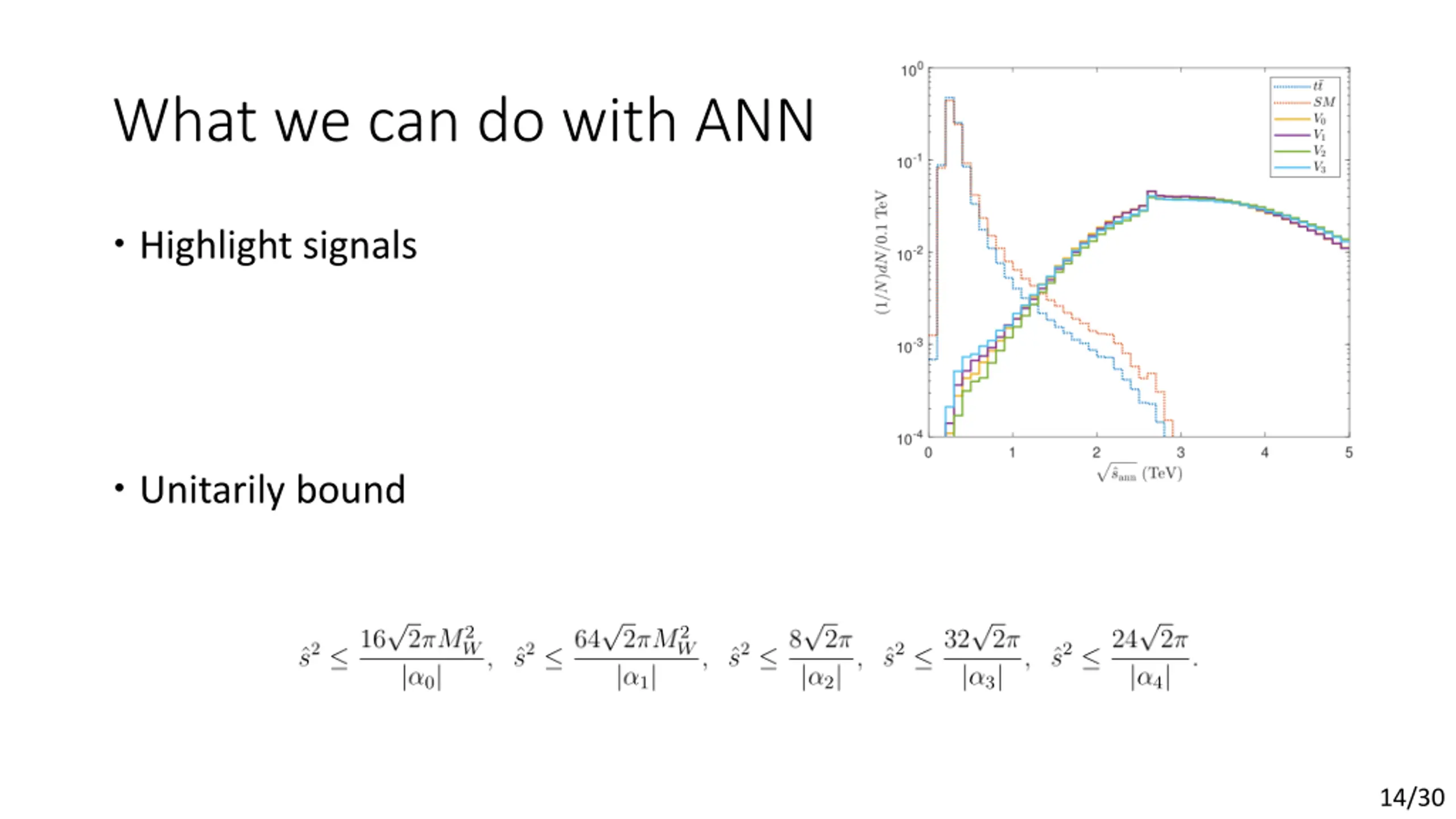

What we can do with ANN Highlight signals Unitarily bound 14/30

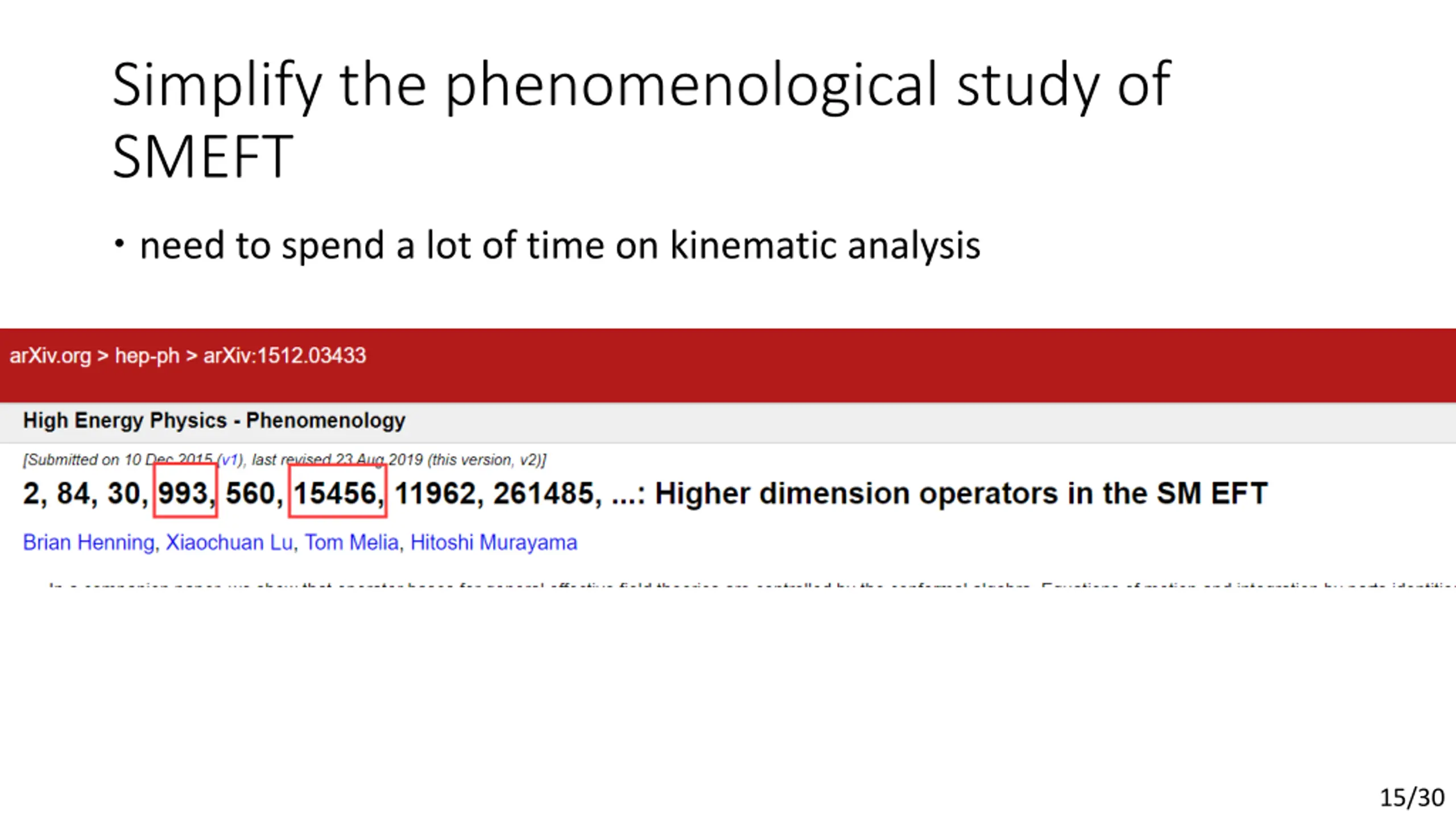

Simplify the phenomenological study of SMEFT need to spend a lot of time on kinematic analysis 15/30

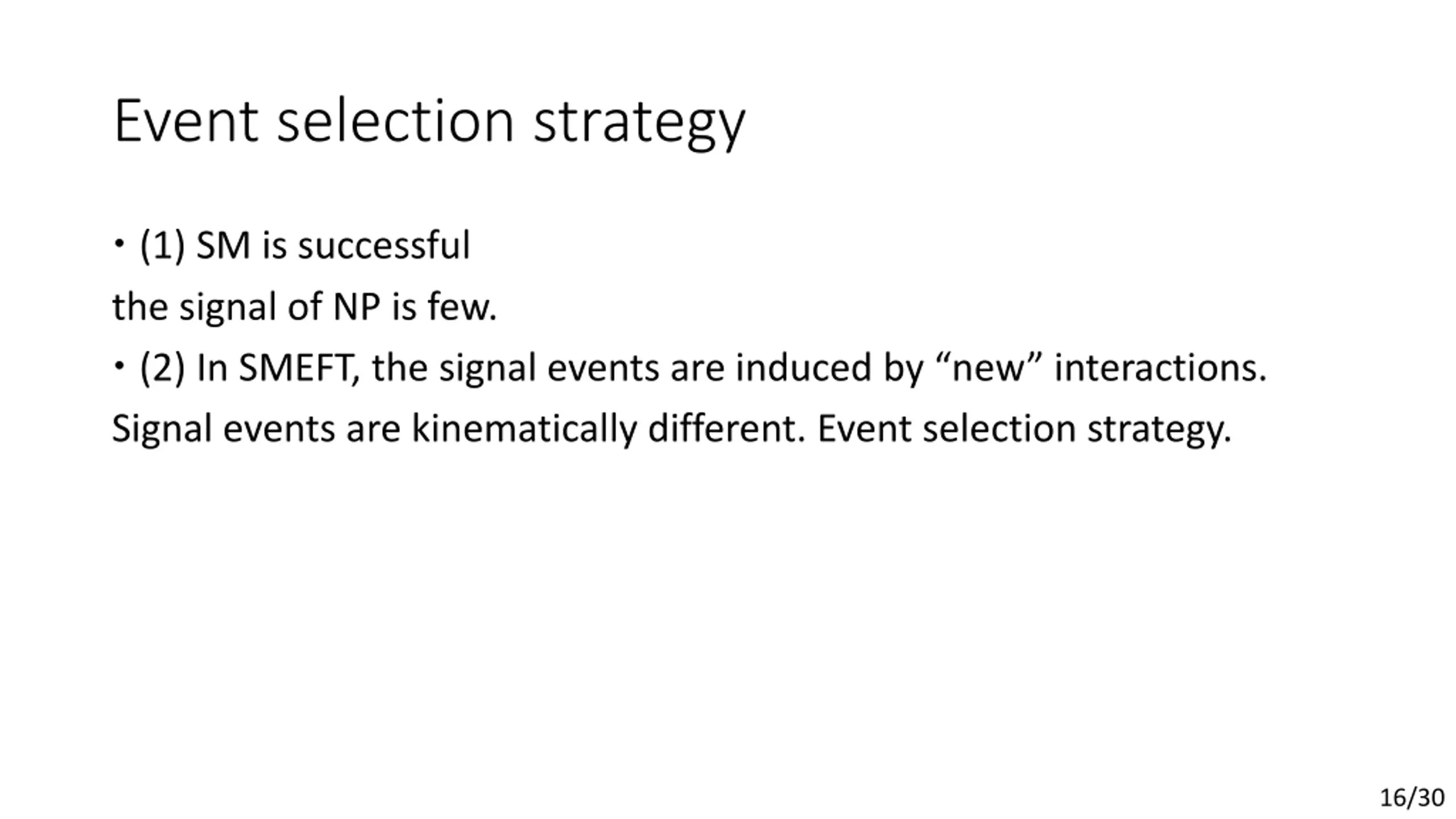

Event selection strategy (1) SM is successful the signal of NP is few. (2) In SMEFT, the signal events are induced by new interactions. Signal events are kinematically different. Event selection strategy. 16/30
A common feature of many NP model Few Different 17/30

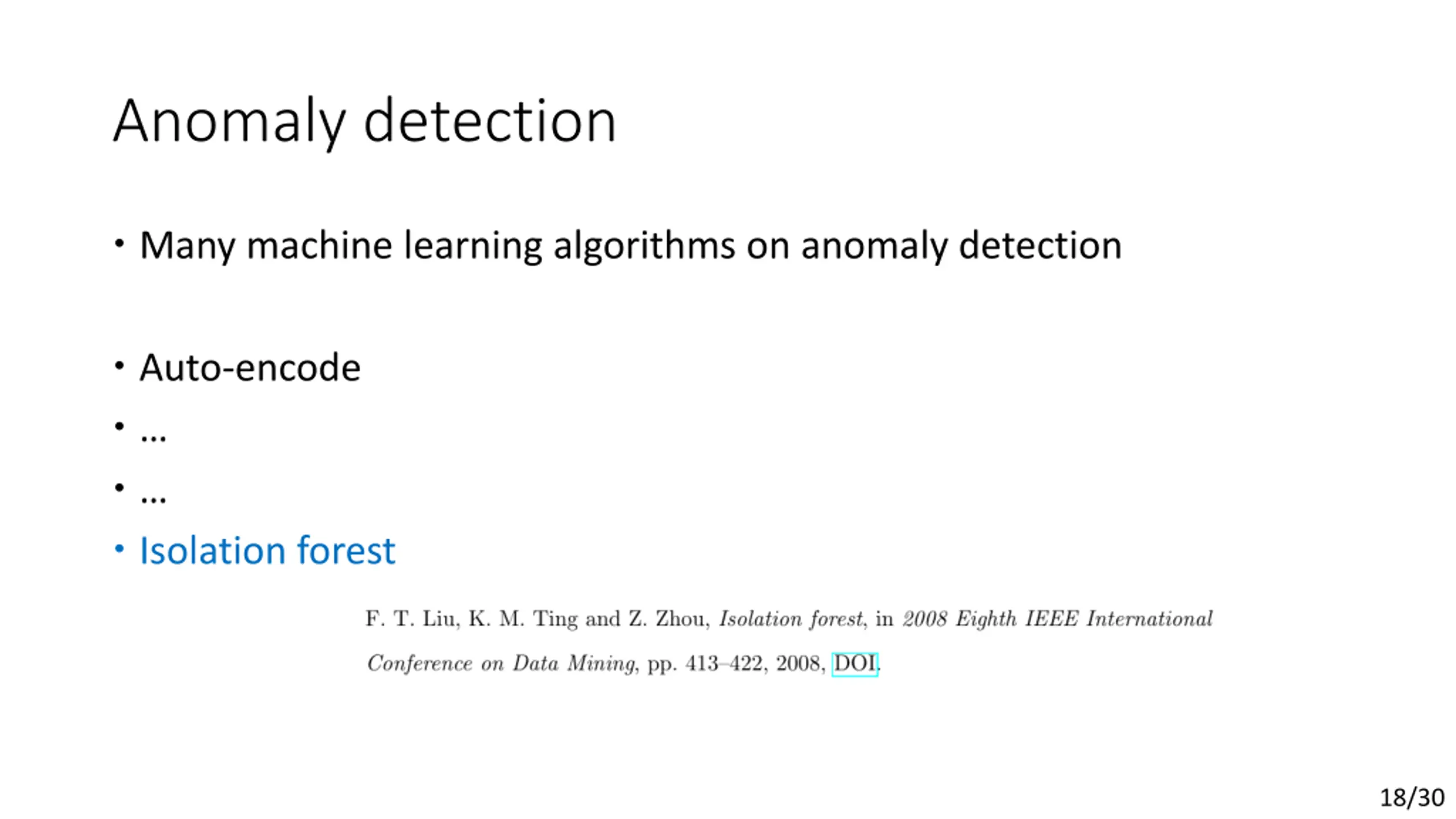

Anomaly detection Many machine learning algorithms on anomaly detection Auto-encode Isolation forest 18/30

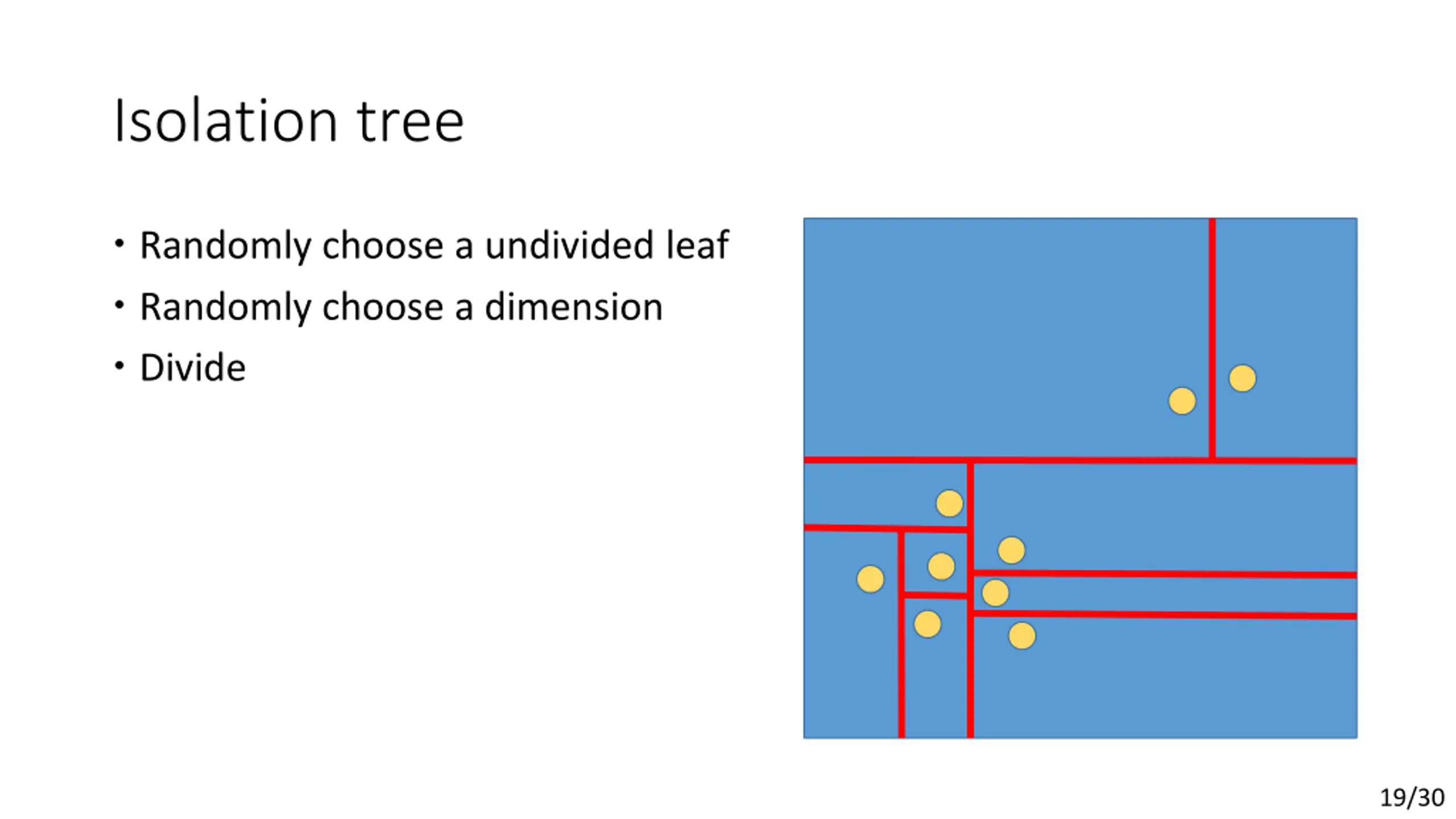

Isolation tree Randomly choose a undivided leaf Randomly choose a dimension Divide 19/30

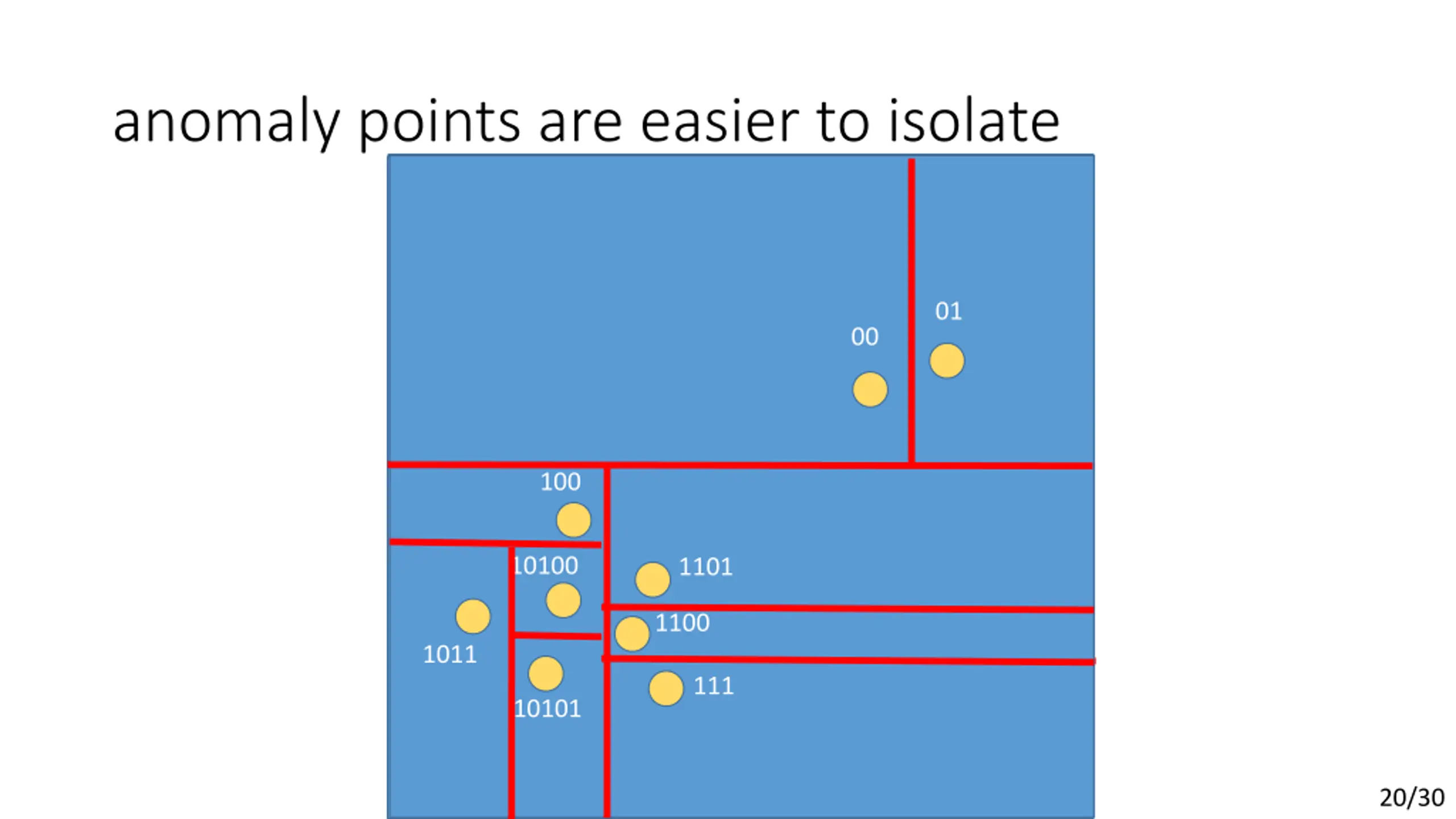

anomaly points are easier to isolate 0 0 0 01 01 01 01 01 0 0 0 00 00 00 00 00 1 10 10 10 100 100 100 100 1 10 10 10 101 1010 1010 10100 1 11 110 110 110 110 1101 1101 1 11 110 110 110 110 1100 1100 1 10 10 10 101 1011 1011 1011 1 11 111 111 111 111 111 111 1 10 10 10 101 1010 1010 10101 20/30

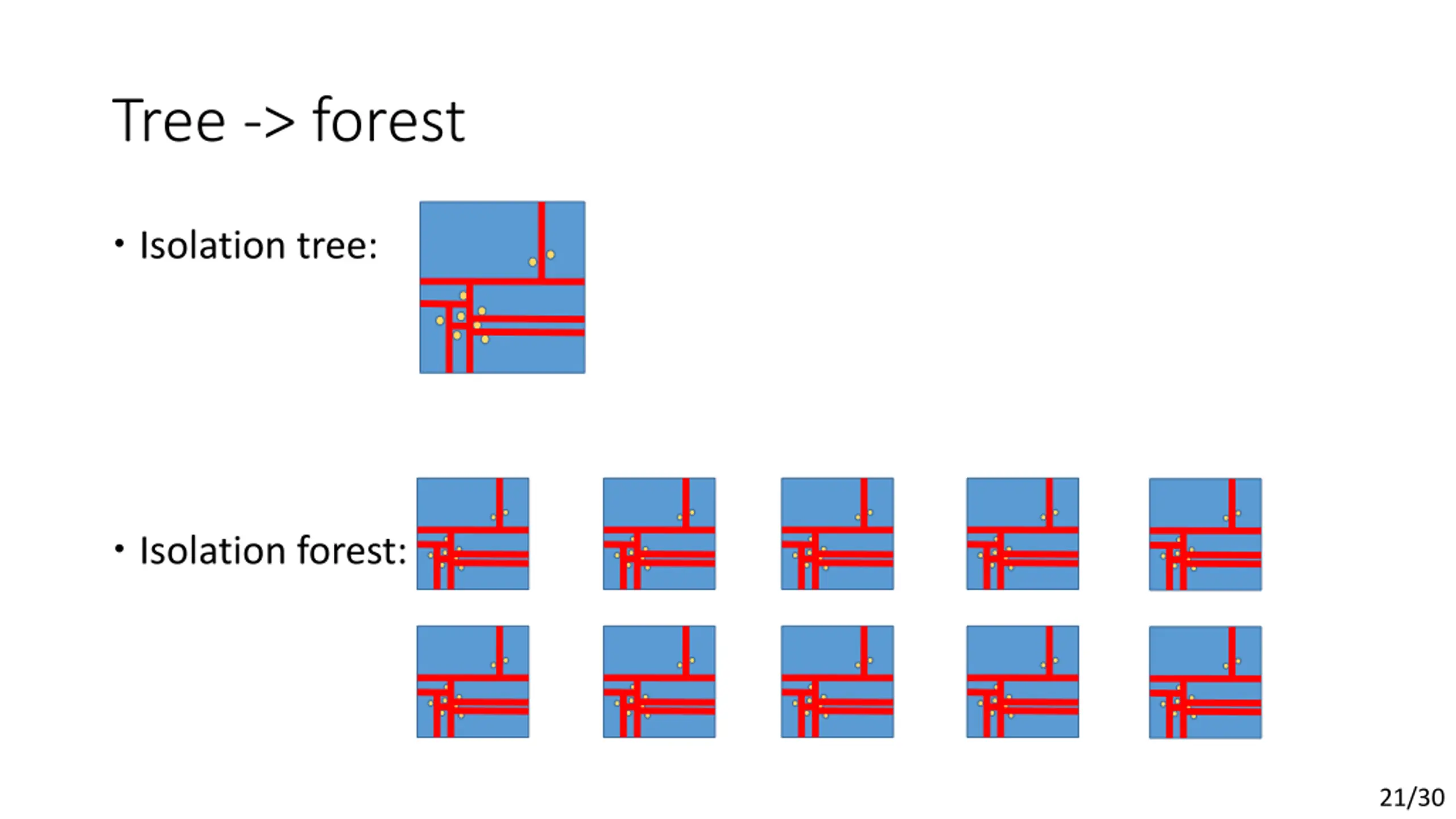

Tree -> forest Isolation tree: Isolation forest: 21/30

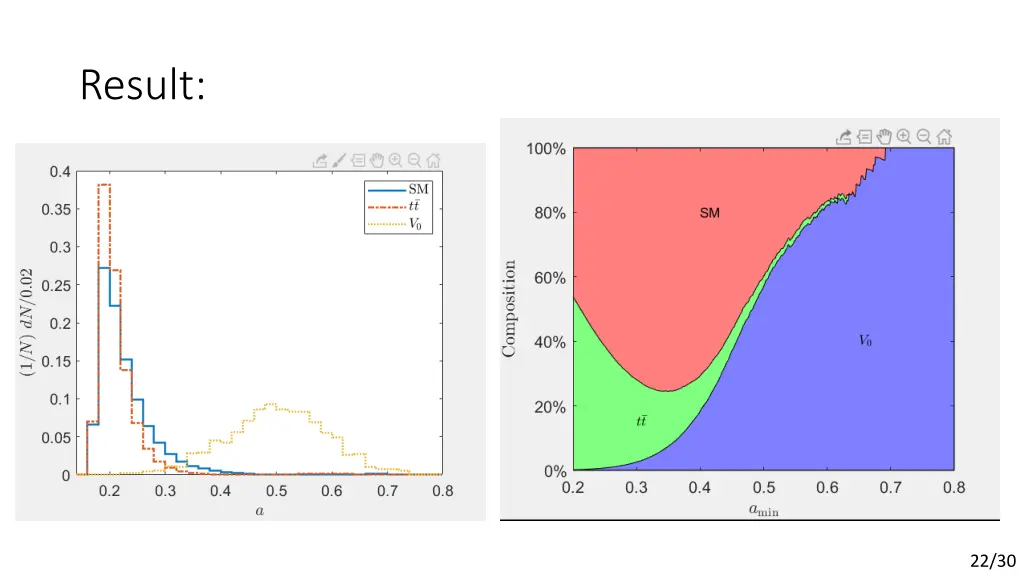

Result: 22/30

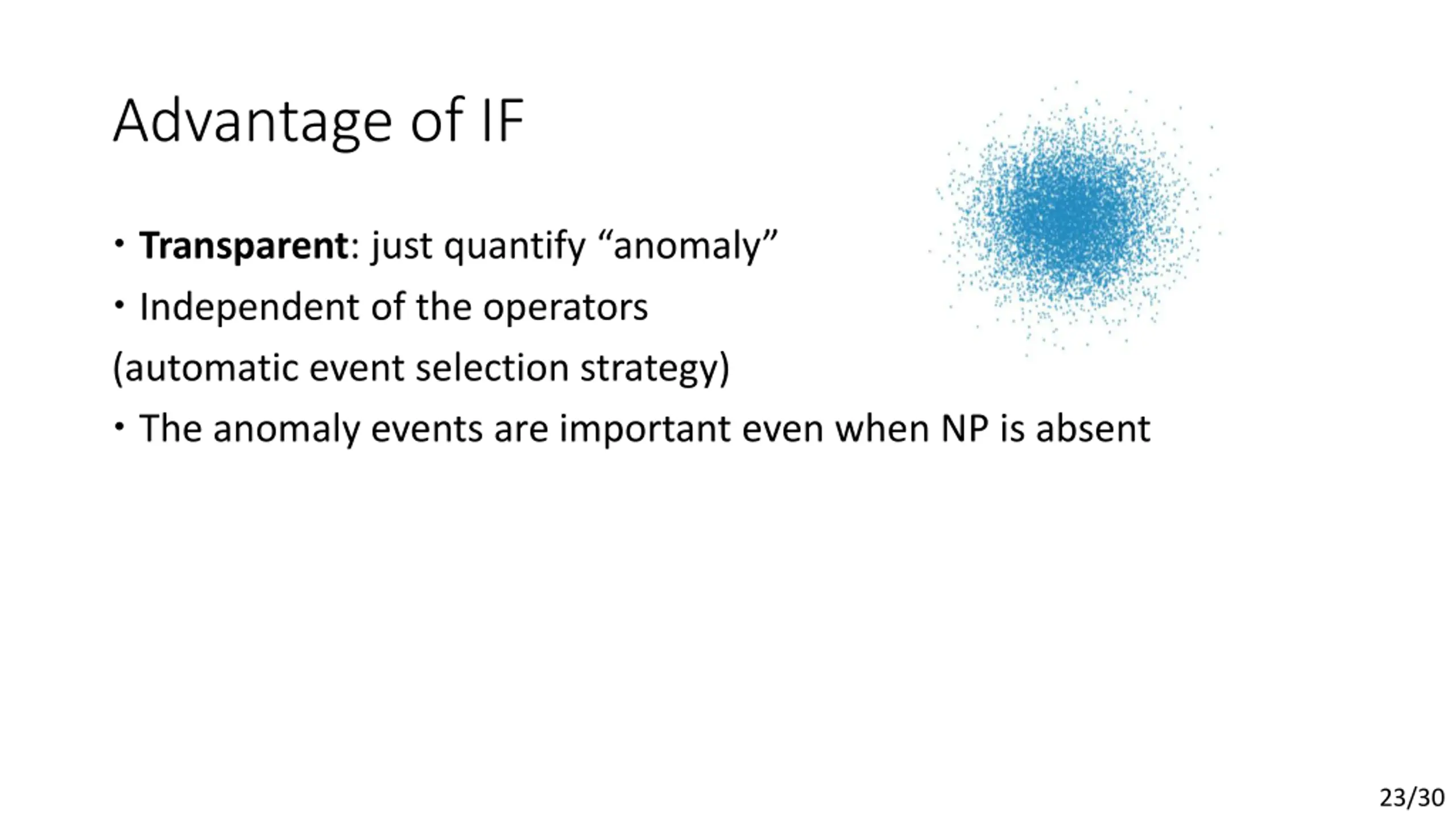

Advantage of IF Transparent: just quantify anomaly Independent of the operators (automatic event selection strategy) The anomaly events are important even when NP is absent 23/30

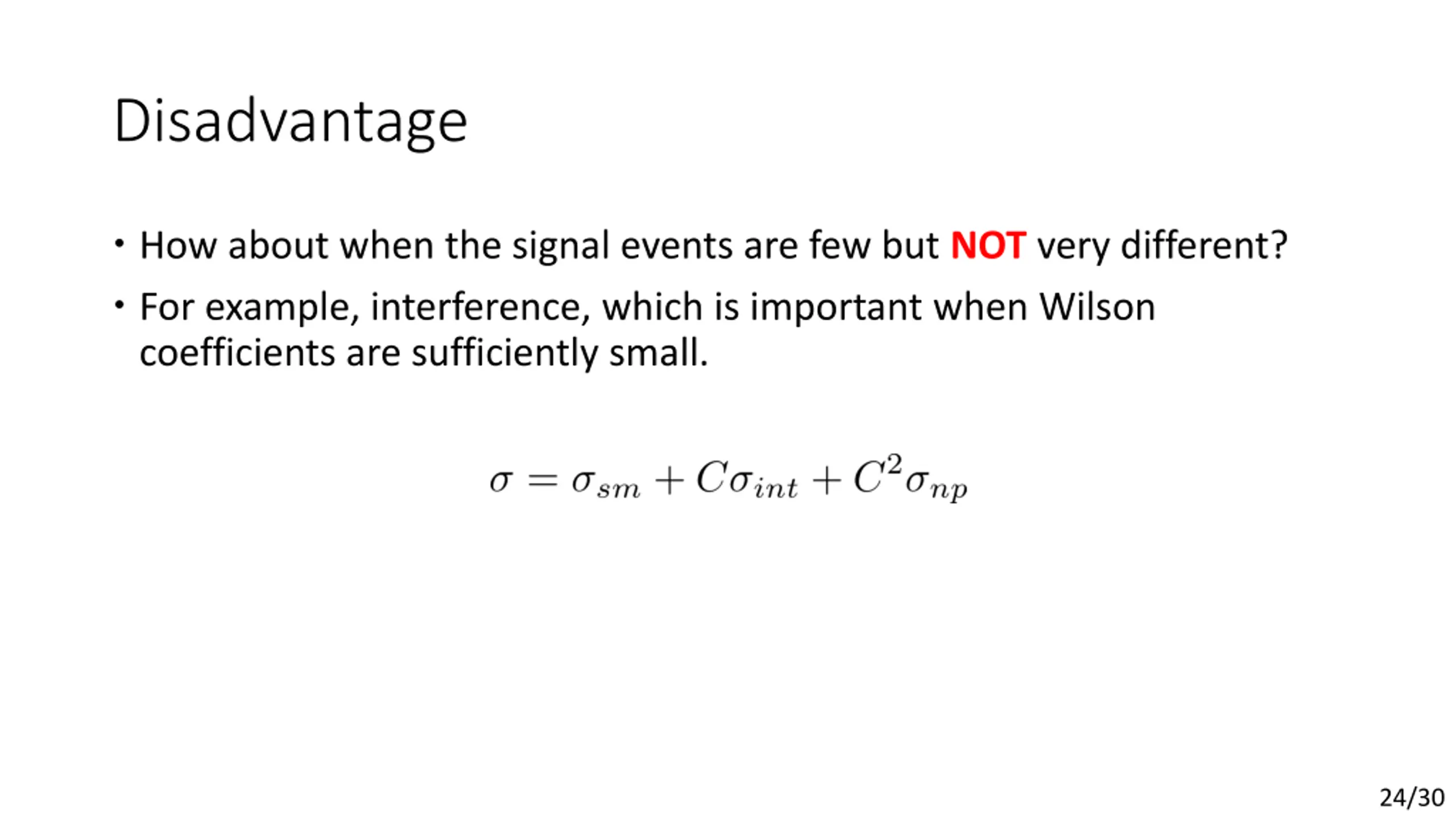

Disadvantage How about when the signal events are few but NOT very different? For example, interference, which is important when Wilson coefficients are sufficiently small. 24/30

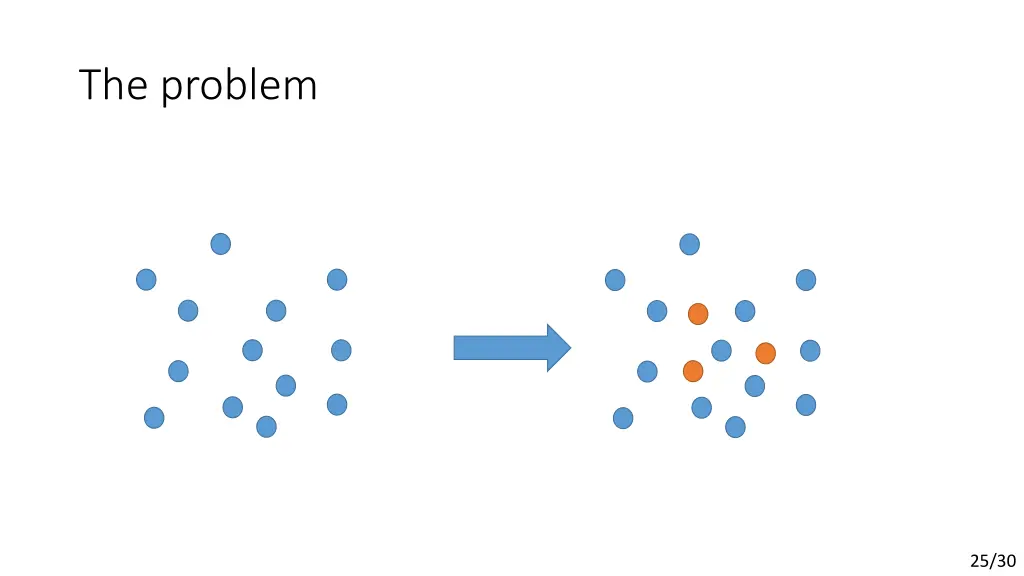

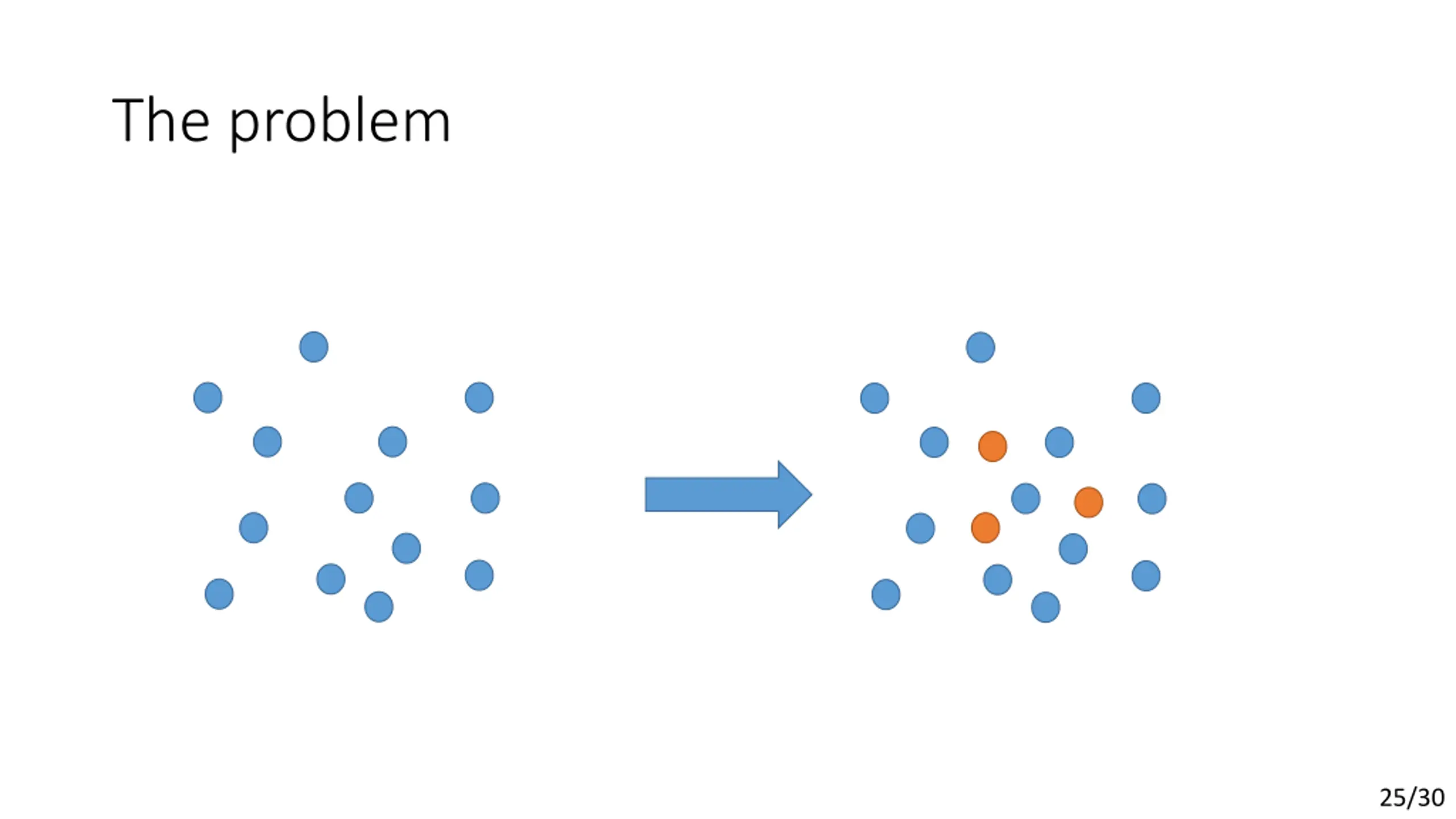

The problem 25/30

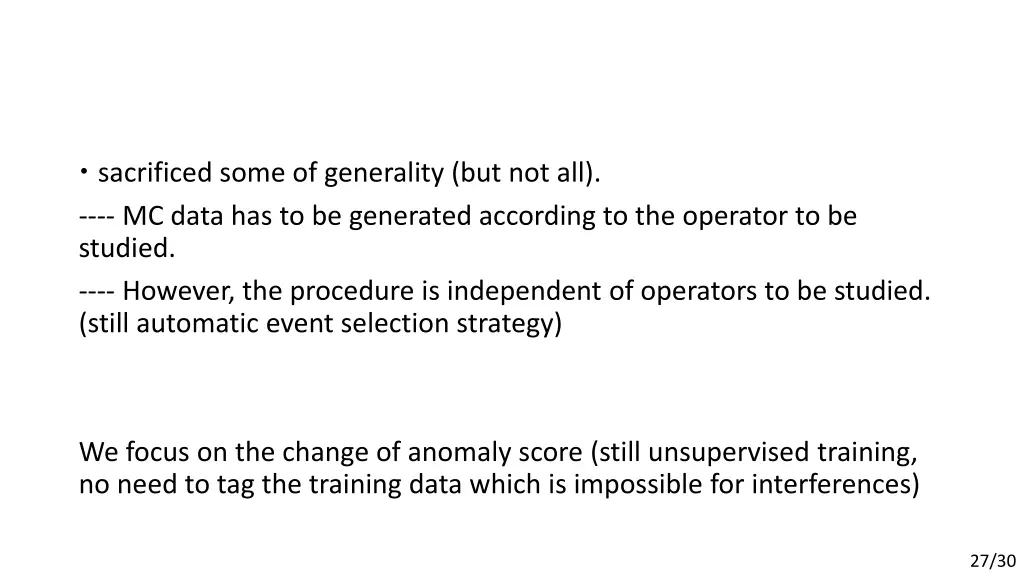

sacrificed some of generality (but not all). ---- MC data has to be generated according to the operator to be studied. ---- However, the procedure is independent of operators to be studied. (still automatic event selection strategy) We focus on the change of anomaly score (still unsupervised training, no need to tag the training data which is impossible for interferences) 27/30

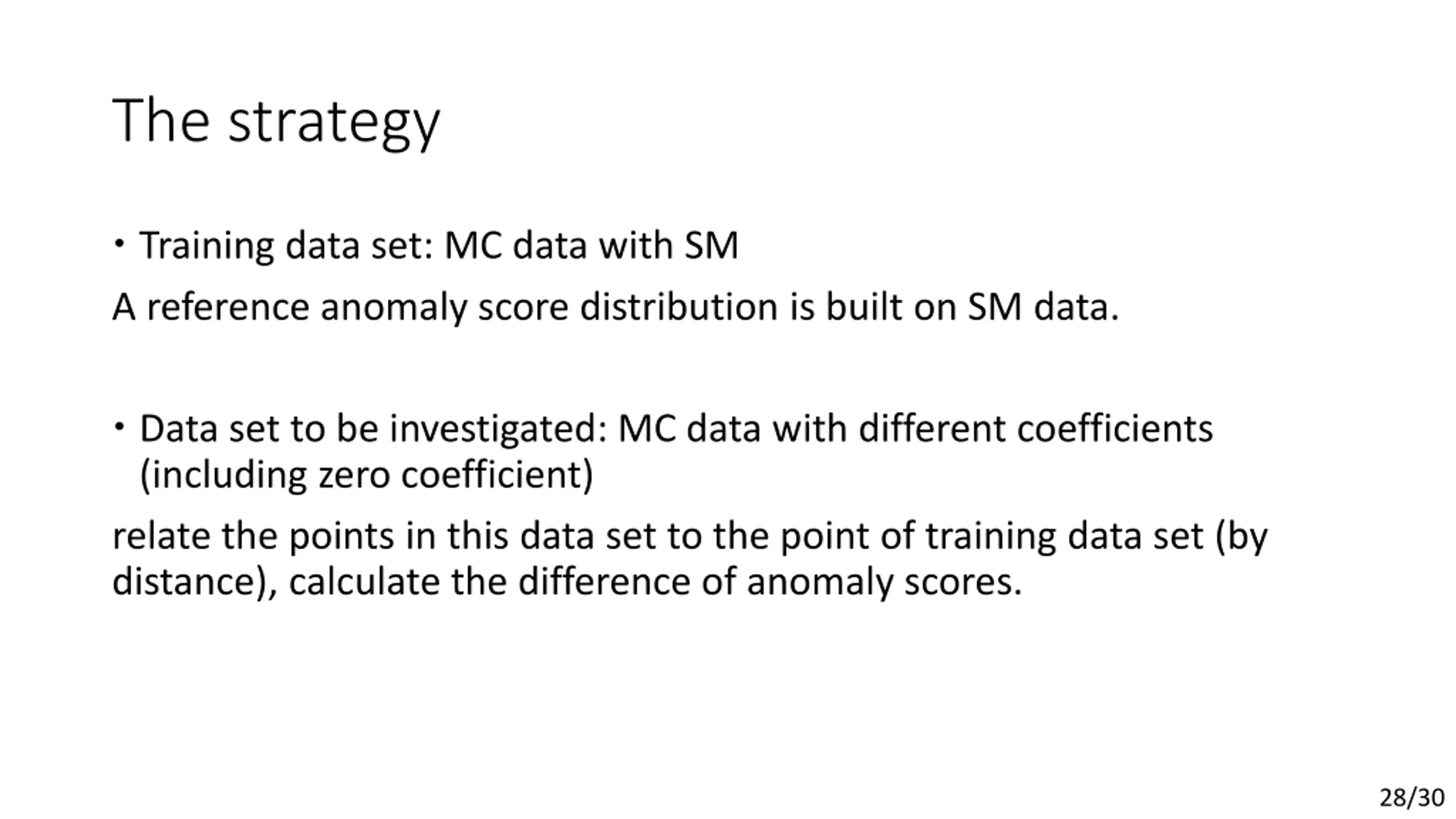

The strategy Training data set: MC data with SM A reference anomaly score distribution is built on SM data. Data set to be investigated: MC data with different coefficients (including zero coefficient) relate the points in this data set to the point of training data set (by distance), calculate the difference of anomaly scores. 28/30

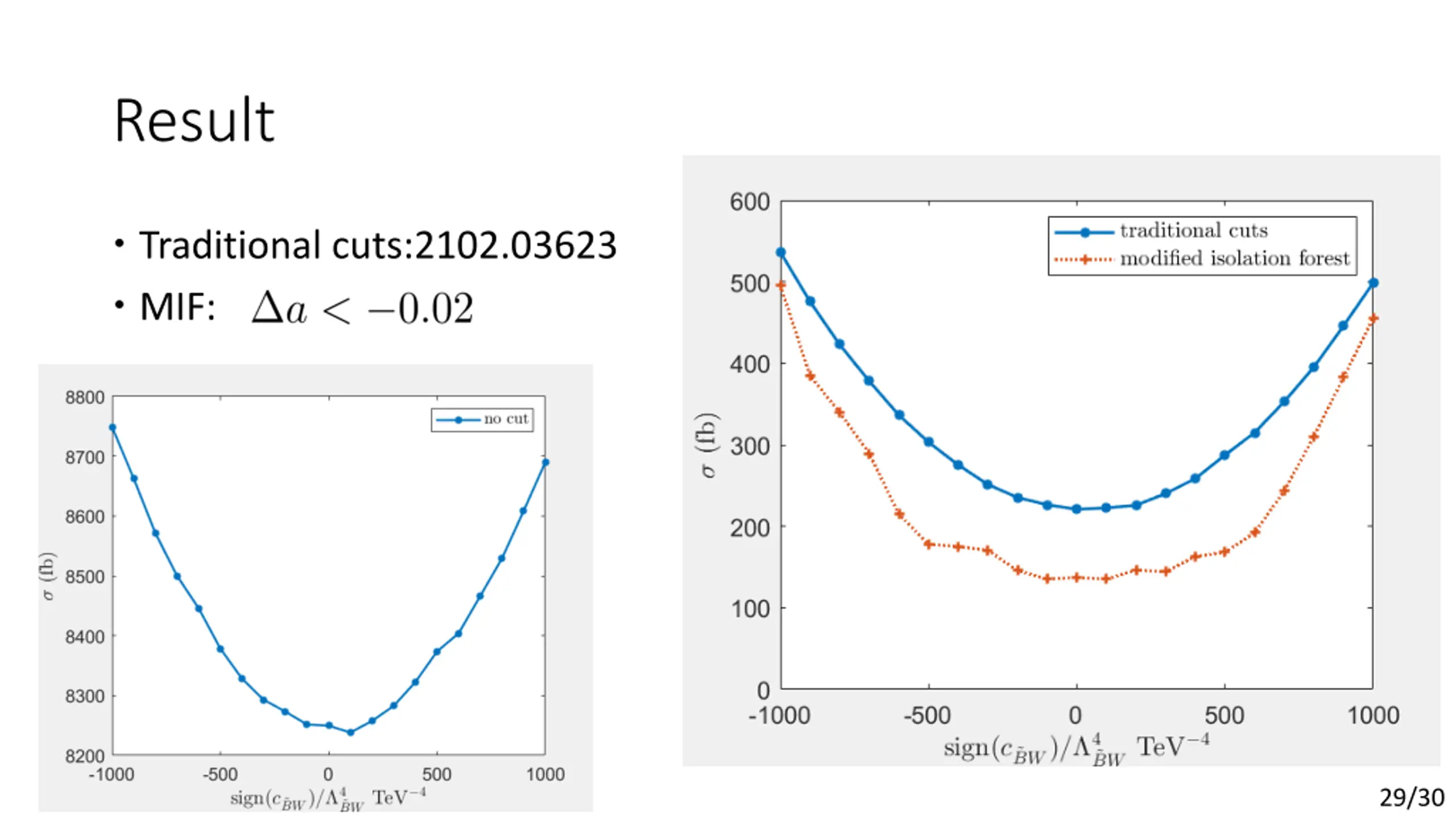

Result Traditional cuts:2102.03623 MIF: 29/30

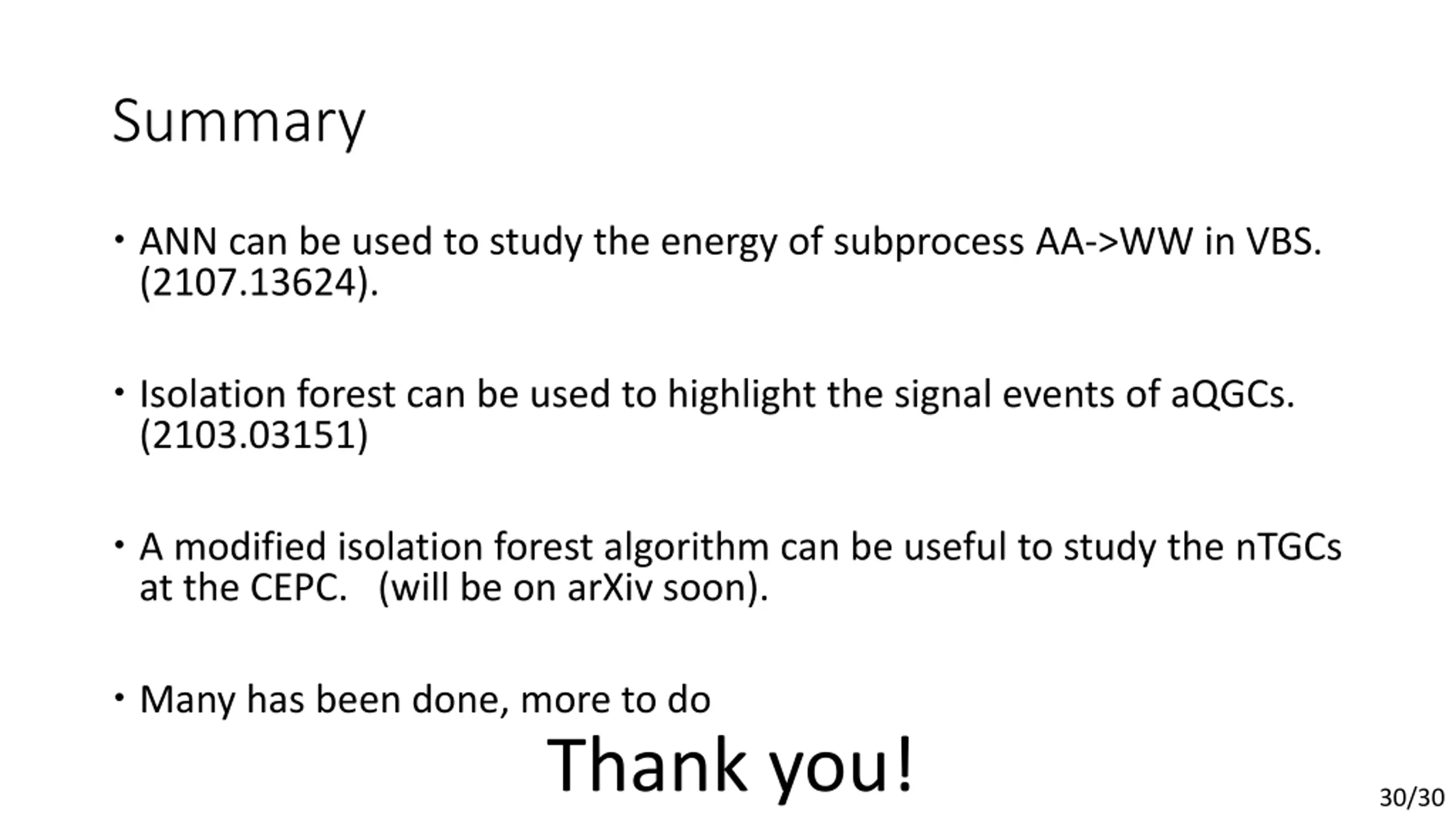

Summary ANN can be used to study the energy of subprocess AA->WW in VBS. (2107.13624). Isolation forest can be used to highlight the signal events of aQGCs. (2103.03151) A modified isolation forest algorithm can be useful to study the nTGCs at the CEPC. (will be on arXiv soon). Many has been done, more to do Thank you! 30/30
