Exploring Parallelism in Standard C++ Programming

Parallelism in the Standard C++: What to Expect in C++ 17 Artur Laksberg Microsoft Corp. May 8th, 2014

Agenda Fundamentals Task regions Parallel Algorithms Parallelization Vectorization

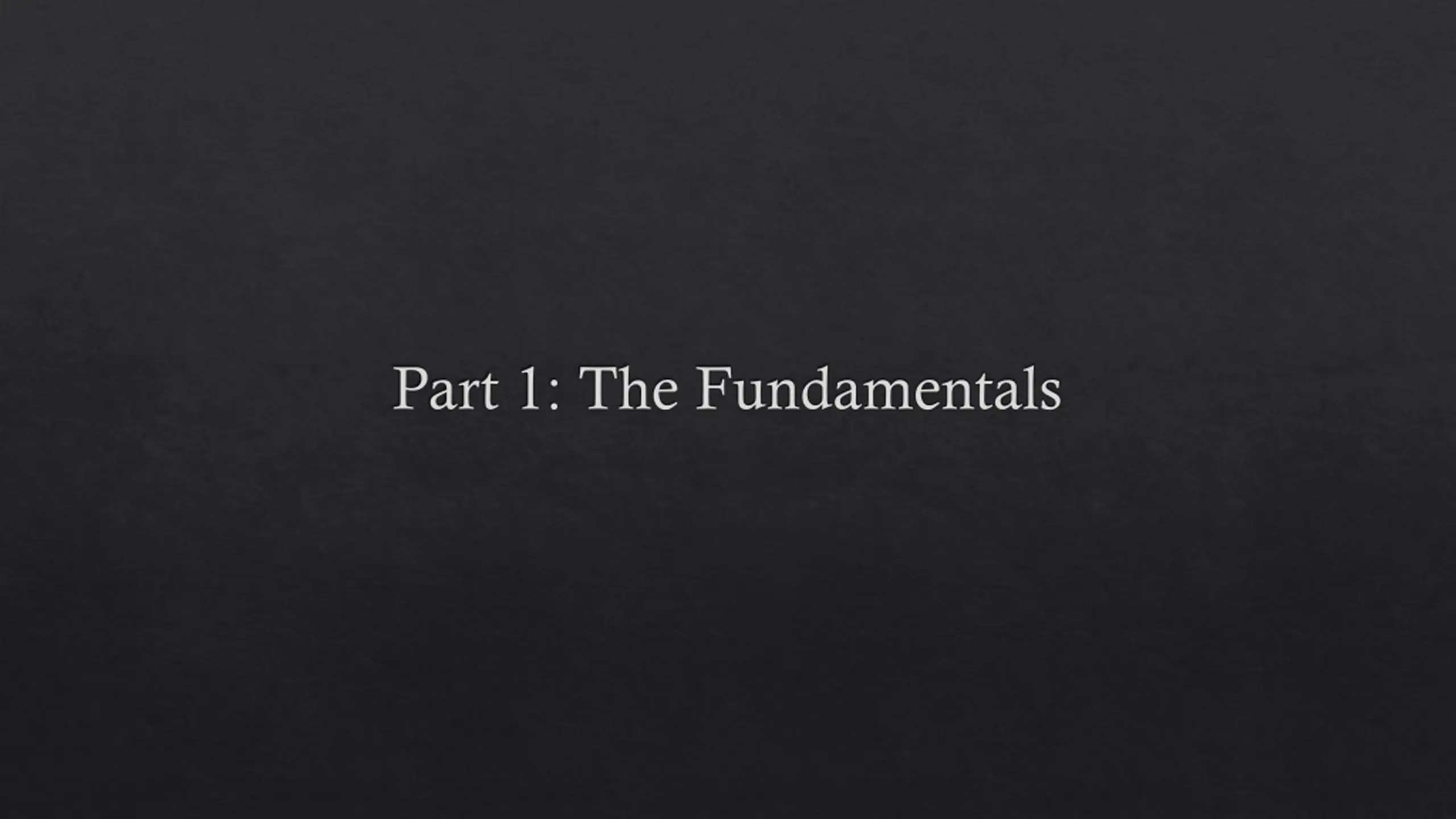

Part 1: The Fundamentals

Renderscript OpenMP PPL MPI CUDA C++ AMP TBB OpenACC Cilk Plus OpenCL GCD

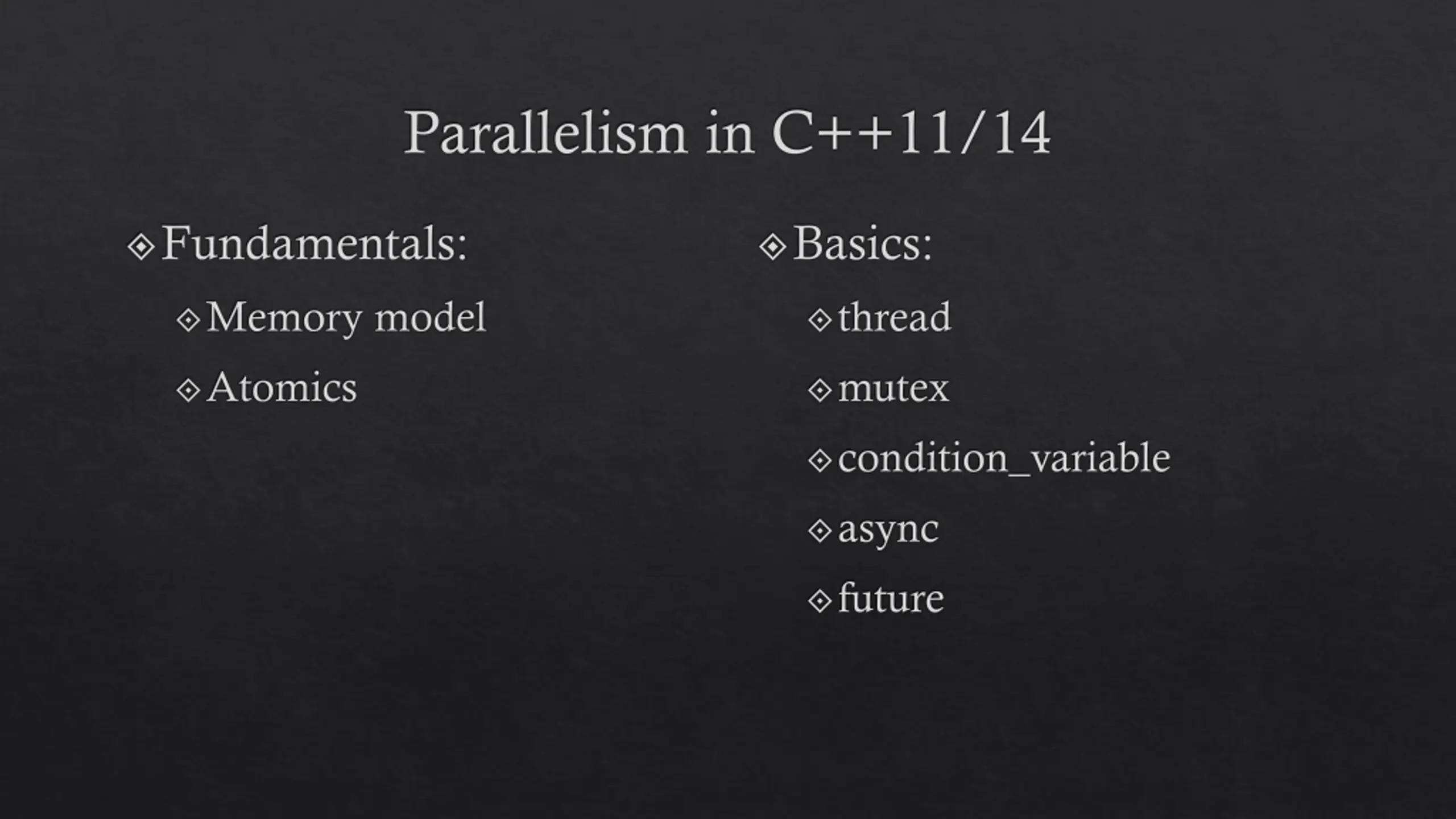

Parallelism in C++11/14 Fundamentals: Basics: Memory model thread Atomics mutex condition_variable async future

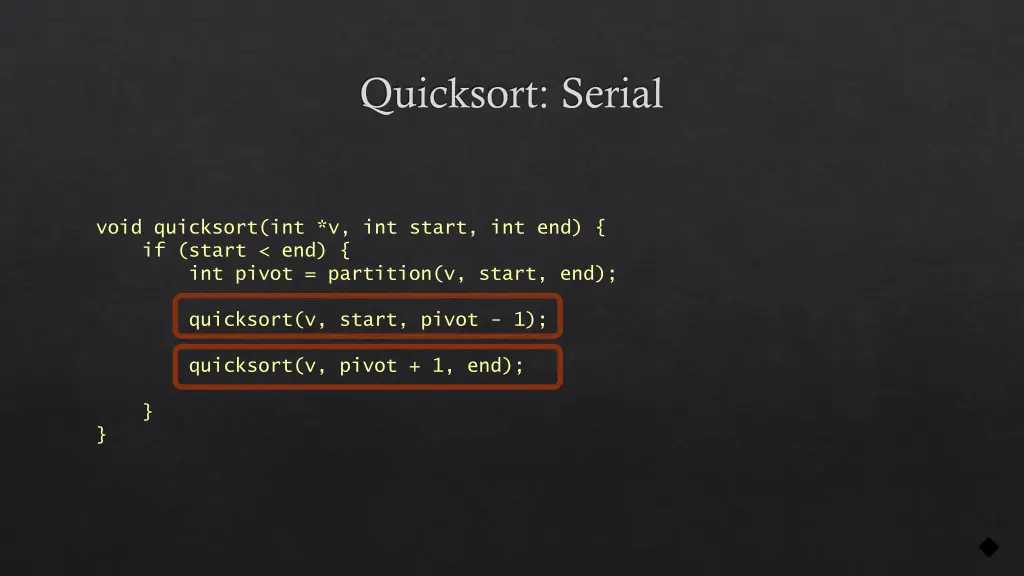

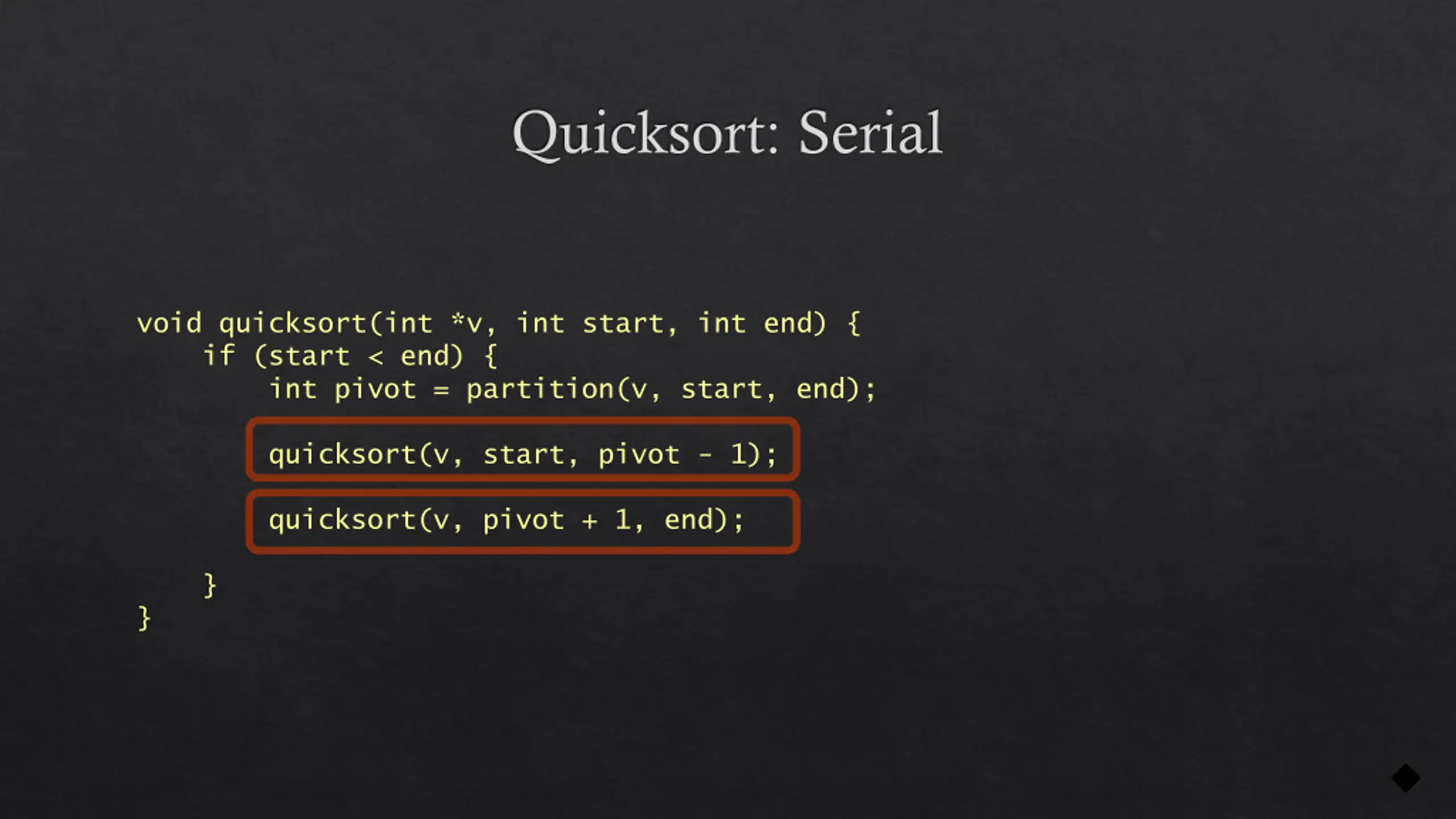

Quicksort: Serial void quicksort(int *v, int start, int end) { if (start < end) { int pivot = partition(v, start, end); quicksort(v, start, pivot - 1); quicksort(v, pivot + 1, end); } }

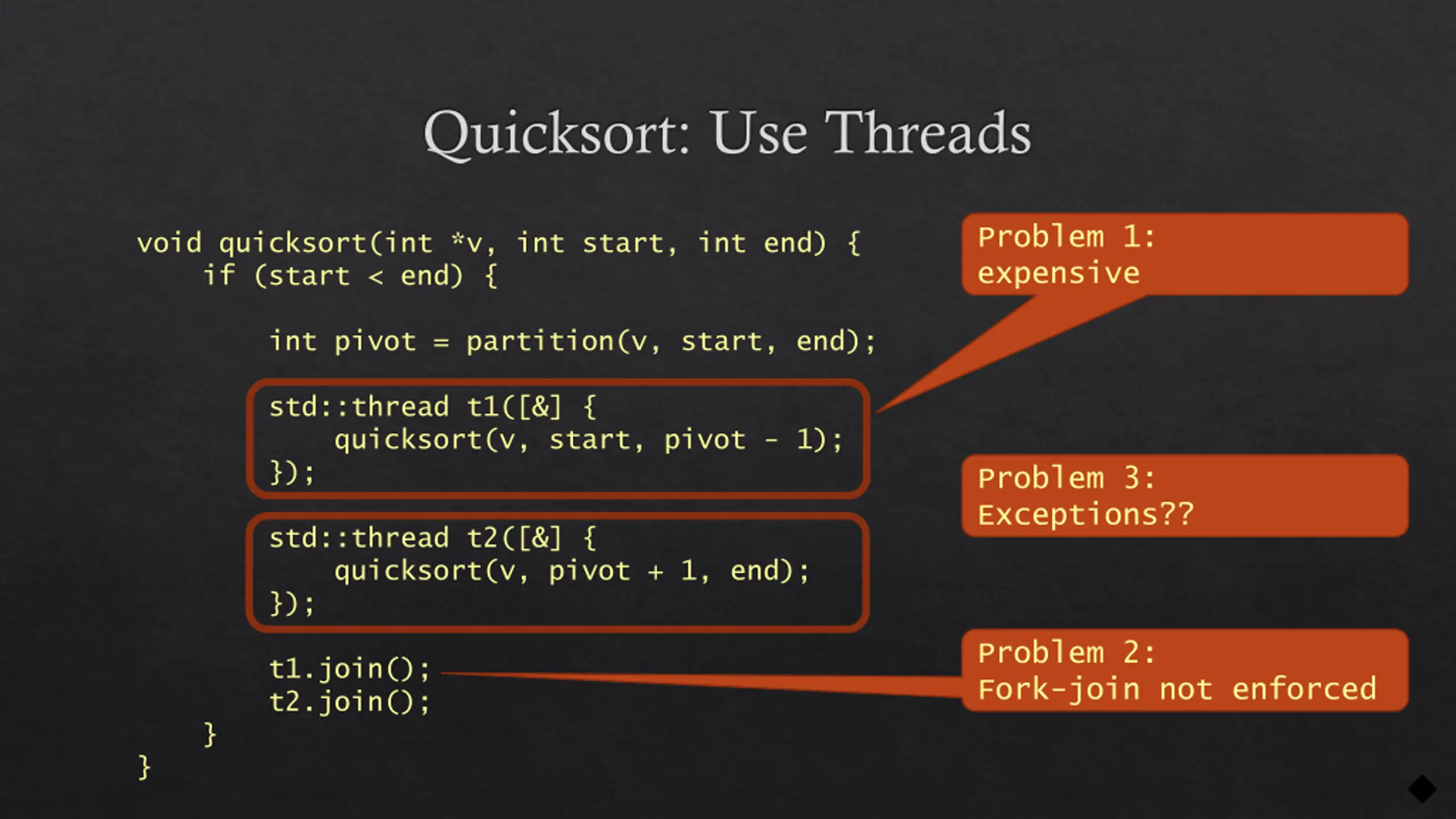

Quicksort: Use Threads Problem 1: expensive void quicksort(int *v, int start, int end) { if (start < end) { int pivot = partition(v, start, end); std::thread t1([&] { quicksort(v, start, pivot - 1); }); Problem 3: Exceptions?? std::thread t2([&] { quicksort(v, pivot + 1, end); }); Problem 2: Fork-join not enforced t1.join(); t2.join(); } }

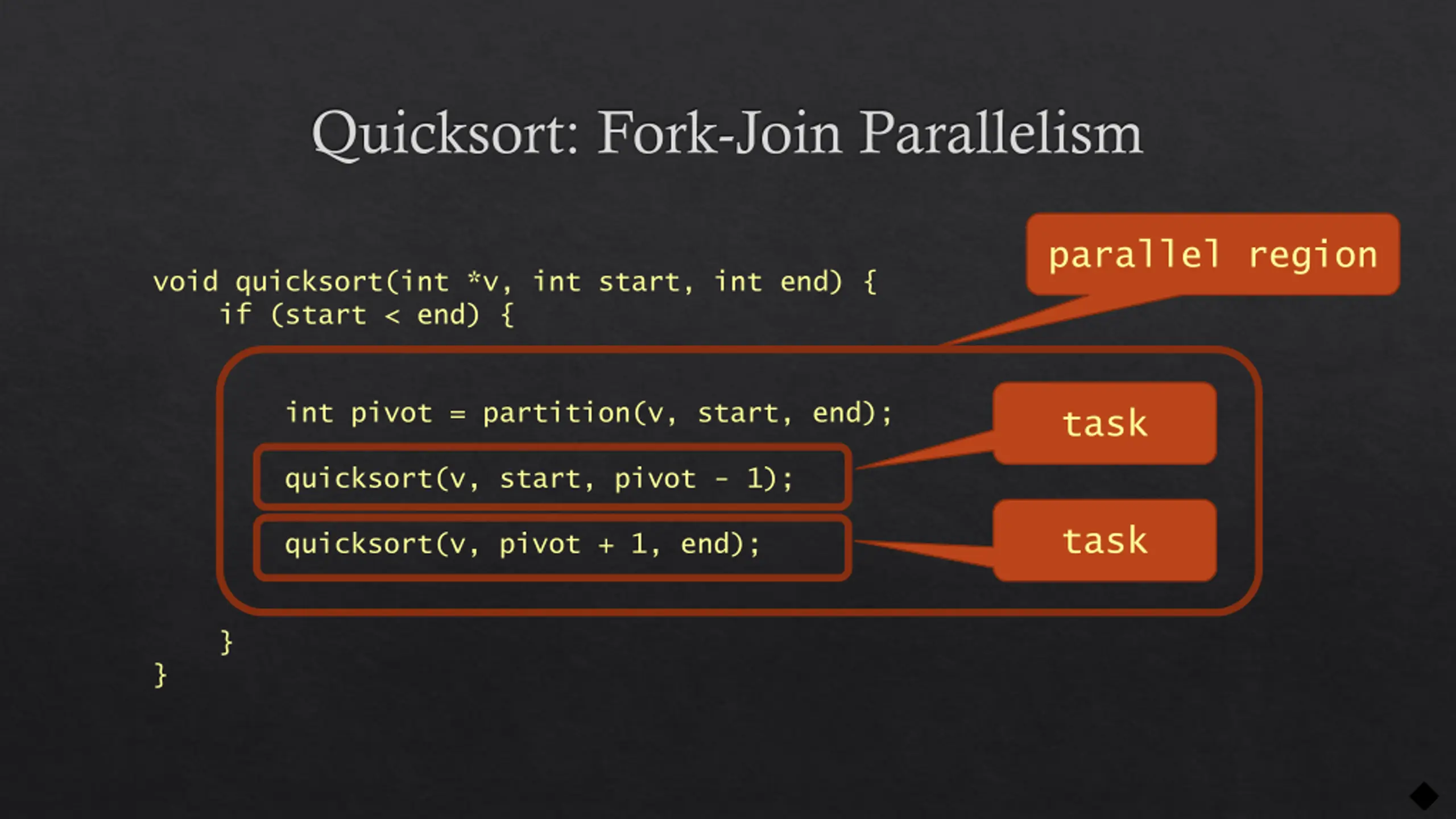

Quicksort: Fork-Join Parallelism parallel region void quicksort(int *v, int start, int end) { if (start < end) { int pivot = partition(v, start, end); task quicksort(v, start, pivot - 1); task quicksort(v, pivot + 1, end); } }

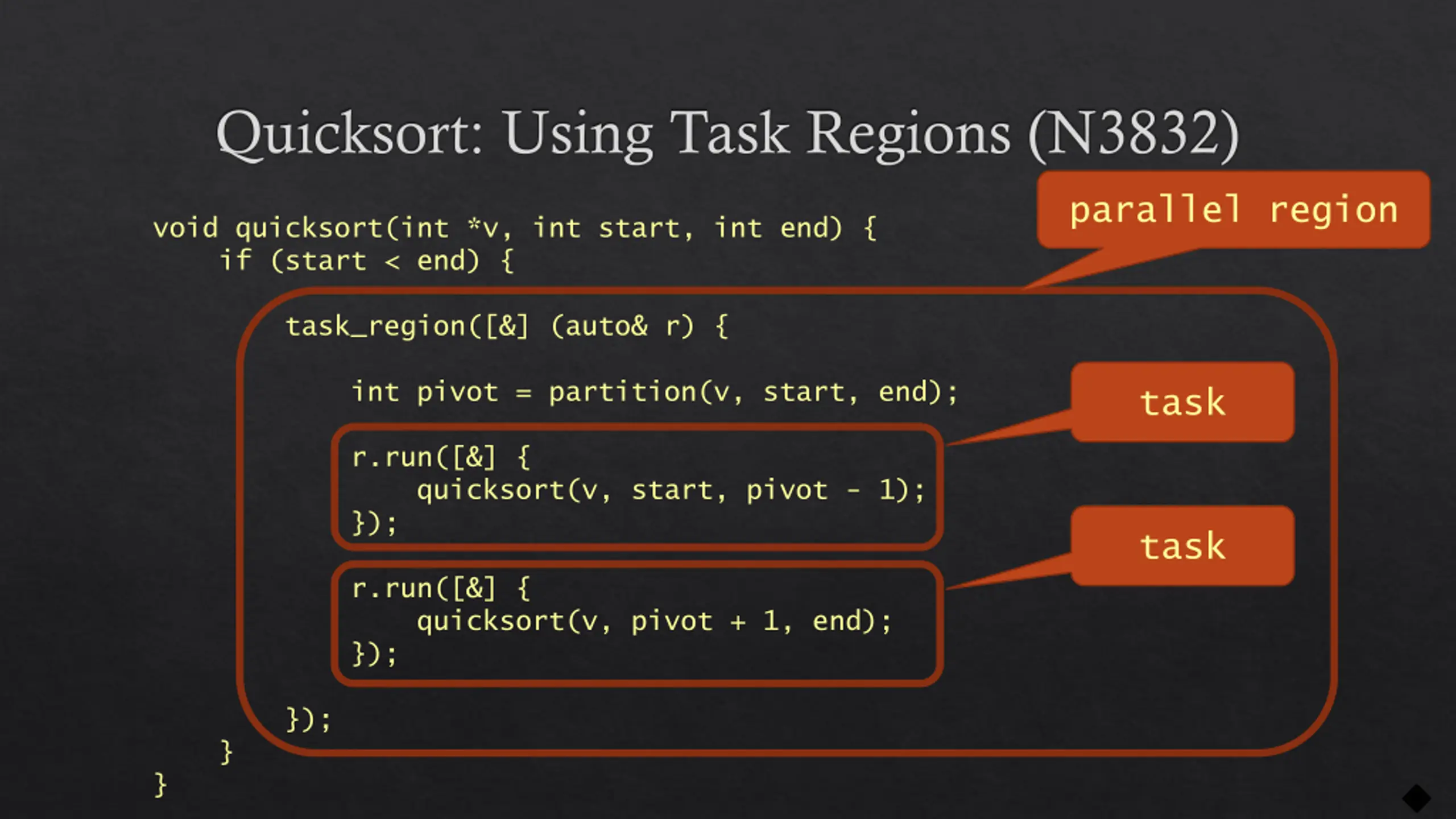

Quicksort: Using Task Regions (N3832) parallel region void quicksort(int *v, int start, int end) { if (start < end) { task_region([&] (auto& r) { int pivot = partition(v, start, end); task r.run([&] { quicksort(v, start, pivot - 1); }); task r.run([&] { quicksort(v, pivot + 1, end); }); }); } }

Under The Hood

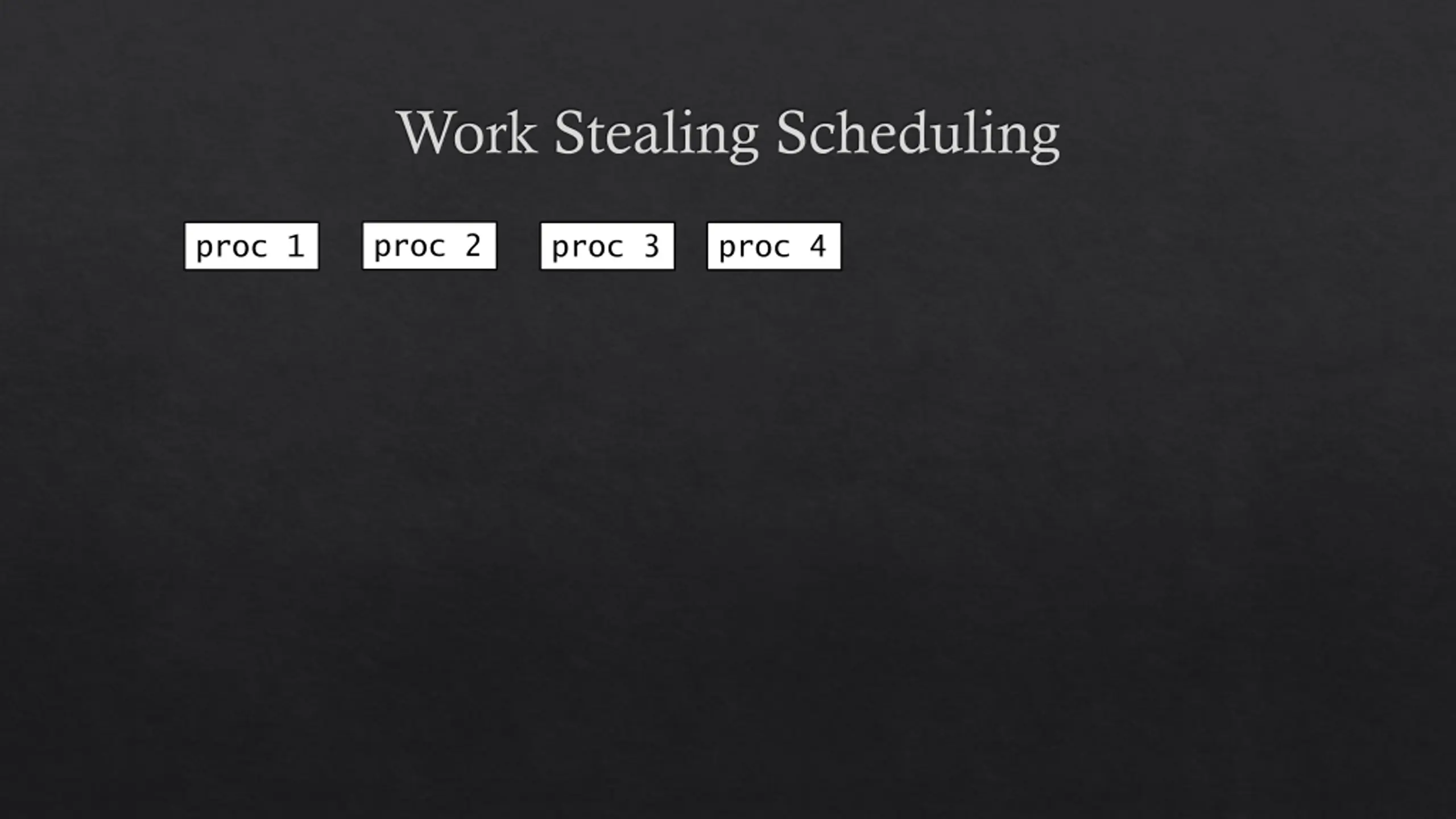

Work Stealing Scheduling proc 2 proc 1 proc 3 proc 4

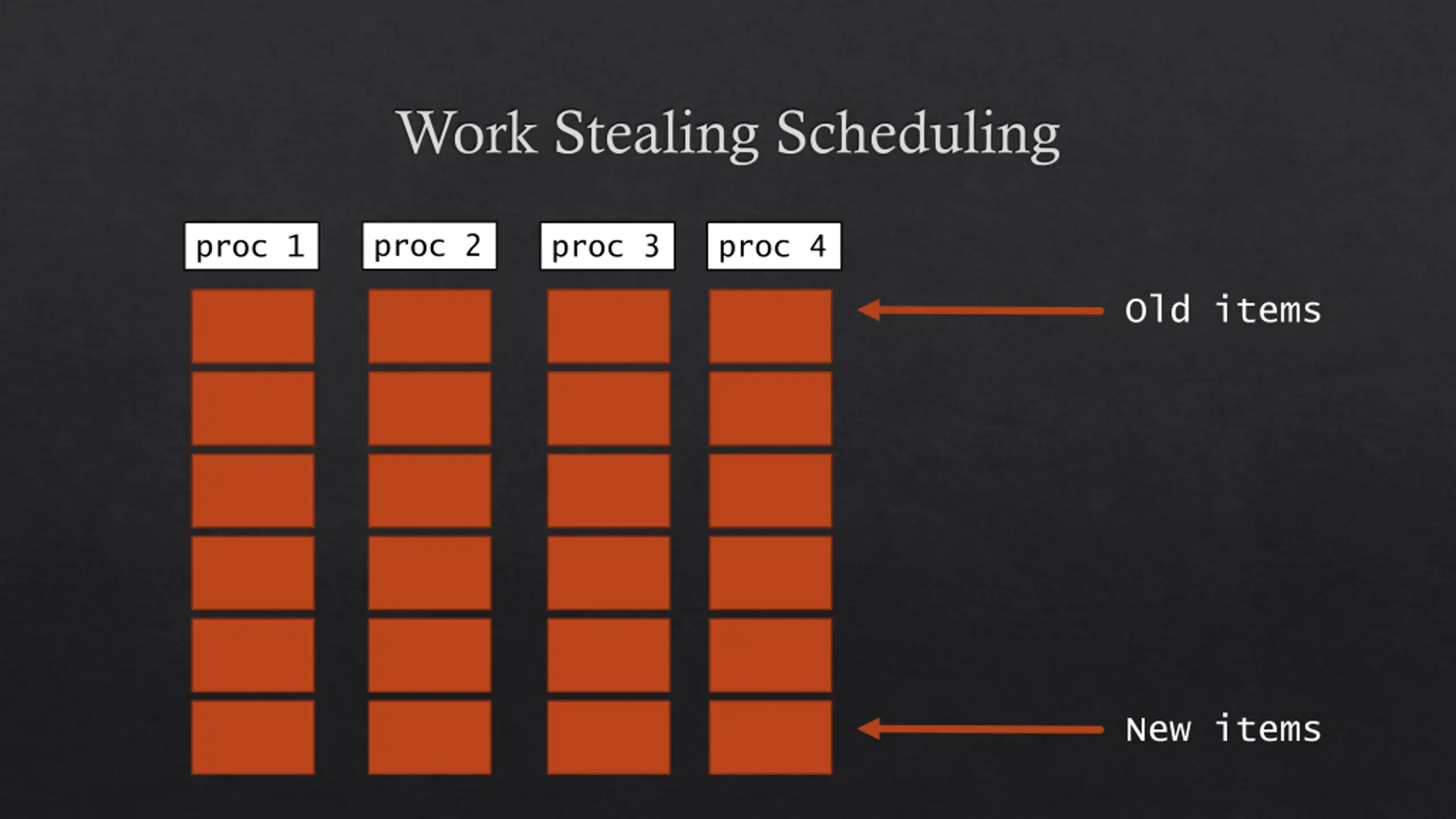

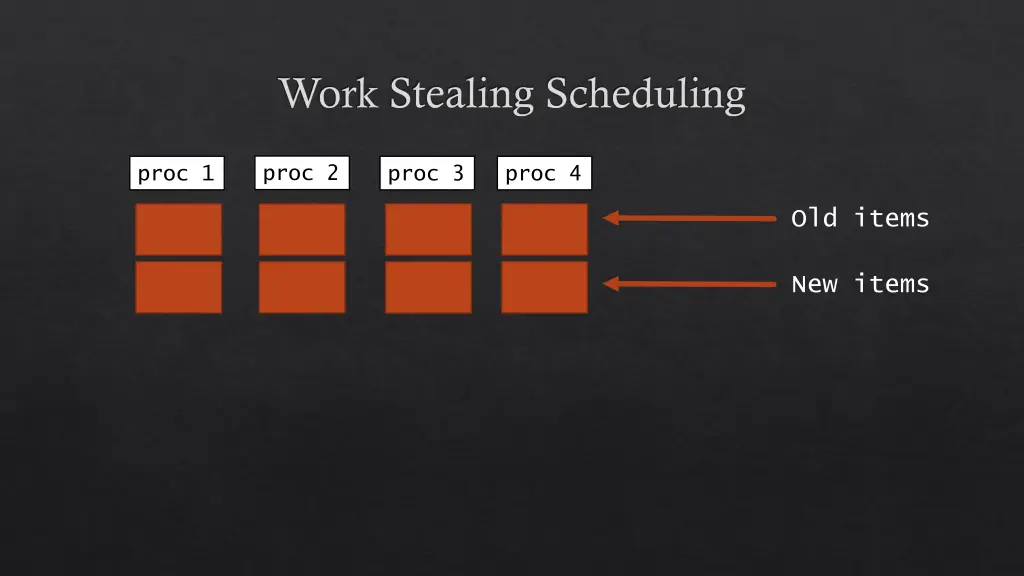

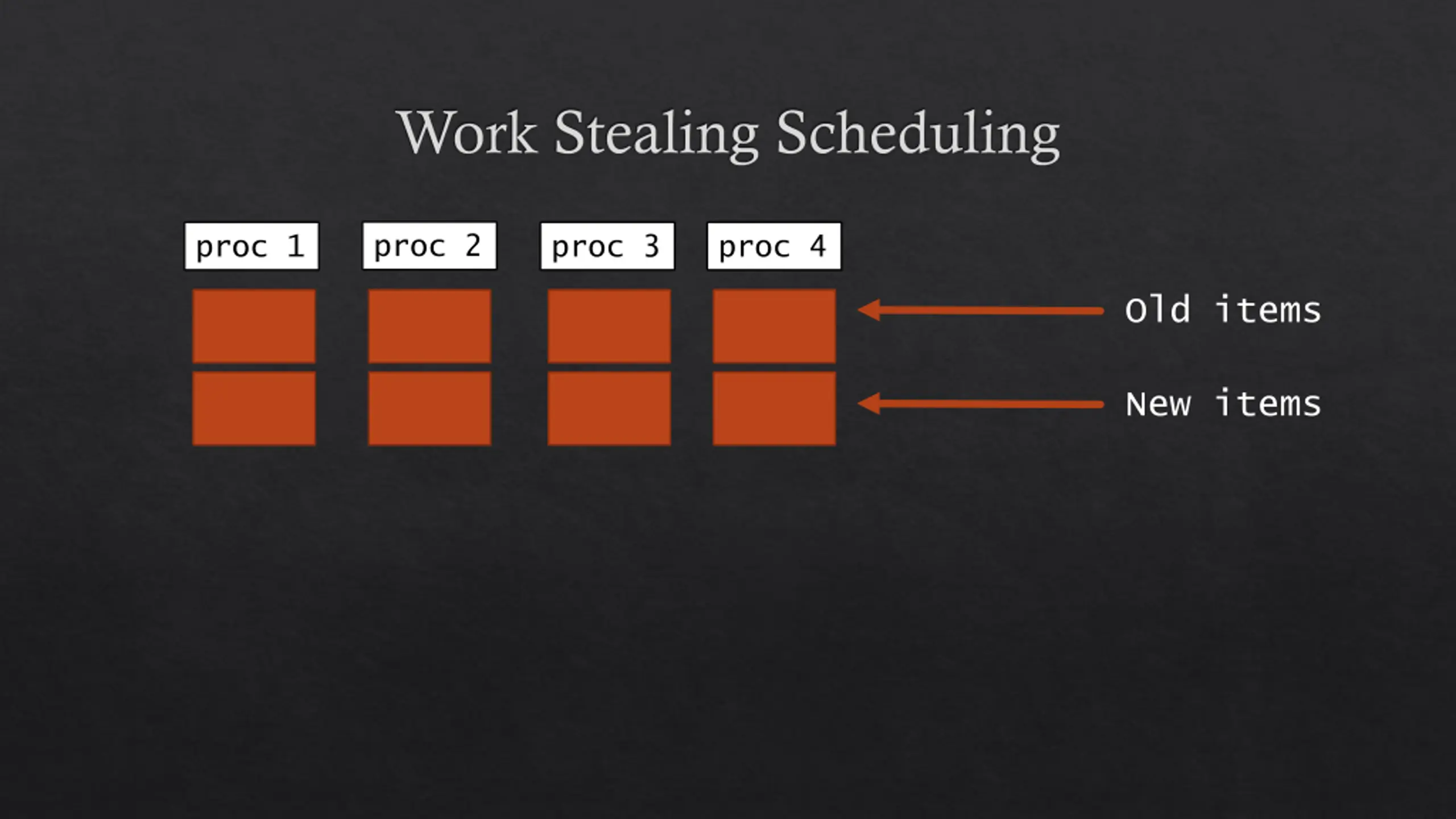

Work Stealing Scheduling proc 2 proc 1 proc 3 proc 4 Old items New items

Work Stealing Scheduling proc 2 proc 1 proc 3 proc 4 Old items New items

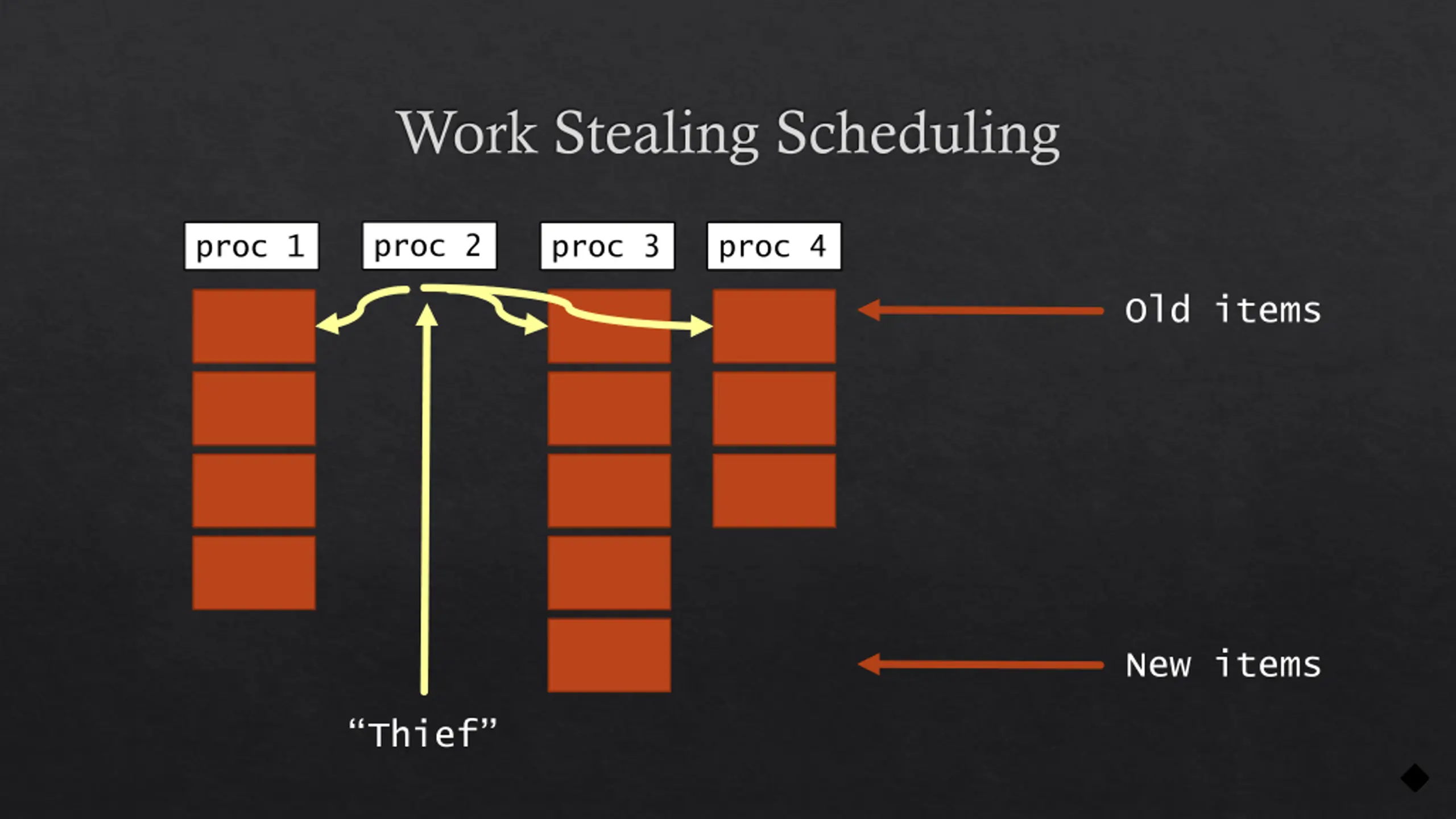

Work Stealing Scheduling proc 2 proc 1 proc 3 proc 4 Old items New items Thief

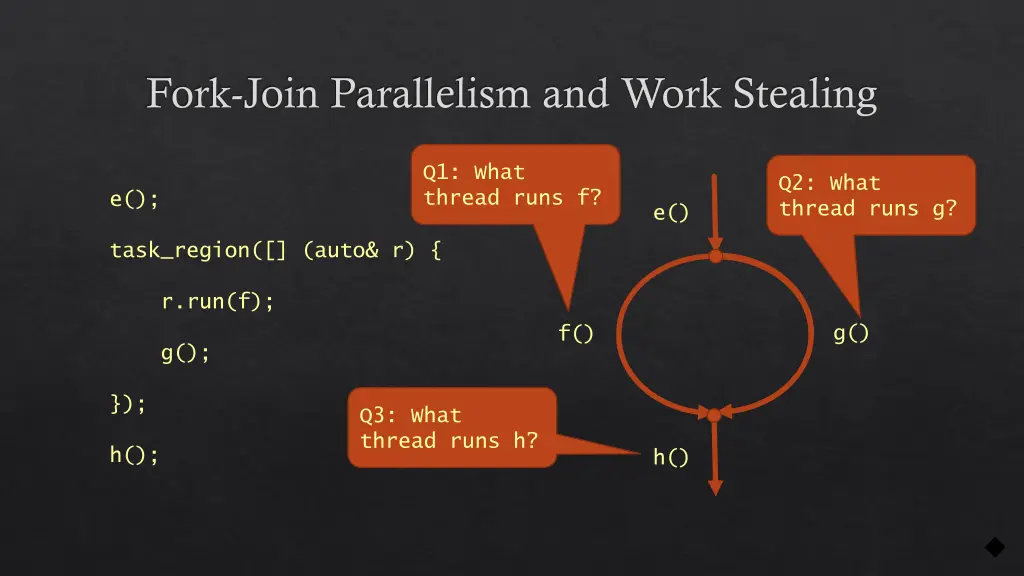

Fork-Join Parallelism and Work Stealing Q1: What thread runs f? Q2: What thread runs g? e(); e() task_region([] (auto& r) { r.run(f); g() f() g(); }); Q3: What thread runs h? h(); h()

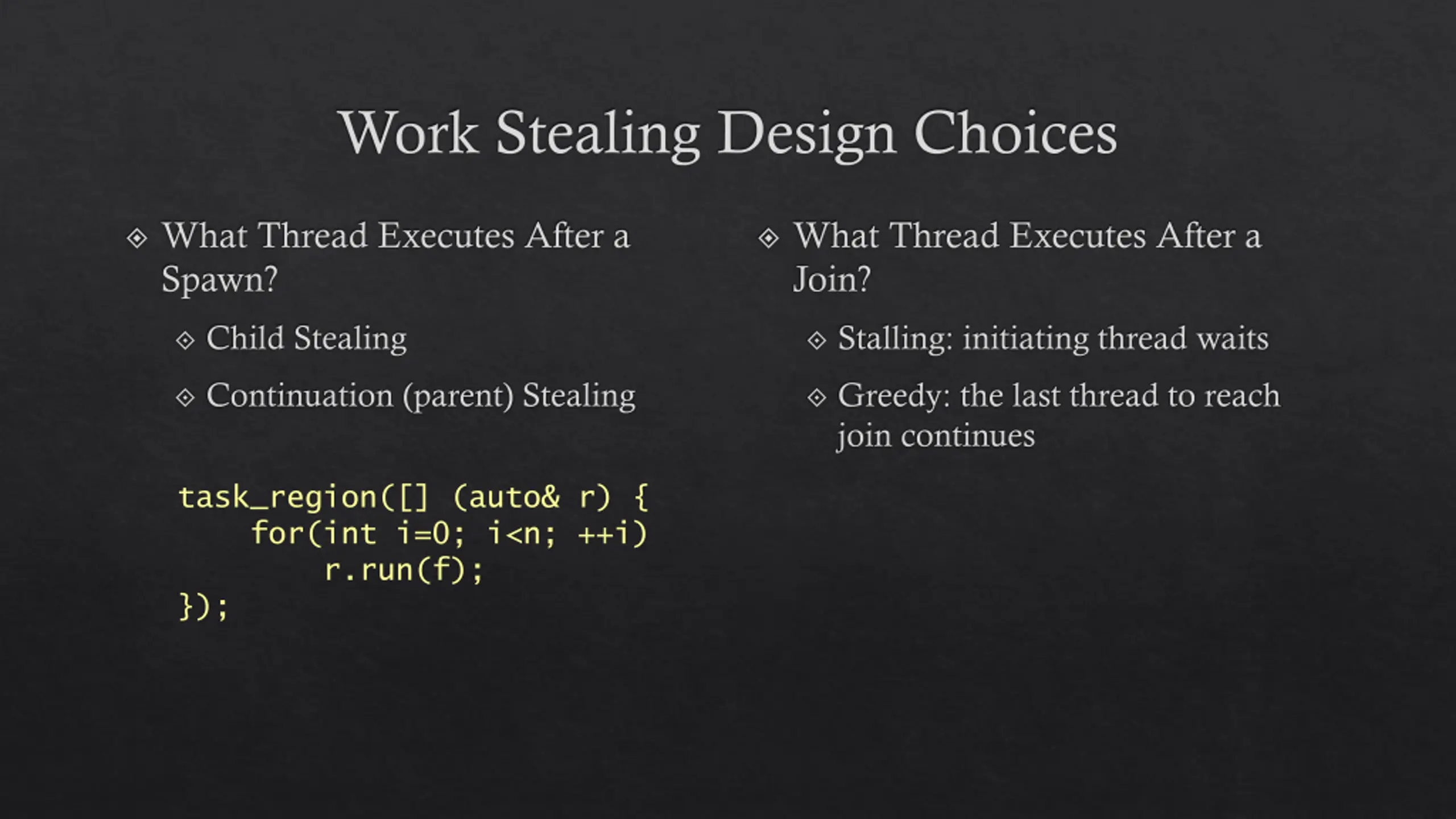

Work Stealing Design Choices What Thread Executes After a Spawn? What Thread Executes After a Join? Child Stealing Stalling: initiating thread waits Continuation (parent) Stealing Greedy: the last thread to reach join continues task_region([] (auto& r) { for(int i=0; i<n; ++i) r.run(f); });

Part 2: The Algorithms

Alex Stepanov: Start With The Algorithms

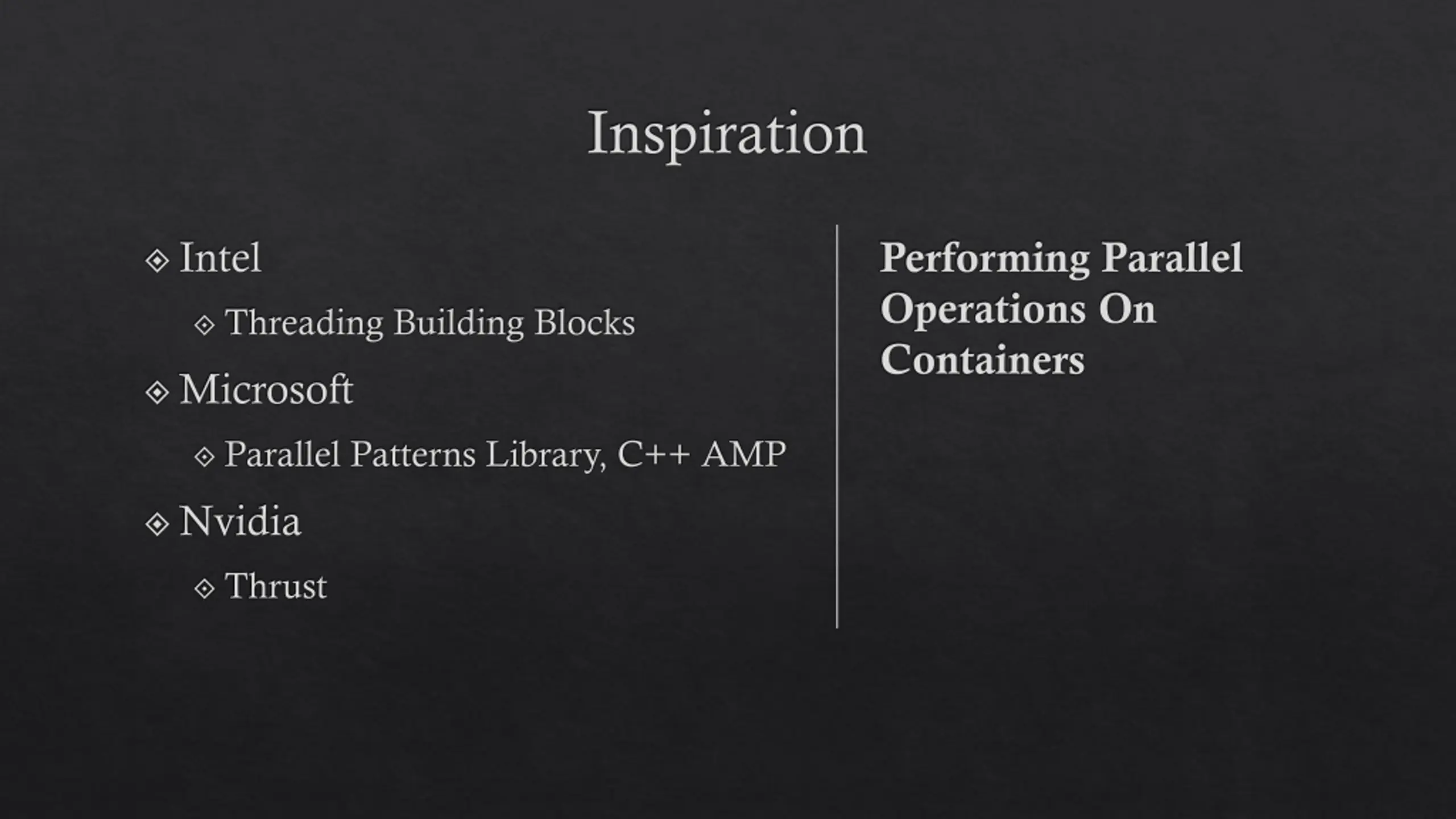

Inspiration Intel Performing Parallel Operations On Containers Threading Building Blocks Microsoft Parallel Patterns Library, C++ AMP Nvidia Thrust

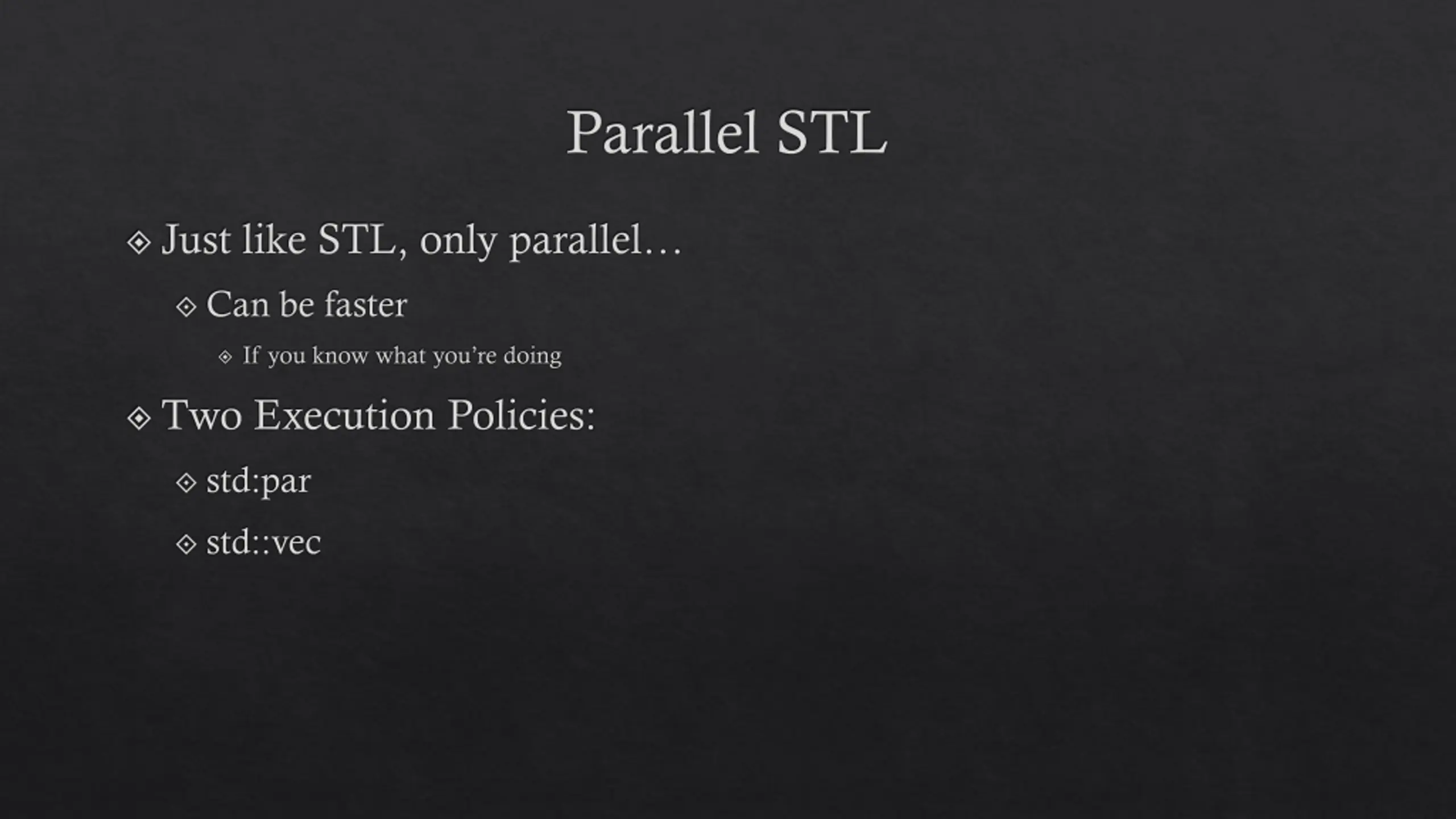

Parallel STL Just like STL, only parallel Can be faster If you know what you re doing Two Execution Policies: std:par std::vec

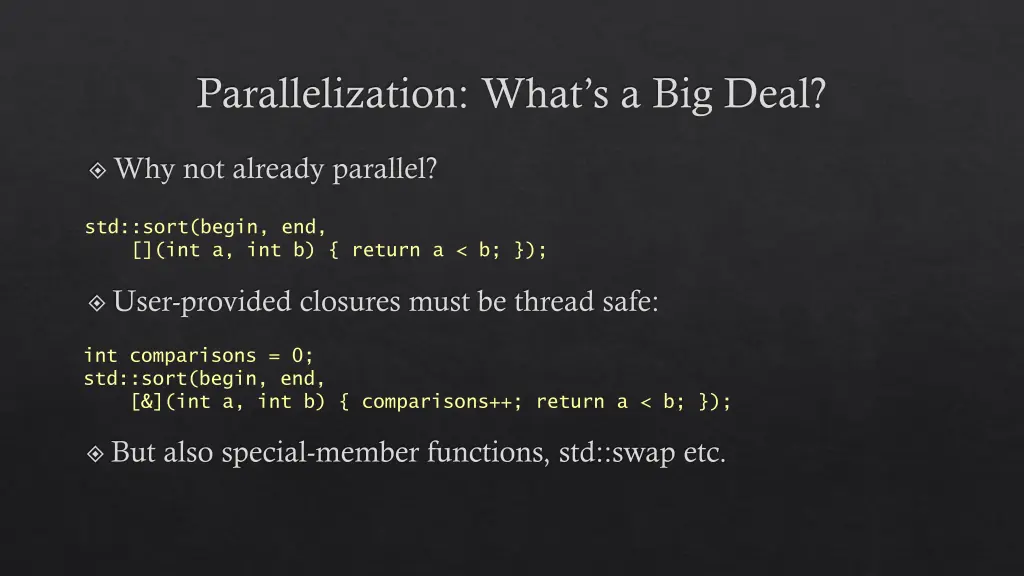

Parallelization: Whats a Big Deal? Why not already parallel? std::sort(begin, end, [](int a, int b) { return a < b; }); User-provided closures must be thread safe: int comparisons = 0; std::sort(begin, end, [&](int a, int b) { comparisons++; return a < b; }); But also special-member functions, std::swap etc.

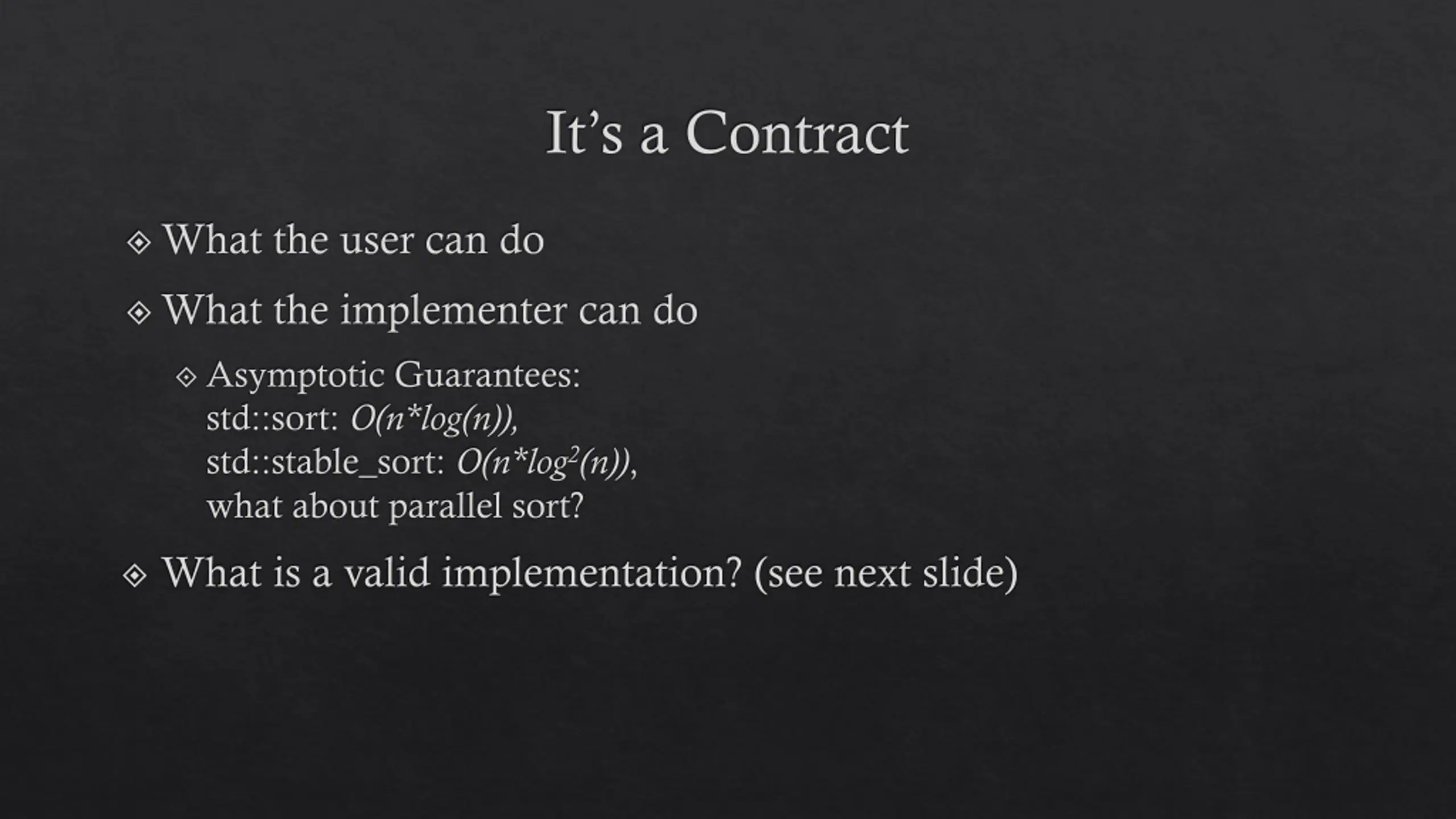

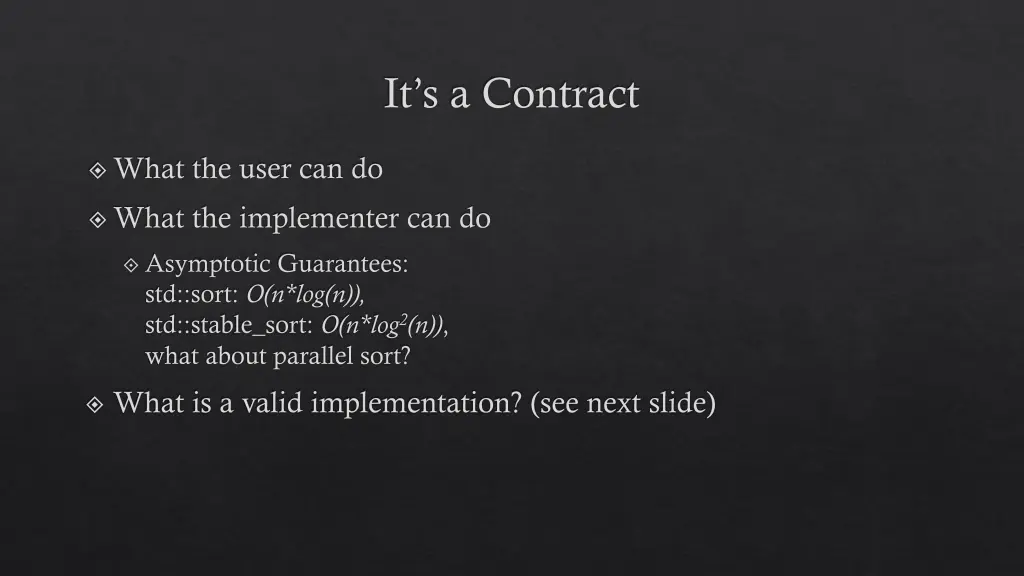

Its a Contract What the user can do What the implementer can do Asymptotic Guarantees: std::sort: O(n*log(n)), std::stable_sort: O(n*log2(n)), what about parallel sort? What is a valid implementation? (see next slide)

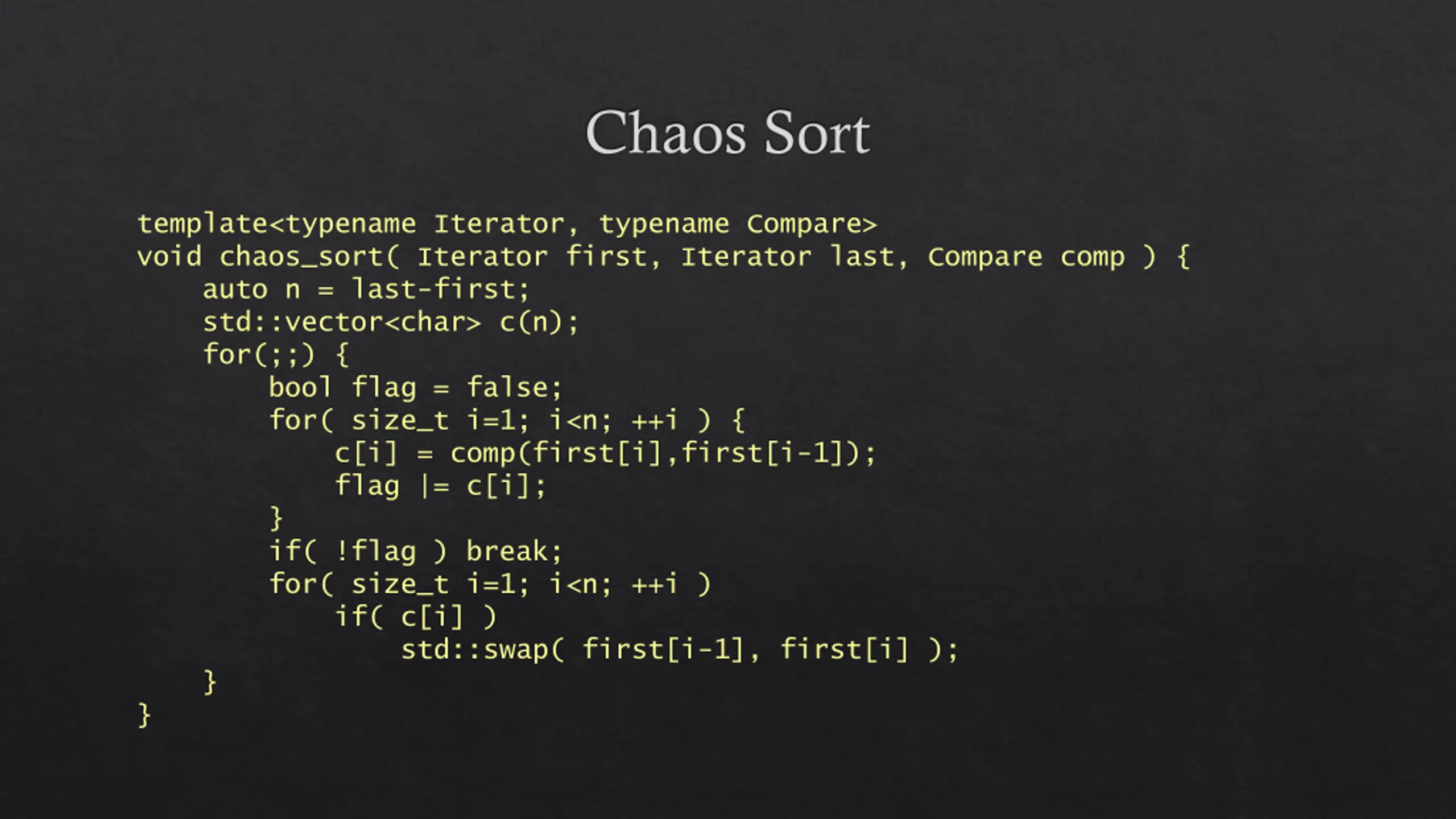

Chaos Sort template<typename Iterator, typename Compare> void chaos_sort( Iterator first, Iterator last, Compare comp ) { auto n = last-first; std::vector<char> c(n); for(;;) { bool flag = false; for( size_t i=1; i<n; ++i ) { c[i] = comp(first[i],first[i-1]); flag |= c[i]; } if( !flag ) break; for( size_t i=1; i<n; ++i ) if( c[i] ) std::swap( first[i-1], first[i] ); } }

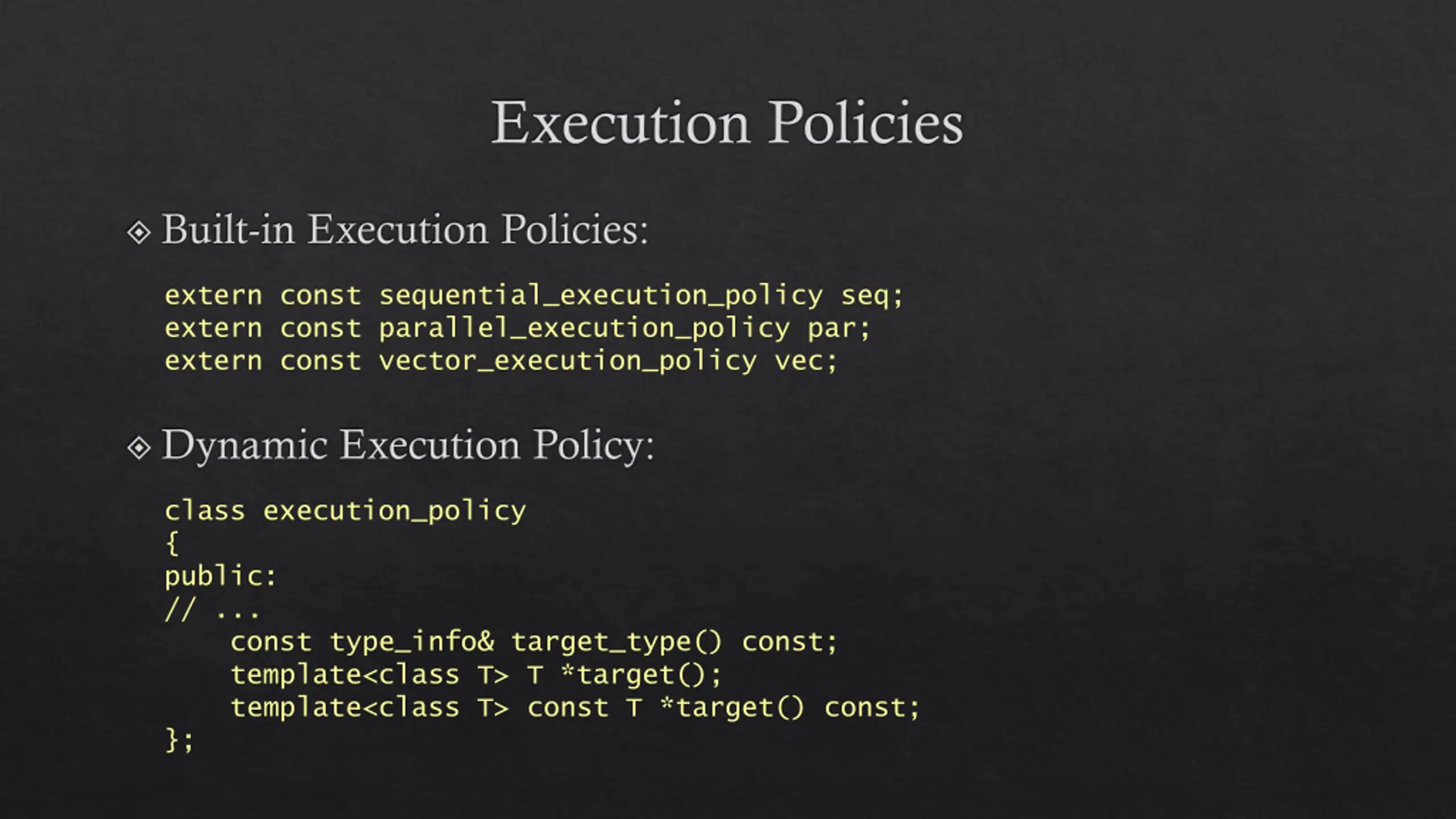

Execution Policies Built-in Execution Policies: extern const sequential_execution_policy seq; extern const parallel_execution_policy par; extern const vector_execution_policy vec; Dynamic Execution Policy: class execution_policy { public: // ... const type_info& target_type() const; template<class T> T *target(); template<class T> const T *target() const; };

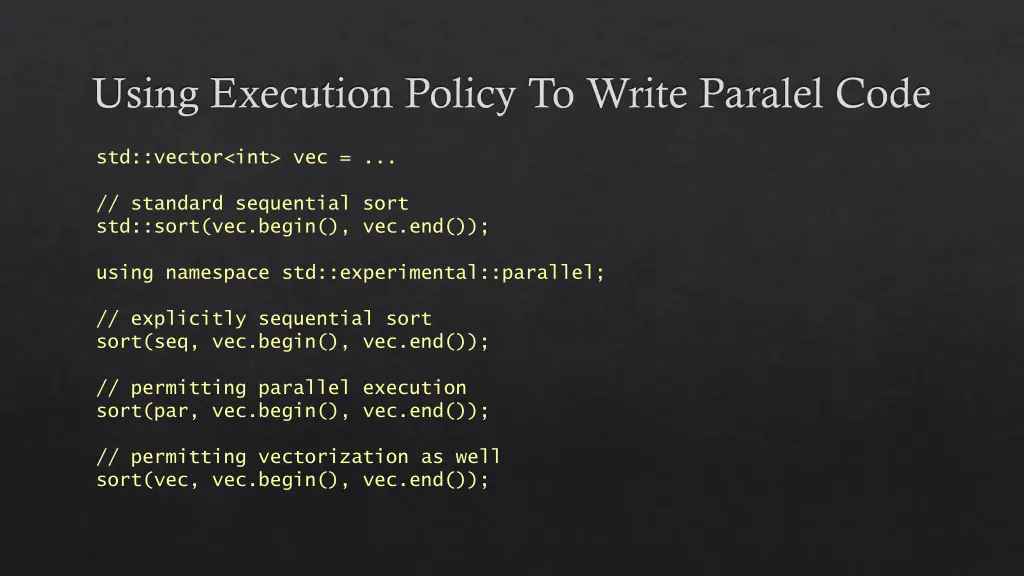

Using Execution Policy To Write Paralel Code std::vector<int> vec = ... // standard sequential sort std::sort(vec.begin(), vec.end()); using namespace std::experimental::parallel; // explicitly sequential sort sort(seq, vec.begin(), vec.end()); // permitting parallel execution sort(par, vec.begin(), vec.end()); // permitting vectorization as well sort(vec, vec.begin(), vec.end());

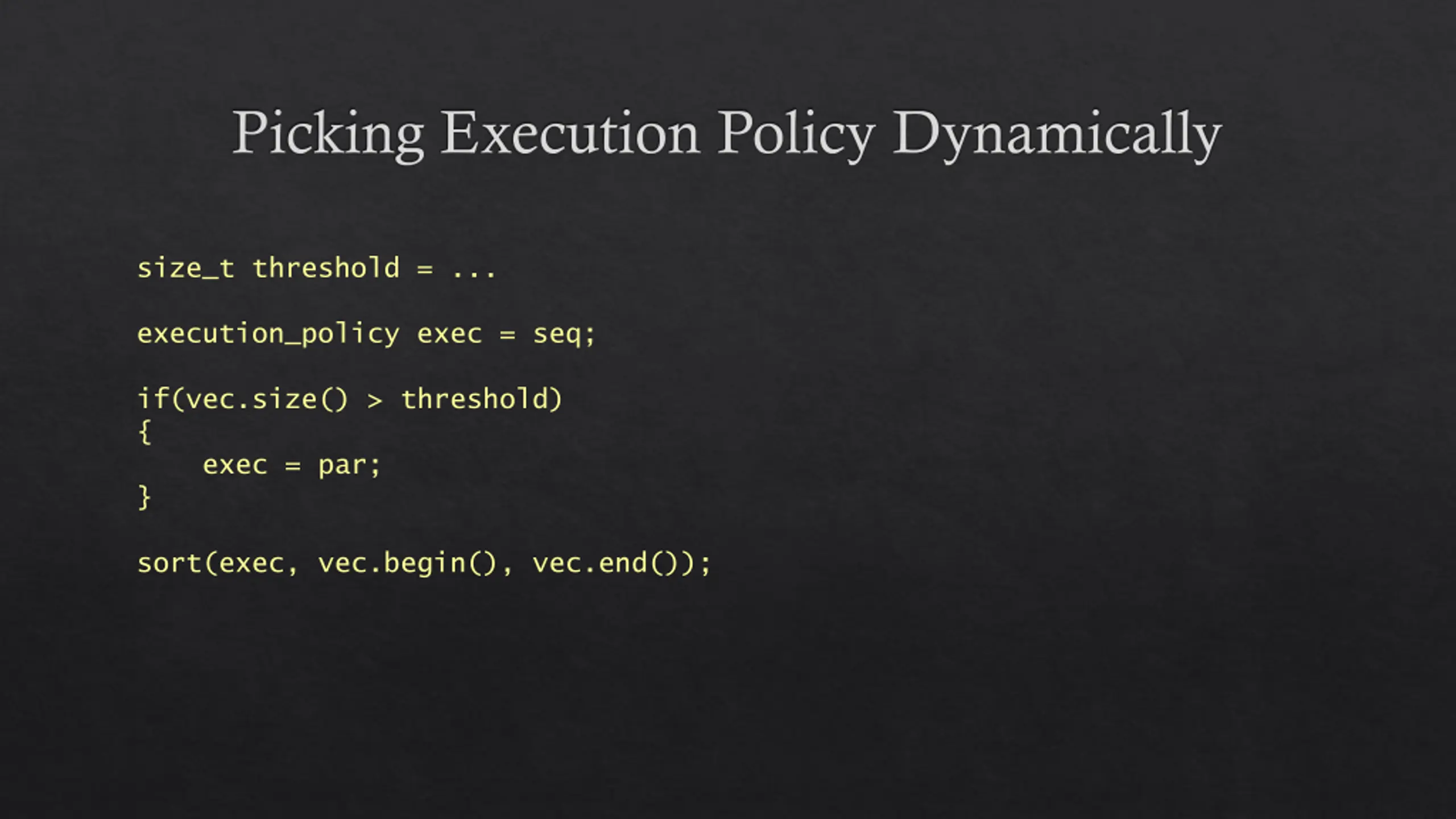

Picking Execution Policy Dynamically size_t threshold = ... execution_policy exec = seq; if(vec.size() > threshold) { exec = par; } sort(exec, vec.begin(), vec.end());

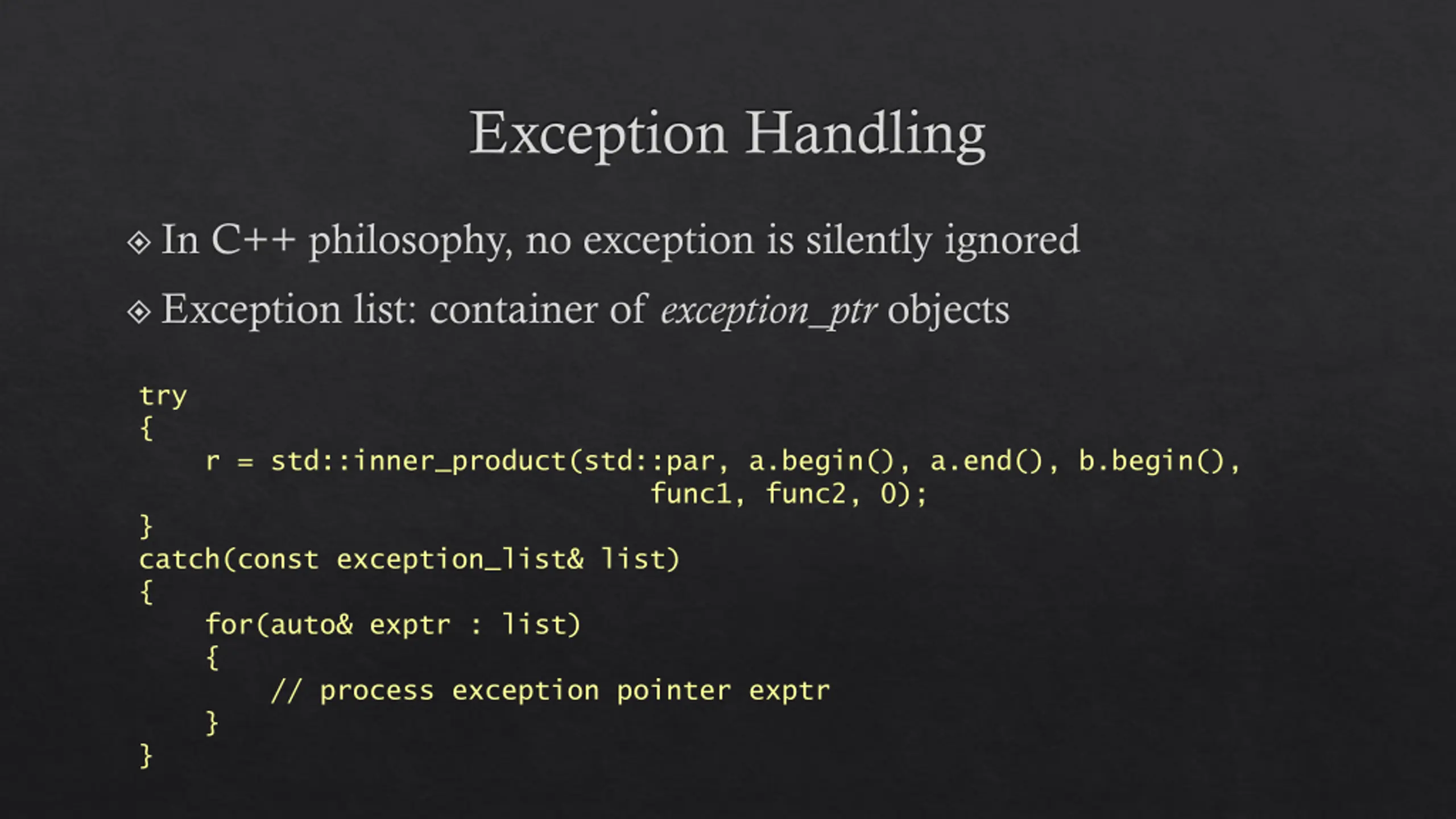

Exception Handling In C++ philosophy, no exception is silently ignored Exception list: container of exception_ptr objects try { r = std::inner_product(std::par, a.begin(), a.end(), b.begin(), func1, func2, 0); } catch(const exception_list& list) { for(auto& exptr : list) { // process exception pointer exptr } }

Vectorization: A Tale From Agriculture

A Tale From Agriculture

A Tale From Agriculture

Idea: Fewer Tractors, Wider Plows

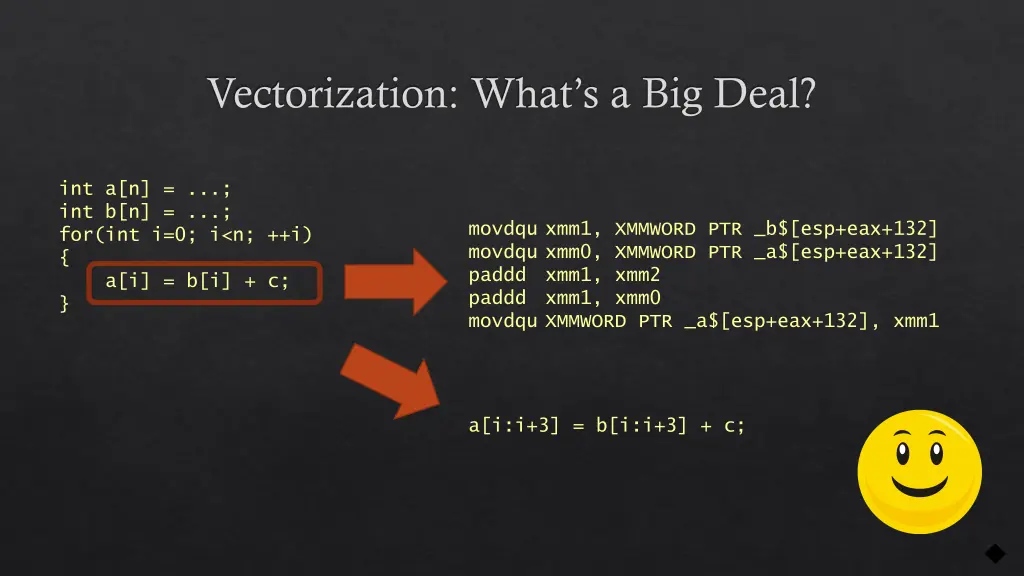

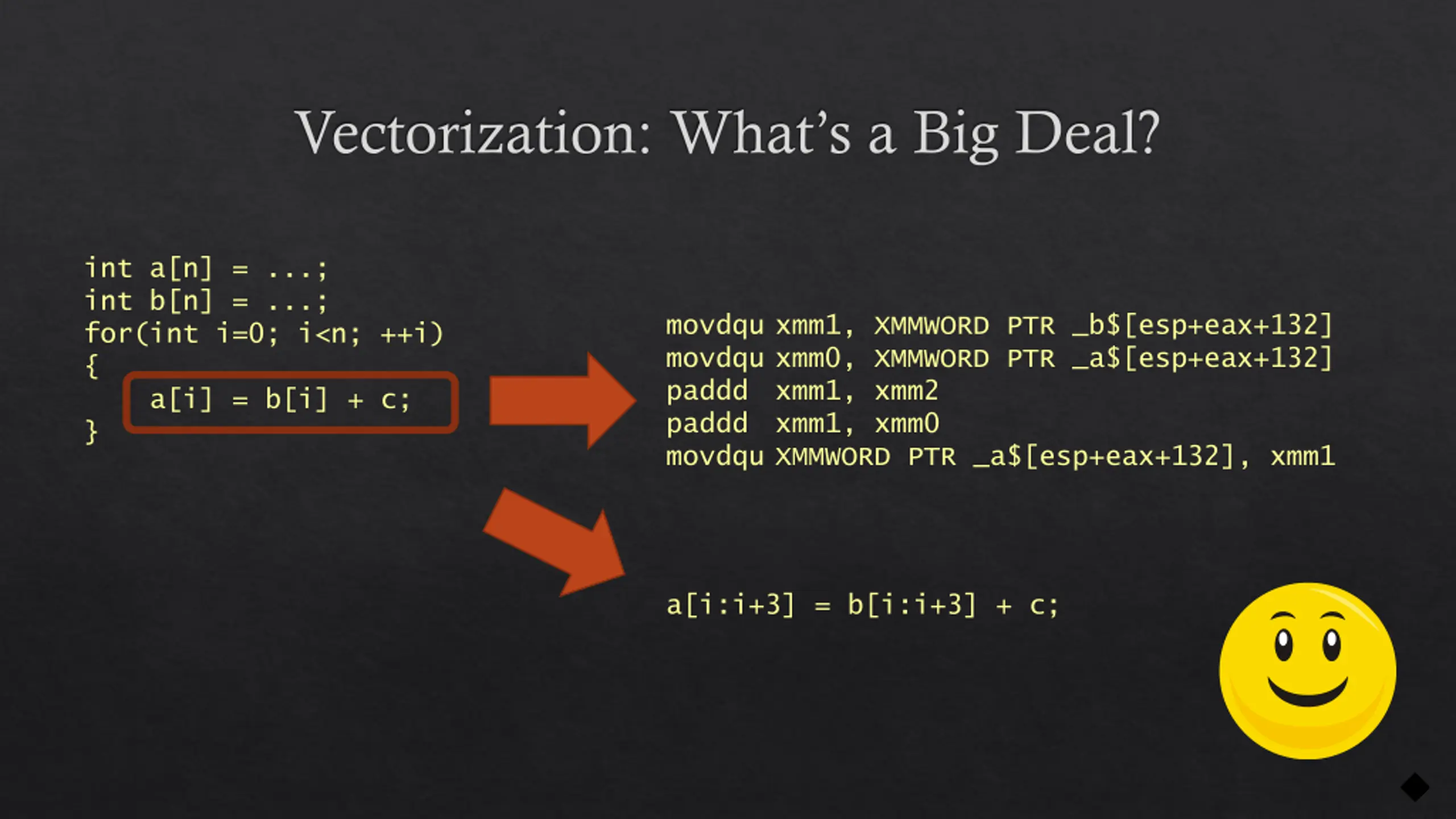

Vectorization: Whats a Big Deal? int a[n] = ...; int b[n] = ...; for(int i=0; i<n; ++i) { a[i] = b[i] + c; } movdqu xmm1, XMMWORD PTR _b$[esp+eax+132] movdqu xmm0, XMMWORD PTR _a$[esp+eax+132] paddd xmm1, xmm2 paddd xmm1, xmm0 movdqu XMMWORD PTR _a$[esp+eax+132], xmm1 a[i:i+3] = b[i:i+3] + c;

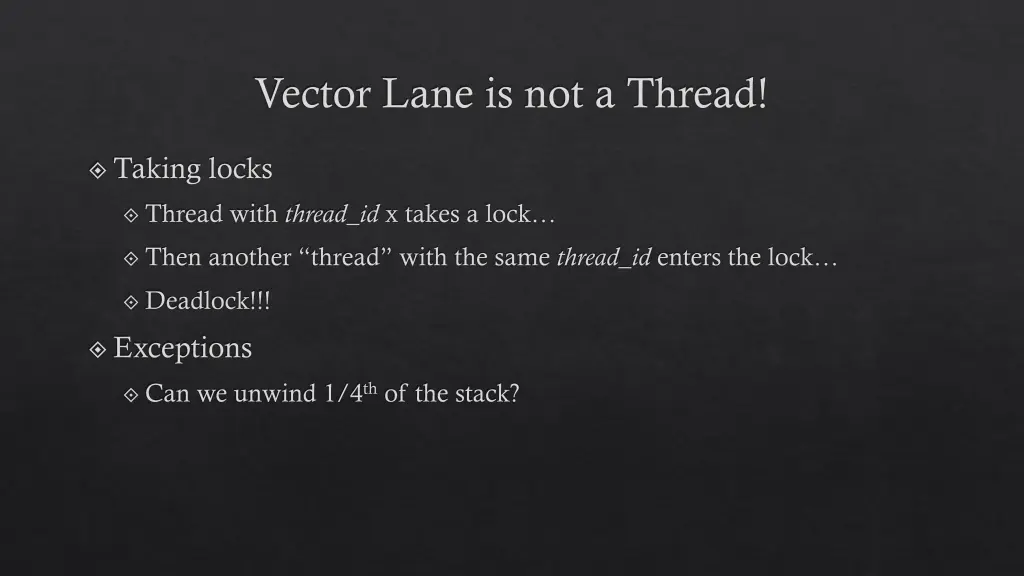

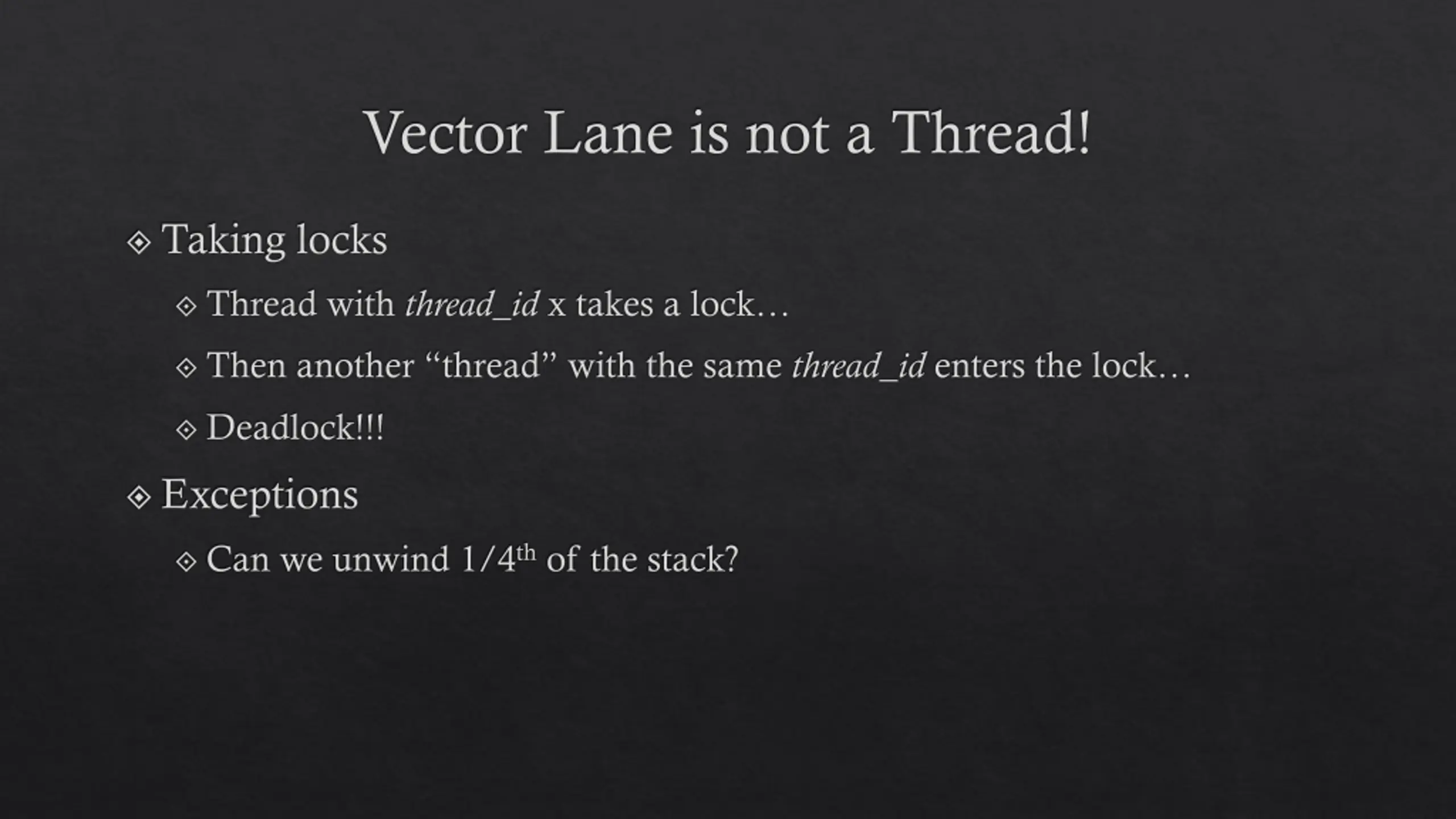

Vector Lane is not a Thread! Taking locks Thread with thread_id x takes a lock Then another thread with the same thread_id enters the lock Deadlock!!! Exceptions Can we unwind 1/4thof the stack?

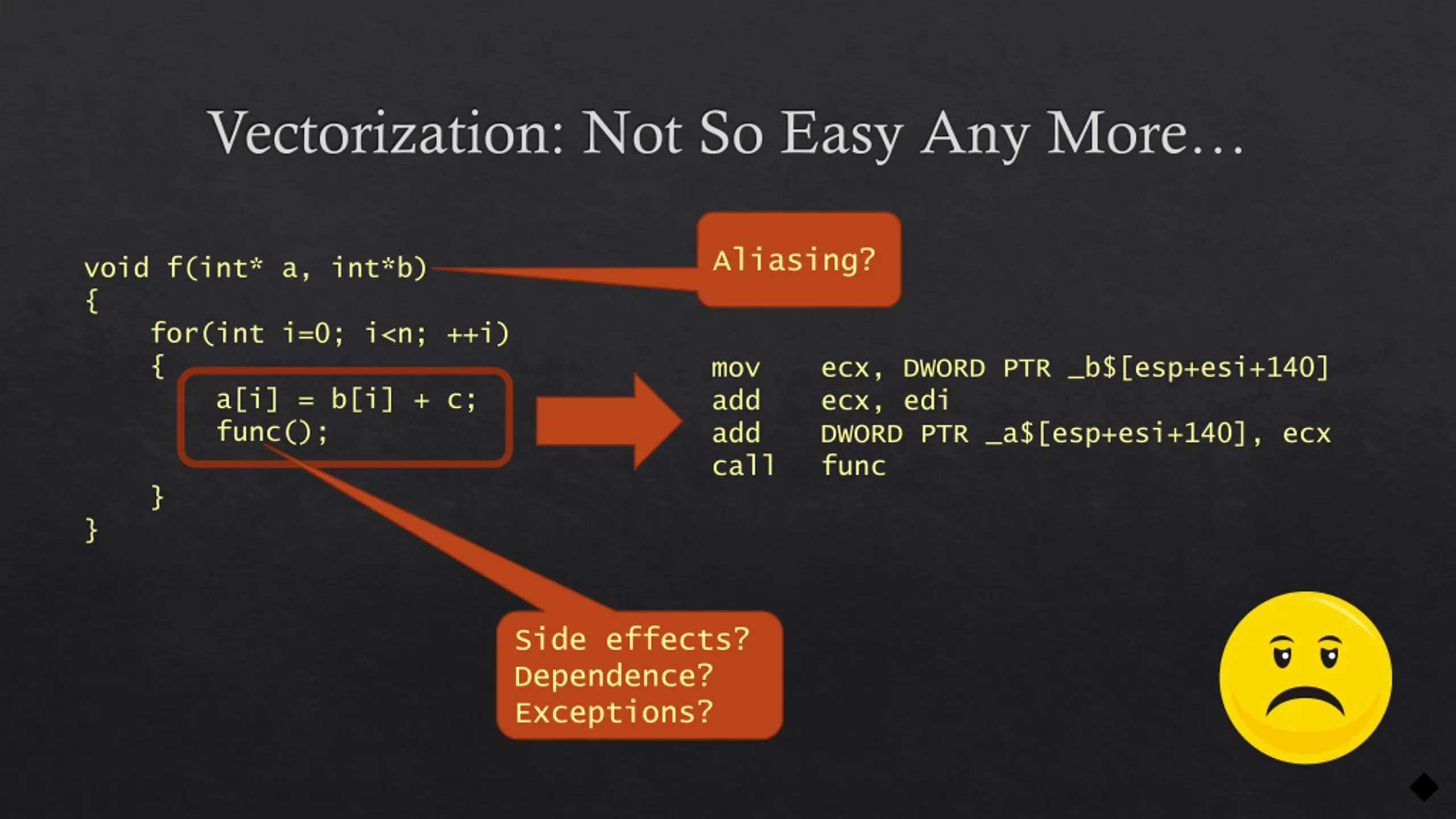

Vectorization: Not So Easy Any More Aliasing? void f(int* a, int*b) { for(int i=0; i<n; ++i) { a[i] = b[i] + c; func(); mov add add call ecx, DWORD PTR _b$[esp+esi+140] ecx, edi DWORD PTR _a$[esp+esi+140], ecx func } } Side effects? Dependence? Exceptions?

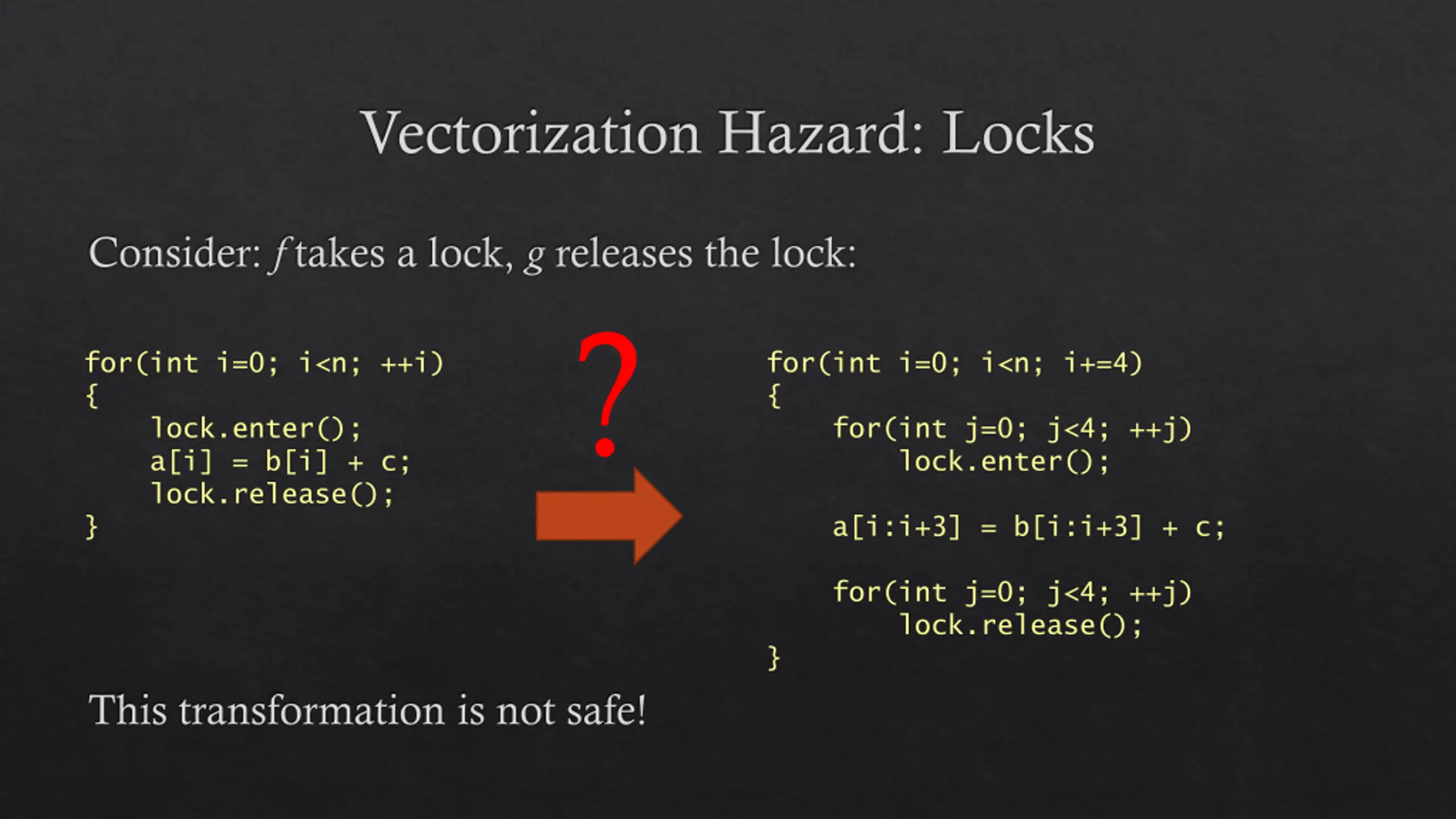

Vectorization Hazard: Locks Consider: f takes a lock, g releases the lock: ? for(int i=0; i<n; ++i) { lock.enter(); a[i] = b[i] + c; lock.release(); } for(int i=0; i<n; i+=4) { for(int j=0; j<4; ++j) lock.enter(); a[i:i+3] = b[i:i+3] + c; for(int j=0; j<4; ++j) lock.release(); } This transformation is not safe!

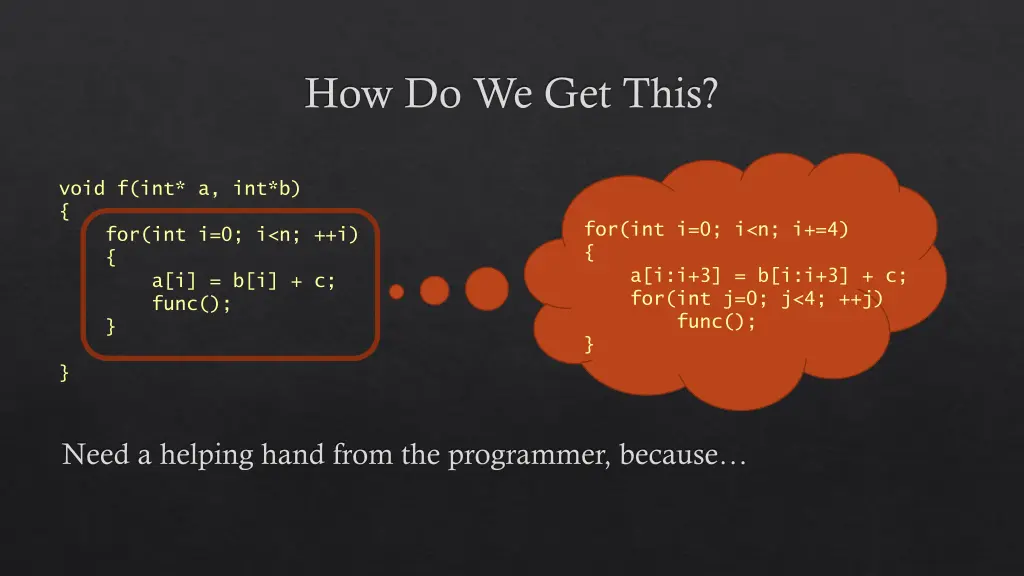

How Do We Get This? void f(int* a, int*b) { for(int i=0; i<n; ++i) { a[i] = b[i] + c; func(); } for(int i=0; i<n; i+=4) { a[i:i+3] = b[i:i+3] + c; for(int j=0; j<4; ++j) func(); } } Need a helping hand from the programmer, because

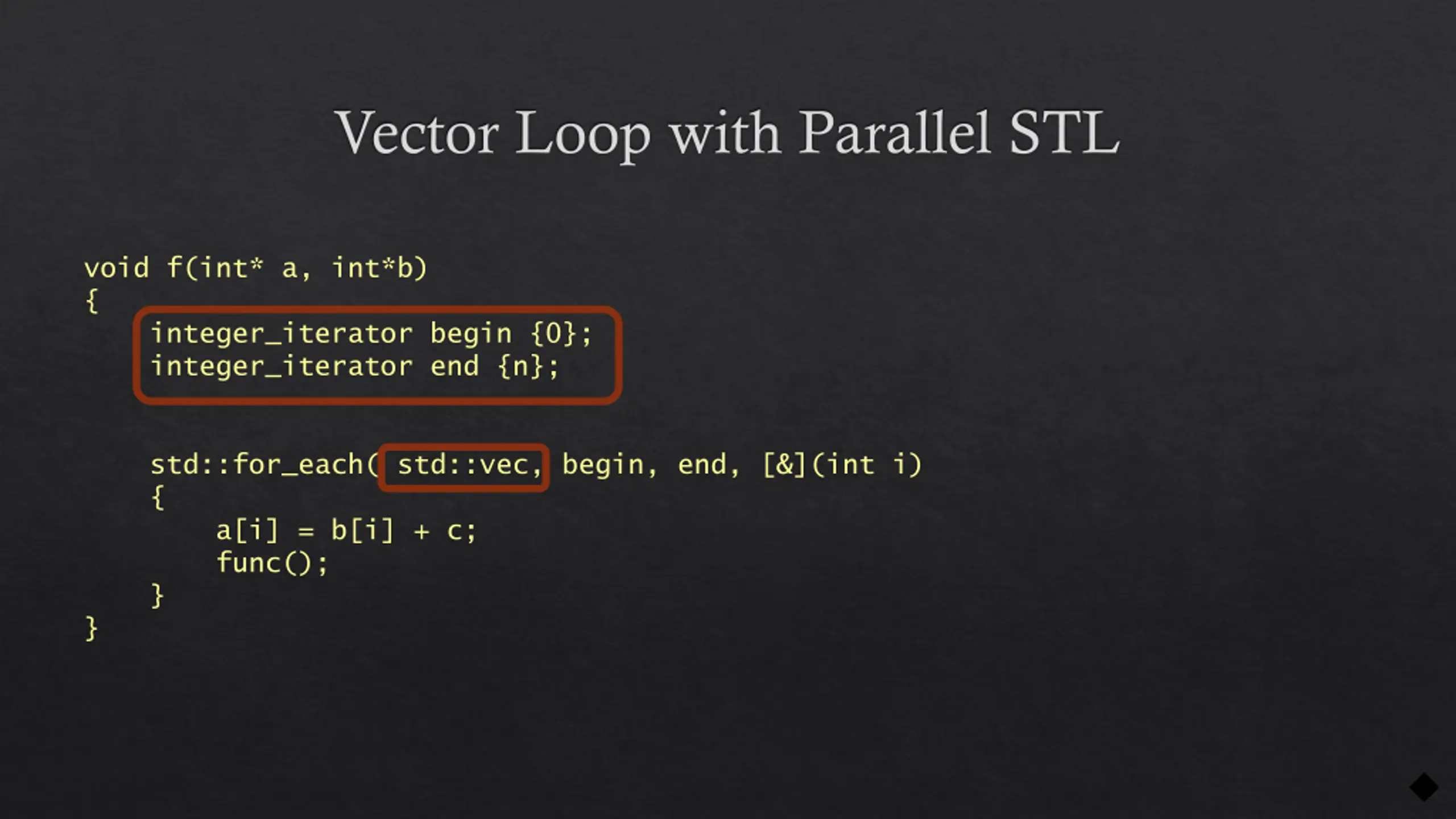

Vector Loop with Parallel STL void f(int* a, int*b) { integer_iterator begin {0}; integer_iterator end {n}; { a[i] = b[i] + c; func(); } } std::for_each( std::vec, begin, end, [&](int i)

Parallelization vs. Vectorization Parallelization Vectorization Threads Vector Lanes Stack No stack Good for divergent code Lock-step execution Relatively heavy-weight Very light-weight

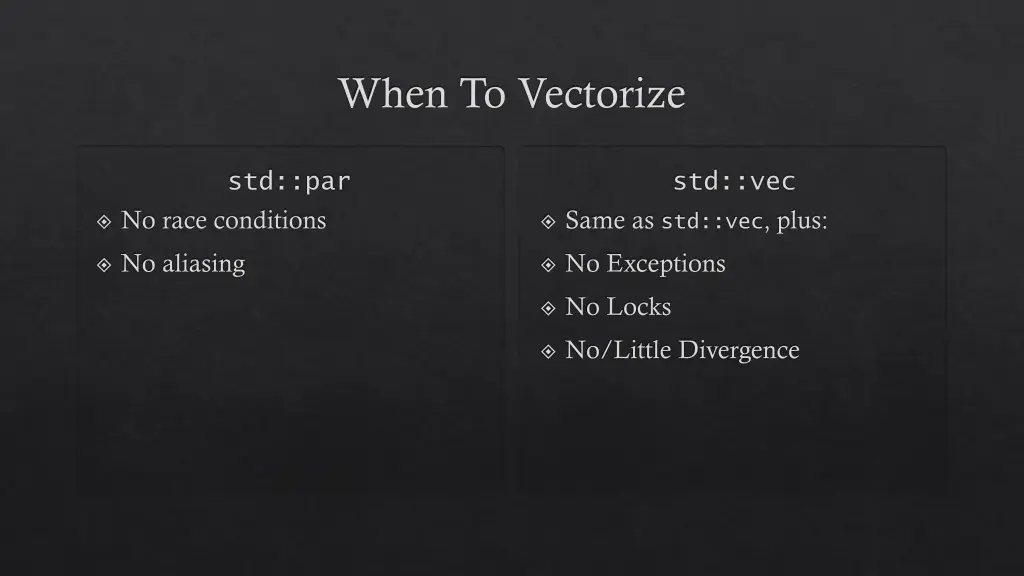

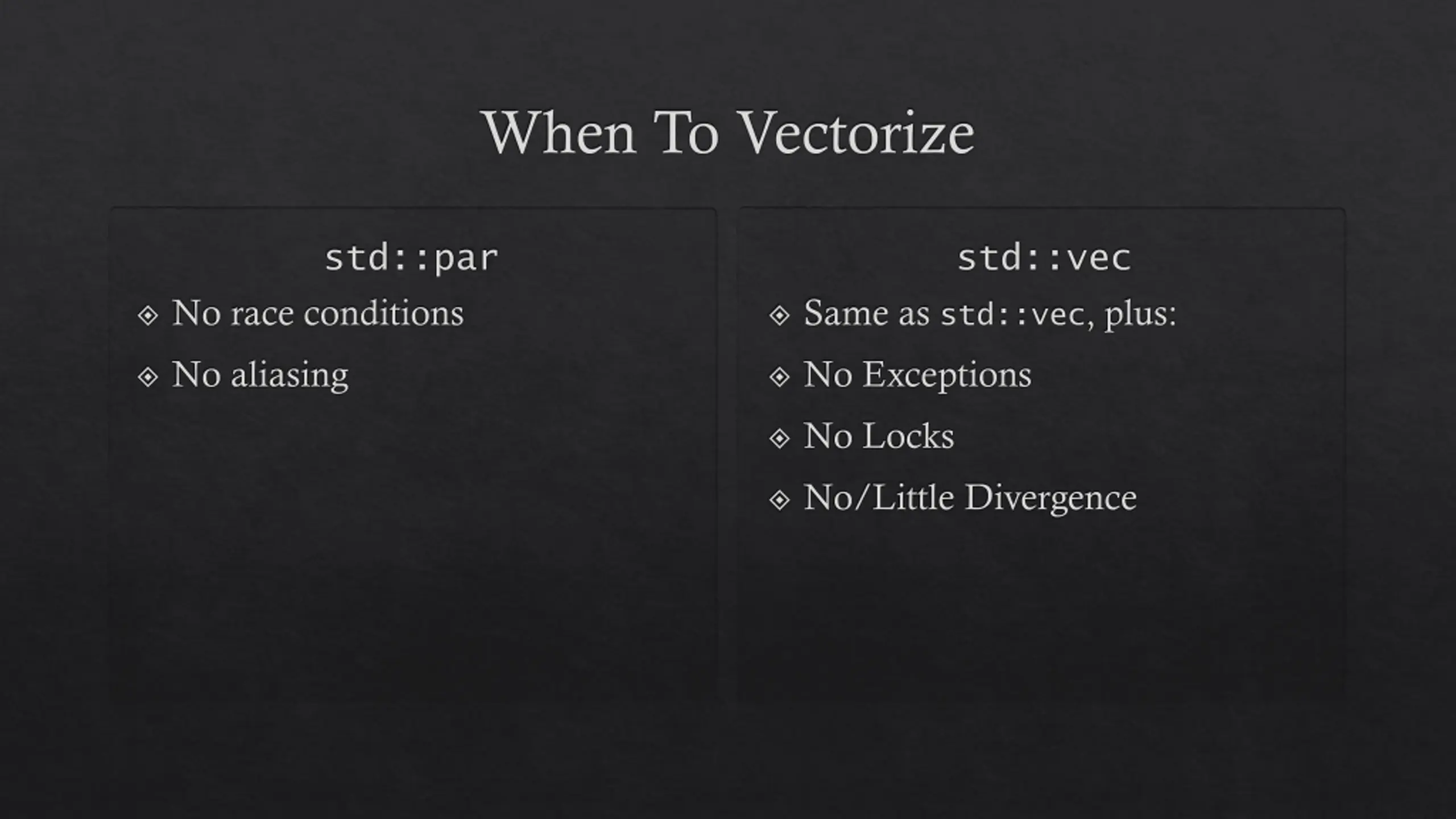

When To Vectorize std::par std::vec No race conditions Same as std::vec, plus: No aliasing No Exceptions No Locks No/Little Divergence

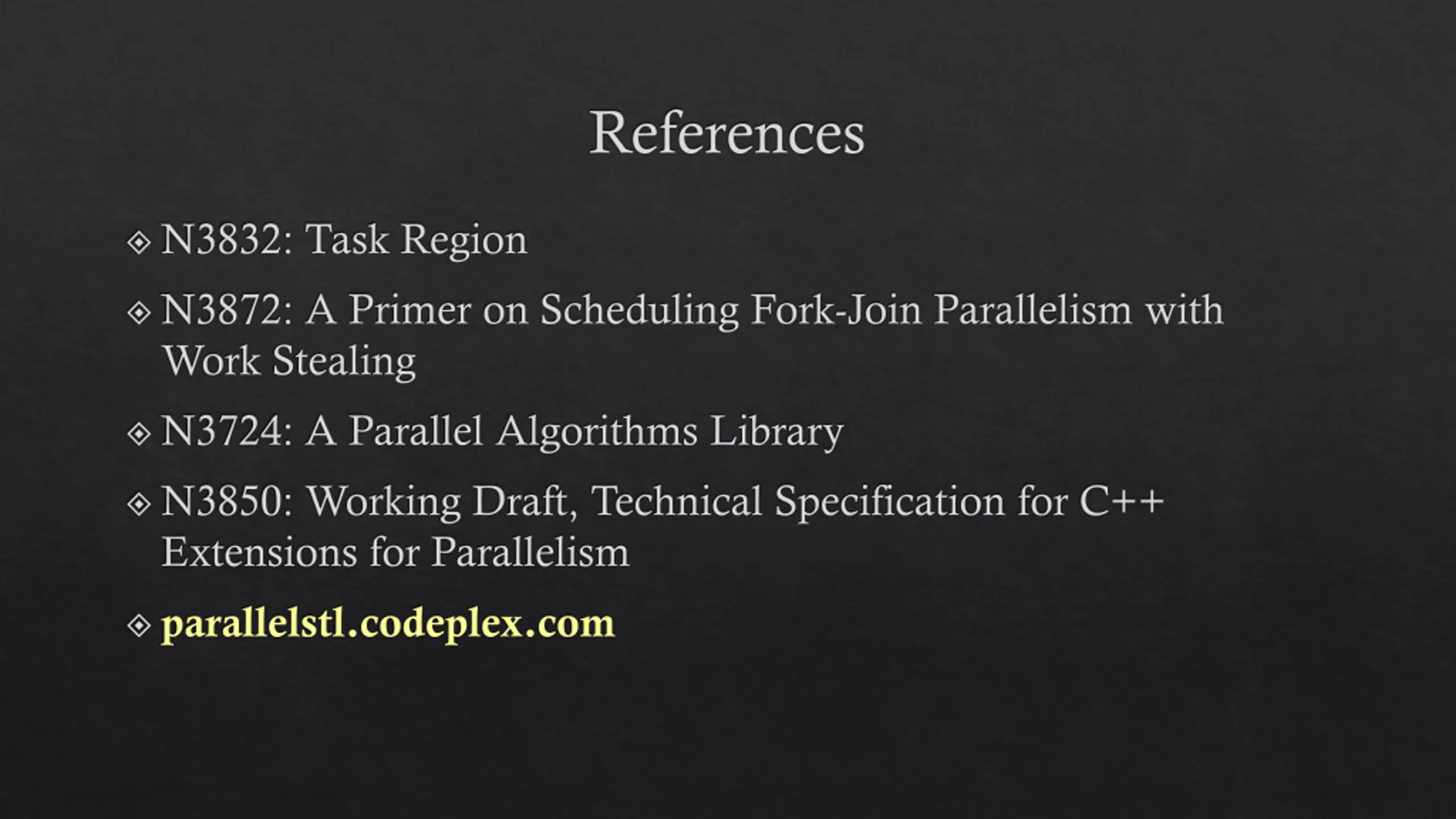

References N3832: Task Region N3872: A Primer on Scheduling Fork-Join Parallelism with Work Stealing N3724: A Parallel Algorithms Library N3850: Working Draft, Technical Specification for C++ Extensions for Parallelism parallelstl.codeplex.com
