IDATA2302 Algorithms & Data Structures Prefix & Suffix Trees A peek at Information Retrieval Trees / Lecture 6 Franck Chauvel axbit & NTNU Ask questions on menti.com with code 7273 1330 franck.chauvel@ntnu.no

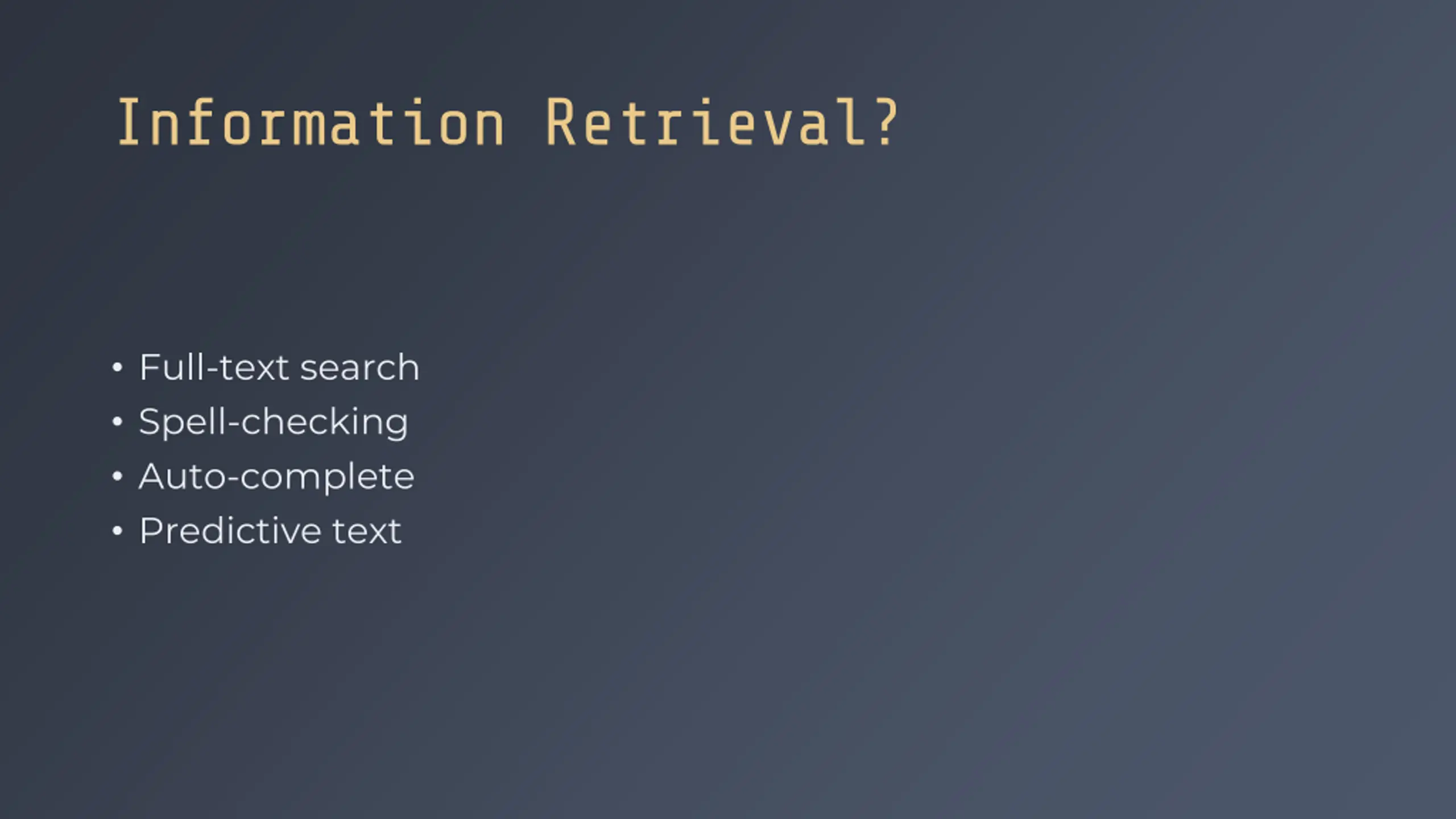

Information Retrieval? Full-text search Spell-checking Auto-complete Predictive text

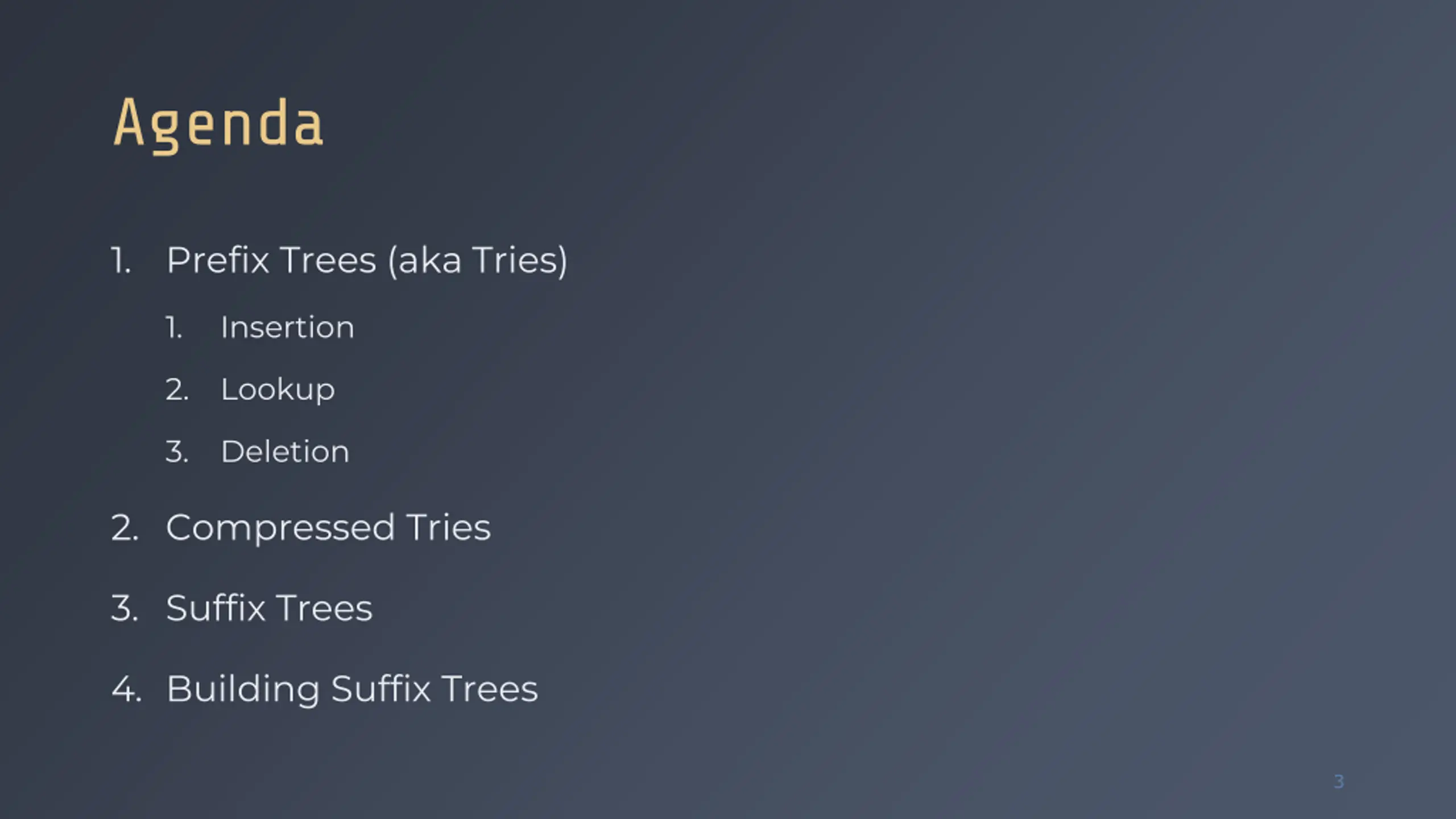

Agenda 1. Prefix Trees (aka Tries) 1. Insertion 2. Lookup 3. Deletion 2. Compressed Tries 3. Suffix Trees 4. Building Suffix Trees 3

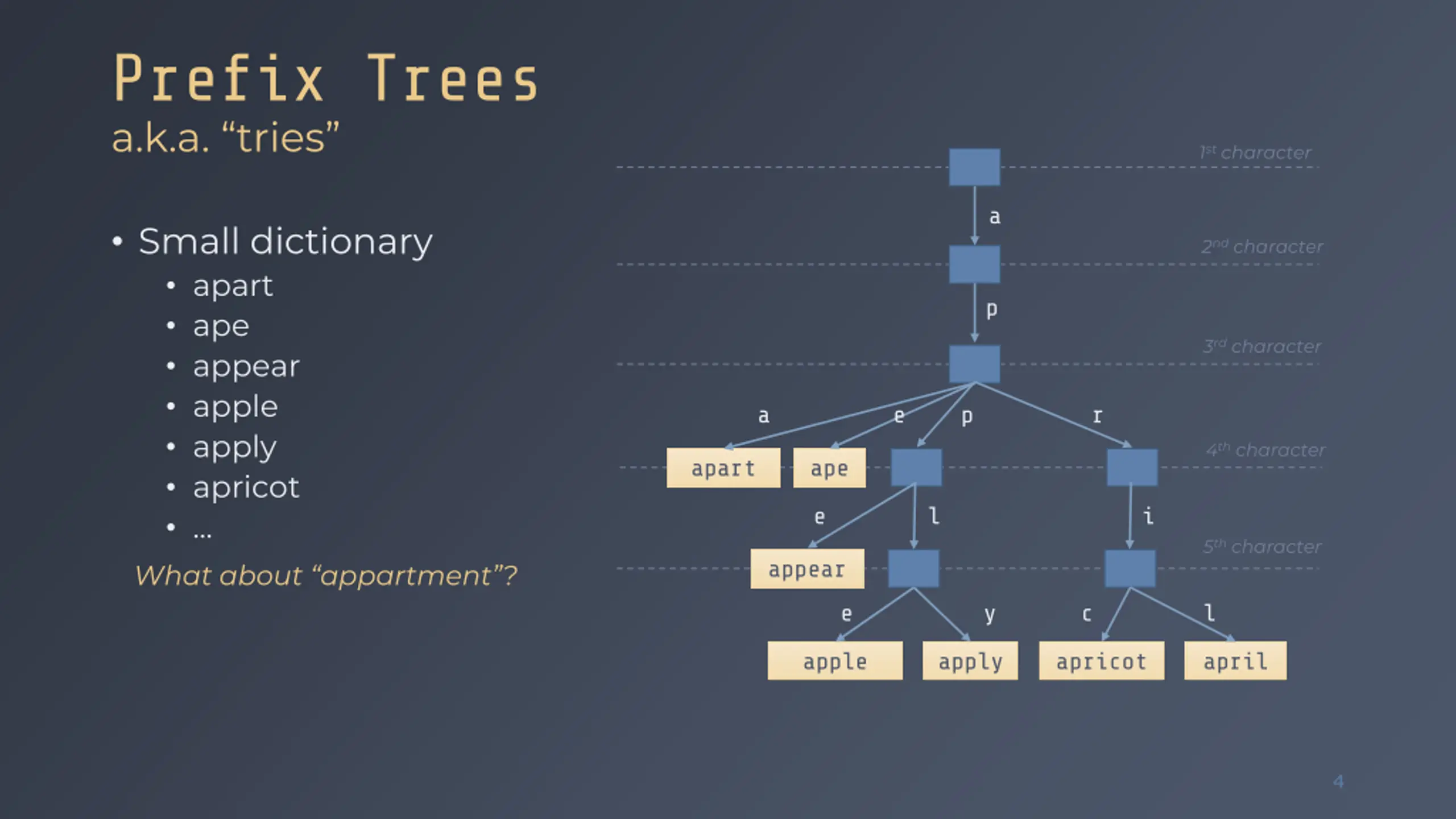

Prefix Trees a.k.a. tries 1st character a Small dictionary apart ape appear apple apply apricot What about appartment ? 2nd character p 3rd character a e p r 4th character apart ape e l i 5th character appear e y c l apple apply apricot april 4

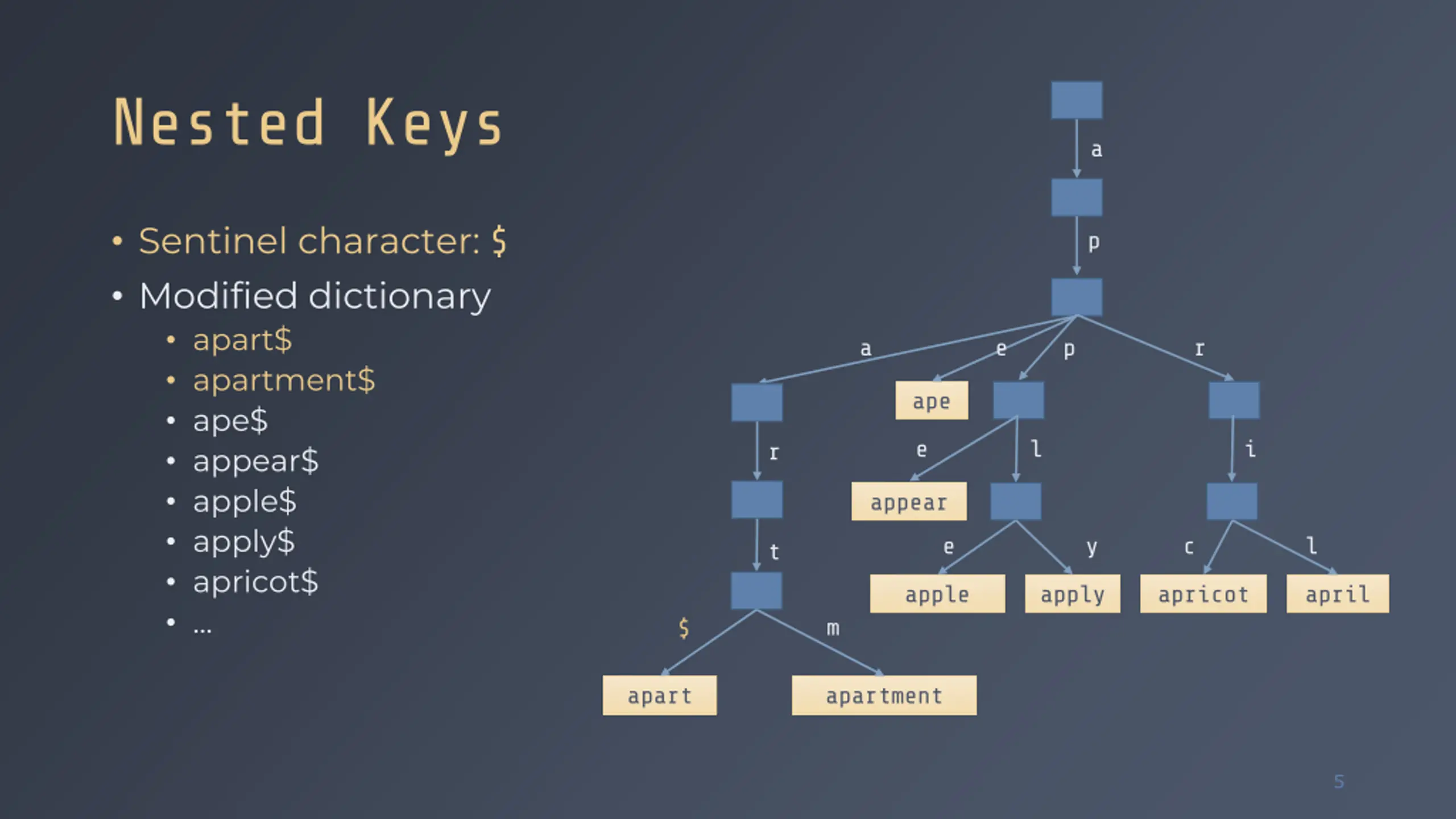

Nested Keys a Sentinel character: $ Modified dictionary apart$ apartment$ ape$ appear$ apple$ apply$ apricot$ p a e p r ape e l i r appear e y c l t apple apply apricot april m $ apart apartment 5

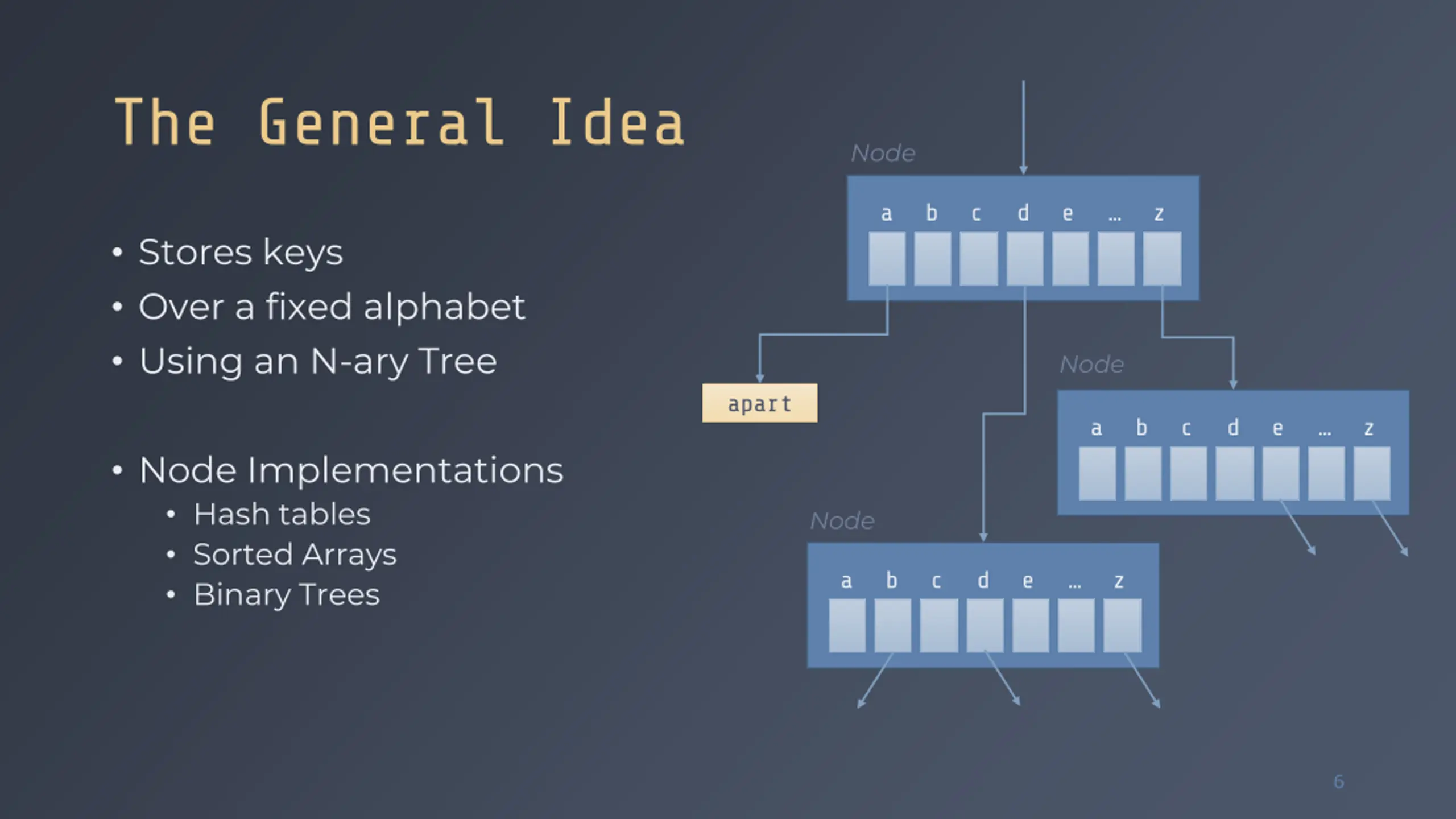

The General Idea Node a b c d e z Stores keys Over a fixed alphabet Using an N-ary Tree Node apart a b c d e z Node Implementations Hash tables Sorted Arrays Binary Trees Node a b c d e z 6

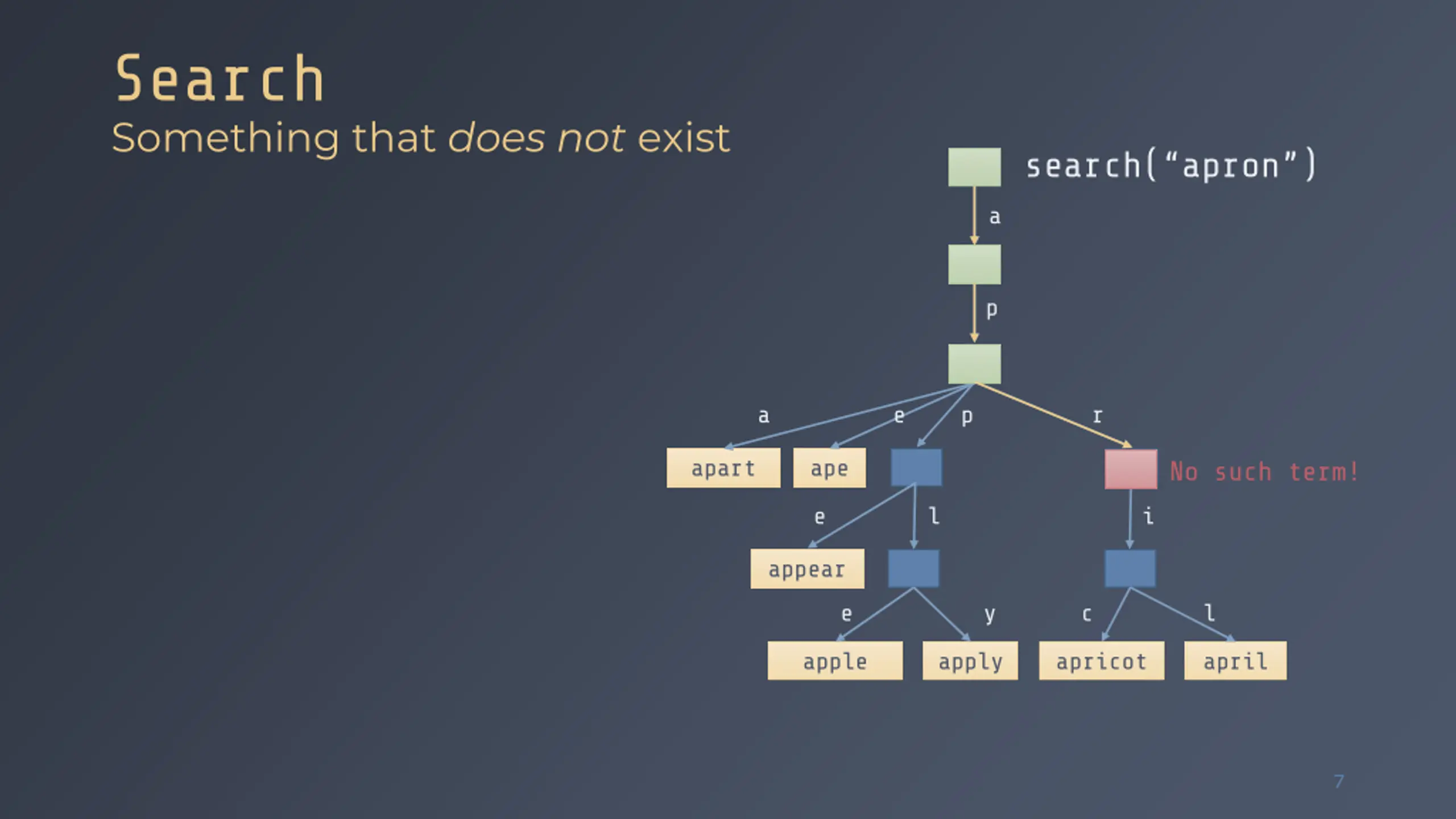

Search Something that does not exist search( apron ) a p a e p r apart ape No such term! e l i appear e y c l apple apply apricot april 7
Search Something that exists insert( apron ) a p a e p r apart ape e l i appear e y c l apple apply apricot apricot april Found it! 8

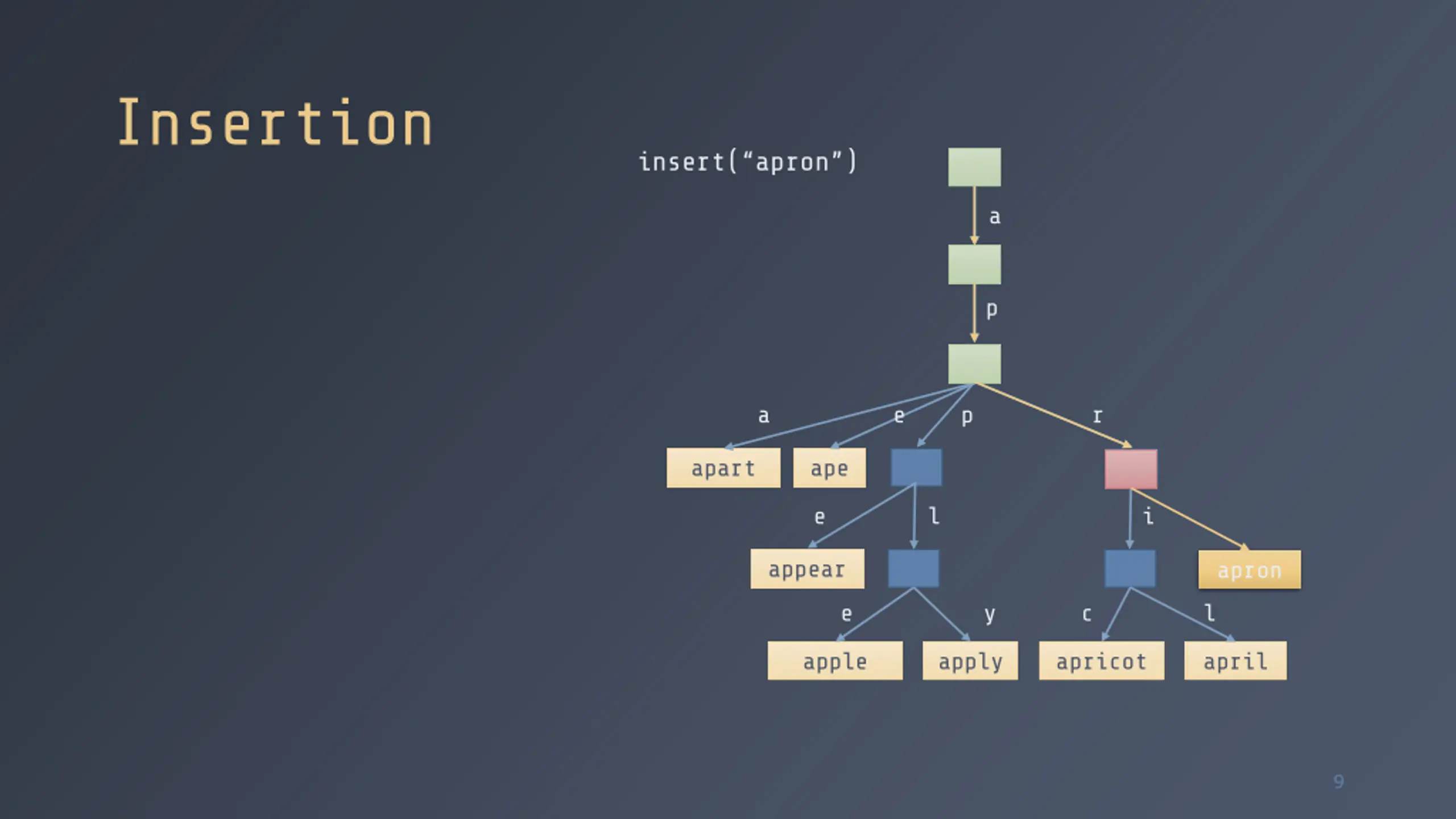

Insertion insert( apron ) a p a e p r apart ape e l i appear apron e y c l apple apply apricot april 9

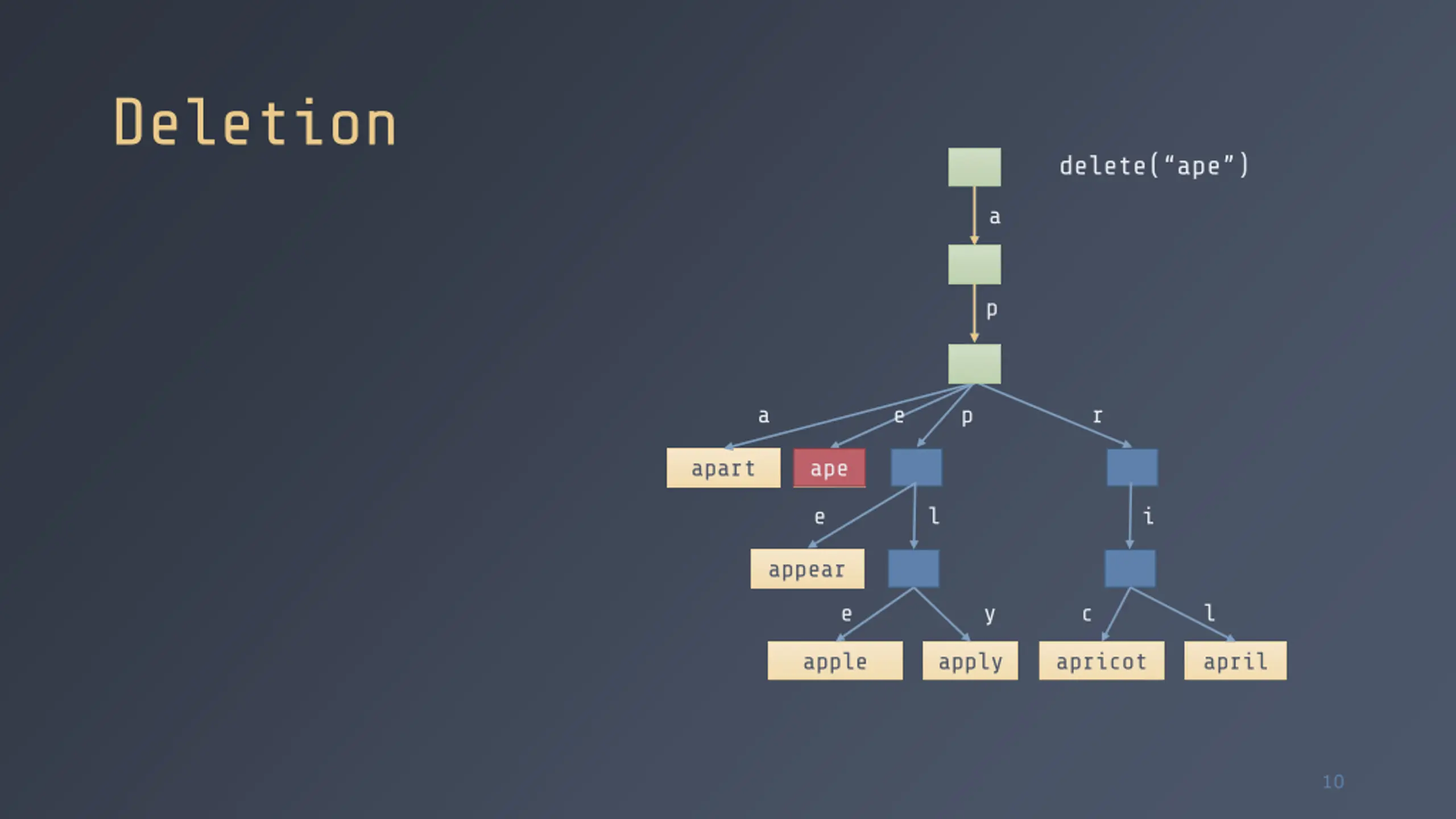

Deletion delete( ape ) a p a e p r apart ape ape e l i appear e y c l apple apply apricot april 10

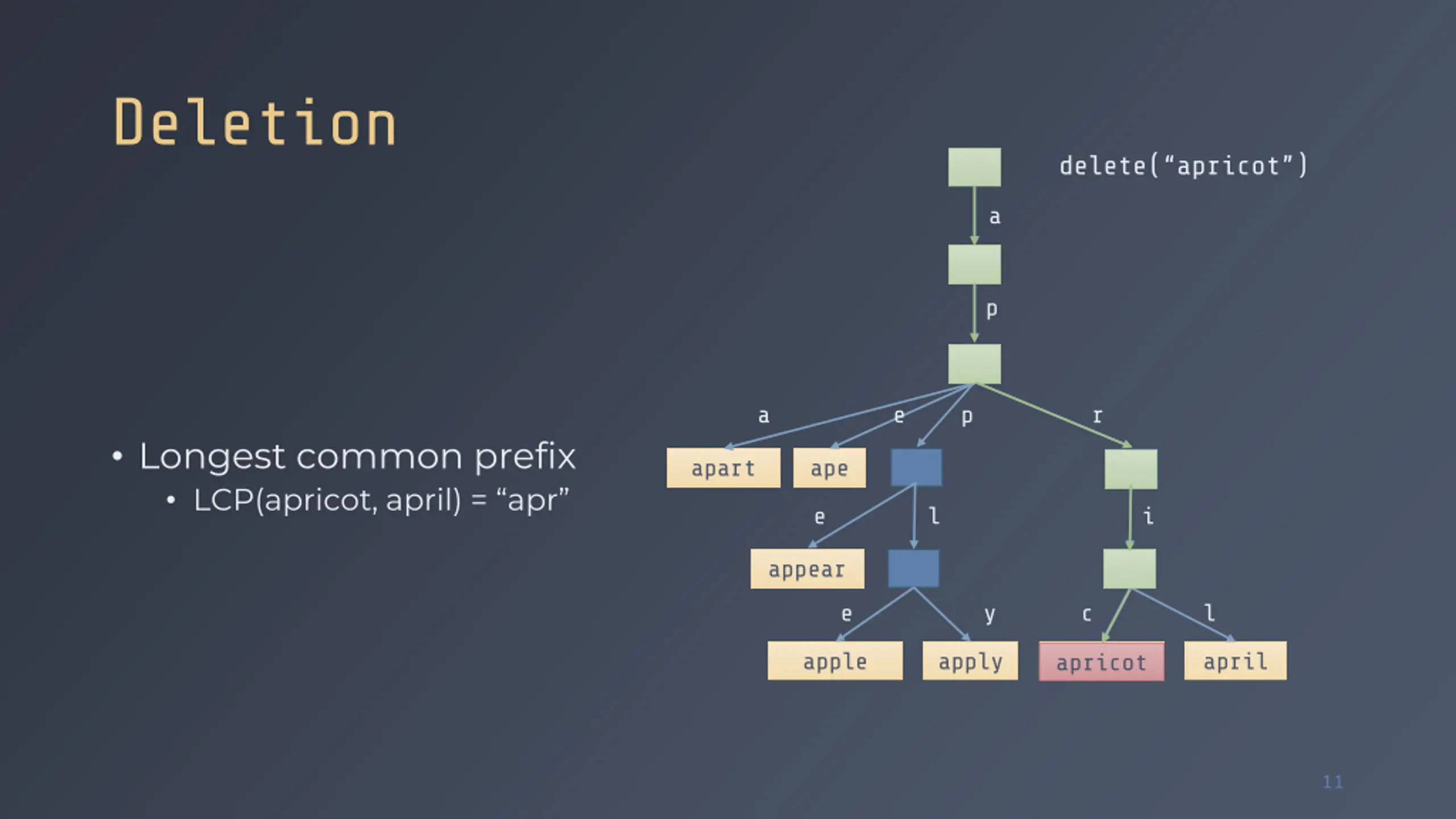

Deletion delete( apricot ) a p a e p r Longest common prefix LCP(apricot, april) = apr apart ape e l i appear e y c l apple apply apricot apricot april 11

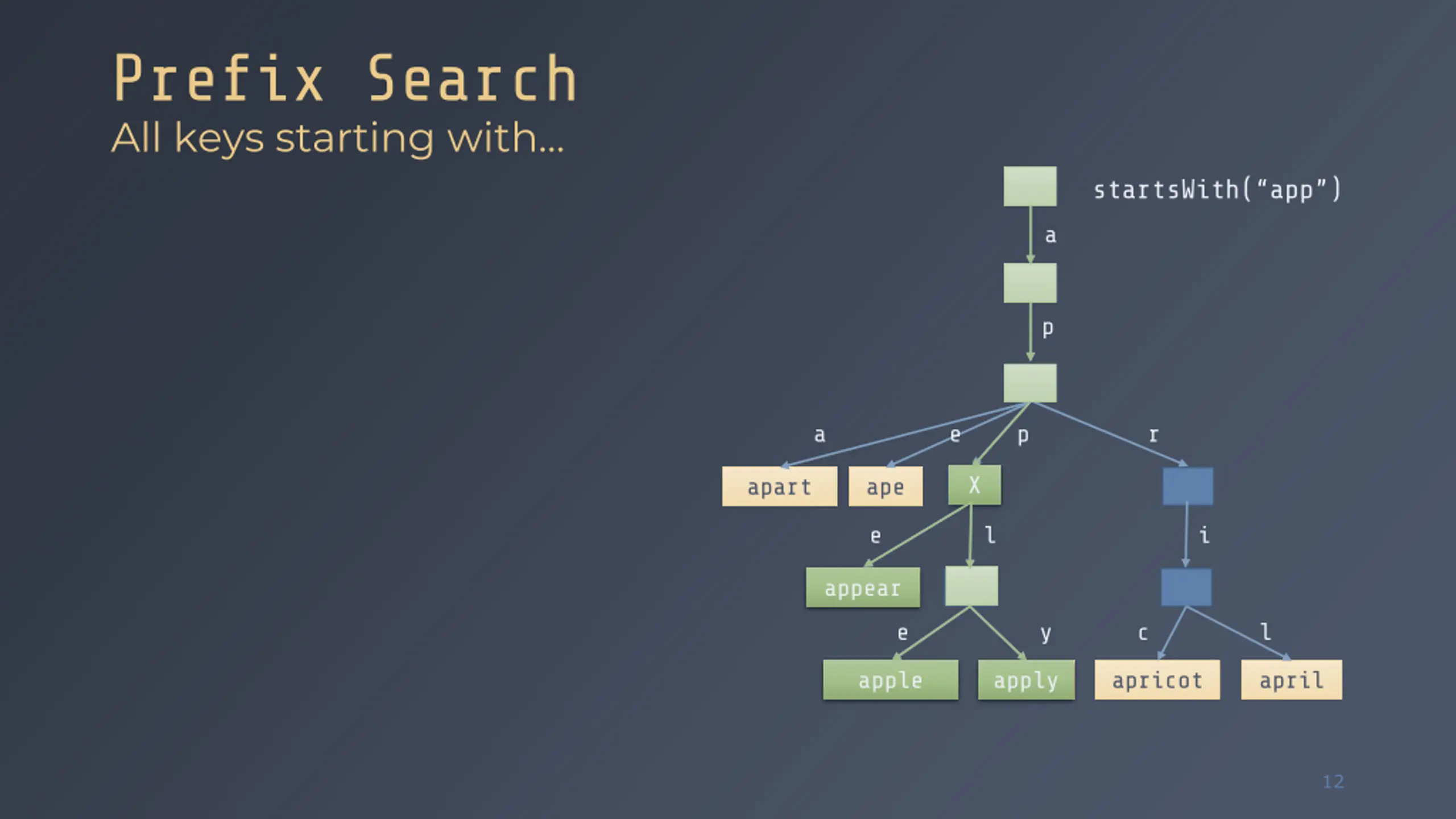

Prefix Search All keys starting with startsWith( app ) a p a e p r X apart ape e l i appear appear e y c l apple apple apply apply apricot april 12

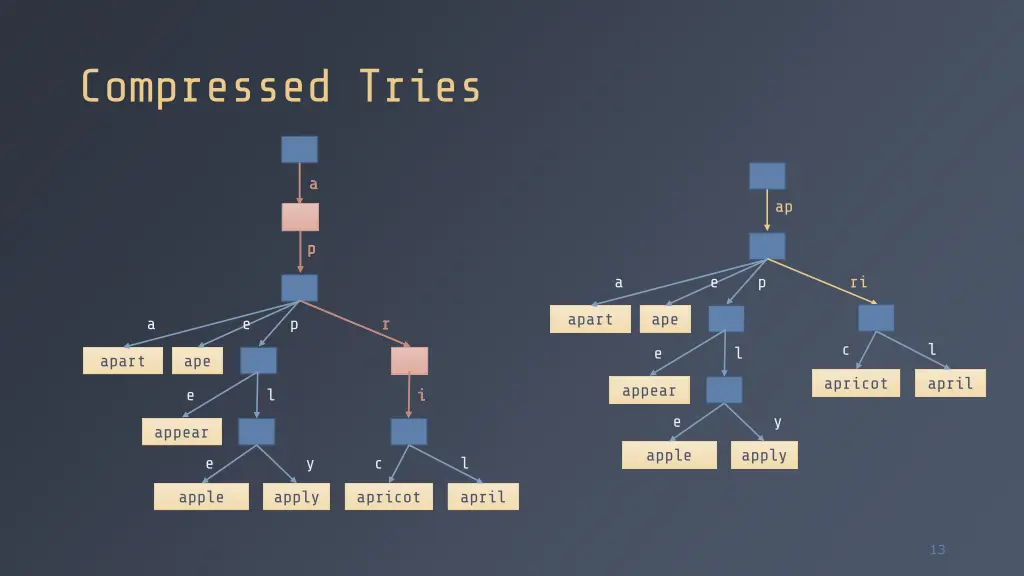

Compressed Tries a a ap p p a e p ri apart ape a e p r r c l e l apart ape apricot april appear e l i i e y appear apple apply e y c l apple apply apricot april 13
Suffix Trees 14

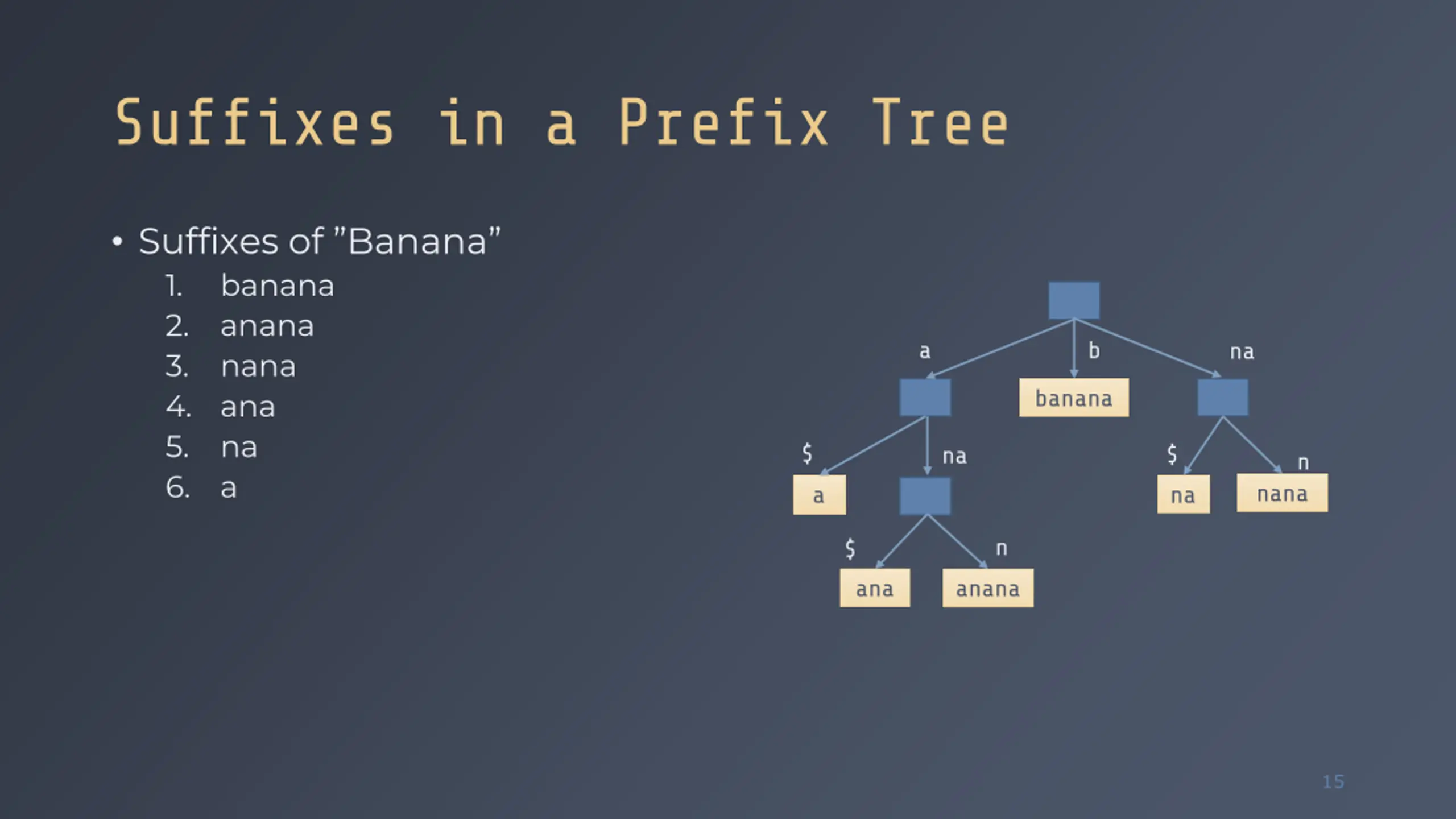

Suffixes in a Prefix Tree Suffixes of Banana 1. banana 2. anana 3. nana 4. ana 5. na 6. a a b na banana $ $ na n nana na a n $ ana anana 15
Compressing Suffix Trees a b na (2,3) (0,0) (1,1) 1. Replace leaves by the index where the suffix starts 2. Replace labels with start and end indexes banana 0 $ $ na (4,4) (2,3) n nana 2 na 4 a 5 n $ (4,4) ana 3 anana 1 0 1 2 3 4 5 b a n a n a 16

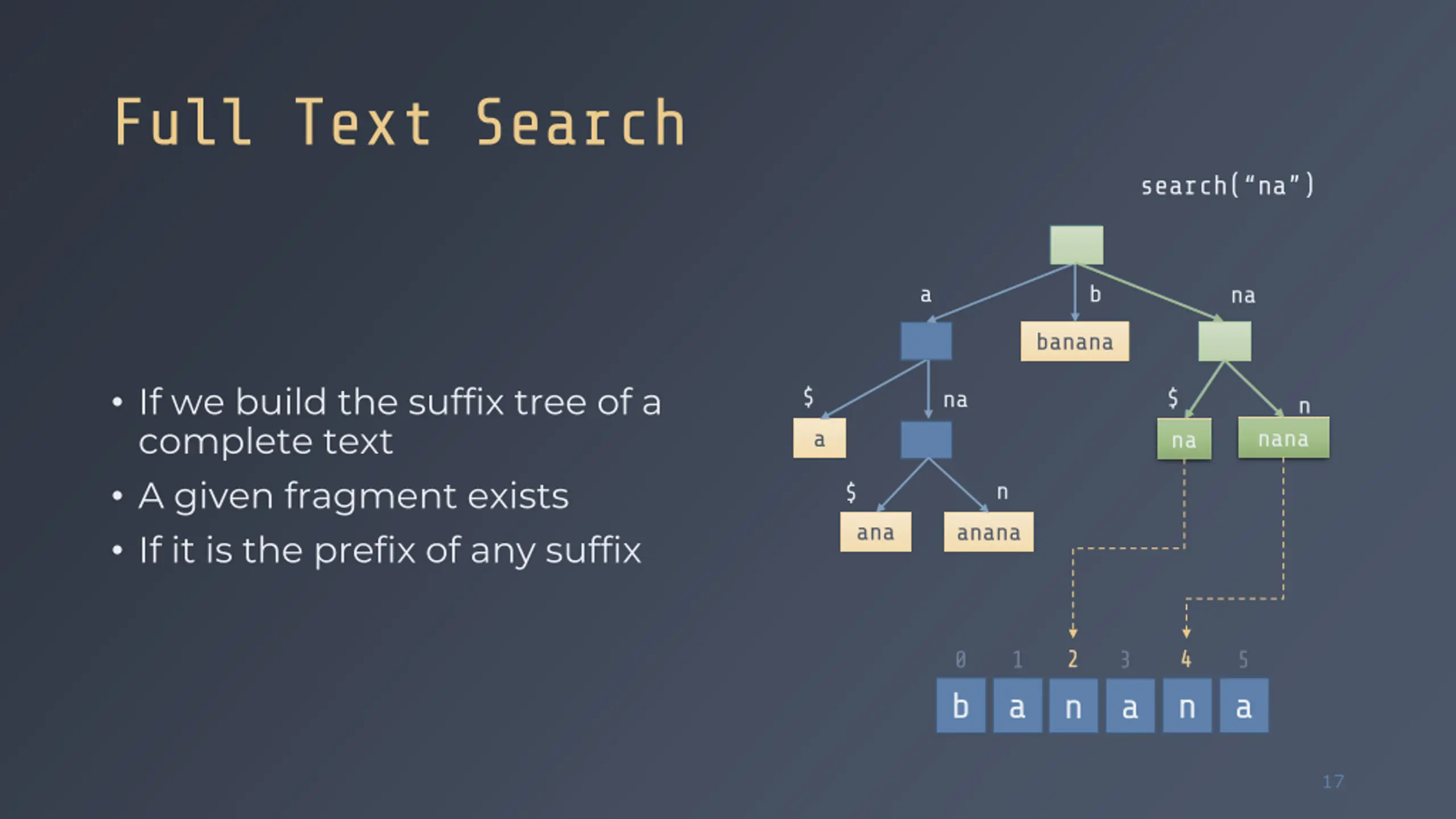

Full Text Search search( na ) a b na banana If we build the suffix tree of a complete text A given fragment exists If it is the prefix of any suffix $ $ na n nana nana na na a n $ ana anana 2 2 4 4 0 1 3 5 b a n a n a 17
Building Suffix Trees How to build suffix trees in linear time? Ukkonen s algorithm 18
Recap Tries: Store keys as paths Approximate searches prefix suffix / full search Compression! Can be built fast! 19

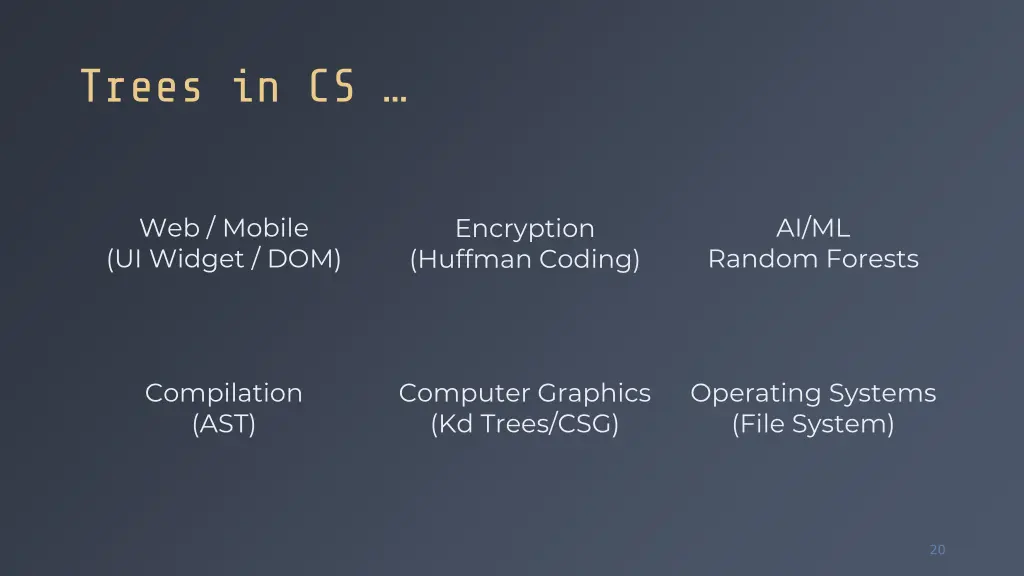

Trees in CS Web / Mobile (UI Widget / DOM) AI/ML Encryption (Huffman Coding) Random Forests Compilation (AST) Computer Graphics (Kd Trees/CSG) Operating Systems (File System) 20
Thank You! Questions, Comments, or Ideas? Franck Chauvel Axbit & NTNU franck.chauvel@ntnu.no
