Exploring Programming Abstractions for Approximate Computing Challenges

Programming Abstractions for Approximate Computing Michael Carbin with Sasa Misailovic, Hank Hoffmann, Deokhwan Kim, Stelios Sidiroglou, Martin Rinard MIT

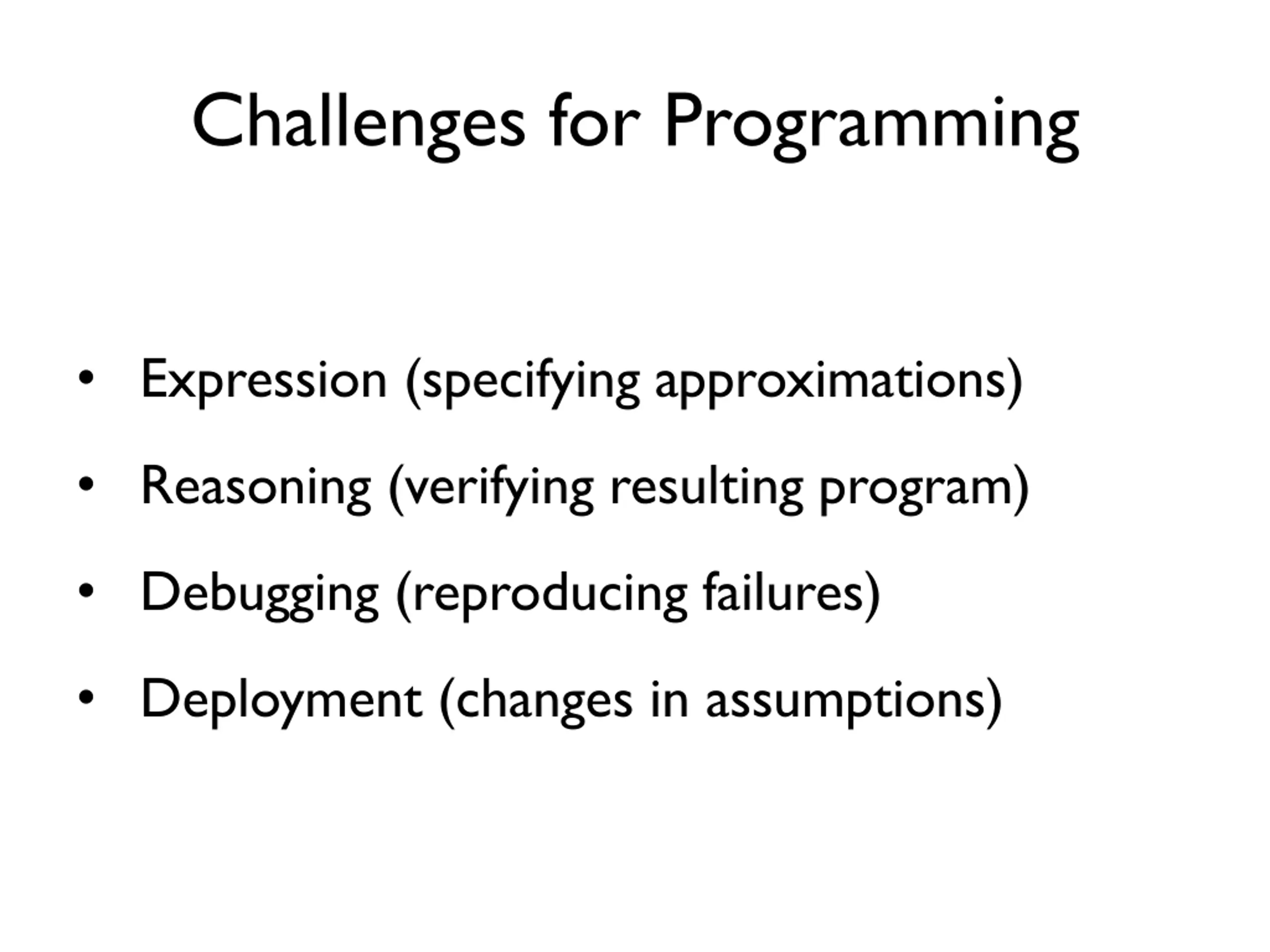

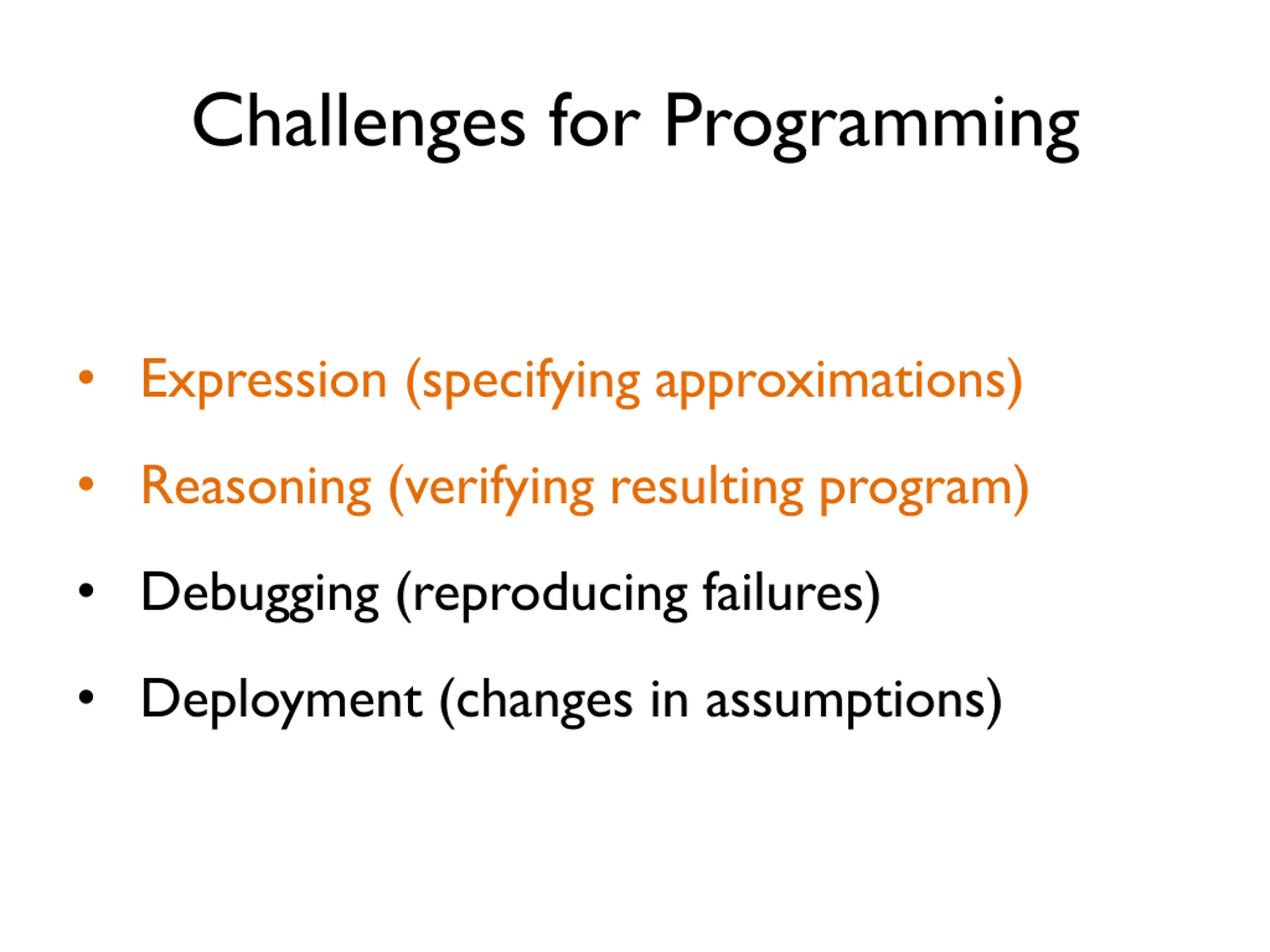

Challenges for Programming Expression (specifying approximations) Reasoning (verifying resulting program) Debugging (reproducing failures) Deployment (changes in assumptions)

Challenges for Programming Expression (specifying approximations) Reasoning (verifying resulting program) Debugging (reproducing failures) Deployment (changes in assumptions)

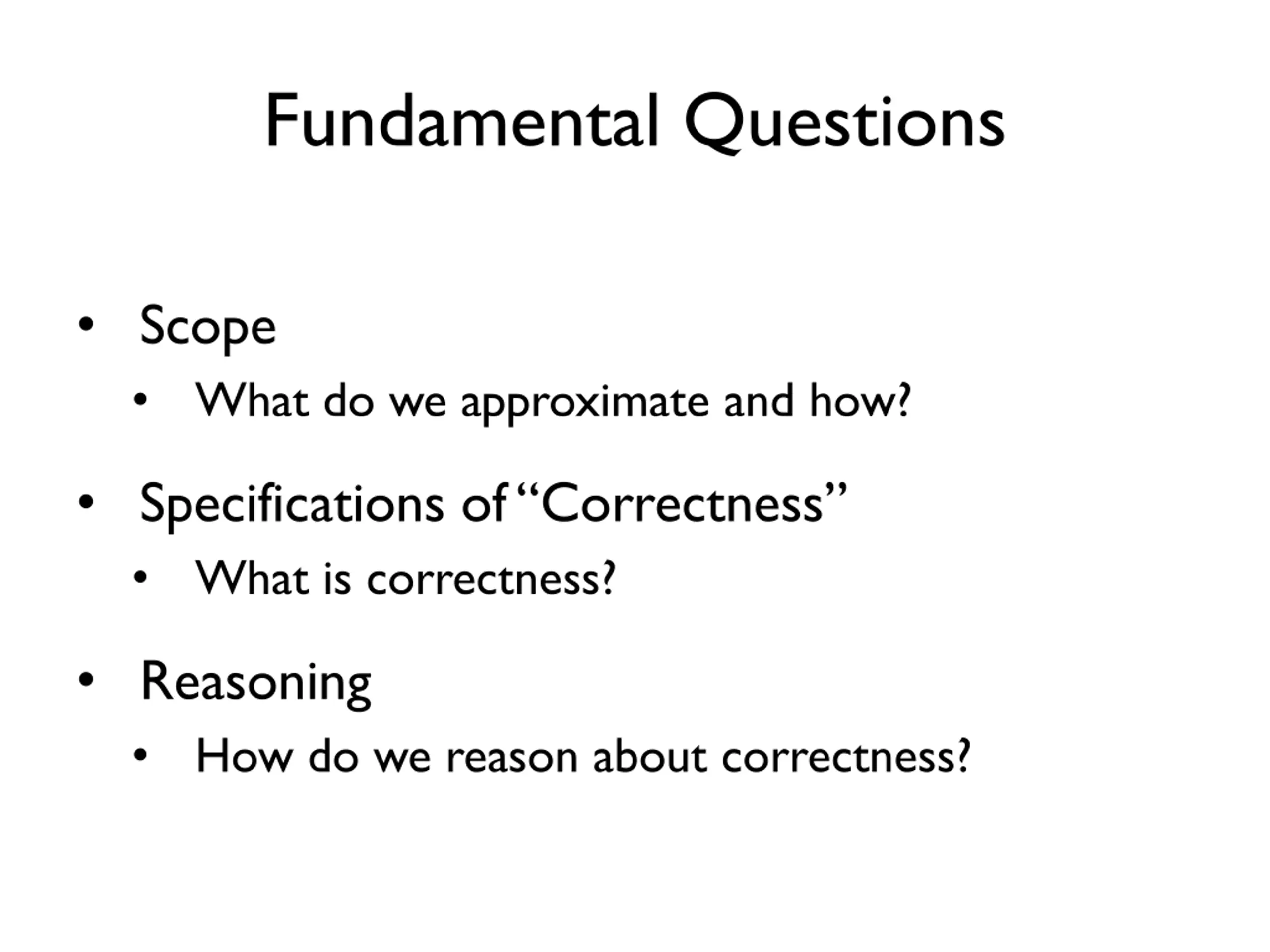

Fundamental Questions Scope What do we approximate and how? Specifications of Correctness What is correctness? Reasoning How do we reason about correctness?

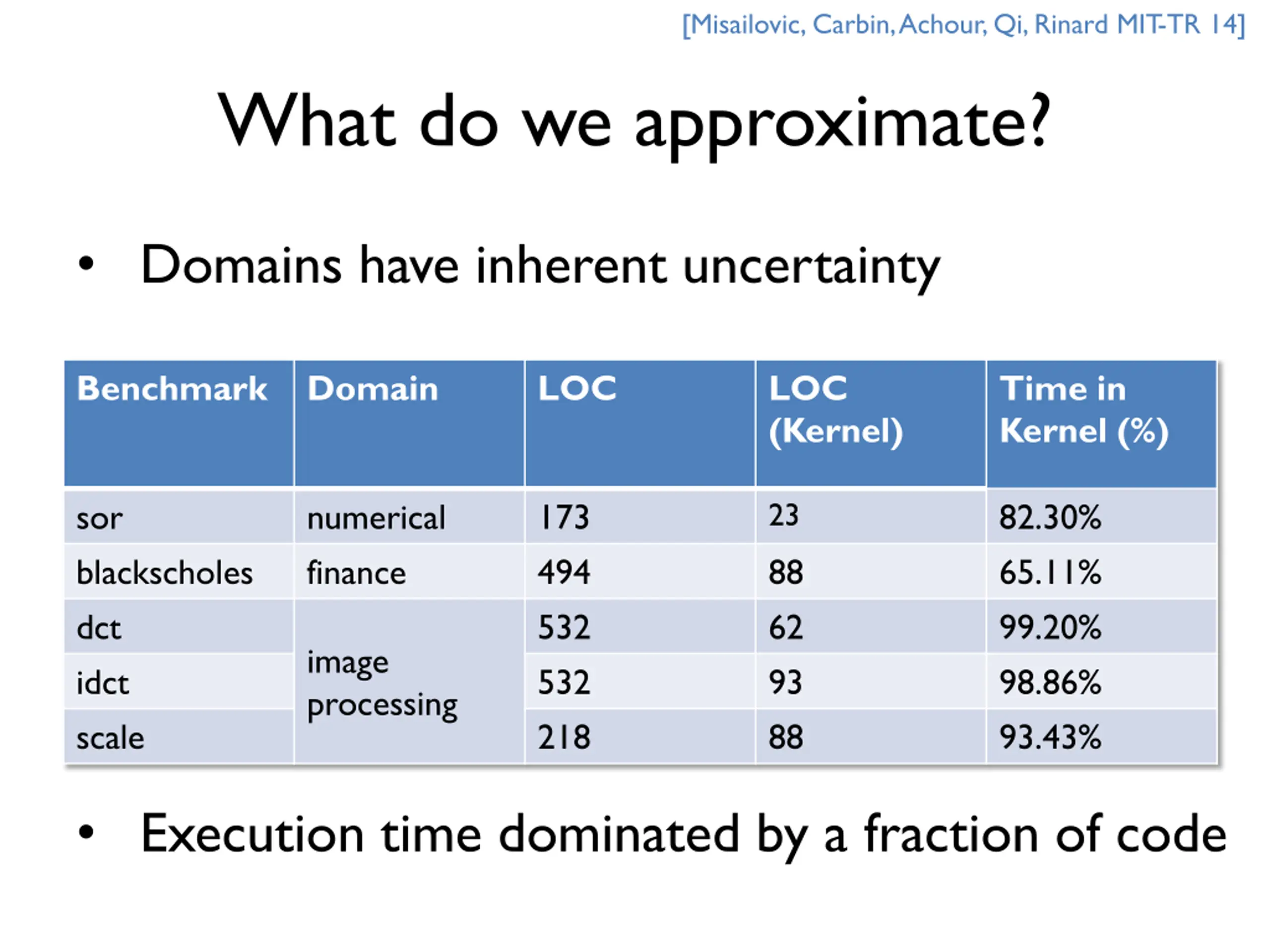

[Misailovic, Carbin, Achour, Qi, Rinard MIT-TR 14] What do we approximate? Domains have inherent uncertainty Benchmark Domain LOC LOC (Kernel) Time in Kernel (%) 23 sor blackscholes dct idct scale numerical finance 173 494 532 532 218 82.30% 65.11% 99.20% 98.86% 93.43% 88 62 93 88 image processing Execution time dominated by a fraction of code

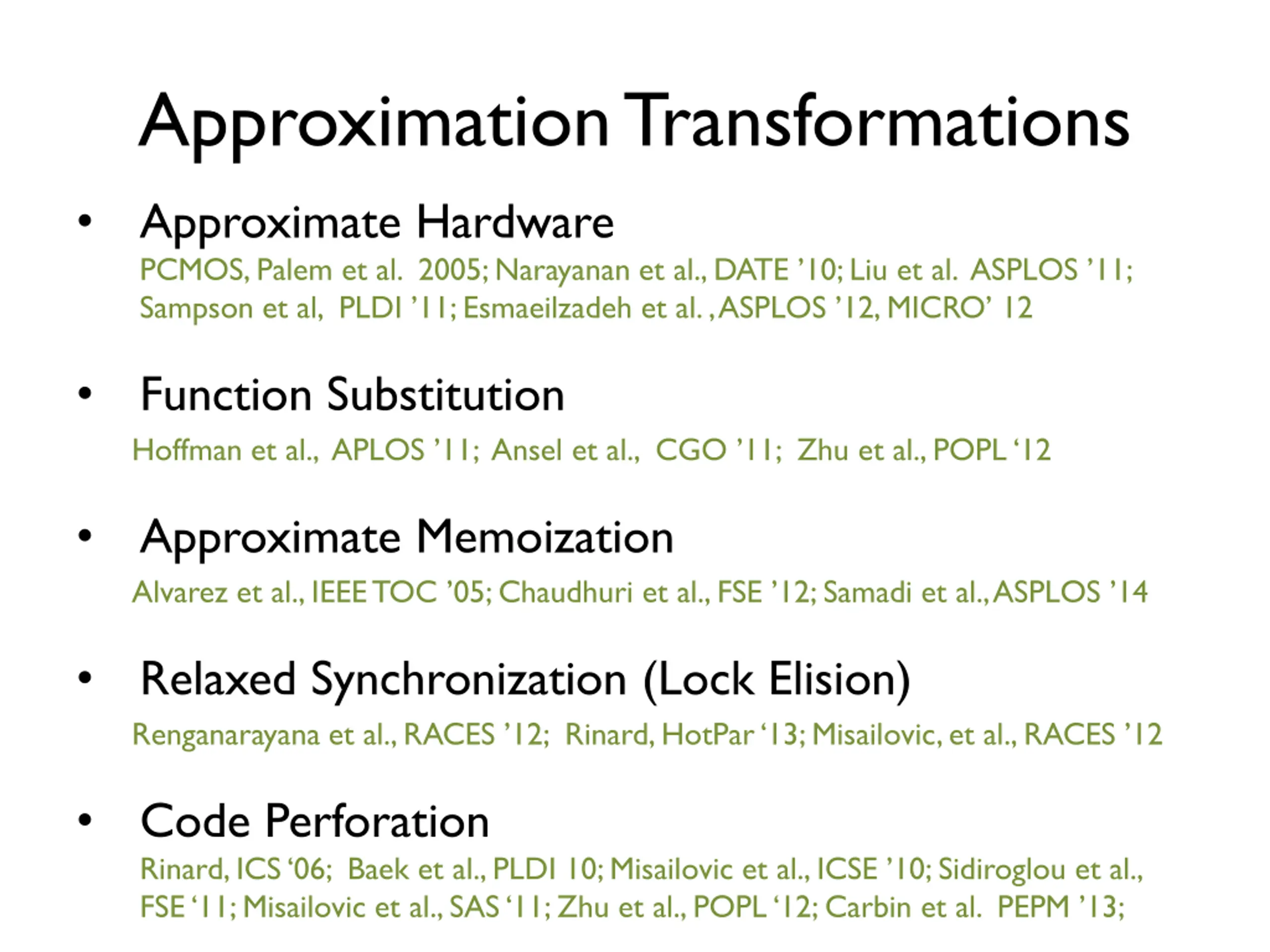

Approximation Transformations Approximate Hardware PCMOS, Palem et al. 2005; Narayanan et al., DATE 10; Liu et al. ASPLOS 11; Sampson et al, PLDI 11; Esmaeilzadeh et al. , ASPLOS 12, MICRO 12 Function Substitution Hoffman et al., APLOS 11; Ansel et al., CGO 11; Zhu et al., POPL 12 Approximate Memoization Alvarez et al., IEEE TOC 05; Chaudhuri et al., FSE 12; Samadi et al., ASPLOS 14 Relaxed Synchronization (Lock Elision) Renganarayana et al., RACES 12; Rinard, HotPar 13; Misailovic, et al., RACES 12 Code Perforation Rinard, ICS 06; Baek et al., PLDI 10; Misailovic et al., ICSE 10; Sidiroglou et al., FSE 11; Misailovic et al., SAS 11; Zhu et al., POPL 12; Carbin et al. PEPM 13;

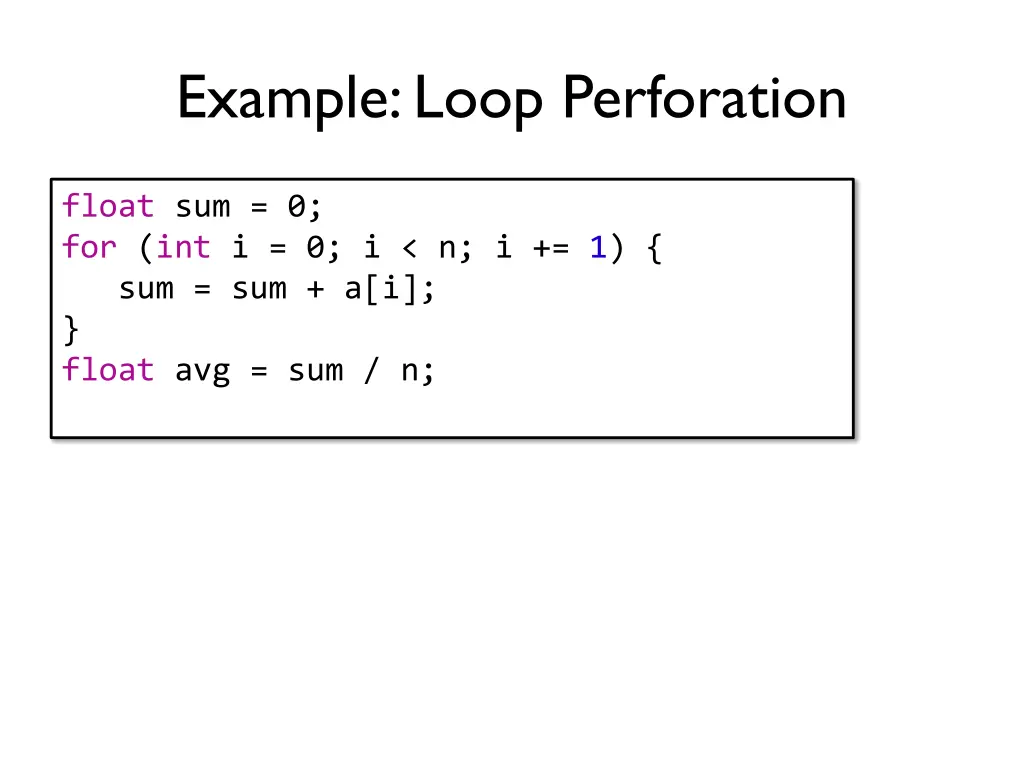

Example: Loop Perforation float sum = 0; for (int i = 0; i < n; i += 1) { sum = sum + a[i]; } float avg = sum / n;

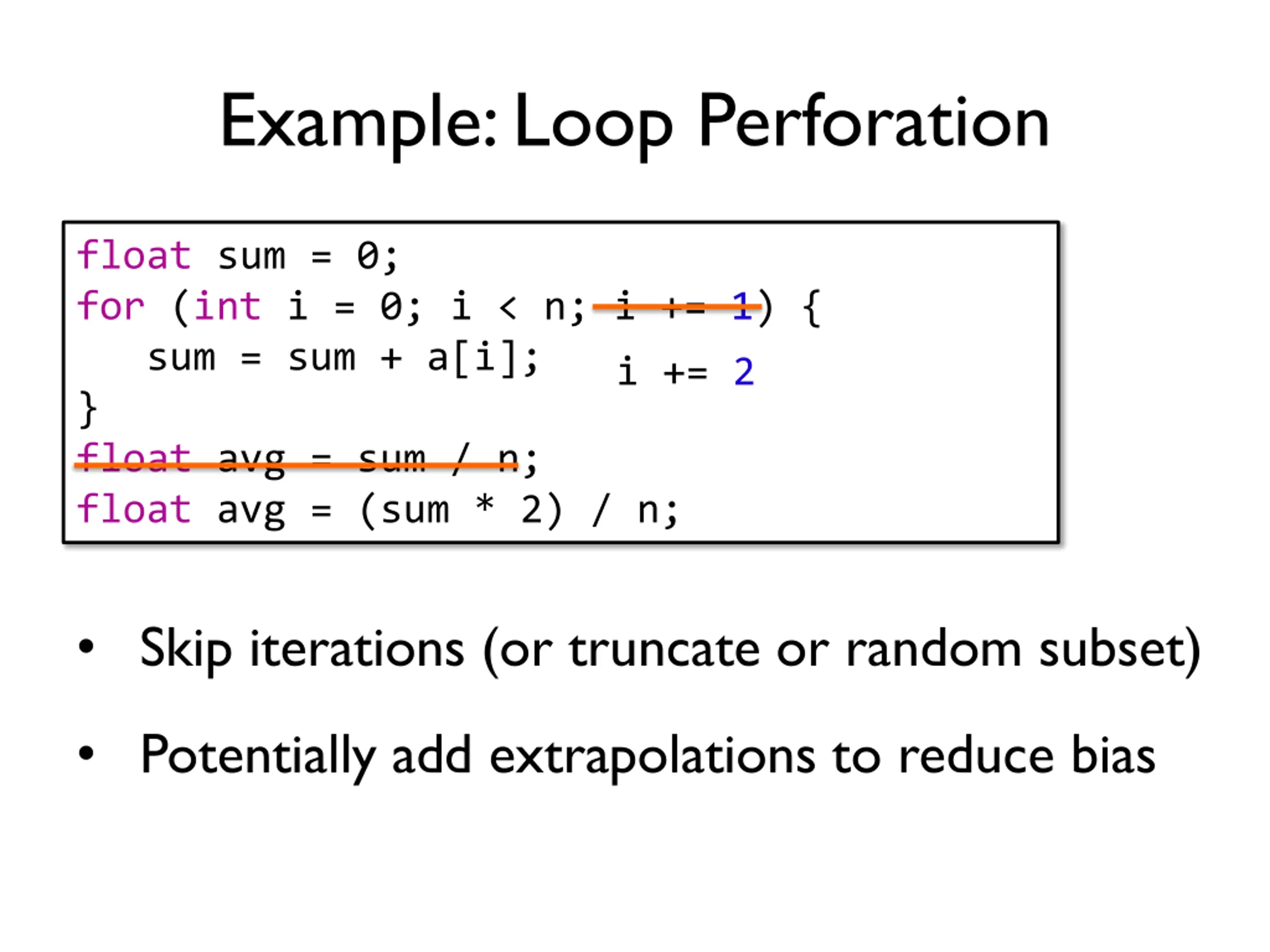

Example: Loop Perforation float sum = 0; for (int i = 0; i < n; i += 1) { sum = sum + a[i]; } float avg = sum / n; float avg = (sum * 2) / n; i += 2 Skip iterations (or truncate or random subset) Potentially add extrapolations to reduce bias

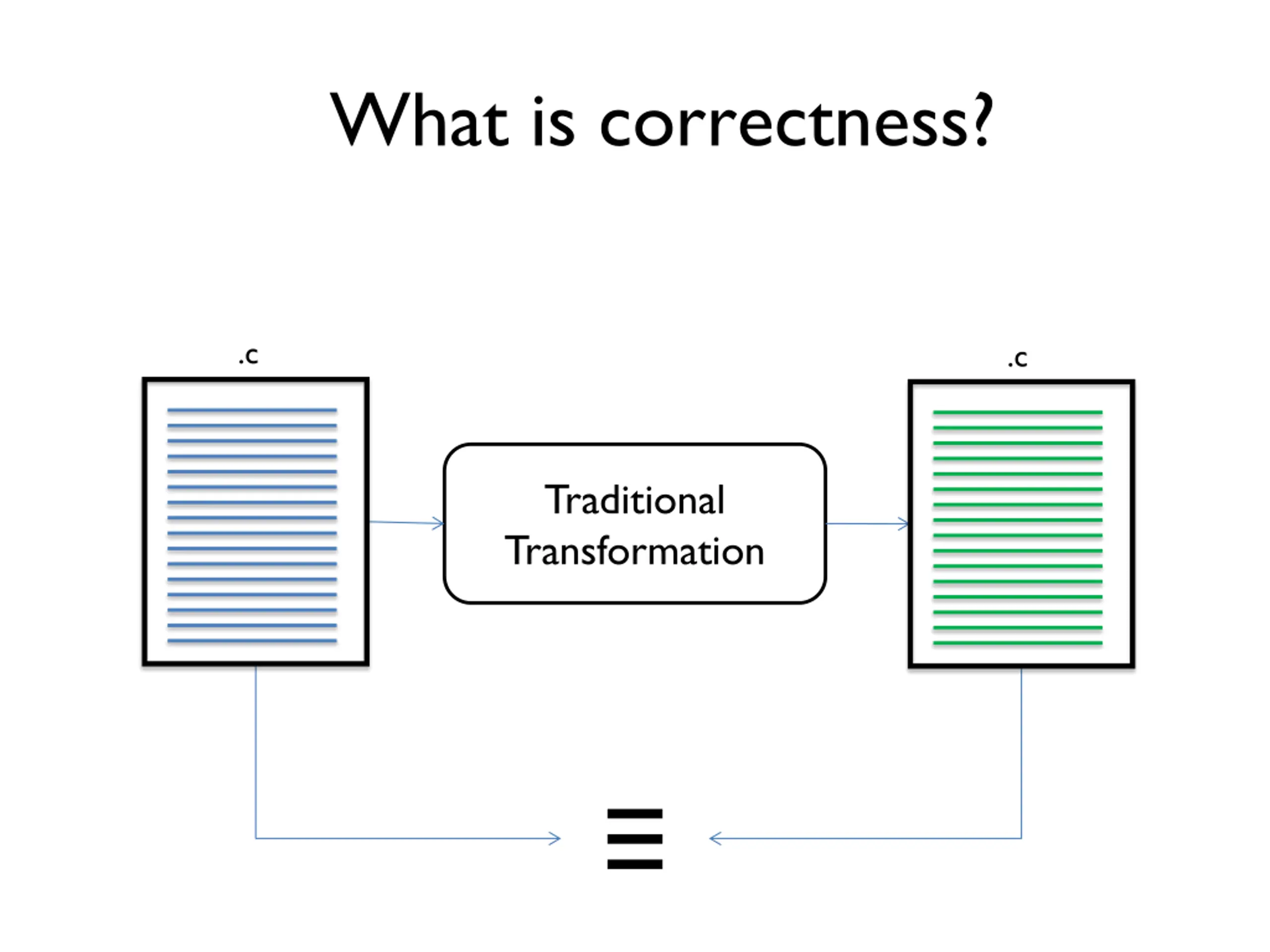

What is correctness? .c .c Traditional Transformation

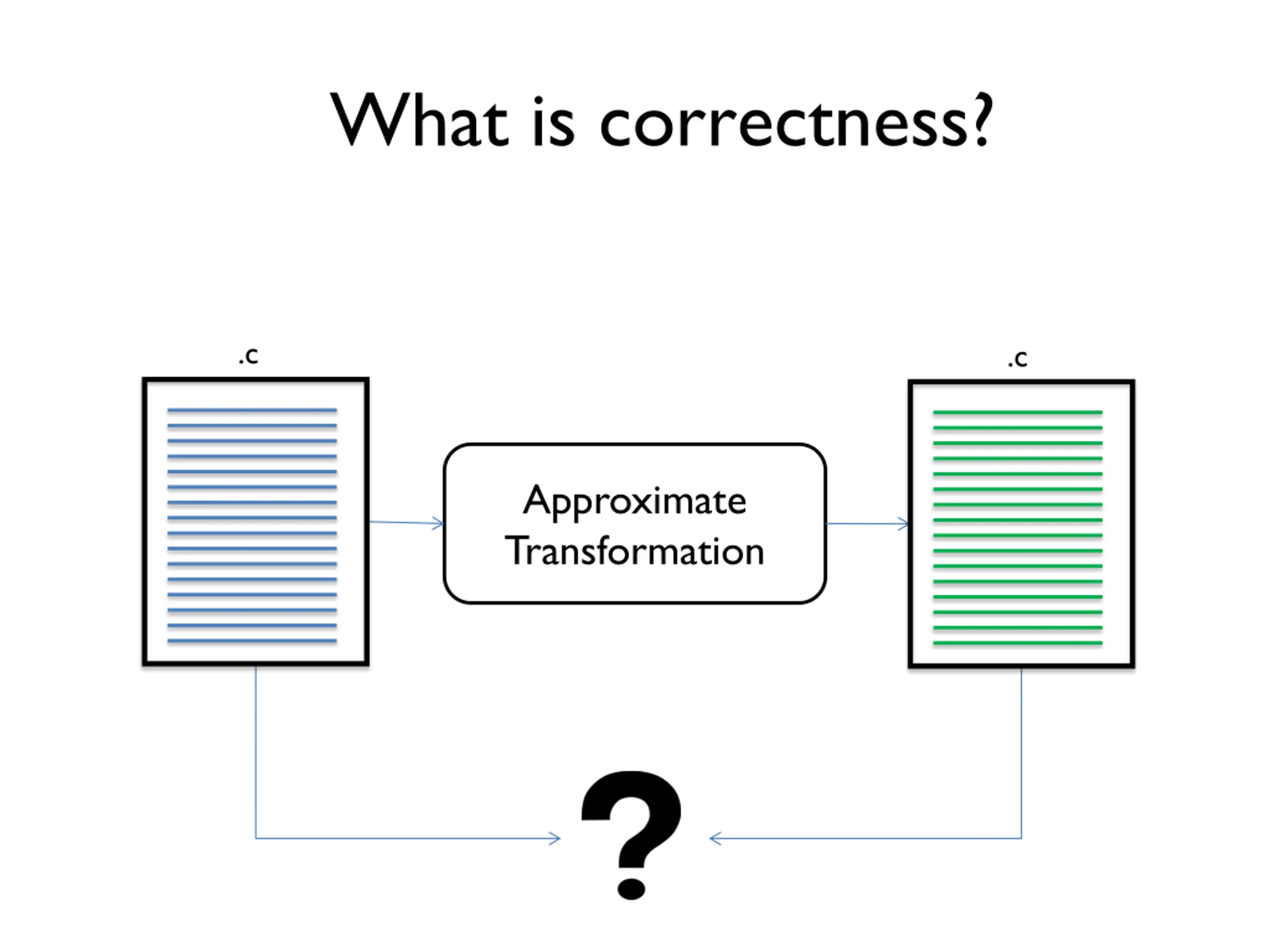

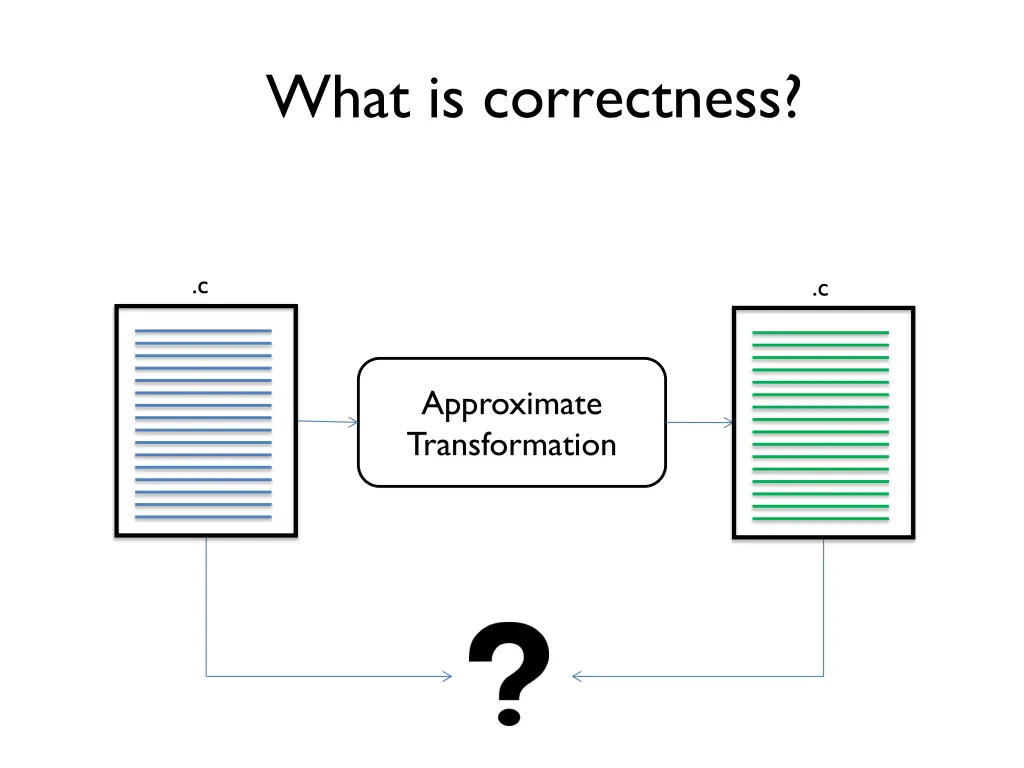

What is correctness? .c .c Approximate Transformation

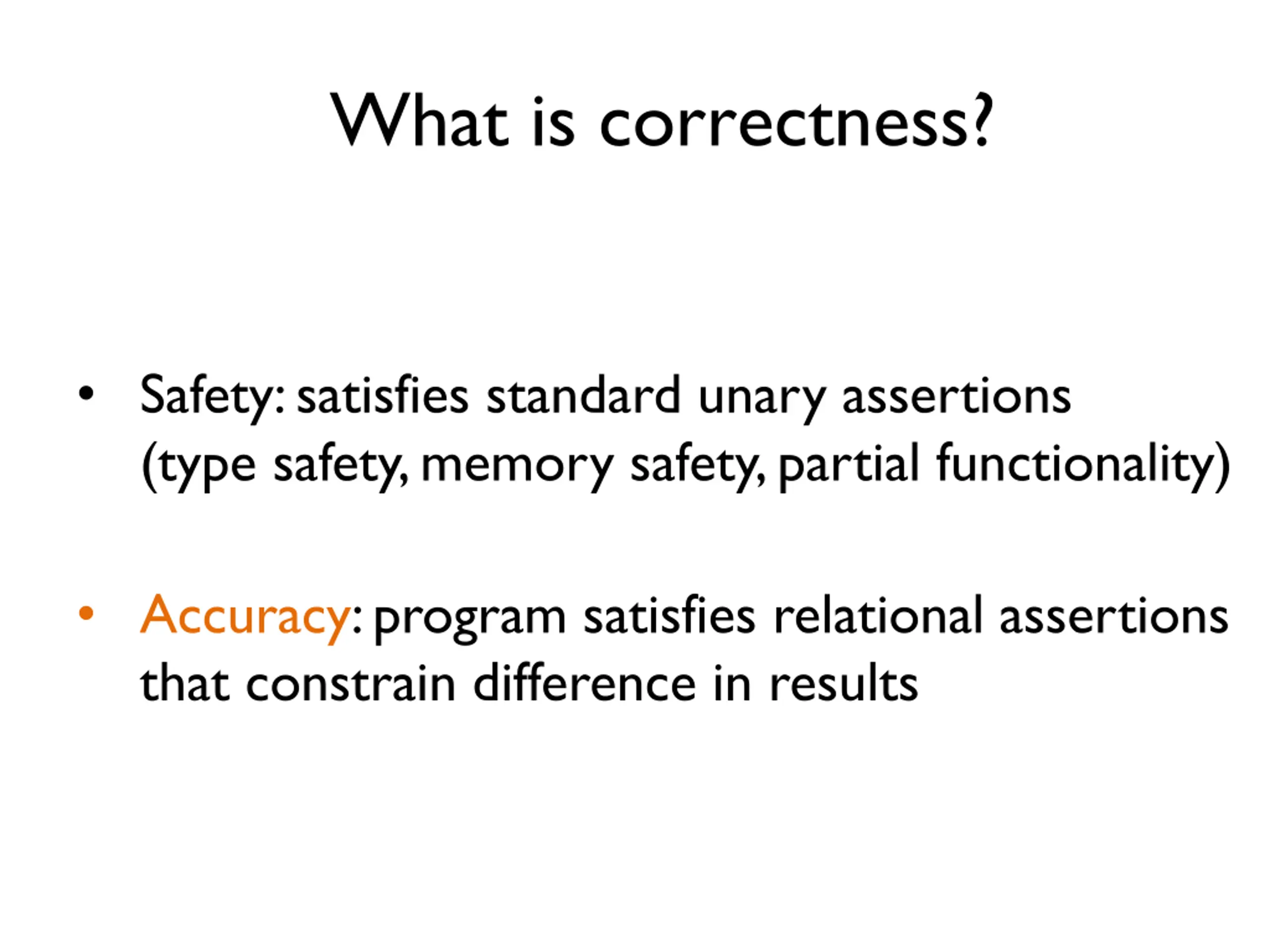

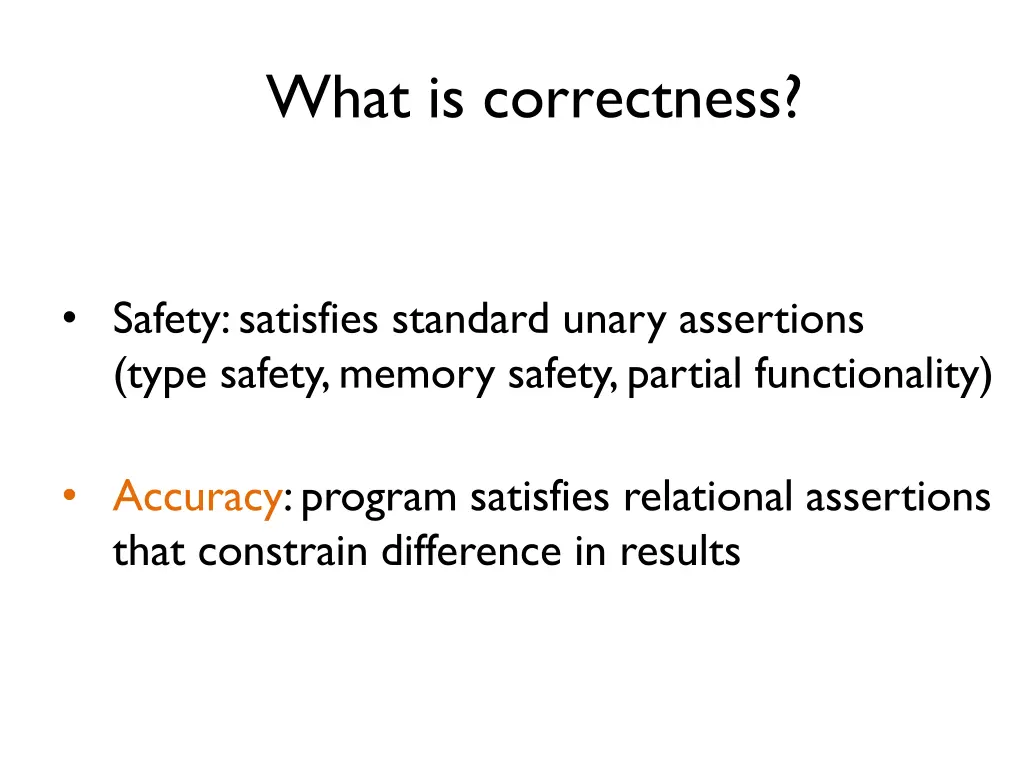

What is correctness? Safety: satisfies standard unary assertions (type safety, memory safety, partial functionality) Accuracy: program satisfies relational assertions that constrain difference in results

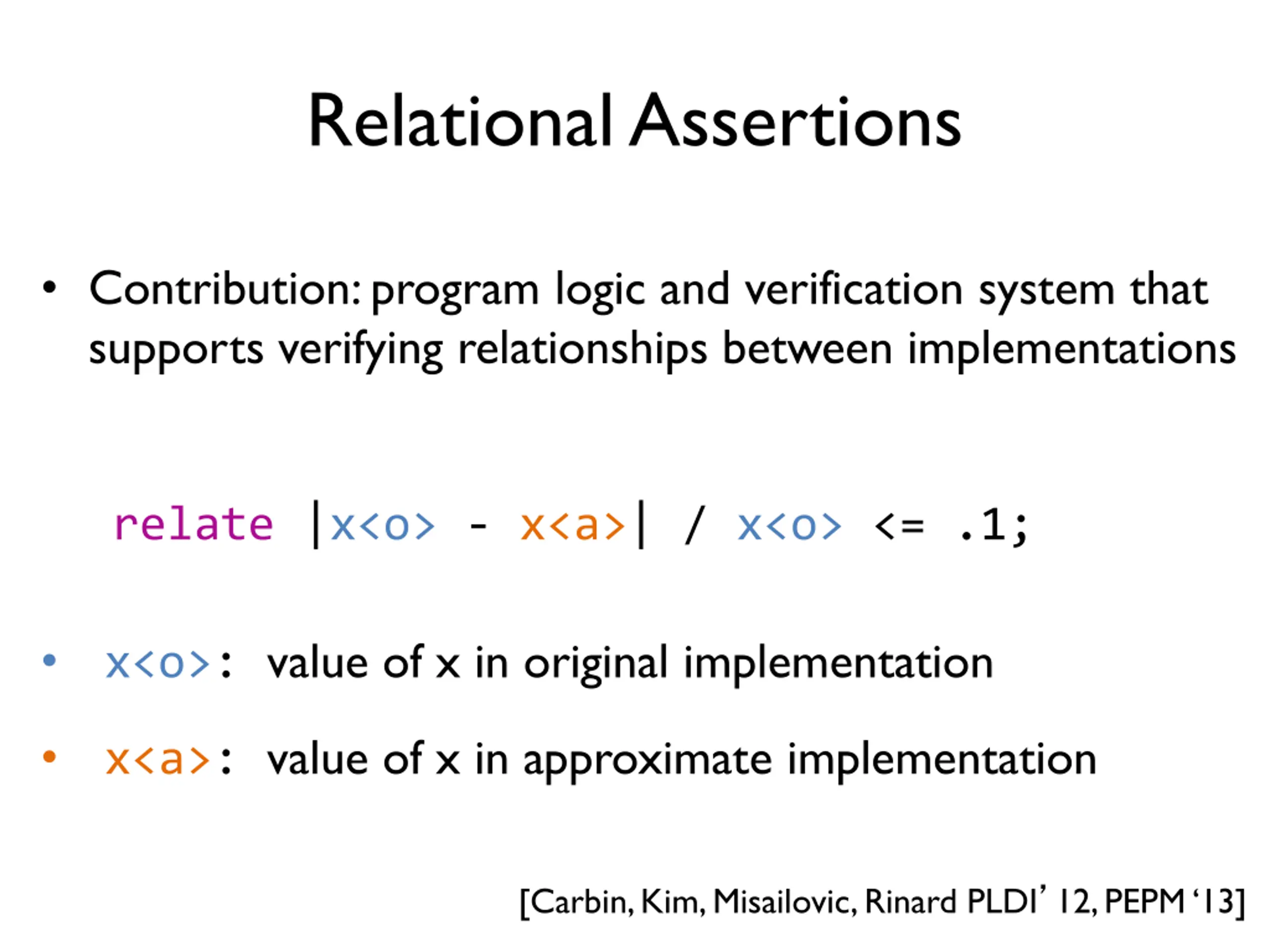

Relational Assertions Contribution: program logic and verification system that supports verifying relationships between implementations relate |x<o> - x<a>| / x<o> <= .1; x<o>: value of x in original implementation x<a>: value of x in approximate implementation [Carbin, Kim, Misailovic, Rinard PLDI 12, PEPM 13]

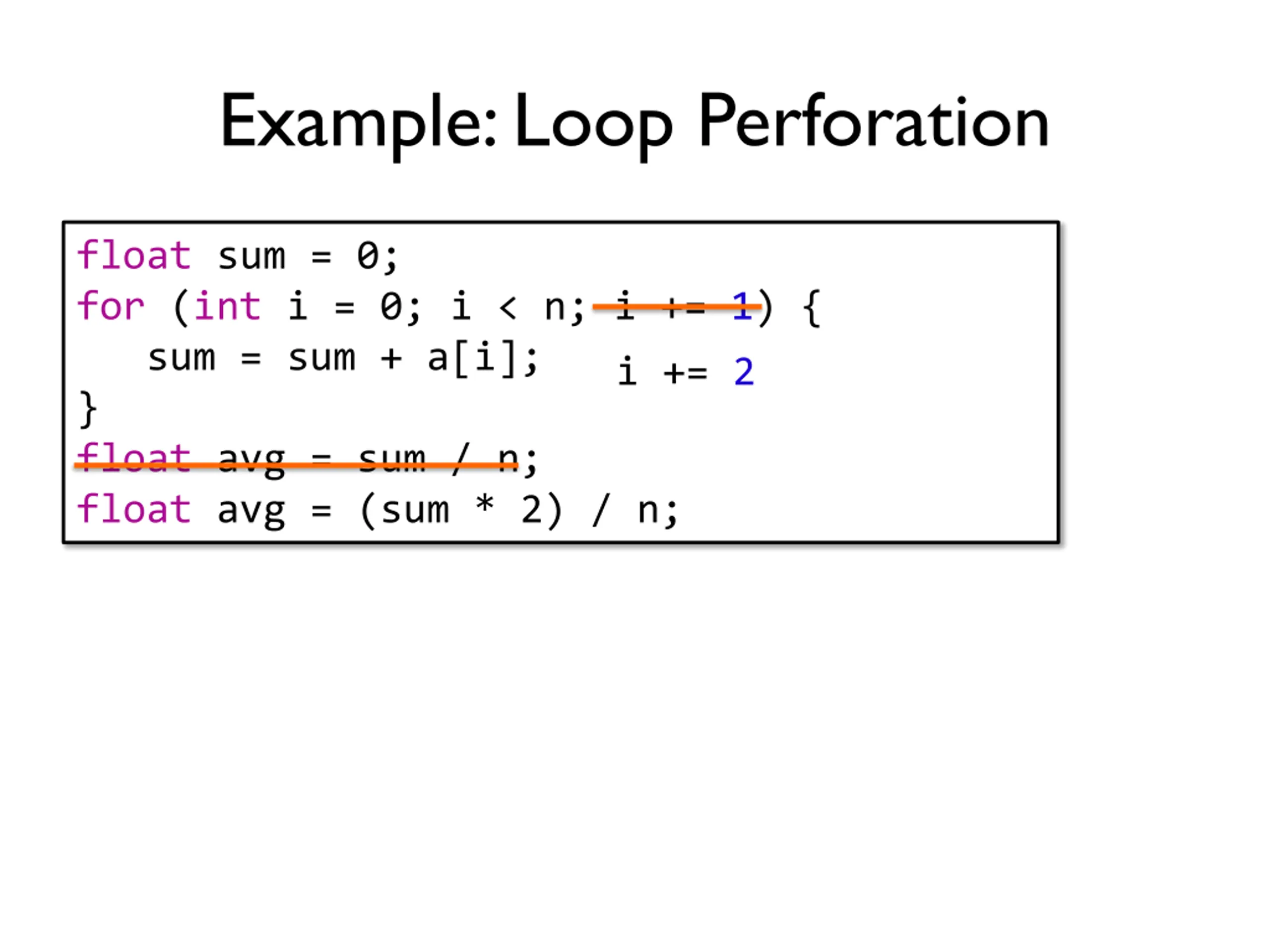

Example: Loop Perforation float sum = 0; for (int i = 0; i < n; i += 1) { sum = sum + a[i]; } float avg = sum / n; float avg = (sum * 2) / n; i += 2

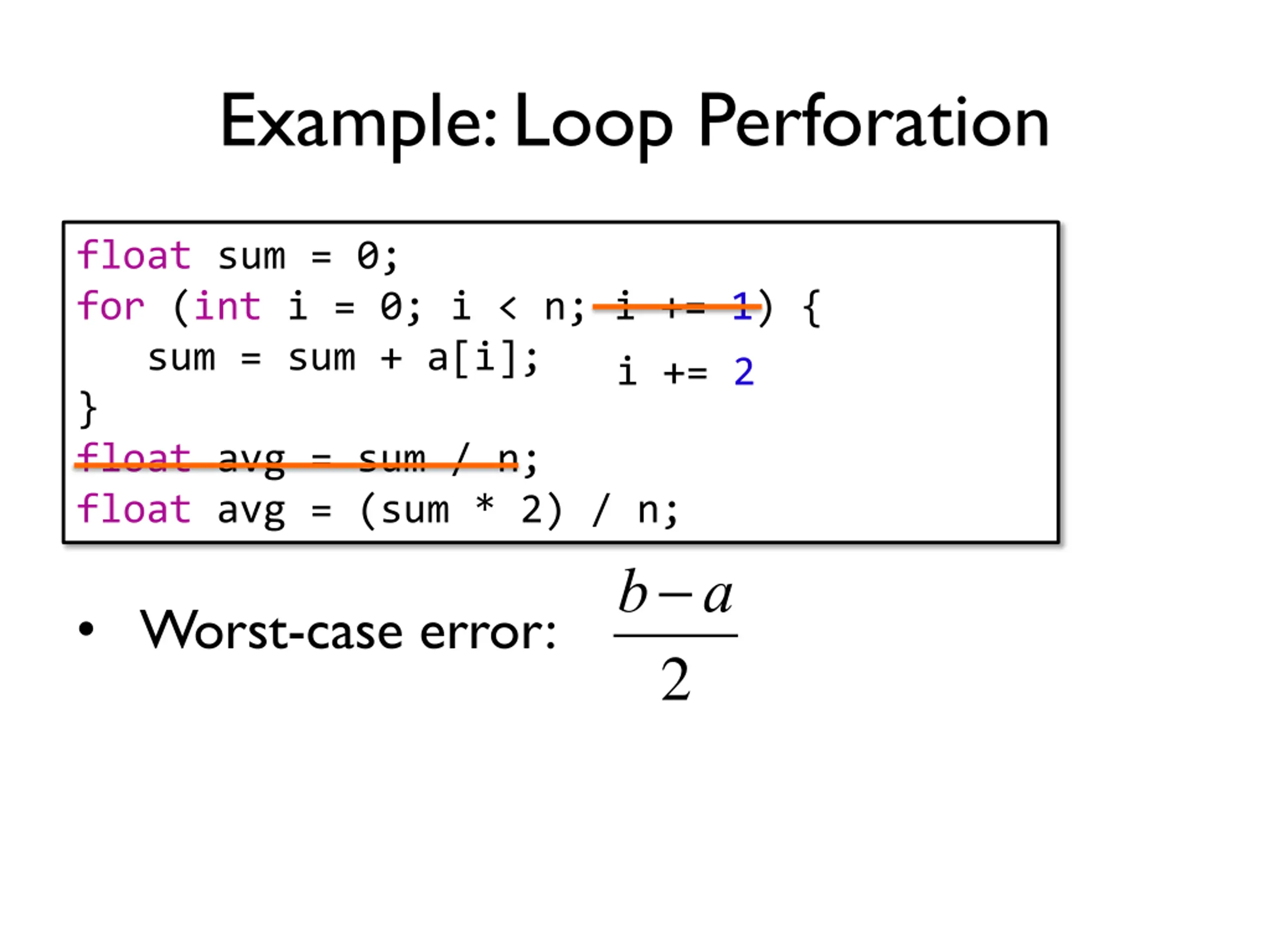

Example: Loop Perforation float sum = 0; for (int i = 0; i < n; i += 1) { sum = sum + a[i]; } float avg = sum / n; float avg = (sum * 2) / n; i += 2 b-a 2 Worst-case error:

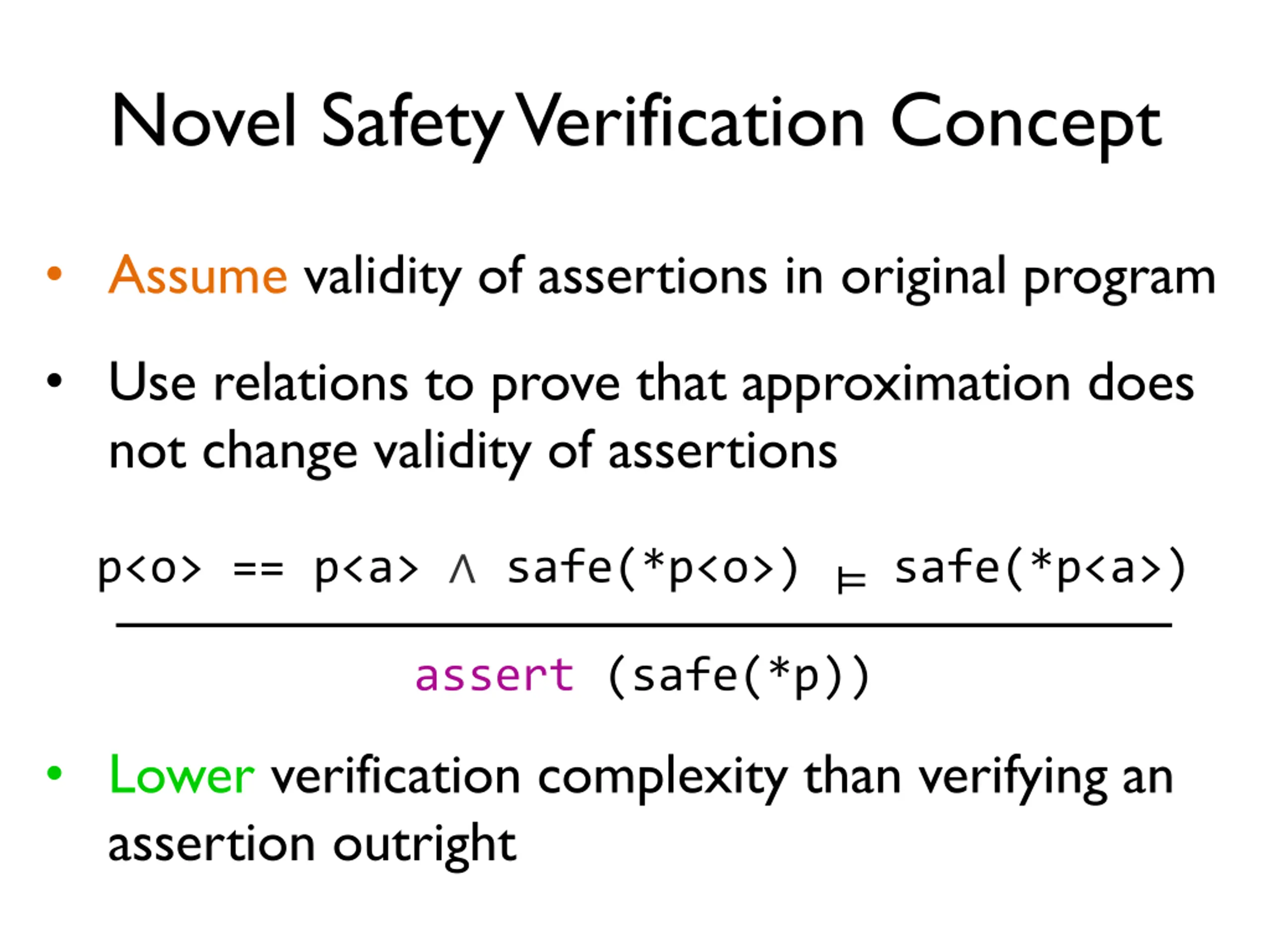

Novel Safety Verification Concept Assume validity of assertions in original program Use relations to prove that approximation does not change validity of assertions p<o> == p<a> safe(*p<o>) safe(*p<a>) assert (safe(*p)) Lower verification complexity than verifying an assertion outright

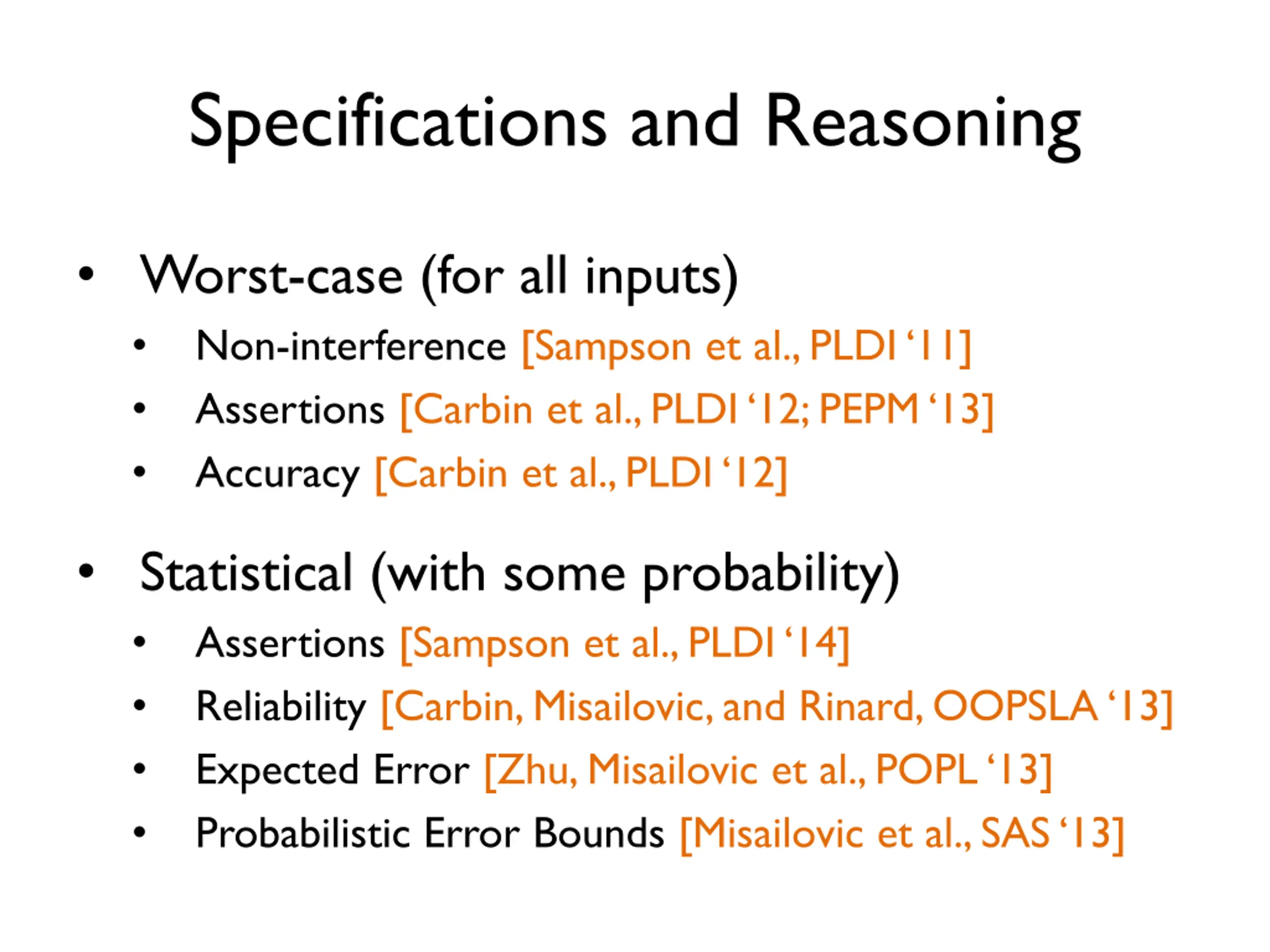

Specifications and Reasoning Worst-case (for all inputs) Non-interference [Sampson et al., PLDI 11] Assertions [Carbin et al., PLDI 12; PEPM 13] Accuracy [Carbin et al., PLDI 12] Statistical (with some probability) Assertions [Sampson et al., PLDI 14] Reliability [Carbin, Misailovic, and Rinard, OOPSLA 13] Expected Error [Zhu, Misailovic et al., POPL 13] Probabilistic Error Bounds [Misailovic et al., SAS 13]

Questions from Computer Science

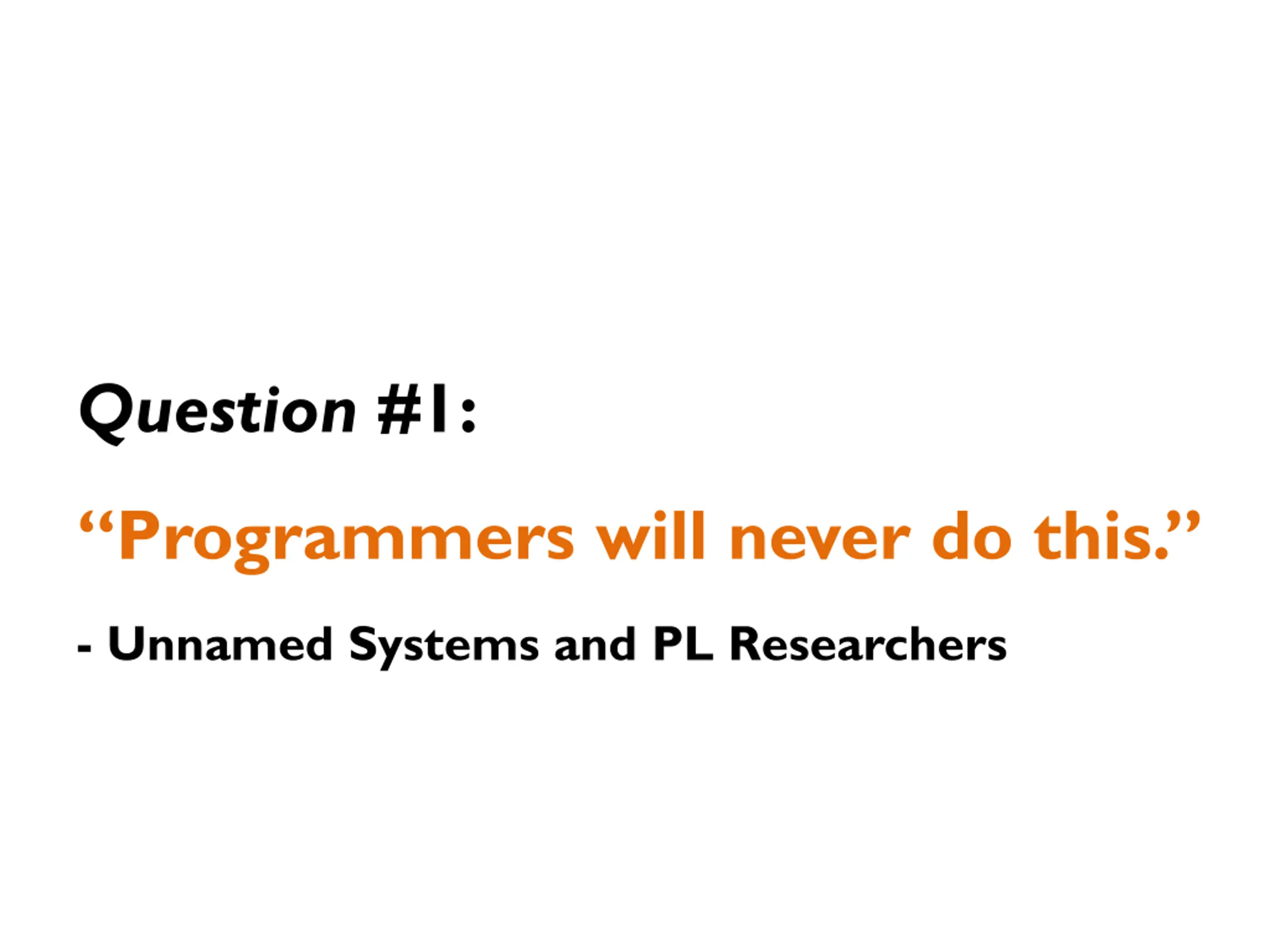

Question #1: Programmers will never do this. - Unnamed Systems and PL Researchers

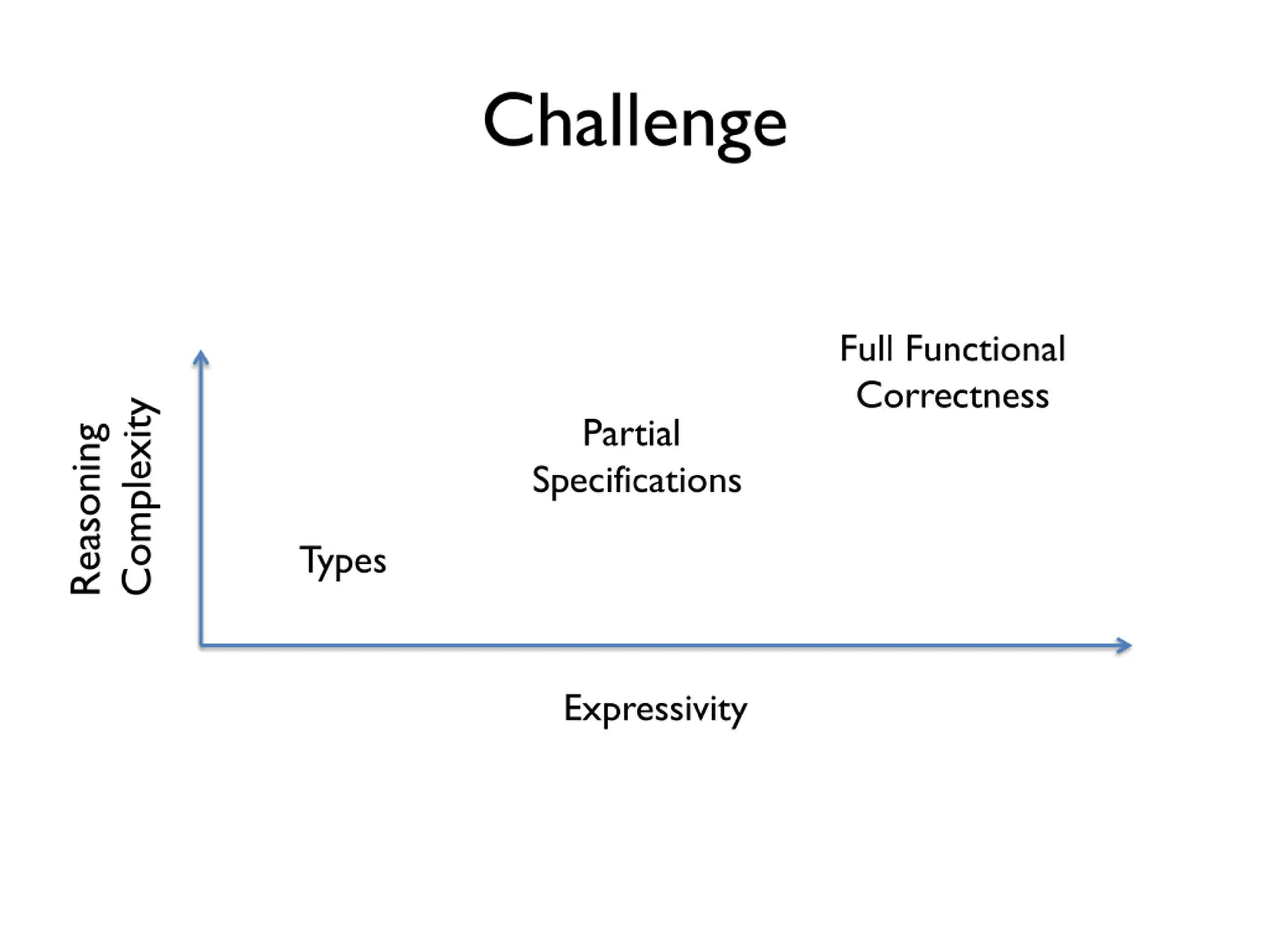

Challenge Full Functional Correctness Complexity Partial Specifications Reasoning Types Expressivity

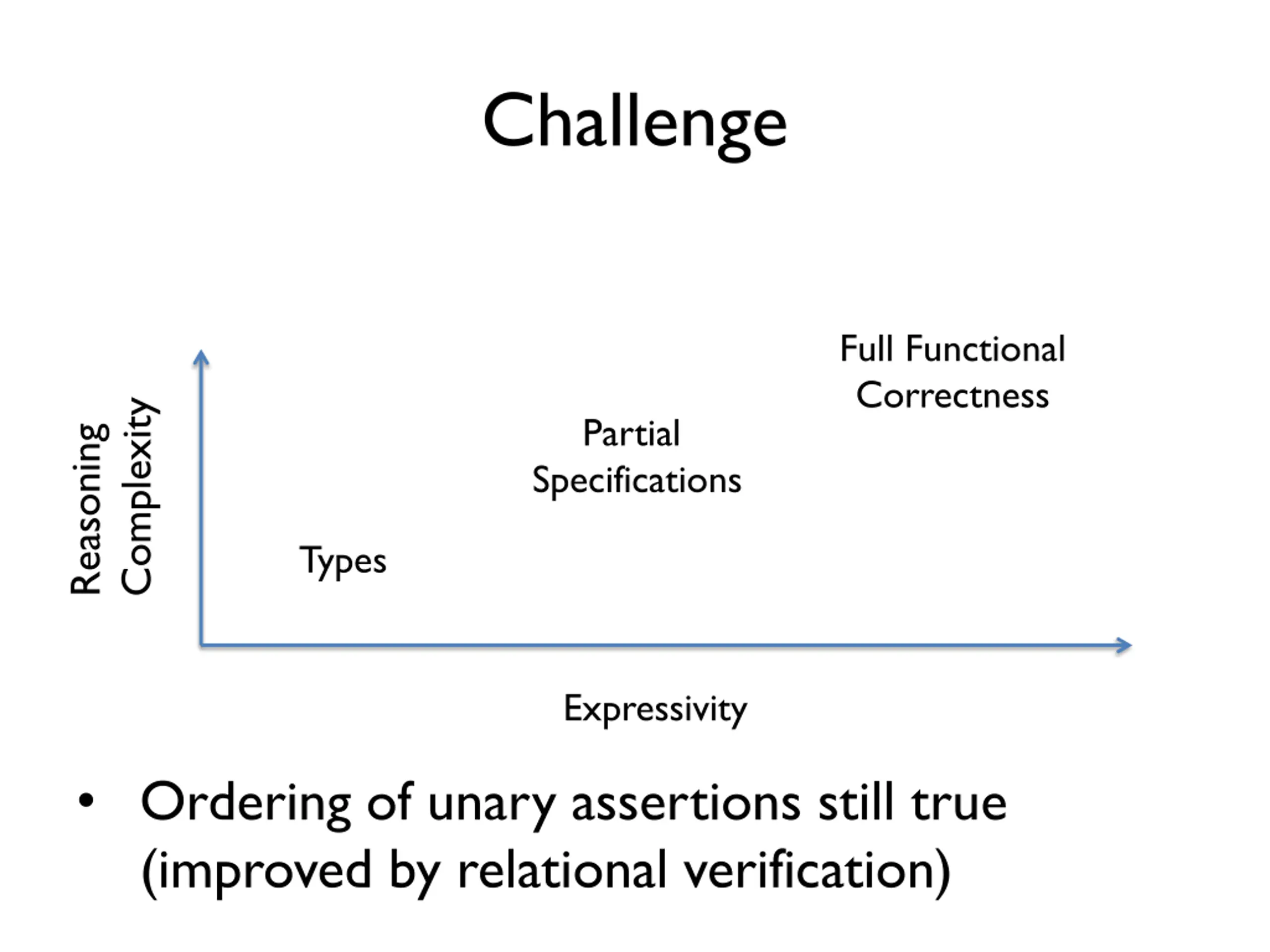

Challenge Full Functional Correctness Complexity Partial Specifications Reasoning Types Expressivity Ordering of unary assertions still true (improved by relational verification)

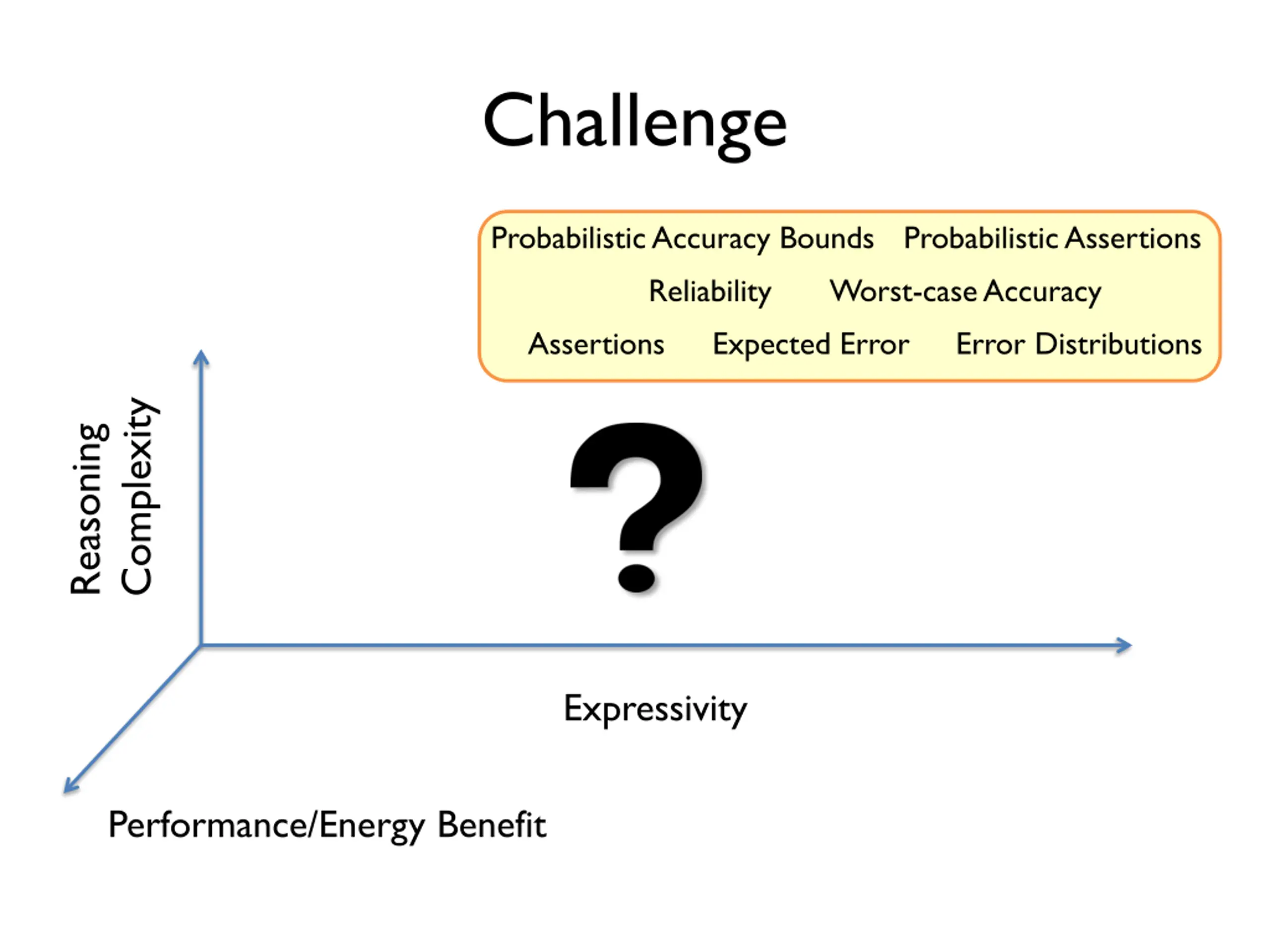

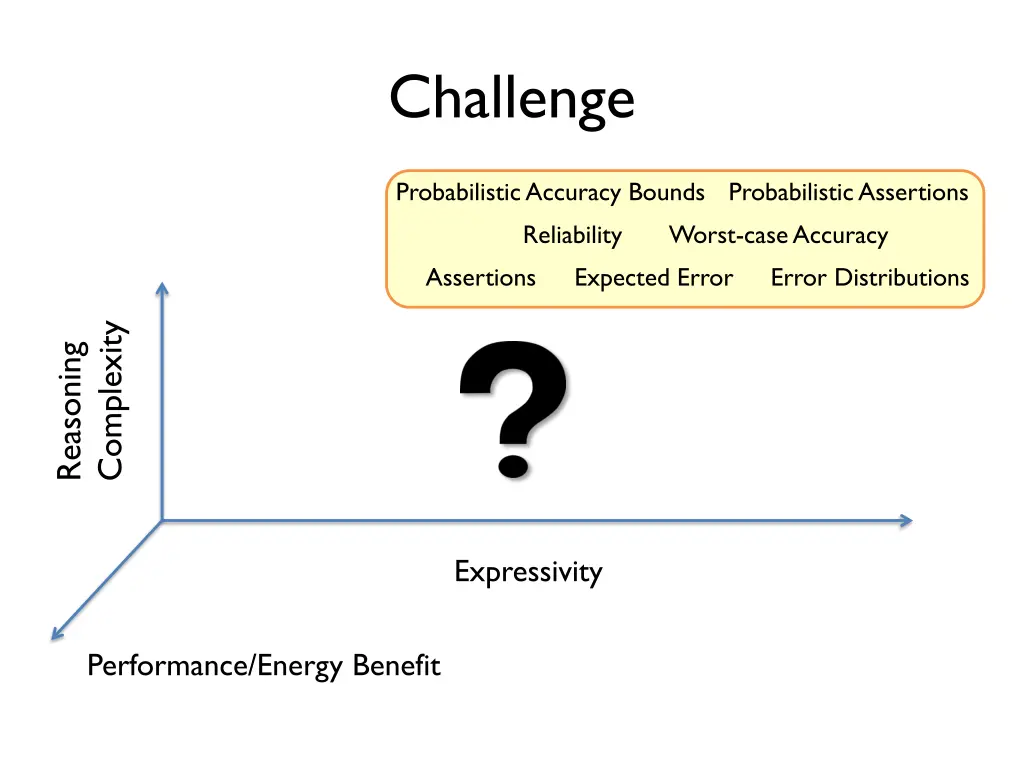

Challenge Probabilistic Accuracy Bounds Probabilistic Assertions Reliability Worst-case Accuracy Assertions Expected Error Error Distributions Complexity Reasoning Expressivity Performance/Energy Benefit

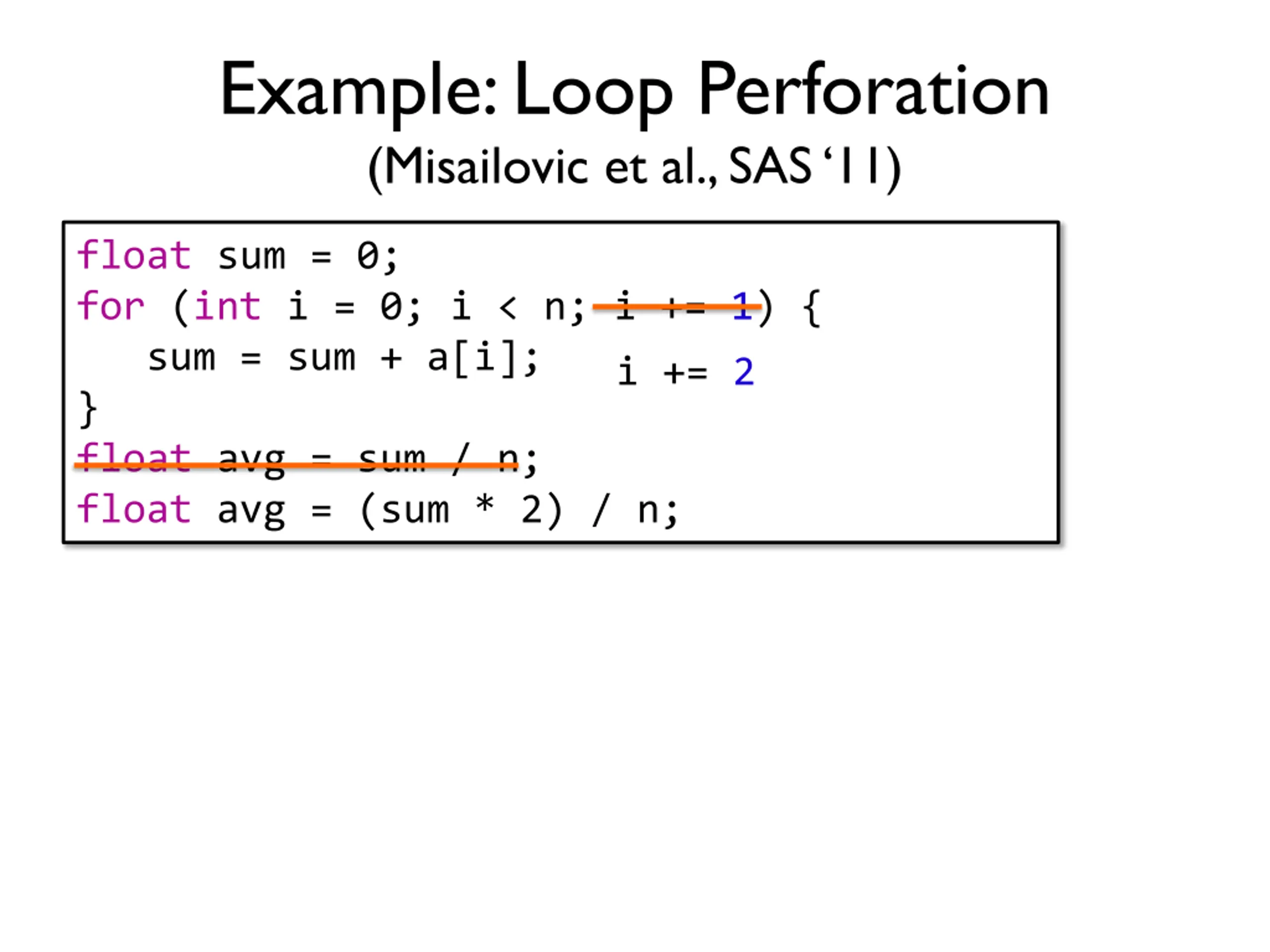

Example: Loop Perforation (Misailovic et al., SAS 11) float sum = 0; for (int i = 0; i < n; i += 1) { sum = sum + a[i]; } float avg = sum / n; float avg = (sum * 2) / n; i += 2

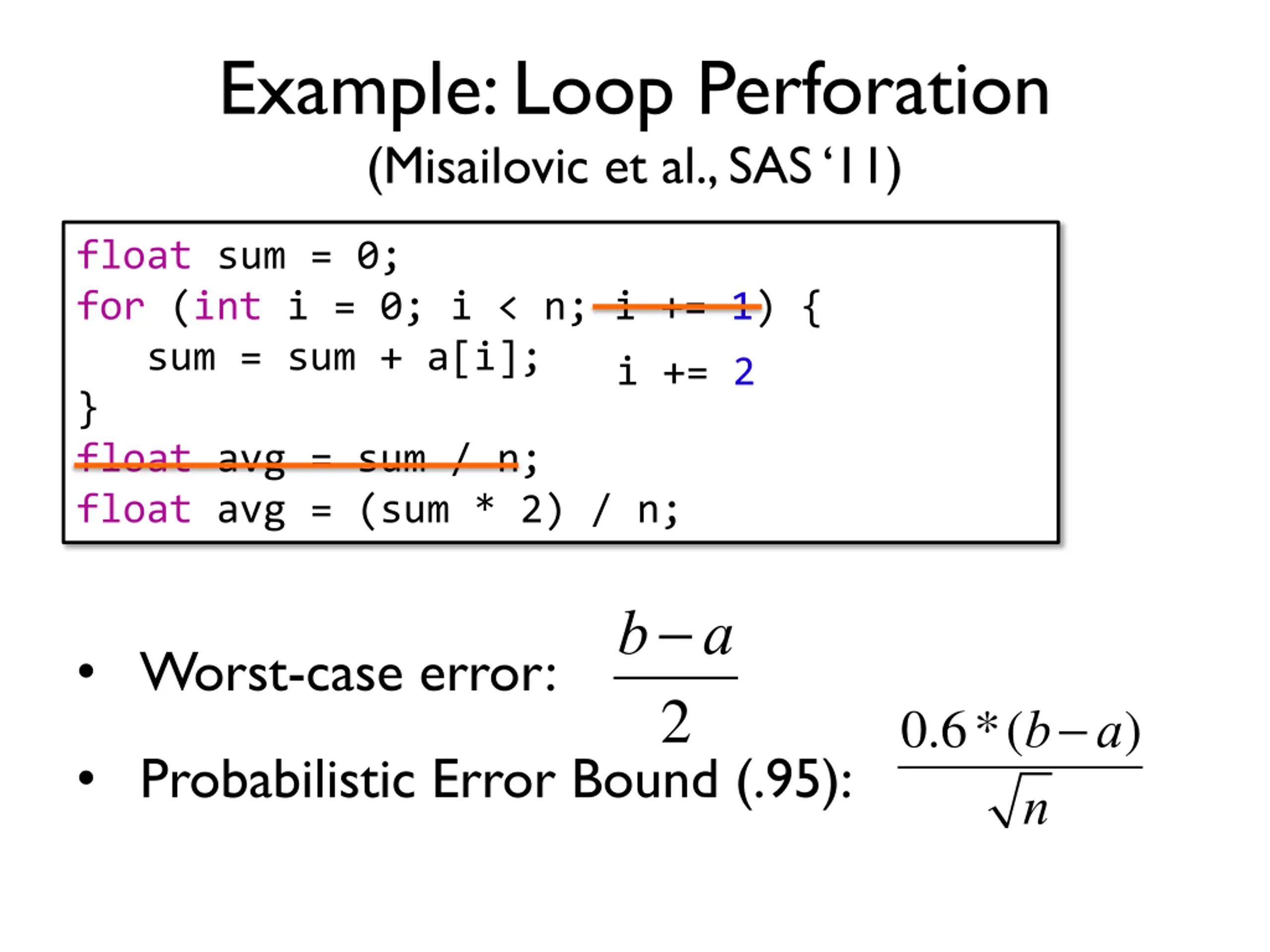

Example: Loop Perforation (Misailovic et al., SAS 11) float sum = 0; for (int i = 0; i < n; i += 1) { sum = sum + a[i]; } float avg = sum / n; float avg = (sum * 2) / n; i += 2 b-a 2 Worst-case error: 0.6*(b-a) Probabilistic Error Bound (.95): n

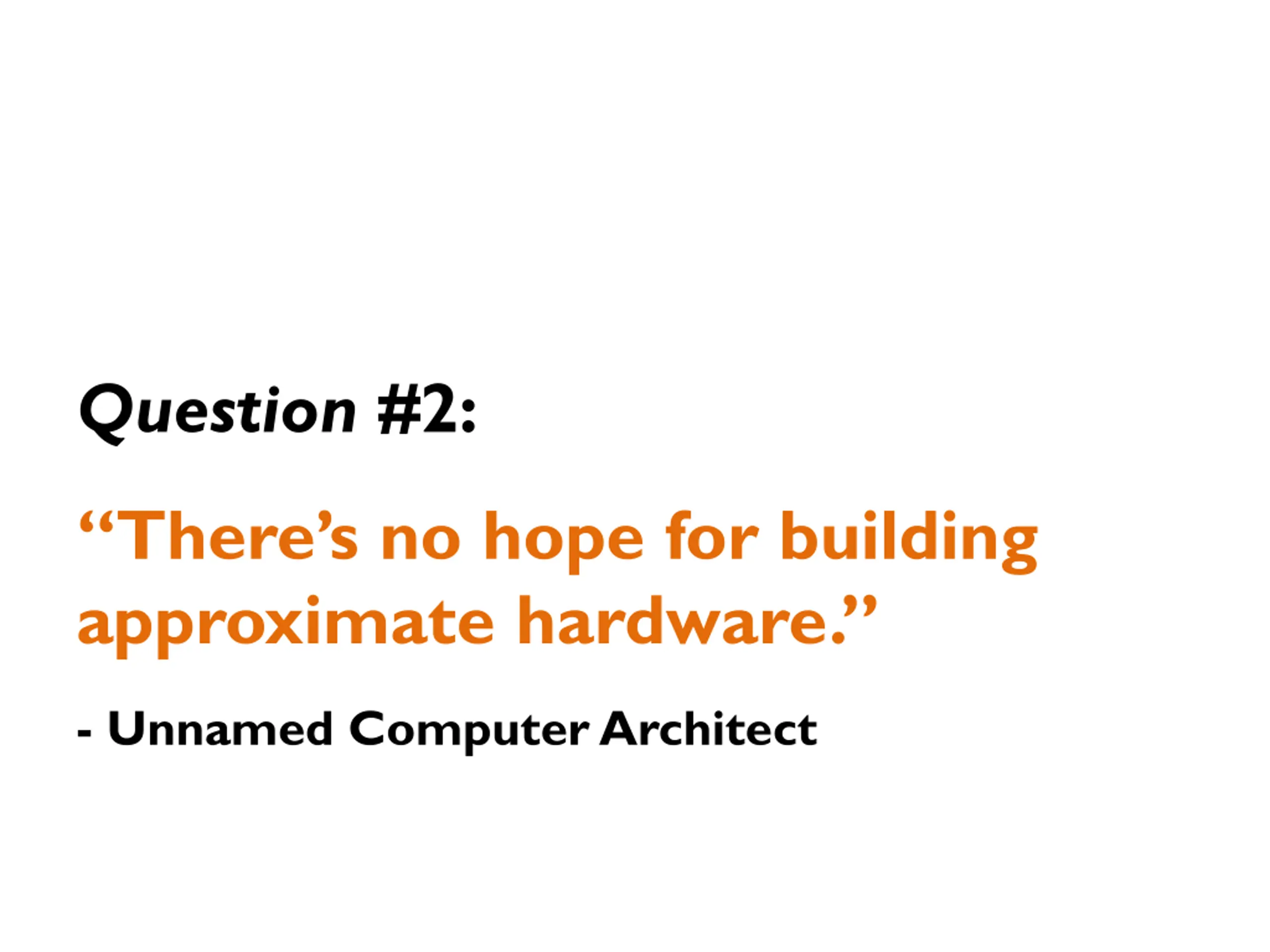

Question #2: There s no hope for building approximate hardware. - Unnamed Computer Architect

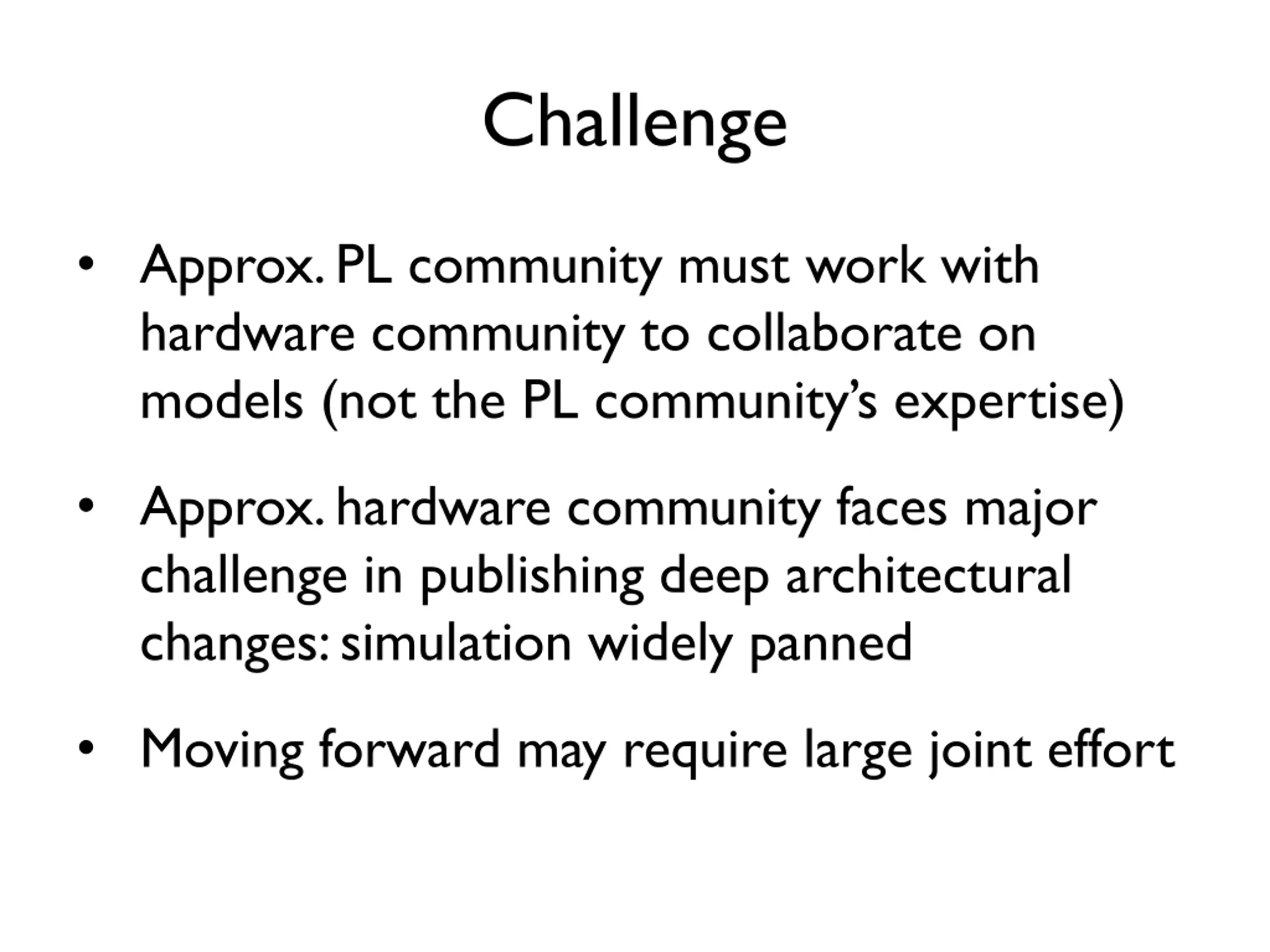

Challenge Approx. PL community must work with hardware community to collaborate on models (not the PL community s expertise) Approx. hardware community faces major challenge in publishing deep architectural changes: simulation widely panned Moving forward may require large joint effort

Question #3: I believe your techniques are fundamentally flawed. - Unnamed Numerical Analyst

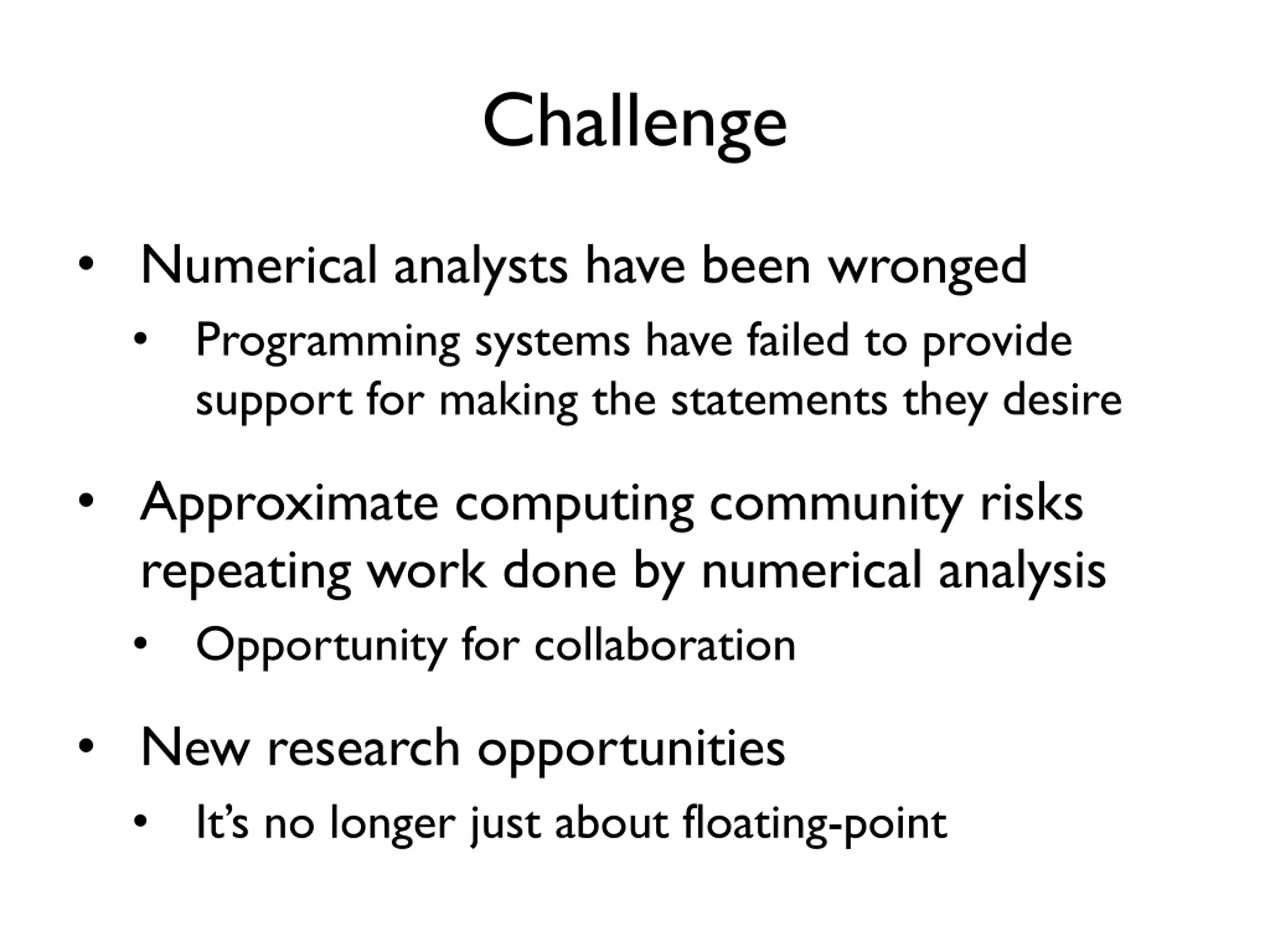

Challenge Numerical analysts have been wronged Programming systems have failed to provide support for making the statements they desire Approximate computing community risks repeating work done by numerical analysis Opportunity for collaboration New research opportunities It s no longer just about floating-point

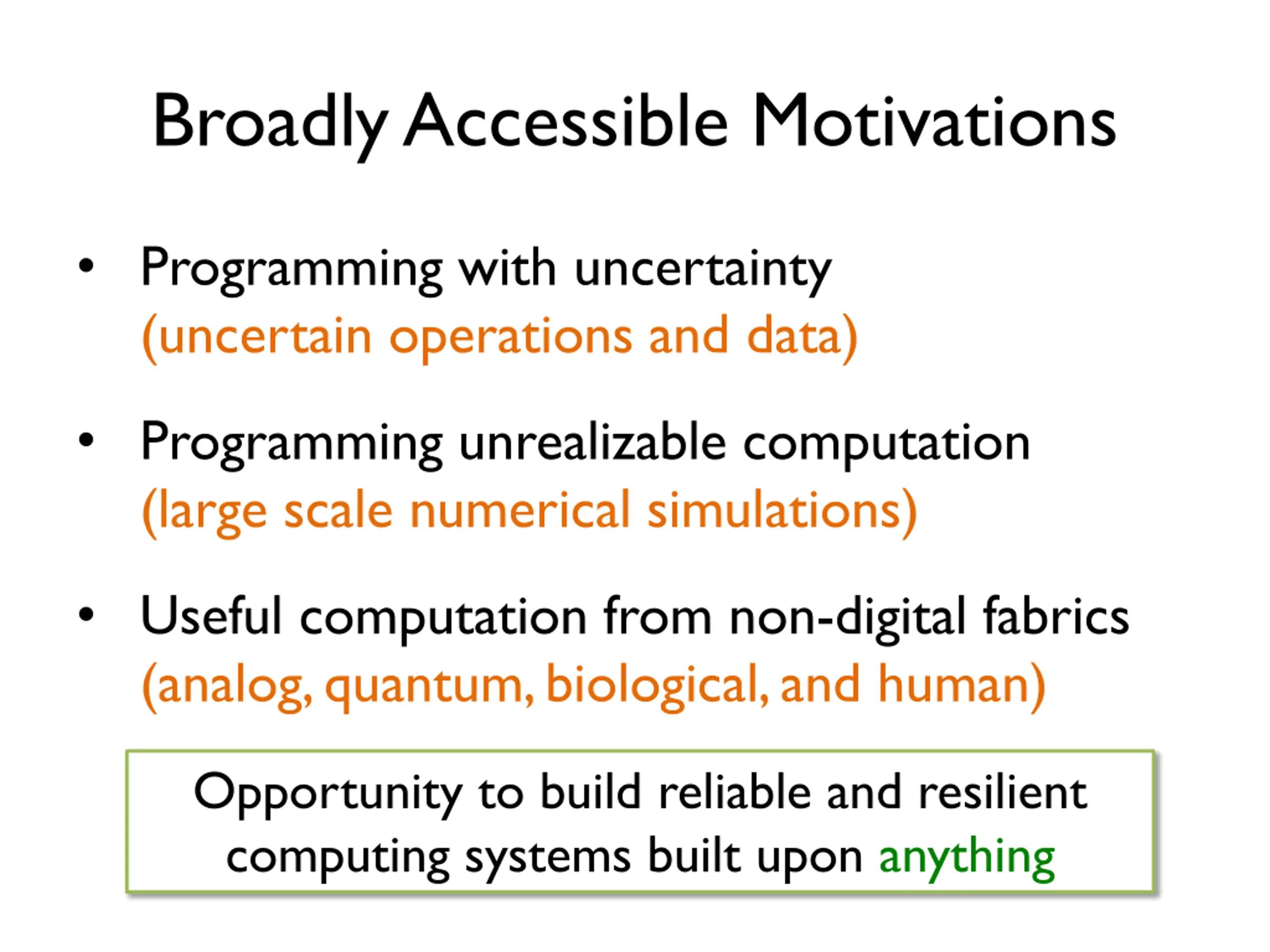

Broadly Accessible Motivations Programming with uncertainty (uncertain operations and data) Programming unrealizable computation (large scale numerical simulations) Useful computation from non-digital fabrics (analog, quantum, biological, and human) Opportunity to build reliable and resilient computing systems built upon anything

End

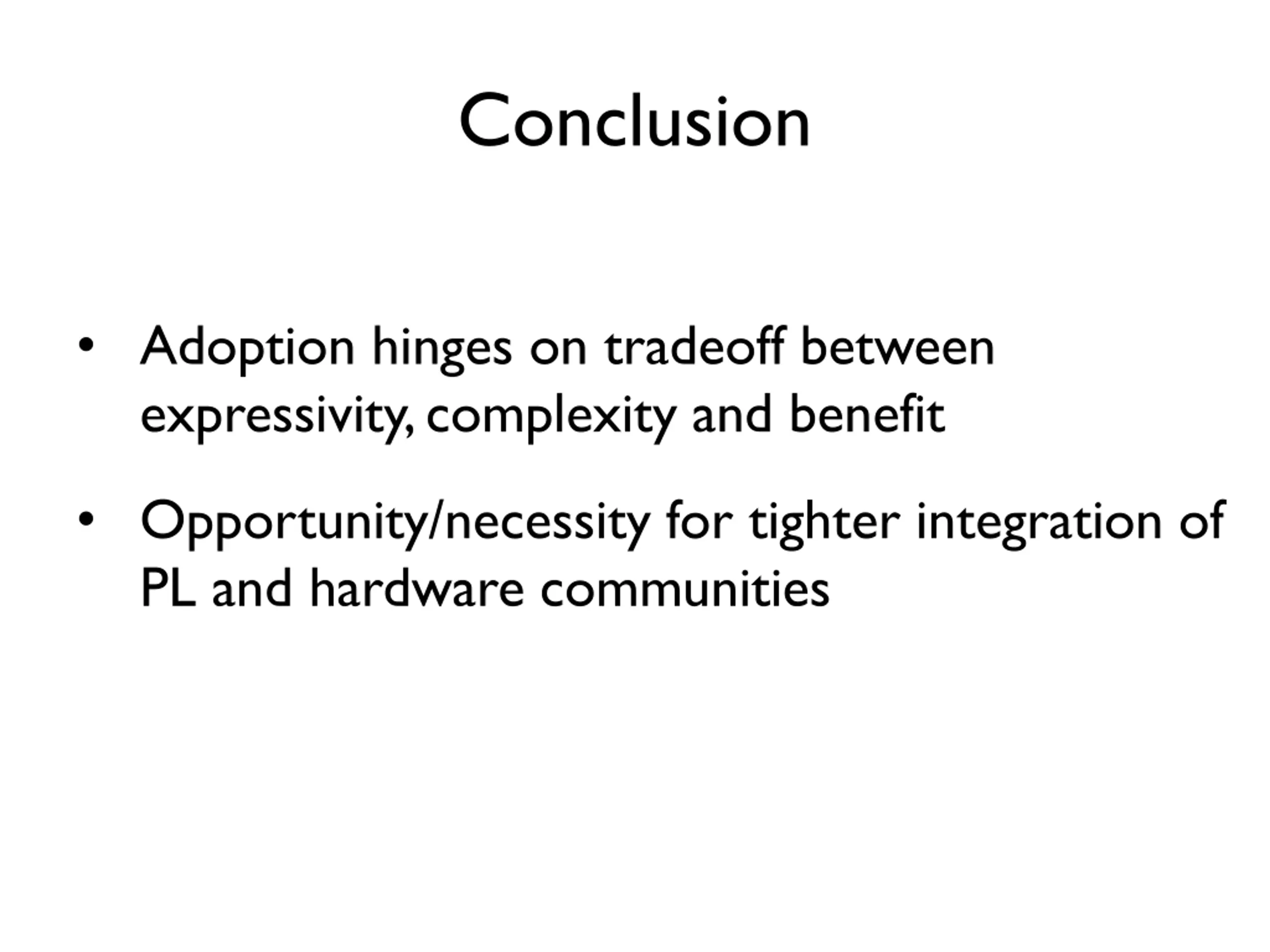

Conclusion Adoption hinges on tradeoff between expressivity, complexity and benefit Opportunity/necessity for tighter integration of PL and hardware communities

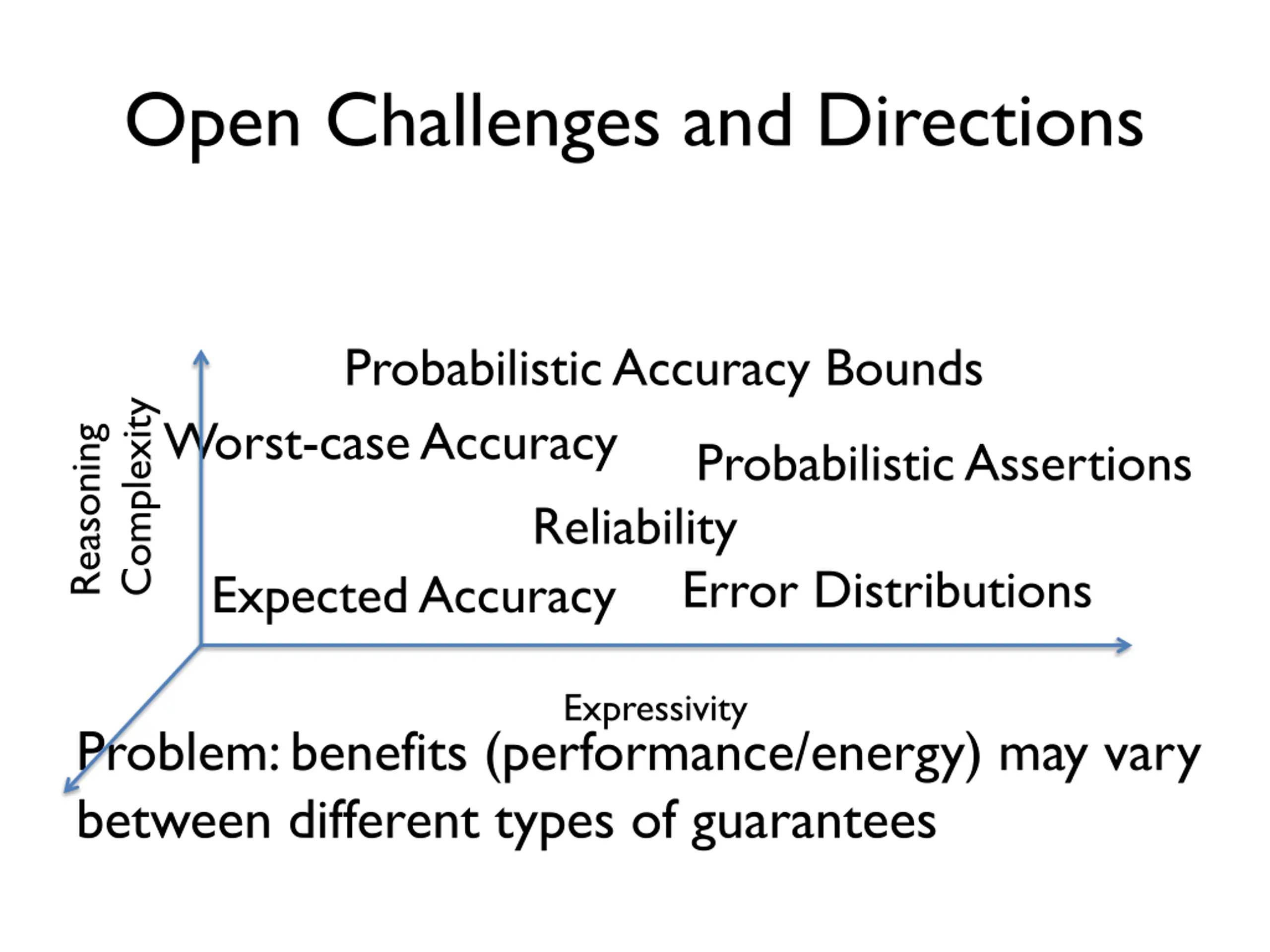

Open Challenges and Directions Probabilistic Accuracy Bounds Complexity Worst-case Accuracy Reasoning Probabilistic Assertions Reliability Error Distributions Expected Accuracy Expressivity Problem: benefits (performance/energy) may vary between different types of guarantees

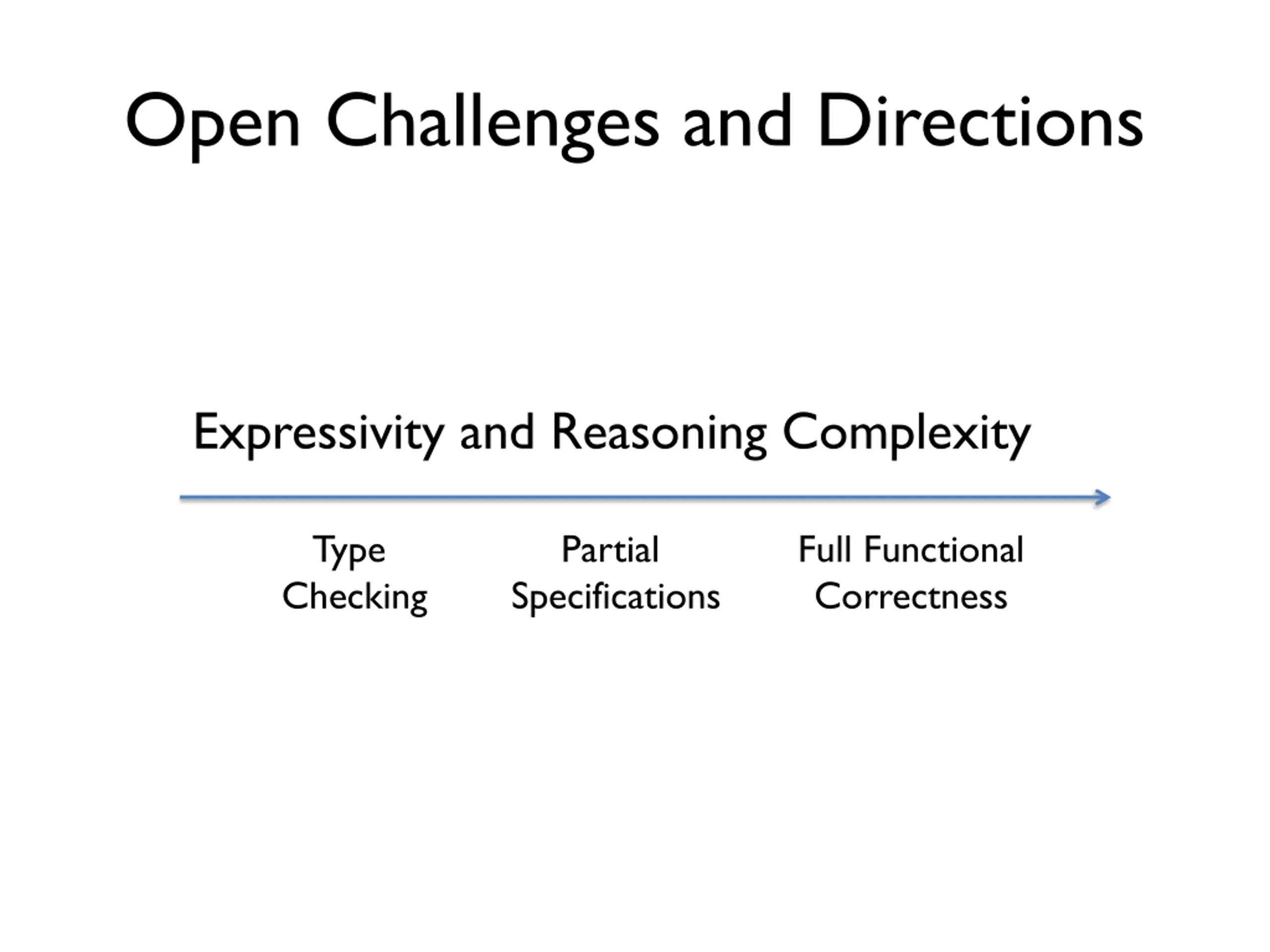

Open Challenges and Directions Expressivity and Reasoning Complexity Type Checking Partial Specifications Full Functional Correctness

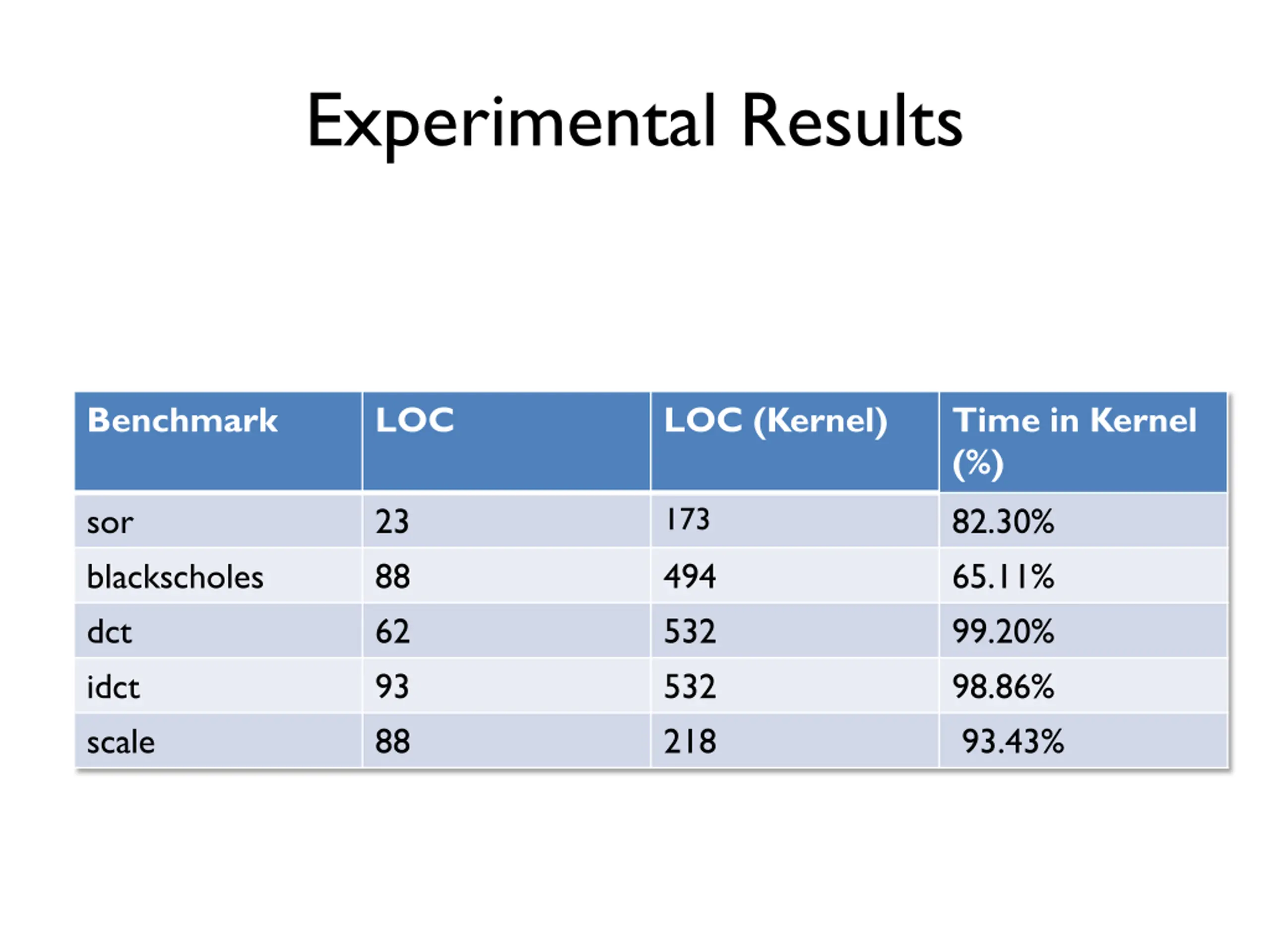

Experimental Results Benchmark LOC LOC (Kernel) Time in Kernel (%) 173 sor blackscholes dct idct scale 23 88 62 93 88 82.30% 65.11% 99.20% 98.86% 93.43% 494 532 532 218

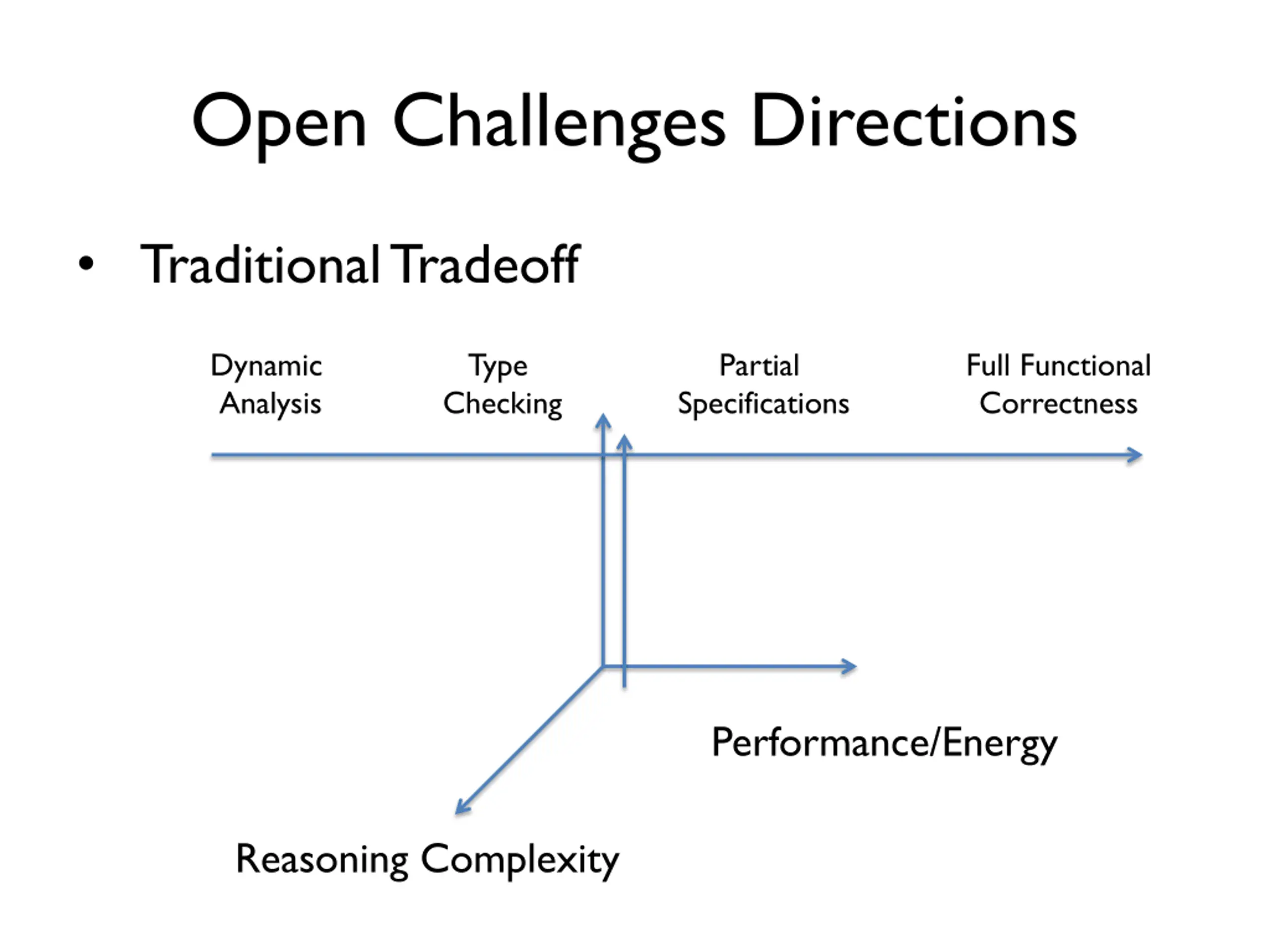

Open Challenges Directions Traditional Tradeoff Dynamic Analysis Type Checking Partial Specifications Full Functional Correctness Performance/Energy Reasoning Complexity
