Computer Science Exploring Regular Expression Evolution Peipei Wang Gina R. Bai Kathryn T. Stolee North Carolina State University pwang7@ncsu.edu, rbai@ncsu.edu, ktstolee@ncsu.edu 1

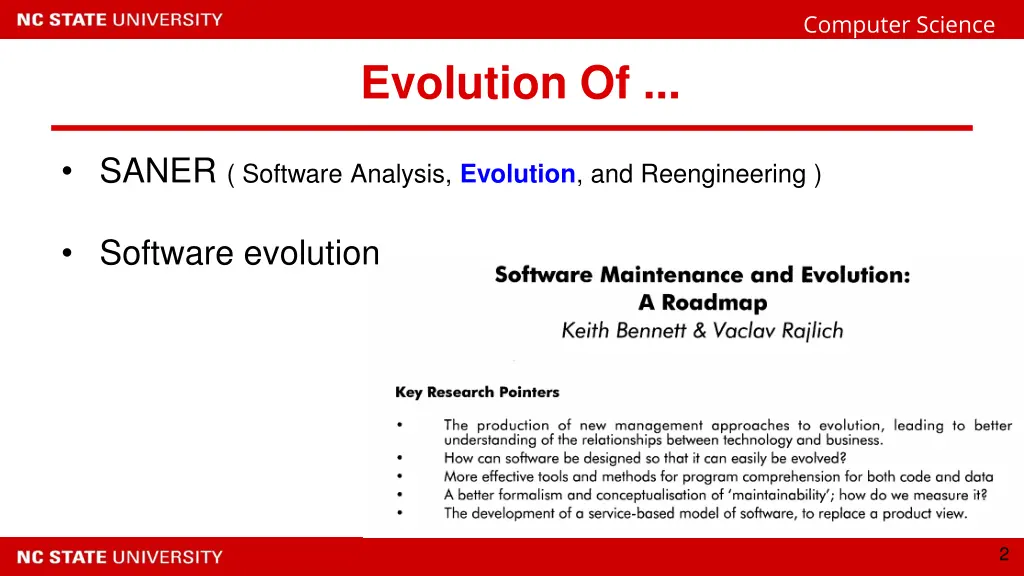

Computer Science Evolution Of ... SANER ( Software Analysis, Evolution, and Reengineering ) Software evolution 2

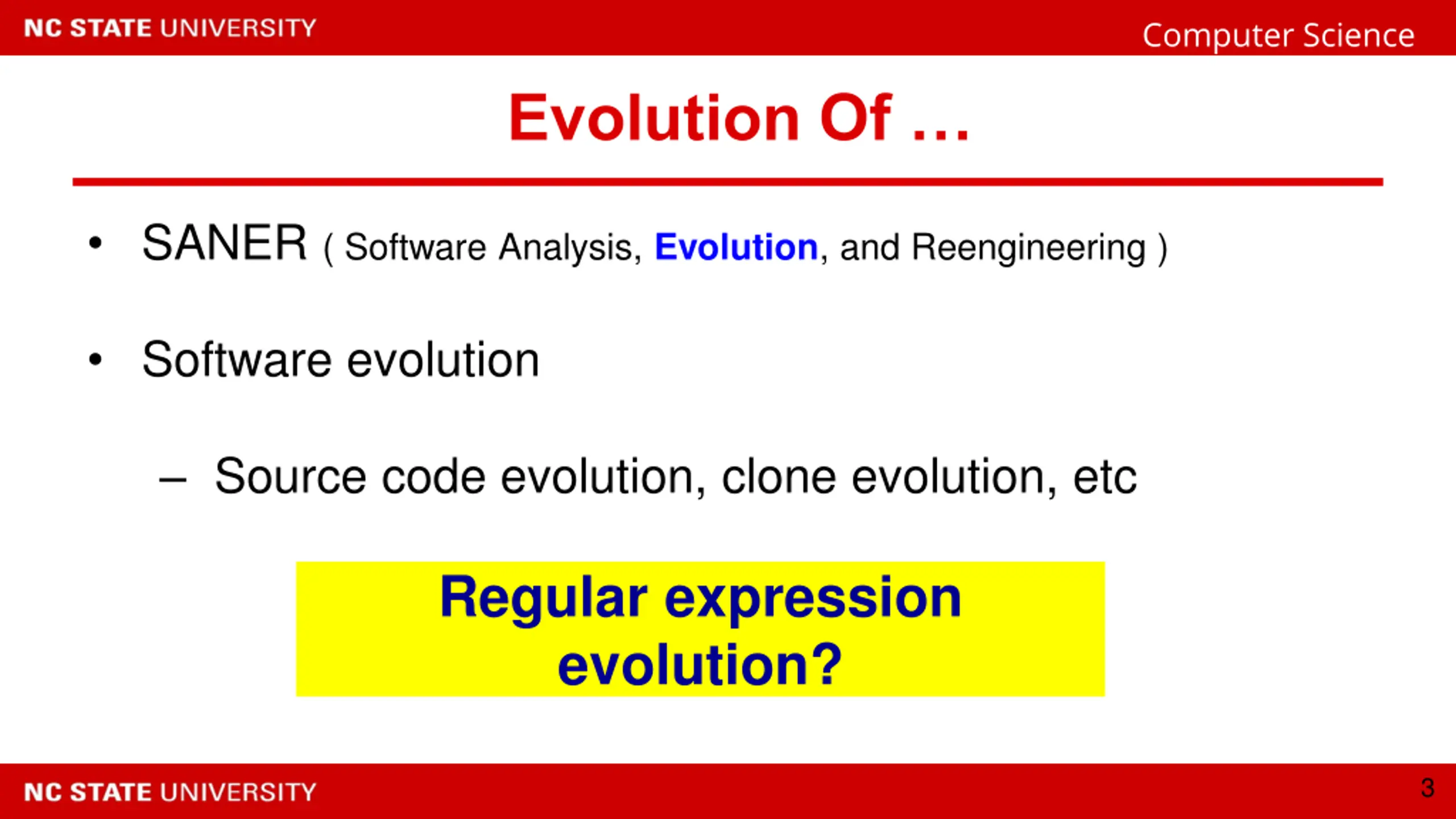

Computer Science Evolution Of SANER ( Software Analysis, Evolution, and Reengineering ) Software evolution Source code evolution, clone evolution, etc Regular expression evolution? 3

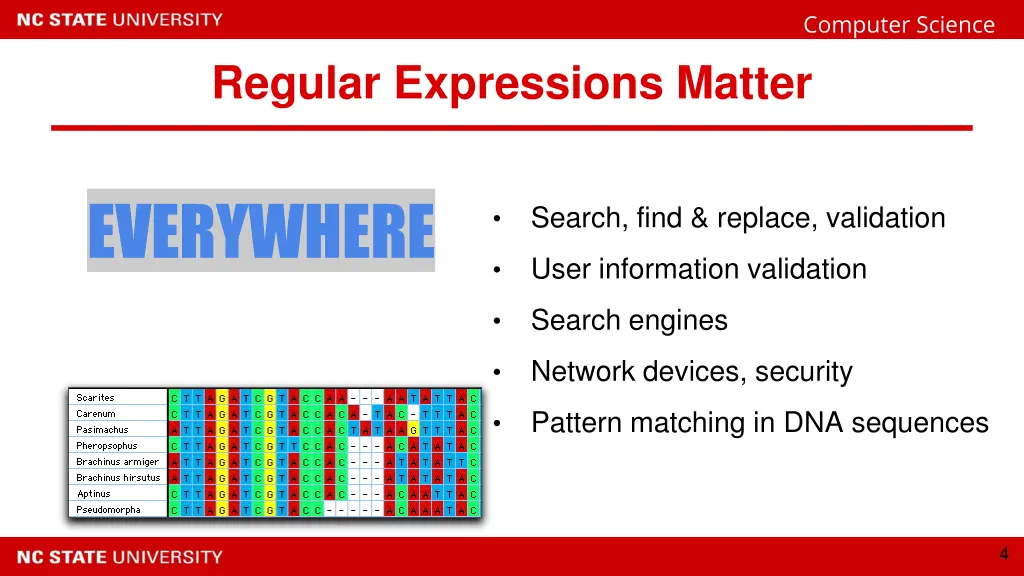

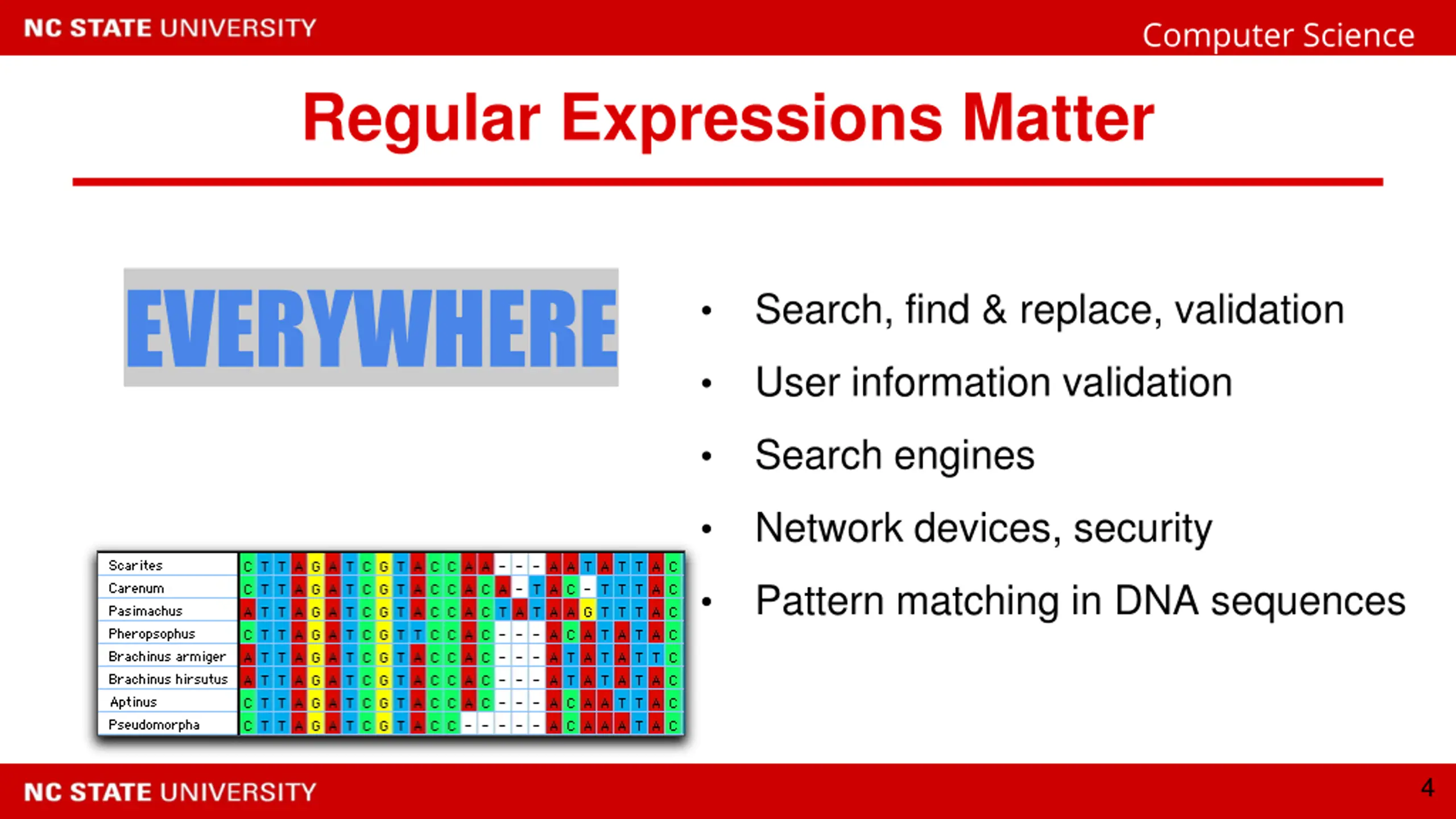

Computer Science Regular Expressions Matter EVERYWHERE Search, find & replace, validation User information validation Search engines Network devices, security Pattern matching in DNA sequences 4

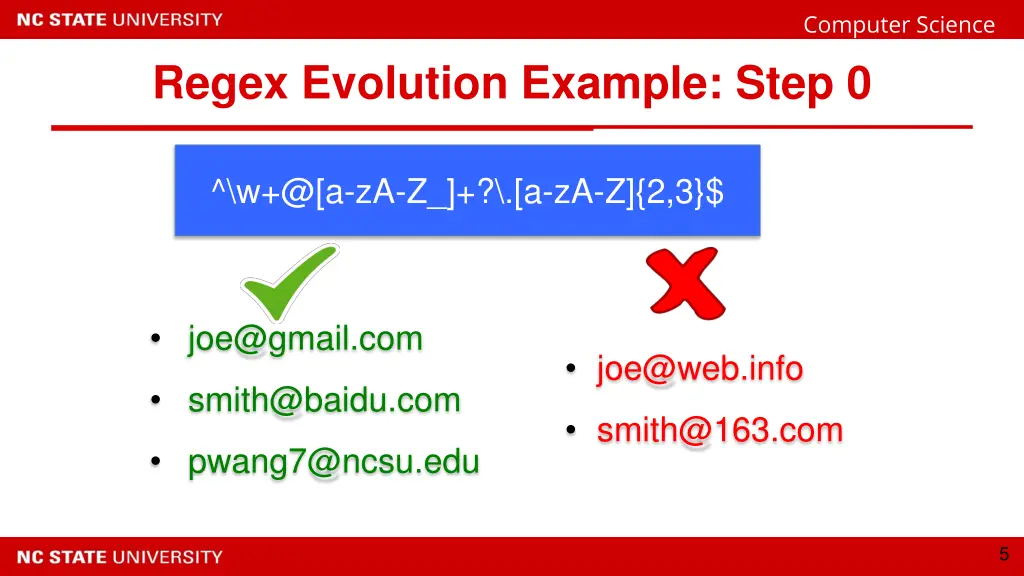

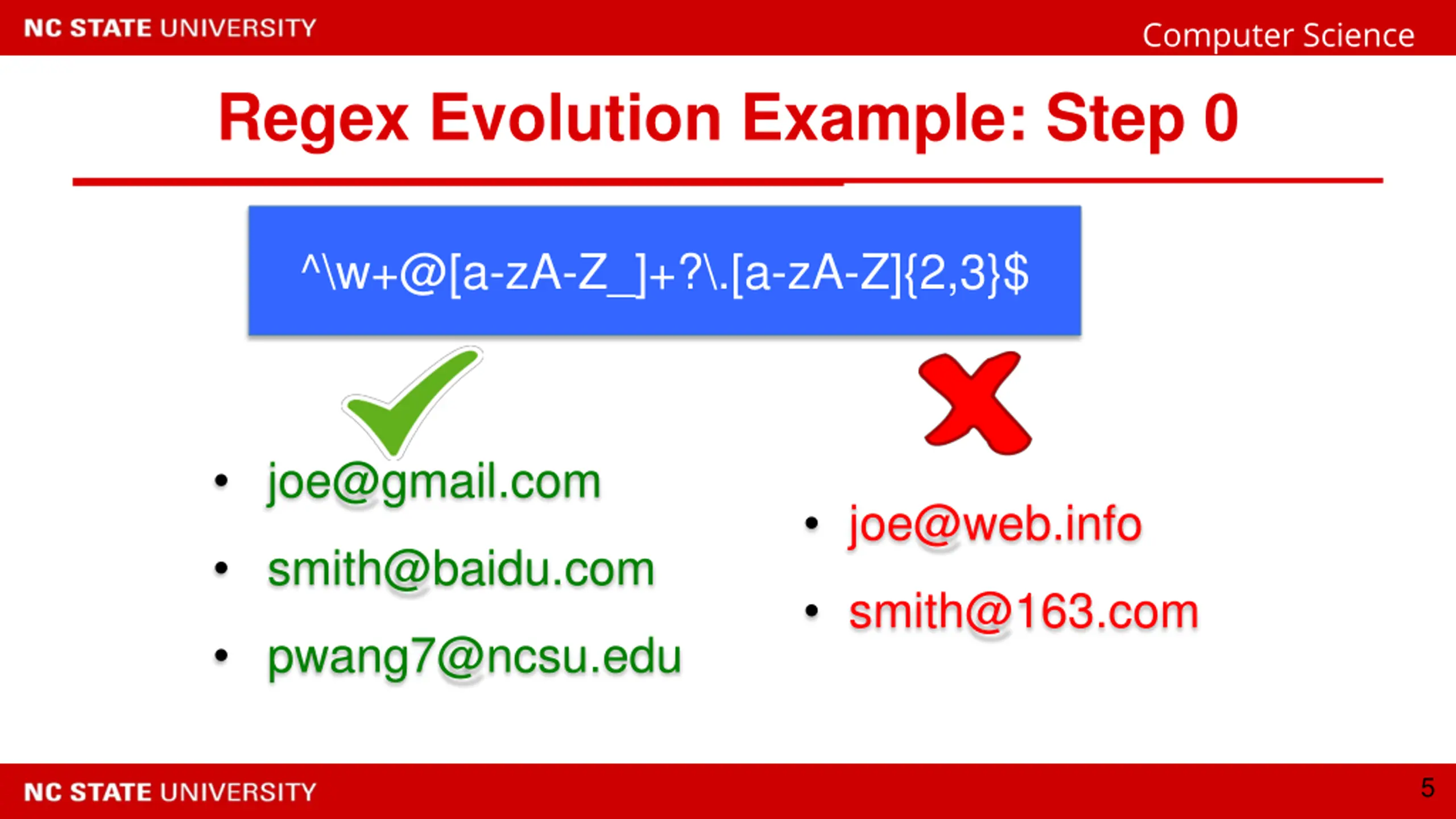

Computer Science Regex Evolution Example: Step 0 ^\w+@[a-zA-Z_]+?\.[a-zA-Z]{2,3}$ joe@gmail.com joe@web.info smith@baidu.com smith@163.com pwang7@ncsu.edu 5

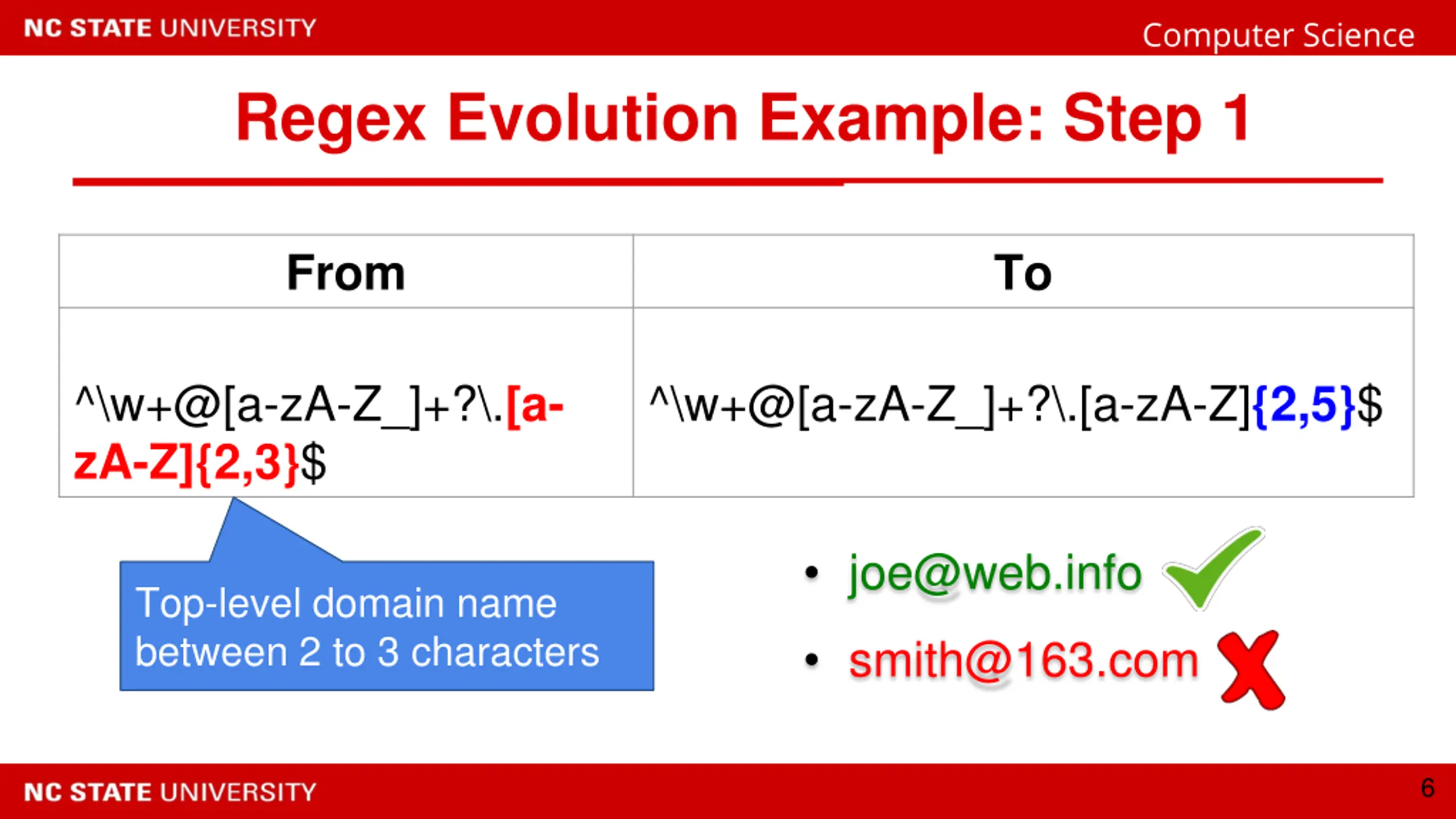

Computer Science Regex Evolution Example: Step 1 From To ^\w+@[a-zA-Z_]+?\.[a- zA-Z]{2,3}$ ^\w+@[a-zA-Z_]+?\.[a-zA-Z]{2,5}$ joe@web.info Top-level domain name between 2 to 3 characters smith@163.com 6

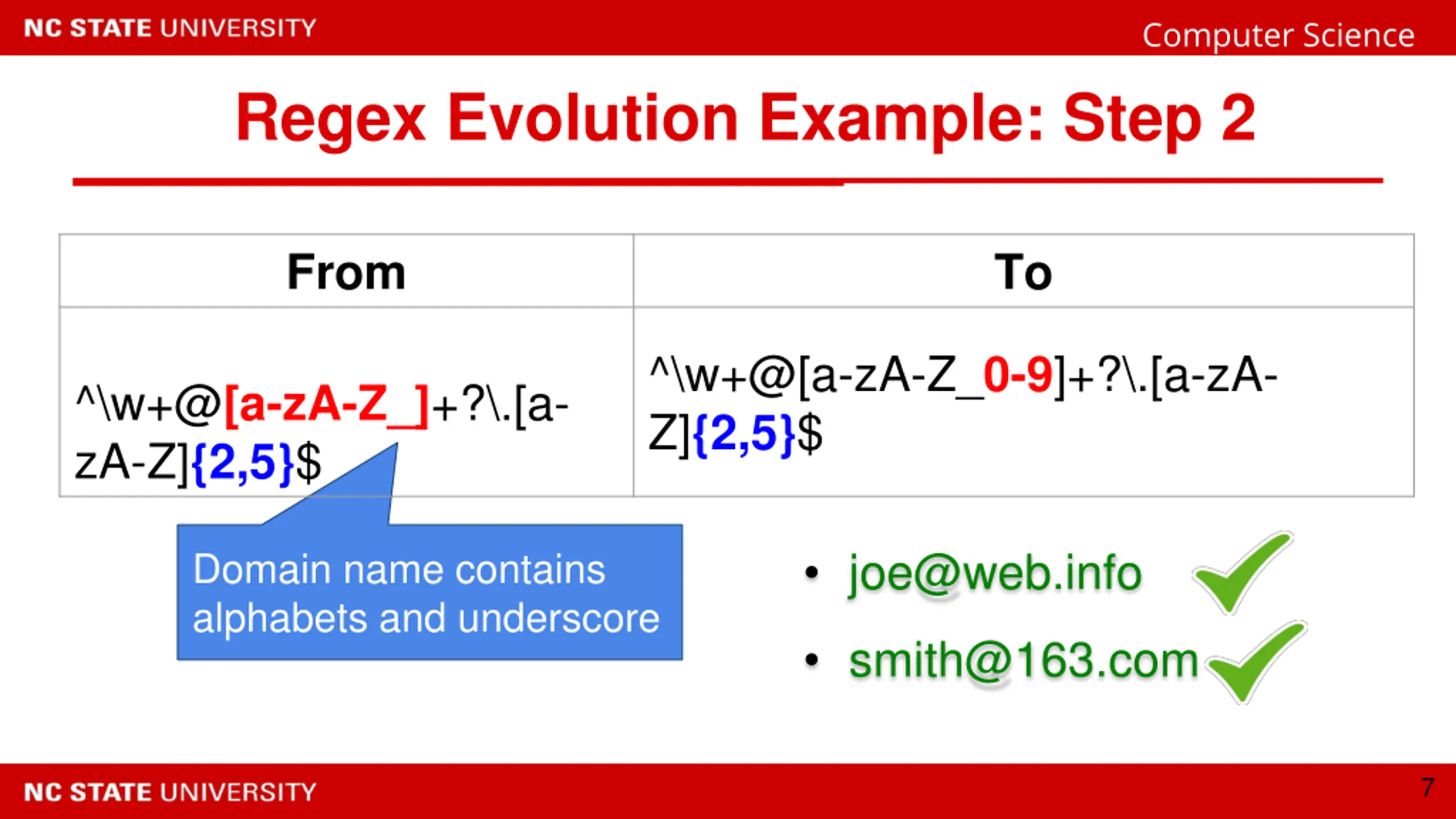

Computer Science Regex Evolution Example: Step 2 From To ^\w+@[a-zA-Z_0-9]+?\.[a-zA- Z]{2,5}$ ^\w+@[a-zA-Z_]+?\.[a- zA-Z]{2,5}$ joe@web.info Domain name contains alphabets and underscore smith@163.com 7

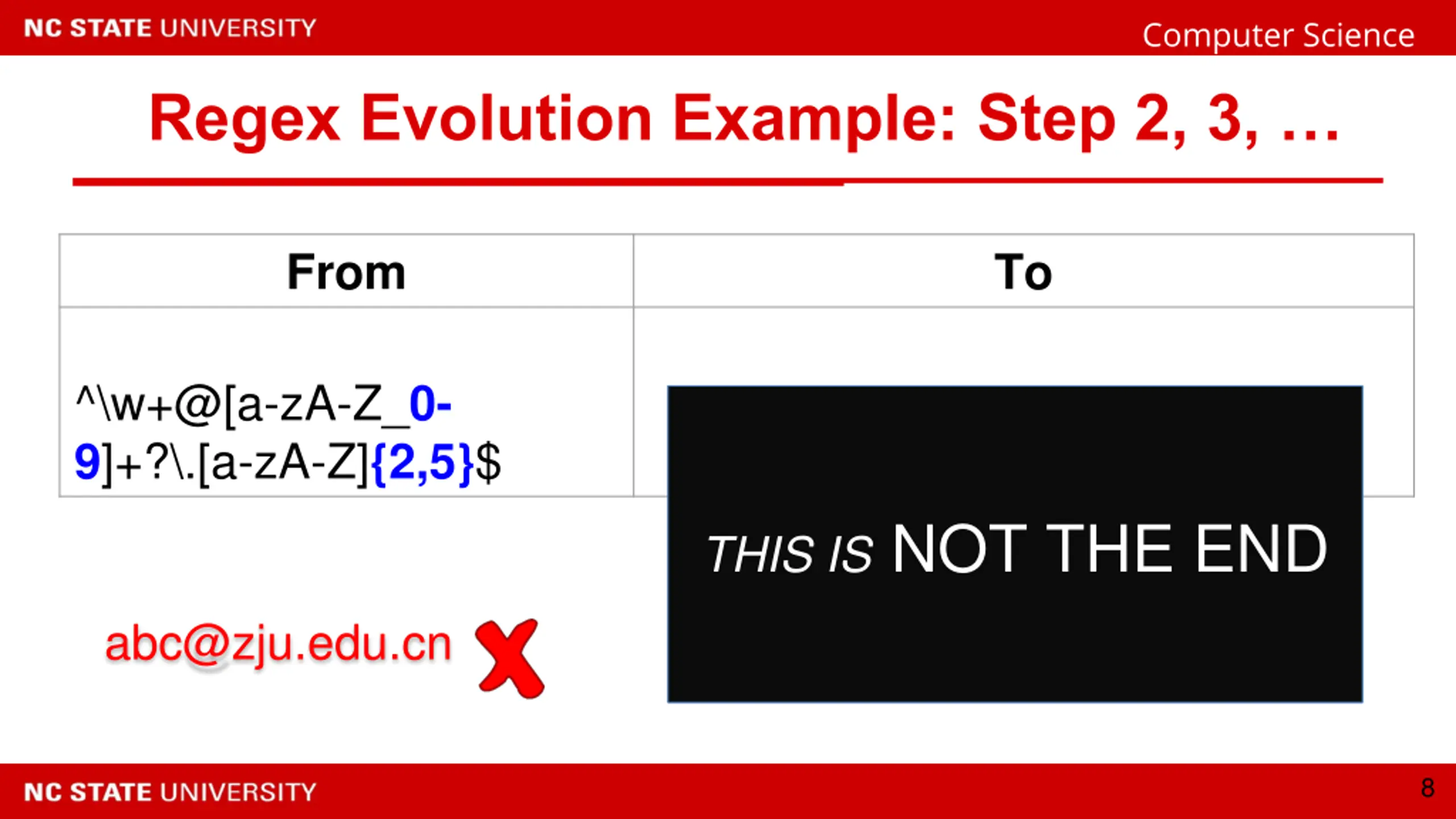

Computer Science Regex Evolution Example: Step 2, 3, From To ^\w+@[a-zA-Z_0- 9]+?\.[a-zA-Z]{2,5}$ THIS IS NOT THE END abc@zju.edu.cn 8

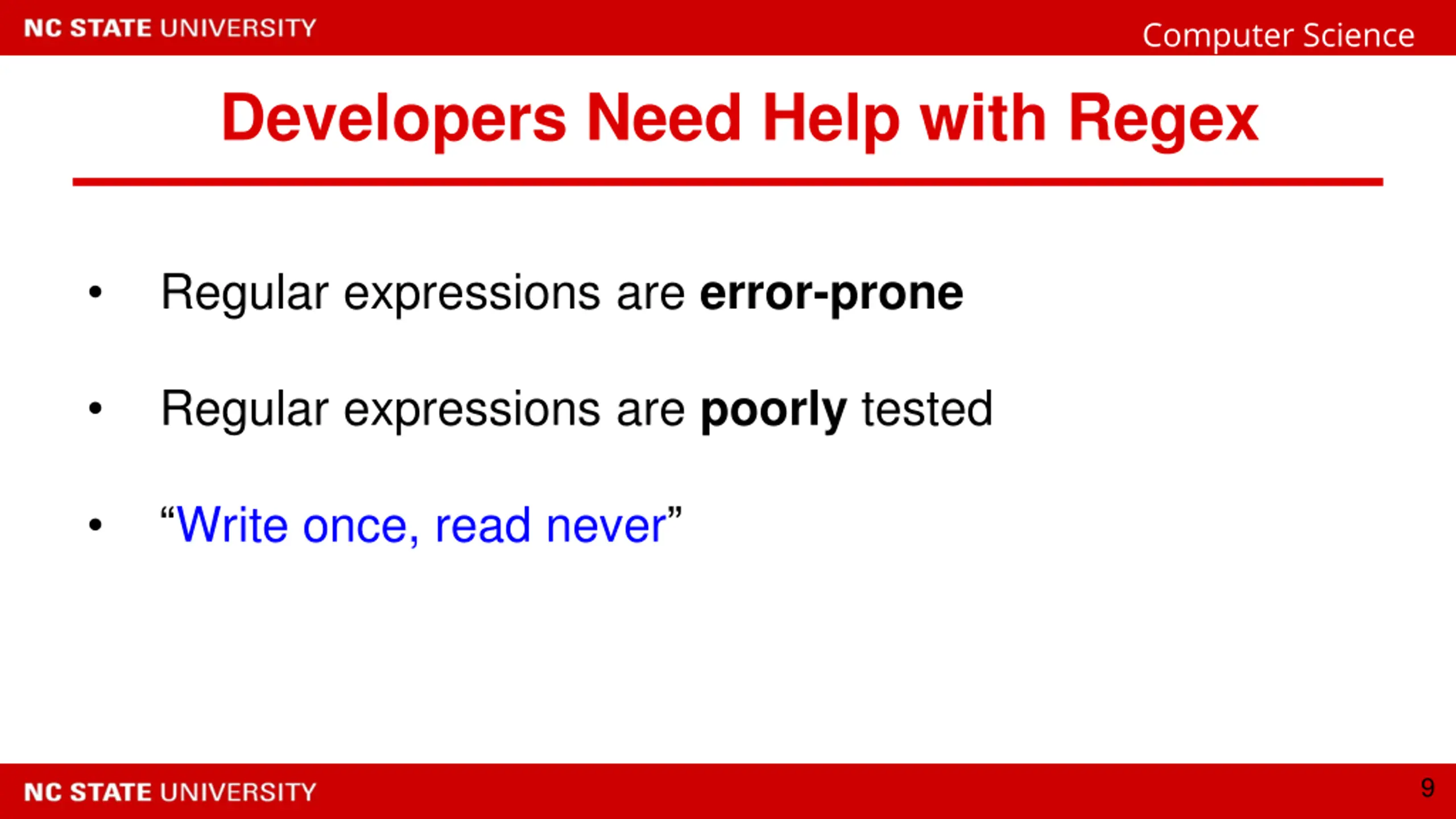

Computer Science Developers Need Help with Regex Regular expressions are error-prone Regular expressions are poorly tested Write once, read never 9

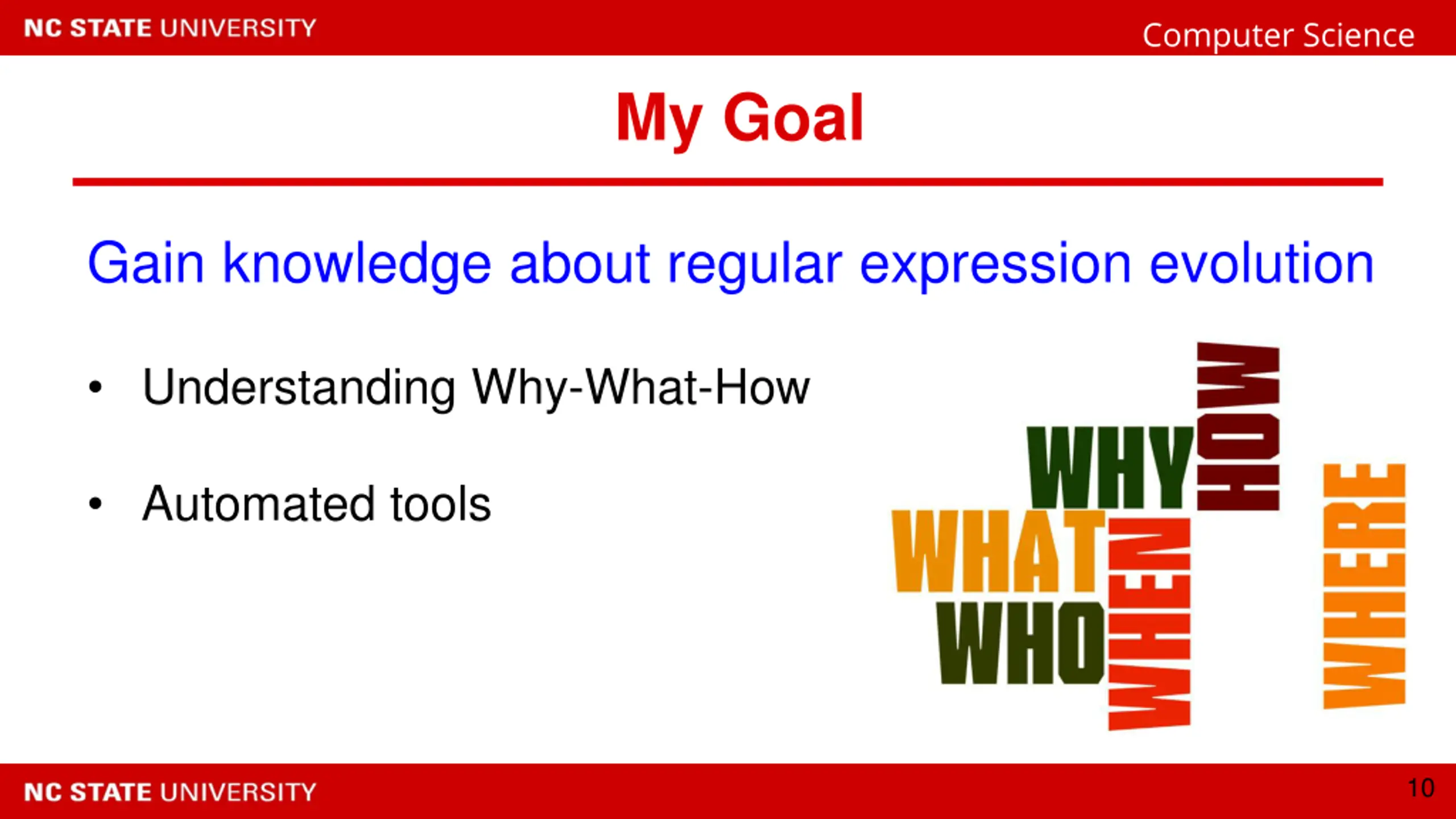

Computer Science My Goal Gain knowledge about regular expression evolution Understanding Why-What-How Automated tools 10

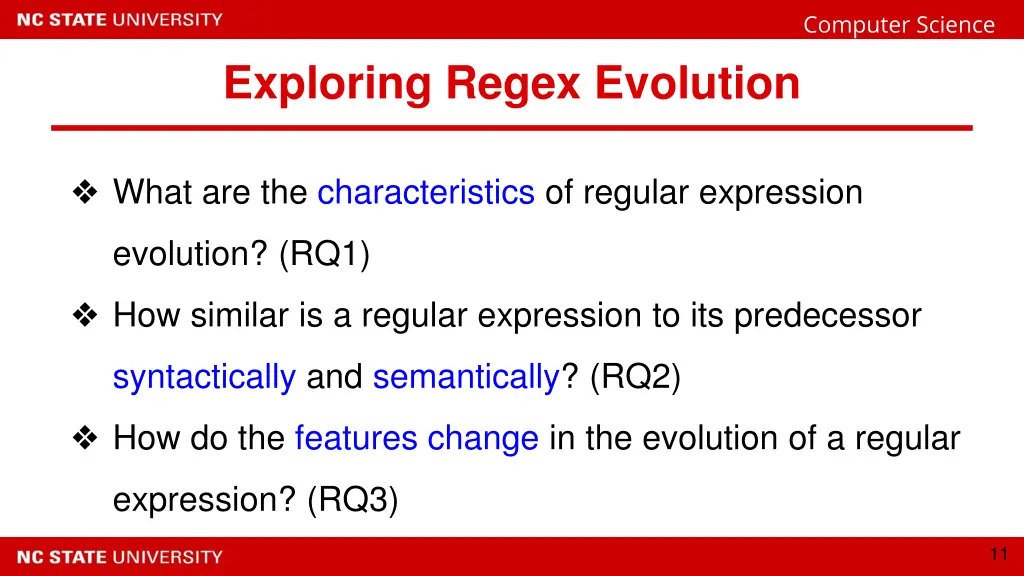

Computer Science Exploring Regex Evolution What are the characteristics of regular expression evolution? (RQ1) How similar is a regular expression to its predecessor syntactically and semantically? (RQ2) How do the features change in the evolution of a regular expression? (RQ3) 11

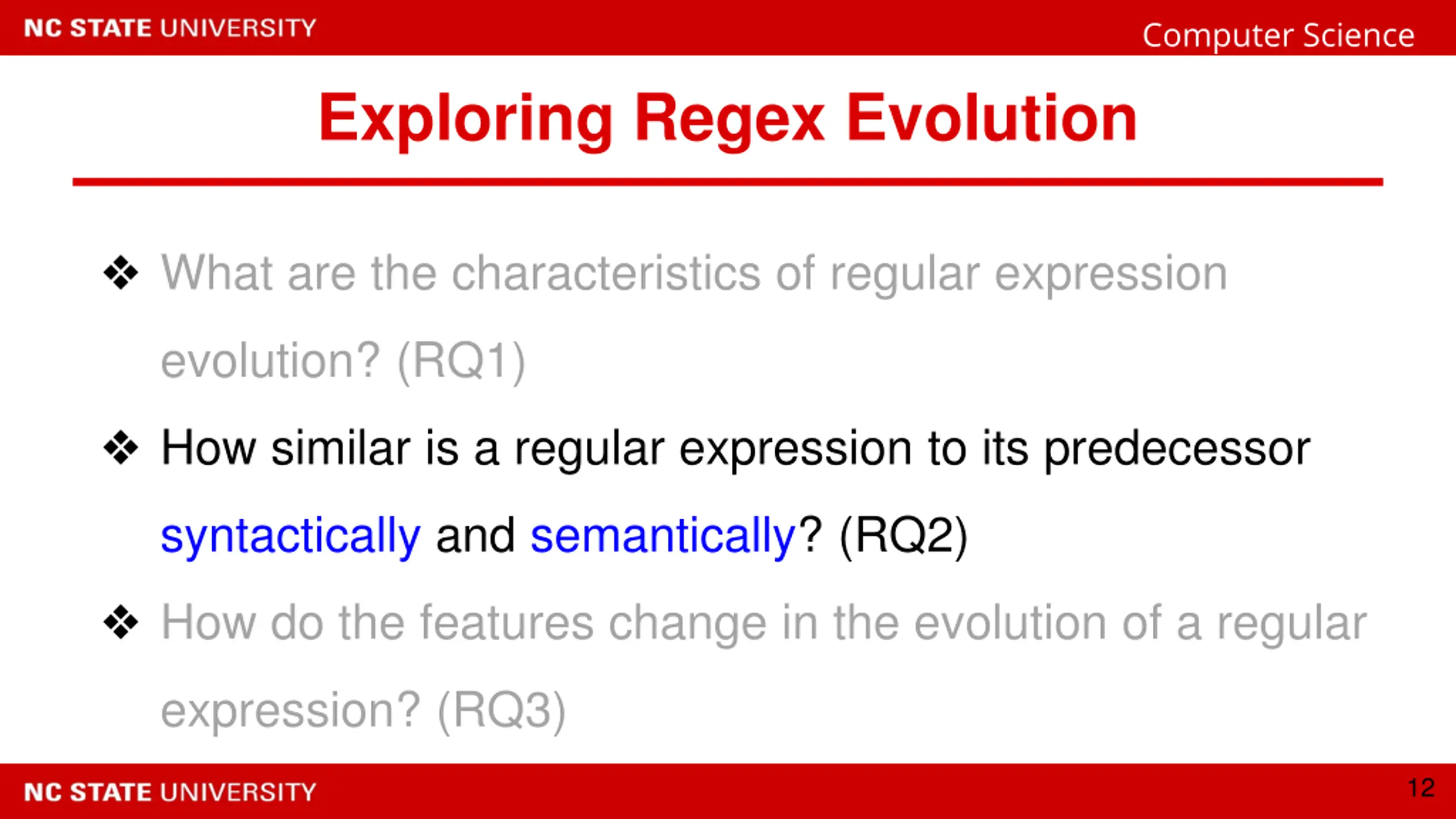

Computer Science Exploring Regex Evolution What are the characteristics of regular expression evolution? (RQ1) How similar is a regular expression to its predecessor syntactically and semantically? (RQ2) How do the features change in the evolution of a regular expression? (RQ3) 12

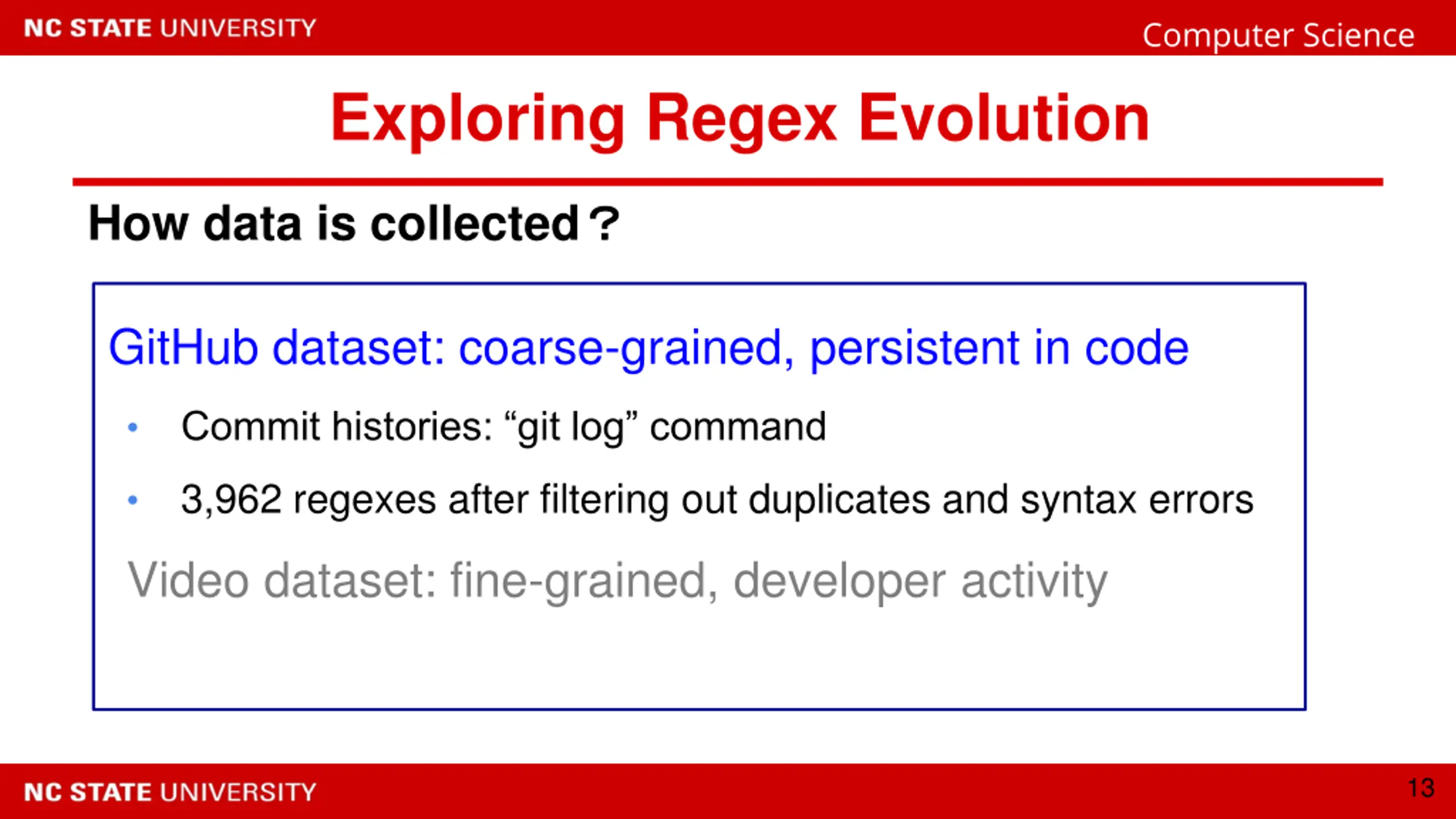

Computer Science Exploring Regex Evolution How data is collected GitHub dataset: coarse-grained, persistent in code Commit histories: git log command 3,962 regexes after filtering out duplicates and syntax errors Video dataset: fine-grained, developer activity 13

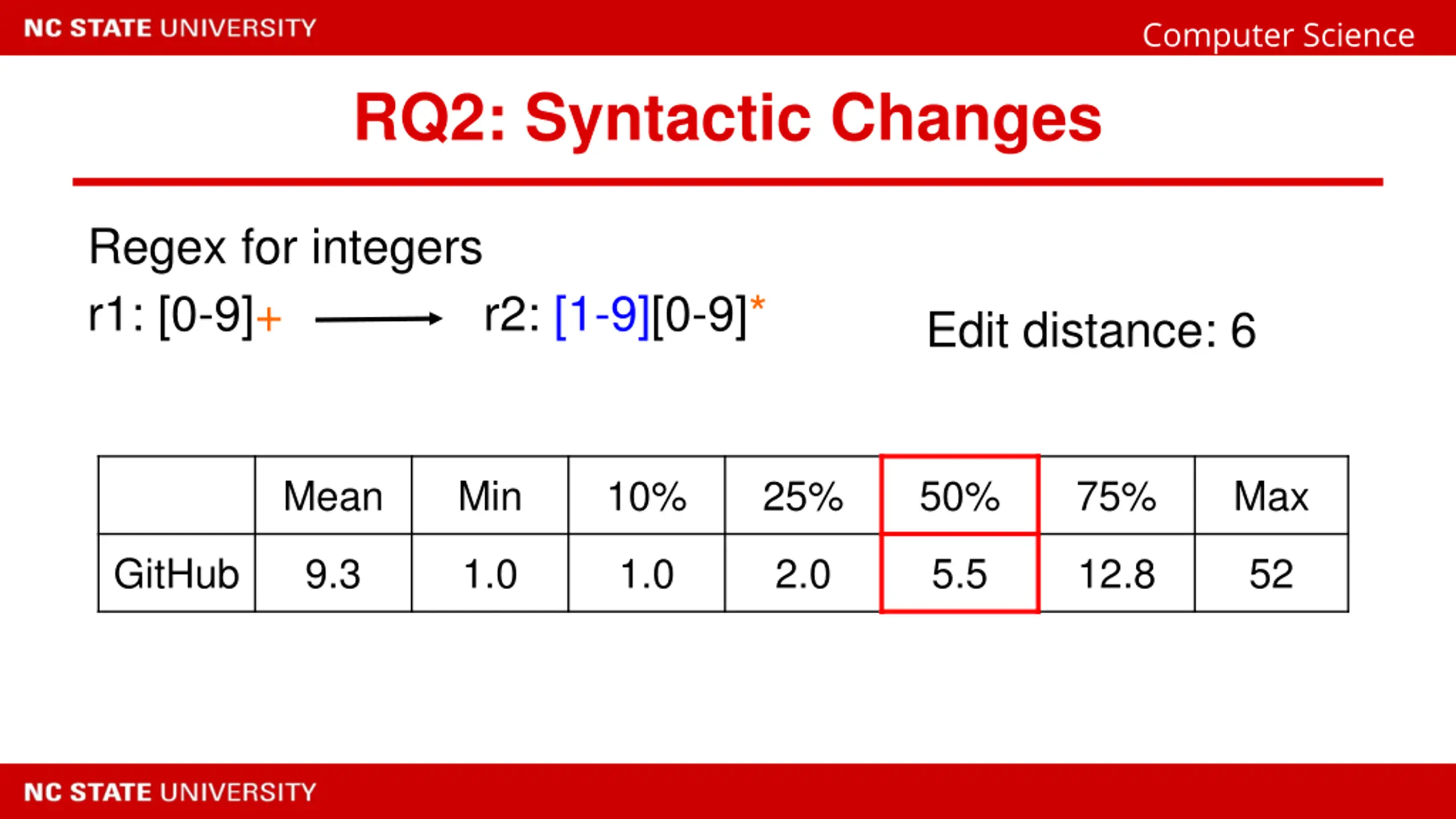

Computer Science RQ2: Syntactic Changes Regex for integers r1: [0-9]+ r2: [1-9][0-9]* Edit distance: 6 Mean Min 10% 25% 50% 75% Max GitHub 9.3 1.0 1.0 2.0 5.5 12.8 52

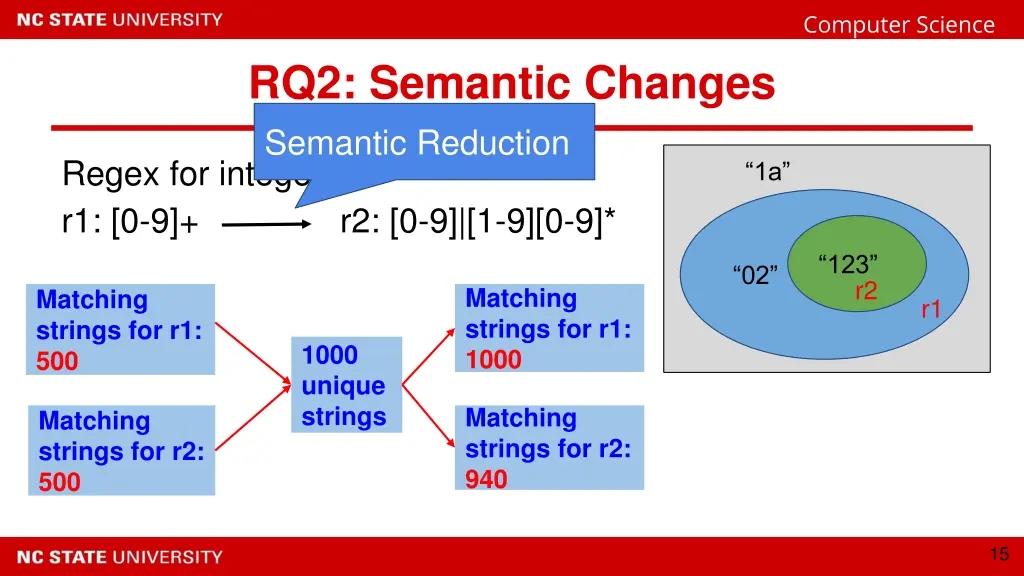

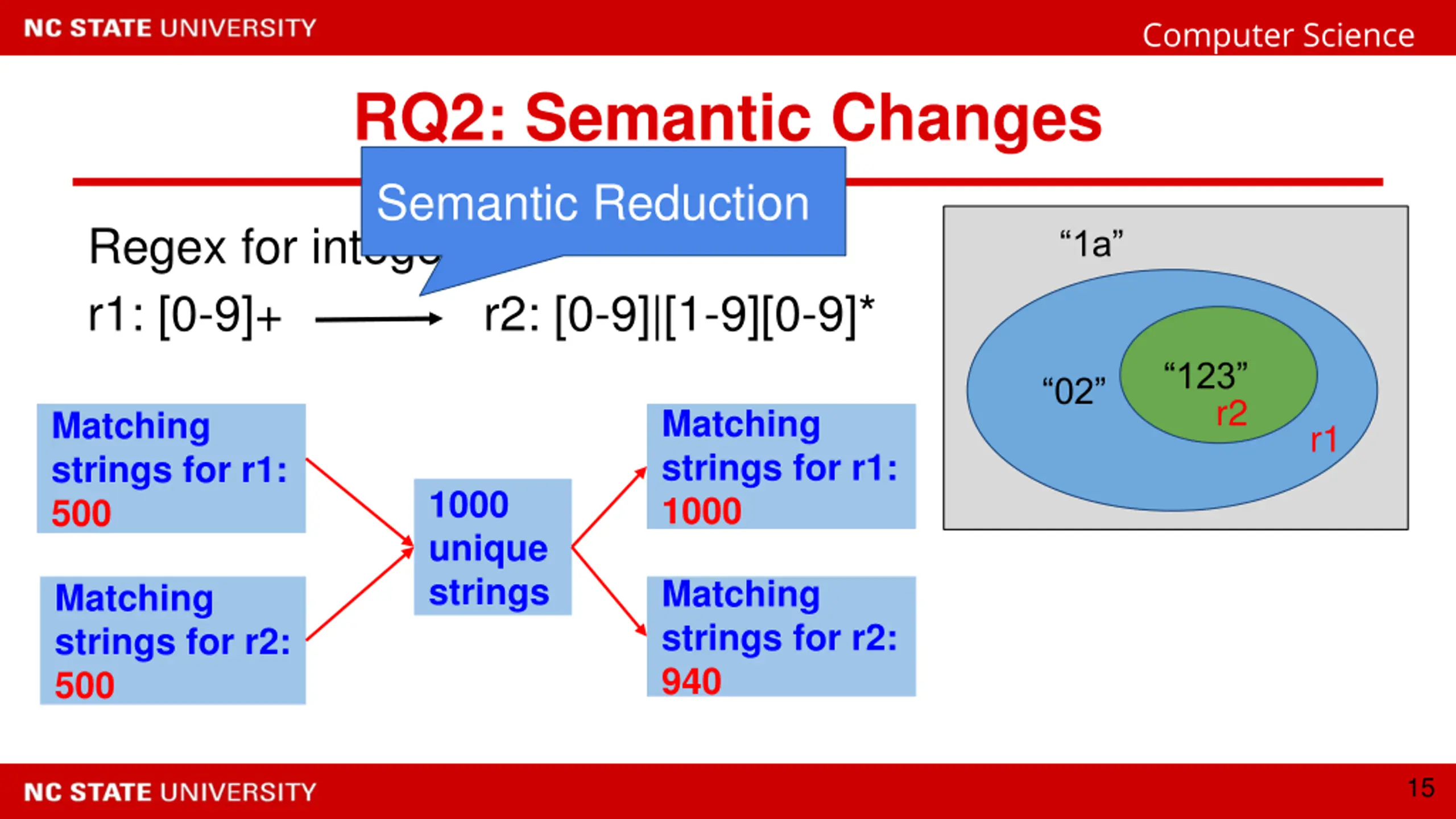

Computer Science RQ2: Semantic Changes Semantic Reduction Regex for integers r1: [0-9]+ r2: [0-9]|[1-9][0-9]* 1a 123 02 r2 Matching strings for r1: 1000 Matching strings for r1: 500 r1 1000 unique strings Matching strings for r2: 940 Matching strings for r2: 500 15

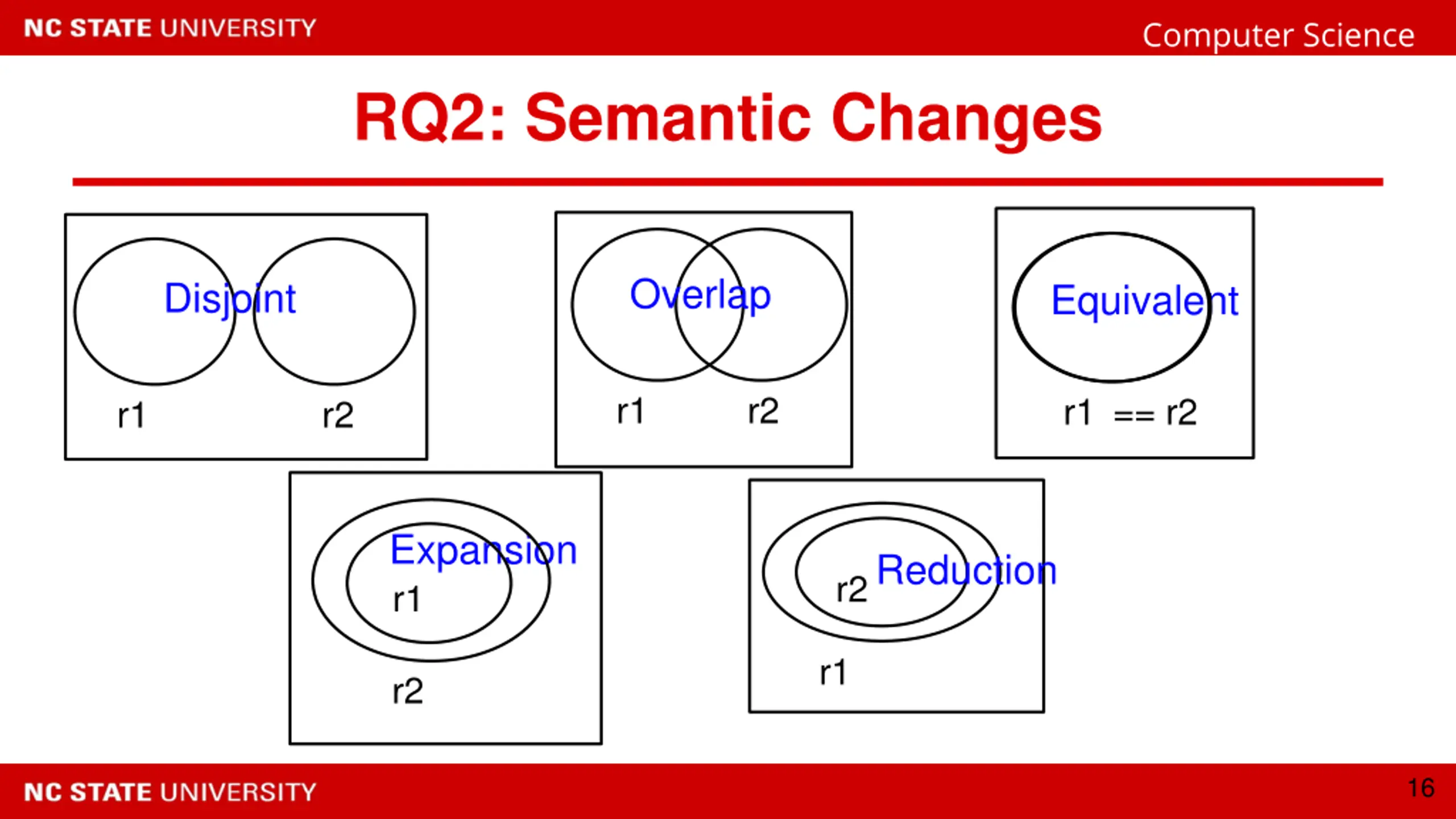

Computer Science RQ2: Semantic Changes Overlap Disjoint Equivalent r1 r2 r1 == r2 r1 r2 Expansion r1 r2Reduction r1 r2 16

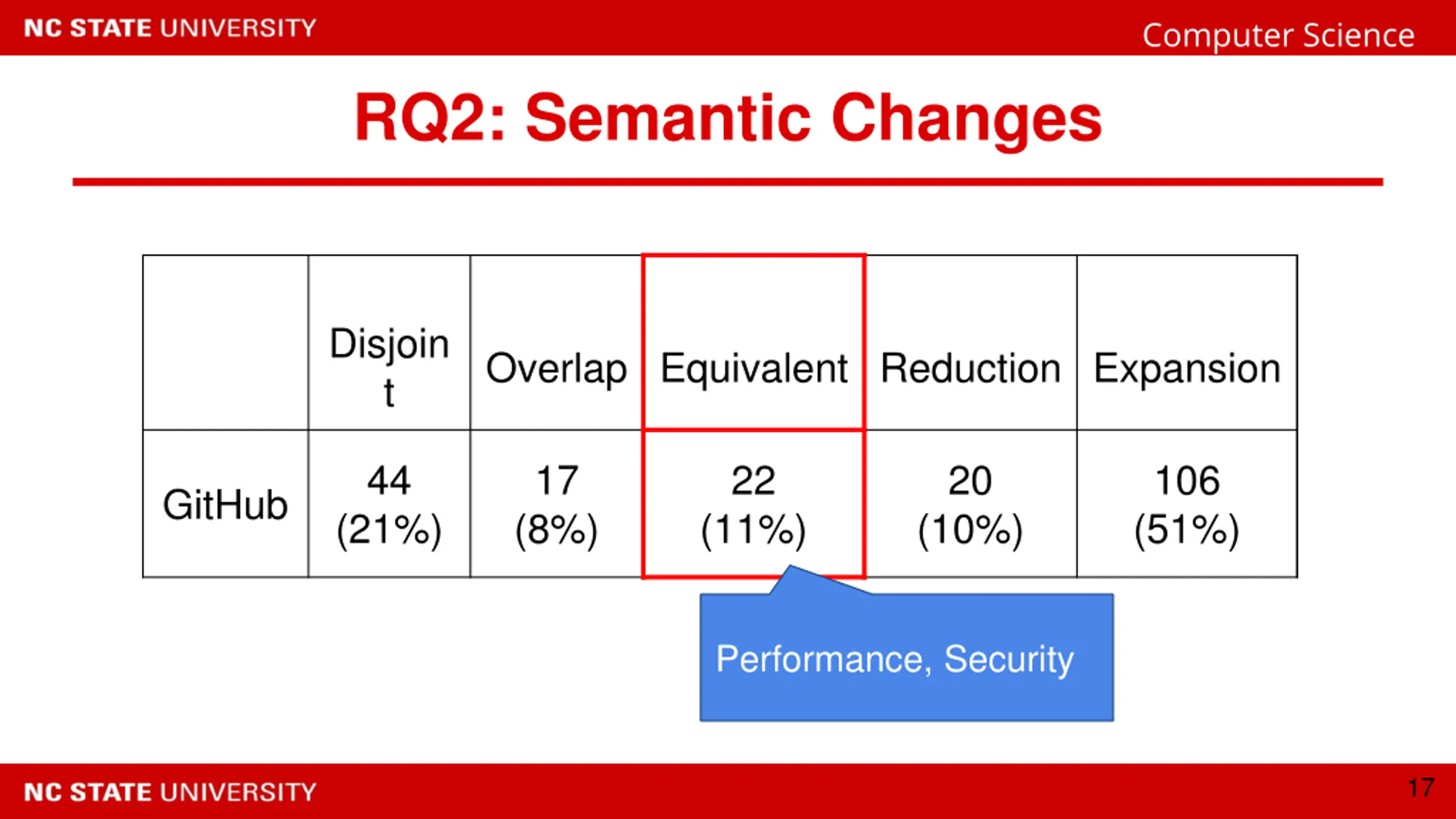

Computer Science RQ2: Semantic Changes Disjoin t Overlap Equivalent Reduction Expansion 44 17 (8%) 22 20 106 (51%) GitHub (21%) (11%) (10%) Performance, Security 17

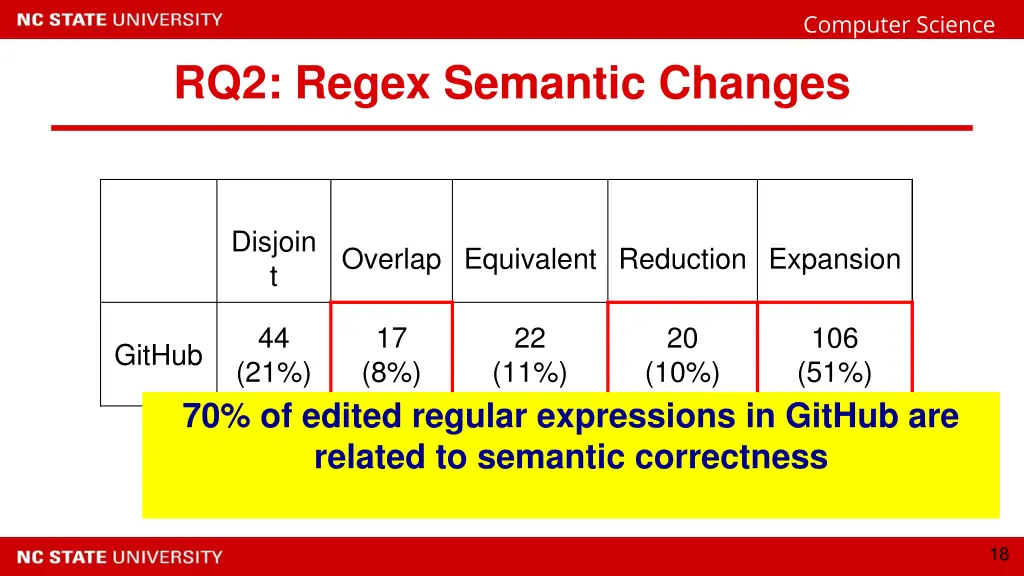

Computer Science RQ2: Regex Semantic Changes Disjoin t Overlap Equivalent Reduction Expansion 44 17 (8%) 22 20 106 (51%) GitHub (21%) (11%) (10%) 70% of edited regular expressions in GitHub are related to semantic correctness 18

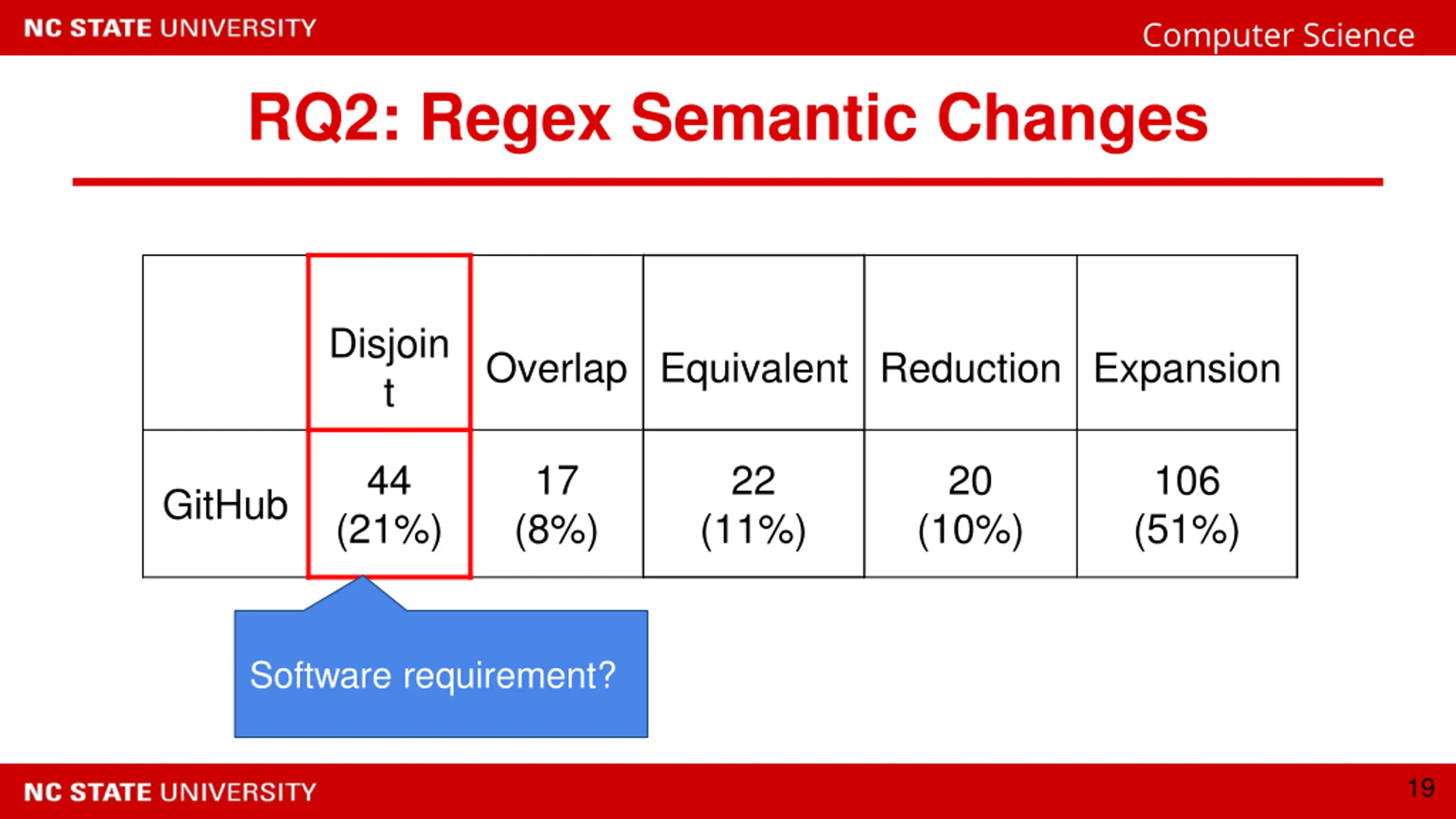

Computer Science RQ2: Regex Semantic Changes Disjoin t Overlap Equivalent Reduction Expansion 44 17 (8%) 22 20 106 (51%) GitHub (21%) (11%) (10%) Software requirement? 19

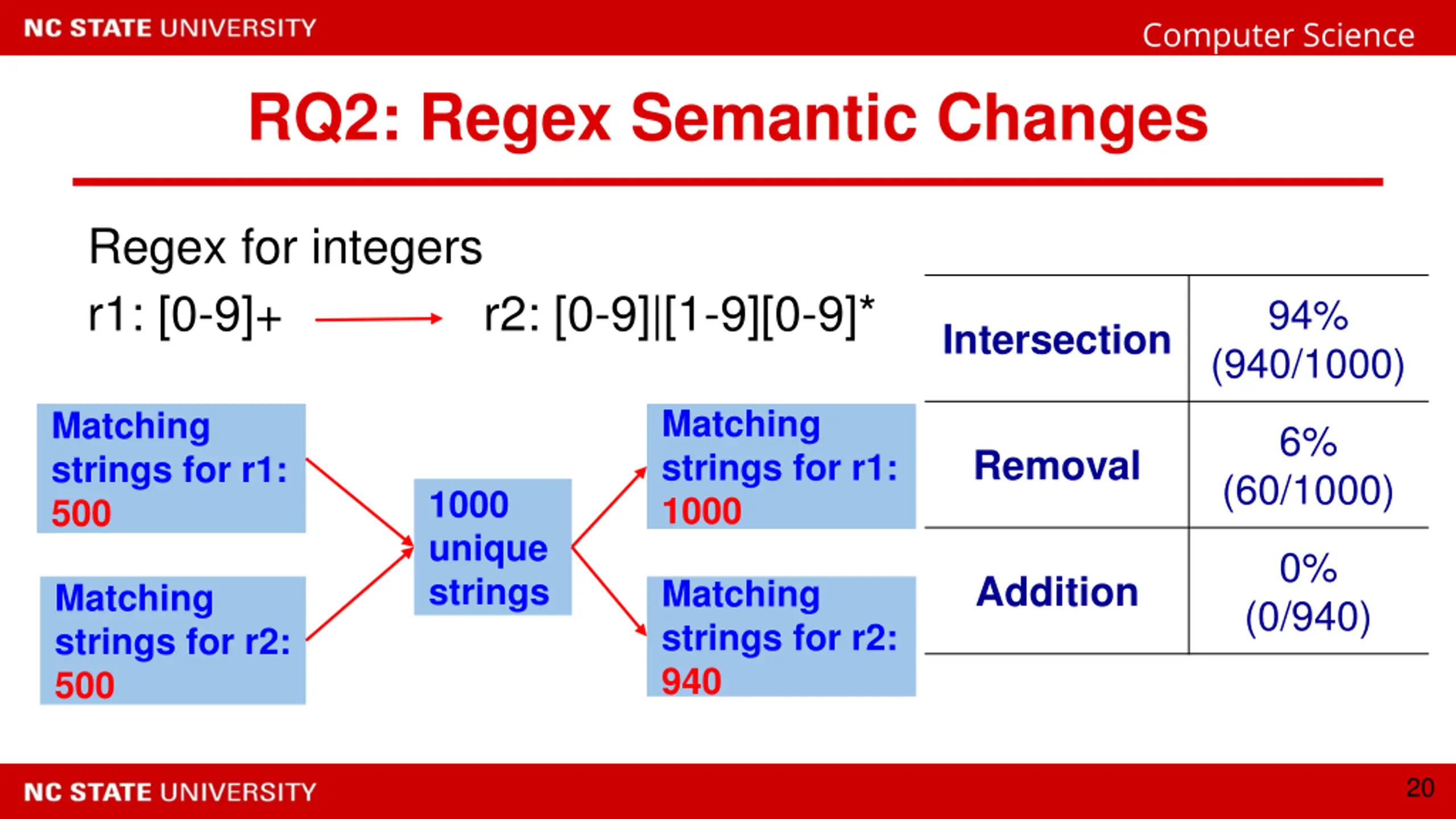

Computer Science RQ2: Regex Semantic Changes Regex for integers r1: [0-9]+ r2: [0-9]|[1-9][0-9]* 94% Intersection (940/1000) Matching strings for r1: 1000 Matching strings for r1: 500 6% Removal (60/1000) 1000 unique strings 0% Addition Matching strings for r2: 940 Matching strings for r2: 500 (0/940) 20

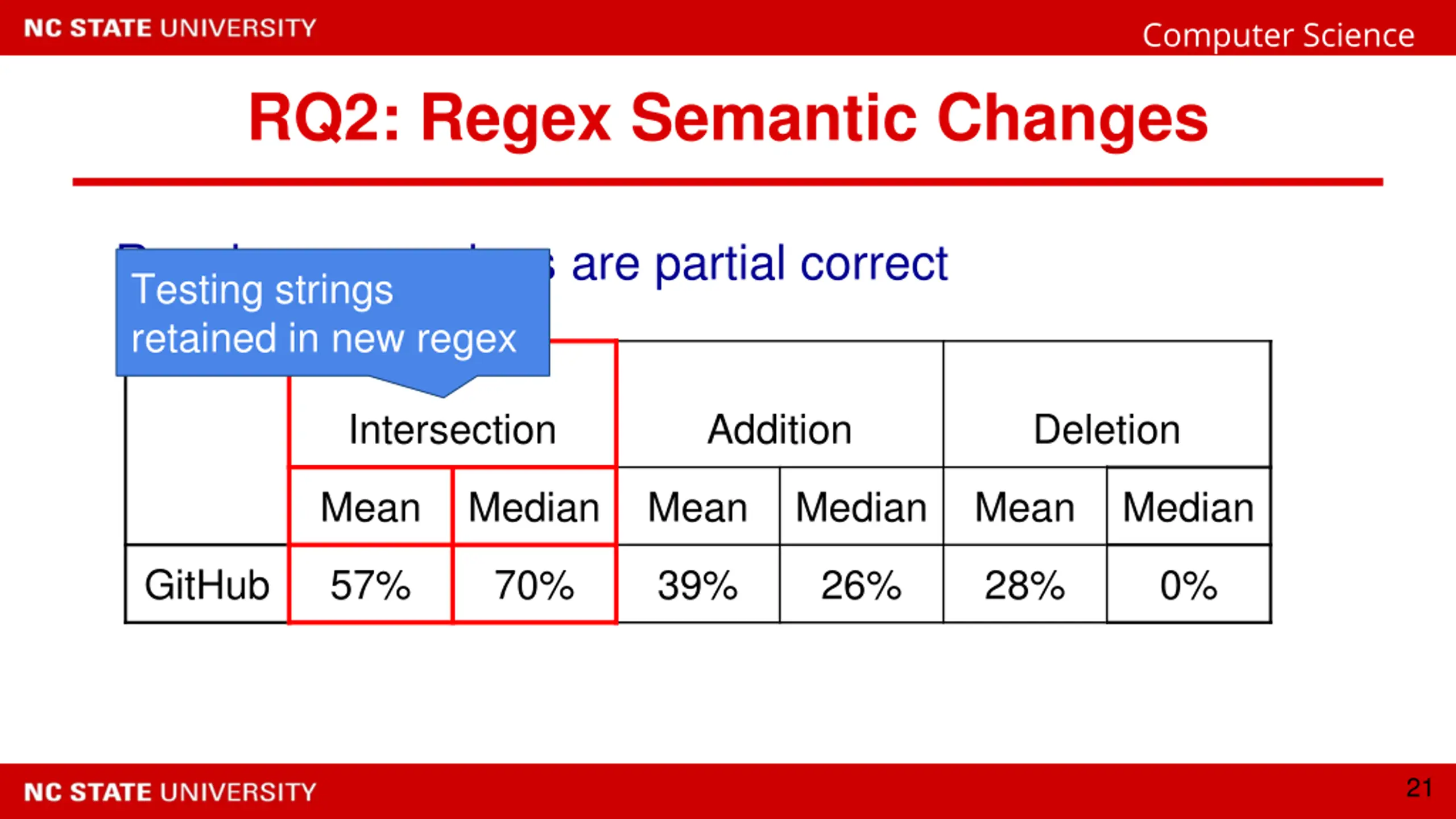

Computer Science RQ2: Regex Semantic Changes Regular expressions are partial correct Testing strings retained in new regex Intersection Addition Deletion Mean Median Mean Median Mean Median GitHub 57% 70% 39% 26% 28% 0% 21

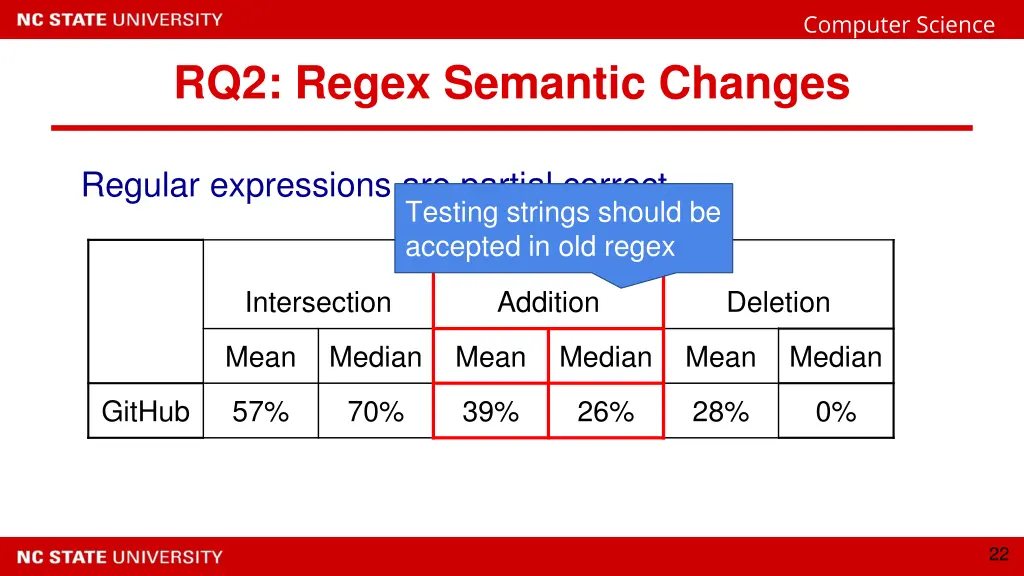

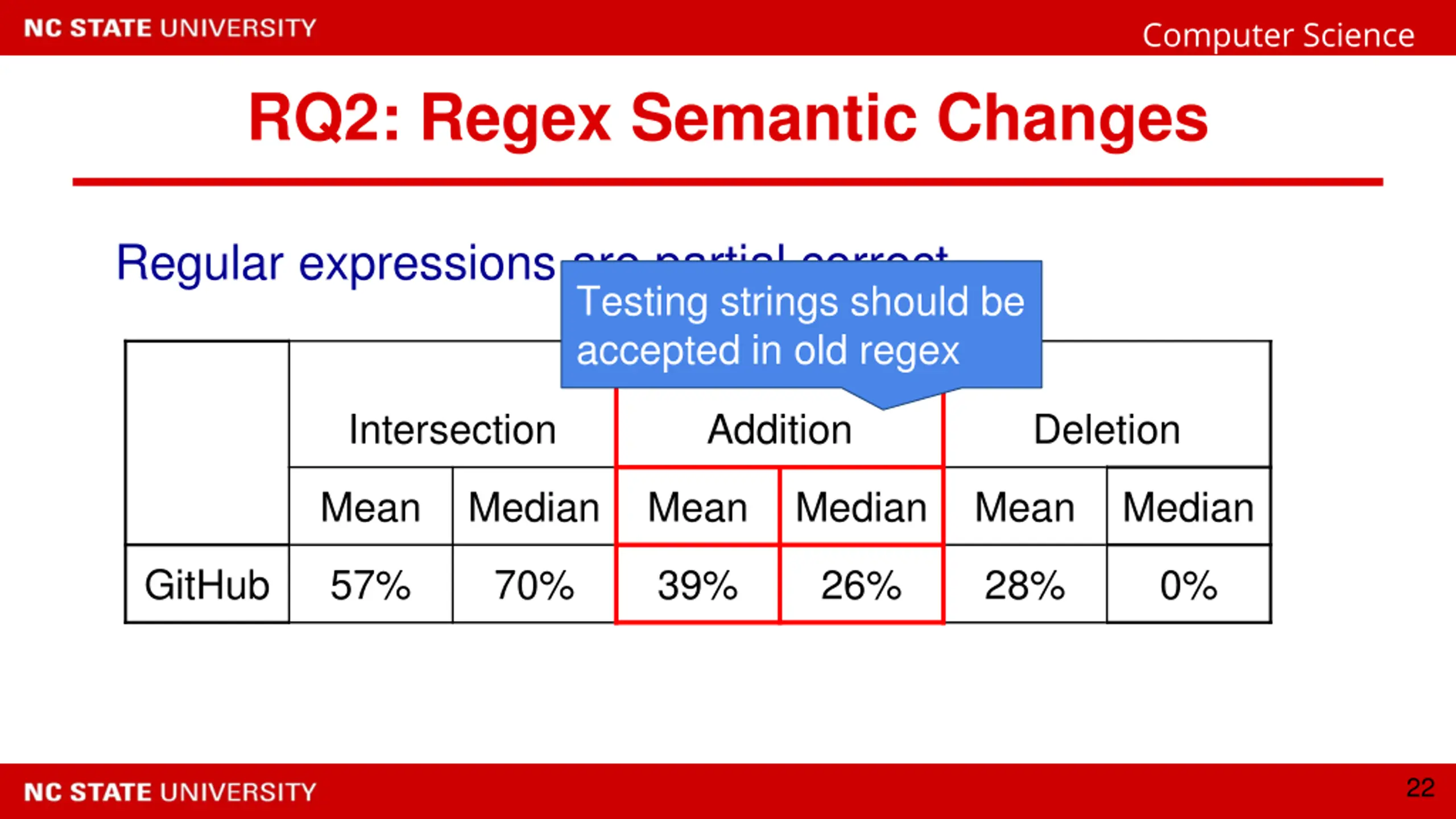

Computer Science RQ2: Regex Semantic Changes Regular expressions are partial correct Testing strings should be accepted in old regex Intersection Addition Deletion Mean Median Mean Median Mean Median GitHub 57% 70% 39% 26% 28% 0% 22

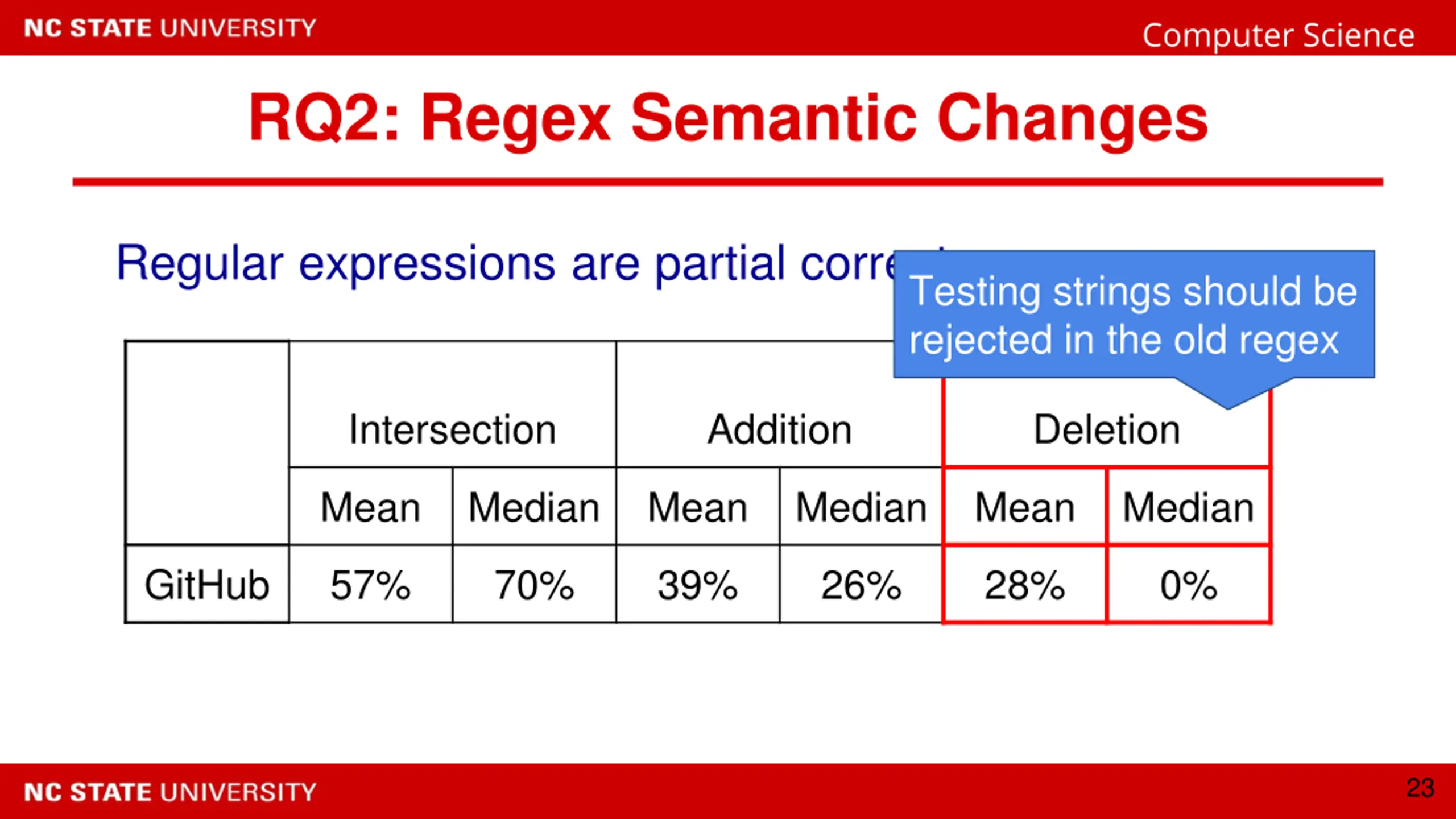

Computer Science RQ2: Regex Semantic Changes Regular expressions are partial correct Testing strings should be rejected in the old regex Intersection Addition Deletion Mean Median Mean Median Mean Median GitHub 57% 70% 39% 26% 28% 0% 23

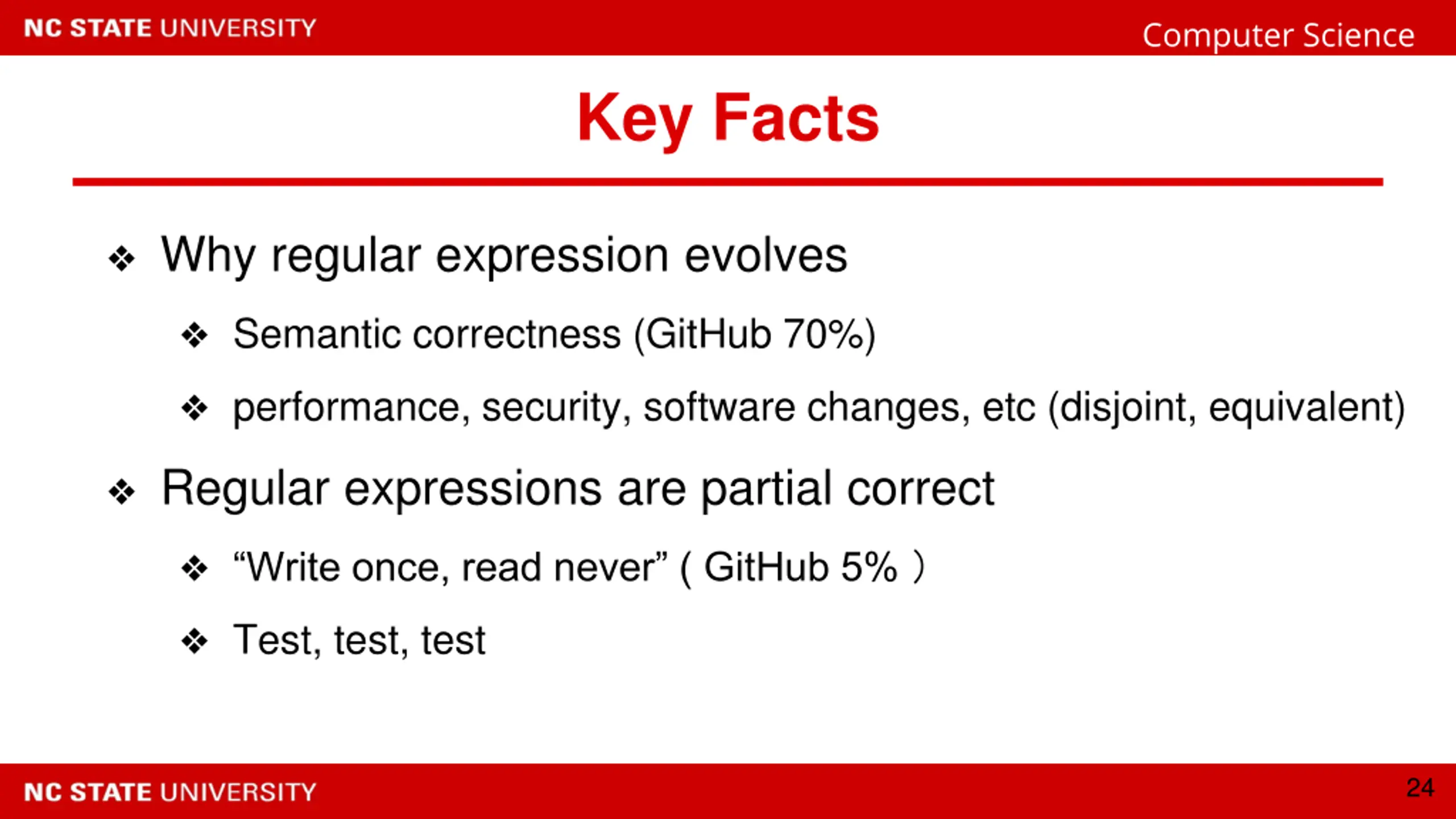

Computer Science Key Facts Why regular expression evolves Semantic correctness (GitHub 70%) performance, security, software changes, etc (disjoint, equivalent) Regular expressions are partial correct Write once, read never ( GitHub 5% Test, test, test 24
Computer Science Thanks Peipei Wang (pwang7@ncsu.edu) 25
