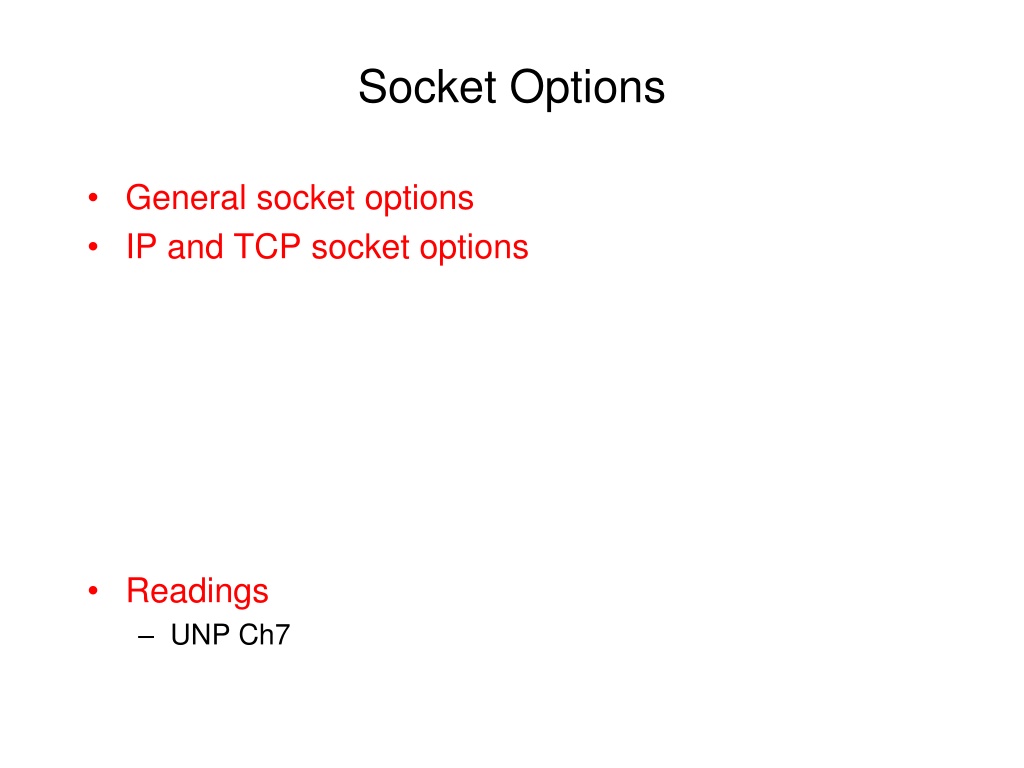

Socket Options General socket options IP and TCP socket options Readings UNP Ch7

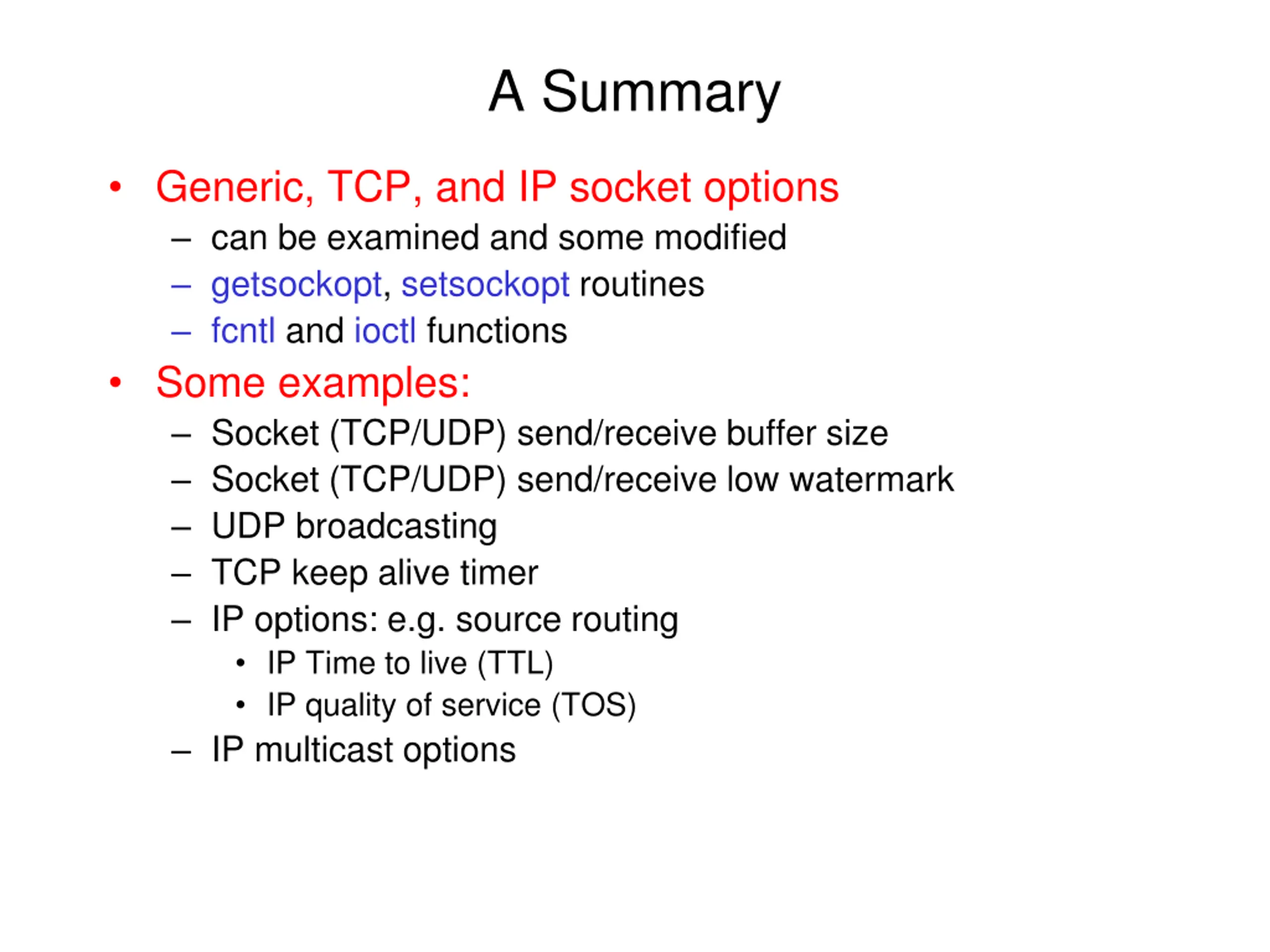

A Summary Generic, TCP, and IP socket options can be examined and some modified getsockopt, setsockopt routines fcntl and ioctl functions Some examples: Socket (TCP/UDP) send/receive buffer size Socket (TCP/UDP) send/receive low watermark UDP broadcasting TCP keep alive timer IP options: e.g. source routing IP Time to live (TTL) IP quality of service (TOS) IP multicast options

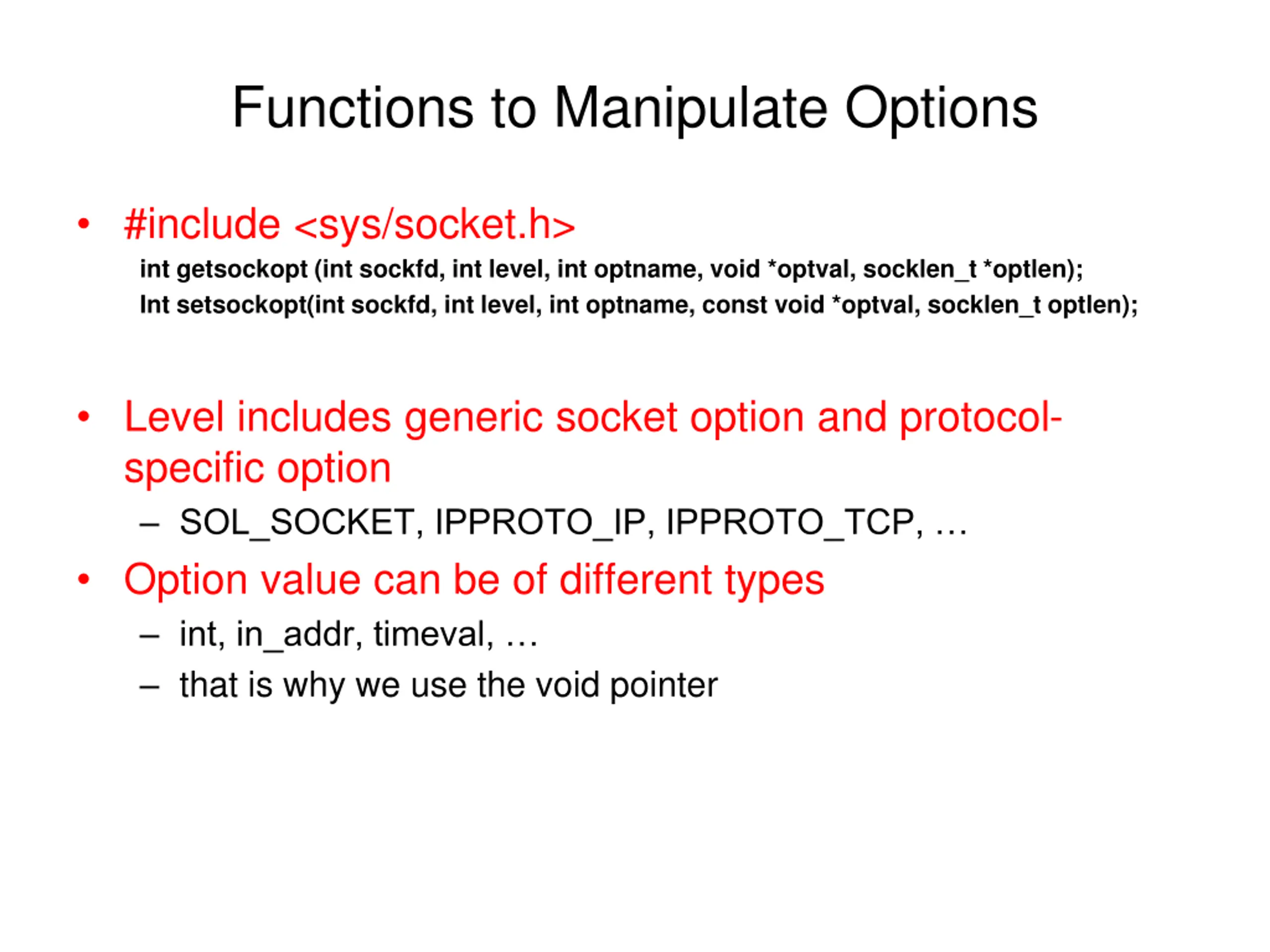

Functions to Manipulate Options #include <sys/socket.h> int getsockopt (int sockfd, int level, int optname, void *optval, socklen_t *optlen); Int setsockopt(int sockfd, int level, int optname, const void *optval, socklen_t optlen); Level includes generic socket option and protocol- specific option SOL_SOCKET, IPPROTO_IP, IPPROTO_TCP, Option value can be of different types int, in_addr, timeval, that is why we use the void pointer

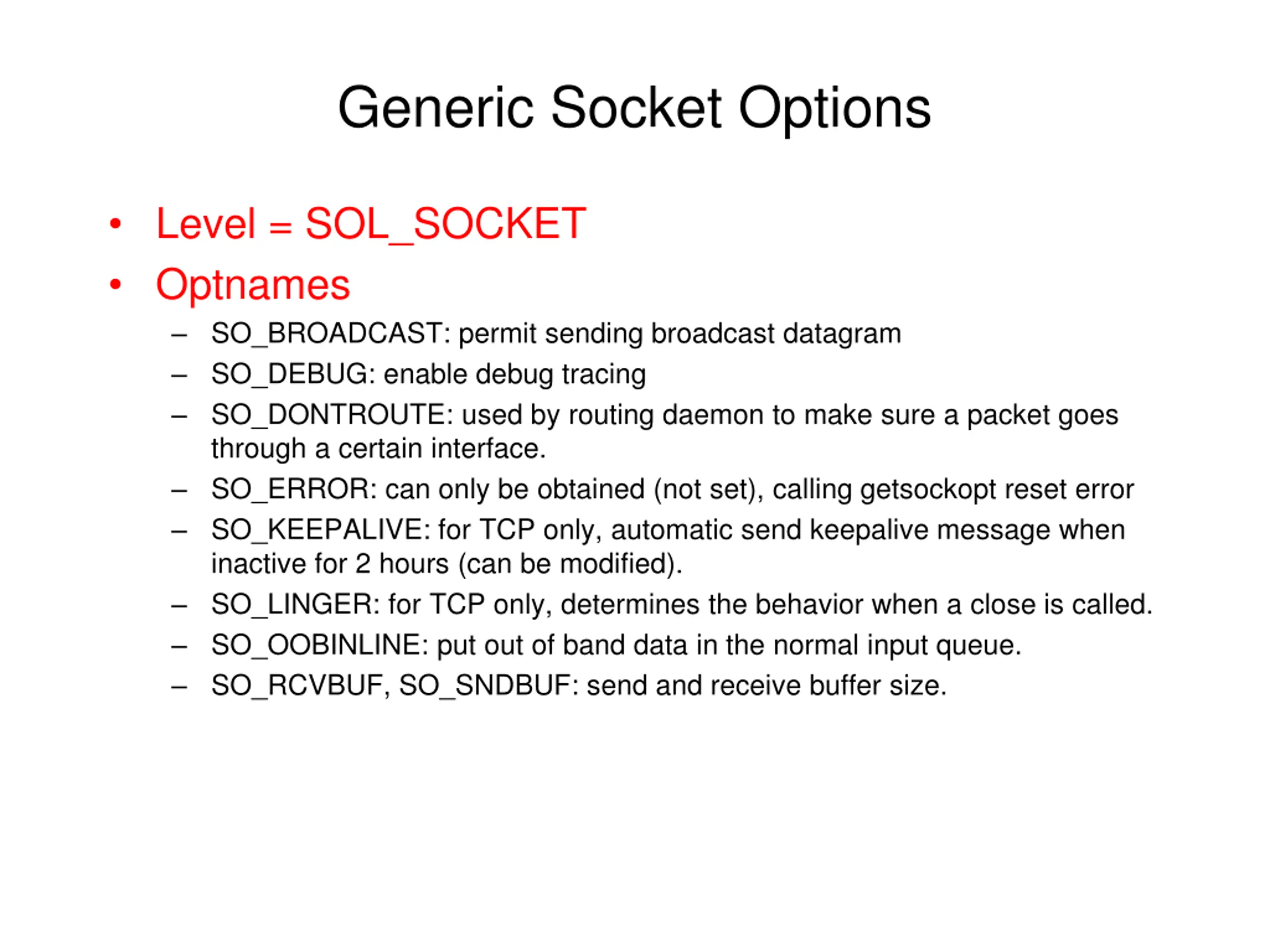

Generic Socket Options Level = SOL_SOCKET Optnames SO_BROADCAST: permit sending broadcast datagram SO_DEBUG: enable debug tracing SO_DONTROUTE: used by routing daemon to make sure a packet goes through a certain interface. SO_ERROR: can only be obtained (not set), calling getsockopt reset error SO_KEEPALIVE: for TCP only, automatic send keepalive message when inactive for 2 hours (can be modified). SO_LINGER: for TCP only, determines the behavior when a close is called. SO_OOBINLINE: put out of band data in the normal input queue. SO_RCVBUF, SO_SNDBUF: send and receive buffer size.

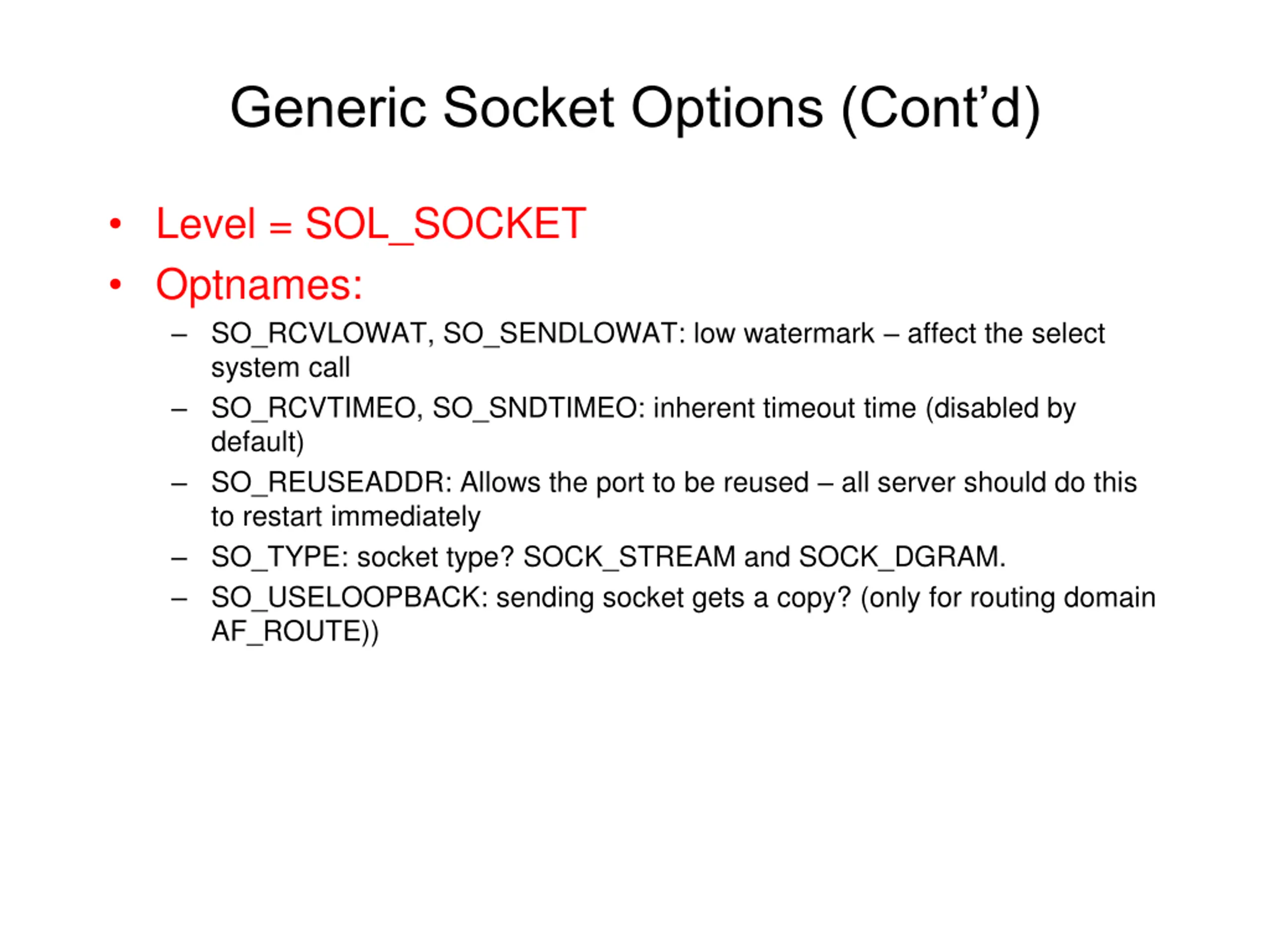

Generic Socket Options (Contd) Level = SOL_SOCKET Optnames: SO_RCVLOWAT, SO_SENDLOWAT: low watermark affect the select system call SO_RCVTIMEO, SO_SNDTIMEO: inherent timeout time (disabled by default) SO_REUSEADDR: Allows the port to be reused all server should do this to restart immediately SO_TYPE: socket type? SOCK_STREAM and SOCK_DGRAM. SO_USELOOPBACK: sending socket gets a copy? (only for routing domain AF_ROUTE))

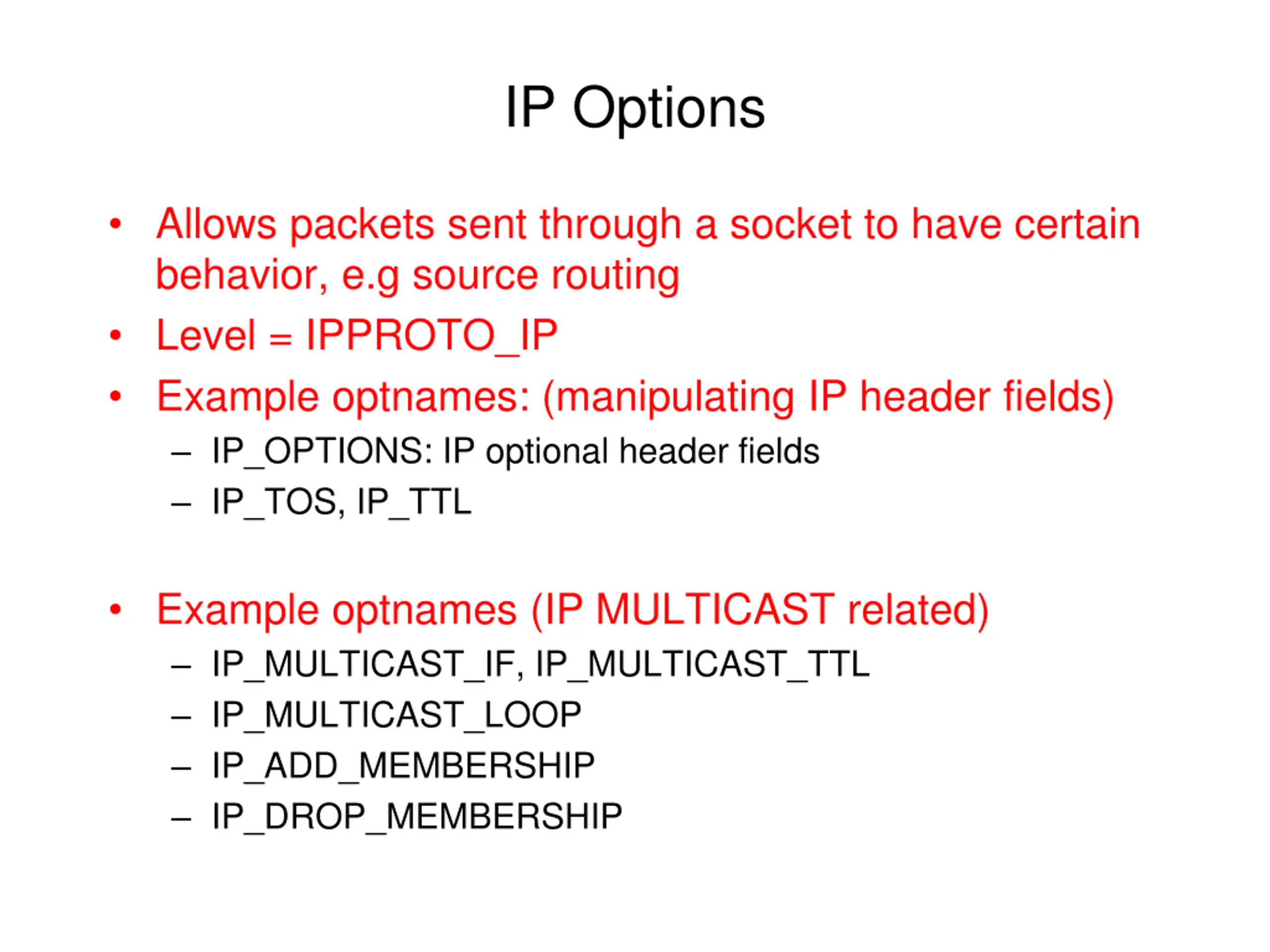

IP Options Allows packets sent through a socket to have certain behavior, e.g source routing Level = IPPROTO_IP Example optnames: (manipulating IP header fields) IP_OPTIONS: IP optional header fields IP_TOS, IP_TTL Example optnames (IP MULTICAST related) IP_MULTICAST_IF, IP_MULTICAST_TTL IP_MULTICAST_LOOP IP_ADD_MEMBERSHIP IP_DROP_MEMBERSHIP

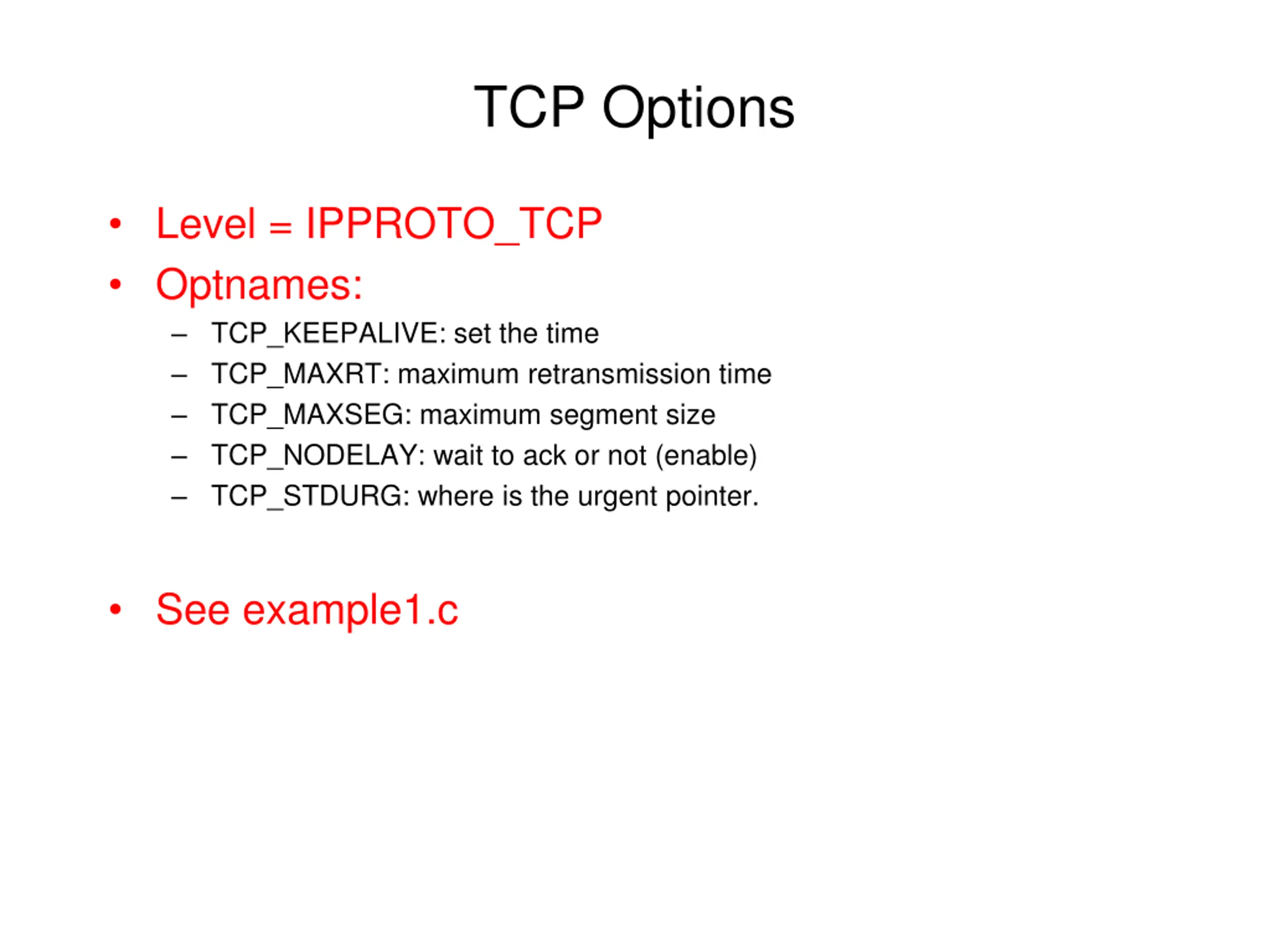

TCP Options Level = IPPROTO_TCP Optnames: TCP_KEEPALIVE: set the time TCP_MAXRT: maximum retransmission time TCP_MAXSEG: maximum segment size TCP_NODELAY: wait to ack or not (enable) TCP_STDURG: where is the urgent pointer. See example1.c
