Presentation Transcript

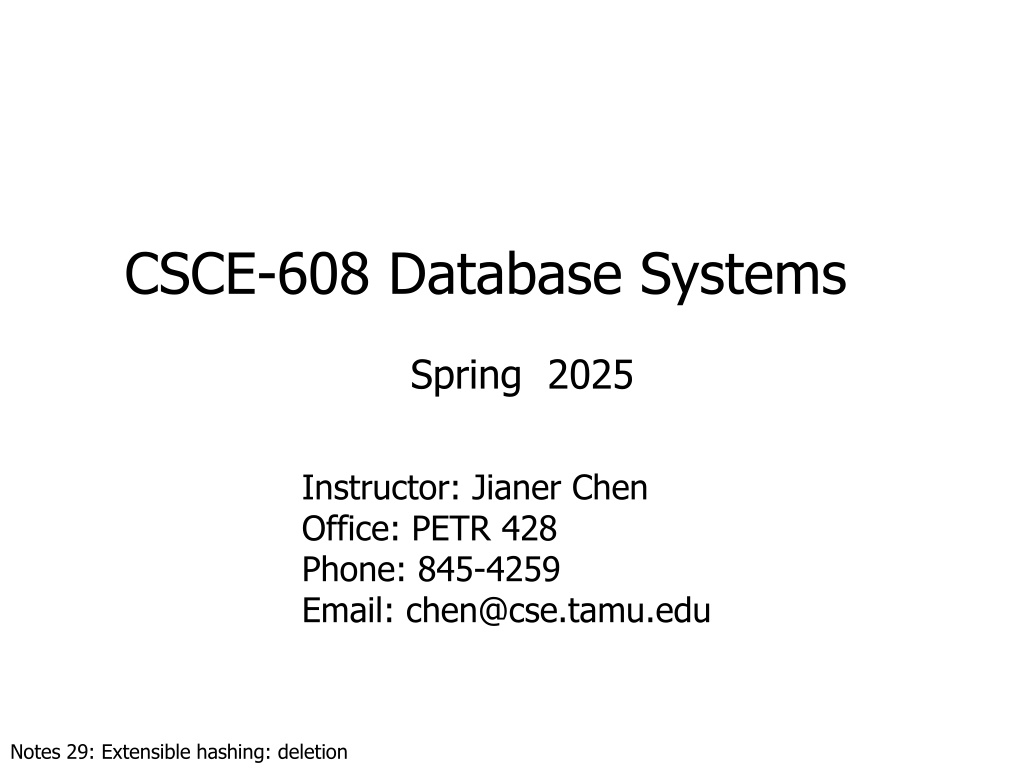

  1. CSCE-608 Database Systems Spring 2025 Instructor: Jianer Chen Office: PETR 428 Phone: 845-4259 Email: chen@cse.tamu.edu Notes 29: Extensible hashing: deletion

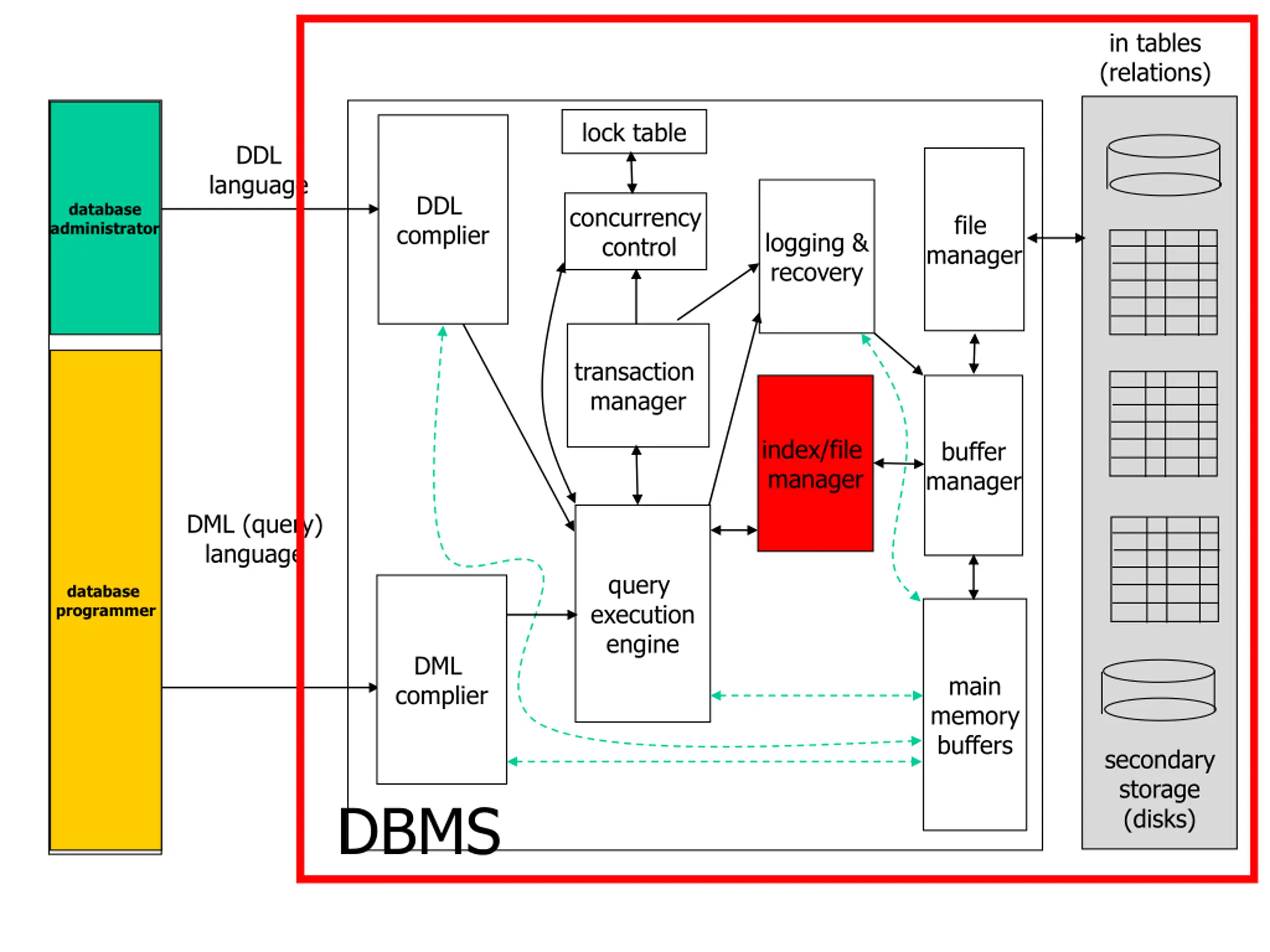

  2. in tables (relations) lock table DDL language DDL complier database administrator concurrency control file logging & recovery manager transaction manager index/file manager buffer manager DML (query) language query execution engine database programmer DML complier main memory buffers secondary storage (disks) DBMS

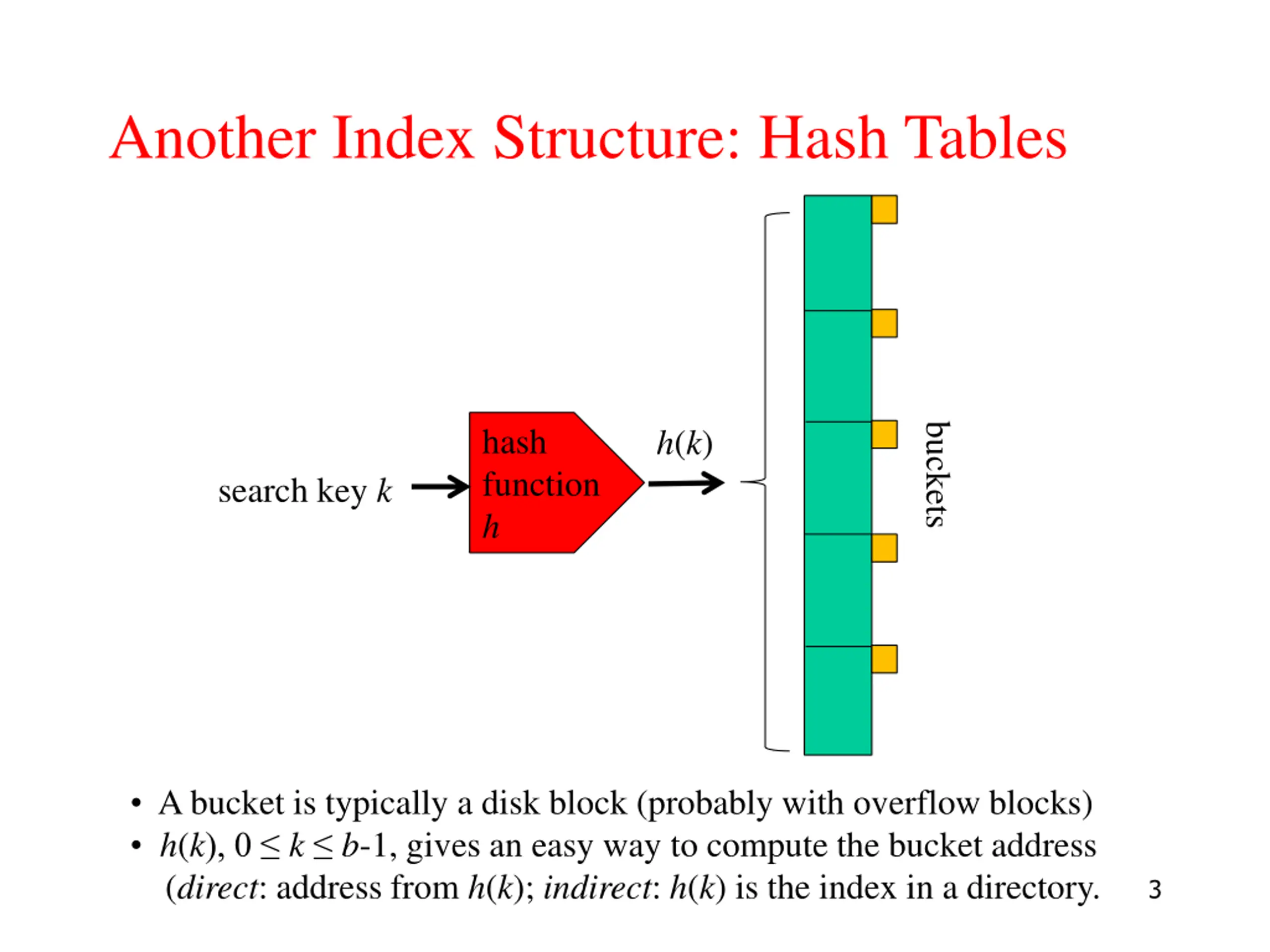

  3. Another Index Structure: Hash Tables buckets hash function h h(k) search key k A bucket is typically a disk block (probably with overflow blocks) h(k), 0 k b-1, gives an easy way to compute the bucket address (direct: address from h(k); indirect: h(k) is the index in a directory. 3

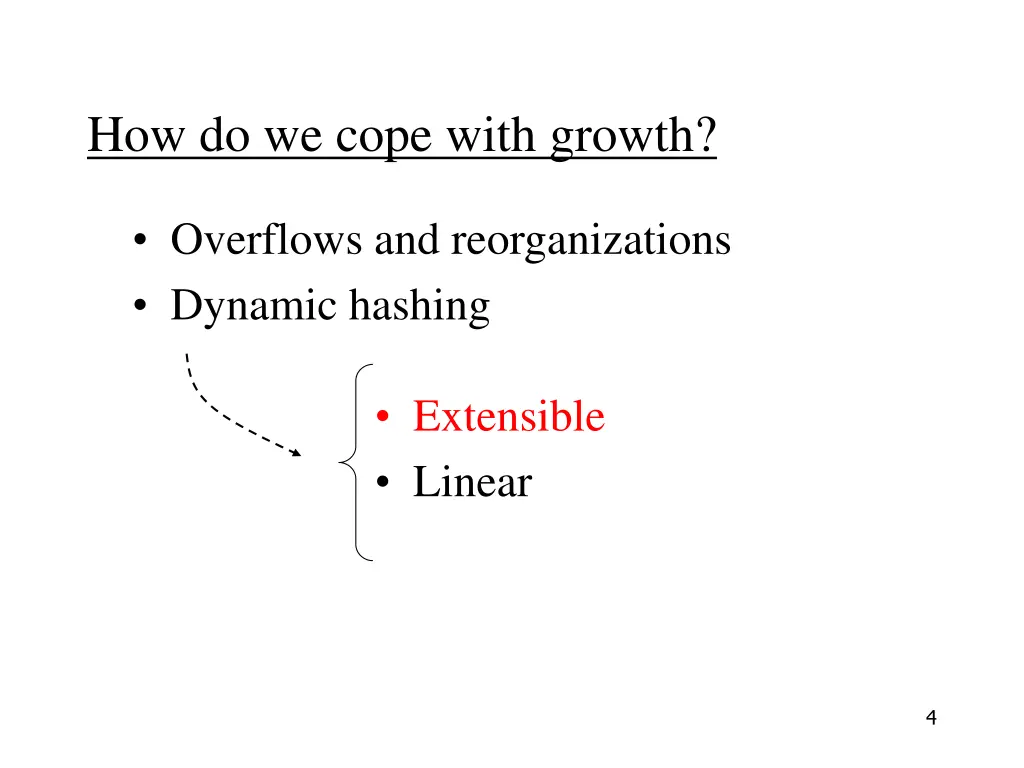

  4. How do we cope with growth? Overflows and reorganizations Dynamic hashing Extensible Linear 4

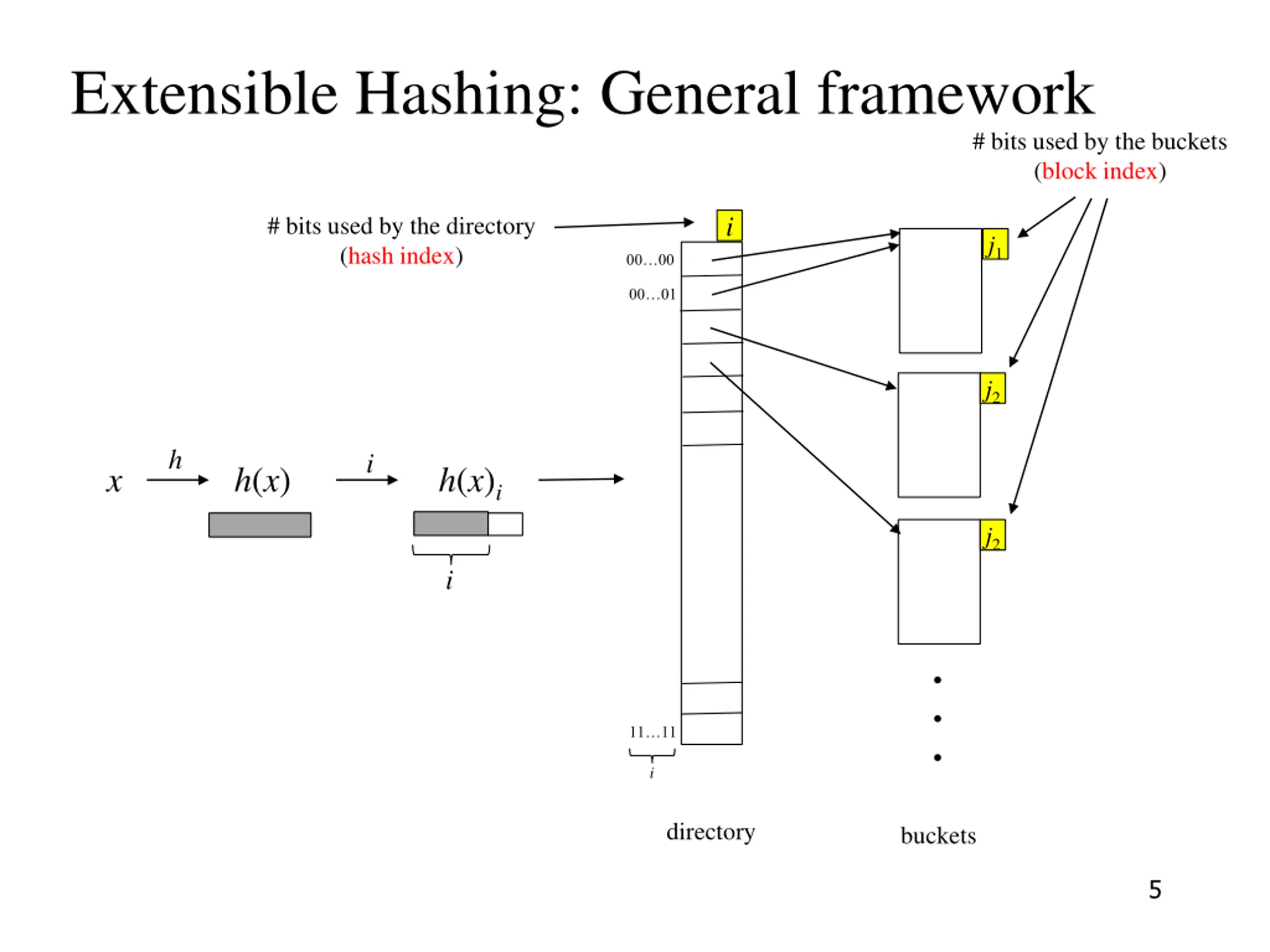

  5. Extensible Hashing: General framework # bits used by the buckets (block index) i # bits used by the directory (hash index) j1 00 00 00 01 j2 h i h(x) h(x)i x j2 i ... 11 11 i directory buckets 5

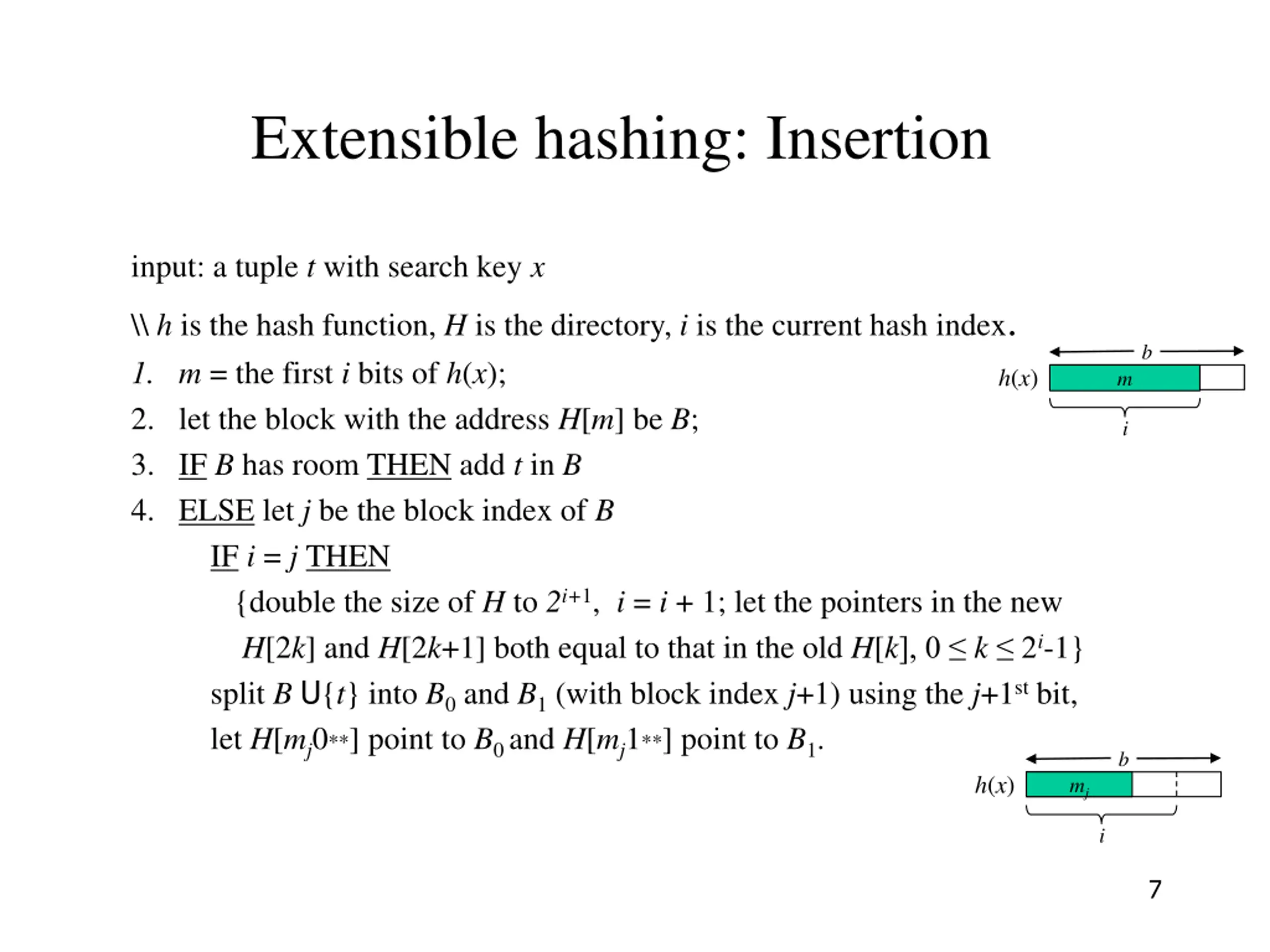

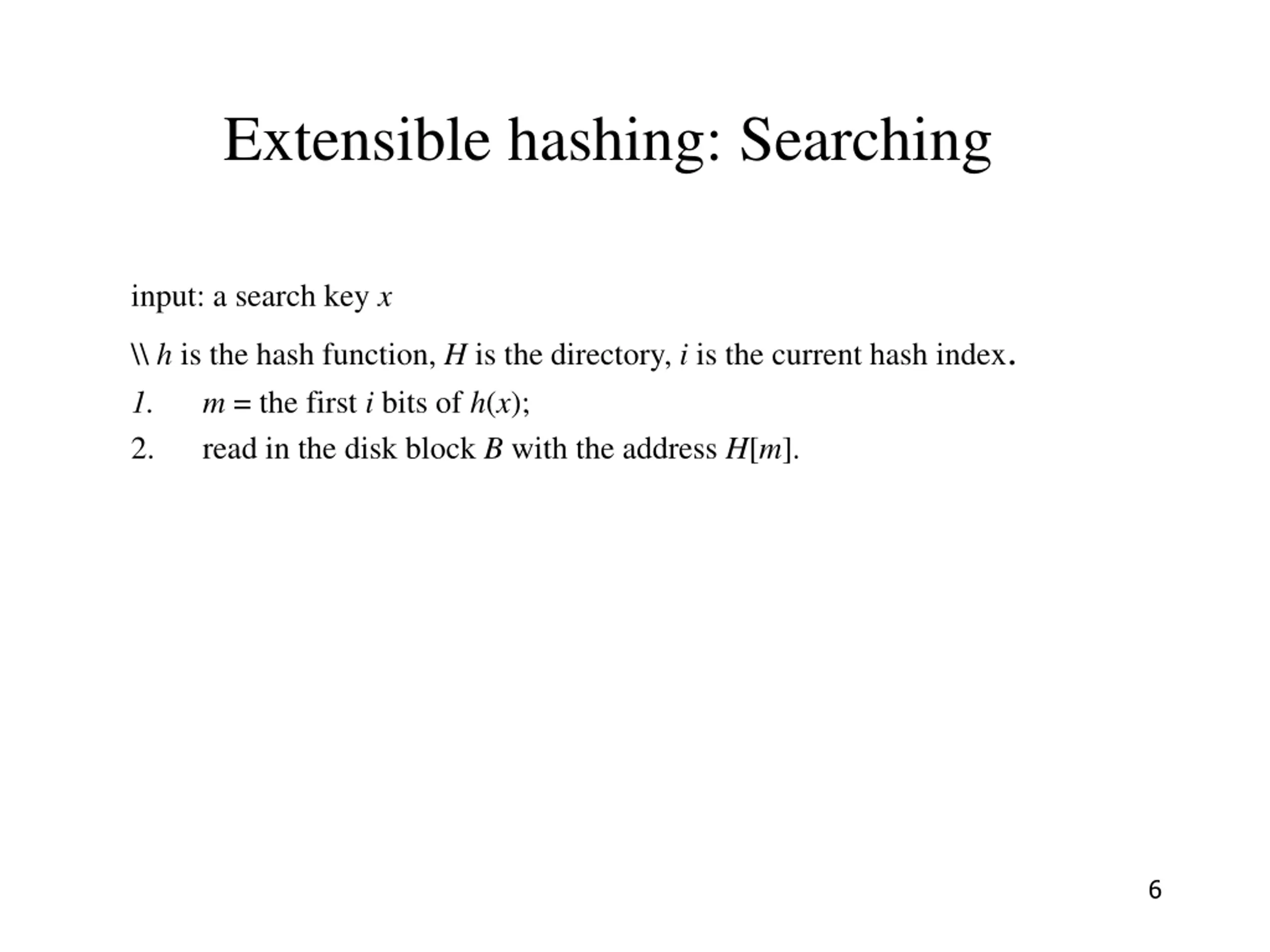

  6. Extensible hashing: Searching input: a search key x \\ h is the hash function, H is the directory, i is the current hash index. 1. m = the first i bits of h(x); 2. read in the disk block B with the address H[m]. 6

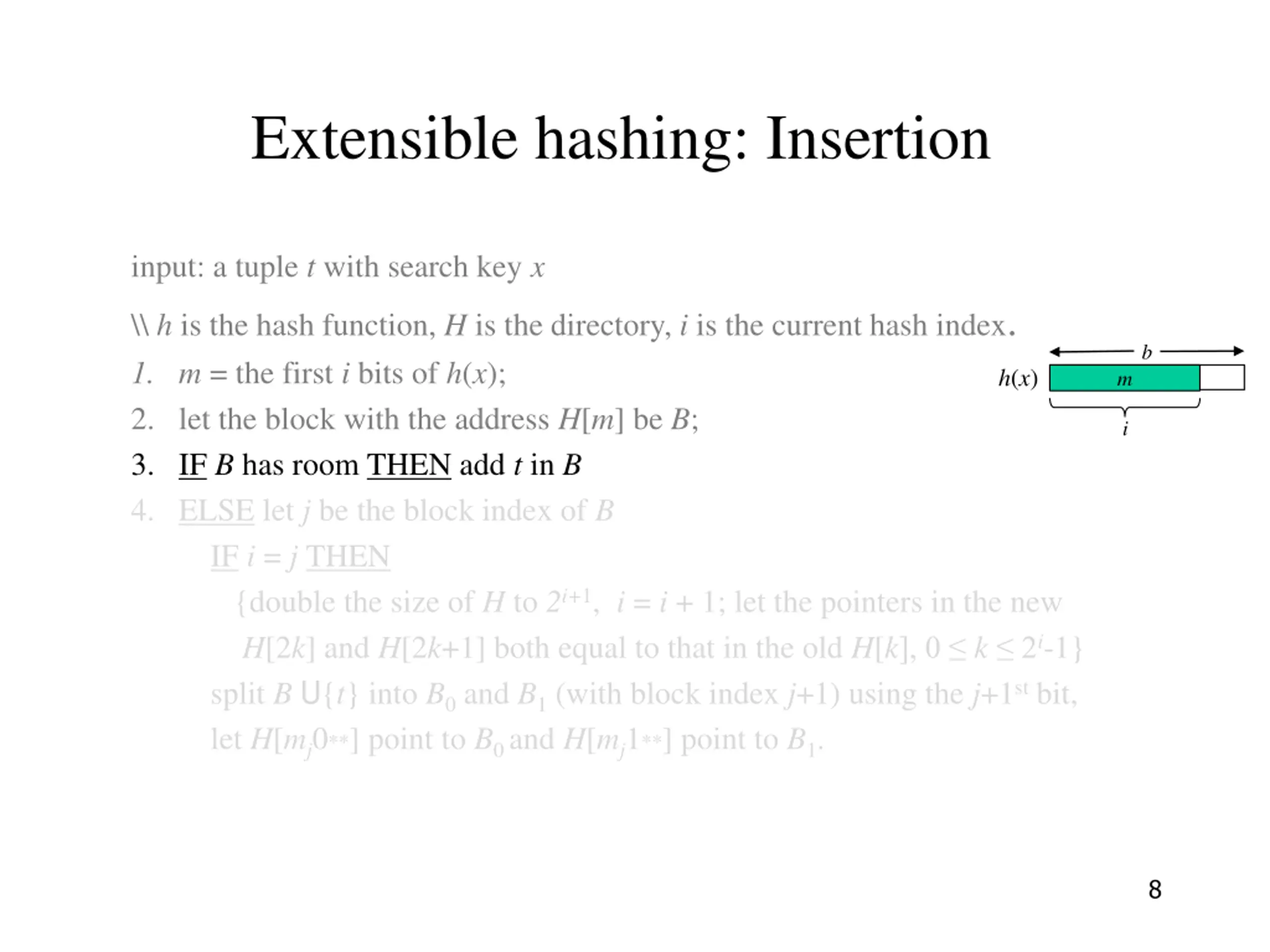

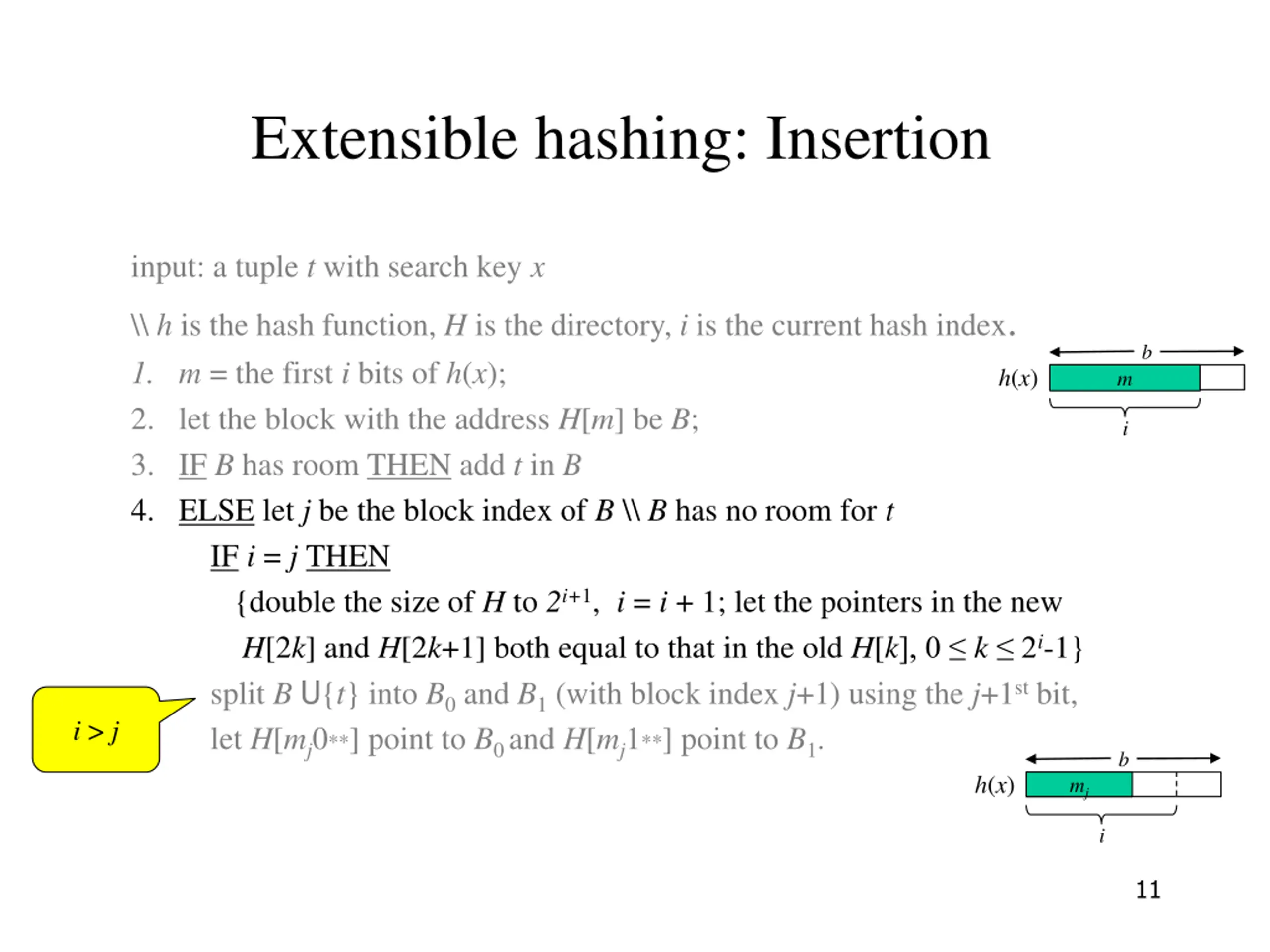

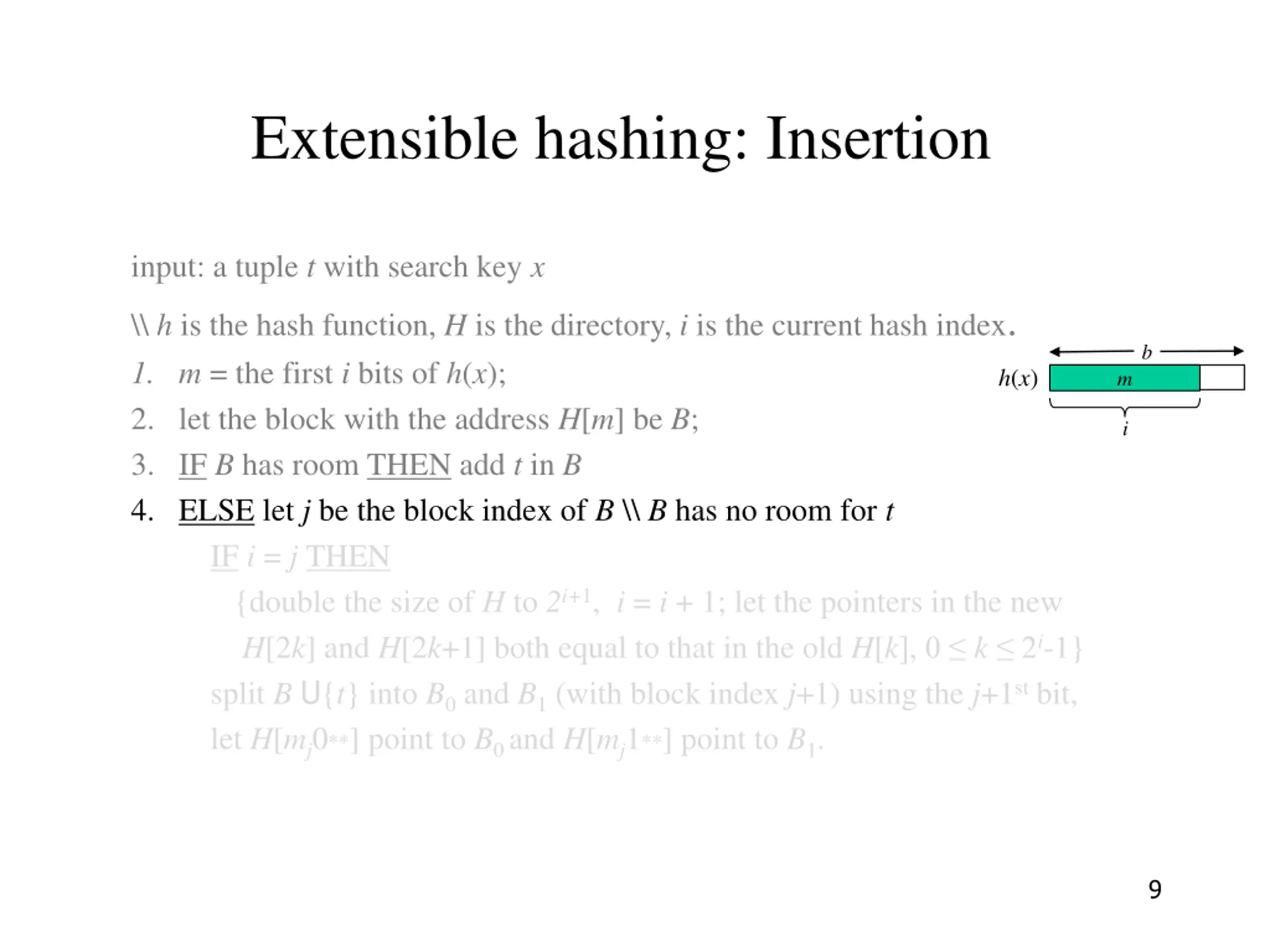

  7. Extensible hashing: Insertion input: a tuple t with search key x \\ h is the hash function, H is the directory, i is the current hash index. 1. m = the first i bits of h(x); 2. let the block with the address H[m] be B; 3. IF B has room THEN add t in B 4. ELSE let j be the block index of B IF i = j THEN {double the size of H to 2i+1, i = i + 1; let the pointers in the new H[2k]and H[2k+1] both equal to that in the old H[k], 0 k 2i-1} split B U{t} into B0 and B1 (with block index j+1) using the j+1st bit, let H[mj0**] point to B0 and H[mj1**] point to B1. b h(x) m i b h(x) mj i 7

  8. Extensible hashing: Insertion input: a tuple t with search key x \\ h is the hash function, H is the directory, i is the current hash index. 1. m = the first i bits of h(x); 2. let the block with the address H[m] be B; 3. IF B has room THEN add t in B 4. ELSE let j be the block index of B IF i = j THEN {double the size of H to 2i+1, i = i + 1; let the pointers in the new H[2k]and H[2k+1] both equal to that in the old H[k], 0 k 2i-1} split B U{t} into B0 and B1 (with block index j+1) using the j+1st bit, let H[mj0**] point to B0 and H[mj1**] point to B1. b h(x) m i 8

  9. Extensible hashing: Insertion input: a tuple t with search key x \\ h is the hash function, H is the directory, i is the current hash index. 1. m = the first i bits of h(x); 2. let the block with the address H[m] be B; 3. IF B has room THEN add t in B 4. ELSE let j be the block index of B \\ B has no room for t IF i = j THEN {double the size of H to 2i+1, i = i + 1; let the pointers in the new H[2k]and H[2k+1] both equal to that in the old H[k], 0 k 2i-1} split B U{t} into B0 and B1 (with block index j+1) using the j+1st bit, let H[mj0**] point to B0 and H[mj1**] point to B1. b h(x) m i 9

  10. Extensible hashing: Insertion input: a tuple t with search key x \\ h is the hash function, H is the directory, i is the current hash index. 1. m = the first i bits of h(x); 2. let the block with the address H[m] be B; 3. IF B has room THEN add t in B 4. ELSE let j be the block index of B \\ B has no room for t IF i = j THEN {double the size of H to 2i+1, i = i + 1; let the pointers in the new H[2k]and H[2k+1] both equal to that in the old H[k], 0 k 2i-1} split B U{t} into B0 and B1 (with block index j+1) using the j+1st bit, let H[mj0**] point to B0 and H[mj1**] point to B1. b h(x) m i i > j b h(x) mj i 10

  11. Extensible hashing: Insertion input: a tuple t with search key x \\ h is the hash function, H is the directory, i is the current hash index. 1. m = the first i bits of h(x); 2. let the block with the address H[m] be B; 3. IF B has room THEN add t in B 4. ELSE let j be the block index of B \\ B has no room for t IF i = j THEN {double the size of H to 2i+1, i = i + 1; let the pointers in the new H[2k]and H[2k+1] both equal to that in the old H[k], 0 k 2i-1} split B U{t} into B0 and B1 (with block index j+1) using the j+1st bit, let H[mj0**] point to B0 and H[mj1**] point to B1. b h(x) m i i > j b h(x) mj i 11

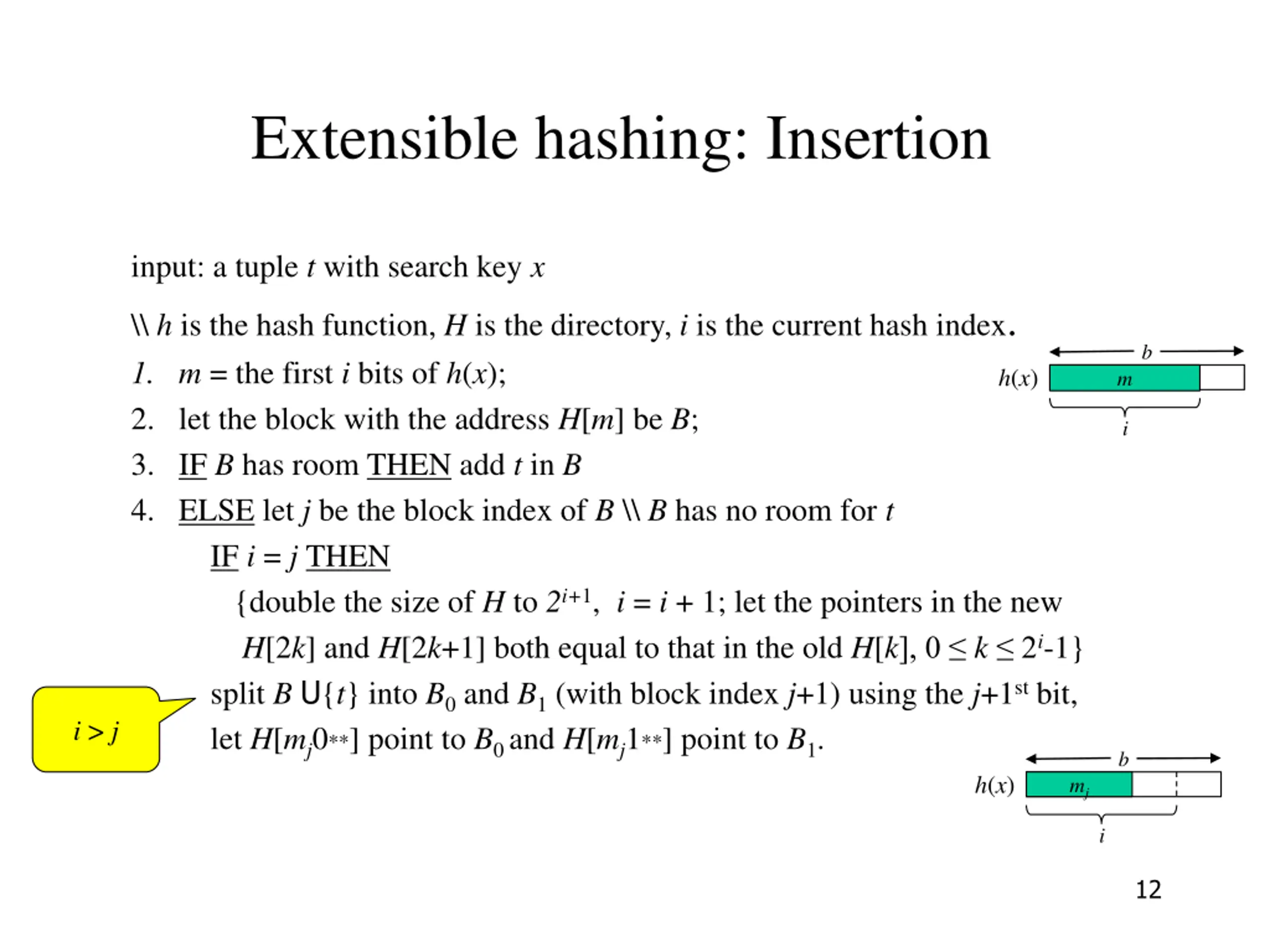

  12. Extensible hashing: Insertion input: a tuple t with search key x \\ h is the hash function, H is the directory, i is the current hash index. 1. m = the first i bits of h(x); 2. let the block with the address H[m] be B; 3. IF B has room THEN add t in B 4. ELSE let j be the block index of B \\ B has no room for t IF i = j THEN {double the size of H to 2i+1, i = i + 1; let the pointers in the new H[2k]and H[2k+1] both equal to that in the old H[k], 0 k 2i-1} split B U{t} into B0 and B1 (with block index j+1) using the j+1st bit, let H[mj0**] point to B0 and H[mj1**] point to B1. b h(x) m i i > j b h(x) mj i 12

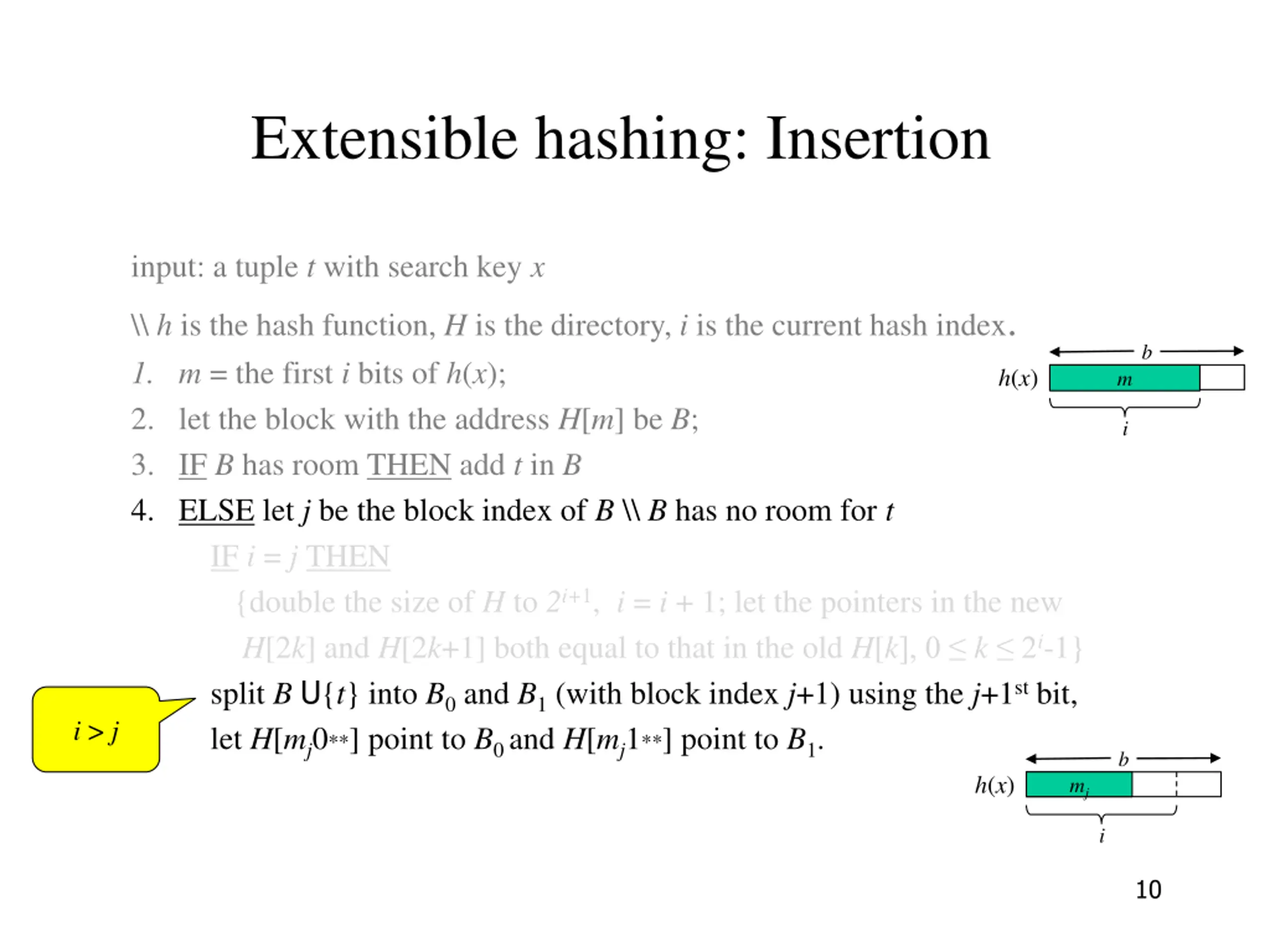

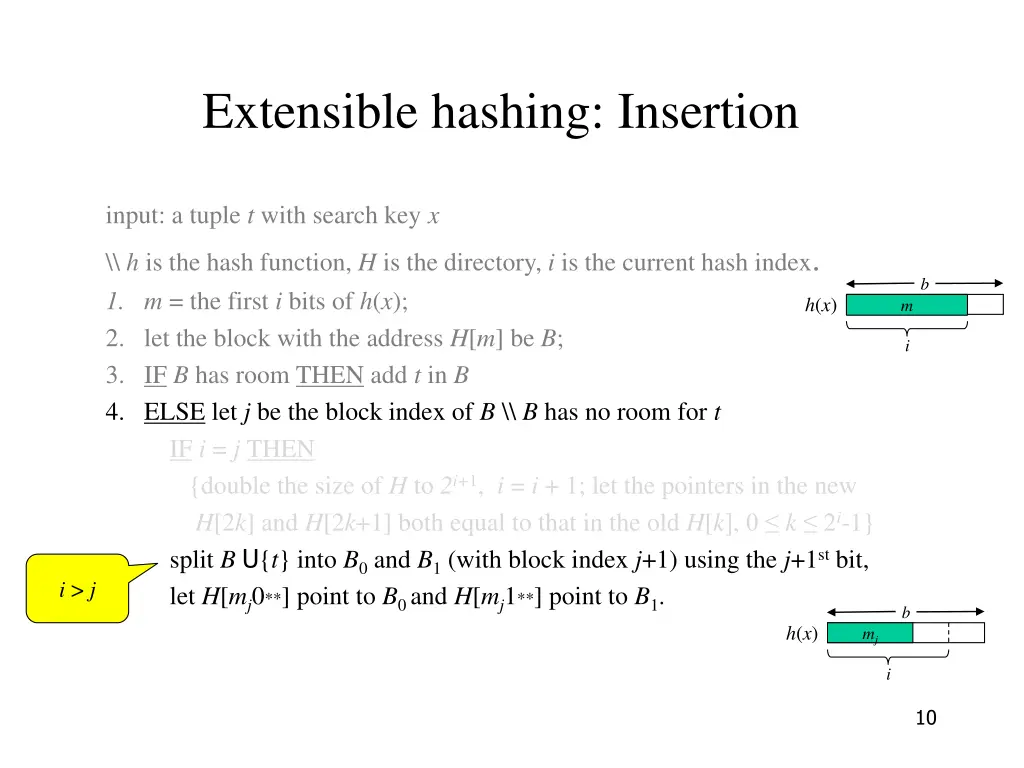

  13. Insertion in Extensible Hashing 13

  14. h(a) = 1000 Insertion in Extensible Hashing h(b) = 0001 h(c) = 1001 h(d) = 0111 h(e) = 0000 h(g) = 1010 1 b0001 h(k) = 1100 i =1 0 Insert: 1 1 c1001 k1100 14

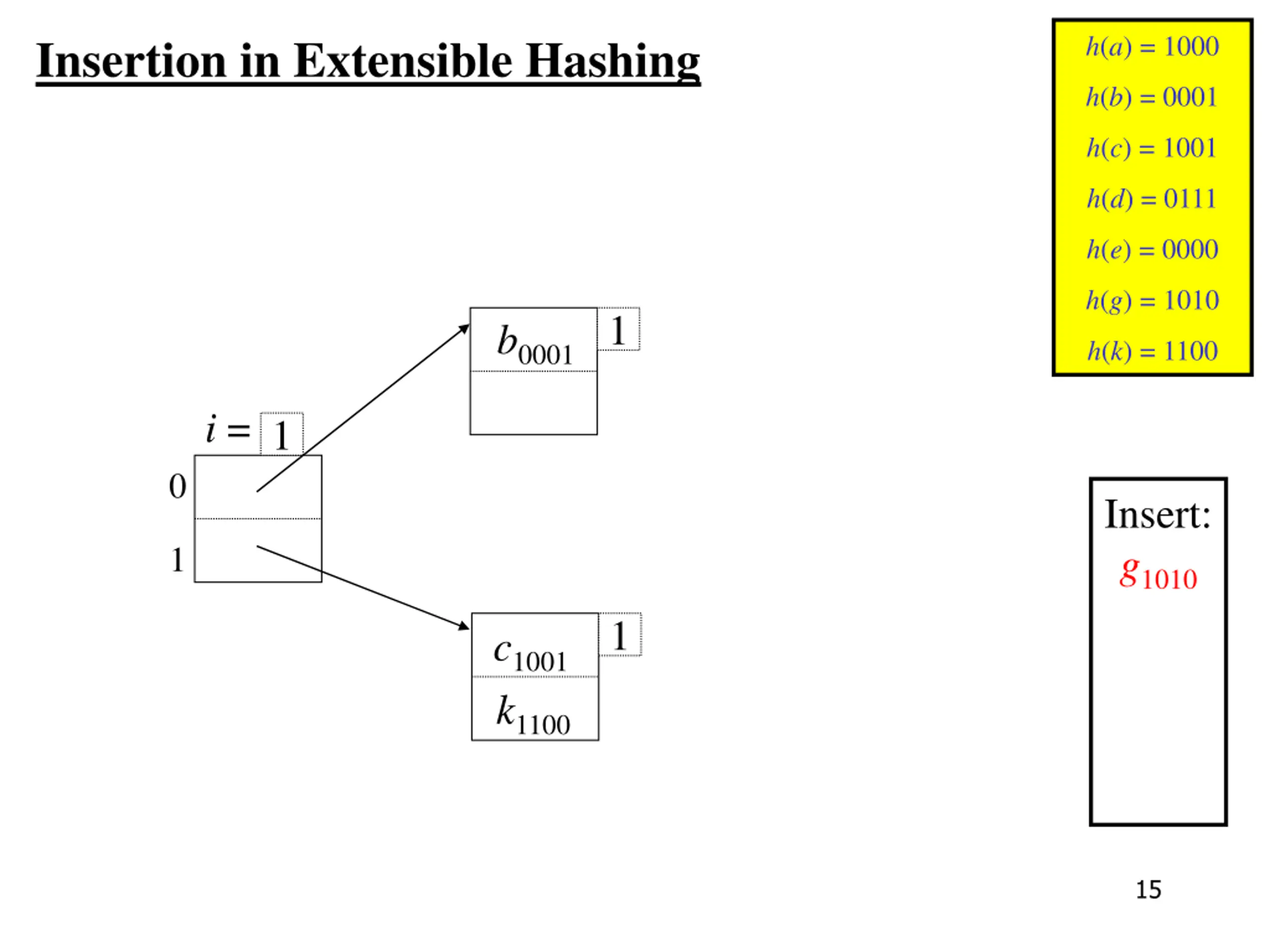

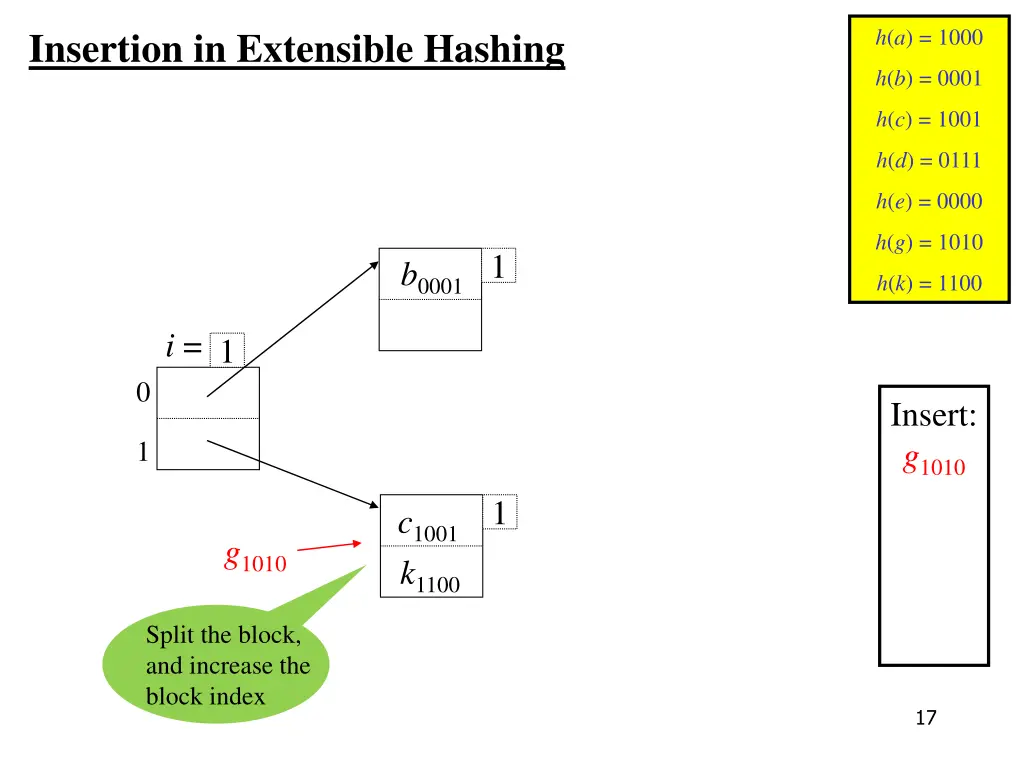

  15. h(a) = 1000 Insertion in Extensible Hashing h(b) = 0001 h(c) = 1001 h(d) = 0111 h(e) = 0000 h(g) = 1010 1 b0001 h(k) = 1100 i =1 0 Insert: g1010 1 1 c1001 k1100 15

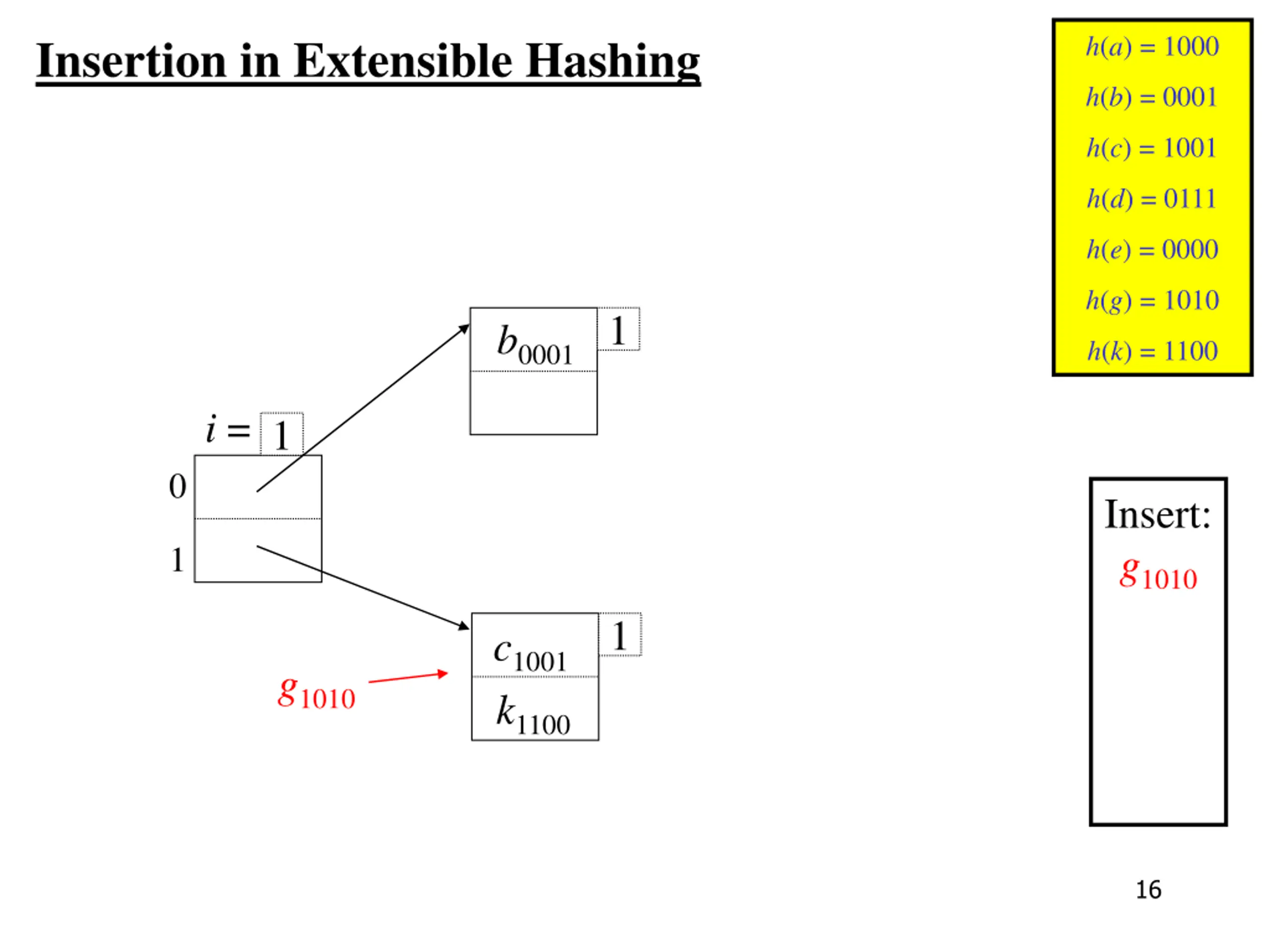

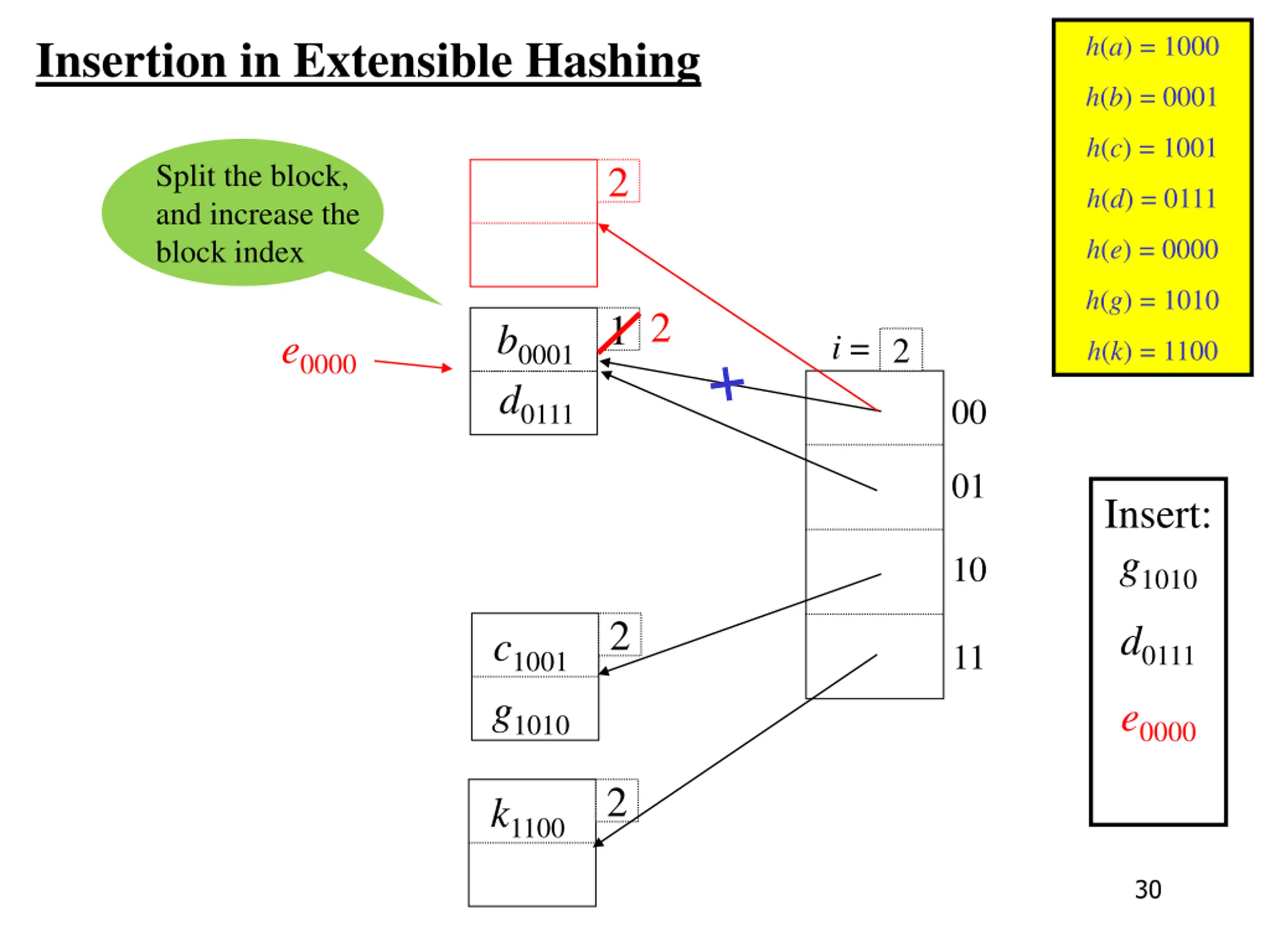

  16. h(a) = 1000 Insertion in Extensible Hashing h(b) = 0001 h(c) = 1001 h(d) = 0111 h(e) = 0000 h(g) = 1010 1 b0001 h(k) = 1100 i =1 0 Insert: g1010 1 1 c1001 k1100 g1010 16

  17. h(a) = 1000 Insertion in Extensible Hashing h(b) = 0001 h(c) = 1001 h(d) = 0111 h(e) = 0000 h(g) = 1010 1 b0001 h(k) = 1100 i =1 0 Insert: g1010 1 1 c1001 k1100 g1010 Split the block, and increase the block index 17

  18. h(a) = 1000 Insertion in Extensible Hashing h(b) = 0001 h(c) = 1001 h(d) = 0111 h(e) = 0000 h(g) = 1010 1 b0001 i = 2 h(k) = 1100 00 i =1 0 01 Insert: g1010 1 10 1 c1001 k1100 11 g1010 Split the block, and increase the block index if the block index is equal to the hash index, first double the directory size 18

  19. h(a) = 1000 Insertion in Extensible Hashing h(b) = 0001 h(c) = 1001 h(d) = 0111 h(e) = 0000 h(g) = 1010 1 b0001 i = 2 h(k) = 1100 00 i =1 0 01 Insert: g1010 1 10 2 1 c1001 k1100 11 g1010 Split the block, and increase the block index 2 if the block index is equal to the hash index, first double the directory size 19

  20. h(a) = 1000 Insertion in Extensible Hashing h(b) = 0001 h(c) = 1001 h(d) = 0111 h(e) = 0000 h(g) = 1010 1 b0001 i = 2 h(k) = 1100 00 i =1 0 01 Insert: g1010 1 10 2 1 c1001 k1100 11 g1010 Split the block, and increase the block index 2 if the block index is equal to the hash index, first double the directory size 20

  21. h(a) = 1000 Insertion in Extensible Hashing h(b) = 0001 h(c) = 1001 h(d) = 0111 h(e) = 0000 h(g) = 1010 1 b0001 i = 2 h(k) = 1100 00 i =1 0 01 Insert: g1010 1 10 2 1 c1001 k1100 11 g1010 Split the block, and increase the block index 2 if the block index is equal to the hash index, first double the directory size 21

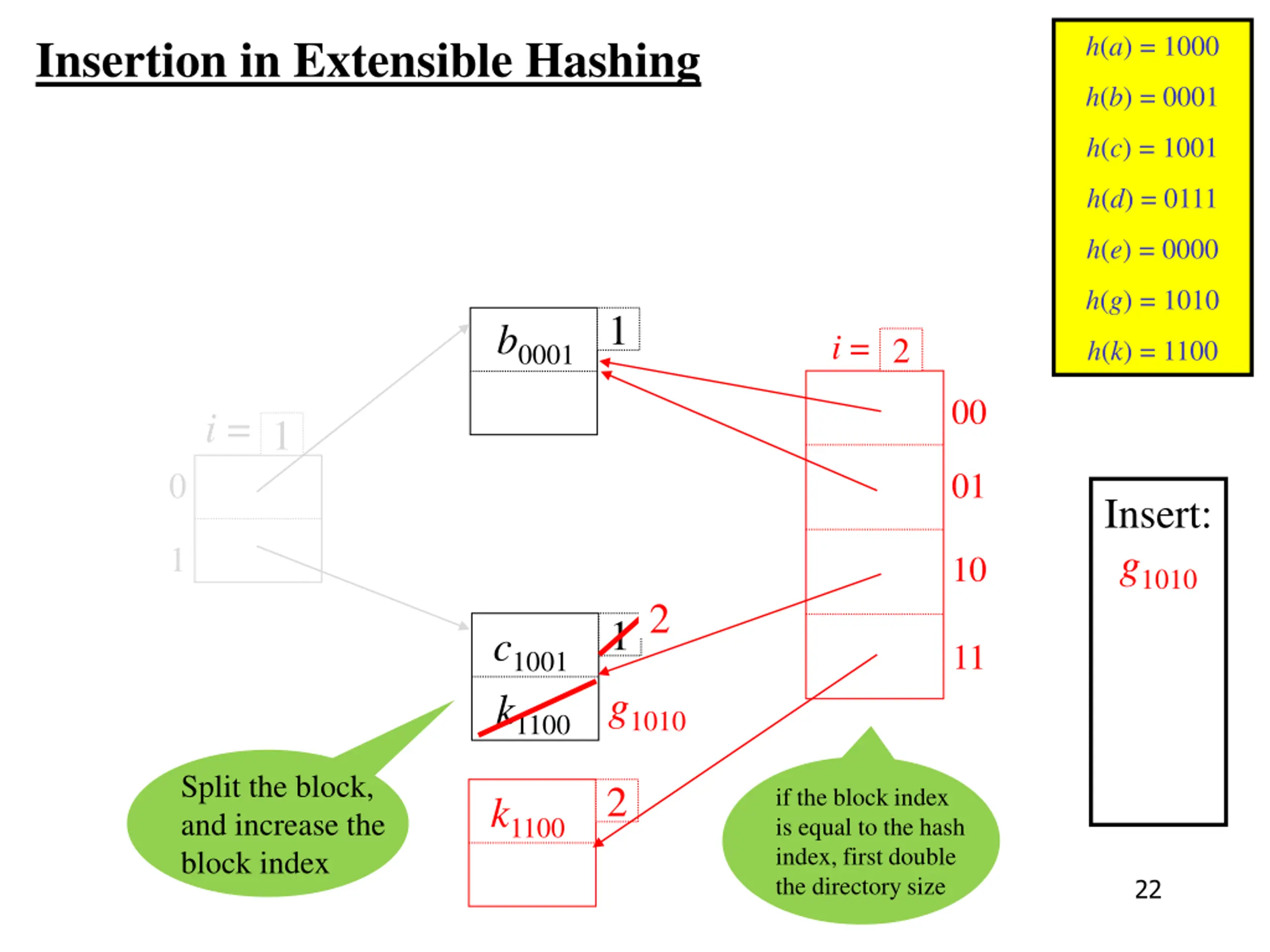

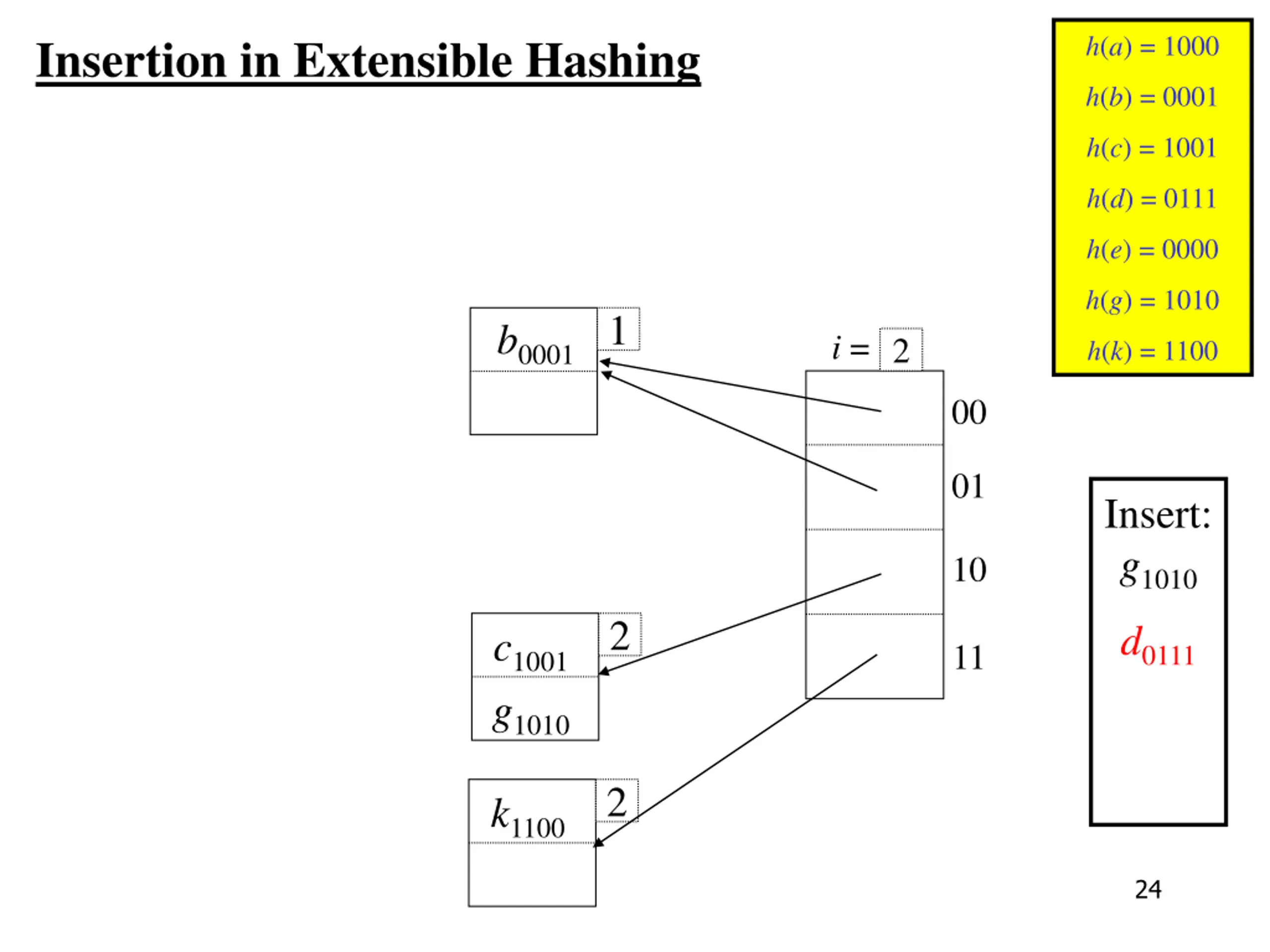

  22. h(a) = 1000 Insertion in Extensible Hashing h(b) = 0001 h(c) = 1001 h(d) = 0111 h(e) = 0000 h(g) = 1010 1 b0001 i = 2 h(k) = 1100 00 i =1 0 01 Insert: g1010 1 10 2 1 c1001 k1100 11 g1010 Split the block, and increase the block index 2 if the block index is equal to the hash index, first double the directory size k1100 22

  23. h(a) = 1000 Insertion in Extensible Hashing h(b) = 0001 h(c) = 1001 h(d) = 0111 h(e) = 0000 h(g) = 1010 1 b0001 i = 2 h(k) = 1100 00 01 Insert: g1010 10 2 c1001 g1010 11 2 k1100 23

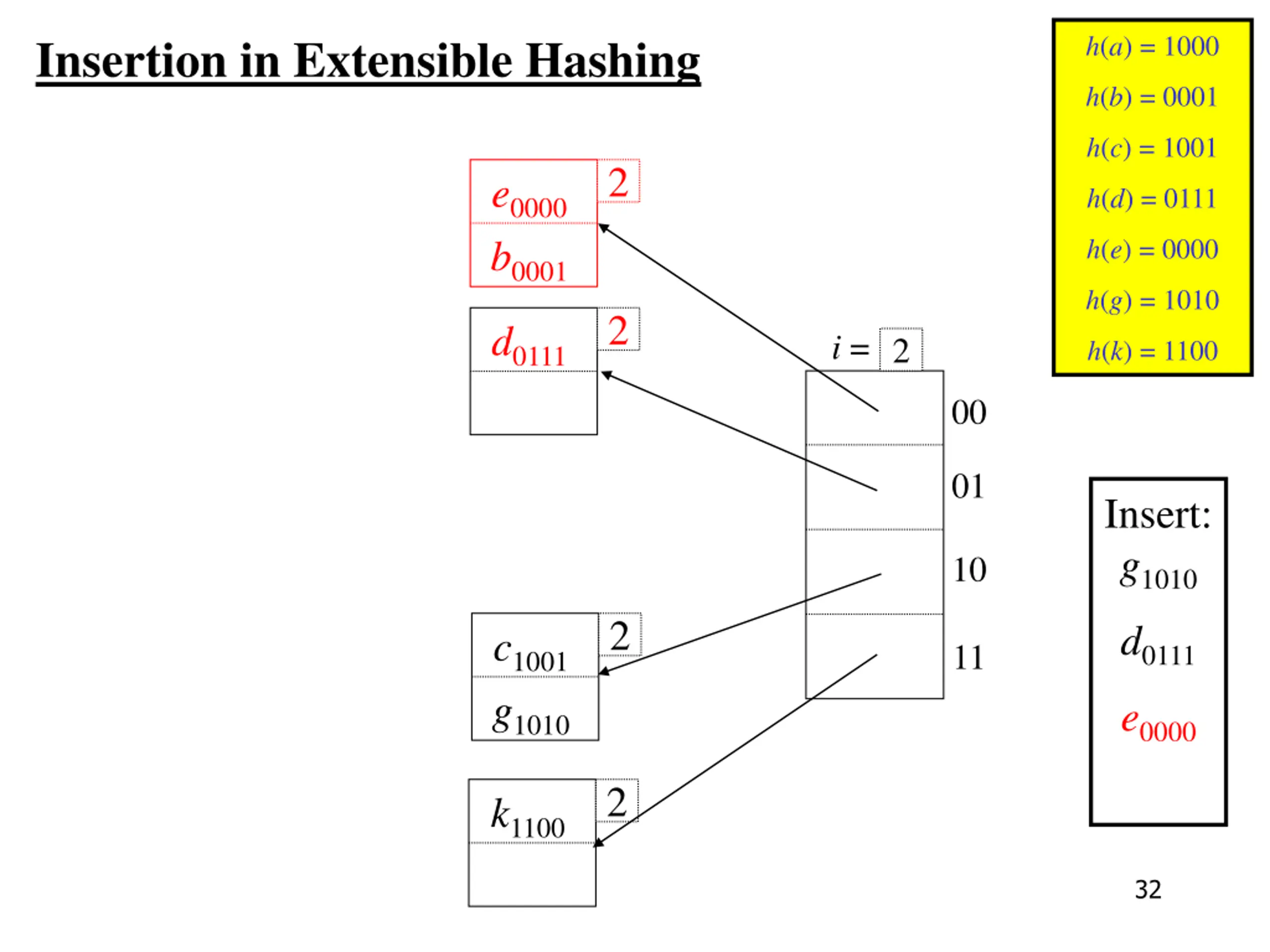

  24. h(a) = 1000 Insertion in Extensible Hashing h(b) = 0001 h(c) = 1001 h(d) = 0111 h(e) = 0000 h(g) = 1010 1 b0001 i = 2 h(k) = 1100 00 01 Insert: g1010 10 2 d0111 c1001 g1010 11 2 k1100 24

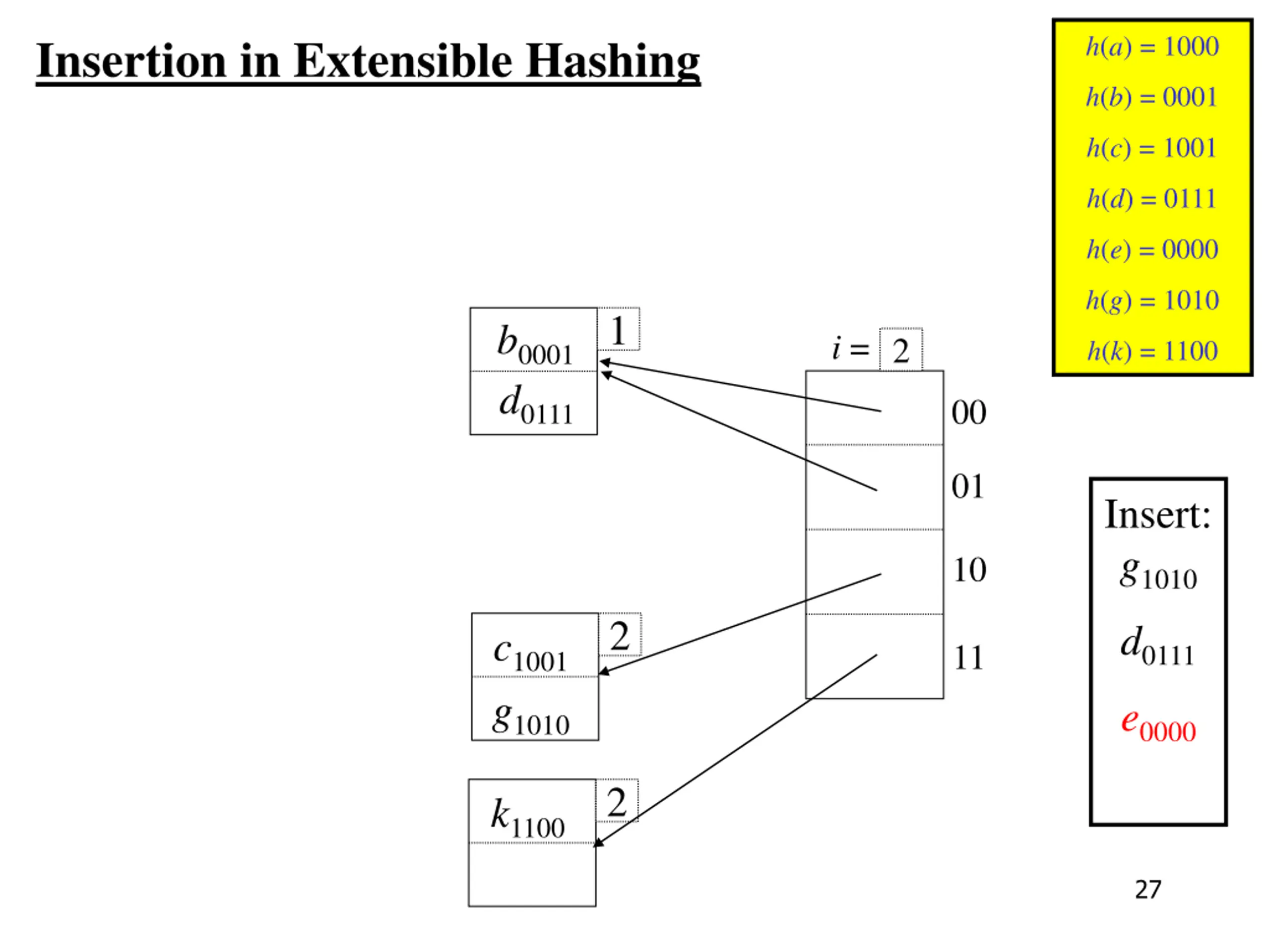

  25. h(a) = 1000 Insertion in Extensible Hashing h(b) = 0001 h(c) = 1001 h(d) = 0111 h(e) = 0000 h(g) = 1010 1 b0001 i = 2 h(k) = 1100 d0111 00 01 Insert: g1010 10 2 d0111 c1001 g1010 11 2 k1100 25

  26. h(a) = 1000 Insertion in Extensible Hashing h(b) = 0001 h(c) = 1001 h(d) = 0111 h(e) = 0000 h(g) = 1010 1 b0001 i = 2 h(k) = 1100 d0111 00 01 Insert: g1010 10 2 d0111 c1001 g1010 11 2 k1100 26

  27. h(a) = 1000 Insertion in Extensible Hashing h(b) = 0001 h(c) = 1001 h(d) = 0111 h(e) = 0000 h(g) = 1010 1 b0001 i = 2 h(k) = 1100 d0111 00 01 Insert: g1010 10 2 d0111 c1001 g1010 11 e0000 2 k1100 27

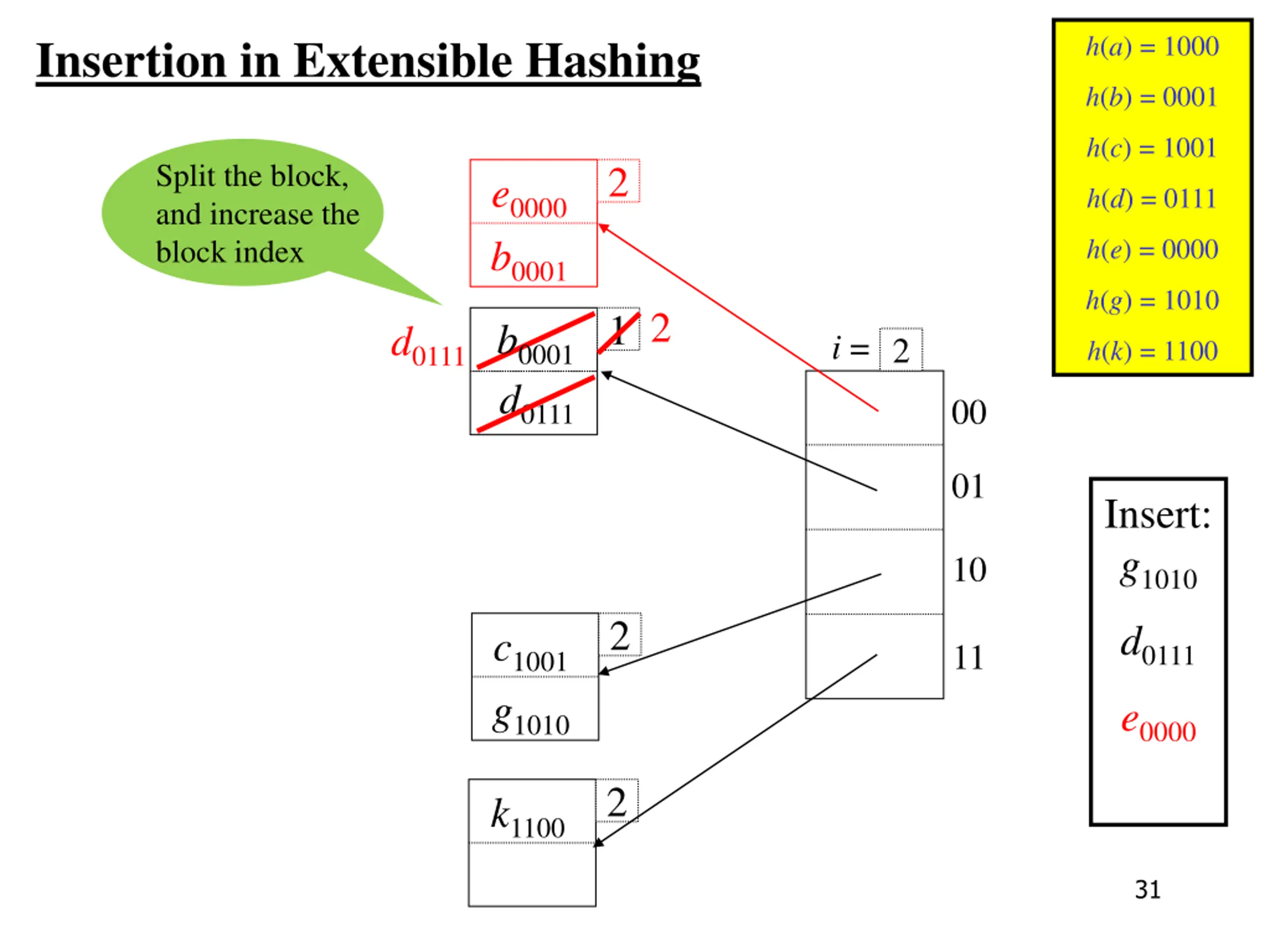

  28. h(a) = 1000 Insertion in Extensible Hashing h(b) = 0001 h(c) = 1001 h(d) = 0111 h(e) = 0000 h(g) = 1010 1 b0001 e0000 i = 2 h(k) = 1100 d0111 00 01 Insert: g1010 10 2 d0111 c1001 g1010 11 e0000 2 k1100 28

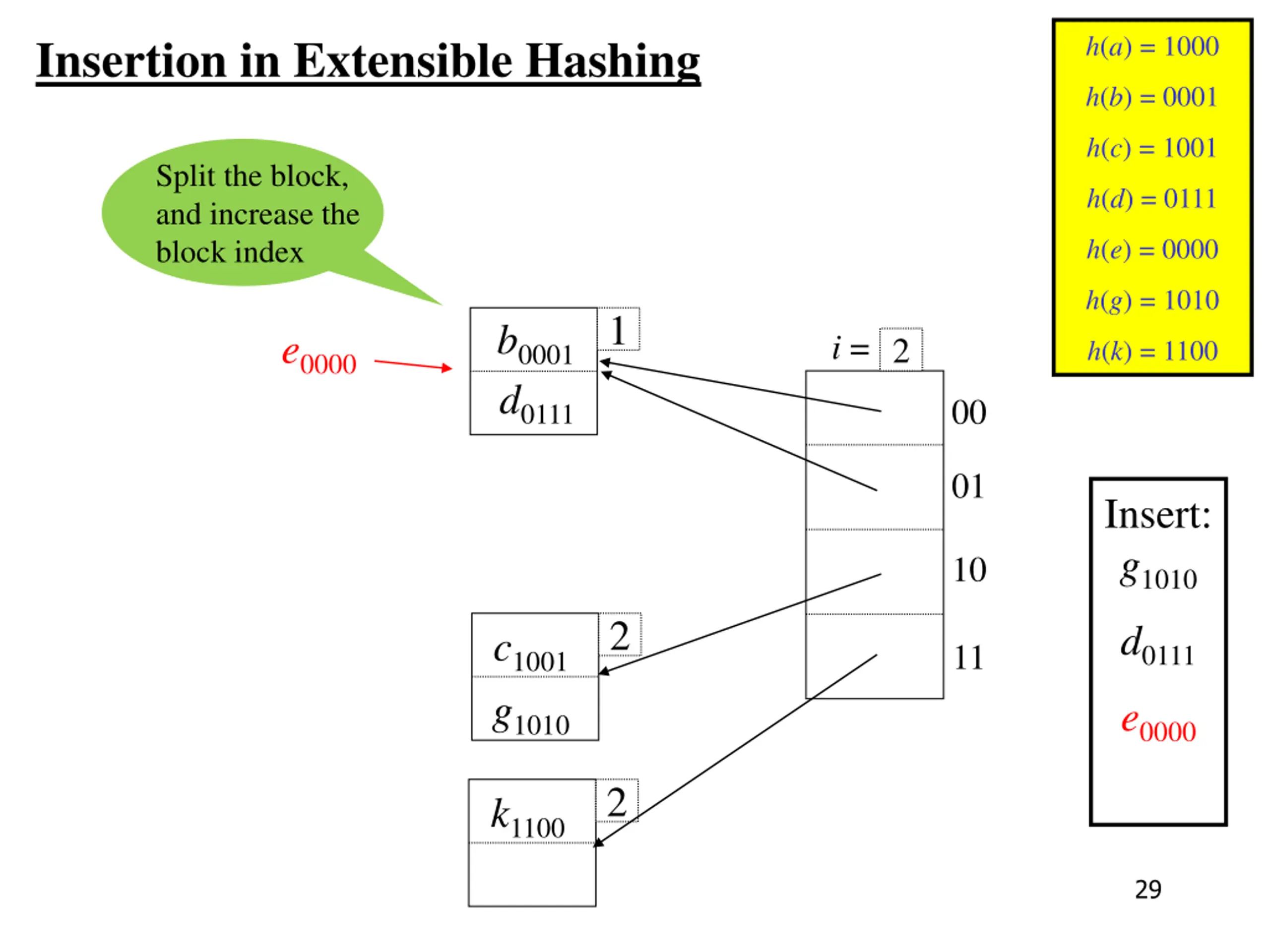

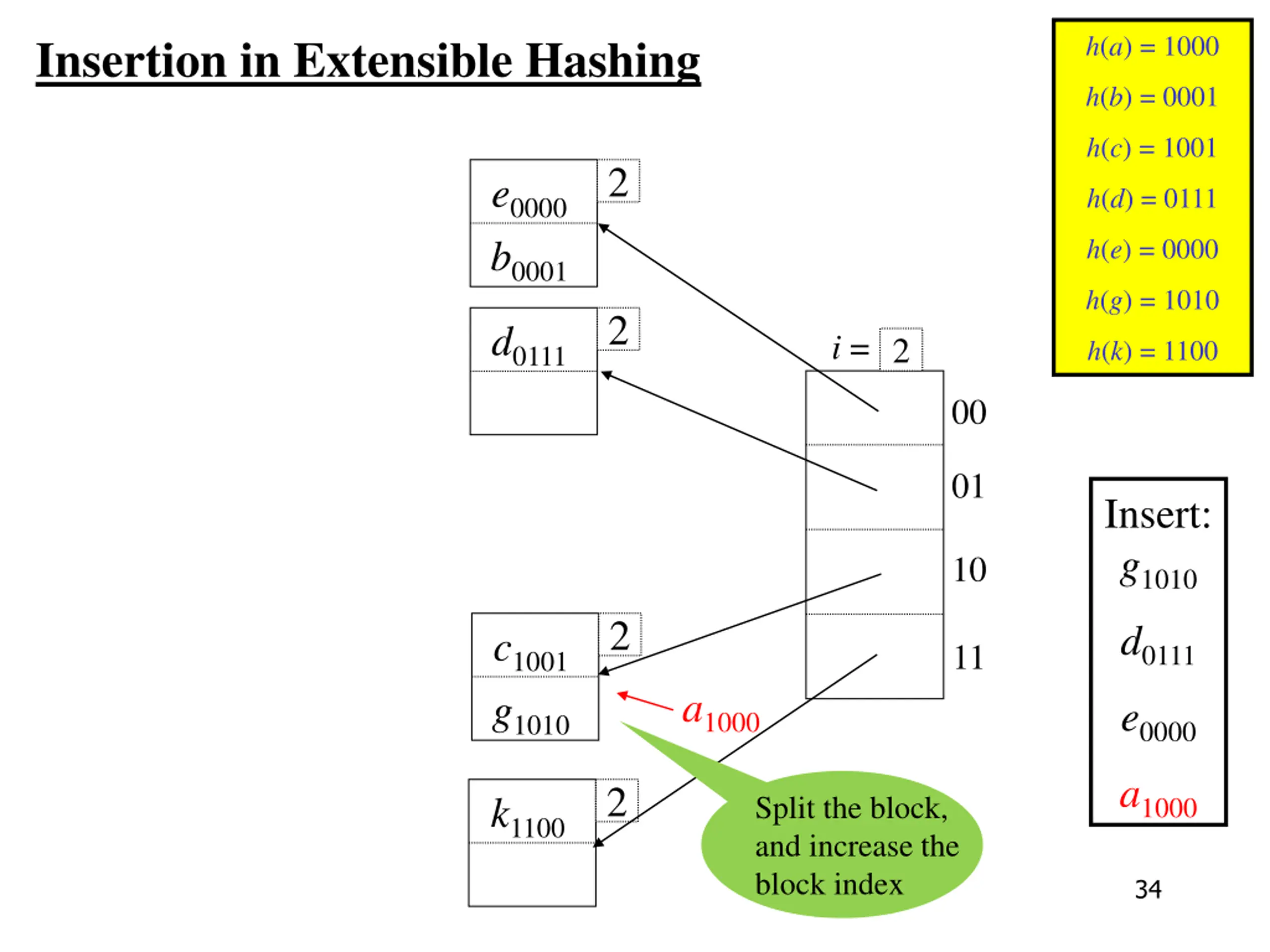

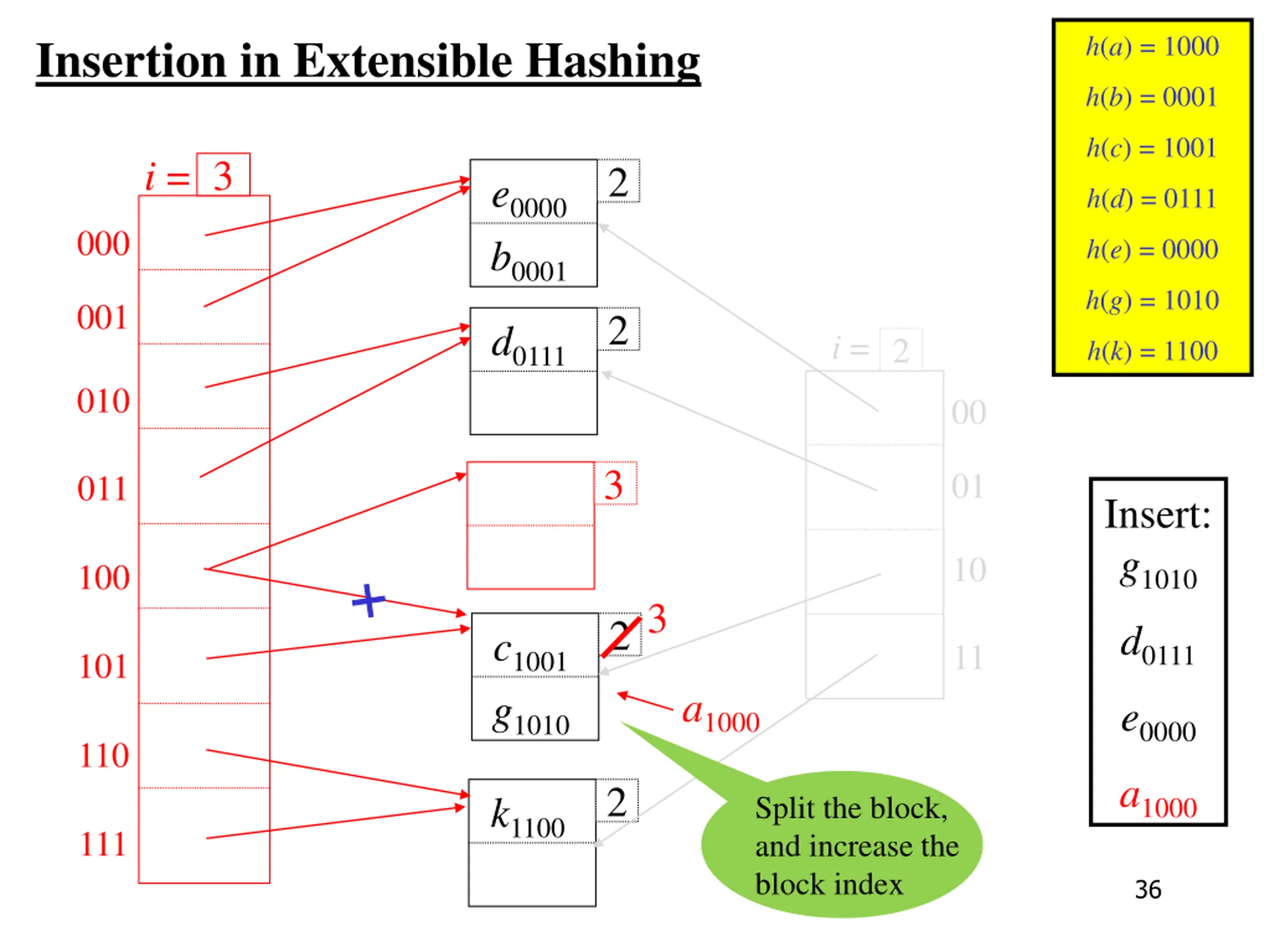

  29. h(a) = 1000 Insertion in Extensible Hashing h(b) = 0001 h(c) = 1001 Split the block, and increase the block index h(d) = 0111 h(e) = 0000 h(g) = 1010 1 b0001 e0000 i = 2 h(k) = 1100 d0111 00 01 Insert: g1010 10 2 d0111 c1001 g1010 11 e0000 2 k1100 29

  30. h(a) = 1000 Insertion in Extensible Hashing h(b) = 0001 h(c) = 1001 Split the block, and increase the block index 2 h(d) = 0111 h(e) = 0000 h(g) = 1010 2 1 b0001 e0000 i = 2 h(k) = 1100 d0111 00 01 Insert: g1010 10 2 d0111 c1001 g1010 11 e0000 2 k1100 30

  31. h(a) = 1000 Insertion in Extensible Hashing h(b) = 0001 h(c) = 1001 Split the block, and increase the block index 2 e0000 b0001 h(d) = 0111 h(e) = 0000 h(g) = 1010 2 1 b0001 d0111 i = 2 h(k) = 1100 d0111 00 01 Insert: g1010 10 2 d0111 c1001 g1010 11 e0000 2 k1100 31

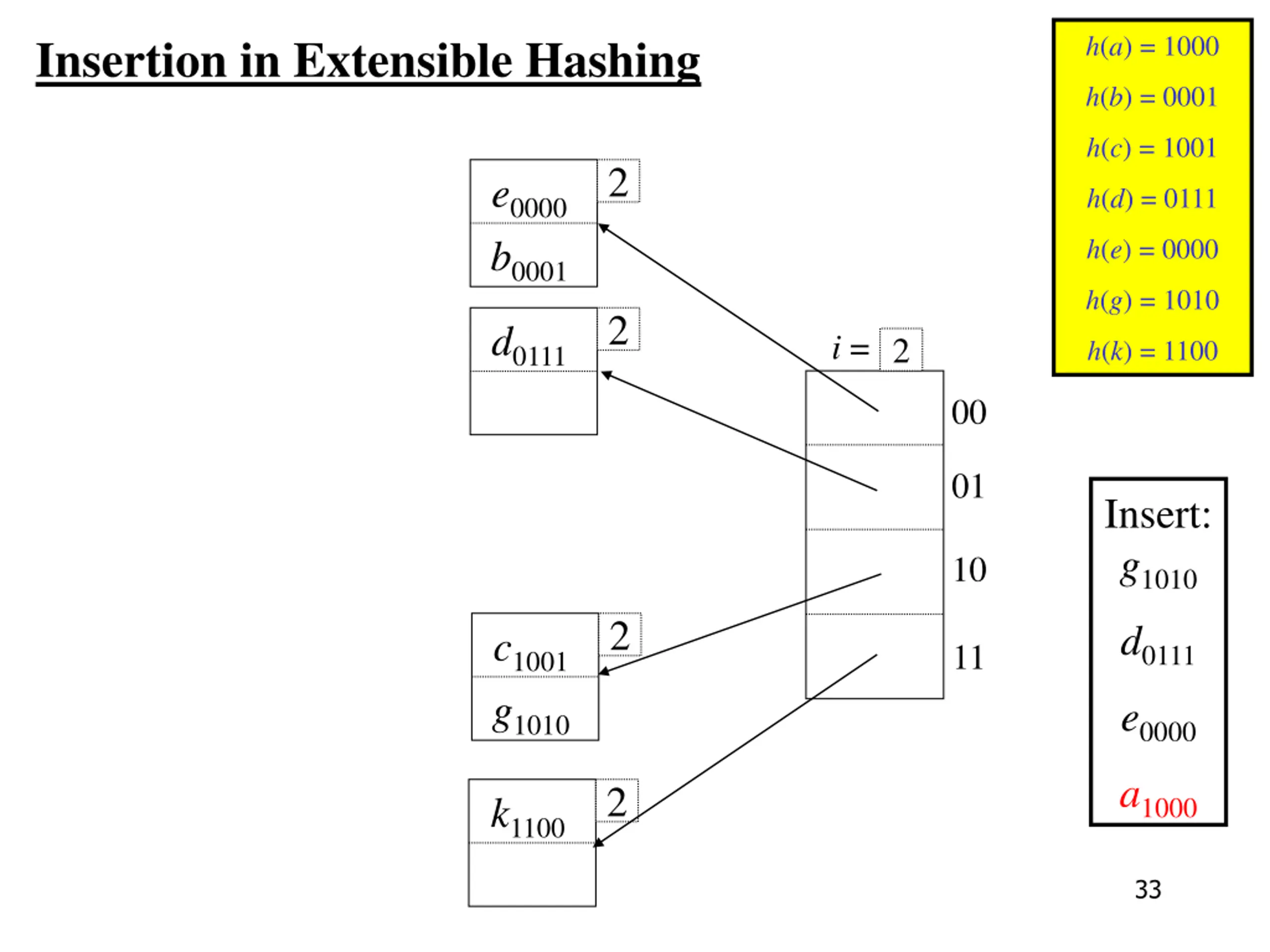

  32. h(a) = 1000 Insertion in Extensible Hashing h(b) = 0001 h(c) = 1001 2 e0000 b0001 h(d) = 0111 h(e) = 0000 h(g) = 1010 2 d0111 i = 2 h(k) = 1100 00 01 Insert: g1010 10 2 d0111 c1001 g1010 11 e0000 2 k1100 32

  33. h(a) = 1000 Insertion in Extensible Hashing h(b) = 0001 h(c) = 1001 2 e0000 b0001 h(d) = 0111 h(e) = 0000 h(g) = 1010 2 d0111 i = 2 h(k) = 1100 00 01 Insert: g1010 10 2 d0111 c1001 g1010 11 e0000 a1000 2 k1100 33

  34. h(a) = 1000 Insertion in Extensible Hashing h(b) = 0001 h(c) = 1001 2 e0000 b0001 h(d) = 0111 h(e) = 0000 h(g) = 1010 2 d0111 i = 2 h(k) = 1100 00 01 Insert: g1010 10 2 d0111 c1001 g1010 11 a1000 e0000 a1000 2 k1100 Split the block, and increase the block index 34

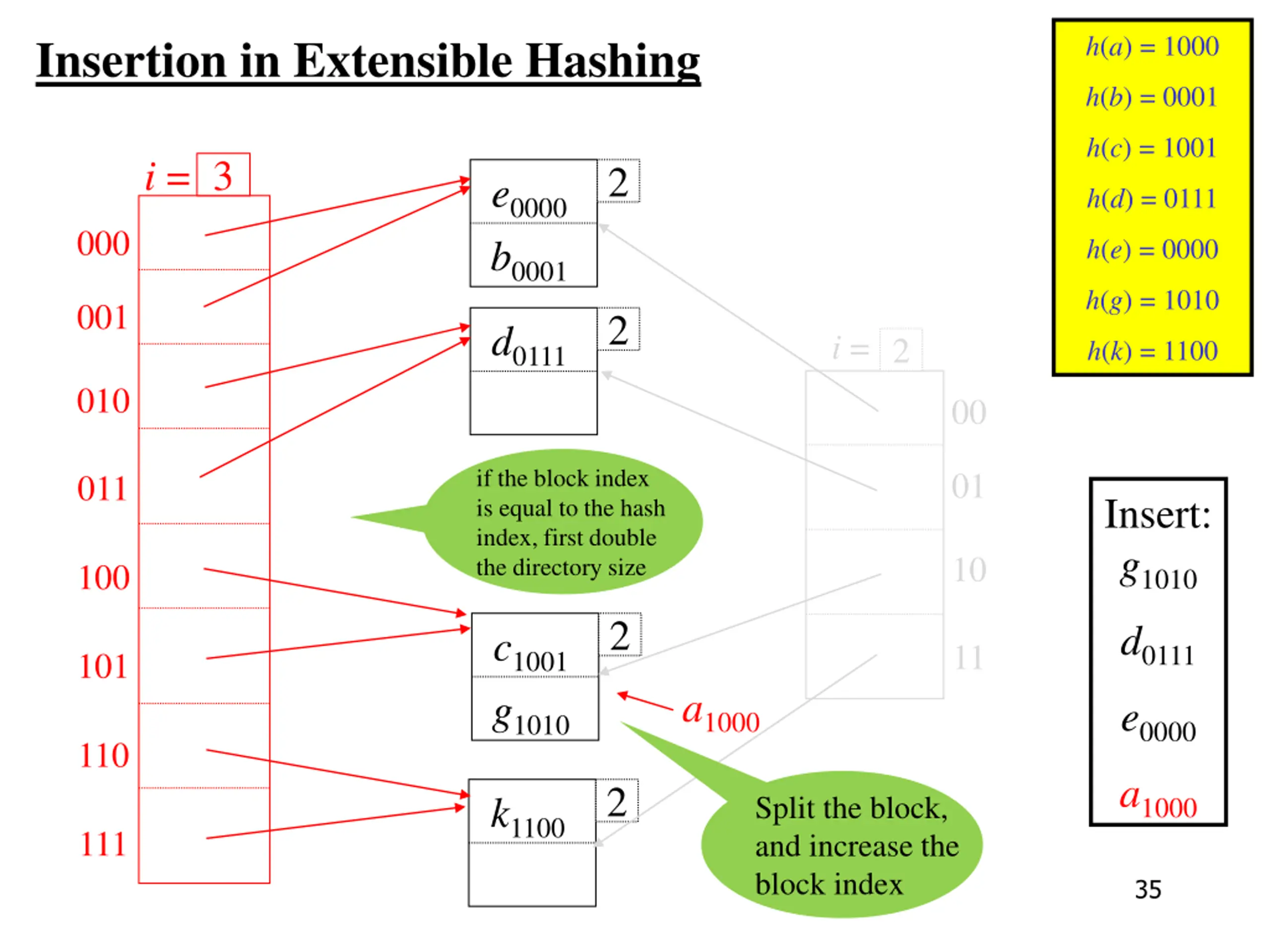

  35. h(a) = 1000 Insertion in Extensible Hashing h(b) = 0001 h(c) = 1001 i = 3 2 e0000 b0001 h(d) = 0111 000 h(e) = 0000 h(g) = 1010 001 2 d0111 i = 2 h(k) = 1100 010 00 if the block index is equal to the hash index, first double the directory size 01 011 Insert: g1010 10 100 2 d0111 c1001 g1010 11 101 a1000 e0000 110 a1000 2 k1100 Split the block, and increase the block index 111 35

  36. h(a) = 1000 Insertion in Extensible Hashing h(b) = 0001 h(c) = 1001 i = 3 2 e0000 b0001 h(d) = 0111 000 h(e) = 0000 h(g) = 1010 001 2 d0111 i = 2 h(k) = 1100 010 00 3 01 011 Insert: g1010 10 100 3 2 d0111 c1001 g1010 11 101 a1000 e0000 110 a1000 2 k1100 Split the block, and increase the block index 111 36

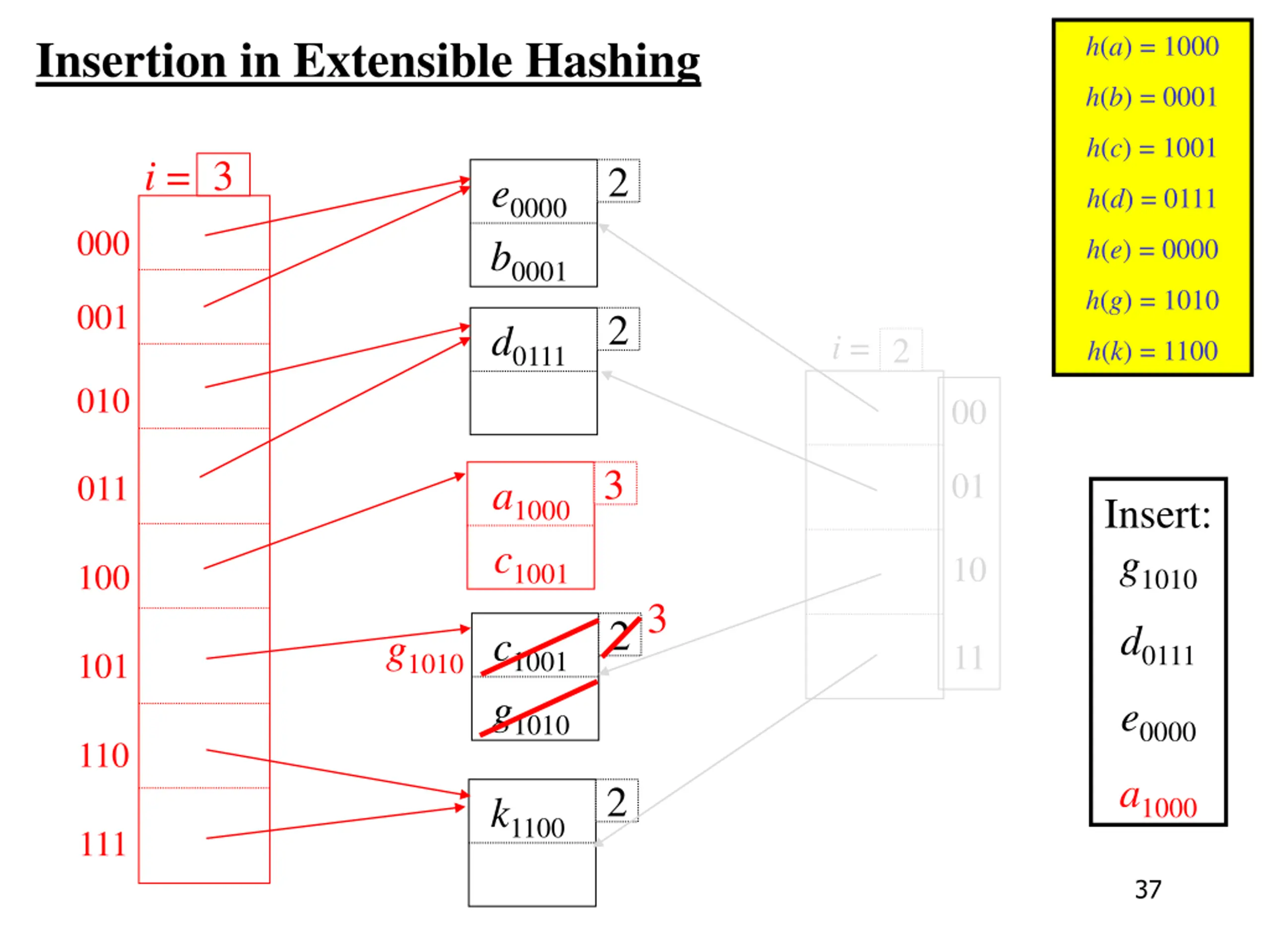

  37. h(a) = 1000 Insertion in Extensible Hashing h(b) = 0001 h(c) = 1001 i = 3 2 e0000 b0001 h(d) = 0111 000 h(e) = 0000 h(g) = 1010 001 2 d0111 i = 2 h(k) = 1100 010 00 3 01 011 a1000 c1001 Insert: g1010 10 100 3 2 d0111 c1001 g1010 g1010 11 101 e0000 110 a1000 2 k1100 111 37

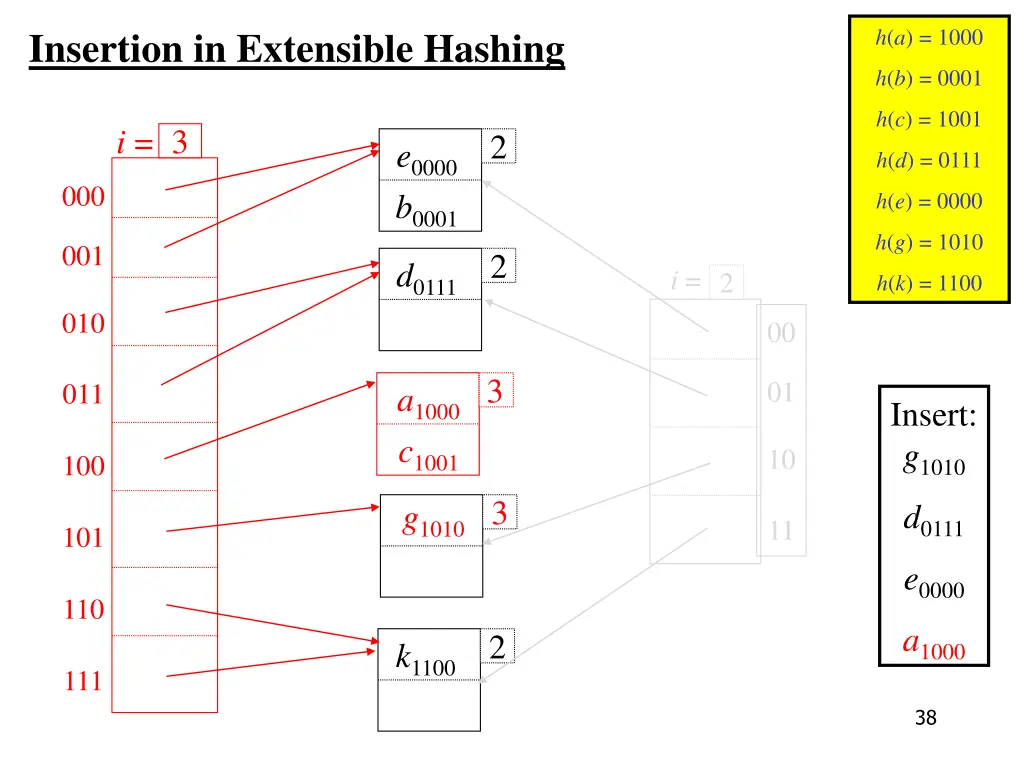

  38. h(a) = 1000 Insertion in Extensible Hashing h(b) = 0001 h(c) = 1001 i = 3 2 e0000 b0001 h(d) = 0111 000 h(e) = 0000 h(g) = 1010 001 2 d0111 i = 2 h(k) = 1100 010 00 3 01 011 a1000 c1001 Insert: g1010 10 100 3 d0111 g1010 11 101 e0000 110 a1000 2 k1100 111 38

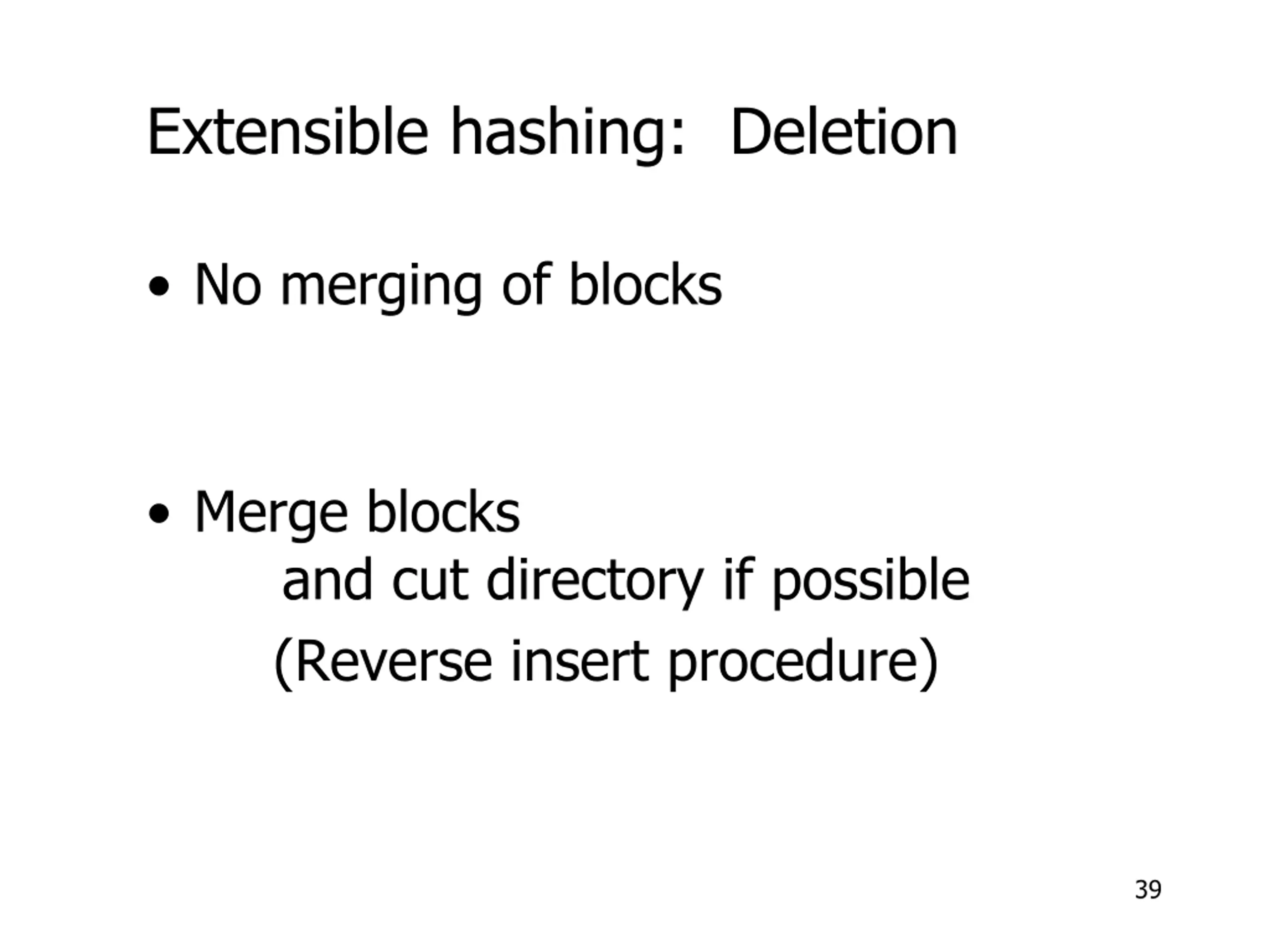

  39. Extensible hashing: Deletion No merging of blocks Merge blocks and cut directory if possible (Reverse insert procedure) 39

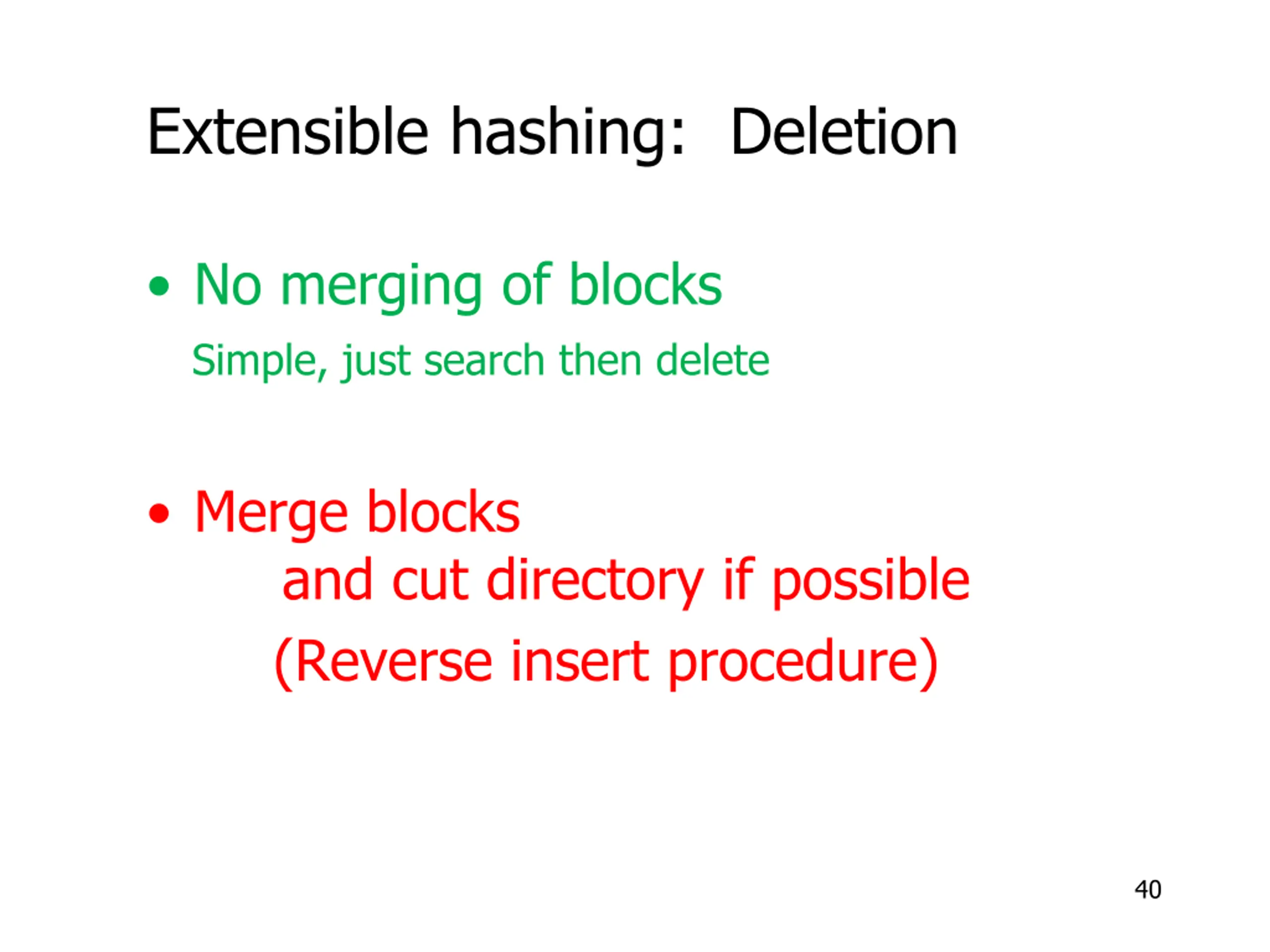

  40. Extensible hashing: Deletion No merging of blocks Simple, just search then delete Merge blocks and cut directory if possible (Reverse insert procedure) 40

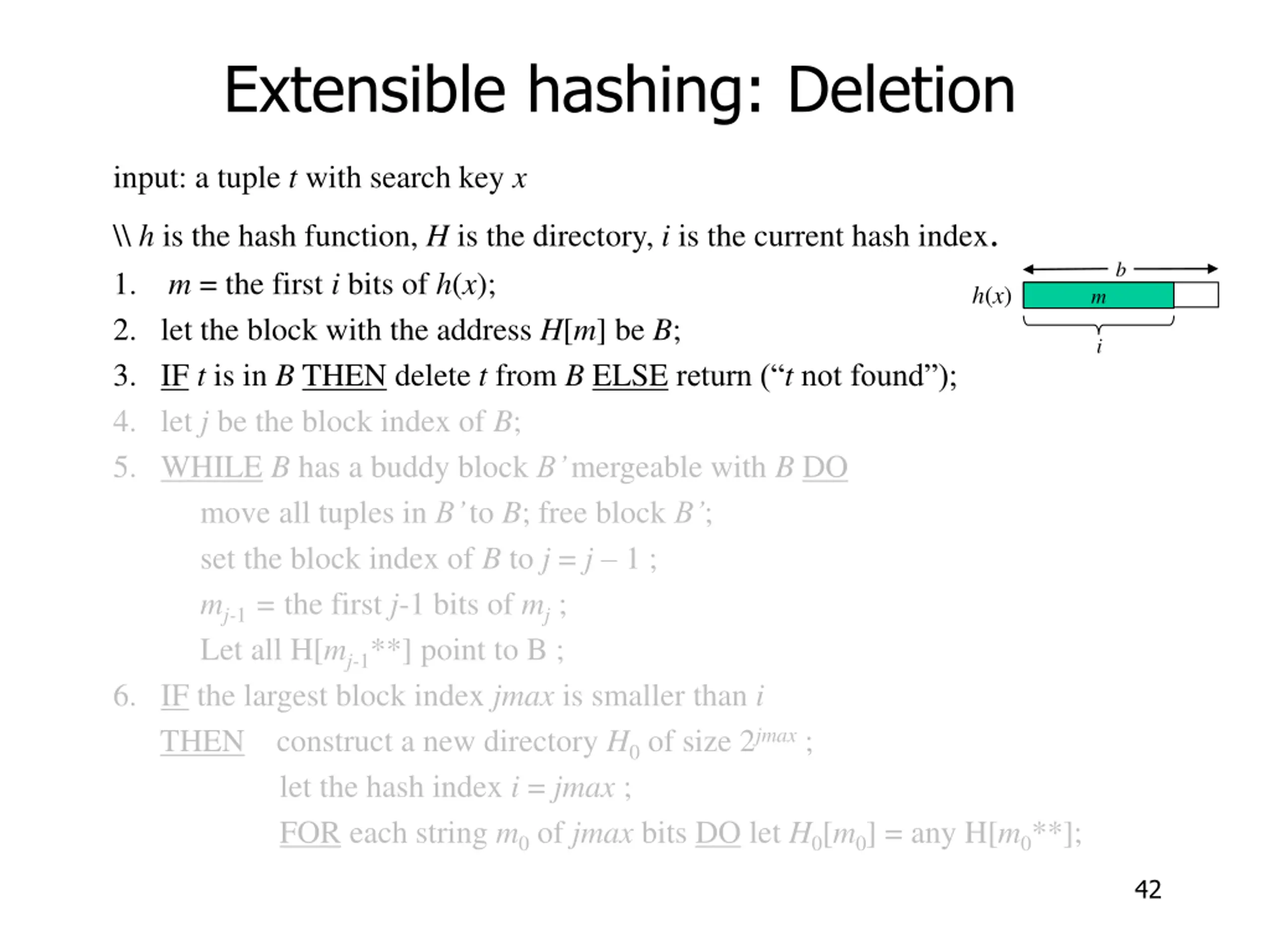

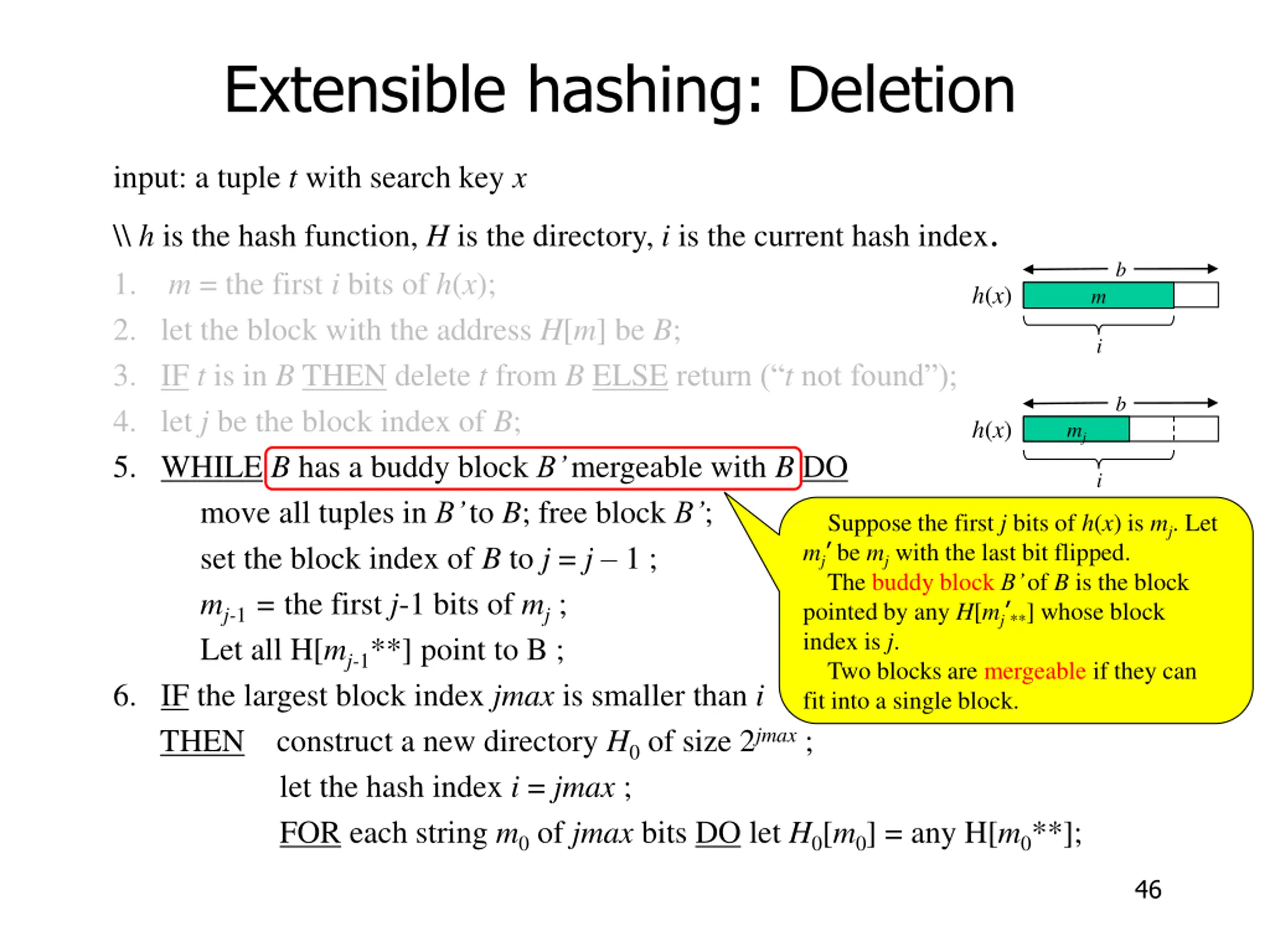

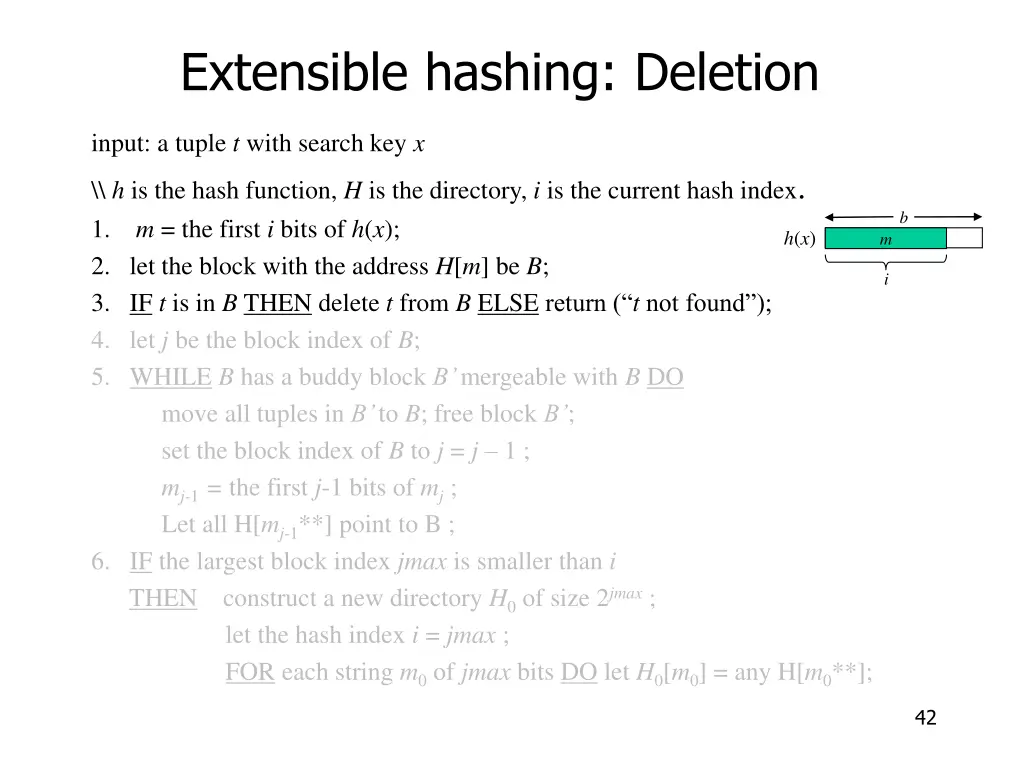

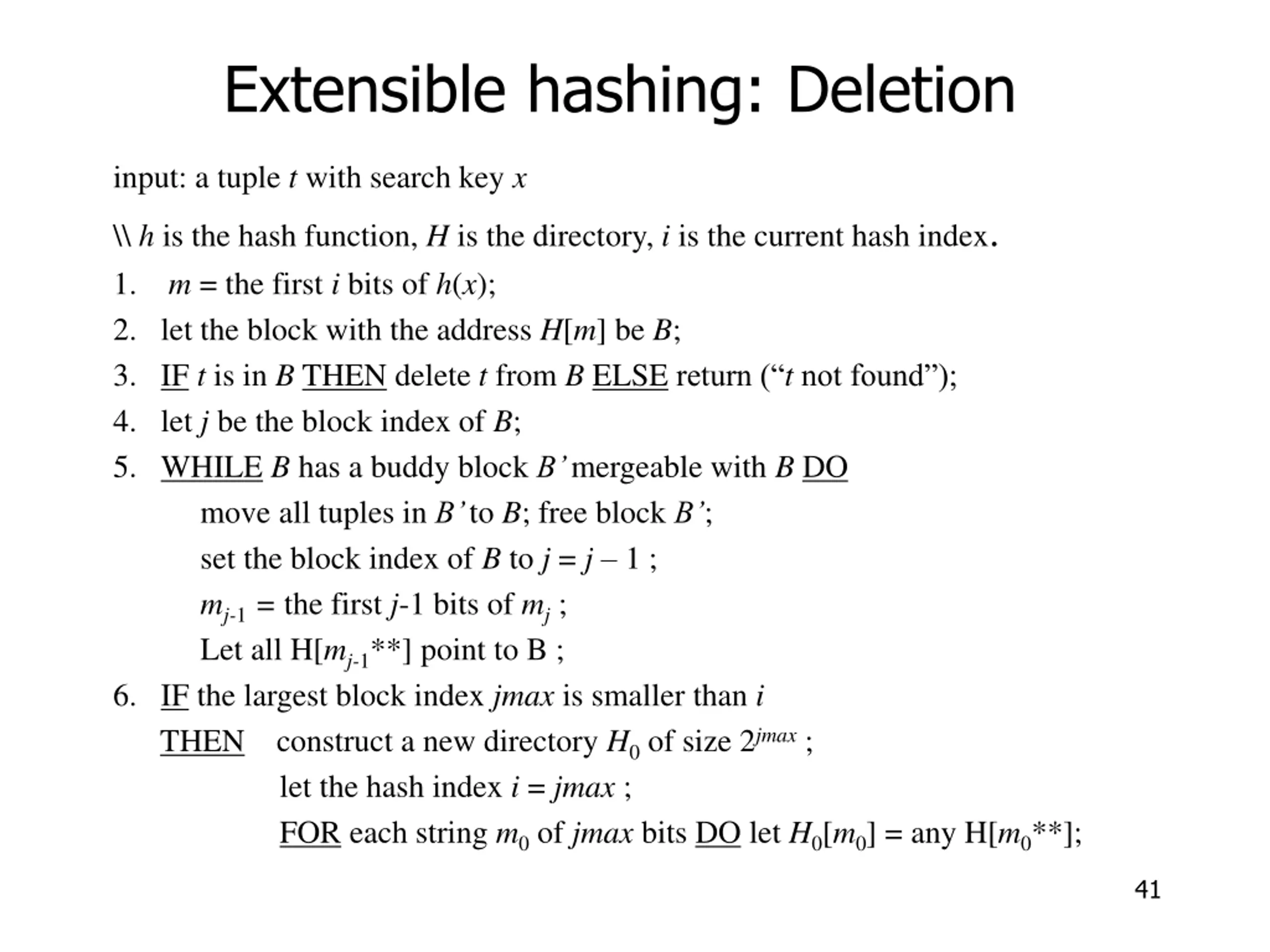

  41. Extensible hashing: Deletion input: a tuple t with search key x \\ h is the hash function, H is the directory, i is the current hash index. 1. m = the first i bits of h(x); 2. let the block with the address H[m] be B; 3. IF t is in B THEN delete t from B ELSE return ( tnot found ); 4. let j be the block index of B; 5. WHILE B has a buddy block B mergeable with B DO move all tuples in B to B; free block B ; set the block index of B to j = j 1 ; mj-1 = the first j-1 bits of mj ; Let all H[mj-1**] point to B ; 6. IF the largest block index jmax is smaller than i THEN construct a new directory H0of size 2jmax ; let the hash index i = jmax ; FOR each string m0of jmax bits DO let H0[m0] = any H[m0**]; 41

  42. Extensible hashing: Deletion input: a tuple t with search key x \\ h is the hash function, H is the directory, i is the current hash index. 1. m = the first i bits of h(x); 2. let the block with the address H[m] be B; 3. IF t is in B THEN delete t from B ELSE return ( tnot found ); 4. let j be the block index of B; 5. WHILE B has a buddy block B mergeable with B DO move all tuples in B to B; free block B ; set the block index of B to j = j 1 ; mj-1 = the first j-1 bits of mj ; Let all H[mj-1**] point to B ; 6. IF the largest block index jmax is smaller than i THEN construct a new directory H0of size 2jmax ; let the hash index i = jmax ; FOR each string m0of jmax bits DO let H0[m0] = any H[m0**]; b h(x) m i 42

  43. Extensible hashing: Deletion input: a tuple t with search key x \\ h is the hash function, H is the directory, i is the current hash index. 1. m = the first i bits of h(x); 2. let the block with the address H[m] be B; 3. IF t is in B THEN delete t from B ELSE return ( tnot found ); 4. let j be the block index of B; 5. WHILE B has a buddy block B mergeable with B DO move all tuples in B to B; free block B ; set the block index of B to j = j 1 ; mj-1 = the first j-1 bits of mj ; Let all H[mj-1**] point to B ; 6. IF the largest block index jmax is smaller than i THEN construct a new directory H0of size 2jmax ; let the hash index i = jmax ; FOR each string m0of jmax bits DO let H0[m0] = any H[m0**]; b h(x) m i b h(x) mj i 43

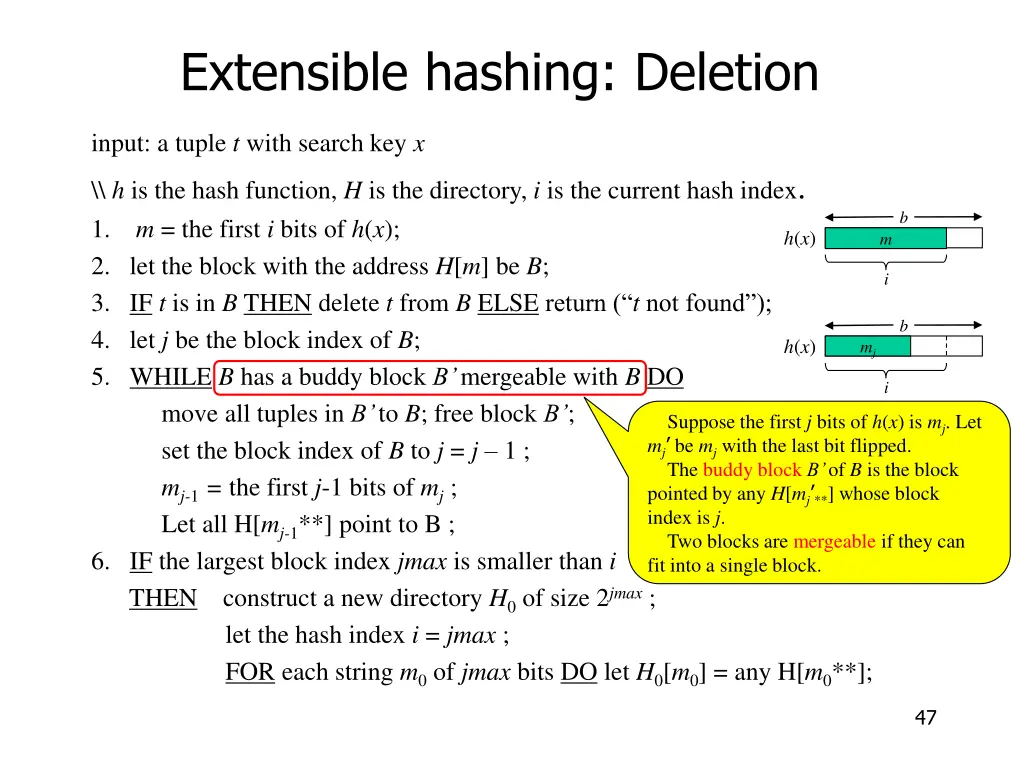

  44. Extensible hashing: Deletion input: a tuple t with search key x \\ h is the hash function, H is the directory, i is the current hash index. 1. m = the first i bits of h(x); 2. let the block with the address H[m] be B; 3. IF t is in B THEN delete t from B ELSE return ( tnot found ); 4. let j be the block index of B; 5. WHILE B has a buddy block B mergeable with B DO move all tuples in B to B; free block B ; set the block index of B to j = j 1 ; mj-1 = the first j-1 bits of mj ; Let all H[mj-1**] point to B ; 6. IF the largest block index jmax is smaller than i THEN construct a new directory H0of size 2jmax ; let the hash index i = jmax ; FOR each string m0of jmax bits DO let H0[m0] = any H[m0**]; b h(x) m i b h(x) mj i 44

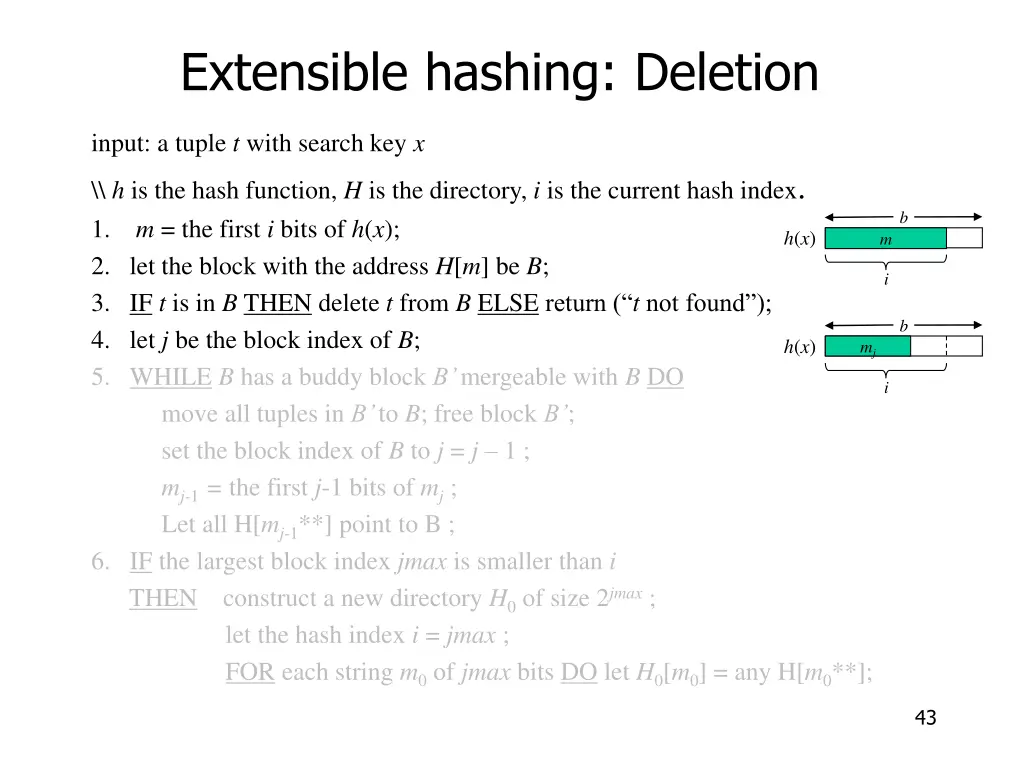

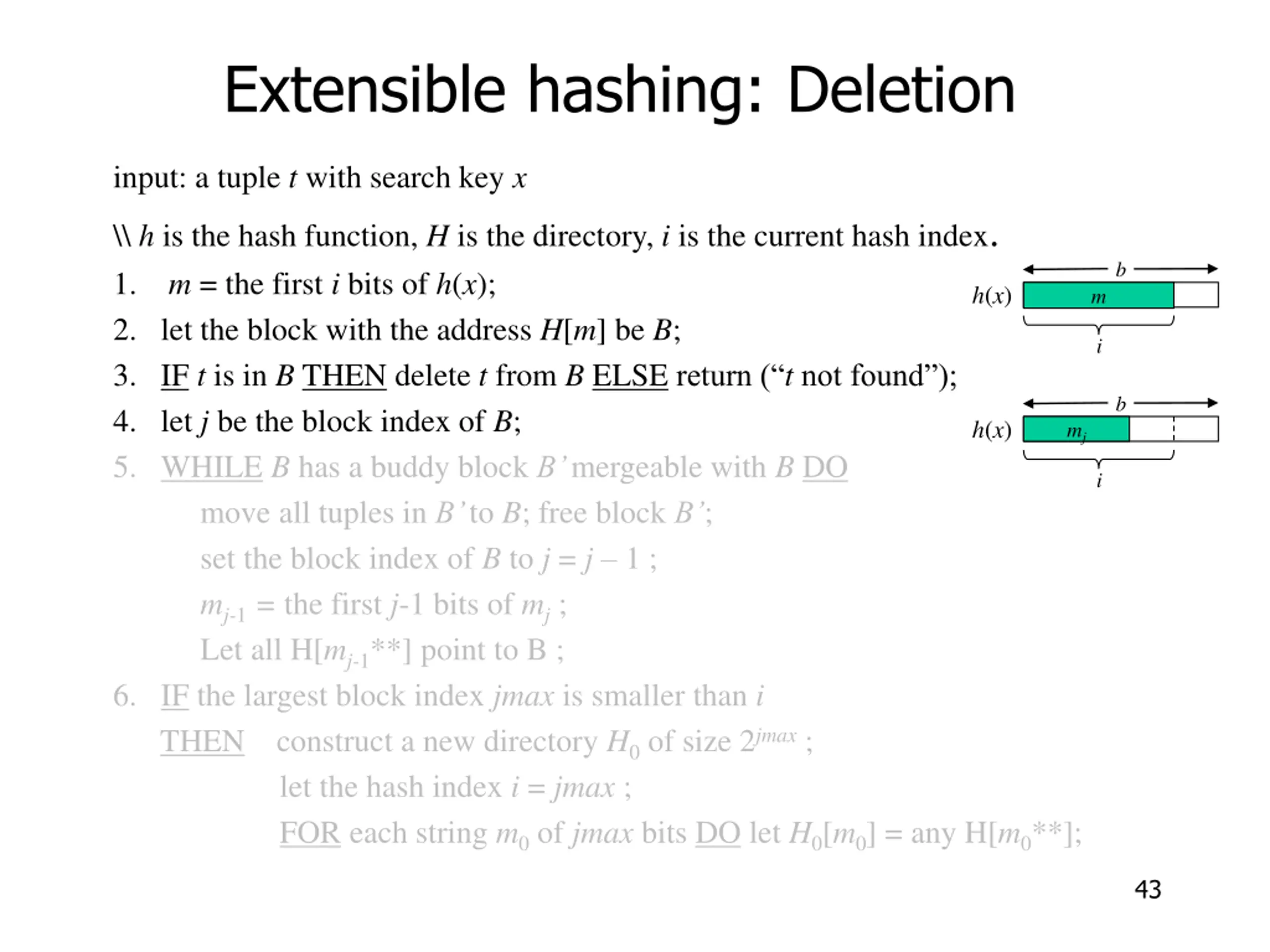

  45. Extensible hashing: Deletion input: a tuple t with search key x \\ h is the hash function, H is the directory, i is the current hash index. 1. m = the first i bits of h(x); 2. let the block with the address H[m] be B; 3. IF t is in B THEN delete t from B ELSE return ( tnot found ); 4. let j be the block index of B; 5. WHILE B has a buddy block B mergeable with B DO move all tuples in B to B; free block B ; set the block index of B to j = j 1 ; mj-1 = the first j-1 bits of mj ; Let all H[mj-1**] point to B ; 6. IF the largest block index jmax is smaller than i THEN construct a new directory H0of size 2jmax ; let the hash index i = jmax ; FOR each string m0of jmax bits DO let H0[m0] = any H[m0**]; b h(x) m i b h(x) mj i Suppose the first j bits of h(x) is mj. Let mj be mj with the last bit flipped. The buddy block B of B is the block pointed by any H[mj **] whose block index is j. Two blocks are mergeable if they can fit into a single block. 45

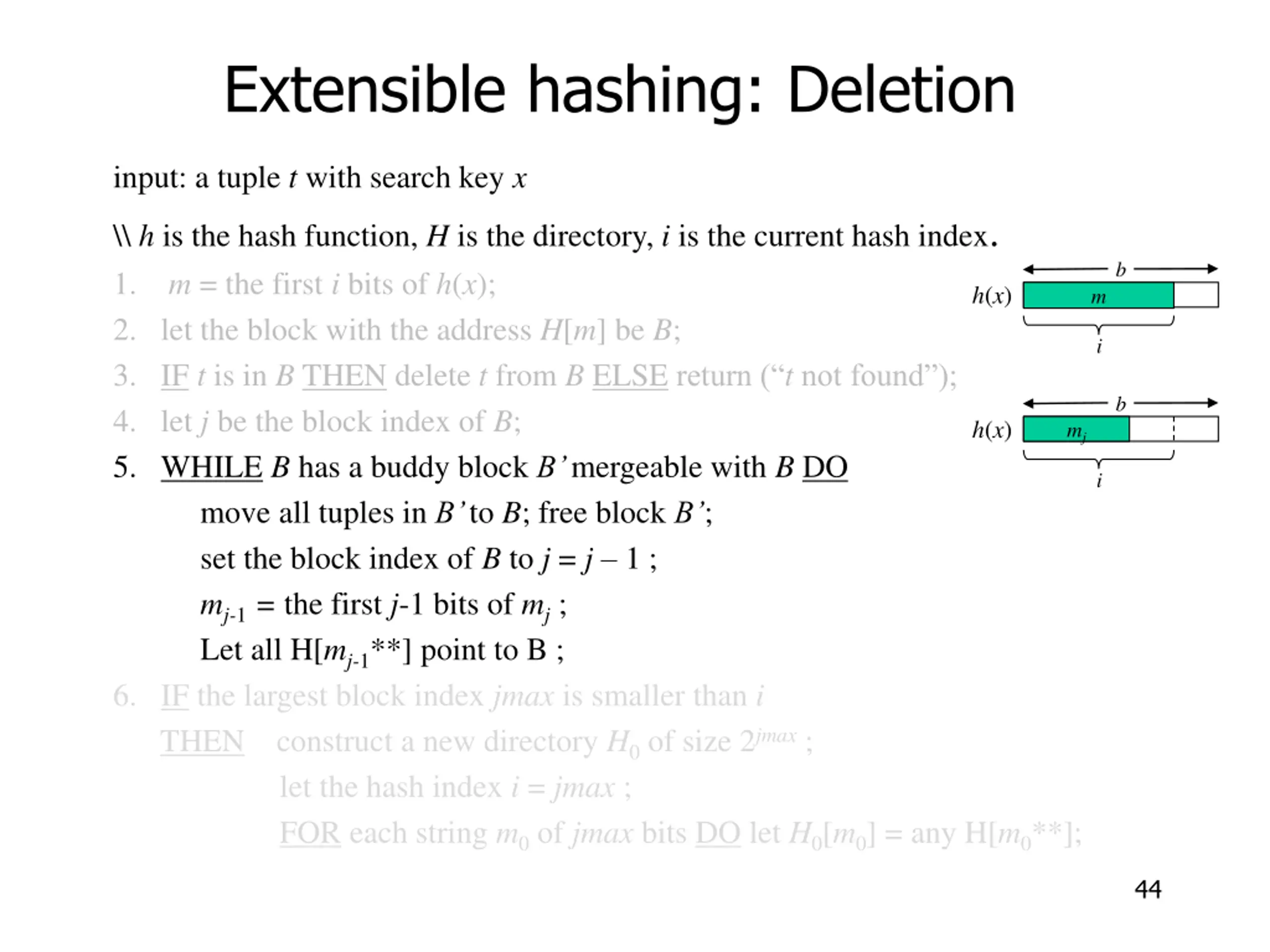

  46. Extensible hashing: Deletion input: a tuple t with search key x \\ h is the hash function, H is the directory, i is the current hash index. 1. m = the first i bits of h(x); 2. let the block with the address H[m] be B; 3. IF t is in B THEN delete t from B ELSE return ( tnot found ); 4. let j be the block index of B; 5. WHILE B has a buddy block B mergeable with B DO move all tuples in B to B; free block B ; set the block index of B to j = j 1 ; mj-1 = the first j-1 bits of mj ; Let all H[mj-1**] point to B ; 6. IF the largest block index jmax is smaller than i THEN construct a new directory H0of size 2jmax ; let the hash index i = jmax ; FOR each string m0of jmax bits DO let H0[m0] = any H[m0**]; b h(x) m i b h(x) mj i Suppose the first j bits of h(x) is mj. Let mj be mj with the last bit flipped. The buddy block B of B is the block pointed by any H[mj **] whose block index is j. Two blocks are mergeable if they can fit into a single block. 46

  47. Extensible hashing: Deletion input: a tuple t with search key x \\ h is the hash function, H is the directory, i is the current hash index. 1. m = the first i bits of h(x); 2. let the block with the address H[m] be B; 3. IF t is in B THEN delete t from B ELSE return ( tnot found ); 4. let j be the block index of B; 5. WHILE B has a buddy block B mergeable with B DO move all tuples in B to B; free block B ; set the block index of B to j = j 1 ; mj-1 = the first j-1 bits of mj ; Let all H[mj-1**] point to B ; 6. IF the largest block index jmax is smaller than i THEN construct a new directory H0of size 2jmax ; let the hash index i = jmax ; FOR each string m0of jmax bits DO let H0[m0] = any H[m0**]; b h(x) m i b h(x) mj i Suppose the first j bits of h(x) is mj. Let mj be mj with the last bit flipped. The buddy block B of B is the block pointed by any H[mj **] whose block index is j. Two blocks are mergeable if they can fit into a single block. 47

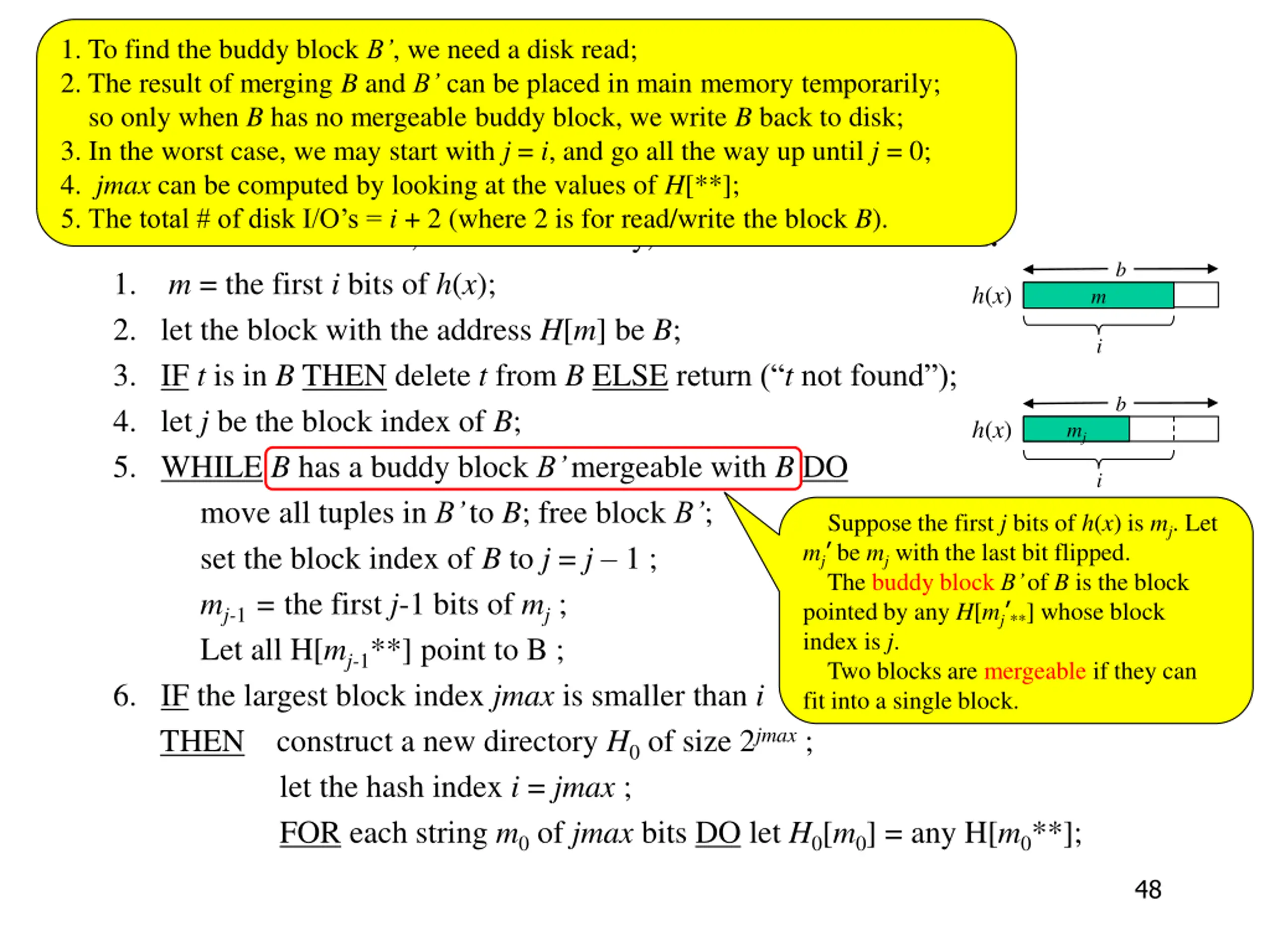

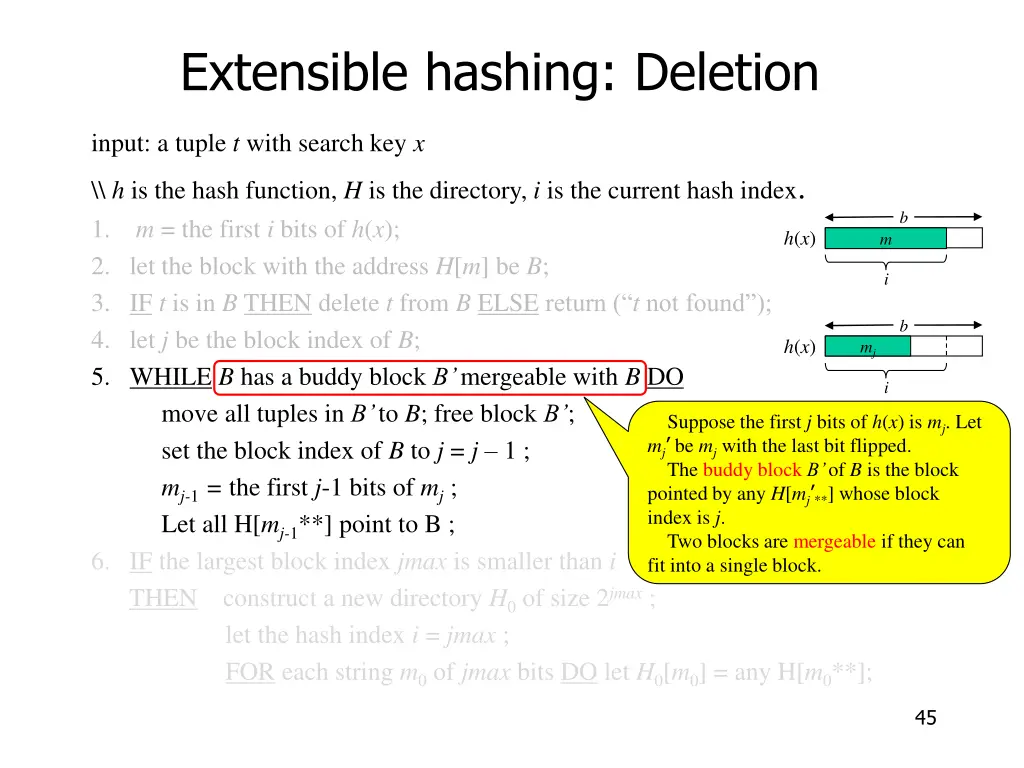

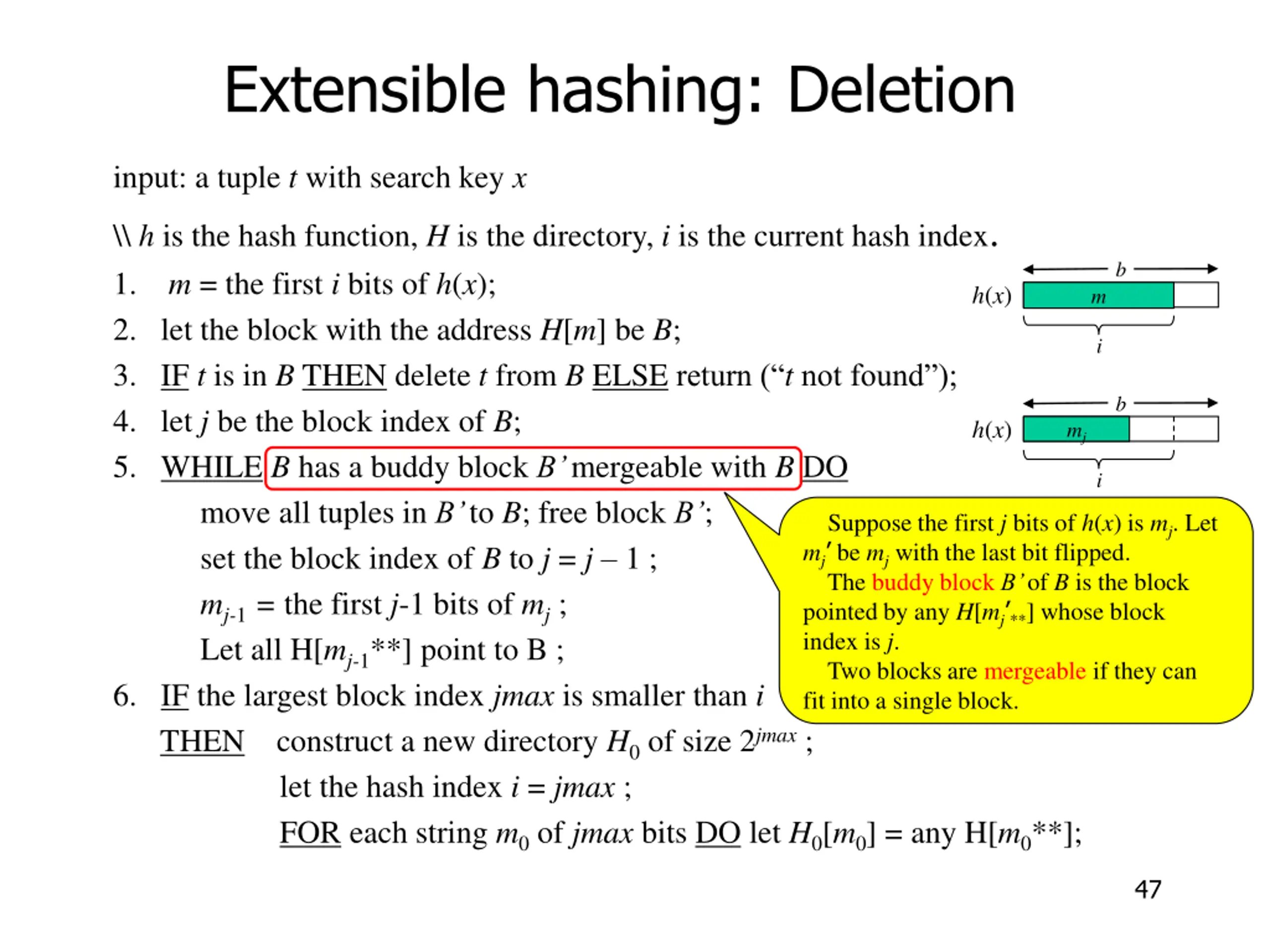

  48. 1. To find the buddy block B,we need a disk read; 2. The result of merging B and B can be placed in main memory temporarily; Extensible hashing: Deletion so only when B has no mergeable buddy block, we write B back to disk; 3. In the worst case, we may start with j = i, and go all the way up until j = 0; 4. jmax can be computed by looking at the values of H[**]; 5. The total # of disk I/O s = i + 2 (where 2 is for read/write the block B). input: a tuple t with search key x \\ h is the hash function, H is the directory, i is the current hash index. 1. m = the first i bits of h(x); 2. let the block with the address H[m] be B; 3. IF t is in B THEN delete t from B ELSE return ( tnot found ); 4. let j be the block index of B; 5. WHILE B has a buddy block B mergeable with B DO move all tuples in B to B; free block B ; set the block index of B to j = j 1 ; mj-1 = the first j-1 bits of mj ; Let all H[mj-1**] point to B ; 6. IF the largest block index jmax is smaller than i THEN construct a new directory H0of size 2jmax ; let the hash index i = jmax ; FOR each string m0of jmax bits DO let H0[m0] = any H[m0**]; b h(x) m i b h(x) mj i Suppose the first j bits of h(x) is mj. Let mj be mj with the last bit flipped. The buddy block B of B is the block pointed by any H[mj **] whose block index is j. Two blocks are mergeable if they can fit into a single block. 48

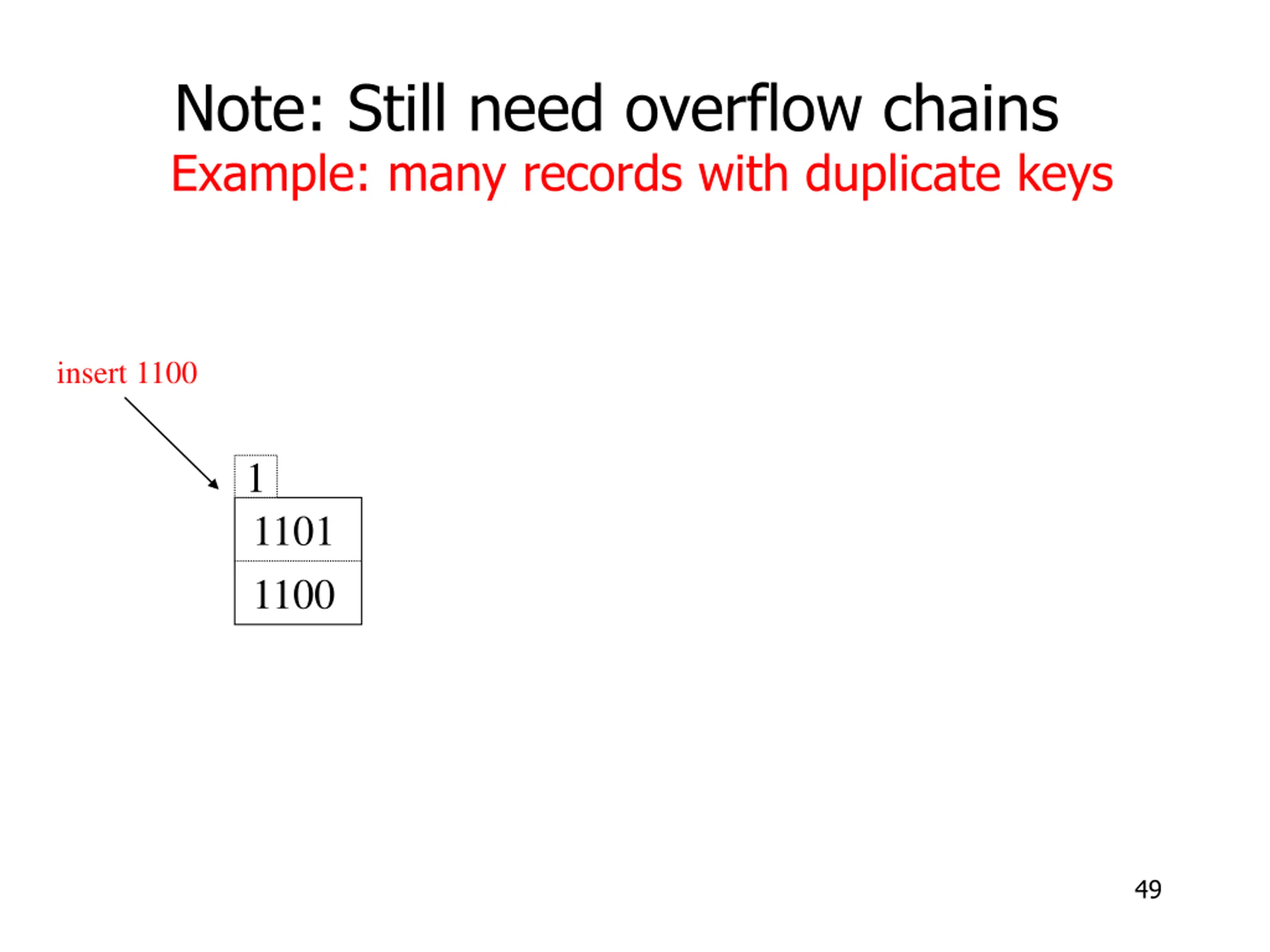

  49. Note: Still need overflow chains Example: many records with duplicate keys insert 1100 1 1101 1100 49

  50. Note: Still need overflow chains Example: many records with duplicate keys if we split: 2 insert 1100 For 10** 1 1101 1100 2 1101 1100 For 11** ? 1100 50
