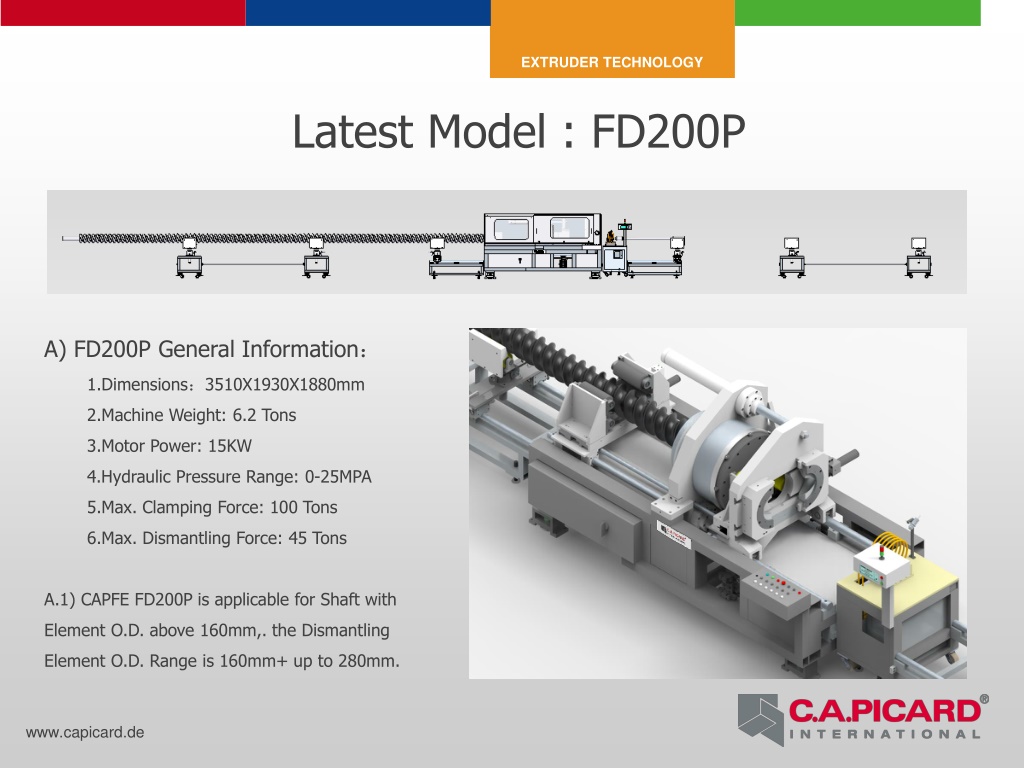

EXTRUDER TECHNOLOGY Latest Model : FD200P A) FD200P General Information 1.Dimensions 3510X1930X1880mm 2.Machine Weight: 6.2 Tons 3.Motor Power: 15KW 4.Hydraulic Pressure Range: 0-25MPA 5.Max. Clamping Force: 100 Tons 6.Max. Dismantling Force: 45 Tons A.1) CAPFE FD200P is applicable for Shaft with Element O.D. above 160mm,. the Dismantling Element O.D. Range is 160mm+ up to 280mm. www.capicard.de

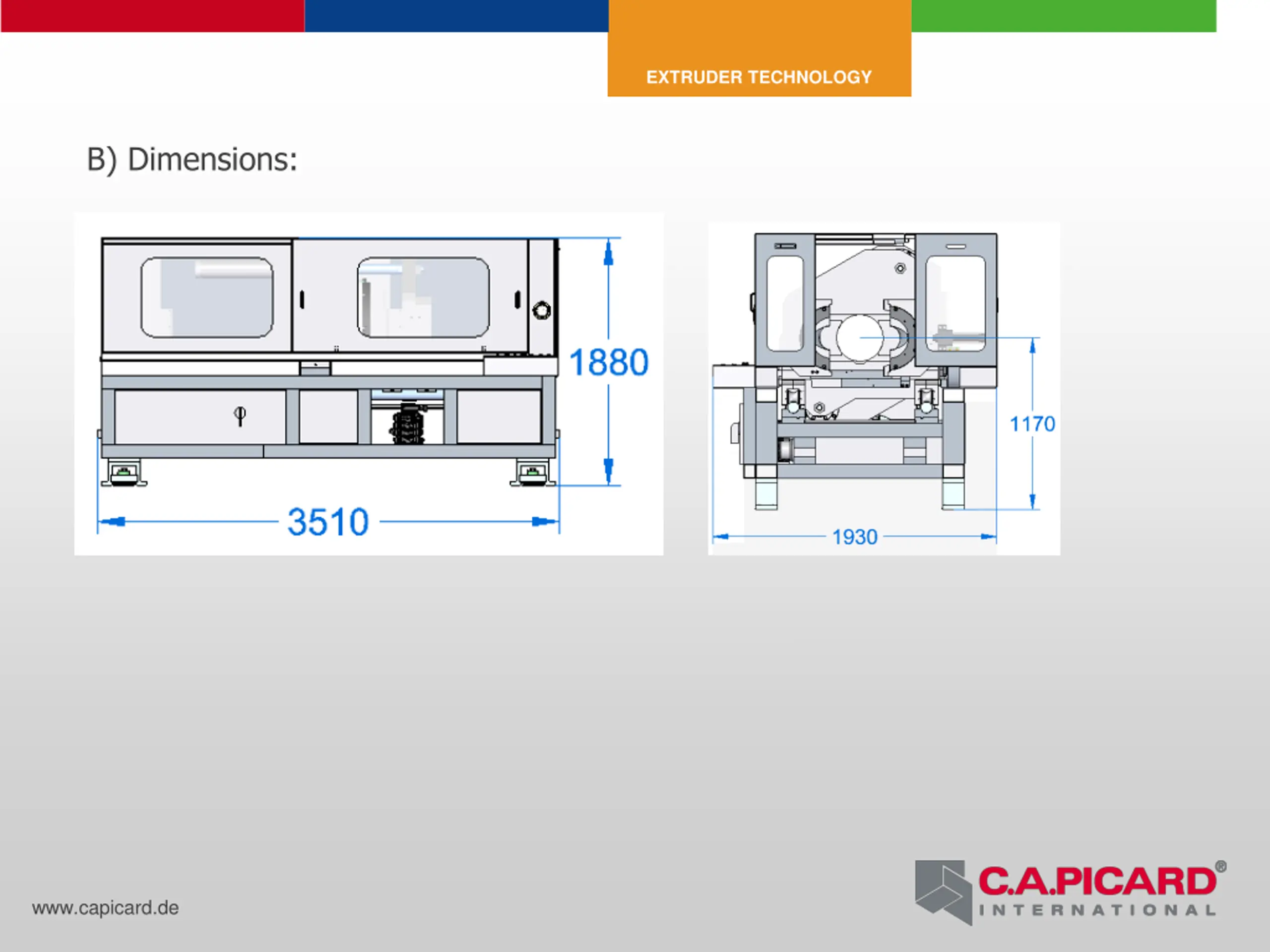

EXTRUDER TECHNOLOGY B) Dimensions: www.capicard.de

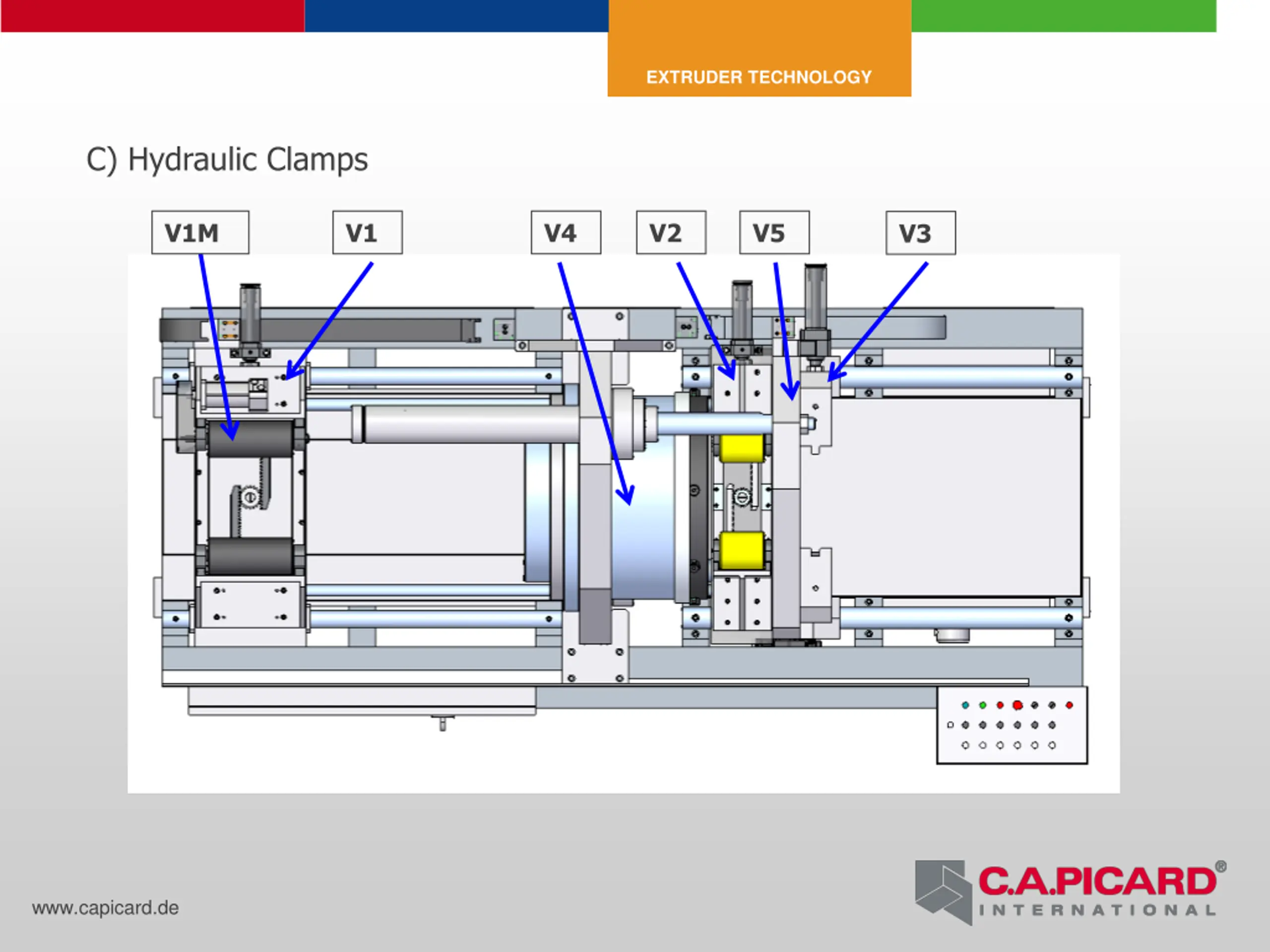

EXTRUDER TECHNOLOGY C) Hydraulic Clamps V1M V1 V4 V2 V5 V3 www.capicard.de

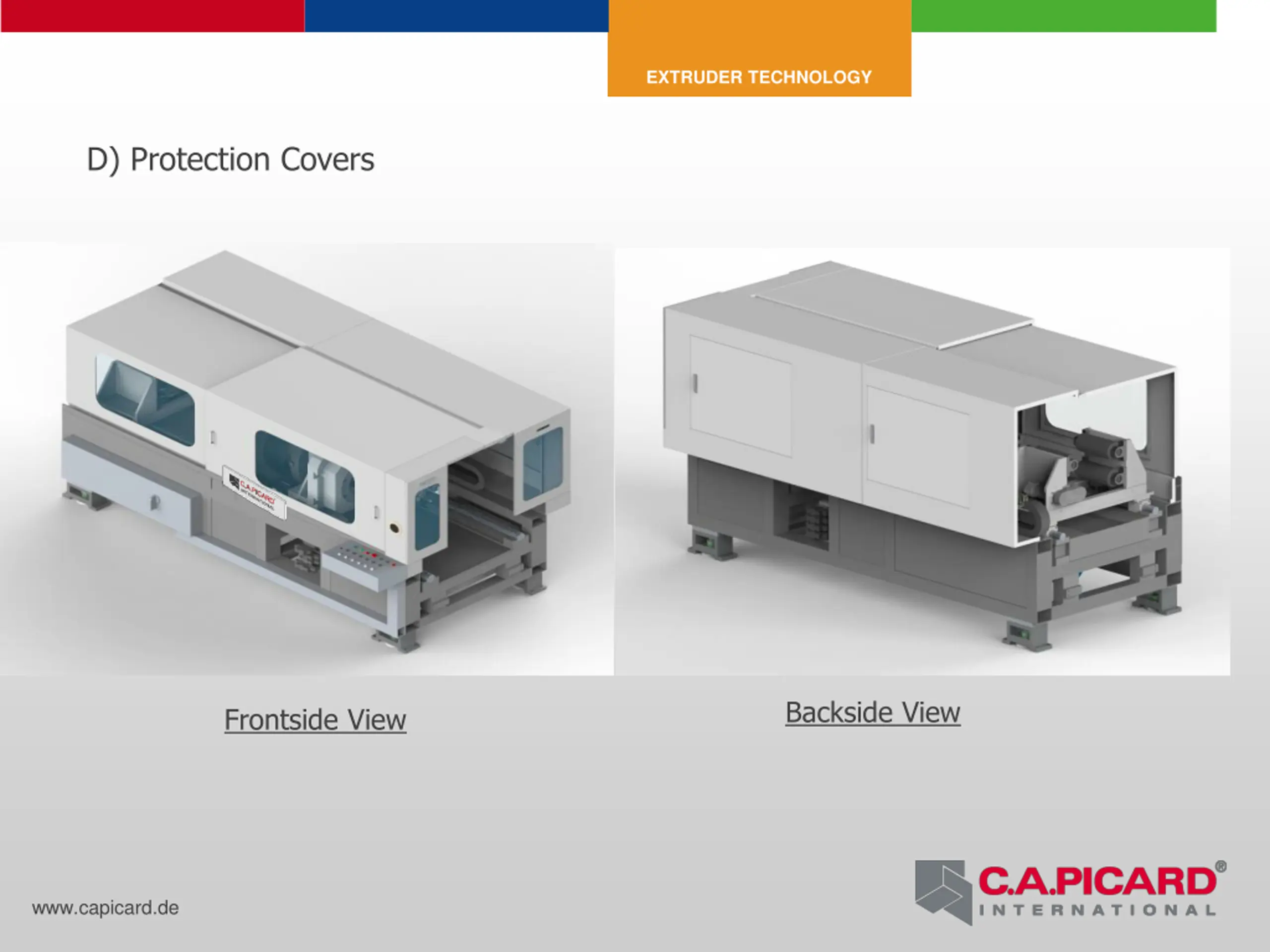

EXTRUDER TECHNOLOGY D) Protection Covers Backside View Frontside View www.capicard.de

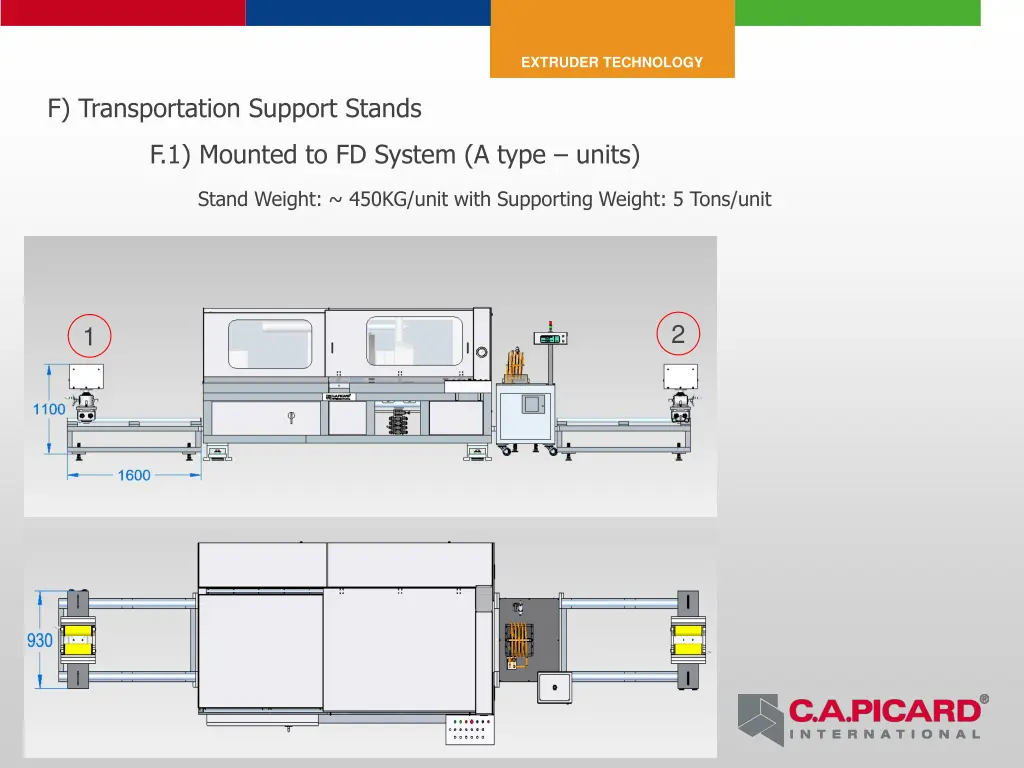

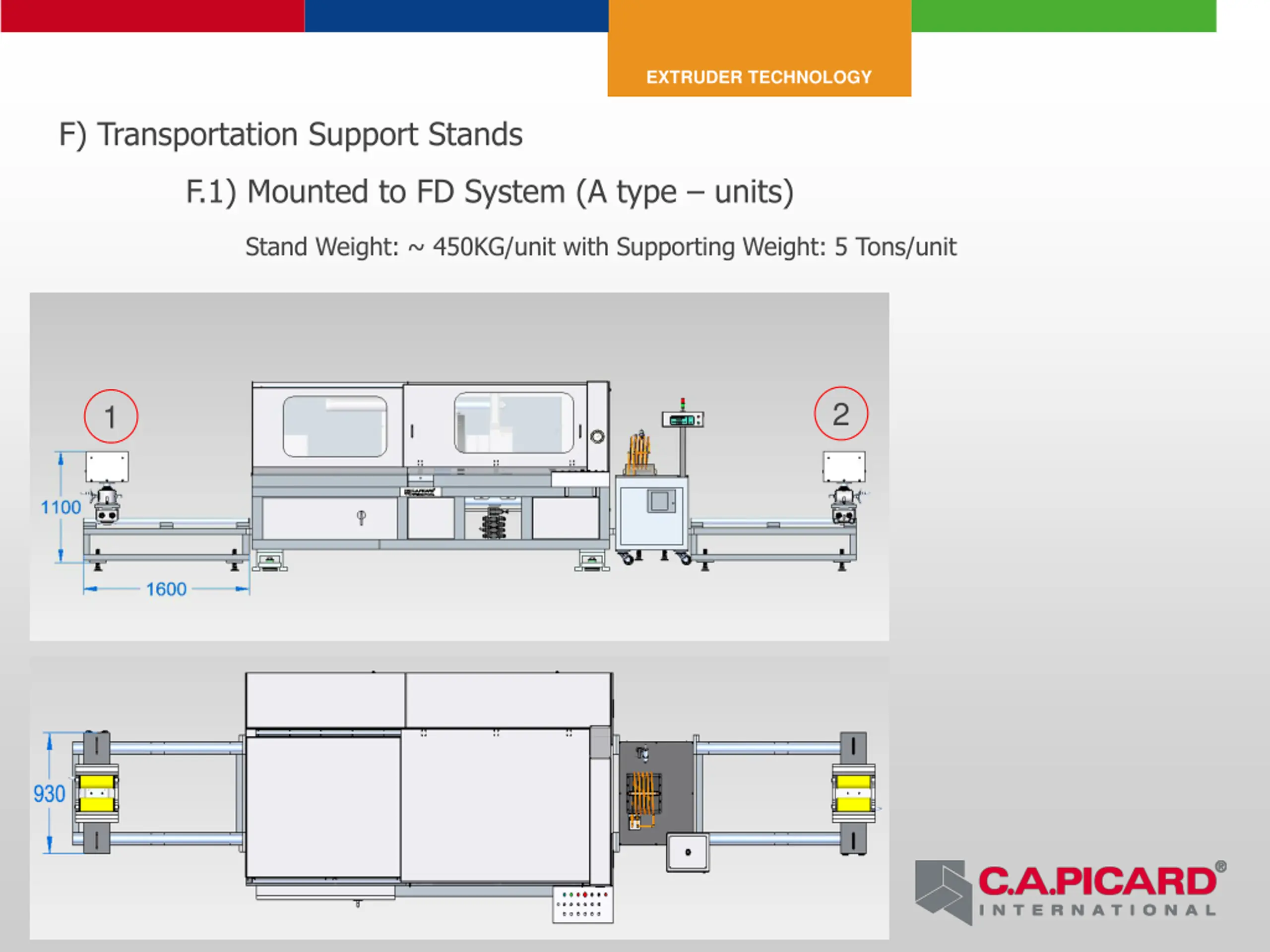

EXTRUDER TECHNOLOGY F) Transportation Support Stands F.1) Mounted to FD System (A type units) Stand Weight: ~ 450KG/unit with Supporting Weight: 5 Tons/unit 2 1 www.capicard.de

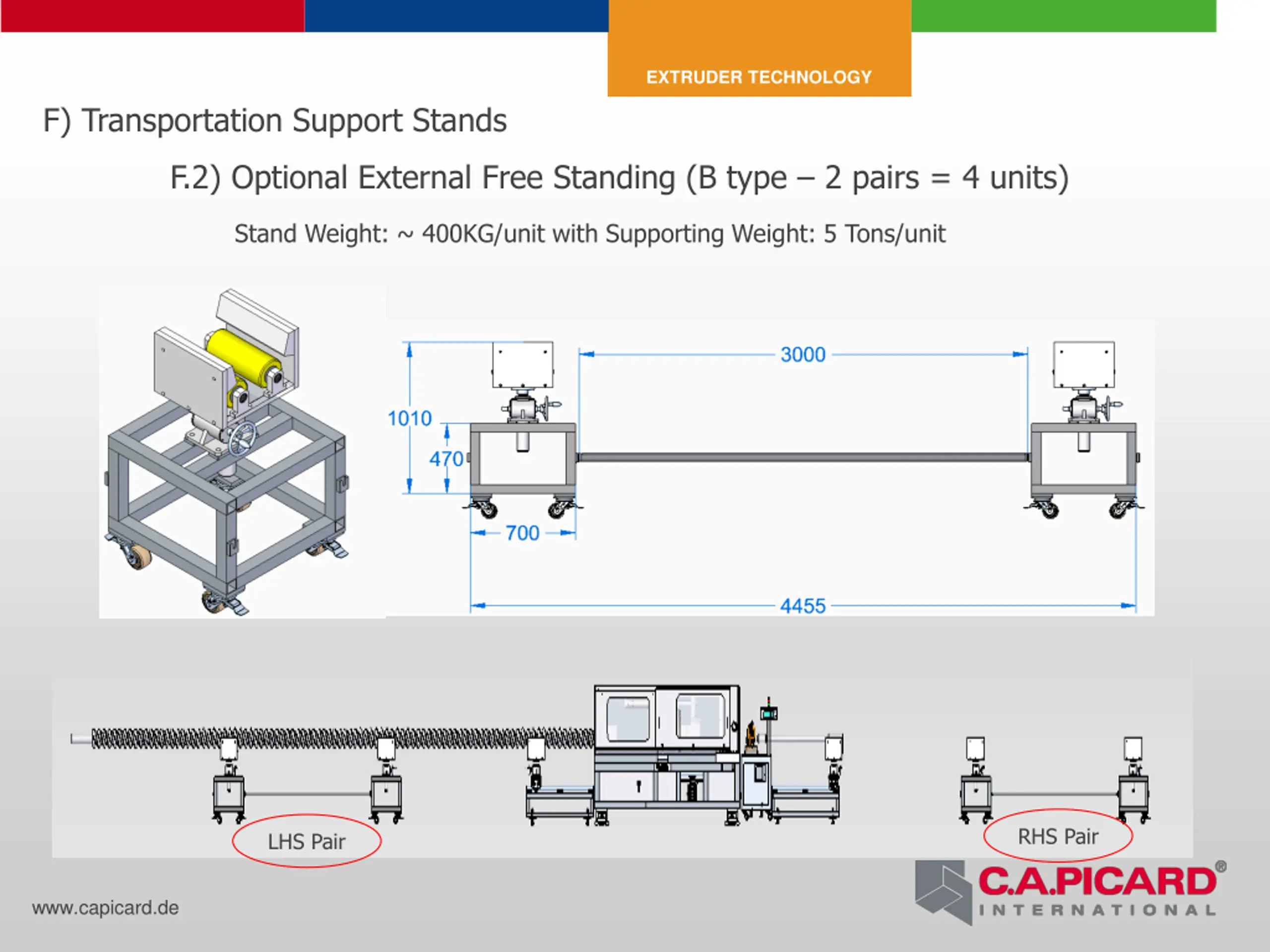

EXTRUDER TECHNOLOGY F) Transportation Support Stands F.2) Optional External Free Standing (B type 2 pairs = 4 units) Stand Weight: ~ 400KG/unit with Supporting Weight: 5 Tons/unit RHS Pair LHS Pair www.capicard.de

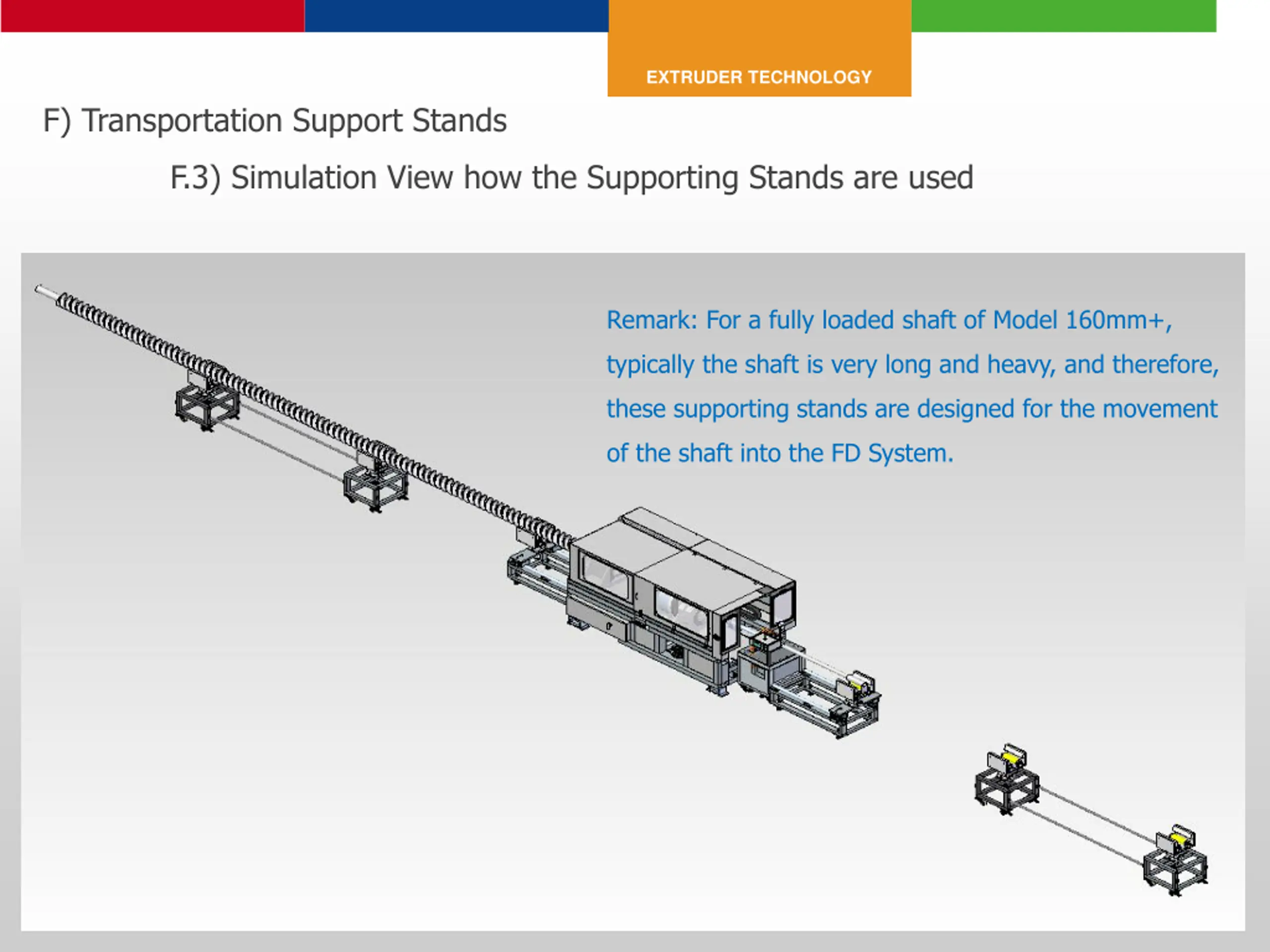

EXTRUDER TECHNOLOGY F) Transportation Support Stands F.3) Simulation View how the Supporting Stands are used Remark: For a fully loaded shaft of Model 160mm+, typically the shaft is very long and heavy, and therefore, these supporting stands are designed for the movement of the shaft into the FD System. www.capicard.de

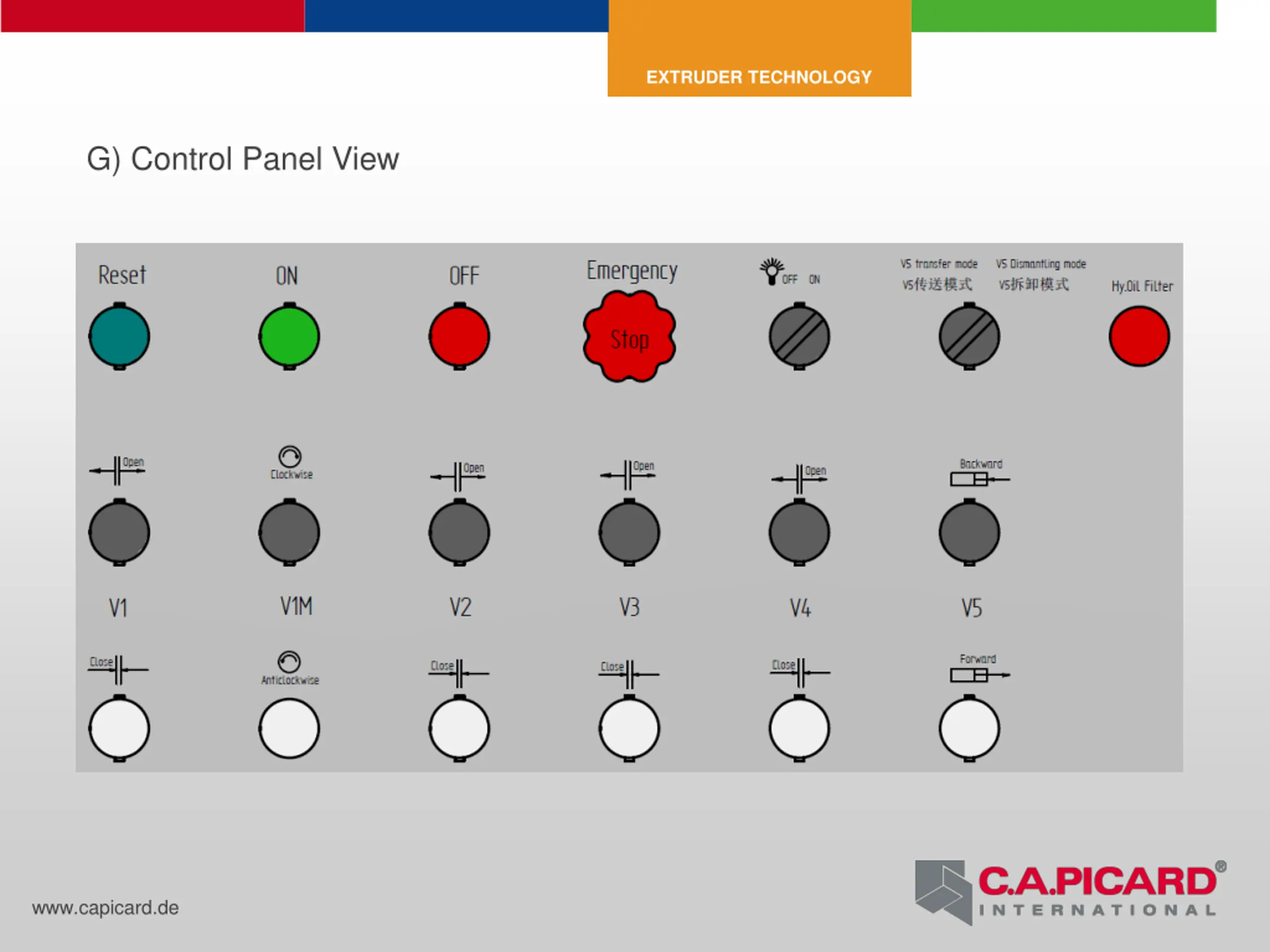

EXTRUDER TECHNOLOGY G) Control Panel View www.capicard.de

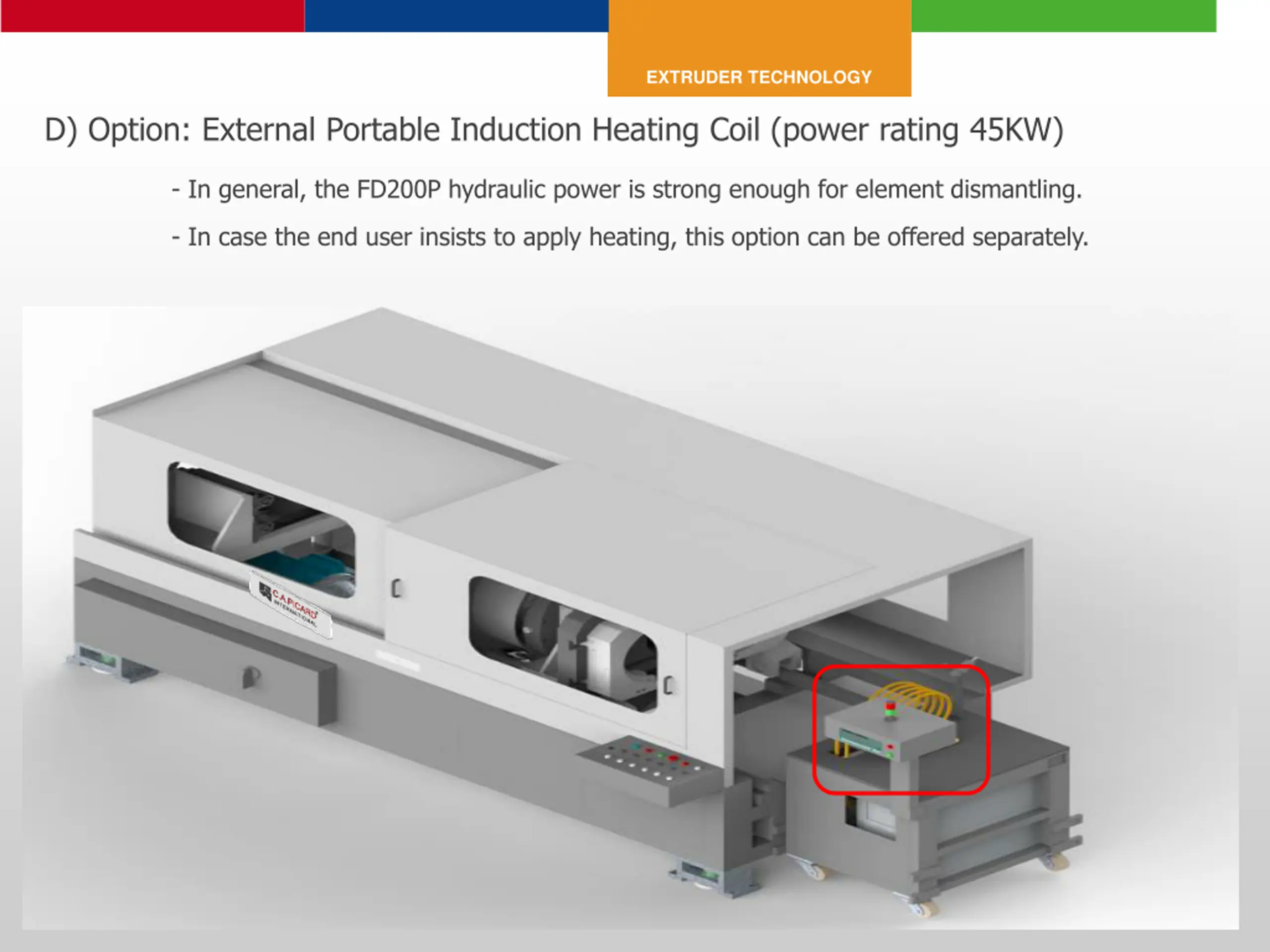

EXTRUDER TECHNOLOGY D) Option: External Portable Induction Heating Coil (power rating 45KW) - In general, the FD200P hydraulic power is strong enough for element dismantling. - In case the end user insists to apply heating, this option can be offered separately. www.capicard.de
