Factory Location Guide Solution using Color-based LED-ID Technology
This document introduces a Vehicle-to-Everything (V2X) solution utilizing color-based LED-ID technology for factory vehicles to automatically locate service points. The proposed solution aids in guiding factory vehicles to service locations based on indoor and outdoor road conditions, facilitating application services such as Intelligent Transportation Systems (ITS) and Advanced Driver Assistance Systems (ADAS). Additionally, the technology can be applied to IoT/IoL systems, digital signage, and connected information services.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

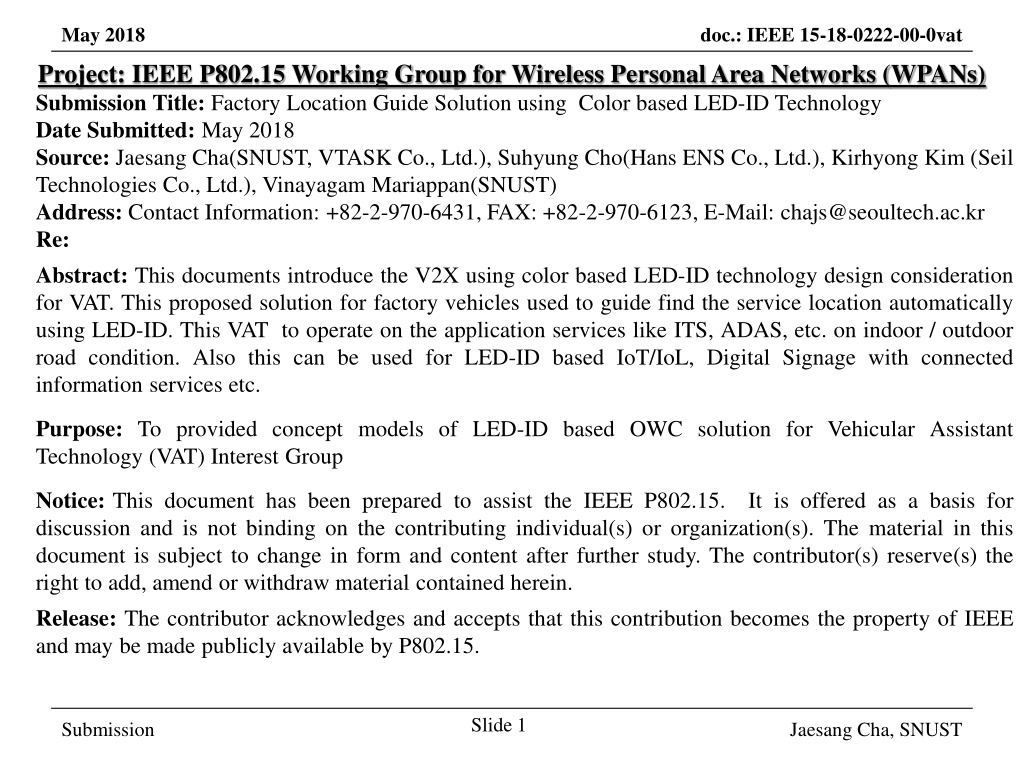

May 2018 Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title: Factory Location Guide Solution using Color based LED-ID Technology Date Submitted: May 2018 Source: Jaesang Cha(SNUST, VTASK Co., Ltd.), Suhyung Cho(Hans ENS Co., Ltd.), Kirhyong Kim (Seil Technologies Co., Ltd.), Vinayagam Mariappan(SNUST) Address: Contact Information: +82-2-970-6431, FAX: +82-2-970-6123, E-Mail: chajs@seoultech.ac.kr Re: Abstract: This documents introduce the V2X using color based LED-ID technology design consideration for VAT. This proposed solution for factory vehicles used to guide find the service location automatically using LED-ID. This VAT to operate on the application services like ITS, ADAS, etc. on indoor / outdoor road condition. Also this can be used for LED-ID based IoT/IoL, Digital Signage with connected information services etc. doc.: IEEE 15-18-0222-00-0vat Purpose: To provided concept models of LED-ID based OWC solution for Vehicular Assistant Technology (VAT) Interest Group Notice: This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15. Slide 1 Submission Jaesang Cha, SNUST

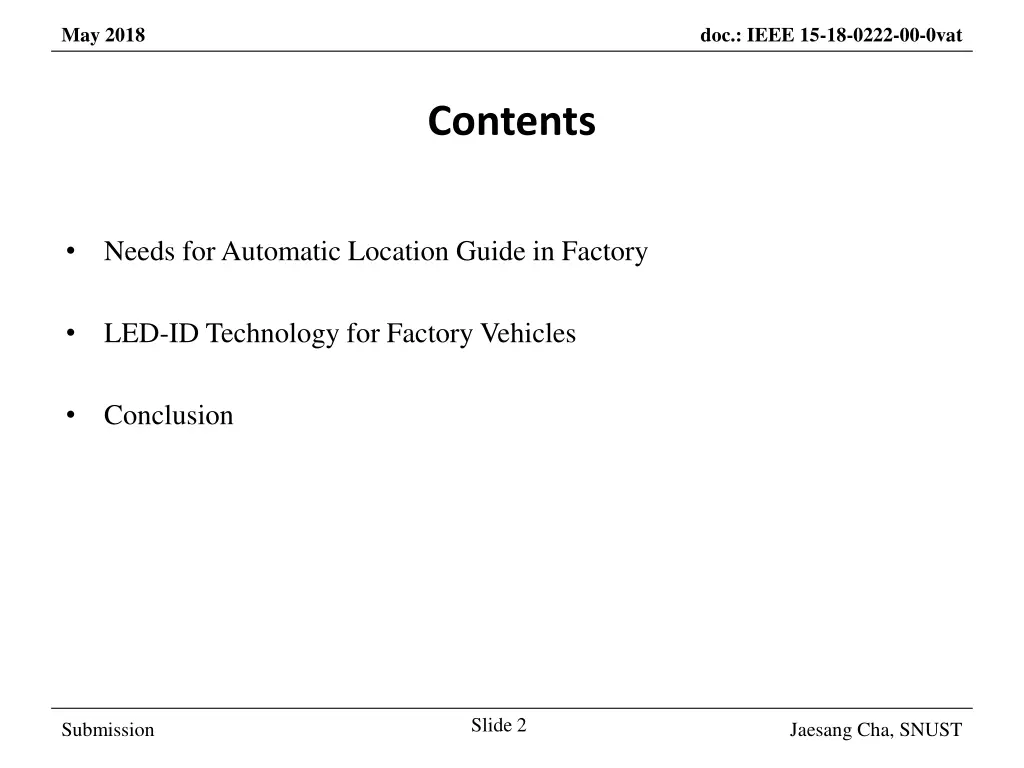

May 2018 doc.: IEEE 15-18-0222-00-0vat Contents Needs for Automatic Location Guide in Factory LED-ID Technology for Factory Vehicles Conclusion Slide 2 Submission Jaesang Cha, SNUST

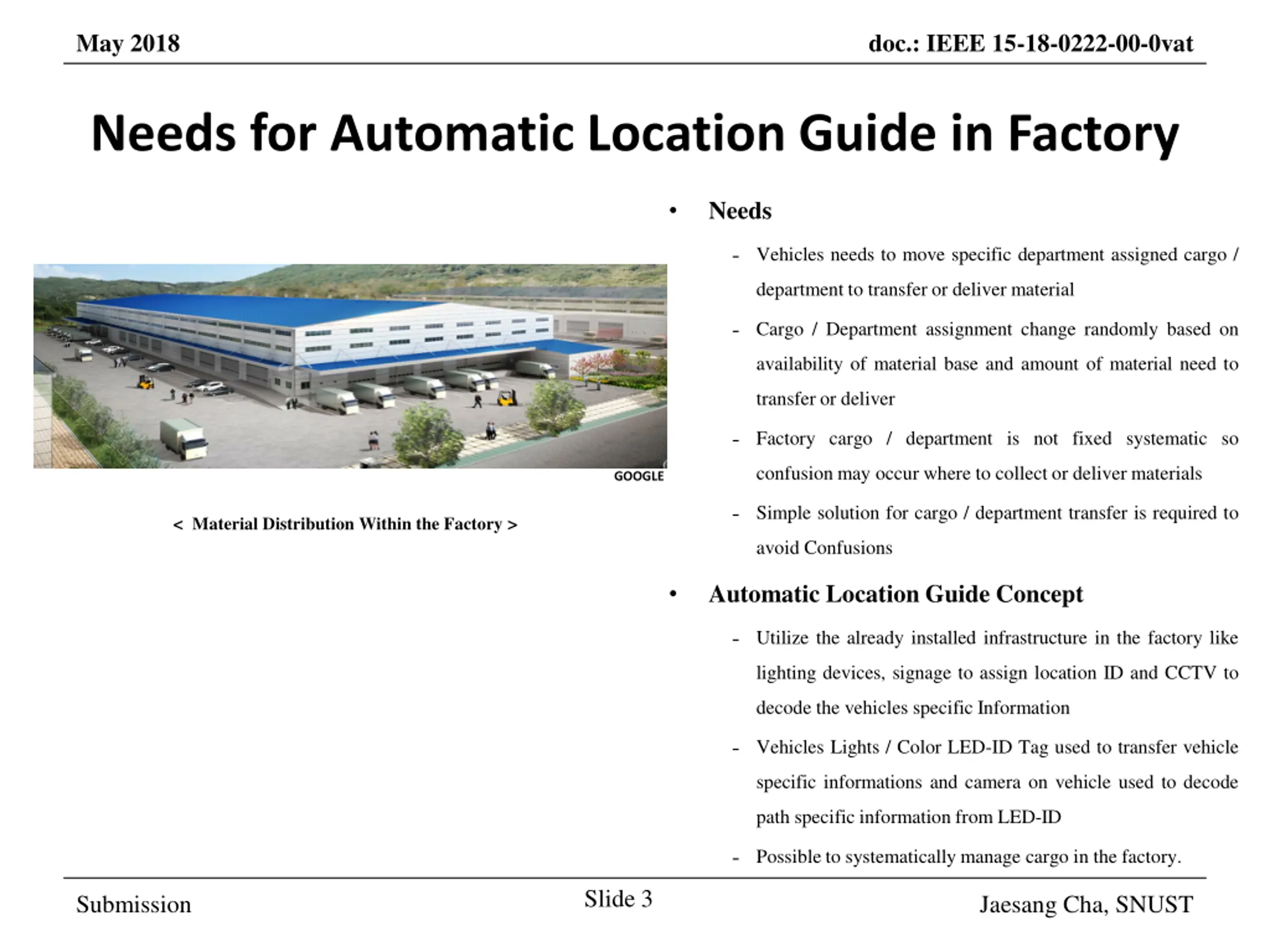

May 2018 doc.: IEEE 15-18-0222-00-0vat Needs for Automatic Location Guide in Factory Needs Vehicles needs to move specific department assigned cargo / department to transfer or deliver material Cargo / Department assignment change randomly based on availability of material base and amount of material need to transfer or deliver Factory cargo / department is not fixed systematic so confusion may occur where to collect or deliver materials GOOGLE Simple solution for cargo / department transfer is required to < Material Distribution Within the Factory > avoid Confusions Automatic Location Guide Concept Utilize the already installed infrastructure in the factory like lighting devices, signage to assign location ID and CCTV to decode the vehicles specific Information Vehicles Lights / Color LED-ID Tag used to transfer vehicle specific informations and camera on vehicle used to decode path specific information from LED-ID Possible to systematically manage cargo in the factory. Slide 3 Submission Jaesang Cha, SNUST

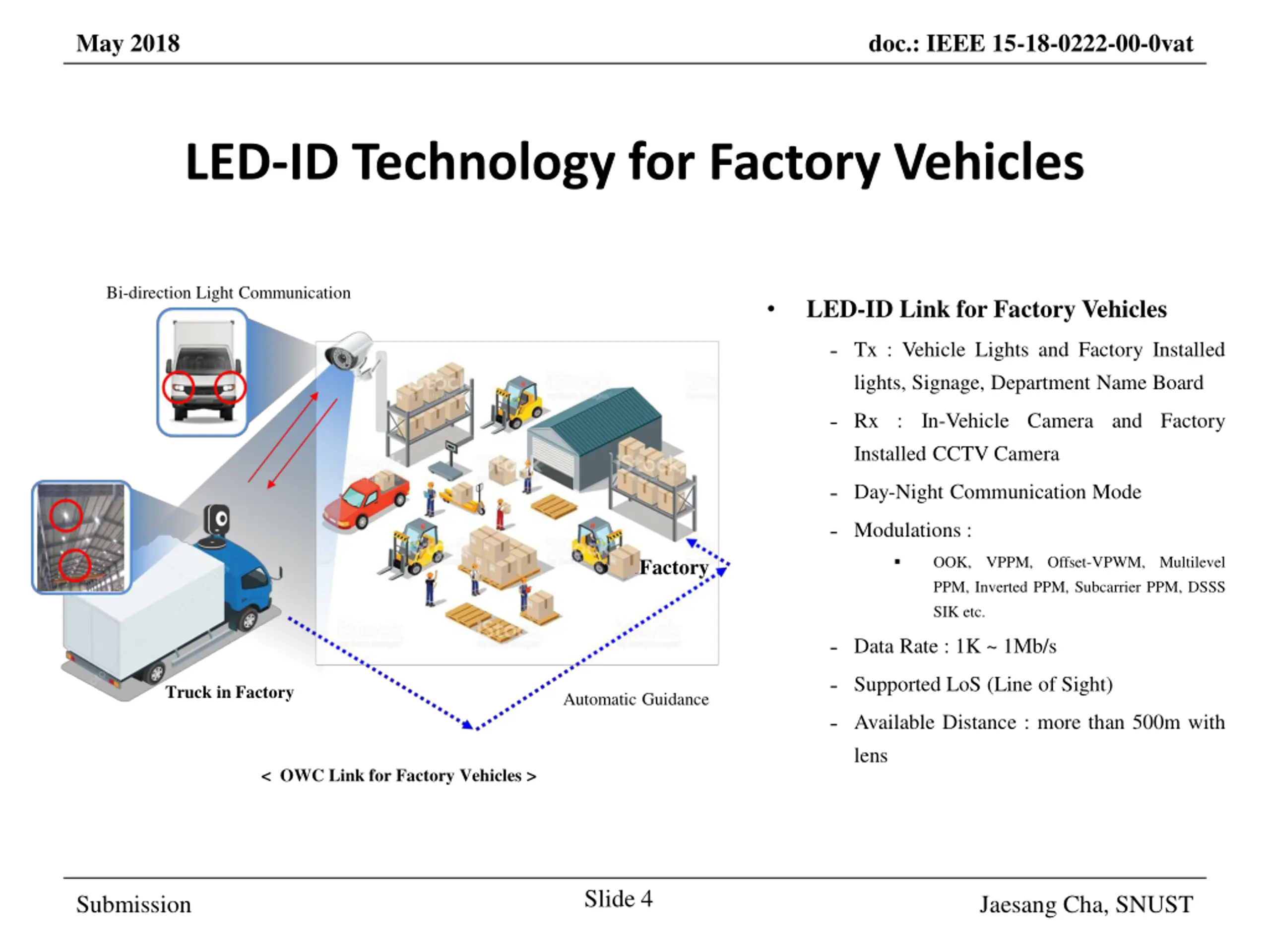

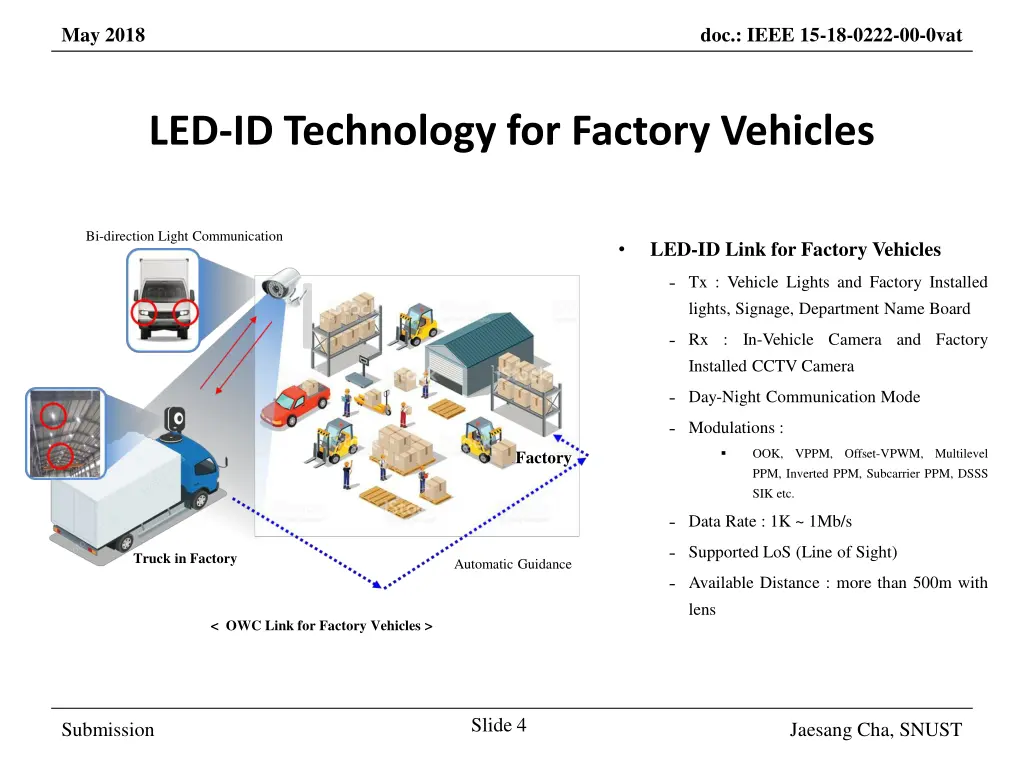

May 2018 doc.: IEEE 15-18-0222-00-0vat LED-ID Technology for Factory Vehicles Bi-direction Light Communication LED-ID Link for Factory Vehicles Tx : Vehicle Lights and Factory Installed lights, Signage, Department Name Board Rx : In-Vehicle Camera and Factory Installed CCTV Camera Day-Night Communication Mode Modulations : OOK, VPPM, Offset-VPWM, Multilevel PPM, Inverted PPM, Subcarrier PPM, DSSS SIK etc. Factory Data Rate : 1K ~ 1Mb/s Supported LoS (Line of Sight) Truck in Factory Automatic Guidance Available Distance : more than 500m with lens < OWC Link for Factory Vehicles > Slide 4 Submission Jaesang Cha, SNUST

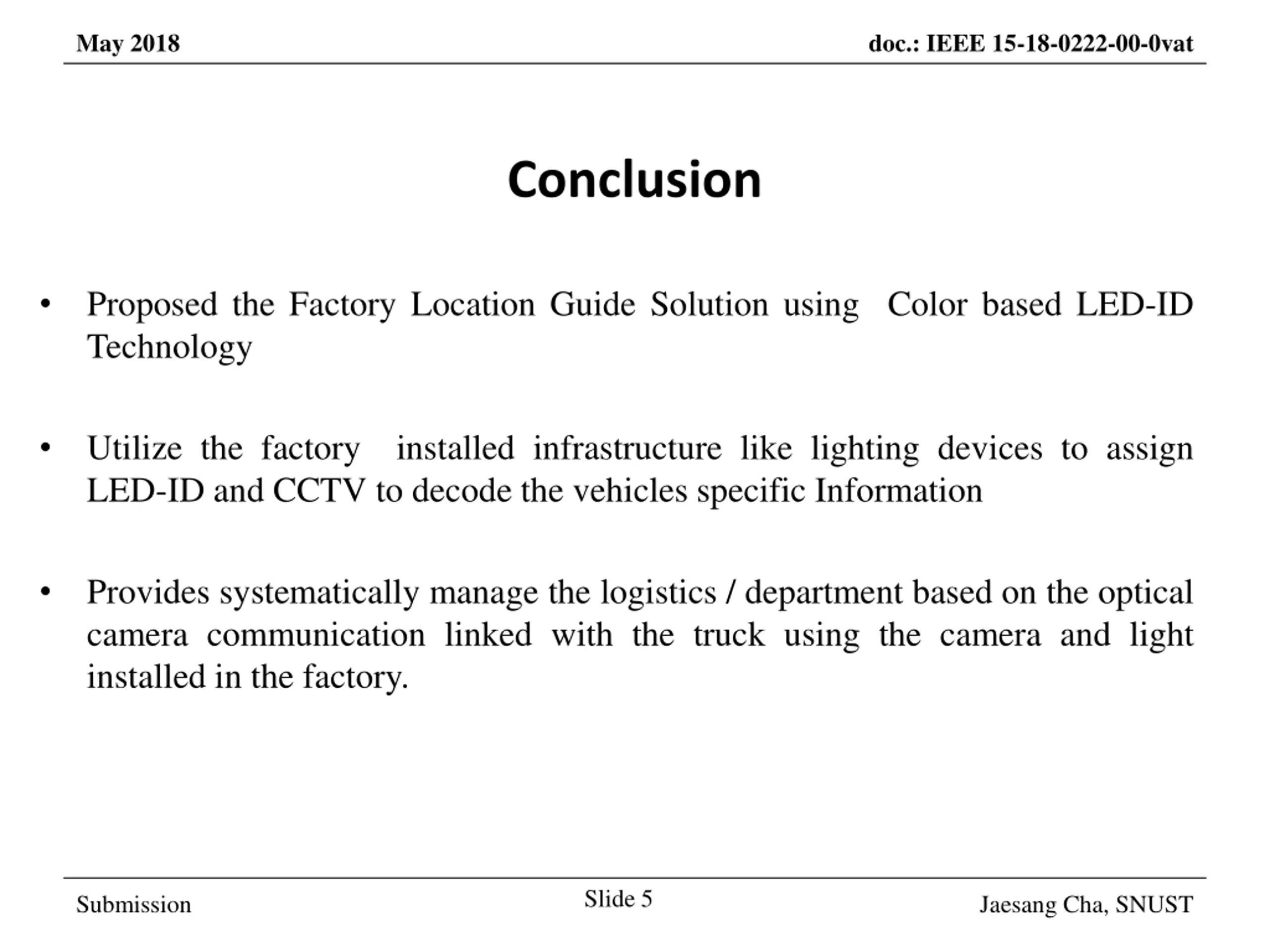

May 2018 doc.: IEEE 15-18-0222-00-0vat Conclusion Proposed the Factory Location Guide Solution using Color based LED-ID Technology Utilize the factory installed infrastructure like lighting devices to assign LED-ID and CCTV to decode the vehicles specific Information Provides systematically manage the logistics / department based on the optical camera communication linked with the truck using the camera and light installed in the factory. Slide 5 Submission Jaesang Cha, SNUST
