Kvell: the Design and Implementation of a Fast Persistent Key-Value Store B. Lepers et al. SOSP, 2019 2022. 04. 26 Presented by SungHyun Lee leesh0812@dankook.ac.kr

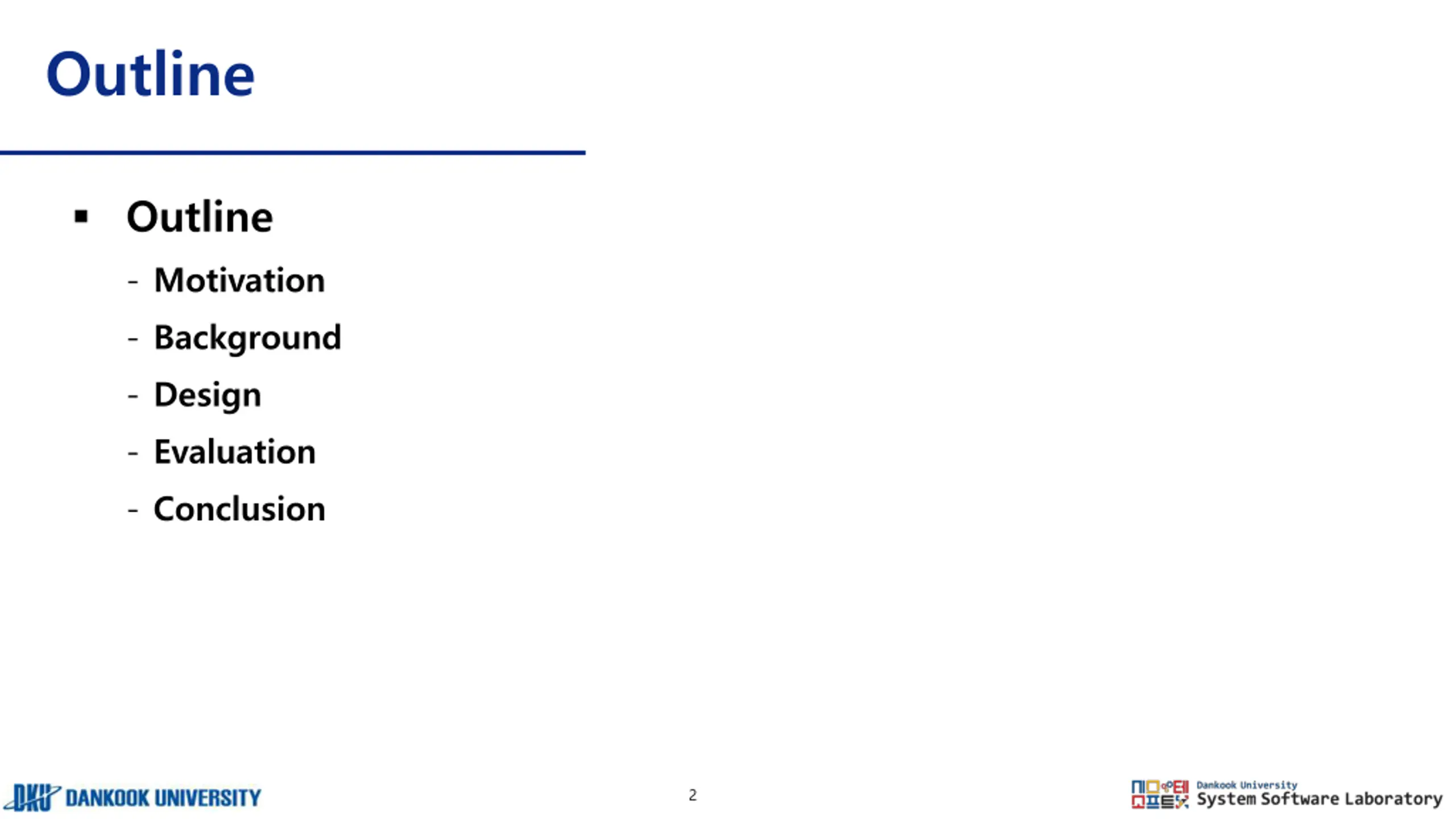

Outline Outline - Motivation - Background - Design - Evaluation - Conclusion 2

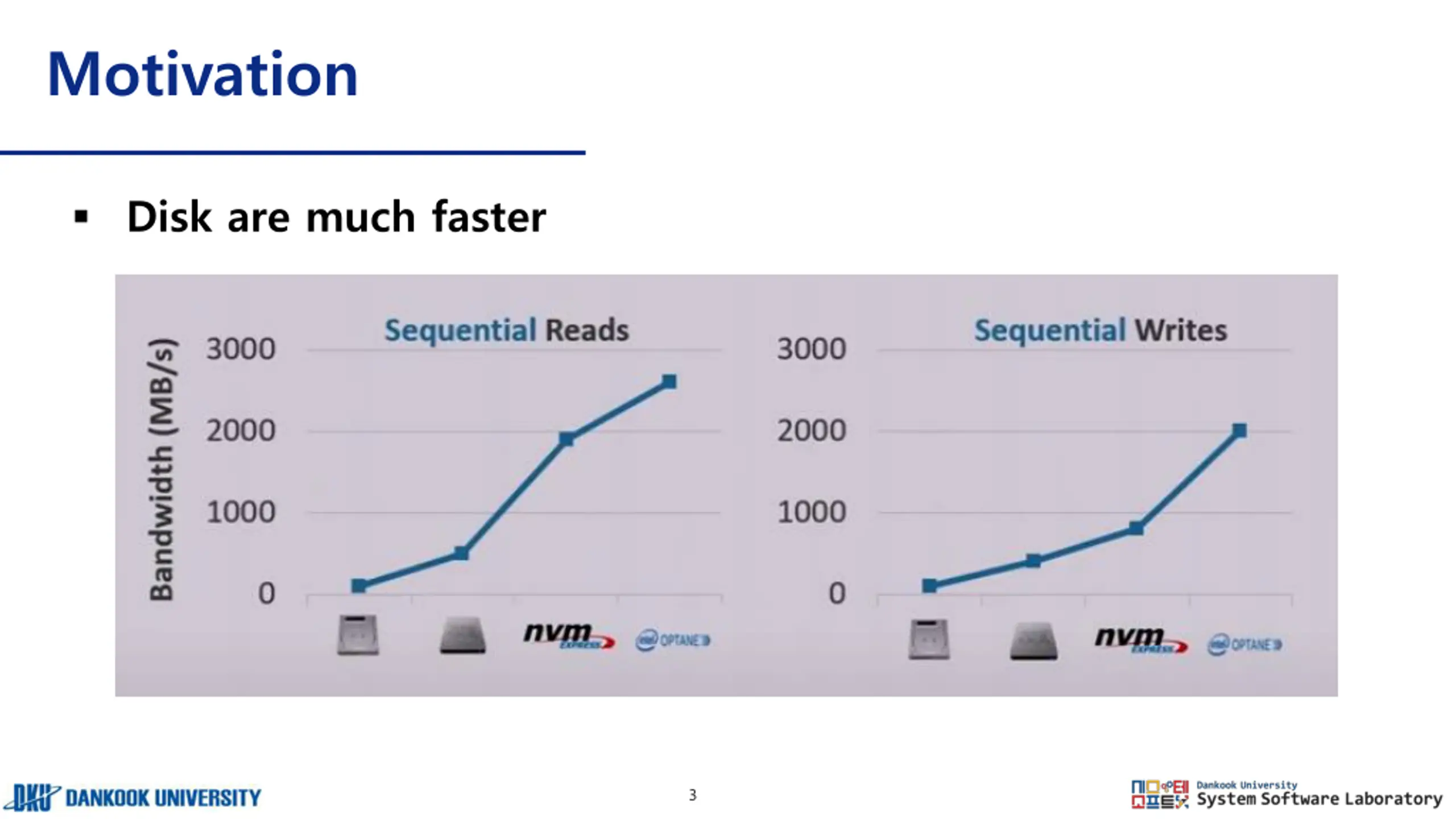

Motivation Disk are much faster 3

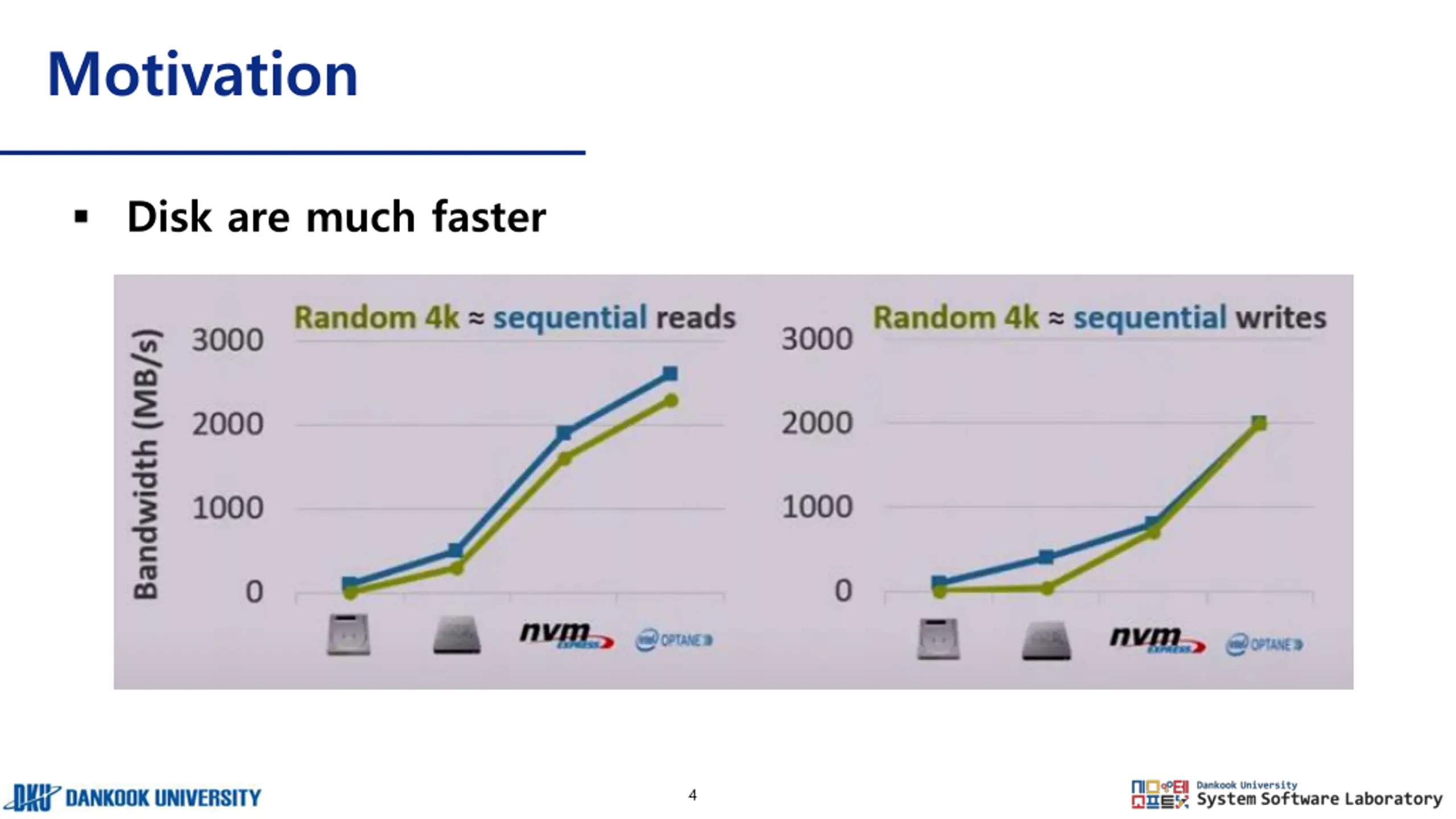

Motivation Disk are much faster 4

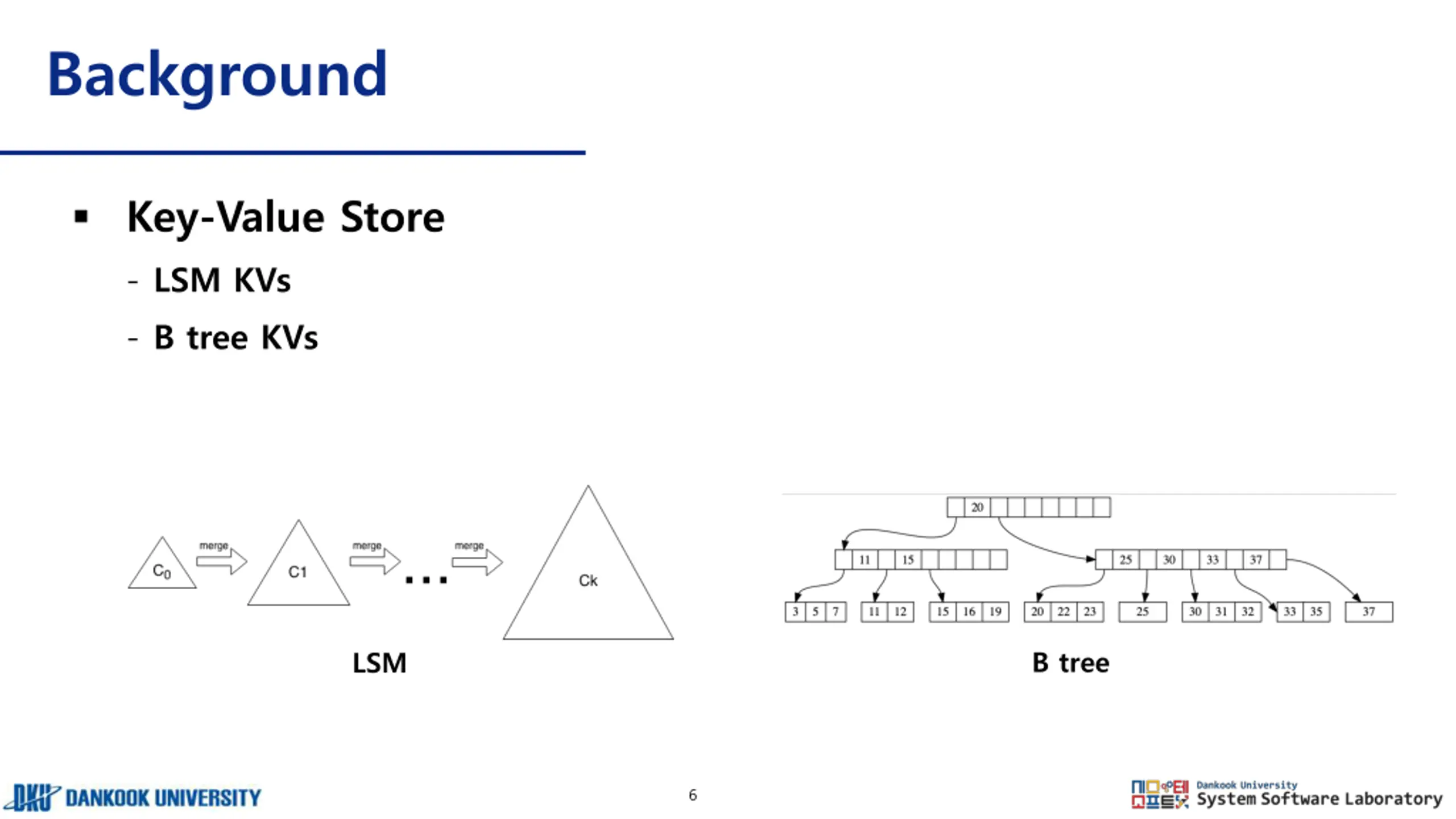

Background Key-Value Store - LSM KVs - B tree KVs B tree LSM 6

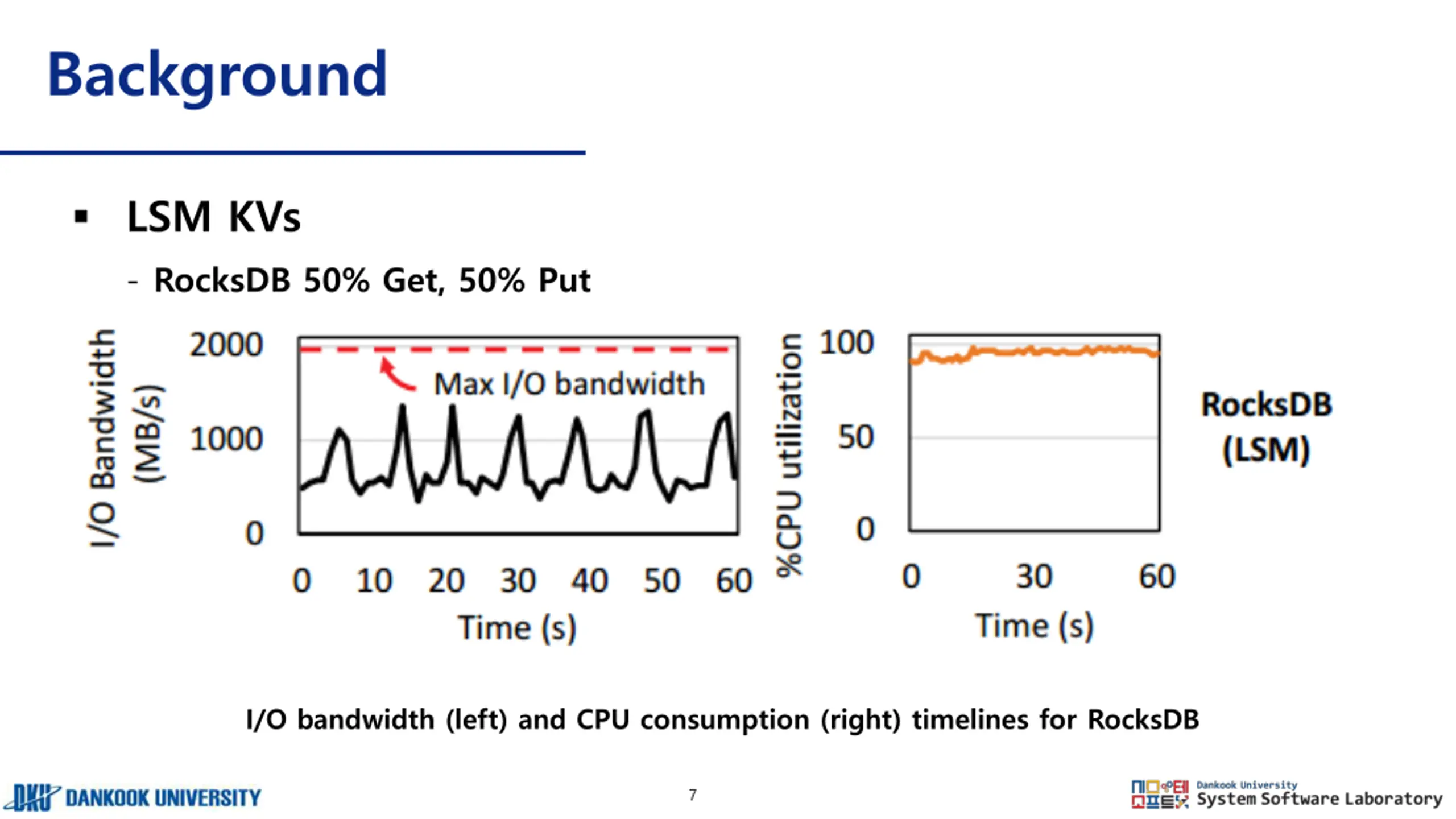

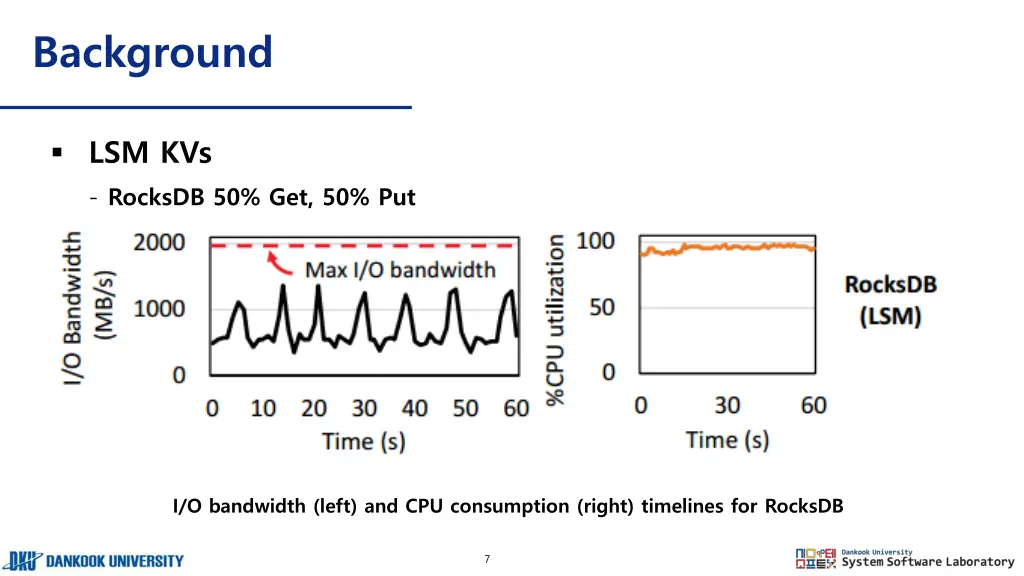

Background LSM KVs - RocksDB 50% Get, 50% Put I/O bandwidth (left) and CPU consumption (right) timelines for RocksDB 7

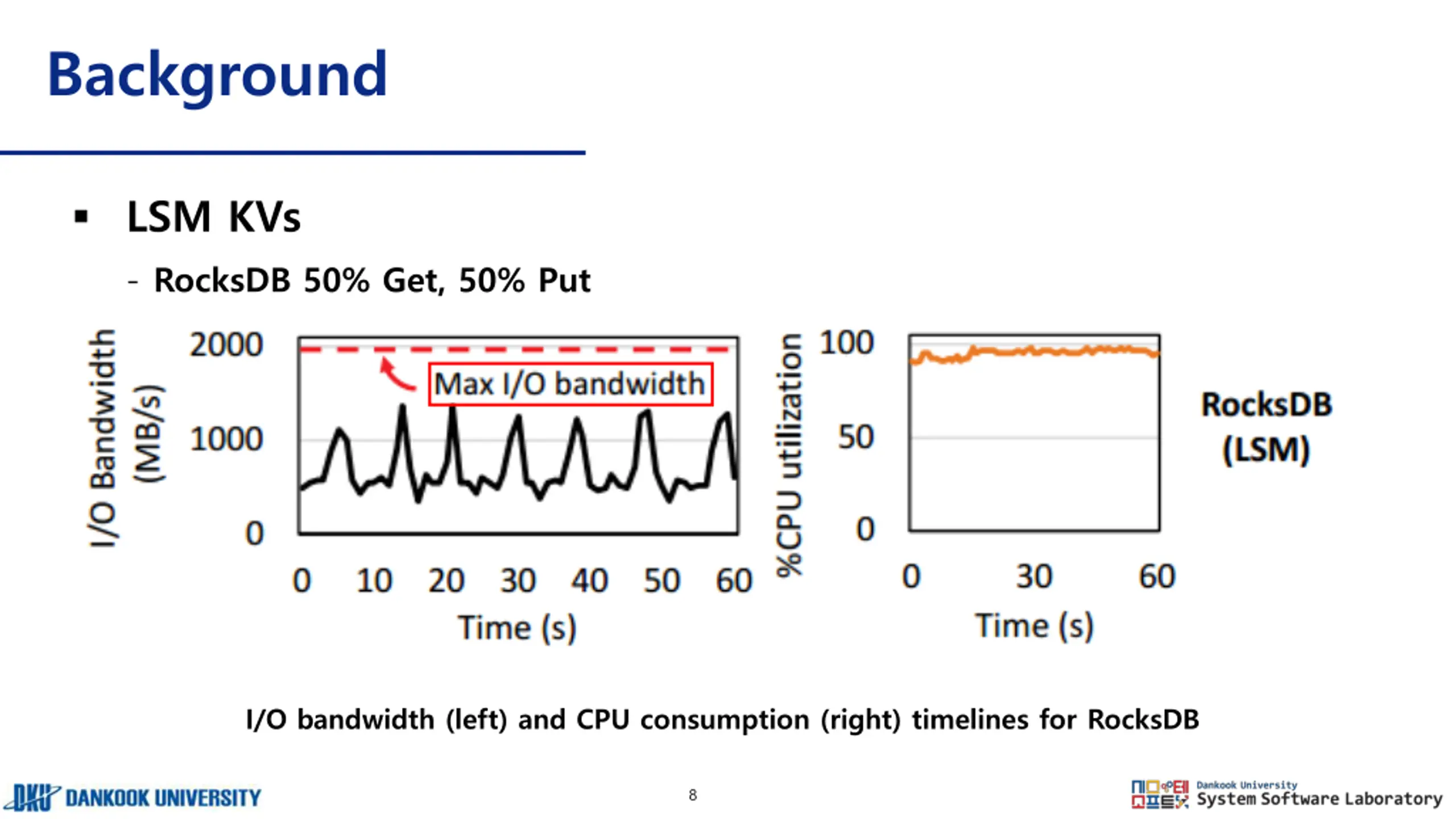

Background LSM KVs - RocksDB 50% Get, 50% Put I/O bandwidth (left) and CPU consumption (right) timelines for RocksDB 8

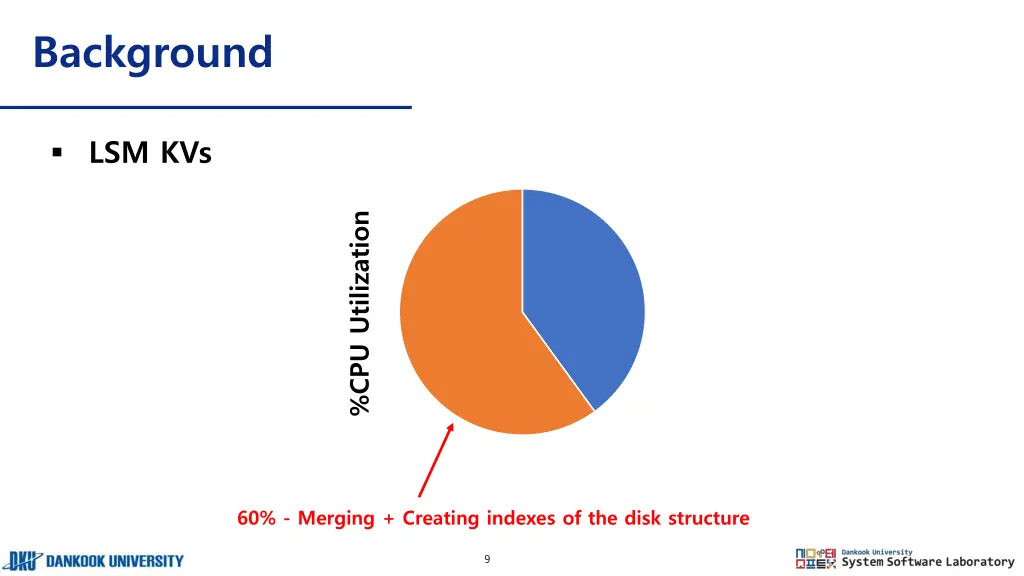

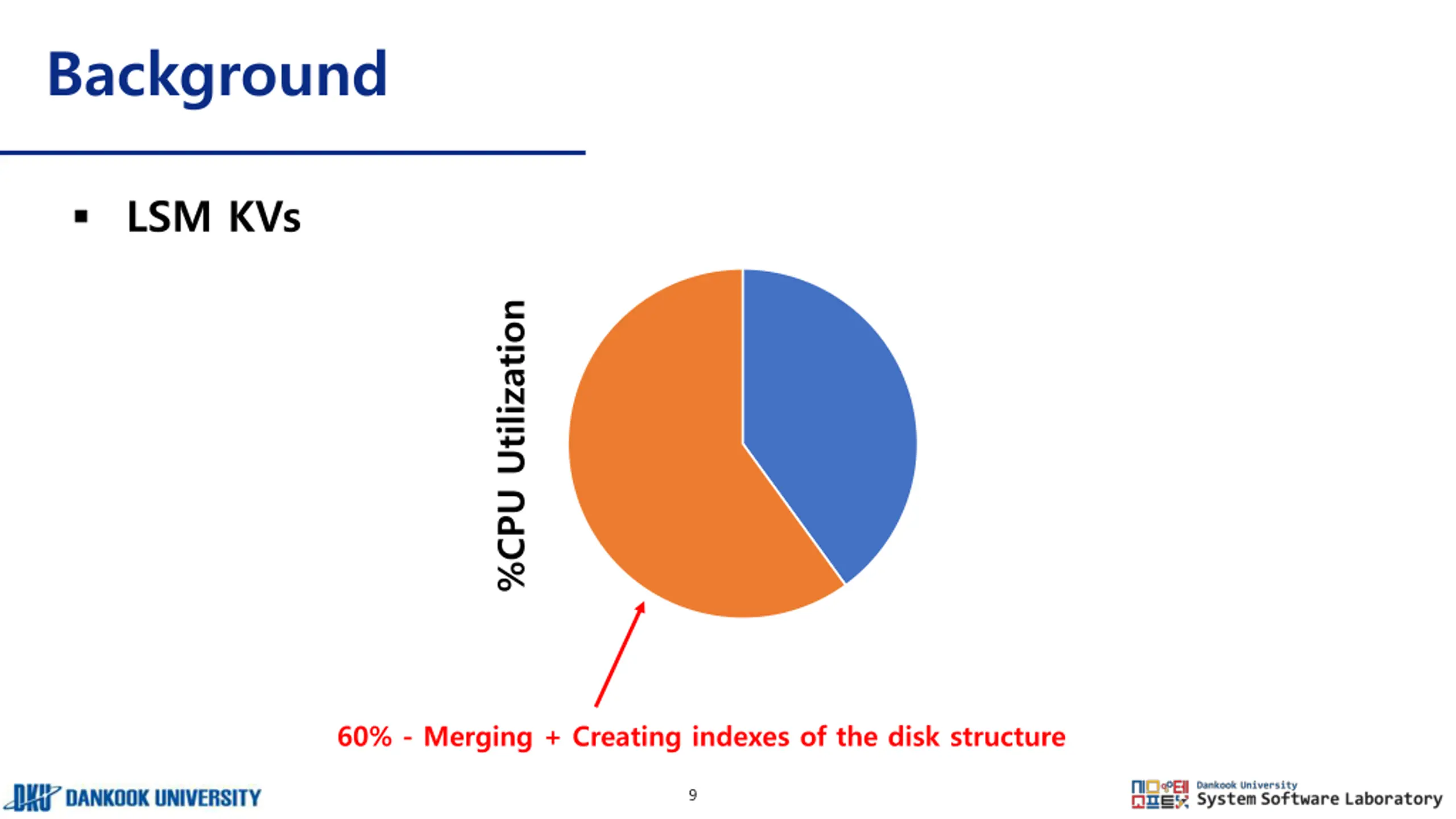

Background LSM KVs %CPU Utilization 60% - Merging + Creating indexes of the disk structure 9

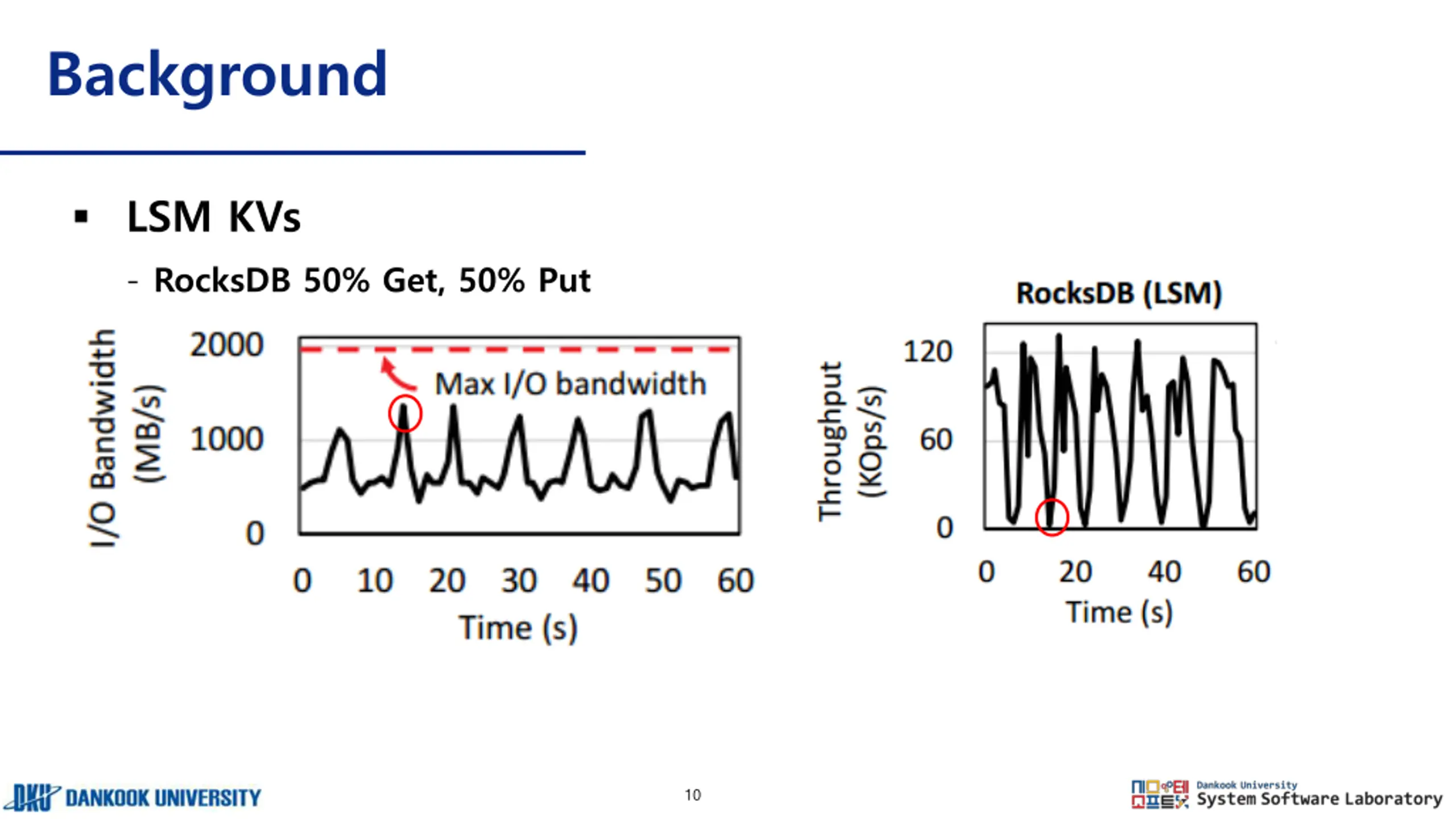

Background LSM KVs - RocksDB 50% Get, 50% Put 10

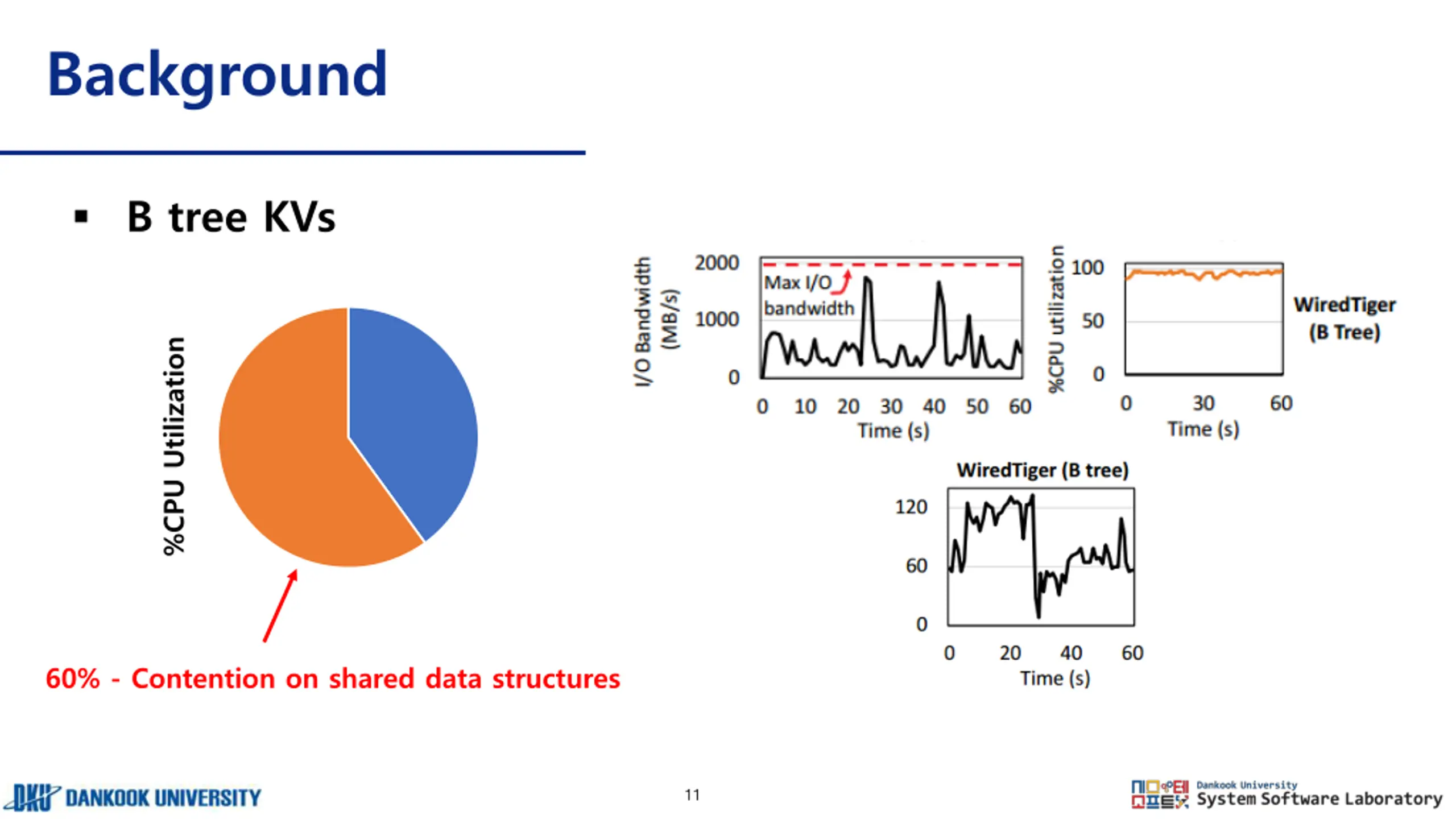

Background B tree KVs %CPU Utilization 60% - Contention on shared data structures 11

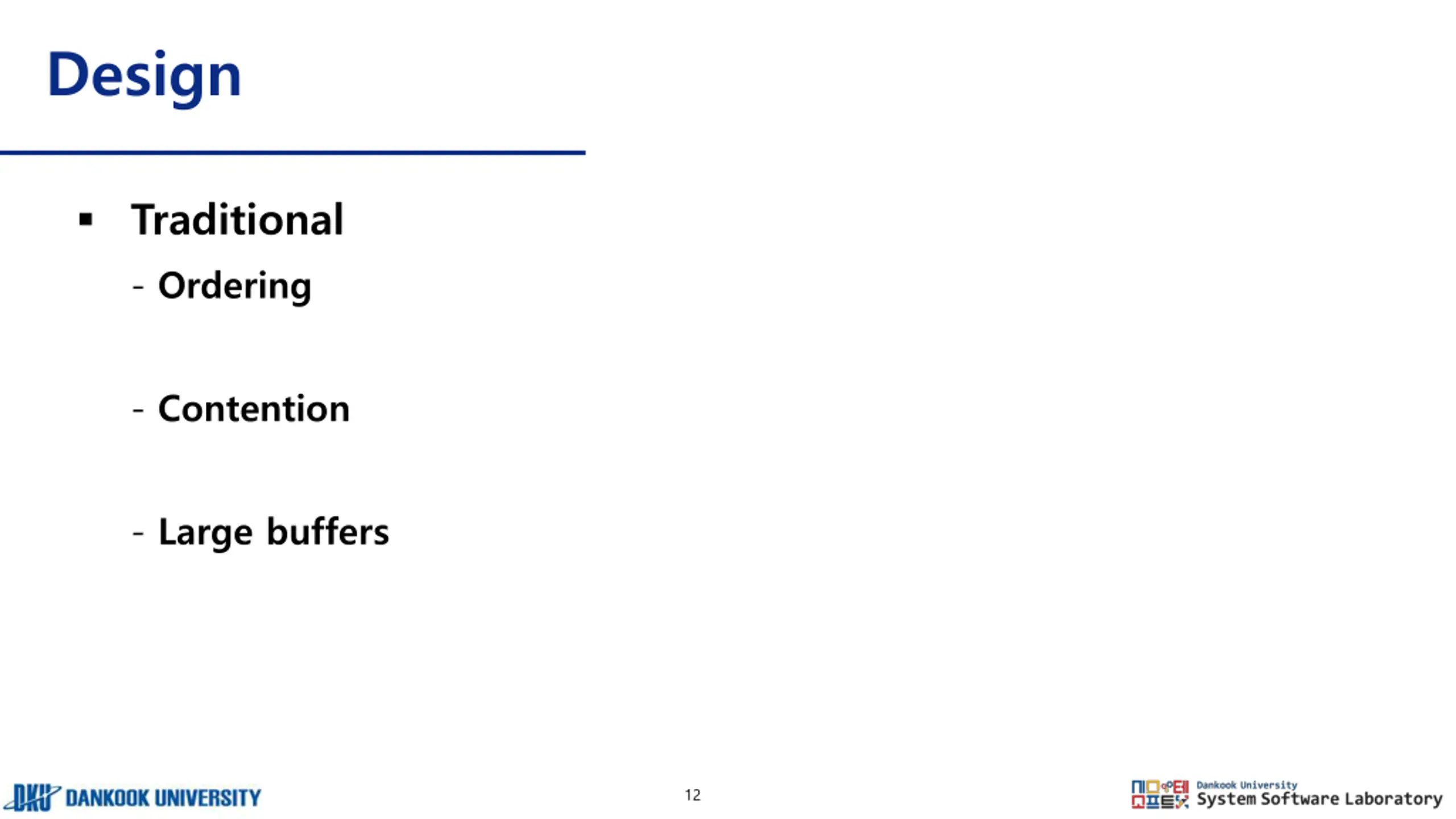

Design Traditional - Ordering - Contention - Large buffers 12

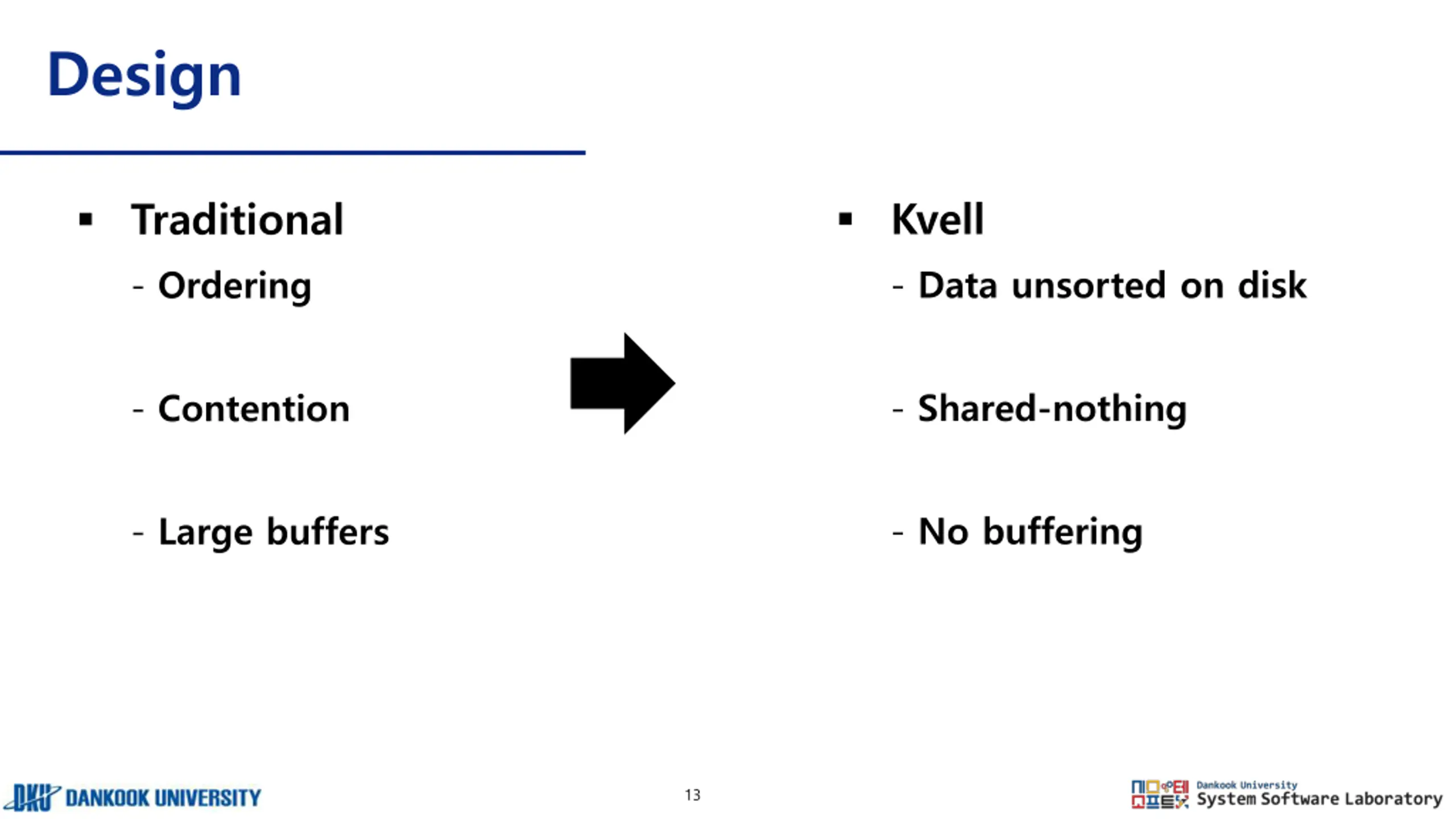

Design Kvell - Data unsorted on disk Traditional - Ordering - Shared-nothing - Contention - No buffering - Large buffers 13

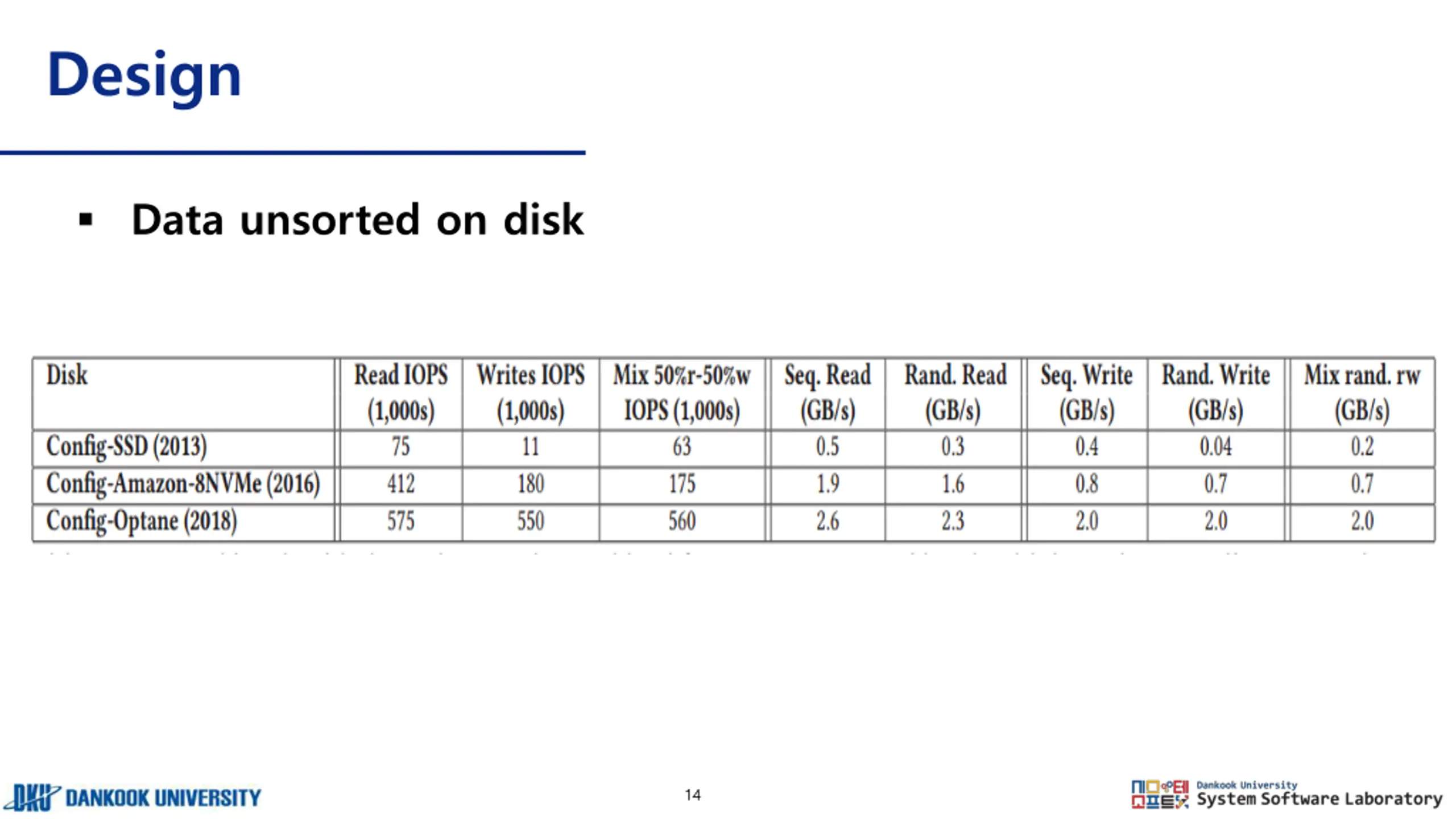

Design Data unsorted on disk 14

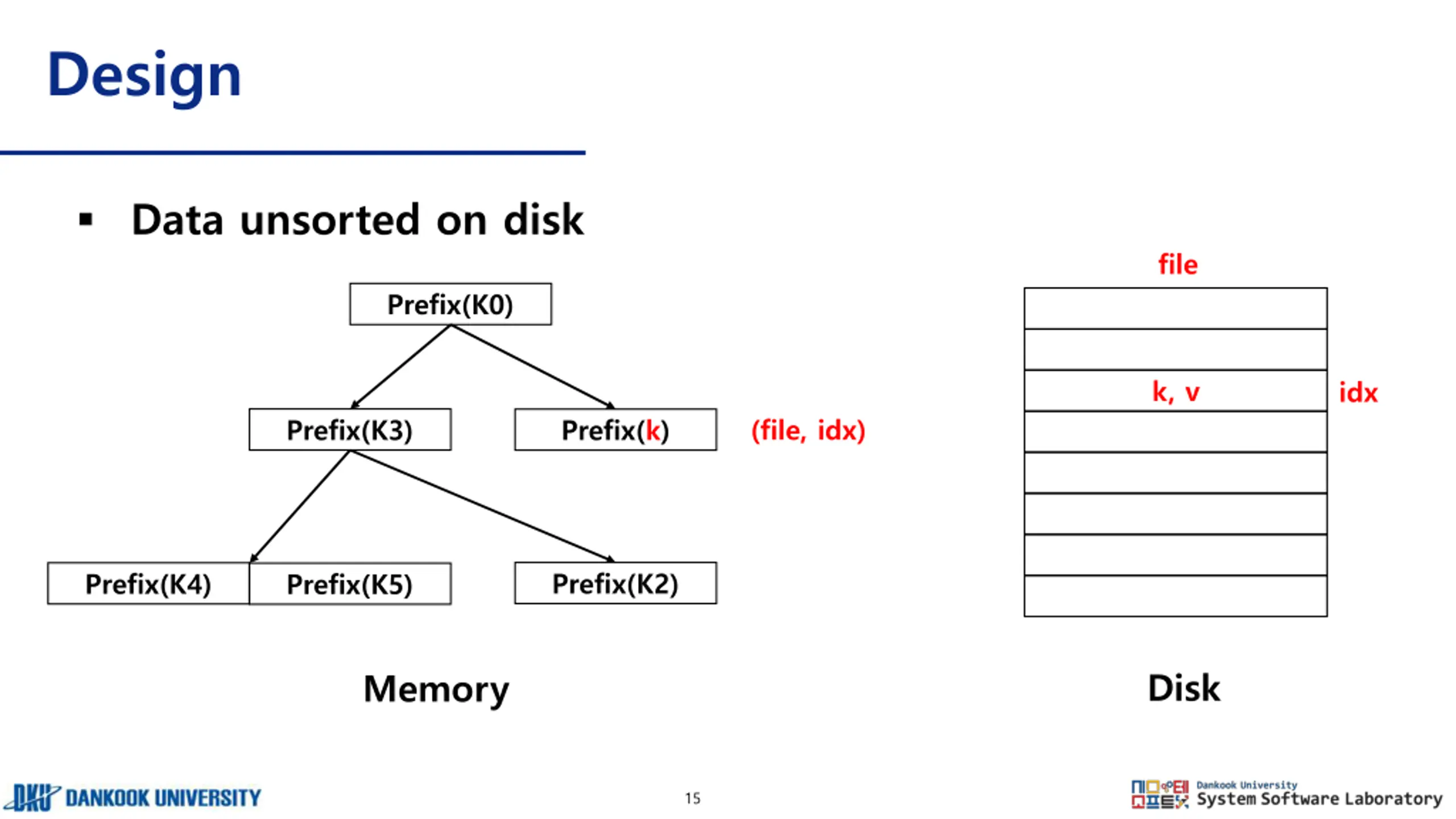

Design Data unsorted on disk file Prefix(K0) k, v idx (file, idx) Prefix(K3) Prefix(k) Prefix(K2) Prefix(K4) Prefix(K5) Disk Memory 15

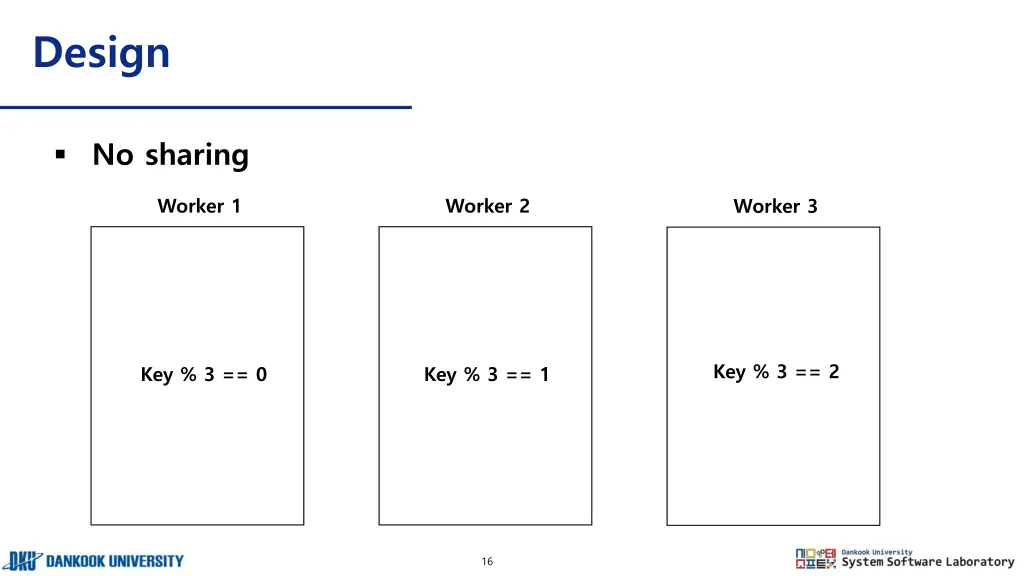

Design No sharing Worker 1 Worker 2 Worker 3 Key % 3 == 2 Key % 3 == 0 Key % 3 == 1 16

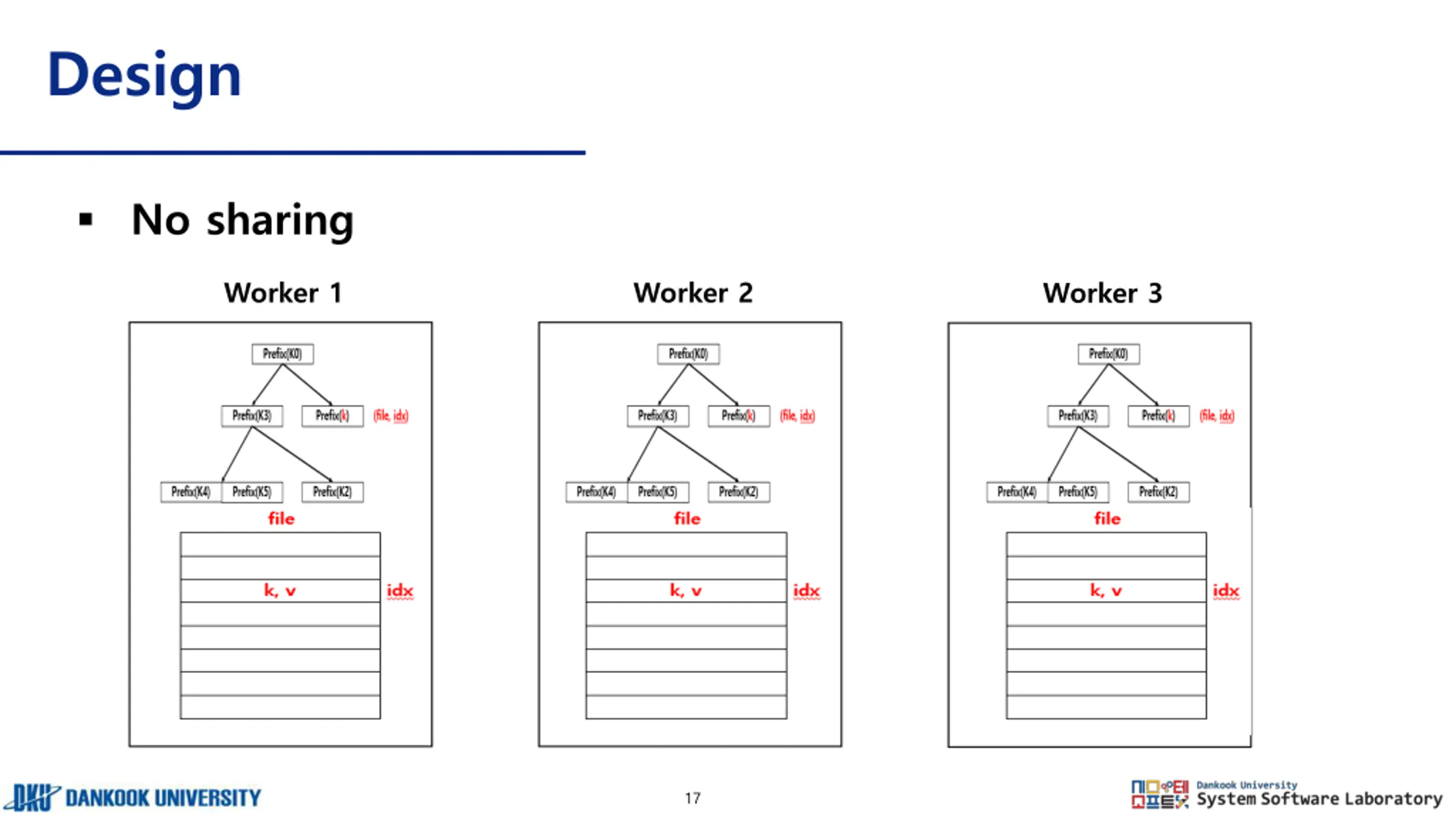

Design No sharing Worker 1 Worker 2 Worker 3 17

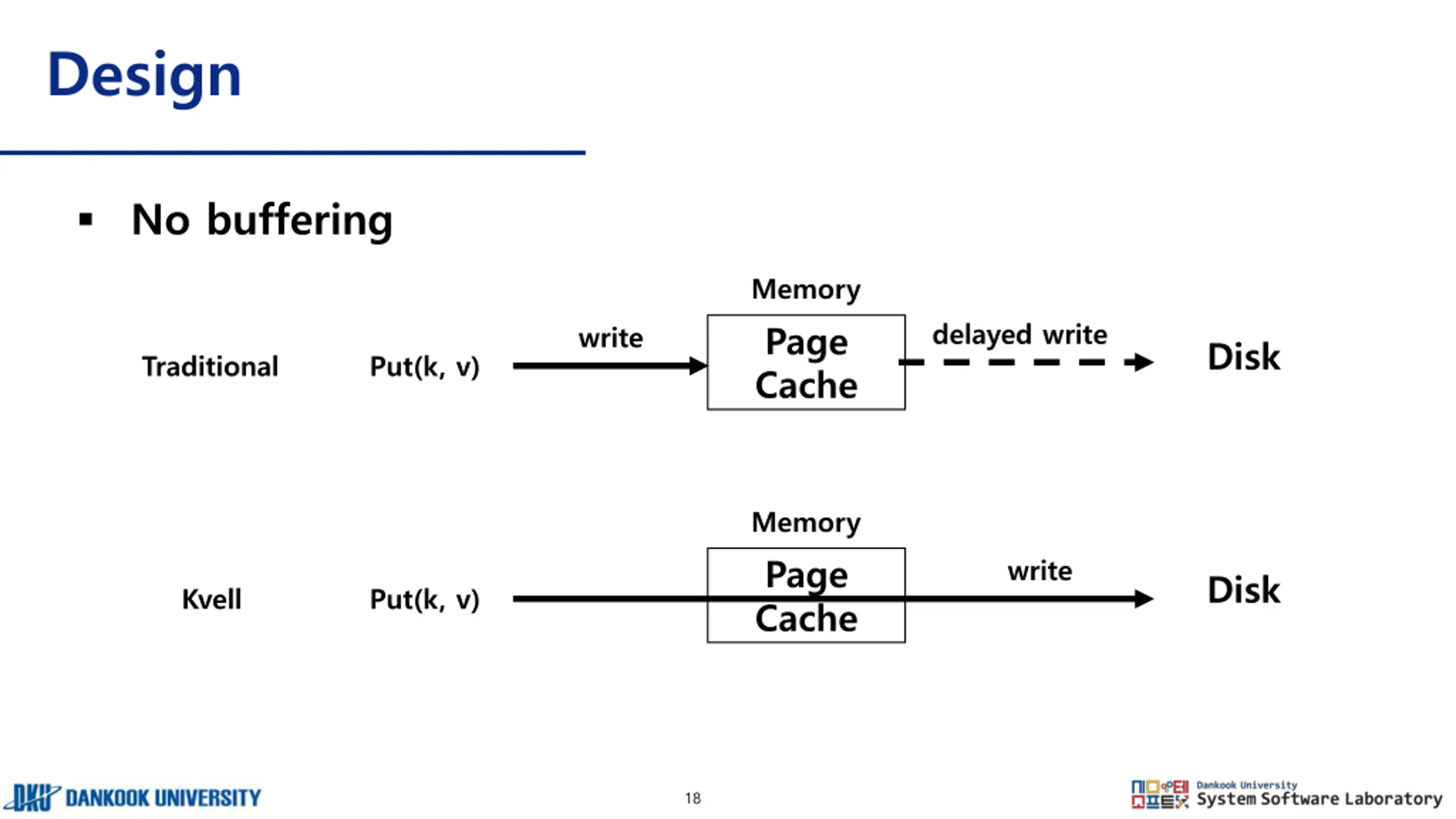

Design No buffering Memory delayed write Page Cache write Disk Traditional Put(k, v) Memory Page Cache write Disk Kvell Put(k, v) 18

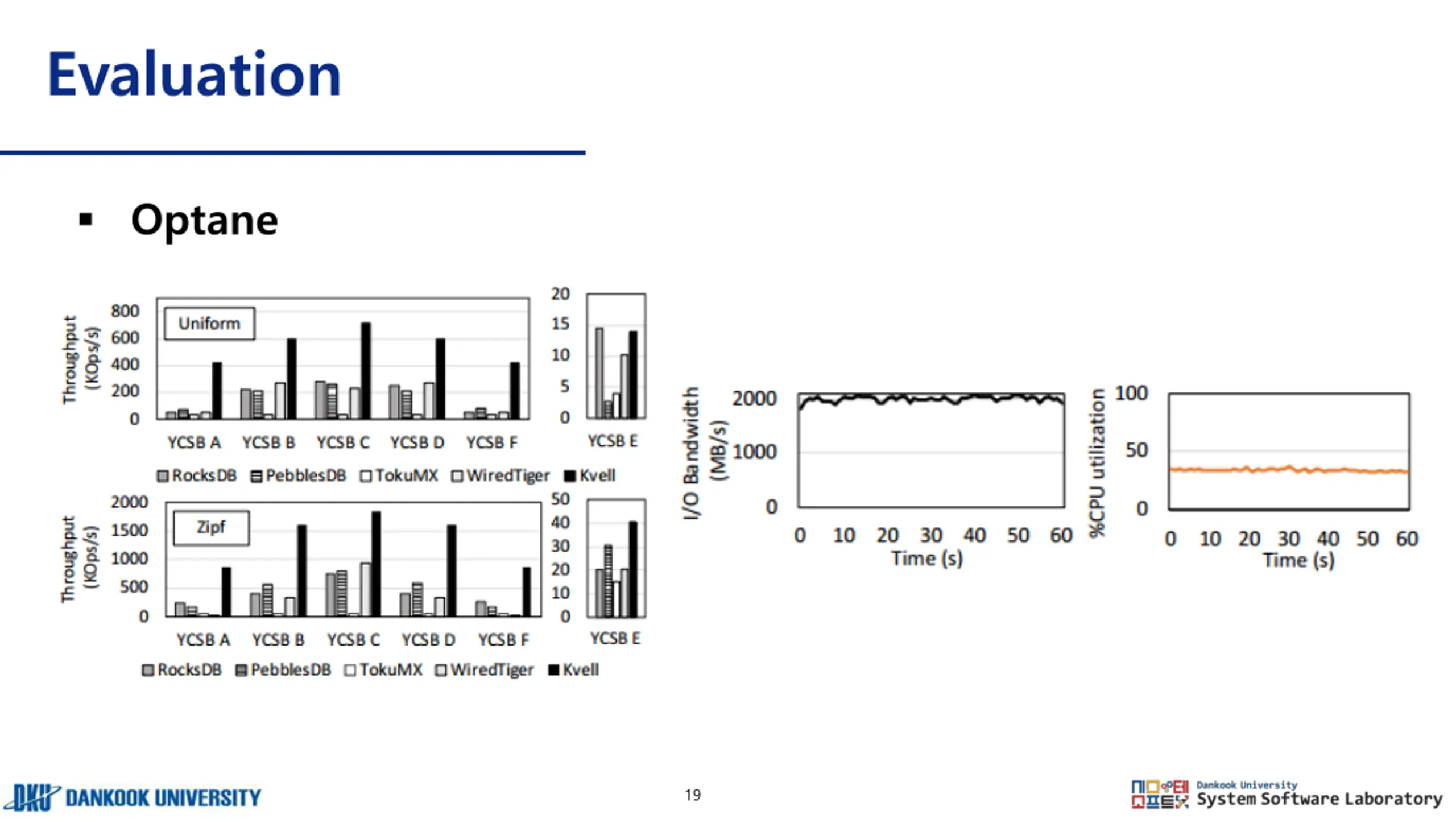

Evaluation Optane 19

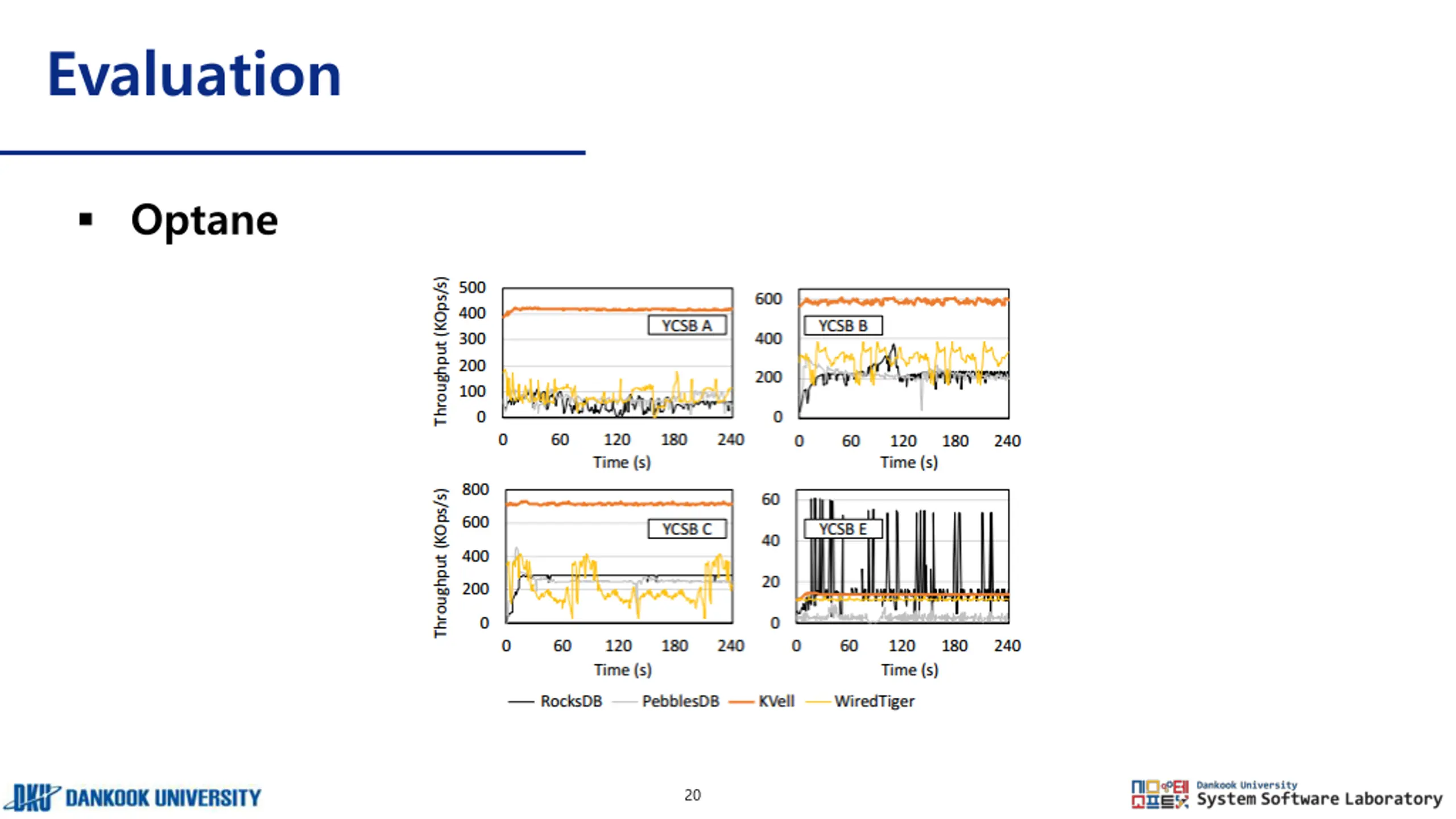

Evaluation Optane 20

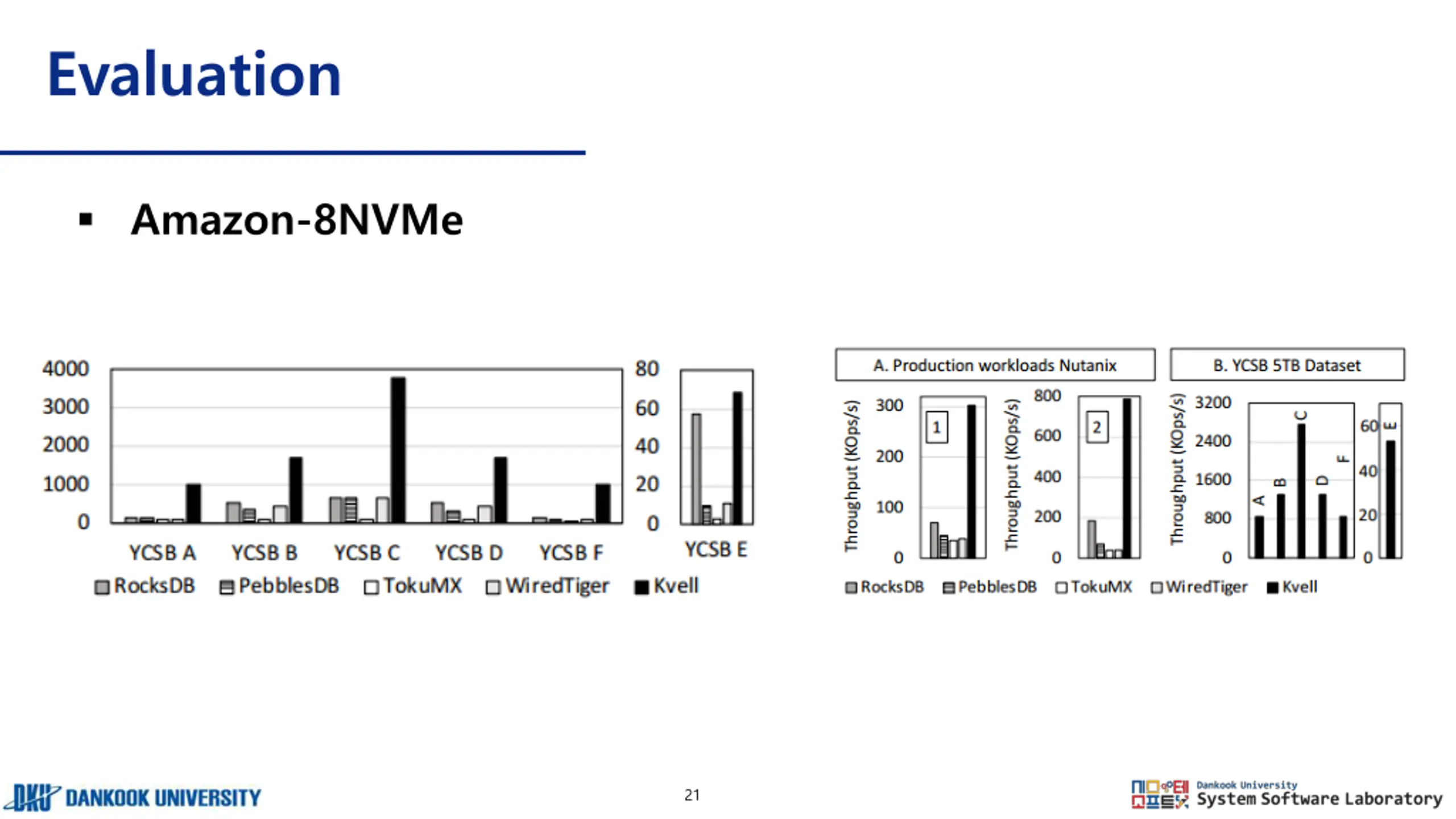

Evaluation Amazon-8NVMe 21

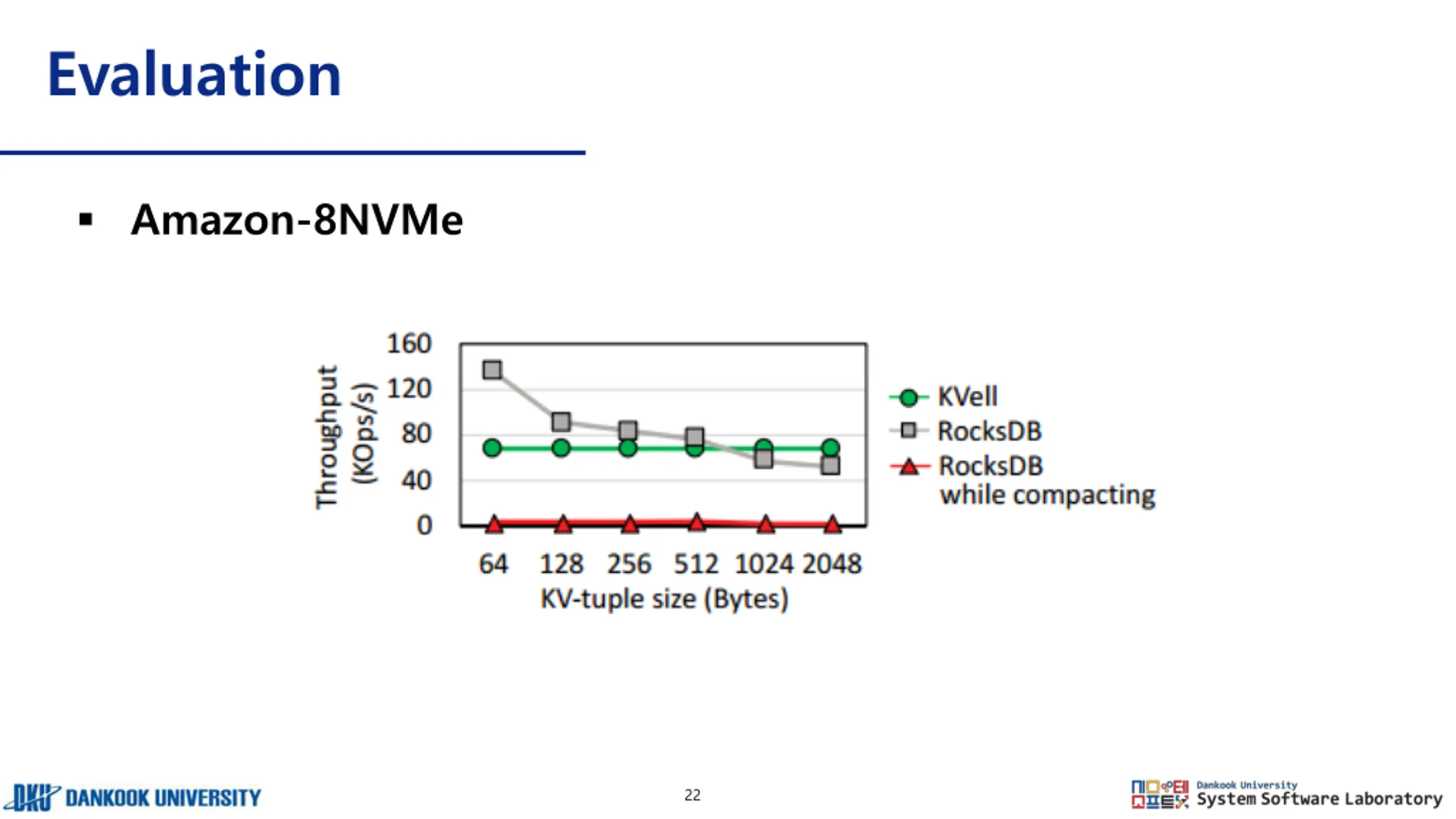

Evaluation Amazon-8NVMe 22

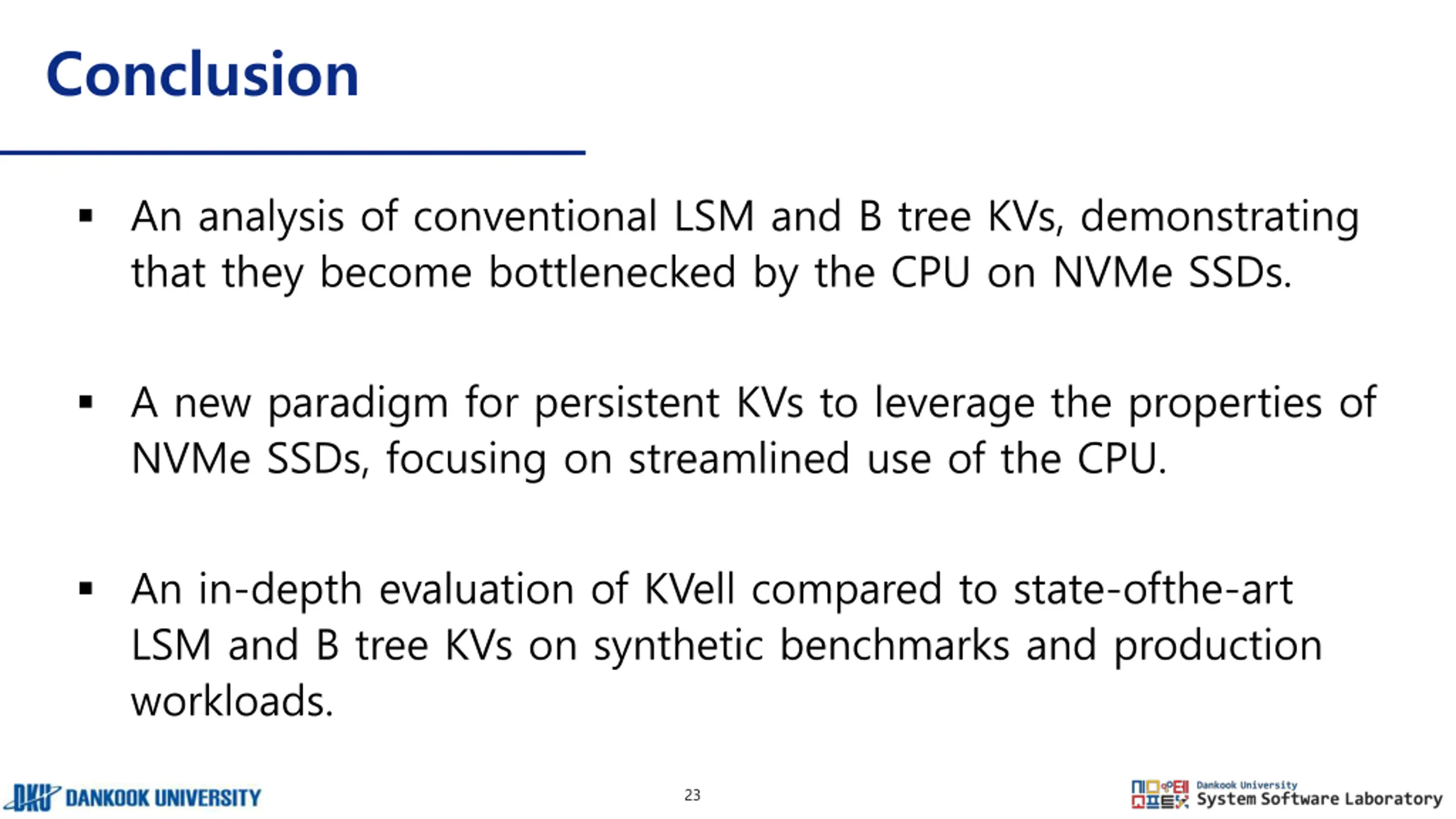

Conclusion An analysis of conventional LSM and B tree KVs, demonstrating that they become bottlenecked by the CPU on NVMe SSDs. A new paradigm for persistent KVs to leverage the properties of NVMe SSDs, focusing on streamlined use of the CPU. An in-depth evaluation of KVell compared to state-ofthe-art LSM and B tree KVs on synthetic benchmarks and production workloads. 23
Q&A Q&A 24
