FastCS A framework for building device support in Python for EPICS, Tango and more Gary Yendell

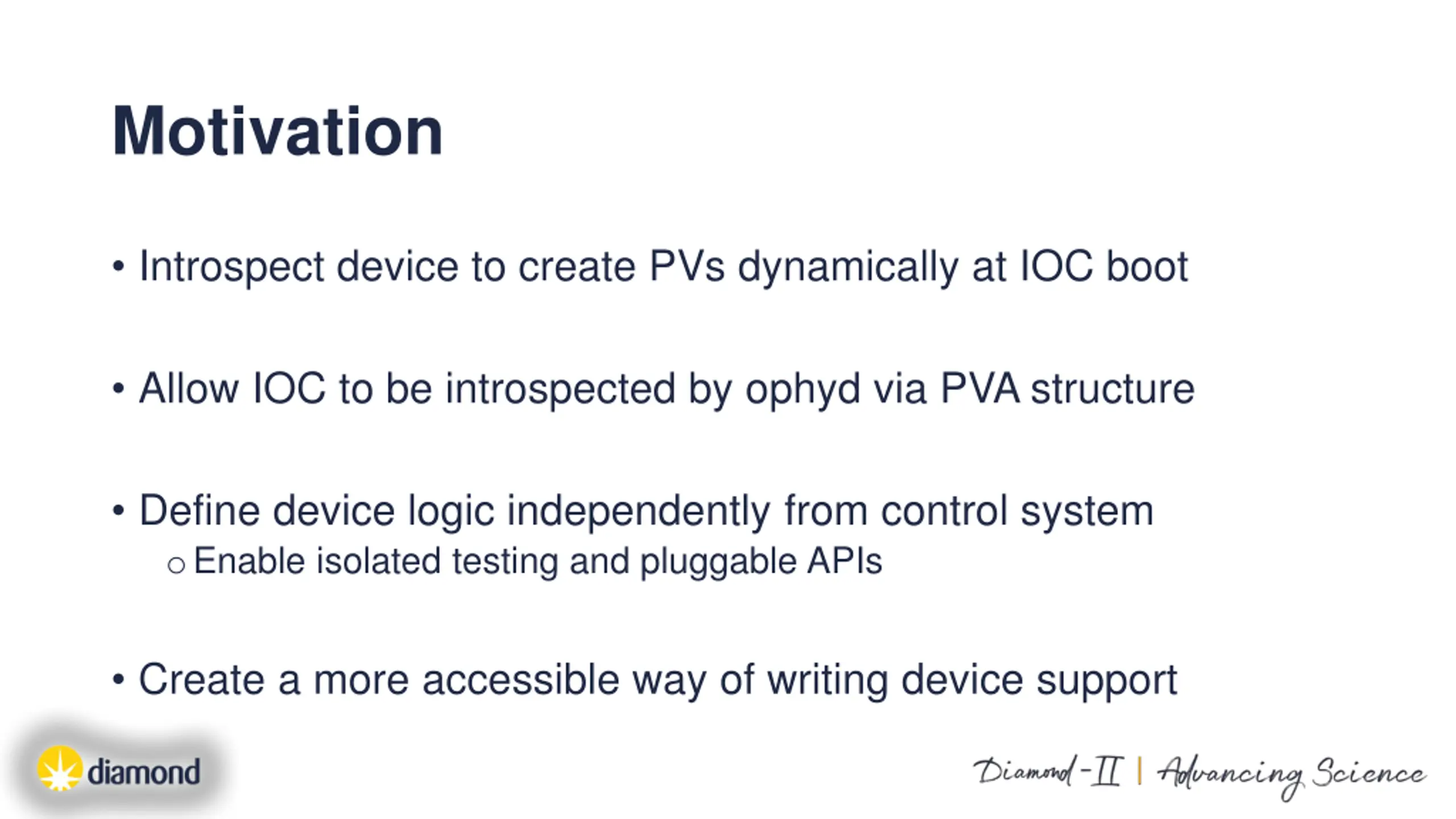

Motivation Introspect device to create PVs dynamically at IOC boot Allow IOC to be introspected by ophyd via PVA structure Define device logic independently from control system oEnable isolated testing and pluggable APIs Create a more accessible way of writing device support

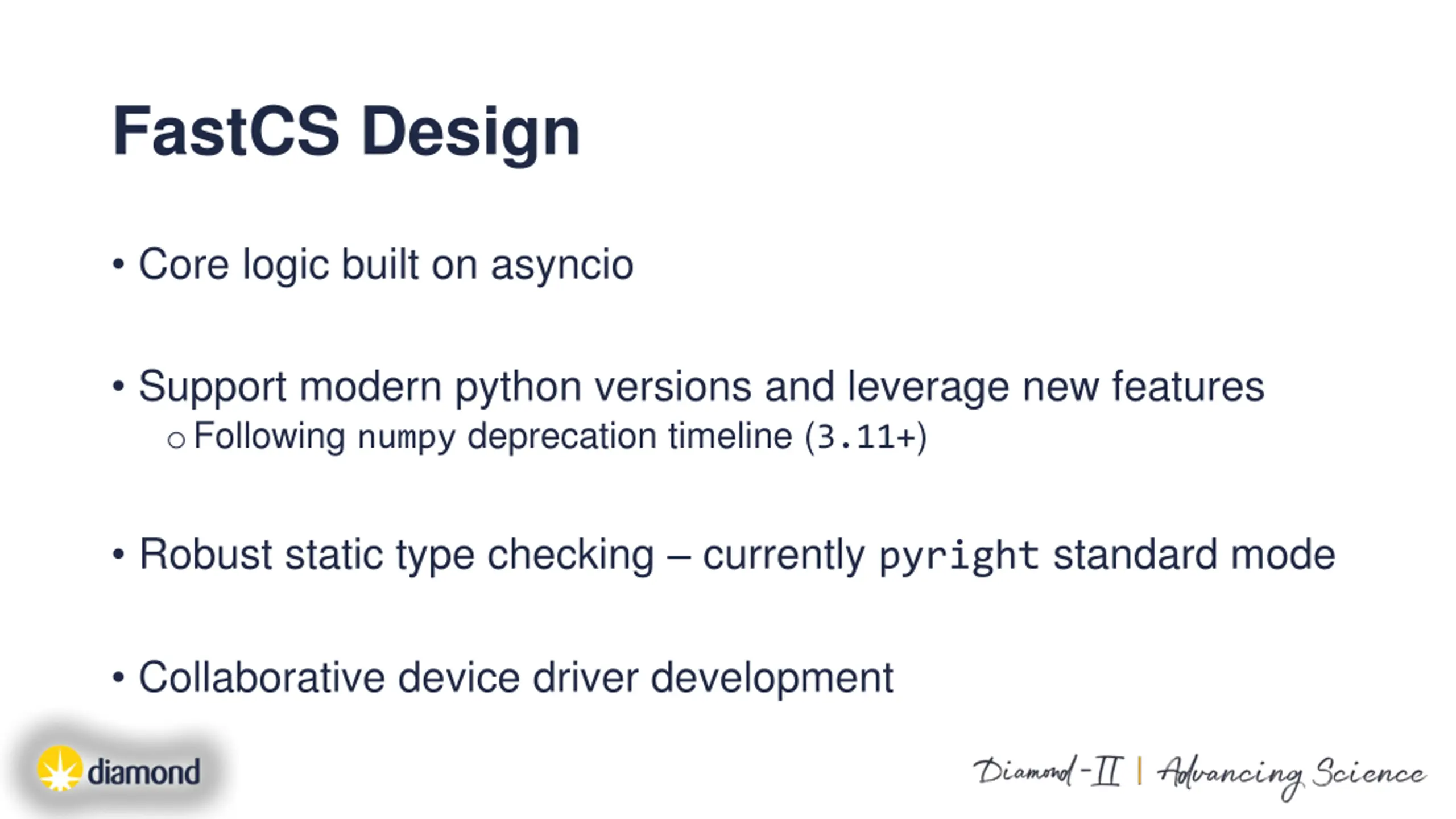

FastCS Design Core logic built on asyncio Support modern python versions and leverage new features oFollowing numpy deprecation timeline (3.11+) Robust static type checking currently pyright standard mode Collaborative device driver development

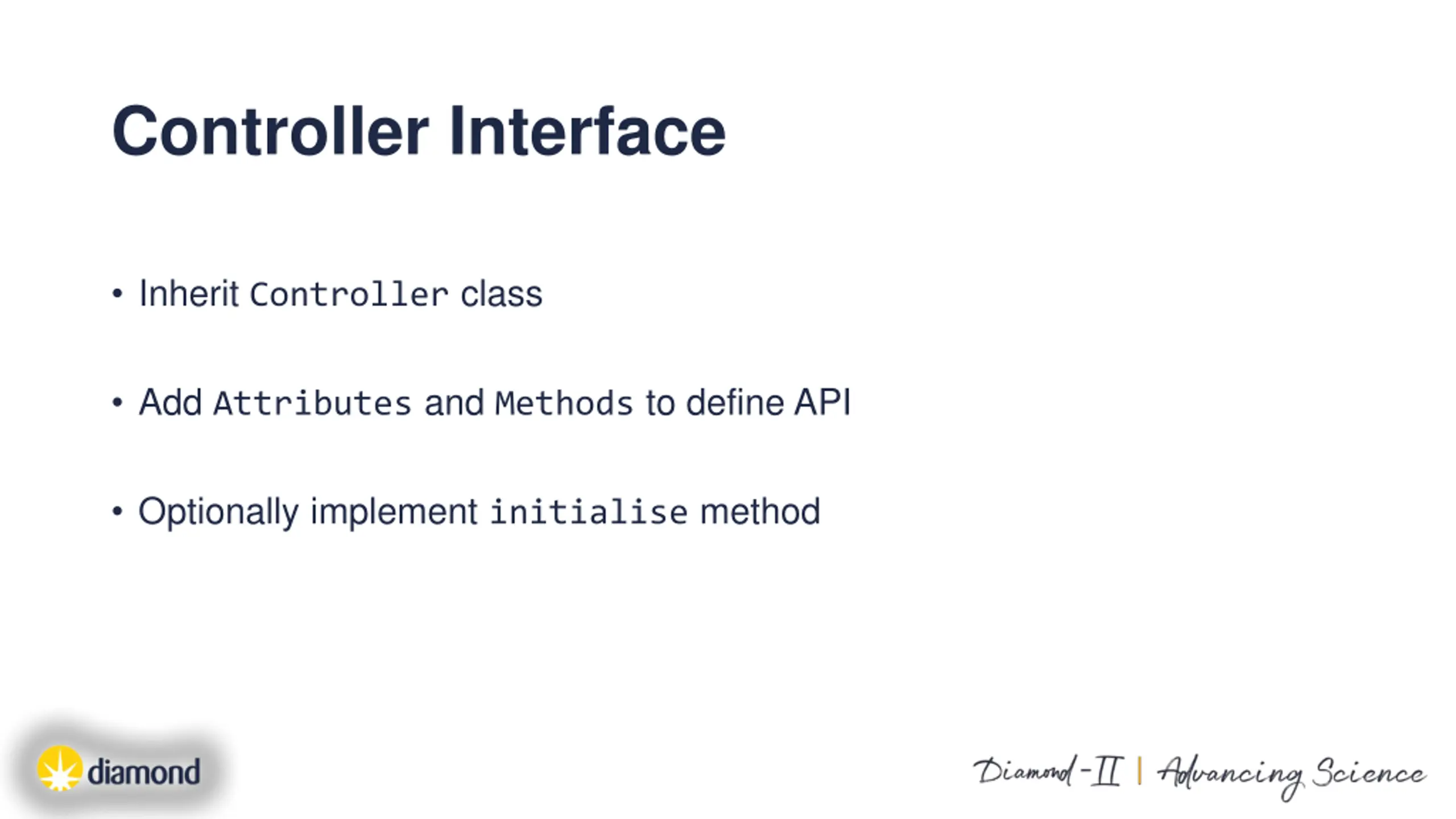

Controller Interface Inherit Controller class Add Attributes and Methods to define API Optionally implement initialise method

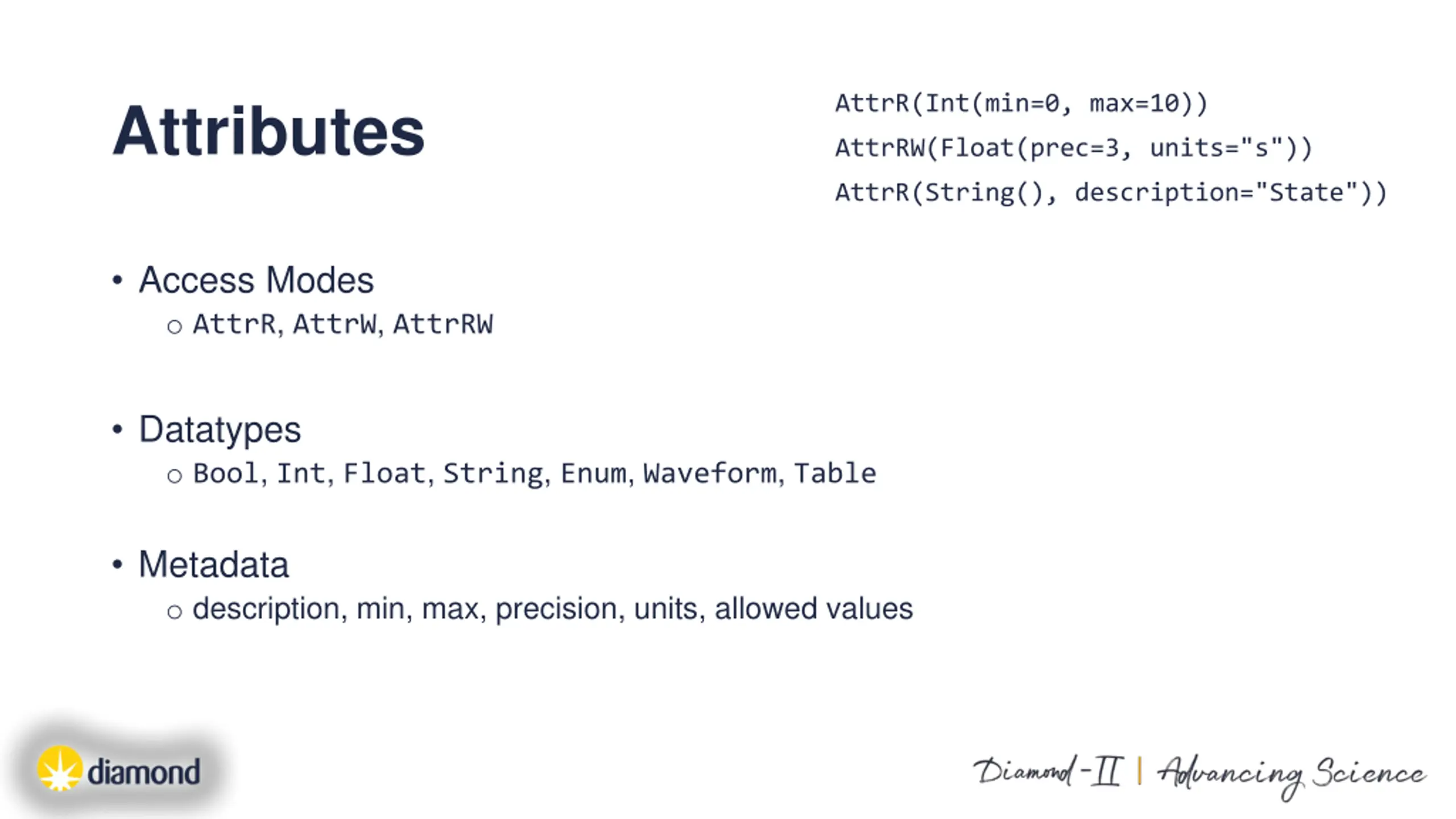

Attributes AttrR(Int(min=0, max=10)) AttrRW(Float(prec=3, units="s")) AttrR(String(), description="State")) Access Modes o AttrR, AttrW, AttrRW Datatypes o Bool, Int, Float, String, Enum, Waveform, Table Metadata o description, min, max, precision, units, allowed values

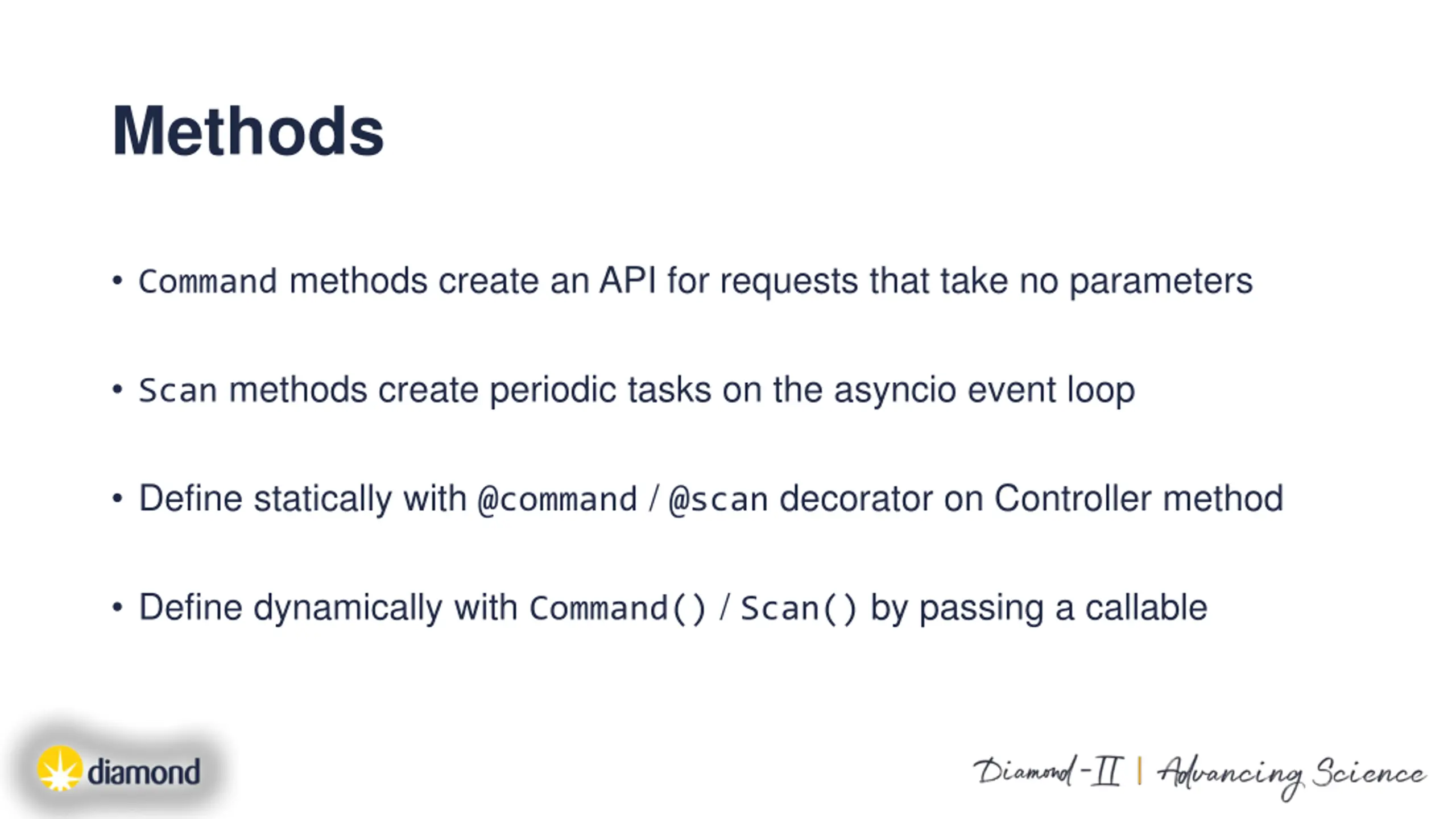

Methods Command methods create an API for requests that take no parameters Scan methods create periodic tasks on the asyncio event loop Define statically with @command / @scan decorator on Controller method Define dynamically with Command() / Scan() by passing a callable

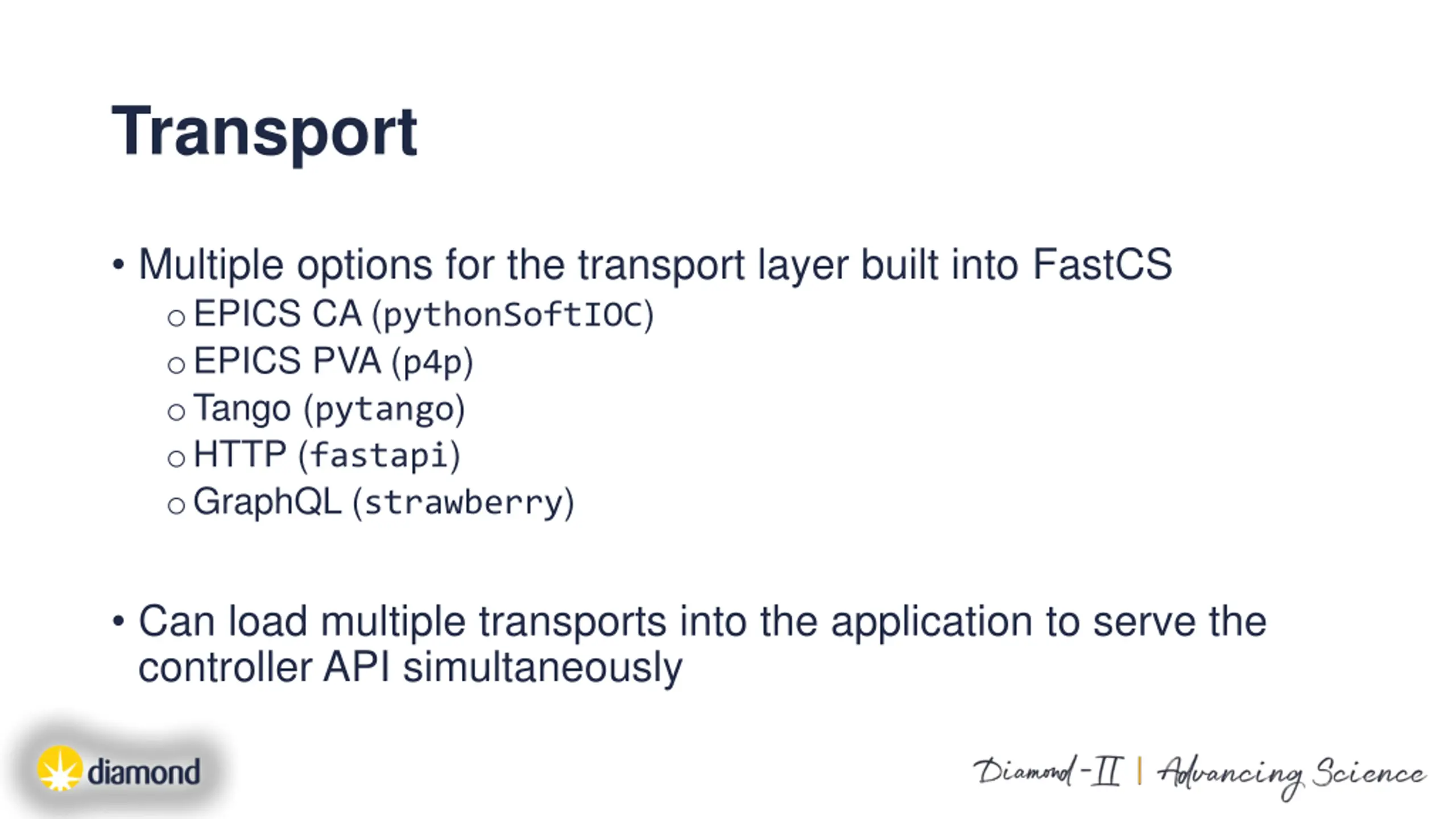

Transport Multiple options for the transport layer built into FastCS oEPICS CA (pythonSoftIOC) oEPICS PVA (p4p) oTango (pytango) oHTTP (fastapi) oGraphQL (strawberry) Can load multiple transports into the application to serve the controller API simultaneously

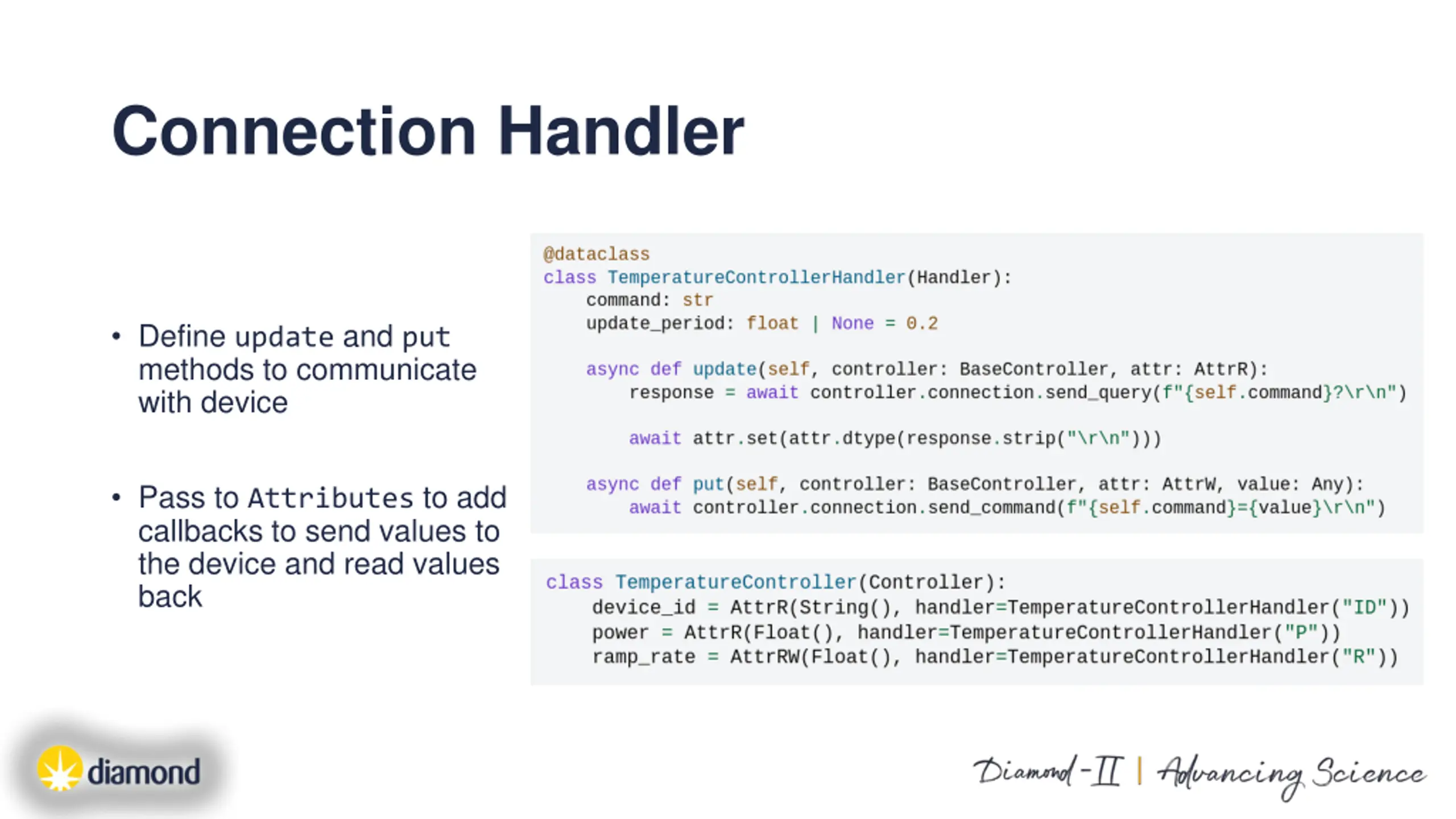

Connection Handler Define update and put methods to communicate with device Pass to Attributes to add callbacks to send values to the device and read values back

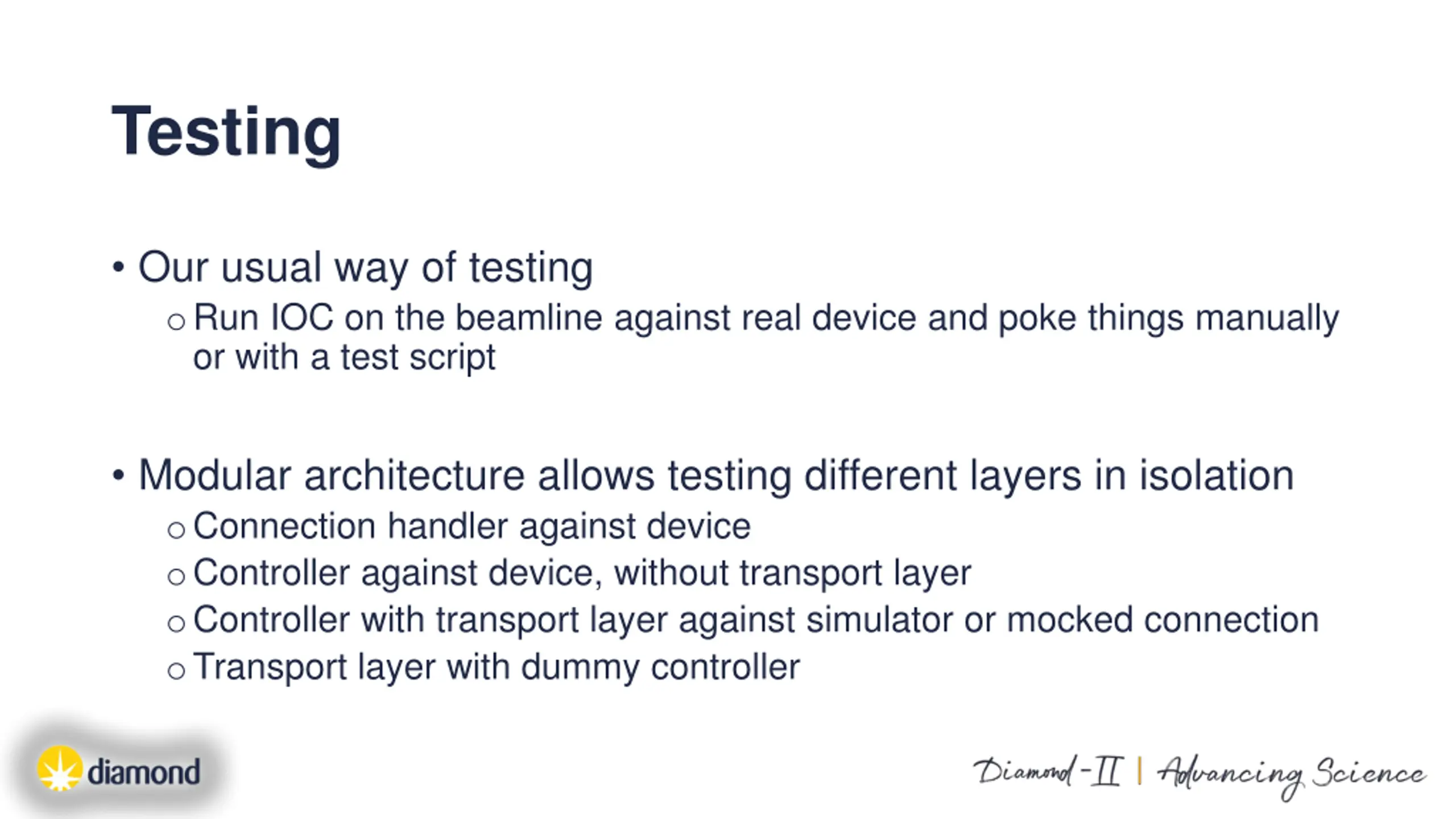

Testing Our usual way of testing oRun IOC on the beamline against real device and poke things manually or with a test script Modular architecture allows testing different layers in isolation oConnection handler against device oController against device, without transport layer oController with transport layer against simulator or mocked connection oTransport layer with dummy controller

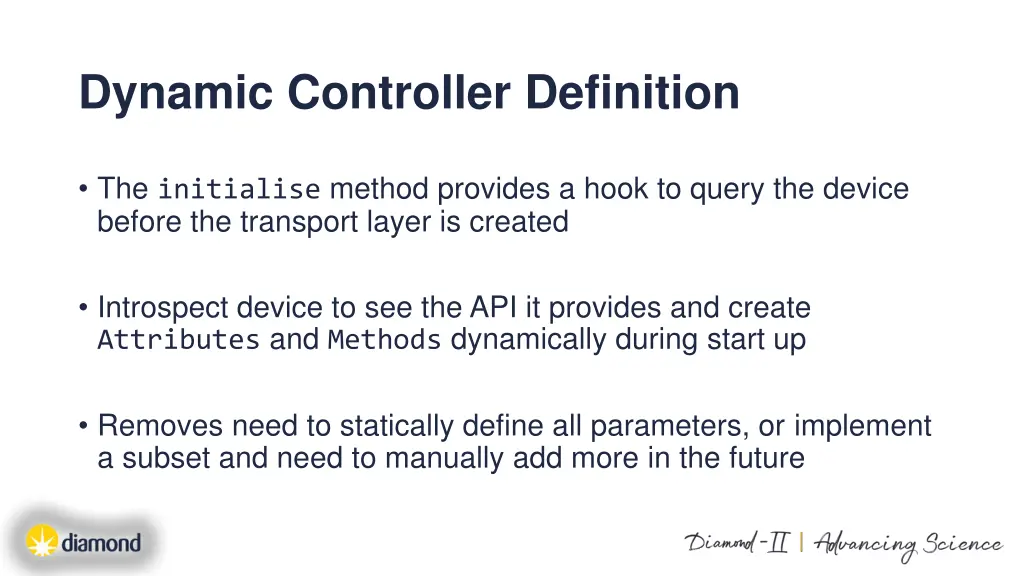

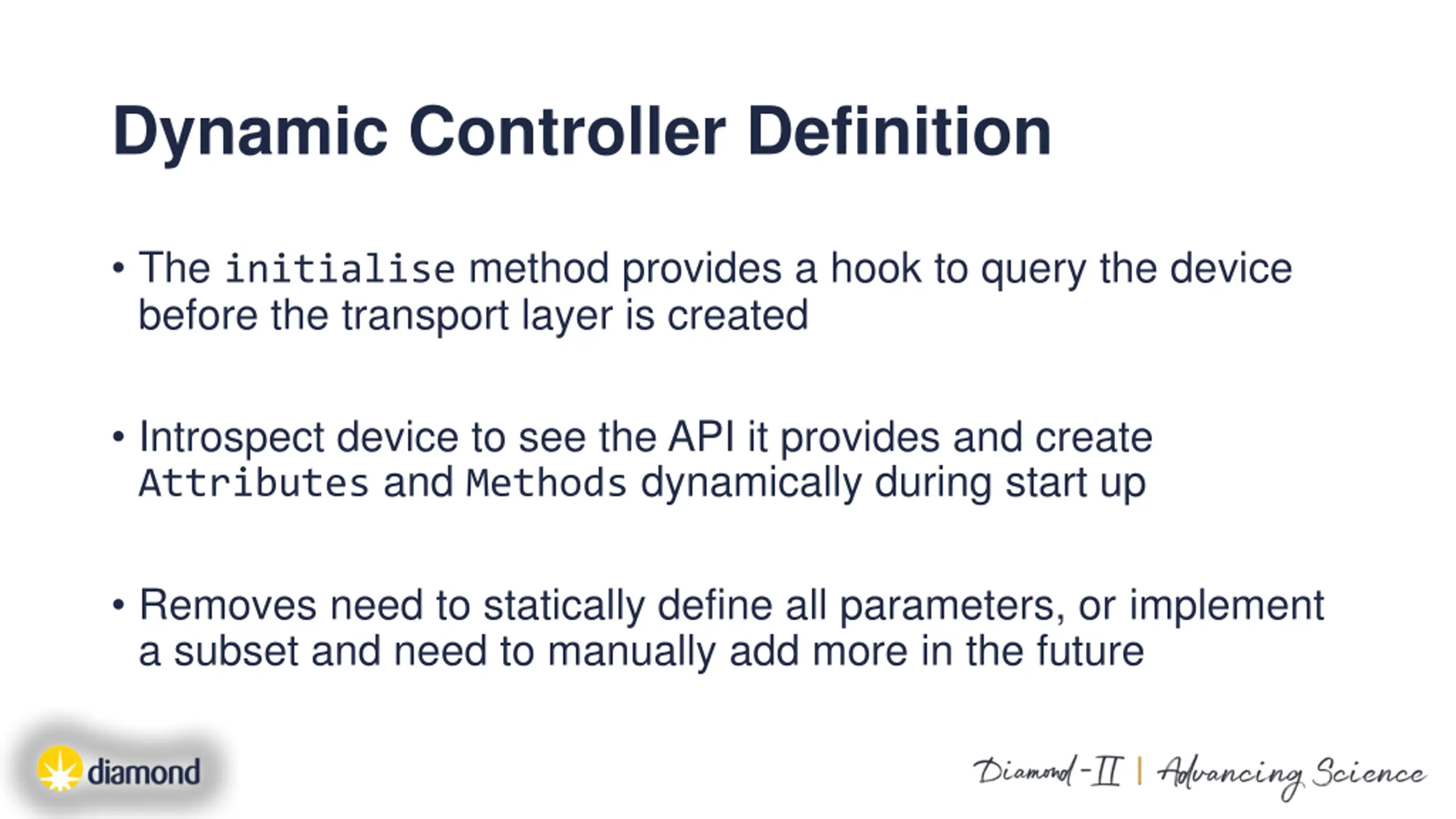

Dynamic Controller Definition The initialise method provides a hook to query the device before the transport layer is created Introspect device to see the API it provides and create Attributes and Methods dynamically during start up Removes need to statically define all parameters, or implement a subset and need to manually add more in the future

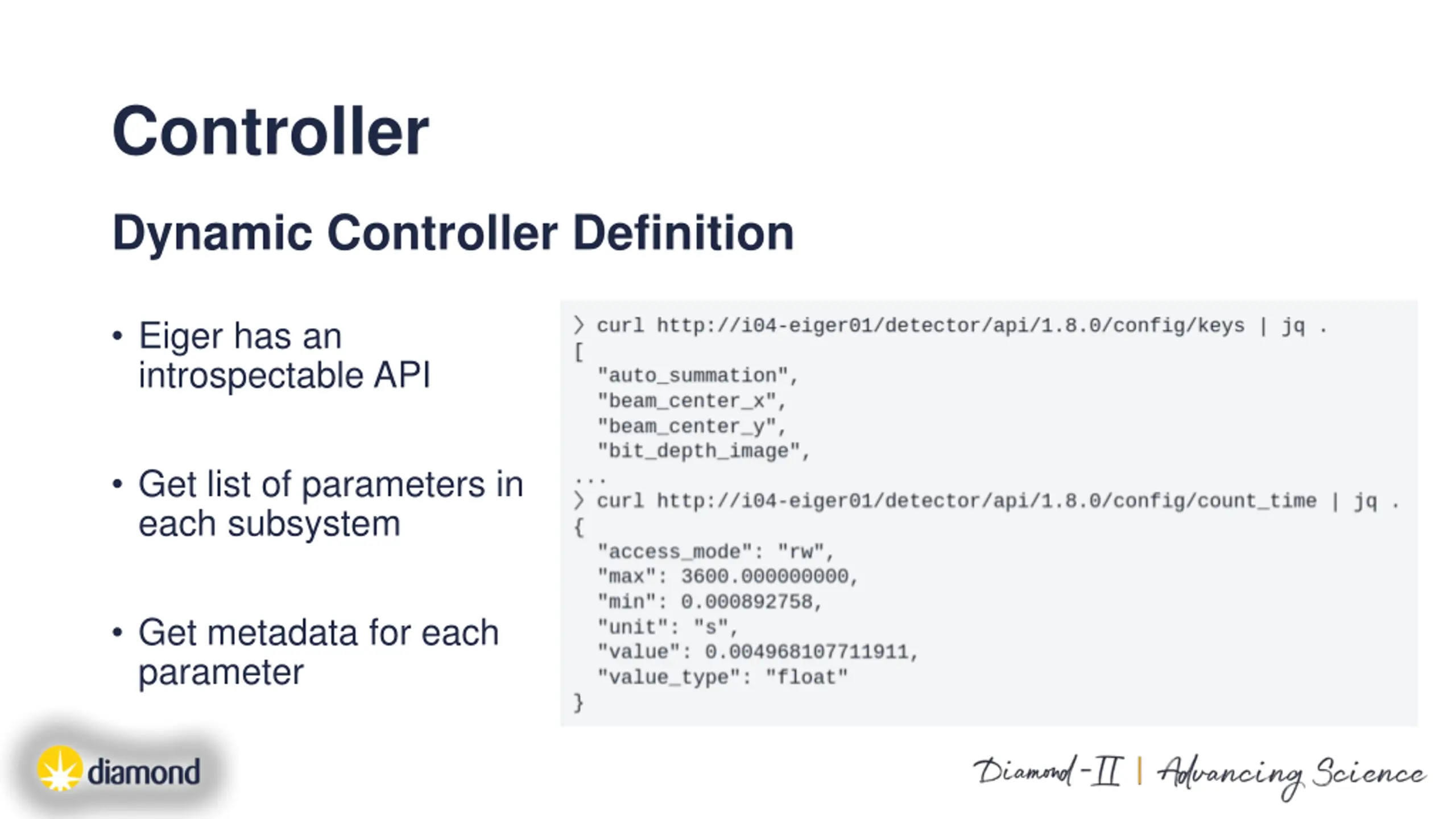

Controller Dynamic Controller Definition Eiger has an introspectable API Get list of parameters in each subsystem Get metadata for each parameter

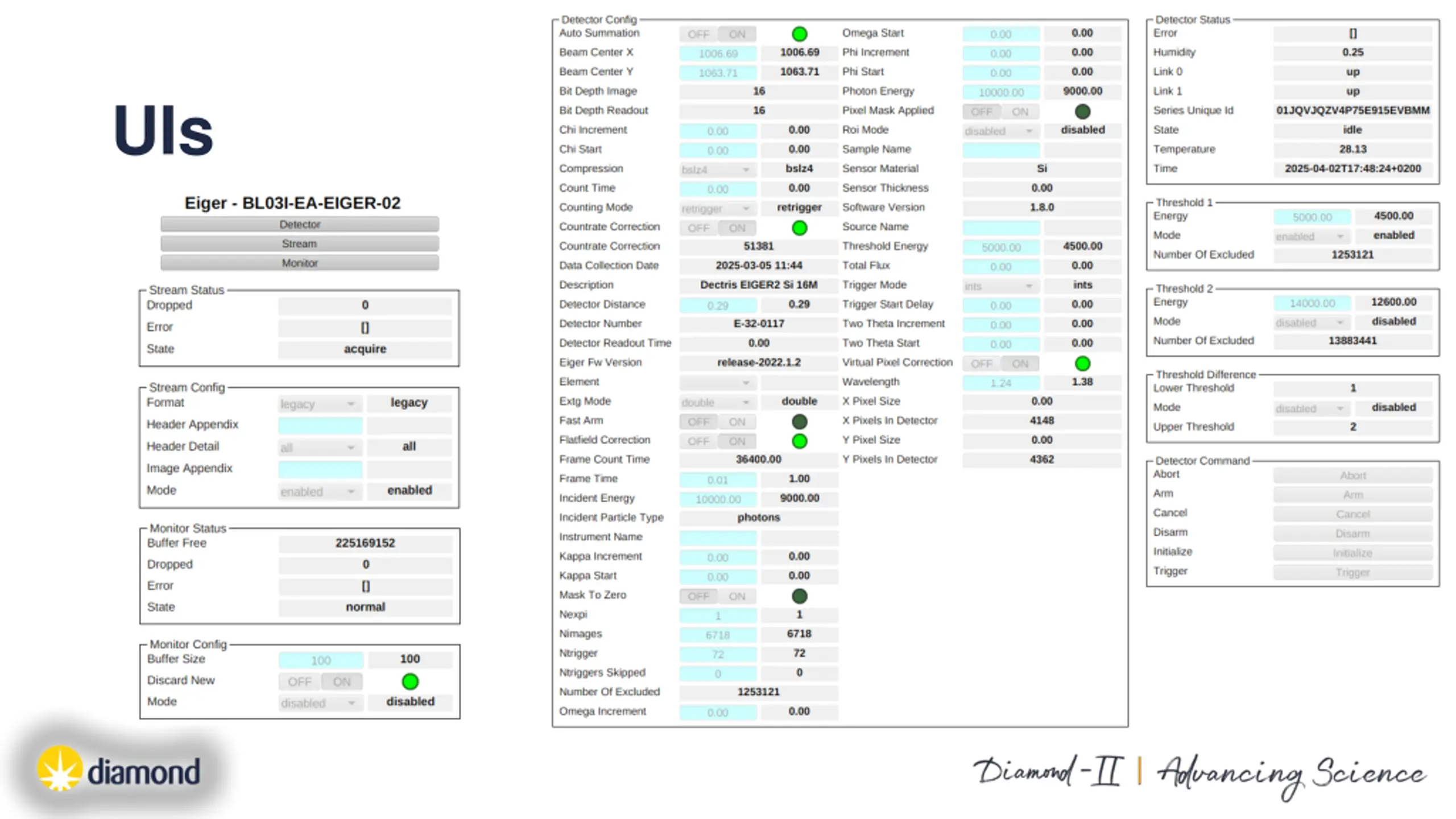

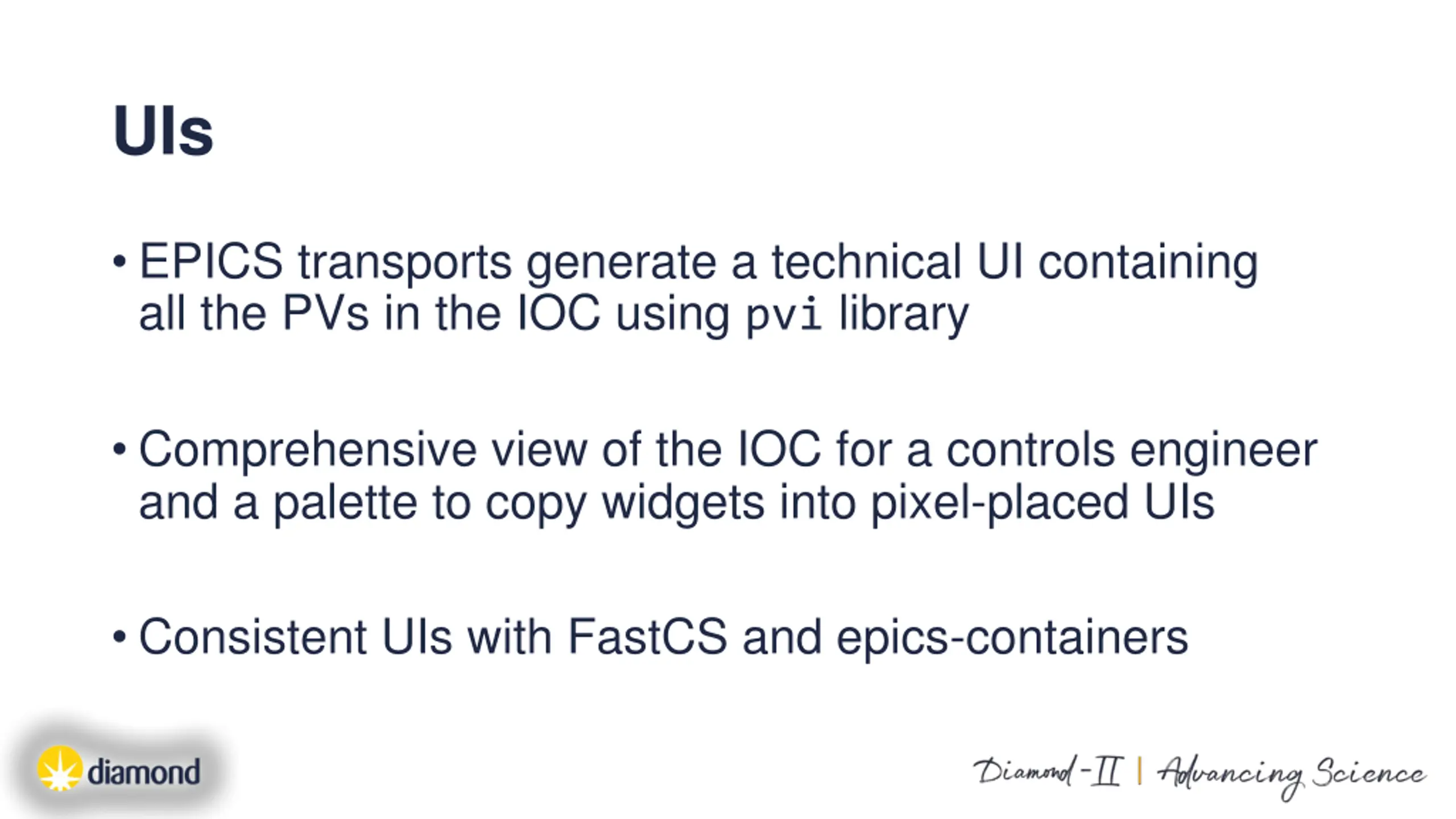

UIs EPICS transports generate a technical UI containing all the PVs in the IOC using pvi library Comprehensive view of the IOC for a controls engineer and a palette to copy widgets into pixel-placed UIs Consistent UIs with FastCS and epics-containers

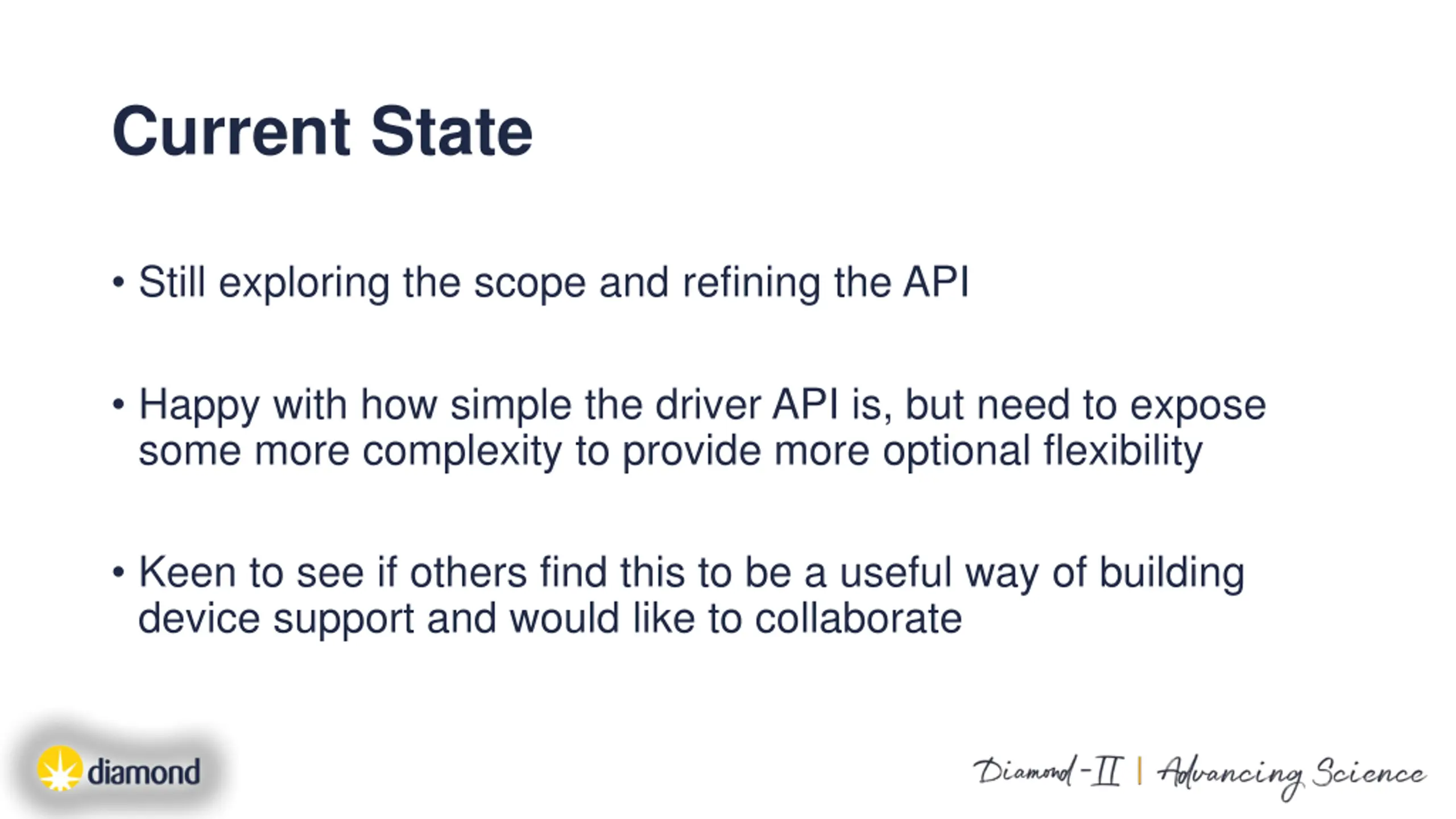

Current State Still exploring the scope and refining the API Happy with how simple the driver API is, but need to expose some more complexity to provide more optional flexibility Keen to see if others find this to be a useful way of building device support and would like to collaborate

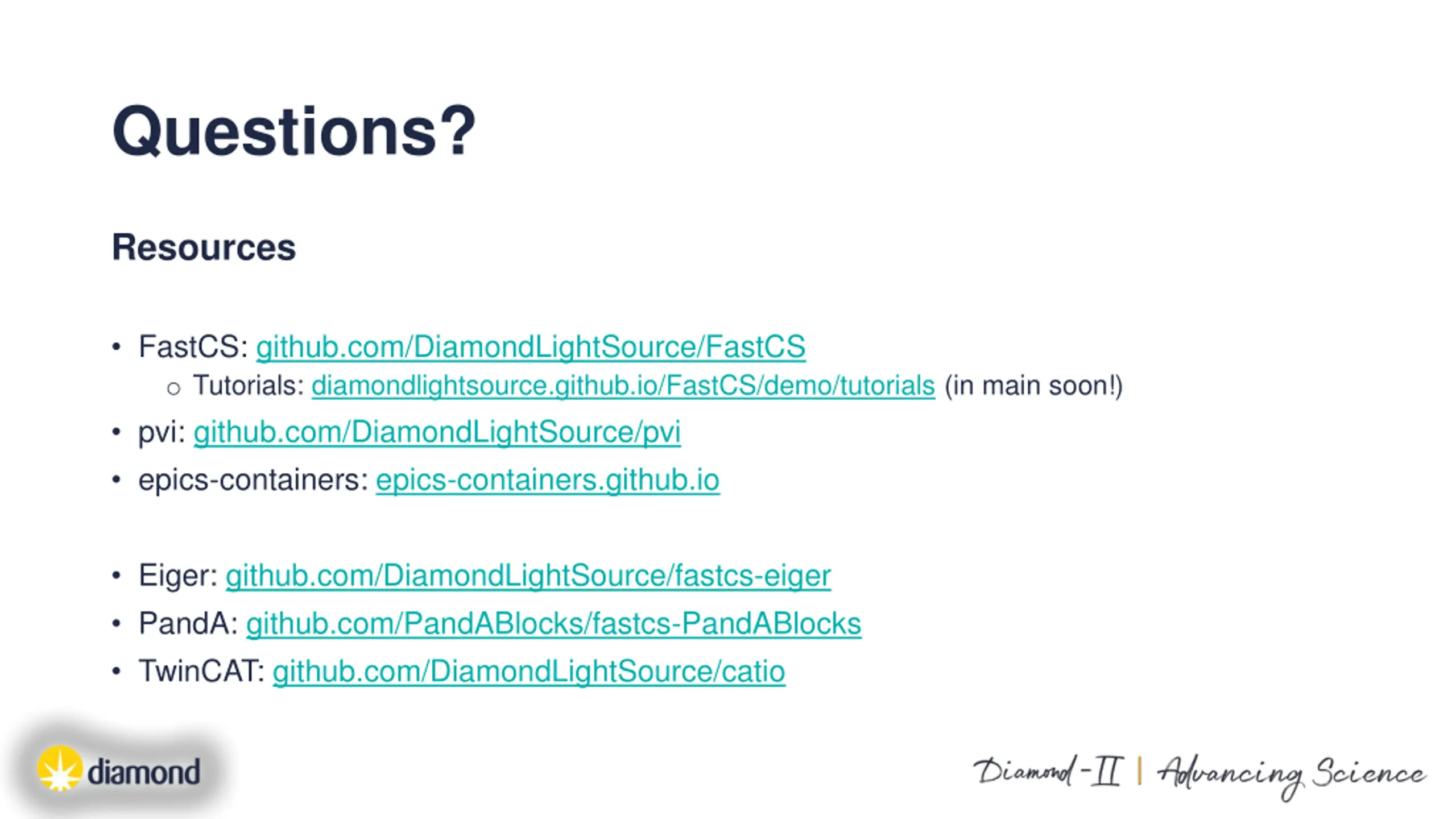

Questions? Resources FastCS: github.com/DiamondLightSource/FastCS o Tutorials: diamondlightsource.github.io/FastCS/demo/tutorials (in main soon!) pvi: github.com/DiamondLightSource/pvi epics-containers: epics-containers.github.io Eiger: github.com/DiamondLightSource/fastcs-eiger PandA: github.com/PandABlocks/fastcs-PandABlocks TwinCAT: github.com/DiamondLightSource/catio
